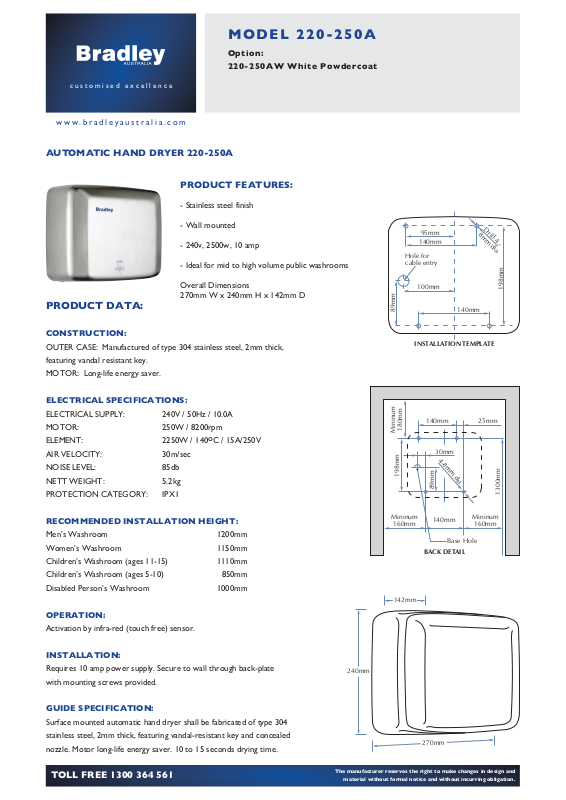

Bradley 220-250A Datasheet

customised excellence

www.bradleyaustralia.com

AUTOMATIC HAND DRYER 220-250A

PRODUCT FEATURES:

- Stainless steel finish

MODEL 220-250A

Option:

220-250AW White Powdercoat

- Wall mounted

- 240v, 2500w, 10 amp

- Ideal for mid to high volume public washrooms

Overall Dimensions
270mm W x 240mm H x 142mm D

PRODUCT DATA:

CONSTRUCTION:

OUTER CASE: Manufactured of type 304 stainless steel, 2mm thick,

featuring vandal resistant key.

MOTOR: Long-life energy saver.

ELECTRICAL SPECIFICATIONS:

ELECTRICAL SUPPLY: 240V / 50Hz / 10.0A

MOTOR: 250W / 8200rpm

ELEMENT: 2250W / 140oC / 15A/250V

AIR VELOCITY: 30m/sec

NOISE LEVEL: 85db

NETT WEIGHT: 5.2kg

PROTECTION CATEGORY: IPX1

95mm

140mm

Hole for
cable entry

100mm

89mm

INSTALLATION TEMPLATE

140mm 25mm

180mm

Mininum

30mm

4-8mm dia

198mm

89mm

140mm

Drill 4 -

8mm dia

198mm

1300mm

RECOMMENDED INSTALLATION HEIGHT:

Men’s Washroom 1200mm

Women’s Washroom 1150mm

Children’s Washroom (ages 11-15) 1110mm

Children’s Washroom (ages 5-10) 850mm

Disabled Person’s Washroom 1000mm

OPERATION:

Activation by infra-red (touch free) sensor.

INSTALLATION:

Requires 10 amp power supply. Secure to wall through back-plate

with mounting screws provided.

GUIDE SPECIFICATION:

Surface mounted automatic hand dryer shall be fabricated of type 304

stainless steel, 2mm thick, featuring vandal-resistant key and concealed

nozzle. Motor long-life energy saver. 10 to 15 seconds drying time.

TOLL FREE 1300 364 561

Mininum

160mm

142mm

240mm

The manufacturer reserves the right to make changes in design and

material without formal notice and without incurring obligation.

140mm

BACK DETAIL

270mm

Base Hole

Mininum

160mm
