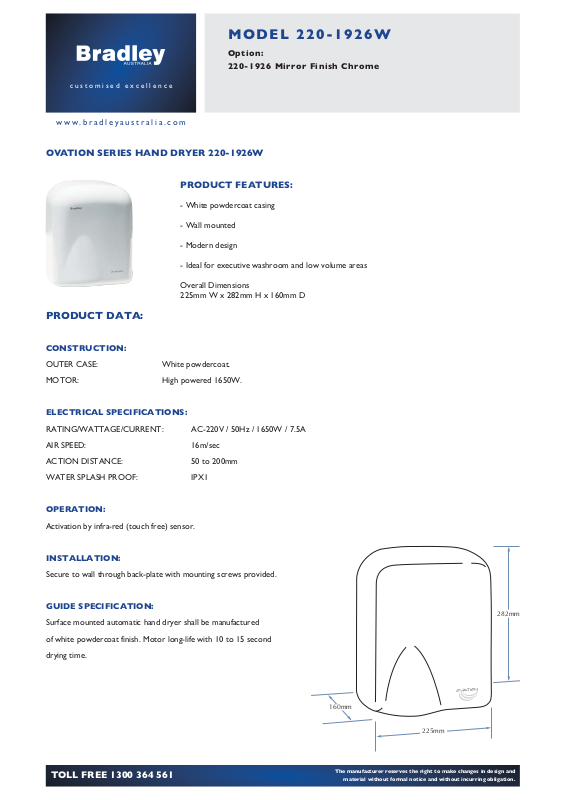

Bradley 220-1926W Datasheet

MODEL 220-1926W

Option:

220-1926 Mirror Finish Chrome

customised excellence

www.bradleyaustralia.com

OVATION SERIES HAND DRYER 220-1926W

PRODUCT FEATURES:

- White powdercoat casing

- Wall mounted

- Modern design

- Ideal for executive washroom and low volume areas

Overall Dimensions
225mm W x 282mm H x 160mm D

PRODUCT DATA:

CONSTRUCTION:

OUTER CASE: White powdercoat.

MOTOR: High powered 1650W.

ELECTRICAL SPECIFICATIONS:

RATING/WATTAGE/CURRENT: AC-220V / 50Hz / 1650W / 7.5A

AIR SPEED: 16m/sec

ACTION DISTANCE: 50 to 200mm

WATER SPLASH PROOF: IPX1

OPERATION:

Activation by infra-red (touch free) sensor.

INSTALLATION:

Secure to wall through back-plate with mounting screws provided.

GUIDE SPECIFICATION:

Surface mounted automatic hand dryer shall be manufactured

of white powdercoat finish. Motor long-life with 10 to 15 second

drying time.

TOLL FREE 1300 364 561

282mm

160mm

225mm

The manufacturer reserves the right to make changes in design and

material without formal notice and without incurring obligation.
