www.paladinattachments.com

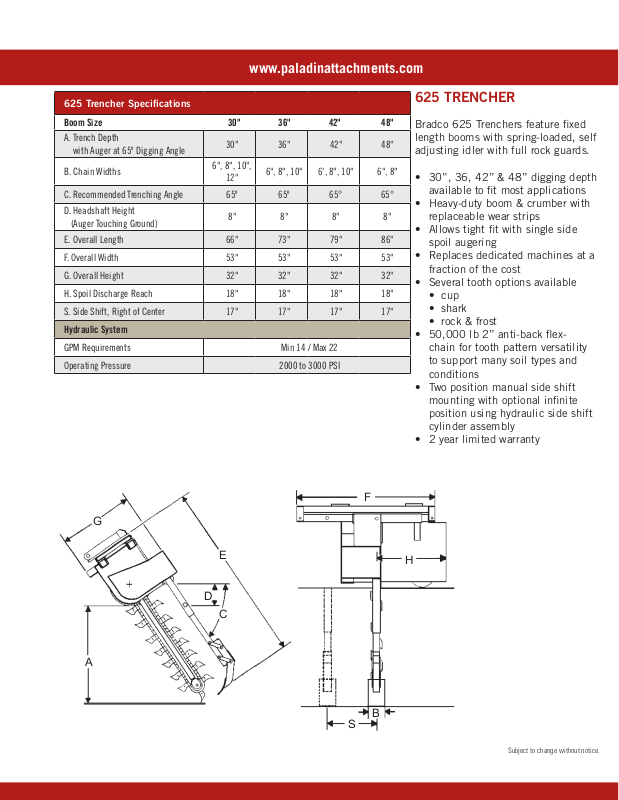

625 Trencher Specifications
Boom Size 30" 36" 42" 48"
A. Trench Depth
with Auger at 65º Digging Angle
B. Chain Widths
C. Recommended Trenching Angle 65º 65º 65° 65°
D. Headshaft Height
(Auger Touching Ground)
E. Overall Length 66" 73" 79" 86"
F. Overall Width 53" 53" 53" 53"
G. Overall Height 32" 32" 32" 32"
H. Spoil Discharge Reach 18" 18" 18" 18"
S. Side Shift, Right of Center 17" 17" 17" 17"
Hydraulic System
GPM Requirements Min 14 / Max 22
Operating Pressure 2000 to 3000 PSI
30" 36" 42" 48"
6", 8", 10",
12"
8" 8" 8" 8"
6", 8", 10" 6', 8", 10" 6", 8"
625 TRENCHER
Bradco 625 Trenchers feature fixed
length booms with spring-loaded, self
adjusting idler with full rock guards.
• 30”, 36, 42” & 48” digging depth
available to fit most applications
• Heavy-duty boom & crumber with
replaceable wear strips
• Allows tight fit with single side
spoil augering
• Replaces dedicated machines at a
fraction of the cost
• Several tooth options available
• cup
• shark
• rock & frost
• 50,000 lb 2” anti-back flexchain for tooth pattern versatility
to support many soil types and
conditions
• Two position manual side shift
mounting with optional infinite
position using hydraulic side shift
cylinder assembly
• 2 year limited warranty
F
G
E
H
D
C
A
B
S
Subject to change without notice.
