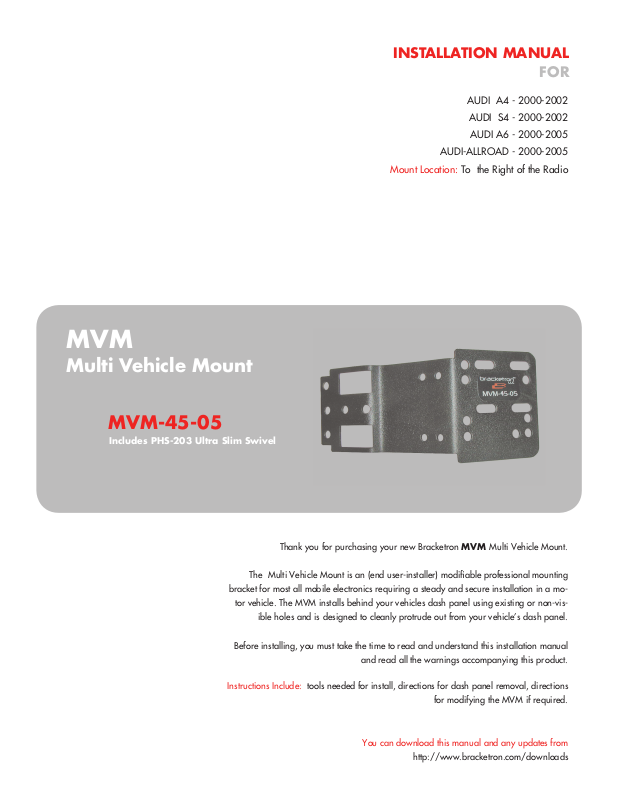

Page 1

MVM

INSTALLATION MANUAL

FOR

AUDI A4 - 2000-2002

AUDI S4 - 2000-2002

AUDI A6 - 2000-2005

AUDI-ALLROAD - 2000-2005

Mount Location: To the Right of the Radio

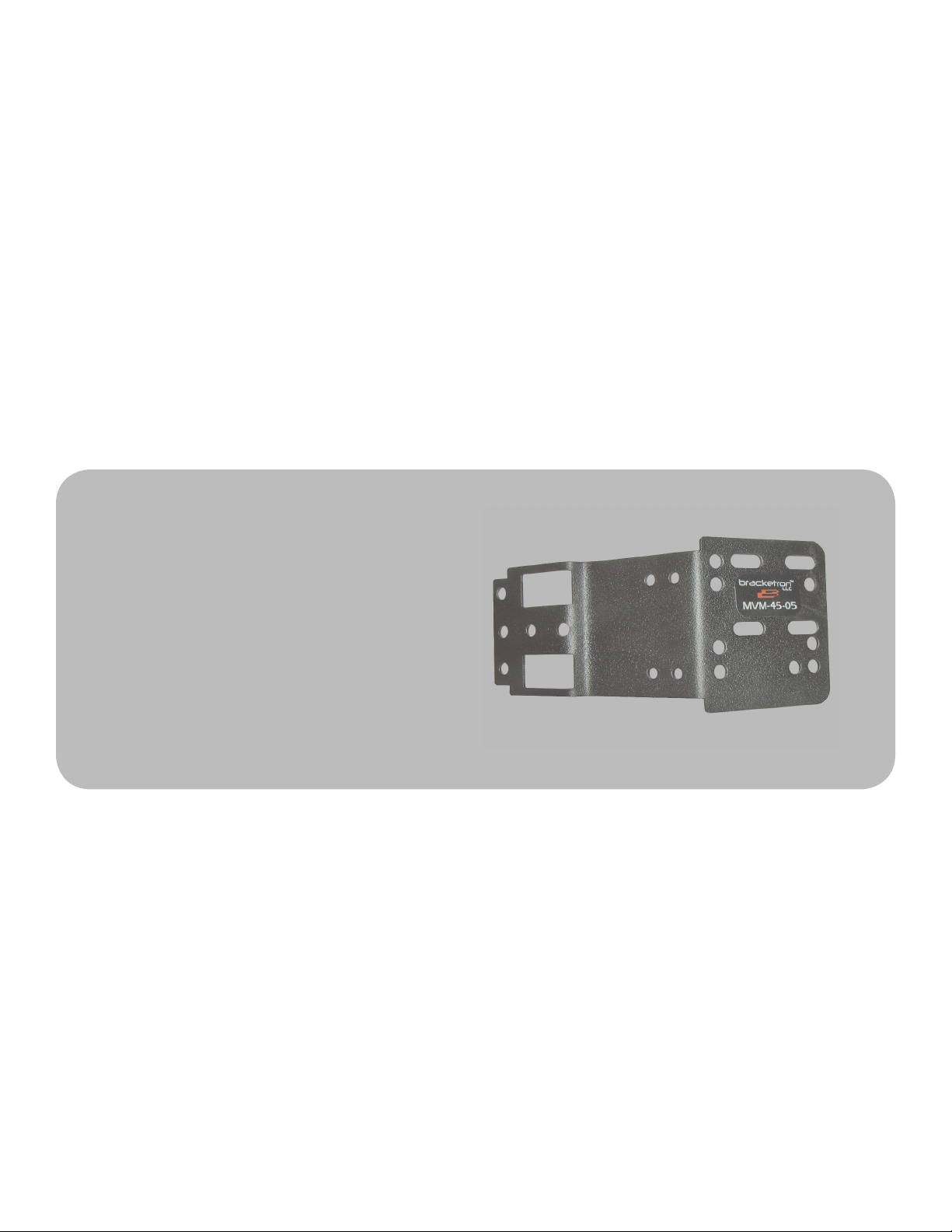

Multi Vehicle Mount

MVM-45-05

Includes PHS-203 Ultra Slim Swivel

bracket for most all mobile electronics requiring a steady and secure installation in a mo-

tor vehicle. The MVM installs behind your vehicles dash panel using existing or non-vis-

Before installing, you must take the time to read and understand this installation manual

Thank you for purchasing your new Bracketron MVM Multi Vehicle Mount.

The Multi Vehicle Mount is an (end user-installer) modiﬁ able professional mounting

ible holes and is designed to cleanly protrude out from your vehicle’s dash panel.

and read all the warnings accompanying this product.

Instructions Include: tools needed for install, directions for dash panel removal, directions

for modifying the MVM if required.

You can download this manual and any updates from

http://www.bracketron.com/downloads

Page 2

IMPORTANT INFORMATION

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

IMPORTANT INFORMATION

Please read instructions completely before installing this Bracketron MVM Mount. All instructions are written from the drivers seat vantage point looking forward at the vehicles dash. We advise caution whenever you are removing or handling plastic parts of a vehicles dash. WARNING: Unnecessary force or pressure can cause pieces to crack or break.

PARTS INCLUDED: MVM-45-05 Mount, 3 - #8x3/4” Self Tapping Screws, 2 - M4x8 Phillips Pan Head Screws, 2 - M4 Nylon Stop Nuts, PHS-203 Ultra Slim Swivel and Mounting Hardware.

Page 1

MVM Instructions |

TOOLS NEEDED FOR DASH PANEL DISASSEMBLY

Dash Trim Tool (Part #SIT-104) Two Sets of Audi Radio Removal Tools (Part #SIT-102) 5/16” Socket and Drive

9/32” Open End Wrench (for swivel) Marking Pen

TOOLS NEEDED FOR MVM MODIFICATION (if required)

4 inch Mounted Bench Vise 12 oz. Ball Pein Hammer Standard Tin Snips Standard Hacksaw Small File

Note: The hole pattern on the face of the MVM maybe

different then what is shown in the pictures.

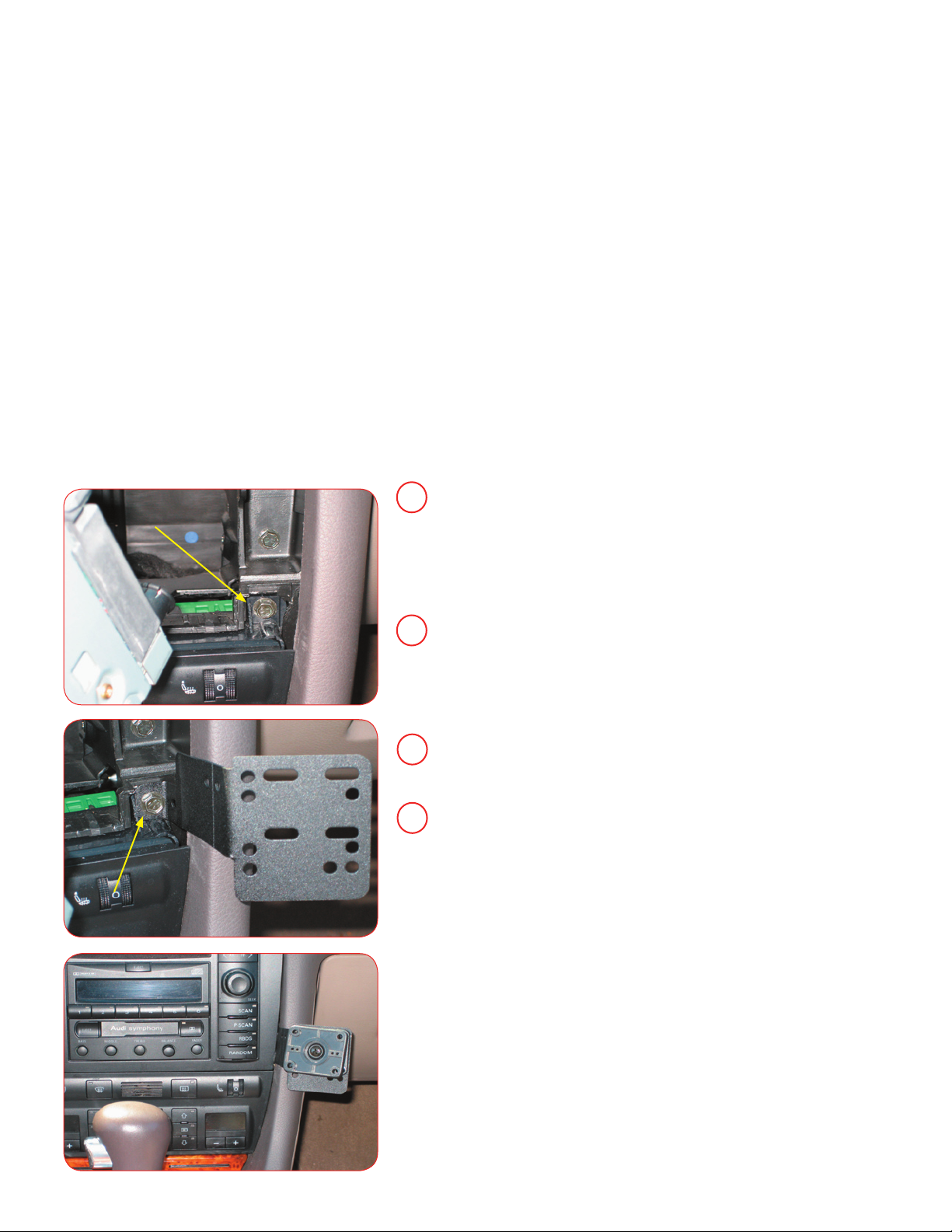

DASH DISASSEMBLY INSTRUCTION

Locate the four slots on the face of the radio. Insert the Audi DIN tools in

Remove Bolt

these four slots until you hear a click or lock. Note: There is a rubber seal that wraps around the radio between the radio and the dash pad. This causes the radio to sit very tightly in the cavity. To loosen this seal and allow the radio to slide out easier, we recommend using a Dash Trim Tool to wedge between both the right and left sides of the radio dash pad. Carefully wiggle the tool to loosen the radio slightly.

Grasp the four DIN tools and slide the radio out of its cavity just enough

to allow access to the one (1) 5/16” hex head bolt that holds the climate control in place. radio code to re-program it. Place a clean cloth over the shifter knob. Set the radio on the shifter knob so it is out of the way.

Caution: Do not disconnect the radio. You will need the

Install Mount Here

Skip to Step 5 on the following page if you have not yet formed the

bracket to ﬁt your vehicle.

Remove the top right 5/16” hex head bolt that holds the climate con-

trol in place. Place the mount over the screw hole. Replace the bolt and tighten with the 5/16” socket and driver.

Carefully reinstall the dash in reverse order securing all screws and clips to the bezel. Install the included Ultra Slim Swivel #PHS-203 to your Multi Vehicle Mount or any other AMPs compatible device.

Your installation is complete

Page 3

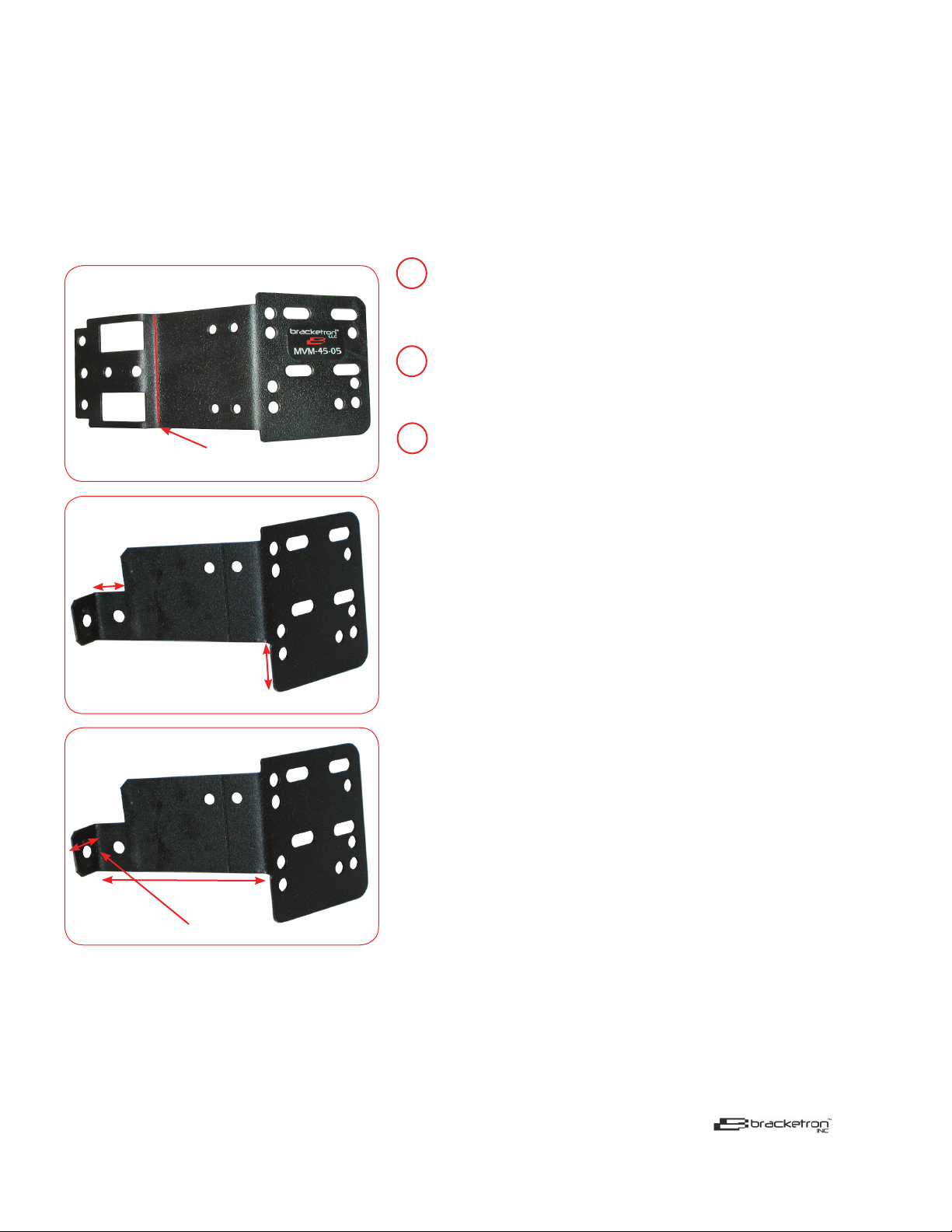

MVM MODIFICATION INSTRUCTIONS

PLEASE NOTE

The Bracketron MVM-45-05 mount is a modiﬁ able mounting bracket. The illustrations on the left show how this mount should look during and after the modiﬁ cation steps in order to ﬁ t the listed vehicles on the front page of this manual.

applications may not require any modiﬁ cations to the mount. If this is the case it will be noted below and there will be no steps to follow on this page.

Start by ﬂ attening the 90 degree bend that is on the MVM. Place the

Picture 1

MVM on a ﬂ at hard surface

. Your Bench Vice should have a hard ﬂ at

spot for this purpose. Use the hammer to pound the bend ﬂ at.

With a Tin Snips, cut the MVM to the shape and dimensions as

shown in picture 2.

Place the MVM in a vice and bend a 90 degree angle on the

Flatten Mount Here with Hammer

mount .5” past the second hole on the back of the mount. Bend it with light ﬁ nger pressure. Finish the 90 degree bend with a hammer to square up the angle.

Picture 2

Go back to Step 4 on page 1 to complete the installation.

Many vehicle

Page 2

MVM Instructions |

.5”

Snip Mount as Shown Above.

Picture 3

.5”

2.5”

Bend Mount 90 Degrees.

Note: The hole pattern on the face of the MVM maybe

different then what is shown in the pictures.

Note: Please see page 3 in this manual for PHS-

203 Ultra Slim Swivel Instructions.

The information in this document is subject to change without notice. Bracketron Inc. assumes no responsibility for any errors that may appear in this document nor do we assume any liability in connection with its use. This supersedes and voids all previous literature. Please contact the sales department for additional information. Bracketron Inc will not be responsible or liable for damage to vehicles in the installation and or removal of this Bracketron Inc mount. Bracketron Inc will not be liable for personal injuries or damage to property resulting from a motor vehicle accident and or improper installation of this Bracketron Inc mount.

Bracketron Inc 5249 West 73rd Street, Suite G, Edina, MN 55439

tel: 952-746-7775 fax: 1-800-660-1784 toll free: 1-866-237-4443

email: [email protected] web: www.bracketron.com

Page 4

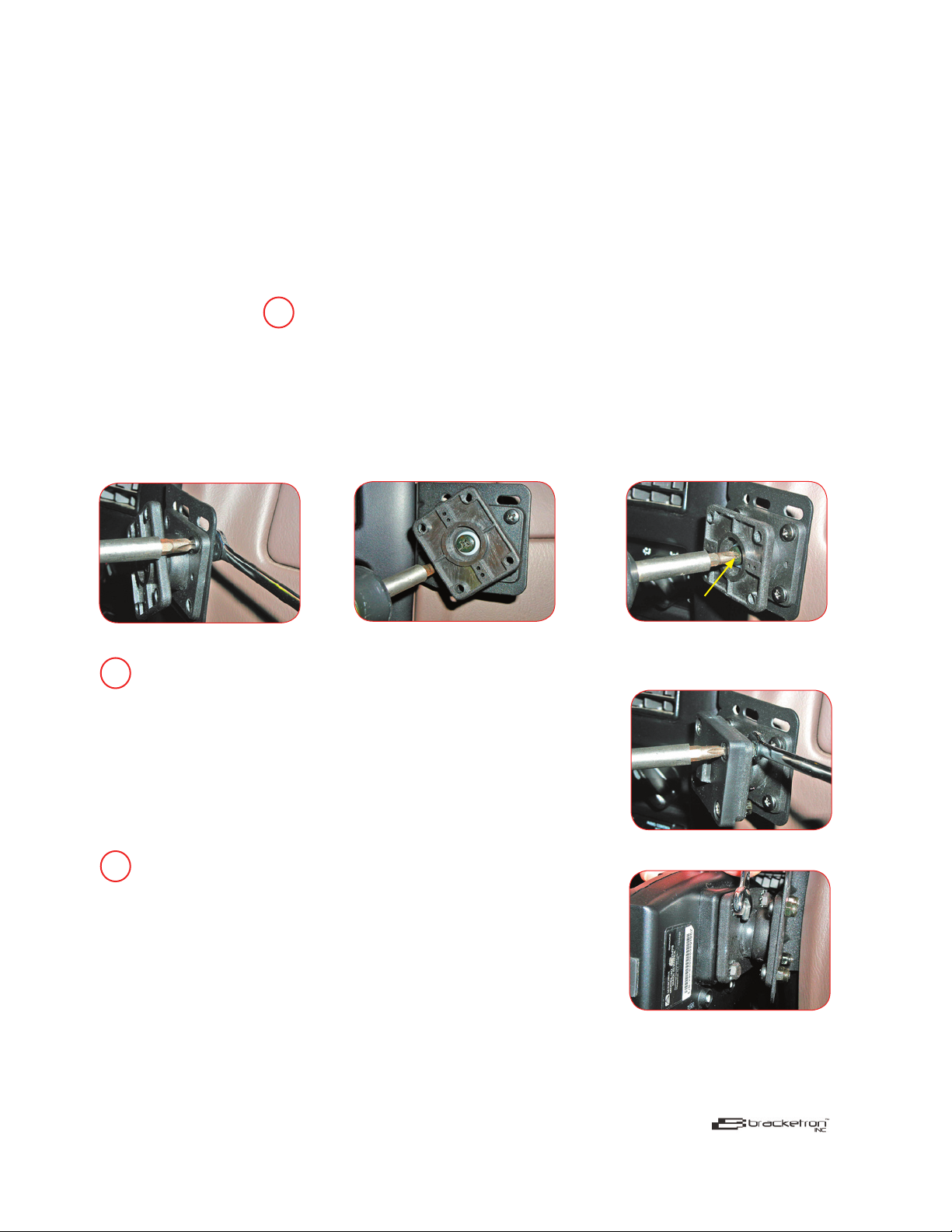

PHS-203 ULTRA SLIM SWIVEL INSTRUCTIONS

PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLING THIS BRACKETRON MOBILE SOLUTION.

Page 3

This Professional Swivel Mount Solution is designed to be mounted to your MVM or any other 4 hole AMPs compatible mounting device. The Ultra Slim Swivel is compact with a low proﬁ le and is designed to provide adjustability to devices such as Satellite Radio Receivers, GPS monitors or Mobile Phones. The Ultra Slim Swivel angles your device for better viewing, tilting approx 15° in all directions and swivels 360° degrees for maximum adjustability. All mounting hardware is included in the kit along with our AMPs adapter plate to attach devices that support T- Notch mounting.

PARTS INCLUDED

1 - Ultra Slim Swivel 1 - AMPs Adapter Plate 4 - M4 x 10 Hex Head Screws 4 - M4 x 10 Pan Head Screws 4 - M4 x 12 Pan Head Screws 4 - M4 Hex Head Nuts 4 - M4 Nylon Locking Nuts

Note: The swivel can be installed before or after the mount is installed

in the vehicle. Attach the Ultra Slim Swivel to any MVM or CBM Mount or other AMPs

mounting device by inserting the M4x10 Pan Head screws through the holes on the back half of the swivel. Align the screws up with the holes on the mount. Attach the M4 Nylon Locking Nuts only ﬁ nger tight. Rotate the front half of the swivel to gain access to the M4x10 Pan Head screws. (See Picture 1&2) Tighten all 4 screws with a #2 Phillips screwdriver and 9/32” open end wrench.

4 - M4 Star Washers

Picture 1

Rotate

Picture 2

Rotate

Picture 3

Adjust Hold Tension

MVM Instructions |

Tighten the center screw to adjust the desired tension of the swivel. (See

Picture 3) Note: If Swivel becomes loose over time, you can grasp the swivel and pull toward you lightly while rotating it clockwise. This will tighten the swivel allowing you to create the desired tension needed.

For T- Notch Devices

Attach the AMPs T- Notch Adapter to the front half of the swivel using the M4x12 Pan Head screws. Attach the M4 Star Washers and M4 Hex Nuts to the screws and tighten the plate down with the #2 screwdriver and 9/32” open end wrench. Slide your device onto the T- notch Adapter plate to secure it to the swivel. (See Pictures 4)

For AMPs Devices with Inserts

Attach your AMPs device using the M4x10 Hex Head screws and M4 Star Washers. Align the holes on the device with the holes on the front half of the swivel. Slide the Star Washers onto the Hex Head screws. Insert the screws through the swivel and into your device only ﬁ nger tight. Tighten down the device with the 9/32” open end wrench. Your device is now secure to the swivel. (See Pictures 5)

Picture 4

Picture 5
