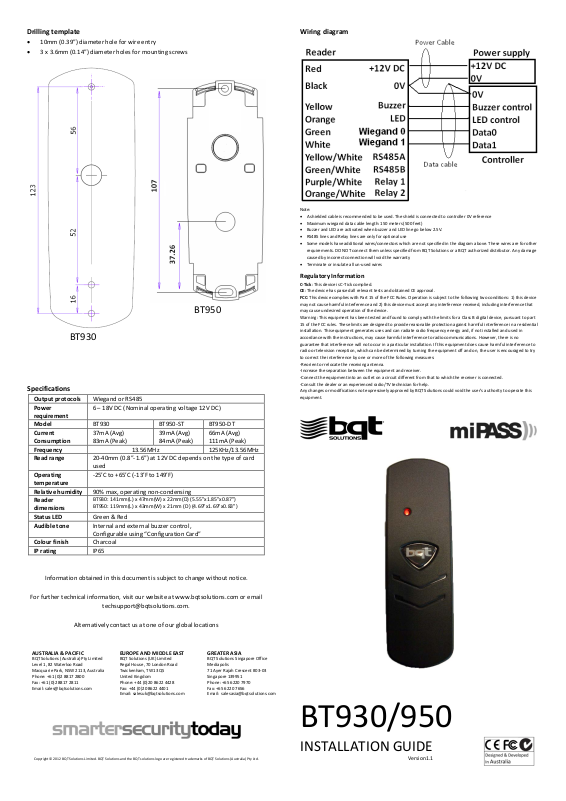

Page 1

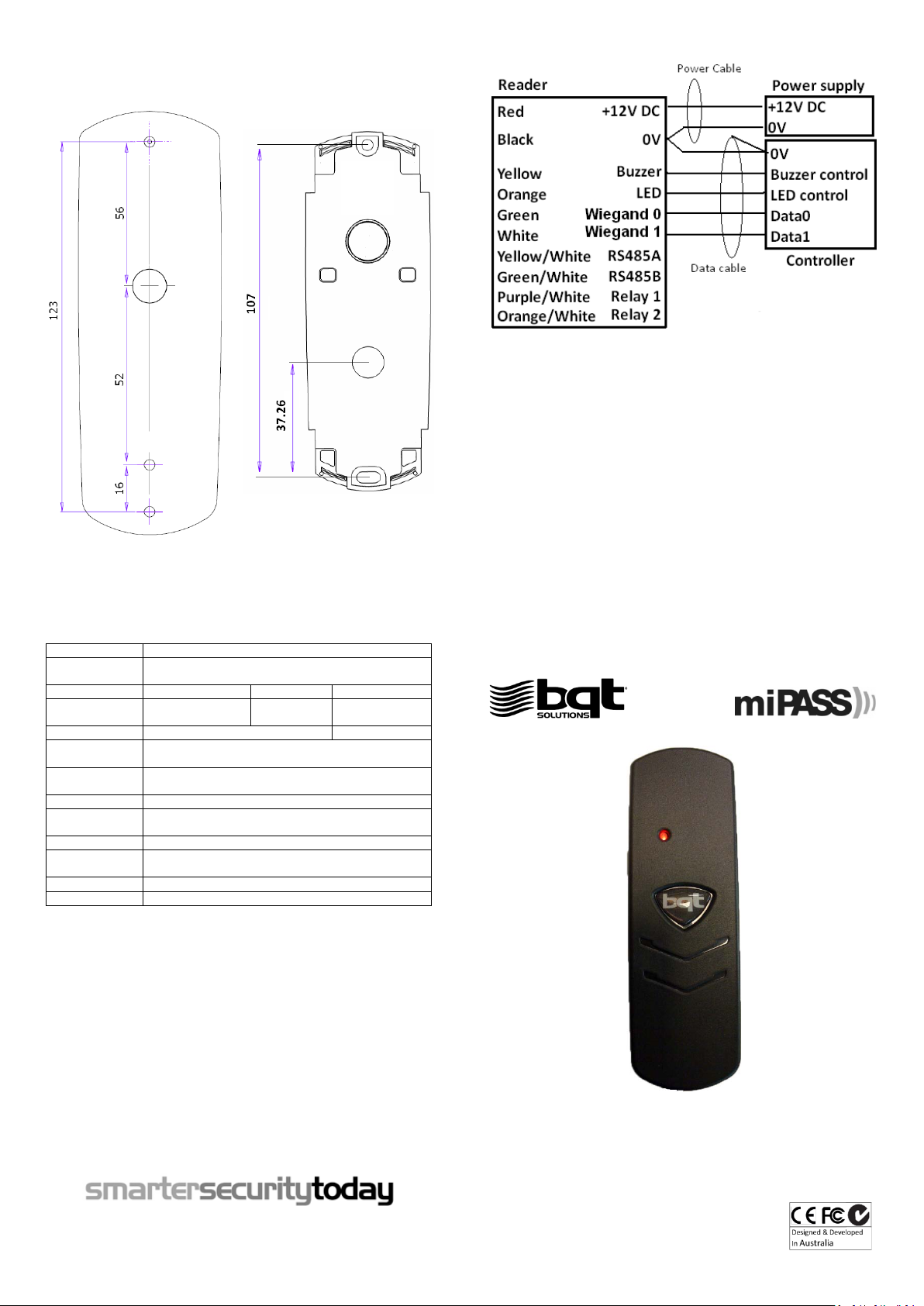

Drilling template
BT930
Output protocols
Wiegand or RS485
Power
requirement
6 – 18V DC (Nominal operating voltage 12V DC)
Model
BT930
BT950-ST
BT950-DT
Current
Consumption
37mA (Avg)
83mA (Peak)
39mA (Avg)
84mA (Peak)
66mA (Avg)
111mA (Peak)
Frequency
13.56MHz
125KHz/13.56MHz
Read range
20-40mm (0.8”-1.6”) at 12V DC depends on the type of card
used
Operating
temperature
-25’C to +65’C (-13’F to 149’F)
Relative humidity
90% max, operating non-condensing
Reader
dimensions
BT930: 141mm(L) x 4 7mm(W) x 22mm(D) (5.55”x1.85”x0.87”)
Status LED
Green & Red
Audible tone
Internal and external buzzer control,
Configurable using “Configuration Card”
Colour finish
Charcoal
IP rating
IP65
AUSTRALIA & PACIFIC
EUROPE AND MIDD LE EAST
GREATER ASIA
BT930/950
INSTALLATION GUIDE
• 10mm (0.39”) diameter hole for wire e ntry
• 3 x 3.6mm (0.14”) diameter holes for mounting screws
Wiring diagram
Specifications
Note:
• A shielded cable is recommended to be used. The shield is connected to controller 0V reference
• Maximum wie gand data cable length: 150 meters (500 feet)
• Buzzer and LED are activated when buzzer and LED line go below 2.5V.
• RS485 lines and Relay lines are only for optional use
• Some models have additional wires/connectors which are not specified in the diagram above. These wires are for other
requirements. DO NOT connect them unless specified from BQT Solutions or a BQT authorized distributor. Any damage
caused by incorrect connection will void the warranty
• Terminate or insulate all un-used wires
Regulatory Information
C-Tick: This device is C-Tick complied.
CE: The device has passed all relevant tests and obtained CE approval.
BT950
FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device
may not cause harmful interference and 2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressively approved by BQT Solutions could void the user’s authority to operate this
equipment.
BT950: 119mm(L) x 4 3mm(W) x 21mm (D) (4.69”x1.69”x 0.83”)
Information obtained in this document is subject to change without notice.
For further technical informatio n, visit our website a t www.bqtsolutions.com or email
techsupport@ bqtsolutions.com.
Alternatively contact us at one of our global locations
BQT Solutions (Australia) Pty Limited
Level 1, 82 Waterloo Road
Macquarie Park, NSW 2113, Australia
Phone: +61 (0)2 8817 2800
Fax: +61 (0)2 8817 2811
Email: [email protected]
Copyright © 2012 BQT Solutions Limi ted. BQT Soluti ons and the BQ T solutions l ogo are regist ered trademarks of BQT Soluti ons (Australia ) Pty Ltd.
BQT Solutions (UK) Limited
Regal House, 70 London Road
Twickenham, TW1 3QS
United Kingdom
Phone: +44 (0)20 8622 4428
Fax: +44 (0)20 8622 4401
Email: [email protected]
BQT Solutions Singapore Office
Mediapolis
71 Ayer Rajah Crescent #03-03
Singapore 139951
Phone: +65 6220 7970
Fax: +65 6220 7656
Email: [email protected]
Version1.1
Page 2

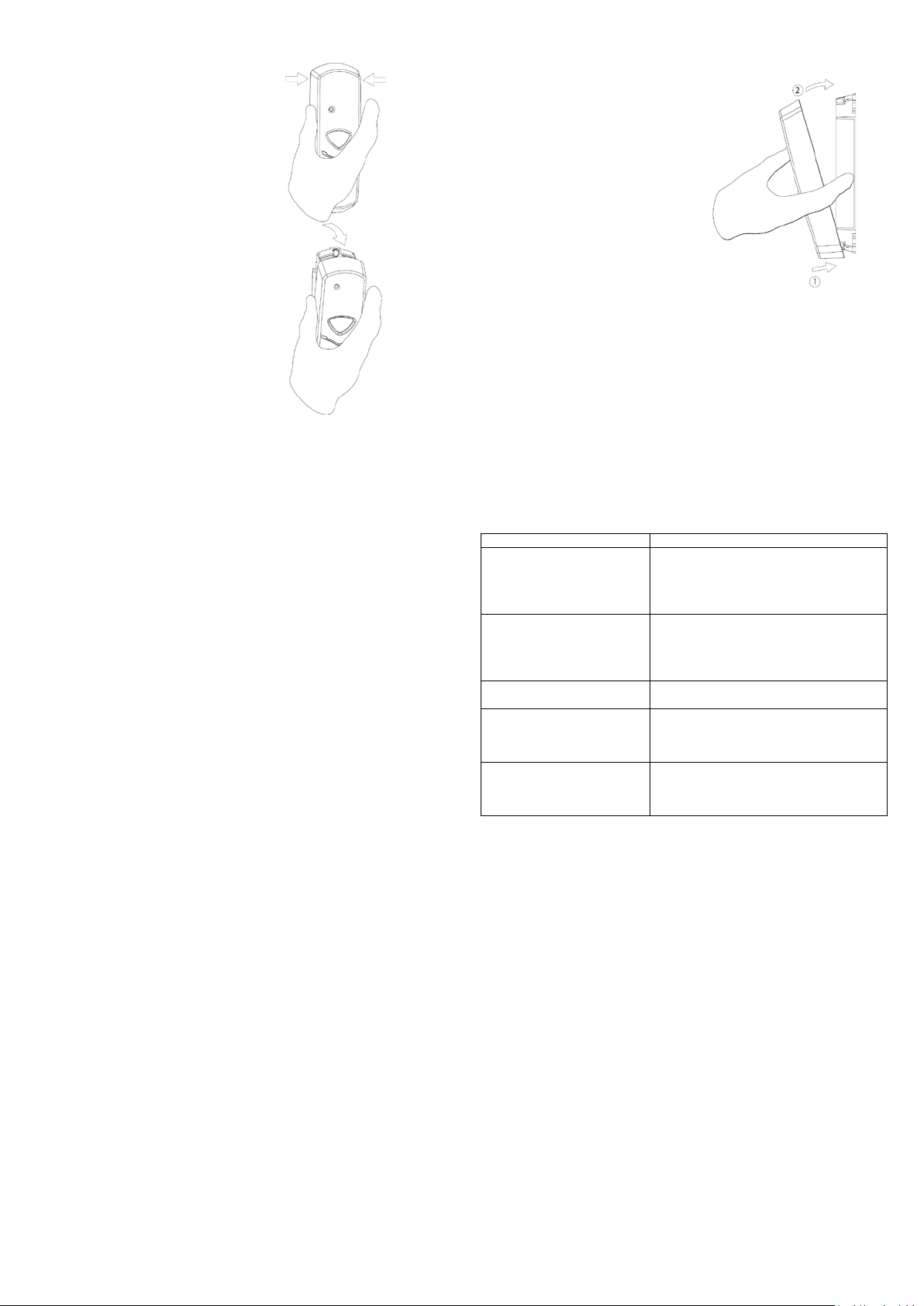

Disassemble
Problem
Troubleshooting steps
Power on rea der – reader does
1. Check connections
Power on rea der – reader keeps
1. Check buzzer line
Power on rea der – LED stays
green
1. Check LED line
Present a card to reader – a beep
1. Check whether the card has data encoded
Present a card to reader – no
1. Try a known working card
1. Use fingers to
squeeze the reader
cover at the location
where the arrows are
pointing to
2.
Pull the cover from the
top of reader
Note: DO NOT use a screw driver or other implement to remove cover.
Incorrect removal of cover may damage the LED and void the warranty.
Mounting
1. If necessary, use the drilling template provided to drill holes.
2. The mounting screw size is #3 gauge.
Note: Be careful of cables when drilling
For installation on standard electrical gang box, a universal mounting
adaptor plate (BQT Part number: BP-BM) can be used. Please contact BQT
for further information.
Wire connection
Note:
Power to the unit is provided from the listed control unit or from a
separately UL listed 12V DC power-limited, access control power source.
DO NOT supply power during installation.
Wiring methods shall be in accordance with the Electrical wiring regulation
in your country / region.
Check your circuit diagram for the colour coding of the circuit wiring. The
reader can be damaged beyond repair if the wiring is connected incorrectly.
This will void the warranty.
1. Connect the 0V wire to the power 0V line;
Note: The 0V line of all power supplies must be connected to a common 0V reference
point.
2. Connect the Wiegand data wires;
3. Connect the Buzzer and LED wires;
4. Connect 12V DC wire;
5. Place reader on the wall (Make sure the wires are not crushed. This
will void the warranty of damage occurs)
6. Insert and hand tighten the screws;
7. Check that the reader is level before tightening the screws;
Note: Excessive tightening of screws may deform the casing, resulting in a damaged
unit. This will void the warranty.
8. Turn on the 12V DC power to power up reader.
9. Allow 5 – 10 seconds for reader to finish initialization (depends on the
application). Make sure reader is functioning correctly according to
the application specification.
Cover
After checking reader function, attach front cover back to the reader
1. Align the bottom of front
cover with the bottom of
reader;
Note: Make sure LED is
aligned to the LED hole on
the cover;
2. Push the cover onto reader
and a click sound can be
heard.
External Use
• Make sure the wire bundle to the reader has an IP rating of at least IP65
Handling
• Handle the reader with care. DO NOT damage or drop unit before
installation. This will void the warranty.
• If the case is damaged, the reader may not be to the specified IP rating.
Replace the reader if the case is damaged.
Maintenance
• Once installed the reader requires no maintenance.
Troubleshooting
not start up
beeping
is heard but reade r does not
output any data
response from reader
If the proble m still persists, please contact your dis tributor for technical support.
2. Check the voltage a t the reade r
3. Check the current capability of the powe r
supply
2. Check the voltage a t the reade r
3. Check the current capability of the powe r
supply
2. Check the wiegand connection to controller
3. Check the voltage level on wiegand data lines
2. Check if the reader requires to be configured
with a confi guration card
Warranty
Unless specified otherw ise, the Company warrants to the Customer t hat’ BQT Solutions Branded
Products’ (excluding thi rd party products and software) are cove red by a return to base warranty on
defects in materials and workmanship affecting normal use for a pe riod of the Warranty offered under
the Standard Terms and C onditions of Sale from BQT invoice date ( ‘Standard Warranty’)
This standard warranty does not cover damage, fault, failure or ma lfunction due to external causes
including; acc ident, misuse, problems w ith electrical power, servic ing not authorised by the Com pany,
usage and/or stora ge and/or installation not in accordance with Produ ct instructions, failure t o
perform required prevent ative maintenance, normal wear and tear, act of God, fire, flood, war, any
violent or similar occur rence; any attempt by any person other than Company personnel or any person
authorised by the Company t o repair or support the Products and p roblems caused by use of parts and
components not supplied by the Company. The standard warranty does not cover any items that are
in one or more of the following categories: software; external devices; accessories or parts added to
the product after the p roduct has been shipped from BQT Solutions.
During the warranty, peri od beginning on the invoice date, the Compa ny will repair or replace faulty
products (at its absol ute discretion) returned to its’ factory. The Customer must prepay shipping and
transportation costs and insure the shipment or accept the risk of loss or damage during such
transportatio n.
The Customer sh all be solely responsible for determining suitabi lity for use and the Compa ny will, in
no event, be lia ble in this respect. This standard warranty is giv en in place of all warrantie s, conditions,
terms, undertakings and ob ligations implied by statute, common law, trade usage, and course of
dealing or othe rwise including warranties or conditions of mercha ntability, fitness for pu rpose,
satisfactory quality and / or compliance with description, all of w hich are hereby excluded to the
fullest extent permitted by law.
