Page 1

Output protocols

Wiegand or RS485 (Model dependent)

BTBIOX/DFBIOX BIOMIP2X/BIOXMIP3X

BTBIOXK/DFBIOXK BIOMIP2XK/BI OMIP3XK

Power requirement

6 – 18V DC (Nominal operating voltage 12V DC)

Current consumption (12V DC)

84mA (Average) 246mA (Peak)

Relay Rating

80mA

Read range

20-40mm (0.8”-1.6”) at 12V DC depends on t he type of card used

Operating temperature

-10’C to +50’C (14’F to 122’F)

Relative humidity

90% max, operating non-condensing

Reader dimensions

190mm(L) x 119mm(W) x 58mm(D) (7.5”4.7”x2.3”)

Status LED

Green & Red Bi-colour, Blue, Orange

Audible tone

Internal and external buzzer control

Keypad (XK only)

3 x 4 Keypad a nd 4 Function keys, illuminated

Colour finish

Charcoal / Ivory

IP rating

IP65

AUSTRALIA & PACIFIC

EUROPE AND MIDD LE EAST

GREATER ASIA

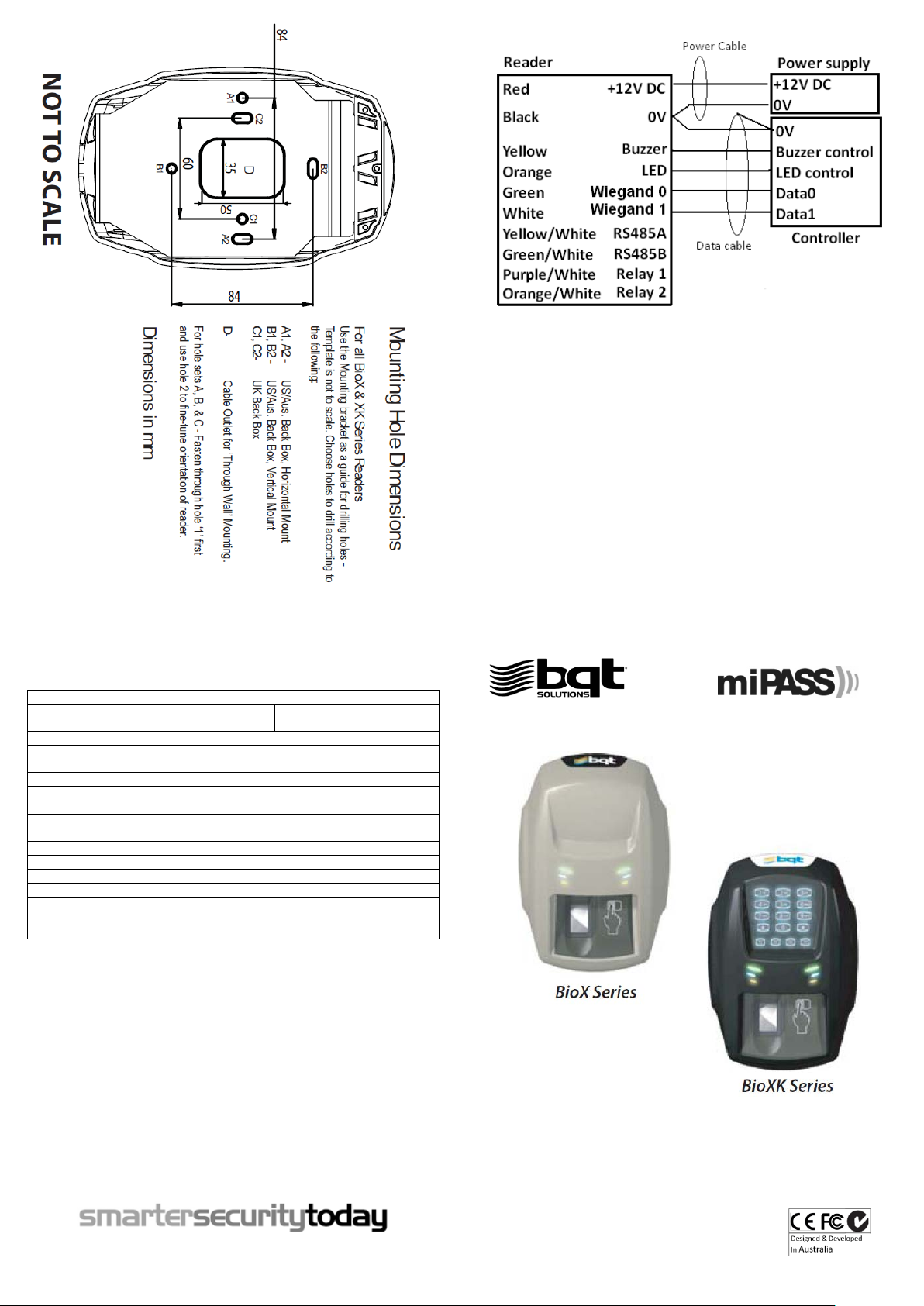

Wiring diagram

BioX/XK

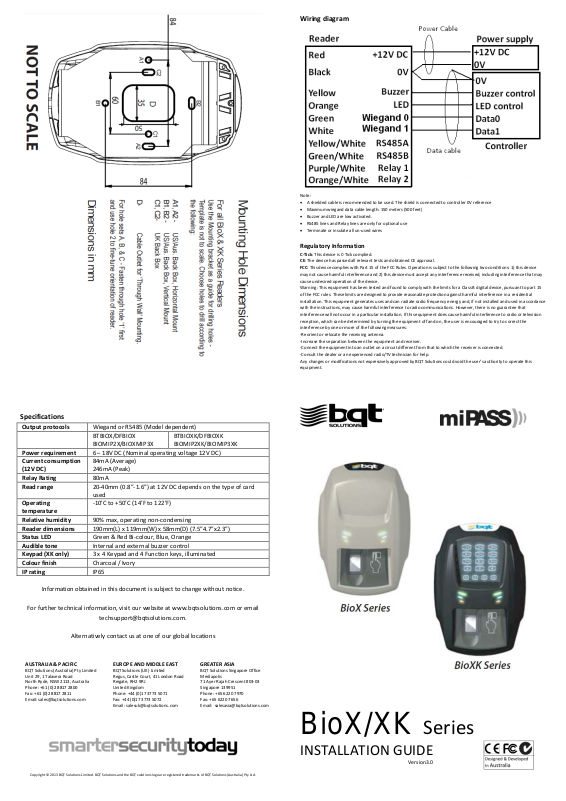

INSTALLATION GUIDE

Specifications

Note:

• A shielded cable is recommended to be used. The shield is connected to controller 0V reference

• Maximum wiegand data cable length: 150 meters (500 feet)

• Buzzer and LED are low activated.

• RS485 lines and Relay lines are only for optional use

• Terminate or insulate all un-used wires

Regulatory Information

C-Tick: This device is C-Tick complied. CE: The device has passed all relevant tests and obtained CE approval. FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device

may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressively approved by BQT Solutions could void the user’s authority to operate this equipment.

Information obtained in this docume nt is subject to change without notice.

For further technical information, visit our website at www.bqtsolutions.com or email

techsupport@ bqtsolutions.com.

Alternatively contact us at one of our global locations

BQT Solutions (Australia) Pty Limited Unit 29, 1 Talavera Road North Ryde, NSW 2113, Australia Phone: +61 (0)2 8817 2800 Fax: +61 (0)2 8817 2811 Email: [email protected]

BQT Solutions (UK) Limited Regus, Castle Court, 41 London Road Reigate, R H2 9RJ United Kingdom Phone: +44 (0)17 3773 5071 Fax: +44 (0)17 3773 5072 Email: [email protected]

BQT Solutions Singapore Office Mediapolis 71 Ayer Rajah Crescent #03-03 Singapore 139951 Phone: +65 6220 7970 Fax: +65 6220 7656 Email: [email protected]

Series

Version3.0

Page 2

Installation

Problem

Troubleshooting steps

Power on rea der – reader does not

1. Check connections

Power on rea der – reader keeps

1. Check buzzer line

Power on rea der – LED stays green

1. Check LED line

Present a card to reader – a beep is

1. Check whether the card has data encoded

Present a card to reader – no

1. Try a known working card

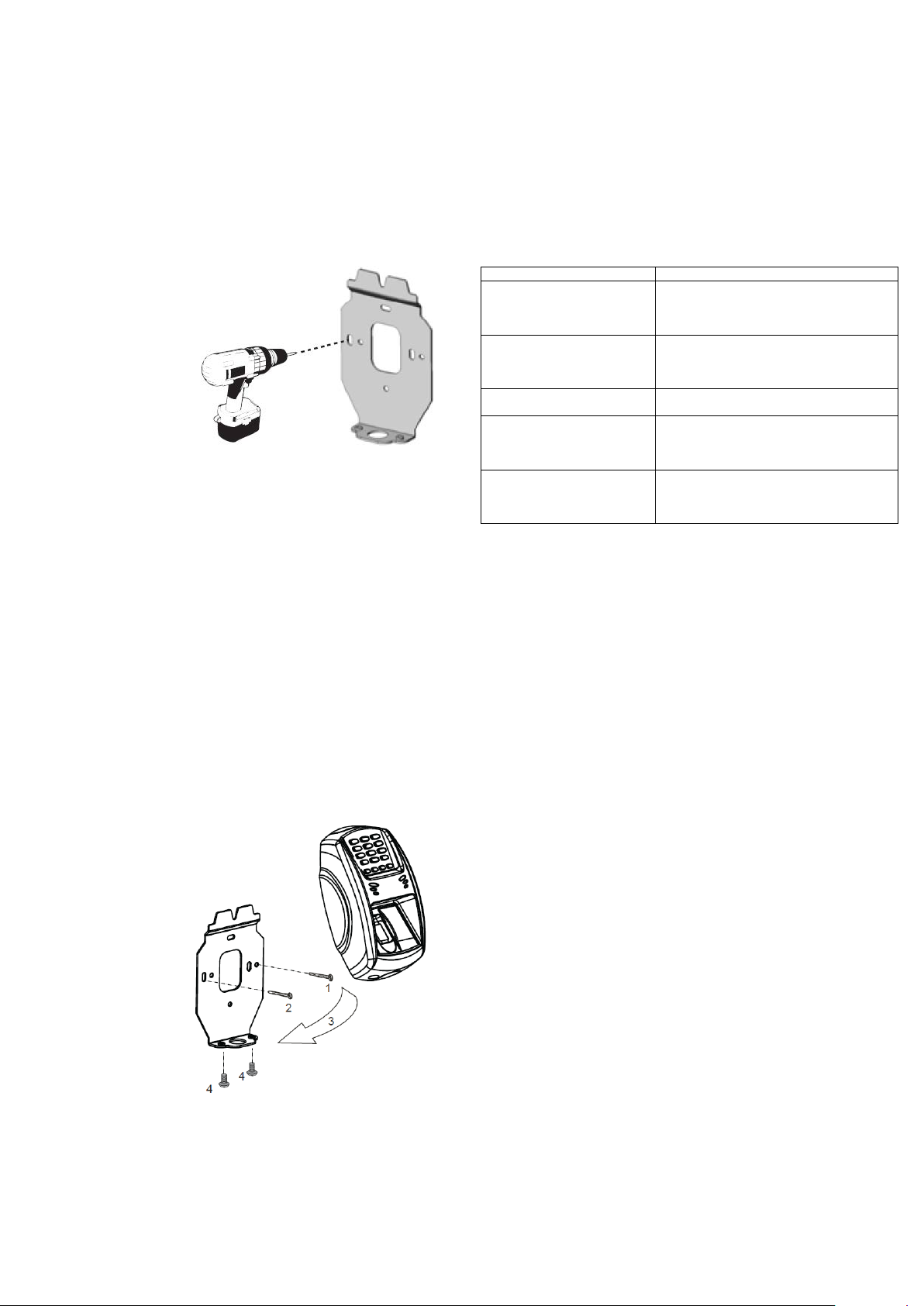

This reader may be mounted in either ‘Through Wall’ or ‘On Wall’ configurations as follows:

Through Wall: All wires exit at the back of reader, and are collected in a ‘back box’ (not included) that is mounted behind the reader - either inside the wall or on the far side. Do not remove break-away cover at bottom of reader if mounting through wall. Choose holes to suit your preferred back box type and orientation (refer to Hole Dimensions). On Wall: Break-away cover at bottom of reader is removed, and wires exit bottom of reader via a 20mm conduit fitting (not included). A back box is not used in this configuration, so choose hole locations that are secure and accessible. It is not necessary to drill hole ‘D’ if mounting ‘On Wall.’

1. Review Hole Dimension

diagram (overleaf).

2. Select and Dri ll appropriate holes - the Mounting Bracket may be used as a template.

NOTE: Be careful not to drill through any cables

Wire connection Note:

Power to the unit is provided from the listed control unit or from a separately UL listed 12V DC power-limited, access control power source. DO NOT supply power during installation.

Wiring methods shall be in accordance with the Electrical wiring regulation in your country / region.

Check your circuit diagram for the colour coding of the circuit wiring. The reader can be damaged beyond repair if the wiring is connected incorrectly. This will void the warranty.

1. Connect the 0V wire to the power 0V line;

Note: The 0V line of all power supplies must be connected to a common 0V reference

point.

2. Connect the Wiegand data or RS485 wires;

3. Connect the Buzzer and LED wires;

4. Connect 12V DC wire;

5. Placing reader

1 Insert Scre w (not included) into smaller, circular hole.

2 Insert Scre w (not included) into larger, slotted hole, but do not fully tighten. Ensure that edges of Wal l Bracket are vertical, then tighten scre w.

3 Hook reader onto Wall Bracket.

4 Join Reader to Wall Bracket with Base Screws (included).

6. Turn on the 12V DC power to power up reader.

7. Allow 10 – 15 seconds for reader to finish initialization (depends on the

application). Make sure reader is functioning correctly according to the application specification.

External Use

• Make sure the wire bundle to the reader has an IP rating of at least IP65

Handling

• Handle the reader with care. DO NOT damage or drop unit before installation.

This will void the warranty.

• If the case is damaged, the reader may not be to the specified IP rating.

Replace the reader if the case is damaged.

Maintenance

• Once installed the reader requires no maintenance.

• Occasionally wipe the sensor gently using a non-abrasive cloth.

Troubleshooting

start up

beeping

heard but rea der does no t output any data

response from reader

If the proble m still pers ists, please contact your distributor for tec hnical support.

2. Check the voltage a t the reader

3. Check the current capability of the power supply

2. Check the voltage a t the reader

3. Check the current capability of the power supply

2. Check the wiegand connection to controller

3. Check the voltage level on wiegand data lines

2. Check if the reader requires to be configured

with a confi guration card

Warranty

Unless specified otherwise, the Company warrants to the Customer that’ BQT Solutions Branded Products’ (excluding third party products and software) are covered by a return to base warranty on defects in materials and workmanship affecting normal use for a period of the Warranty offered under the Standard Terms and Conditions of Sale from BQT invoice date (‘Standard Warranty’)

This standard warranty does not cover damage, fault, failure or malfunction due to external causes including; accident, misuse, problems with electrical power, servicing not authorised by the Company, usage and/or storage and/or installation not in accordance with Product instructions, failure to perform required preventative maintenance, normal wear and tear, act of God, fire, flood, war, any violent or similar occurrence; any attempt by any person other than Company personnel or any person authorised by the Company to repair or support the Products and problems caused by use of parts and components not supplied by the Company. The standard warranty does not cover any items that are in one or more of the following categories: software; external devices; accessories or parts added to the product after the product has been shipped from BQT Solutions.

During the warranty, period beginning on the invoice date, the Company will repair or replace faulty products (at its absolute discretion) returned to its’ factory. The Customer must prepay shipping and transportation costs and insure the shipment or accept the risk of loss or damage during such transportation.

The Customer shall be solely responsible for determining suitability for use and the Company will, in no event, be liable in this respect. This standard warranty is given in place of all warranties, conditions, terms, undertakings and obligations implied by statute, common law, trade usage, and course of dealing or otherwise including warranties or conditions of merchantability, fitness for purpose, satisfactory quality and / or compliance with description, all of which are hereby excluded to the fullest extent permitted by law.
