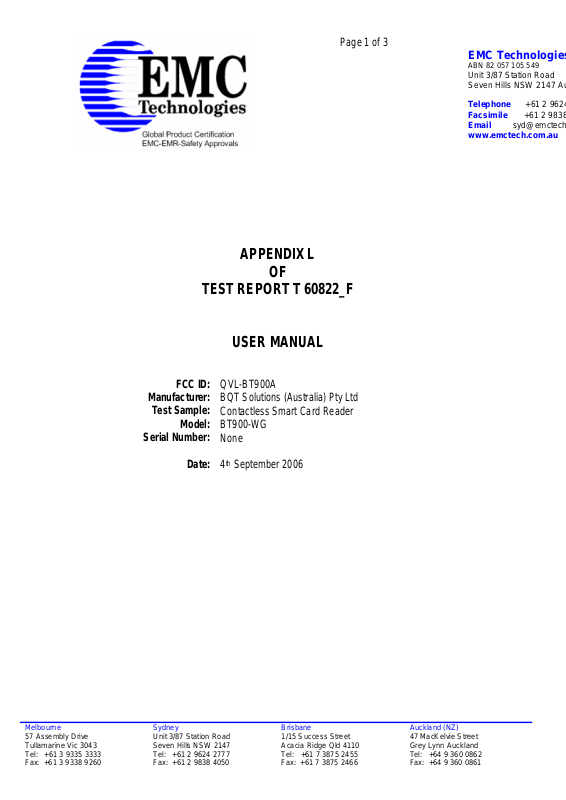

APPENDIX L

OF

TEST REPORT T 60822_F

USER MANUAL

FCC ID:

Manufacturer:

Test Sample:

Model:

Serial Number:

Date:

QVL-BT900A
BQT Solutions (Australia) Pty Ltd
Contactless Smart Card Reader
BT900-WG
None

4th September 2006

Melbourne

57 Assembly Drive
Tullamarine Vic 3043
Tel: [phone]
Fax: [phone]

Sydney

Unit 3/87 Station Road
Seven Hills NSW 2147
Tel: [phone]
Fax: [phone]

Brisbane

1/15 Success St reet
Acacia Ridge Qld 4110
Tel: [phone]
Fax: [phone]

Auckland (NZ)

47 MacKelvie Street
Grey Lynn Auckland
Tel: [phone]
Fax: [phone]

Australia

in
Designed & Manufactured

to Controller 0V reference
cable, the shield is connected
NOTE: If used with a shielded

Controller

W1
W0
LED
BUZ
0V

0V
+12Vdc

Power Supply

Controller Cable

Power Cable

RS485B
RS485A

0V

GREEN/W
YELLOW/W
WHITE W1
GREEN W0
ORANGE LED
YELLOW BUZ

BLACK

RED

+12Vdc

DF900D, DF900DG,

BT900D, BT900DG

BT900W, BT900WG

miP9, CSN9

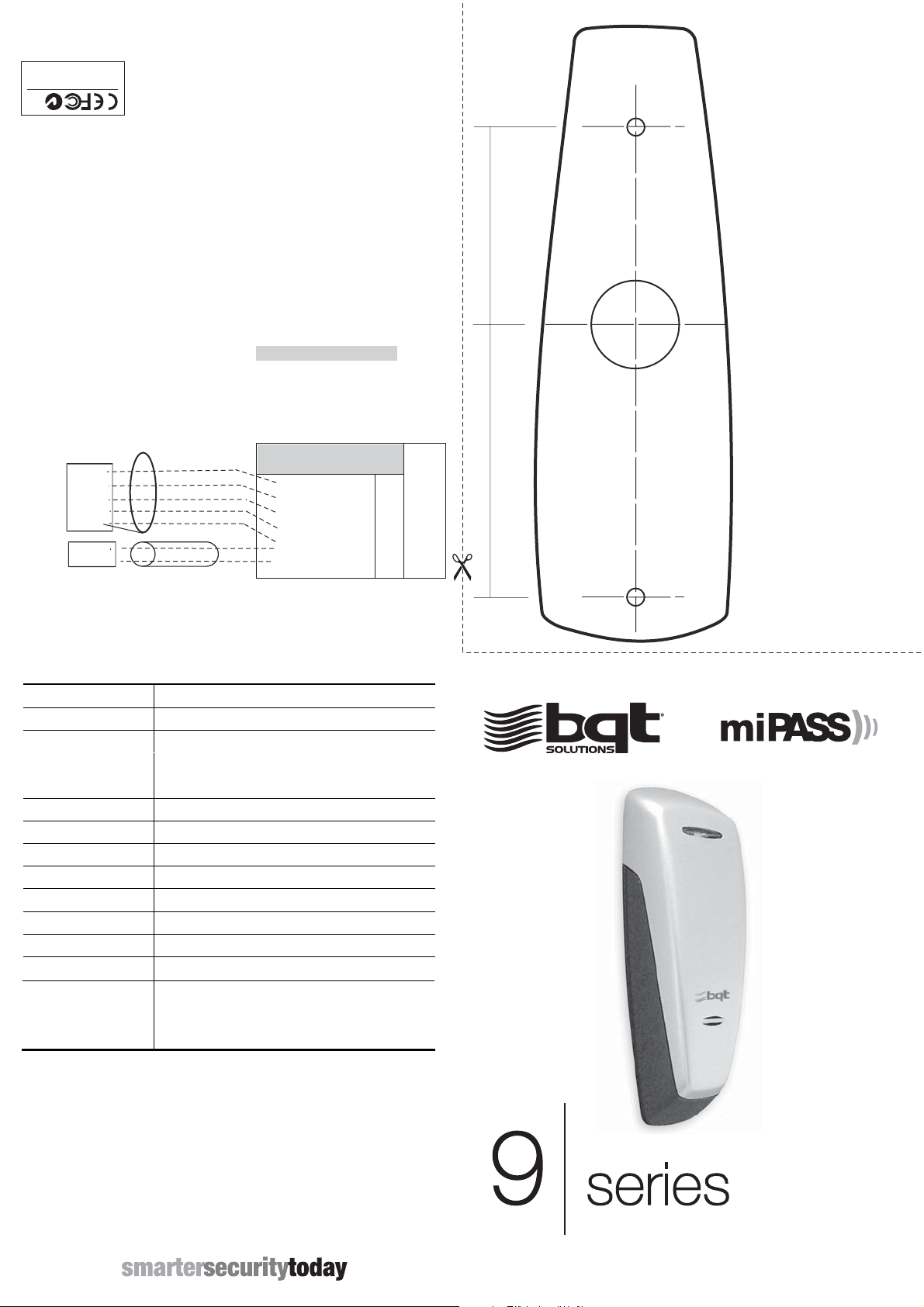

Reader connections

Wiring Schematic

Any changes or modifications not expressively approved by BQT Solutions could void the user's authority to operate this equipment.

- Consult the dealer or an experienced radio/TV technician for help

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

- Increase the separation between the equipment and receiver

- Reorient or relocate the receiving antenna
the interference by one or more of the following measures:

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

NOTE:

miP9, CSN9, BT900W FCC ID: QVL MIP9
BT900WG FCC ID: QVL -BT900A
BT900D, BT900DG, DF990D, DF900DG FCC ID: QVL - BT900P

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful

FCC

The 9 Series has passed all relevant requirements for application of C Tick.

C Tick

The 9 Series has passed all relevant tests and obtained CE approval.

CE Mark

➣ ➣

45mm

4mm Ø

Regulatory Information

 RS485 - OPTIONAL USE

 Only ONE power source is connected from the reader at any one time.
 The 12Vdc power cable shall NOT be included in the controller Cable.

20mm Ø

NOTE:  The 0V reference cable shall be included within the controller cable.

62mm

➣ ➣

4mm Ø

Mifare is a registered trademark of Philips Electronics.
logo are registered trademarks of BQT Solutions (Australia) Pty Ltd.
Copyright © 2006 BQT Solutions Limited. BQT Solutions and the BQT Solutions

(5.51" x 1.77")
are 140mm x 45 mm

Minimum reader dimensions

●

holes for mounting screws

2 x 4 mm (0.16”) diameter

●

hole for wire entry

20mm (0.79”) diameter

●

For all 9 Series readers

Drilling T emplate

Specifications

Output protocols Wiegand 26-199 bit, RS485 or custom configurations (model dependent)
Power requirements 12Vdc
Current consumption
Normal 120mA
Activated 140mA
Read range 20 - 60mm (0.8” – 2.4”)(typically)
Operating temperature -25ºC to +65ºC (-13ºF to 149ºF)
Relative humidity 90% max, operating non-condensing
Reader dimensions 140mm (L) x 45mm (W) x 32mm (D) (5.51” x 1.77” x 1.26”)
Status LED’s Green & Red
Audible tone
Colour Two toned – Silver & Charcoal
IP rating IP 67

miPASS 9 Series Mifare
reader models

Information contained in this document is subject to change without notic

For further technical information visit our website at www.bqtsolutions.com

AUSTRALIA & ASIA PACIFIC

Level 4, 65 Epping Road
North Ryde NSW 2113 Australia
Phone: [phone] Fax: [phone]

UNITED KINGDOM & EMEA

Global House, 1 Ashley Avenue, Epsom
Surrey KT 18 5AD United Kingdom
Phone: + 44 (0)20 8823 9350 Fax: + 44 (0)20 8823 9001

Internal or external buzzer control

DF900 - DESFire
BT900 - Mifare
miP9 - SPEK
CSN9 - Card Serial Number

or email [email protected].

Alternatively contact us at one of our global locations

AMERICA

30021 Tomas Street, Suite 300
Rancho Santa Margarita CA 92688 United States of America
Phone: [phone] (ext 42) Fax:[phone]

CHINA

Suite 1602, No.75, ShengDa Garden, 2518 LongHua Road,
XuHui District, Shanghai 200232, P.R.China
Tel: [phone] Fax: [phone]

e.

INSTALLATION GUIDE

Version 2.9

9 series_v2.9 Sep06

9 series_v2.8.ai 15/08/2006 11:08:35 AM9 series_v2.8.ai 15/08/2006 11:08:35 AM

Introduction

Thank you for purchasing a miPASS 9 Series Mifare Contactless Smart Card Reader. Available in 4 different
models catering for all security requirements large or small, whether your projects are price or functionality
driven. The 9 Series reader models are:

DF900 - DESFire
BT900- Mifare (standard)
miP9 - BQT SPEK
CSN9 - Card Serial Number

The 9 Series reader is used in security applications and interfaces into Wiegand applications.

The 9 Series reader is preset with specific 'Keys'. Valid smart cards are issued with the same 'Keys'. This
ensures that the system cannot be compromised. (No 'Keys" used for CSN9 model)

The reader incorporates a LED and Buzzer to provide feedback to a person wishing to enter. The control of
these is shared by the reader and security controller.

The 9 Series reader is low-profile and can be installed in new installations or as an upgraded reader in existing
proximity access control systems.

Installation

If the reader has the same power supply as the door latch relay, make sure that the relay is
protected by a fast Schottky diode. If the relay is not protected reader operation will be affected.

NOTE: Power to the unit is provided from the Listed control unit or from a separately supplied UL Listed

12 Vdc power-limited, access control power source.

Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70.

1. Connect the 0V wire to the Power 0V line.
NOTE: The 0V line of all power supplies MUST be connected to a common 0V reference point.

2. Connect the Wiegand signal cables.

3. Connect the Buzzer and the LED cables.

4. Attach the 12Vdc wire last.

5. Place the reader on the wall (Make sure the wires are not crushed)

6. Insert and hand tighten the screws.

7. Check that the reader is level before tightening the screws.

NOTE: Excessive tightening of screws may deform the casing, resulting in a damaged unit.
This will void the warranty.

8. Replace the cover.

9. Power up the reader.

NOTE: The unit needs up to 15 seconds to set up before it can respond to a valid smart card.

C

M

Y

CM

MY

CY

CMY

K

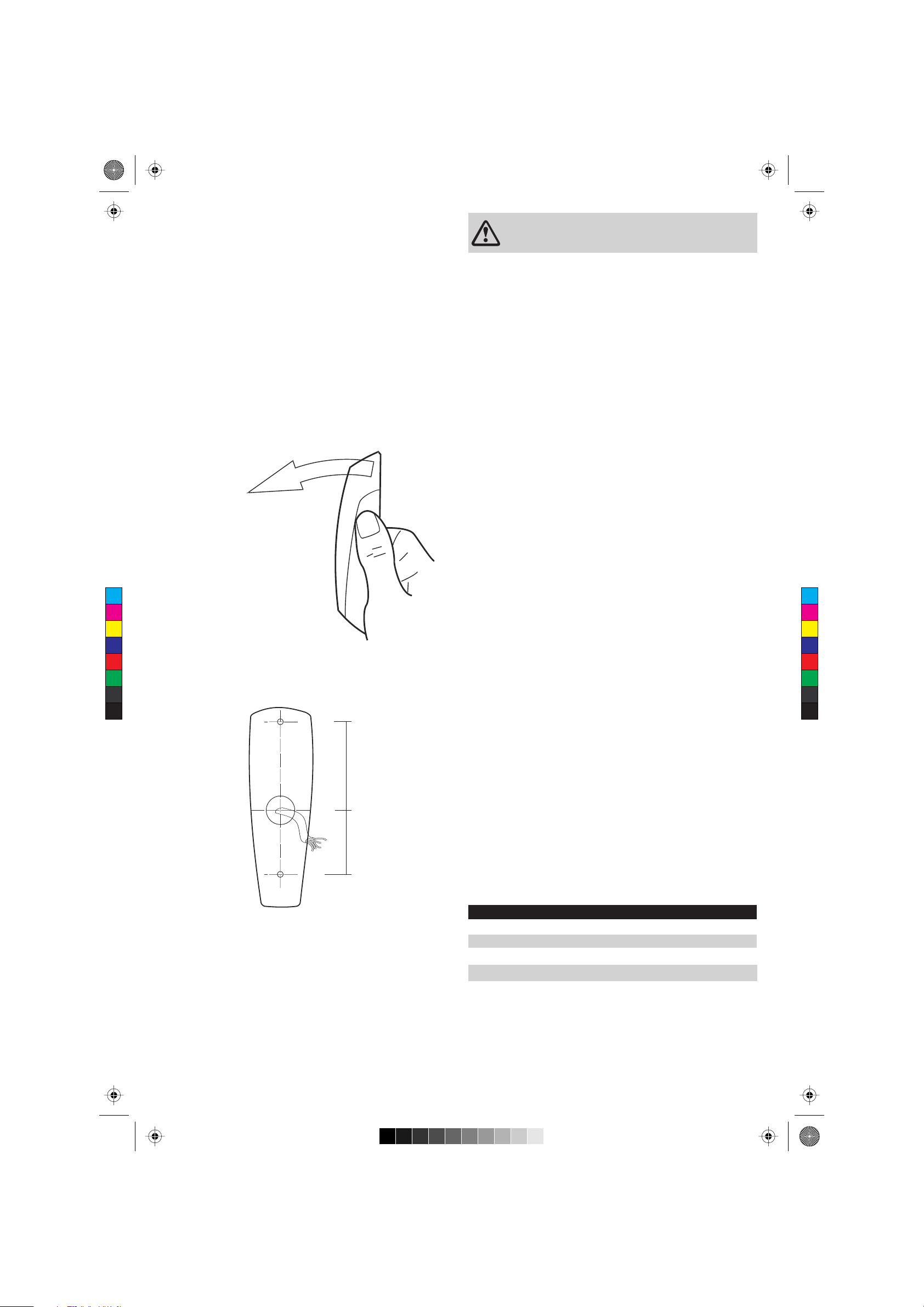

shown and pulling the cover from the top as illustrated

If necessary, drill holes for the mounting screws in the wall or mounting box on which the reader unit will be
placed. (Use the Drilling Template provided).

4mm Ø

20mm Ø

➣

62mm

➣

WALL VIEW

(not to scale)

External Use

 Mount the reader on a suitable external single gang surface mount box.
 USA ONLY - BQT mounting plate adaptor is available for mounting to a US single gang box.
 Make sure that the wire bundle to the 9 Series reader has an IP rating of at least IP67.
 Use warming pads if the temperature of the reader is expected to fall below -10ºC (14ºF).

Handling

 Handle the 9 Series reader with care. Do not damage/drop unit before installation.
 The reader unit will not be waterproof if the casing is damaged. Replace the reader if the casing is

damaged.

Maintenance

45mm

 Once installed the 9 Series reader requires no maintenance.

Remove the cover by holding the unit as

4mm Ø

1. Place the controller and power supply cable through the Grommit hole.

2. Drill the holes as indicated by the arrows.

Note: Make sure that you don't drill through the cable.

➣➣

Troubleshooting

 If the reader doesn't respond when a valid smart card is presented, check the following.

Symptom

LED is not lit

LED is Orange or Buzzer sounds low

Reader doesn't respond

Reader beeps but lock doesn't open

Possible Cause

No power to the reader

Voltage to the reader is below 10V

Invalid card or card is faulty

Wiring to the controller may be faulty.

Check

Check the power supply to the reader.

Check the power supply to the reader

Check reader with another valid smart card

Check the wiring to the controller

Check your circuit diagram for the colour coding of the circuit wiring. The reader can be damaged beyond
repair if the wiring is connected incorrectly.

NOTE: If reader beeps when a valid smart card is presented
then the reader is functioning.

If the problem still persists then please contact your distributor for technical support and to obtain an RMA if
required.

Warranty

The 9 Series reader comes with a 5 year warranty from the date of dispatch from BQT Solutions. The
warranty is void if the instructions contained within this manual have not been adhered to.
