FB00288-EN
USER MANUAL
PEV
INDOOR VIDEO
RECEIVER
Page 2 - Manual code FB00288-EN - vers. 1
- 02/2016 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.
Function of buttons
Adjustment of ringtone volume (high-medium-o).
Screen brightness control.
The screen must be active.
Colour saturation control.
The screen must be active.
1-8 Internal call.
Enables selection of indoor receivers 5-8 when pressed (green LED on).
Sends a panic signal to the concierge.
Press and hold until it beeps. The red LED confirms the signal has been received
by the concierge.
The LED stays on until the concierge calls the user back.
The panic signal takes priority over all calls.
Activates/deactivates communication (blue LED).
Door lock release (blue LED).
In systems designed to accommodate this signal, during a call from an entry panel,
the LED light indicates that the door is open.
Activates and selects the entry panel.
This function is available only when the line is free.
Auxiliary 1 (blue LED).
The function may also be available when there is no active communication, where
the system permits it.
Auxiliary 2 / Concierge call (blue LED).
The function may also be available when there is no active communication, where
the system permits it.
No ringtone/mute (blue LED).
When the ringtone is disabled, the caller image still shows on the screen.
Only use soft, dry or slightly damp cloths to clean. Do not use any chemical products.
Decommissioning and disposal. Dispose of the packaging and the device at the end of its life cycle responsibly, in
compliance with the laws in force in the country where the product is used. The recyclable components are marked with
a symbol and the material's ID marker.
- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
THESE INSTRUCTIONS MUST BE ENCLOSED WITH THE DEVICE. THE DATA AND INFORMATION IN THESE INSTRUCTIONS ARE TO BE
CONSIDERED AS SUBJECT TO CHANGE AT ANY TIME AND WITHOUT THE NEED FOR ANY ADVANCE WARNING.
Page 3 - Manual code FB00288-EN - vers. 1
- 02/2016 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.

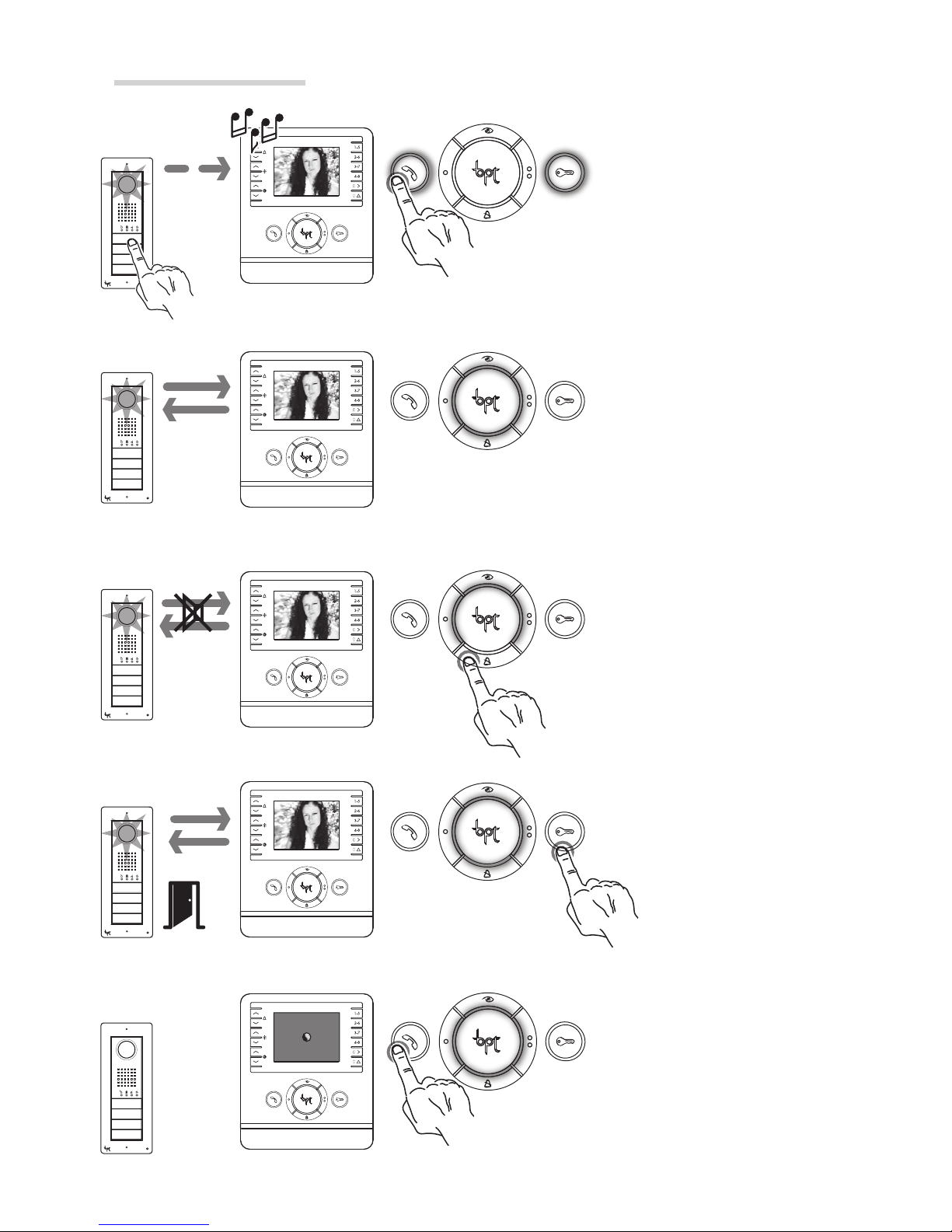

Standard functions
Answering a call.
Communication activated.
Interrupting audio with
the entry panel.
Opening the door of the
entry panel that is calling.
Ending the
communication.
1
2
1
2
1
2
x1
x2
x2
Page 4 - Manual code FB00288-EN - vers. 1
- 02/2016 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.

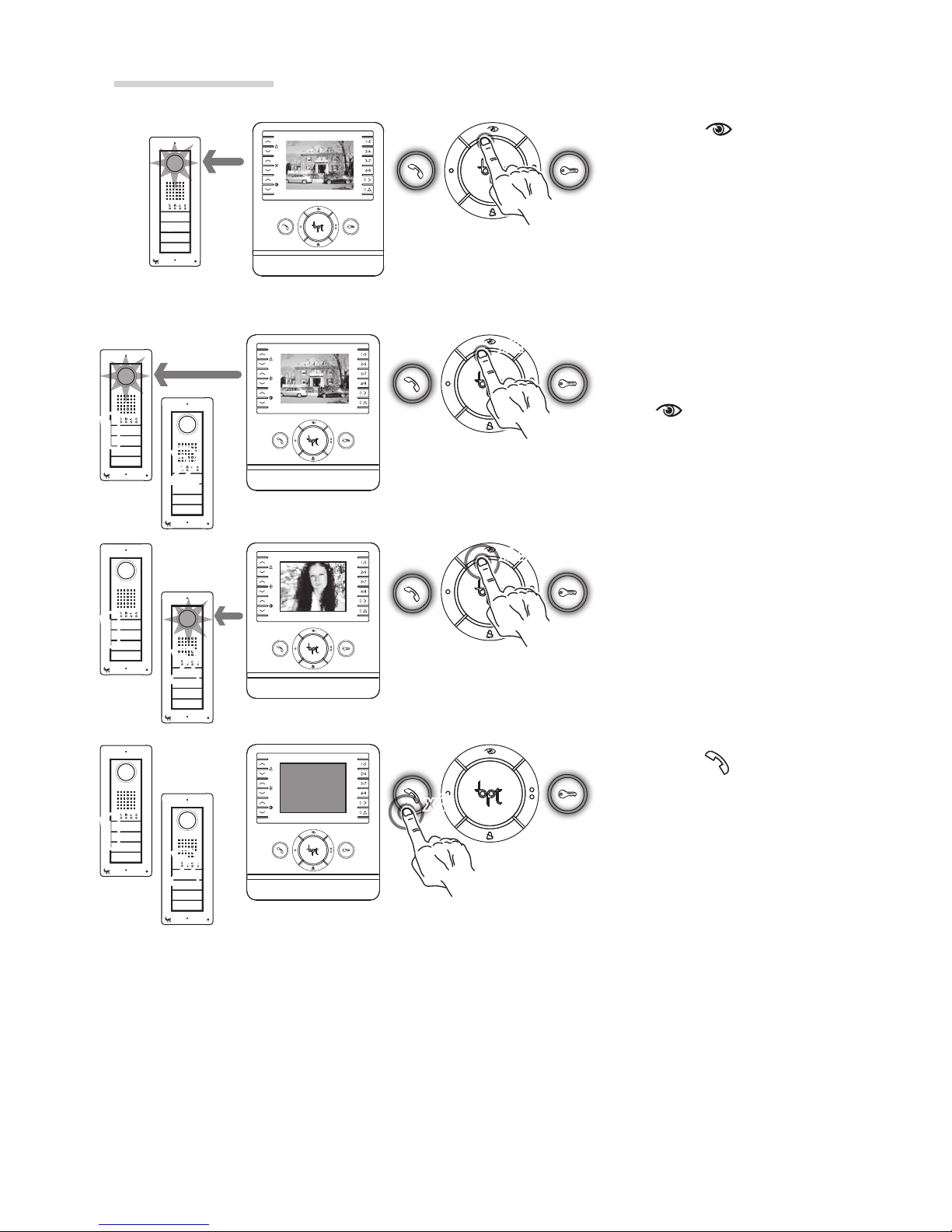

Self-connection
Press the key to activate
video communication with
the entry panel.
Where there is more than
one entry panel, press
the key multiple times
to show all the panels in
succession.
To end the communication,
press the key twice or
wait for the communication
to end automatically (max.
60 seconds).
When the device is in self-connection mode, you can: activate audio communication,
open the door of the entry panel shown and activate auxiliary commands.
MASTER SLAVE
MASTER SLAVE
SLAVEMASTER
Page 5 - Manual code FB00288-EN - vers. 1
- 02/2016 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.

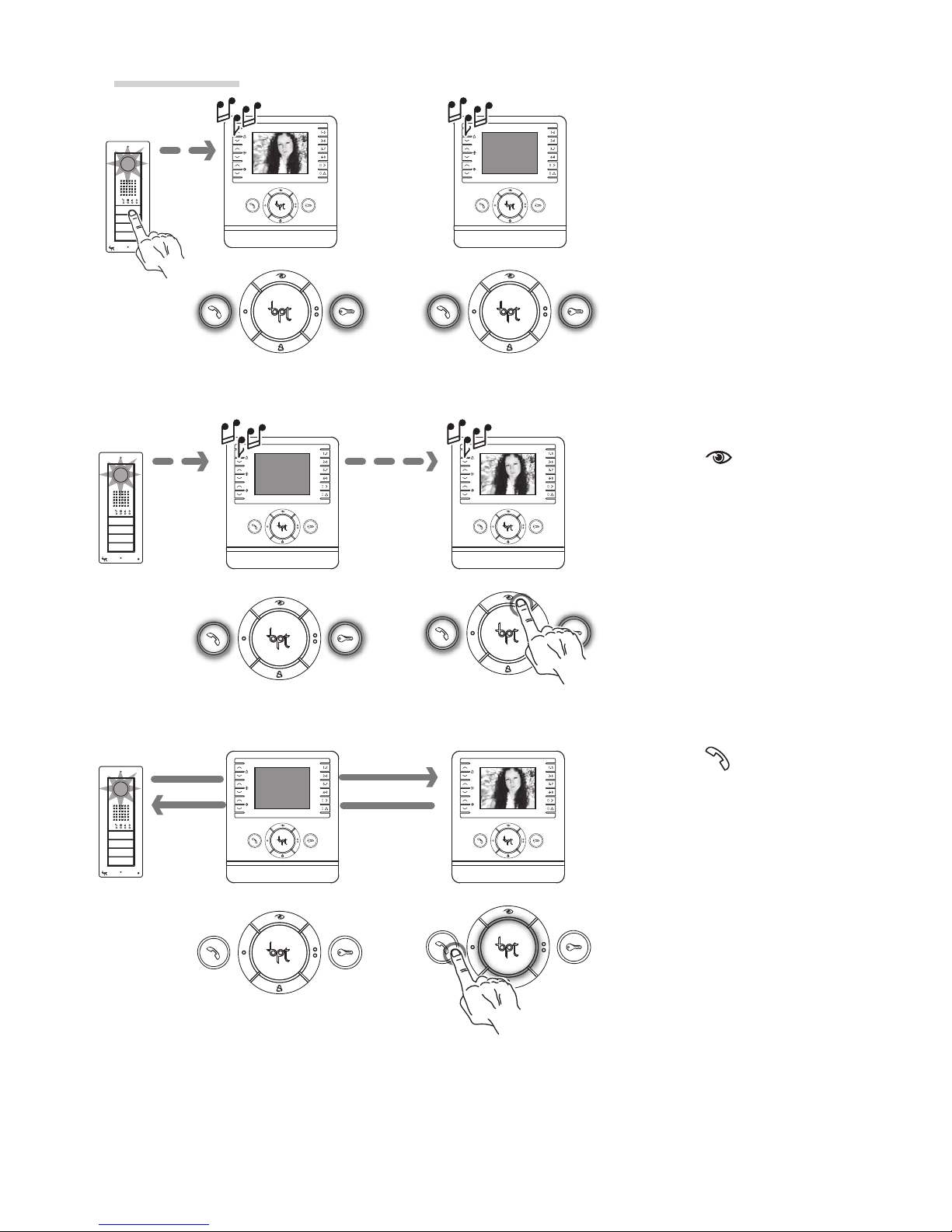

Video toggle
If two or more receivers
have been configured to
answer the same call,
the preview image of the
caller is shown only on the
MASTER device(s).
Press the key to transfer
the display to a SLAVE
receiver, without activating
the audio.
Press the key to activate
audio communication with
the entry panel.
PERLA 1 PERLA 2
PERLA 1 PERLA 2
PERLA 2
PERLA 1 PERLA 2
PERLA 1
PERLA 1
PERLA 1
PERLA 2
PERLA 2
PERLA 2
Page 6 - Manual code FB00288-EN - vers. 1
- 02/2016 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.

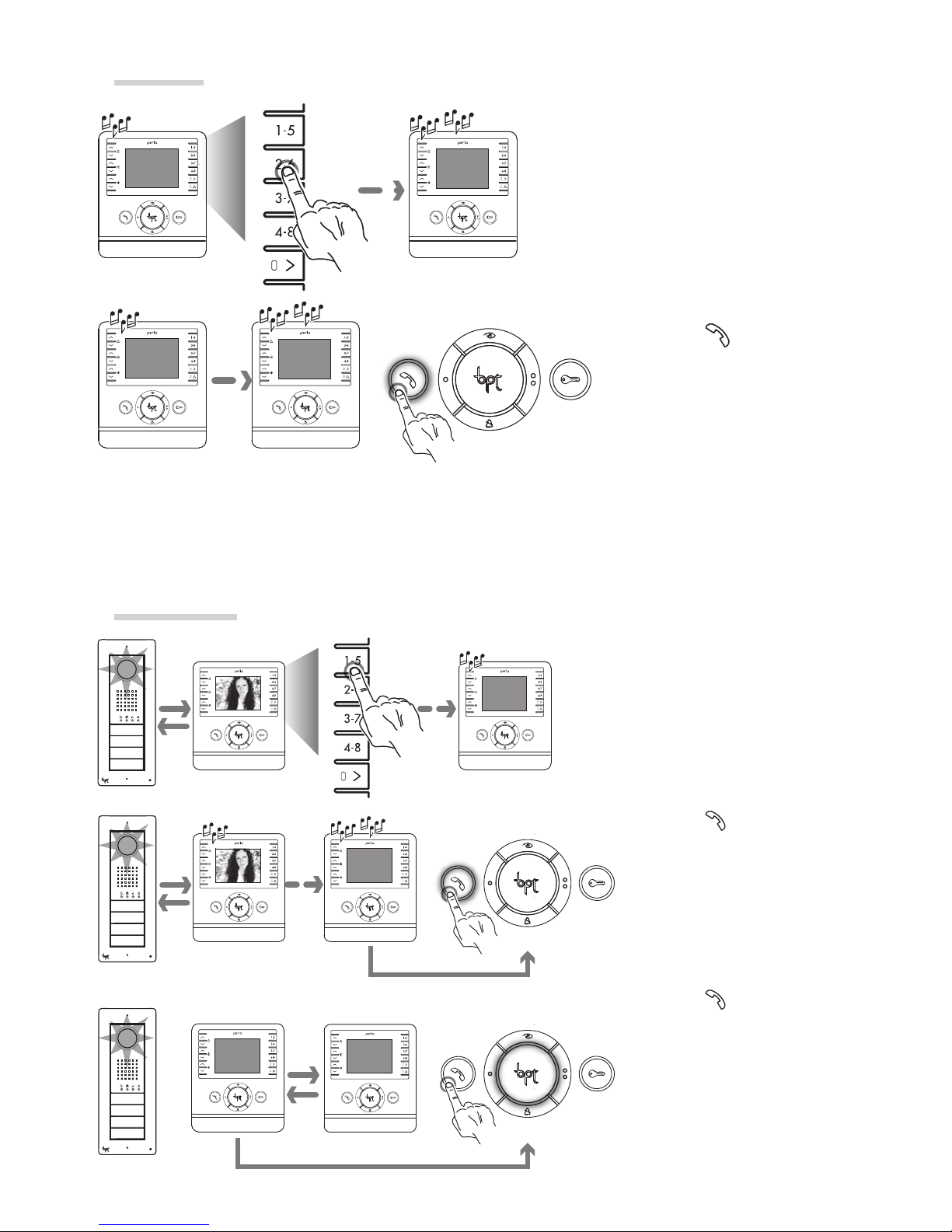

Intercom
Call transfer
Select the desired indoor
receiver. The calling receiver
sounds the line-free tone
and the called receiver rings
with the chosen ringtone.
Press the key on the
receiver called to activate
audio communication.
During a conversation between indoor receivers, a call from an entry panel is signalled to
the receivers with a beep that is repeated every 5 seconds. If the green LED comes on for 2
seconds and beeps 3 times, calls cannot be made because the line is busy.
With a call active, select the
internal receiver to which
the call is to be transferred.
Press the key on the
receiver that is called
to activate the audio
communication.
Press the key to transfer
the call.
The indoor receiver
receiving the call can
retransfer it.
call n2
CALL ME
call n2
ALARM
D
Page 7 - Manual code FB00288-EN - vers. 1
- 02/2016 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.

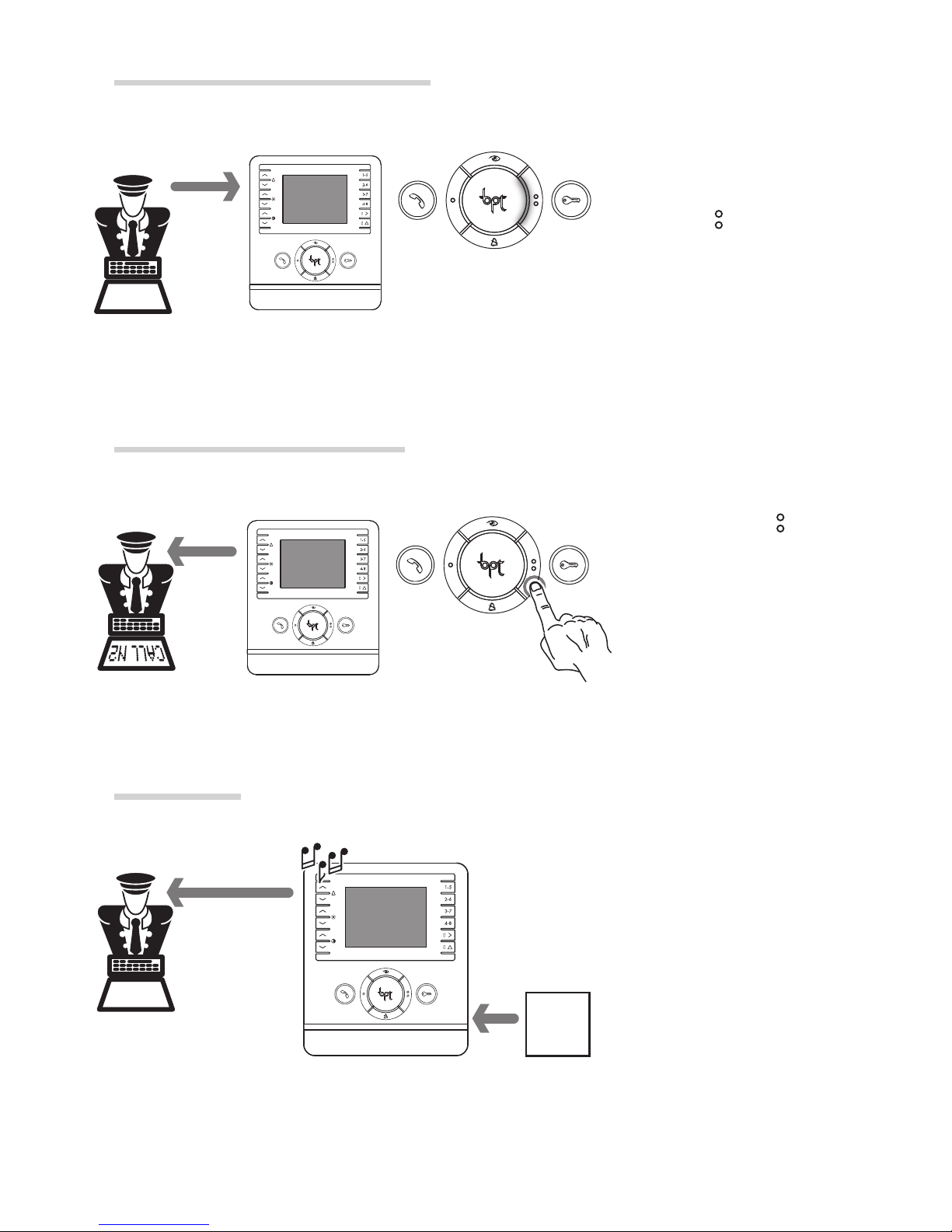

Call from concierge notification
☞ Function available only on systems with concierge desk.
An unanswered call from
the concierge desk is
marked by the Aux2 LED
lighting up .
The notification goes out
when communication with
the concierge begins.
Request for call to concierge
☞ Function available only on systems with concierge desk.
Alarm signal
☞ Function available only on systems with concierge desk.
Pressing the Aux2 button
sends a request for call
back to the concierge.
If an alarm is connected
to the relevant input on
the receiver, when the
alarm is activated, an
alarm signal is sent to the
concierge and the receiver
beeps intermittently for
approximately 10 seconds.
