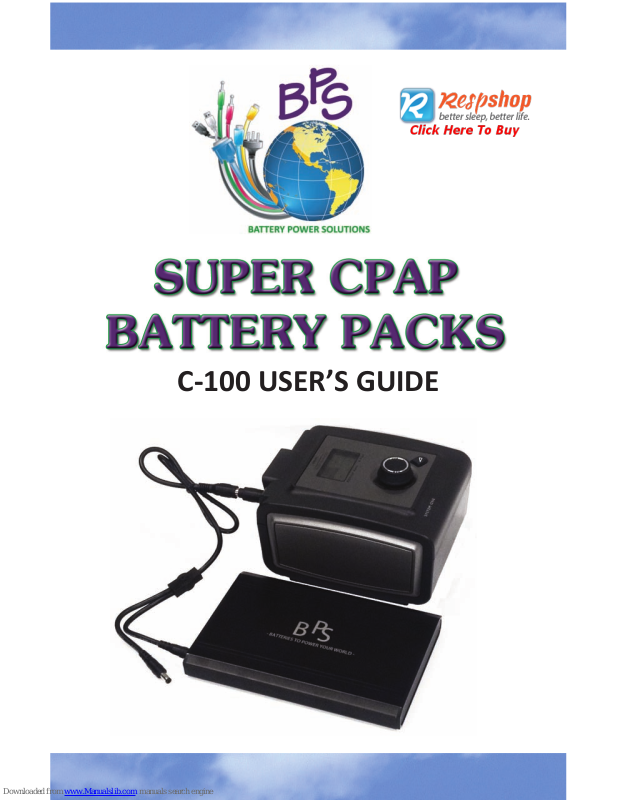

C-100 USER’S GUIDE
Your CPAP machine doesn’t have to
keep you from enjoying the great outdoors...
perfect for tent campers & use in RVs!
The freedom to power your CPAP machine
no matter where your world takes you!
Introduction
Product Specifications 1
Package Contents 1
Intended Use 2
Compatibility 2
Important Notes
Sine Wave Inverter or DC Converter Usage 3-4
Humidifier Usage 4
Overseas Travel 4
Use as a Power Backup 5
Battery Pack Run Times 5
Getting Started
Control Board Identification 6
The Power Meter 6
Turning the Battery Pack On/Off 7
Charging with AC Power 7
Charging in a Vehicle 8
Battery Pack Operation
Direct Connection 9
Connector Tips 10
Connection Via 150 Watt Sine Wave Inverter 11
Safety Warnings
Disposal of Lithium-Ion Batteries
Table of Contents
Product Specifications
Output Voltage: 12V Output Current (Max): 8A
Current Charge: 2500mAh Warranty: 6 months
Dimensions: 7.5” x 4.25” x 0.75” (L x W x H) Weight: 1.6 lbs.
Power Gauge: Four stage LED
Recharge Time: 3-4 hours (per battery) Recharge Cycles: 300-500
**Average Run Time:
Single Battery Configuration
Respironics & other 12V machines: 1-3 nights
*ResMed & other 24V machines: 1-2 nights
Double Battery Configuration
Respironics & other 12V machines: 3-5 nights
*ResMed & other 24V machines: 2-3 nights
*Use of sine wave inverter or DC converter required. Please refer to page 3.
**Average run times are estimates and vary depending upon several factors including
device type, whether a power inverter or converter is used in conjunction with the
battery, pressure setting, and altitude. Run times are based on Respironics System
One and ResMed S-9 models with no heated humidification or tubing.
Package Contents
Your Battery Pack comes with the items listed below. If you are missing
any of these items, please contact the company from whom you purchased
your Super CPAP Battery Pack.
1
Introduction
DC Power Pigtail Cord DC Input CordAC Power Supply & Cord
Battery Pack(s) Carrying Case Connector Tips
Battery Pack is sold in a single or double
battery configuration package.
2
Introduction
Intended Use
Super CPAP Battery Packs are intended to provide external power to CPAP
and BiLevel machines; however, they may aslo be used to power other
devices that operate from a 12V DC current such as cell phones, portable
DVD players, iPads and laptops.
Please note that use of the Battery Pack with a device that requires more
than 12V output may cause the Battery Pack’s internal circuitry to shut off
to protect from overrun.
Compatibility
CPAP Battery Packs are compatible with most makes and models of CPAP
and BiLevel machines; however, some machines require the additional
use of a sine wave inverter or a DC converter to complete the connection
between the Battery Pack and the device. Please refer to the Sine Wave
Inverter or DC Converter Usage section on page 3 for more information.
The DC power cord included with the Battery Pack may not be compatible
with your CPAP or BiLevel machine. Some manufacturers require the use
of a specific DC adaptor cable with built-in fuses or special connection
types. When in doubt, please contact the manufacturer of your device.
Below is the contact information for the most common CPAP and BiLevel
machine manufacturers.
Respironics 1-800-345-6443 www.respironics.com
ResMed 1-800-424-0737 www.resmed.com
Fisher & Paykel 1-800-707-5454 www.fphcare.com
Invacare 1-800-333-6900 www.invacare.com
DeVilbiss 1-800-338-1988 www.devilbisshealthcare.com
Puritan Bennett 1-800-635-5267 www.puritanbennett.com
Important Notes
3
Sine Wave Inverter or DC Converter Usage
ResMed Model Machines & Other 24V Devices
If you are using any machine manufactured by ResMed or any other
24V device you must use either a sine wave inverter or DC converter
to complete the connection between the machine and the Battery Pack
as our Battery Pack provides 12V DC current.
ResMed offers DC converters specifically designed for use with their
machines. A sine wave inverter may also be used; however, please
check the manual for your specific model as there may be disclaimers
regarding the use of modified versus pure sine wave inverters.
DO NOT connect the Battery Pack directly to any ResMed model
machine or any other 24V device.
Devices Without a DC Input Port
If you are using a dated CPAP or BiLevel machine without a DC input
port you must use either a sine wave inverter or DC converter to
complete the connection between the CPAP or BiLevel machine
and the Battery Pack.
Charging the Battery Pack in a Vehicle
The use of a sine wave inverter or DC converter in conjunction with
the Battery Pack allows you to safely and efficiently recharge your
Battery Pack via the cigarette lighter socket of a vehicle.
Powering Other Devices
Use of a sine wave inverter in conjunction
with the Battery Pack allows you to
power other devices such as
cell phones, iPads, portable
DVD players, and laptops,
which operate from a
12V DC current.
4
Important Notes
Sine Wave Inverter or DC Converter Usage
Purchasing Sine Wave Inverters and DC Converters
For your convenience Battery Power Solutions offers an incredibly small,
yet powerful 150 Watt modified sine wave inverter (sold separately).
Modified and pure sine wave inverters may also be purchased from
electronics stores.ResMed DC Converters may be purchased from
medical equipment suppliers who sell ResMed products.
Humidifier Usage
The use of heated humidification with the Battery Pack will significantly
reduce the expected run time. To obtain optimal Battery Pack run times
we recommend you forgo the use of heated humidification.
Some CPAP/BiLevel manufacturers do not recommend the use of a
humidifier when an external battery is used to run their device or they
require the use of a modified or pure sine wave inverter or DC converter in
conjunction with the battery. Please check the manual for your specific
device for disclaimers regarding the use of humidification.
Overseas Travel
The Battery Pack will operate on any AC current from 120 to 240 volts
without any adjustment. You will simply need to purchase an international
electrical adapter from your local electronics store in order to charge the
Battery Pack from a wall outlet in a foreign country.
150 WATT
MODIFIED SINE WAVE INVERTER
Dimensions: 5.25" x 2.75" x .5" (LxWxH)
Weight: 0.5 lbs
Important Notes
5
Use as a Power Backup
The Battery Pack is equipped with a standard smart charger keeping the
battery topped off and ready to go as an emergency power backup during
power outages.
You may keep the Battery Pack plugged into a wall outlet and your
CPAP/BiLevel machine and in the event of a power outage the Battery
Pack will automatically begin powering your device.
Battery Pack Run Times
Multiple factors will affect usage times including, but not limited to,
device type, whether a power inverter or converter is used in conjunction
with the battery, pressure setting, and altitude. The use of heated
humidification or tubing will significantly reduce expected run times.
Older model CPAP and BiLevel machines, which were designed to operate
on a higher voltage, will produce lower average run times than newer
models which are designed to operate at lower voltages.
Average run times are based on Respironics System One and ResMed S-9
devices with no heated humidification or tubing.
6
Getting Started
Control Board Part Identification
The control board of the Battery Pack includes the DC in and out jacks
used to connect the Battery Pack to the device you are wanting to power
as well as the power meter which indicates the remaining power level.
A DC In Jack B Power Button C Full Charged Light
D DC Out Jack E Charging Light F On Light
G Power Meter
EF
CBAD
G
The On Light (F) will be green when a device is plugged into the DC Out Jack (D).
The Charging Light (E) will be red when the battery is being charged via a wall outlet.
The Full Charged Light (C) will be green when the battery has completed charging.
The Power Meter
The LED light power meter indicates the remaining power level of the
Battery Pack. The power meter may be activated after the first time you
charge your Battery Pack. Press the Power button, the number of LED lights
displayed will show you the power level of the Battery Pack.
4 green LED lights 85-100% 3 green LED lights 50-85%
2 green LED lights 15-50% 1 green LED light < 15%
If the power meter does not work, hold down the Power button for 10-15
seconds or until the LED lights display. This will activate the power meter.
7
Getting Started
Turning the Battery Pack On/Off
The Battery Pack will turn on or off automatically when a device is plugged
into or disconnected from the Battery. If the Battery Pack stops
functioning, reconnect the AC charger to the Battery Pack to reset the
internal circuitry. This will allow the Battery Pack to function again.
Charging with AC Power
Before using your Battery Pack for the first time be sure to charge it fully
using AC power. The Battery Pack does not need to be fully discharged
before charging.
Connect the output cable of the AC power supply included with your
Battery Pack to the DC In Jack.
Connect the power cord of the AC power supply to a wall outlet.
After you have fully charged your Battery Pack the Full Charge Light
and the four LED lights will display green.
When charging is complete disconnect the AC power supply and cord
and store it for future use.
DC In Jack
AC Power Supply
8
Getting Started
Charging in a Vehicle
The use of a sine wave inverter or a DC converter allows you to safely and
efficiently charge the Battery Pack via the cigarette lighter socket of a
vehicle. Charge times will vary depending upon sine wave inverter or DC
converter type and vehicle battery type.
Connect the output cable of the AC power supply included with your
Battery Pack to the DC In Jack.
Connect the plug of the AC power supply of the Battery Pack to the
sine wave inverter or DC converter.
Plug the sine wave inverter or DC converter adaptor cord into the
cigarette lighter socket and start the vehicle to begin charging.
When the charging process is complete remove the sine wave inverter
or DC converter adaptor cord from the cigarette lighter socket.
Battery Pack
DC In Jack
Inverter
Adaptor Cord
Inverter
AC Power Supply
9
Direct Connection
If you are not using a ResMed model or other 24V machine and your
machine has a DC input port you can connect your machine directly to the
Battery Pack. DO NOT connect the Battery Pack directly to any ResMed
model machine or any other 24V device.
Connect the DC power pigtail cord included with your Battery Pack
to the DC Out Jack on the Battery Pack. C-100 Battery Packs are
sold in single and double configuration packages.
If you are using two C-100 Battery Packs connect the DC power
pigtail cord to both Battery Packs.
Connect the DC power pigtail cord to the DC input port located on
the CPAP or BiLevel machine. If the DC power pigtail cord will not
directly and tightly fit in the CPAP machine please refer to the
Connector Tips section on page 10.
Once the connection between the Battery Pack and the machine is
complete, press the ON/OFF button on the CPAP/BiLevel machine.
Your machine should start functioning.
Battery Pack Operation
SINGLE CONFIGURATION
DOUBLE CONFIGURATION
Battery Packs
CPAP DC
Input Port
DC Power
Pigtail Cord
DC Out Jack
10
Battery Pack Operation
Connector Tips
If the DC power cord included with your Battery Pack will not directly and
tightly fit in the CPAP/BiLevel machine you will need to use one of the
connector tips provided to complete the connection between the Battery
Pack and the machine.
Locate the DC input port on the CPAP/BiLevel machine.
Try to insert a connector tip into the DC input port on the machine and
then gently try to plug the connector tip into the end of DC power
pigtail cord included with the Battery Pack.
Test all of the connector tips. Even if you find that one works, there
may be another connector tip that fits more tightly in your machine.
You want to avoid using a loose tip if there is a better match.
Once you have found the best connector tip, store it in a separate
place away from the other tips for easy retrieval when you want to
use your Battery Pack.
DC Power
Pigtail Cord
Connector Tip
CPAP DC Input Port
11
Battery Pack Operation
Connection Via 150 Watt Sine Wave Inverter
Connect the DC power pigtail cord to the DC Out Jack on the Battery
Pack(s). Connect the DC input cord to the DC power pigtail cord.
Connect the inverter adaptor cord to the side of the inverter. Connect
the opposite end of the inverter adaptor cord into the DC input cord of
the Battery Pack.
Connect the regular AC power cord of your CPAP or BiLevel machine to
the inverter by sliding open the small spring loaded tab which will
reveal the two-prong plug (located on the back of the inverter).
DC Power
Pigtail Cord
CPAP DC Input Port
DC Input Cord
Inverter
Battery Pack(s)
CPAP AC Power Supply
Inverter
Adpator Cord
Once the connection between the Battery
Pack, inverter and the machine is complete,
press the ON/OFF button on the CPAP/
BiLevel machine and your machine should
start functioning.
Safety Warnings
By purchasing, using or possessing any of Battery Power Solutions’
products, you are agreeing to hold harmless Battery Power Solutions, it’s
subsidiaries, affiliates, owners, officers and employees from any and all
claims or liability for any damage to any property or injury, illness or death
of any person when such damage, injury, illness or death shall be caused
in whole or in part from use of the product(s).
Battery Packs are designed and manufactured with a PCB (Protective Circuit
Board) which provides the following internal protective safety features:
(1) Internal protection against thermal runaway (overheating)
(2) Internal protection against over charging
(3) Internal protection against over discharge
(4) Internal protection against over voltage and over current
(5) Internal protection against short circuit
The following safety warnings must be observed at all times:
To prevent fire or shock hazard, do not expose the Battery Pack
to rain or moisture of any type.
To reduce the risk of electric shock, do not remove the Battery Pack
cover (back) as there are no user-serviceable parts inside. Do not
attempt to repair the Battery Pack.
Periodically inspect electrical cords, connector tips and the power
supply for damage or signs of wear. Discontinue use if damaged.
Disposal of Lithium-ion Batteries
Lithium-ion batteries are recyclable in most states. For information on
where you can recycle your batteries at no cost, visit www.call2recycle.org
or call 1-877-723-1297. Though some municipalities may allow disposal
through the normal waste system you should contact your Local
Governmental Household Hazardous Waste Agencies or go to
www.call2recycle.org for information on where to recycle batteries to
comply with state battery disposal regulations.
CPAP BATTERY PACK USER’S GUIDE
July 2013
1-877-445-5228
info@batterypowersolutions.net
www.batterypowersolutions.net
Loading...
