BPS 24 Service Manual

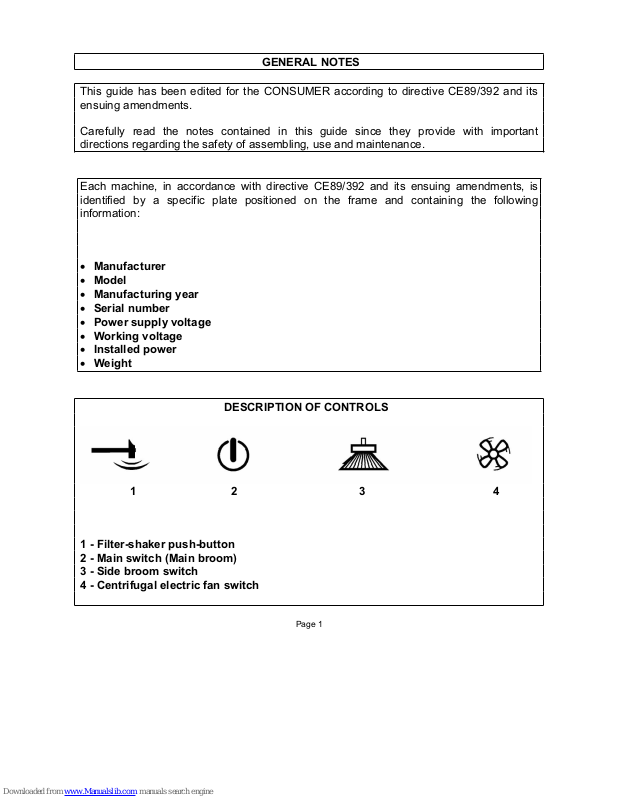

GENERAL NOTES

This guide has been edited for the CONSUMER according to directive CE89/392 and its
ensuing amendments.

Carefully read the notes contained in this guide since they provide with important
directions regarding the safety of assembling, use and maintenance.

Each machine, in accordance with directive CE89/392 and its ensuing amendments, is
identified by a specific plate positioned on the frame and containing the following
information:

x Manufacturer
x Model
x Manufacturing year
x Serial number
x Power supply voltage
x Working voltage
x Installed power
x Weight

DESCRIPTION OF CONTROLS

1 2 3 4

1 - Filter-shaker push-button
2 - Main switch (Main broom)
3 - Side broom switch
4 - Centrifugal electric fan switch

Page 1

CONDITION OF USE

CONSENTED USES

The 24” Battery Vacuum Sweeper is built for cleaning the ground in the following
conditions of employment:

a - Environments:
* Both closed and opened.

b - Working surfaces:

* Level surfaces enough compact and not much irregular as:

- Ceramics.

- Wood.

- Marble.

- Concrete.

- Asphalt.

- Various plastic materials.

- Carpets

c - Nature of the materials to remove:

* Dust.
* Dirt in general.
* Mould and rubble.
* Not excessively heavy or large objects.

NOT CONSENTED USES

a - Environments:
* In presence of inflammable materials.
b - Working surfaces:
* With gradients exceeding 2%.

* Particularly irregular.
* Particularly wet.

c - Kind of materials:
* Lighted cigarettes-end or any other material that could

cause combustion of debris inside the waste

compartment.
* Toxic materials.
* Oils
* Chemical materials.

CAUTION!!!!
Minimum working temperature -20°C (-4°F)
Maximum working temperature +40°C (+104°F)
Do not leave the unused machine exposed to UV rays because they could damage the
cover.

Page 2

2

UNPACKING AND SETUP OF THE MACHINE

1- Remove the packing and make sure of the machine integrity.

2- Before using the machine proceed in this way:

2.1 Take from the Waste Hopper Table B-1
the Side Broom – Table A-20

2.2 Unscrew the screw and washers Table A-24 from the Gearmotor Table A-15.
Insert the broom on the gearmotor axle having the key slot matching the key,

leaving the spacer between the broom and the gearmotor, then fix it with the
screw and washers

2.3 Remove the Cover Table A- 1 unscrewing the four screws that keep it fixed on the

machine frame.

2.4 Make sure that the input voltage of the Battery-charger corresponds to the input

voltage available.

The machine leaves the factory set for an input voltage of 120 VAC

For input voltages of 210/240 VAC :
Follow connections as per Table B – 5

2.5 Connect the battery terminals paying attention to the correspondence of polarities.

2.6 Provide for the charge of the battery (See the following directions PAGE 4 –

Battery-charger).

MACHINE SETUP

State of rest: the machine can be placed whether with the handle folded down or with the

handle in vertical position.

Page 3

3

MACHINE STARTING UP AND OPERATION

Main broom

Operating the switch (Figure 1-2) the main broom Table C- 14 starts to work reaching
immediately the running speed. The lighting of a green LED signals the regular operation.

With the main broom working it is possible to operate:

Side broom

Operating the switch (Figure 1-3) the side broom will start working.
To adjust the side broom operate on the knob (Table A- 22).

Vacuum
Operating the switch (Figure 1-4) the centrifugal electric motor fan starts to work.

Electric filter-shaker

With the battery connected, the electric filter-shaker is always active.

- The operation takes place pressing the push-button (Figure 1- 1).

- With the machine in movement, before operating the filter-shaker, it is suggested to

switch-off the vacuum, switch (Figure 1- 4).

- With the machine still and the hopper out, switch-off the suction and the main broom

switch (Figure 1 - 2) , before operating the filter-shaker.

Battery

- The “discharged battery” limit is signalled by the lighting of a red Led and afterwards

by the motors switching off.

- To complete the work switch-off for a while the switch (Figure 1- 2).

- To make use of a further residual of charge, switch-off the side broom switch

(Figure 1- 3).

CAUTION: In case of prolonged inactivity of the machine disconnect the battery
terminals.

Battery charger

To charge the battery:

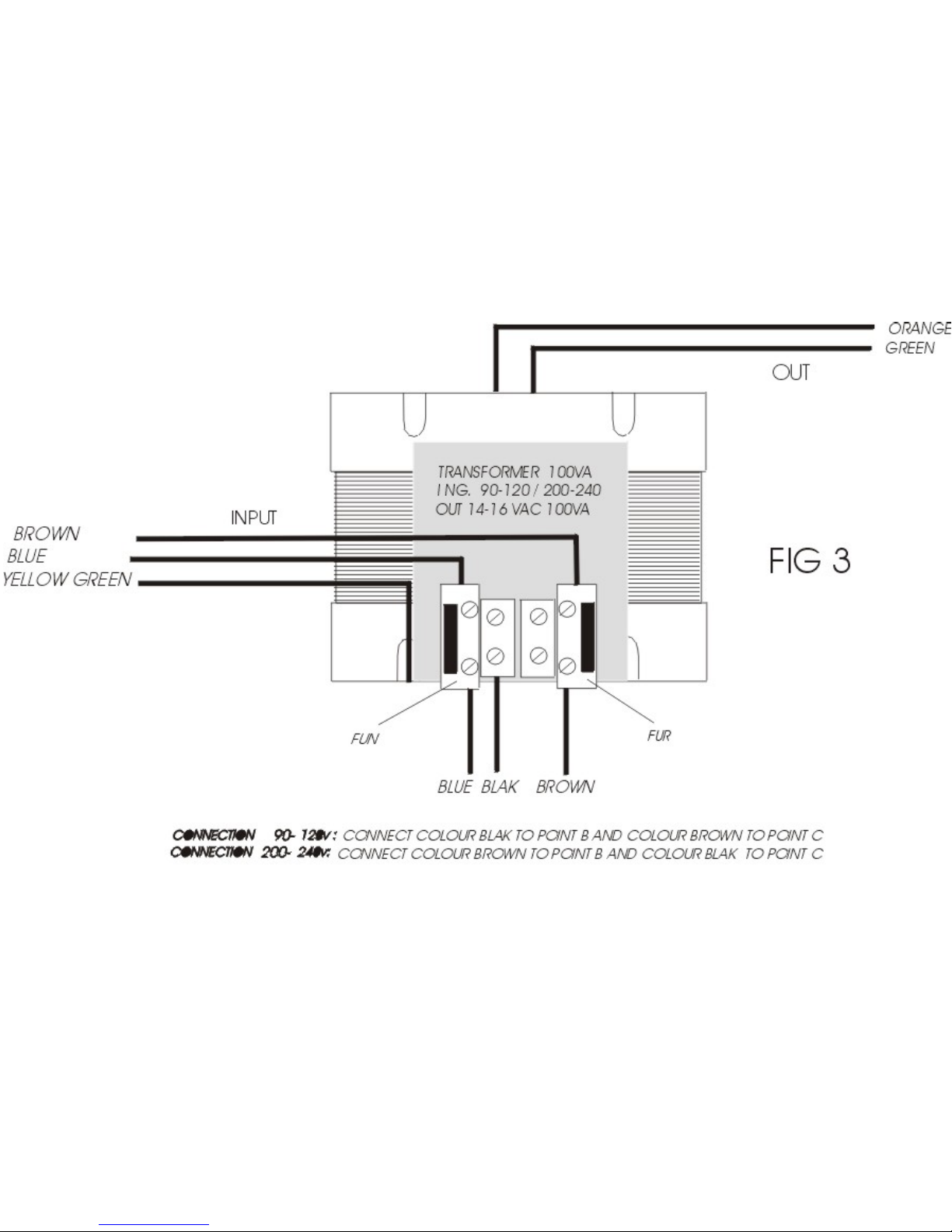

- Make sure that the transformer connections have been set for the suitable voltage

from 90 up to 240 volts Figure 3 – Page 9.

- Use the cable already connected to the machine (Table A- 11), insert the plug in any

suitable AC. outlet.

- The time required for the complete recharge varies from 8 to 15 hours, depending on the

power grid condition.

- During the charge all functions are automatically switched-off.

CAUTION: during the battery charging avoid to have contacts with parts of the circuit
concerned by the network voltage.

Page 4

4

Battery

- The “discharged battery” limit is signalled by the lighting of a red Led and afterwards

by the motors switching off.

- To complete the work switch-off for a while the switch (FIG.1- 2).

- To make use of a further residual of charge, switch-off the side broom switch (FIG.1- 3).

CAUTION: In case of prolonged inactivity of the machine disconnect the battery
terminals.

Battery charger

To charge the battery:

- Make sure that the transformer connections have been set for the suitable voltage

from 90 up to 240 volts FIG.3 – Page 9.

- Use the cable already connected to the machine (TAV.A- 11), insert the plug in any

suitable AC. outlet.

- The time required for the complete recharge varies from 8 to 15 hours, depending on the

power grid condition.

- During the charge all functions are automatically switched-off.

CAUTION: during the battery charging avoid to have contacts with parts of the circuit
concerned by the network voltage.

Page 5

5

ORDINARY MAINTENANCE

Maintenance and replacement of the main broom:

a- Cleaning:
Check periodically, according to the use of the machine, the wear conditions of the
main broom Table C-14. To carry out this operation, the following tools are needed:

- Heavy-duty gloves.

- Breathing mask.

- Scissors

- Pliers
Switch off the machine. In order to see the main broom:

- Remove the waste container (Table B-1) and the battery (Table A- 9).

- Tilt the machine.

- Clean away from the broom any filaments or other.

b- Adjustment:
To adjust the distance of the main broom to the ground, operate the cam Table A-26

from position 1 to position 5.

c- Replacement:

If the broom wear is such to require it, replace the broom :

- Release the driving belt Table A - 14.

- Disassemble the internal flap Table C- 13.

- Release the belt Table A- 14.

- Unscrew the eccentrics Table C- 1

- Remove the broom unit from its housing.

- Remove the two spacers Table C- 2 Table C- 3 .

- Remove the pulley-hub Table C- 5 and the free hub Table C- 6.

- Using a new broom, carry out the operations in reverse order.

Maintenance and replacement of the side broom:

With procedures and tools similar to the above mentioned ones.

a- Adjustment:

- Act on the knob Table A- 22

b- Replacement:

- Unscrew the fastening screw Table A - 24 and replace the broom (Table A- 20),

paying attention to the flat key that lock the broom to the gearmotor shaft.

Page 6

6

Maintenance and replacement of the filter:

To carry out this procedure the following tools are needed:

- Heavy duty gloves.

- Breathing mask.

a- Cleaning / Replacement:

- Withdraw the split pin Table B- 11 from the hole of the Pin Table B -11 that hold

the filter-support (Table B- 10) at the machine frame.

- Remove the filter (Table B-12) and check the wear condition.

- If necessary, replace it.

- If not, proceed to clean it, beating it on the floor and, if possible, blow with compressed

air from the upper side at a distance of about 15 cm.

- Reassemble carrying out operations in reverse order.

Maintenance and replacement of the flaps:

- Periodically check the conditions of flaps’ rubbers.

a- Replacement of the front flap rubber:

- Unscrew the rod (Table C- 7).

- Unscrew the front strap iron (Table C- 9).

- Unscrew the straps iron (Table C- 8) -(Table C- 10).

- Replace the rubber (Table C- 13).

- Reassemble following the same operations in reverse order.

b- Replacement of the side flap’s rubber:

- Unscrew the bus-bar (Table C- 11).

- Replace the rubber (Table C- 14).

c- Replacement of the back flap’s rubber:

- Unscrew the back strap iron (Table C- 9).

- Replace the rubber (Table C- 12).

Page 7

7

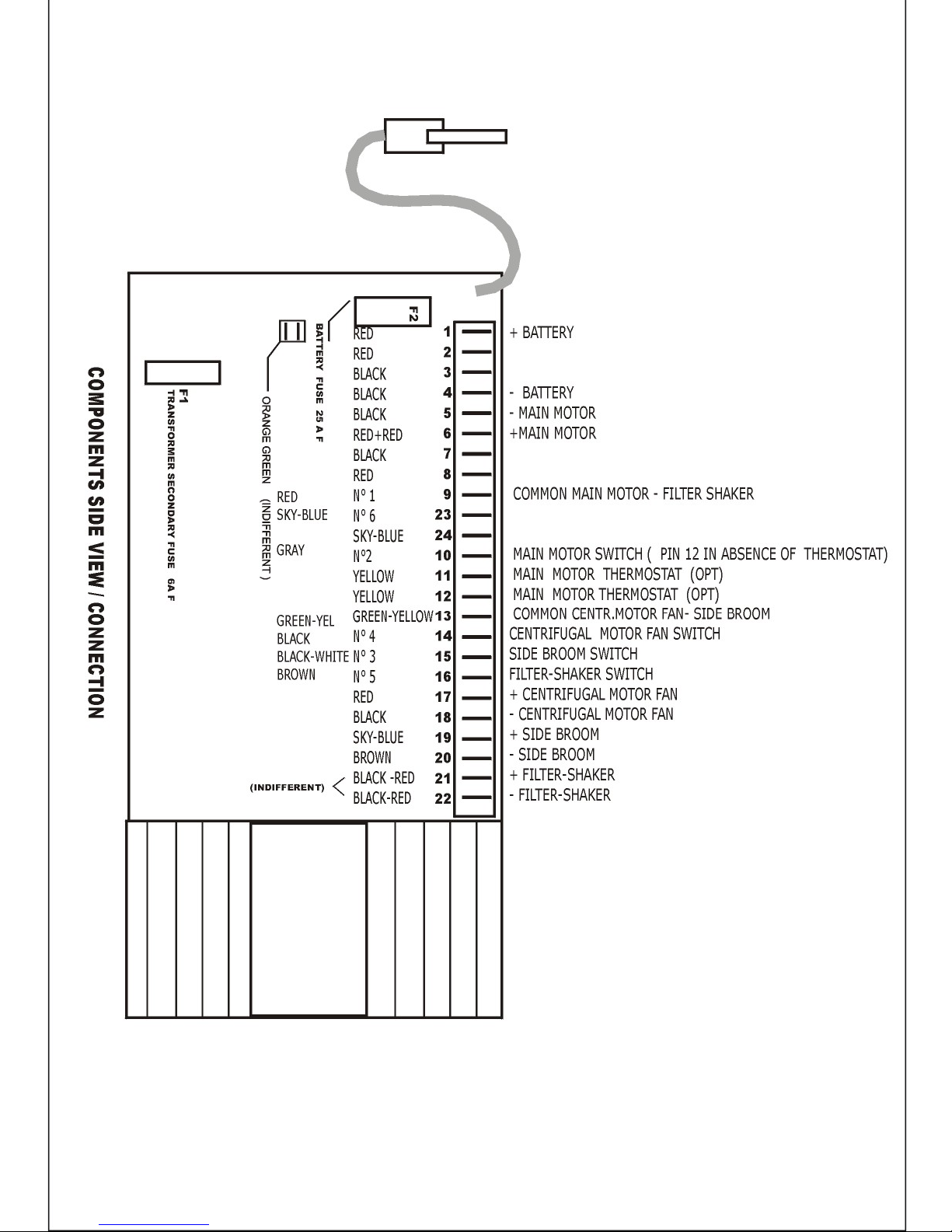

Maintenance and replacement of the electronic circuit board

:

In case of non-operation of some electrical components, check out the integrity of the
fuses:

Figure 2 - F2

In case of a non good operation of the function of battery charging, check out the integrity
of the fuses:

Figure 2 - F1
Figure 3 - FUN
Figure 3 - FUR

If necessary, replace them with integral ones.

If this operation does not bring to the drawback elimination, turn to an authorized
workshop.

Page 8

8

s

VeiwBETCO # DESCRIPTION

w

w

1 82892 P 030 33110 COVER
2 82893 3 017 E400B WIRED COMMANDS CONSOLE (SWITCHES BOX)
3 82894 4 100 33201 HANDLE
4 82895 K 999 00001 HANDLE ADJUSTING KIT
5 82896 K 999 00002 HANDLE PIVOT KIT
6 82897 4 350 33200 BATTERY STRAP
7 82898 8 600 33030 GEL SEALED BATTERY 12V 42AH
8 82899 3 015 A400B VACUUM FAN UNIT

9 82900 4 310 33160 MOTOR FAN GASKET
10 82901 7 720 33060 MOTOR
11 82902 4 281 33090 PULLEY
12 82903 8 441 21579 BELT
13 82904 K 999 00003 LEFT BUMPER WHEEL KIT
14 82905 E MIC 01001 MICROSWITCH
15 82906 4 090 33150 GEARMOTOR SUPPORT
16 82907 8 250 33010 PIVOT
17 82908 K 999 00004 SIDE BROOM ARM PIN KIT
18 82909 K 999 00005 SIDE BROOM LOCKING PIN KIT
19 82910 4 290 33400 SIDE BROOM ADJUSTING SPRING
20 82911 8 040 05020 SIDE BROOM ADJUSTING KNOB
21 82912 7 750 33030 GEARMOTOR
22 82913 4 350 33084 SIDE BROOM
23 82914 7 602 33003 SIDE BROOM FASTENING KIT
24 82915 K 999 00006 RIGHT BUMPER WHEEL KIT
25 82916 4 240 33270 SPACER
26 82917 4 300 33160 SIDE BROOM TRACTION SPRING
27 82918 7 620 33010 FILTER-SHAKER ELECTROMAGNET

BETCO # DESCRIPTION

Vei

Ref.#

Ref.#

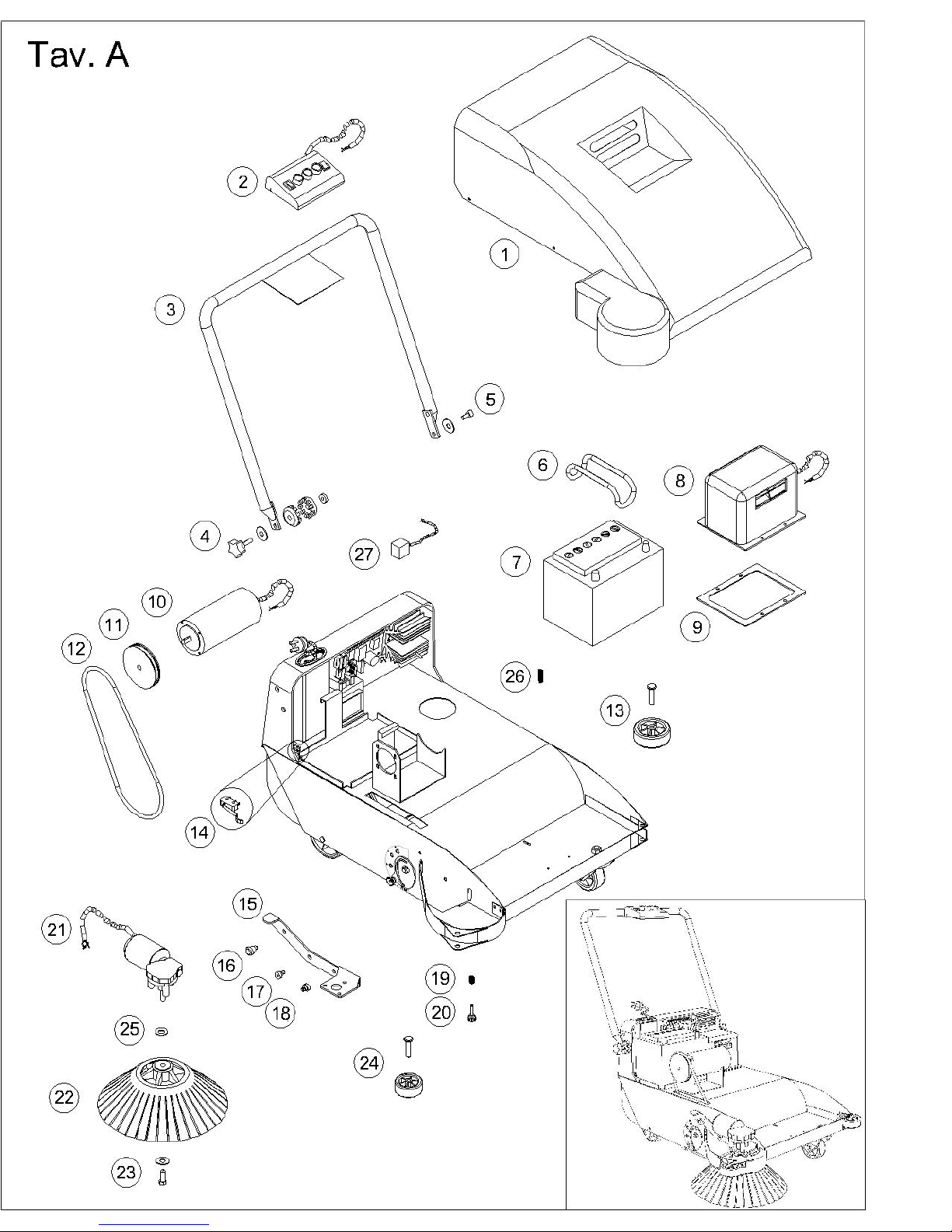

TABLE A Spare Part

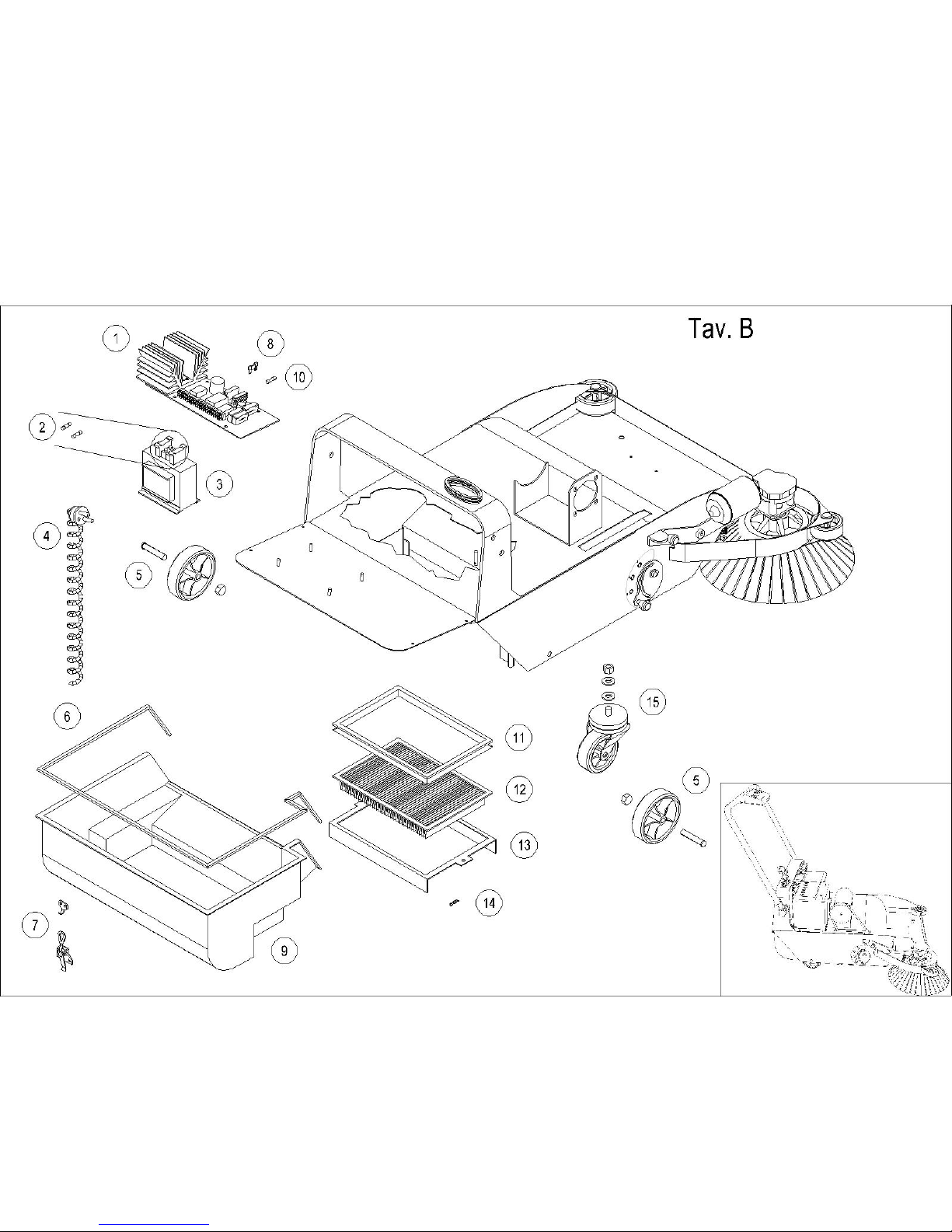

TABLE B Spare Parts

1 82919 4 018 A400B ELECTRONICS CONTROL BOARD

2 82920 E FUS 01001 FUSE 10A Box of 10

3 82921 4 018 33011 TRANSFORMER

4 82922 S CAV 01010 COILED CABLE

5 82923 K 999 00007 REAR WHEEL KIT

6 82924 4 310 33140 GASKET

7 82925 8 119 33100 CLAMP LEVER

8 82926 E FUS 02002 FUSE 30 A Box of 10

9 82927 4 021 33100 HOPPER
10 82928 E FUS 01003 FUSE 1.5 A Box of 10
11 82929 4 310 33150 FILTER SUPPORT GASKET
12 82930 3 013 B400B FILTER
13 82931 4 070 33110 FILTER HOLDER BRACKET
14 82932 4 650 02042 SPLIT PIN
15 82933 K 999 00008 FRONT WHEEL KIT

BETCO # DESCRIPTION

Vei

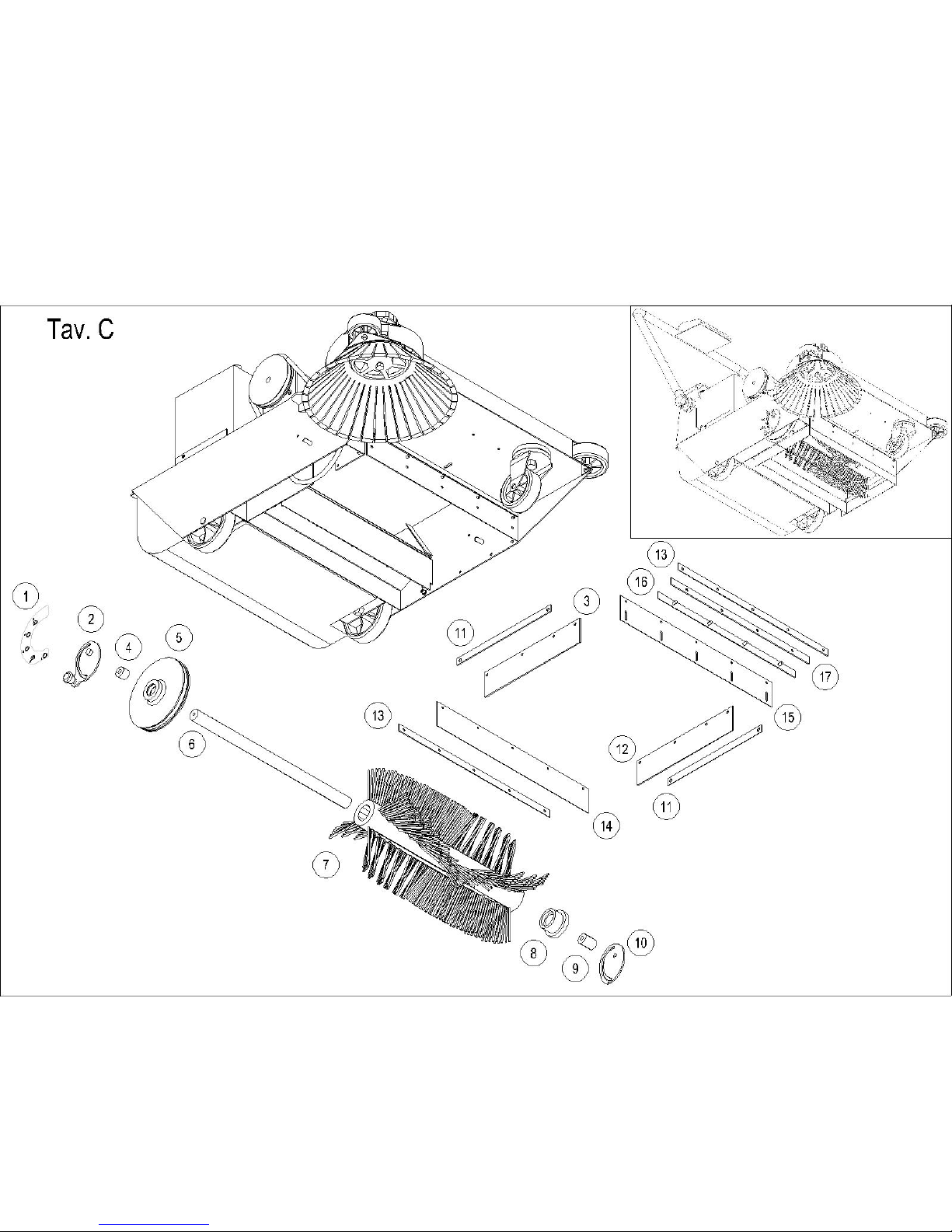

1 82934 4 202 04444 SIDE BROOM ADJUSTMENT LABEL

2 82935 4 170 33016 MAIN BROOM ADJUSTING RIGHT CAM

3 82936 4 320 33201 SIDE FLAP RUBBER

4 82937 4 240 33250 MAIN BROOM SHORT SPACER

5 82938 4 260 33170 MAIN BROOM PULLEY HUB

6 82939 4 270 33151 MAIN BROOM SHAFT

7 82940 4 340 33151 MAIN BROOM

8 82941 4 260 33160 MAIN BROOM FREE HUB

9 82942 4 240 33260 MAIN BROOM LONG SPACER
10 82943 K 999 00009 LEFT CAM KIT
11 82944 4 140 33251 SIDE FLAP STRAP
12 82945 4 320 33211 LEFT SIDE FLAP RUBBER
13 82946 4 140 33252 FRONT/REAR FLAP STRAP
14 82947 4 320 33202 REAR FLAP RUBBER
15 82948 4 320 33224 FRONT FLAP RUBBER
16 82949 4 140 33256 FRONT FLAP INTERNAL STRAP
17 82950 4 140 33258 FRONT FIXED FLAP STRAP
18 82951 4 140 33170 MAIN BROOM GASKET

Ref.#

TABLE C Spare Parts
