MP2H-7260 User’s Manual

MP2H-7260

User’s Manual

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

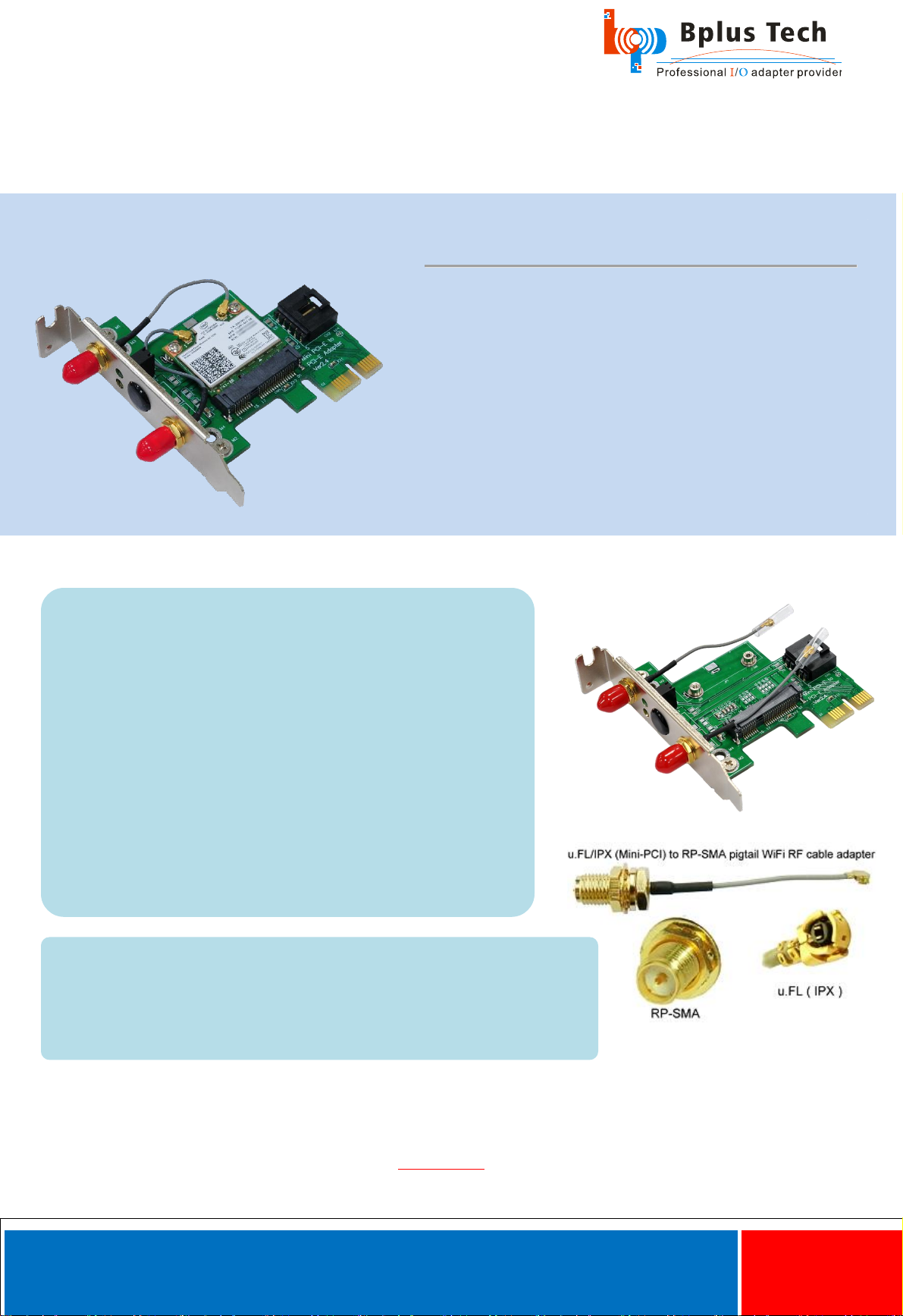

MP2H-7260 ( PCI-e Desktop adapter with Intel® Dual Band Wireless-AC 7260)

NOTICE:

 No driver CD accompanied.  Make sure you download and install the proper driver before you install the adapter.  On-board diversity support for systems designed with Two antennas

Overview:

The MP2H-7260 is PCIe 1x add-in card adapter with Intel-7260supporting Bluetooth4.0+HS and a 2x2 IEEE 802.11a/b/g/n/ac Wi-Fi up to 867 Mbps greater range and more consistent connectivity. The wireless network adapter can realize for your PCI Express-enabled desktop computer. MP2H-7260 also supports a host of features, such as Wireless Display, to enhance mobile lifestyle.

 PCI Express Mini Card to PCI Express adapter: MP2H  Standard &Low Profile Height PCI Express1x Add-in Card  Wireless access LED, POWER LED  Supports system bus interface: USB.  Dual 2.4/5.0 GHz rubber duck antennas with magnet mount  U.FL/IPX to RP-SMA pigtail WiFi RF cable adapters  IEEE WLAN Standard 802.11a/b/g/n/ac 802.11d/e/i/h  Up to 867 Mbps of bandwidth  Dual Mode Bluetooth: 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0(BLE)  CE/FCC certifications  Operating Systems: Microsoft Windows 7, Microsoft Windows 8, Linux  Intel® Smart Connect Technology  0

o

C to +80oC

Specification:

MP2H-7260

MP2H

 Intel® Dual Band Wireless-AC 7260 brief download  DRIVER download(http://downloadcenter.intel.com)

 Operating Systems: Microsoft Windows XP 32/64-bit, Microsoft Windows Vista

32/64-bit, Microsoft Windows 7 32/64-bit, Microsoft Windows 8 Ubuntu Linux

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

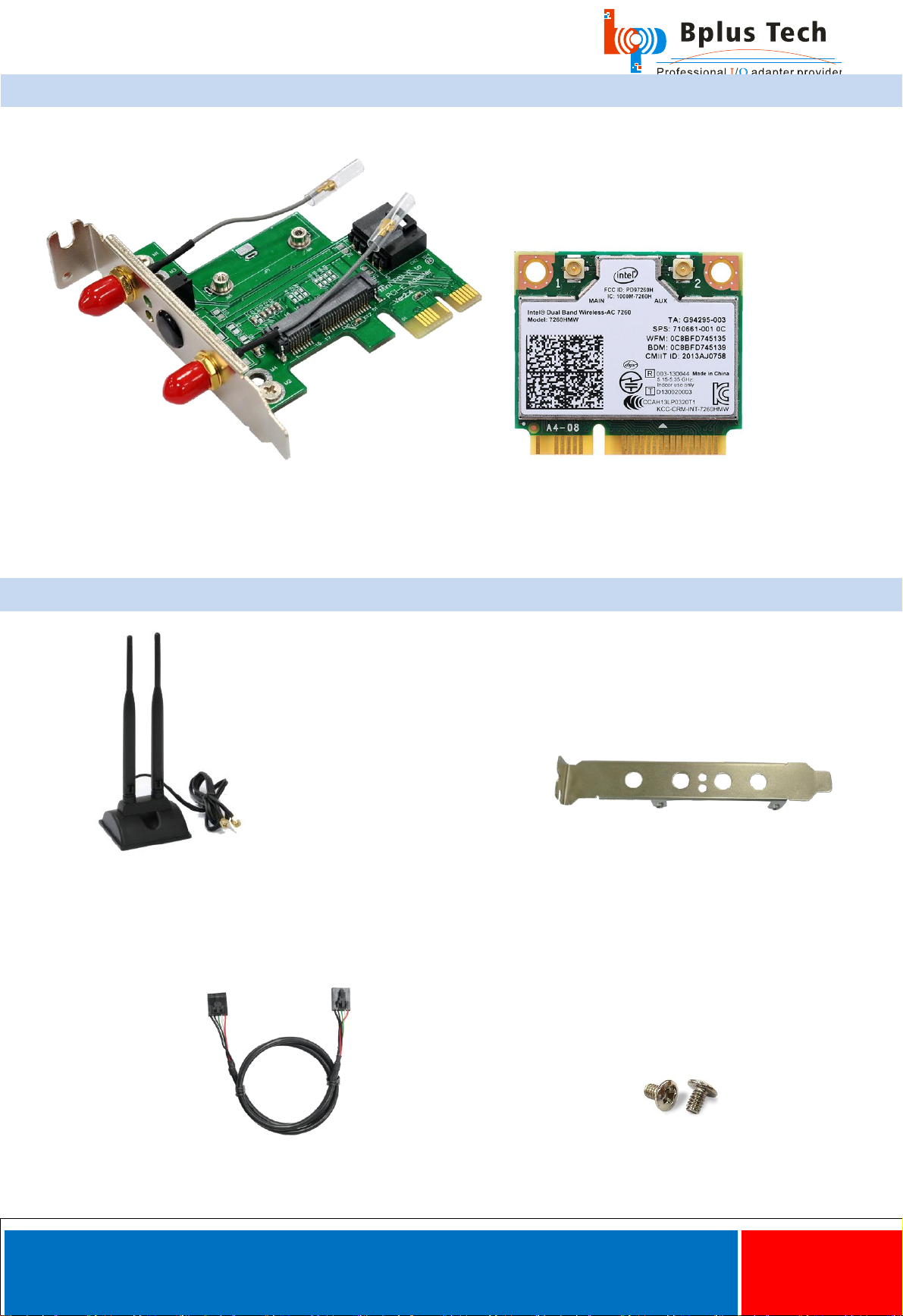

 AB2450

(Strong Magnet Mount for 2.4/5.0GHz Antenna) x1

 Y05-U2F-060

(USB dupont 5PIN to 5PIN cable) x1

 Screw x2

 JP0593

(Standard Height PCI express bracket) x1

Accessory Contents

 MP2H

(Mini PCI-E / PCI-E adapter ver 2.12) x1 with IPX to RP-SMA cable x2

 7260HMW

(Intel® Dual Band Wireless-AC 7260) x1

MP2H-7260 Package Contents

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

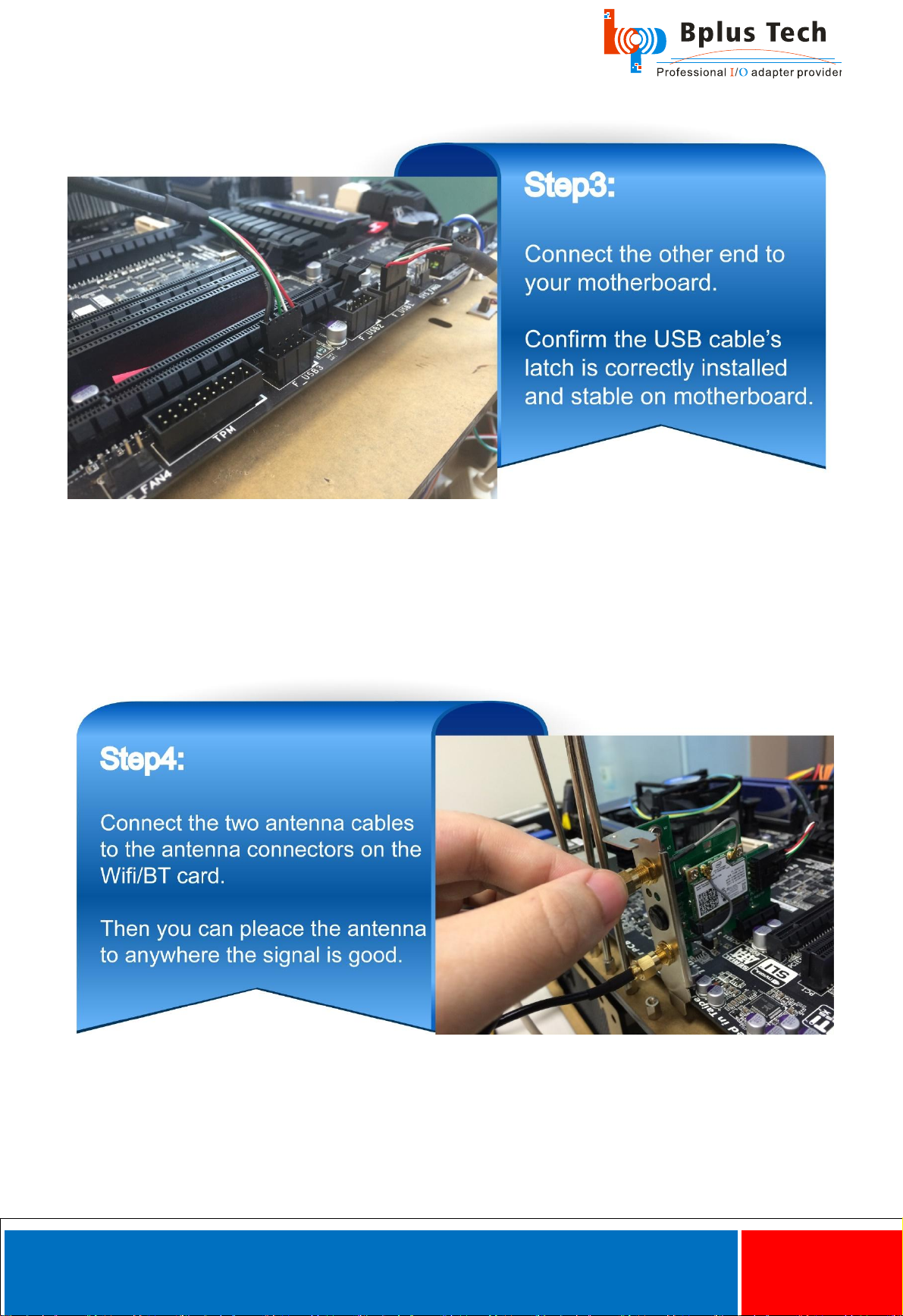

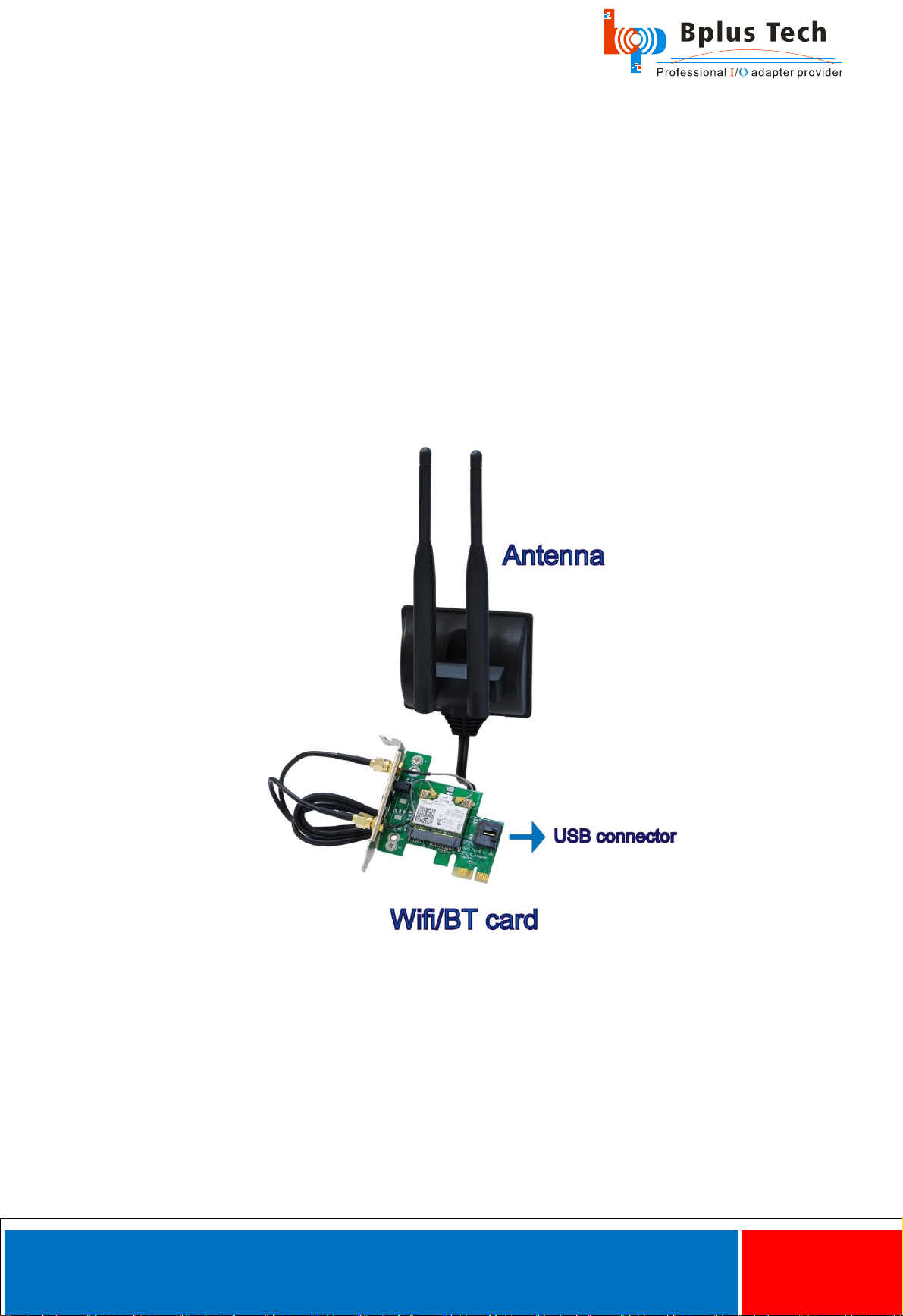

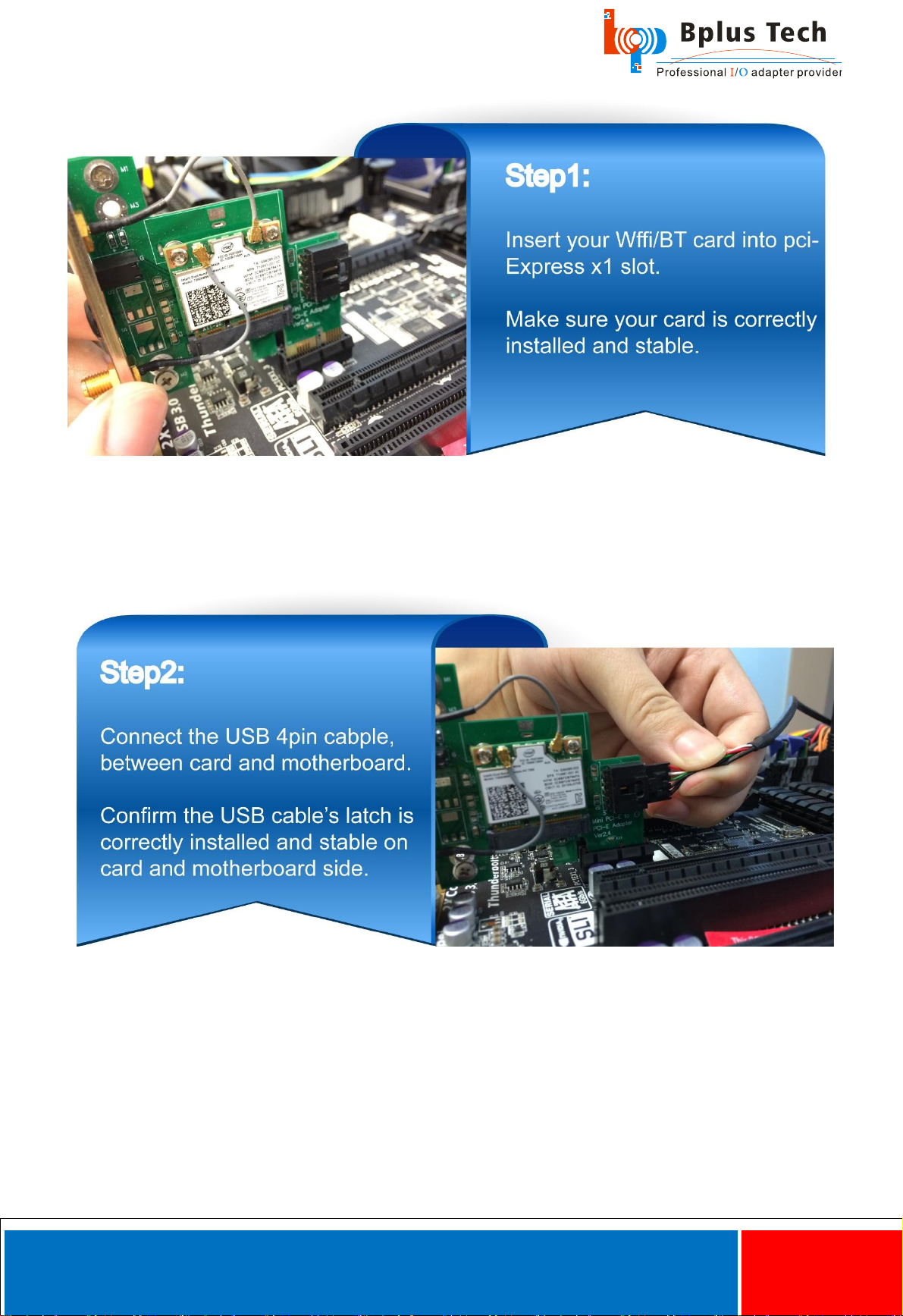

Chapter.1 Installing Wifi/BT card

This chapter will guide you through a few simple steps to use the device. Note, when installing the product, you should try to avoid skin contact with the electronic components. Because electricity can cause damage to the product.

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

Chapter.2 Installing Driver utility

This chapter will guide you to download the driver from intel,

Step1：Download the driver on Intel’s web side,

a. Link to intel’s web by two way,

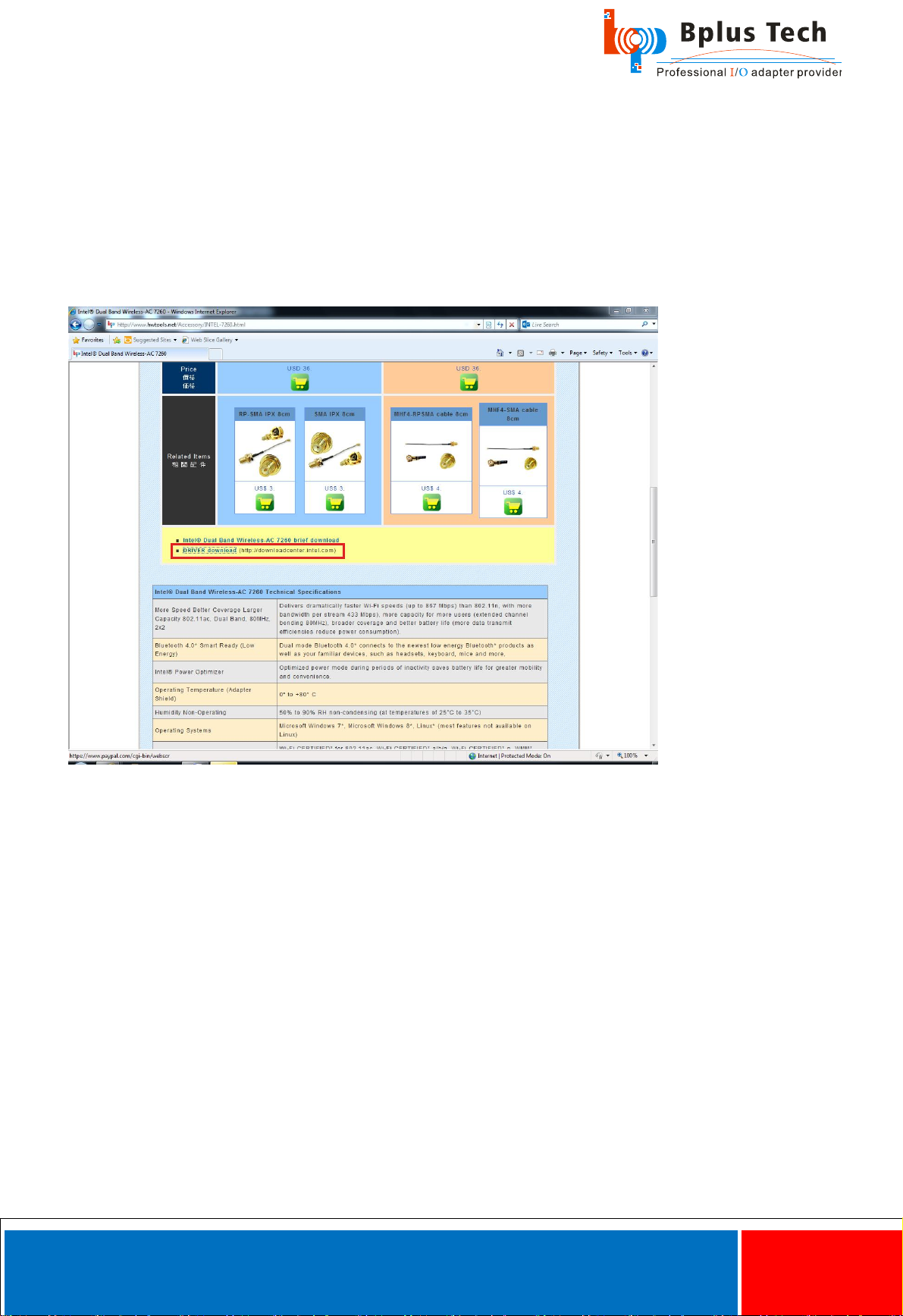

i. Connect by our webpage, As p.2-1,

(http://www.hwtools.net/Accessory/INTEL-7260.html)

p.2-1

ii. You can use any browser to intel’s driver download page,

(https://downloadcenter.intel.com/default.aspx)

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

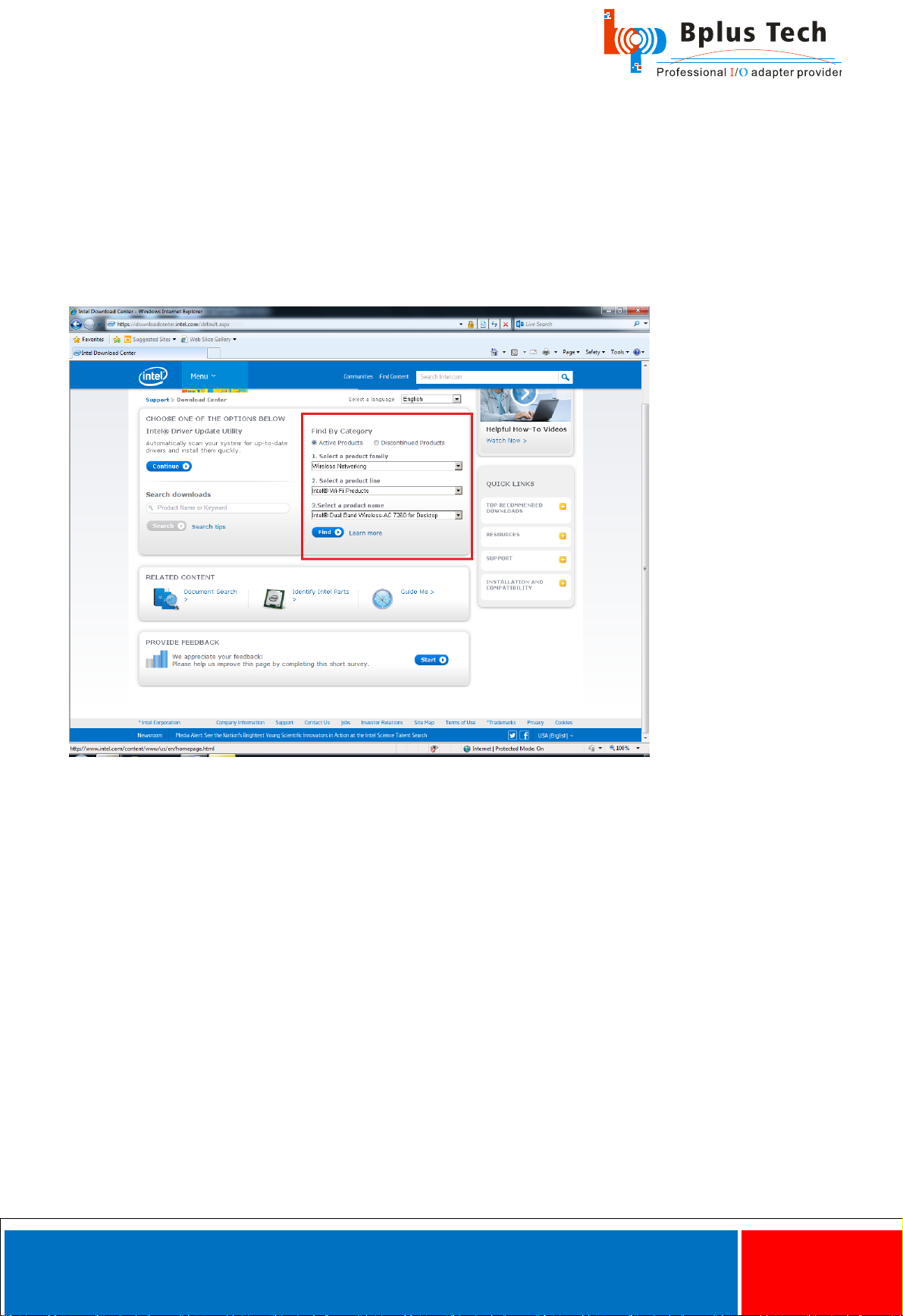

Step2：Select the product

a. Select product family by the options as below

i. Select a product family – Wireless Networking

ii. Select product line – Intel® WI-Fi products

iii. Select a product name - Intel® Dual Band Wireless-AC 7260

Press Find button

p.2-2 b. Press Find button.

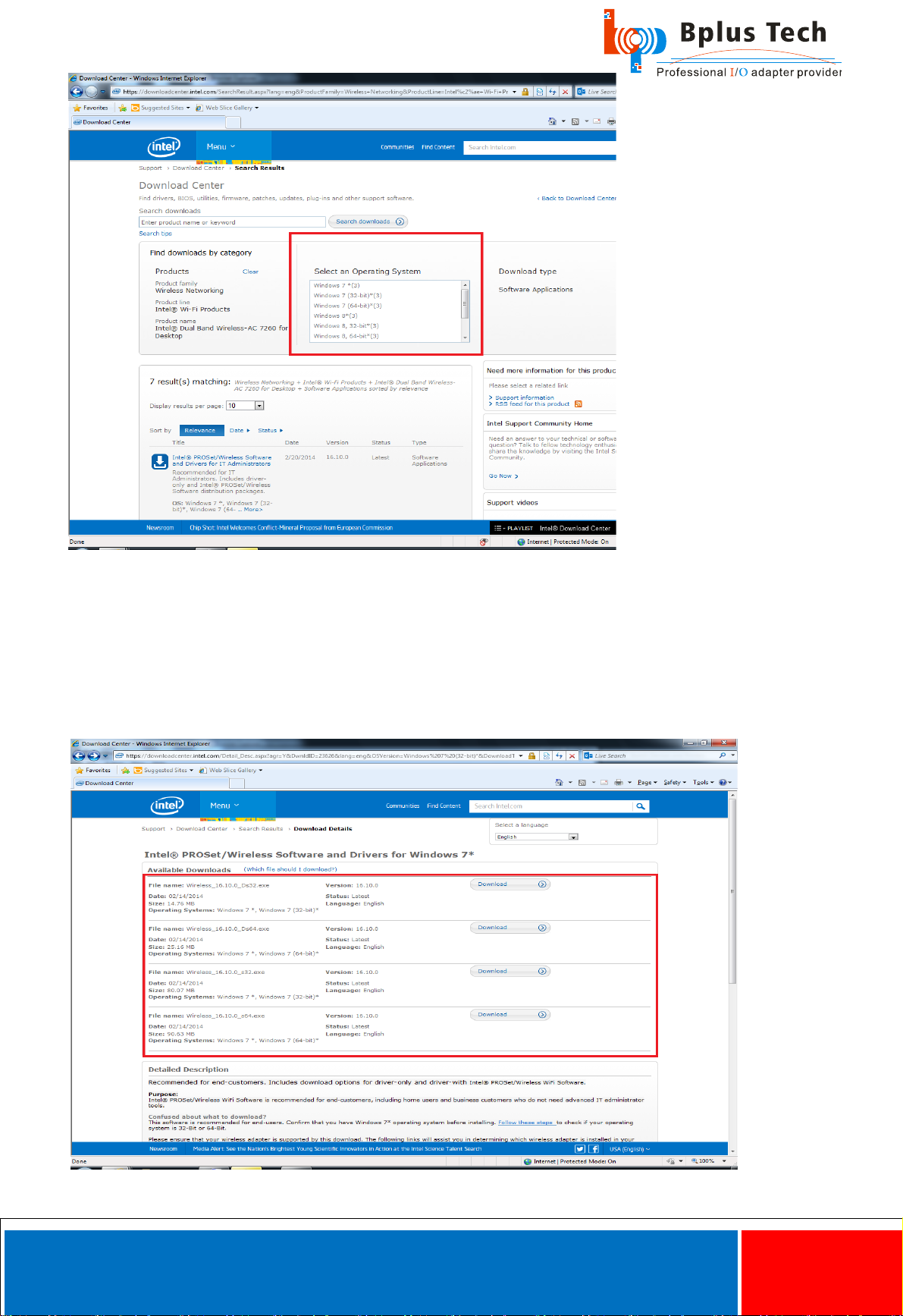

Step3：Select your Operation System.

a. You need to select operation system, depending your computer.

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

p.2-3

b. Select the correct number of bit. In this step, please make sure that you download the right bits of your operating system. EX: Windows 7 32bit. Windows 7 64bit. Note: If you install wrong version, it will not allow to work.

c. You can just press download button,

p.2-4

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

All Files:

Wireless_16.10.0_All - This file includes all .exe and .zip files for Windows 7, 8 and 8.1. When you download this file you may want to use the download manager program in case there is a network issue during download. The download manager can be installed when you select the file for download. Follow the instructions to install the Akamai download manager for Intel.

Drivers Only:

This is a compressed package which includes all files required to install the wireless adapter drivers only. The ZIP package allows you to extract the drivers for installation on multiple systems.

Windows 8.1* 64-Bit*: Wireless_(version)_De164.zip Windows 8* 32-Bit*: Wireless_(version)_De32.zip

Windows 8* 64-Bit*: Wireless_(version)_De64.zip Windows 7* 32-Bit*: Wireless_(version)_Ds32.zip

Windows 7* 64-Bit*: Wireless_(version)_Ds64.zip

d. After you select operating system, It will show many kind files you can download, Please check below to understand which file you need.

Which file should you download?

After selecting download from this page and accepting the end user license agreement, you will be prompted with a popup menu. Download the appropriate file for your Operating System and user requirements. File naming is described below.

Step4：Alter you download the Intel driver, please unzip and install.

Note：

If you have any question about Software, Such like: Install, Utility use, You can visit intel 7260 support page, or contact Bplus,

(http://www.intel.com/p/en_US/support/highlights/wireless/db-ac7260?wapkw=7260)

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

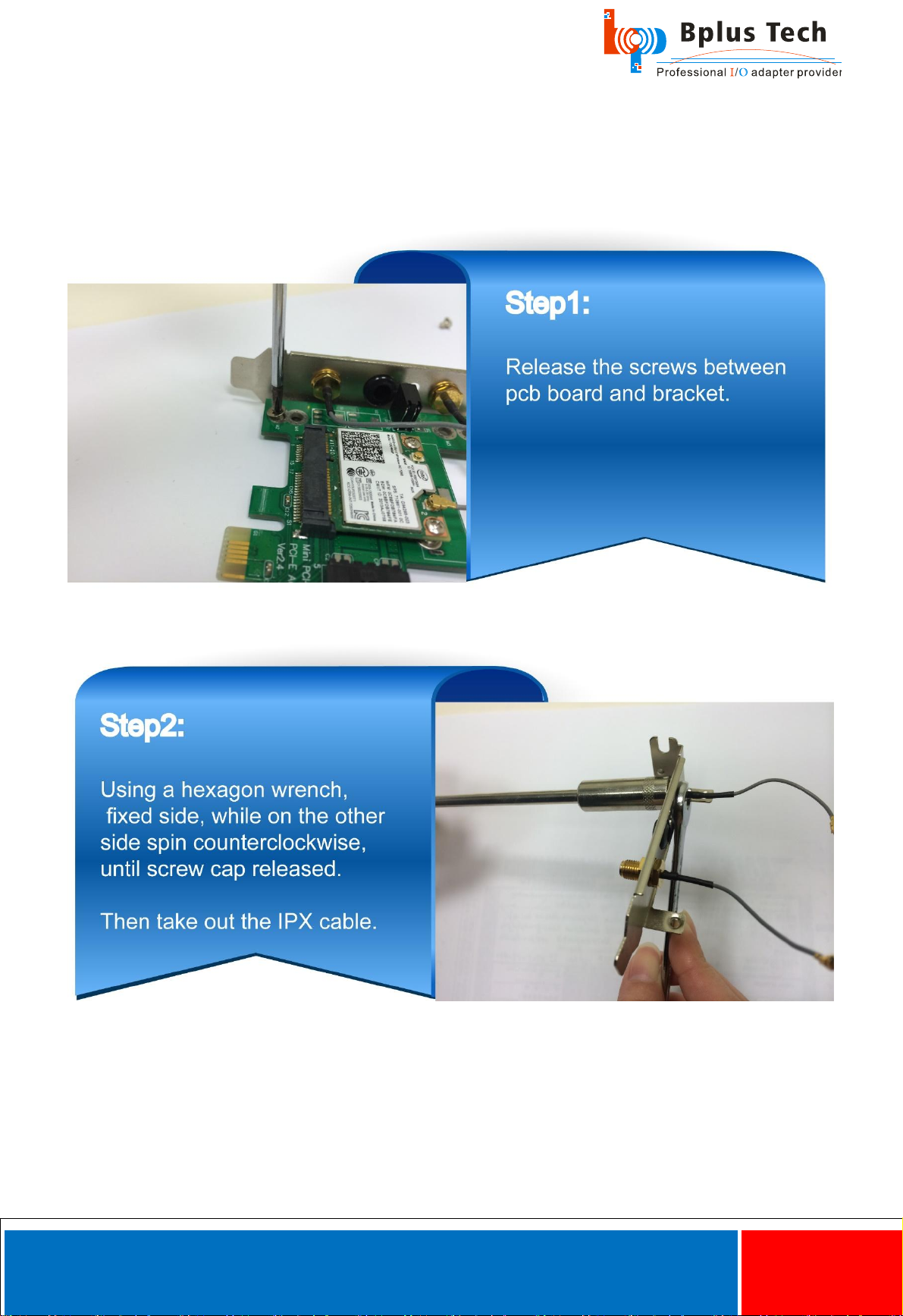

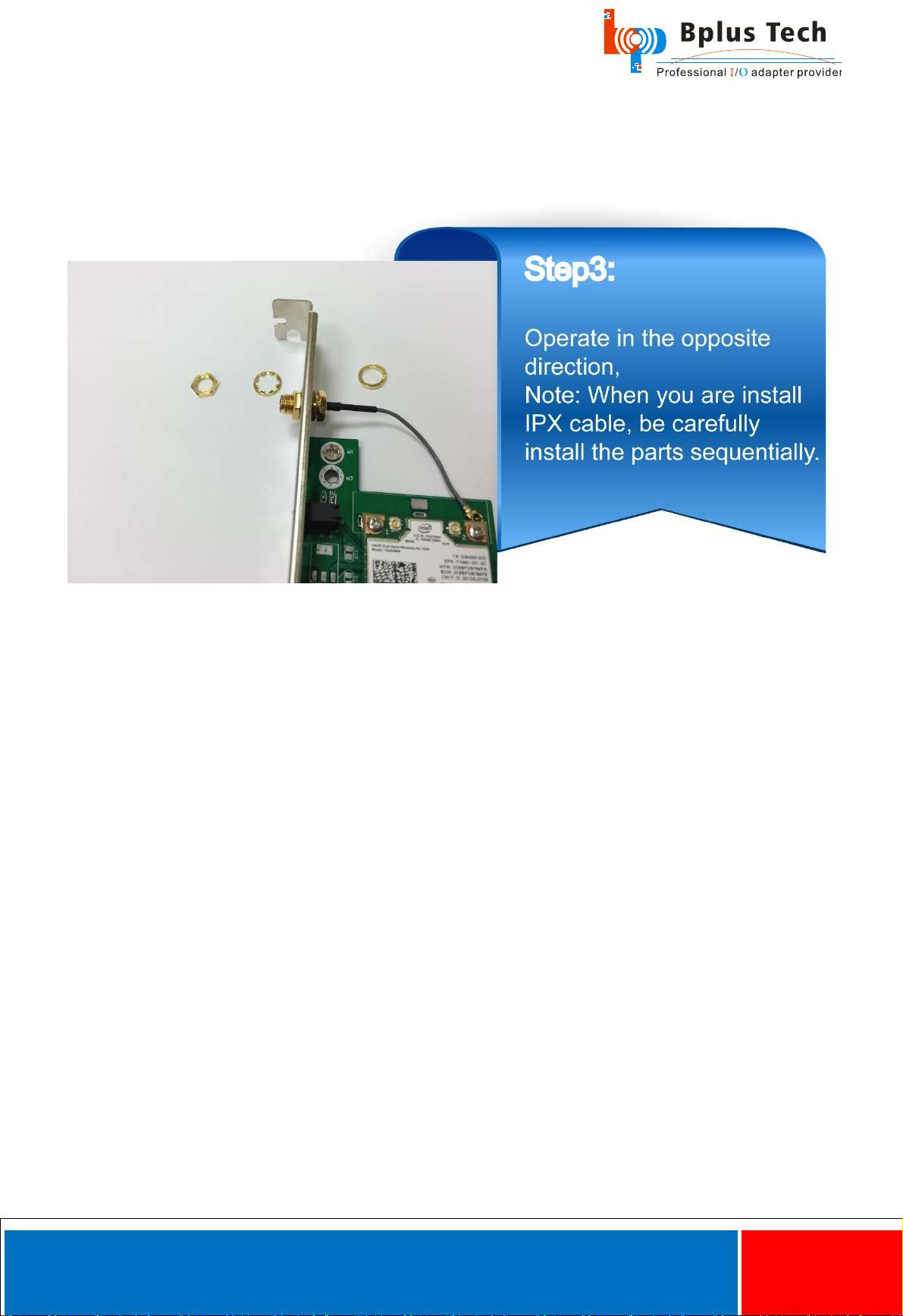

Chapter.3 Change bracket

This chapter will guide you to change the MP2H’s bracket.

Bplus Technology Co., Ltd. 9F-1,NO.88,ZHOU-TZYY ST., NEI-HU,TAIPEI,TAIWAN,R.O.C

TEL:+886-2-7736-0128 FAX:+886-2-7736-0126

MP2H-7260 User’s Manual

Now, you can nicely use MP2H-7260 to enjoy fastest Wi-Fi speed, And also enjoy the convenience from Bluetooth. If you have any question, please feel free to contact Bplus,
