BPC PowerStar Extreme, PowerStar Extreme 650, PowerStar Extreme 650 Smart, PowerStar Extreme 1k Smart User Manual

Important Safety Warnings

This manual contains instructions and warnings that should be followed during the

Specifications

MODEL

650

650 Smart

1K Smart

CAPACITY

650 VA / 360 W

650 VA / 360 W

1000 VA /500 W

INPUT

Input Voltage

220/230/240 VAC

Voltage Range

140-300 VAC

OUTPUT

Voltage Regulation

+/-10%

Transfer Time

Typical 4-8 ms, 13 ms max.

Waveform

Simulated Sine Wave

BATTERY

Type & Number

12 V/7 AH x 1

12 V/7 AH x 2

Charging Time

4-6 hours recover to 90% capacity

PHYSICAL

Dimension (DxWxH) mm

287 x 100 x 142

350 x 146 x 160

Net Weight (kgs)

4.25

8.9

MANAGEMENT

USB/RS-232 Port (option)

-

USB Port

USB Port

Supports Windows® 98/2000/2003/XP/Vista/2008/7, Linux,

Unix, and MAC

PowerStar Extreme User Manual

Uninterruptible Power Supply

installation, operating and storage of the UPS system. Please keep this manual for
further reference.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity

controlled indoor area free of conductive contaminants. (See the specifications for the
acceptable temperature and humidity range.)
CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and
avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances
such as space heaters or furnaces.
CAUTION! Do not attach non-computer-related items, such as medical equipment,
life-support equipment, microwave ovens, or vacuum cleaners to UPS.

CAUTION! Do not plug the UPS input into its own output.
CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages

or any other liquid-containing vessels on or near the unit.
CAUTION! In the event of an emergency, press the OFF button and disconnect the power
cord from the AC power supply to properly disable the UPS.

CAUTION! Do not attach a power strip or surge suppressor to the UPS.
CAUTION! If the UPS is with metal chassis, for safety purpose, grounding is a must during

UPS installation in order to reduce leakage current below 3.5mA.
Attention hazardous through electric shock. Also with disconnection of this unit from the
mains, hazardous voltage still may be accessible through supply from battery. The battery
supply should be therefore disconnected in the plus and minus pole at the quick connectors of
the battery when maintenance or service work inside the UPS is necessary.
CAUTION! Servicing of batteries should be performed or supervised by personnel
knowledgeable of batteries and the required safety precautions. Keep unauthorized
personnel away from batteries.

CAUTION! When replacing the batteries, use the same number and type of batteries.
CAUTION! Internal battery voltage is 12VDC. Sealed, lead-acid, 6-cell battery.
CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or

mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.

CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
CAUTION! A battery can present a risk of electric shock and high short circuit current. The

following precaution should be observed before replacing batteries:

1) Remove watches, rings, or other metal objects.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting batteries terminal.

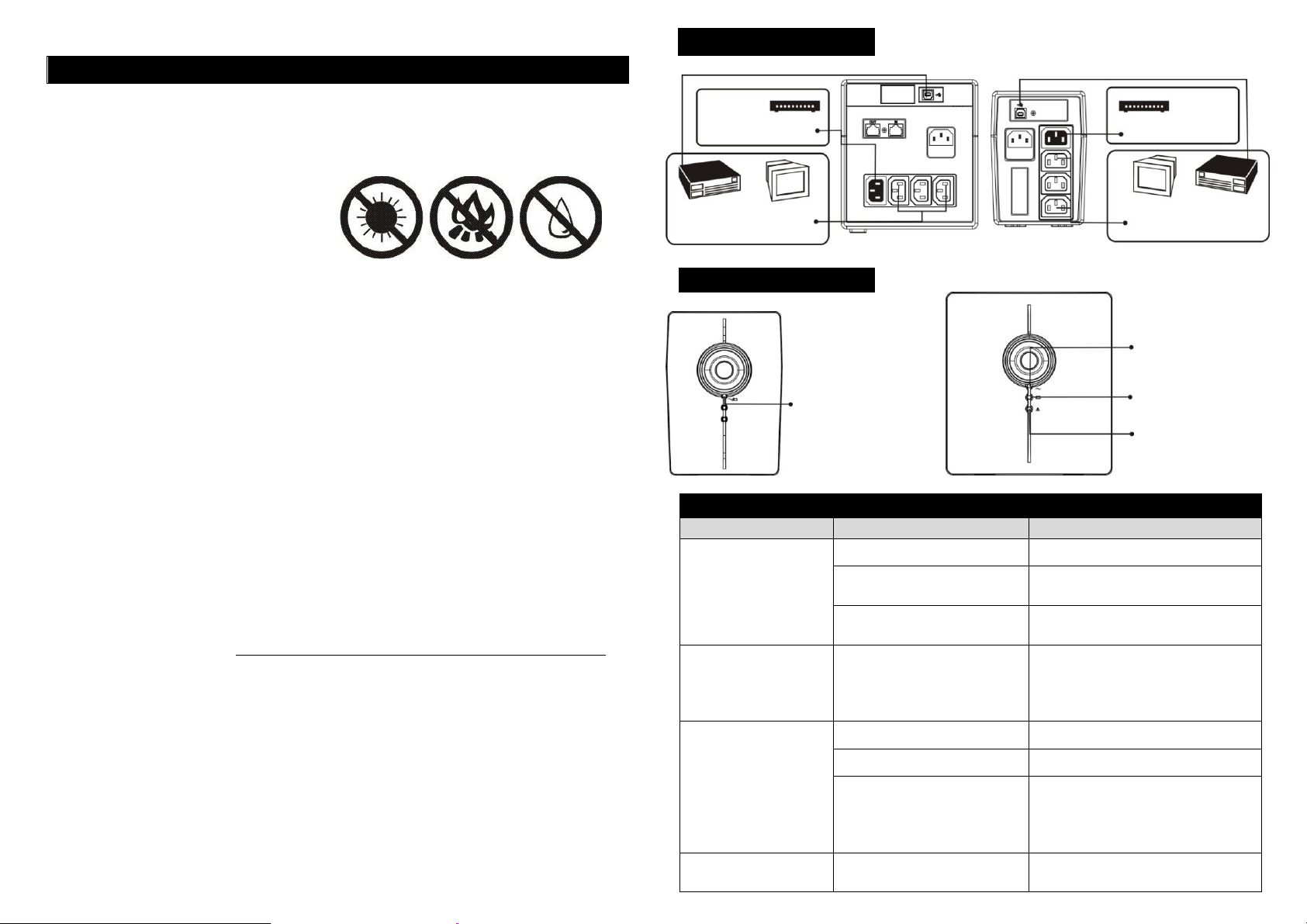

Installation & Operation

Connection Chart

Status Indicator

Troubleshooting

Problem

Possible Cause

Solutions

No LED display on the
front panel.

Low battery.

Charge the UPS at least 6 hours.

Battery fault.

Replace the battery with the same
type of battery.

The UPS is not turned on.

Press the power switch again to turn
on the UPS.

Alarm continuously
sounds when the
mains is normal.

The UPS is overload.

Remove some loads first. Before
reconnecting equipment, please
verify that the load matches the UPS
capability specified in the specs.

When power fails,
back-up time is shorten.

The UPS is overload.

Remove some critical load.

Battery voltage is too low.

Charge the UPS at least 6 hours.

Battery defect. It might be due
to high temperature operation
environment, or improper
operation to battery.

Replace the battery with the same
type of battery.
The mains is normal but
green LED is flashing.

Power cord is loose.

Reconnect the power cord properly.

Battery Backup
Sockets

Battery Backup

Sockets

Surge Protected

Socket

Surge Protected
Socket

1K

650/650 Smart

Option

UPS status LED
AC Mode: green
lighting
Battery Mode: green
flashing

Battery mode LED:
yellow lighting
AC mode LED: green
lighting
Fault LED: red lighting

 Initial Set-up

After unpacking the unit, please avoid placing the unit in direct sun light, excessive heat,

excessive humidity or in contact with fluids of any type. Place the unit away from other
equipment at least 20 cm to avoid interference.
Place the unit to avoid:

- Direct sunlight

- Excessive heat

- Excessive humidity or contact with fluids


 Connect Utility

Plug the UPS into an electrical outlet that does not share a circuit with a heavy electrical load.

Please allow the UPS to charge at least 6 hours prior to use.


 Connect Equipment

Connect critical equipment to “Battery Backup Sockets”. These battery backup sockets provide

battery back-up and surge protection. In case of power outage, battery power is automatically
provided to these outlets. Connect minor less critical devices to “Surge Protected Socket”.
Power is not supplied to this socket when the utility fails.

NOTE: Please DO NOT connect scanner or printer into “Battery Backup Sockets”.


 Connect Com. Port and Install Software (Only available for the SMART

models with USB/RS-232 ports)

Connect the communication port cable end to the communication port located on the rear

panel of the UPS. Connect the other end of communication port cable to the port on the rear

panel of the computer.
Download the software from http://www.power-software-download.com/viewpower.html.

Follow on-screen instruction to install the monitoring software.


Connect Modem/Phone/Network for Surge Protection (Only for the

models with RJ-45)

Connect a single modem/phone line into surge-protected “IN” outlet on the back panel of the
UPS unit. Connect from “OUT” outlet to the computer with another phone line cable.

Power On/Off UPS

Press power switch on the front panel of the UPS to turn on UPS. Press switch again to turn
off the UPS.


