Boytone BT28SPS, BT28SPB User Manual

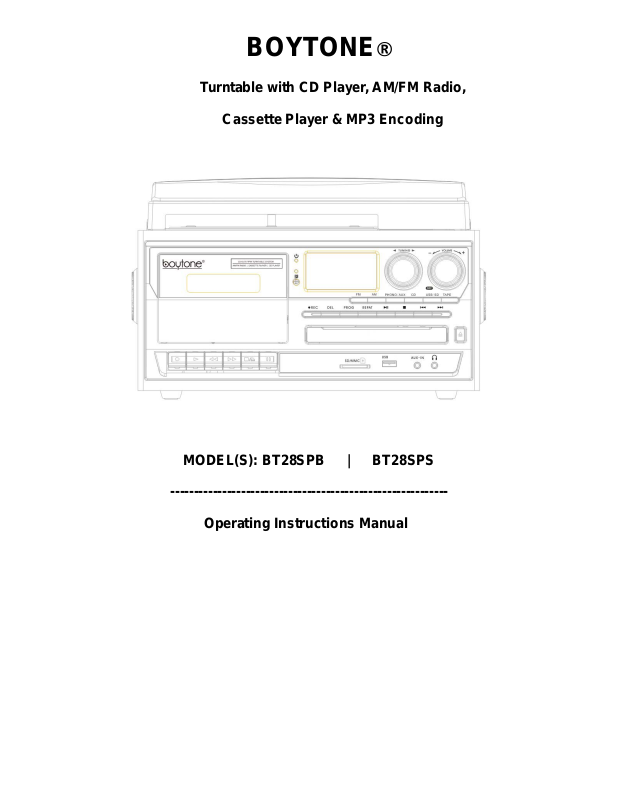

BOYTONE®

Turntable with CD Player, AM/FM Radio,

Cassette Player & MP3 Encoding

MODEL(S): BT28SPB | BT28SPS

-----------------------------------------------------------

Operating Instructions Manual

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES

CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE

OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

1) Please read these instructions and keep them for future reference.

2) Pay attention to all warnings.

3) Follow all instructions.

4) Do not use this apparatus near water.

5) Clean only with a dry cloth.

6) Do not block any ventilation openings.

7) Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heaters, stoves, or other

apparatus (including amplifiers) that produce heat.

8) Protect the power cord from being walked on or kinked, in particular where the

plug is fitted and at the point where it exits from the apparatus.

9) Only use attachments / accessories specified by the manufacturer.

10) Unplug this apparatus during lightning storms or when unused for long periods

of time.

11) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

12) This appliance should not be exposed to dripping or splashing water and no

object filled with liquids, such as vases, should be placed on the apparatus.

13) Do not overload the wall power outlet. Use only power source as indicated - i.e.

100V AC mains.

Avoid installing this unit in places exposed to direct sunlight or close to heat

radiating appliances such as electric heaters, on top of other stereo equipment

that radiates too much heat, places lacking ventilation or dusty areas, places

subject to constant vibration and/or humid or moist areas.

Do not attempt to clean this unit with chemical solvents as this might damage

the finish. Use a clean dry cloth.Operate controls and switches as described in the

manual.Before turning On the power, make certain the AC power cord is plugged in.

Store your CDs, Cassettes in a cool area to avoid damage from heat.When moving the set,

be sure to first disconnect the power cord.

UNPACKING AND SET UP

● Carefully remove the unit from the display carton and remove all packing material from

the unit.

● Unwind the AC power cord and extend it to its full length.

● Unwind the FM Antenna wire and extend it to its full length.

● Place the unit on a stable, level surface, convenient to an AC outlet, out of Direct

sunlight, and away from sources of excess heat, dust, moisture, humidity or

strong magnetic fields.

● Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it

forward and down.

● Discard the stylus cover

● Remove the twist-tie that was used to secure the tone arm during shipment.

● Release the tone arm lock lever.

● Connect the plug to your AC outlet.

POWER SOURCE

This product is designed to operate on 110V 60Hz AC Mains only. Attempting to operate

this system from any other power source may cause damage to the system,

and such damage is not covered by your warranty.

PROTECT YOUR FURNITURE

This model is equipped with non-skid rubber 'feet' to prevent the product from moving

when you operate the controls. These 'feet' are made from non-migrating rubber material

specially formulated to avoid leaving any marks or stains on your furniture. However certain

types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the

rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To prevent any

damage to your furniture we strongly recommend that you purchase small self-adhesive felt

pads, available at hardware stores and home improvement centers everywhere, and apply

these pads to the bottom of the rubber 'feet' before you place the product on fine wooden

furniture.

LOCATION OF CONTROLS AND INDICATORS

1) Dust Cover

2) Cassetter Door

3) Speaker

4) Cassetter Button

5) Power Led Indicators

6) IR Remote Receiver

7) Lcd Display Screen

8) Tuning Knob

9) Power Switch & Volume Knob

10) Function Selector Button

11) CD/USB/SD

12) Disk Tray Door

13) CD-Rom Open/close button

14) 3.5mm headphone socket

15) Auxiliary input

16) USB socket

17) SD/MMC card slot

PlayBack Control Button

PHONOGRAPH

30) 45 rpm adaptor

31) Lift lever

32) Auto stop control

33) Tone arm lock

34) Speed selector (33/45/78 rpm)

35) Tone arm

BACK PANEL

18) RCA Line out jack

19) FM wire antenna

20) AC power cord

REMOTE CONTROL

41) Mute button

42) Program button

43) Repeat button

44) Function Mode button

45) Skip down

46) Play/Pause

47) Record button

48) Stop button

49) Skip up button

50) Folder up button

51) Folder down button

button

button
