1. BILL OF MATERIAL
g
g
g

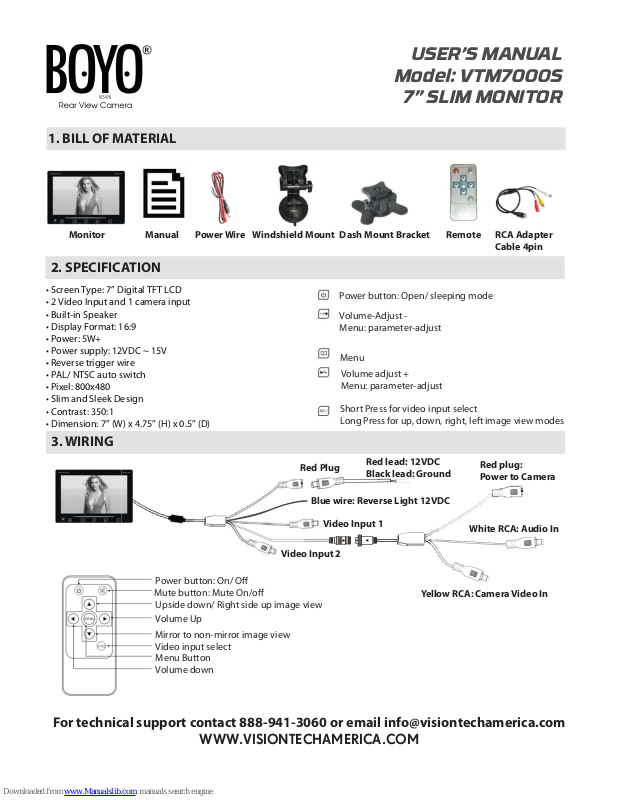

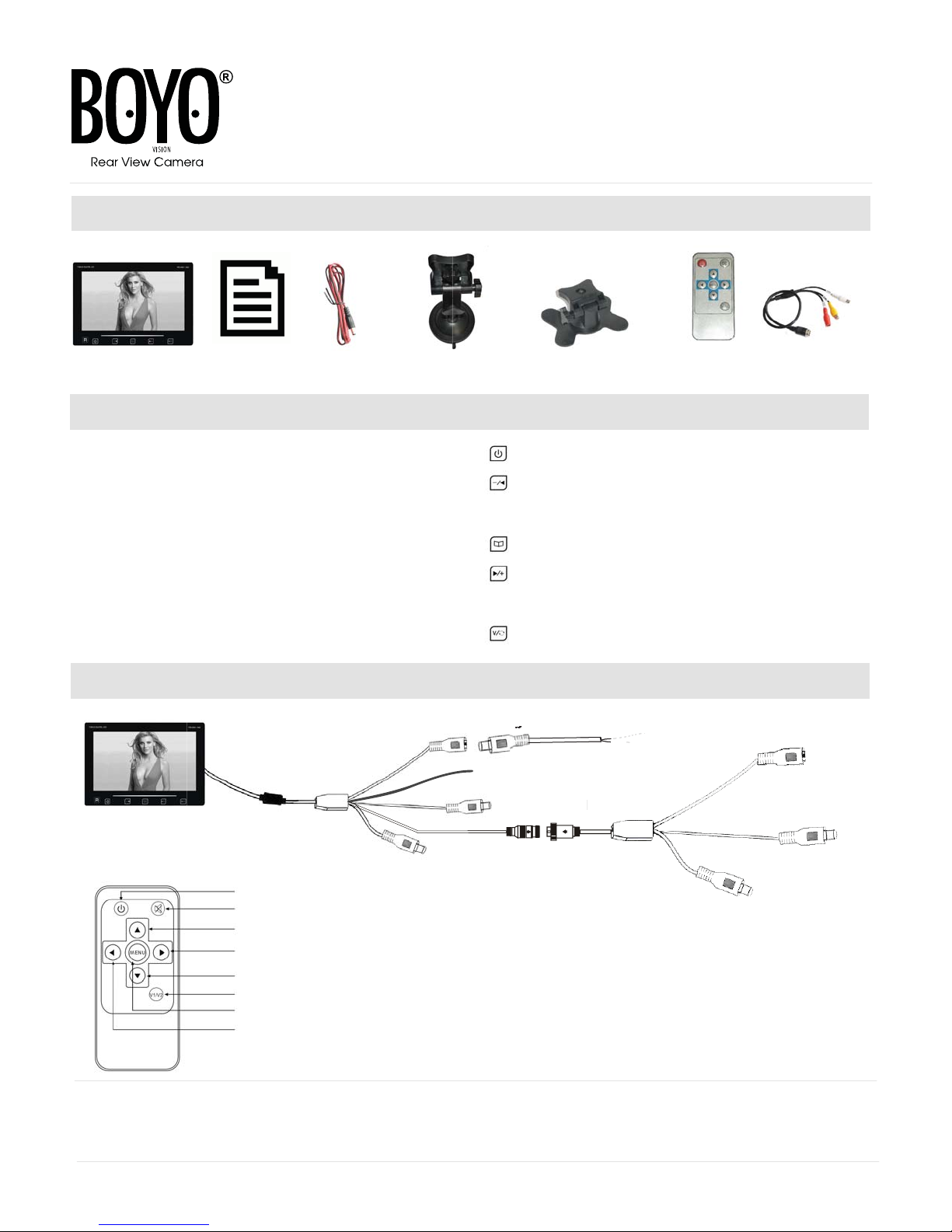

USER’S MANUAL
Model: VTM7000S
7” SLIM MONITOR
Monitor Manual
Power Wire Windshield Mount Dash Mount Bracket
2. SPECIFICATION
• Screen Type: 7” Digital TFT LCD
• 2 Video Input and 1 camera input
• Built-in Speaker
• Display Format: 16:9
• Power: 5W+
• Power supply: 12VDC ~ 15V
• Reverse trigger wire
• PAL/ NTSC auto switch
• Pixel: 800x480
• Slim and Sleek Design
• Contrast: 350:1
• Dimension: 7” (W) x 4.75” (H) x 0.5” (D)
3. WIRING
Power button: Open/ sleeping mode
Volume-Adjust Menu: parameter-adjust
Menu
Volume adjust +
Menu: parameter-adjust
Short Press for video input select
Long Press for up, down, right, left image view modes
Red Plug
Blue wire: Reverse Light 12VDC
Video Input 1
Red lead: 12VDC
Black lead: Ground
1
Remote
RCA Adapter
Cable 4pin
Red plug:
Power to Camera
White RCA: Audio In
Power button: On/ O
Mute button: Mute On/o
Upside down/ Right side up image view
Volume Up
Mirror to non-mirror image view
Video input select
Menu Button
Volume down
/+
For technical support contact 888-941-3060 or email [email protected]
WWW.VISIONTECHAMERICA.COM
Video Input 2
Yellow RCA: Camera Video In
