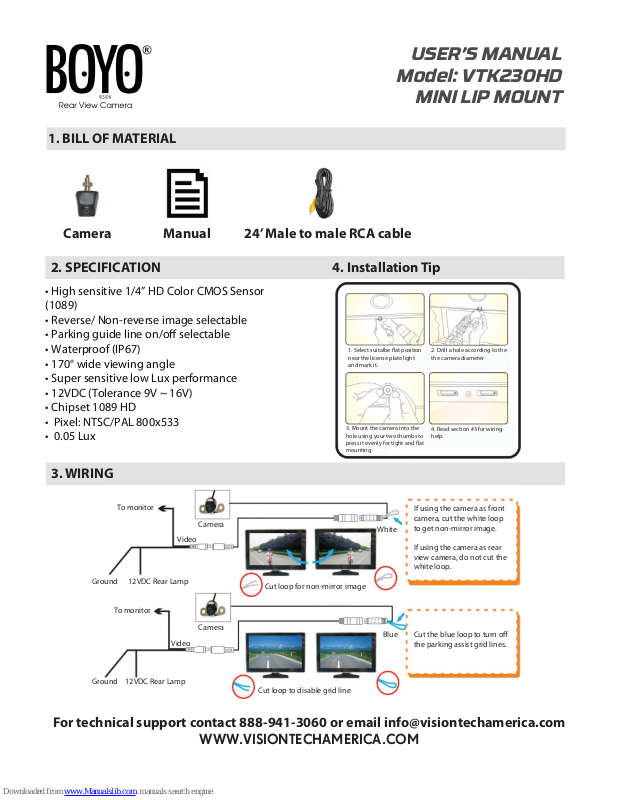

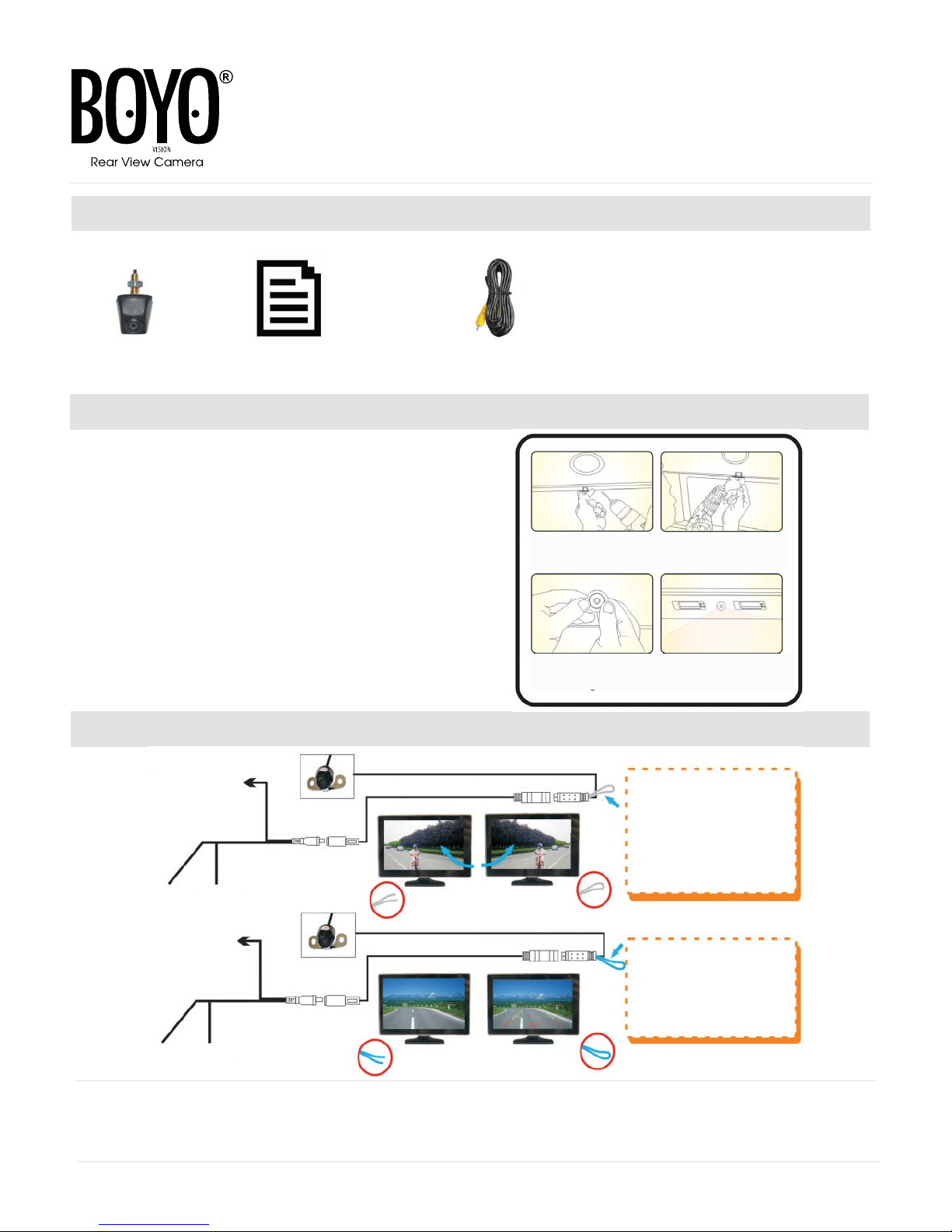

1. BILL OF MATERIAL
USER’S MANUAL
Model: VTK230HD
MINI LIP MOUNT
Camera
Manual
24’ Male to male RCA cable
2. SPECIFICATION
• High sensitive 1/4” HD Color CMOS Sensor
(1089)
• Reverse/ Non-reverse image selectable
• Parking guide line on/o selectable
• Waterproof (IP67)
• 170° wide viewing angle
• Super sensitive low Lux performance
• 12VDC (Tolerance 9V ~ 16V)
• Chipset 1089 HD
• Pixel: NTSC/PAL 800x533
• 0.05 Lux
3. WIRING
To monitor
Camera
Video
Ground
12VDC Rear Lamp
4. Installation Tip
1. Select suitalbe at position
near the license plate light
and mark it.
3. Mount the camera into the
hole using your two thumbs to
press it evenly for tight and at
mounting
Cut loop for non-mirror image
White
2. Drill a hole according to the
the camera diameter
4. Read section #3 for wiring
help.
If using the camera as front
camera, cut the white loop
to get non-mirror image.
If using the camera as rear
view camera, do not cut the
white loop.
To monitor
Camera
Video
Ground
12VDC Rear Lamp
For technical support contact 888-941-3060 or email [email protected]
WWW.VISIONTECHAMERICA.COM
Cut loop to disable grid line
Blue
Cut the blue loop to turn o
the parking assist grid lines.
