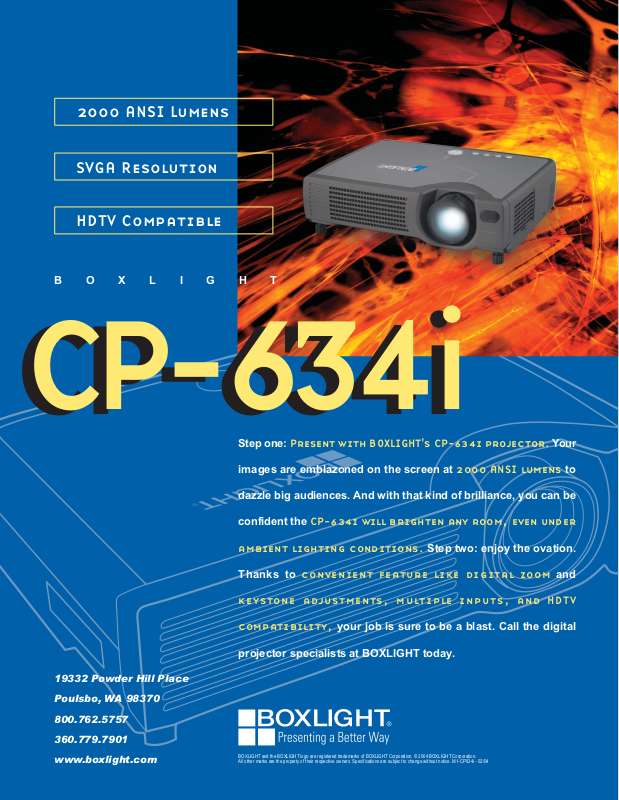

Boxlight CP-634i Product Sheet

2000 ANSI Lumens

SVGA Resolution

HDTV Compatible

BOXLIGHT

CP-6 34i

19332 Powder Hill Place

Poulsbo, WA 98370

800.762.5757

Step one: Present with BOXLIGHT's CP-634i projector. Your

images are emblazoned on the screen at 2000 ANSI lumens to

dazzle big audiences. And with that kind of brilliance, you can be

confident the CP-634i will brighten any room, even under

ambient lighting conditions. Step two: enjoy the ovation.

Thanks to convenient feature like digital zoom and

keystone adjustments, multiple inputs, and HDTV

compatibility, your job is sure to be a blast. Call the digital

projector specialists at BOXLIGHT today.

360.779.7901

www.boxlight.com

BOXLIGHT and the BOXLIGHT logo are registered trademarks of BOXLIGHT Corporation. © 2004 BOXLIGHT Corporation. All other marks are the property of their respective owners. Specifications are subject to change without notice. M1-CP634i - 02/04

 True 800x600 SVGA, with compression up

to 1600x1200 UXGA

 6lbs. / 2.7kg

 2000 ANSI lumens

BOXLIGHT

CP-6 34i

projector

 Digital Keystone Adjustment on remote

 Manual zoom/focus

 Digital Zoom Imaging

 Full Function Remote control

 Component Video Input

 HDTV compatible

 FCC Class B rating

*Several financing options available!

Resolution:

Brightness: Lamp:

Projection Lens:

Throw Distance:

Display Type:

Contrast Ratio:

Colors:

Aspect Ratio:

Inputs:

Outputs:

Scan Frequency:

800 x 600 SVGA with compression up to 1600 x 1200 UXGA 2000 ANSI lumens (MAX)

150W UHP

Manual zoom & focus 1:1.2 zoom ratio, F/1.7-1.9

423.9 / 1.2-7.3m

30.7 TFT polysilicon LCDs

400:1

16.7 million

4:3, 16:9 compatible

Computer: (2) RGB computer (15-pin); Audio: (1) RCA x 2 audio; Video: (1) RCA component; (1) S-Video, (1) RCA composite

Computer: (2) RGB computer (15-pin), (1) USB, (1) 15-pin D-sub control port

1591kHz

Vertical Refresh Rate: Audible Noise:

Audio:

Video:

Keystone:

Adjustments:

Power Supply: Power Consumption:

FCC Rating:

Dimensions (HxWxD):

Weight:

Warranty:

Specifications are subject to change without notice.

50120Hz 38dB / 33dB in whisper mode 1-watt mono speakers

NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, 480i, 480p, 575i, 720p, 1080i

Digital adjustment of +/- of 15

On-board and remote

100120/220-240V AC; 50/60Hz auto change

240 watts Class B

3 x 11.6 x 9.1 / 7.6 x 29.5 x 23.1cm

6 lbs. / 2.7kg

Two-year parts and labor (120 days or 500 hours, whichever comes first, lamp guarantee)

° vertical and 5° horizontal
