Multimedia LCD Projector
CP-630i
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage of this projector.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce menuel pour bien assimiler le
fonctionnement de l'appareil.
MANUAL D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJZNG
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.
TECHNICAL
REGULATORY NOTICES
ENGLISH
Multimedia LCD Projector
USER'S MANUAL
ENGLISH-1
Thank you for purchasing this LCD projector.
Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S
MANUAL” thoroughly to ensure correct usage of this projector. After reading, store this
instruction manual in a safe place for future reference.
CONTENTS
FEATURES....................................P.2
BEFORE USE................................P.2
Contents of Package...........................P.2
Part Names .........................................P.3
Installing the Batteries.........................P.5
Attaching the Projector Handle ...........P.5
INSTALLATION.............................P.6
Installation of the projector and Screen
.....P.6
Angle Adjustment................................P.6
Cabling................................................P.7
Power Connection...............................P.8
Example of System Setup...................P.8
Plug & Play..........................................P.8
OPERATIONS................................P.9
Switching the Power Supply ON/OFF
....P.9
Basic Operation.................................P.10
Setup Menu.......................................P.12

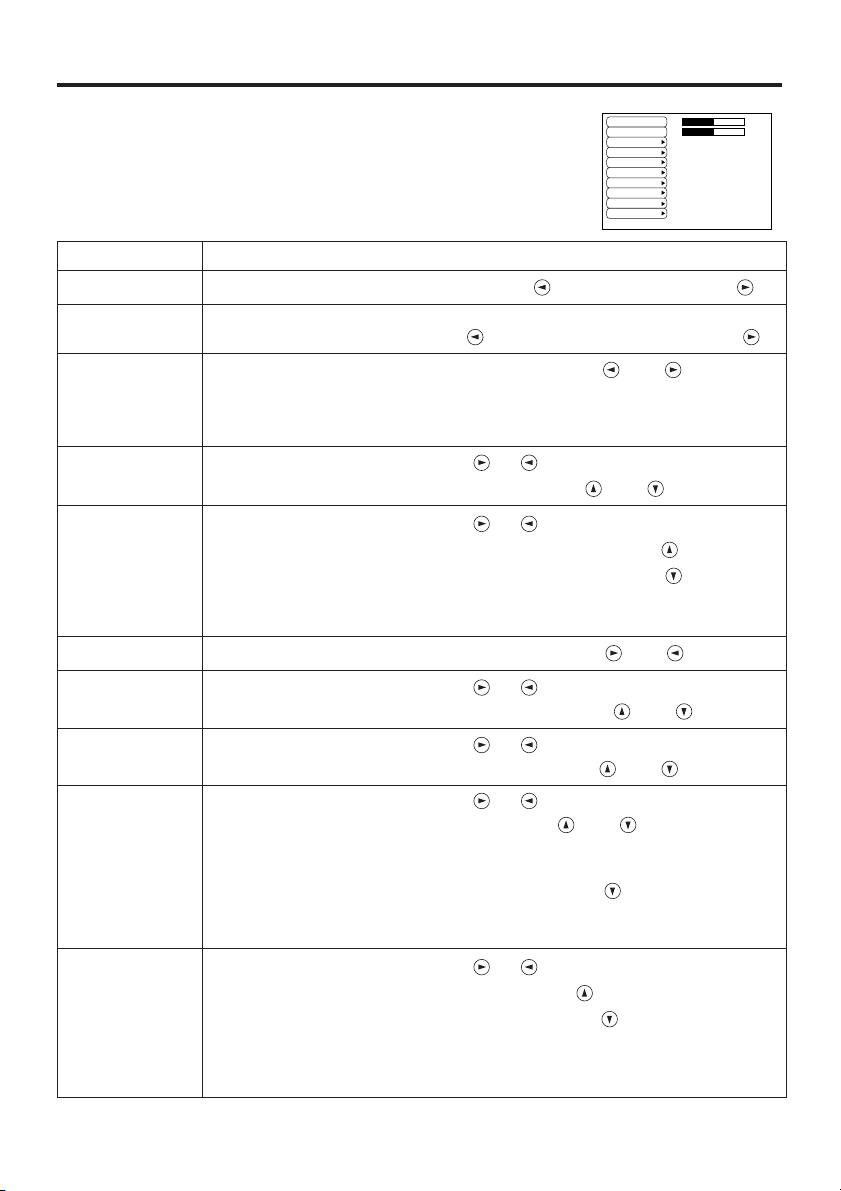

Input Menu ........................................P.13

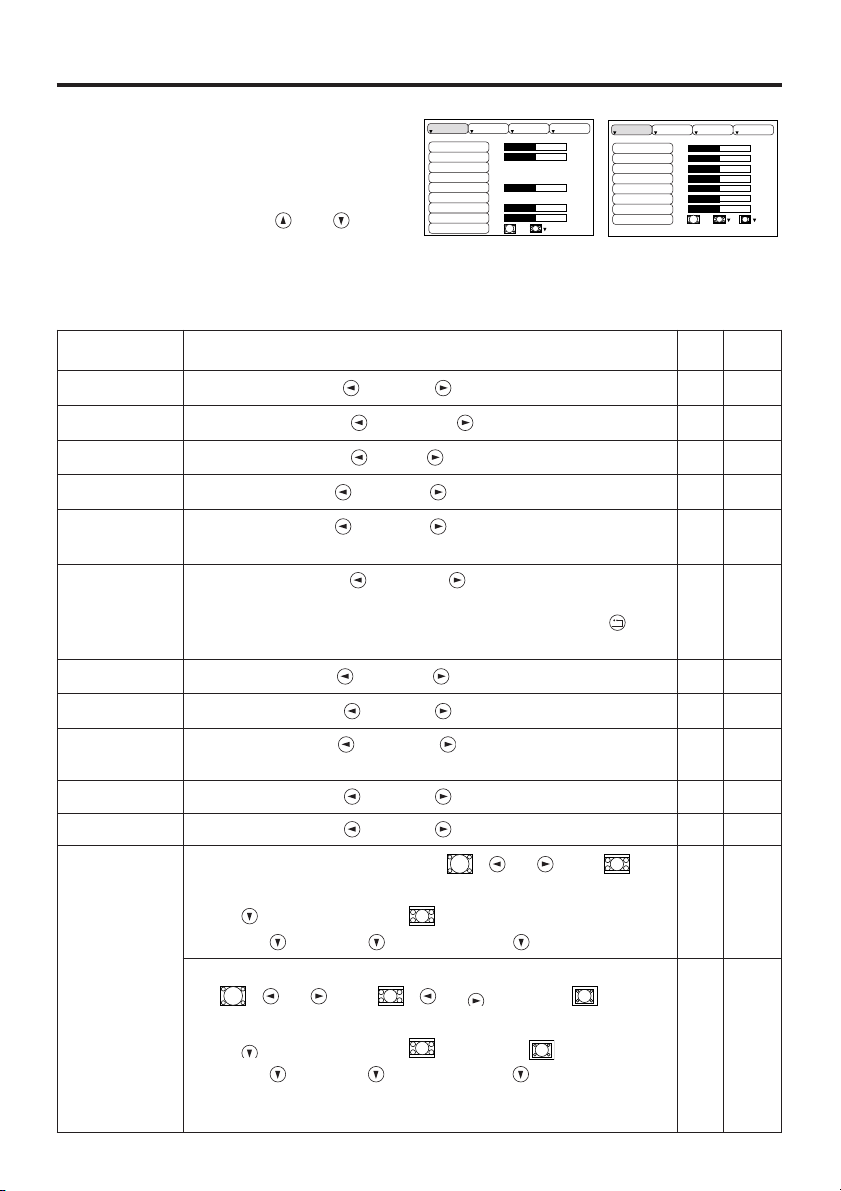

Image Menu ......................................P.14
Options Menu....................................P.15
No Signal Menu.................................P.16
MAINTENANCE...........................P.17
Lamp .................................................P.17
Air Filter Maintenance .......................P.19
Other Maintenance............................P.19
TROUBLESHOOTING.................P.20
OSD Message...................................P.20
Indicators Message...........................P.21
Symptom Chart .................................P.22
SPECIFICATIONS .......................P.23
WARRANTY ................................P.24
For "TECHNICAL" and "REGULATORY
NOTICE", see the end of this manual.
NOTE:
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
TRADEMARK ACKNOWLEDGMENT:
• PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• Carefully observe the trademarks and registered trademarks of all companies, even when not
mentioned.
ENGLISH-2
FEATURES
This multimedia LCD projector is used to project various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space is required for installation and large images can
easily be realized.
• Outstanding brightness
The UHB lamp and high-efficiency optical system assure a high level of brightness.
• Partial magnification function
Interesting parts of images can be magnified for closer viewing.
• Distortion correction function
Distortion-free images are quickly available.
BEFORE USE
Contents of package
Make sure all of the following items are included in the package. If anything is missing, please
contact BOXLIGHT at 800-762-5757 or 360-779-7901.
NOTE: Keep the original packing material for future shipments.
Projector
User’s Manual
(this manual)
Safety Instructions
Power Cord
US Type
Power Cord
Europe Type
RGB Cable Video/Audio Cable Mouse cable
(PS/2)
Projector Handle
Carrying Bag
VIDEO
STANDBY/ON
POSITION
FREEZE
MAGNIFY
VOLUME
AUTO
OFF
TIMER BLANK
MENU
SELECT
RGB
MUTE
MENU RESET
Remote Controller
containing Battery
Liquid Crystal Projector
0000000000000
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce menuel pour bien assimiler le
fonctionnement de l'appareil.
MANUAL D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJZNG
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este
manual do usuário.
TECHNICAL
REGULATORY NOTICES
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
NORSK
PORTGÊS
TECHNICAL
ENGLISH-3
BBEEFFOORREE UUSSEE ((ccoonnttiinnuueedd))
ENGLISH
Part Names
Control Panel (Refer to P.9 "OPERATIONS")
Power Switch
AC Inlet
(to the Power Cord)
Ventilation Openings
(Intake)
Zoom Knob
Focus Ring
Remote Control Sensor
Lens
Sliding Lens Door
Foot Adjuster
FRONT/LEFT VIEW OF
THE PROJECTOR
Speaker
Handle Hook
STANDBY/ON Button
MUTE Button
Foot Adjuster Button
Air Filter and Intake
(for the Cooling Fan)
Rear Foot Adjuster
INPUT Button
LAMP Indicator
TEMP Indicator
POWER Indicator
RESET Button
MENU Button
Ventilation Openings
(exhaust)
REAR/RIGHT VIEW OF
THE PROJECTOR
Terminal Panel
(Refer below)
TERMINAL PANEL
S-VIDEO Terminal
VIDEO IN Terminal
AUDIO IN L
Terminal
AUDIO IN R
Terminal
AUDIO IN 1
Terminal
AUDIO IN 2
Terminal
AUDIO OUT
Terminal
Remote Control Sensor
RGB IN 1 Terminal
RGB IN 2 Terminal
CONTROL Terminal
RGB OUT Terminal
USB Terminal
AUDIO IN VIDEO IN S-VIDEO IN
AUDIOINAUDIO OUT
1
12
2 USB
RGB IN
RGB OUT CONTROL
VIDEO Button
RGB Button
MENU SELECT Button
POSITION Button
RESET Button
VOLUME Button
VOLUME Button
FREEZE Button
MUTE Button
BLANK Button
STANDBY/ON Button
Button
MENU Button
MAGNIFY Button
MAGNIFY Button
MAGNIFY Button
AUTO Button
TIMER Button
Battery Holder
OFF
ENGLISH-4
BBEEFFOORREE UUSSEE ((ccoonnttiinnuueedd))
Part Names (continued)
REMOTE CONTROL TRANSMITTER
(Refer to P.9 "OPERATIONS")
NOTE: To prevent any malfunction;
• Do not give the remote control transmitter any physical impact. Do not drop.
• Do not place heavy objects on the remote control transmitter.
• Do not wet the remote control transmitter or place it on any wet object.
• Do not place the remote control transmitter close to the cooling fan of the projector.
• Do not disassemble the remote control transmitter if it malfunctions. Please contact BOXLIGHT.
Used to operate the
mouse shift function .
Used to click the left
mouse button.
Used to click the right
mouse button.
: These functions work when the mouse control function is activated. Remember, the POSITION,
BLANK ON and MENU ON functions disable the mouse control function.
VIDEO
STANDBY/ON
POSITION
FREEZE
MAGNIFY
VOLUME
AUTO
OFF
TIMER BLANK
MENU
SELECT
RGB
MUTE
MENU RESET
ENGLISH-5
BBEEFFOORREE UUSSEE ((ccoonnttiinnuueedd))
ENGLISH
Attaching the Projector Handle
Attach the enclosed handle.
1. Raise up the handle hook, and pass one end of the
handle through the hole of handle hook.
2. Buckle the end of the handle, per diagram at right.
3. Fix the other end of the handle to the other handle
hook in the same way.
CAUTION
Make sure the handle is firmly attached before carrying the projector with the handle. If
the projector is dropped , it could result in an injury, and continued use could result in fire
or electrical shock.
1
2
Installing the Batteries
First Loading:
In original packing, the battery is installed in the battery
holder of the remote controller with protective film(the
transparent film some of which is inside the battery
folder). Pull out the protective film to load the battery.
Replacing:
1. See the reverse side of the remote controller.
2. Pinch the groove and pull out battery holder as shown
in the drawing on the right.
3. Remove the worn battery.
4. Install the new battery with “+” side facing up.
5. Push in and click the battery holder.
Pull out
“+” side
Battery Holder
CAUTION
Danger of explosion if battery is incorrectly replaced.
Be careful in handling the battery according to instructions of the accompanying manual
“SAFETY INSTRUCTIONS” and this manual.
Replace only with the same or equivalent type recommended by the manufacturer.
Use the 3V micro lithium battery type no. CR2025 only.
• When you dispose of the battery, follow the law in your area or country.
Keep the battery away from children and pets.
ENGLISH-6
INSTALLATION
Installation of the Projector and Screen
CAUTION
• Install the projector in a suitable environment according to instructions of the
accompanying manual “SAFETY INSTRUCTIONS” and this manual.
• Use the liquid crystal projector at the horizontal position only.
If you use this projector
by the lens up position, the lens down position or the side up position, this may cause the
heat inside to build up and cause damage.
Be especially careful not to install it with
ventilation holes blocked.
Refer to the drawing and table below to determine the screen size and projection distance.
TOP VIEW
SIDE VIEW
a: Distance from the LCD projector to the screen.
The projection distances shown in the table below
are for full size (800 x 600 dots) images.
Table 1. Installation Reference
Screen size
(inches / meters)
a (inches / meters)
Min. Max.
40 / 1.0 65 / 1.65 78 / 1.98
60 / 1.5 98 / 2.5 117 / 2.97
80 / 2.0 131 / 3.3 157 / 3.99
100 / 2.5 163 / 4.1 196 / 4.98
120 / 3.0 196 / 4.98 236 / 6.0
150 / 3.8 246 / 6.25 295 / 7.5
200 / 5.1 328 / 8.3 394 / 10.0
a
Angle Adjustment
Use the foot adjuster on the bottom of the projector to adjust the projection angle. It is variable
within 0˚ to 9˚ approximately.
1. Lift up the front side of the projector, and pressing
the foot adjuster button, adjust the projection angle.
2. Release the button to lock at the angle to be fixed.
3. Turn the rear foot adjuster to adjust the left-right slope.
CAUTION
Do not release the foot adjuster button unless the projector is being held; otherwise, the
projector could overturn or the fingers could get caught and cause personal injury.
Foot Adjuster
Press the foot adjuster button
Rear Foot Adjuster
ENGLISH-7
ENGLISH
IINNSSTTAALLLLAATTIIOONN ((ccoonnttiinnuueedd))
Cabling
RGB signal input:
Connect the RGB IN 1 or 2 terminal of the projector to the RGB signal output of the computer by the enclosed
RGB cable.
For some modes, the optional Mac adapter is necessary. Consult BOXLIGHT if you have any questions
regarding connection to an Apple computer.
Some computers may have multiple display screen modes. Use of some of these modes will not be possible with
this projector.
Audio signal input (from computer) :
Connect the AUDIO IN 1 or 2 terminal of the projector to the audio signal output of the computer by the
optional audio cable.
Video signal input:
Connect the VIDEO IN terminal of the projector to the video signal output of the video tape recorder by the
enclosed video/audio cable.
For S-Video signal, use the S-VIDEO IN terminal of the projector and the optional S-Video cable with Mini DIN
4-pin jack.
Audio signal input (from video tape recorder) :
Connect the AUDIO IN R and L terminals of the projector to the audio output of the video tape recorder by the
enclosed video/audio cable with RCA jack.
RGB signal output:
Connect the RGB OUT terminal of the projector to the RGB signal input terminal of the monitor by the optional
RGB cable with D-sub 15-pin shrink jack and inch thread screws.
Audio signal output:
Connect the AUDIO OUT terminal of the projector to the audio signal input terminal of the speaker by the
optional audio cable with stereo mini jack.
PS/2, ADB , Serial or RS-232C communication:
Connect the CONTROL terminal of the projector to the computer by an appropriate cable.
For PS/2 mouse control (for IBM and compatible) use the enclosed mouse cable. For others, contact
BOXLIGHT to purchase optional cables.
USB communication (mouse control only):
Connect the USB jack (B type) of the projector to the USB jack (A type) of the computer by optional USB cable.
CAUTION
• Incorrect connections could result in fire or
electrical shock. Please read this manual and the
separate “SAFETY INSTRUCTIONS”.
• Before connecting, turn off power to all devices
to be connected, except when connecting the
USB cable.
• The cables (Power cord, RGB cable and other
cables) may have to be used with the core set to
the projector side. Use the cables which are included with the projector or specified.
Core
NOTE:
• Before connecting, read the instruction manuals of the devices to be connected, and make sure that
the projector is compatible with the device.
• Secure the screws on the D-sub connectors and tighten.
• Refer to the TECHNICAL section for the pin assignment of connectors and RS-232C
communication data.
Loading...
