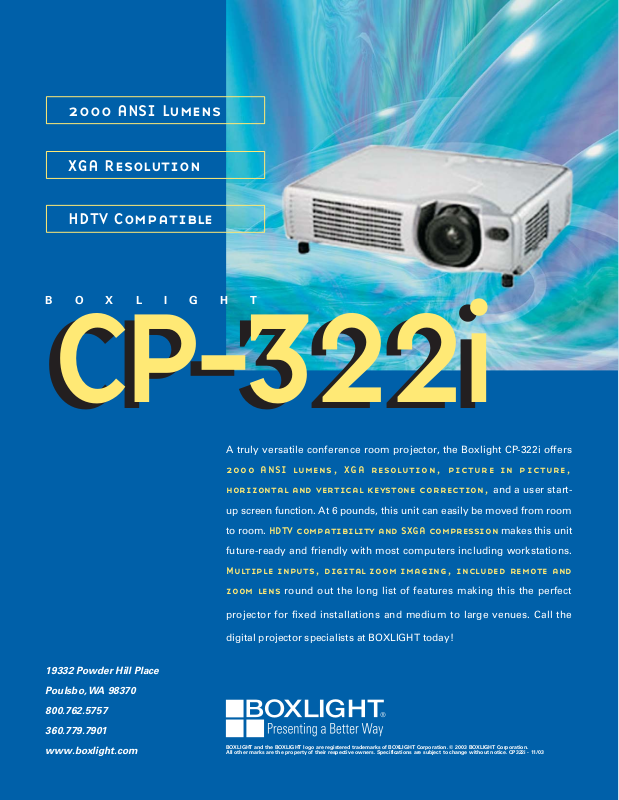

Boxlight CP-322i, CP-322ia Product Sheet

2000 ANSI Lumens

XGA Resolution

HDTV Compatible

BOXLIGHT

CP- 322i

19332 Powder Hill Place

Poulsbo, WA 98370

800.762.5757

360.779.7901

www.boxlight.com

A truly versatile conference room projector, the Boxlight CP-322i offers

2000 ANSI lumens, XGA resolution, picture in picture,

horizontal and vertical keystone correction, and a user start-

up screen function. At 6 pounds, this unit can easily be moved from room

to room. HDTV compatibility and SXGA compression makes this unit

future-ready and friendly with most computers including workstations.

Multiple inputs, digital zoom imaging, included remote and

zoom lens round out the long list of features making this the perfect

projector for fixed installations and medium to large venues. Call the

digital projector specialists at BOXLIGHT today!

BOXLIGHT and the BOXLIGHT logo are registered trademarks of BOXLIGHT Corporation. © 2003 BOXLIGHT Corporation. All other marks are the property of their respective owners. Specifications are subject to change without notice. CP322i - 11/03

BOXLIGHT

CP-322i

 2000 ANSI Lumens, 1600 in whisper mode.

 True XGA resolution with compression up to

SXGA. HDTV compatibility.

 Digital Keystone adjustment on remote.

 Digital Zoom imaging.

 Multiple inputs.

 User-definable start-up screen.

 Portable at only 6 pounds.

projector

 Good for small to large venue presentations.

 All BOXLIGHT projectors feature the latest in

technology and design.

 Lifetime 24/7 technical support.

 The fastest response time in the industry

from our state-of-the-art service center.

Resolution: 1024 x 768 true XGA, with compression up to 1280 X 1024 SXGA

Brightness: 2000 ANSI lumens

Lamp: 150 watt UHB

Display Type: (3) 0.7 TFT polysilicon LCDs

Contrast Ratio:

Colors: 16.7 million

Aspect Ratio: 4:3, 16:9 compatible

Inputs: COMPUTER: (2) 15 pin; VIDEO: (1) Composite (RCA), (1) S-Video; (1) Component;

Outputs: COMPUTER: (1) Computer 15-pin; CONTROL PORT: (1) for RS-232 control and

Audible Noise: 38dB / 36dB in whisper mode

Audio: (1)

Video: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM

HDTV/EDTV: 1080i, 1035i, 720p, 575p, 575i, 480p, 480i compatibility

Scan Frequency:

Vertical Refresh Rate:

350:1

AUDIO: (1) RCA

mouse operation, (1) USB for mouse operation

Built-in1-watt speakers

31-80kHz

56-120Hz

Projection Lens: Manual zoom and focus, F1.7 - 2.1; f= 36.8 - 47.8mm; zoom ratio 1:12

Diagonal Image Size: 3'- 36' / 76 - 760cm

Throw Distance: 3'- 36' / 0.9 - 11m

Keystone: Digital adjustment: Vertical +/-15o, Horizontal +/-15

Adjustments: On-board and remote

Power Supply: 100-240V at 50/60Hz

Power Consumption: 240 watts

Compatibility: SXGA, XGA, SVGA, VGA, Mac

Weight: 6 lbs. / 2.7 kg

Dimensions: (H x W x D) 3 x 11.6 x 9 / 8.8cm x 29.5cm x 23.7cm

FCC Rating:

Warranty: Two-year parts and labor (120-day or 500-hours lamp warranty)

Accessories Included: Remote control with built-in laser pointer, VGA cable, Component Video cable,

Optional Accessories: One year extended warranty, ceiling mount plate, ceiling mount suspension pole, ceiling

Class B Certification

PS/2 mouse cable, Soft carry case

round flush mount kit, soft carry case. hard carry case. ATA case, serial mouse cable,

MAC mouse cable, RS-232 control cable, USB mouse cable
