CINEMA 20HD

HOME THEATER

PROJECTOR

USER'S GUIDE

Page 2

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE USER'S GUIDE WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact BOXLIGHT.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as it could possibly damage your eyes. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector. Minimum distance should be taken. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS USER'S GUIDE FOR LATER USE.

SIDE and TOP REAR

20cm

50cm 50cm

50cm

Page 3

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Page 4

COMPLIANCES

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : CINEMA 20HD

Trade Name : Boxlight Responsible party : BOXLIGHT Address : 19332 Powder Hill Place Poulsbo, WA 98370-7407 USA

Telephone No. : (800)762-5757 or +1-360-779-7901

GROUND

Page 5

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 14

COMPUTER MODE 22

VIDEO MODE 31

SETTING 37

APPENDIX 39

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7 SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8 POSITIONING PROJECTOR 9 ADJUSTABLE FEET 10 MOVING PROJECTOR 10

CONNECTING PROJECTOR 11

TERMINALS OF PROJECTOR 11 CONNECTING TO COMPUTER 12 CONNECTING TO VIDEO EQUIPMENT 13

OPERATION OF REMOTE CONTROL 14

LASER POINTER FUNCTION 14 REMOTE CONTROL BATTERIES INSTALLATION 15

TOP CONTROLS AND INDICATORS 16 OPERATING ON-SCREEN MENU 17

HOW TO OPERATE ON-SCREEN MENU 17 FLOW OF ON-SCREEN MENU OPERATION 17 MENU BAR 18

SELECTING INPUT SOURCE 22 SELECTING COMPUTER SYSTEM 22 PC ADJUSTMENT 23

AUTO PC ADJUSTMENT 23 MANUAL PC ADJUSTMENT 24 COMPATIBLE COMPUTER SPECIFICATIONS 26

PICTURE IMAGE ADJUSTMENT 27

IMAGE LEVEL SELECT 27 IMAGE LEVEL ADJUSTMENT 28

PICTURE SCREEN ADJUSTMENT 30

SELECTING INPUT SOURCE 31 SELECTING VIDEO SYSTEM 32 PICTURE IMAGE ADJUSTMENT 33

IMAGE LEVEL SELECT 33 IMAGE LEVEL ADJUSTMENT 34

PICTURE SCREEN ADJUSTMENT 36

SETTING MENU 37

MAINTENANCE 39

WARNING TEMP. INDICATOR 39 AIR FILTER CARE AND CLEANING 39 CLEANING PROJECTION LENS 39 LAMP REPLACEMENT 40 LAMP REPLACE COUNTER 41

TROUBLESHOOTING 42 TECHNICAL SPECIFICATIONS 44

BASIC OPERATION 19

TURNING ON / OFF PROJECTOR 19 ADJUSTING SCREEN 20

ZOOM ADJUSTMENT 20 FOCUS ADJUSTMENT 20 LENS SHIFT ADJUSTMENT 20 KEYSTONE ADJUSTMENT 20 PICTURE FREEZE FUNCTION 21 NO SHOW FUNCTION 21

SOUND ADJUSTMENT 21

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the user's guide is a trademark or a registered trademark of its

respective corporation.

Page 6

FEATURES AND DESIGN

◆ Network connection (Optional)

Network connection is an optional product to control and set up the projector via the network cable. By accessing to the connected projector using the web browser on your computer. It can be controlled and set up the projector remotely. Contact the sales dealer where you purchased this projector for optional parts.

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.

● Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

● S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

◆ High Resolution Image

This projector provides 1366 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer between XGA (1024 x 768) and SXGA (1280 x 1024) is compressed into 1024 x 768 dots. This projector cannot display image of over 1280 x 1024 dots. When resolution of your computer is over than 1280 x 1024, reset the computer output for lower resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

◆ Keystone Correction

Positioning of the projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function adjusts image size to approx. 1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.

◆ Compact Design

This projector is extremely compact in size and weight. It is designed to carry and work anywhere you wish to use.

◆ Power Management

Power Management function is provided to reduce power consumption while the projector is not in use. This Power Management function operates to turn Projection Lamp off when the projector detects signal interruption and any button is not pressed over 5 minutes. Projection Lamp is automatically turned on again when the projector detects signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Digital Visual Interface

This projector is equipped with DVI 24-pin terminal for connecting DVI output from a computer.

◆ Motor-driven Lens Shift

Projection lens can be moved up and down with motordriven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can be also adjusted with motor-driven operation.

◆ Color management

You can make fine adjustments to the colors on the screen to change them to the desired colors. At this time, the colors are changed within an extremely narrow hue range, so that other colors are not affected. The luminance and gamma values can also be changed in addition to the hue. This allows colors to be reproduced with great accuracy. Faithful color reproduction and color correction which effectively matches colors to scenes or emphasizes colors can be achieved. Adjustments can be made easily, because they are reflected in the on-screen images in real time. Up to eight colors can be adjusted at a single time. The adjustment data can be saved for images in both in video mode and PC mode (total 8 images). The adjusted data is displayed in a list for easy checking.

◆ Auto Picture Control

The gamma value can be adjusted automatically in accordance with the luminance of the screen. Images that are either too dark or too bright can be adjusted to the optimum level, so that these images can be reproduced without any distortion. Equipped with an advanced Intelligent Digital Sharpness Control which controls the sharpness automatically in accordance with the images on the screen.

Page 7

PREPARATION

NAME OF EACH PART OF PROJECTOR

BOTTOM OF CABINET

BACK OF CABINET

HOT AIR EXHAUSTED !

Air blown from exhaust vent is hot. When using or installing the projector, following precautions should be taken.

● Do not put a flammable object near this vent.

● Keep rear grills at least 3’(1 m) away from

any object, especially heat-sensitive object.

● Do not touch this area, especially screws and metallic parts. This area will become hot while the projector is used.

This projector detects internal temperature and automatically controls operating power of Cooling Fans.

FRONT OF CABINET

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

This projector is equipped with cooling fans for protection from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover vent slots.

● Keep side clear of any objects. Obstructions may block cooling

air.

AIR INTAKE VENTS

PROJECTION LENS

SPEAKERS

INFRARED

REMOTE RECEIVER

LENS COVER

POWER CORD

CONNECTOR

EXHAUST VENT

TERMINALS

AND CONNECTORS

TOP CONTROLS

AND INDICATORS

INFRARED

REMOTE RECEIVER

CARRYING

HANDLE

AIR INTAKE

VENT

When attached the network connection to the projector, remove the these parts.

Page 8

PREPARATION

SETTING-UP PROJECTOR

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of type of power supply being in use. Connect the projector with a peripheral equipment before turning the projector on. (Refer to pages 11 ~ 13 for connection.)

CAUTION

For safety, unplug AC Power Cord when an appliance is not used. When this projector is connected to outlet with AC Power Cord, an appliance is in Stand-by Mode and consumes a little electric power.

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to the projector. AC outlet must be near this equipment and must be easily accessible.

To POWER CORD CONNECTOR on the projector.

Projector side

AC Outlet side

Ground

NOTE ON POWER CORD

AC Power Cord must meet requirement of country where you use the projector. Confirm AC plug type with chart below and proper AC power cord must be used. If supplied AC Power Cord does not match AC outlet, contact your sales dealer.

To AC Outlet.

(120 V AC)

For Continental Europe

For U.S.A. and Canada

To AC Outlet.

(200 - 240 V AC)

Page 9

PREPARATION

POSITIONING PROJECTOR

● This projector is designed to project on a flat projection surface.

● Projector can be focused from 5.0’ (1.5m) ~ 51.3’ (15.6m).

● Refer to figure below to adjust screen size.

Screen Size

Distance

40” 31”

5.0’ (1.5m)

ROOM LIGHT

Brightness in room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide best image.

Min. Zoom

Max. Zoom

100”

77”

12.7’ (3.9m)

150” 115”

19.1’ (5.8m)

200” 154”

25.6’ (7.8m)

250” 192”

32.0’ (9.8m)

300” 231”

38.4’ (11.7m)

400” 308”

51.3’ (15.6m)

LENS SHIFT ADJUSTMENT

Projection lens can be moved up and down with motor-driven lens shift function. This function makes it easy to provide projected image where you want. Refer to P 20 for operation.

Highest Lens Shift Lo

west Lens Shift

H1 : H2 = 6 : 1

H3 : H4 = 1 : 1

NOTE Screen size and lens shift ratio on the above charts are standard values and they may change by positioning conditions.

12.7’(3.9m)

5.0’(1.5m)

40”

31”

100”

77”

25.6’(7.8m)

200” 154”

51.3’(15.6m)

38.4’(11.7m)

300”

231”

Max. Zoom

Min. Zoom

400”

308”

Page 10

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump the projector, otherwise damages or malfunctions may result.

● When carrying the projector, use a suitable carrying case.

● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer for best way.

MOVING PROJECTOR

Use Carry Handle when moving the Projector. When moving the projector, replace lens cover and retract feet to prevent damage to lens and cabinet. When this projector is not in use for an extended period, put it into case (dust cover) supplied with this projector.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.5 degrees.

Lift front of a projector and pull FEET LOCK LATCHES on both sides of the projector.

ADJUSTABLE FEET FEET LOCK

LATCHES

Release FEET LOCK LATCHES to lock ADJUSTABLE FEET and rotate ADJUSTABLE FEET to fine tune position and tilt.

To shorten ADJUSTABLE FEET, lift front of the projector and pull and undo FEET LOCK LATCHES.

Position and keystone distortion of image can be adjusted using Menu Operation. (Refer to P 20 and 37.)

NOTE :

THIS PROJECTOR SHOULD BE SET IN THE WAY INDICATED. PROJECTION LAMP MAY MALFUNCTION.

Page 11

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

When controlling this projector by computer, connect your computer to this terminal. (Refer to P12.)

Connect S-VIDEO output from video equipment to this jack. (Refer to P13.)

Connect an audio output (stereo) from computer to these jacks. (Refer to P12.)

Connect an audio output from video equipment to these jacks. (Refer to P13.)

CONTROL PORT CONNECTOR

COMPUTER AUDIO

INPUT (1 and 2) JACKS

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect composite video output from video equipment to VIDEO/Y jack or connect component video outputs to VIDEO/Y, Cb/Pb and Cr/Pr jacks. (Refer to P13.)

Connect computer (digital/analog) output to one of these terminals. (Refer to P12.)

COMPUTER INPUT

TERMINALS (DIGITAL/ANALOG)

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 11 to 13 and connect properly.

This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart unit. Do not use RESET function excessively.

RESET BUTTON

✽ Do not press this button. This button

is used for our optional accessories.

Connect component video output (Y, Cb, Cr or Y, Pb, Pr) from video equipment to VIDEO/Y, Cb/Pb and Cr/Pr jacks or connect computer output {5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)} from computer to G, B, R, H/V and V jacks. (Refer to P12 and 13.)

5 BNC INPUT JACKS

When using Wired/Wireless Remote Control Unit as Wired Remote Control, Connect Wired Remote Control Unit to this jack with Remote Control Cable (supplied).

R/C JACK

INPUT 1

ANALOG DIGITAL(DVI-D)

R/C JACK

AUDIO 1 AUDIO 2

G B R H/V V

VIDEO/Y Cb/Pb Cr/Pr

RESET

INPUT 2

R–AUDIO–L

INPUT 3

CONTROL PORT

S–VIDEO

(

)

MONO

Page 12

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

VGA Cable ✽

Monitor Output

Desktop type Laptop type

Control Cable for Serial Port

Terminal

Serial port

Audio Output

CONTROL

PORT

COMPUTER

AUDIO IN 1 or 2

COMPUTER IN ANALOG

Cables used for connection (✽ = Cable or adapter is not supplied with this projector.)

Audio Cable

✽

(stereo)

NOTE :

When connecting cable, power cords of both the projector and external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before computer is switched on.

MAC Adapter ✽

Set slide switches according to chart below.

• VGA Cable (HDB 15 pin) ✽

• DVI-Digital Cable (for Single Link T.M.D.S.) ✽

• BNC Cable ✽

• Control Cable for Serial Port

• MAC Adapter (When connecting to Macintosh computer) ✽

• Audio Cable {Mini Plug (stereo) x 1} ✽

Terminals

of the Projector

DVI Cable

✽

Monitor Output

COMPUTER IN DIGITAL

Set switches as shown in table below depending on RESOLUTION MODE that you want to use before you turn on projector and computer.

◆ MAC ADAPTER ✽

BNC Cable

✽

ANALOG DIGITAL(DVI-D)

AUDIO 1 AUDIO 2

G B R H/V V

VIDEO/Y Cb/Pb Cr/Pr

INPUT 1

CONTROL PORT

RESET

INPUT 2

R–AUDIO–L

S–VIDEO

R/C JACK

13" MODE (640 x 480) 16" MODE (832 x 624) 19" MODE (1024 x 768)

1234 56

ON ON ON ON

OFF OFF OFF OFF

(

MONO

INPUT 3

OFF

OFFON ON OFFOFF OFF OFF

2 3 4 5 6

OFF OFF OFF

OFF OFFON ONON ON21" MODE (1152 x 870)

)

DIP

Page 13

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder Video Disc Player

S-VIDEO Cable

Terminals

of the Projector

S-VIDEO Output

Cables used for connection (✽ = Cable is not supplied with this projector.)

• Video Cable (RCA x 1), or (RCA x 3)

✽

• BNC Cable ✽

• S-VIDEO Cable

• Audio Cable (RCA x 2)

NOTE : When connecting cable, power cords of both the projector and external equipment should be disconnected from AC outlet.

Audio Cable (RCA x 2)

AUDIO IN S-VIDEO

Y - Cb/Pb - Cr/Pr

VIDEO

Component video output equipment.

(such as DVD player or high-definition TV source.)

Composite

Video Output

Component Video Output

(Y, Cb/Pb, Cr/Pr)

Component Video Output

(Y, Cb/Pb, Cr/Pr)

Y - Cb/Pb - Cr/Pr

Video Cable (RCA x 1)

BNC Cable

✽

Audio Output

Composite

Video Output

VIDEO

Video Cable (RCA x 3) ✽

INPUT 1

ANALOG DIGITAL(DVI-D)

AUDIO 1 AUDIO 2

RESET

G B R H/V V

R/C JACK

CONTROL PORT

VIDEO/Y Cb/Pb Cr/Pr

INPUT 2

INPUT 3

R–AUDIO–L

(

MONO

S–VIDEO

)

Page 14

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

LIGHT SWITCH

Left Side

Slide this switch, to illuminate key on remote control unit for 10 seconds.

Used to select input source. (P22)

POWER ON-OFF BUTTON

Used to turn projector on or off. (P19)

MENU BUTTON

Used to select MENU operation. (P17, 18)

INPUT BUTTON

MUTE BUTTON

Used to mute sound. (P21)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC Adjustment function. (P23)

FREEZE BUTTON

Used to freeze picture. (P21)

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P20)

SELECT BUTTON

POINT (VOLUME + / – ) BUTTONS SELECT BUTTON

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in DIGITAL ZOOM +/– mode. (P30) POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons. When pressing center of this button, it works as SELECT button.

Used to execute item selected. It is also used to expand / compress image in DIGITAL ZOOM mode. (P30)

LIGHT

LENS SHIFT

KEYSTONE

LENS

INPUT

MUTE

NO SHOW

AUTO PC ADJ.

AUTO

KEYS

SELECT


ZOOM

FREEZE

COLOR.M

ON-OFF

SCREEN


FOCUS

D.ZOOM

Page 15

BEFORE OPERATION

To insure safe operation, please observe following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at same time.

● Do not use a new battery with an used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to batteries manufacturers instructions and local rules.

Pull up lid and remove it.

Remove battery compartment lid.

Slide batteries into compartment.

Replace compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

Remote Control Batteries Installation

Operating Range

Point Remote Control Unit toward projector (Receiver Window) whenever pressing any button. Maximum operating range for Remote Control Unit is about 16.4’ (5m) and 60° in front and rear of the projector.

16.4’ (5 m)

60°

16.4’ (5 m)

Used to adjust zoom. (P20)

ZOOM BUTTON

FOCUS BUTTON

Used to adjust focus. (P20)

NO SHOW BUTTON

Used to turn picture into black image. (P21)

D.ZOOM BUTTON

Used to select DIGITAL ZOOM +/– mode and resize image. (P30)

KEYSTONE BUTTON

Used to correct keystone distortion. (P20, 37)

IMAGE BUTTON

Used to select image level. (P27, 33)

60°

WIRED REMOTE JACK

When using as Wired Remote Control, connect Remote Control Cable to this jack. Battery installation is required when using as Wired Remote Control.

SCREEN BUTTON

Used to select screen. (P30, 36)

COLOR MANAGEMENT BUTTON

Used to operate COLOR MANAGEMENT. (P28, 34)

LENS SHIFT

KEYSTONE

LENS

KEYS

SELECT

ON-OFF

SCREEN


INPUT

ZOOM

FREEZE

COLOR.M

FOCUS

D.ZOOM

MUTE

NO SHOW

AUTO PC ADJ.

AUTO

Page 16

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

Used to open or close MENU operation. (P17,

18)

MENU BUTTON

IMAGE BUTTON

READY INDICATOR

SELECT BUTTON

POWER ON–OFF BUTTON

INPUT BUTTON

WARNING TEMP. INDICATOR

LAMP INDICATOR

POINT (VOLUME + / – ) BUTTONS

LAMP REPLACE INDICATOR

Used to select image level. (P27, 33)

Lights green when the projector is ready to be turned on. And it flashes green in Power Management mode. (P37)

Becomes dim when the projector is turned on. And bright when the projector is in stand-by mode.

Turns to yellow when life of projection lamp draws to an end. (P40)

Flashes red when internal projector temperature is too high. (P39)

Used to select input source. (P22)

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in DIGITAL ZOOM

+/– mode. (P30)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons.

Used to execute item selected. It is also used to expand / compress image in DIGITAL ZOOM mode. (P30)

Used to turn the projector on or off. (P19)

Used to adjust zoom. (P20)

FOCUS BUTTON

Used to adjust focus. (P20)

ZOOM BUTTON

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P20)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC Adjustment function. (P23)

Page 17

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

Press MENU button to display ON-SCREEN MENU (MENU BAR). A red frame is POINTER.

Move POINTER (red frame) to MENU ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

Adjust ITEM DATA by pressing POINT RIGHT / LEFT buttons. Refer to following pages for details of respective adjustments.

Press POINT DOWN button and move POINTER (red frame or red arrow) to ITEM that you want to adjust, and then press SELECT button to show ITEM DATA.

Select Menu to be adjusted

Control or adjust item through ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN MENU. Refer to following pages to operate each adjustment on ON-SCREEN MENU.

2 MOVING POINTER

3 SELECT ITEM

Move pointer (✽ see below) or adjust value of item by pressing POINT button(s) on Top Control or on Remote Control Unit.

Select item or set selected function by pressing SELECT button.

OPERATING ON-SCREEN MENU

✽ Pointer is icon on ON-SCREEN MENU to select item. See fig-

ures on section "FLOW OF ON-SCREEN MENU OPERATION" below.

Used to select item.

SELECT BUTTON

Used to move Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

MENU BAR

POINTER (red frame)

MENU ICON

ITEM DATA Press POINT LEFT/RIGHT buttons to adjust value or set function.

SELECT

BUTTON

POINTER (red frame) Press POINT DOWN button to move POINTER.

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

ITEM

Center of point button used to select item.

SELECT BUTTON

Used to move Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTON

WIRELESS REMOTE CONTROL

BEFORE OPERATION

32 32

Mid

Page 18

BEFORE OPERATION

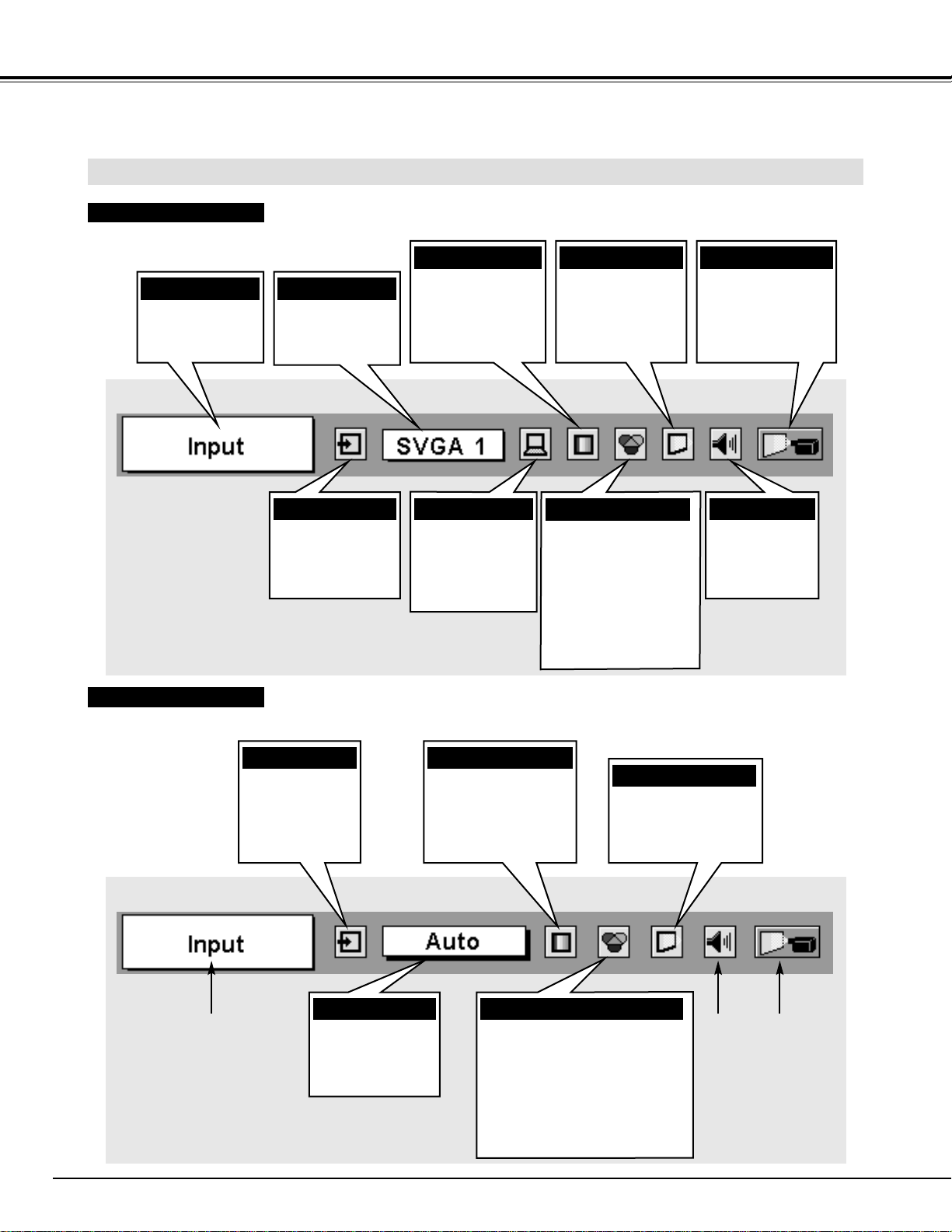

MENU BAR

PC SYSTEM MENU

Used to select computer system. (Refer to P22, 23)

IMAGE ADJUST MENU

Used to adjust computer image. [Contrast / Brightness / Color temp. / White Balance (R/G/B) / Color management / Auto picture control / Gamma] (Refer to P28-29)

SETTING MENU

Used to change settings of projector or reset Lamp Replace Counter. (Refer to P37, 38)

SOUND MENU

Used to adjust volume or mute sound. (Refer to P21)

IMAGE SELECT MENU

Used to select image level among Standard, Real and Image 1 ~ 4. (Refer to P27)

FOR PC SOURCE

Press MENU BUTTON while connecting to PC input source.

AV SYSTEM MENU

Used to select system of selected video source. (Refer to P32)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast / Brightness / Color / Tint / Color management / Auto picture control / Color temp. / White balance (R/G/B) / Sharpness / Gamma / Noise Reduction / Progressive]

(Refer to P34-36)

FOR VIDEO SOURCE

Press MENU BUTTON while connecting to VIDEO input source.

Same function as Menu for PC source.

INPUT MENU

Used to select input source (Input 1, Input 2 or Input 3). (Refer to P31)

PC ADJUST MENU

Used to adjust parameters to match with input signal format. (Refer to P23-25)

IMAGE SELECT MENU

Used to select image level among Standard, Cinema and Image 1 ~ 4. (Refer to P33)

SCREEN MENU

Used to set size of image to Full, Zoom, Normal or Wide zoom. (Refer to

P36)

GUIDE WINDOW

Shows selected item of ONSCREEN MENU.

Same function as Menu for PC source.

INPUT MENU

Used to select input source (Input 1, Input 2 or Input

3). (Refer to P22)

SCREEN MENU

Used to adjust size of image. [Normal / Full / True / Digital zoom +/–] (Refer to P30)

Page 19

BEFORE OPERATION

TURNING ON PROJECTOR

Connect the projector's AC Power Cord into an AC outlet. LAMP Indicator lights RED, and READY Indicator lights GREEN.

Press POWER ON-OFF button on Top Control or on Remote Control Unit to ON. LAMP Indicator dims, and Cooling Fans start to operate. Preparation Display appears on a screen and count-down starts. Signal from PC or Video source appears after 30 seconds. Current Input position is also displayed on screen for 5 seconds.

TURNING OFF PROJECTOR

Press POWER ON-OFF button on Top Control or on Remote Control Unit, and a message "Power off?" appears on a screen.

Press POWER ON-OFF button again to turn off projector. LAMP Indicator lights bright and READY Indicator turns off. After projector is turned off, Cooling Fans operate (for 90 seconds). During this "Cooling Down" period, this appliance cannot be turned on.

1 2

TO MAINTAIN LIFE OF LAMP, ONCE YOU TURN PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

TURNING ON / OFF PROJECTOR

When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on projector again. When WARNING TEMP. Indicator continues to flash, follow procedures below:

1. Press POWER ON-OFF button to turn the projector off and disconnect AC Power Cord from an AC outlet.

2. Check Air Filters for dust accumulation.

3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 39.)

4. Turn the projector on again.

If WARNING TEMP. Indicator should still continue to flash, call Boxlight Corporation at 1-800-762-5757 or 360-779-7901.

Complete peripheral connections (with Computer, VCR, etc.) before turning on projector. (Refer to "CONNECTING TO PROJECTOR" on pages 11~13 for connecting that equipment.)

When projector has cooled down, READY Indicator lights GREEN again and you can turn projector on. After cooling down completely, disconnect AC Power Cord.

Preparation Display disappears after 30 seconds.

Power off?

Message disappears after 4 seconds.

When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically. Refer to “Power Management” on page 37.

NOTE : When “On start” function is ON, this projector is turned

on automatically by connecting AC Power Cord to an AC outlet. (Refer to pages 37, 38.)

Input 1

Input position

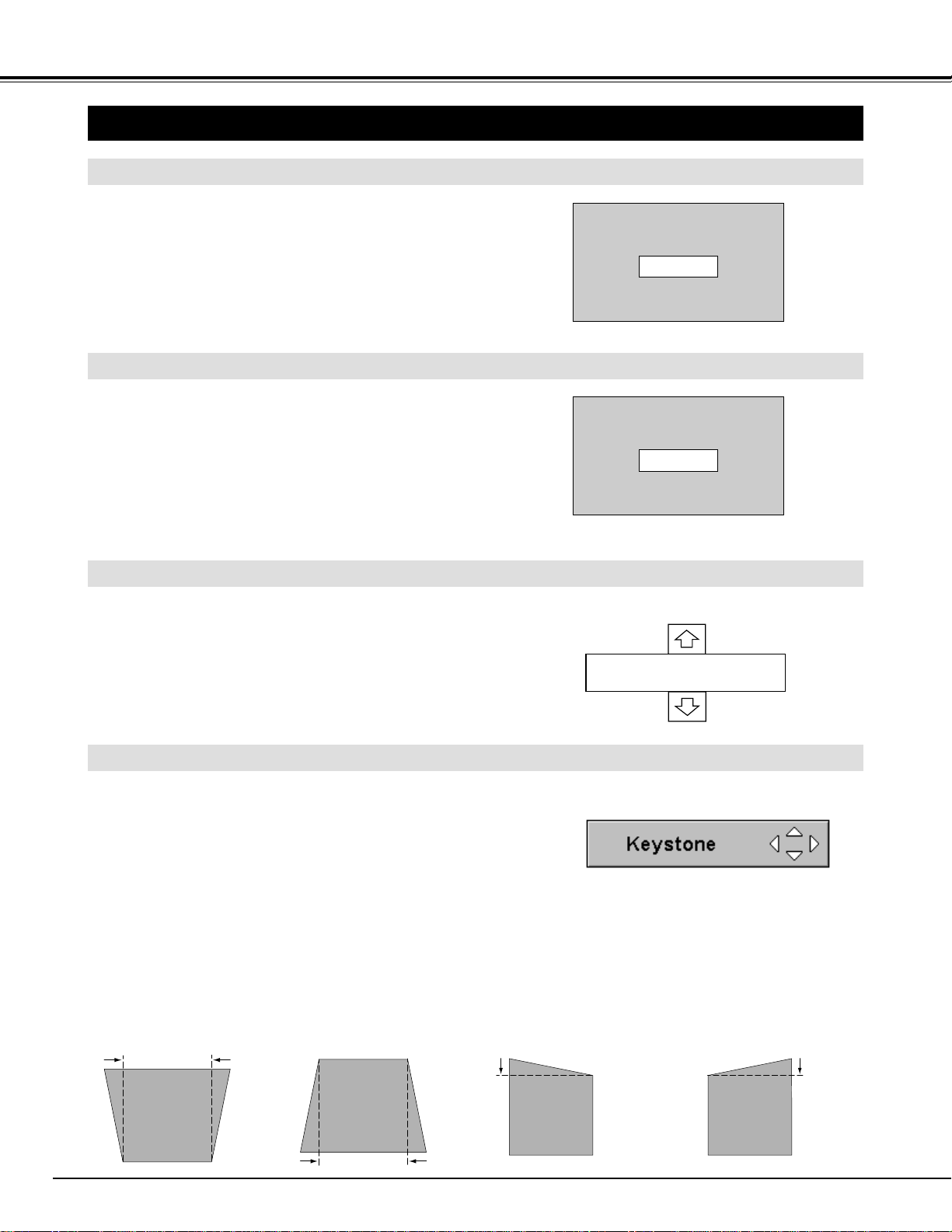

Page 20

BASIC OPERATION

ADJUSTING SCREEN

Message disappears after 4 seconds.

Zoom

Focus

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Press ZOOM button on Top Control or ZOOM ▲/▼ button on Remote Control Unit. Message “Zoom” is displayed.

Press ZOOM ▲ button or POINT UP button to make image larger, and press ZOOM ▼ button or POINT DOWN button to make image smaller.

Press FOCUS button on Top Control or FOCUS ▲/▼ button on Remote Control Unit. Message “Focus” is displayed.

Adjust focus of image by pressing FOCUS ▲/▼ button or POINT UP/DOWN button(s) .



Lens shift



LENS SHIFT ADJUSTMENT

Press LENS SHIFT button on Top Control or on Remote Control Unit. Message “Lens shift” is displayed.

Press POINT UP button to move image up, press POINT DOWN button to move image down.

NOTE; Focus adjustment may not function properly if the image is corrected by KEYSTONE adjustment.

KEYSTONE ADJUSTMENT

Press KEYSTONE button on Remote Control Unit or select Keystone on SETTING menu. (Refer to page 37.) Keystone dialog box appears.

Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT button(s). Press POINT UP button to reduce the upper part of the image, and press POINT DOWN button to reduce the lower part. Press POINT LEFT button to reduce the left part, and press POINT RIGHT button to reduce the right part.

Reduce the upper width with POINT UP button.

Reduce the lower width with POINT DOWN button.

If the projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

Reduce the left part with POINT LEFT button.

Reduce the right part with POINT RIGHT button.

• Arrows are white in no correction.

• Arrow(s) of direction being corrected turn(s) red.

• Arrow(s) disappear(s) at the maximum

correction.

• If you press the KEYSTONE button on the remote control unit once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

Page 21

BASIC OPERATION

Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button except POINT / SELECT button.

Press NO SHOW button on Remote Control Unit to black out image. To restore to normal, press NO SHOW button again or press any other button except POINT / SELECT button.

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

Message disappears after 4 seconds.

No show

1 2

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move the red frame pointer to SOUND Menu icon.

Volume

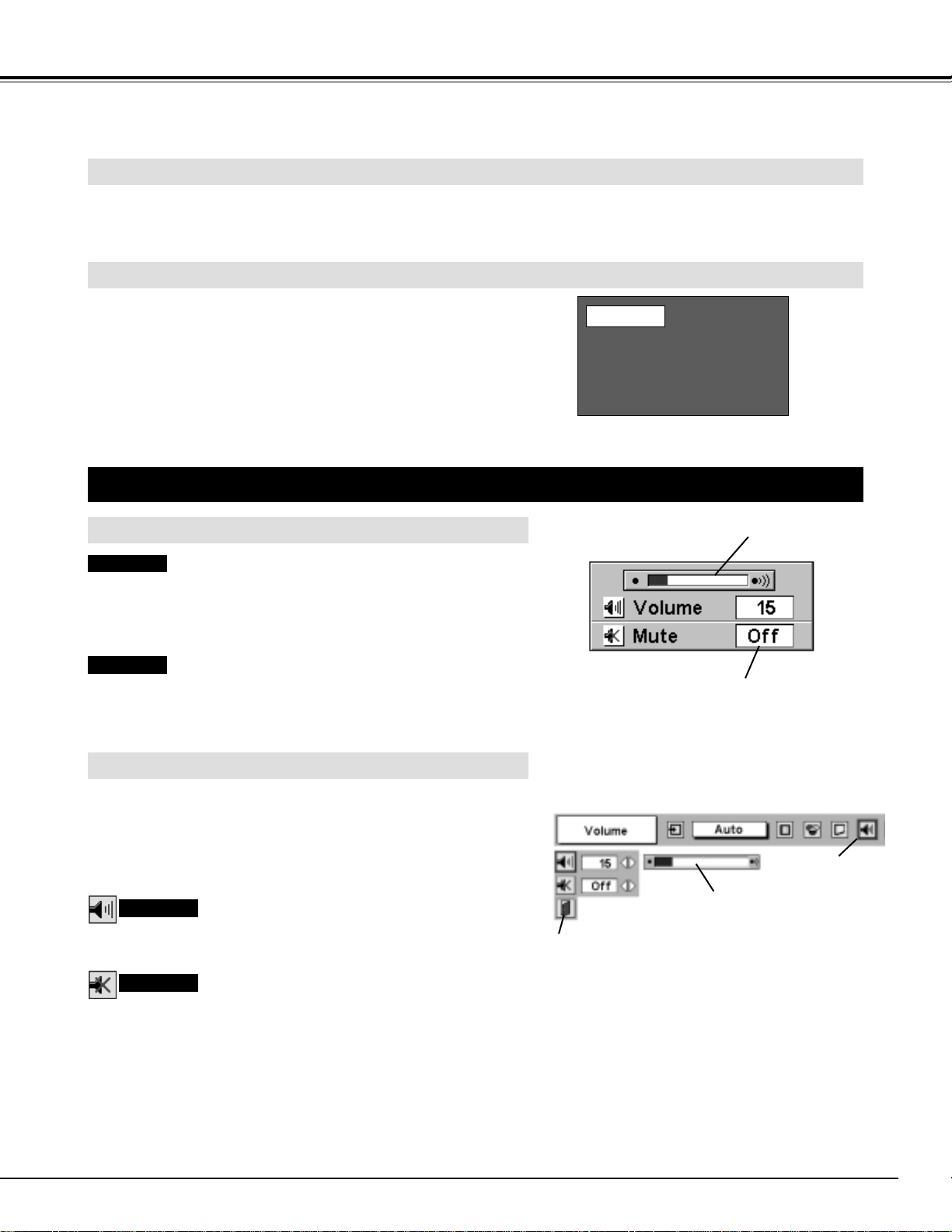

Press VOLUME (+/–) button(s) on Top Control or on Remote Control Unit to adjust volume. Volume dialog box appears on screen for a few seconds. (+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) button(s).

To increase volume, press POINT RIGHT button, and press POINT LEFT button for decreasing.

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

Press POINT DOWN button to move the red frame pointer to item that you want to select, and then press SELECT button.

Indicates roughly level of volume.

Close SOUND Menu.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Mute

Indicates roughly level of volume.

Press MUTE button to set Mute function On or Off.

Display disappears after 4 seconds.

SOUND MENU

SOUND Menu icon

Page 22

COMPUTER INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

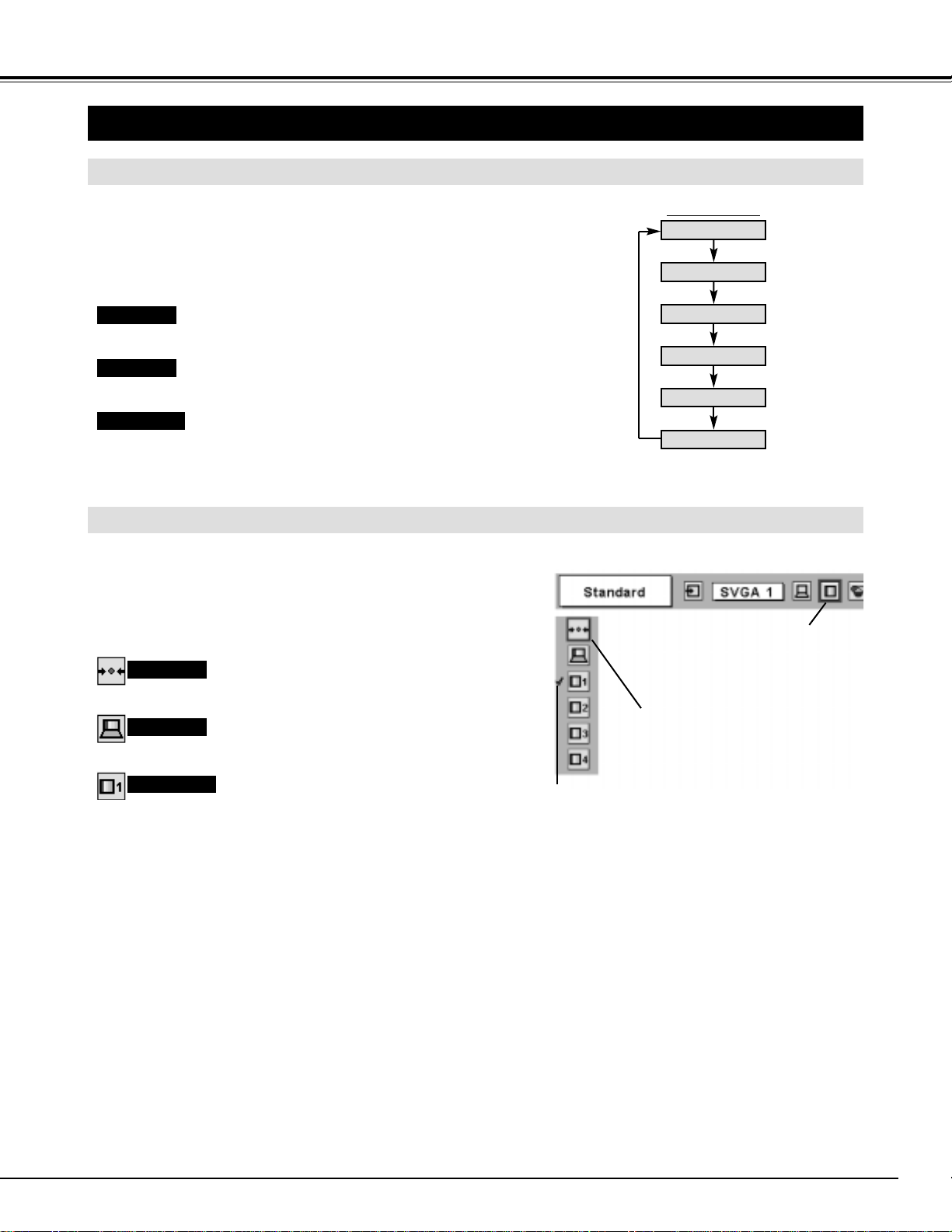

Choose Input by pressing INPUT button on Top Control. Choose Input by pressing INPUT, INPUT 1, INPUT 2 or INPUT 3 button on Remote Control Unit. If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).

INPUT button

INPUT 1

INPUT 2

INPUT 3

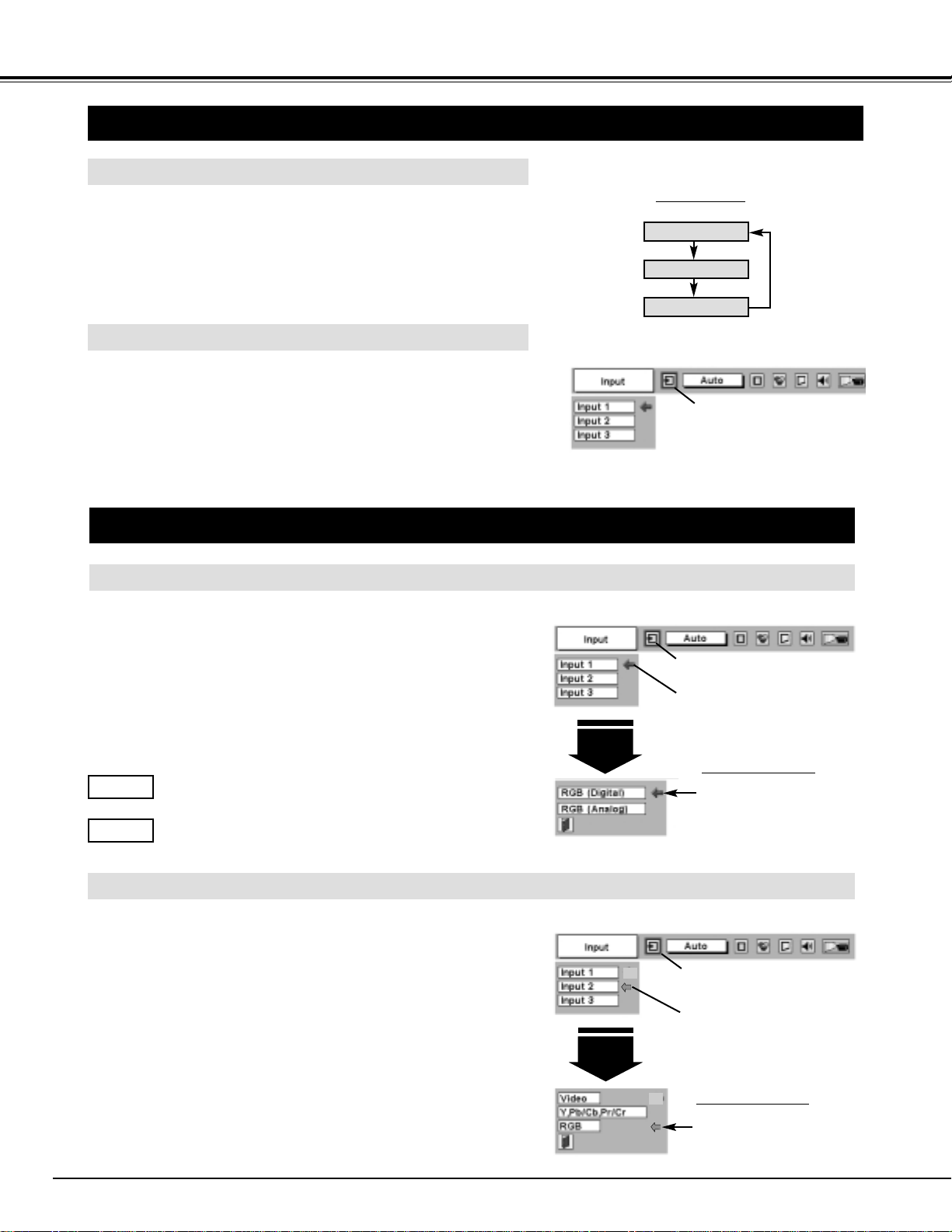

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to INPUT Menu icon.

Press POINT DOWN button and the red-arrow icon will appear. Move arrow to "RGB", and then press SELECT button.

When connect the computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync and Vert. Sync.)] from the computer to G, B, R, H/HV and V jacks.

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

SELECTING COMPUTER SYSTEM

WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to INPUT Menu icon.

Press POINT DOWN button to move the red arrow pointer to Input 1 and then press SELECT button. Source Select Menu will appear.

1 2

Input 1

INPUT MENU

Move the pointer to either Digital or Analog and then press SELECT button.

When your computer is connected to COMPUTER INPUT (DIGITAL) terminal, select RGB (Digital).

Digital

When your computer is connected to COMPUTER INPUT (ANALOG) terminal, select RGB (Analog).

Analog

MENU OPERATION

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select Input and press SELECT button.

Another dialog box INPUT SELECT

Menu will appear.

Press POINT DOWN button and the red-arrow icon will appear. Move arrow to INPUT source that you want to select, and then press SELECT button.

Move the pointer to Digital or Analog and press SELECT button.

Move the pointer (red arrow) to Input 1 and press SELECT button.

INPUT Menu icon

Source Select Menu

Input 2

INPUT MENU

Move the pointer to RGB and press SELECT button.

INPUT Menu icon Move the pointer (red arrow)

to Input 2 and press SELECT button.

Source Select Menu

INPUT Menu icon

Press POINT DOWN button to move the red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

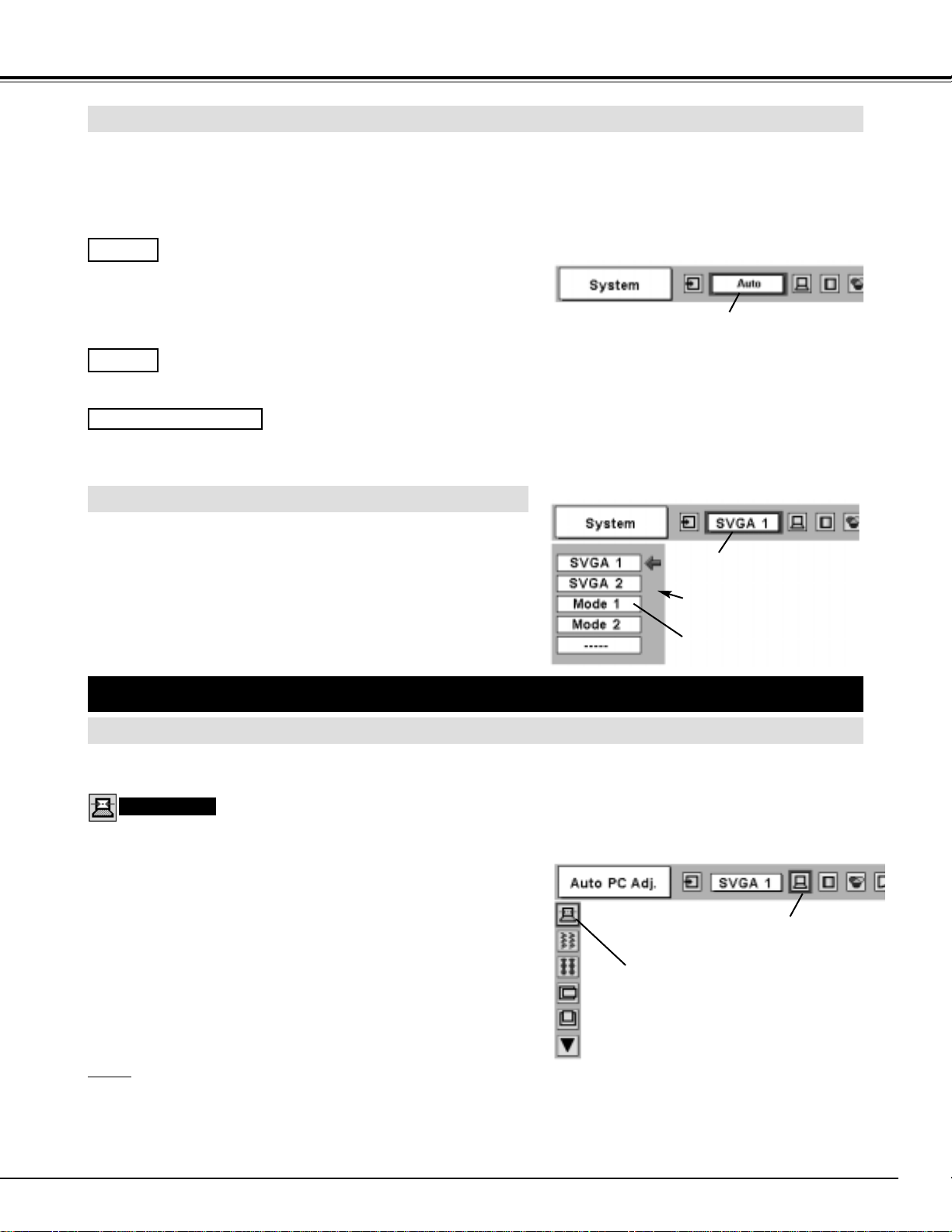

Page 23

COMPUTER INPUT

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 26). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)

Note : Projector may display one of following messages.

When projector cannot recognize connected signal as PC system provided in this projector, Auto PC Adjustment function operates to adjust projector and message “Auto” is displayed on SYSTEM Menu icon. When image is not provided properly, manual adjustment is required. (Refer to P24 and 25.)

There is no signal input from computer. Make sure connection of computer and the projector is set correctly. (Refer to TROUBLESHOOTING on page 42.)

Auto

––––

PC SYSTEM Menu icon Displays system being selected.

PC SYSTEM MENU

SELECT COMPUTER SYSTEM MANUALLY

PC SYSTEM Menu icon Displays system being selected.

Systems on this dialog box can be selected.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move the red frame pointer to PC SYSTEM Menu icon.

Press POINT DOWN button to move the red arrow pointer to system that you want to set, and then press

SELECT button.

1 2

PC SYSTEM MENU

Custom Mode (1~5) set in PC ADJUST Menu. (P24, 25)

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.

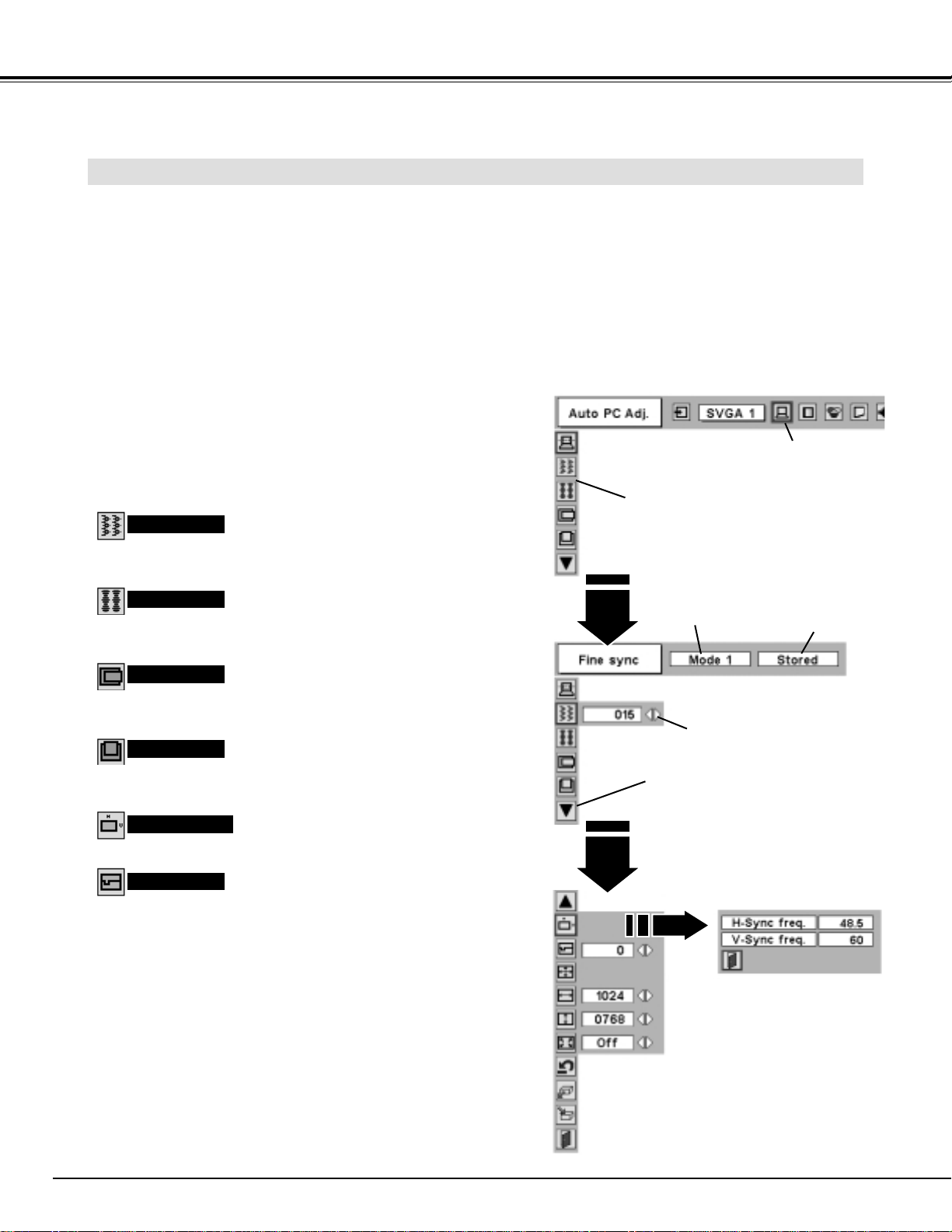

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to PC ADJUST Menu icon.

1 2

Press POINT DOWN button to move the red frame pointer to AUTO PC Adj. icon and then press SELECT button twice. This Auto PC Adjustment can be also executed by pressing AUTO PC ADJ. button on Top Control or on Remote Control Unit.

Move the red frame pointer to AUTO PC Adj. icon and press SELECT button.

PC ADJUST MENU

Auto PC Adj.

PC ADJUST Menu icon

Store adjustment parameters. Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P23). Refer to step 3 of MANUAL PC ADJUSTMENT section (P25).

NOTE

● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When image is not provided properly through this function, manual adjustments are required. (Refer to page 24,

25.)

● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “RGB”, “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.

D-VGA, D-SVGA or D-XGA

When digital computer signal is received on DVI terminal, above message is displayed on PC SYSTEM Menu icon.

AUTOMATIC MULTI-SCAN SYSTEM

Page 24

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal and “RGB” is selected on PC

SYSTEM MENU (P23).

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to PC ADJUST Menu icon.

1 2

Press POINT DOWN button to move the red frame pointer to item that you want to adjust and then press SELECT button. Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

Move the red frame icon to item and press SELECT button.

PC ADJUST MENU

PC ADJUST Menu icon

Adjusts an image as necessary to eliminate flicker from display. Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)

Fine sync

Number of total dots in one horizontal period. Press POINT LEFT/RIGHT button(s) and adjust number to match your PC image.

Total dots

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Horizontal

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Vertical

Press SELECT button to show information of computer selected.

Current mode

Adjusts clamp position. When image has a dark bar(s), try this adjustment.

Clamp

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Press POINT LEFT/RIGHT button to adjust value.

Shows status (Stored / Free) of selected Mode.

Selected Mode

Press SELECT button at Current mode icon to show information of computer connected.

Current mode

Page 25

COMPUTER INPUT

NOTE : Display area (H/V) and Full screen cannot be adjusted when

“1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P23).

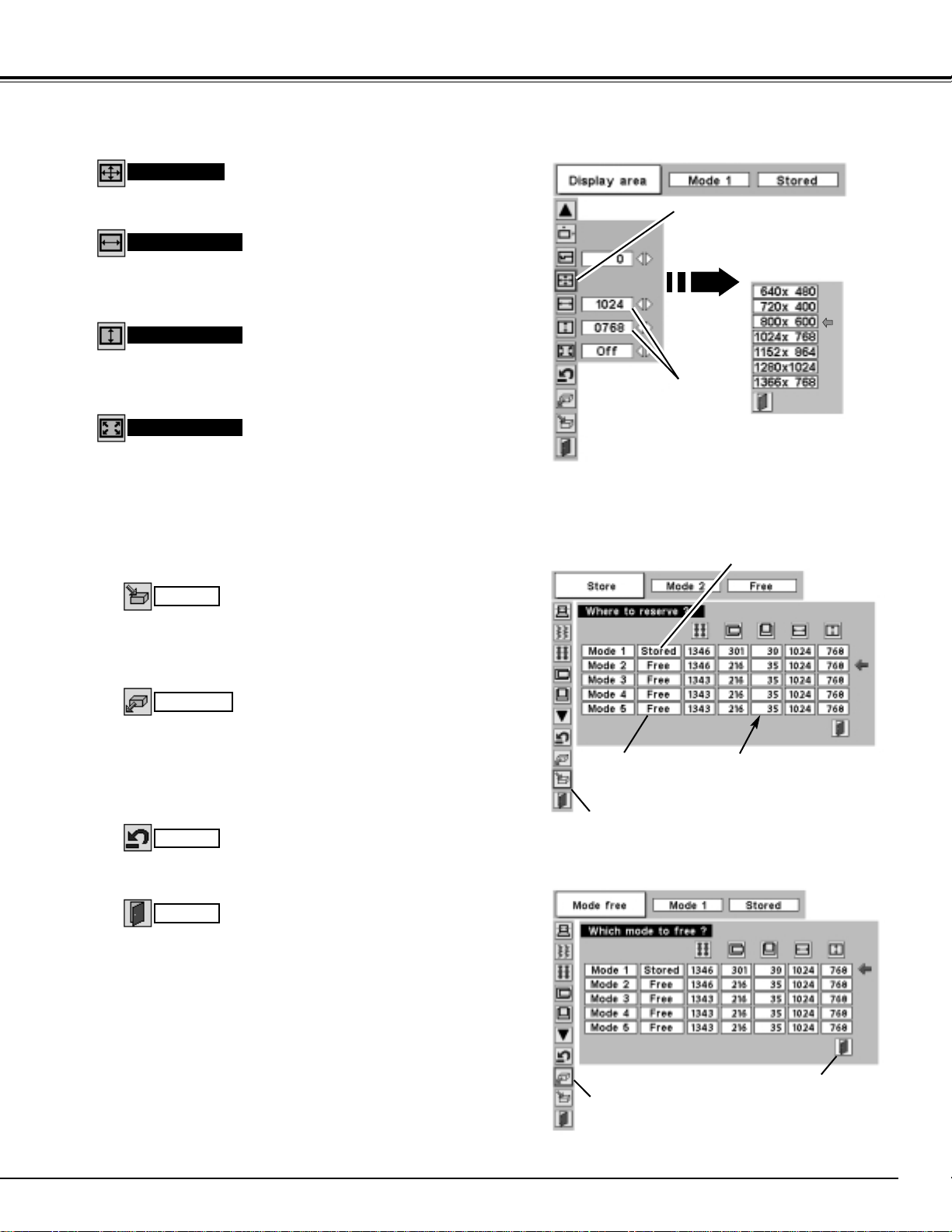

Selects area displayed with this projector. Select resolution at Display area dialog box.

Display area

Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area H

Adjustment of vertical area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area V

Press POINT LEFT/RIGHT button(s) to switch Full screen function to “On” or “Off.” Set “On” to resize image to fit the horizontal size of the screen.

Full screen

Reset

Store

Closes PC ADJUST MENU.

Quit

Other icons operates as follows.

To store adjustment parameters, move the red frame pointer to Store icon and then press SELECT button. Move the red arrow pointer to any of Mode 1 to 5 that you want to store and then press SELECT button.

Reset all adjust parameters on adjustment dialog box to previous figure.

Mode free

Vacant Mode Shows values of “Total dots,”

“Horizontal,” “Vertical,” “Display

area H,” and “Display area V.”

Store icon

Mode free icon

Close this dialog box.

To store adjustment data.

To clear adjustment data.

To clear adjustment parameters previously set, move the red frame pointer to Mode free icon and then SELECT button. Move the red arrow pointer to Mode that you want to clear and then press SELECT button.

Display area

Press POINT LEFT /RIGHT button(s) to adjust value and then press SELECT button.

Press SELECT button at Display area icon and Display area dialog box appears.

This Mode has parameters being stored.

Page 26

COMPUTER INPUT

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 140 MHz of Dot Clock.

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88 VGA 2 720 x 400 31.47 70.09 VGA 3 640 x 400 31.47 70.09 VGA 4 640 x 480 37.86 74.38 VGA 5 640 x 480 37.86 72.81 VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08 MAC 21

1152 x 870

68.68 75.06

SVGA 1 800 x 600

35.156 56.25 SVGA 2 800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 11 1024 x 768

XGA 13

1024 x 768

XGA 14 1024 x 768

61.00

XGA15 1024 x 768

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

(Interlace)

58.03 72.0

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

63.48 79.35

SXGA 3 1280 x 1024

36.00 43.59

SXGA 4

1280 x 1024

64.20 70.40

62.50 58.60

63.90 60.00

63.34 59.98

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.47 70.07

48.50 60.02

44.00 54.58

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

RGB

–––––––– (Interlace)

15.625

RGB

–––––––– (Interlace)

15.734 30

SVGA 10 800 x 600 32.70 51.09

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

640 x 480 31.469 59.940

D-SVGA 800 x 600 37.879 60.317

D-XGA

1024 x 768

48.363

60.004

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

When a input signal is digital from DVI terminal, refer to chart below.

XGA 10

1024 x 768 62.04 77.07

SXGA 5 1280 x 1024 SXGA 6 1280 x 1024 SXGA 7

1280 x 1024

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11 1152 x 900

71.69 67.19

81.13 76.107

63.98 60.02

61.20 65.20

720p (HDTV)

––––––––

(Progressive)

45.00 60.00

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

1080i (HDTV)

––––––––

(Interlace)

33.75 30.00

1035i (HDTV)

–––––––– (Interlace)

33.75 30.00

SXGA 12

1152 x 900

SXGA 13

1280 x 1024

(Interlace)

SXGA 14

1280 x 1024

(Interlace)

71.40 75.60

50.00 43.00

50.00 47.00 SXGA 15 1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18

1280 x 1024

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

46.43 43.35 SXGA 19

1280 x 1024 63.79 60.18

MAC

1280 x 960 75.00 75.08

MAC

1280 x 1024 80.00 75.08

XGA 12

1024 x 768

(Interlace)

35.522 43.48

75.70

Page 27

COMPUTER INPUT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (MENU)

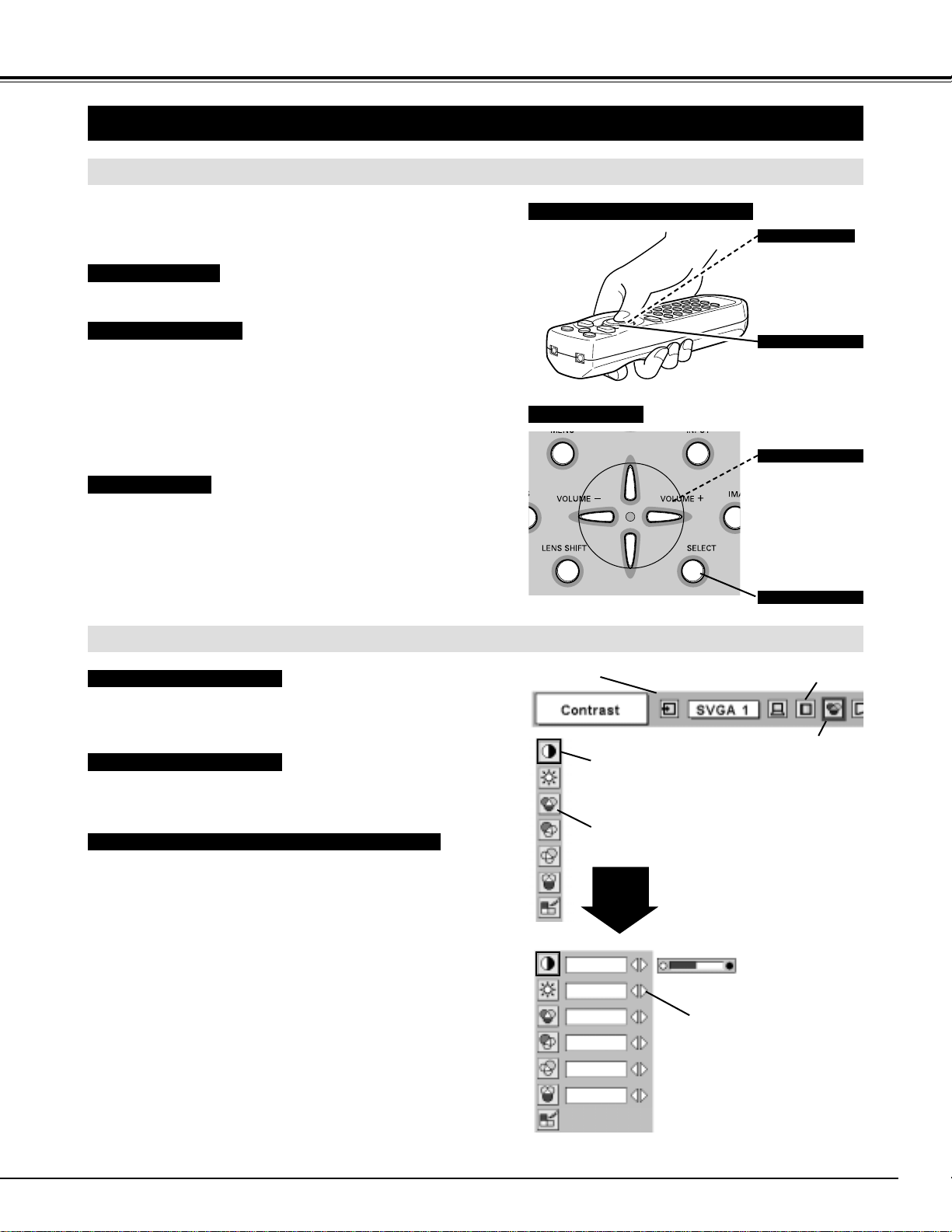

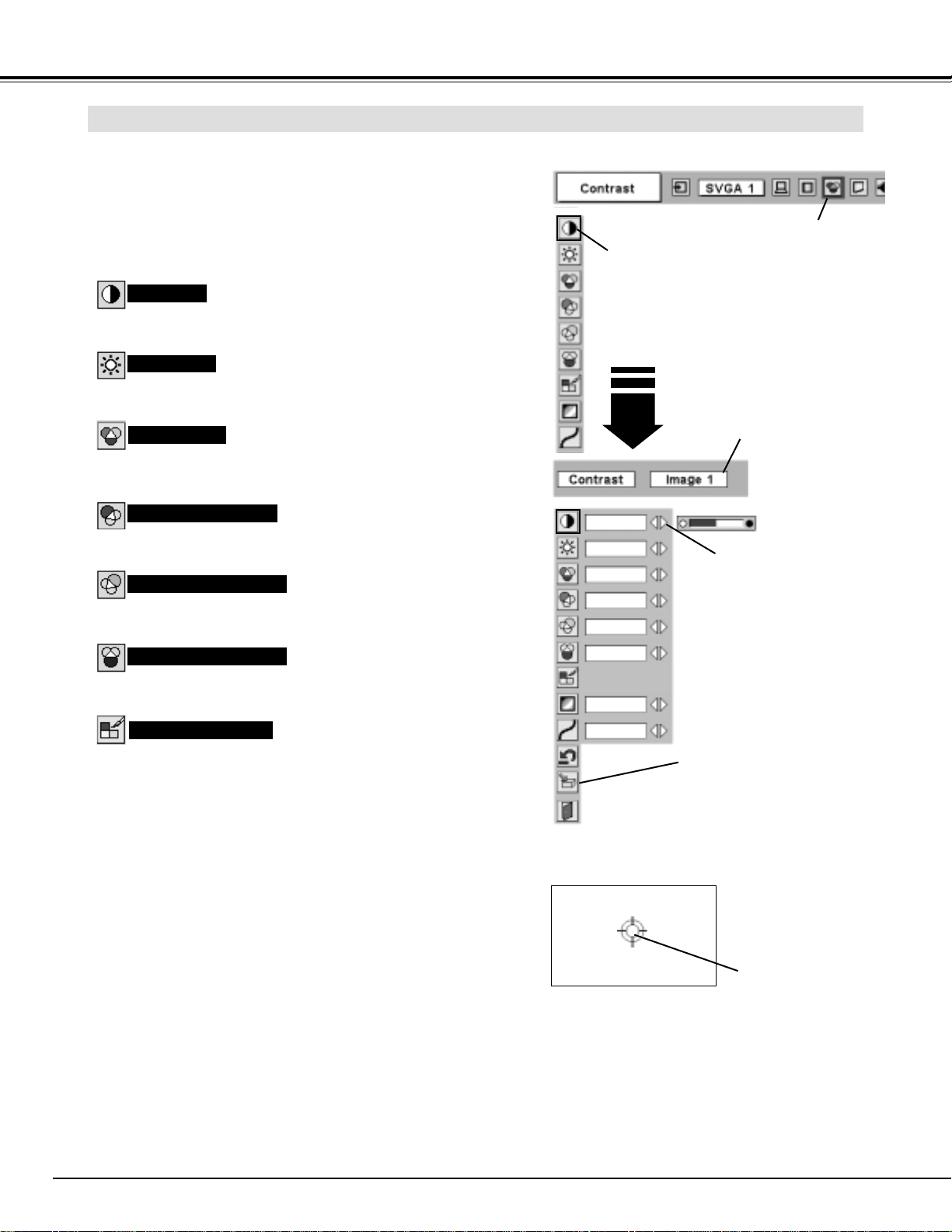

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to IMAGE SELECT Menu icon.

1 2

Press POINT DOWN button to move the red frame pointer to level that you want to set and then press SELECT button.

Move the red frame icon to level and press SELECT button.

Level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

User preset picture adjustment in IMAGE ADJUST Menu (P28-29).

IMAGE 1~4

IMAGE SELECT Menu icon

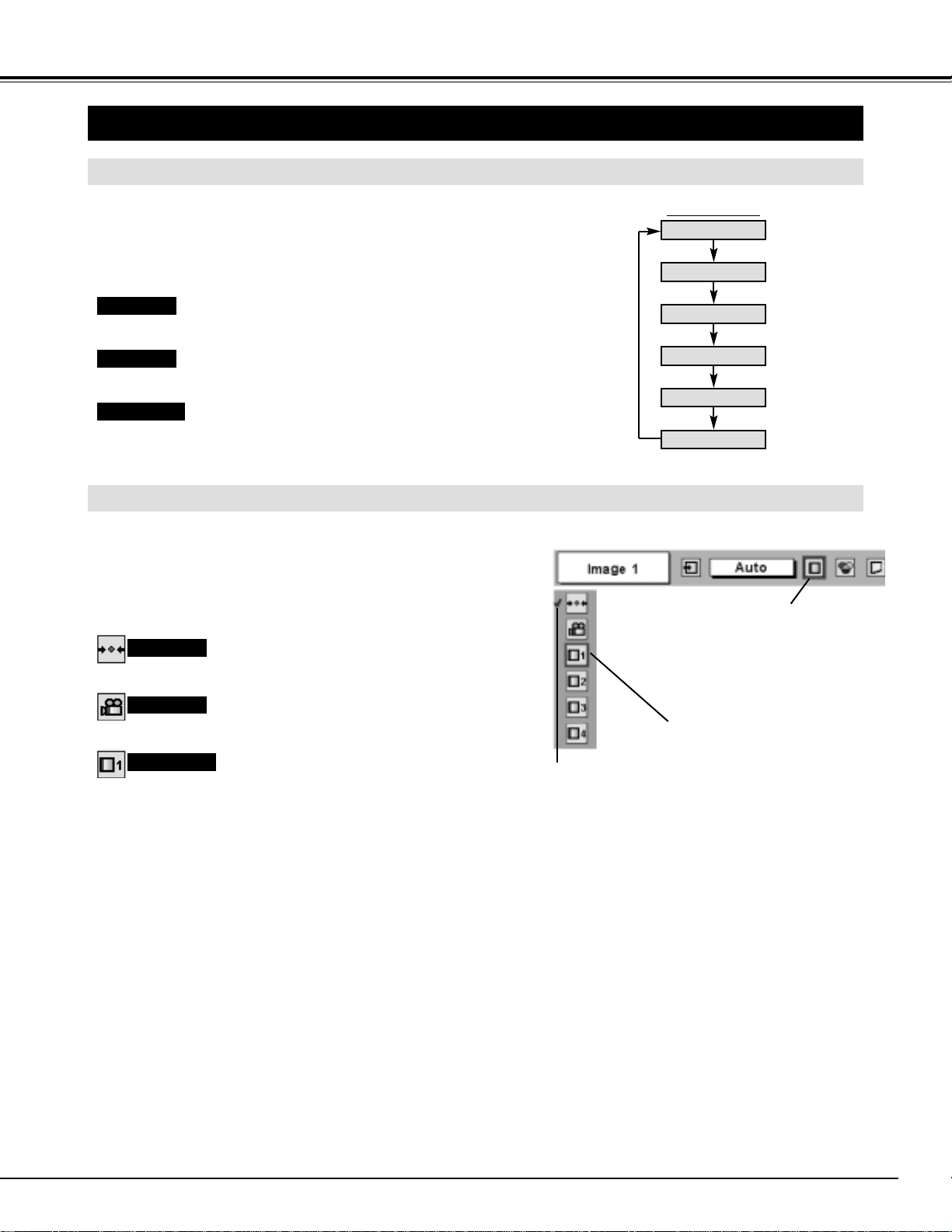

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Select Image 1-4 by pressing IMAGE 1-4 buttons on Remote Control Unit.

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

User preset picture adjustment in IMAGE ADJUST Menu (P28-29).

Standard

Real

IMAGE 1~4

Page 28

COMPUTER INPUT

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move the red frame pointer to IMAGE ADJUST Menu icon.

1 2

Press POINT DOWN button to move the red frame pointer to item that you want to adjust and then press SELECT button. Level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Move the red frame pointer to item to be selected and then press SELECT button.

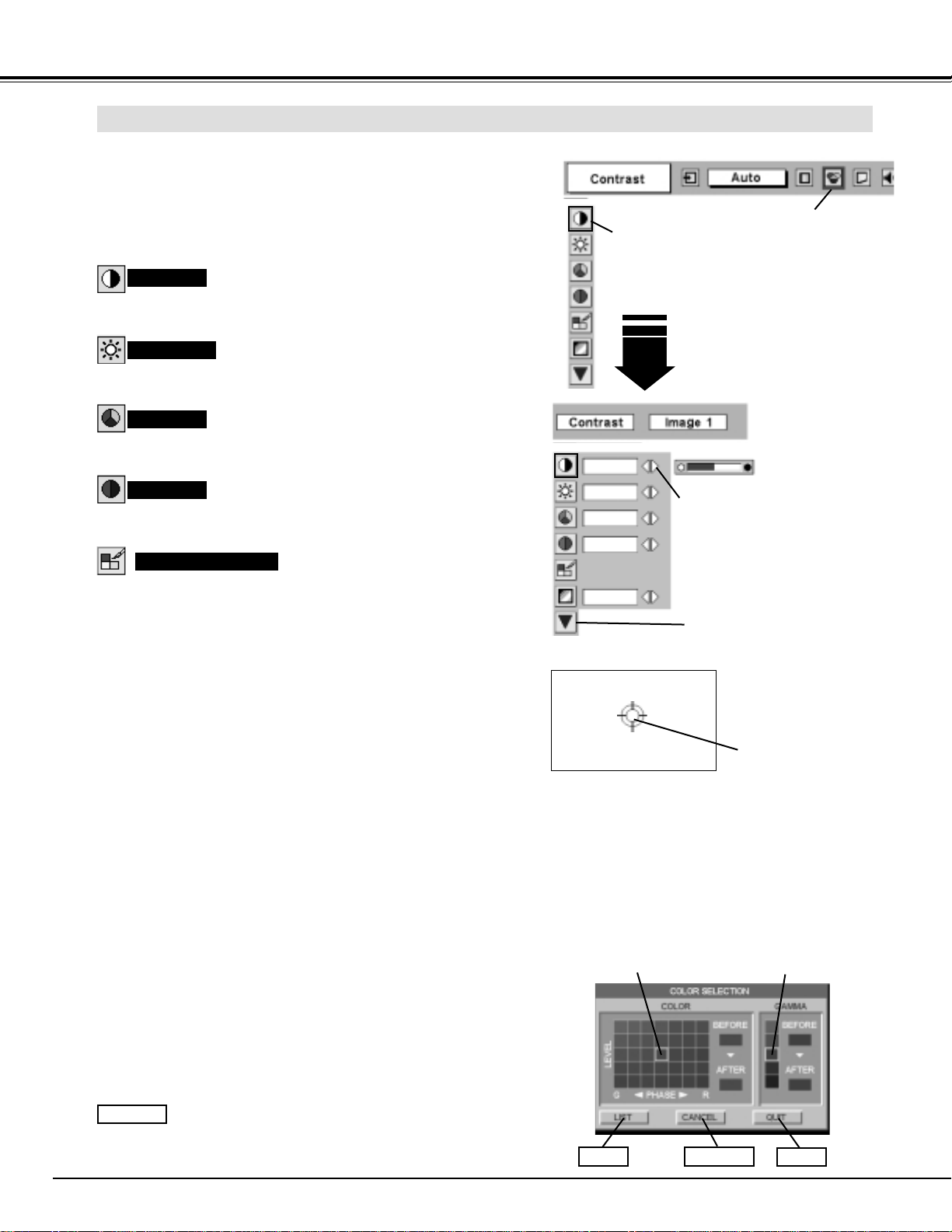

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

IMAGE ADJUST Menu icon

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Selected Image level

Color temp.

Color Management

Store icon Press SELECT button at this icon to store adjustment.

Press POINT LEFT/RIGHT buttons to adjust value.

Mid

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

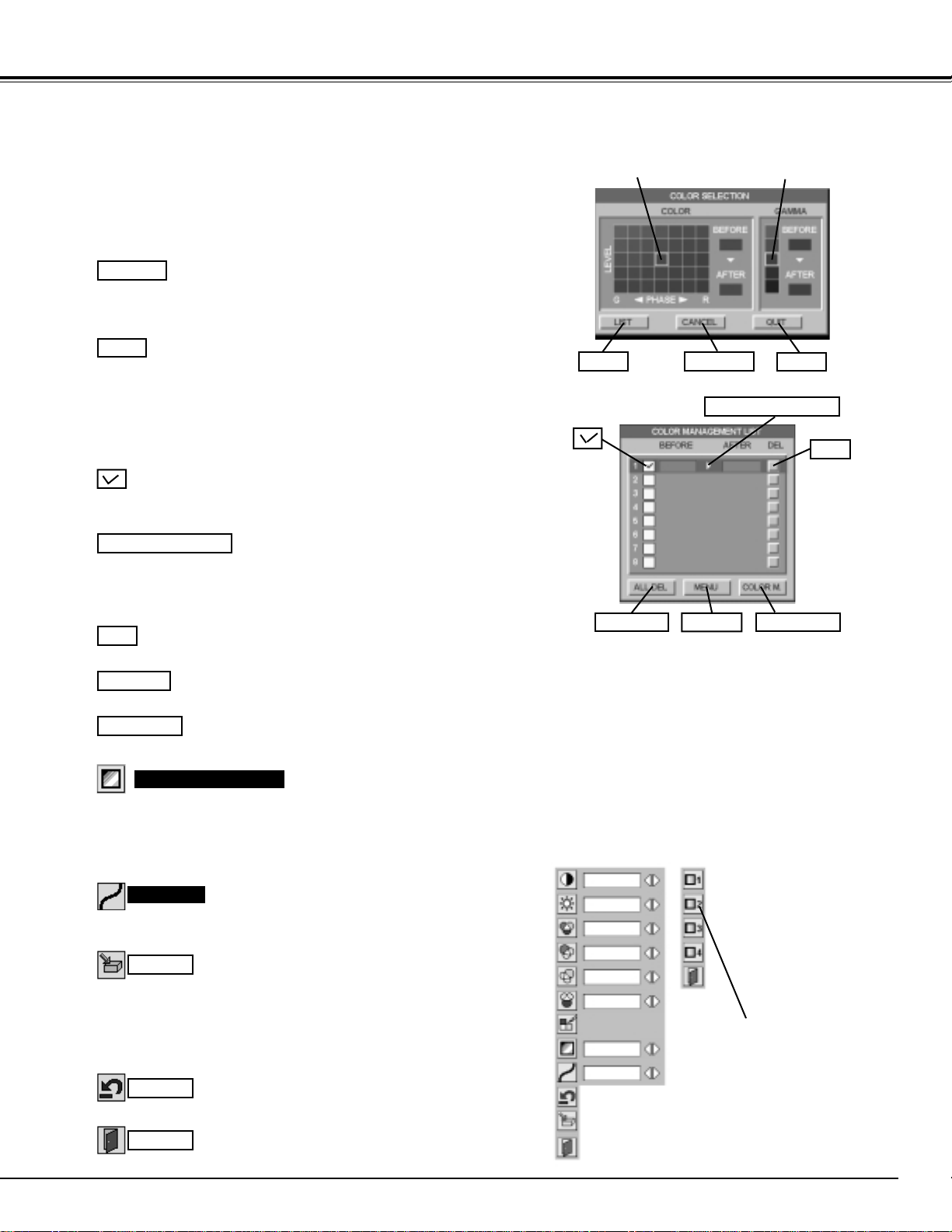

The Color management function can be used to adjust the level, phase and gamma of the selected display colors on the screen, and to replace these colors with other colors if required. The projector lets you replace up to eight colors for each image. There are four preset images for VIDEO mode and four preset images for PC, giving a total of eight images.

Press the POINT DOWN button to move the red frame pointer to "COLOR MANAGEMENT", and then press the SELECT button. The COLOR MANAGEMENT menu will appear and pointer mode will be enabled. The image that was being projected when the button was pressed will be paused, and the COLOR MANAGEMENT POINTER will appear.

Use the POINT buttons to move the pointer to a section of the paused image that contains the color that you would like to adjust, and then press the SELECT button. The mode will change to COLOR SELECTION mode, and the color in the center of the pointer will be selected and adjustment will be possible.

Press the COLOR M. button on the remote control to display the COLOR MANAGEMENT menu. If you would like to check or re-adjust a color management setting that has already been made, press the COLOR M. button on the remote control once more to change to LIST mode.

Use the POINT buttons to adjust the level and phase of the color, and then press the SELECT button to confirm the setting. Next, use the POINT buttons to adjust the gamma correction for the color, and then press the SELECT button to accept the setting. When the SELECT button is pressed, the mode will change to LIST mode.

NOTE;

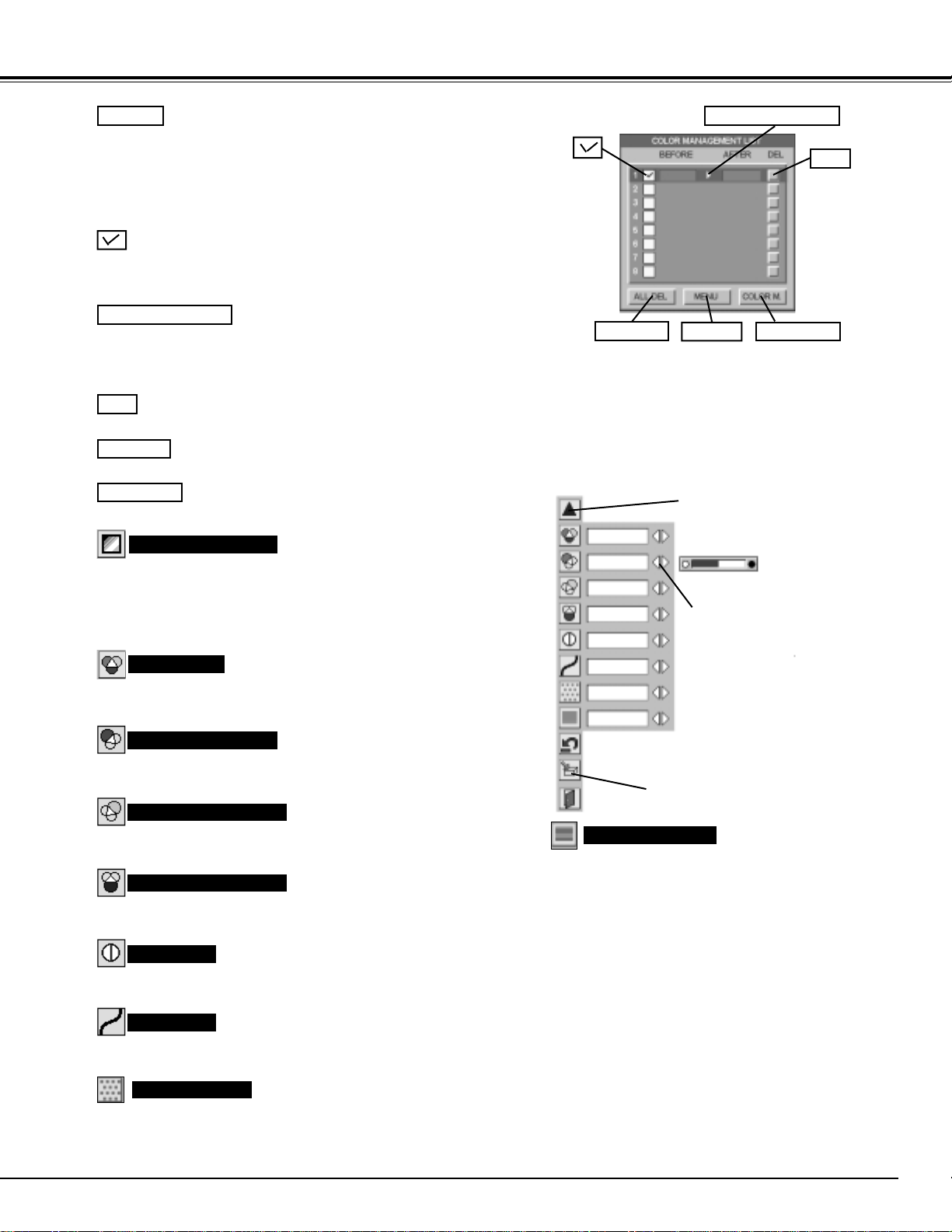

COLOR MANAGEMENT POINTER

POINTER MODE

Page 29

VIDEO INPUT

Reset all adjustment to previous figure.

Reset

Store

Closes IMAGE MENU.

Quit

Other icons operates as follows.

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Gamma

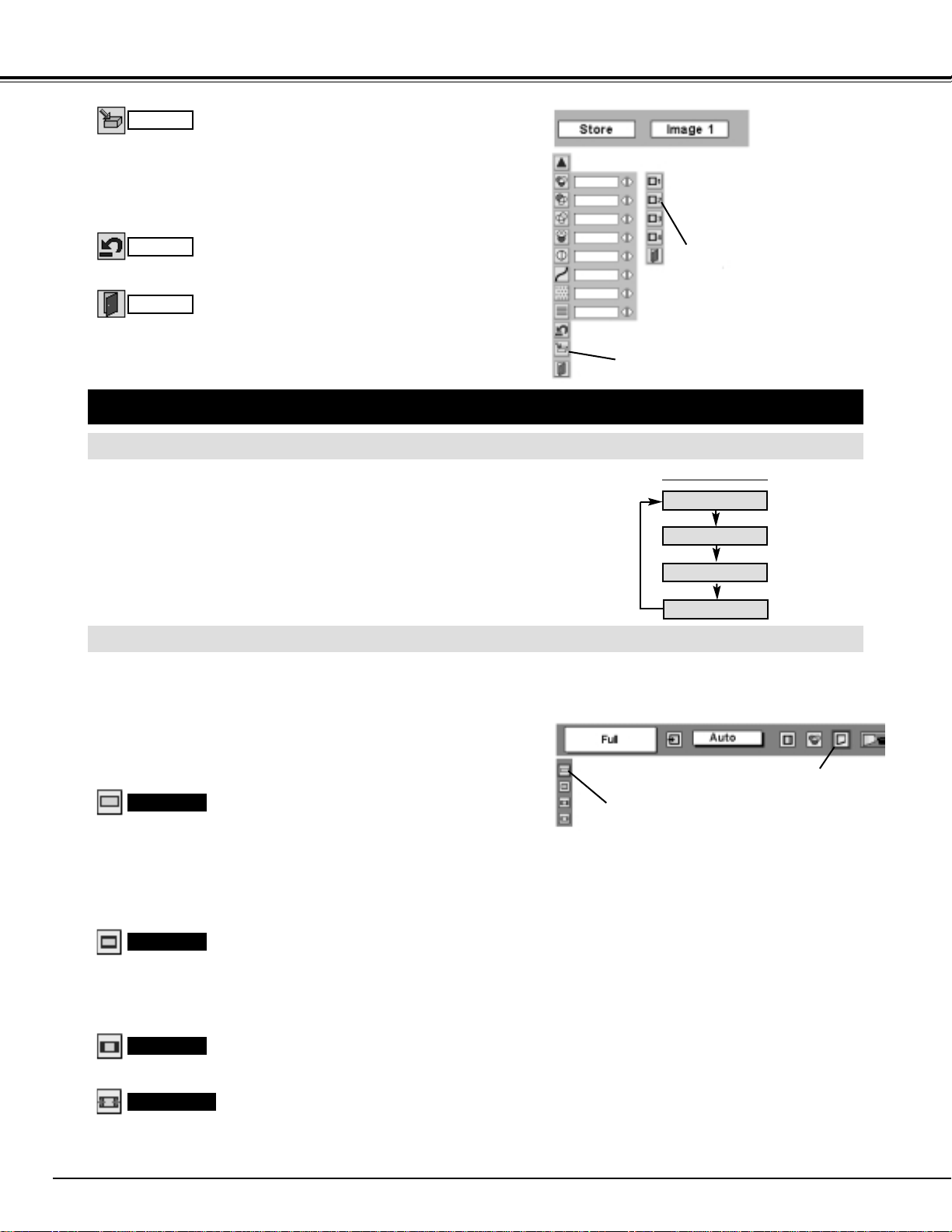

To store manually preset image, move the red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move the red frame pointer to Image 1 to 4 where you want to set and then press SELECT button.

Image Level Menu Move the red frame pointer to any of Image 1 to 4 where you want to set and then press SELECT button.

Auto picture control

Mid

32 32 32

Press either POINT LEFT button or POINT RIGHT button to Auto picture control position that you want to select . (Off, L1 or L2) Off ······· Auto picture control OFF position. L1 ········ Auto picture control LEVEL 1 position. L2 ········ Auto picture control LEVEL 2 position.

To move the red frame pointer to "MENU", and then press the SELECT button. The message "OK"? is displayed. Move the pointer to

[Yes] and then press SELECT button.

The COLOR MANAGEMENT menu will be exited and the display will return to the IMAGE ADJUST menu. (At this time, the image will stop being paused and normal projection will resume.) After changing the COLOR MANAGEMENT settings, use the IMAGE ADJUST menu to store the changed settings.

The check mark will be cleared and the effect of the setting adjustment for that line on the projected images will be momentarily canceled.

CANCEL

COLOR SELECTION MODE

The mode will return to the pointer mode (even if you press the MENU key on the projector or the remote control). (You will need to reselect and re-adjust the color in this case.)

QUIT

The COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "LIST" using the POINT buttons and change to the next mode (LIST mode).

If you press the COLOR M. button on the remote control, the COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "MENU" using the POINT buttons and store the settings.

LIST MODE

The mode will return to COLOR SELECTION mode so that you can re-adjust the setting for the color in that line. This option is not available if the check mark has been cleared by the operation immediately above.)

COLOR PALETTE

The setting adjustment for the color in that line will be canceled.

DEL

ALL DEL

The setting adjustment for the colors in all lines will be canceled.

COLOR M.

The mode will return to POINTER mode.

NOTE;

COLOR SELECTION MODE

CANCELLIST

QUIT

Level and phase adjustment palette.

Gamma adjustment palette.

LIST MODE

COLOR PALETTE

DEL

ALL DEL

COLOR M.

Page 30

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move the red frame pointer to SCREEN Menu icon.

When Digital zoom + is selected, ON-SCREEN MENU disappears and message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan image. Panning function can work only when image is larger than screen size. The projected image can be also expanded by pressing D.ZOOM ▲ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM ▲/▼, SELECT, POINT and AUTO PC ADJ. buttons.

Move red frame to function and press SELECT button.

Press POINT DOWN button and move the red frame pointer to function that you want to select and then press SELECT button.

Digital zoom +

NOTE

● True and Digital zoom +/– cannot be operated when “RGB”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P23).

● Full cannot be selected when “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on

PC SYSTEM Menu (P23).

● This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset resolution to lower before connecting projector.

● Image data in other than XGA (1024 x 768) is modified to fit screen size in initial mode.

● Panning function may not operate properly if computer system prepared on PC ADJUST Menu is used.

SCREEN MENU

SCREEN Menu icon

When Digital zoom – is selected, ON-SCREEN MENU disappears and message “D. Zoom –” is displayed. Press SELECT button to compress image size. The projected image can be also compressed by pressing D.ZOOM ▼ button on Remote Control Unit.

Digital Zoom –

COMPUTER INPUT

PICTURE SCREEN SELECT (DIRECT)

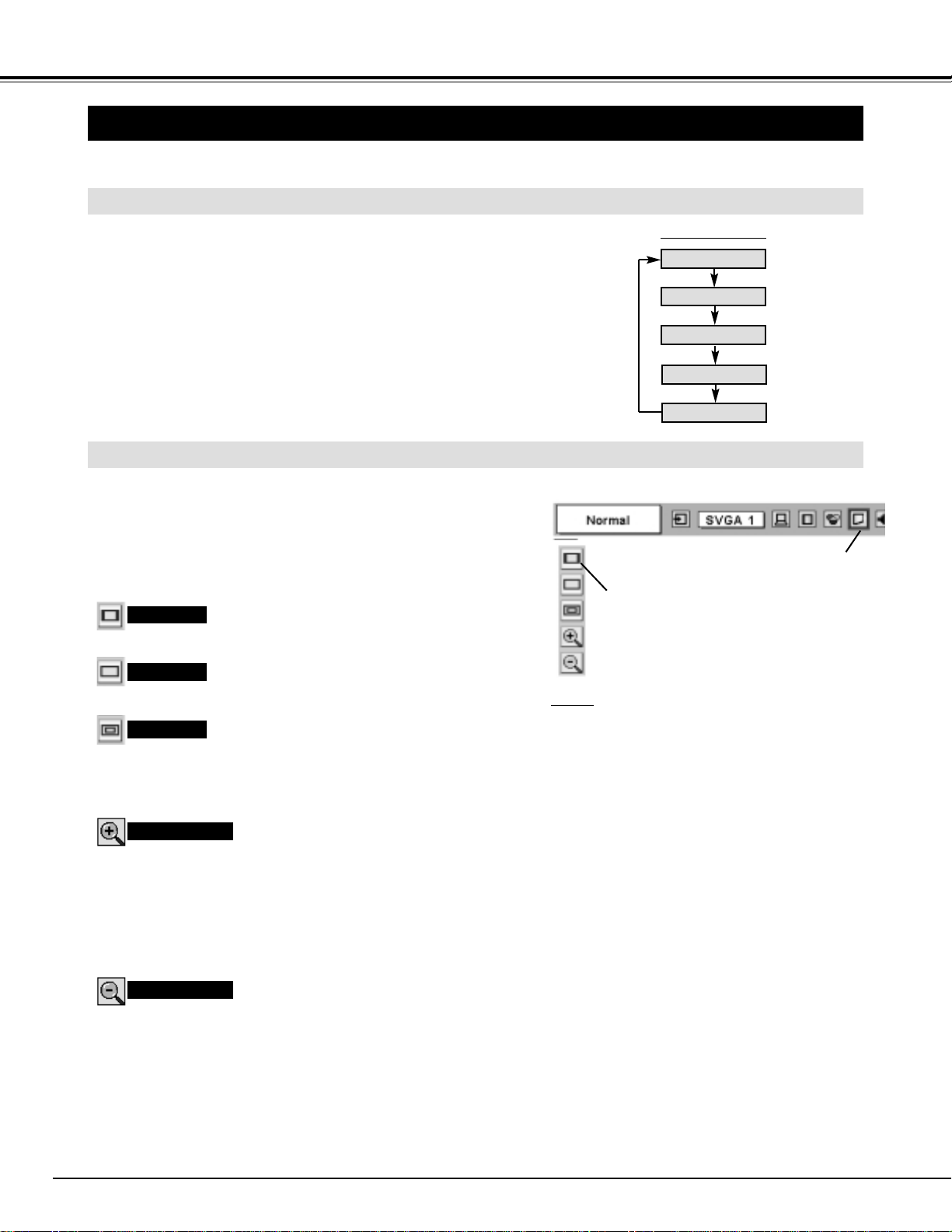

Select picture screen among Normal, Full, True, Digital zoom + and Digital zoom - by pressing SCREEN button on Remote Control Unit.

SCREEN button

Normal

Full

True

Digital zoom +

Digital zoom -

PICTURE SCREEN SELECT (MENU)

Provides image in its original size. When the original image size is larger than screen size (1366 x 768), this projector enters “Digital Zoom +” mode automatically.

True

Provides image to fit the panel size of the screen.

Normal

Provides image to fit the horizontal size of the screen.

Full

Page 31

VIDEO INPUT

When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

SELECTING INPUT SOURCE

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to INPUT Menu icon.

Move the pointer to source and press SELECT button.

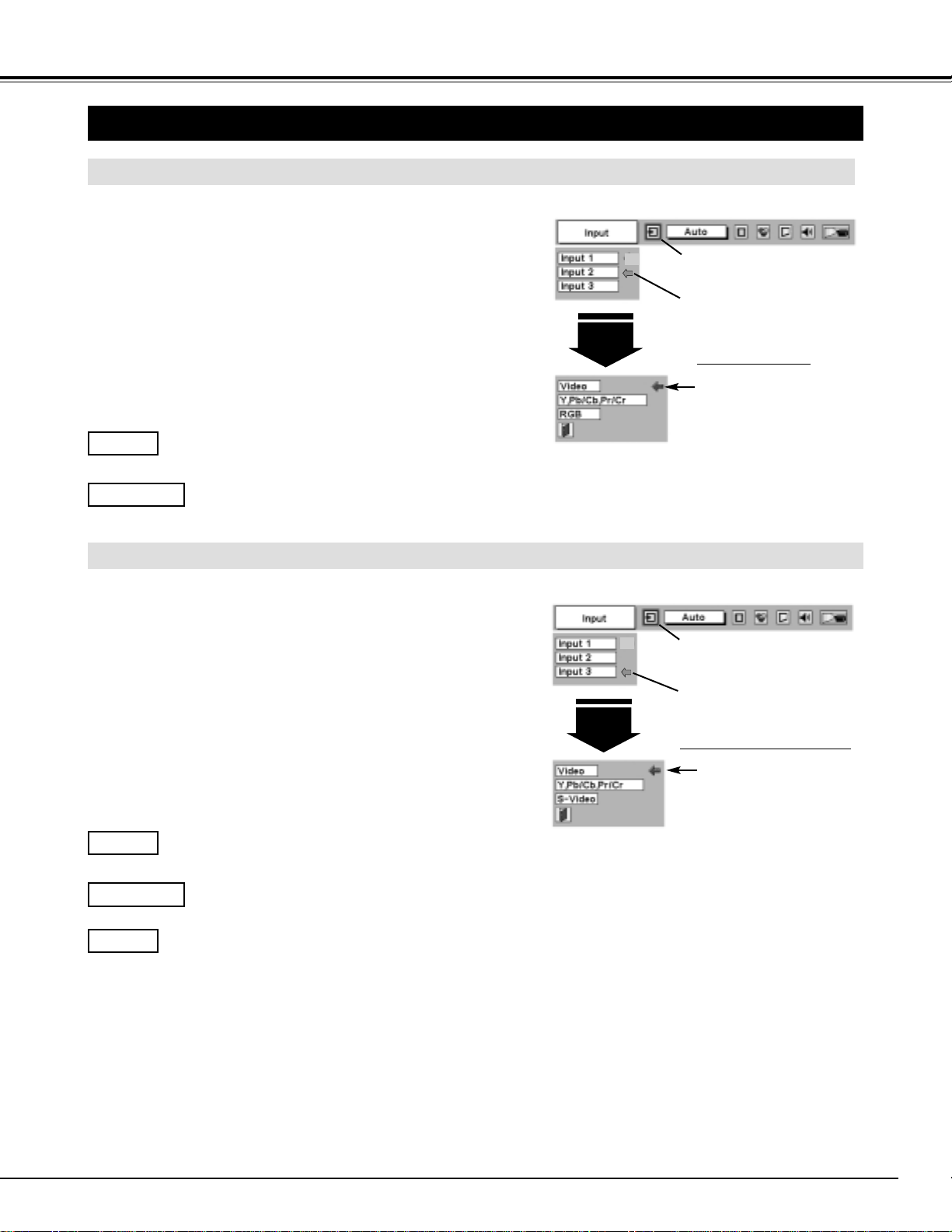

Source Select Menu (VIDEO)

Move a pointer to source that you want to select and then press SELECT button.

When video input signal is connected to VIDEO jack, select Video.

Video

When video input signal is connected to S-VIDEO jack, select S-Video.

S-Video

When connecting to those equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

WHEN SELECT INPUT 3 (AV TERMINALS )

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

Input 2

INPUT MENU

Move the pointer to Video or Y, Pb/Cb, Pr/Cr and press

INPUT Menu icon Move the pointer (red arrow)

to Input 2 and press SELECT button.

Source Select Menu

Input 3

INPUT MENU

INPUT Menu icon Move the pointer (red arrow)

to Input 3 and press SELECT button.

Press POINT DOWN button to move the red arrow pointer to Input 3 and then press SELECT button. Source Select Menu will appear.

When video input signal is connected to Y-Pb/CbPr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

When video input signal is connected to VIDEO jack, select Video.

Video

When connecting to those equipment, select a type of Video source in SOURCE SELECT Menu.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to INPUT Menu icon.

Move a pointer to source that you want to select and then press SELECT button.

Press POINT DOWN button to move the red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

Page 32

VIDEO INPUT

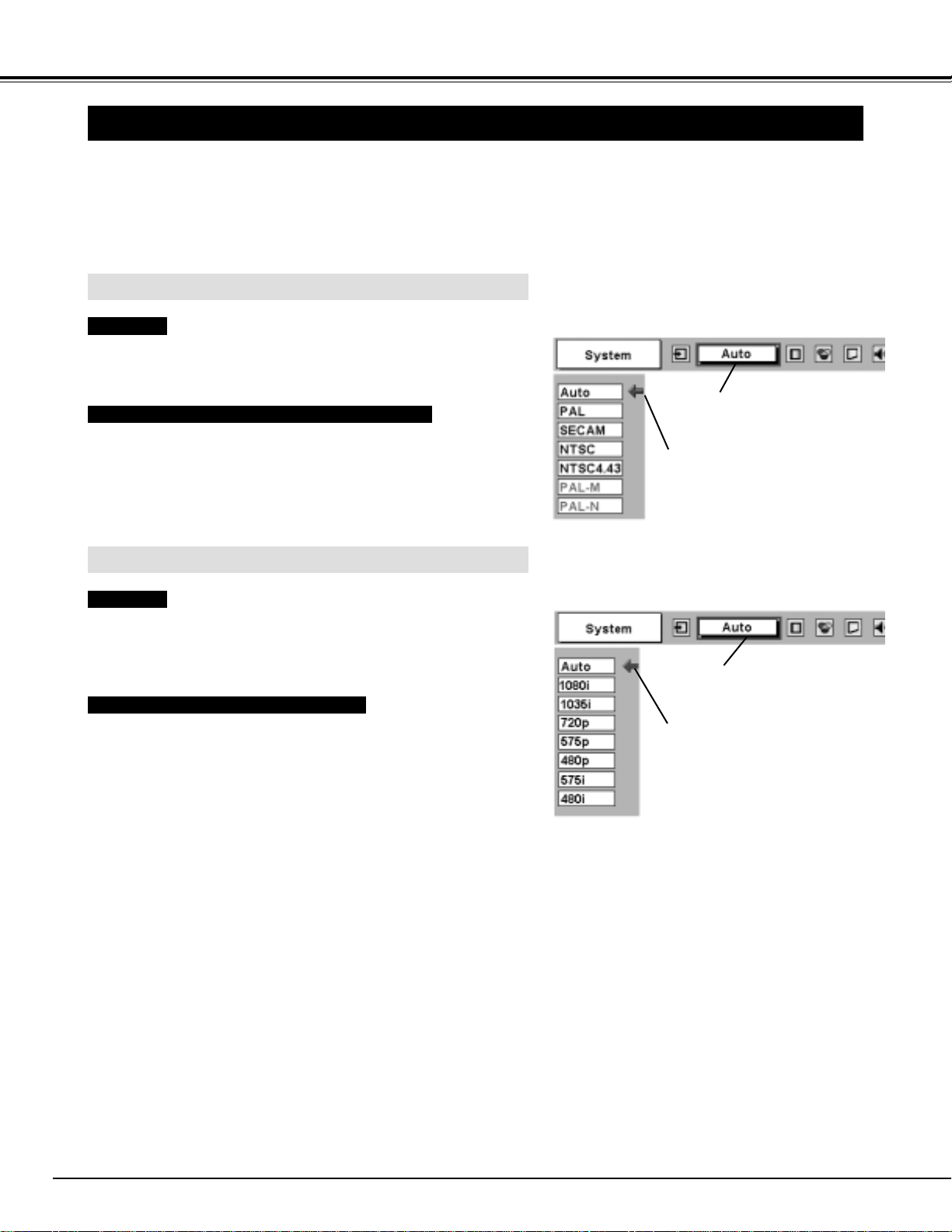

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move the red frame pointer to AV SYSTEM Menu icon.

Press POINT DOWN button to move the red arrow pointer to system that you want to select and then press SELECT button.

1 2

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move pointer to system and press SELECT button.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance. When Video System is 1035i or 1080i, select system manually first.

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually first.

Auto

AV SYSTEM Menu icon This box indicates system being selected.

Move pointer to system and press SELECT button.

AV SYSTEM Menu icon This box indicates system being selected.

Page 33

VIDEO INPUT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move the red frame pointer to IMAGE SELECT Menu icon.

1 2

Press POINT DOWN button to move the red frame pointer to level that you want to set and then press SELECT button.

Move red frame pointer to level and press SELECT button.

Level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P34-36).

IMAGE 1~4

IMAGE SELECT Menu icon

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Select Image 1-4 by pressing IMAGE 1-4 buttons on Remote Control Unit.

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P34-36).

IMAGE 1~4

IMAGE button

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

Page 34

VIDEO INPUT

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move the red frame pointer to IMAGE ADJUST Menu icon.

1 2

Move the red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

IMAGE ADJUST Menu icon

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

Color

Tint

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to display other items.

32 32 32 32

Color Management

NOTE;

COLOR MANAGEMENT POINTER

POINTER MODE

COLOR SELECTION MODE

CANCELLIST

QUIT

Level and phase adjustment palette.

Gamma adjustment palette.

To move the red frame pointer to "MENU", and then press the SELECT button. The message "OK"? is displayed. Move the pointer to

[Yes] and then press SELECT button.

CANCEL

COLOR SELECTION MODE

The mode will return to the pointer mode (even if you press the MENU key on the projector or the remote control). (You will need to reselect and re-adjust the color in this case.)

Page 35

VIDEO INPUT

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Press POINT LEFT/RIGHT buttons to adjust value.

Press POINT LEFT button to soften image, and POINT RIGHT button to sharpen image. (From 0 to 15.)

Sharpness

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press SELECT button at this icon to store value.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT button(s) to change progressive scan mode. Dialog box display is changed to “Off” and progressive scan mode to off. Press POINT LEFT/RIGHT button(s) again, progressive scan mode to on.

Press POINT LEFT/RIGHT button(s) to change noise reduction mode. Dialog box display is changed to “On” to reduce noise (rough parts) of image. Press POINT LEFT/RIGHT button(s) again, to change noise reduction mode to off.

Noise reduction

Progressive scan

NOTE :

Tint cannot be adjusted when video system is PAL, SECAM, PAL-M or PAL-N.

Progressive cannot be operated when “480p”, “575p” or “720p” is selected on AV SYSTEM MENU (P32).

32 32 32 15

Mid

On On

Auto picture control

Color temp.

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

The check mark will be cleared and the effect of the setting adjustment for that line on the projected images will be momentarily canceled.

QUIT

LIST MODE

COLOR PALETTE

The setting adjustment for the color in that line will be canceled.

DEL

ALL DEL

The setting adjustment for the colors in all lines will be canceled.

COLOR M.

The mode will return to POINTER mode.

LIST MODE

NOTE;

COLOR PALETTE

DEL

ALL DEL

COLOR M.MENU

Page 36

VIDEO INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move the red frame pointer to SCREEN Menu icon.

Press POINT DOWN button and move the red frame pointer to function that you want to select and then press SELECT button.

1 2

NOTE : SCREEN Menu cannot be operated when

“720p,” “1035i,” or “1080i” is selected on AV SYSTEM Menu (P32).

PICTURE SCREEN SELECT (DIRECT)

Select picture screen among Full, Zoom, Normal and Wide zoom by pressing SCREEN button on Remote Control Unit.

SCREEN button

Full

Zoom

Normal

Wide zoom

PICTURE SCREEN SELECT (MENU)

Provides image to fit width of screen by expanding image width uniformly. This function can be used for providing a squeezed video signal at wide video aspect ratio of 16 : 9. When your video equipment (such as DVD) has 16 : 9 output mode, select 16 : 9 and select Full on this SCREEN Menu to provide better quality.

Full

Move the red frame to the function and press SELECT button.

SCREEN MENU

SCREEN Menu icon

Provides image to fit screen size (16 : 9 aspect ratio) by expanding image width and height uniformly. This function can be used for providing a letter box mode picture (4 : 3 aspect picture with black bar on top and bottom edges) at wide video aspect of 16 : 9.

Zoom

Provides image at the normal video aspect ratio of 4 : 3.

Normal

Provides image to fit width of screen by expanding both sides of image. This function is suitable to provide a normal video signal (4 : 3 aspect ratio) at wide video aspect ratio of 16 : 9.

Wide zoom

To store adjustment data, move the red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move the red frame pointer to Image Level 1 to 4 and then press SELECT button.

Reset all adjustment to previous figure.

Reset

Store

Closes IMAGE MENU.

Quit

Other icons operates as follows.

Mid

Image Level Menu Move the red frame pointer to image icon to be set and then press SELECT button.

Store icon

Page 37

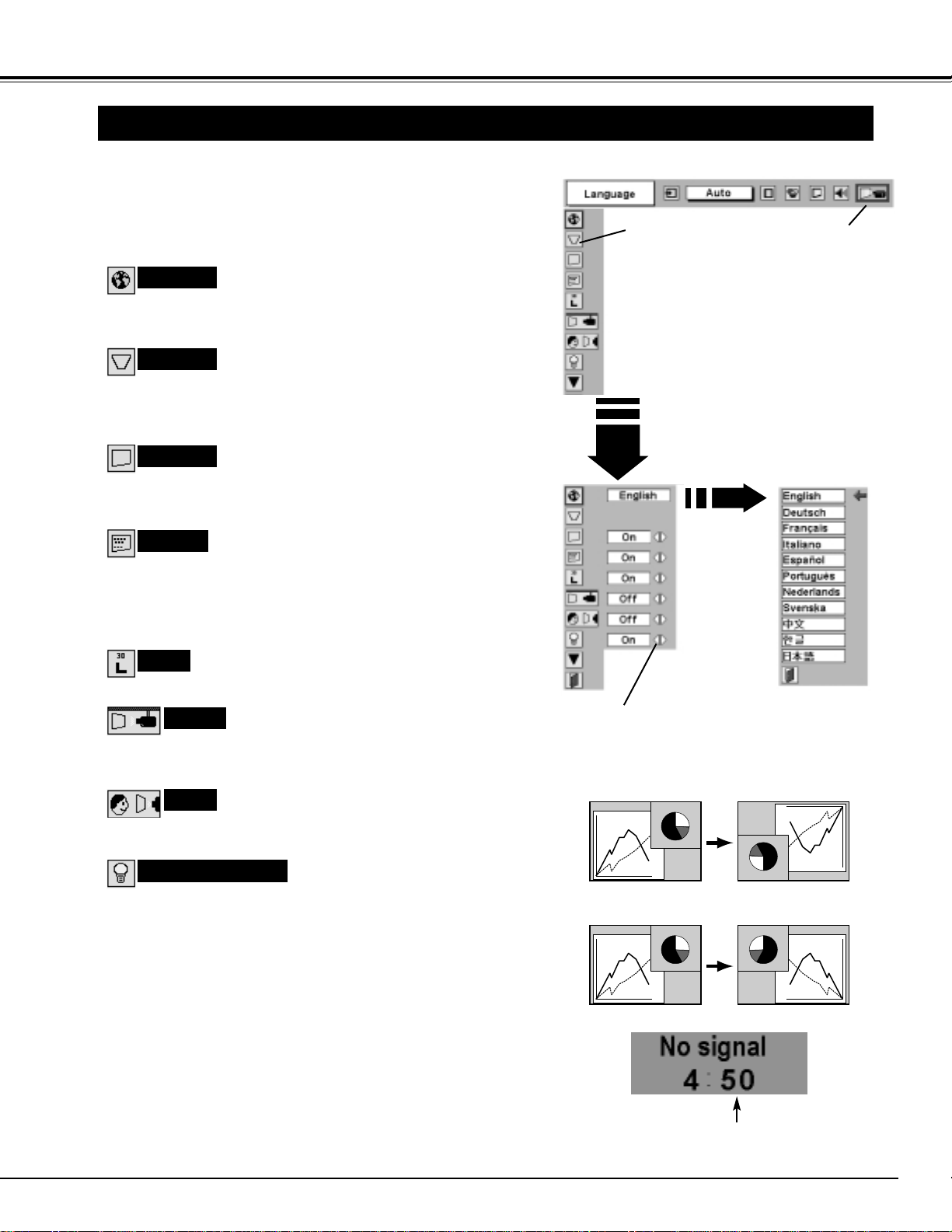

SETTING

Ceiling

When this function is “On,” picture is top / bottom and left / right reversed. This function is used to project image from a ceiling mounted projector.

Rear

When this function is “On,” picture is left / right reversed. This function is used to project image to a rear projection screen.

Ceiling function

Rear function

Keystone

When image is distorted, select Keystone. ON-SCREEN MENU disappears and Keystone dialog box is displayed. Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT button(s). Refer to KEYSTONE ADJUSTMENT on page 20.

SETTING MENU

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move the red-frame pointer to SETTING icon.

Language

Language used in ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean and Japanese.

Display

This function decides whether to display On-Screen Displays.

On ··· shows all On-Screen Displays. Off ···· sets On-Screen Displays disappeared except;

● ON-SCREEN MENU

● “Power off?” message

Set the red frame pointer to item and press SELECT button.

Press POINT DOWN button to move the red-frame pointer to item that you want to set and then press

SELECT button.

Setting dialog box appears.

Blue back

When this function is “On,” this projector will produce a blue image instead of video noise on screen when any input source is unplugged or turned off.

Logo

When this function is “On,” projector displays our logo when starting up.

When pressing SELECT button at Language, Language Menu appears.

Move the pointer to item and then press POINT LEFT/RIGHT button(s).

SETTING MENU

SETTING Menu icon

This function turns Projection Lamp off when this projector detects signal interruption and is not used for a certain period in order to reduce power consumption and maintain Lamp-life. (This projector is shipped with this function ON.)

Power Management function operates to turn Projection Lamp off when input signal is interrupted and any button is not pressed over 5 minutes. This function operates as follows;

1. When any input signal is interrupted, “No signal” and counting down display appears (for 5 minutes).

2. After counting down for 5 minutes, projector lamp and READY indicator are turned off.

3. When READY indicator flashing, Projection Lamp can be turned on again (Power Management mode). In this Power Management mode, Projection Lamp is automatically turned on when input signal connected or projector is operated with any button on Top Control or on Remote Control Unit again.

Power management

Time left until Lamp off.

Page 38

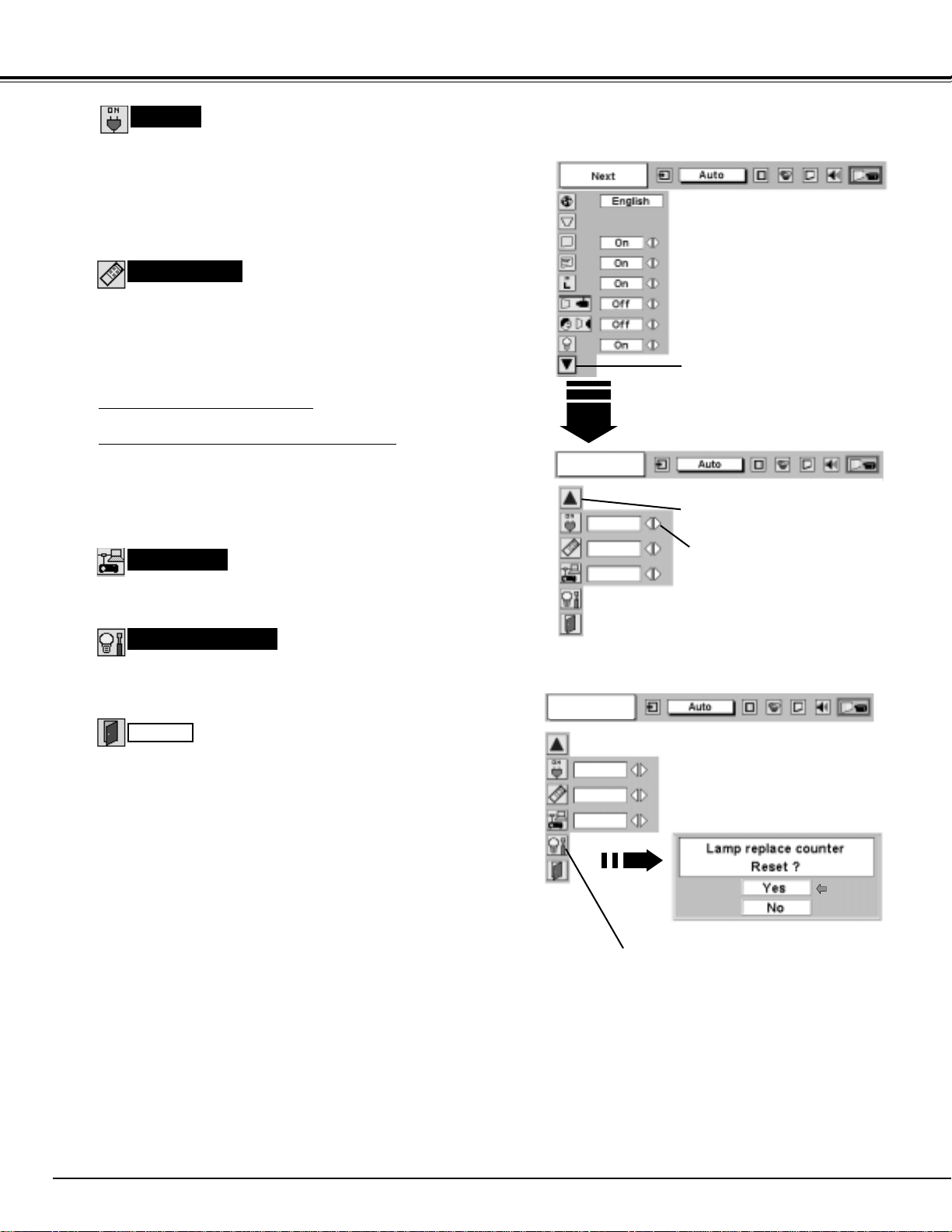

Remote control

This projector has two different remote control codes; factory-set normal code (Code 1) and secondary code (Code 2). This switching function prevents remote control operation mixture (jam) when operating several projectors or video equipment together. When operating projector in “Code 2,” both projector and Remote Control Unit must be switched to “Code 2.”

To change code of Projector;

Set Remote control in SETTING MENU to “Code 2.”

To change code of Remote Control Unit;

Press both MENU and IMAGE buttons on Remote Control Unit together for over 10 seconds.

After changing code, make sure Remote Control operates properly. To return to normal code (Code 1), operate both projector and Remote Control in ways above again.

On start

When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet.

Note ; Be sure to turn projector off properly (refer to section

“TURNING OFF PROJECTOR” on P19). If projector is turned off in wrong steps, On Start function does not operate properly.

Move pointer to item and then press POINT LEFT/RIGHT button(s).

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

On start

Closes SETTING MENU.

Quit

This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 40 for operation.

Lamp counter reset

Move pointer to Lamp counter reset and then press SELECT button. Message “Lamp replace counter reset?” is displayed.

Lamp

counter reset

This function cannot be adjusted when not attach the Network connection (optional part) to the projector.

SETTING

Code 1

Network icon

Page 39

APPENDIX

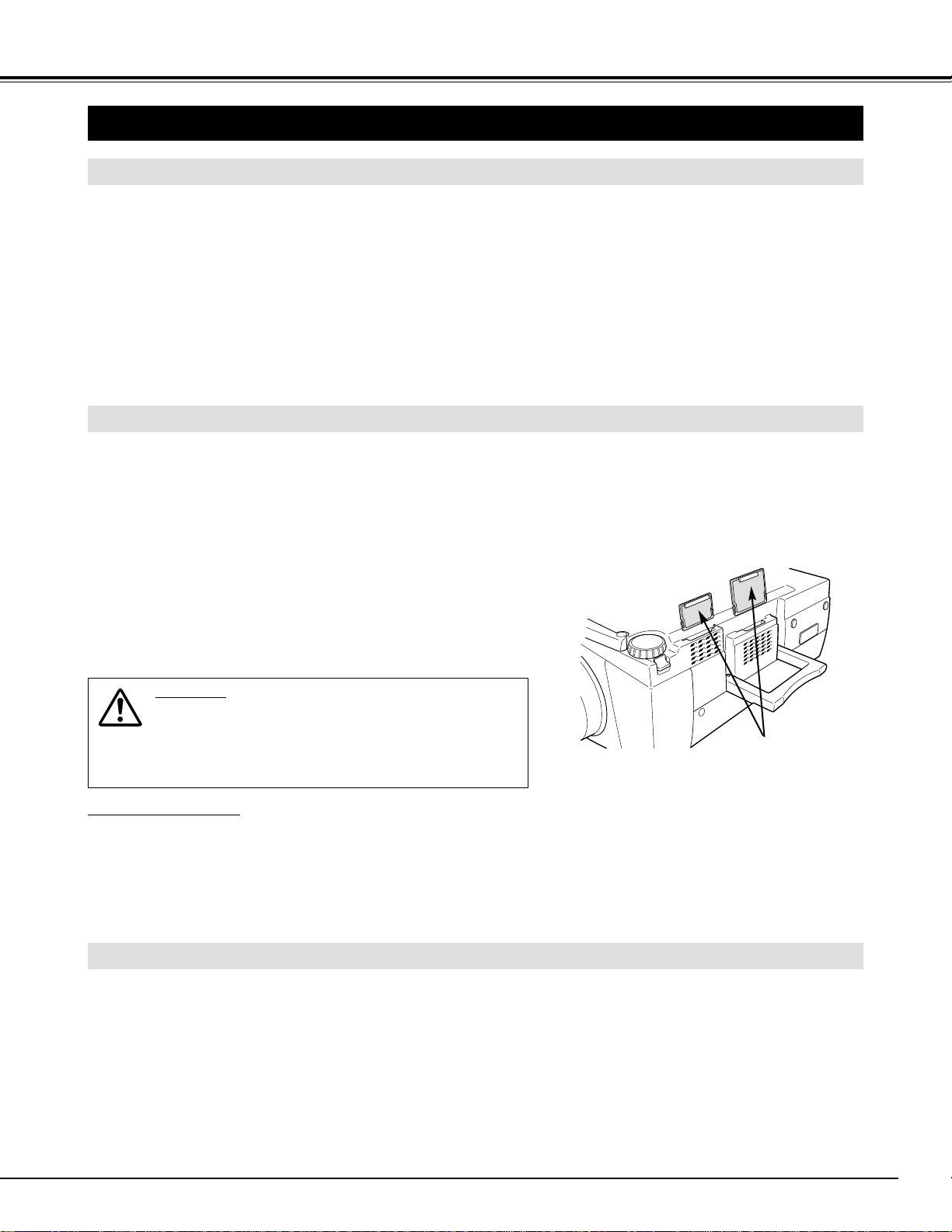

CLEANING PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch the surface.

When the projector is not in use, replace Lens Cover.

Lightly wipe a cleaning cloth over Projection Lens.

Follow these steps to clean Projection Lens:

MAINTENANCE

WARNING TEMP. INDICATOR

WARNING TEMP. Indicator flashes red when an internal temperature of the projector exceeds normal temperature. This Indicator stops flashing when temperature of the projector returns to normal. When WARNING TEMP. Indicator continues to flash, check items listed below.

Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots are not obstructed.

AIR FILTER CARE AND CLEANING

Air Filter may be clogged with dust particles. Clean Air Filter by following section AIR FILTER CARE AND CLEANING below.

1 2

If WARNING TEMP. Indicator remains on after performing above checks, Cooling Fans or Internal Circuits may be malfunctioning. Contact service personnel from an authorized dealer or a service station.

AIR FILTER Pull up and remove.

Turn off the projector, and disconnect AC power cord from AC outlet.

Turn the projector upside down and remove Air Filter (2 used) by pulling latches upward.

1 2

Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect life of the projector. Clean Air Filter following steps below:

Clean Air Filter with a brush or wash out dust and particles.

Replace Air Filter properly. Make sure that Air Filter is fully inserted.

CAUTION

Do not operate the projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality. Do not put small parts into Air Intake Vents. It may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. This condition may degrade quality of the projected image. When above symptoms are noticed, contact a Boxlight Corporation at 1-800-762-5757 or 360-779-7901 for cleaning.

Page 40

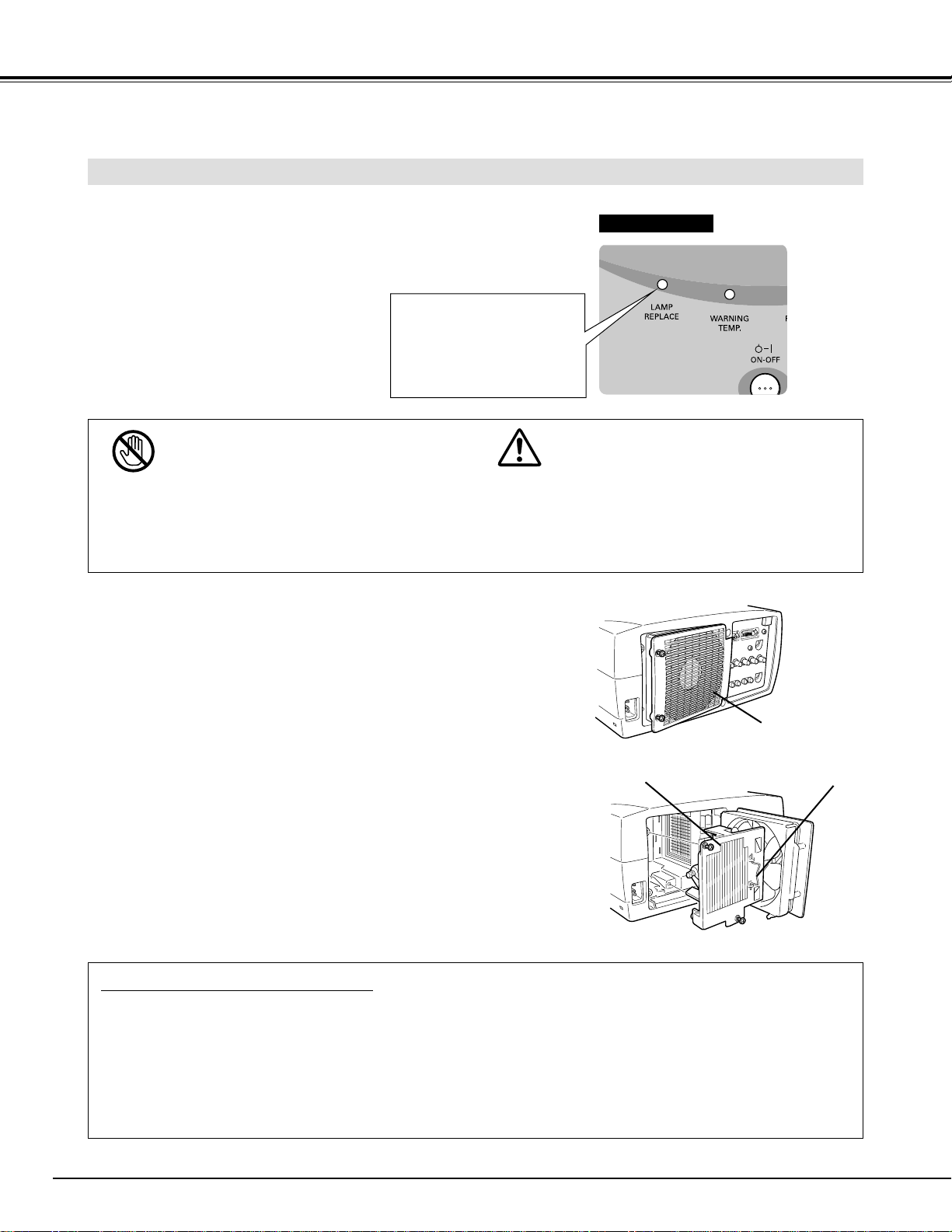

Turn off the projector and disconnect AC plug. Allow the projector to cool for at least 45 minutes.

Loosen 2 screws with a screwdriver and pull out Lamp Assembly by grasping Handle.

Replace Lamp Assembly with a new one and tighten 2 screws back. Make sure that Lamp Assembly is set properly. Replace Lamp Cover and tighten 2 screws.

Loosen 2 screws with a screwdriver and open Lamp Cover.

Connect AC Power Cord to the projector and turn it on.

Follow these steps to replace lamp assembly.

Reset Lamp Replace Counter (refer to section “Lamp Replace Counter” below).

LAMP ASSEMBLY

HANDLE

LAMP COVER

NOTE : Do not reset Lamp Replace Counter when Projection

Lamp is not replaced.

APPENDIX

LAMP REPLACE

When the life of the Projection Lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly.

ORDER REPLA

CEMENT LAMP

Replacement Lamp can be ordered through Boxlight Corporation at 1-800-762-5757 or 360-779-7901. When ordering Projection Lamp, give following information to dealer.

● Model No. of your projector : STUDIO EXPERIENCE CINEMA 20HD

● Replacement Lamp Type No. : POA-LMP38

(Service Parts No. 610 293 5868)

For continued safety, replace with a lamp assembly of the same type. Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury.

Allow the projector to cool, for at least 45 minutes before you open Lamp Cover. The inside of the projector can become very hot.

This indicator lights yellow when the life of the projection lamp draws to an end. Replace the Projection Lamp with a new one promptly.

TOP CONTROL

CAUTION

Page 41

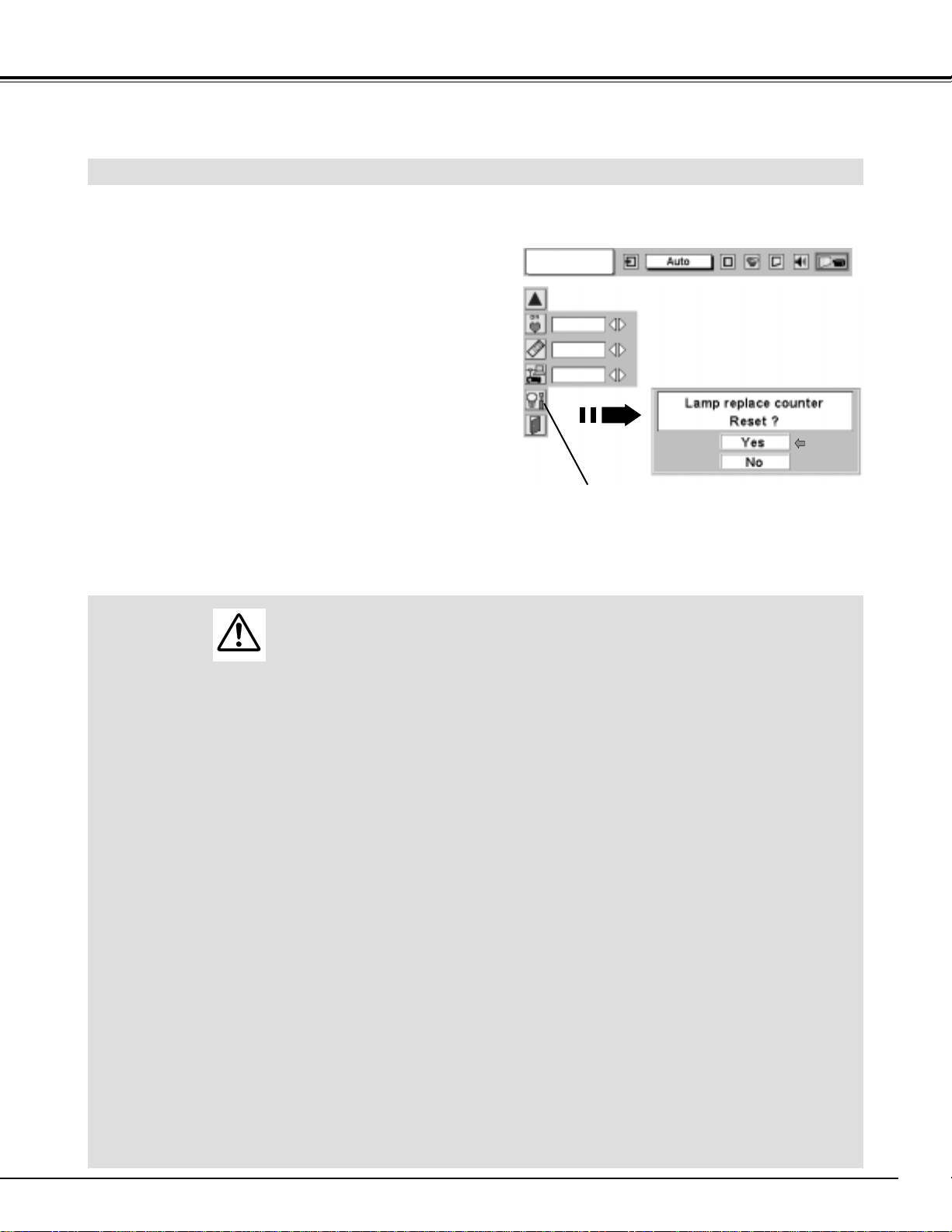

LAMP REPLACE COUNTER

APPENDIX

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR

lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. ( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

Move pointer to Lamp counter reset and then press SELECT button. Message “Lamp replace counter reset?” is displayed.

Lamp

counter reset

Code 1

Be sure to reset Lamp Replace Counter after the Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP REPLACE Indicator stops lighting.

NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move the red frame pointer to SETTING Menu icon (refer to page 38).

Press POINT DOWN button to move the red frame pointer to “Lamp counter reset” and then press

SELECT button. Message "Lamp replace counter reset?" is displayed. Move pointer to [Yes] and then press SELECT button.

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

Page 42

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check matters below once again.

1. Make sure you have connected the projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 11 ~ 13.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If the projector still does not produce an image, re-start your computer.

5. If the image still does not appear, unplug the projector from your computer and check your computer monitor's display. Problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, be sure to turn computer and monitor off before you power up the projector. Power equipment back on in order of : Projector and computer.)

6. If problem still exists, check following chart.

No power.

● Plug the projector into your AC outlet.

● Make sure READY Indicator lights.

● Wait 90 seconds after the projector is turned OFF when turning the projector back on.

NOTE : After pressing Power ON-OFF button to OFF, make sure the projector works as

follows:

1. LAMP indicator lights bright and READY indicator turns off.

2. After 90 seconds, READY indicator lights green again and the projector may be turned on by pressing Power ON-OFF button.

● Check WARNING TEMP. indicator. If indicator flashes red, the projector cannot be turned on. (See "TURNING ON/OFF PROJECTOR" section on page 19.)

● Check Projection Lamp. (Refer to page 40.)

Image is out of focus.

● Adjust focus of the projector.

● Make sure the projection screen is at least 5.0’ (1.5m) from the projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving the projector from a cool temperature location to a warm temperature

location may result in moisture condensation on Projection Lens. In such an event, leave the projector OFF and wait until condensation disappears.

Picture is Left/Right reversed.

● Check Ceiling / Rear feature. (See “SETTING” section on page 37.)

Problem: Try these Solutions

Picture is Top/Bottom reversed.

● Check Ceiling feature. (See “SETTING” section on page 37.)

Some displays are not seen during Operation.

● Check Display feature.(See “SETTING” section on page 37.)

No image.

● Check connection between your computer or video equipment and the projector.

● When turning the projector on, it takes about 30 seconds to display an image.

● Check system that you select is corresponding with your computer or video equipment.

● Make sure temperature is not out of Operating Temperature (5°C ~ 35°C).

No sound.

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press VOLUME (+) button.

● Press MUTE button.

Page 43

APPENDIX

Remote Control Unit does not work.

● Check batteries.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure you are not too far from the projector when using Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Check transmitted signal mode from Remote Control Unit.

(See“SETTING” section on page 38.)

Problem: Try these Solutions

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open the cabinet.

Boxlight Service is easily obtained. If after following instructions above, you find that service is necessary, contact Boxlight for assistance at 1-800-762-5757 or 360-779-7901.

Give the model number and explain the difficulty. We will advise you how to obtain service. Please have the following information available:

● Serial Number of Projector.

● Resolution of Computer.

● Refresh rate of Computer.

Page 44

Multi-media Projector

● Specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. At least 99.99% of the pixels are effective,

however a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

TECHNICAL SPECIFICATIONS

1.21" TFT Active Matrix type, 3 panels

17.4 lbs (7.9 kg)

12.6" x 6.6" x 16.8" (319 mm x 168 mm x 429.5 mm)

1366 x 768 dots 3,147,264 (1366 x 768 x 3 panels) PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

Up and Down

800 TV lines (HDTV)

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency

Horizontal Resolution

LCD Panel System

200 watt type

Projection Lamp

480i, 480p, 575i, 575p, 720p, 1035i and 1080i

High Definition TV Signal

Accessories

INT. SP. Stereo (R and L), 2 watt RMS (T.H.D. 10%)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C) 14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C) User’s Guide

AC Power Cord Wireless/Wired Remote Control Transmitter and Batteries Remote Control Cable Video Cable (RCA x 1) Audio Cable (RCA x 2) S-Video Cable Control (Serial) port Cable Protective Dust Cover Lens Cover

Built-in Speakers

Operating Temperature Storage Temperature

0˚ to 10.5˚

Feet Adjustment

AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz

(Continental Europe)

Voltage and Power Consumption

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Motorized Lens Shift

DVI Terminal (Digital), HDB 15-pin Terminal (Analog) and Stereo Mini Type Jack (Audio)

Input 1 Jacks

BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H and V), Stereo Mini Type Jack (Audio)

Input 2 Jacks

RCA Type x 3 (VIDEO/Y, Cb/Pb and Cr/Pr), RCA Type x 2 (Audio R and L) and DIN 4-pin (S-Video)

Input 3 Jacks

DIN 8-pin (Control port), Wired Remote Jack and Network Connector

Other Jacks

Adjustable from 31" to 400"

Projection Image Size (Diagonal)

F1.8 ~ 2.1 lens with f=48.4 mm ~ 62.8 mm Motor zoom and focus

Projection Lens

5.0' (1.5 m) ~ 51.3' (15.6 m)

Throw distance

APPENDIX

Page 45

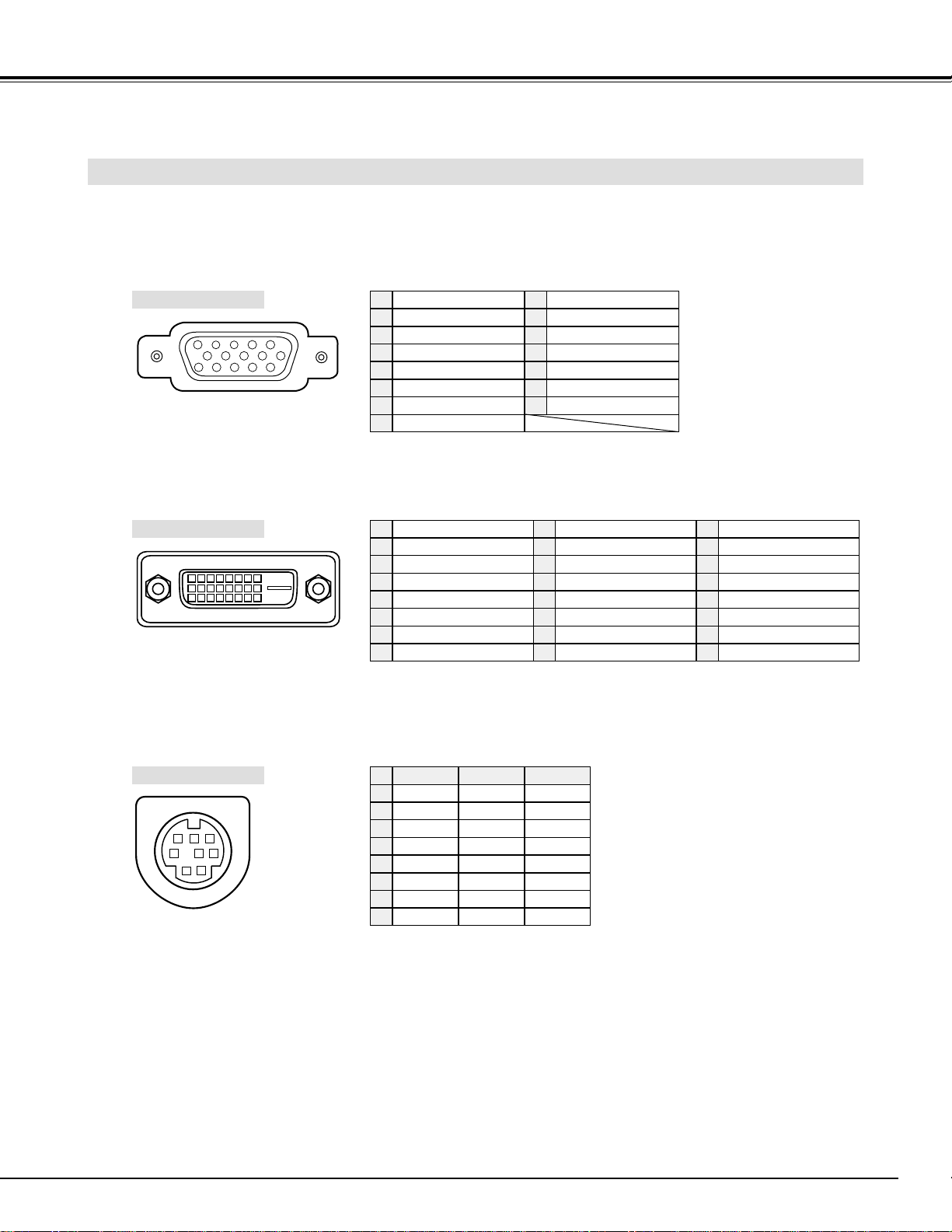

CONFIGURATIONS OF TERMINALS

COMPUTER INPUT-1 TERMINAL (ANALOG)

Terminal : HDB15-PIN

Connect display output terminal of computer to this terminal with VGA Cable (not supplied). When connecting Macintosh computer, MAC Adapter (not supplied) is required.

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

+5V Power

Horiz. sync.

Ground (Vert.sync.)

DDC Data

Sense 0

Vert. sync. DDC Clock

14 15

Pin Configuration

Terminal : Mini DIN 8-PIN

Connect serial port on your computer to this connector with Control Cable (supplied).

Pin Configuration

CONTROL PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS / CTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial

ADB 1 2 3 4 5 6 7 8

COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal : DVI 24-pin

Connect display output terminal of computer to this terminal with DVI cable (for Single Link T.M.D.S. / not supplied).

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data No Connect

6 7 8

Pin Configuration

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

APPENDIX

9 678

8 16 24

8 7 6

Page 46

Page 47

Page 48

Printed in Japan Part No. 610 303 0365 (1AA6P1P3653-- M4LE)

LIMITED WARRANTY

BOXLIGHT Corporation (“BOXLIGHT”) warrants that each Cinema 20HD (“the Product”) sold hereunder will conform to and function in accordance with the written specifications of BOXLIGHT. Said limited warranty shall apply only to the first person or entity that purchases the Product for personal or business use and not for the purpose of distribution or resale. Said warranty shall continue for a period of three (3) years from the date of such purchase. The standard limited warranty excludes the lamps in projectors after 120 days and the accessories after one year. BOXLIGHT does not warrant that the Product will meet the specific requirements of the first person or entity that purchases the Product for personal or business use. BOXLIGHT’s liability for the breach of the foregoing limited warranty is limited to the repair or replacement of the Product or refund of the purchase price of the Product, at BOXLIGHT’s sole option. Replacement Product may be refurbished in “like-new” condition, at BOXLIGHT’s sole discretion. To exercise the Purchaser’s rights under the foregoing warranty, the Product must be returned at the Purchaser’s sole cost and expense, to BOXLIGHT or to any authorized BOXLIGHT service center provided, and the Product must be accompanied by a written letter explaining the problem and which includes (i) proof of date of purchase; (ii) the dealer’s name; and (iii) the model and serial number of the Product. When sending your unit in for repair, please ship your unit in its original packing material or a BOXLIGHT approved ATA Shipping Case, or have a professional packaging company pack the unit. Please insure your shipment for its full value.

A return authorization number, issued by the BOXLIGHT customer service department, must also be clearly displayed on the outside of the shipping carton containing the Product.

WARRANTY LIMITATION AND EXCLUSION

BOXLIGHT shall have no further obligation under the foregoing limited warranty if the Product has been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress (unusual physical and electrical stress includes unusually long operation, exposure to smoke and other airborne contaminants), unauthorized modifications, tampering, alterations, or service other than by BOXLIGHT or its authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product is intended.

DISCLAIMER OF UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PURCHASE. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE FACE HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY BOXLIGHT. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY

IT IS UNDERSTOOD AND AGREED THAT BOXLIGHT’S LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL BOXLIGHT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE STATED FOR THE PRODUCT IS A CONSIDERATION IN LIMITING BOXLIGHT’S LIABILITY. NO ACTION, REGARDLESS OF FORM, ARISING OUT OF THE AGREEMENT TO PURCHASE THE PRODUCT MAY BE BROUGHT BY PURCHASER MORE THAN ONE YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Boxlight 19332 Powder Hill Place Poulsbo, WA 98370-7407 USA www

.boxlight.com U.S. and Canada 800-762-5757 International 1-360-779-7901
