Boxlight BroadView User Manual

19462 Powder Hill Place Poulsbo, WA 98370

800.762.5757

360.779.7901 www.boxlight.com

Broad View

USER MANUAL

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

— i —

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Important Safety Information

Congratulations on purchasing the DLP® projector!

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations. The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example: “Push the Menu button on the remote control to open the Main menu.”

Remote Control

Some remote controls have a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

¾ Follow all warnings and cautions in this manual and on the unit case. ¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

¾ Do not place the unit on an unstable surface, cart, or stand. ¾ Avoid using the system near water, in direct sunlight, or near a heating device. ¾ Do not place heavy objects such as books or bags on the unit.

— ii —

Power Safety

¾ Only use the supplied power cord. ¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. Refer to “Replacing the Projection Lamp” on page 28 for clear and safe instructions for this procedure. Before replacing the lamp:

¾ Unplug the power cord. ¾ Allow the lamp to cool for about one hour.

Spent Lamp Management

¾ This product contains a metal halide lamp, which contains mercury. Dispose of it as required by

local ordinances and regulations.

¾ The USA restricts or prohibits the disposal of some or all mercury containing lamps in the mun icipal

waste stream. Please visit www.lamprecycle.org for more information on specific state disposal requirements and recycling facilities.

P

r

P

r

P

r

e

f

a

c

e

f

a

c

e

f

a

c

e

Cleaning the Projector

¾ Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on p age 30. ¾ Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the “Regulatory Compliance” section on page 42.

– iii –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Main Features

• Lightweight unit, easy to pack away and transport

• Compatible with all major video standards including NTSC, PAL, and SECAM

• A high brightness rating allows for presentations in daylight or in lit rooms

• Supports resolutions up to SXGA at 16.7 million colors to deliver crisp, clear images

• Flexible setup allows for front, rear, and ceiling projections

• Line-of-vision projections remain square, with advanced keystone correction for angled

projections

• Input source automatically detected

• Auto-keystone for easy keystone correction

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.

— iv —

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Table of contents

GETTING STARTED.......................................................................................................................................................... 1

P

ACKING CHECKLIST

V

IEWS OF PROJECTOR PARTS

Front-right View ............................................................................................................................................................. 2

Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3

Rear view ........................................................................................................................................................................ 4

Bottom view..................................................................................................................................................................... 5

R

EMOTE CONTROL PARTS

R

EMOTE CONTROL OPERATING RANGE

P

ROJECTOR AND REMOTE CONTROL BUTTONS

SETUP AND OPERATION.................................................................................................................................................9

I

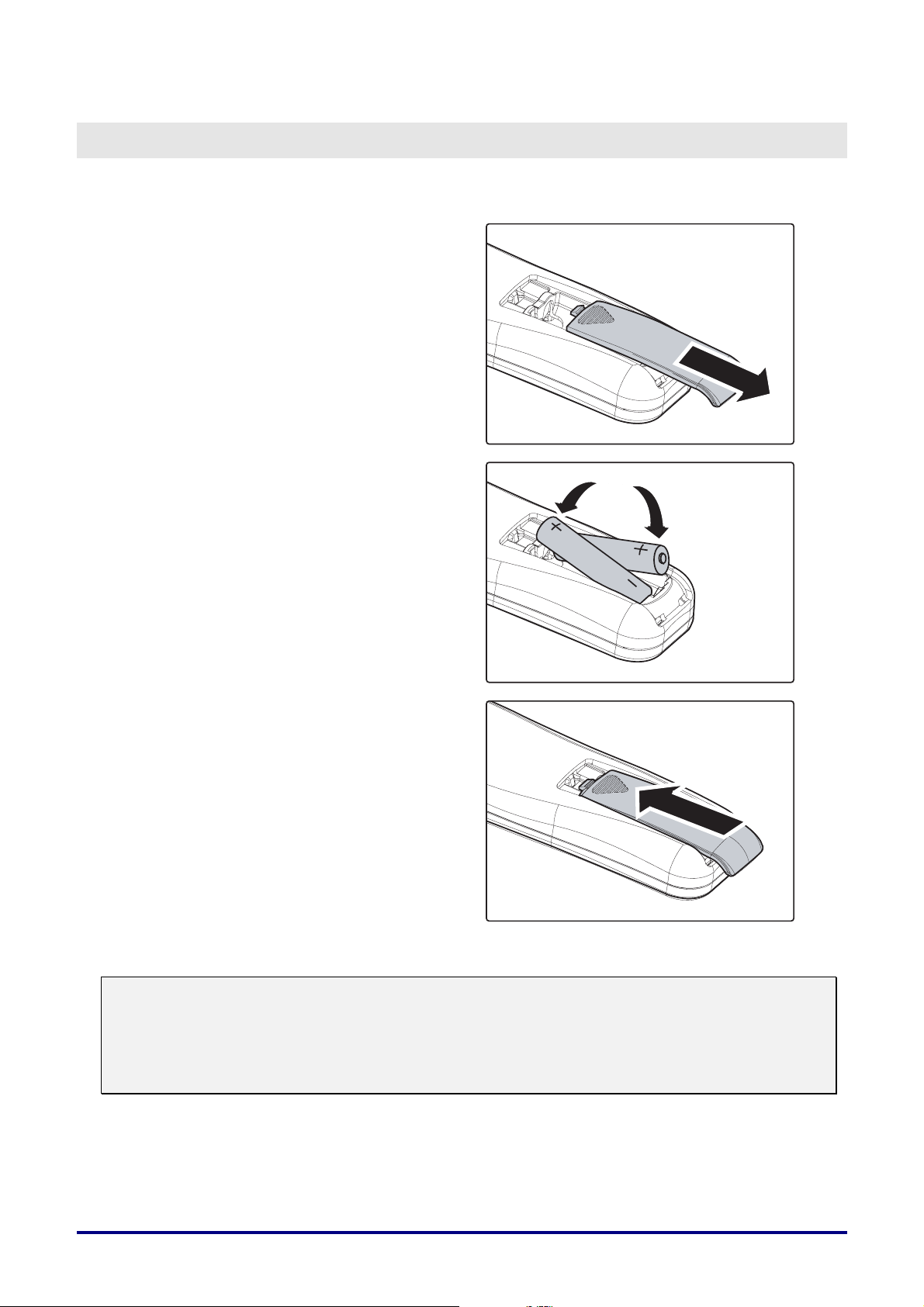

NSERTING THE REMOTE CONTROL BATTERIES

C

ONNECTING INPUT DEVICES

S

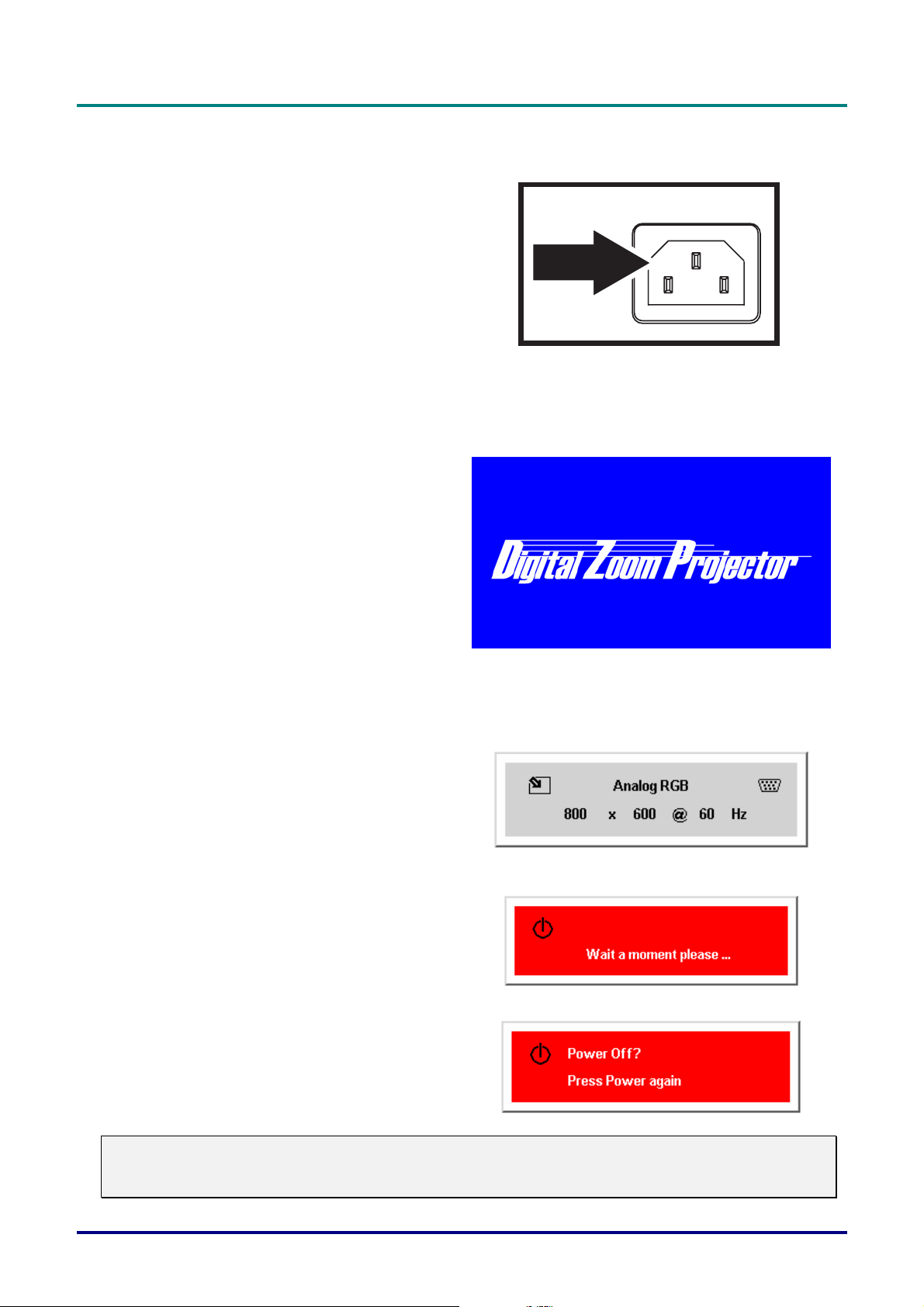

TARTING AND SHUTTING DOWN THE PROJECTOR

S

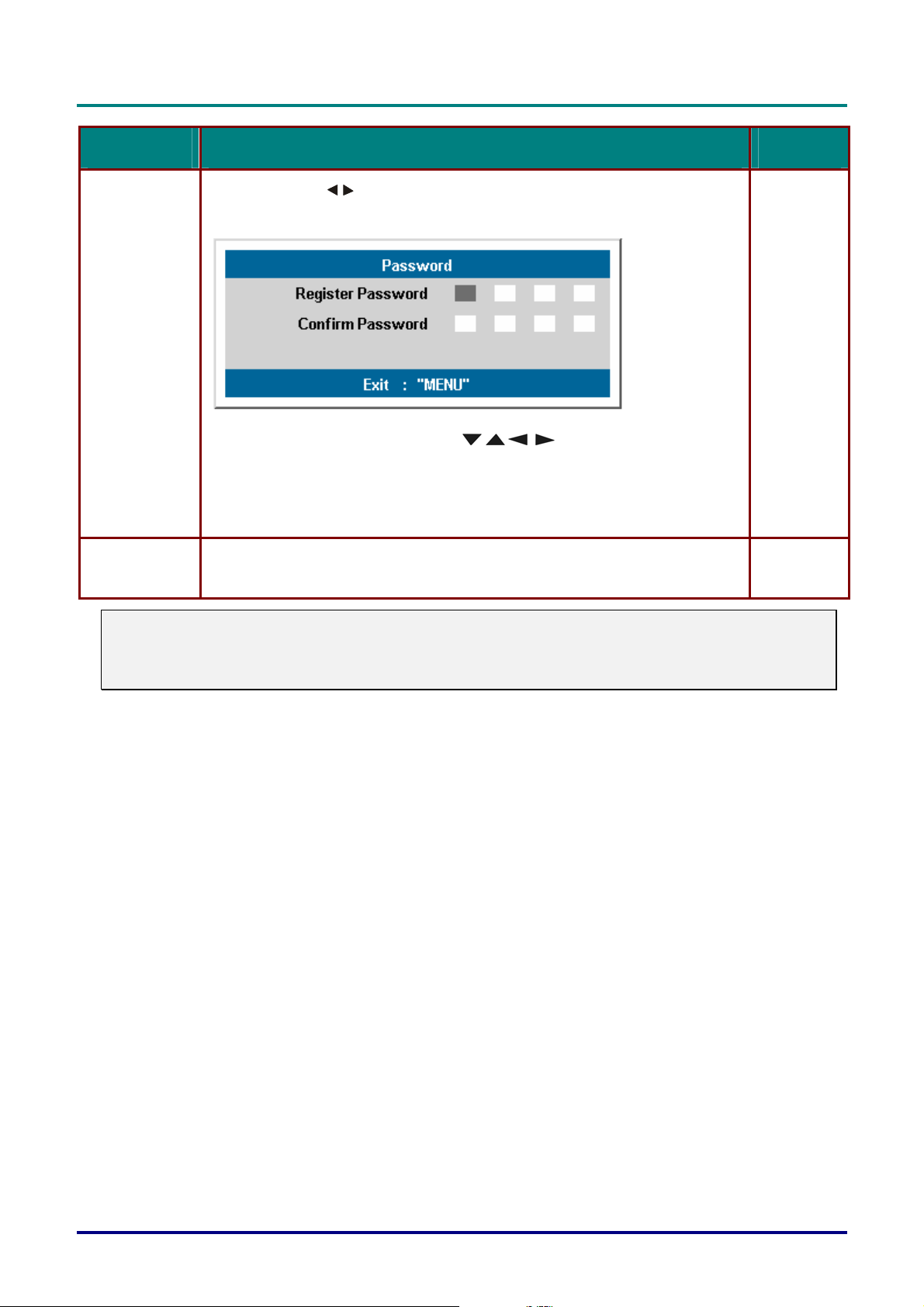

ETTING AN ACCESS PASSWORD (SECURITY LOCK

A

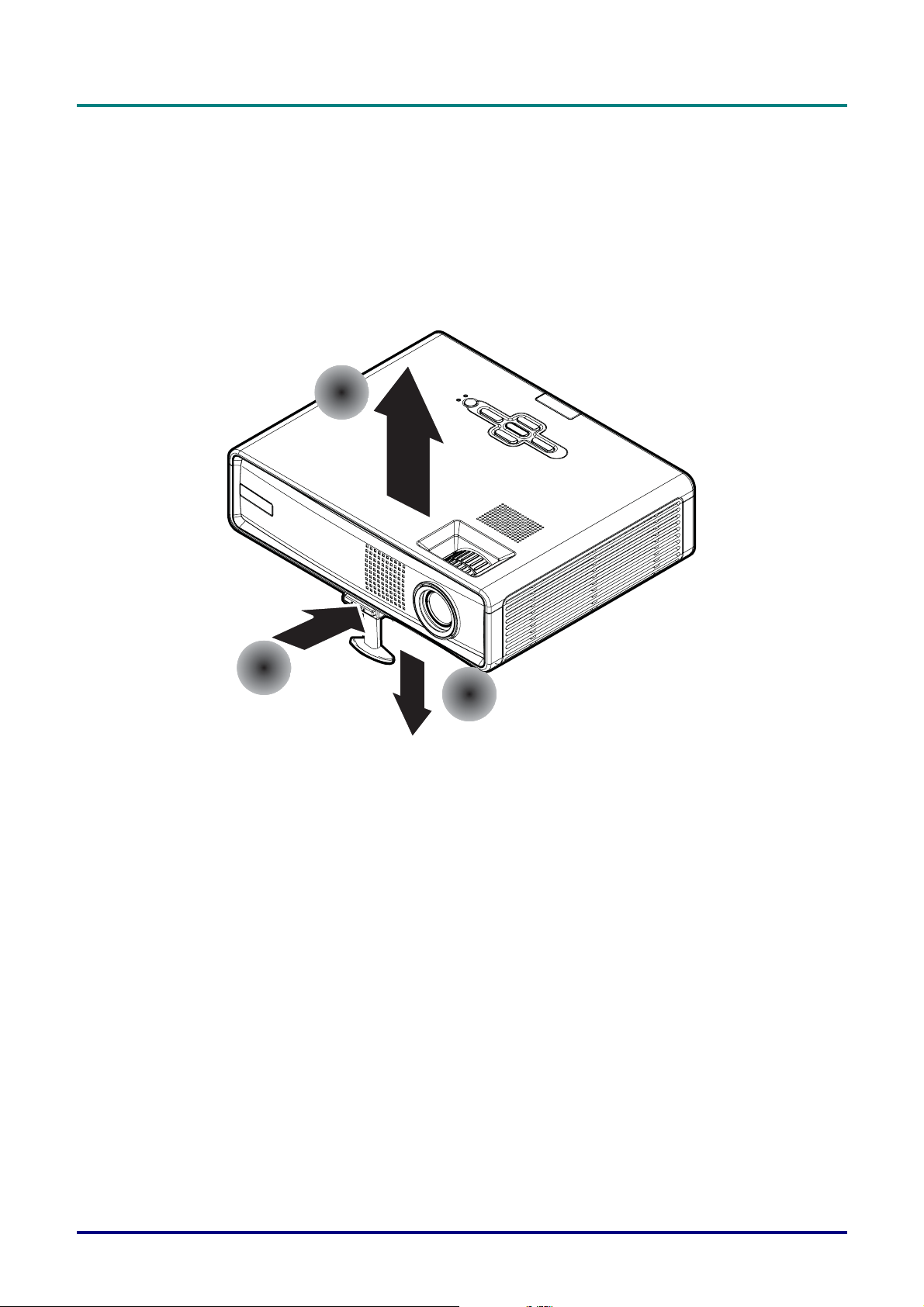

DJUSTING THE PROJECTOR LEVEL

A

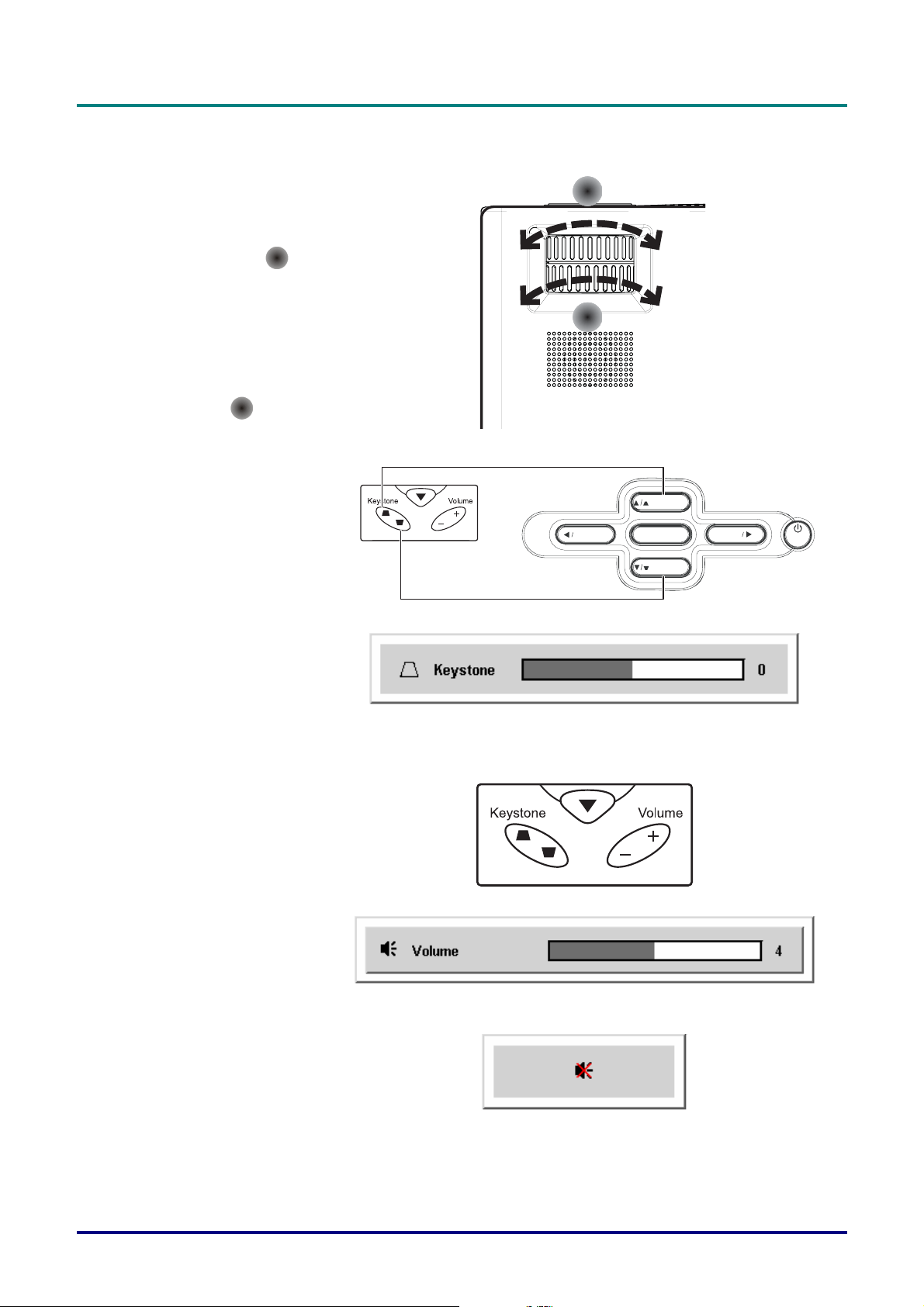

DJUSTING THE ZOOM, FOCUS AND KEYSTONE

A

DJUSTING THE VOLUME

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 15

OSD M

S M

S

C U

L S

ENU CONTROLS

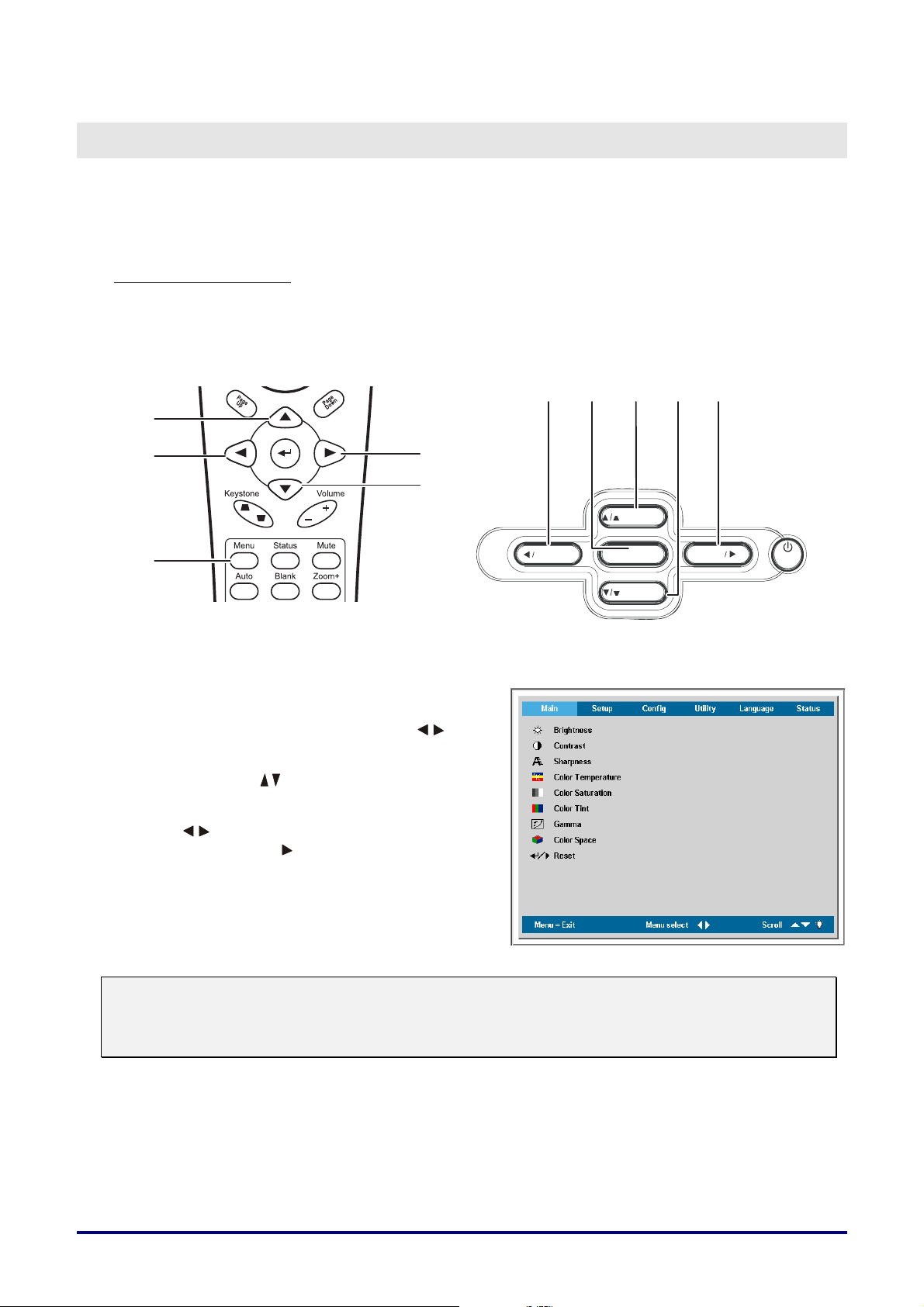

Navigating the OSD...................................................................................................................................................... 15

ETTING THE

AIN MENU

Main Menu Functions Available for Connected Source............................................................................................... 18

ETUP MENU

Setup Menu Functions Available for Connected Source............................................................................................... 19

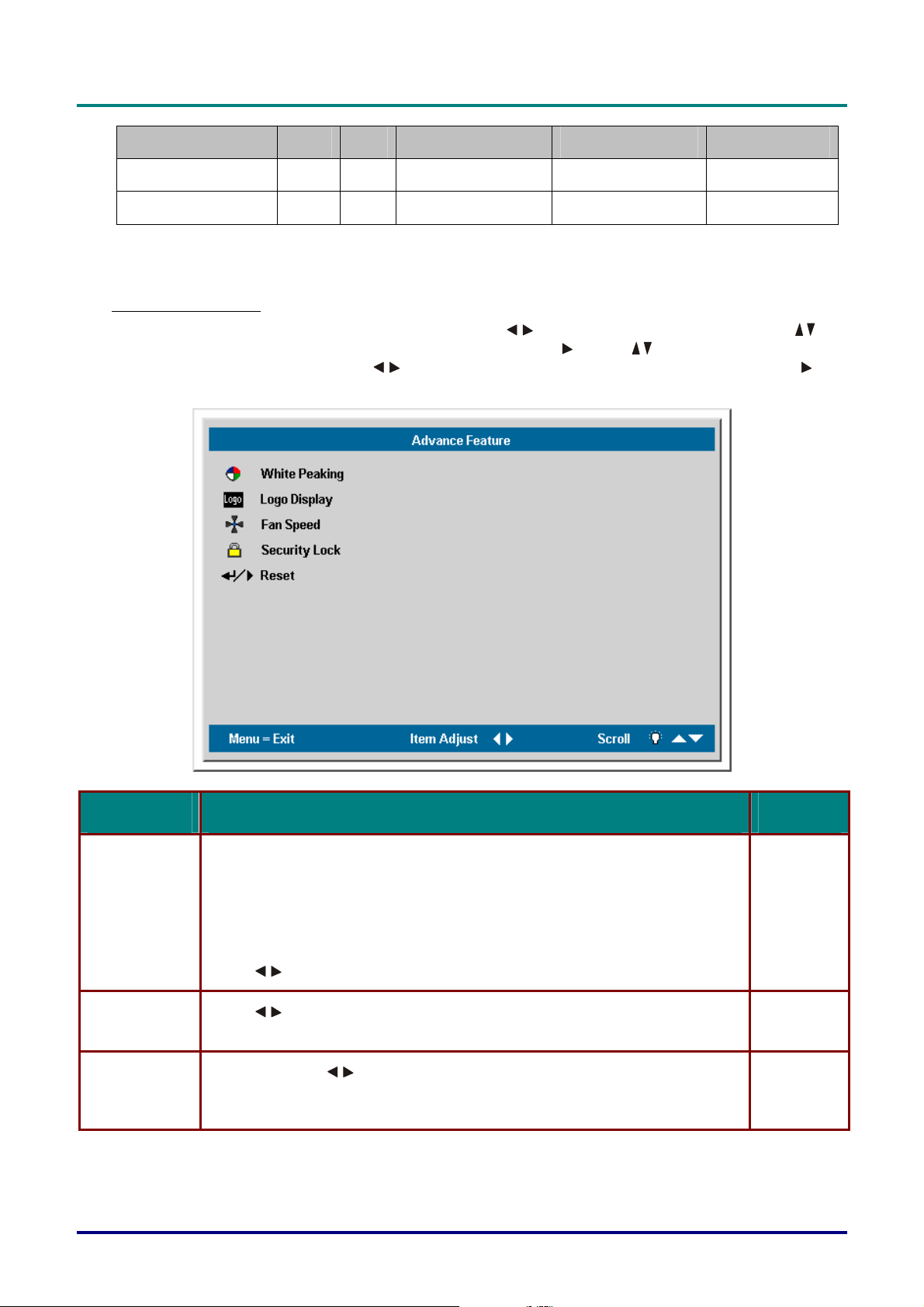

Advance Feature........................................................................................................................................................... 20

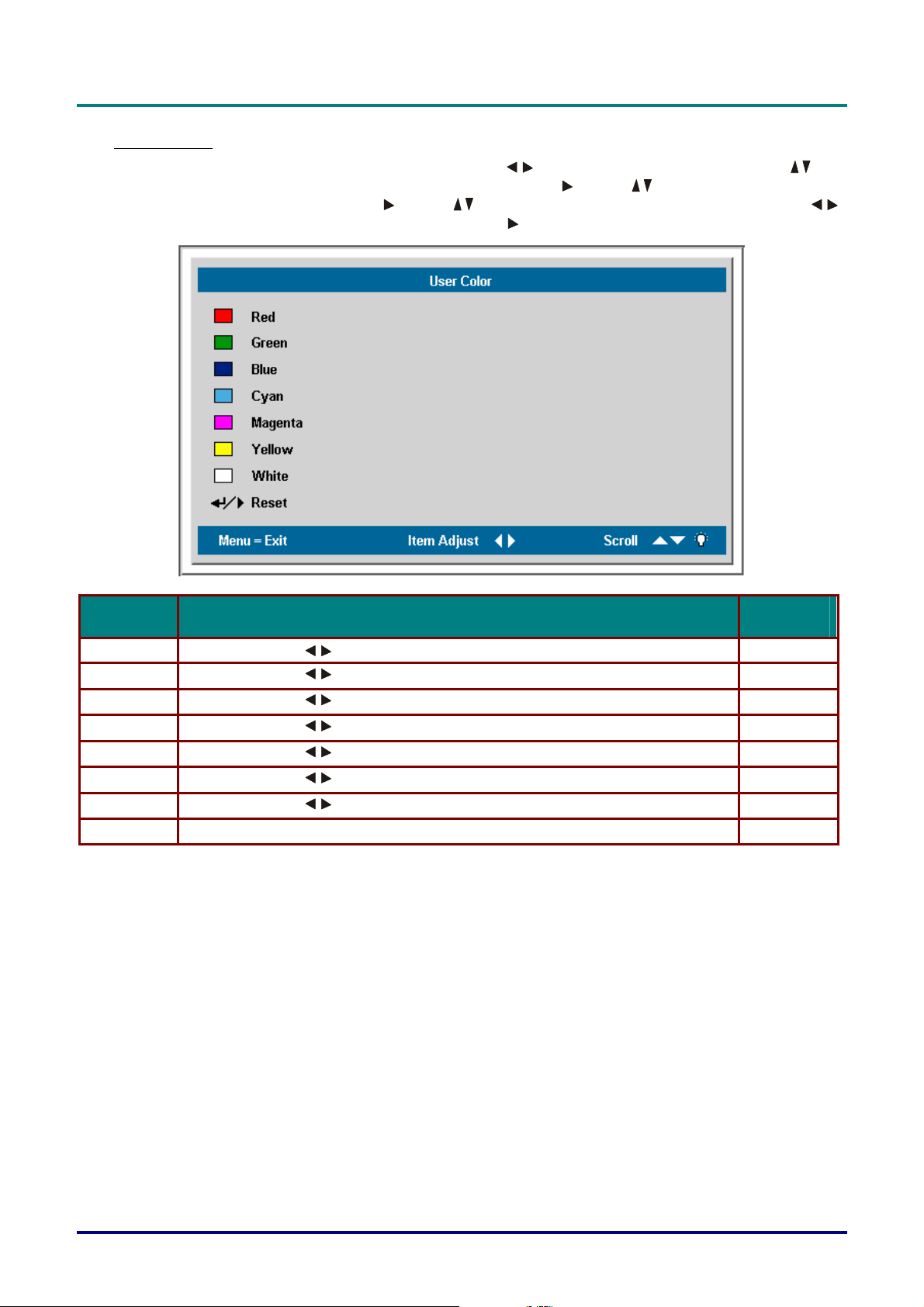

User Color .................................................................................................................................................................... 22

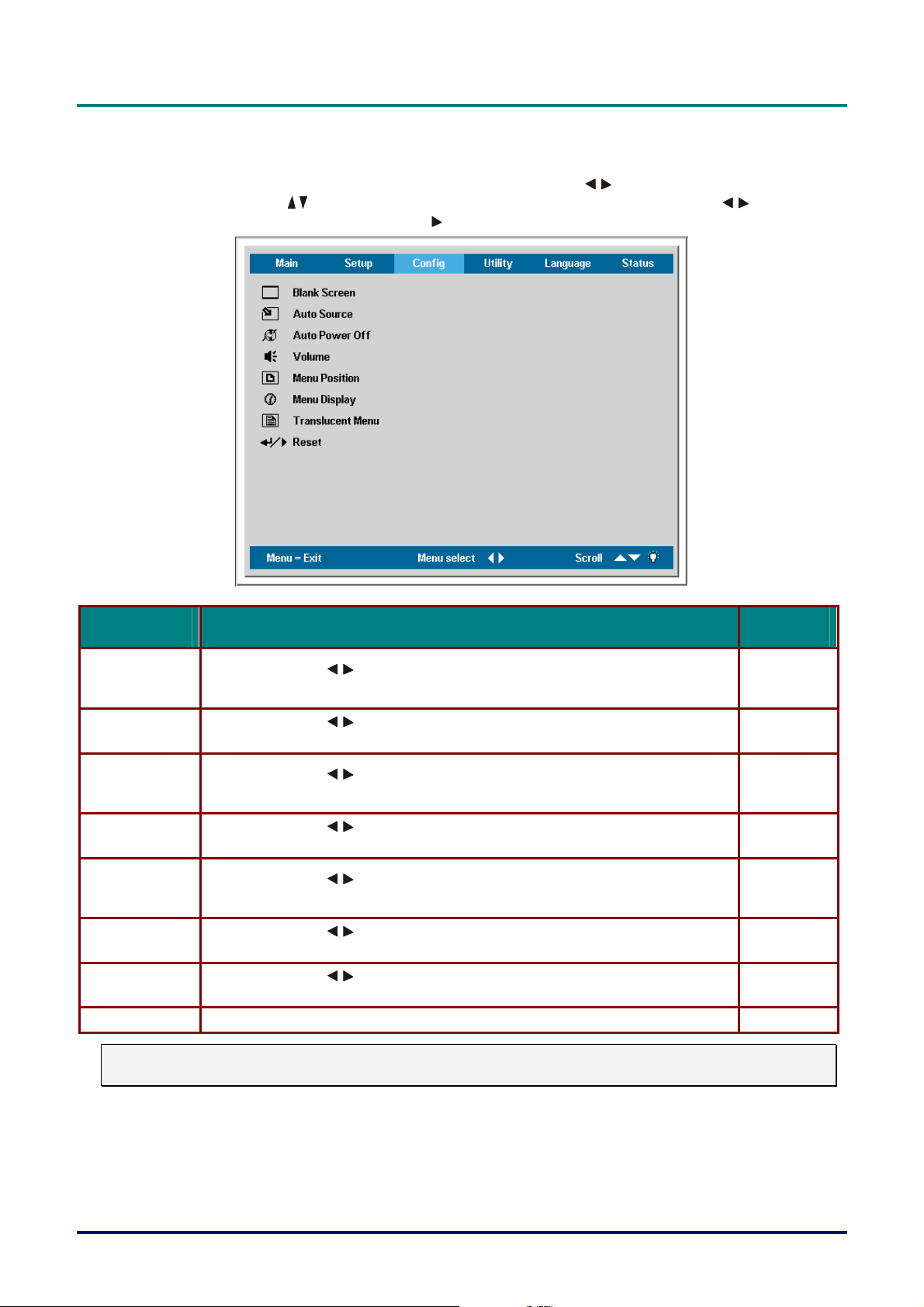

ONFIG MENU

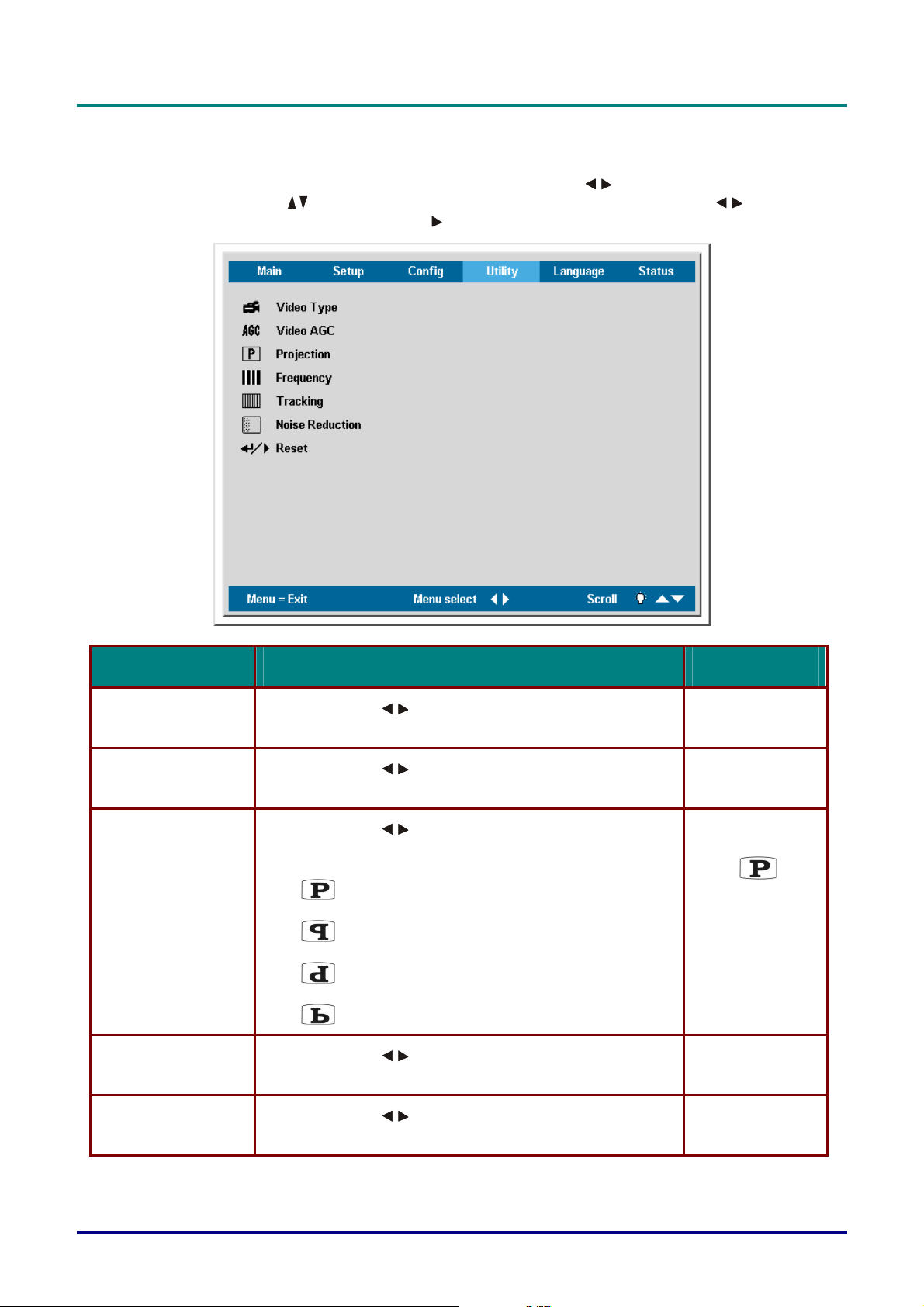

TILITY MENU

Utility Menu Functions Available for Connected Source ............................................................................................. 25

ANGUAGE MENU TATUS MENU

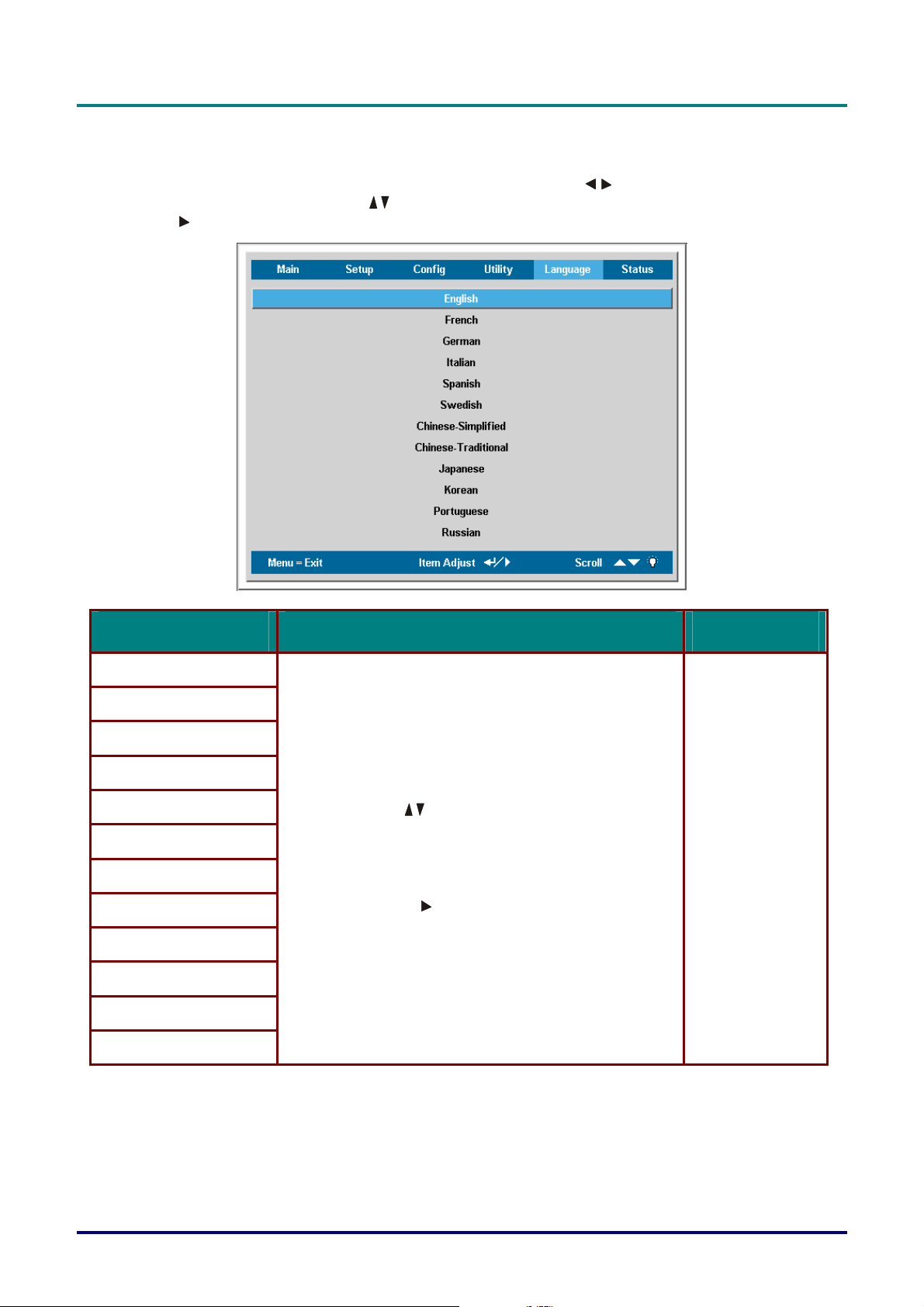

OSD L

...................................................................................................................................................................... 17

..................................................................................................................................................................... 19

........................................................................................................................................................... 1

............................................................................................................................................... 2

................................................................................................................................................... 6

............................................................................................................................... 8

.................................................................................................................... 8

................................................................................................................... 9

............................................................................................................................................ 10

............................................................................................................. 11

).......................................................................................................... 12

................................................................................................................................... 13

................................................................................................................ 14

.................................................................................................................................................. 14

..................................................................................................................................................... 15

ANGUAGE

................................................................................................................................................................... 23

.................................................................................................................................................................. 24

............................................................................................................................................................. 26

................................................................................................................................................................... 27

.......................................................................................................................................... 16

MAINTENANCE AND SECURITY................................................................................................................................. 28

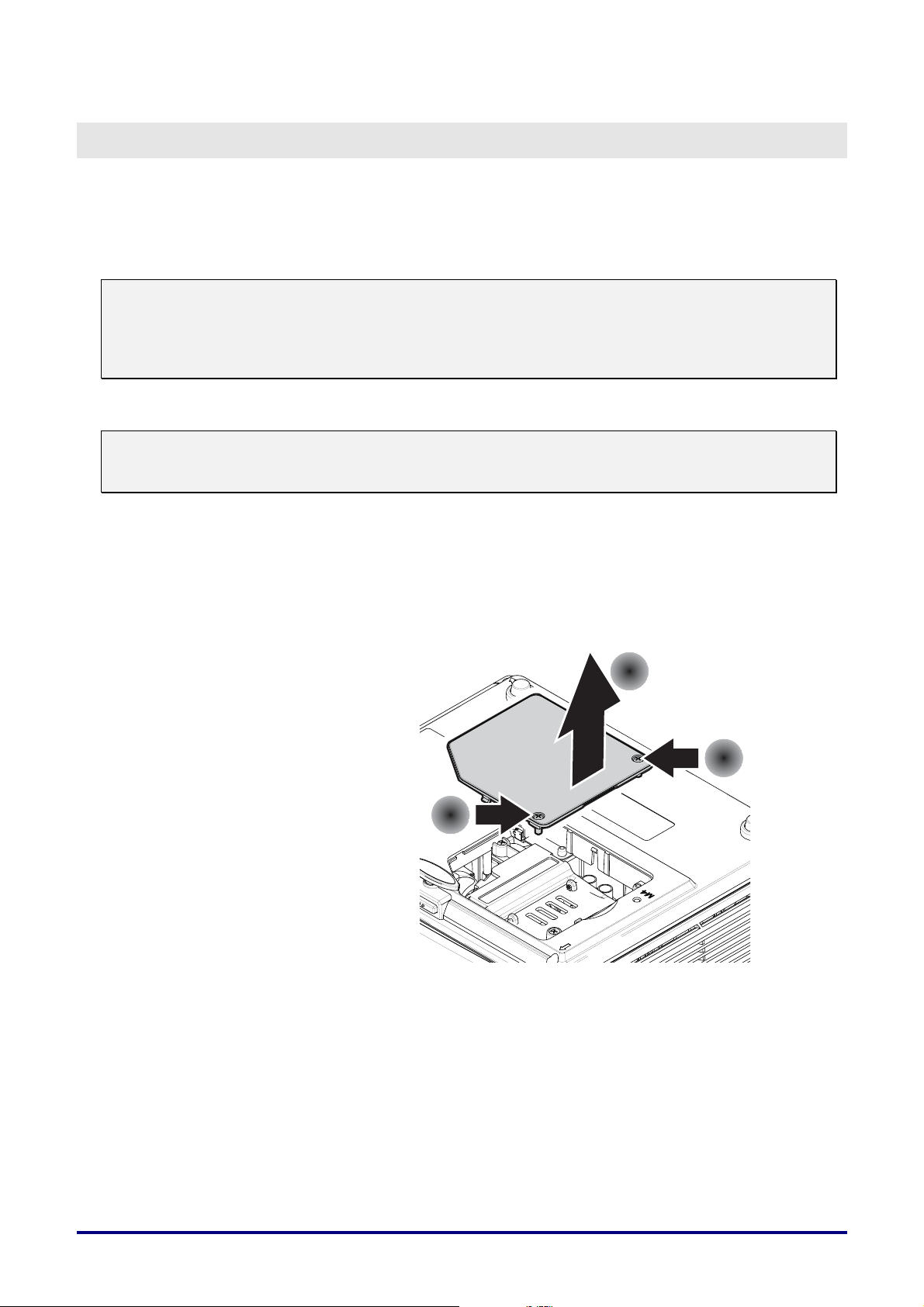

R

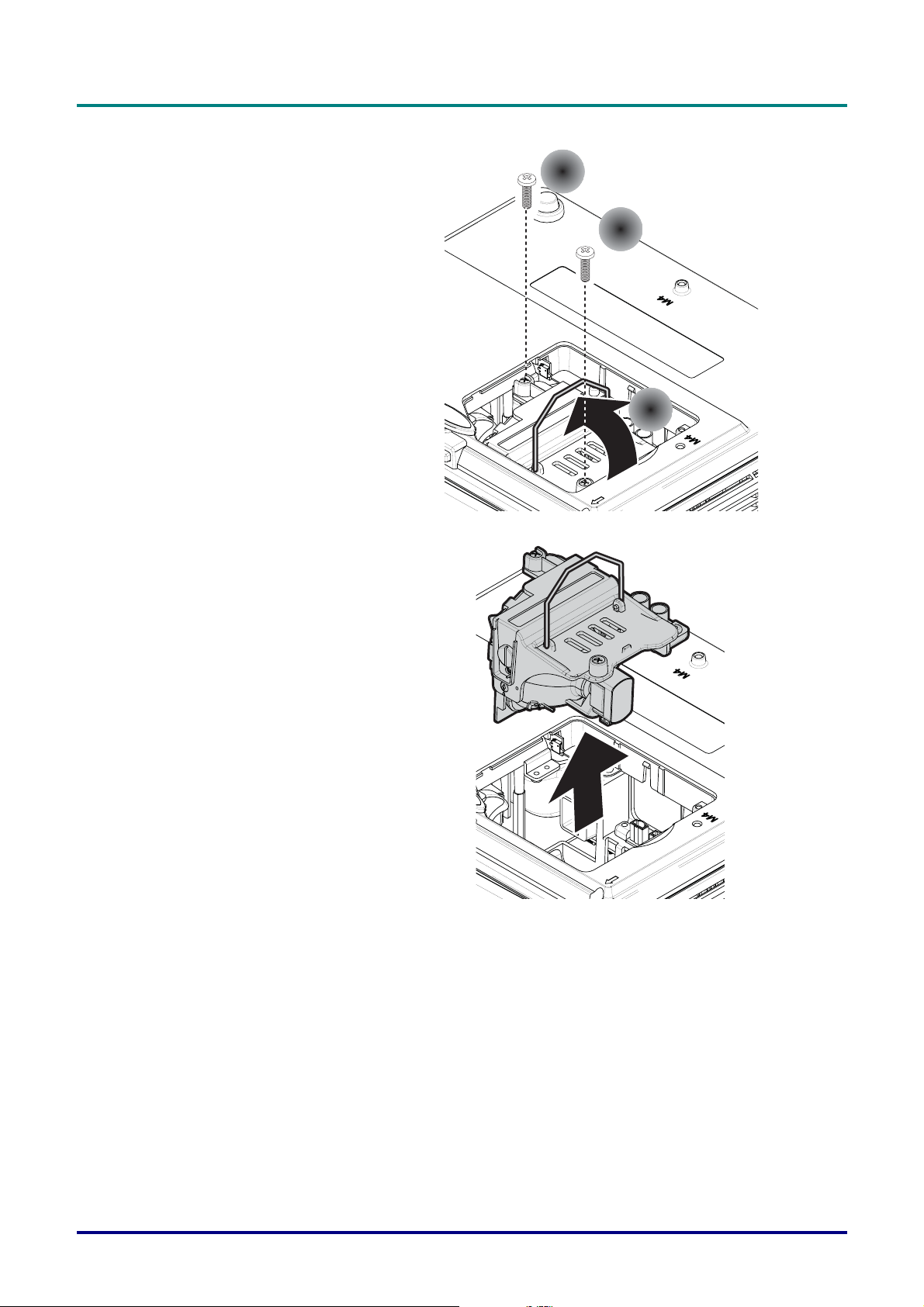

EPLACING THE PROJECTION LAMP

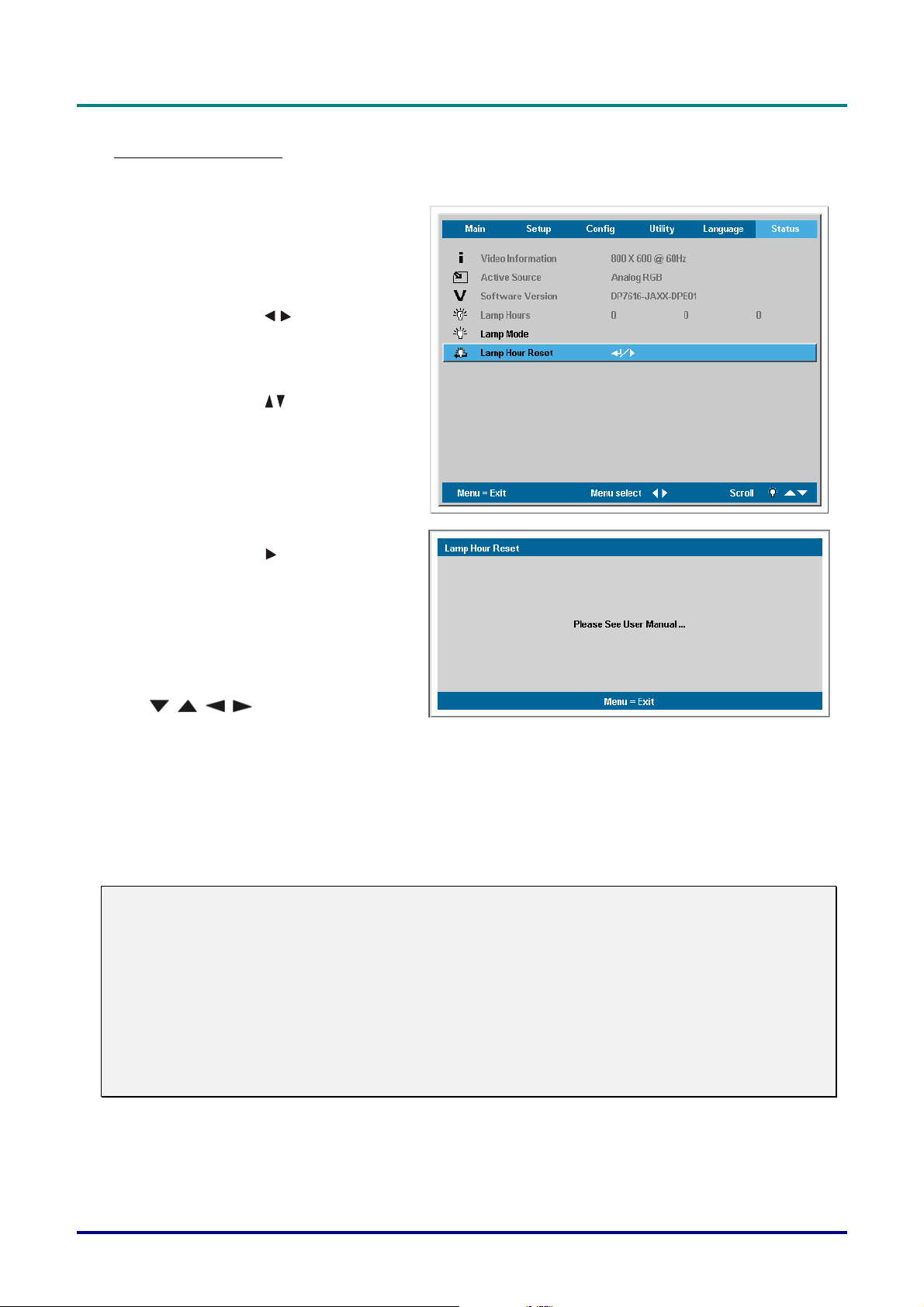

Resetting the Lamp........................................................................................................................................................ 30

C

LEANING THE PROJECTOR

Cleaning the Lens ......................................................................................................................................................... 31

Cleaning the Case......................................................................................................................................................... 31

U

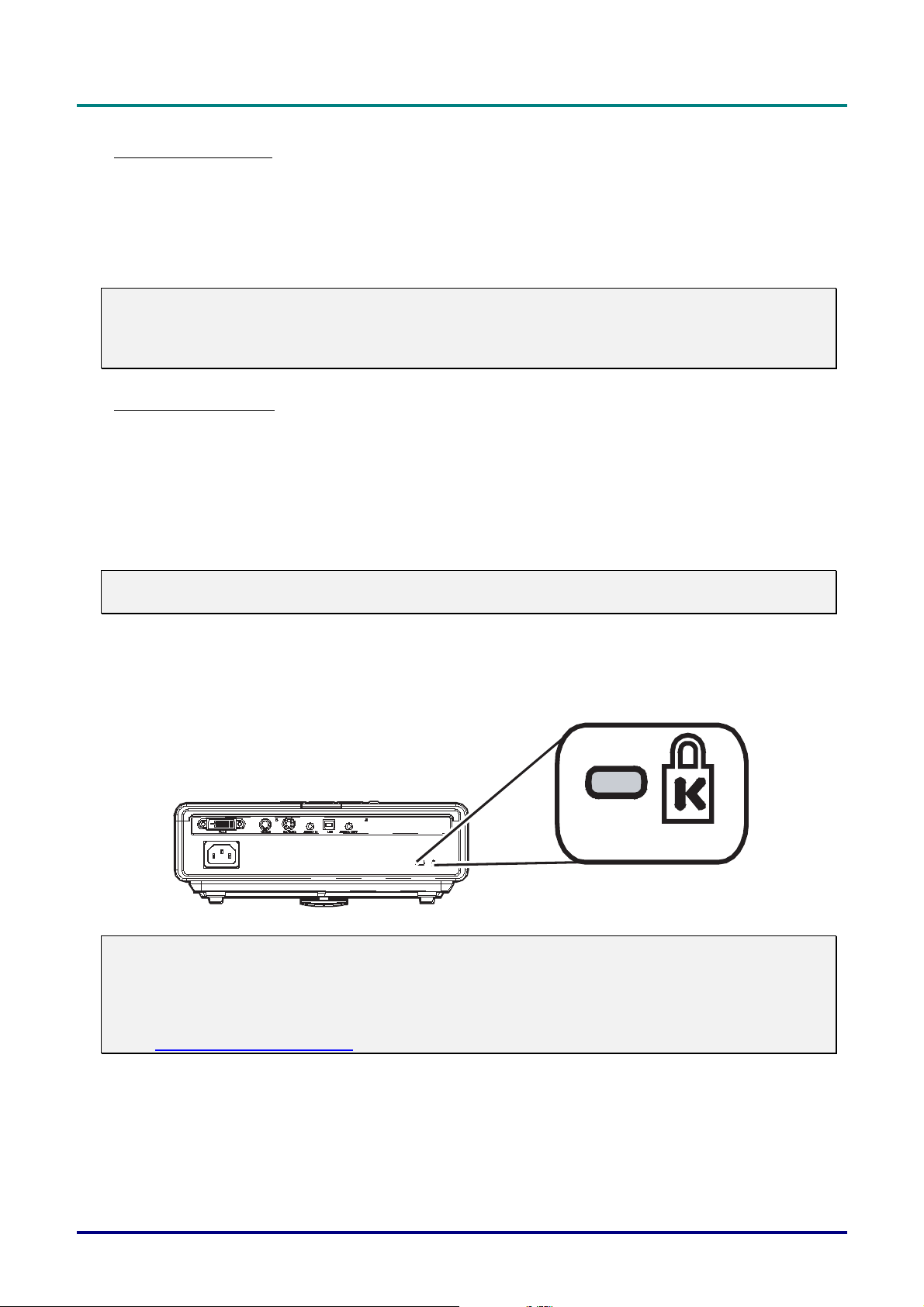

SING THE KENSINGTON® LOCK

TROUBLESHOOTING..................................................................................................................................................... 32

C

OMMON PROBLEMS AND SOLUTIONS

T

IPS FOR TROUBLESHOOTING

LED E

RROR MESSAGES

I

MAGE PROBLEMS

L

AMP PROBLEMS

R

EMOTE CONTROL PROBLEMS

A

UDIO PROBLEMS

H

AVING THE PROJECTOR SERVICED

SPECIFICATIONS.............................................................................................................................................................36

S

PECIFICATIONS

Input/output connectors................................................................................................................................................ 37

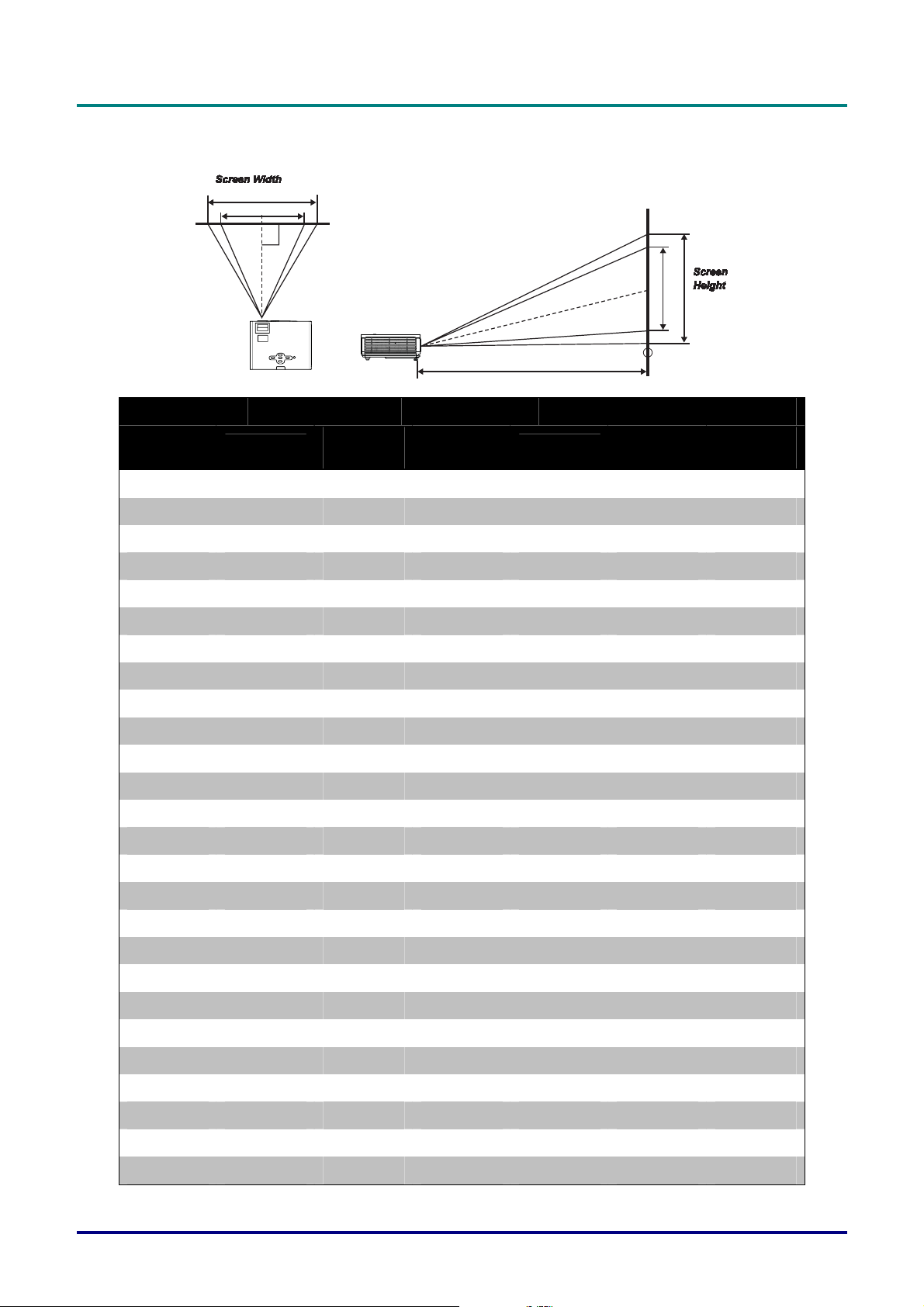

P

ROJECTION DISTANCE

.............................................................................................................................................................. 33

............................................................................................................................................................... 34

............................................................................................................................................................. 34

................................................................................................................................................................. 36

................................................................................................................................................ 30

..................................................................................................................................................... 33

V.S. P

................................................................................................................................... 28

...................................................................................................................................... 31

............................................................................................................................... 32

............................................................................................................................................ 32

.......................................................................................................................................... 34

.................................................................................................................................. 35

ROJECTION SIZE

.................................................................................................................. 38

– v –

D

L

P

®

P

r

o

j

e

D

L

P

®

D

L

P

®

T

IMING MODE TABLE

P

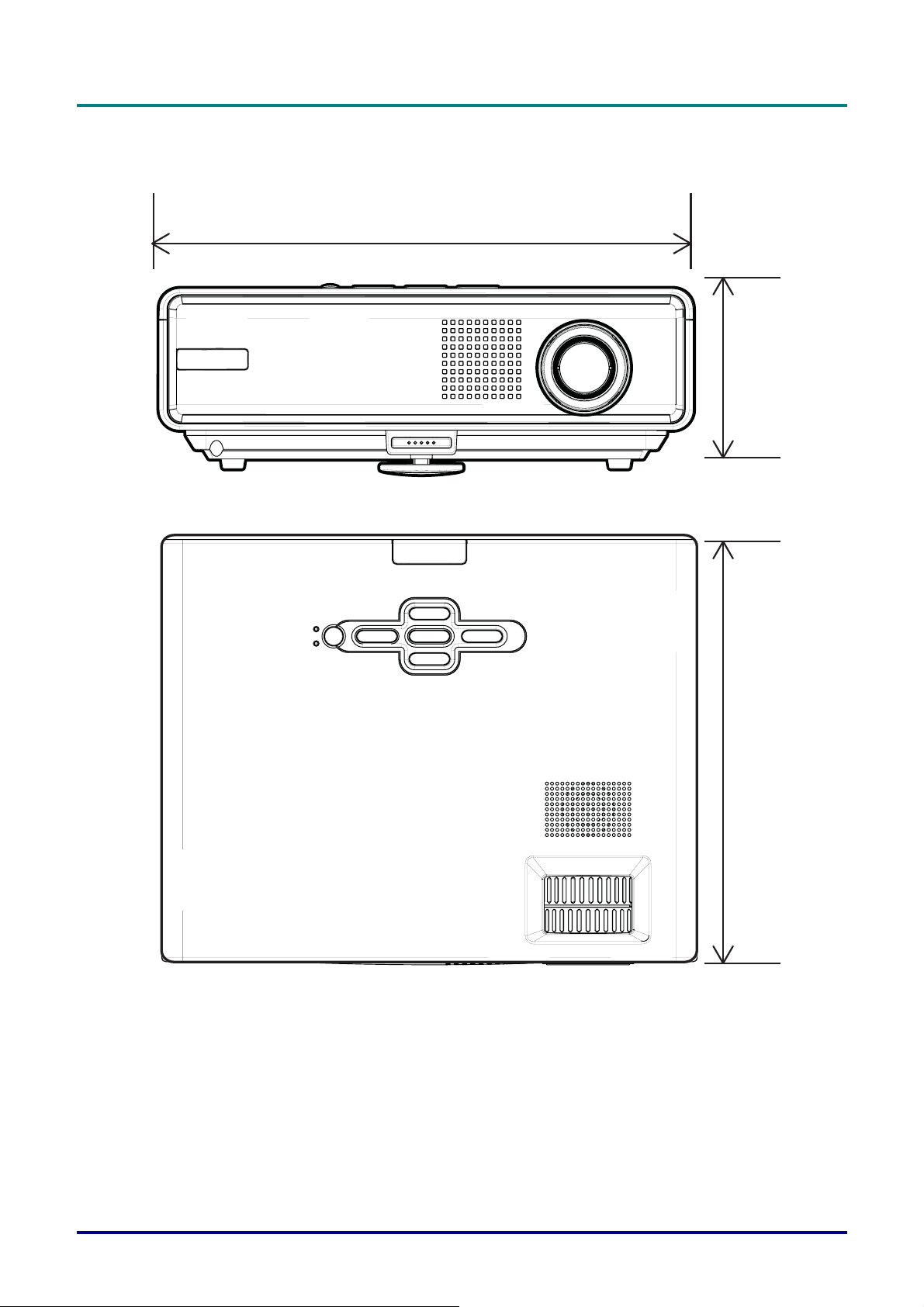

ROJECTOR DIMENSIONS

c

P

r

o

j

e

c

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

t

o

r

—

U

s

e

r

’

s

t

o

r

—

U

........................................................................................................................................................ 39

M

s

e

r

’

s

M

................................................................................................................................................... 41

a

n

u

a

l

a

n

u

a

l

REGULATORY COMPLIANCE.....................................................................................................................................42

FCC W C S EN 55022 W

ARNING

ANADA

AFETY CERTIFICATIONS

.................................................................................................................................................................. 42

............................................................................................................................................................................ 42

ARNING

......................................................................................................................................................... 42

................................................................................................................................................... 42

— vi —

G

Packing Checklist

Carefully unpack the projector and check that the following items are included:

ETTING STARTED

OWER CORD

P

DLP®

USB

PROJECTOR

CABLE

R

S-

VIDEO CABLE

A

UDIO CABLE

(

MINI JACK-TO

-RCA

EMOTE CONTROL

(

WITH TWO

X

2)

AAA

BATTERIES

OMPUTER CABLE

C

(DVI-DB15)

)

CD-ROM (T

HIS USER’S MANUAL

) Q

UICK START GUIDE

C

ARRYING CASE

Contact your dealer immediately if any items are missing, appear d amaged, or if the u nit does not work.

Caution:

Avoid using the projector in dusty environments.

– 1 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

e

s

e

a

r

’

s

M

a

r

’

s

M

a

Views of Projector Parts

Front-right View

n

u

a

l

n

u

a

l

n

u

a

l

I

TEM

L

1.

2.

3.

4.

5.

6.

7.

8.

9.

ABEL

D

Front IR receiver Receiver for IR signal from remote control

Height-adjuster button Push to release height adjuster

Height adjuster Adjusts level of projector

Lens Adjust focus/zoom on top opening

Focus Focuses the projected image

Zoom Enlarges the projected image

Speaker Built-in mono speaker

See “Top view—OSD buttons and LEDs” on next page

Rear IR receiver Receiver for IR signal from remote control

ESCRIPTION

S

EE PAGE

8

13

14

8

:

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.

– 2 –

D

Top view—On-screen Display (OSD) buttons and LEDs

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

I

TEM

L

1.

2.

1 3 54 6

SOURCE

2

KEY STON E

M ENU

KEY STON E

8

ABEL

D

Source/ Left cursor

Menu Opens and exits the OSD

Detects the input device Navigates and changes settings in the OSD

AUTO

ESCRIPTION

READY

POWER

7

S

EE PAGE

11

15

:

3.

4.

5.

6.

7.

8.

Keystone/ Up cursor

Auto/ Right cursor

Power button Turns the projector on or off

Ready LED

Power LED

Keystone/ Down cursor

Corrects image-trapezoid (wider top) effect Navigates and changes settings in the OSD

Optimizes image size, position, and resolution Navigates and changes settings in the OSD

Orange Lamp ready—you can safely turn on or off the projector

Flashing Lamp not ready—do not press the power button

Green Unit is powered on and working correctly

Off Unit is powered off

Flashing Operational error code

(refer to “LED Error Messages” on page 33)

Corrects image-trapezoid (wider bottom) effect Navigates and changes settings in the OSD

14

11

14

– 3 –

D

L

P

®

D

L

P

®

D

L

P

®

Rear view

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

I

TEM

1.

L

ABEL

D

Power Connect the supplied power cord

ESCRIPTION

8

S

EE PAGE

11

:

2.

3.

4.

DVI-I Connect the computer cable (supplied) from a computer

Video Connect a composite video cable from a video device

S-video Connect the S-video cable (supplied) from a video device

10

5.

6.

7.

8.

Note:

If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video connector. S-video provides a better quality signal.

Audio-in Connect the audio cable (supplied) from the input device

USB Connect the USB cable (supplied) from a computer

Audio-out Audio loop-thru

Security Lock Secure to permanent object with a Kensington® Lock

system

31

– 4 –

Bottom view

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

2

1

I

TEM

L

1.

2.

Caution:

For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 6 mm (1/4 inch). To allow for proper ventilation, keep a distance of 50 cm (20 inches) from walls and ceiling. For permanent installations, follow local codes.

ABEL

D

Ceiling support holes

Projection lamp cover

ESCRIPTION

Contact your dealer for information on mounting the projector on a ceiling.

Remove when changing lamp

– 5 –

S

EE PAGE

28

:

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

D

L

P

®

P

r

o

j

e

c

t

o

r

L

P

®

P

r

o

—

j

e

c

t

o

r

—

U

s

e

r

’

s

e

r

’

s

Remote Control Parts

M

a

n

u

a

l

M

a

n

u

a

l

a

n

u

a

l

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency

fluorescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user’s manual describes the functions based on the remote control.

I

TEM

L

1.

2.

3.

IR transmitter Transmits signals to projector

Status LED Lights when the remote control is used

Laser Press to operate the on-screen pointer

ABEL

D

ESCRIPTION

– 6 –

S

EE PAGE

:

I

TEM

L

ABEL

D

ESCRIPTION

D

L

P

r

o

j

e

c

t

o

r

–

U

s

D

L

P

r

o

j

e

c

t

o

L

P

r

o

r

j

e

c

t

o

e

–

U

s

r

e

–

U

s

S

r

’

s

M

r

’

s

M

e

r

’

s

M

EE PAGE

a

n

u

a

l

a

n

u

a

l

a

n

u

a

l

:

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

Up Up arrow when connected through USB to a PC

Right Right arrow when connected through USB to a PC

Down Down arrow when connected through USB to a PC

Page Down Page down when connected through USB to a PC

Up cursor

Right cursor

Down cursor

Volume +/- Adjusts volume

Mute Mutes the built-in speaker

Zoom+ Zoom in

Zoom- Zoom out

Freeze Freeze/unfreezes the on-screen picture

Navigates and changes settings in the OSD

15

14

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

Blank Makes the screen blank

Source Detects the input device

Auto Auto adjustment for phase, tracking, size, position

Menu Opens the OSD

Status

Keystone top/bottom

Left cursor Navigates and changes settings in the OSD

Enter Changes settings in the OSD

Page Up Page up when connected through USB to a PC

Left Left arrow when connected through USB to a PC

Enter Enter key when connected through USB to a PC

Opens the OSD Status menu (the menu only opens when an input device is detected)

Corrects image-trapezoid (wider top/bottom) effect

15 27

14

15

27.

28.

Power Turns the projector on or off

Laser Use as on-screen pointer. DO NOT POINT IN EYES.

– 7 –

11

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

Note:

The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only.

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on the projector.

1

6

KEY STON E

M ENU

KEY STON E

AUTO

10

4/9 8/10 12/5

SOURCE

9

2 3

8 7

3/7

6 5

4

Some buttons on the projector have two functions. For example, item 8/10 on the projector functions both as the keystone button and as the up cursor key in OSD menus.

POWER

– 8 –

Inserting the Remote Control Batteries

Remove the battery compartment cover

1.

by sliding the cover in the direction of the arrow.

Insert the supplied batteries taking note

2.

of the polarity (+/-) as shown here.

S

ETUP AND OPERATION

Replace the cover.

3.

Caution:

1. Only use AAA batteries.(Alkaline is better)

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

– 9 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Connecting Input Devices

A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate output connector.

I

TEM

L

ABEL

D

ESCRIPTION

A

B

C

D

E

F

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

DVI-I Connect the supplied computer cable from a computer.

Video Connect a composite video cable from a video device.

S-video Connect the supplied S-video cable from a video device.

Audio-in Connect an audio cable (not supplied) from the computer’s audio-out

USB Connect the supplied USB cable from a computer.

Audio-out Audio loop-thru

connector. Connect the supplied audio cable (mini jack-to-RCA x 2) from a video

device.

– 10 –

Starting and Shutting down the Projector

Connect the power cord to the projector.

1.

Connect the other end to a wall outlet. The POWER and READY LEDs on the projector turn on.

Turn on the connected devices.

2.

Ensure the Ready LED is on a steady (not

3.

flashing) orange and then press the Power button to turn on the projector.

The projector splash screen displays and connected devices are detected. If the connected device is a PC, press the appropriate keys on the computer keyboard to switch the display output to the projector. (Check the user manual of the PC to determine the appropriate Fn key combination to change display output.)

See “Setting an Access Password (Security Lock)” on page 12 if Security Lock is enabled.

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

If more than one input device is

4.

connected, press the Source button repeatedly to switch among devices. (DVD and HDTV are supported through the DVI-I connector.)

To turn off the projector, press the Power

5.

button. The projector prepares for shutdown and a “Wait a moment please…” message appears.

When the “Power Off?/Press Power again”

6.

message appears, press the Power button. The projector turns off.

Caution:

Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has cooled down.

– 11 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Setting an Access Password (Security Lock)

You can use the four cursor (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See “Navigating the OSD” on page 15 and “Setting the OSD Language” on page 16 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

Press the Menu button to open the OSD

1.

menu.

Press the cursor button to move to the

2.

Setup menu.

Press the cursor button to select

3.

Advance Feature and press Enter or

Press the cursor button to select

4.

Security Lock.

Press the cursor button to select

5.

Enable. (White text is selected.) A password dialog box automatically appears.

You can only use the cursor buttons

6.

in the password fields. You can use any combination including the same arrow four times, but not less than four. Press the cursor buttons in any order to set the password. When you confirm the password, OK appears.

.

Every time you start the projector, a

password dialog box appears.

Enter the password in the order you set it at step 6. (Press the Menu button to cancel if you enter the wrong password.)

– 12 –

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.

• Position the projector so that it is perpendicular to the screen.

• Be sure cables are not in the way or can cause the projector to be knocked over.

A

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

B

C

1.

2.

To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B].

The height adjuster drops down [C].

To lower the level of the projector, press the height-adjuster button and push down on the top of the projector.

– 13 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Adjusting the Zoom, Focus and Keystone

Use the Image-focus

1.

control (on the projector only) to sharpen the

projected image

Use the Image-zoom

2.

control (on the projector only) to resize the projected image and

screen size

Use the Keystone buttons

3.

(on the projector or the remote control) to correct image-trapezoid (wider top or bottom) effect.

B

A

.

B

.

KEYSTONE

SOURCE

M ENU

KEYSTONE

AUTO

POWER

The keystone control appears on the display.

Adjusting the Volume

Press the Volume +/-

1.

buttons on the remote control. The volume control appears on the display.

Use the Volume +/-

2.

buttons to adjust the level.

Press the Mute button to

3.

turn off the volume.

– 14 –

ON-S

CREEN DISPLAY

(OSD) M

ENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.

3 2154

5 4

3

1 2

KEY STON E

SOURCE

M ENU

KEY STON E

AUTO

POWER

1. To open the OSD, press the Menu button.

2. There are six menus. Press the cursor button to move through the menus.

3. Press the cursor down in a menu.

4. Press then press Enter or setting.

5. Press Menu to close the OSD or leave a submenu.

Note:

Depending on the video source not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Setup menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out.

to change values for settings, and

button to move up and

to confirm the new

– 15 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

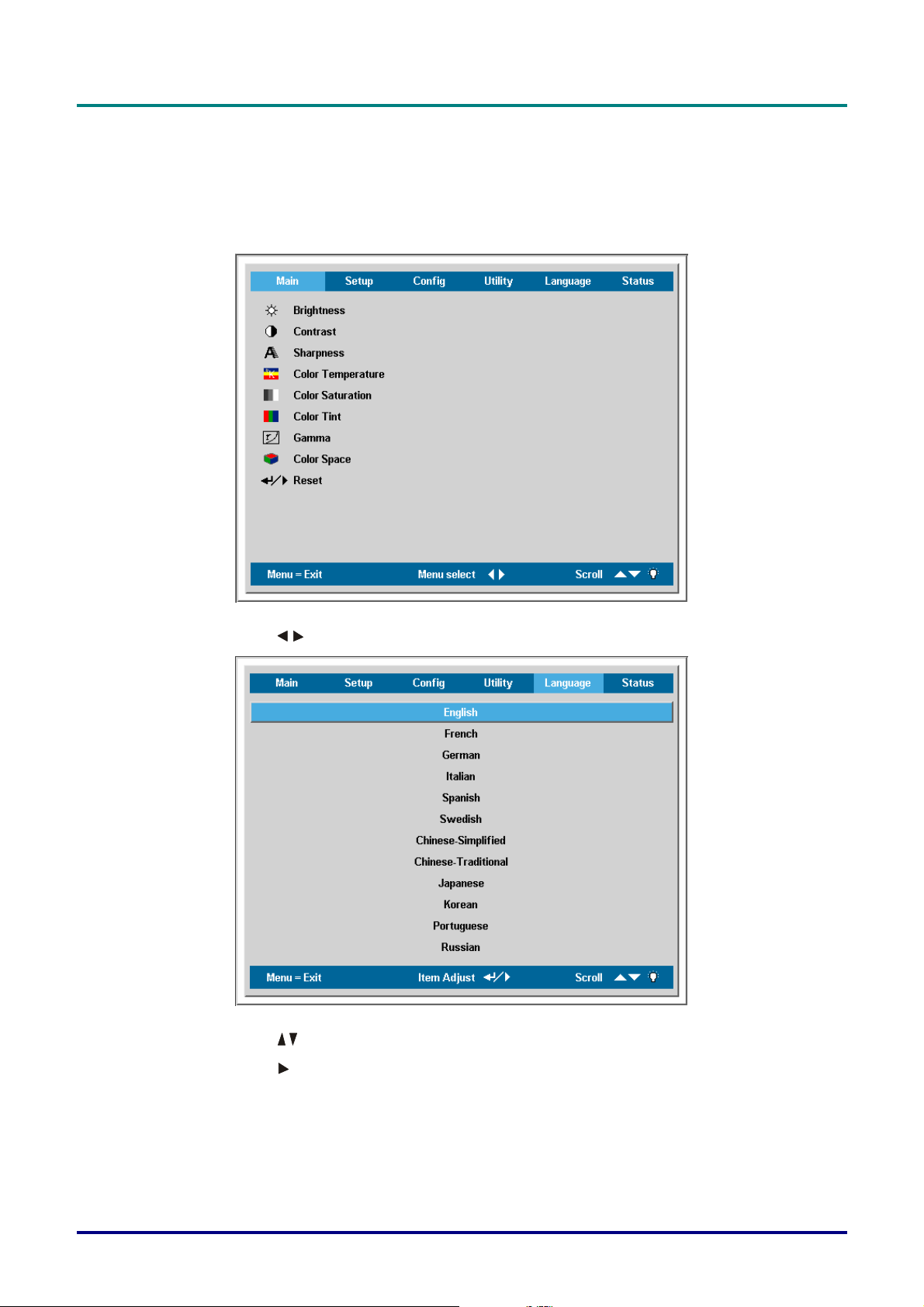

Setting the OSD Language

You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.)

1. Press the Menu button. The Main menu appears.

2. Press the cursor button until Language is highlighted.

3. Press the cursor button until the language you want is highlighted.

4. Press the cursor

5. Press the Menu button twice to close the OSD.

or Enter button to confirm the language.

– 16 –

D

L

P

r

o

j

e

c

t

o

r

–

D

L

P

r

o

j

e

L

P

c

P

r

o

j

e

c

U

t

o

r

–

U

t

o

r

–

U

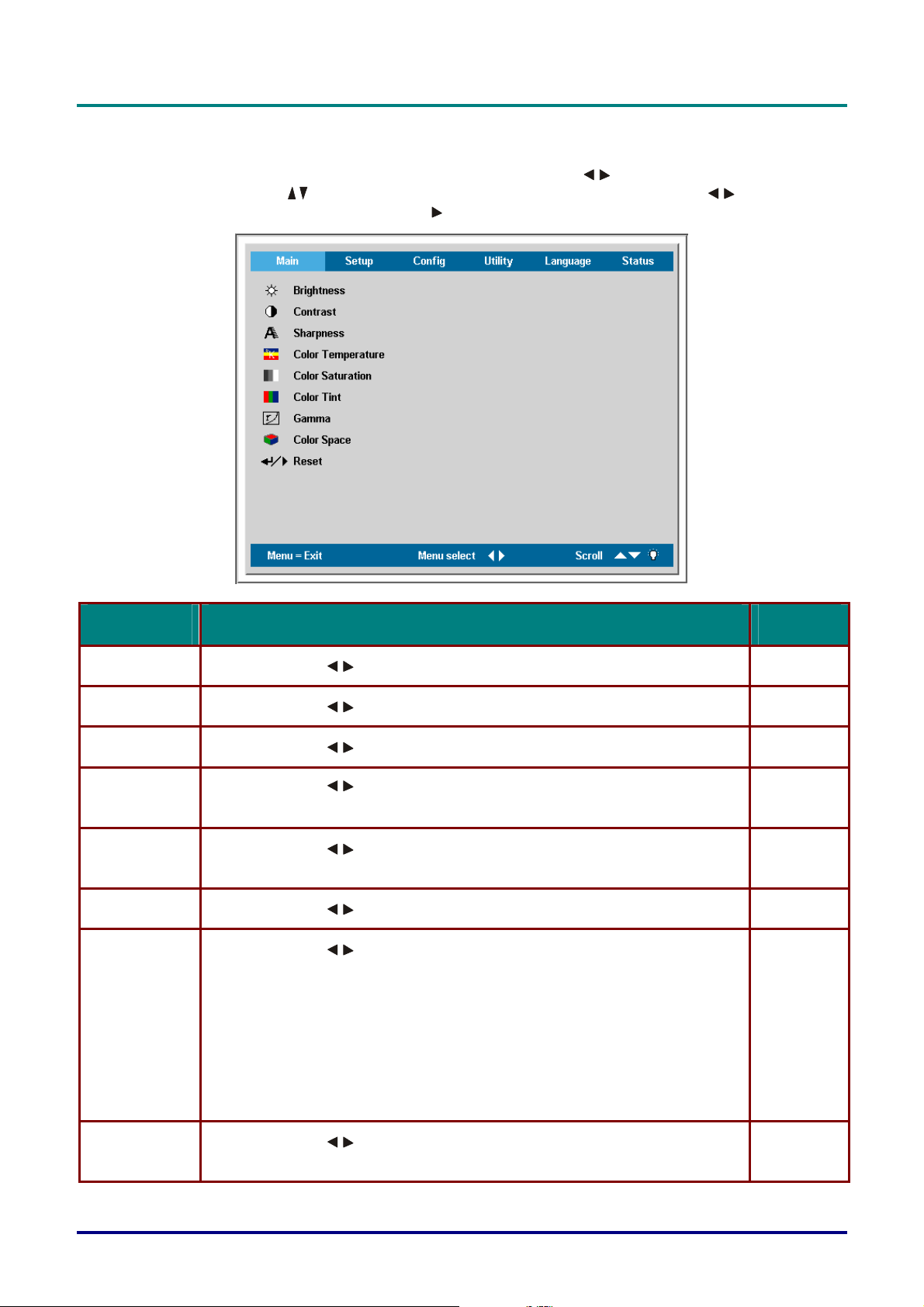

Main Menu

Press the Menu button to open the OSD menu. Press the cursor button to move to the Main menu. Press the cursor values for settings, and then press Enter or

button to move up and down in the Main menu. Press to change

to confirm the new setting.

s

e

r

’

s

M

a

n

u

a

l

s

e

r

’

s

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

I

TEM

D

Brightness Press the cursor button to adjust the brightness. (Range: 0 – 100) 50

Contrast Press the cursor button to adjust the contrast. (Range: 0 – 100) 50

Sharpness Press the cursor button to adjust the display sharpness (Range: 1-5) 3

Color Temperature

Color Saturation

Color Tint Press the cursor button to adjust the video tint/hue. (Range: 0 – 100)

Gamma Press the cursor button to adjust the gamma correction of the display.

Press the cursor (Range: Cool/Normal/Warm)

Press the cursor button to adjust the video saturation. (Range: 0 – 100) 50

Input Gamma

PC 2.2 MAC 1.8 Video 2.4 Chart 2.2 B&W 2.4

button to adjust the video tint/hue.

ESCRIPTION

D

EFAULT

Normal

50

PC

Color Space Press the cursor button to adjust the color space.

(Range: Auto – RGB – YPbPr- YCbCr )

– 17 –

Auto

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

I

TEM

D

Reset Resets all Main settings to default values —

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

ESCRIPTION

D

Main Menu Functions Available for Connected Source

Function RGB DVI Component Video Composite Video S-video

Brightness O O O O O Contrast O O O O O Sharpness O O O O O Color Temp O O O O O Color Saturation O O O Color Tint O O O Gamma O O O O O Color Space O O O O O

EFAULT

Reset O O O O O

O = available to video source

– 18 –

D

L

P

r

o

j

e

c

t

o

r

–

U

D

L

P

r

o

j

e

c

t

L

P

o

r

o

j

e

c

t

o

s

r

–

U

s

r

–

U

s

Setup Menu

Press the Menu button to open the OSD menu. Press the cursor button to move to the Setup menu. Press the cursor values for settings, and then press Enter or

button to move up and down in the Setup menu. Press to change

to confirm the new setting.

e

r

’

s

M

a

n

u

a

l

e

r

’

s

M

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

I

TEM

D

Horizontal Position

Vertical Position

Keystone Press the cursor button to correct distortion of the projected image.

Aspect Ratio Press the cursor button to toggle between the 4:3 standard format and the

Advance Feature

Reset Resets Keystone and Aspect Ratio to default values —

Press the cursor button to move the image left or right. (Range: 0 – 100) 50

Press the cursor button to move the image up or down. (Range: 0 – 100) 50

(Range: -50 – +50)

16:9 High Definition TV (HDTV) format.

See “Advance Feature” on page 20. —

ESCRIPTION

D

EFAULT

0

16:9

Setup Menu Functions Available for Connected Source

Function RGB DVI Component Video Composite Video S-video

H Position O V Position O Keystone correction O O O O O Aspect Ratio O O O O O

– 19 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

Function RGB DVI Component Video Composite Video S-video

Advance Feature O O O O O Reset O O O O O

O = available to video source

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Advance Feature

Press the Menu button to open the OSD menu. Press move to the Advance Feature menu and then press Enter or . Press the Advance Feature menu. Press to change values for settings, and then press Enter or confirm the new setting.

to move to the Setup menu. Press to

to move up and down in

to

I

TEM

D

White Peaking

Logo Display

Fan Speed Press the cursor button to toggle between Normal and High fan speeds.

White Peaking increases the output in the brightest whites without changing the blacks and dark grays. It crushes the whites slightly, but it does not appear to clip them or seriously obscure white detail. If you prefer a stronger image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Press

Press and when no source is detected. (Range: On – Off)

Set Fan Speed to High in altitudes over 1500 meters (5000 feet).

to adjust the value of white peaking. (Range: 0 – 10)

to enable or disable if the logo displays when the projector starts,

ESCRIPTION

– 20 –

D

EFAULT

Data

source: 10

Video

source: 2

On

Normal

I

TEM

D

ESCRIPTION

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

D

L

P

r

o

j

e

c

t

o

r

L

P

r

o

j

–

e

c

t

o

r

–

’

U

s

e

r

’

U

s

e

r

D

s

M

a

s

M

a

’

s

M

EFAULT

n

u

a

l

n

u

a

l

a

n

u

a

l

Security Lock Press the cursor button to enable or disable Security Lock. When you

enable Security Lock a Register Password dialog box appears:

You can only use the cursor buttons Press the cursor buttons in any order and confirm to set the password. When the password is enabled, it must be entered every time after you power on the projector. See “Setting an Access Password (Security Lock)” on page 12 for steps on setting the password.

Reset Resets White Peaking, Logo Display and Auto Keystone settings to default

values

Note:

If Security Lock is enabled, you must enter the password every time the projector is turned on. However, if the projector is already turned on, Security Lock can be disabled without knowing the current password.

in the password fields.

—

– 21 –

D

L

P

®

D

L

P

®

L

P

®

User Color

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Press the Menu button to open the OSD menu. Press to move to the Setup menu. Press move to the Advance Feature menu and then press Enter or . Press Color menu and then press Enter or . Press to change values for settings, and then press Enter or

to move up and down to select a color. Press

to confirm the new setting.

to move to the User

to

I

TEM

D

Red Press the cursor button to adjust the red color level. (Range: 0 - 100) 80 Green Blue Cyan Magenta Yellow White Reset Resets all User Color settings to default values —

Press the cursor Press the cursor Press the cursor Press the cursor Press the cursor button to adjust the yellow color level. (Range: 0 - 100) Press the cursor

button to adjust the green color level. (Range: 0 - 100) button to adjust the blue color level. (Range: 0 - 100) button to adjust the cyan color level. (Range: 0 - 100) button to adjust the magenta color level. (Range: 0 - 100)

button to adjust the white color level. (Range: 0 - 100)

ESCRIPTION

D

EFAULT

80 80 80 80 80 80

– 22 –

D

L

P

r

o

j

e

c

t

o

r

–

U

s

D

L

P

r

o

j

e

c

t

o

L

P

r

o

r

j

e

c

t

o

e

–

U

s

r

e

–

U

s

e

Config Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Config menu. Press the cursor values for settings, and then press Enter or

button to move up and down in the Config menu. Press to change

to confirm the new setting.

r

’

s

M

a

n

u

a

l

r

’

s

M

r

’

s

M

a

n

u

a

l

a

n

u

a

l

I

TEM

D

Blank Screen Press the cursor button to select a background color for the blank

screen. (Range: Black – Red – Green – Blue – White)

Auto Source

Auto Power Off

Volume

Menu Position

Menu Display

Translucent Menu

Reset Resets all Config items to default values

Press the cursor detection. (Range: On – Off)

Press the cursor button to enable or disable automatic shut-down of lamp after 10 minutes of inactivity. (Range: On – Off)

Press the cursor

100) Press the cursor

(Range: Left – Right – Center – Down – Up) Press the cursor

(Range: 10 – 20 sec.) Press the cursor button to set menu screen translucency.

(Range: 0% – 100%)

button to enable or disable automatic source

button to adjust the audio volume level. (Range: 0 -

button to position the OSD on screen.

button to determine the timeout delay of the OSD.

ESCRIPTION

D

EFAULT

Blue

On

Off

50

Center

15

0%

Note: The Config menu functions are available to all video sources.

– 23 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Utility Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Utility menu. Press the cursor values for settings, and then press Enter or

button to move up and down in the Utility menu. Press to change

to confirm the new setting.

I

TEM

D

Video Type Press the cursor button to select the video standard

(Range: Auto – NTSC – PAL – SECAM)

Video AGC Press the cursor button to enable or disable automatic

gain control for the video source. (Range: On – Off)

Projection

Frequency Press the cursor button to adjust the A/D sampling

Press the cursor button to choose from four projection methods:

Desktop mount, front of screen

Desktop mount, rear of screen

Ceiling mount, front of screen

Ceiling mount, rear of screen

clock. (Range: 0° - 180°)

ESCRIPTION

D

EFAULT

Auto

Desktop front

Auto detected

On

Tracking Press the cursor button to adjust the A/D sampling

number. (Range: 1 - 100)

– 24 –

Auto detected

I

TEM

D

ESCRIPTION

D

L

P

r

o

j

e

c

t

o

r

–

D

L

P

r

o

j

L

P

e

P

r

o

j

e

c

t

o

r

–

c

t

o

r

–

D

U

s

e

r

U

s

e

r

U

s

e

EFAULT

’

s

M

a

n

u

a

l

’

s

M

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Noise Reduction Press the cursor button to reduce noise for sources of

Video , S-Video , 480i and 576i

Reset Resets Video Type, Video AGC, Projection, and Noise

Reduction to default values

On

—

Utility Menu Functions Available for Connected Source

Function RGB DVI Component Video Composite Video S-video

Video Type O O Video AGC O O Projection O O O O O Frequency O O Tracking O Digital Zoom O O O O Reset O O O O O

O = available to video source

– 25 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Language Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Language menu. Press the cursor Enter or

to confirm the new setting.

button to move up and down in the Language menu. Press

I

TEM

D

English French German Italian Spanish Swedish Chinese Simplified Chinese Traditional Japanese Korean Portuguese

Press the cursor menu.

Press the Enter or

ESCRIPTION

button to move up and down in the

to confirm the language.

D

EFAULT

English

Russian

– 26 –

D

L

P

r

o

j

e

c

t

o

r

–

U

s

D

L

P

r

o

j

e

c

t

o

L

P

r

o

r

j

e

c

t

o

e

–

U

s

r

e

–

U

s

e

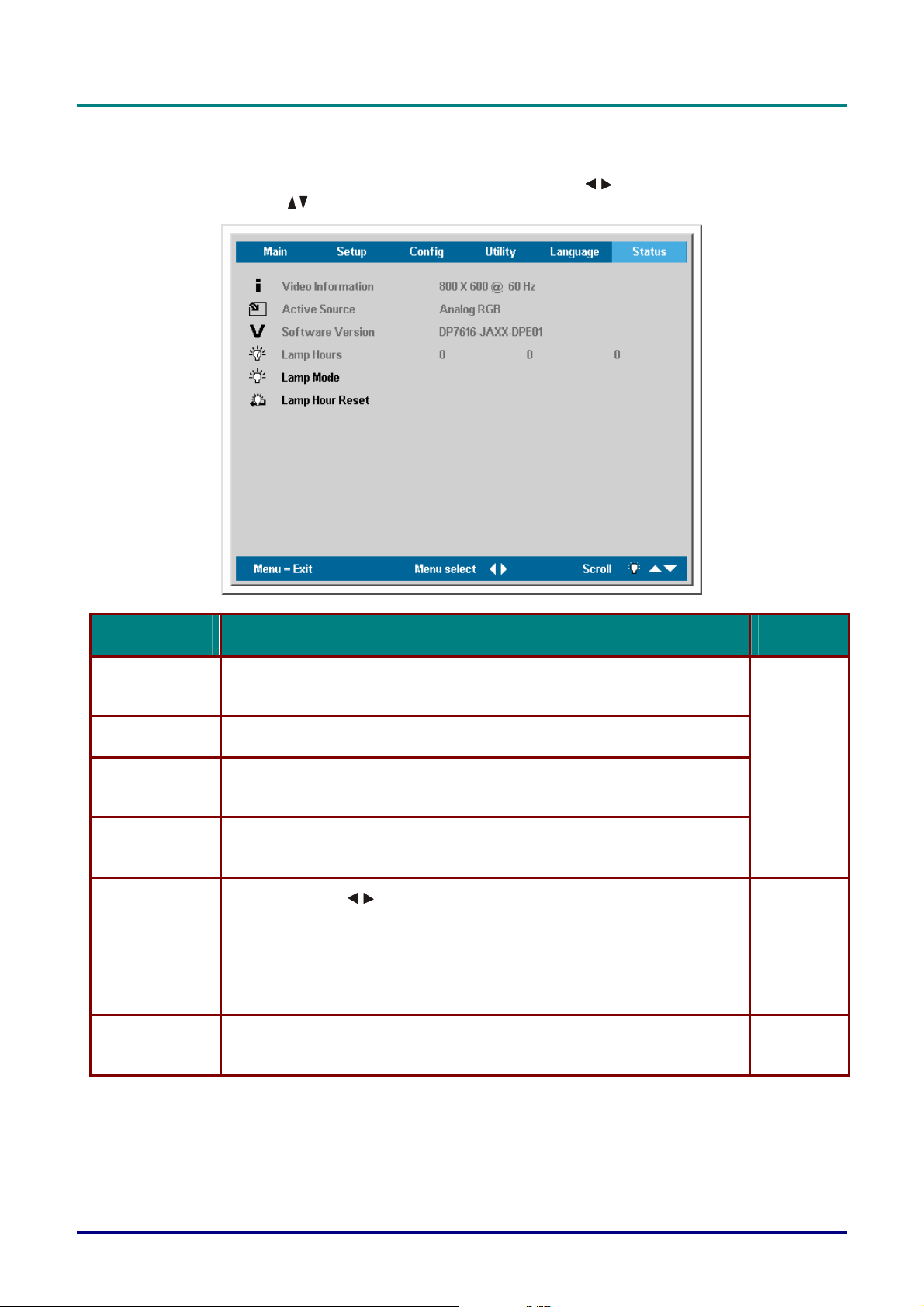

Status Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Status menu. Press the cursor

button to move up and down in the Status menu.

r

’

s

M

a

n

u

a

l

r

’

s

M

r

’

s

M

a

n

u

a

l

a

n

u

a

l

I

TEM

D

Video Information

Active Source Displays the active source.

Software Version

Lamp Hours Shows the number of hours lamp has been in use for Eco, Normal, and

Lamp Mode Press the cursor button to choose the lamp mode.

Lamp Hour Reset

Displays the resolution and refresh rate for RGB/DVI mode. Displays the color standard for video mode.

Displays information about the software version.

Boost mode.

Range: Eco; Normal; and Boost.

Eco mode uses less power and extends lamp life, but decreases lamp brightness. Boost mode uses more power and increases lamp brightness, but shortens lamp life.

After replacing the lamp, this item should be reset. Refer to “Replacing the Projection Lamp” on page 28.

ESCRIPTION

D

EFAULT

These

items are

display

only.

Normal

—

– 27 –

M

AINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local

ordinance regulations.

2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so could result in a severe burn.

Loosen the two captive

1.

screws on the lamp compartment cover (A).

Remove the lamp

2.

compartment cover (B).

B

A

– 28 –

Remove the two screws from

3.

the lamp module (A).

A

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Lift the module handle up (B).

4.

Pull firmly on the module

5.

handle to remove the lamp module.

A

B

Reverse steps 1 to 5 to install

6.

the new lamp module.

– 29 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

Press the Menu button to open the

1.

Main menu.

Press the cursor button to move

2.

to the Status menu.

Press the cursor button to move

3.

down to Lamp Hour Reset.

Press the cursor or Enter button.

4.

A message screen appears.

Press the cursor buttons in this order:

5.

; ; ; .

The Status menu appears again showing the Lamp Hours reset to zero.

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so

could result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

– 30 –

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

D

L

P

r

o

j

e

c

t

o

r

–

U

s

L

P

r

o

j

e

c

t

o

r

e

–

U

s

e

a

r

’

s

M

r

’

s

M

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe

the case.

n

u

a

l

a

n

u

a

l

a

n

u

a

l

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable. The security lock corresponds to Kensington’s MicroSaver Security System. If you have any

comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA94403, U.S.A. Tel: 800-5354242, http://www.Kensington.com.

– 31 –

T

ROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.

• Ensure the projector is turned on.

• Ensure all connections are securely attached.

• Ensure the attached device is turned on.

• Ensure a connected PC is not in suspend mode.

• Ensure a connected notebook computer is configured for an external display. (This is

usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts. For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

– 32 –

LED Error Messages

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

LED S

NUMBER OF FLASHES

Ready

Power

TATUS

/

D

ESCRIPTION

Flashing Lamp not ready—do not press the power button

1 T1 sensor error / Ballast Fan error / Lamp off(Option)

2 Burner Fan error

3 Ballast UART error / Lamp Fan error

4 Power Fan error

2 Environment Task Created Fail

3 System overheating

4 T1 sensor error

5 Ballast UART error / Lamp off(Option)

6 Fan Error

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control or projector.

3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default settings.

– 33 –

D

L

P

®

P

r

o

j

e

c

t

o

r

D

L

P

®

P

r

L

P

o

®

P

r

o

2. To ensure the problem is not caused by a connected PC’s video card, connect to another

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Main menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.

—

j

e

c

t

o

r

—

j

e

c

t

o

r

—

computer.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is green.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Ready LED is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

U

s

e

r

’

s

M

a

n

u

a

l

s

e

r

’

s

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

– 34 –

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

D

L

P

r

o

j

e

c

t

o

r

L

P

r

o

j

–

e

c

t

o

r

–

’

U

s

e

r

’

U

s

e

r

’

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it.

s

M

a

n

u

a

l

s

M

s

M

a

n

u

a

l

a

n

u

a

l

– 35 –

S

PECIFICATIONS

Specifications

Display type TI DMD 0.65”, 720P-WXGAx1, LVDS DLP® with DDP 3020 ASIC

controller

Resolution WXGA 1280 x 768 native

Color 16.7 Million (30-bits/pixel)

Bandwidth Up to 170 MHz

Weight 2.0 kg (4.4 lbs.)

Projection distance 1.5 to 7 meters (59 to 276 inches)

Projection screen size 0.8 to 4.39 meters (31.51 to 172.73 inches)

Brightness uniformity Typical 80%; minimum 70%

Projection lens Manual and digital zoom; manual focus

Zoom ratio 1.16

Vertical keystone correction

Projection methods Desktop front/rear; ceiling front/rear

Data compatibility IBM PC or compatibles (VGA, SVGA, XGA, SXGA, UXGA), Mac

SDTV/EDTV/HDTV 480i, 576i/480p, 576p/720p, 1080i

Video compatibility NTSC/NTSC 4.43, PAL (B/G/H/I/M/N 60), SECAM

H-Sync 15,31 - 90 kHz

V-Sync 50 - 85 Hz

Safety certification FCC Class B, UL, C-UL, CE, CB, TUV-CB

Operation temperature 5° C ~ 35° C

Dimensions See “Projector Dimensions” on page 41

+/- 15

Power consumption 260W (normal mode); 235W (ECO mode); 295W (boost mode) @110

Vac

Stand By < 10 watts

Lamp Boost mode: 230W; normal mode: 200W; Eco mode: 180W

– 36 –

D

L

D

L

D

L

Audio speaker 1W mono speaker

Input/output connectors

DVI-I PC

USB

Composite video (RCAx1) Video

S-video (Mini-DIN)

Audio-in Mini-jack

Audio-out Mini-jack

Security Kensington slot

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

– 37 –

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Projection Distance V.S. Projection Size

A B

0.65” WXGA Max. Screen Size Min. Screen Size

L Projection Distance

C

D

Projection

Distance L

1.00 m 0.63 m 0.55 m 0.31 m 0.53 m 0.47 m 0.26 m

3.28 ' 24.68 '' 21.51 '' 12.10 '' 21.00 '' 18.31 '' 10.30 ''

1.50 m 0.94 m 0.82 m 0.46 m 0.80 m 0.70 m 0.39 m

4.92 ' 37.01 '' 32.27 '' 18.15 '' 31.51 '' 27.47 '' 15.45 ''

2.40 m 1.50 m 1.31 m 0.74 m 1.28 m 1.12 m 0.63 m

7.87 ' 59.22 '' 51.63 '' 29.04 '' 50.41 '' 43.95 '' 24.72 ''

2.80 m 1.75 m 1.53 m 0.86 m 1.49 m 1.30 m 0.73 m

9.18 ' 69.09 '' 60.24 '' 33.88 '' 58.81 '' 51.27 '' 28.84 ''

3.20 m 2.01 m 1.75 m 0.98 m 1.71 m 1.49 m 0.84 m

10.50 ' 78.96 '' 68.84 '' 38.72 '' 67.21 '' 58.60 '' 32.96 ''

3.60 m 2.26 m 1.97 m 1.11 m 1.92 m 1.67 m 0.94 m

11.81 ' 88.83 '' 77.45 '' 43.57 '' 75.61 '' 65.92 '' 37.08 ''

4.00 m 2.51 m 2.19 m 1.23 m 2.13 m 1.86 m 1.05 m

13.12 ' 98.70 '' 86.05 '' 48.41 '' 84.01 '' 73.25 '' 41.20 ''

4.40 m 2.76 m 2.40 m 1.35 m 2.35 m 2.05 m 1.15 m

Diagonal

Width

A

Height

C

Diagonal

Width

B

Height

D

14.43 ' 108.58 '' 94.66 '' 53.25 '' 92.42 '' 80.57 '' 45.32 ''

4.80 m 3.01 m 2.62 m 1.48 m 2.56 m 2.23 m 1.26 m

15.74 ' 118.45 '' 103.27 '' 58.09 '' 100.82 '' 87.90 '' 49.44 ''

5.20 m 3.26 m 2.84 m 1.60 m 2.77 m 2.42 m 1.36 m

17.06 ' 128.32 '' 111.87 '' 62.93 '' 109.22 '' 95.22 '' 53.56 ''

5.60 m 3.51 m 3.06 m 1.72 m 2.99 m 2.60 m 1.47 m

18.37 ' 138.19 '' 120.48 '' 67.77 '' 117.62 '' 102.55 '' 57.68 ''

7.00 m 4.39 m 3.83 m 2.15 m 3.73 m 3.26 m 1.83 m

22.96 ' 172.73 '' 150.60 '' 84.71 '' 147.02 '' 128.18 '' 72.10 ''

10.00 m 6.27 m 5.46 m 3.07 m 5.33 m 4.65 m 2.62 m

32.80 ' 246.76 '' 215.14 '' 121.01 '' 210.03 '' 183.12 '' 103.00 ''

Shaded rows are equivalent measurement in feet and inches

– 38 –

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

D

L

P

r

o

j

e

c

t

o

r

L

P

r

o

j

–

e

c

t

o

r

–

’

U

s

e

r

U

s

e

r

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector.

s

M

a

n

u

a

l

’

s

M

’

s

M

a

n

u

a

l

a

n

u

a

l

Signal Resolution

NTSC -- 15.734 60.0 Ο -- --

PAL/SECAM -- 15.625 50.0 Ο -- --

VESA

640 x 350 31.5 70.1 -- Ο Ο 640 x 350 37.9 85.1 -- Ο Ο 720 x 350 31.5 70.0 -- Ο Ο 640 x 400 31.5 70.1 -- Ο Ο 640 x 400 37.9 85.1 -- Ο Ο 720 x 400 31.5 70.0 -- Ο Ο 720 x 400 37.9 85.0 -- Ο Ο 640 x 480 31.5 60.0 -- Ο Ο 640 x 480 37.9 72.8 -- Ο Ο

Frequency H.

(KHz)

Frequency V.

Video Digital Analog

(Hz)

640 x 480 37.5 75.0 -- Ο Ο 640 x 480 43.3 85.0 -- Ο Ο 800 x 600 35.2 56.3 -- Ο Ο 800 x 600 37.9 60.3 -- Ο Ο 800 x 600 46.9 75.0 -- Ο Ο 800 x 600 48.1 72.2 -- Ο Ο

800 x 600 53.7 85.1 -- Ο Ο 1024 x 768 48.4 60.0 -- Ο Ο 1024 x 768 56.5 70.1 -- Ο Ο 1024 x 768 57.7 72.0 -- Ο Ο 1024 x 768 60.0 75.0 -- Ο Ο 1024 x 768 68.7 85.0 -- Ο Ο

1280 x 1024 64.0 60.0 -- Ο Ο

1280 x 1024 80.0 75.0 -- ○ ○

1280 x 1024 91.1 85.0

– 39 –

-- ○ ○

D

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

L

P

®

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

®

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

1280 x 768 47.4 60 -- ○ ○

1600 x1200 75.0 60 -- ○ ○

a

n

u

a

l

a

n

u

a

l

Apple Macintosh

HDTV

Ο: Frequency supported

--: Frequency not supported

*The native resolution of the panel is 1280 x 768. Resolution others than 1280 x 768 may be display with uneven size of text or line.

*The color of mean Displayable only. (4:3 only) *The color of mean may have a little noise is acceptable

640 x 480 35.0 66.7 -- Ο Ο

832 x 624 49.7 74.5 -- Ο Ο 1024 x 768 60.2 74.9 -- Ο Ο 1152 x 870 68.7 75.1 -- Ο --

1920 x 1080 33.8 30.0 Ο -- -1920 x 1080 28.1 25.0 Ο -- --

1280 x 720 45.0 60.0

720 x 576 31.3 50.0 Ο -- -- SDTV

720 x 480 31.5 60.0

Ο -- --

* HDTV timing main check tool is DVD player, VG828 is secondary.

– 40 –

Projector Dimensions

25.9cm (10.2 inches)

D

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

–

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

–

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

6.9 cm (2.7 inches) 19.3 cm (7.6 inches)

– 41 –

R

EGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

UL, CUL, CB, TUV-GS

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room, or auditorium.

– 42 –
