009-0214-01
SAFETY SUMMARY
: Please
read these instructions before
using your LitePro 210. Failure to
comply could result in fire,
electrical shock, personal injury or
equipment damage.
Definition of Safety Icons
on Product Labels
Refer to the User’s
Guide for more
informat i on.
Avoid hot surfaces.
Bulb explos io n
haza rd.
Don’t Look Into The Lens!
Be extremely careful not to look directly into the lens when the 210 is on. The
bright light can harm your eyes. Be especially careful to keep children from looking into the lens.
Don’t Disassemb le
Do not open the 210 case! Doing so exposes you to an electric shock hazard.
Except for the projection lamp, there are no user-serviceable parts. All service
must be performed by an In Focus Systems Authorized Service Provider.
Avoid Hot Su rfaces
The inside of the 210 lamp housing can be very hot. Allow the 210 to cool for at
least 45 minutes before opening the lamp door to replace the lamp. Use extreme
care. Avoid touching the hot surfaces inside.
Use On ly T he 210 Power Cord
Always use the power cord that came with the 210. Although other cords might
look the same, they have not been safety-tested with the 210. Never use the power
cord if it’s damaged or frayed. When you disconnect the 210, always remove the
power cord from the electrical outlet first, then from the 210.
Don’t Defeat The Purp o se Of The Grounding Plug
The 210 is grounded through the grounding conductor on the power cord. To
avoid electric shock, plug the power cord into a properly wired receptacle.
Use The Correct Fuse
To avoid the risk of fire, use only a T6.3AH 250V 5x20mm fuse.
Avoid Liquid Spills
Don’t set drinks on top of the 210. Spilled liquids can flow inside causing damage.
Don’t Block Ventilation
Openings in the case provide ventilation to protect the 210 from overheating.
Keep loose papers and other objects away from the bottom, top and side grills.
Don’t place the 210 on top of or close to a computer or other heat-producing
equipment.
TABLE OF CONTENTS
Safety Summary iii
Introduction 1
Image Resolution 1
Compatibility 2
Unpacking the Projector 2
Usage Guide lines 4
If You Need Assistance 4
Warranty 4
Setting up the Projector 5
Connecting the CableWizard to th e Projector 6
Selecting Connectors on the CableWizard 6
Preparing to Connect Your Equipment to the Projector 8
Connecting an IBM-Compatible Desktop Computer 9
Connecting an IBM-Compatible Laptop Computer 11
Connecting a Macintosh Desktop Computer 13
Connecting an Apple PowerBook Computer 15
Connecting a Video Player 17
Connecting an External Speaker and a Subwoofer 19
Connecting a Microphone 20
Connecting a PS/2-Compatible Mouse. 20
Connecting the Remote Contr ol Cable 21
Powering up the Projector and Adjusting the Image 21
Turning Off the Projector 23
Using the Projector 25
Basic Image Adjustment 25
Using the Remote Control 25
Adjusting the Projector 26
Using the Remote and Keypad Buttons 28
Using the Disk Mouse 32
Using the On-Screen Menus 32
Display Menu Functions 33
Audio Menu Functions 35
Image Menu Functions 37
Controls Menu Functions 39
i
Table of Contents
Maintenance 41
Cleaning the Lens 41
Removing and Replacing a Lens 41
Using the Zoom Lens 42
Replacing the Projection Lamp 43
Resetting the Lamp Monitor Light 44
Replacing the Batteries in the Remote Control 45
Replacing the Fuse 45
Using the Kensington Lock 47
Troubleshooting 49
Solutions to Common Problems 50
Appendix 55
Specifications 55
Accessories 57
Portable and Laptop Activation Chart 59
Using Video Mirroring with a PowerBook Computer 63
Projected Image Size 64
Index 67
ii
SA FE TY S UM MARY
Plea se read these instruct ion s caref ully before u sing your Lite Pro
210 or 220. Failure to comply with them could result in fire, elec trical shock, personal injury or damage to equipment.
These graphics are used throughout this manual to draw your
attention to important information about the projec tors.
NOTE: Additional useful details or tips.
CAUTION: Steps to take to avoid damage to your equipment.
WARNING: Steps to take to avoid personal in jury.
These graphics are used on LitePro labels.
Attention - Refer to this User’s Guide for important
safety information.
Hot Surfaces - Avoid touching hot surfaces. Do not
touch until the LitePro has cooled.
Lamp Explosion Hazard - If you continue to use the
lamp after the lamp monitor light comes on, it may
explode, severely damaging your LitePro. Be sure to
replace th e lamp when the lamp monitor light comes on
as described in this User’s Guide. Refer to the section
titled “Replacing the Projection Lamp” for information
about changing the bulb.
Do Not Look Into The Lens!
Be extreme ly careful not to look into the project ion le ns whe n the
LitePro is turned on. The bright light may harm your eyes. Be
especially careful to keep children from looking into the l ens.
iii
Safety Summary
Power Source
Use only a three-wire grounding type power source. The power
source should not exceed 250 volts rms between the supply conductors or between either conductor and the ground.
Power Cord
Use only the power cord that was shipped with the LitePro.
Although other pow er cords might be similar in appearan ce, they
have not been safety-tested with the 210 or 220. D o not use a
power cord if it has become damaged or frayed. Contact your In
Focus dealer or call In Focus if you need to replace your power
cord.
Grounding
The projector is grounded through the grounding conductor on
the power cord. To avoid electric shock, plug the po wer cord into
a properly wired receptacle. Do not defeat the purpos e of the
grounding-type plug.
Fuse
For continued protection against the risk of fire, use only the
specified fuse. It must be a time d elay, high breaking capacity
5x20mm fuse with the following amperages: for 6.3amp use
T6.3AH, for 8amp use T8AH. Refer to page 55 for more informa-
CAUTION: Be sure to replace
the projection bulb when the lamp
monitor light comes on as
described on page 43. If the lamp
remains in use too long, there is a
danger of bulb explosion. If this
happens, your LitePro will be
severely damaged.
tion about fuse specifications and to page45 for instructions on
replacing t he fuse.
Lamp
To avoid overheating and unacceptable image quality, replace
the projection lamp with a lamp of the specified type. Refer to
page 56 for lamp specific ation s and to page 43 for instruction s on
replacing the lamp.
Lamp Compartment
To avoid burns or an explosion hazard, do not open the lamp
module door until the projector is turned off and the lamp has
cooled. The hot lamp contains high pressure and can explode if
damaged or old. Follow the instructions in this manual for lamp
replacement carefully.
iv
Hot Surfaces
Allow th e projector to cool at least 45 minutes before replacing a
lamp. When you open the lamp housing, be very careful not to
touch the hot surfaces inside.
Ventilation and Overheating
Openings in the projector case provide ventilation to protect it
from o verhe atin g. Kee p loo se paper s and other objects well awa y
from th e bott om, top an d side grills. Do not place the proje ctor on
top of or close to a computer or other heat-producing equipment.
Liquid Spills
Do not set dri nks on t op of t he projector. Spill ed liquids can flow
inside and cause damage.
Do Not Disassemble
All LitePro service must be performed by an authorized In Focus
service center. The only user-serviceable part in the LitePro is the
projection lamp, which you can replace by opening the lamp
cover on the bottom of the projector (see page 43). Do not open
any other part of the LitePro. If your LitePro needs repair, call In
Focus Technical Support as described on page 4. Before you call
Technical Support, you may want to refer to “Troubleshooting”
starting on page 49 to see if you can resolve the problem yourself.
NOTE: If you open the LitePro
case, you will void the warranty.
Don’t Set the LitePro on its Lens
To protect the lens when you are transporting the LitePro, adjust
the lens so it is fully retracted (turn it clockwis e) before you pack
it.
Place the LitePro in its carrying case with the lens facing
upwards. You may damage the LitePro if you set it on its lens.
v
INTRODUCTION
The In Focus Systems LitePro® 210 and 220 multimedia projectors combine powerful and s ophisticated features with easy-touse, intuitive controls. Built- in multim edia fe ature s i nclude audio
by JBL™, a palette of 16.7 million colors and active matrix liquid
crystal display (LCD) technology. The 200 series projectors are
ideal for high-performan c e business, training and imaging applications that demand exceptional color quality. The 210 has VGA
graphics, the 220 has SVGA graphics. The user interfaces of the
two products are identical; information in this User’s Guide
applies to both products.
Image Resolution
LitePro 210
The VGA resolution of the 210’s project ed image is 640x480. It
displays computer images just as they appear on your computer’s monitor. Scre en resolutions betwee n 640x480 and 800x600
are compress ed to 640x480. The 210 cannot compress scr een resolutions above 800x600. If your computer’s screen resolution is
higher than 800x600, reset it to a lower resolution before you connect the 210.
LitePro 220
The SVGA resolution of the 220’s projected image is 800x600. It
displays computer images just as they appear on your computer’s monitor. Screen resolutions between 800x600 and
1024x768 are compressed to 800x600. The 220 cannot compress
screen resolutions above 1024x768. If your computer’s screen resolut ion is higher than 1024x768, reset it to a lower resolution
before you connect the 220.
NOTE: The 220 automatically
expands 640x480 images to
800x600. You can display these
images at 640x480 by turning off
the Auto Resize feature. See “Auto
Resize” on page 37 for more
information.
1
Introduction
Compatibility
The pro jector is compatible with a wide variety of computers an d
video devices, including:
• IBM-compatible computers, including laptops, up to 800x600
resolution (LitePro 210) or 1024x768 resolution (LitePro 220) at
75Hz.
• IBM PS/2 in VGA and MCGA modes.
• Apple Macintosh and PowerBook computers up to 800x600
resolution (LitePro 210) or 1024x768 resolution (LitePro 220).
• Various VCRs, camcorders and laser disc players.
The projector is not compatible with these systems:
• IBM-compatible computers in CGA or EGA graphics mode.
• Macintosh 128, 512, Plus, SE, SE/30 or Classic.
Unpacking the Projector
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your In Focus dealer im mediately if anything is missing.
NOTE: The contents of your
shipping box may vary depending
on the LitePro configuration you’ve
ordered.
2
If you are experien ced in setting up presentat ion system s, use t he
LitePro 210/220 Quick Start card that was included in the shipping
box. For complete details on c onnecting and operating the projector, refe r to this User’s Guide.
1
3
2
7
9
8
10
FIGURE 1
Shipping box contents
1. LitePro 210 or 220 projector 6. RCA audio/video (A/V) cable
2. LitePro 210/220 User’s Guide 7. CableWizard
3. powe r cord 8. CableWizard computer cable
4. remote and batteries 9. CableWizard mouse cable
5. lens cap 10. CableWizard audio cable
6
Not shown: Quick Start card,
remote cable
4
5
3
Introduction
Usage Guidelines
• Do not look directly in to the projection len s when the projector
is turned on. The bright light may harm your eyes.
• The top and bottom of the projector can be very ho t to the
touch after use. Use extreme care or let it cool before lifting it.
Do not block the grills at t he front or top of the projector.
•
NOTE: If t he LitePro overheats
and turns off, you must wait about
45 seconds before you attempt to
turn it back on.
Restricting t h e air flow can cause it to overheat and turn off.

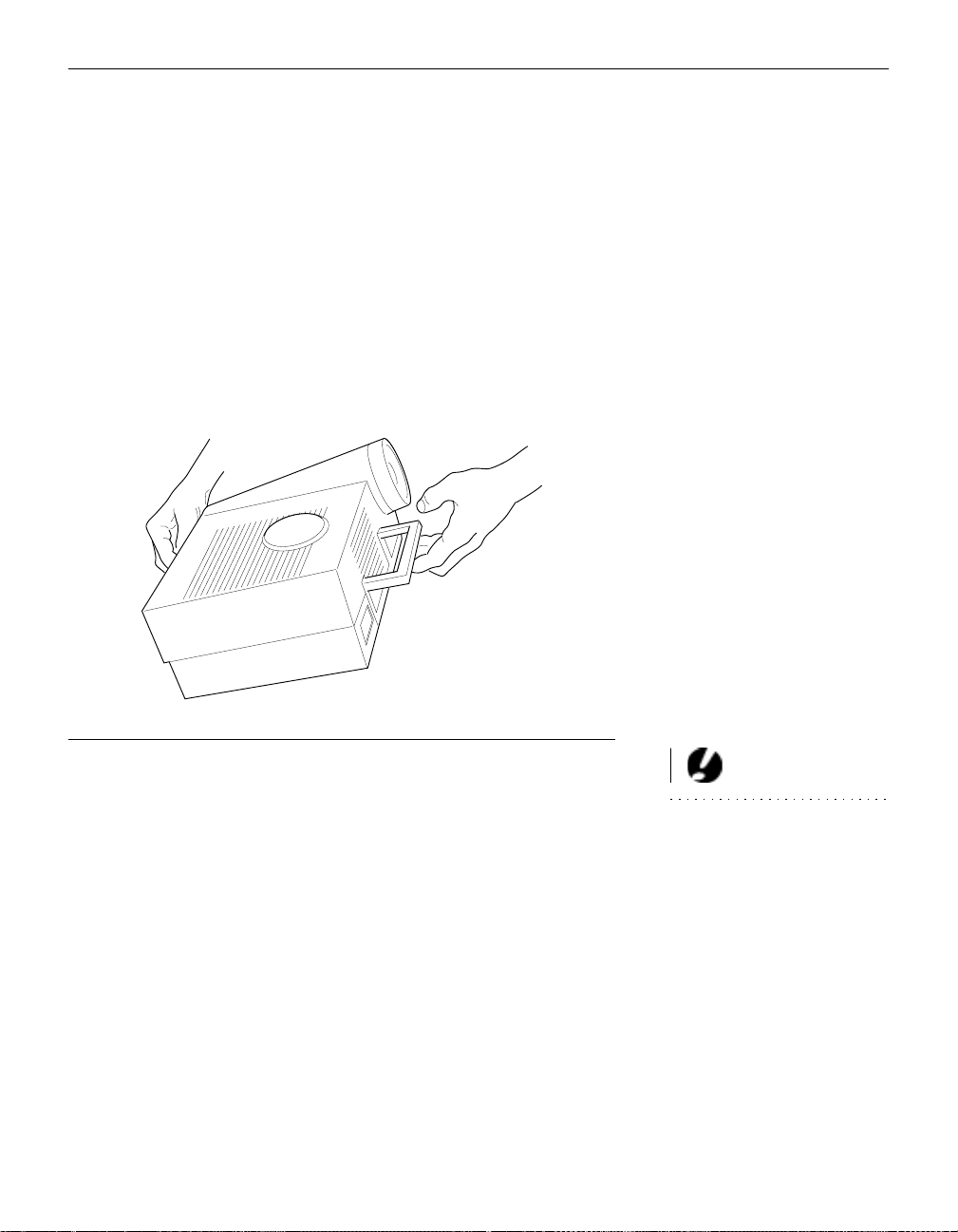

• Handle the projector as you would any product with glass
components. Be especially careful not to drop it.
• Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before us e.
• Transport the project or in a vendor-approved hard or soft case.
Part numbers for these cases are listed on page 57. Call your In
Focus dealer to order.
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guideline s in “Troubleshooting” on page 49.
If this manual doesn’t answer your question, call your In Focus
dealer. You can also call In Focus Customer Service direct ly at
1-800-799-9911. Call between 6 a.m. and 5 p.m. PST, Monday
through Friday. In Europe, call In Focus in The Netherlands at
(31) 23-5623200. In Singapore, call (65) 334-9005. Or, send us an
e-mail at techsupport@infs.com.
The In Focus World Wide Web address is http://www.infs.com.
Warranty
These products are backed by a limited one-year warranty. The
details of the warranty are printed at the back of this manual.
Longer term warranties can be purchased from your In Focus
dealer. Refer to page 58 for part numbers.
4
SETTING UP THE PROJECTOR
1 Place the projector on a flat surf ace.
• The projector must be within 10 feet of your power source
and within 10 feet of your computer.
If you want to project from behind a translucen t screen, set
•
up the projector behind your screen. See “Rear Projection”
on page 40 to reverse the image.
• If you are installing the projector on the ceiling, refer to the
LitePro 200 Series Ceiling Mount Installation Guide for more
informat ion. To t urn the image upside down, see “Ceiling”
on page 39. The Ceiling Mount Kit is sold separately; see
page 58.
2 Position the projector the desired distance from the screen.
• The distance from the lens of the projector to the screen
determines the size of the projected image. Figure 2 shows
three projec ted image sizes using the varifocal lens or the
zoom lens at minimum focusing distance. For more information about image size, see “Projected Image Size” on
page 64.
NOTE: An optional extension
cable, sold separately, lets you
increase the distance between the
projector and your computer to 50
feet. See “Accessories” on
page 57.
3 Make sure the projector and your computer are turned off.
10 ft.
4 ft.
Projected image size (varifocal lens, zoom lens at minimum focusing distance)
25 ft.
FIGURE 2
5
Setting up the Projector
Connecting the CableWizard to the Projector
The CableWizard simplifies the connec tion process by providing
a central hub for all the connections b et ween the projec tor and
your computer. The connectors on th e CableWizard are labeled
with icons.
Connect the end of the CableWizard cord to the
connector on the projector’s connector panel (Figure 3).
CAUTION: Turn off the
computer, m onitor and projector
whenever you connect or
disconnect cables.
IGURE 3
F
Connecting the CableWizard cable to the projector
Selecting Connectors on the CableWizard
Turn the selector on the top of the CableWizard to reveal the
correct connectors for your computer.
FIGURE 4
Selecting connectors on the CableWizard
6
• If you’re connecting an IBM-compatible desktop or laptop com-
puter
, turn the selector unt i l the window displays “PC.”
computer
audio
monitor
mouse
IGURE 5
F
Selecting the IBM-compatible connectors on the CableWizard
If you’re connectin g a Macintosh des ktop or an Apple PowerB ook
•
computer
, turn the selector until the window displays
“Mac™.”
monitor
mouse
computer
NOTE: You must disconnect all
cables before turning the selector
on the CableWizard.
audio
FIGURE 6
Selecting the Macintosh connectors on the CableWizard
7
Setting up the Projector
Preparing to Connect Your E quipmen t to th e Projecto r
Now you’re ready to connect your equipment. Computers are
connected to the Cable Wizard. Video players and other equipment, such as external speakers, are connected directly to the
projector.
Steps for connecting the different types of equipment are given
NOTE: Before you continue,
make sure the projector and your
equipment are turned off. If you’re
connecting a computer, make sure
the distance between it and the
projector is 10 feet or less and
you’ve selected the appropriate
connectors on the CableWizard.
on the pages listed below.
Equipment you want to connect Page
IBM-compatible desktop computer page9
IBM-compatible laptop computer page11
Macintosh desktop computer page13
Apple PowerBook page15
Video player page17
External speakers or subwoofer page19
Microphone page 20
PS/2-compatible mouse page20
Remote control cable page20
8
Connecting an IBM-Compatible Desktop Computer
1 Locate t he cable that con nects your monit or to your comput er.
Unplug it from the computer.
2 Plug the end of the CableWizard computer cable into the
monitor connector on your computer.
3 Plu g the end of the compute r cable into th e connect or
on the CableWizard.
computer cable
FIGURE 7
Connecting the CableWizard computer cable to an IBM-compatible desktop computer
Do you want to display the image on your computer’s monitor as
well as on the projection screen?
1 Plug your monitor’s cable into the connector on the
CableWizard.
Do you want to play your computer’s audio on the projector?
1 Unplug the audi o cable, if present, from your comput er.
2 Plu g eit her end of t he CableWizard audio cable i nto the audio
connector on your computer.
3 Plug the o t her end of the audio cable into th e connec tor
on the CableWizard.
9
Setting up the Projector
Do you want to control your computer’s mouse from the projector’s
remote or keypad?
1 Unplug the mouse cable from your computer.
2 Plug the end of th e CableWizard mouse cable into the
mouse connector on your computer.
3 Plu g the e nd of the CableWizard mouse cable into the
connector on the CableWizard.
monitor cable
computer cable
audio cable
FIGURE 8
Connecting the CableWizard monitor, audio and mouse cables to an IBM-compatible
desktop computer
mous e cable
Now you’re ready to power up the projector and your computer.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.
10
Connecting an IBM-Compatible Laptop Computer
1 Plug the end of the CableWizard computer cable into the
video connector on your computer.
2 Plug the end of the CableWizard computer cable int o the
connector on the CableWizard.
computer cable
FIGURE 9
Connecting the CableWizard computer cable to an IBM-compatible laptop computer
NOTE: Many laptop computers
do not automatically turn on their
external v ideo port when a se condary display device such as a p rojector is connected. Refer to your
computer manual for the command that activates the external
video port. Activation commands
for some laptop computers are
listed in the Appendix of this
manual on page 59.
Do you want to play your computer’s audio on the projector?
1 Plug either end of t he CableWizard audio cable i nto the audio
connector on your computer.
2 Plug the o t her end of the audio cable into th e connector
on the CableWizard.
NOTE: If you don’t want audio or
mouse control, you can use the
CableWizard Lite. CableWiza rd
Lite is ordered separately. See
“Accessories” on page 57.
11
Setting up the Projector
Do you want to control the computer’s mouse from the projector’s
remote or keypad?
1 Locate the mouse cable and unplug it from your computer.
2 Plug the end of the CableWizard mouse cable in to the
mouse connector on your computer.
3 Plu g the end of the CableWizard mouse cable in to the
connector on the CableWizard.
computer cable
audio cable
FIGURE 10
Connecting the CableWizard audio and mouse cables to an IBM-compatible laptop
computer
mouse cable
Now you’re ready to power up the projector and your laptop.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.
12
Connecting a Macintosh Desktop Computer
1 Locate th e cable that connects the monitor to your computer.
Unplug it from the computer.
2 Plug the end of the CableWizard computer cable into the
monitor connector on your computer.
3 Plu g the end of the CableWizard computer cable into the
connector on the CableWizard.
computer cable
FIGURE 11
Connecting the CableWizard computer cable to a Macintosh desktop computer
Do you want to display the image on your computer’s monitor as
well as on the projection screen?
1 Plug the monitor’s cable into the connector on the
CableWizard.
Do you want to play your computer’s audio on the projector?
1 Unplug the audi o cable, if present, from your comput er.
2 Plu g eit her end of t he CableWizard audio cable i nto the audio
connector on your Macintosh.
3 Plug the o t her end of the audio cable into the connector
on the CableWizard.
13
Setting up the Projector
Do you want to control the computer’s mouse from the projector’s
remote or keypad?
1 Unplug the mouse from your Macintosh or locate an unused
ADB conn ector.
2 Plug the end of th e CableWizard mouse cable into the
mouse connector or the (ADB) connector on your
Macintosh.
3 Plug the end of the CableWizard mouse cable into the
connector on the CableWizard.
monitor cable
14
mouse
cable
FIGURE 12
Connecting the CableWizard monitor, audio and mouse cables to a Macintosh desktop
computer
computer cable
audio cable
Now you’re ready to power up the projector and the Macintosh.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.
Connecting an Apple PowerBook Computer
1 Plug the end of the CableWizard computer cable into the
video connector on your PowerBook.
2 Plug the end of the CableWizard computer cable in to the
connector on the CableWizard.
3 If you want the projector display to be the same as the Power-
Book’s screen display, turn on video mirroring. (See “Using
Video Mirrorin g with a PowerBook Computer” on page 63 for
additional information.)
NOTE: Some PowerBooks
require the Apple-supplied videoout cable for external vid eo. Connect it between the PowerBook
and the CableWizard computer
cable as shown in Figure 13.
computer cable
Connecting the CableWizard computer cable to an Apple PowerBook
Do you want to play your computer’s audio on the projector?
PowerBook
video-out cable
FIGURE 13
1 Plug either end of t he CableWizard audio cable i nto the audio
connector on your PowerBook.
2 Plug the other end of the audio cable into the connector
on the CableWizard.
15
Setting up the Projector
Do you want to control the computer’s mouse from the projector’s
remote or keypad?
1 Locate the mouse cable and unplug it from your PowerBook.
2 Plu g the end of the CableWizard mouse cable into the
(ADB) connector on your PowerBook.
3 Plug the end of the CableWizard mouse cable in to the
connector on the CableWizard.
mouse cable
16
PowerBook
audio cable
computer cable
FIGURE 14
Connecting the CableWizard audio and mouse cables to a PowerBook
video-out cable
Now you’re ready to power up the projector and your PowerBook. Skip to “Powering up the Projector and Adjusting the
Image” on page 21.
Connecting a Video Player
1 If your video player uses a round, one-prong composit e video
connector , you’ll need only t he A/V cable that shipped with
the projector.
• If your video player uses a round, four-prong S-video con-
nector, you’ll need an S-video cable in addition to the A/V
cable. The S-video cable is sold separately. (See “Accessories” on page 57.)
2 Plug the A/V cable’s yellow connector into the “video-out”
port on your video player (Figure 15). This port may be
labeled “To Monitor.”
• If you’re using an S-video cable, connect it to the “s-video
out” connector on the video player (Figure 16).
3 Plug the ot her yellow connector into th e composite connector
on the back of the projector.
• If you’re using S-video, plug the other end of the cable into
the “s-video” connector on the projector (Figure 16).
audio/video cable
FIGURE 15
Connecting the projector to a vi deo player using the standard A/V cable (with composite
video connector)
17
Setting up the Projector
CAUTION: Your video player
may also have a “Video Out” port
for a coaxial cable connection.
DO NOT use this to connect to the
projector.
A/V cable
IGURE 16
F
Connecting the projector to a video player using an S-video cable and the audio connectors on the standard A/V cable
S-video cable
4 Plug the A/V cable’s white con nector into the left “a udio out”
port on your video player. Plug the cable’s red connector into
the right “audio out” port on the video player (Figure 15 and
Figure 16).
If you’re using an S-video cable, the yellow connectors on
•
the A/V cable remain unused (Figure 16).
5 Plug the A/V cable’s other white and red connectors to th e
left and right “audio in” ports on the projector.
The projector is compatible with the thre e major broadcast video
standards: NTSC, PAL and SECAM. It automatically adjusts to
optimize its perf ormance for the incomi ng vi deo. You can also set
the video standard manually from the projector’s Controls menu;
see “Video Standard” on page39.
18
Connecting an External Speaker and a Su bwoofer
• To connect one or two external spea ker s, plug the speaker
cables into the two (audio out) connectors on the projector.
•
To connect a subwoofer, plug the subwoofer cable into the
connector on the projector.
subwoofer cable
speaker cable
FIGURE 17
Connecting an external speaker and a subwoofer
NOTE: The external speakers
must be amplified.
19
Setting up the Projector
Connecting a Microphone
• To conn ect a microphone to the projector, plug the microph one
cable into the connector on the projector.
CAUTION: Always keep the
source volume at its lowest level
when installing the microphone.
For information about setting the
microphone level, see page 35.
IGURE 18
F
Connecting a microphone
Connecting a PS/2-Compatible Mouse
• To connect a PS/2-compatible mouse to the projector, plug the
CAUTION: Turn off your
computer, monitor and the
projector whenever you connect
the mouse. Power on the projector
first, then the computer.
NOTE: Using a mouse makes
using the Scribble feature easier .
20
mouse cable into the connector on the projector.
PS/2-compatible
mouse connector
IGURE 19
F
The PS/2- compatible mouse connector on the projector
Connecting the Remote Control Cable
If the projector cannot receive the remote’s signal, as may be the
case if you’re using rear project ion , conne ct th e remote directl y to
the projector with the r e mote cable.
1 Plug the end of the remote cable with the cylinder into the
connector on the projector.
2 Plug the o t her end into the plug on the remo te.
cylinder
FIGURE 20
Connecting the remote control cable
Powering up the Project or and Adjusting the Image
1 Remove the lens cap.
2 Plu g the power cord into the proje ctor (Figure 21), th en plug it
into your electrical outlet. A surge-protected power strip is
recommended if power surges are common in your area.
NOTE: Always use the power
cord that shipped with the
projector.
FIGURE 21
Connecting the power cord to the projector
21
Setting up the Projector
3Turn on the pr ojector.
The power indicator and lamp module LEDs (Figure 22)
•
CAUTION: If the lamp LED
remains solidly lit after the LitePro
ha s powered on, the lamp needs
to be replaced. If the l amp
remains in use too long, it may
explode and severely damage the
LitePro. Refer to “Replacing the
Projection Lamp” on page 43 for
more information.
light so lidly whi le the projec tor in itializes. The power LED
blinks green when the projector begins to power up. When
the proje ctor reache s full pow er, the powe r LED lights solid
green and the lamp LED goes out.
lamp module
indicator LED
power/standby
indicator LED
computer source
indicator LED
FIGURE 22
Indicator LEDs
video source
indicator LED
4 If you connected a video player, turn it on.
• Pre ss th e video button on the remote control or keypad to
display the image f rom your video playe r. The video source
indicator LED displays a solid green indicating the video
source is active (Figure 22). Press computer to return to
your computer’s image.
• Use the volume buttons to adjust the volume.
• If you don’ t want to h ear the so und from your video player,
press the mute button.
5 If you connected any external speakers, turn them on.
6 If you connected your monitor, turn it on.
22
7 Turn on your computer.
• The computer image should display on the projec t ion
screen.
• The computer source indicator LED displays a solid green
indicating the computer source is active (Figure 22).
If necessary, us e the brightness buttons on the remot e con-
•
trol or keypad to adjust the brightness. You can make further adjustments to the image fr om the projector’s onscreen menus. To open the menus, press the menu button
on the remote control or keypad. Then select the Display
menu or the Image menu. For more information about the
menus, see page 32.
• If you don’t want to hear the sound from your com puter or
video player, press the mute button. (Pressing mute does
not mute the microphone.)
Turning Off the Projector
If you want to turn off the projector for a s hort period of time,
press the standby button on the remote control or keypad. Thi s
turns off the lamp but keeps the projector running. The power/
standby indicator LED (Figure 22) blinks green while the projector is in standby. To exit standby mode, press the standby button
once. (It takes several seconds for the projection lamp to reach
full power and project the image again.)
NOTE: With some computers,
the order in which you power up
the equipment is very important.
We recommend that you always
turn on the computer LAST. Turn
on all other pieces of equipment
(including the computer’s monitor) before you turn on the computer.
To completely power off the projector, press the “O” side of the
power switch. If you want to turn the projector back on immediately, you must allow about 45 seconds for the lamp to cool. The
lamp won’t light if it’s too hot.
NOTE: When you disconnect the
projector after you have switched
it off, always remove the power
cord from the electrical outlet first,
then remove it from the projector.
23
USING THE PROJECTOR
This section describes how to use and make adjustments to the
projector. It also provides a reference to the remote control buttons and the options available from the on-screen menus.
Basic Im age Adjustment
1 Make sure you have powered up your equipment in the right
order (page21).
2 If the image doesn’t display completely, adjust the height of
the projector (page 26) or center the image by adjusting its
horizontal or vertical position (page 38).
3 If the image is out of focus, rotate the lens to focus it (pag e 26).
4 If the image appears to shimmer or if it has blurry v ertical
bars after you hav e adjus ted the focus, turn Auto Image
(page 37) off and t hen bac k on to reset the automat ic sync and
tracking. If that doesn’t clear up the image, adjus t the sync
(page 37) and/or the tracking (page38) manually.
5 If the colors don’t look right, adjust the brightness (page 29).
Using the Remote Control
Point the remote control at th e proje ction screen or at the f ront or
rear of th e projector. The range for optimum operation is about
40 feet. If you point the remote at the projection screen, the distance to the screen and back to the projector must be less than or
equal to 40 feet. For best results, point the remote directly at the
front or the rear of the projector.
NOTE: If you can’t aim the
remote control at the projector so
that its signal is received
example, when using rear projec-
— connect the remote
tion
directly to the projector with the
remote control cable (page 21).
— for
25
Using the Projector
Adjusting the Projector
To focus the image, rotate the projection lens until the image is
clear. Rotate the lens clockwise for a longer focusing distance;
counterclockwise for a shorter focusing distance.
If the projected image s eems wider at th e bottom or at the top,
rotate the keystone adjustment dial on t he back of the projector
until the image is correct (Figure 23).
FIGURE 23
Keystone adjustment knob
The projector is equipped with a self-locking, quick-release elevator foot and a leveling knob.
quick-release elevator button
leveling knob
FIGURE 24
Quick-release elevator foot and leveling knob
26
To raise the projector:
1 Raise the front of the project o r off the table by liftin g up on the
handle (Figure 25).
2 While holding the projector, press and hold the quick-release
button (Figure 25).
3 W hen the projector is the height you want, release the button
to lock the e levator foot into position.
4 If necessary, use the leveling knob (Figure 24) to adjust the
angle of the projected image.
FIGURE 25
Adjusting the height of the projector
To lower the projector:
1 Hold the projec tor’s handle.
2 Pr ess the elevator’s quick release button.
3 Lower the projector.
4 If necessary, use the leveling knob (Figure 24) to readjust the
angle of the projected image.
CAUTION: Always hold the projector’s handle when y ou press the
elevator’s quick release button.
27
Using the Projector
Using the R emote and Keypad Buttons
This section provides an alphabetical reference to the remote and
keypad buttons.
28
FIGURE 26
Remote control
IGURE 27
F
Keypad
Brightness
Adjus ting the brightness lightens or darkens the image.
• To darken the image, press
• To lighten the image, press
The brigh tne ss buttons are auto-repeating; they repeat their func-
tion as long as you hold down the button.
Computer
When you have more than one source (computer or video) connected to the projector, select between th em by pressi ng the button for the source you want.
Press computer to display the compu ter image.
Freeze
The freeze button halts, or “freezes” the projected image. Use t his
button to freeze a frame of video (the video continues to run but
the projecte d image is frozen ). You can also freeze an image from
a computer source on the screen, allowing you to perform other
operations on the computer without the audience seeing them.
Press freeze again when you want the image to return to normal.
Help
Press help to display the online help information.
Light
Press light to illuminate the buttons on the remote control. The
light goes off automatically 10 seconds after you press any
button.
LiteShow
The liteshow button will be used to display a LiteShow presenta-
tion from disk. Call your In Fo cus dealer for av a ilability.
29
Using the Projector
Menu
Press menu to open the on-screen m enus. Press menu again to
close the menus. When you close the menus, the projector s aves
any changes you made. For more infor mation about the onscreen menus, s ee page 32.
Mute
Pressing the mute button silences the internal speakers. It also
NOTE: Pressing mute has no
effect on microphone volume.
silences any external speakers that are conne cted. It does not
mute the microphone.
To return the volume to its previous sett ing, press mute again or
press either volume button.
Scribble
The scribbl e button activates on-screen annotation.
1 Press the scribble button. The cursor changes to a pencil.
NOTE: Scribble functionality is
enhanced by using a PS/2 mouse.
See “Connecting a PS/2-
Compatible Mouse” on pag e 20 .
2 P r ess the right disk mouse button (Figure 29) to display the
color selector. Use the disk mouse to position the cursor on
the desired color, then press the lef t mous e button. Press the
right button again to close the color selector.
3 Move the pencil to where you want to start the annotation.
30
4 Press the left mouse button. The cursor changes to an upright
pencil.
5 Use the disk mouse (or PS/2 mouse, if connected) to draw
your annotation. Press the left mouse button to complete the
annotation.
6 To exit Scribble, press the scribble button. The annotation is
automatically deleted (it cannot be saved).
Standby
When you press standby, the display and audio turn off and the
screen becomes black. After 30 seconds the lamp goes out if you
haven’t pressed any other buttons.
• If you press any button again wit hin 30 seconds, the projector
returns to normal operations immediately.
• If you press standby again after 30 seconds, there is about a 30-
second delay before the lamp turns back on.
Video
When you have more than one source (computer or video) connected to the projector, select between th em by pressi ng the button for the source you want.
Press video to display the image from your video player.
Volume
•
To increase the volume, pres s
• To decrease the volume, press
The volume buttons are auto-repeating; they continue to adjust
the volume as long as you hold t hem down. Volum e adju stments
are saved for each source you have connected.
31
Using the Projector
Using the Disk Mou se
Press an ywhe re on t he edge of the disk mo use to move th e cursor
NOTE: Using a light touch on the
disk mouse often gets the best
results.
on the screen. For example, if you press the top edge of the disk,
the cursor moves up the screen; if you press the bottom edge, the
cursor moves down (Figure 28). You can move the cursor at any
angle by pressing the corresponding edge of the disk.
press here to move the cursor up
press here to move the cursor down
FIGURE 28
Using the disk mouse
Using the On-Screen Menus
The projector has four on-screen menus that allow you to make
image adjustme nts and chan ge a vari ety of settin g s. Most of the se
adjustments aren’t available directly from t he remote or keypad.
32
To open the on-screen menus, press the menu butt on on the
remote or keypad. Press menu again when you want to close the
menus.
To select a menu, use the disk mouse to move the cursor to the
tab for the menu you want, t hen click either mouse button.
disk mouse
left mouse right mouse
button button
FIGURE 29
Disk mouse and mouse buttons
To change a menu setting, move the cursor to the setting you
want t o change, then use one of the two mo use button s below the
disk to make changes.
The status bar at the top of the menu display indicate s t he source
that is currently active. For example, if you have both a com pute r
and a video player connected, “Source: Computer” or “Source:
Video” displays depending on whether you’ve pressed the com-
puter
or the video button on the remote or keypad.
FIGURE 30
On-screen menu status bar
Displa y Menu Fu nctions
FIGURE 31
Display menu
33
Using the Projector
Brightness
Adjusting the brightness changes the intensity of t h e image.
• Press the left mous e button to darken the image.
• Press the right mouse butt on to lighten the image.
NOTE: Changing the brightness
using the menu is the same as
changing it using the remote or
keypad.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast
changes the amount of black and white in the image.
• Press the left mous e button to decrease the contrast.
• Press the right mouse butto n to increase the contrast, making
the blacks appear blacker and the whites appear whiter.
Tint
The Tint setting adjusts th e red-green color balance in the pro-
jected image. Changing the Tint setting has no effec t on PAL or
SECAM video sources.
• Press the left mouse button to increase the amount of green in
the image.
• Press the right mouse button to increase the amount of red in
the image.
Reset All
Click either mouse button to reset all the options (except Language and V i deo Standard) in all the menus to their original settings. This also re turns Freeze and Mute to their default (off)
settings.
34
Audio Menu Functions
Volume
Press the left mouse button to decrease the volume.
•
• Press the right mouse butto n to increase the volume.
FIGURE 32
Audio menu
Volume adjustments you make are saved for each source.
Mic Volume
Press the right mouse butt o n to increase the microphone
•
volume.
• Press the left mouse button to decrease the microphone
volume.
Balance
The Balance sett ing con trols t he bal ance betw ee n the le ft and
right external speakers. It appears gray and won’t highlight if
you haven’t connected external speakers. The Balance setting
applies to all sources you have connected.
• Press the left mouse button to increase the amount of sound
coming from t he left external speaker.
NOTE: Changing the volume
from the menu is the same as
changing it using the remote or
keypad.
35
Using the Projector
•
Press the right mouse button to i ncrease the amount of sound
coming from the right ex ternal speaker.
Fade
The Fade setting controls the balance between the internal and
external speakers. The setting appears gray and won’t highlight if
external speakers aren’t connected.
• Press the left mouse button to increase the amount of sound
coming from the internal speakers.
• Press the right mouse button to increase the amount of sound
coming from the external speakers.
Treble
The Treble setting controls the higher frequencies of your audio
source.
Press the left mouse button to decrease the t reble.
•
NOTE: The Treble and Bass
settings apply only to the
projector’s internal speakers.
External speakers typically have
their own tone controls.
• Press the right mouse button to increase the tr eble.
Bass
The Bass setting controls the lower frequencies of your audio
source.
• Press the left mouse button to decrease the bass.
36
• Press the right mouse butto n to increase the bass.
Ambiance
The Ambiance setting controls the spaci o u sne s s of the sound
quality from th e projector’s internal speakers.
• Press the left mouse button to increase the amount of s ound
coming from the rear internal speaker.
• Press the right mouse button to decrease the amount of sound
coming from the top inter nal speaker.
Image Menu Functions
FIGURE 33
Image menu
Auto Image
The projector automatically adjusts tracking, signal synchronization and vertical and horizontal position for most computers. If
you want to adjust these features manually, you must turn off
Auto Image first by clicking it.
Auto Resize
The Auto Resize setting is available only for computer sources.
Auto Resize automatically resizes the image by scaling it up or
down.
NOTE: Some screen savers interfere withthe operation of Auto
Image. If you’re experiencing problems, try turning your screen saver
off, then turning Auto Image off
and back on.
When Auto Resize is on, the projector makes the best fit of the
image to the screen. If you turn Auto Resize off (by clicki ng it), the
image may be either cropped or too small for the screen.
Manual Sync
The projector adjusts signal synchronization automatically for
most computers. But if the project ed compute r image looks fuzzy
or streaked, try turning Auto Image off then back on again. If the
image still looks bad, try adjusting the signal synchronization
manually as described below.
1 Click the Auto Image button to turn Auto Image off.
37
Using the Projector
2Press the left or right mouse buttons repeatedly unti l the
image is sharp and free of streaks.
Manual Tracking
NOTE: The Manual Sync,
Manual Tracking, Horiz.
Position and Vert. Posi tion
buttons are available only for
computer sources. The projector
sets these options automatically
for a video source so they appear
gray.
The tracking function adjusts the projector to match the video
signal from your computer. The projector usually adjusts the
tracking automatically when you connect your computer. However, if the display shows evenly spaced, fuzzy, vertical lin es or if
the projected image is too wide or too narrow for the screen, try
turning Auto Image off then back on again. If the image is still
bad, try adjusting the tracking manually as described below.
1 Click the Auto Image button to turn Auto Image off.
2 Pr ess the left or right mouse buttons repeatedly until the
fuzzy vertical bars are gone.
Horiz. Position
Follow these steps to manually adjust the horizontal position.
1 Click the Auto Image button to turn Auto Image off.
2 Press the left mouse but ton to move the image right; press th e
right mouse button to move th e image left.
Positioning adjustments are saved when you power o ff the projector.
Vert. Position
Follow these steps to manually adjust the vertical position.
1 Click the Auto Image button to turn Auto Image off.
2 Press the left mouse button to move the image down; press
the right mouse button to move the image up.
Positioning adjustments are saved when you power o ff the projector.
38
Contro ls Menu Fu nctions
FIGURE 34
Controls menu
Video Standard
When Auto is on, the projector attempts to pick the video standard (NTSC, PAL or SE CAM) automatically based on the inpu t
signal it receives. (The video standard options may vary depending on your region of the world.) If the projector is unable t o
detect the standard, the colors might n ot look right or the image
might appea r “torn .” If th is happe ns, m anuall y select NTS C, PAL
or SECAM.
NOTE: If you already know the
standard used in your geographical
area, it’s often best to manually
select it.
Language
You can display the on-screen menus in English, French, German, and Spanish. The default is English.
• Click the button for the language you want. The menus redraw
immediat ely.
Ceil ing
Click either mouse button t o turn the image upside down for
•
ceiling-mounted projec tion.
NOTE: To order the ceiling
mount kit, refer to “Accessories”
on page 57.
39
Using the Projector
Rear Projection
When you select Rear Projection, the projector reverses t he image
so you can project from behind a translucent screen.
• Click eithe r mous e button to reverse the image.
Monitor Connect
When Auto is selected, th e projector attempts to pick the correct
monitor conn e ction based on th e input signal it receives. This setting produces the best results in most situations. Select “On” or
“Off” only if the image is very dim or not projected.
NOTE: Do not select “Off” if
your monitor is connected directly
to the CableWizard.
• Select “On” if your monitor is connected directly to the
CableWizard and the i mages are excessively dim.
• Select “Off” if your monitor is not conne cted directly to the
CableWizard and the image is not projected. (Some IBM
ThinkPad computers exhibit this problem, especially the
ThinkPad 760.)
40
MAINTENANCE
This section describes how to:
• clean and replace a lens
• install and use the zoom lens
• replace the projection lamp and reset the lamp monitor light
• replace the batteries in the remote control
• replace the fuse
• use the Ke nsington lock feature
Cleaning the Lens
Follow these steps to clean the projection lens:
1 Apply a non-abrasive camera lens cleaner to a s oft, dry clean-
ing cloth.
• Avoid using an excessive amount of cleaner.
• Abrasive cleaners, solvents or other harsh chemicals might
scratch the lens.
2 Lightly wipe the cleaning cloth over t h e lens.
3 If you don’t intend to use the projector immediately, replace
the lens cap.
Removing and Replacing a Lens
1 Turn the focus ring counterclockwise until it reaches a stop.
2 While holding the l e ns, squeeze the latch below the lens
(Figure 35) and turn the lens counterclockwise again.
3 Gently pull the lens out of the lens bracket.
41
Maintenance
IGURE 35
F
Removing the lens
To replace a lens:
1 Make sure the latch is point ing down.
2 Squeeze the latch and gently push the lens in until it stops,
Using the Zoom Lens
The zoom lens enlarges the projected image by 40% without
CAUTION: Be sure to fully
retract the zoom lens before you
put the lens cap on and pack the
projector in its case.
moving the projector. (For more information about image size,
see “Projected Image Size” on page 64.) Follow the previous
instructions to install the zoom lens.
Follow these steps wh en operating the zoom lens:
1 Turn t he zoom ring (Figure 36) until the proje cted im age is the
then turn the lens clockwise until t he catch is engaged.
size you want, even if it is out of focus.
42
2 Turn the focus ring as needed to clear up the image.
focus ring zoom ring
FIGURE 36
LitePro 200 Se ries zoom lens
Replacing the Projection Lamp
The lamp moni tor L ED, marke d on the c onnector panel, lights
up when 150 hours of lamp life remains. At zero hours, the lamp
switches off completely. You can order new lamp modules from
your In Focus dealer. See “Accessories” on page 57 for information.
Follow these steps to replace the proje c tion lamp:
1 Turn off the projector and unplug the power cord.
2 Wait 45 minutes to allow it to cool thoroughly.
3 Using a small, flat-blade screwdriver, remove the screw on
the outside of t he lamp door (Figure 37).
4 Pull the lamp cover up and remove it.
WARNING: To avoid burns and
lamp explosion, allow the projector
to cool for at least 45 minutes
before you open the lamp module
door. Never extract the lamp module while the lamp is op erating.
CAUTION: Replace the projection lamp as soon as possible after
the lamp monitor light comes on. If
the lamp remains in use too long,
there is a danger of lamp explosion. If this happens, your projector
will be severely damaged.
FIGURE 37
Removing the lamp module door
5 Loosen the non-removable screw on the outside of the mod-
ule.
6 Remove the module (Figure 38).
CAUTION: Never operate the
projector with the l amp cover open
or removed. This disrupts the air
flow and causes the projector to
overheat.
43
Maintenance
F
IGURE 38
Removing the lamp module
7 Align t he module in the correct direction.
8 Gently push the module in as far as it goes (Figure 39).
9 Tighten the screw on the outside of the module.
WARNING: Do not drop the
lamp module or touch the glass
bulb! The glass may shatter and
cause injury.
44
IGURE 39
F
Installing a new lamp module
10 Reposition the lamp cover.
11 Replace the screw and tighten it.
12 Turn t he projector back on.
Resetting the Lamp Monitor Light
After replacing the lamp, you must reset the lamp monitor light.
1 Press and hold the two brig htne ss butt ons on the keypad for at
least 5 seconds.
2 Release the buttons. The lamp monit o r light goe s out aft er it is
reset.
Replacing the Batteries in the Remote Control
The life of the batteries depends on how often and how long you
use the remote. Symptoms of low battery charge include erratic
responses when using the remote and a reduced range of operation.
Follow these steps to replace the batteries:
1 Turn the remote face down in your hand.
2 Slide the battery cover off the end of the remote by pressing
on it with the heel of your hand.
3 Remove the old batteries.
4 Install two new AA alkaline batteries. Make sure you install
each in t he correct direct ion.
NOTE: You must reset the lamp
monitor light so the projector can
keep track of the usable life of the
new lamp.
5 Slide the battery cover back on the remote .
Replacing the Fuse
A power line surge or spike can blow the power supply fuse,
causing the projector to sto p w orking. If th is happens, you’ll need
to replace the fuse.
The projector ships with a 6.3 amp fuse. The correct replacement
fu se depen ds on the power line voltage in the country where you
are operating the projector.
• If your line voltage is 115V to 240V, use a T6.3AH, 250V,
5x20mm fuse.
• If your line voltage is 100V to 115V (as in Japan), use a T8AH,
250V, 5x20mm fuse. You can order the fuse from your In Focus
dealer; the part number is listed on page58.
CAUTION: Use only the specified power supply fuse. Using a different fuse may damage the
projector.
45
Maintenance
After you make sure that the condition that made the fuse blow
no longer exists, follow these steps to replace the fuse:
1 Turn off the projector by pressing th e “O” side of the power
2 Unplug the power cord.
3 Remove the fus e holder, located just above the power cord
switch.
connector. Pu ll out the fuse holder with a small, flat-blade
screwdriver, key or coin (Figure 40).
CAUTION: The 6.3A IEC 127
type fuse is required in Europe. I n
countries with low main voltage,
you may need the 8.0A fuse to
avoid repeated (nuisance) blowing
of the 6.3A fuse. Both fuses
provide protection from risk of fire.
Do not use the projector if
repeated blowing still occ urs after
switching to the 8.0A fuse. Call In
Focus Technical Support for
assistance.
46
IGURE 40
F
Removing the fuse holder
4 Remove the blown fuse from the fuse holder (Figure 41).
FIGURE 41
Removing the fuse from the fuse holder
5 Push the spare fuse into th e h older until it is securely seated.
6 Place the fuse holder back in position (Figure 42).
7 Plug the power cord back in.
8 Press the “|” side of the power switch to turn the projector
back on.
FIGURE 42
Replacing the fuse holder
Using the Kensington Lock
The projector has a Kensi ngton Security Standard connector for
use with a Ke nsington MicroSaver Security System (Figure 43).
Refer to the information that came with the Kensington System
for instructions on how to use it to secure the projector.
CAUTION: A surge-protected
power strip is recommended if
power s urges are common in your
area.
FIGURE 43
Installing the Kensington lock
47
TROUBLESHOOTING
If you’re experiencing trouble with the projector, follow these
steps to make sure everything is properly connected before you
call Technical Support for assistance.
1 C heck cable connections. Verify that all computer, CableWiz-
ard and power cables are properly connected.
2 Verify that all power is switched on.
3 Verify tha t the projector has not been switched off with the
standby button on the remote or keypad .
4 If the projector still doesn’t d i splay an image, restart the com-
puter.
5 If the problem still exists, unplug the projector from the com-
puter and check the computer monitor’s display. The maximum resolution that t he 210 can display is 800x600 pixels,
preferably 640x480; the maximum resolutio n that the 220 can
display is 1024x768 pixels, preferably 800x600. The problem
might be with the gr aphics controller in your computer rather
than w i th the projector. When you reconnect the projector,
remember to turn the computer and monitor off before you
power up the projector. Power the equipment back up in this
order: projector, monitor, computer.
NOTE: Macintosh computers
require a specific power -up
sequence: the projector must be
turned on before you turn on the
computer.
6 If you’re using a laptop computer and its monitor is not dis-
playing your presentation, make sure you have re-activated
the computer’s monitor. Most laptop computers de-activate
their own monitor when a second display device, such as the
projector, is connected. Refer to page 59 for more information.
7 If the problem still exists, read through the problems and
solutions in this chapter.
If you call Technical Support for assistance:
• Find out what kind of graphics controller card is installed in
your computer. This is th e circuit board in the computer to
which t he projec tor i s conn ect ed. M ost PCs use a VGA graphics
controller.
49
Troubleshooting
Solutions to Common Problems
Problem: Nothing on projection screen
Make sure that the power cord is properly connec ted to a func-
•
tional AC electrical outlet. Make sure that the power cord is
also properly connected to the projector.
• If the projector is plugged into a power strip, make sure the
power strip is turned on.
• Make sure you have removed the lens cap on the projection
lens at the front of the projector.
• Make sure the proje ctor is swit che d on.
• Check the projector’s lamp to ensure that it is securely con-
nected in the lamp module. See “Replacing the Proje ction
Lamp” on page 43.
• Check the fuse. If it has blown, replace it. See “Replacing the
Fuse” on page45.
• Make sure that the CableWizard and the cables do not have
any bent pins. Check the power cord for bent pins also.
50
Problem: Color or VGA text not being projected
You might need to adjust the brightness up or down until the
•
text is visible. Refer to “Brightness” on page 29 for more information.
• Verify that the appropriate input source is sele cted. See “Com-
puter” on page29 or “Video” on page 31.
Problem: The screen resolution is not right
Make sure the computer’s graphics card is set for a resolution
•
of no greater than 800x600 for the 210, 1024x768 for the 220.
Problem: Image isn’t centered on the screen
Reposition th e image. Refer to “Horiz. Position” on page 38
•
and “Vert. Position” on page 38.
• If you’re using an extension cable between the CableWizard
and the projector, make sure it’s In Focus-approved.
Problem: Only the start-up screen displays
Verify that th e cables are connec ted corre ctly. Check to see that
•
the CableWizard computer cable is correctly connected to the
monitor connector on the computer (this is the connector
where your monitor cable usually goes.) See page6 through
page 15 for connection procedures.
• Verify that the proper input source is connected. See “Com-
puter” on page29 or “Video” on page 31.
• You might need to turn everything off and power up the
equipment again. Make sure you power up in this order: projector, computer monitor, computer. It is especially important
that you follo w this sequence for Macintosh computers.
• Make sure your computer’s graphics board is installed and
configured correctly.
If you’re using Windows 3.x:
1 In the Windows Program Manager, double-click the Win-
dows Setup icon in the Main program group.
2 Verify that the Display setting is 800x600 or less for the
210, 1024x768 or less for the 220.
If you’re using Windows 95:
1 Open “My Computer” icon, the Control Panel folder and
then the Display icon.
2 Click the Settings tab.
3 Verify that the Desktop area is set to 800x600 o r less for the
210, 1024x768 or less for the 220.
Also ch eck the following:
• Does your computer have a compatible graphics board? The
projector isn’t CGA or EGA compatible.
• Is your comput er’s graphic s board turn ed on? Thi s is espe ciall y
true for laptop computers. See “Portable and Laptop Activation Chart ” on page 59.
51
Troubleshooting
Problem: Image is too wide or narrow for screen
You might n eed to manually adjust the tracking to reduce or
•
enlarge the projected image. Refer to “Manual Tracking” on
page 38.
• Adjust the resolution of your monitor if it’s greater than
800x600 pixels for the 210 or 1024x768 for the 220. Only these
resolutions at 75 Hz or less will display on t he projector.
• Make sure that your computer has a compatible graphics
board. The projector is not compatible with CGA, EGA, or
1280x1024 graphics modes.
Problem: Image is out of focus
Make sure the lens is locked in place.
•
• Turn the projection lens to focus the image.
• Make sure the projection scre en is at least 4 fee t (1.2m ) from the
project or.
• Check the projection lens to see if it needs cleaning.
52
Problem: Image and menus are reversed left to right
Rear projection mode is probably turned on. Switch back to
•
forward projection from th e Controls menu. The image should
immediately return to forward projection. See “Rear Projection” on page 40.
Problem: Image and menus are upside down
Ceiling mode is probably turned on. Turn off the mode from
•
the Controls menu. The image should immediately return to
forward projection. See “Ceiling” on page 39.
Problem: the projector displays vertical lines, “bleeding” or spots
Adjust the brightness. See “Brightness” on page 29.
•
• Check the projection lens to see if it needs cleaning.
Problem: Image is “noisy” or streaked
Try these steps in this order.
1 Deactivate the screen saver on your computer.
2 Turn Auto Image off and then back on again. See “Auto
Image” on page 37.
3 Adjust the synchronization and tracking manually to find an
optimal setting. See “Manual Sync” on page37 and “Manual
Tracking” on page38.
• If you’re using an extension cable between the CableWizard
and the projector, make sure it’s In Focus-approved.
• The problem could be with your computer’s graphics board. If
possible, connect another computer with a different graphics
board.
Problem: Projected colors don’t match the computer or video
player’s colors
•
Adjust the brightness, tint and/or con trast from th e Display
menu. Just as there are differences in the displays of different
monitors, there are often differences between the computer
image and the projected image. See “Brightness” on page 29,
“Tint” on page34 and “Contrast” on page 34.
Problem: Lamp seems to be getting dimmer
The lamp begin s to lose brightn ess when it has been in use for a
•
long ti me. Replace the lamp as described in “R eplacing the Projection Lamp” on page 43.
Problem: Lamp shuts off
A minor power surge may cause the lamp to shut off. Turn the
•
projector off, wait at least 45 seconds, then turn it back on.
Problem: Remote not operating correctly
•
You might need to replace the batt eries. See “Replacing the
Batteries in the Remo te Control” on page45.
• Make s ure you’re poin ting the remote either at the back or
front of the projector, or at the projection screen.
• Make sure the remote is within its operating range of 40 feet.
53
APPENDIX
Specifications
The LitePro 210 and 220 must be operated and stored within the
temperature and humidity ranges specified.
Temperature
Operating
Non-operating
Humidity
Operating and non-oper. 10% to 95% relative humidity, non-condensing
Dimensions
6.6 x 16.25 x 13.25 inches (16.8 x 41.3 x 33.7 cm)
Weight
16 lbs. (7.3 kg) unpacked
Altitude
Operating 0 to 10,000 feet (3048 meters)
Non-operating 20,000 feet (6096 meters)
10 C to 40° C
-20 to 60
° C
Left and Right Audio Outputs
Frequency Response 10 Hz - 20 KHz
Output Impedance 1.2 K ohm nominal
Output Voltage 2 Vrms maximum (open circuit)
Connector Type red and white RCA jacks
Subwoofer Outputs
Frequency Response 10 Hz - 10 KHz
Output Impedance 200 ohms nominal
Output Voltage 2 Vrms maximum (open circuit)
Connector Type black RCA jack
Optics
Focus Range 4 to 25 feet
55
Appendix
Microphone Input
Input Impedance 3.5 K ohm nominal
Maximum Input Voltage 60 mVrms for THD ≤0.3%, main inputs off
Sensitivity 800 Vrms at 1 KHz for 88 dB SPL at 1 meter
Microphone Impedance < 8K ohms
Connector Type 6.3 mm (1/4 inch) monaural phone jack
(unbalanced)
Lamp
Type 270-watt metal halide
Remote Control
Battery Two (2) AA alkaline cells
Input Power Requirements
100-240VAC, 7.0A-3.6A, 50 to 60 Hz.
Video Module Input
Input Impedance 5K ohm D C coupled
Maximum Input Voltage (L
+ RIN)
IN
< 4.5 V for THD ≤ 0.3%, micro-
PEAK
phone off
L
or RIN < 2.0 Vrms for THD ≤ 0.3%, micro-
IN
phone off
Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type RCA jack
56
CableWizard Audio Inp ut
Input Impedance 10K ohm nominal, AC coupled
Maximum Input Voltage (L
+ RIN)
IN
< 4.5 V for THD ≤ 0.3%, micro-
PEAK
phone off
L
or RIN < 2.0 Vrms for THD ≤ 0.3%, micro-
IN
phone off
Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type 3.5 mm (1/8 inch) stereo phone jack
Fuse
115 to 240V nominal line T6.3AH, 250V, 5x20mm
100 to 115V nominal line T8AH, 250V, 5x20mm
Accessories
Standard Accessories
(ship with the projector) Part Number
LitePro 210/220 Quick St art card 009-0214-xx
LitePro 210/220 User’s Guide 010-0102-xx
Shipping Box 110-0098-xx
CableWizard and Cables 591-0182-xx
CableWizard Audio Cable 210-0079-xx
CableWizard Computer Cable 210-0076-xx
CableWizard Mouse Cable 210-0078-xx
Varifocal Lens 505-0148-00
Projection Lamp Module 505-0144-xx
Lens Cap 340-0220-xx
Audio/Video Cable 210-0062-xx
Fuse — 6.3 amp 749-0010-xx
Remote Control with Cable and 2 Batteries 590-0198-xx
Remote Cable (50 ft) 210-0088-xx
Power Cords (one ships with projector, type depends on country)
North American Power Cord 210-0023-xx
Australian Power Cord 210-0027-xx
UK Power Cord 210-0028-xx
European Power Cord 210-0029-xx
Danish Power Cord 210-0030-xx
Swiss Power Cord 210-0031-xx
57
Appendix
Optional Accessories
Soft Carry Case CA-C077
ATA Shipping Case CA-C119
CableWizard Lite SP-CWLITE
Mac Adapter for CableWizard Lite 516-0003-xx
CableWizard Extension Cable, 50 ft
*
210-0077-xx
Zoom Lens HW-LP210-ZM
Kensington MicroSaver Security System SP-KENLOC
JBL Satellite Speakers 591-0203-xx
JBL Subwoofer 591-0204-xx
S-Video Cable 515-0027-xx
Microphone 591-0201-xx
Fuse — 8.0 amp call for part no.
LitePro 200 Series Ceiling Mount Kit
*
591-0208-xx
1 Year Extended Warranty 592-0320-xx
2 Year Extended Warranty 592-0319-xx
*Using the extension cable or ceiling mount reduces FCC
and EMC compliance to Class A.
58
Portab le and La ptop A ct i vat ion Chart
Key command to
Computer
Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup)
AST* ** FN-D or Ctrl-D FN-D or Ctrl-D
Advanced Logic
Research
Altima Shift-Ctrl-Alt-C Shift-Ctrl-Alt-L
Ambra** FN-F12 FN-F12
Amrel* ** setup menu setup menu
Apple see Mac Portable and Mac PowerBook
Aspen automatic automatic
BCC* automatic reboot computer
Bondwell LCD or CRT options
Chaplet** setup screen setup screen
Commax Ctrl-Alt-#6 Ctrl-Alt-#5
activate port
Ctrl-F N-D Ctrl-F N-D
FN-F5 FN-F5
type from A:/IVGA/CRT type from A:/IVGA/CRT
FN-F12 FN-F12
Ctrl-Alt-V Ctrl-Alt-V
setup VGA/
Conf.Simulscan
FN-F5 FN-F5
F2/Choose Option/F5 F2/Choose Option/F5
Shift-Ctrl-D Shift-Ctrl-D
after bootup
FN-F6 FN-F6
FN-F4 FN-F4
Key command to
de-activate port
setup VGA/
Conf.Simulscan
reboot for LCD or CRT
options to appear
NOTE: Most laptop computers
de-activate their built-in monitors
when a second display device is
connected. The following chart lists
the commands that re-activate the
laptop’s monitor. If your computer
is not listed, refer to the computer’s documentation.
59
Appendix
Key command to
Computer
Compaq* ** Ctrl-Alt-< Ctrl-Alt->
Compuadd* ** automatic automatic
Data General Ctrl-Alt-Command Ctrl-Alt-Command
Data General
Walkabout
Datavue Ctrl-S hift-M Ctrl-Shift-M
Dell** Ctr l-Alt-< Ctrl-Alt->
Digital* automatic reboot
Dolch dip switch to CRT dip switch to LCD
Epson dip switch to CRT dip switch to LCD
Everex* setup screen option setup screen option
For-A Ctrl-Alt-Shift-C Ctrl-Shift-Alt-L
Gateway FN-F1/FN-F1 again simul-
Grid* ** FN-F2, choose auto or
Hyundai setup screen option setup screen option
IBM 970* automatic warm reboot
activate port
FN-F4 FN-F4
automatic automatic
mode/? (for setup option) mode/? (for setup option)
Alt-F for screen setup
option
2 CRT/X at DOS prompt reboot
Ctrl-Alt-F10 Ctrl-Alt-F10
FN-F8 (CRT/LCD) FN-F8
FN-D FN-D
FN-F12 FN-F12
FN-F2 FN-F2
taneous
simultaneous
Ctrl-Alt-Tab Ctrl-Alt-Tab
Key command to
de-activate port
Alt-F for screen setup
option
FN-F1
FN-F2
60
Key command to
Computer
IBM ThinkPad** reboot, enter setup menu FN-F2
Kaypro boot up, monitor plugged inunplug monitor
Kris Tech FN-F8 FN-F8
Mac Portable
100
Mac PowerBook
140, 145, 150,
170
160, 165, 180,
520, 540, 5300
210, 230, 250,
270, 280, 2300
Magitronic FN-F4 FN-F4
Mastersport FN-F2 FN-F1
Micro Express* automatic warm reboot
Microslate* automatic warm reboot
Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On
NCR setup screen option setup screen option
NEC* ** setup screen option setup screen option
Olivetti* automatic automatic
activate port
FN-F7, select choice
from setup menu
FN-F1, select choice
FN-F5, select choice
PS/2 SC select choice
(CRT, LCD, etc.)
no video port: not compatible
no video port: requires a 3rd-party interface
Control Panel folder,
PowerBook Display
folder; Activate Video
Mirroring
requires Apple Docking Station or Mini Dock
CRT at the DOS prompt LCD at the DOS prompt
FN-F31 FN-F3
FN-O/* FN-O/*
FN- | | FN- | |
Key command to
de-activate port
warm reboot
61
Appendix
Key command to
Computer
Packard Bell** FN-F2 FN-F2
Panasonic FN-F2 FN-F2
Samsung* s etup screen option setup screen option
Sanyo setup screen option setup screen option
Sharp dip switch to CRT dip switch t o L CD
Sun SPARC-
Dataview
Tandy** Ctrl-Alt-Insert Ctrl-Alt-Insert
Texas Instruments*
Top-Link* ** setup screen option setup screen option
Toshiba* ** Ctrl-Alt-End Ctrl-Alt-Home
Twinhead* FN-F7 FN-F7
WinBook Ctrl-Alt-F10 Ctrl-Alt-F10
Wyse software driven software driven
Zenith** FN-F10 FN-F10
activate port
Ctrl-Alt-< Ctrl-Alt->
Ctrl-Shift-M Ctrl-Shift-M
setup screen option setup screen option
setup screen option setup screen option
FN-F6 FN-F6
FN-End FN-Home
FN-F5 FN-F5
setup screen option setup screen option
FN-F5 FN-F5
Automatic Automatic
FN-F2 FN-F2
FN-F1 FN-F1
Key command to
de-activate port
62
* These manufacturers have models that automatically send video
to the exter nal CRT port when some type of display device is
attached.
** These manufacturers offer more than one key command depend-
ing on the computer model.
Using Video Mirroring with a PowerBook Computer
When you turn video mirroring on, the projector displays the
same information that appears on your PowerBook’s built-in
screen. When video mirroring is off, the projector acts like a separate display.
To turn on video mirroring for the first time:
1 Open the Monitors control panel; click on Monitor 2.
2 Se t the number of colors you want.
3 Open the Control Strip; click on the monitor icon.
4 Select “Turn Video Mirroring On.”
Now you can turn video mirroring on and off from the Control
Strip without having to open th e Monitors control panel again.
When using video mirroring and high color graphics such as
slide shows, the projected image occasionally might turn black
and wh i te. If this happens, perform the following steps:
1 Turn off video mirroring.
2 Open the Monitors control panel.
3 Move the white m enu bar to Monitor 2 to set the projector as
the primary monitor.
4 Restart the PowerBook.
63
Appendix
Projected Image Size
Use the chart below and the tables on the next page to help you
determine projected image sizes for the varifocal and zoom
lenses.
64
FIGURE 44
Projected image size for LitePro 200 series zoom and varifocal lenses
Table 1:
Image Size, Width and Height for Varifocal Lens
and Zoom Lens at Minimum Focusing Distance
Distance to
Screen (feet)
4 34 27 20.4
10 84 67 50.4
15 126 101 75.6
20 168 134 100.8
25 210 168 126.
30 252 202 151.2
35 294 235 176.4
40 336 269 201.6
Image Size, Width and Height for Zoom Lens at
Distance to
Screen (feet)
4483828.8
10 120 96 72
15 180 144 108
20 240 192 144
25 300 240 180
30 360 288 216
35 420 336 252
40 480 384 288
Diagonal
(inches)
Maximum Focusing* Distance
Maximu m
Diagonal
(inches)
Width
(inches)
Table 2:
Maximu m
Width
(inches)
Height
(inches)
Maximu m
Height
(inches)
* The focusing distance of the zoom lens is from 4 feet to infinity.
65
Loading...
