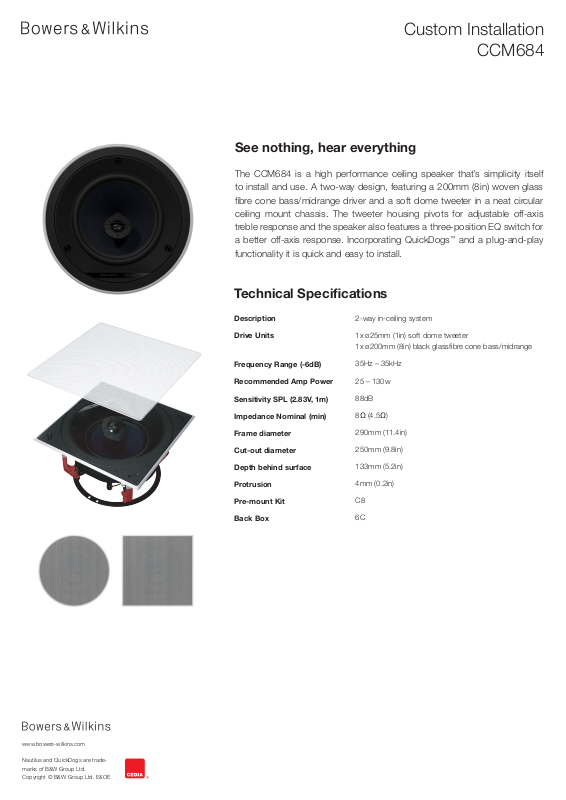

Bowers & Wilkins CCM684 Information Sheet
Custom Installation
CCM684
See nothing, hear everything
The CCM684 is a high performance ceiling speaker that’s simplicity itself
to install and use. A two-way design, featuring a 200mm (8in) woven glass
fibre cone bass/midrange driver and a soft dome tweeter in a neat circular
ceiling mount chassis. The tweeter housing pivots for adjustable off-axis
treble response and the speaker also features a three-position EQ switch for
a better off-axis response. Incorporating QuickDogs™ and a plug-and-play
functionality it is quick and easy to install.
Technical Specications
Description
Drive Units
Frequency Range (-6dB)
Recommended Amp Power
Sensitivity SPL (2.83V, 1m)
Impedance Nominal (min)
Frame diameter
Cut-out diameter
Depth behind surface
Protrusion
Pre-mount Kit
Back Box
2-way in-ceiling system
1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange
35Hz – 35kHz
25 – 130w
88dB
8Ω (4.5Ω)
290mm (11.4in)
250mm (9.8in)
133mm (5.2in)
4mm (0.2in)
C8
6C
www.bowers-wilkins.com
Nautilus and QuickDogs are trademarks of B&W Group Ltd.
Copyright © B&W Group Ltd. E&OE
