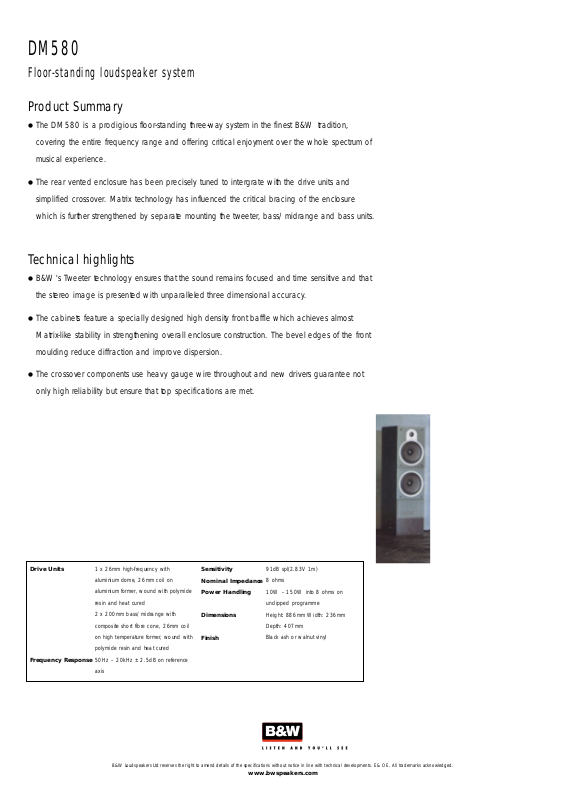

Bowers and Wilkins DM-580 Brochure

DM580

Floor-standing loudspeaker system

Product Summary

●

The DM580 is a prodigious floor-standing three-way system in the finest B&W tradition,
covering the entire frequency range and offering critical enjoyment over the whole spectrum of
musical experience.

●

The rear vented enclosure has been precisely tuned to intergrate with the drive units and
simplified crossover. Matrix technology has influenced the critical bracing of the enclosure
which is further strengthened by separate mounting the tweeter, bass/midrange and bass units.

Technical highlights

●

B&W's Tweeter technology ensures that the sound remains focused and time sensitive and that
the stereo image is presented with unparalleled three dimensional accuracy.

●

The cabinets feature a specially designed high density front baffle which achieves almost
Matrix-like stability in strengthening overall enclosure construction. The bevel edges of the front
moulding reduce diffraction and improve dispersion.

●

The crossover components use heavy gauge wire throughout and new drivers guarantee not
only high reliability but ensure that top specifications are met.

B&W Loudspeakers Ltd reserves the right to amend details of the specifications without notice in line with technical developments. E & OE. All trademarks acknowledged.

www.bwspeakers.com

Drive Units

Frequency Response

1 x 26mm high-frequency with
aluminium dome, 26mm coil on
aluminium former, wound with polymide
resin and heat cured
2 x 200mm bass/midrange with
composite short fibre cone, 26mm coil
on high temperature former, wound with
polymide resin and heat cured
50Hz – 20kHz ± 2.5dB on reference
axis

Sensitivity
Nominal Impedance
Power Handling

Dimensions

Finish

91dB spl(2.83V 1m)
8 ohms
10W – 150W into 8 ohms on
unclipped programme
Height: 886mm Width: 236mm
Depth: 407mm
Black ash or walnut vinyl
