Operating Manual
COMFORT BOX
Page 2
2 COMFORT BOX 11443-S0 EN

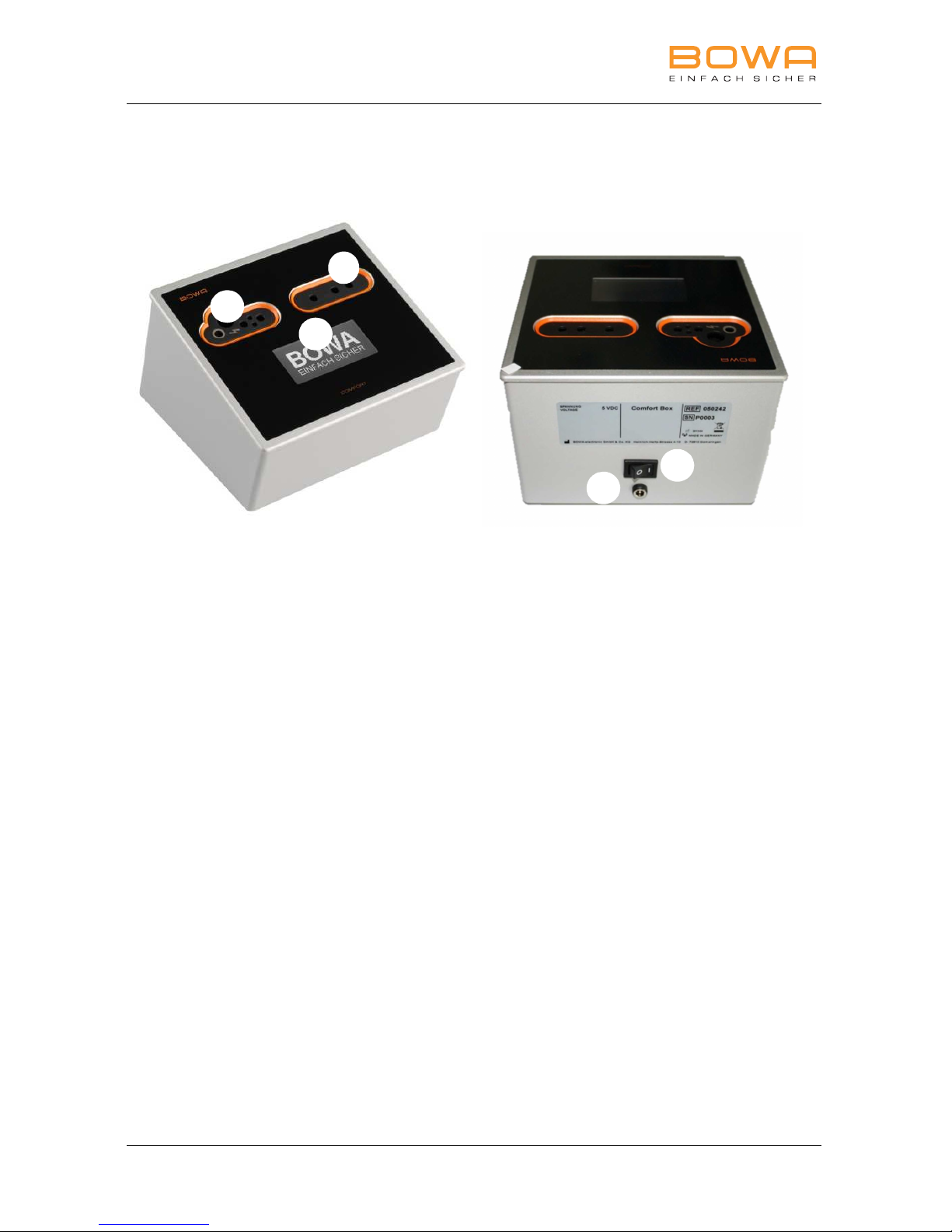

Legend
1 Display
2 Monopolar socket
3 Bipolar socket
4 On/Off switch
5 Power supply socket
Page 3
11443-S0 EN COMFORT BOX 3
1. Using this operating manual
This operating manual is an integral part of the product.
BOWA-electronic GmbH & Co. KG shall assume no liability nor
provide any warranty whatsoever for damage and
consequential damage that may arise due to non-compliance
with this operating manual.
Read the operating manual carefully and thoroughly before
using this product.
Please keep this manual in a safe place for future
reference during the product’s lifetime.
If sold or given away, please ensure the manual is kept
with the product, so that the new owner/user may benefit
from the advice contained within it.
Always update the operating manual whenever you
receive additional information from the manufacturer.
1.1. Validity
This operating manual only applies to the products specified on
the title page.
1.2. Symbols on the product
Symbol/
Marking
Meaning
Manufacturer
Date of manufacture
Marking of electrical and electronic equipment in
accordance with Directive 2002/96/EC (WEEE),
please see chapter disposal.
Page 4
4 COMFORT BOX 11443-S0 EN
2. Intended use
The COMFORT BOX is used to read the counter of BOWA
COMFORT instruments.
Any other use of the COMFORT BOX is neither intended nor
proper and must be prevented.
3. Operation
1. Place the COMFORT BOX on a platform.
2. Insert the plug of the supplied power supply unit into the
power supply socket 5 at the COMFORT BOX.
Only use the supplied power supply unit to prevent
damage to the COMFORT BOX.
3. Switch on the COMFORT BOX at the On/Off switch 4
on the rear.
The BOWA logo appears on display 1.
4. Plug a monopolar connection cable into the monopolar
socket 2.
– or –
Plug a bipolar connection cable into the bipolar socket 3.
The COMFORT BOX confirms the correct connection
process via an acoustic signal.
The current parameters of the COMFORT instrument are
displayed.
• Instrument name
• Item number(REF)
• Batch number (LOT)
• Remaining uses
Page 5
11443-S0 EN COMFORT BOX 5
If there are any remaining uses of the instrument, "OK" is
shown on display 1.
Fig. 3-1: Parameter display for remaining uses
If there are no more remaining uses, “max. uses exceeded” is
shown on display 1.
Fig. 3-2: Parameter expired counter
5. The instrument can now be removed.
6. Reconnect a connection cable to the socket.
– or –
Complete the check process and switch off the instrument
at the On/Off switch 4 on the rear.
Disconnect the COMFORT BOX from the power supply by
removing the plug of the power supply socket 5.
Monopolar Resection
REF 106-245
LOT 240/271
Remaining uses 99
=>OK
TissueSeal 190 mm
REF 760-319
LOT 240/000
Remaining uses 0
max. uses exceeded
Page 6
6 COMFORT BOX 11443-S0 EN
4. Detecting and rectifying errors
Message
Cause
Remedy
No
COMFORT
instrument
detected
• Defective
instrument
memory
• No BOWA
COMFORT
instrument
connected
• Spring cover
compressed
Reconnect the
instrument.
If this message appears
again, using different
functional BOWA
COMFORT instruments,
please contact the
Technical Support.
More than
one
COMFORT
instrument
detected
• Two instruments
simultaneously
connected
1. Remove one instrument.
2.
If this message appears
again, please contact the
Technical Support.
Cannot
read tag
• Defective
instrument
memory
• Internal fault
Check the function using
another COMFORT
instrument.
If this message appears
again, using different
functional BOWA
COMFORT instruments,
please contact the
Technical Support.
Page 7
11443-S0 EN COMFORT BOX 7
5. Technical specifications
Technical specifications
Voltage 5 VDC
Power consumption 160 mA
Insulation type / Classification
EMC EN 55022:2010
EN 55024:2010
ETSI EN 300 330-1, V1.7.1
ETSI EN 300 330-2, V1.5.1
R&TTE equipment class Class 1, Sub-class 24
RFID transmitter frequency 13.56 MHz
Protection class according to
EN 60950-1
II
Compliance with standards EN 60950-1:2006 + A11:2009 +
A1:2010
Dimensions and weight
External dimensions
width x height x depth
155 x 103 x 146 mm
Weight Approx. 1.5 kg
Always comply with relevant national regulations on
radio equipment and telecommunications terminal
equipment when using the COMFORT BOX.
Page 8
6. Disposal
Always comply with the national regulations of
the relevant country when disposing of or
recycling the product or components thereof.
Symbol
Designation
Equipment marked with this symbol must be disposed
of correctly as electrical and electronic equipment and
separate from other waste streams. Disposal is carried
out free of charge by the manufacturer within the
European Union.
11443-S0 01/14 EN Printed in Germany Subject to technical and design changes
Copyright by BOWA-electronic, Gomaringen │ Germany
BOWA-electronic GmbH & Co. KG
Heinrich-Hertz-Strasse 4 –10
D-72810 Gomaringen │ Germany
Phone: +49 (0) 7072-6002-0
Fax: +49 (0) 7072-6002-33
[email protected] │
www.bowa-medical.com
CE marked according to
2006/95/EC
and
1999/5/EC
