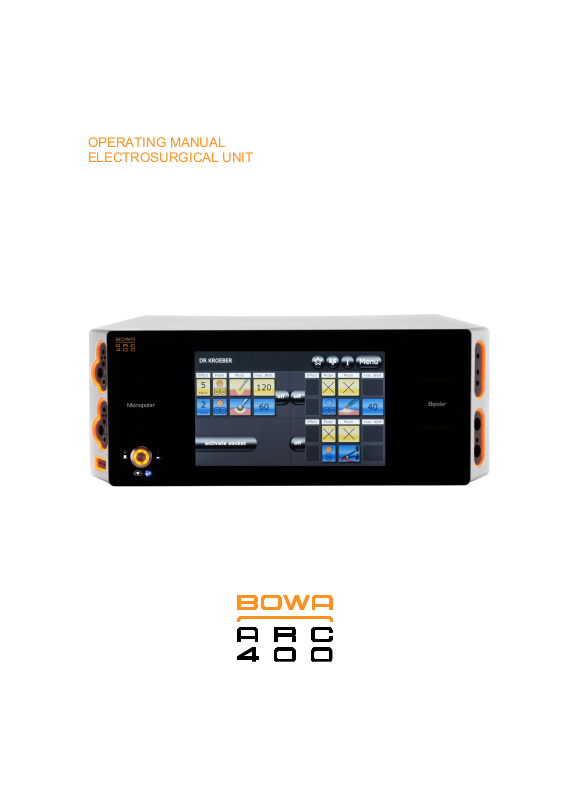

Bowa ARC 400 Operating Manual

OPERATING MANUAL
ELECTROSURGICAL UNIT

2 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

Contents

Contents

1. Using this operating manual .......................................................................................................... 7

1.1. Revision index .................................................................................................................... 7

1.2. Validity ................................................................................................................................ 7

1.3. Other applicable documents .............................................................................................. 7

1.4. Icons and labeling .............................................................................................................. 7

1.4.1. Structure of warning instructions ........................................................................ 7

1.4.2. Risk levels in warning instructions ...................................................................... 8

1.4.3. Tips ..................................................................................................................... 8

1.4.4. Other symbols and marks ................................................................................... 8

2. Safety ................................................................................................................................................ 9

2.1. Intended use ...................................................................................................................... 9

2.2. General safety instructions .............................................................................................. 10

2.3. Personal safety instructions ............................................................................................. 11

2.3.1. Ambient conditions ........................................................................................... 11

2.3.2. Patients with pacemakers ................................................................................. 11

2.3.3. Hazard-free patient positioning ......................................................................... 12

2.3.4. Correct connection of the HF device ................................................................ 12

2.3.5. Correct use of the HF device ............................................................................ 12

2.3.6. Configuring HF device settings and using accessories .................................... 13

2.4. Product-related safety instructions ................................................................................... 14

2.5. Safe handling (general instructions) ................................................................................ 14

2.5.1. Operation area: avoiding ignition and explosions ............................................. 15

2.5.2. Applying the neutral electrode .......................................................................... 15

3. Description ..................................................................................................................................... 18

3.1. User interface components .............................................................................................. 18

3.1.1. Front panel user interface components ............................................................ 18

3.1.2. Monopolar connector module (left) ................................................................... 18

3.1.3. Bipolar connector module (right) ...................................................................... 19

3.1.4. Rear panel user interface components ............................................................. 20

3.2. Symbols used on the device ............................................................................................ 21

3.2.1. Rating label ....................................................................................................... 22

3.3. Scope of delivery .............................................................................................................. 22

3.4. Components required for operation ................................................................................. 22

3.5. Operating conditions ........................................................................................................ 22

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 3

4. Prearrangement ............................................................................................................................. 23

4.1. Setting up the HF device .................................................................................................. 23

4.2. Switching on the HF device ............................................................................................. 24

4.3. Connecting instruments ................................................................................................... 24

4.3.1. Instruments for monopolar use ......................................................................... 25

4.3.2. Instruments for bipolar applications .................................................................. 25

4.3.3. Connecting a foot switch................................................................................... 25

4.4. Functional test .................................................................................................................. 26

4.4.1. Auto test function .............................................................................................. 26

4.4.2. Functional testing .............................................................................................. 26

4.4.3. Actions in case of problems .............................................................................. 27

4.5. Neutral electrode monitoring ............................................................................................ 27

4.5.1. General information .......................................................................................... 27

Contents

4.5.2. EASY neutral electrode monitoring (EASY monitoring) ................................... 28

5. Operation ........................................................................................................................................ 29

5.1. Connecting power ............................................................................................................ 29

5.2. Program overview ............................................................................................................ 29

5.2.1. Display .............................................................................................................. 29

5.2.2. Status bar ......................................................................................................... 30

5.3. Activating and deactivating connectors............................................................................ 30

5.4. Configuring output currents .............................................................................................. 31

5.4.1. Selecting the mode ........................................................................................... 31

5.4.2. Specifying power limits ..................................................................................... 32

5.4.3. Selecting the effect ........................................................................................... 33

5.4.4. Assigning the foot pedal ................................................................................... 34

5.4.5. Mode change .................................................................................................... 37

5.4.6. Selecting the neutral electrode ......................................................................... 38

5.4.7. Dr. Dongle ......................................................................................................... 40

5.4.8. Plug’n Cut COMFORT ...................................................................................... 41

5.4.9. Playing videos ................................................................................................... 42

5.5. Mode overview ................................................................................................................. 43

5.5.1. Monopolar modes ............................................................................................. 43

5.5.2. Bipolar cutting modes ....................................................................................... 45

5.6. Monopolar cutting modes ................................................................................................. 46

5.6.1. Standard ........................................................................................................... 46

5.6.2. Micro ................................................................................................................. 46

4 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

Contents

5.6.3. Dry .................................................................................................................... 47

5.6.4. Argon ................................................................................................................ 47

5.6.5. Resection .......................................................................................................... 48

5.6.6. MetraLOOP ....................................................................................................... 48

5.6.7. Laparoscopy ..................................................................................................... 49

5.6.8. GastroCut Loop slow ........................................................................................ 49

5.6.9. GastroCut Loop medium................................................................................... 50

5.6.10. GastroCut Loop fast .......................................................................................... 50

5.6.11. GastroCut Knife slow ........................................................................................ 51

5.6.12. GastroCut Knife medium .................................................................................. 51

5.6.13. GastroCut Knife fast ......................................................................................... 52

5.7. Monopolar coagulation modes ......................................................................................... 52

5.7.1. Moderate ........................................................................................................... 52

5.7.2. Forced non cutting ............................................................................................ 53

5.7.3. Forced mixed .................................................................................................... 53

5.7.4. Forced cutting ................................................................................................... 54

5.7.5. Spray................................................................................................................. 54

5.7.6. Argon open ....................................................................................................... 55

5.7.7. Argon flexible .................................................................................................... 55

5.7.8. Argon flex. pulse ............................................................................................... 56

5.7.9. Resection .......................................................................................................... 56

5.7.10. Cardiac Mammary ............................................................................................ 57

5.7.10. Cardiac Thorax ................................................................................................. 57

5.7.11. SimCoag ........................................................................................................... 58

5.7.12. Gastro Coag ..................................................................................................... 58

5.7.13. Laparoscopy ..................................................................................................... 59

5.8. Bipolar cutting modes ....................................................................................................... 59

5.8.1. Standard ........................................................................................................... 59

5.8.2. Bipolar resection ............................................................................................... 60

5.8.3. Bipolar scissors ................................................................................................. 60

5.9. Bipolar coagulation modes ............................................................................................... 61

5.9.1. Standard forceps .............................................................................................. 61

5.9.2. Standard forceps AUTO ................................................................................... 61

5.9.3. Micro forceps .................................................................................................... 62

5.9.4. Forceps forced .................................................................................................. 62

5.9.5. LIGATION ......................................................................................................... 63

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 5

5.9.6. TissueSeal PLUS .............................................................................................. 63

5.9.7. Bipolar scissors ................................................................................................. 64

5.9.8. Laparoscopy ..................................................................................................... 64

5.9.9. Bipolar resection ............................................................................................... 65

5.10. Menu dialogs .................................................................................................................... 66

5.10.1. Overview ........................................................................................................... 66

5.10.2. "System Settings" dialog ................................................................................... 67

5.10.3. "Volume" dialog ................................................................................................ 67

5.10.4. "System messages" dialog ............................................................................... 68

5.10.5. "BOWA Service" dialog ..................................................................................... 69

5.10.6. "Select program" dialog .................................................................................... 70

5.10.7. "Delete program" dialog .................................................................................... 71

5.10.8. "Favourites" dialog ............................................................................................ 72

Contents

5.10.9. "Save Program" dialog ...................................................................................... 72

5.10.10. "Argon" dialog ................................................................................................... 73

5.11. Basic programs ................................................................................................................ 74

6. Detecting and correcting faults ................................................................................................... 79

6.1. System informations ......................................................................................................... 79

6.2. Fault indications for EASY monitoring ............................................................................. 84

7. Preparation ..................................................................................................................................... 85

7.1. Preparation of the accessories ........................................................................................ 85

7.2. Disinfection and cleaning ................................................................................................. 85

8. Maintenance and repair ................................................................................................................ 86

8.1. Maintenance ..................................................................................................................... 86

8.1.1. Safety inspection .............................................................................................. 86

8.2. Repairs ............................................................................................................................. 87

9. Storage ........................................................................................................................................... 88

9.1. Technical service ............................................................................................................. 88

10. Technical specifications ............................................................................................................... 89

10.1. ARC 400 technical data ................................................................................................... 89

10.2. Output, voltage and current diagrams .............................................................................. 96

11. Accessories and replacement parts .......................................................................................... 134

12. EMC ............................................................................................................................................... 135

12.1. Guidelines and manufacturer’s declaration in accordance with IEC 60601-1-2

Section 6.8.3.201 ........................................................................................................... 135

13. Disposal ........................................................................................................................................ 139

6 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

1 Using this operating manual

Unit version

Last revised

Valid from version 1.0.0.6.17.9

2013/06

SIGNAL WORD

"Risk type, source and consequences there of" (Personal injury)!
 Measure for risk prevention.

NOTE

"Risk type, source and consequences there of" (Property damage)!

 Measure.

1. Using this operating manual

This operating manual is part of the device.
BOWA-electronic GmbH & Co. KG, referred to in the following simply as BOWA,

assume no liability nor provide any warranty whatsoever for damage and
consequential damages that arise due to non-compliance with the operating
manual.

Read the operating manual carefully and thoroughly before using this device.
Store the operating manual in a safe place throughout the service life of the

device.
Keep the operating manual accessible to operating room personnel.
Give the operating manual to each successive owner and/or user of this device.
Always update the operating manual whenever you receive additional information

from the manufacturer.

1.1. Revision index

1.2. Validity

This operating manual applies only to the devices designated on the title page.

1.3. Other applicable documents

Comply with other applicable documents in the appendix or in the other sections.

1.4. Icons and labeling

1.4.1. Structure of warning instructions

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 7

1 Using this operating manual

Symbol

Risk level

Probability of
occurrence

Consequences of
non-compliance

DANGER

Immediate risk

Death, serious
injuries

WARNING

Possible risk

Death, serious
injuries

CAUTION

Possible risk

Minor injuries

NOTE

Possible risk

Property damage

Tips and additional information to facilitate tasks

Symbol or mark

Meaning



Prerequisite for an activity

Activity with one step

1.

2.

3.

Activity with several steps in a binding
sequence



Result of preceding activity



List (first level)



List (second level)

Emphasis

Emphasis

......, see Section xxx, page xxx

Cross reference

1.4.2. Risk levels in warning instructions

1.4.3. Tips

1.4.4. Other symbols and marks

8 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

2 Safety

BOWA requires that the HF device is operated under the supervision of
qualified and authorized personnel. The surgeon and medical staff must
be trained in the fundamental principles, rules for use and risks of HF
surgery and must be familiar with these in order to safely and reliably
prevent putting patients, staff and equipment at risk.
Contact your BOWA distributor for trainings and training material.

Any other use is neither intended nor proper and must be effectively
prevented.

2. Safety

2.1. Intended use

The HF device is intended exclusively for the generation of electrical power for
monopolar and bipolar cutting and coagulation on tissue structures in surgical
operations.

It is used in the following areas:

 General surgery
 Endoscopy (GastroCut mode)
 Gynecology
 Hand surgery
 ENT
 Cardiac surgery (including open-heart surgery)
 Neurosurgery
 Pediatric surgery
 Plastic surgery and dermatology
 Thoracic surgery
 Orthopedics
 Urology, including transurethral resection (TUR)

Do not use the HF device if, in the opinion of an experienced physician or
according to current professional literature, such use would endanger the patient,
due for example to the general condition of the patient, or if other contraindications
are present.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 9

2 Safety

To protect personnel, BOWA recommends the use of a smoke evacuator
to extract electrosurgical smoke, e.g. BOWA SHE SHA.

2.2. General safety instructions

Ensure that no electronic devices that are subject to interference from
electromagnetic fields are set up in the vicinity of the HF device.

Observe the instructions on electromagnetic compatibility provided in section EMC,
page 135.

Always connect the HF device to a mains power system with a protective earth
lead in order to prevent electric shock.

Additional devices that are connected to electrical medical devices must satisfy
relevant IEC or ISO standards (e.g. IEC 60950 for data processing devices).
Furthermore, all configurations must comply with the standardised requirements
for medical systems (see IEC 60601-1-1 or Section 16 of the 3rd edition of
IEC 60601-1 as relevant). Anyone who connects additional devices to electrical
medical devices is automatically a system configurator and thus responsible for
meeting standardised system requirements. Please note that local laws prevail
over the aforementioned standard requirements. In case of questions, please
contact your local dealer or Technical Service, see section Technical service,
page 88.

10 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

2 Safety

2.3. Personal safety instructions

2.3.1. Ambient conditions

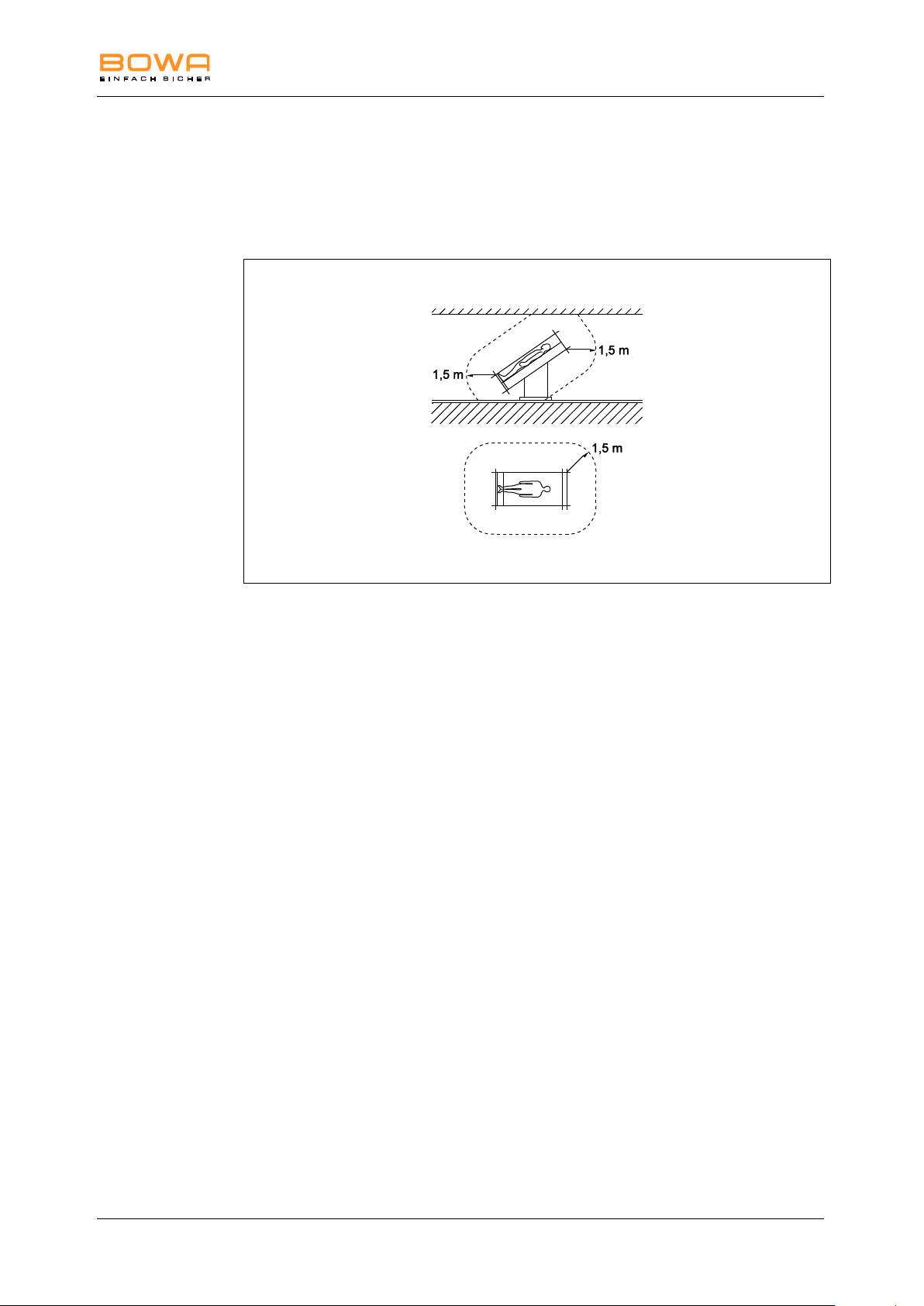

Do not use the HF device in the immediate vicinity of the patient. Observe the
minimum distances recommended by BOWA, as shown in the following figure.

2.3.2. Patients with pacemakers

Malfunction or destruction of the pacemaker can endanger the life of the patient or
result in irreversible injuries to the patient.

In the case of patients with pacemakers, consult the cardiologist before carrying
out HF surgery.

Use bipolar HF methods.
Attach the HF neutral electrode close to the operating field.
Set the demand pacemaker to a fixed frequency.
Ensure that the pacemaker does not come into contact with the HF electrode.
Keep a fully operational defibrillator within reach.
Carry out a postoperative pacemaker check.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 11

2 Safety

2.3.3. Hazard-free patient positioning

Position patients so that they are not touching any metal parts that are grounded or
have considerable capacitance relative to ground (e.g. operating table brackets). If
necessary, place anti-static cloths between the patient and the bedding.

Ensure that the patient does not touch any wet clothes or bedding.
Place anti-static cloths between areas with heavy sweating and skin-to-skin

contact areas on the patient’s torso.
Ensure that the patient is resting on a suitable surface in order to prevent pressure

necrosis.
Drain urine via a catheter.

2.3.4. Correct connection of the HF device

Always ground the HF device to the equipotential rail.
Also observe the requirements in Section 8.6.7 of IEC 60601-1 regarding medical
electrical systems.

Do not use needle electrodes for monitoring.
Attach electrodes of physiological monitoring devices without protective resistors

or HF chokes as far away from the HF electrodes as possible.
Place lines from monitoring devices so that they do not lie on the patient’s skin.
Keep the leads to the HF electrodes as short as possible and position them so that

they do not touch the patient or other leads.
Do not place any objects on the HF device.

2.3.5. Correct use of the HF device

Inadvertent activation of the HF device outside the user’s field of vision can injure
the patient.

Activate the HF device only when the electrode is in your field of vision and you
can quickly deactivate the HF device at all times.

If the HF device is activated inadvertently, switch it off immediately using the on/off
switch.

Take particular care when using a foot switch or manual switch.
Improper preparation, user errors or faults in the HF device can cause damage to

the HF device.
Use the automatic monitoring functions to ensure that the HF device is working

properly. See Section Functional testing, page 26 for information on the auto test
functions.

Ensure that no conductive fluids (e.g. blood or amniotic fluid) have penetrated the
foot switch or the manual switch.

Ensure that the cables for the foot switch and the manual switch are free from
short circuits and broken leads.

12 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

2 Safety

2.3.6. Configuring HF device settings and using accessories

Setting the output power too high can injure the patient. Therefore, before you
increase the output power, ensure that:

 the neutral electrode is attached properly;
 the working electrodes are clean;
 the plug connections are all correct.

Setting the HF device correctly

To prevent inadvertent (thermal) tissue damage during operations on body parts
with small cross sections and in areas with high resistance (bones or joints), use
the bipolar method in these areas.

Set the level of the acoustic signal that sounds when the electrode is activated so
that it is always clearly audible.

Risk of nerve or muscle excitation by low-frequency currents.
During HF surgical operations (especially when an arc is formed), part of the HF
current is converted into a low-frequency current. This current can trigger muscle
contractions in the patient.

To minimize the risk of injury to the patient, set the power and the effect as low as
possible.

Correct use of accessories

Use only insulated accessories.
Check all electrodes for sharp edges and projecting parts before use.
Use only electrodes that are free of defects and in good working order.
Never place active electrodes on or near the patient.

Do not remove hot electrodes from the patient’s body directly after cutting or

coagulation.
Ensure that there is sufficient distance between the patient cables and the cables

of the HF device.
Do not run the patient cable across the patient.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 13

2 Safety

2.4. Product-related safety instructions

Devices manufactured by BOWA are developed in accordance with the current
state of technology and generally accepted safety rules. Despite this, using these
products can lead to risks to the life and health of the user or third parties and/or
damage to the device or other objects.

Use only accessories approved by BOWA, see Section Accessories and
replacement parts, page 134.

Use the device only when it is in free of technical defects and in good working
order and only for the intended purpose, always remaining aware of safety
requirements and risks and complying with this operating manual.

Have malfunctions that can adversely affect safety (e.g. deviations from the
permissible operating conditions) repaired without delay.

Wipe down the HF device only with cleaning agents and disinfectants that are
approved in the country of use for surface cleaning. See Section Disinfection and
cleaning, page 85.

Never immerse the device in water or cleaning agents.
Never boil the device and never disinfect it mechanically.
If any fluids penetrate the device, drain them immediately.
Damage to the device can lead to an undesirable increase in output power due to

improper operation of the device.
Certain units or accessories can cause danger in lower power settings. For

example, the risk of gas embolism in argon assisted coagulation rises, if the hf­power is insufficient for the fast creation of an impenetrable eschar layer on the
target tissue.

2.5. Safe handling (general instructions)

Before each use of the device, check to ensure that it is functioning properly and is
in good working order and connected properly.

Observe the instructions on intended use in conformance with standards (see
Section Fault indications for EASY monitoring , page 84.

During use, always observe and comply with the acoustic signals and/or error
messages of the HF device (see Section Fault indications for EASY monitoring ,
page 84).

The device and accessories may be operated and used only by people who have
the necessary training, knowledge and experience.

Regularly inspect the accessories, especially the electrode cables, endoscopic
accessories and neutral electrodes, for damage to the insulation, proper operation
and expiration date.

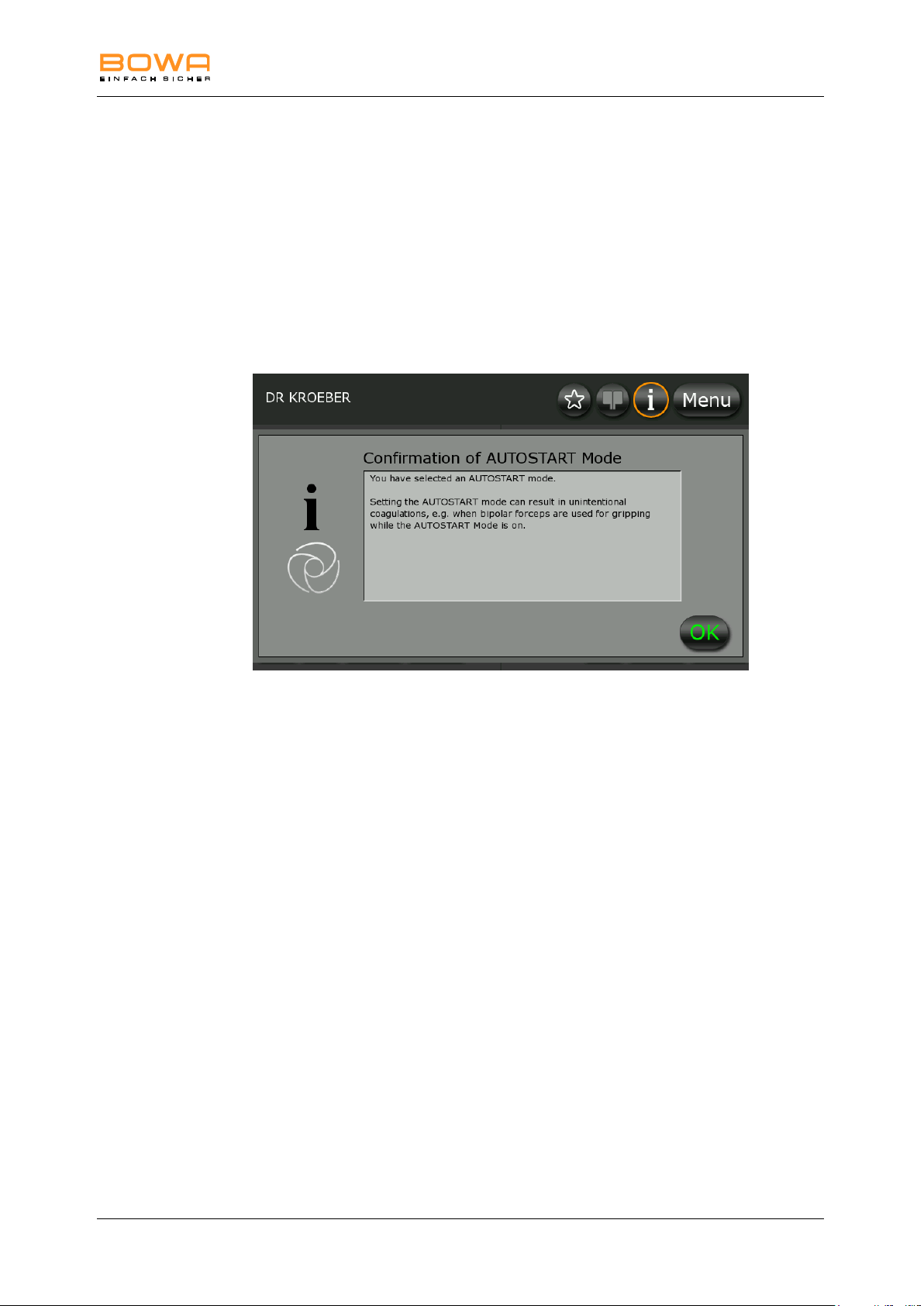

Ensure that no instruments are being cleaned when AUTOSTART is activated.
Wear suitable gloves during operations.

14 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

2 Safety

Observe the instructions on the use of the neutral electrode in the user
guide and the information on the package of the neutral electrode.

2.5.1. Operation area: avoiding ignition and explosions

Sparks are generated when the HF device is used as intended.
Do not use the HF device in areas where there is a risk of explosion.
Do not use any flammable or explosive liquids.
If the display fails, do not use the HF device any longer.
During operations (e.g. in the head or thoracic regions), avoid using ignitable

anesthetics and gases that support combustion (e.g. nitrous oxide or oxygen) or
extract them using a vacuum system.

Use exclusively non-flammable cleaning agents, disinfectants and solvents (for
adhesives). If you use flammable cleaning agents, disinfectants or solvents,
ensure that they have fully evaporated before using HF surgical equipment.

Ensure that no flammable liquids collect beneath the patient or in body cavities
(e.g. the vagina). Suction and/or flush body cavities before activating the device.

Wipe off all liquids before using the HF device.
Ensure that no ignitable endogenous gases are present.
Ensure that all materials saturated with oxygen (e.g. cotton or gauze) are kept far

enough away from the HF environment that they cannot ignite.

2.5.2. Applying the neutral electrode

In the monopolar HF method, the neutral electrode feeds the current introduced
into the patient’s body at the surgical site back to the HF device.

To prevent a rise in temperature at the current exit point, the following conditions
must be ensured:

 sufficiently large contact surface between the neutral electrode and

the patient’s body;

 high electrical conductivity between the neutral electrode and the

patient’s body.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 15

2 Safety

To prevent the patient being burned by the neutral electrode, you must comply with
the following conditions:

 Select the application point for the neutral electrode so that the

current paths between the active and neutral electrodes are as
short as possible and run longitudinally or diagonally through the

patient’s body (because muscles are more conductive in the

direction of the fibrils).

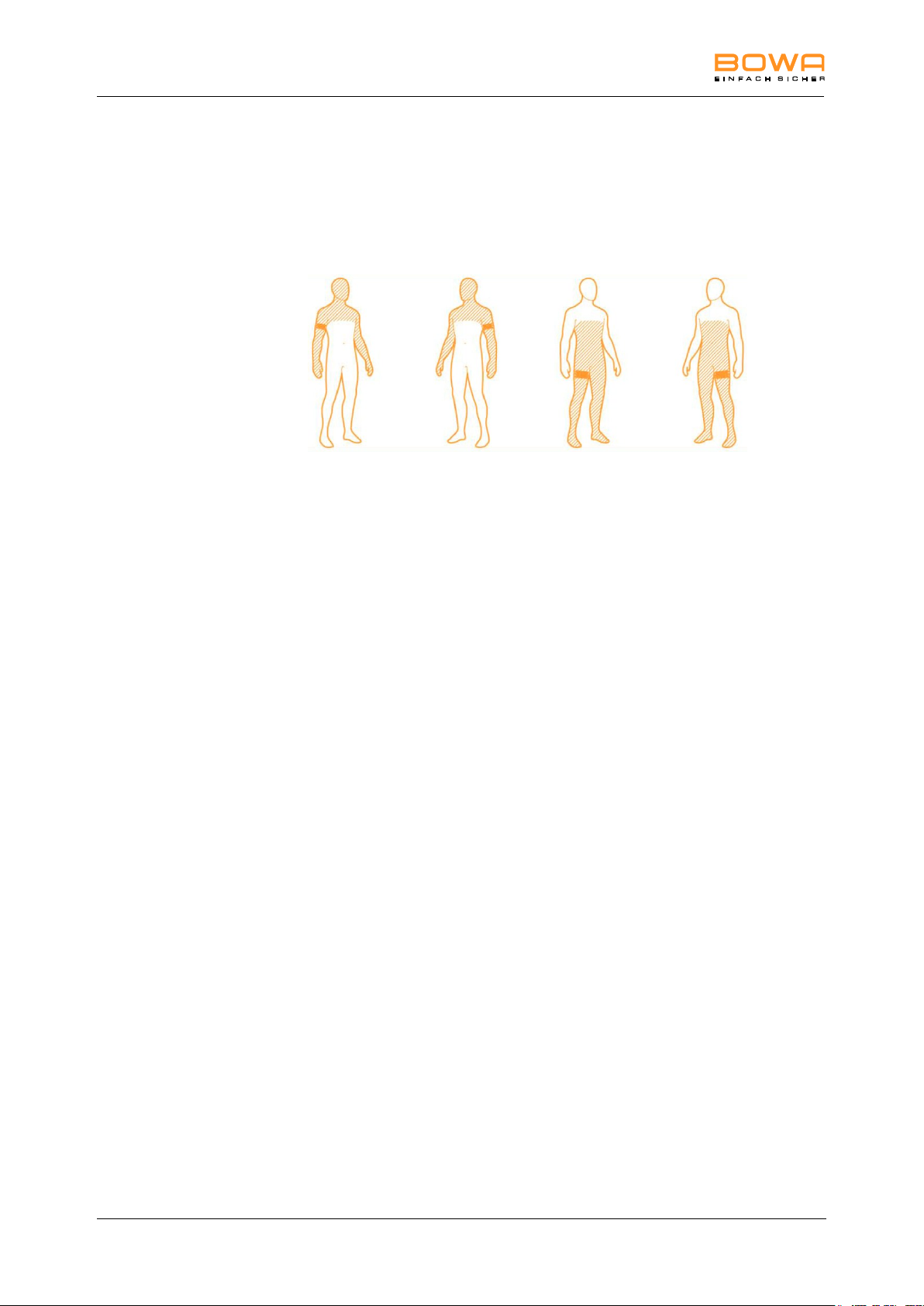

Figure 2-1: Application point of neutral electrode

 For surgery in the thoracic region, do not run the current path

transversely across the patient’s body and ensure that the patient’s

heart is never in the current path.

 Depending on the surgical site, apply the neutral electrode to the

nearest upper arm or thigh if possible, but never closer than 20 cm.

 In the case of self-adhesive disposable electrodes, comply with any

further manufacturer instructions regarding the point of application.

 Ensure that the application area is free of scar tissue, bony

protuberances, surface hair and ECG electrodes.

 Ensure that there are no implants (e.g. bone nails, bone plates or

endoprostheses) in the current path.

 Ensure that no short circuits can occur at the neutral electrode

connection.

 Avoid areas where fluids may collect.
 Use split neutral electrodes with a sufficiently large surface area

(patient age and max. output power during operation have to be
considered).

Before applying the neutral electrode

Shave the area where the neutral electrode will be applied.
Clean the application site, but do not use any alcohol, since it dries out the skin

and increases the contact resistance.
If the patient has poor circulation, massage or brush the application site.

16 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

2 Safety

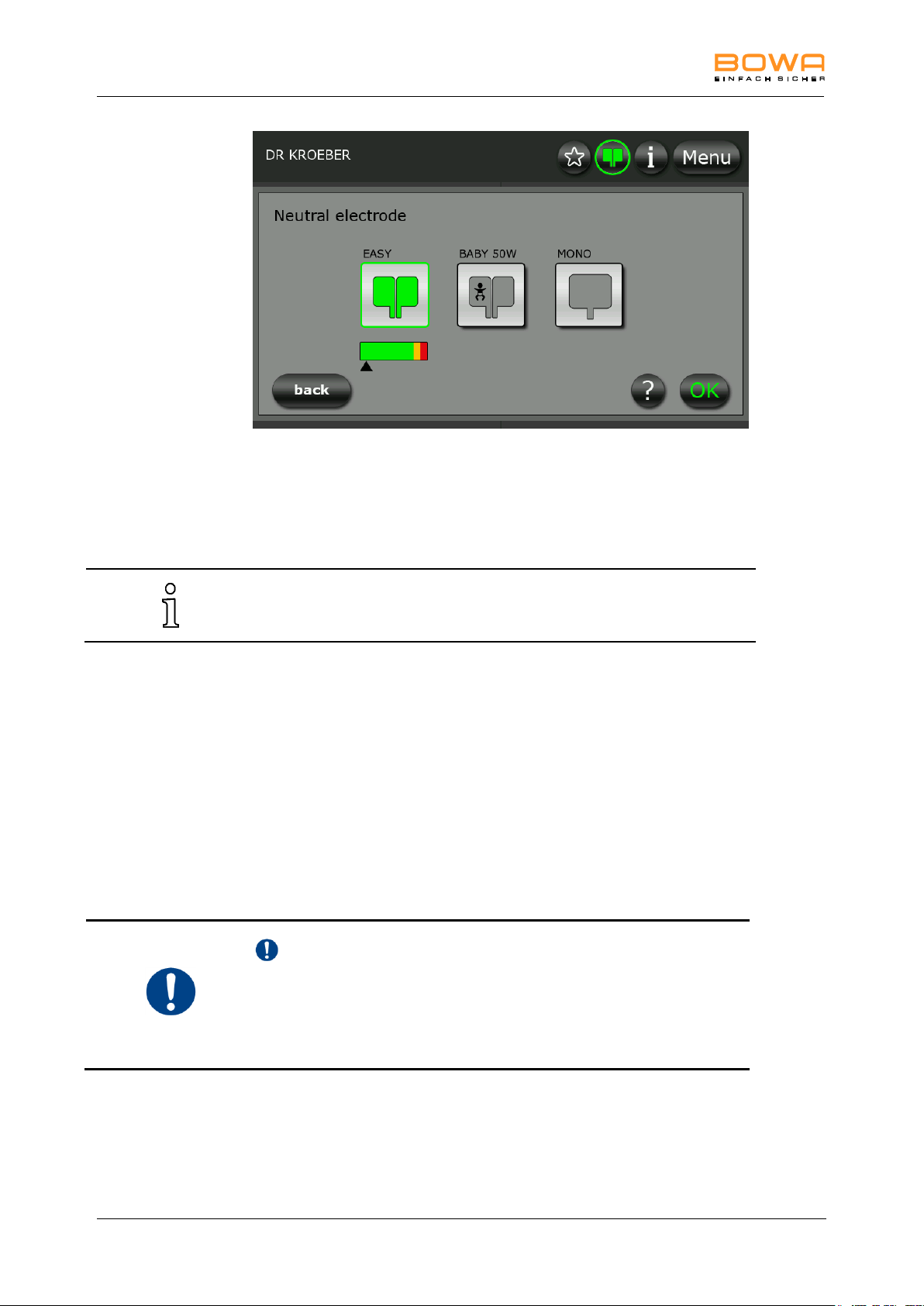

See Section Fault indications for EASY monitoring, page 84 regarding
monitoring of the neutral electrode.

Attach the neutral electrode over the entire contact surface evenly. Secure
reusable neutral electrodes with rubber bands or elastic straps so that they do not

loosen when the patient moves. Ensure that the patient’s circulation is not impaired

(risk of necrosis).
Never use wet clothes or conductive pastes.
Ensure that no liquids (e.g. cleaning fluids, disinfectants, blood or urine) penetrate

between the patient and the neutral electrode.
Do not place the neutral electrode under the patient’s buttocks or back.
Ensure that there are no ECG electrodes in the current path of the HF device.
Check the neutral electrode before and after use for damage and to ensure that

they are working properly.
Replace defective accessories immediately

Example application using a disposable electrode

Remove the protective film and attach the self-adhesive disposable electrode to
the patient. Ensure that the long edge of the disposable electrode faces the
operation site and the electrode is fully in contact with the skin. This avoids
excessive current concentration on the short edge.

Using both hands, press the self-adhesive disposable electrode firmly against the
patient’s skin.

Clamp the electrode tab to the neutral electrode cable.
After the operation, remove the disposable electrode carefully to avoid skin

damage.

With a one-piece neutral electrode

Check the one-piece neutral electrode during surgery.
Ensure that the one-piece electrode is not blocked at the device.

With a split neutral electrode

Apply the split neutral electrode correctly and without any additional objects, as
otherwise the HF device may detect a path between the two sections due to other
objects.

See that the current flows equally to both parts of the split neutral electrode.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 17

3 Description

While activating an instrument, the activation bar of the corresponding
socket illuminates yellow or blue.

5 6 7 8 9

10

11
1 2 3

4

3. Description

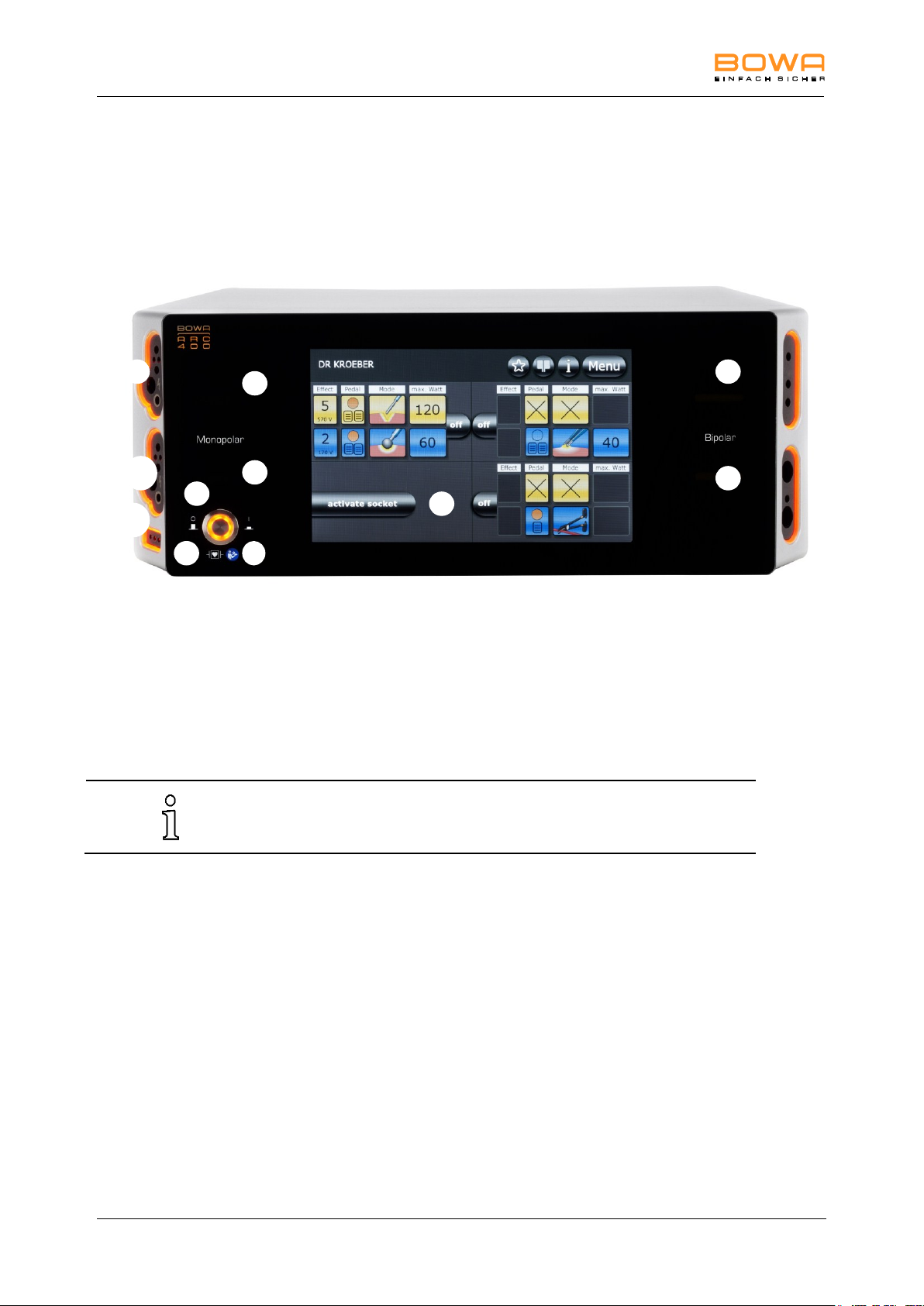

3.1. User interface components

3.1.1. Front panel user interface components

1 Power switch
2 "CF-type device with defibrillation protection" icon
3 "Observe use instructions" icon
4 Touchscreen with mode selection buttons
5 Activation bar upper monopolar socket
6 Activation bar lower monopolar socket
7 Activation bar upper bipolar socket
8 Activation bar lower bipolar socket

3.1.2. Monopolar connector module (left)

9 Socket connector for monopolar instruments with hand or foot

switch*

10 Socket connector for monopolar instruments with hand or foot switch*
11 Socket connector for neutral electrode *

* Applied part type F according to IEC 60601-1

18 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

3 Description

12

13

14

15

16

17

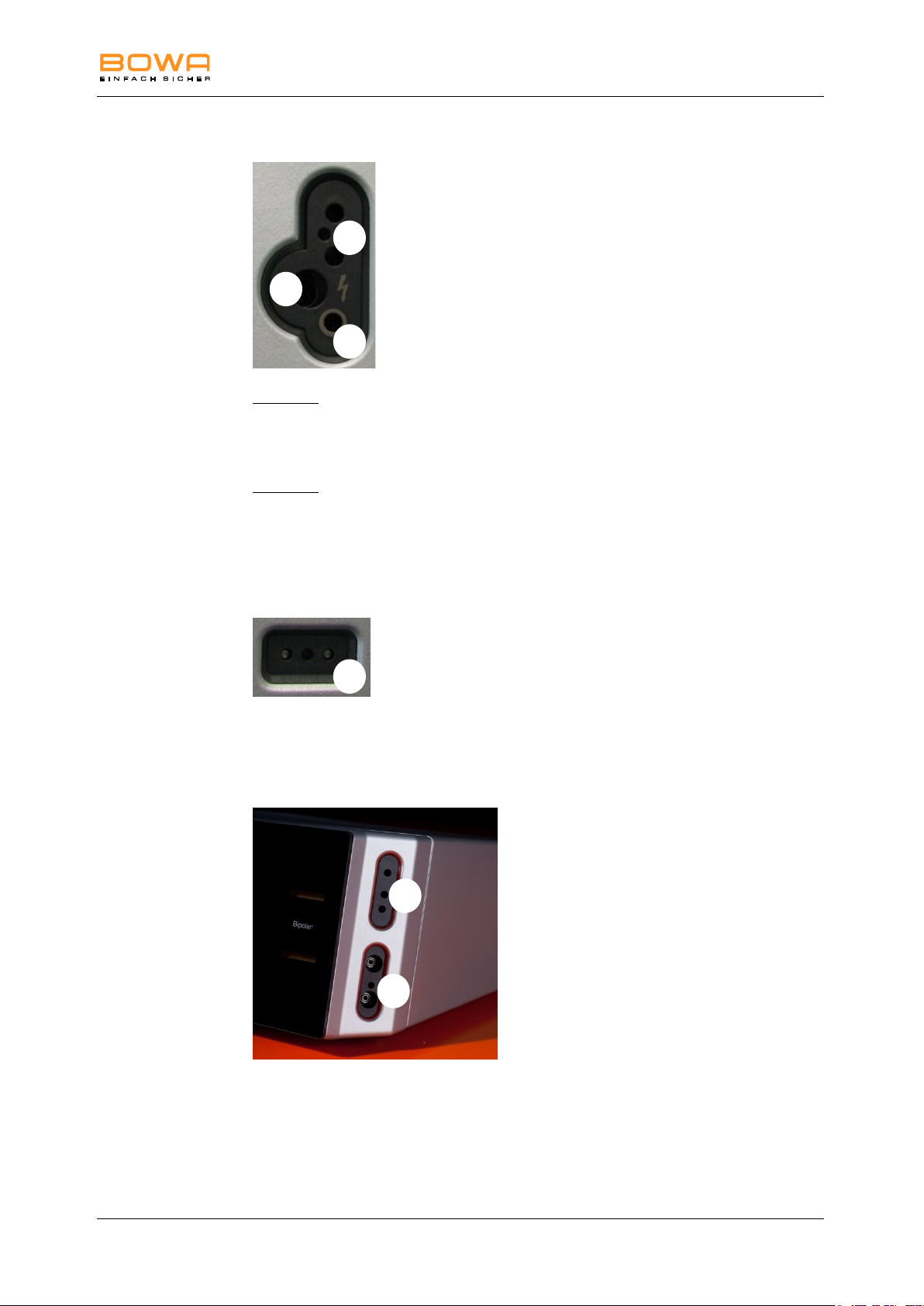

Monopolar connection socket

Version 1

12 3-pin US type
13 Bovie connector (for foot switch)
14 4-mm socket (for foot switch)

Version 2

12 3-pin US type
13 Erbe 5 mm
14 4-mm socket (for foot switch)

Connection socket for neutral electrode

15 Neutral (US type)

3.1.3. Bipolar connector module (right)

16 Socket connector for bipolar instruments with foot switch or

AUTOSTART*

17 Socket connector for bipolar instruments with foot switch or

AUTOSTART*

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 19

3 Description

The USB connector can be used to perform software updates.

The maximum voltage at the SIP/SOP ports is 15 VDC.

18

19

19

21

20

23

22

24

25

26

27

28

29

18

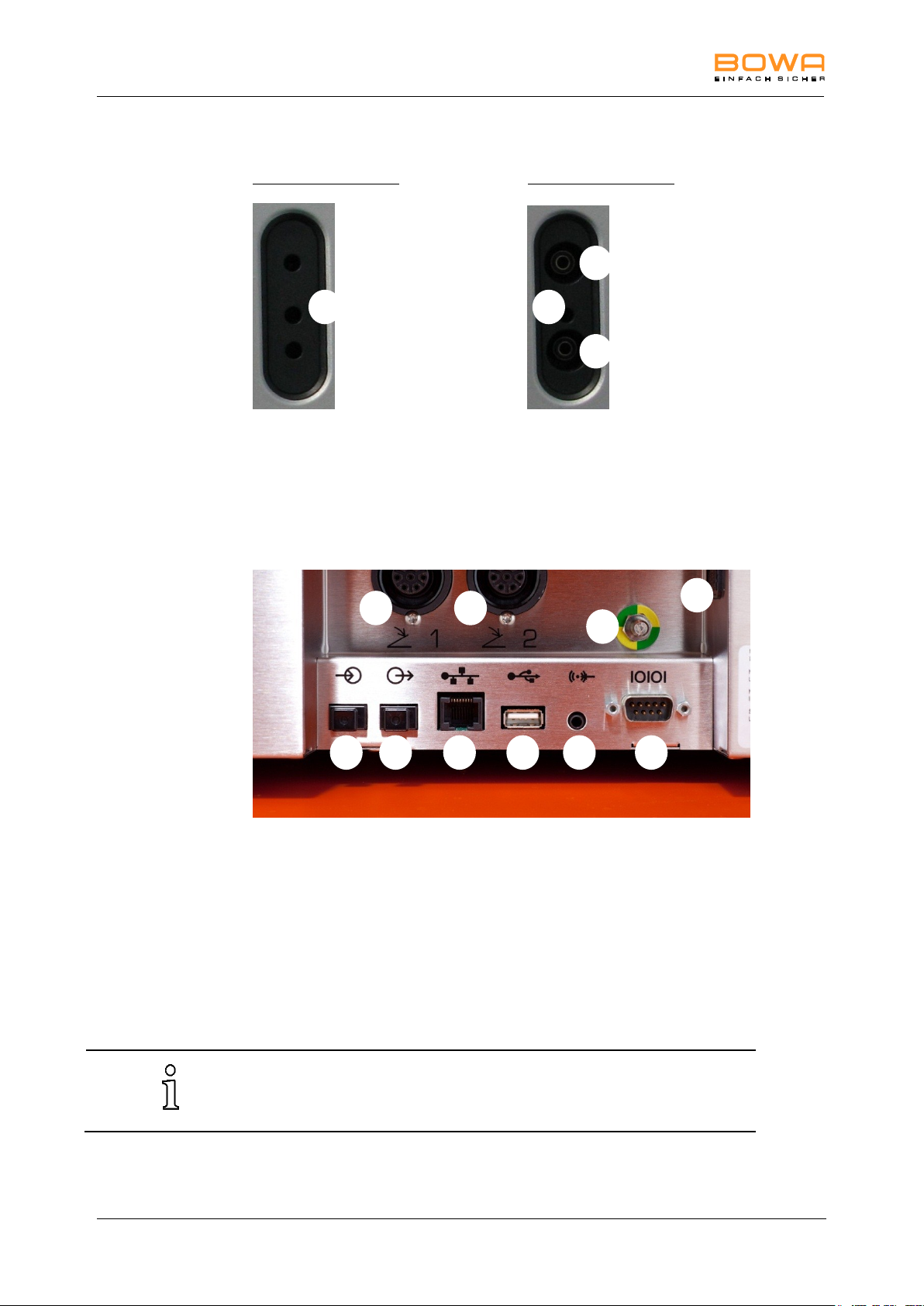

Bipolar connection sockets

Upper bipolar socket: Lower bipolar socket:

18 2-pin US type (28.58 mm) 18 2-pin US type (28.58 mm)

19 Erbe VIO/ICC

* Applied part type F according to IEC 60601-1

3.1.4. Rear panel user interface components

20 Foot switch socket connector 1
21 Foot switch socket connector 2
22 Equipotential bonding terminal
23 IEC power cord connector
24 Fiber-optic signal input connector
25 Fiber-optic signal output socket connector
Use the following connections only for service and training purposes:
26 Ethernet connector
27 USB connector
28 Audio In (not occupied)
29 UART communication interface

20 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

3 Description

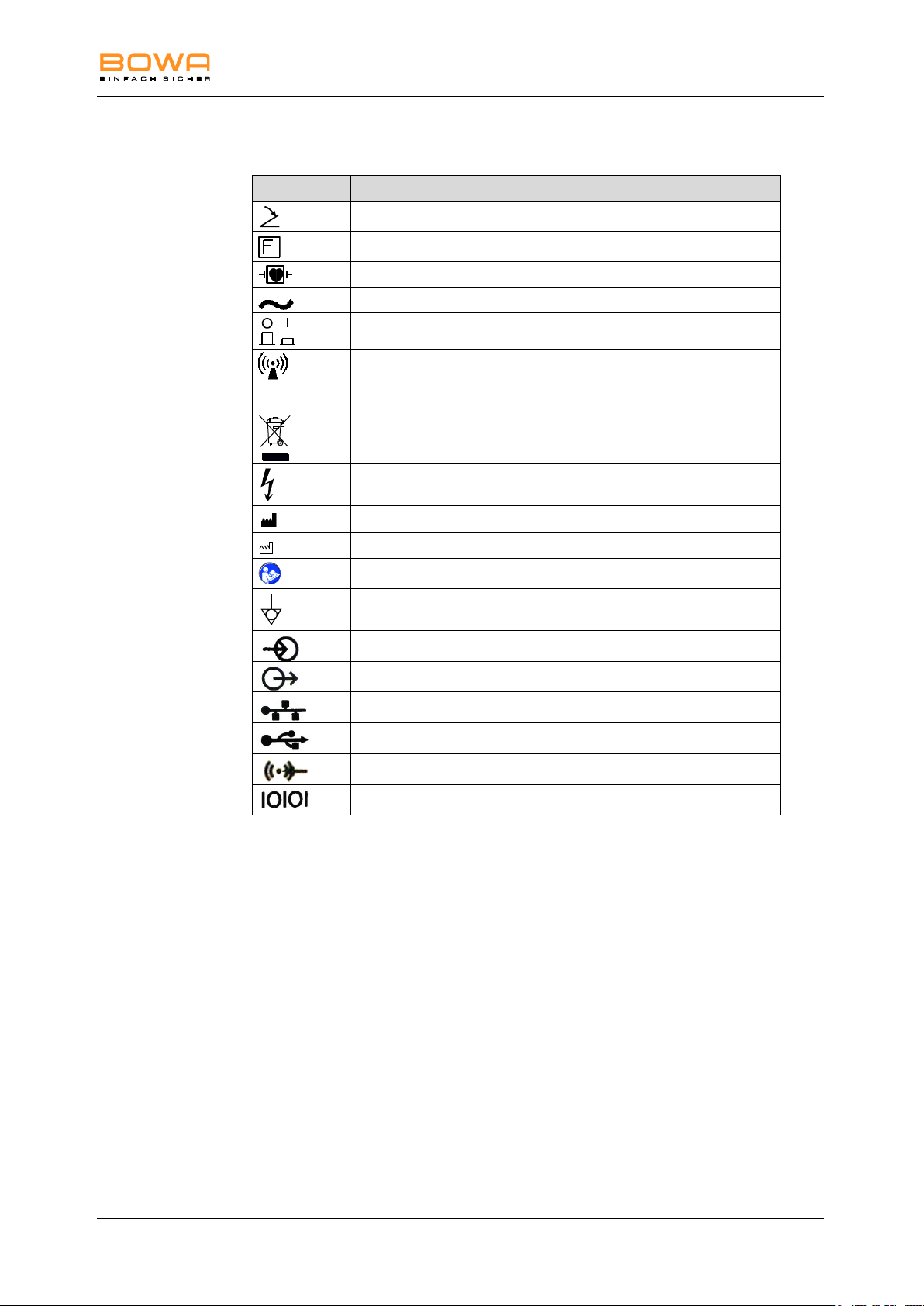

Symbol

Designation

Foot switch connector

Neutral electrode isolated from ground for HF

CF-type device with defibrillation protection

Alternating current

On/off switch

During activation (of the HF device) RF energy in the radio
frequency range 9 kHz to 400 GHz is applied, which
produces electromagnetic radiation.

Labeling of electrical and electronic devices in accordance with
Directive 2002/96/EC (WEEE); see "Disposal"

(Active) HF output; caution: hazardous voltage
Manufacturer

Date of manufacture

Observe use instructions

Equipotentiality connection

Fiber-optic signal input

Fiber-optic signal output

Ethernet connector

USB connector

Audio In

UART communication interface

3.2. Symbols used on the device

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 21

3 Description

3.2.1. Rating label

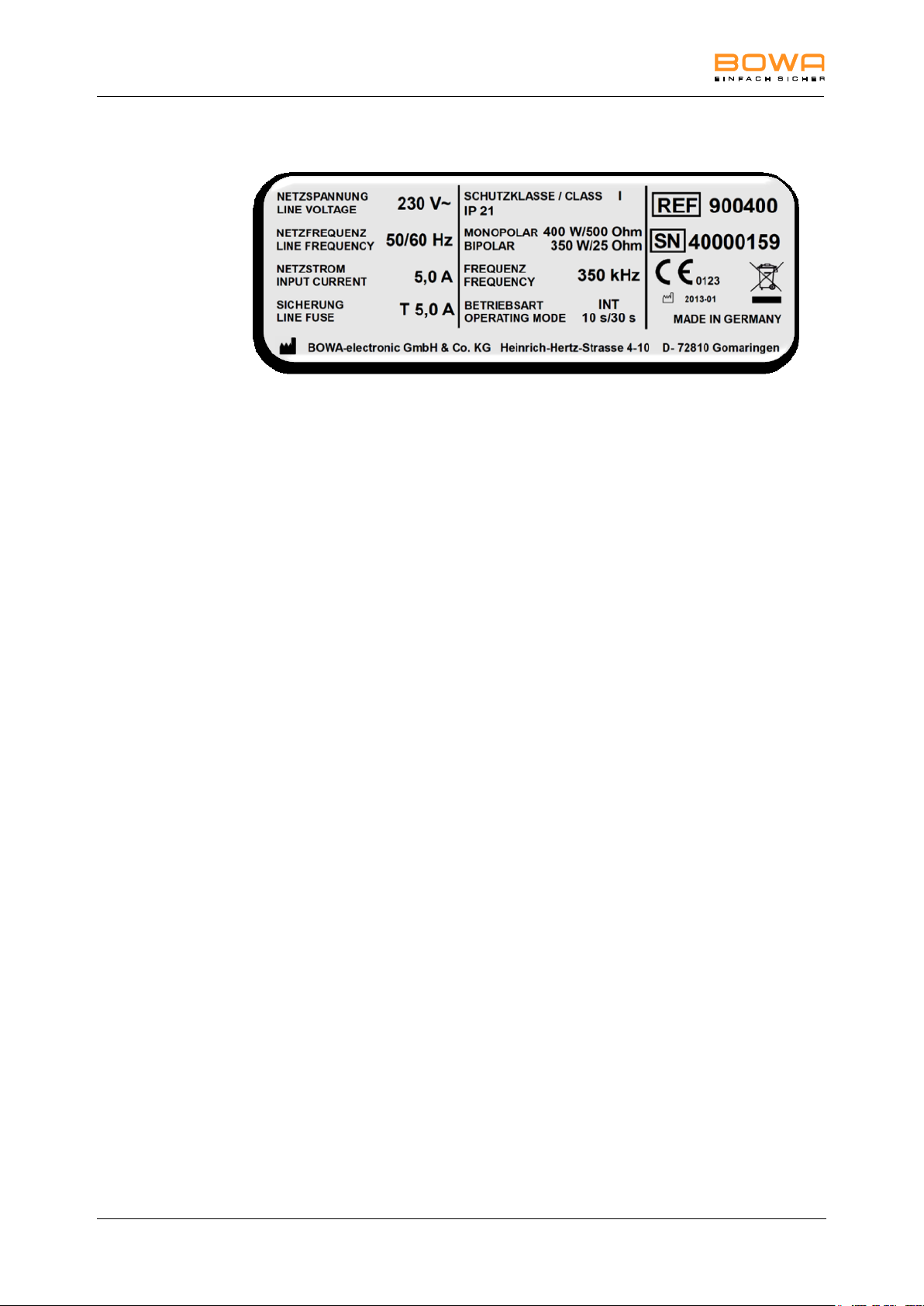

Figure 3-1: ARC 400 rating label

3.3. Scope of delivery

You'll find detailed information on the scope of delivery in the current catalogs.

3.4. Components required for operation

 Power cable
 Foot switch
 Neutral electrode for monopolar applications
 Connection cable for neutral electrode or instrument
 Instrument (monopolar or bipolar)
 Dr. Dongle as an individual memory stick

3.5. Operating conditions

Temperature: +10 °C to +40 °C
Relative humidity: 30 to 75%, non-condensing
Atmospheric pressure: 700 to 1600 hPa
Operating altitude (max.) 4000 m above sea level

22 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

4 Prearrangement

NOTE

Electromagnetic fields are generated during normal use of the HF
device. This can adversely affect other devices.

 Ensure that no electronic devices are placed in the vicinity of the

HF device.

WARNING

Shock hazard

 Always connect the HF device to a grounded power distribution

system in order to prevent electric shock.

DANGER

Risk of burns to patients due to excessive leakage current

 Locate the HF device outside the immediate vicinity of the patient,

see section Ambient conditions, page 11.

HF devices may be used only in rooms used for medical purposes that
meet the requirements of DIN VDE 0100-710.

If the HF device was previously stored or transported at temperatures
below +10 °C, it will take approximately three hours to adjust to room
temperature.

4. Prearrangement

4.1. Setting up the HF device

1. Observe the specified operating conditions (see Section Operating conditions,
page 22.

2. Place the HF device on one of the following platforms:

 a table;
 an equipment trolley;
 a console suspended from a ceiling support or wall-mounted

brackets.

3. Place the HF device a sufficient distance away from other electronic
equipment, see Section EMC, page 135.

4. Position the HF device with the front of the device facing the patient and
surgeon.

5. Do not place any other device on the HF device.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 23

4 Prearrangement

Do not use the HF device if the display components are not working. See
Section faults Detecting and correcting faults, page 73 for
troubleshooting instructions.

6. Do not place any other objects on or above the HF device.

7. Place the HF device on top of ARC PLUS only, do not place it on other
devices.

8. Connect the power cord.

4.2. Switching on the HF device

1. Switch the HF device on using the on/off switch.

The HF unit performs a self testing: All user interface components light up.



2. Check all controls and indicators for proper operation:

 Power switch
 Touchscreen
 Monopolar socket connectors
 Bipolar socket connectors
 Activation bar for monopolar and bipolar sockets

The main screen appears, and the HF device is ready for use.



The parameters of the most recently selected program appear on the display.



4.3. Connecting instruments

Before connecting instruments, ensure that the following conditions are met:

 Combinations of accessories not mentioned in the operating

manual may be used only if they are explicitly designed for the
intended use. Always observe performance characteristics and
safety requirements.

 The insulation of the accessories (e.g. HF cables and instruments)

must be sufficient for the maximum peak output voltage (see IEC
60601-2-2 and IEC 60601-2-18).

 Do not use accessories with defective insulation.

24 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

4 Prearrangement

One double-pedal foot switch and one single pedal foot switch can be
connected. Foot switches without an orange changeover switch cannot
be used.
Only foot switch and fibre optics may be connected to the rear panel
during operation.

Item no.

Designation

901-011

Single-pedal foot switch with switch

901-031

Double-pedal foot switch with switch

901-032

Double-pedal foot switch with switch and clip

4.3.1. Instruments for monopolar use

1. Plug the neutral electrode cable into the socket for the neutral electrode and
choose the corresponding neutral electrode type, see chapter Selecting the
neutral electrode, page 38.

The socket illumination goes dark.



The neutral electrode button changes from grey to the measurement color



(green, yellow or red).

2. Connect the electrode handpiece to one of the two monopolar socket
connectors.
– or –
In the case of an accessory without a finger button, connect a footswitch to the
socket connector. Connect the Bovie connector of the monopolar cable to the
socket connector.
– or –
Connect the monopolar cable for endoscopy to one of the two monopolar
socket connectors for monopolar instruments.

4.3.2. Instruments for bipolar applications

1. Connect the bipolar cable to the instrument (e.g. forceps).

2. Connect the bipolar cable to one of the two bipolar socket connectors.

3. For bipolar use without AUTOSTART, connect a footswitch to the socket

connector.
– or –
Use the AUTOSTART mode for the appropriate socket connector.

Once the instrument is connected, the application starts after the configured



delay time.

4.3.3. Connecting a foot switch

In addition to the manual switch, a foot switch can be used to activate various
operating modes.

Connect the desired foot switch only during operation to one of the two socket
connectors for foot switches.

The HF device automatically detects the connected foot switch and indicates



this on the front panel display, including the selected socket connector.

The following foot switch systems can be connected to the HF device:

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 25

4 Prearrangement

The accessories must be designed for the specified maximum voltage.

The neutral electrode used for this test may not later be used for an
operation.

4.4. Functional test

4.4.1. Auto test function

The HF device automatically performs cyclic testing during operation. If any faults
occur, see Section Detecting and correcting faults, page 73.

4.4.2. Functional testing

Perform the following functional test before putting the device into service:

1. Connect the neutral electrode and attach it securely to the patient’s arm.
The EASY neutral electrode indicator changes to green.



2. Remove the neutral electrode.
The indicator changes to red, acoustic signals sound.



3. Connect a monopolar HF handpiece to a monopolar socket connector if there

is a green EASY indicator and use the manual switch and footswitch to
individually activate "Cut" and "Coag".

4. Check the settings on the display.

5. Now change to the bipolar output and connect bipolar forceps.

6. Select a mode with AUTOSTART, grasp moist gauze with the forceps, and

check the display.

7. Now change to a mode without AUTOSTART and use the footswitch to

activate the bipolar output. Check the settings and indicators in the bipolar
section.

26 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

4 Prearrangement

The HF device can be switched off at any time by using on/off switch as
an emergency stop switch.

Always use the largest possible electrode when attaching a neutral
electrode.

BOWA recommends using split neutral electrodes, since only this type of
electrode allows the HF device to detect detachment of the neutral
electrode if this occurs.

4.4.3. Actions in case of problems

Proceed as follows in case of functional problems:

1. Immediately disconnect the patient from the HF device.

2. Inspect the HF device and perform a functional test.

3. Report incidents and near-accidents to the German Federal Institute for
Medications and Medical Products in accordance with Section 3 of the
German Ordinance on the Installation, Operation and Use of Medical Products
(MPBetreibV). Observe the provisions of the in-house reporting system in this
regard.

4. Consult the Technical Service department, see Section Technical service,
page 88.

4.5. Neutral electrode monitoring

4.5.1. General information

Monitoring of the neutral electrode minimizes the risk of burns at the site where the
neutral electrode is attached.

Two types of neutral electrodes can be monitored:

 Split electrodes for infants (for use with reduced power)
 Split neutral electrodes

The type of neutral electrode and its contact quality are selected and/or shown in
Neutral Electrode Modes menu.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 27

4 Prearrangement

The maximum output power of monopolar current types is reduced to
50 W when a children’s electrode is selected.

NOTE

Risk of incorrect application of the neutral electrode

 Ensure compliance with the specifications for correct attachment of

the neutral electrode with regard to size, adhesive properties and
full-surface contact of the complete electrode.

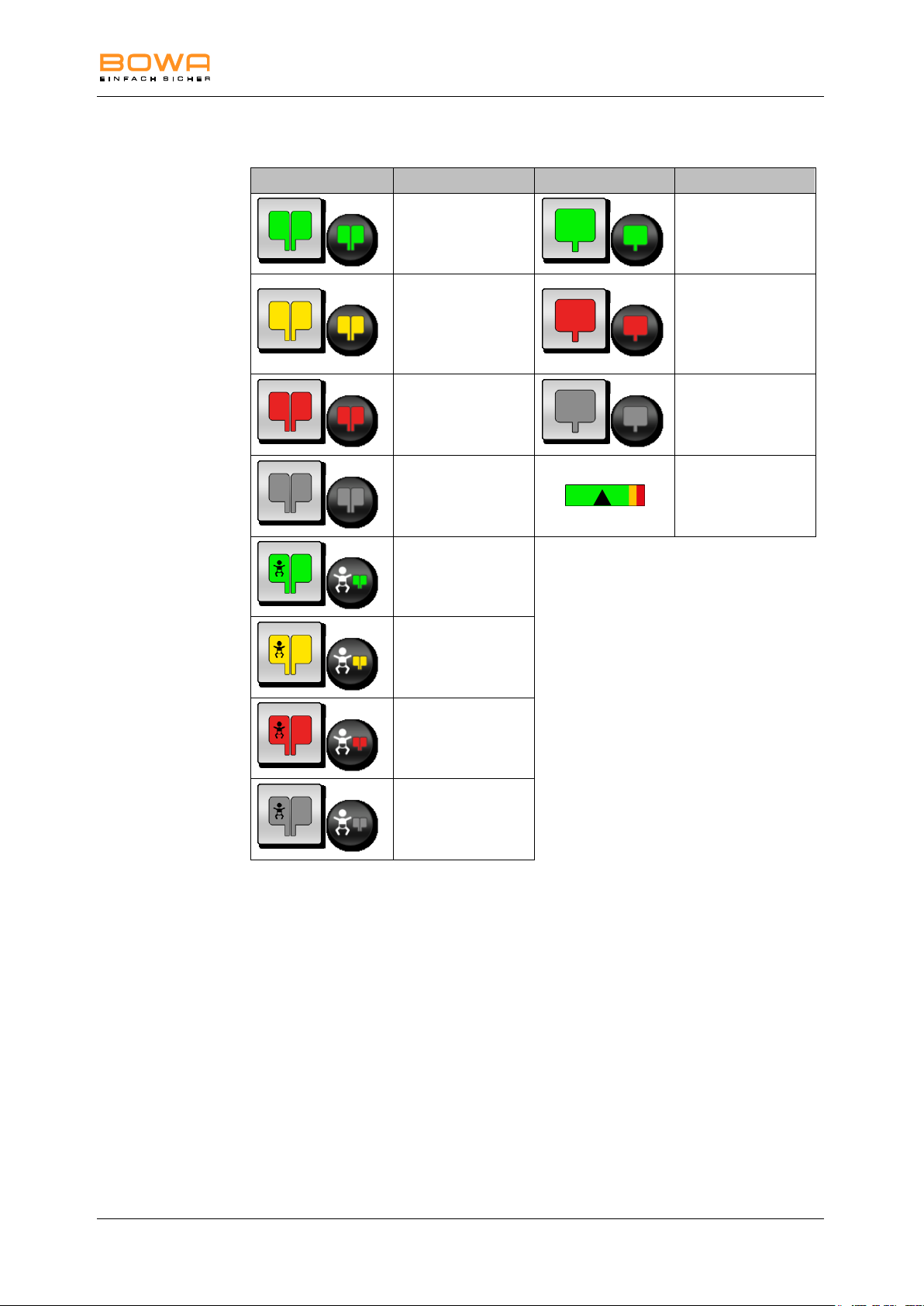

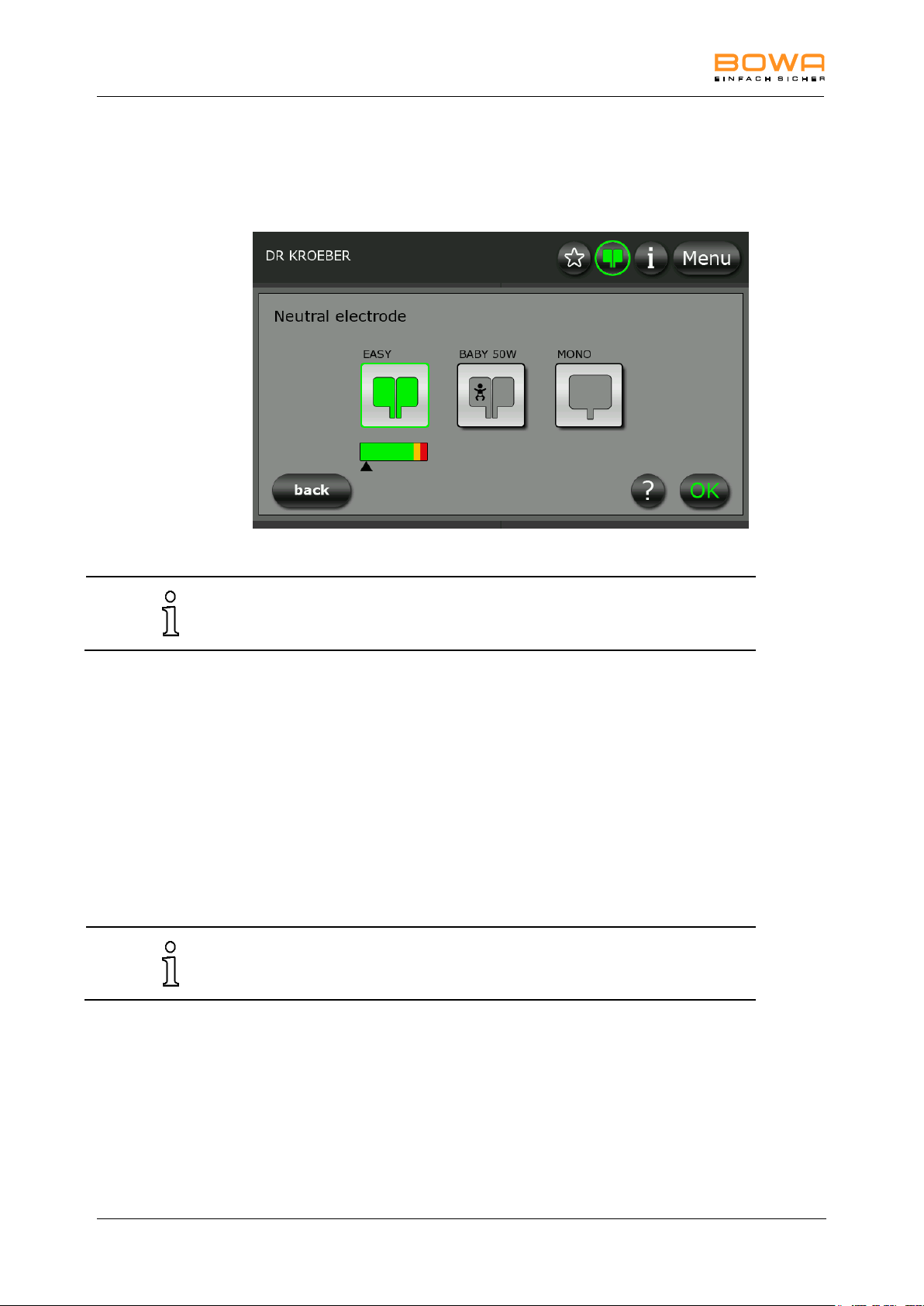

Figure 4-1: Neutral electrode modes

Faults related to the neutral electrode and possible remedies are shown on the
display, see Section Detecting and correcting faults, page 73.

4.5.2. EASY neutral electrode monitoring (EASY monitoring)

The EASY monitoring function measures changes in the resistance between the
patient and the high-frequency surgery device before and during HF activation. If
necessary, it generates visual and audible alarms to request staff intervention. This
requires using a split neutral electrode with appropriate contact areas and suitable

contact resistance, attached to the patient according to the manufacturer’s

instructions. The EASY system does not monitor the currents through the
individual contact surfaces of the split neutral electrode.

An electrode with a surface area of at least 110 cm² must be used for the
"Resection" programs and the "Moderate Coagulation" mode.

If an error message is generated, the display changes from green via yellow to red,
depending on the type of fault.

28 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5. Operation

5.1. Connecting power

The line voltage must match the voltage specified on the rating label.



Connect the power cord to the generator and plug the cord into a grounded AC
power outlet.

Using the power switch, switch the device on.

The device performs a functional test.



The bars of the activation display light up, while the connector surrounds light



up orange.
Full functionality of the loudspeaker is indicated by the start melody.



The individually configurable start screen appears if it has been set up.



5.2. Program overview

5.2.1. Display

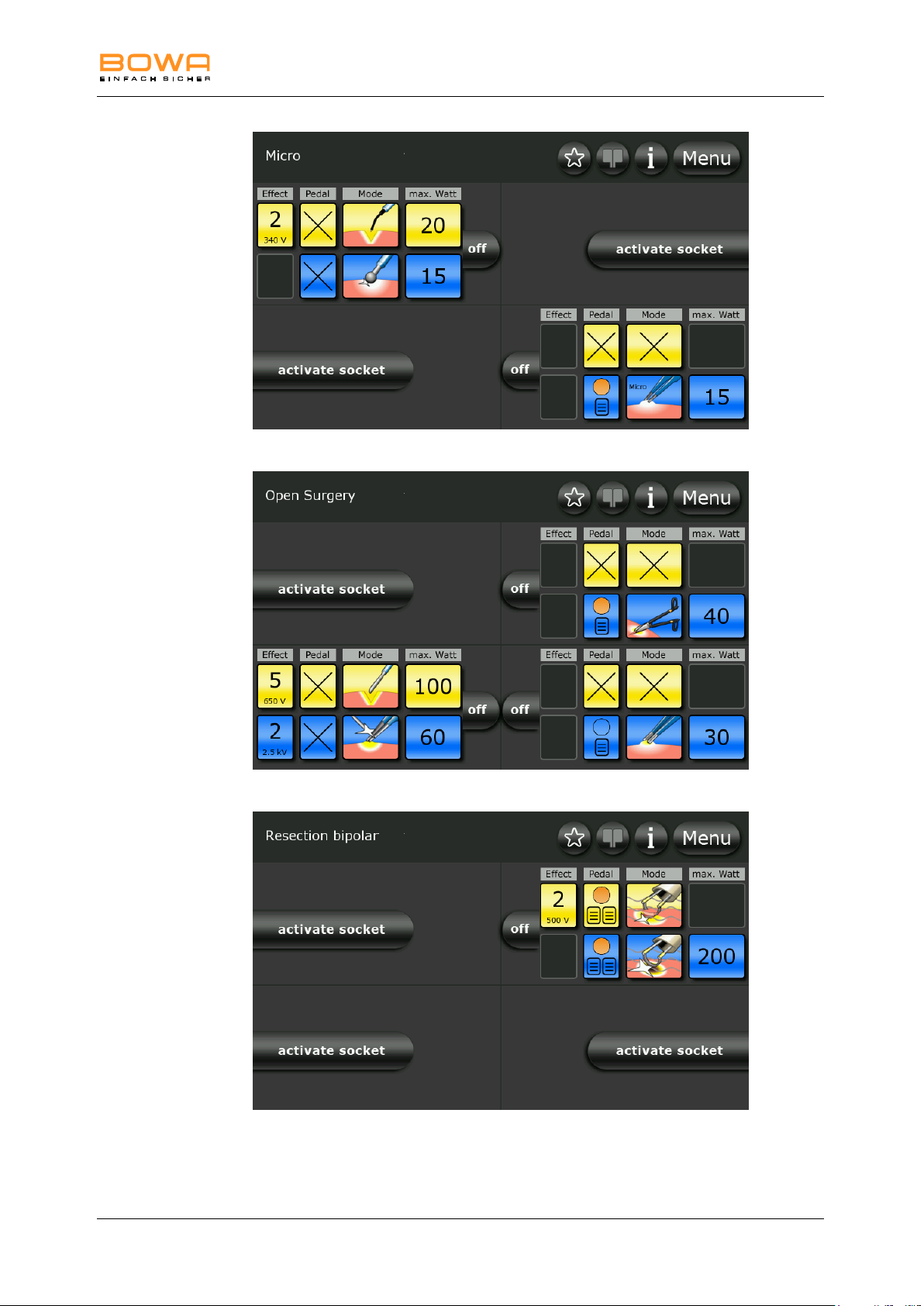

Figure 5-1: Main screen

The status bar is located at the top of the display.
The settings of the four socket connectors are shown below the status bar.
Settings can be configured for each of the connectors.
The "Effect" button is used to set the effect of electrosurgical cutting.
The "Pedal" button allows the activation of specific functions to be assigned to the

foot pedal.
The "Mode" button allows the desired type of current to be selected.
The "max. Watt" button is used to set the maximum output power.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 29

5 Operation

5.2.2. Status bar

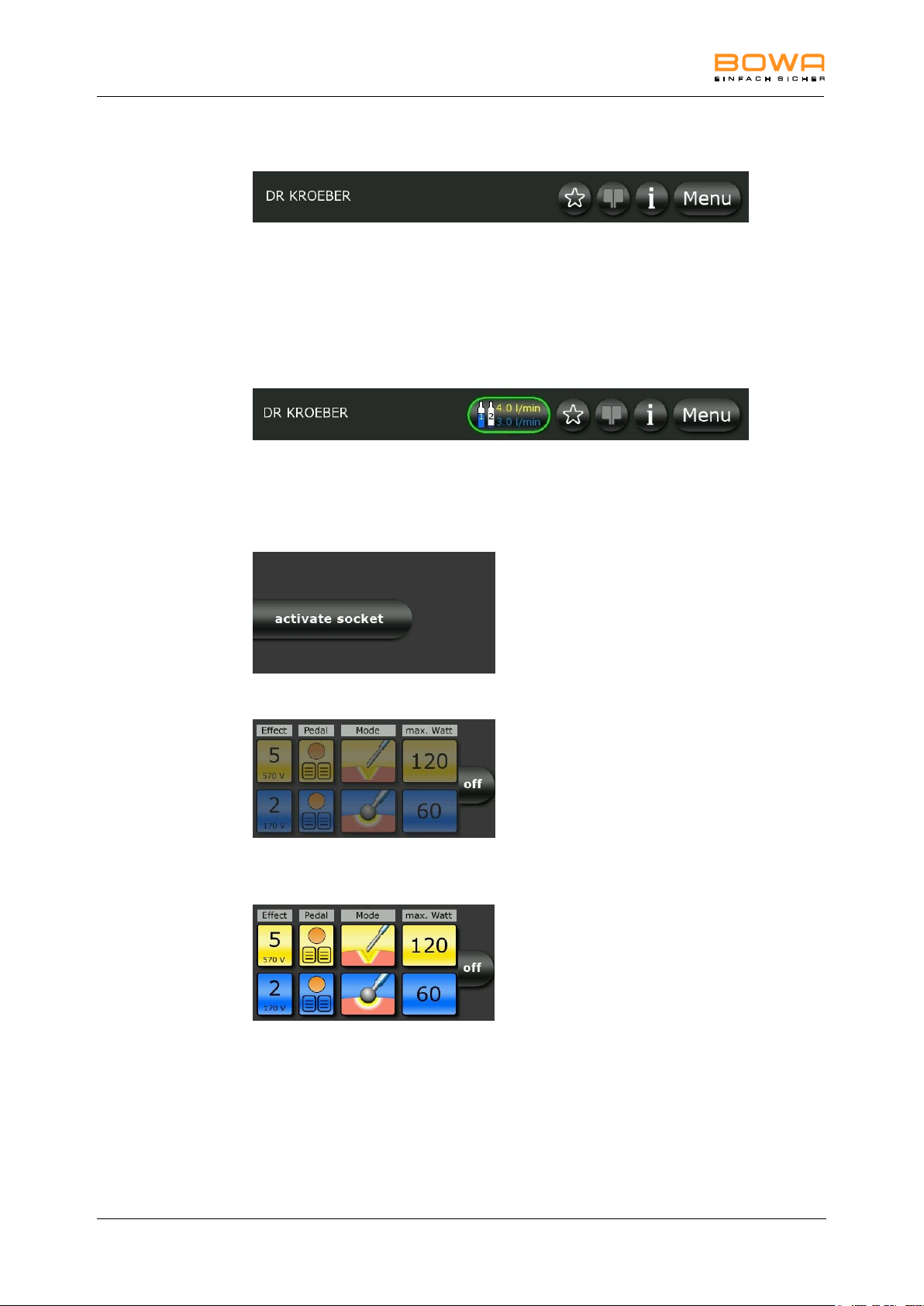

Figure 5-2: Status bar with Favourite

Four buttons are located on the status bar: "Favourite", "EASY", "Help" and
"Menu".

The “Argon” button is also displayed in conjunction with ARC PLUS and selection
of an Argon mode.

Figure 5-3: Status bar with Argon

5.3. Activating and deactivating connectors

Figure 5-4: Deactivated socket

Figure 5-5: Unused socket

Figure 5-6: Activated socket

 To activate a deactivated socket
connector, plug a connecting cable into the
connector.
– or –
Press the "activate socket" button.



appears.

The overview is grayed out if no instrument is
connected to the socket connector.

The socket illumination extinguishes and
connector lights up when an instrument is
plugged in.

 To hide the selection, press the "off"
button next to the connector settings
overview.

An overview of the connector settings

30 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

All selection windows are closed after 30 seconds without assumption of
the modification.

If selection screens are present, buttons outside the screen are inactive.
In addition, activations not possible in this case.

A change to the currently loaded program, e.g. by adjusting the output, is
indicated by the information “changed” below the program name.

5.4. Configuring output currents

5.4.1. Selecting the mode

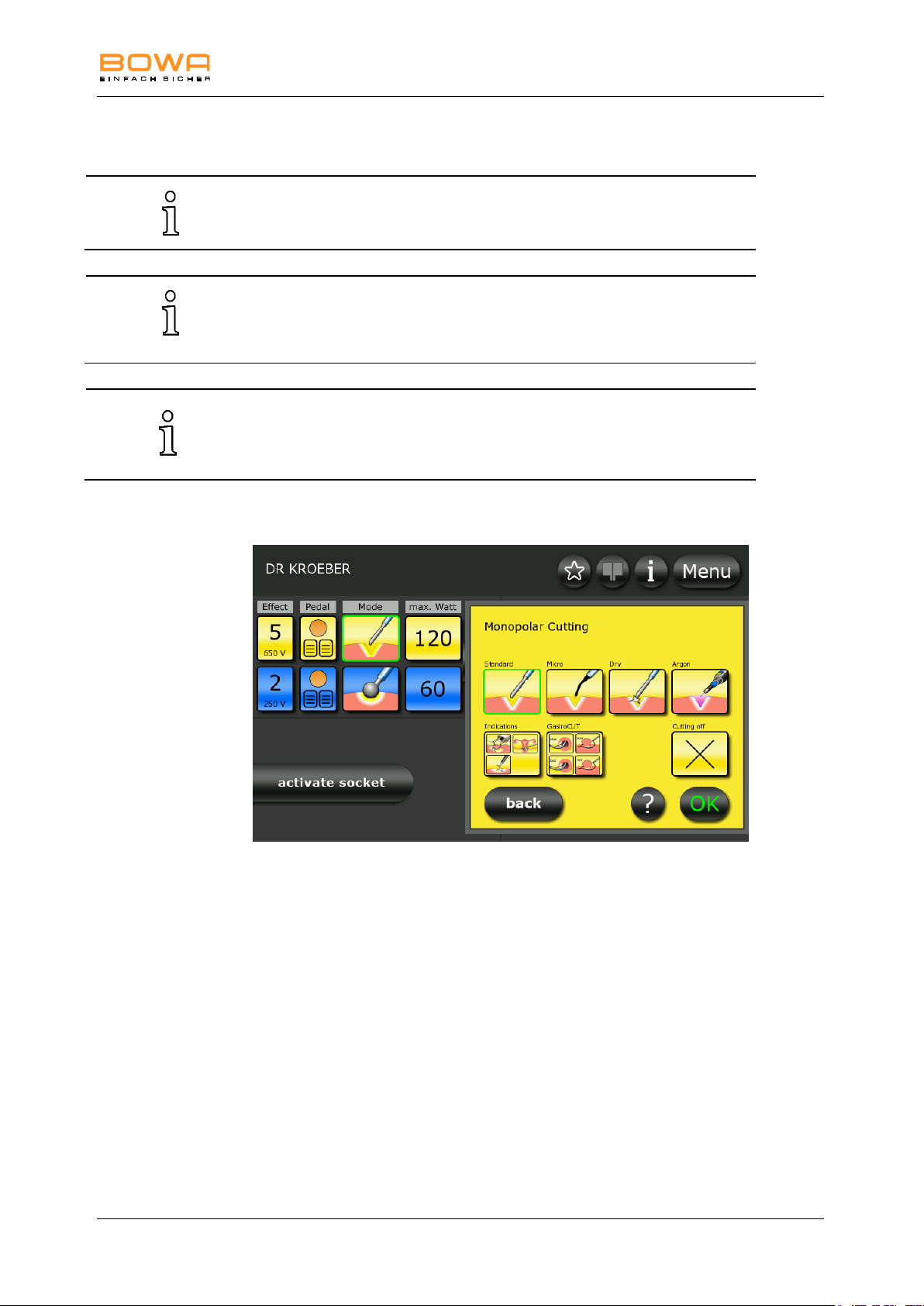

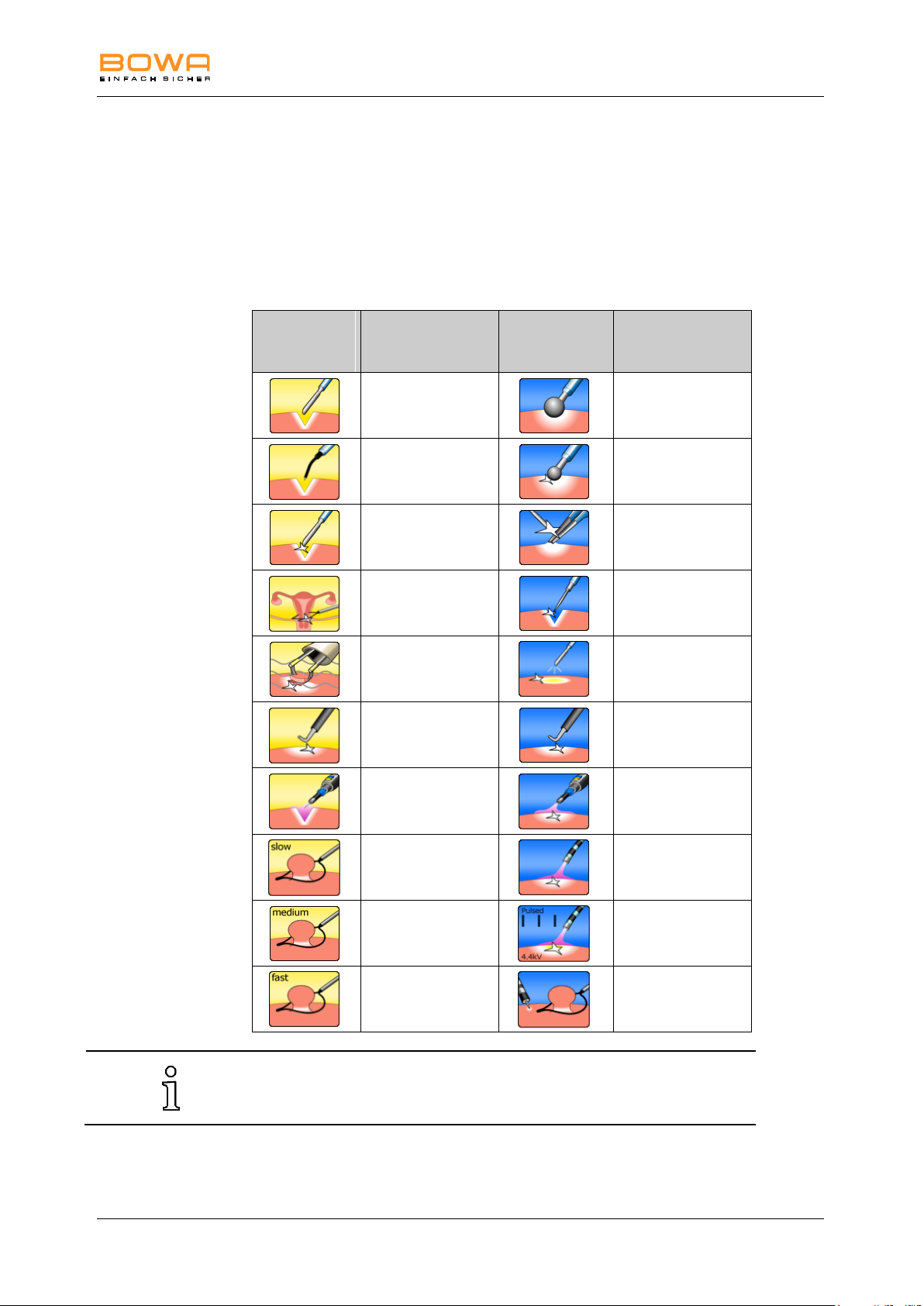

Figure 5-7: Modes monopolar cutting

1. To select the type of current for monopolar cutting, first select one of the two

socket connectors on the left side.

2. Press the yellow icon under the "Mode" button.

A selection screen appears for the available modes, and the rim of the



associated connector starts blinking.

3. Select the desired mode by pressing the corresponding button.

- or ­Deactivate the mode by pressing the button “mode off”.

4. Press the "?" button for more information on this selection.

5. Additional selection options are available in the selection window. To select

indication-related modes, press the “Indications” button.

6. Confirm your selection by pressing the "OK" button.

The main screen will be displayed.



- or -

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 31

5 Operation

If a mode is changed within a socket, the set parameters, e.g. effect and
max. Watt, remain the same for the respective mode. However, if, for
example, the factory default setting of a mode is adapted and
subsequently changed to a different mode and then back again, the user
changes are not undone.

Press the "Back" button to return to the main screen without changing the
selection.

5.4.2. Specifying power limits

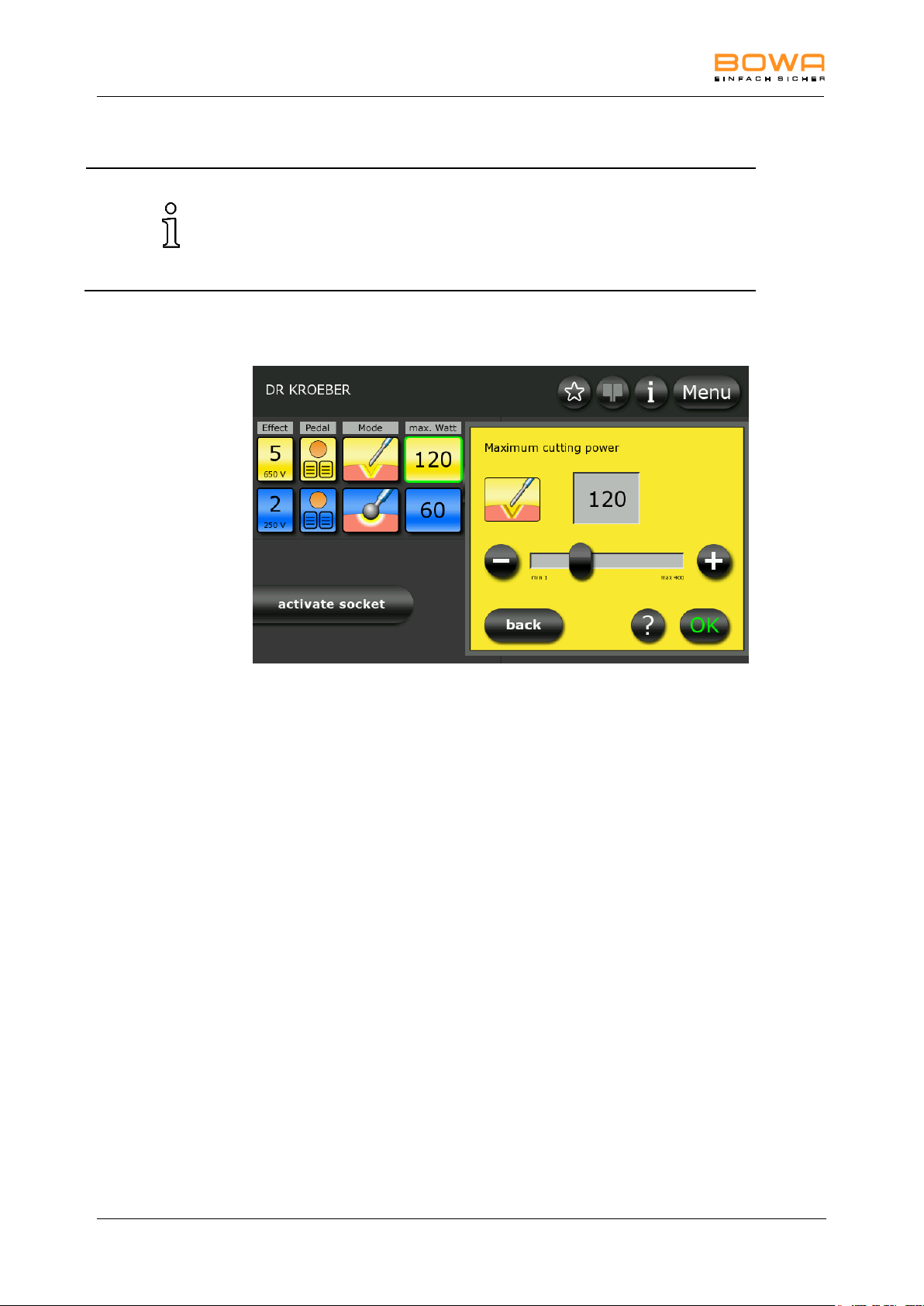

Figure 5-8: Power limit monopolar cutting

1. To select the maximum current for monopolar cutting, first select one of the

two socket connectors on the left side and press the yellow icon under the
“max. Watt” button.

2. Use the "+" and "-" buttons to adjust the power level in single steps.

– or –
Use the slider to set the power level in steps of 10.

3. Press the "?" button for more information on this selection.

4. Confirm your selection by pressing the "OK" button.

- or ­Press the "Back" button to return to the main screen without changing the
selection.

32 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.4.3. Selecting the effect

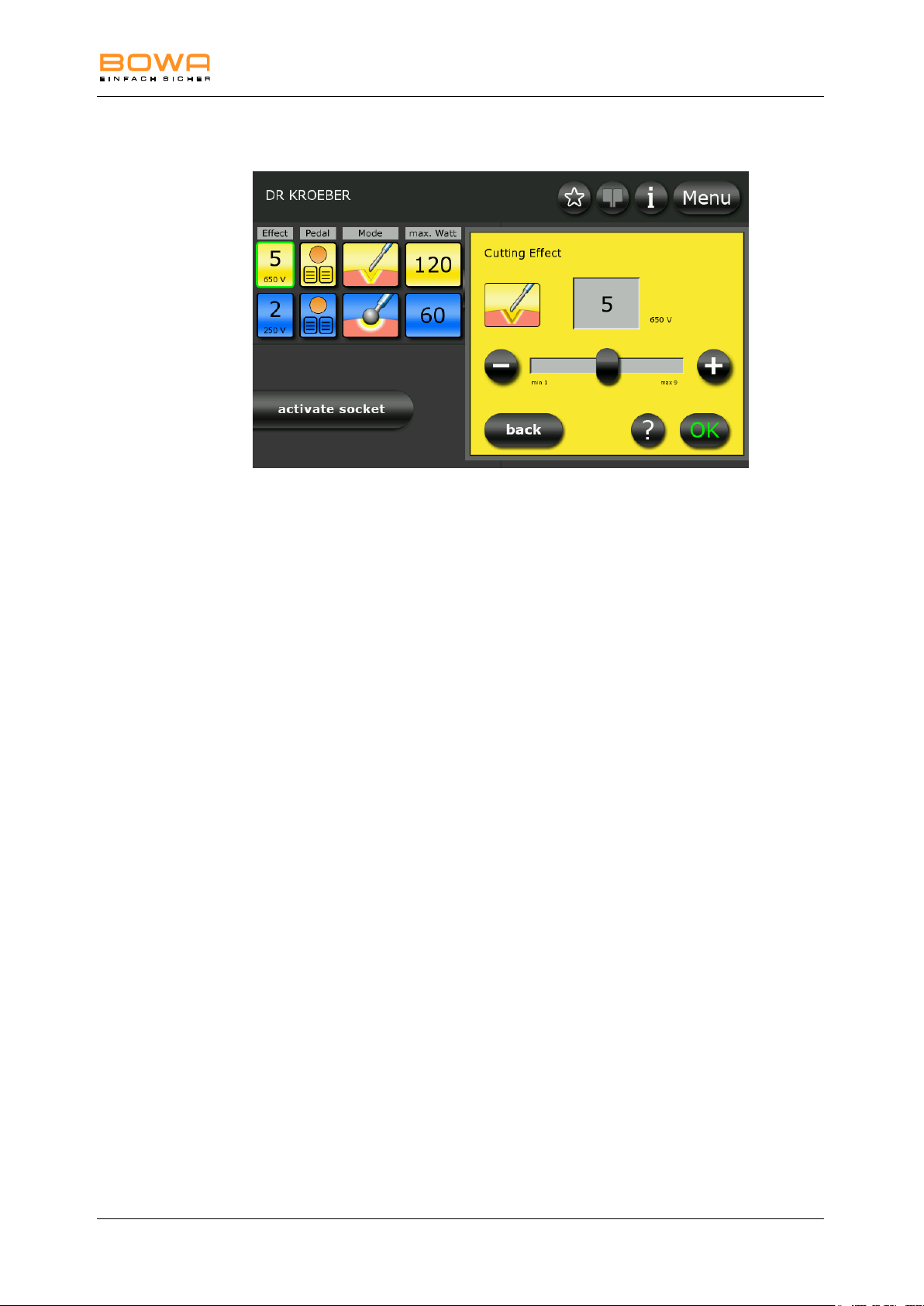

Figure 5-9: Effect monopolar cutting

1. To select the effect for monopolar cutting, first select one of the two socket
connectors on the left side and press the yellow icon under the “Effect” button.

2. Use the "+" and "-" buttons to adjust the effect in individual steps.
– or –
Use the slider to set the effect.

3. Press the "?" button for more information on this selection.

4. Confirm your selection by pressing the "OK" button.

- or ­Press the "back" button to return to the main screen without changing the
selection.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 33

5 Operation

Handpieces and instruments with manual switches can be activated
without a configuration setting.

5.4.4. Assigning the foot pedal

A single-pedal foot switch and/or double-pedal foot switch, each with a changeover
switch, can be connected,

The changeover switch enables switching between pedal levels.

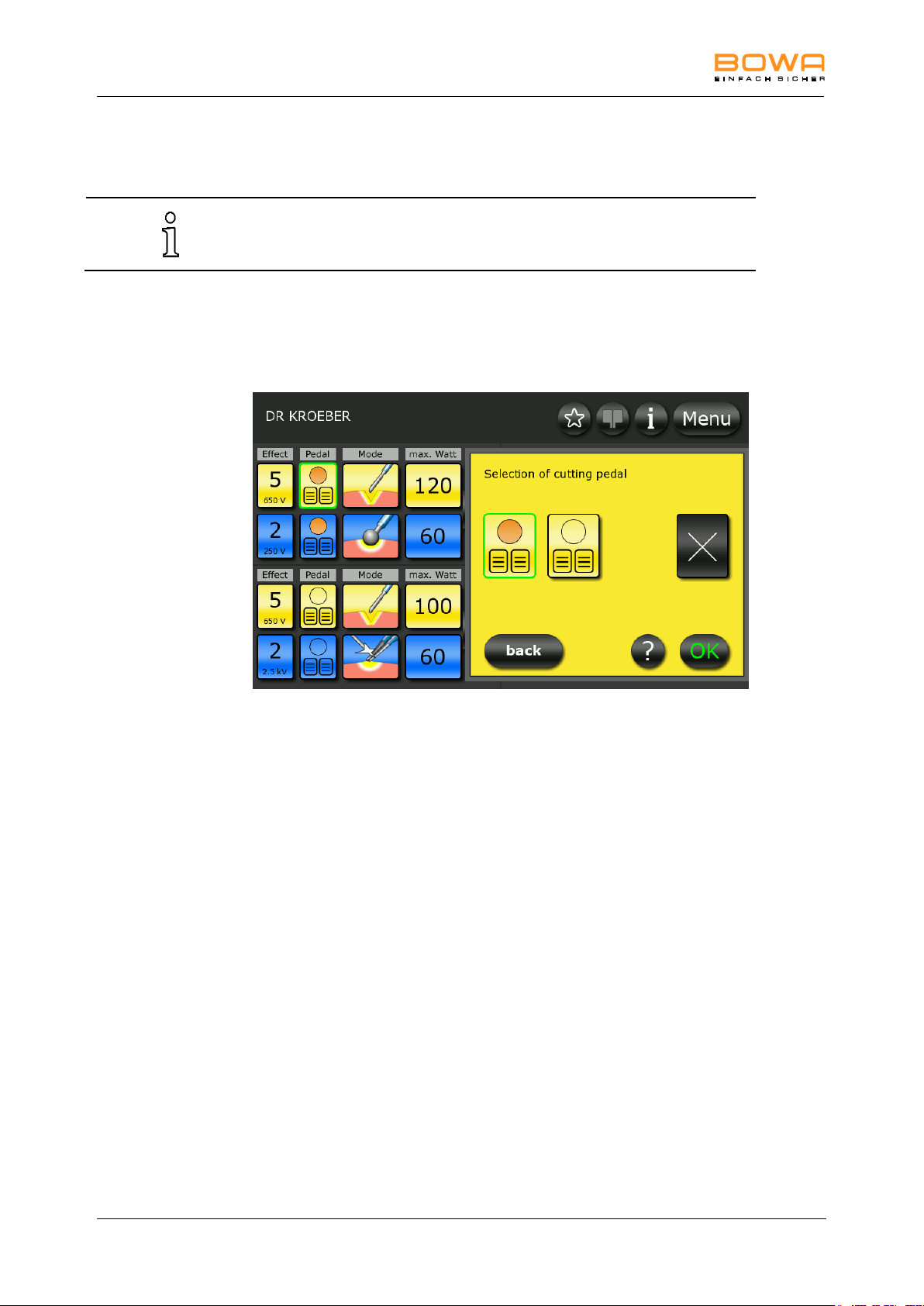

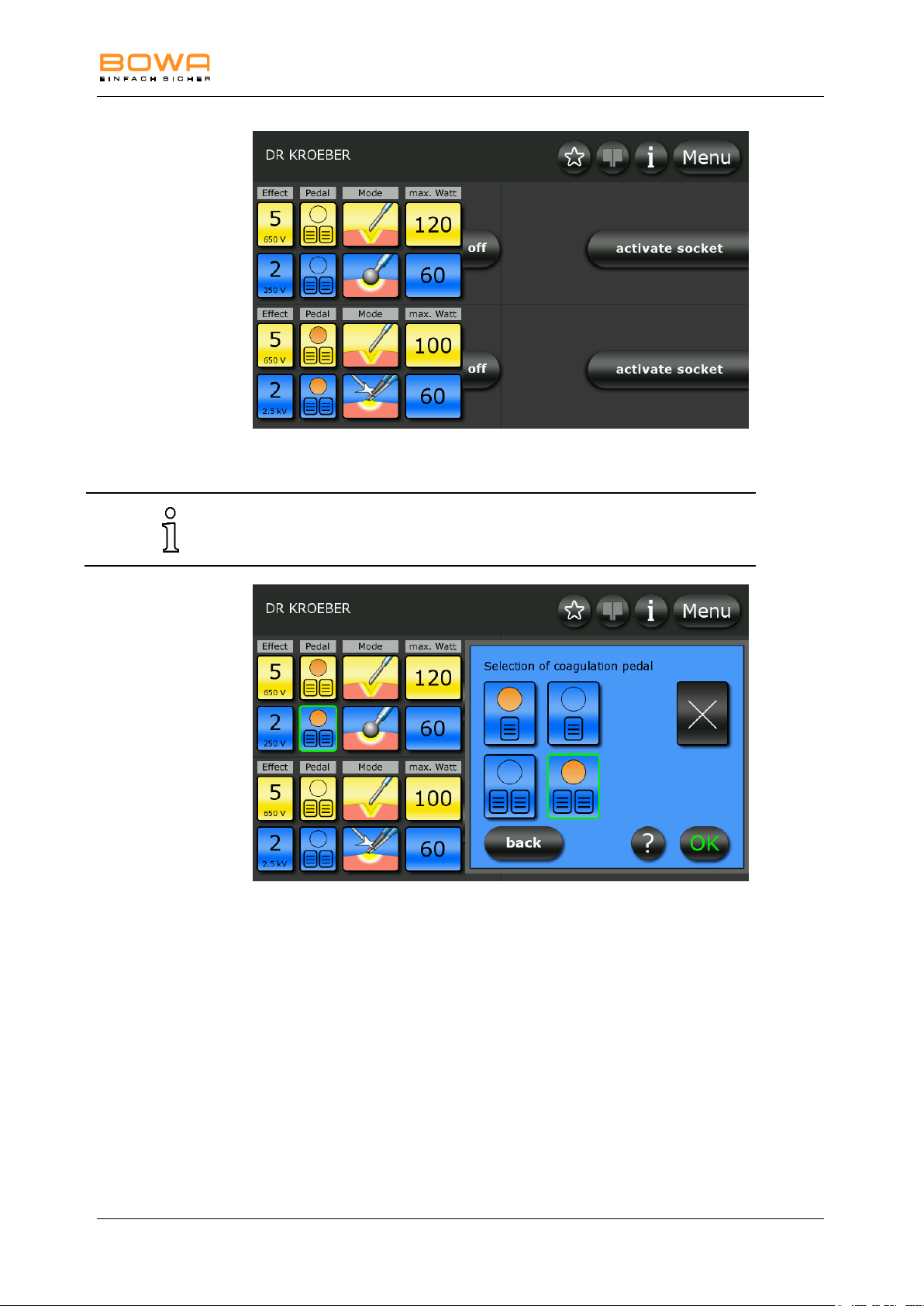

Figure 5-10: Foot switch selection cutting

1. Select the footswitch menu by pressing the button “Pedal”.

2. Select the desired foot switch by pressing the corresponding button. For
example, choose the active pedal level for cutting and coagulation of the upper
left socket.

- or ­Deactivate the foot switch by pressing the button marked with a „x“.

The edge of the selected button lights up green.



3. Confirm the selection by pressing the "OK" button.

- or ­Press the "Back" button to return to the main screen without changing the
selection.

The socket is assigned to the active pedal level.



4. Pedal levels can be changed using the foot switches. Press the orange button
to change the socket.

The orange background indicates that the lower left-hand socket is activated.



34 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

If two footswitches are connected, either a single-pedal footswitch or a
double-pedal footswitch can be selected for coagulation.

Figure 5-11: Foot switch changeover

Figure 5-12: Foot switch selection coagulation

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 35

5 Operation

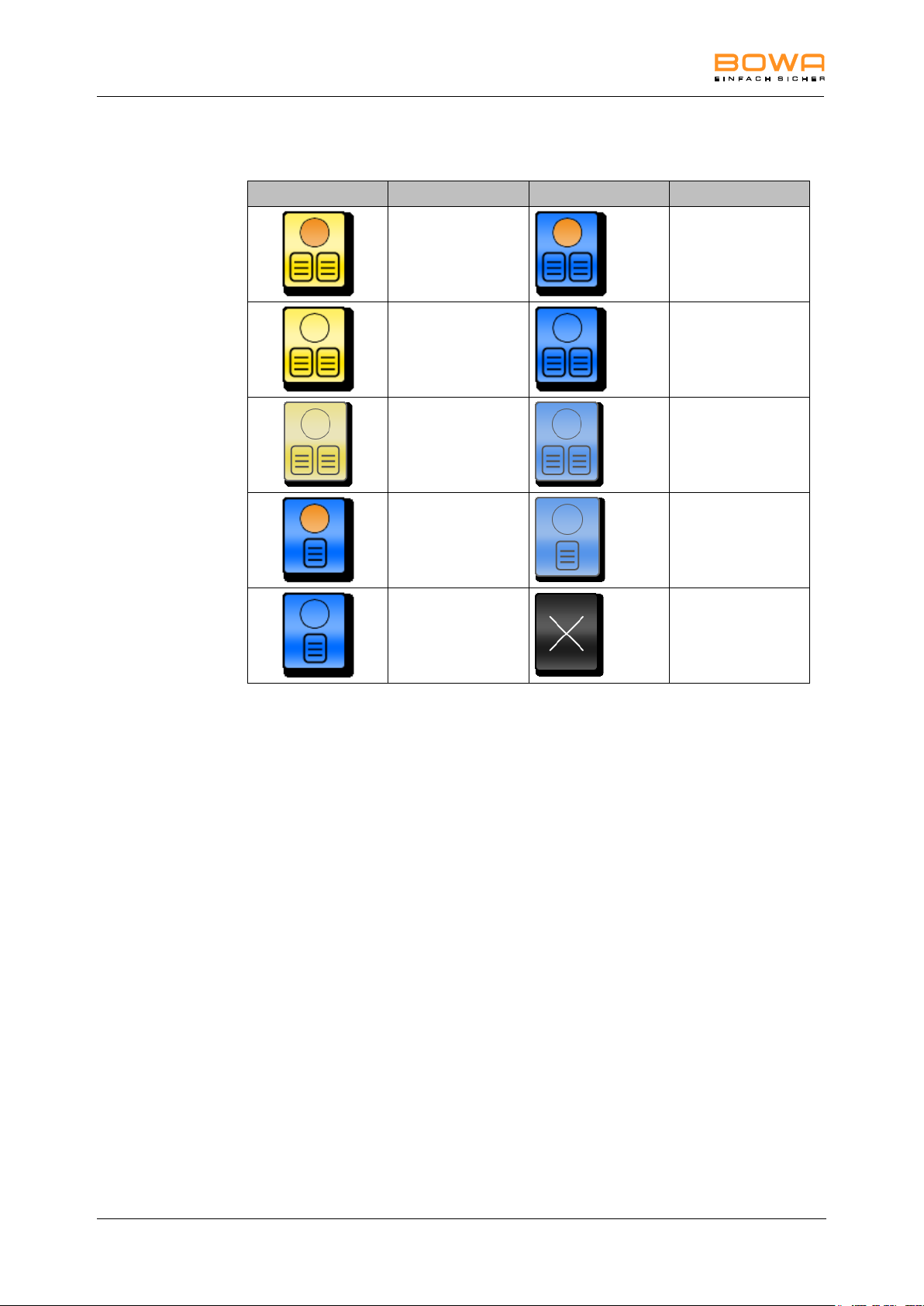

Icon / Button

Description

Icon / Button

Description

Double pedal foot
switch CUT active

Double pedal foot
switch COAG
active

Double pedal foot
switch CUT
inactive

Double pedal foot
switch COAG
inactive

Double pedal foot
switch not
connected

Double pedal foot
switch not
connected

Single pedal foot
switch COAG
active

Single pedal foot
switch not
connected

Single pedal foot
switch COAG
inactive

Deactivate foot
switch

The following pedal icons can be differed:

36 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

With a present mode change, the lower bipolar socket can only be used
with two bipolar ERBE plugs.
The AUTOSTART mode is not available if the socket is split.

5.4.5. Mode change

The lower bipolar socket can be split, which means that you can connect a total of
three bipolar instruments.

1. Use the mode selection for cutting of the lower bipolar socket.

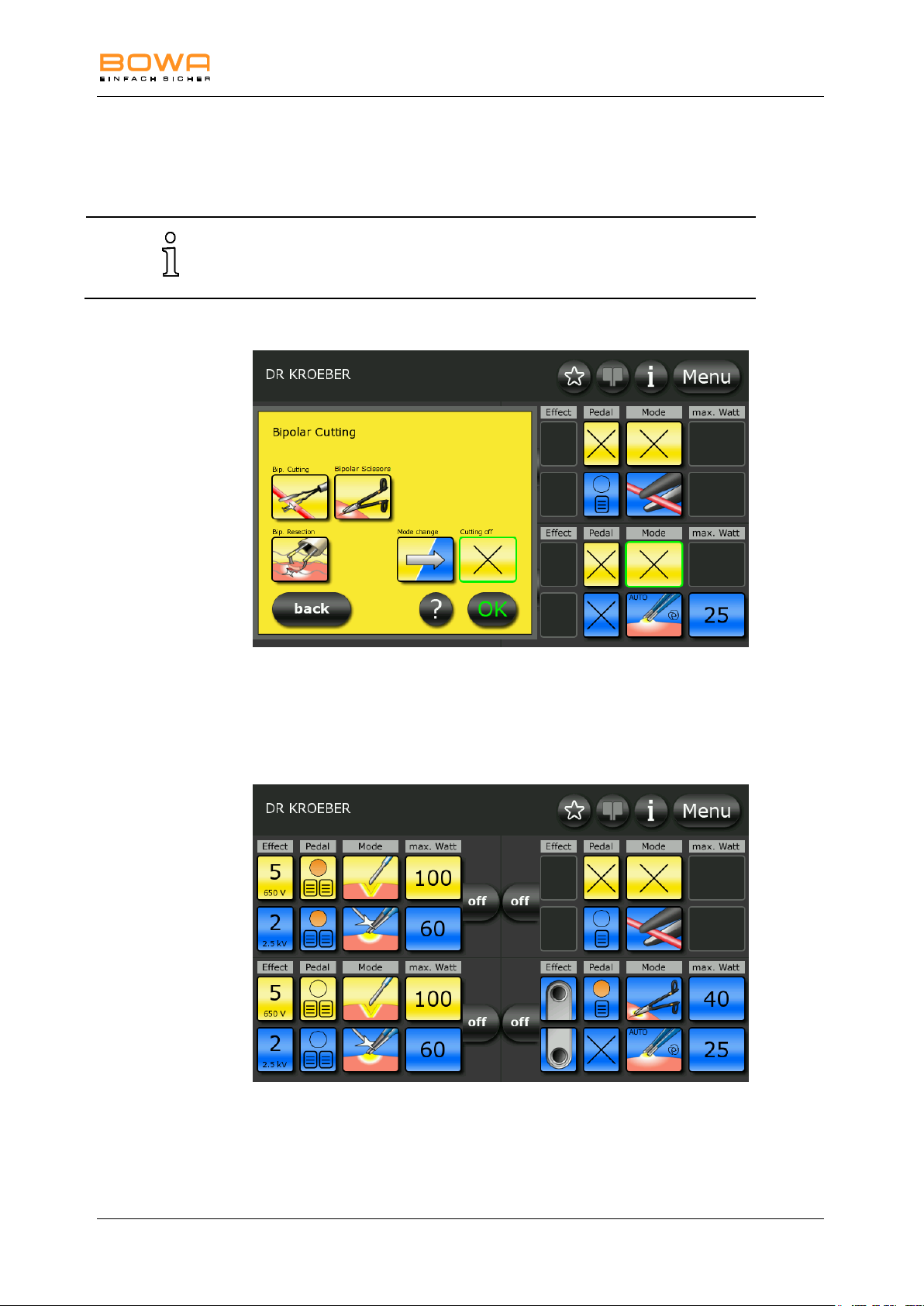

Figure 5-13: Mode change

2. To change the mode to coagulation, touch the “Mode change” button.

Now three bipolar connections are at your disposal.



An indicator of the mode change is shown next to the button „Effect“.



Figure 5-14: Double operation lower bipolar socket

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 37

5 Operation

The maximum power output of monopolar current types is reduced to
50 W when a children’s electrode is selected.

When using the „EASY“ and „BABY“ mode, no unsplit electrodes are
accepted. Using the „MONO“ mode, no split electrodes are accepted.

5.4.6. Selecting the neutral electrode

1. Press the "EASY" button on the status bar to select the neutral electrode.

Figure 5-15: Neutral electrode

2. Select the type of connected electrode by pressing the corresponding icon:

EASY: for monitoring split neutral electrodes
BABY: for monitoring split neutral electrodes for infants
MONO: to select a one-piece neutral electrode

3. Press the "?" button for more information on this selection.

4. Confirm your selection by pressing the "OK" button.

- or ­Press the "Back" button to return to the main screen without changing the
selection.

The selected type of neutral electrode in connection with a colour-indicator for



the contact quality is shown in the status bar.

38 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

Icon / Button

Description

Icon / Button

Description

Split neutral
electrode contact
quality OK

Non split neutral
electrode contact
quality OK

Split neutral
electrode contact
quality not
optimum

Non split neutral
electrode not
detected or
contact quality
insufficient

Split neutral
electrode contact
quality insufficient

Non split neutral
electrode not
connected /
recognised

Split neutral
electrode not
connected /
recognised

Display contact
quality

Split baby neutral
electrode contact
quality OK

Split baby neutral
electrode contact
quality not
optimum

Split baby neutral
electrode contact
quality insufficient

Split baby neutral
electrode not
connected /
recognised

According to the contact quality, several icons are shown for neutral electrodes:

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 39

5 Operation

5.4.7.Dr. Dongle

Dr. Dongle is an individual memory stick on which up to six programs can be
saved for subsequent use.

 Insert your Dr. Dongle with your personal settings into every ARC 400 at any

bipolar socket.

The data is read as soon as you insert Dr. Dongle or after changing a



program with Dr. Dongle inserted:

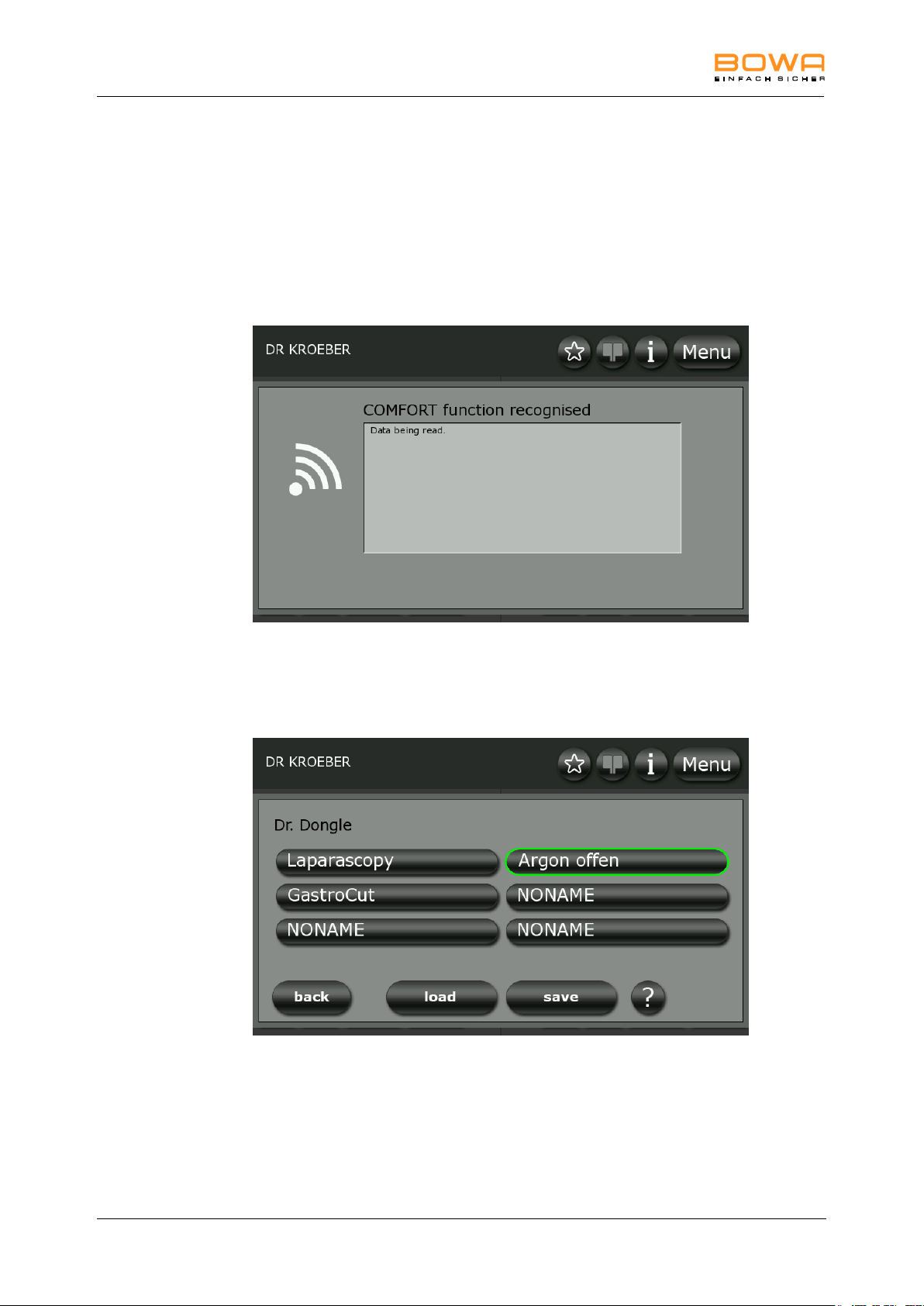

Figure 5-16: COMFORT function detected

After a short loading period, an overview of the saved programs appears



automatically as a new user interface.

Figure 5-17: Dr. Dongle program selection

40 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

In order to save another program, it is necessary to either carry out
a program change or to remove and re-insert Dr. Dongle.
The aforementioned steps 1-4 can now be repeated.

Save current program on Dr. Dongle:

The program currently loaded in ARC 400 can be saved on Dr. Dongle:

1. In the overview, select a program storage space to be overwritten.

2. Press “save” to save the currently loaded program at the selected space.

3. A keyboard appears which can be used to enter a name for the program.
The program is now saved on Dr. Dongle.



4. Press the "back" button to return to the main screen.

 Dr. Dongle can now be removed

Load a program from Dr. Dongle:

A program saved on Dr. Dongle can be loaded onto any ARC 400:

1. Select a program saved on Dr. Dongle from the overview by touching the
program name.

2. Press "load" to load the selected program.

- or­Press "back" to return to the main screen without carrying out
changes to the selection.

The selected program is now active in the main screen of ARC 400.



 Dr. Dongle can be removed

- or­Save the loaded program in the program list, see "Save program" dialog,

page 72.

5.4.8. Plug’n Cut COMFORT

The automatic instrument identification Plug’n Cut COMFORT recognises the
connected BOWA COMFORT instrument and selects the default parameters
automatically.

1. Insert the COMFORT instrument into a socket of ARC 400.
The instrument data is read



900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 41

5 Operation

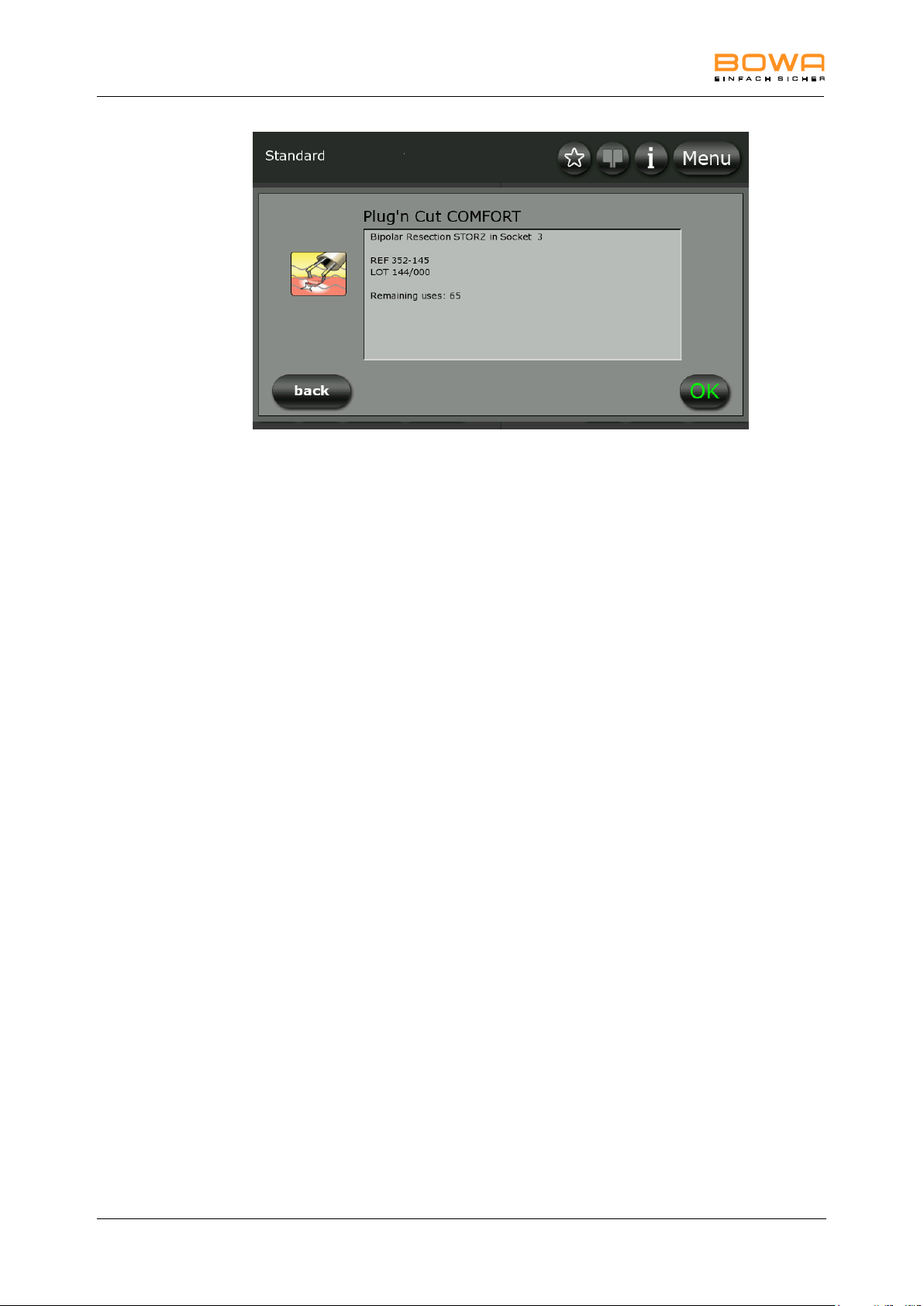

Figure 5-18: Plug’n Cut COMFORT

A description of the instrument appears:



 Instrument name
 Recognised socket
 Item number
 Lot number
 Remaining uses

The parameters are accepted automatically after 5s and shown on the main



screen.

 If the COMFORT instrument is connected to a socket without preset

parameters, the ideal settings for the BOWA COMFORT instrument are

loaded via Plug’n Cut COMFORT.

 If the COMFORT instrument is connected to a socket with preset

parameters, a plausibility check is carried out. The preset values for the

COMFORT instrument are not overwritten if they are within a permissible
range. The COMFORT instrument can now be used with the preset
parameters.

- or-
Press "OK" to accept the selection.

Press "back" to return to the main screen without carrying
changes to the selection.

The COMFORT instrument can now be used.



The permissible parameters for the BOWA COMFORT instrument remain



accessible; all other modes are greyed out.

5.4.9. Playing videos

1. Plug the delivered BOWA USB stick into the connection on the rear side of the
ARC 400.

2. Switch the unit on.

Saved videos are played automatically in succession.



42 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

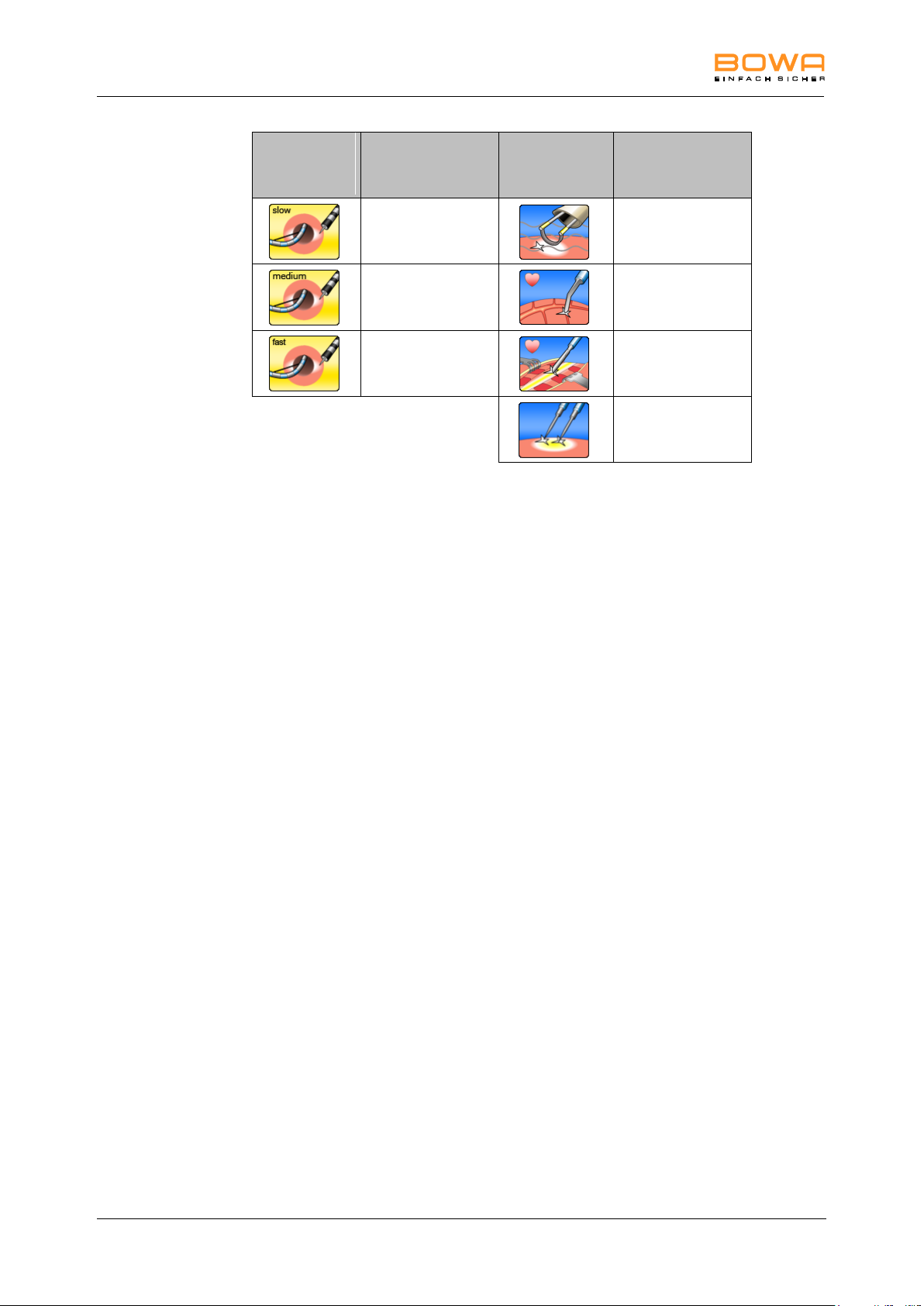

5 Operation

Bildzeichen
Modus
Schneiden

Bezeichnung

Bildzeichen
Modus
Koagulieren

Bezeichnung

Standard

Moderate

Micro

Forced non cutting

Dry

Forced mixed

MetraLOOP

Forced cutting

Resection

Spray

Laparoscopy

Laparoscopy

Argon*

Argon open*

GastroCut
Loop slow

Argon flexible*

GastroCut
Loop medium

Argon flex. pulse*

GastroCut
Loop fast

Gastro Coag

* These modes can only be used in connection with the argon
coagulation unit ARC PLUS (900-001).

5.5. Mode overview

An overview of the programs that can be executed with the HF device is shown
below.

5.5.1. Monopolar modes

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 43

5 Operation

Bildzeichen
Modus
Schneiden

Bezeichnung

Bildzeichen
Modus
Koagulieren

Bezeichnung

GastroCut
Knife slow

Resection

GastroCut
Knife medium

Cardiac Mammary

GastroCut
Knife fast

Cardiac Thorax

SimCoag

44 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

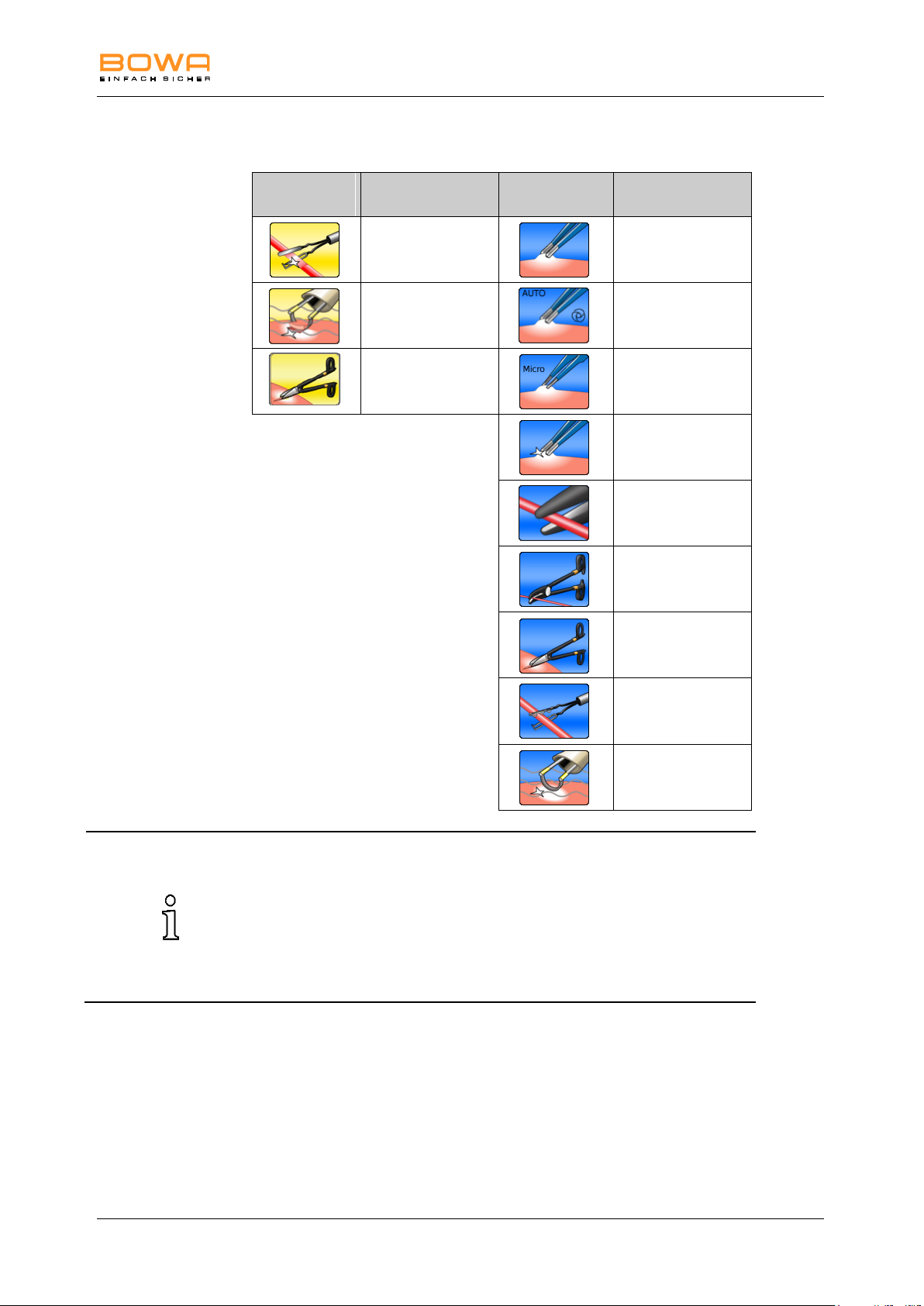

Cutting
mode icon

Designation

Coagulation
mode icon

Designation

Standard

Standard forceps

Bipolar resection

Standard forceps
AUTO

Bipolar scissors

Micro forceps

Forceps forced

LIGATION

TissueSeal PLUS

Bipolar scissors

Laparoscopy

Bipolar resection

The information and data regarding settings, application points,
application duration and instrument use are based on clinical practice.
However, these are only basic guidelines which must be tested for
suitability by the operator. Depending on individual conditions, it may be
necessary to deviate from the provided data.
Medical practice is continuously evolving as a result of R&D and clinical
experience. This may also make deviations from the provided data
necessary.

5.5.2. Bipolar cutting modes

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 45

5 Operation

5.6. Monopolar cutting modes

5.6.1. Standard

In this mode a high-performance HF current with a low crest factor is used for
cutting biological tissue. ARC CONTROL quickly adjusts the power output to the
minimum required level in response to variations in tissue type and changes in the
cutting area or speed.

Application areas

Cutting tissue with low electrical resistance, such as muscle tissue or vascular
tissue.

Cutting or preparing fine structures

Suitable instruments

 Needle electrodes
 Knife electrodes
 Spatula electrodes
 Sling electrodes

5.6.2. Micro

This mode is used for electrosurgical cutting using micro-electrodes. It enables
extremely fine control of the power level and precise work.

Application areas

Pediatric surgery, neurosurgery, plastic surgery

Suitable instruments

 Micro needle electrodes

46 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.6.3. Dry

This mode is used for monopolar dry cutting. A large, controlled arc is generated,
which allows significantly deeper coagulation to be obtained.

Application areas

Cardiac surgery and blood coagulation in retracting blood vessels in the sternum
region.

Suitable instruments

 Knife electrodes

5.6.4. Argon

This mode is used to perform open surgical interventions in combination with the
ARC PLUS companion device for argon-assisted cutting. With suitable instruments
connected, argon-assisted cutting can be performed using rigid electrodes.

Application areas

Visceral surgery

Suitable instruments

 Rigid argon electrodes
 Argon handpiece

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 47

5 Operation

Use non-conductive irrigation fluids.

5.6.5. Resection

This mode is used in gynecology and urology. ARC control generates the cutting
effect with simultaneously minimized output power. ARC control facilitates direct
cutting and prevents electrode adhesion.

Application areas

Hysteroscopy, transurethral prostate resection (TUR-P), surgical treatment of
bladder tumors (TUR-B), vaporization of prostate tissue (TUR-VAP).

Suitable instruments

 Resectoscope (monopolar)
 Resection sling
 Rollerblade electrode

5.6.6. MetraLOOP

This mode is used in gynecology for laparoscopic hysterectomy. Removal of the
uterus can be achieved by applying monopolar cutting current and pulling on the
sling at the same time.

Application areas

Gynecology; laparoscopic hysterectomy

Suitable instruments

 Gynecological slings

48 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.6.7. Laparoscopy

This mode is used in laparoscopy and arthroscopy for monopolar cutting.

Application areas

Laparoscopy, arthroscopy

Suitable instruments

 Arthroscopy electrodes
 Laparoscopy electrodes

5.6.8. GastroCut Loop slow

This mode is used in gastroenterology. Polypectomy snares are used for cutting
and coagulation. ARC control generates the cutting effect with simultaneously
minimized output power. This mode consists of a series of cutting current pulses
followed by a coagulation phase. With a relatively slow pulse rate of 1 cutting pulse
per second, this mode is suitable for especially cautious work.

Application areas

Polyp removal using polypectomy snares and flexible endoscopy

Suitable instruments

 Polypectomy snares

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 49

5 Operation

5.6.9. GastroCut Loop medium

This mode is used in gastroenterology. Polypectomy snares are used for cutting
and coagulation. ARC control generates the cutting effect with simultaneously
minimized output power. This mode consists of a series of cutting current pulses
followed by a coagulation phase. With an accelerated pulse rate of 1.8 cutting
pulses per second, this mode is suitable for experienced users.

Application areas

Polyp removal using polypectomy snares and flexible endoscopy, with accelerated
pulse rate for experienced users.

Suitable instruments

 Polypectomy snares

5.6.10. GastroCut Loop fast

This mode is used in gastroenterology. Polypectomy snares are used for cutting
and coagulation. ARC control generates the cutting effect with simultaneously
minimized output power. This mode consists of a series of cutting current pulses
followed by a coagulation phase. With an accelerated fast pulse rate of 3.2 - 5
cutting pulses per second, this mode is suitable for advanced users.

Application areas

Polyp removal using polypectomy snares and flexible endoscopy, with accelerated
fast pulse rate for advanced users.

Suitable instruments

 Polypectomy snares

50 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.6.11. GastroCut Knife slow

This mode is used in gastroenterology. Instruments for papillotomy and
endoscopic resections are used for cutting and coagulation. ARC control
generates the cutting effect with simultaneously minimized output power. This
mode consists of a pulse sequence of cutting current and coagulation phase. With
a relatively slow pulse rate of 1.3 cutting pulse per second, this mode is suitable for
especially cautious work.

Application areas

Papilla incision using a papillotome and flexible endoscopy, resection with needle
knives; slow pulse rate for cautious work.

Suitable instruments

 Papillotome
 Needle knives

5.6.12. GastroCut Knife medium

This mode is used in gastroenterology. Instruments for papillotomy and
endoscopic resections are used for cutting and coagulation. ARC control
generates the cutting effect with simultaneously minimized output power. This
mode consists of a pulse sequence of cutting current and coagulation phase. With
an accelerated pulse rate of 1.7 cutting pulses per second, this mode is suitable for
experienced users.

Application areas

Papilla incision using a papillotome and flexible endoscopy, resection with needle
knives; accelerated pulse rate for experienced users.

Suitable instruments

 Papillotome
 Needle knives

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 51

5 Operation

5.6.13. GastroCut Knife fast

This mode is used in gastroenterology. Instruments for papillotomy and
endoscopic resections are used for cutting and coagulation. ARC control
generates the cutting effect with simultaneously minimized output power. This
mode consists of a pulse sequence of cutting current and coagulation phase. With
an accelerated fast pulse rate of 2.2 cutting pulses per second, this mode is
suitable for advanced users.

Application areas

Papilla incision using a papillotome and flexible endoscopy, resection with needle
knives; accelerated fast pulse rate for advanced users.

Suitable instruments

 Papillotome
 Needle knives

5.7. Monopolar coagulation modes

5.7.1. Moderate

This mode is used with contact coagulation to stop hemorrhagic oozing, for
hemostasis of relatively large tissue areas, and for small-area coagulation. Tissue
carbonization is prevented and electrode adhesion to the tissue is strongly
reduced. Greater coagulation depth is achieved in this mode than in other
coagulation modes. The degree of surface scabbing can be controlled by adjusting
the "Effect" setting in the range of 1 to 3.

Application areas

Coagulation with relatively high penetration depth; low electrode adhesion to tissue

Suitable instruments

 Electrodes with large contact areas, such as ball electrodes

52 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.7.2. Forced non cutting

This mode is used for contact coagulation with low tissue penetration, preferably
using fine electrodes and electrodes with small contact areas. It achieves a high
degree of coagulation with low cutting tendency.

Application areas

Fast coagulation with small penetration depth

Suitable instruments

 Ball electrodes
 Knife electrodes
 Spatula electrodes

5.7.3. Forced mixed

This mode is used for contact coagulation with low tissue penetration, preferably
using fine electrodes and electrodes with small contact areas. It achieves a high
degree of coagulation with moderate cutting tendency.

Application areas

Fast coagulation with small penetration depth and moderate cutting tendency

Suitable instruments

 Knife electrodes
 Spatula electrodes
 Insulated monopolar forceps

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 53

5 Operation

5.7.4. Forced cutting

This mode is used for contact coagulation with low tissue penetration, preferably
using fine electrodes and electrodes with small contact areas. It achieves good
hemostasis with very good cutting tendency.

Application areas

Fast coagulation with small penetration depth and very good cutting tendency

Suitable instruments

 Knife electrodes
 Spatula electrodes
 Needle electrodes

5.7.5. Spray

This mode is used with non-contact surface coagulation using an arc, for
hemostasis in parenchymal tissue, in poorly accessible crevices, and in
conjunction with argon coagulation.

Application areas

Promoting coagulation of diffuse bleeding

Suitable instruments

 Ball electrodes
 Knife electrodes
 Spatula electrodes
 Needle electrodes

54 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.7.6. Argon open

This mode is used for open surgical interventions in conjunction with the ARC
PLUS accessory device for argon-assisted electrocoagulation.

This is the current type Spray.
With suitable instruments connected, argon-assisted coagulation can be performed

using rigid electrodes.

Application areas

Visceral surgery

Suitable instruments

 Rigid argon electrodes
 Argon handpiece

5.7.7.Argon flexible

This mode is used for argon-assisted electrosurgery in conjunction with the ARC
PLUS accessory device.

This is the current type Spray.
For argon-assisted coagulation, flexible probes are used in combination with

endoscopes.

Application areas

Gastroenterology, homogeneous surface coagulation

Suitable instruments

 Flexible argon probes

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 55

5 Operation

Use non-conductive irrigation fluids.

5.7.8. Argon flex. pulse

This mode is used for argon-assisted electrosurgery in conjunction with the ARC
PLUS accessory device.

This is the current type Spray.
For argon-assisted coagulation, flexible probes are used in combination with

endoscopes.
The puls frequency changes with the effect setting. The higher the effect level, the

faster the pulse sequence.

Application areas

Gastroenterology, homogeneous surface coagulation

Suitable instruments

 Flexible argon probes

5.7.9. Resection

This mode is used for monopolar hemostasis in gynecology and urology.

Application areas

Hysteroscopy, transurethral prostate resection (TUR-P), surgical treatment of
bladder tumors (TUR-B), vaporization of prostate tissue (TUR-VAP).

Suitable instruments

 Resectoscope (monopolar)
 Resection sling
 Rollerblade electrode

56 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.7.10. Cardiac Mammary

This mode is used in mammary surgery and cardiac surgery. It produces forced
coagulation.

Application areas

Mammary surgery and cardiac surgery

Suitable instruments

 Knife electrodes

5.7.10. Cardiac Thorax

This mode is used in thoracic surgery. It produces forced coagulation.

Application areas

Thoracic surgery

Suitable instruments

 Knife electrodes

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 57

5 Operation

The output power setting applies to both output sockets, and the power
is distributed according to the tissue structure.

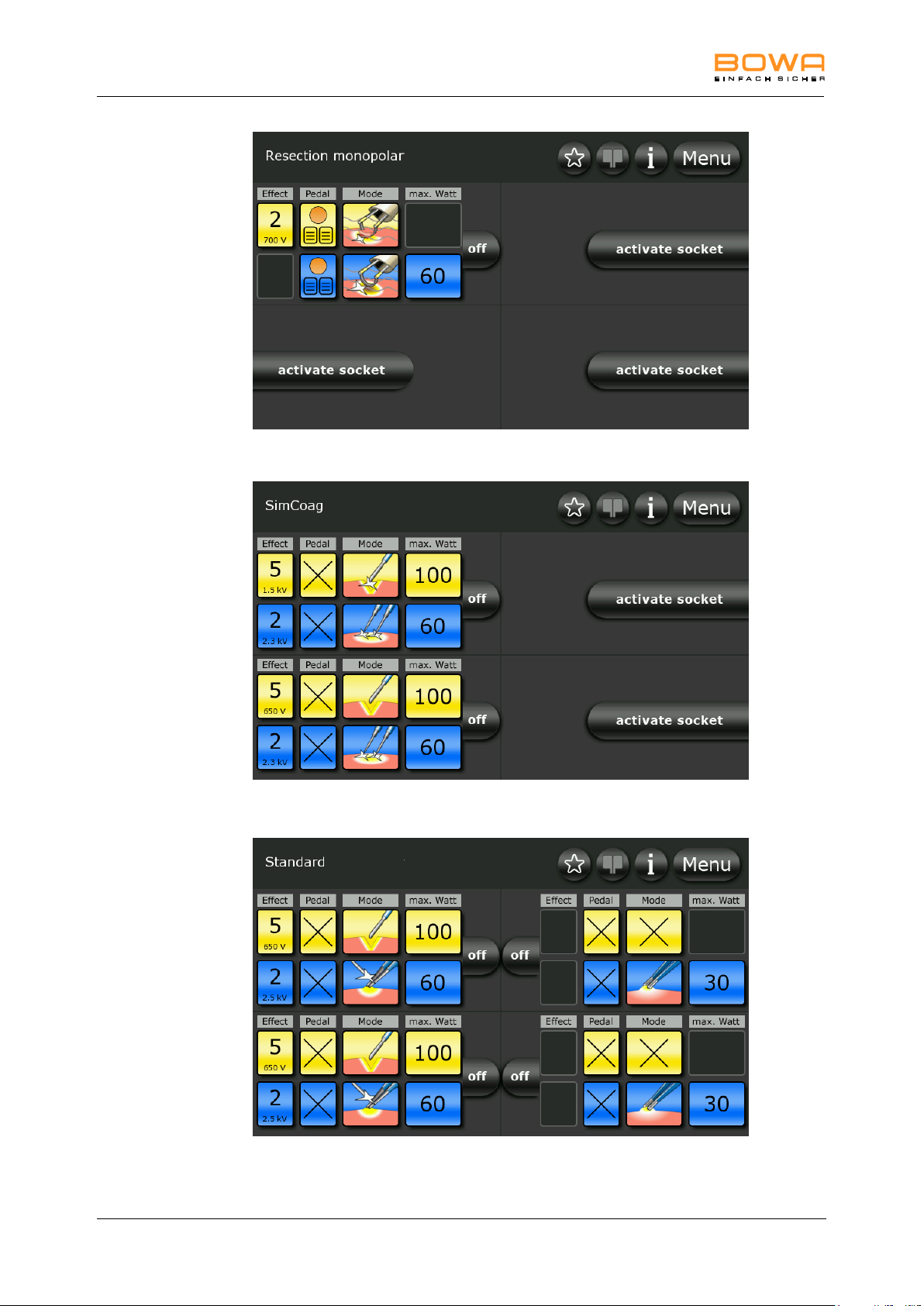

5.7.11. SimCoag

This mode is used for simultaneous preparation. Two monopolar socket
connectors can be activated at the same time to enable the simultaneous use of
two manually switched instruments. Both handpieces can be switched on and off
independently.

The current type changes with the effect setting:
Effect 1: Forced cutting
Effect 2: Forced mixed
Effect 3: Spray

Application areas

Simultaneous coagulation and preparation, e.g. for cardiac or mammary surgery

Suitable instruments

 Ball electrodes
 Knife electrodes
 Spatula electrodes

5.7.12. Gastro Coag

This mode is used in gastroenterology with contact coagulation for the coagulation
of small areas.

Application areas

After bleeding associated with polypectomies or papillotomies.

Suitable instruments

 Polypectomy snares
 Papillotome

58 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.7.13. Laparoscopy

This mode is used in laparoscopy and arthroscopy for monopolar coagulation.

Application areas

Laparoscopy, arthroscopy

Suitable instruments

 Arthroscopy electrodes
 Laparoscopy electrodes

5.8. Bipolar cutting modes

5.8.1. Standard

This mode is used for cutting with bipolar laparoscopic instruments.

Application areas

Laparoscopic cutting

Suitable instruments

 Laparoscopic instruments

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 59

5 Operation

Make sure that NaCl is used as an irrigation medium.
Secure a continuous irrigation during the application.
Always use conductive lubricants to avoid damages of the urethra.
Avoid continuous activations.

Optimum results are provided exclusively when using BOWA COMFORT
resection cables.

Bipolar scissors should only be operated with the current type bipolar
scissors cutting or bipolar scissors coagulation.

5.8.2. Bipolar resection

This bipolar mode is used in gynecology and urology for cutting under saline. ARC
control technology generates the cutting effect with simultaneously minimized
output power. ARC Control facilitates immediate cutting and prevents electrode
adhesion.

Application areas

Hysteroscopy, transurethral prostate resection (TUR-P), surgical treatment of
bladder tumors (TUR-B), vaporization of prostate tissue (TUR-VAP).

Suitable instruments

 Resectoscope (bipolar)
 Resection sling
 Rollerblade electrode

5.8.3. Bipolar scissors

This mode is used with bipolar scissors. It can be used for coagulation before or
during cutting, point coagulation, coagulation of cuts and surface coagulation.

Application areas

Preparation, coagulation and cutting of tissue

Suitable instruments

 Bipolar scissors

60 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

Setting the AUTOSTART mode can result in unintentional coagulations,
e.g. when bipolar forceps are used for gripping while the AUTOSTART
Mode is on.

5.9. Bipolar coagulation modes

5.9.1. Standard forceps

This mode is used for arcless contact coagulation with forceps.

Application areas

Bipolar coagulation

Suitable instruments

 Bipolar forceps

5.9.2. Standard forceps AUTO

This mode is used for arcless contact coagulation with forceps. Activation starts
automatically on contact with tissue. The adjustable delay time can be set under
MENU – SYSTEM SETTINGS – AUTOSTART DELAY.

Application areas

Bipolar coagulation with AUTOSTART

Suitable instruments

 Bipolar forceps

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 61

5 Operation

5.9.3. Micro forceps

This mode is used for arcless contact coagulation with micro forceps. It enables
extremely fine control of power output down to 0.1 W and precise work for tightly
restricted bipolar contact coagulation.

Application areas

Bipolar coagulation in pediatric surgery, neurosurgery, plastic surgery, etc.

Suitable instruments

 Bipolar forceps
 Micro forceps

5.9.4. Forceps forced

This mode is used for forced coagulation with forceps.

Application areas

Fast bipolar coagulation

Suitable instruments

 Bipolar forceps

62 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.9.5. LIGATION

This mode is used for the permanent sealing of veins, arteries and tissue bundles.
Conventional instruments cannot be used in this mode. The output power is
preconfigured and automatically regulated.

Application areas

Vessel sealing open and laparoscopic

Suitable instruments

 TissueSeal®
 TissueSeal® PLUS
 NightKNIFE®
 LIGATOR®

5.9.6. TissueSeal PLUS

This mode is used for the permanent sealing of veins, arteries and tissue bundles
with TissueSeal PLUS® for open surgical applications. Conventional instruments
cannot be used in this mode. The output power is preconfigured and automatically
regulated.

Application areas

Vessel sealing in open surgery

Suitable instrument

 TissueSeal PLUS®

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 63

5 Operation

Bipolar scissors should only be operated with the current type bipolar
scissors cutting or bipolar scissors coagulation.

5.9.7. Bipolar scissors

This mode is used with bipolar scissors. It can be used for coagulation before or
during cutting, point coagulation, coagulation of cuts and surface coagulation.

Application areas

Preparation, coagulation and cutting of tissue

Suitable instruments

 Bipolar scissors

5.9.8. Laparoscopy

This mode is used for coagulation in combination with bipolar laparoscopic
instruments.

Application areas

Laparoscopic coagulation

Suitable instruments

 Laparoscopic instruments

64 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

Use NaCl as irrigation fluid.

Make sure that the instrument has contact with the tissue while activating
bipolar coagulation to avoid an unintended heating of the irrigation fluid.

5.9.9. Bipolar resection

This mode is used for bipolar hemostasis in gynecology and in urology for cutting
under saline.

Application areas

Hysteroscopy, transurethral prostate resection (TUR-P), surgical treatment of
bladder tumors (TUR-B), vaporization of prostate tissue (TUR-VAP)

Suitable instruments

 Resectoscope
 Resection sling
 Rollerblade electrode

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 65

5 Operation

The menu dialogs specify the settings of basic parameters, such as the
user interface language and audio, display and memory options.

5.10. Menu dialogs

5.10.1. Overview

The following menu dialogs are available:

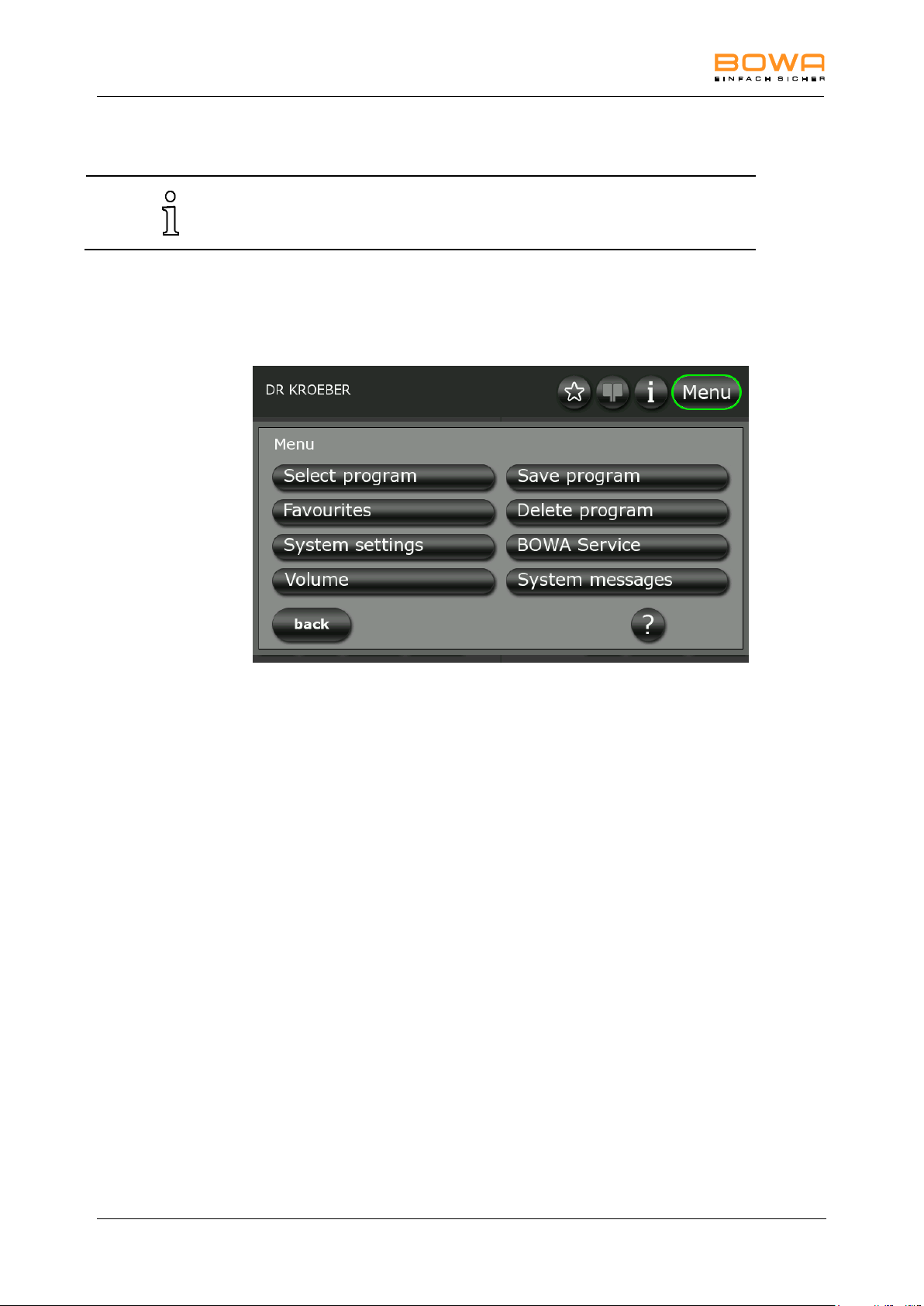

Figure 5-19: Menu dialogs

Selecting a dialog

Press the button of the desired dialog to launch the program.

Exiting a dialog

Press the "back" button to return to the main screen.

66 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

5.10.2. "System Settings" dialog

The following parameters can be configured in the "System Settings" dialog:

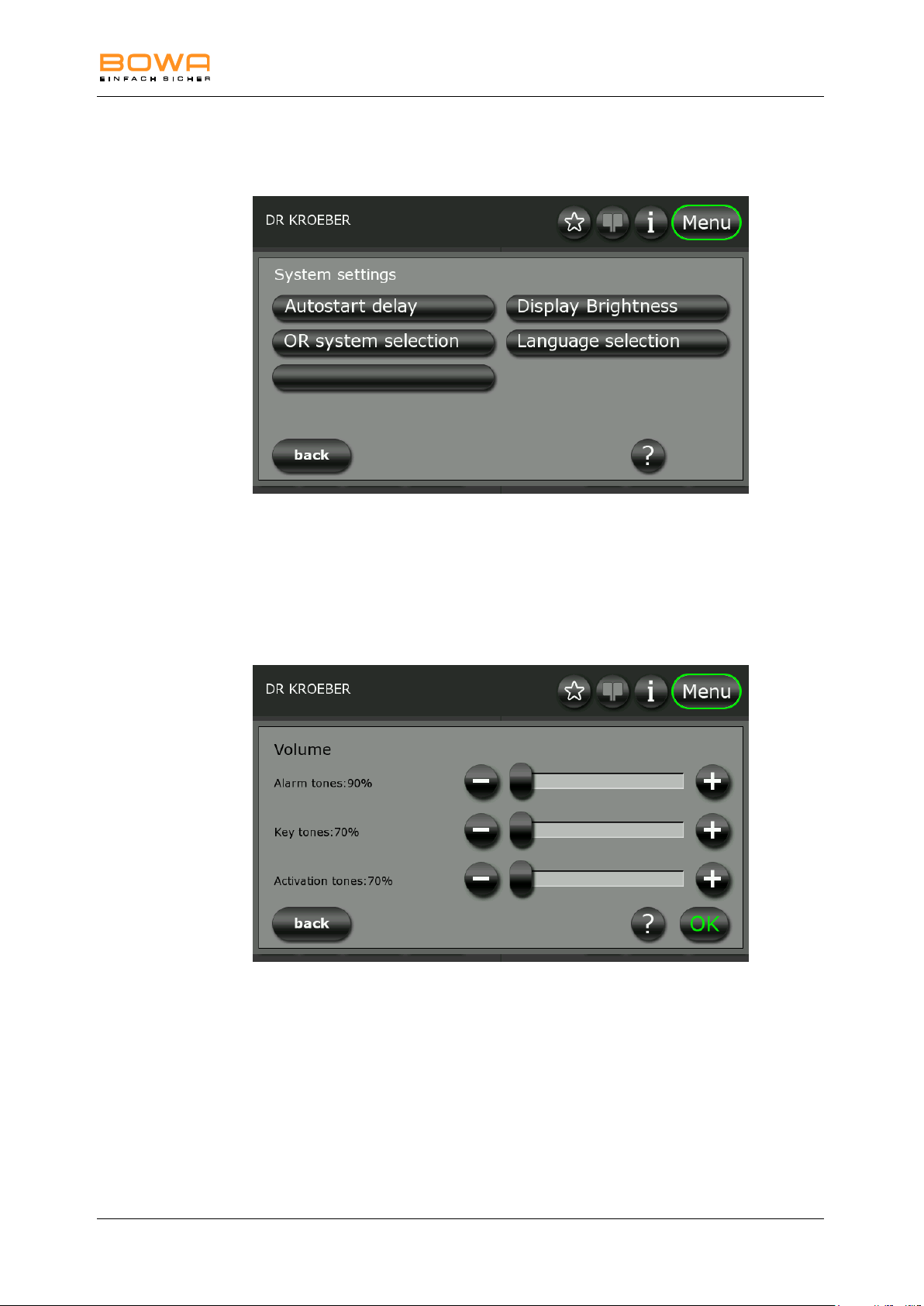

Figure 5-20: “System settings” dialog

The following languages are selectable in „language selection“:
German, English, French, Italian, Spanish, Russian, Polish, Turkish

5.10.3. "Volume" dialog

Use the "Volume" dialog to set the volume of the individual acoustic signals.

Figure 5-21: "Sound Level" dialog

Incremental setting

Press the "+" and "-" buttons.

Fast setting

Move the slider in the desired direction.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 67

5 Operation

The volume of the activation signal should be increased as necessary for
use in relativey noisy surrouondings. The alarm tones have a minimum
volume and limited changeability.

Mode

Category

Frequency (Hz)

Signal type

Monopolar Cut

Activation tones

635

Continuous sound

Monopolar Coag

Activation tones

475

Continuous sound

Bipolar Cut

Activation tones

565

Continuous sound

Bipolar Coag

Activation tones

505

Continuous sound

Sim Coag

Activation tones

755

Continuous sound

GastroCut
/LIGATION end

Alarm tones

-

alternating sound
Error

Alarm tones

-

Signal tone

Warning

Alarm tones

-

Signal tone

Note

Alarm tones

-

Signal tone

5.10.4. "System messages" dialog

In the "System messages" dialog, it is possible to open the saved system
messages which have occurred since switching on the HF device.

These messages are not saved when switching off the HF device.

Opening saved system messages:

1. Select a system message.

2. The selected system message is displayed again with "?".

3. Press "OK" to return to the overview.

Opening the instructions of use:

1. Press the "instructions of use" button.

The instructions of use are displayed chapter for chapter



2. Use the arrow buttons to select the desired chapter.

3. Press "OK" to open the selected chapter.

Use the arrow buttons to open the individual pages of the chapter.

4. Press "back" to return to the chapter overview.

68 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

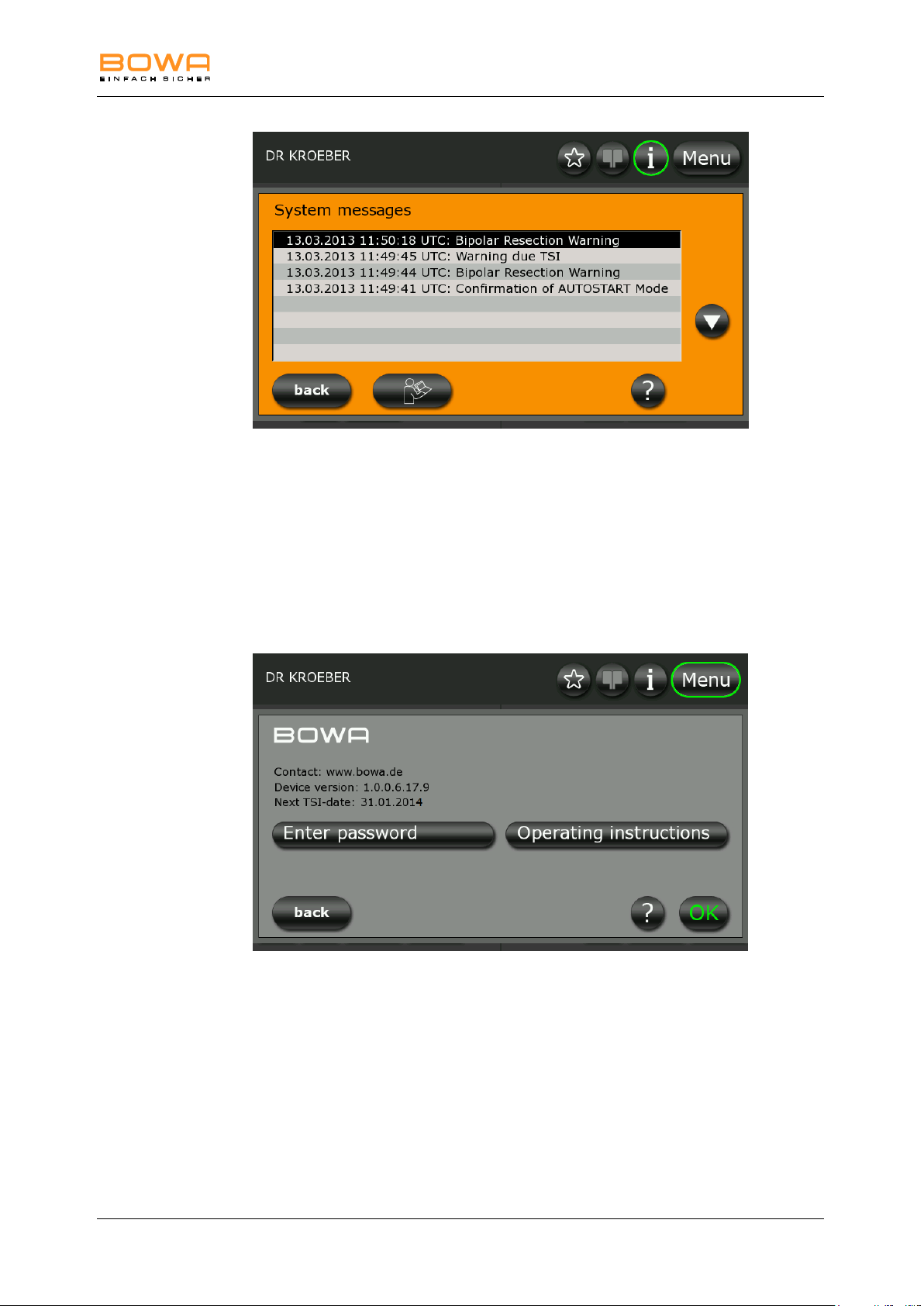

Figure 5-22: "System messages" dialog

5.10.5. "BOWA Service" dialog

After entering a password, you can use the "BOWA Service" dialog to access
additional options, such as resetting the device to the factory default configuration
or viewing the instructions of use.

Moreover, the software version and the next TSI date is displayed, see chapter
Safety inspection, page 86.

Figure 5-23: "BOWA Service" dialog

Opening the operating instructions:

1. Press the "Operating instructions" button.
The operating instructions are displayed chapter for chapter.



2. Use the arrow buttons to select the desired chapter.

3. Press "OK" to open the selected chapter.
Use the arrow buttons to open the individual pages of the chapter.

4. Press "back" to return to the chapter overview.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 69

5 Operation

Up to eight programs can be put on the favourites list.

5.10.6. "Select program" dialog

1. Use the "Select program" dialog to select programs from a list and to add them

to the favourites.

- or ­Fast settings of this menu are possible by tapping on the present program
name in the main screen.

2. For the selection of a program, tap on the desired program name.

3. The vertical and horizontal navigation is possible using the arrows.

4. The programs can be shown in alphabetic order or in order of date saved.

5. The assignment to the favourites is possible using the star button in the lower

area of the screen. Use the green arrow to add programs to your list of
favorites or use the red arrow to delete them from the favourites.

6. Press "OK" to load the selected program.

- or ­To return to the main screen click on "back".

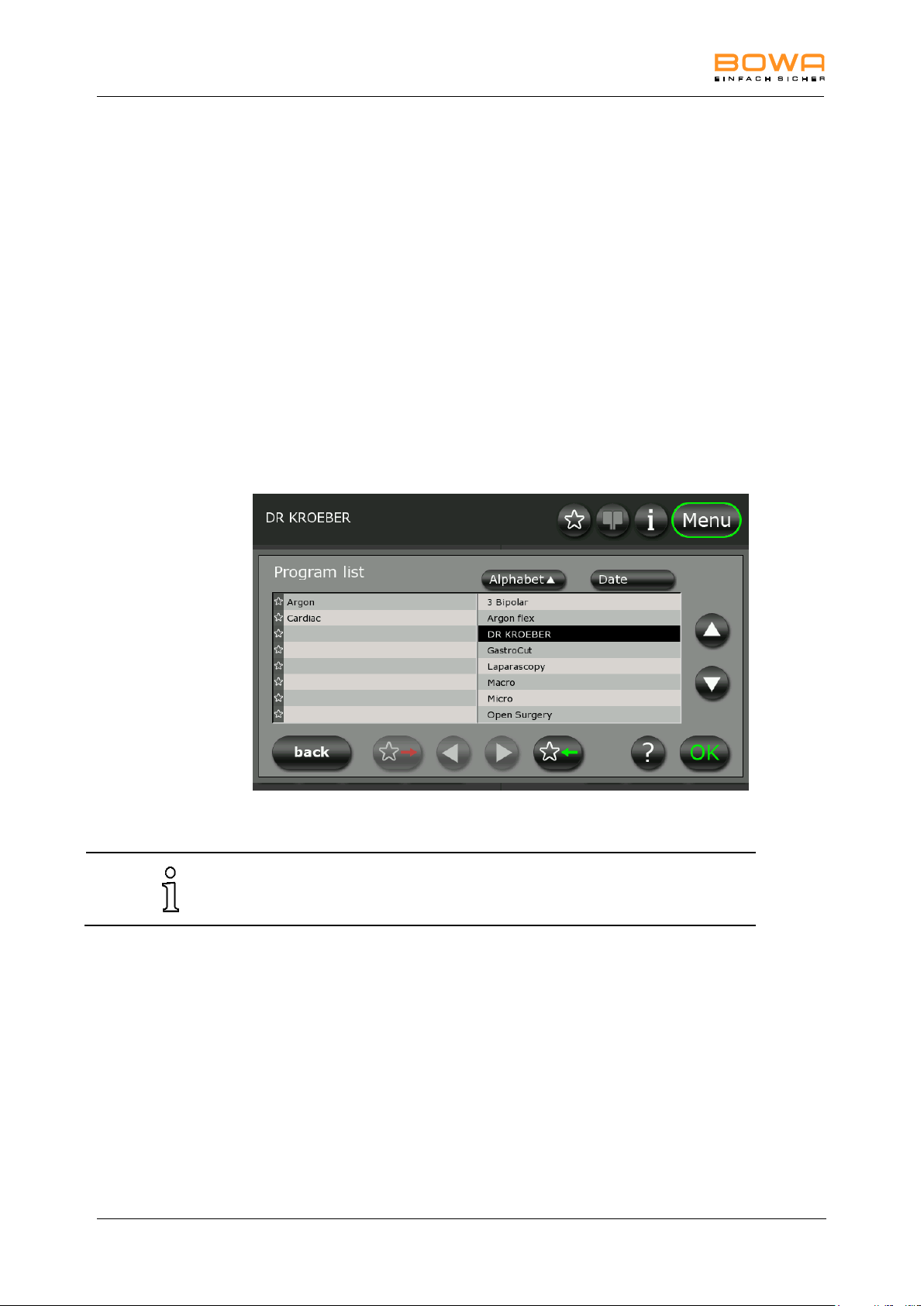

Figure 5-24: "Select program" dialog

If the eight places are full and a new program is being assigned to the favourites,
the following screen is shown.

70 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

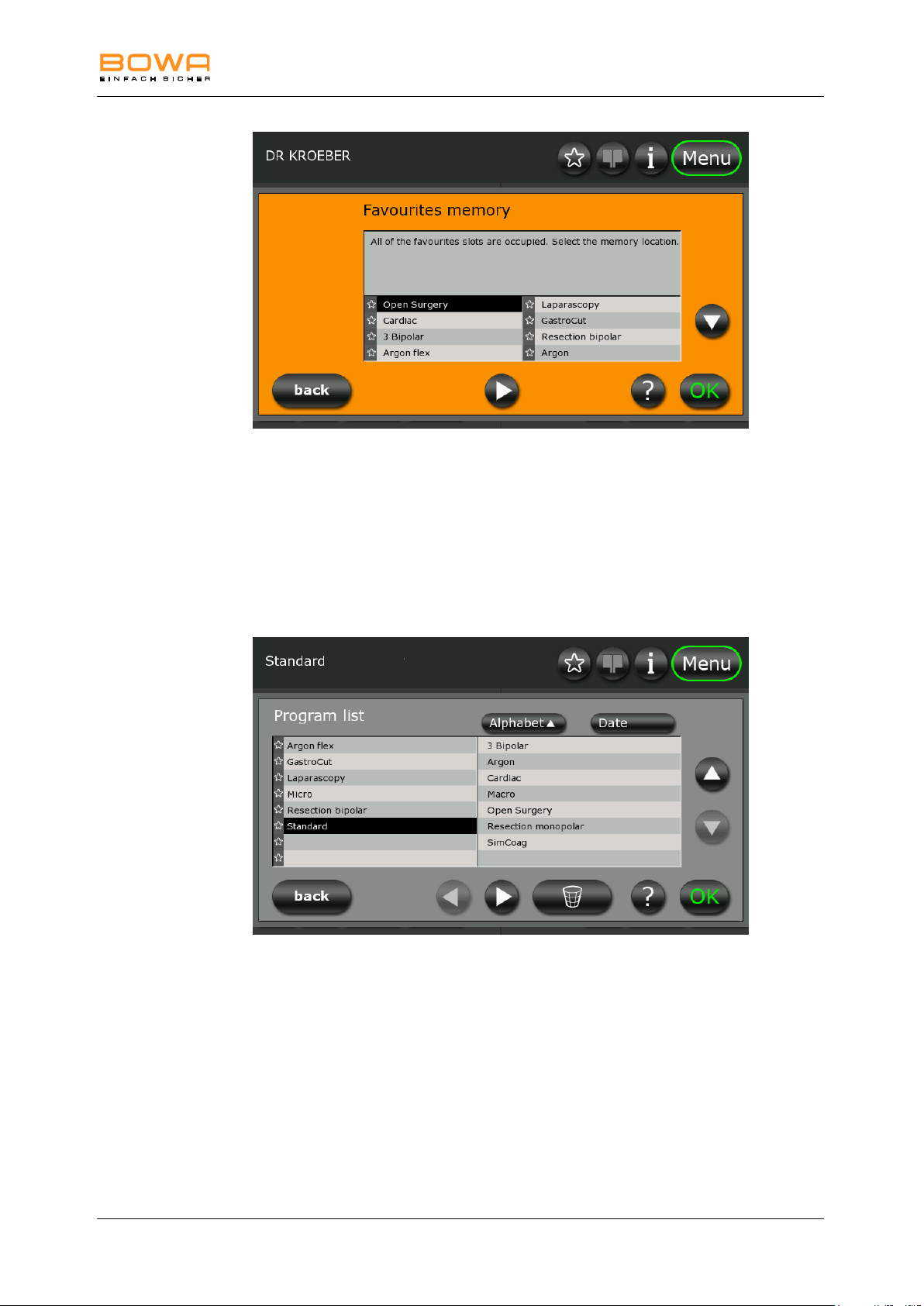

Figure 5-25: Favourites memory

For the selection of the location for saving, tap on the desired program name. The
overwritten program is integrated in the program list.
The vertical and horizontal navigation is possible using the arrows.
Confirm with "OK" to accept the selection.
To return to the main screen click on "back".

5.10.7. "Delete program" dialog

In the "Delete program" dialog, it is possible to delete saved programs.

Figure 5-26: "Delete program" dialog

1. Touch the program name in the program list to select the program you
wish to delete.

Vertical and horizontal navigation is also possible via the arrow buttons

2. Press the "recycle bin" button to fully delete the selected program.

The selected program will be deleted without any further prompt.



The default program appears.



The default program cannot be deleted.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 71

5 Operation

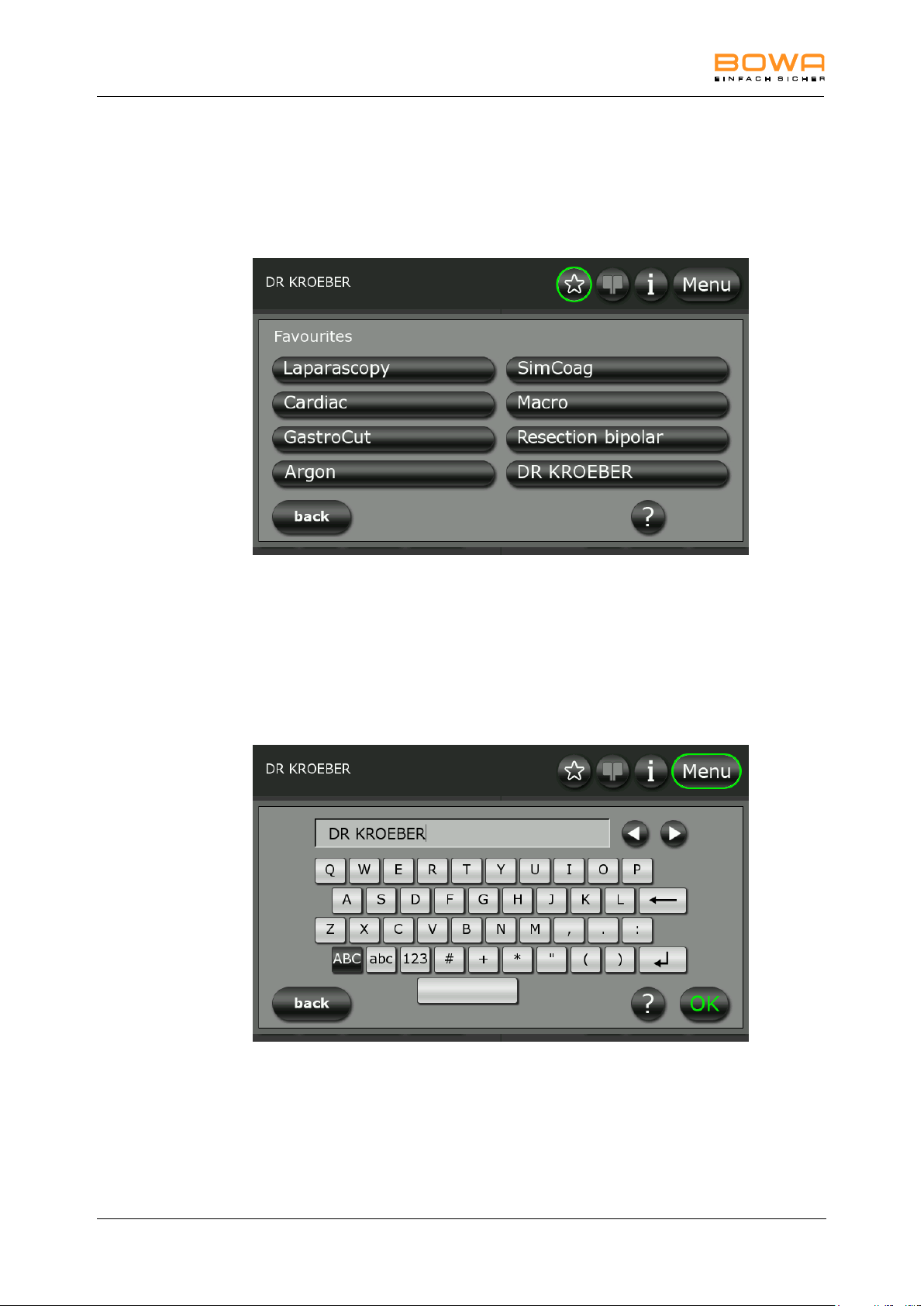

5.10.8. "Favourites" dialog

Use the "Favorites" dialog to select previously defined favorite programs.
A fast selection of the favourites is possible using the star button in the main

screen.

Figure 5-27: "Favourites" dialog

Confirm with "OK" to accept the selection.
To return to the main screen click on "back".

5.10.9. "Save Program" dialog

Use the "Save Program" dialog to save the current program settings under the
same name or a different name.

Figure 5-28: "Save program" dialog

With a keypad texts program names can be created. Several symbols, capital or
small letters or numbers are selection options.

Confirm with "OK" to accept the selection.
To return to the main screen click on "back".

72 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

Default settings for argon flow rates according to the different modes are
selected automatically:

Argon open:
CUT flow rate: 4.0 l/min
COAG flow rate: 3.0 l/min

Argon flexible:
COAG flow rate: 0.4 l/min

5.10.10. "Argon" dialog

In case of the selection of an argon mode and a successful connection to ARC
PLUS, this dialog is selectable in the status bar.

The "Argon" dialog enables the selection of argon flow rates for cutting and
coagulation, as well as the selection of argon bottles and the display of filling
levels.

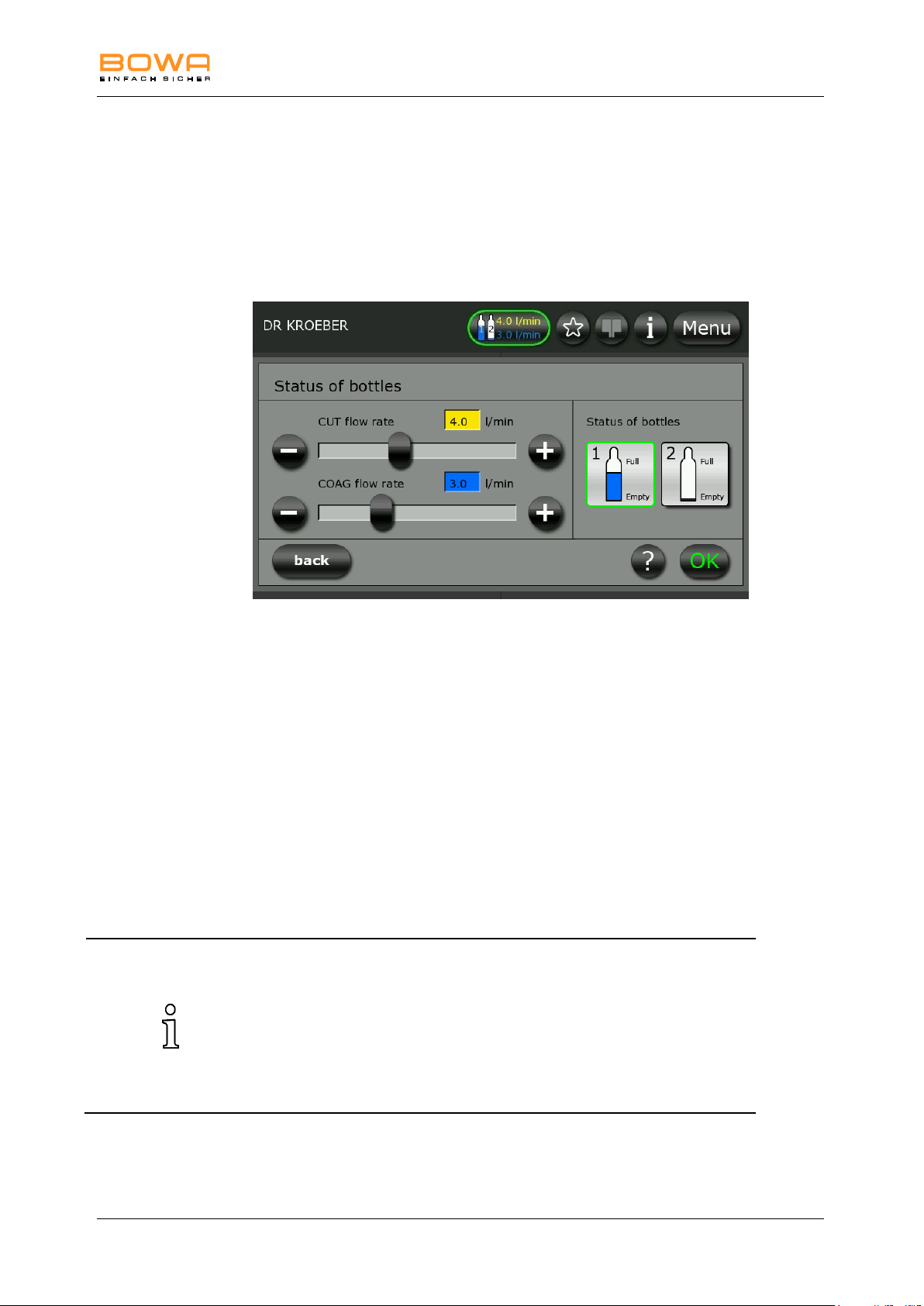

Figure 5-29: "Argon" dialog

1. Use the "+" and "-" buttons to adjust the argon flow rate for cutting (Cut) or
coagulation (Coag).

- or ­Use the slider to set the flow rate.

2. In case of two connected argon bottles use the buttons for output "1" or "2" to
select the desired gas source.

Pressure reducers with electronic pressure sensor enable the display of exact
filling levels of argon bottles.

3. Press the "?" button for more information on this selection.

4. Confirm your selection by pressing the "OK" button.

- or ­Press the "Back" button to return to the main screen without changing the
selection.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 73

5 Operation

5.11. Basic programs

The following basic programs are provided with the full version of ARC 400 (incl.
the resection bipolar option and the LIGATION option):

 3 Bipolar
 Argon flex
 Argon
 Cardiac
 GastroCut
 Laparoscopy
 Macro
 Micro
 Open Surgery
 Resection bipolar
 Resection monopolar
 SimCoag
 Standard

Figure 5-30: Basic program "3 Bipolar"

LIGATION is only available in this program with the LIGATION option.

74 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

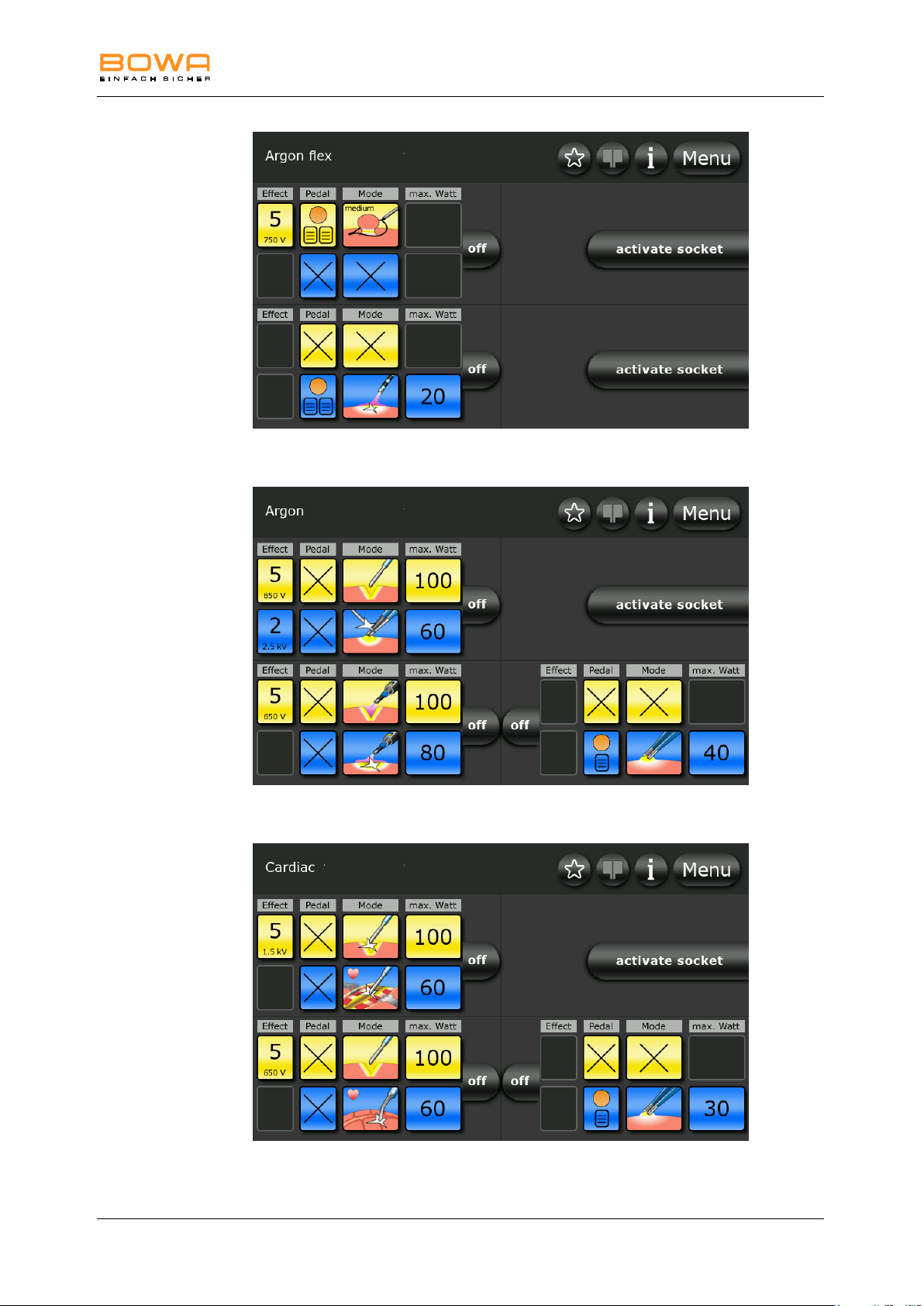

Figure 5-31: Basic program "Argon flex"

Figure 5-32: Basic program "Argon"

Figure 5-33: Basic program "Cardiac"

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 75

5 Operation

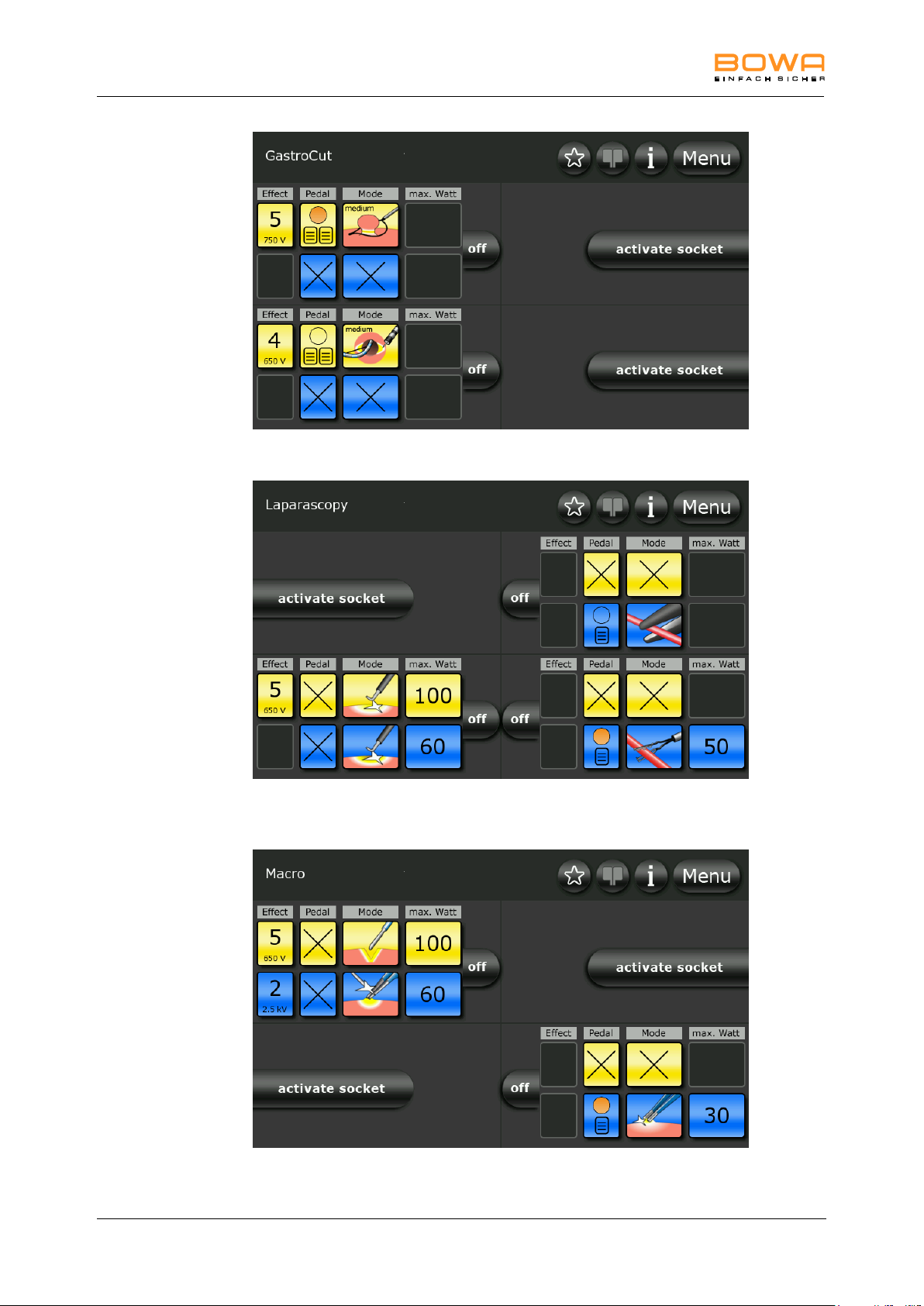

Figure 5-34: Basc program "GastroCut"

Figure 5-35: Basic program "Laparoscopy"

LIGATION is only available in this program with the LIGATION option.

Figure 5-36: Basic program "Macro"

76 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

5 Operation

Figure 5-37: Basic program "Micro"

Figure 5-38: Basic program "Open Surgery"

Figure 5-39: Basic program "Resection bipolar"

This program is only available with the resection bipolar option.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 77

5 Operation

Figure 5-40: Basic program "Resection monopolar"

Figure 5-41: Basic program "SimCoag"

Figure 5-42: Basic program "Standard"

78 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

6 Detecting and correcting faults

6. Detecting and correcting faults

Two types of faults can occur:

 system faults
 EASY monitoring faults

6.1. System informations

A warning message appears on the display when a system fault occurs.

Figure 6-1: Confirmation of AUTOSTART Mode

Further information to the cause and corrective measures for this message are
available pressing the button “?“ in the lower area of the screen.

System informations have three different categories:

 Notice (grey screen)
 Warning (orange screen)
 Error (red screen)

Notices are shown for five seconds on the display. Warnings and errors are shown
for ten seconds.

While an error is present, activations are prohibited.
The message is available using the orange marked „?“ in the system bar.
Moreover, these messages are available in the menu program system settings and

will be deleted when switching off the unit.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 79

6 Detecting and correcting faults

Heading

Fault message

Confirmation of
AUTOSTART Mode

You have selected an AUTOSTART mode.
Setting the AUTOSTART mode can result in unintentional

coagulations, e.g. when bipolar forceps are used for gripping while
the AUTOSTART Mode is on.

AUTOSTART Error

The instrument is in contact with tissue.
AUTOSTART cannot be selected when the instrument is in contact

with tissue. Open up the instrument.

TSI Warning

The annual Technical Safety Inspection (TSI) is due.

Neutral Electrode
Error

No neutral electrode connected.
No neutral electrode connected. Connect a neutral electrode.

Neutral Electrode
Error

Wrong neutral electrode connected..
The selection does not match the neutral electrode connected.

Connect the neutral electrode which matches the selected mode, or
change the mode to match the neutral electrode.

Neutral Electrode
Error

Poor contact with the patient.
The resistance between the neutral electrode and the patient is too

high. Establish better contact of the neutral electrode.

Neutral Electrode
Warning

Poor contact with the patient.
The contact resistance between the neutral electrode and the

patient is increasing.
Establish better contact of the neutral electrode.

Neutral Electrode
Error

No cable for neutral electrode connected.
No cable for neutral electrode connected. Connect a cable for

neutral electrodes.

Neutral Electrode
Notice

No cable for neutral electrode connected.
The cable for neutral electrode has been removed. Monopolar

activation is not possible.

Mode Error

No mode selected.
No mode was selected for this type of activation.

Select the desired mode or change the foot switch assignment.

Mode Error

This mode is not allowed for baby neutral electrodes. Use split
neutral electrodes with a large conductive surface for this mode.

Mode Error

This mode is not allowed for this socket. The current mode remains
active. Choose another socket for this mode.

Foot Switch Error

Foot switch not assigned to a socket.
The foot switch has not been assigned to a socket yet.

Assign a socket to the foot switch using the "Pedal" button.

The following table describes the cause of the fault and the appropriate corrective
action.

80 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

6 Detecting and correcting faults

Heading

Fault message

Foot Switch Notice

The assignation of the foot switch has been changed.
The orange button on the foot switch enables switching from socket

A to B and back. The active foot switch assignation is displayed in
the form of an orange dot.

Foot Switch Warning

Second foot switch assignment has not been set.
There is no second foot switch assignment in place.

The current assignment remains active.
To allocate the second foot switch assignment press the "Pedal"
push button on the desired socket.

Foot Switch Error

Fault on foot switch connection.
Check the foot switch. If this message appears again, please

contact the Technical Support. Internet: www.bowa.de Telephone:
[phone]

Finger Switch Error

Fault on finger switch connection.
Check the handle and the connection cable. Please replace them if

damaged. If this message appears again please contact the
Technical Support. Internet: www.bowa.de Telephone:
[phone]

Finger Switch Error

Fault on finger switch connection.
Check the handle and the connection cable. Please replace them if

damaged. Instruments with one pin have to be connected to the
marked socket. If this message appears again please contact the
Technical Support. Internet: www.bowa.de Telephone:
[phone]

Finger Switch Error

Fault on finger switch connection.
Check the handle and the connection cable. Please replace them if

damaged. If this message appears again please contact the
Technical Support. Internet: www.bowa.de Telephone:
[phone]

Temperature Warning

The temperature of the device is higher than normal.
The temperature of the device is elevated. This leads to a reduction

of the maximum power.

Limitation of
Continuous Activation

The maximum activation time has been exceeded.
Please only activate the generator in short intervals, in order to

avoid harming the patient and damaging the connected instruments
or the generator.

Mains Voltage Error

The mains voltage is too low.
Please ensure a constant mains voltage. If necessary, connect a

UPS (Uninterrupted Power Supply).

Activation Error

While switching on the device, there is an activation by foot switch,
finger switch or AUTOSTART.

Check the handles or foot switches for malfunctions.
Disconnect the handles / foot switches from the device. If the error
persists, please contact the Technical Support. Internet:
www.bowa.de Telephone: [phone]

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 81

6 Detecting and correcting faults

Heading

Fault message

Activation Error

There is an activation while connecting the foot switch or finger
switch.
Check the handles or foot switches for malfunctions.
Disconnect the handles / foot switch from the device. If the error
persists, please contact the Technical Support. Internet:
www.bowa.de Telephone: [phone]

Activation Error

There is no instrument connected on the activated socket.
Connect an instrument on the designated socket.

Activation Warning

The mode for safety inspections is active. Activation is not possible.
Quit this mode before activating again.

Bipolar Resection
Warning

No activation of the bipolar resection.
Check the irrigation medium, the connection cable, the instrument
and the selected settings.

Make sure that NaCl is used as an irrigation medium.

GastroCut Notice

The polypectomy has been completed.

GastroCut Warning

Polypectomy snare not in contact with tissue, or check connection
cable at snare or generator. Please apply the snare and reactivate.

First of all establish contact between tissue and polypectomy snare,
or check the connection cable at the snare or the generator. Then
activate with the yellow foot pedal.

LIGATION Notice

The LIGATION has been completed.

LIGATION Warning

There is a short-circuit in the area of the sealing instrument. Please
check the instrument for foreign material or contact with other
objects.
The sealing point must be free of foreign objects.

LIGATION Warning

The sealing instrument is not in contact with tissue. Please grasp
tissue and reactivate LIGATION.

Check the connection between instrument and generator. To
perform LIGATION of vessel and tissue bundles it is necessary to
grasp tissue and close the sealing instrument before activating.

ARC PLUS Fault

Please check if the argon bottles are connected and open. Empty
bottles should be replaced. Subsequently restart ARC PLUS by
activating the flashing ""Purge"" button.

ARC PLUS Fault

The argon inlet pressure is too high.
Max. inlet pressure: <4.5bar
Close a source of argon gas in the appropriate pressure range.
Subsequently restart ARC PLUS by activating the flashing "Purge"
button.

ARC PLUS Fault

The argon inlet pressure has exceeded the permissible limits. Inlet
pressure range: 2 - 4.5bar
Close a source of argon gas in the appropriate pressure range.
Subsequently restart ARC PLUS by activating the flashing "Purge"
button.

ARC PLUS Warning

Please check if the argon bottles are connected and open. Empty
bottles should be replaced. Subsequently restart ARC PLUS by
activating the flashing "Purge" button.

82 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

6 Detecting and correcting faults

Heading

Fault message

ARC PLUS Warning

Mixed operation of argon bottles with and without an electric bottle
pressure gauge is not recommended
Connect two identical pressure reducers.

ARC PLUS Warning

Please check if the instrument is free of adhesions, and purge it with
argon.
If repeated purging does not solve the problem, the instrument and
cable must be replaced.

ARC PLUS Warning

The argon flow settings at ARC 400 are invalid

ARC PLUS Warning

The filling level of the argon bottle is low.
Please make sure that a replacement is available.
You can connect two argon bottles. The unit shifts automatically to
the second bottle.

ARC PLUS Fault

The argon bottle is empty.
Connect a replacement bottle to enable activation.
You can connect two argon bottles. The unit shifts automatically to
the second bottle

ARC PLUS Notice

The argon bottle is empty. The unit has shifted automatically to the
replacement bottle.
Please make sure that a replacement is available

TSI ARC PLUS
Warning

The annual Technical Safety Inspection (TSI) for ARC PLUS is due.

Plug'n Cut COMFORT
Notice

The lifetime of the instrument is ending soon.
Please order a replacement in good time.
Any use of the instrument beyond its lifetime is not covered by

warranty. Please contact your BOWA dealer in good time to
purchase a new instrument.

Plug'n Cut COMFORT
Warning

The maximum lifetime of the instrument has been reached. Any
further use is not covered by warranty. The maximum service
lifetime of the instruments must not be exceeded, in order to
guarantee safe usage. Any further use is at the user's risk.

Plug'n Cut COMFORT
Notice

You have connected a BOWA RFID instrument. X applications
remain available. The maximum lifetime of the instruments must not
be exceeded, in order to guarantee safe usage. Any further use is at
the user's risk.

Dr. Dongle Notice

You can save up to six of your preferred programs on your Dr.
Dongle and run them in a flexible way. With the "Load" button you
can call a selected program. You can use the "Save" button to enter
an explanatory text for the selected program.

Plug'n Cut COMFORT
Warning

A software update is necessary to use Plug'n Cut COMFORT with
this instrument. Only carry out manual settings at this instrument.
Please contact the Technical Support. Internet: www.bowa.de
Telephone: [phone]

Internal Error 4177

If this message appears again, please contact the Technical
Support. Internet: www.bowa.de Telephone: [phone]

Internal Errors have a number next to the description.
Please advise the Technical Service of this number.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 83

6 Detecting and correcting faults

EASY
monitoring

Cause

Indication

Corrective measures

Flashes yellow

Significant increase in
resistance

Depending on the
indication, there may be
heating under the neutral
electrode

–

Stopping the application is
not necessary.

Check the proper
application of the neutral
electrode.

Switches from
green to
continuous red

A significant problem
occurred when the
monopolar current was
activated

An acoustic
signal sounds.
A warning
message
appears on the
display

Check the neutral electrode
and neutral electrode cable
(see Section EASY neutral

electrode monitoring
(EASY monitoring), page

28.
Check the neutral electrode

cable for proper connection
and external damage.

Loosened electrode

An acoustic
signal sounds.
A warning
message
appears on the
display

Reattach the neutral
electrode. If the fault
persists, replace the neutral
electrode.

6.2. Fault indications for EASY monitoring

Fault indications are displayed in three stages (green, yellow and red) when
problems occur.

When working with a split neutral electrode, the following faults may occur:

84 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

7 Preparation

NOTE

Incorrect handling of the HF device can cause damage to the unit!
 Never sterilize the ARC 400 device. Instead, clean or disinfect it.

WARNING

Risk of electric shock and fire!

 Unplug the power connection before cleaning the device.
 For cleaning surfaces, use the approved cleaning

agents/disinfectants only as specified by the manufacturer.

 Ensure that no liquid penetrates the device.
 Ensure that the AUTOSTART function is deactivated.

7. Preparation

7.1. Preparation of the accessories

 Prepare the accessories (e.g. surgical handles, instruments, active

electrodes, neutral electrodes and cables) as described in the corresponding
operating manuals.

 Check the accessories before and after use for damage and to ensure that

they are working properly.

7.2. Disinfection and cleaning

1. Apply the cleaning agent and disinfectant.

2. Wipe the agent off with a sponge moistened with clean water or with a cloth.

3. Dry the device using a clean, lint-free cloth.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 85

8 Maintenance and repair

DANGER

Infection hazard!

 Carry out a surface disinfection and wrap the device in addition to

the shipping packaging material before allowing the device to leave
the hospital or office to avoid spreading germs and infections.

Any shorter safety inspection cycles specified in national regulations
must be observed.

8. Maintenance and repair

8.1. Maintenance

 Check the device, the device trolley and the accessories (e.g. foot switch,

cable) after each use for damage or defects. In particular, make sure that the
insulation is intact on all cables.

 Do not use any damaged device, damaged device trolley or damaged

accessories.

 Replace defective accessories immediately.
 Have the safety inspection for the device performed once a year. Please

consult and comply with the respective service instructions for additional
technical information.

8.1.1.Safety inspection

Safety inspections must be performed once a year.
 The next safety inspection date of ARC 400 can be displayed in the dialog,

see “BOWA Service” dialog, page 69
A warning message appears during system start-up if a safety inspection is



due.
Press OK to confirm this message.

 The device and accessories may be inspected only by persons who have the

required training, knowledge or experience and who can perform the
inspection independently.

 With regard to the safety inspection, you must comply with the country-

specific rules and regulations.

The inspector documents the inspection results and measured values
corresponding to the printed inspection protocol.

In the case of severe deviations from the values of the attached final acceptance
report, or if the specified maximum values were exceeded:

 Send the HF device to the service center, see section Technical service,

page 88.

86 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

8 Maintenance and repair

NOTE

You can damage the HF device by doing your own repairs and
modifications of medical equipment!

 If a repair is necessary, have it done only by the service center

specified below.

 Never carry out any repairs yourself.

Fast and satisfactory repairs can only be guaranteed when all required
data have been supplied in full.

8.2. Repairs

BOWA is liable for safety, reliability and performance of the HF device under the
following conditions:

 Full compliance with all instructions regarding the installation and

proper use for the intended purpose contained in this operating manual
was maintained.

 Changes, repairs, new settings and similar procedures were carried out

only by persons authorized to do this work by BOWA.

 The electrical installations in the relevant room meet the local

requirements and statutory provisions.

The following information is required for returning the device:

 complete address
 model number
 serial number
 software version

 Describe the problem, the appropriate application and the accessories used.

– or –

 Describe the repairs to be made.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 87

9 Storage

9. Storage

 If you store the HF device for longer that one year, pay specific attention to

the indicators during automatic functional testing, see section Functional test,
page 26.

 Clean the HF device thoroughly before you put it into storage.
 Store the HF device in a clean, dry place in accordance with the storage

conditions.

Storage conditions:

 Temperature: -20 °C to +50 °C
 Relative humidity 0 to 75 %, non-condensing
 Atmospheric pressure: 500 to 1600 hPa

9.1. Technical service

Contact the following service center for maintenance and repair work:
BOWA-electronic GmbH & Co. KG
Heinrich-Hertz-Strasse 4–10
72810 Gomaringen, Germany
Phone [phone]
Fax [phone]
Email [email protected]
or visit our website:
www.bowa.de

88 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

10 Technical specifications

Insulation type / Classification

EMC

IEC 60601-1-2

Level of protection provided by the housing

IP 21

Protection class according to EN 60601-1

I

Application component type according to
EN 60601-1

CF

Standards compliance

IEC 60601-1: 2005,
IEC 60601-1-2: 2007,
IEC 60601-2-2: 2009,
ISO 14971: 2007,
ISO 13485: 2003 +
Cor.1_2009

Classification according to EC Directive
93/42/EEC

IIb

Power connection

Power consumption in standby mode

40 W / 85 VA

Line frequency

50 / 60 Hz

Maximum power consumption with 300 W HF
output power

550 W / 975 VA
Terminal for potential equalization

Yes

Voltage range 220 V – 240 V

Input voltage range

198 V to 264 V

Current consumption in standby mode

110 mA

Current consumption at maximum HF output

4 A

Line fuses

2 x 5 A slow-blow

Voltage range 100 V - 115 V

Input voltage range

90 V to 130 V

Current consumption in standby mode

220 mA

Current consumption at maximum HF output

8 A

Line fuses

2 x 10 A slow-blow

Dimensions and weight

External dimensions: width x height x depth (mm)

430 x 180 x 475

Weight

approx. 12.5 kg

10. Technical specifications

10.1. ARC 400 technical data

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 89

10 Technical specifications

Programs

Number of programs in the device

400

Default programs, factory set



Individually programmable



Program number and data shown on the display



Neutral electrode monitoring

EASY (Electrode Application System)



Display indication of one-piece or split or Baby
electrode in the main and neutral electrode menu



Contact resistance between individual sections of
split neutral electrodes shown on display with
column for control


Lead resistance shown on the display when a
one-piece neutral electrode is used



Maximum allowable resistance between the
sections of a split electrode

300 Ohm

Warning signal for hazardous conditions beneath
the neutral electrode

Visual, acoustic

Warning messages on display:

Text messages with further
information

Safety features

ISSys (Integrated Safety System)



Continuous monitoring of HF leakage current with
fault indication

Text messages with further
information

Dosage monitoring with fault indication on the
display


Continuous self-test



Continuous status indication on the display



Operating errors shown on the display

Text messages with
further information

System faults shown on the display

Text messages with
further information

Documentation

Data acquisition and storage in the device

System information with
date

Fault states



Operating errors



Data retrieval via the display

Text messages with further
information

90 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

10 Technical specifications

Communication

External interface for communication with ARC
PLUS (light wire cables)


USB interface for software updates



External PC interface, UART, using BOWA
software


Service support using BOWA software



Service support

Network port for service support



Service support by service programs integrated in
the device


Service support via ISSys



Cooling

Convection



Temperature-controlled fan



Duty factor

Intermittent

10 s / 30 s (on/off)

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 91

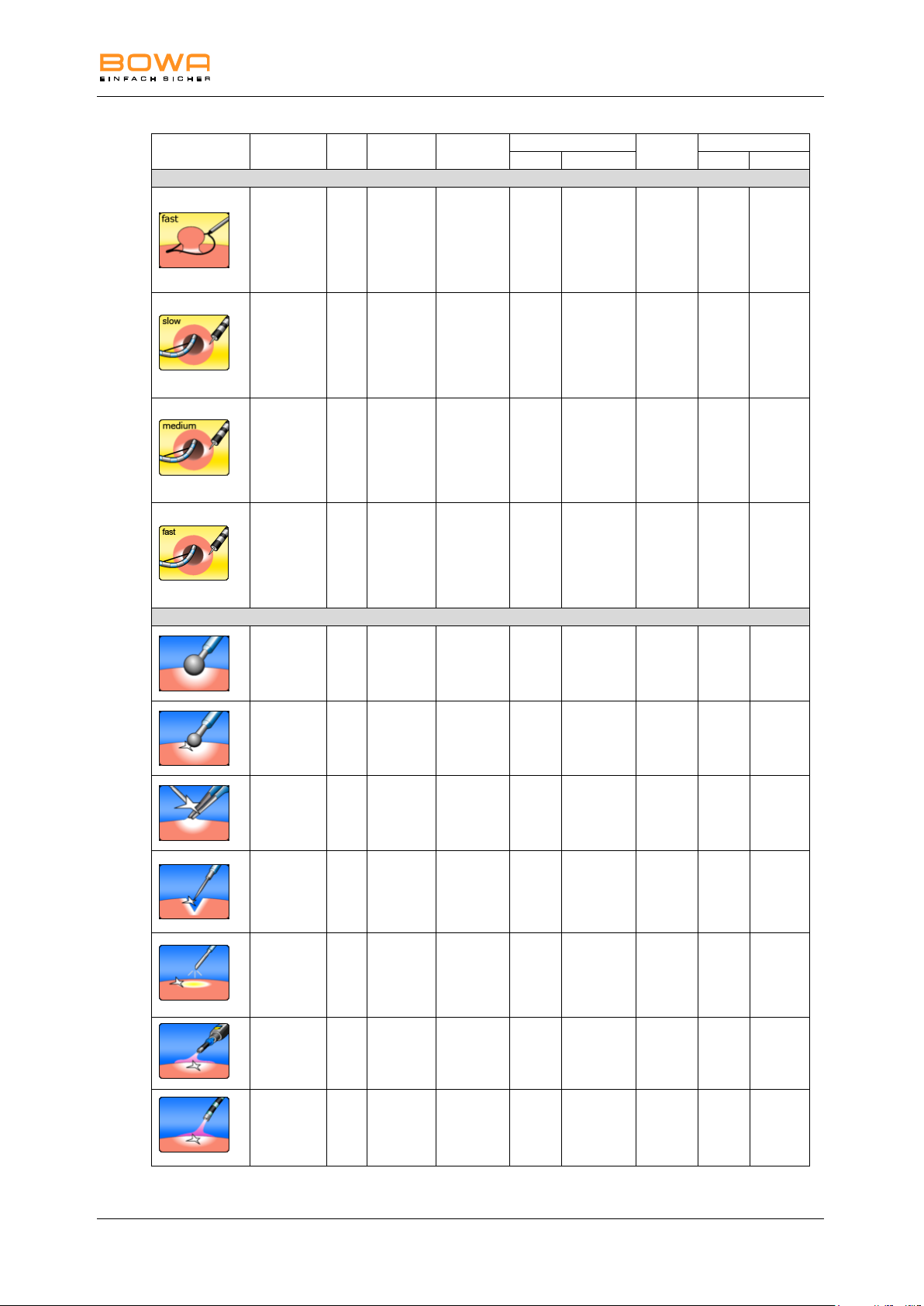

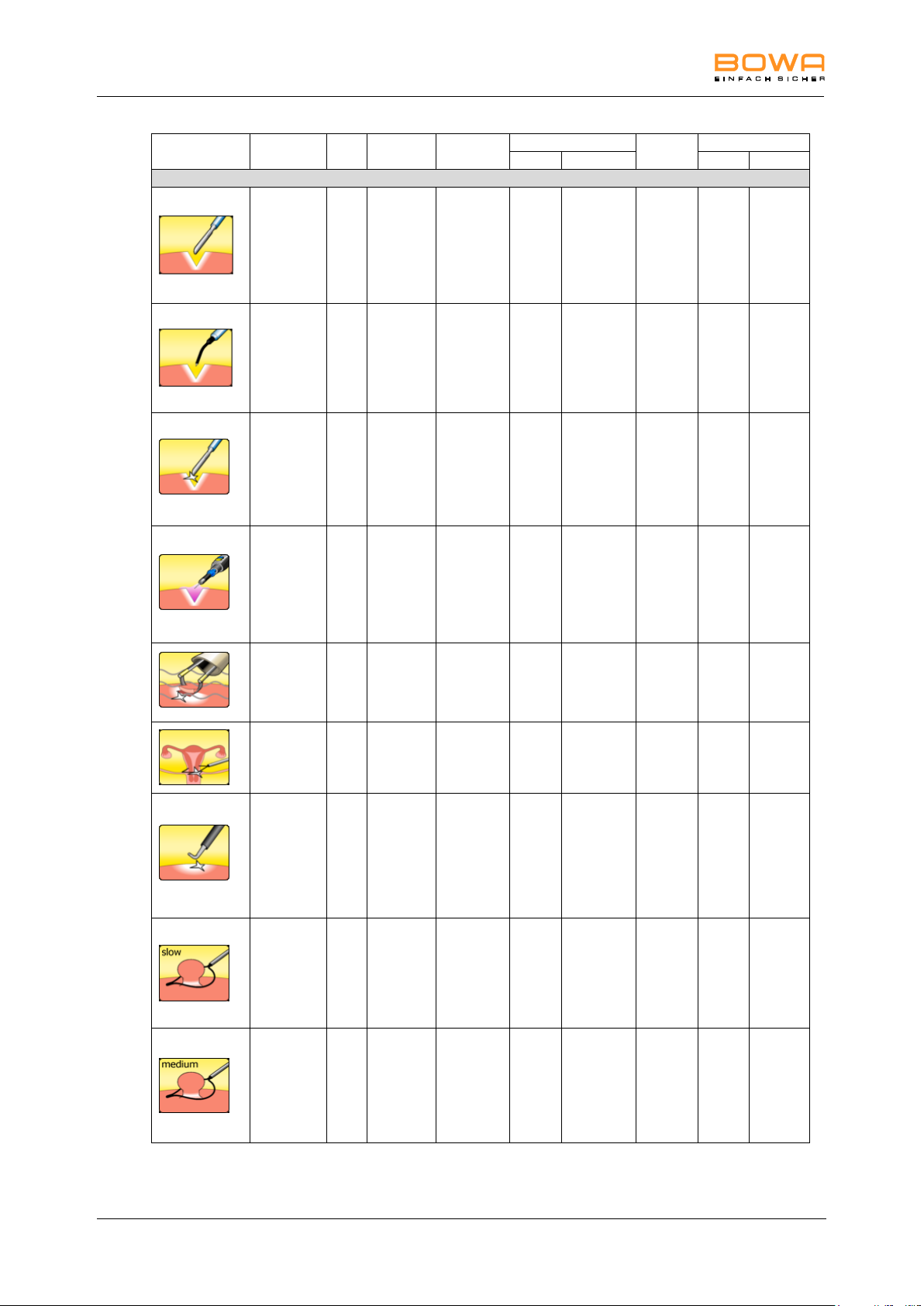

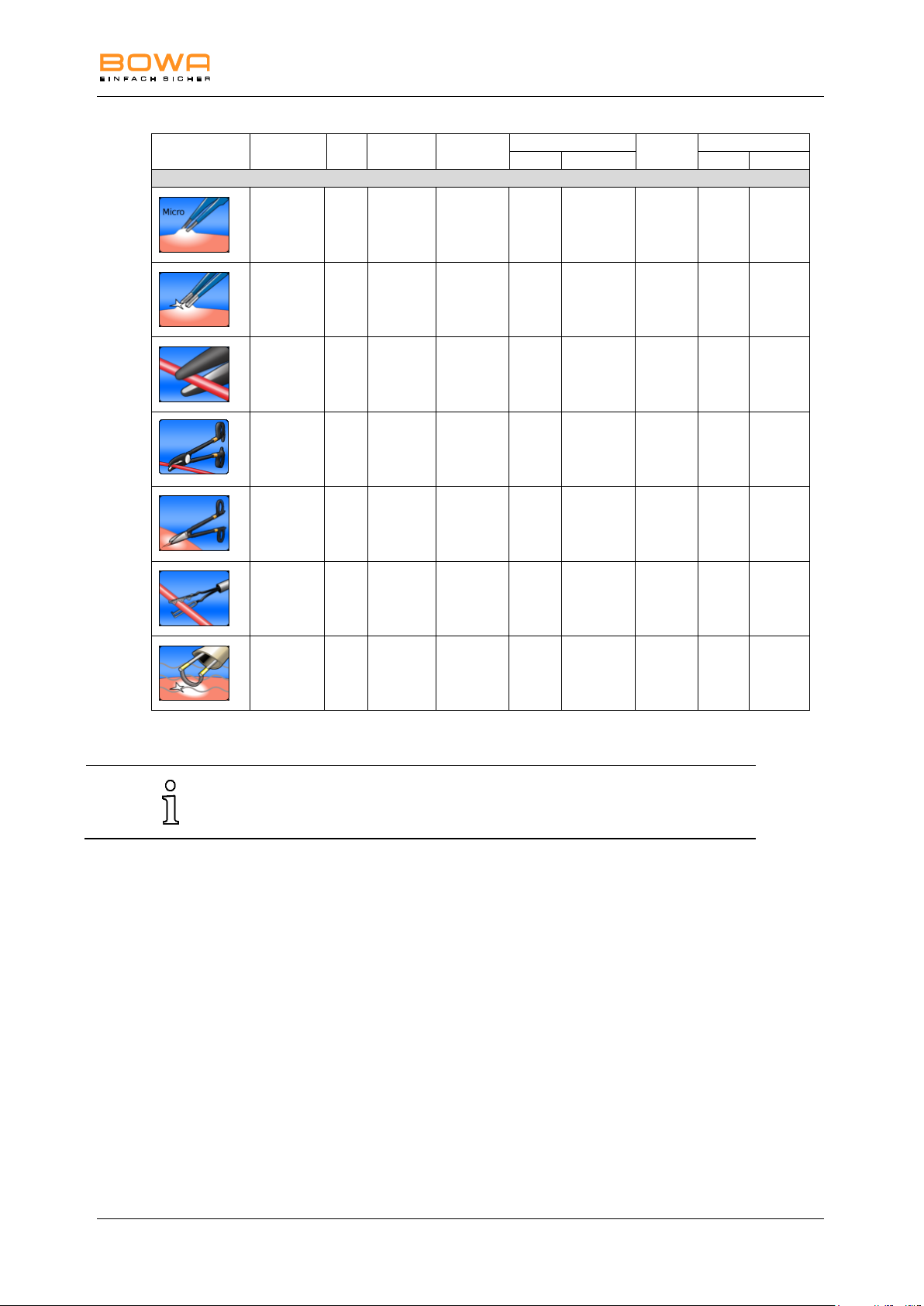

10 Technical specifications

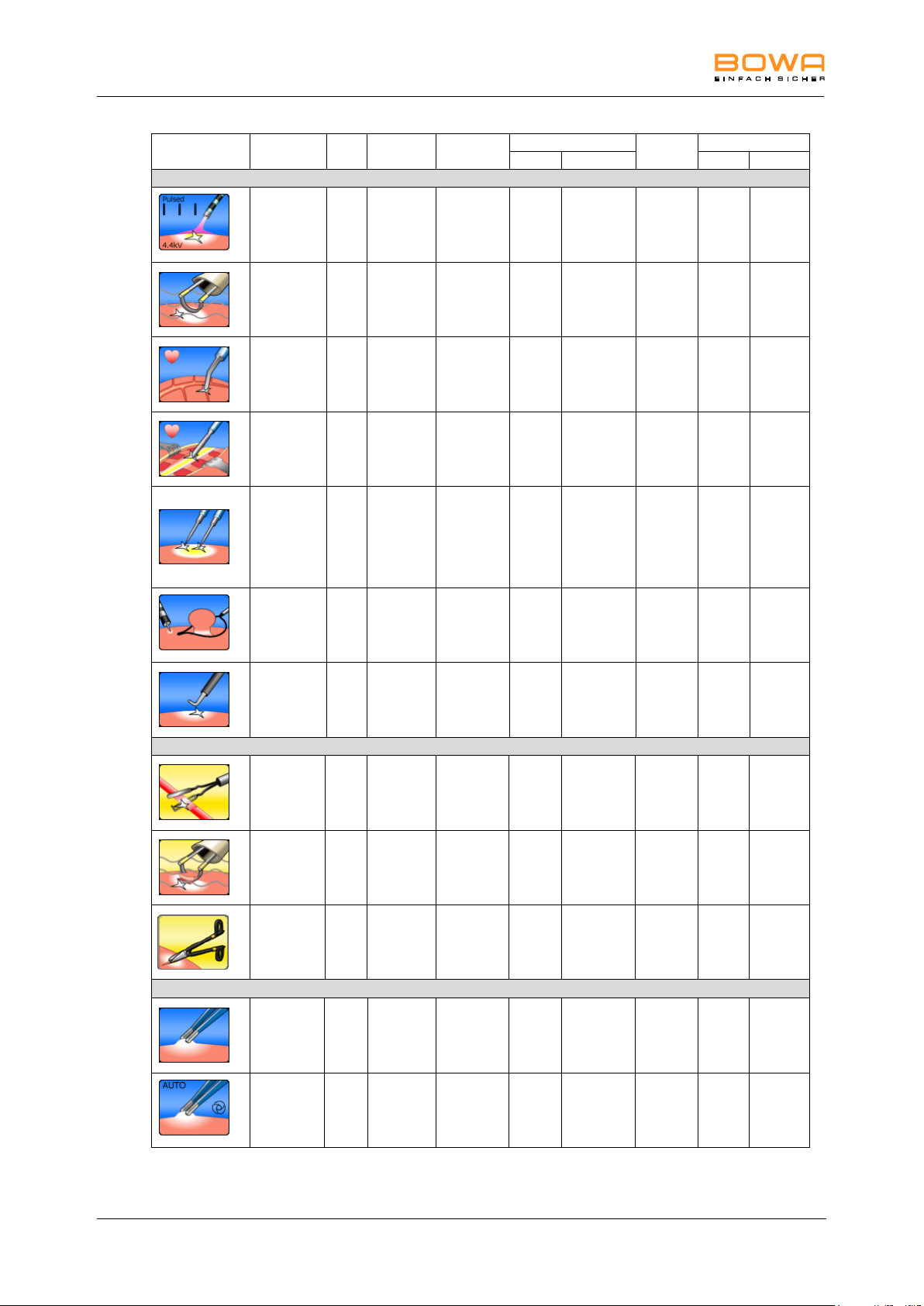

Mode icon

Description

CCS

ARC

CONTROL

Form of HF

voltage

Max. power output

Peak

voltage

Default values

Effect

Power range

Effect

Max. Watt

Modes Monopolar Cutting

Standard

Yes

Yes

sinusoidal

constant

1
2
3
4
5
6
7
8
9

1 W - 400 W

400 Vp
450 Vp
560 Vp
650 Vp
650 Vp
700 Vp
700 Vp
700 Vp
750 Vp

5

100

Micro

Yes

yes

sinusoidal

constant

1
2
3
4
5
6
7
8
9

1 W - 50 W

280 Vp
340 Vp
380 Vp
400 Vp
400 Vp
400 Vp
450 Vp
450 Vp
450 Vp

5

20

Dry

Yes

yes

sinusoidal

modulated

1
2
3
4
5
6
7
8
9

1 W - 200 W

1.4 kVp

1.4 kVp

1.4 kVp

1.4 kVp

1.5 kVp

1.6 kVp

1.6 kVp

1.6 kVp

1.6 kVp

5

100

Argon

Yes

yes

sinusoidal

constant

1
2
3
4
5
6
7
8
9

1 W - 300 W

400 Vp
450 Vp
560 Vp
650 Vp
650 Vp
700 Vp
700 Vp
700 Vp
750 Vp

5

100

Resection

Yes

yes

sinusoidal

constant

1
2
3
4
5

250 W

650 Vp
700 Vp
700 Vp
700 Vp
750 Vp

2

---

MetraLOOP

Yes

Yes

sinusoidal

constant

1
2
3

100 W
150 W
200 W

650 Vp 1 ---

Laparoscopy

Yes

Yes

sinusoidal

constant

1
2
3
4
5
6
7
8
9

1 W - 200W

400 Vp
450 Vp
560 Vp
650 Vp
650 Vp
700 Vp
700 Vp
700 Vp
750 Vp

5

100

GastroCut
Loop slow

Yes

Yes

sinusoidal
alternating
Coag, Cut

and break

phases

1
2
3
4
5
6
7
8
9

-

750 Vp 5 ---

GastroCut
Loop medium

Yes

Yes

sinusoidal
alternating
Coag, Cut

and break

phases

1
2
3
4
5
6
7
8
9

-

750 Vp 5 ---

92 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

10 Technical specifications

Mode icon

Description

CCS

ARC

CONTROL

Form of HF

voltage
Max. power output

Peak

voltage

Default values

Effect

Power range

Effect

Max. Watt

Modes Monopolar Cutting

GastroCut
Loop fast

Yes

Yes

sinusoidal
alternating
Coag, Cut

and break

phases

1
2
3
4
5
6
7
8
9

-

750 Vp 5 ---

GastroCut
Knife slow

Yes

Yes

sinusoidal
alternating

Coag and Cut

phases

1
2
3
4
5
6
7
8
9

-

650 Vp 5 ---

GastroCut
Knife medium

Yes

Yes

sinusoidal
alternating

Coag and Cut

phases

1
2
3
4
5
6
7
8
9

-

650 Vp 5 ---

GastroCut
Knife fast

Yes

Yes

sinusoidal
alternating

Coag and Cut

phases

1
2
3
4
5
6
7
8
9

-

650 Vp 5 ---

Modes Monopolar Coagulation

Moderate

sinusodial

constant

1
2 3 1 W - 120 W

250 Vp 2 60

Forced non
cutting

pulsed

modulated

-

1 W - 80 W

3.5 kVp

---

50

Forced mixed

sinusoidal
modulated

1
2 3 1 W - 120 W

2.3 kVp

2.5 kVp

2.8 kVp

2

60

Forced cutting

sinusoidal
modulated

1
2
3
4

1 W - 250 W

1.5 kVp

1.5 kVp

1.3 kVp

1.3 kVp

2

80

Spray

pulsed

modulated

1
2
3
4

1 W - 120 W

3.0 kVp

3.8 kVp

4.6 kVp

5.0 kVp

2

80

Argon open

pulsed

modulated

-

1 W - 120 W

4.6 kVp

---

80

Argon flexible

pulsed

modulated

-

1 W - 120 W

4.4 kVp

---

40

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 93

10 Technical specifications

Mode icon

Description

CCS

ARC

CONTROL

Form of HF

voltage
Max. power output

Peak

voltage

Default values

Effect

Power range

Effect

Max. Watt

Modes Monopolar Coagulation

Argon flex.
pulse

pulsed

modulated

1
2 3 1 W – 80 W

4.4 kVp 2 20

Resection

sinusoidal
modulated

-

1 W -120 W

2.6 kVp

---

60

Cardiac
Mammary

sinusoidal
modulated

-

1 W - 60 W

2.3 kVp

---

15

Cardiac
Thorax

sinusoidal
modulated

-

1 W - 100 W

2.3 kVp

---

40

SimCoag

sinusoidal
modulated

pulsed

modulated

pulsed

modulated

1
2 3 1 W - 120 W

1.5 kVp

2.3 kVp

4.6 kVp

2

60

Gastro Coag

sinusoidal
modulated

1
2 3 1 W - 50 W

2.3 kVp

2.6 kVp

3.1 kVp

2

15

Laparoscopy

sinusoidal
modulated

-

1 W - 120 W

1.8 kVp

---

60

Modes Bipolar Cutting

Standard

Yes

Yes

sinusoidal

constant

-

1 W - 200 W

400 Vp

---

100

Bipolar
resection

Yes

Yes

sinusoidal

constant

1
2 3 250 W

500 Vp 2 ---

Bipolar
scissors

sinusoidal

constant

-

1 W - 120 W

200 Vp

---

60

Modes Bipolar Coagulation

Standard
forceps

sinusoidal

constant

-

1 W - 120 W

150 Vp

---

40

Standard
forceps
AUTO

sinusoidal

constant

-

5 W - 120 W

150 Vp

---

40

94 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

10 Technical specifications

Mode icon

Description

CCS

ARC

CONTROL

Form of HF

voltage
Max. power output

Peak

voltage

Default values

Effect

Power range

Effect

Max. Watt

Modes Bipolar Coagulation

Micro forceps

sinusoidal

constant

-

0.1 W - 20 W

150 Vp

---

10

Forceps
forced

sinusoidal

modulated

-

1 W - 100 W

550 Vp

---

70

LIGATION

sinusoidal

modulated

-

200 W

190 Vp

---

---

TissueSeal
PLUS

sinusoidal

modulated

-

200 W

190 Vp

---

---

Bipolar
scissors

sinusoidal

constant

-

1 W - 120 W

200 Vp

---

60

Laparoscopy

sinusoidal

constant

-

1 W - 120 W

150 Vp

---

50

Bipolar
resection

sinusoidal

constant

-

1 W - 350 W

190 Vp

---

200

The max. values are not necessarily created at rated load resistance.

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 95

10 Technical specifications

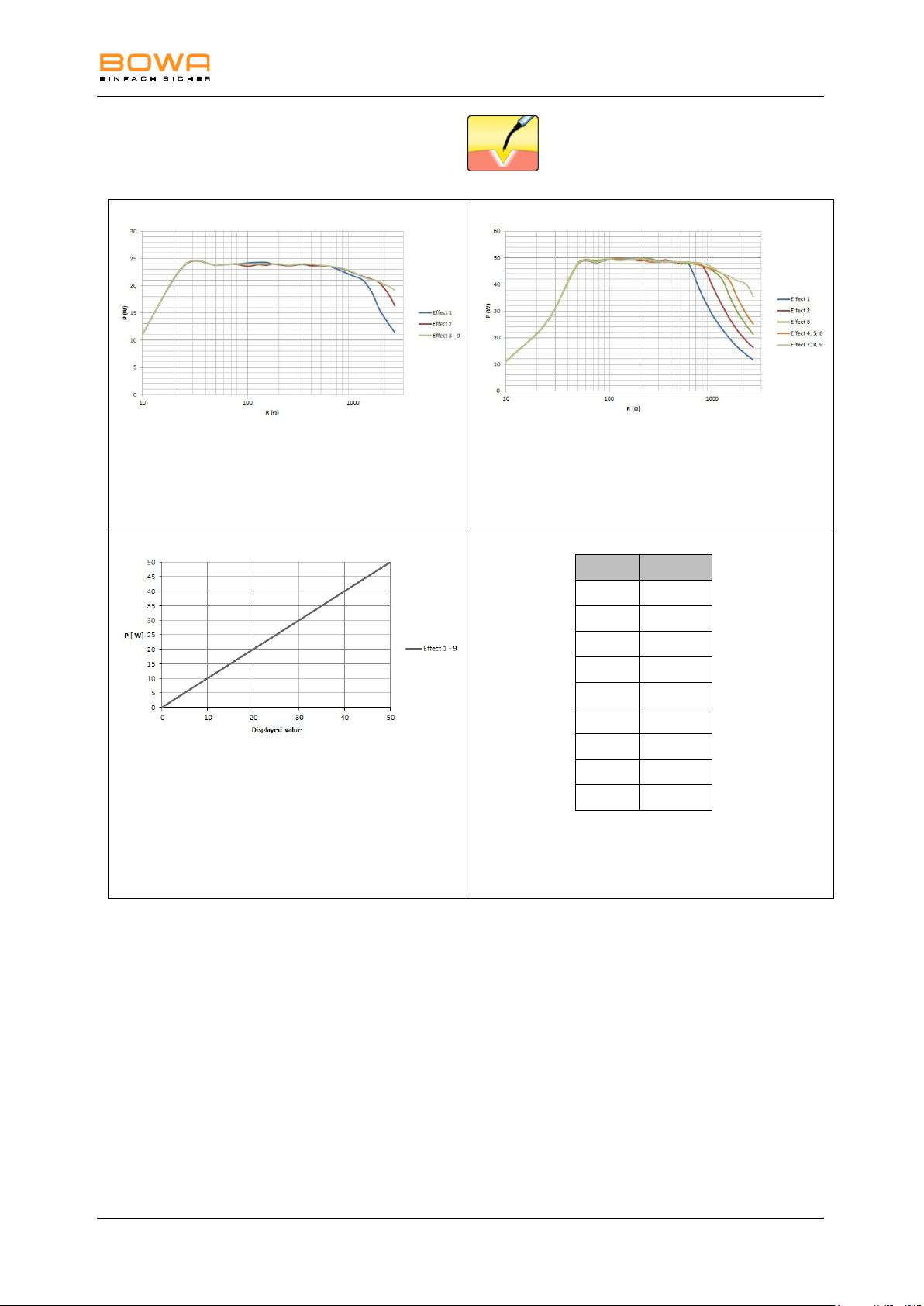

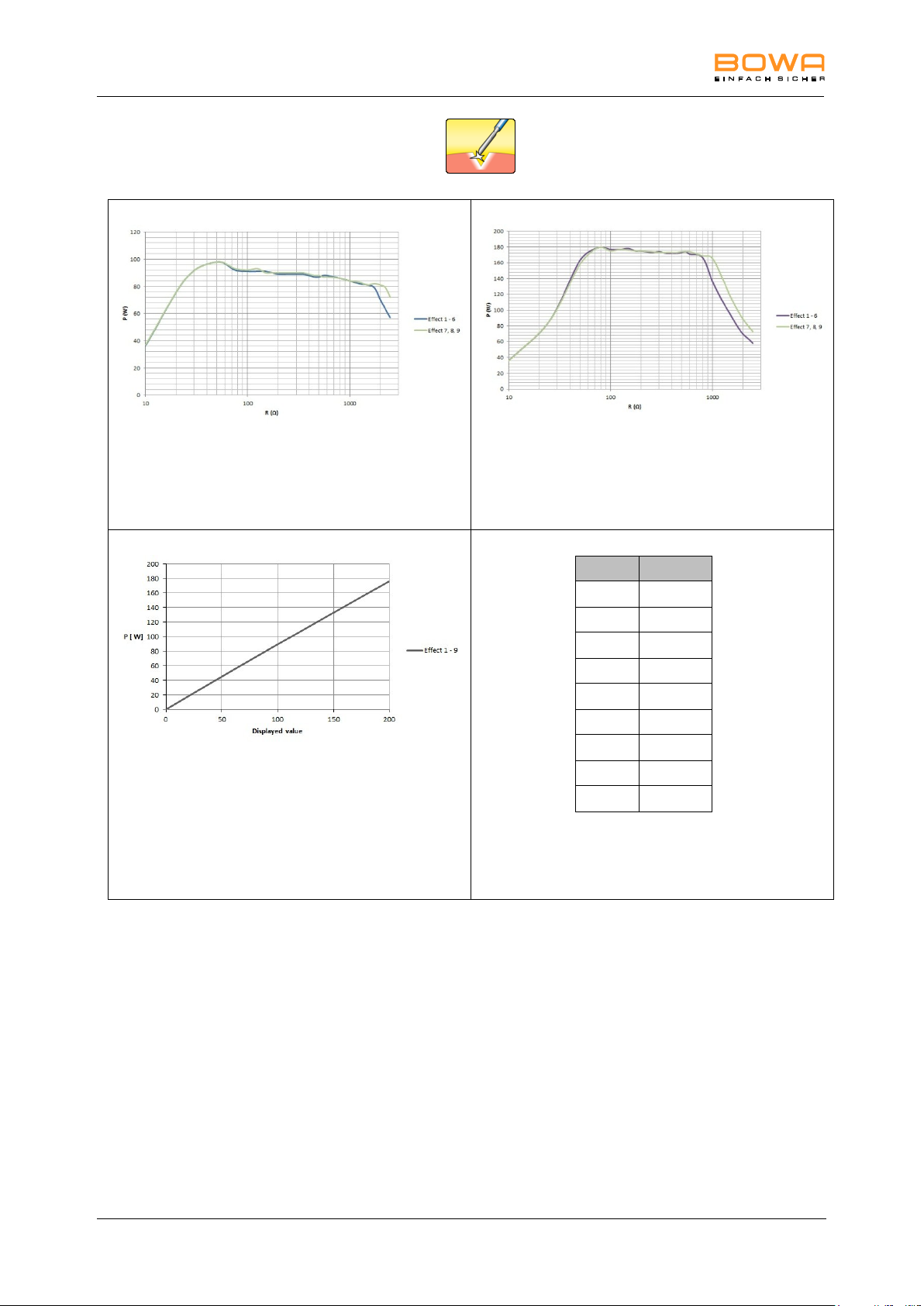

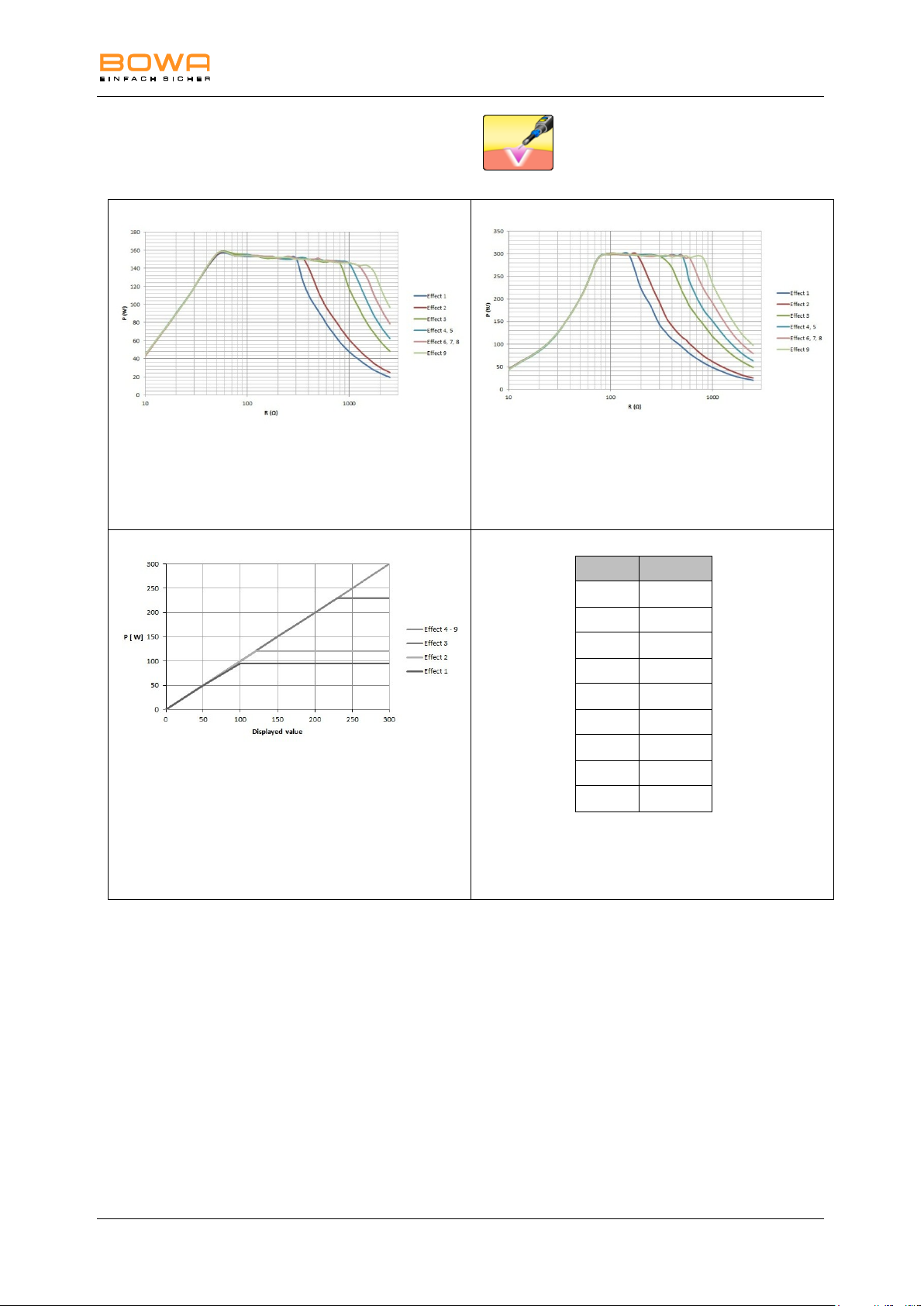

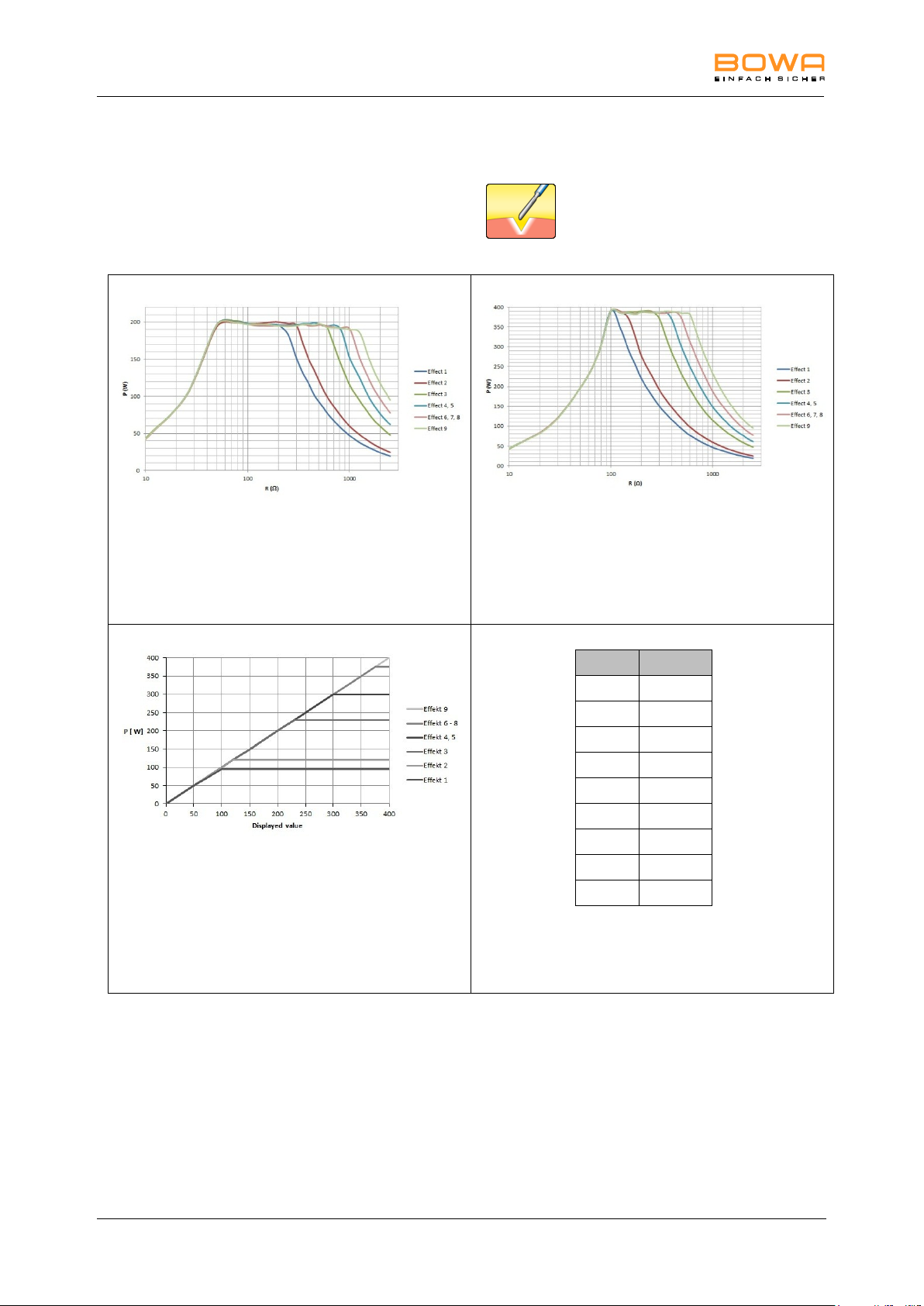

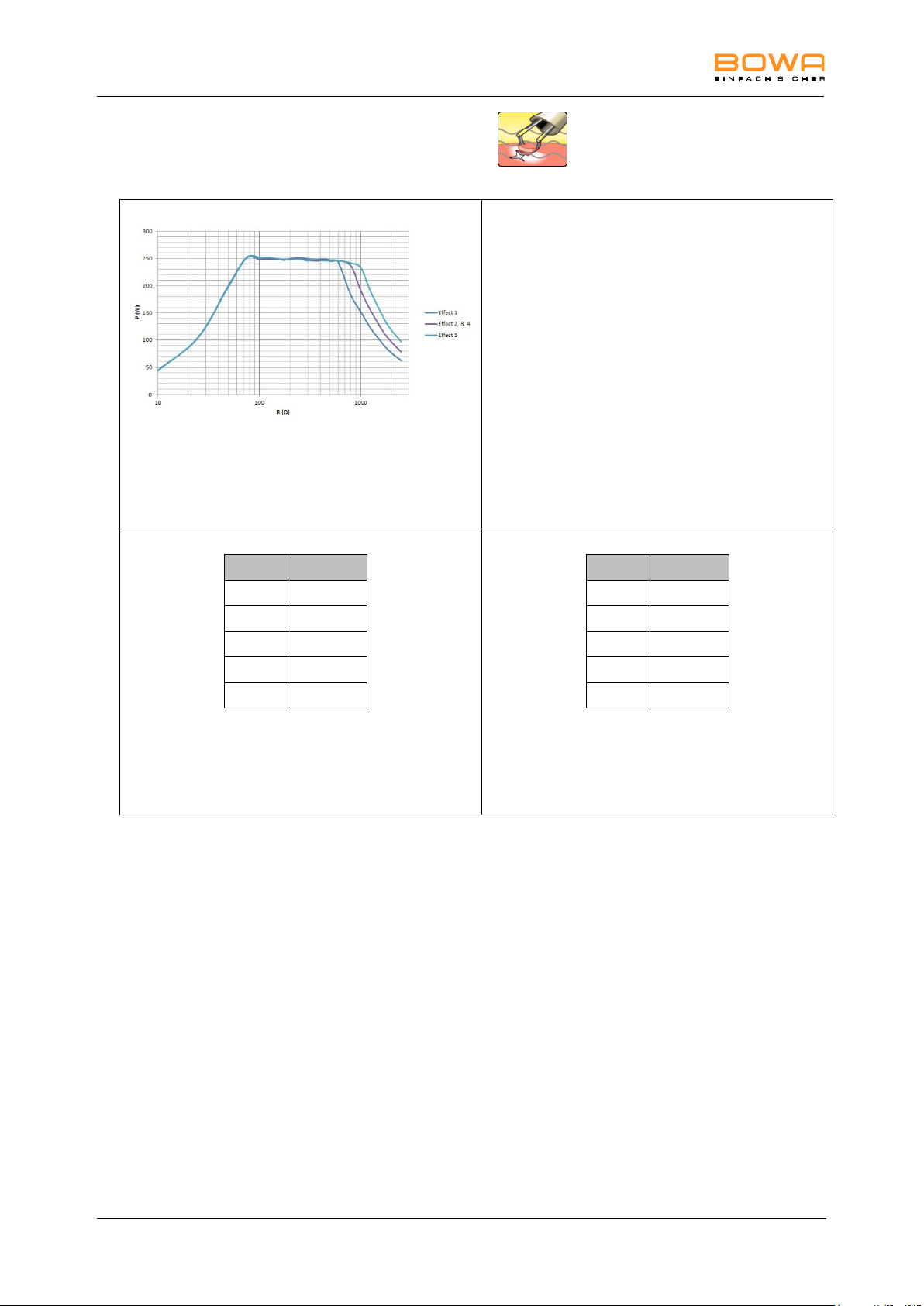

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting
Standard"
= 200 W

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting
Standard"
= 400 W

 Diagram of power output P [W] as a

function of the setting "Monopolar
Cutting Standard"
Rated load resistance = 500 

Effect

U (Vp)

1

400

2

450

3

560

4

650

5

650

6

700

7

700

8

700

9

750

 Table of HF output voltage U [Vp] as a

function of the setting "Monopolar
Cutting Standard" (idle mode)

10.2. Output, voltage and current diagrams

Monopolar Cutting – Standard

Pos: 53 /679-BOWA/HF-Geräte/ARC 300/

96 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

10 Technical specifications

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting Micro"
= 25 W

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting Micro"
= 50 W

 Diagram of power output P [W] as a

function of the setting "Monopolar
Cutting Micro"
Rated load resistance = 500 

Effect

U (Vp)

1

280

2

340

3

380

4

400

5

400

6

400

7

450

8

450

9

450

 Table of HF output voltage U [Vp] as a

function of the setting "Monopolar
Cutting Micro" (idle mode)

Monopolar Cutting – Micro

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 97

10 Technical specifications

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting Dry"
= 100 W

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting Dry"
= 200 W

 Diagram of power output P [W] as a

function of the setting "Monopolar
Cutting Dry"
Rated load resistance = 500 

Effect

U (Vp)

1

1400

2

1400

3

1400

4

1400

5

1500

6

1600

7

1600

8

1600

9

1600

 Table of HF output voltage U [Vp] as a

function of the setting "Monopolar
Cutting Dry" (idle mode)

Monopolar Cutting – Dry

98 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN

10 Technical specifications

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting Argon"
= 150 W

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting Argon"
= 300 W

 Diagram of power output P [W] as a

function of the setting "Monopolar
Cutting Argon"
Rated load resistance= 500 

Effect

U (Vp)

1

400 2 450 3 560 4 650 5 650 6 700 7 700 8 700 9 750

 Table of HF output voltage U [Vp] as a

function of the setting "Monopolar
Cutting Argon" (idle mode)

Monopolar Cutting – Argon

900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN Operating Manual ARC 400 99

10 Technical specifications

Measurement of resistances

 Diagram of power output P [W] as a

function of the load resistance R [] for
the setting "Monopolar Cutting
Resection"

Effect

P (W)

1

250

2

250

3

250

4

250

5

250

 Table of power output P [W] as a

function of the setting "Monopolar
Cutting Resection"
Rated load resistance= 500 

Effect

U (Vp)

1

650

2

700

3

700

4

700

5

750

 Table of HF output voltage U [Vp] as

a function of the setting "Monopolar
Cutting Resection" (idle mode)

Monopolar Cutting – Resection

100 Operating Manual ARC 400 900-400_IFU_V1.0.0.6.17.9_20140-S2-20130604-EN
