Page 1

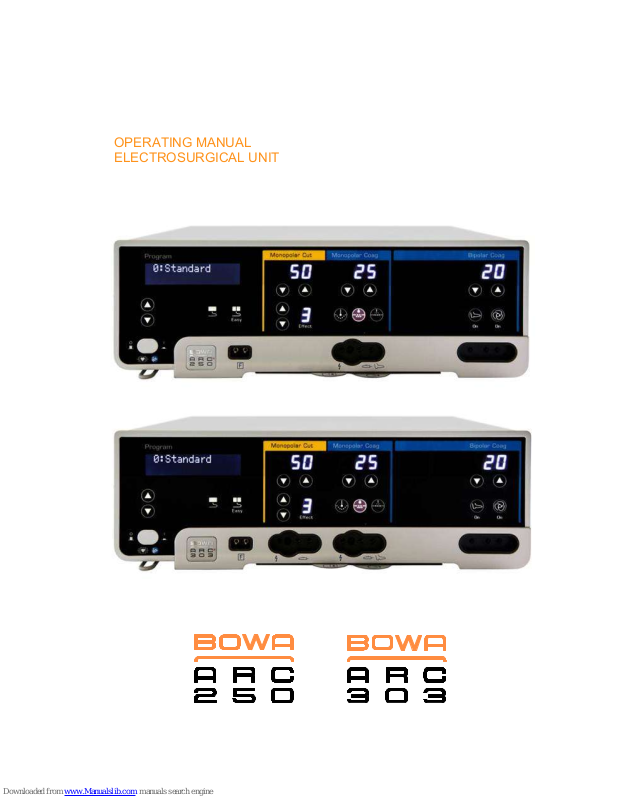

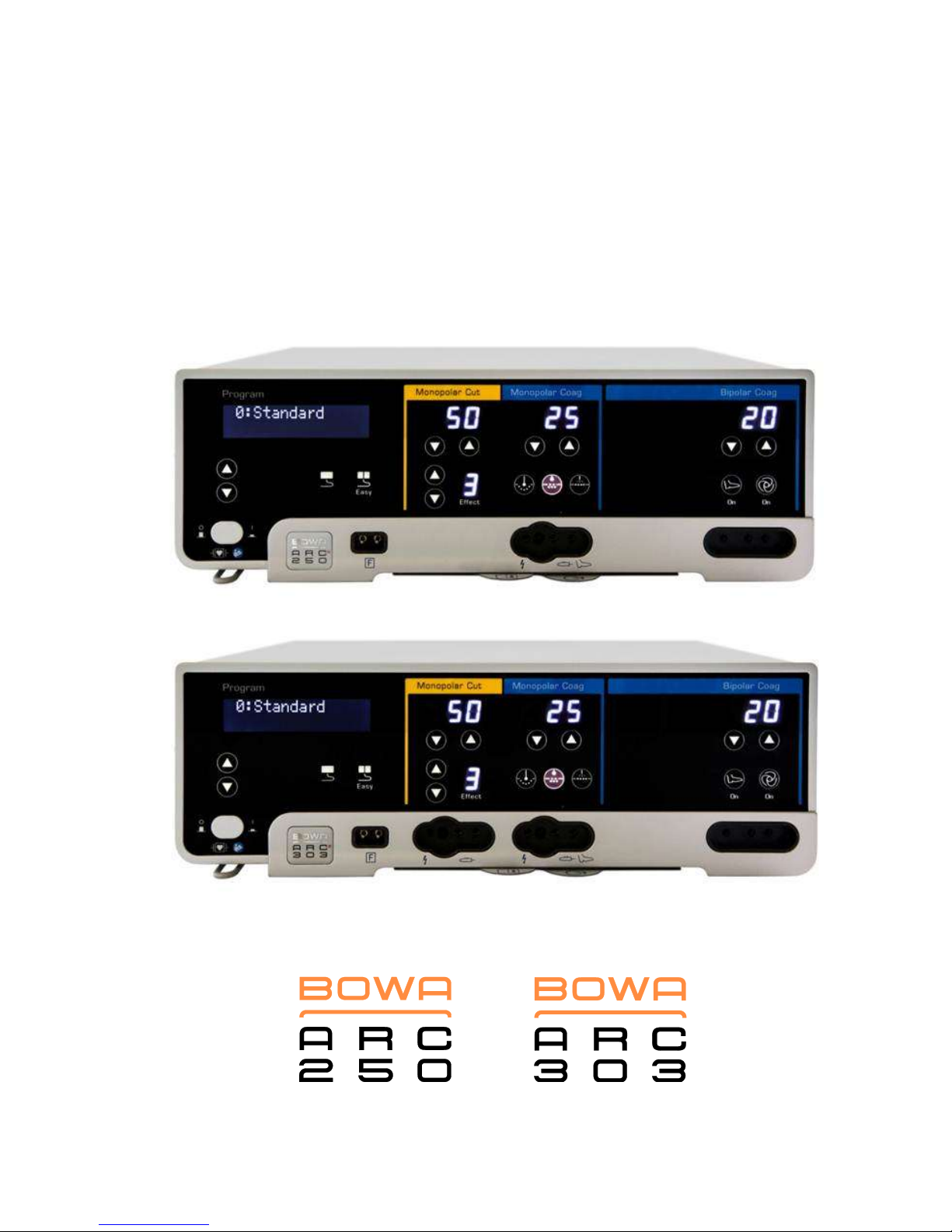

OPERATING MANUAL ELECTROSURGICAL UNIT
Page 2
Page 3
Page 4
Page 5
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 5
Page 6
Legend
6 Operating Manual ARC 250 / 303 900-301_IFU-V2.2_11316-S0-20131023-EN
Legend
1
"Monopolar Cut" indicator arrow (yellow)
2
"Monopolar Cut" 7-segment display
3/4
Power limitation for monopolar cutting
5/6
Key for the degree of scabbing during monopolar cutting
7
"Monopolar Cut" blend factor indicator Blend settings 0–9
8
"Monopolar Coag" indicator arrow (blue)
9
"Monopolar Coag" 7-segment display
10/11
Power limitation for monopolar coagulation
12
Key/indicator for "Moderate Coagulation" current mode
13
Key/indicator for "Forced Coagulation" current mode
14
Key/indicator for "Spray Coagulation" current
15
Indicator on main display: programs and information Current indicator on 2-line display
16/17
Program key
18
Error status indicator
19
EASY monitoring for one-piece neutral electrode (EASY one-piece monitoring)
20
EASY monitoring for split neutral electrode (EASY split monitoring)
21
Indicator arrow for "Bipolar Coag" (blue)
22
"Bipolar Coag" 7-segment display
23/24
Power limitation for bipolar coagulation
25
Key/indicator for "Bipolar Output" FOOT SWITCH (socket connector 31) Only for bipolar coagulation!
26
Key/indicator for AUTOSTART "Bipolar Output" (socket connector 31) Only for bipolar coagulation!
27
On/off switch
28
Socket for the neutral electrode (NE)*
29
Socket connector for monopolar instruments with hand switch* (only for ARC 303)
30
Socket connector for monopolar instruments with hand or foot switch, Bovie connector or 4 mm monopolar endoscope connector, or 3-pin connector*
31
Socket connector for bipolar instruments with foot switch or AUTOSTART*
*
Application part F according to IEC 60601-1
Page 7
Legend
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 7

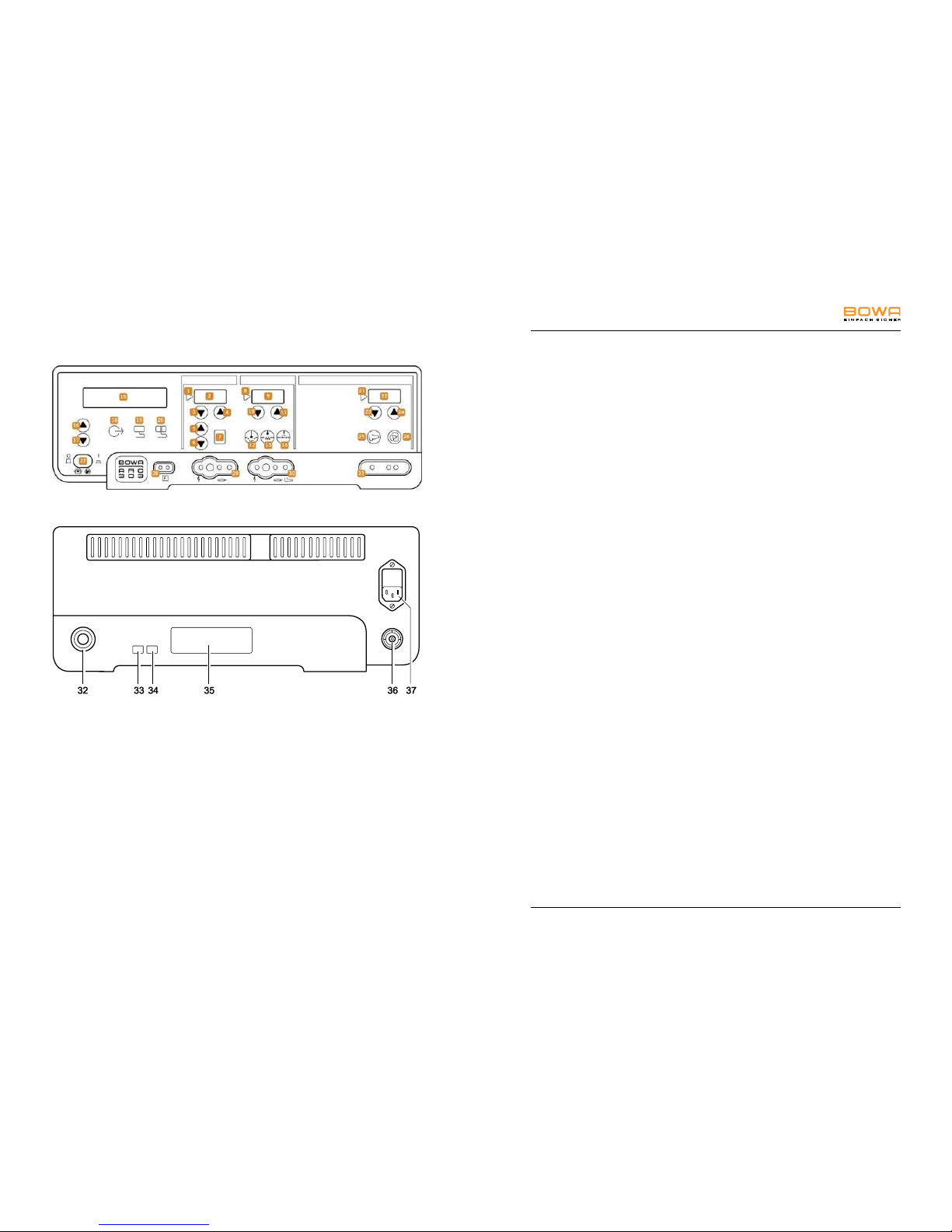

Back side of ARC 250/303
32
Socket connector for foot switch for sockets 30 and 31
33
Fibre optic signal output socket connector (with ARC 250/303 with GastroCut option)
34
Fibre optic signal output socket connector (with ARC 250/303 with GastroCut option)
35
Rating label
36
Connection for equipotential bonding
37
Power connection for cooling device connector
Page 8
Legend
Page 9
Contents
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 9
Contents
Legend ......................................................................................................................................................... 6
1. Using this operating manual ......................................................................................................... 13
1.1. Revision index ................................................................................................................... 13
1.2. Validity............................................................................................................................... 13
1.3. Other applicable documents ............................................................................................. 13
1.4. Icons and labeling ............................................................................................................. 14
1.4.1. Structure of warning instructions ....................................................................... 14
1.4.2. Risk levels in the warning instructions ............................................................... 14
1.4.3. Tips .................................................................................................................... 14
1.4.4. Other icons and labeling .................................................................................... 15
2. Safety ............................................................................................................................................... 16
2.1. Intended use ..................................................................................................................... 16
2.2. General safety instructions ............................................................................................... 17
2.3. Personal safety instructions .............................................................................................. 18
2.3.1. Ambient conditions ............................................................................................ 18
2.3.2. Patients with pacemakers.................................................................................. 18
2.3.3. Safe positioning of the patient .......................................................................... 19
2.3.4. Correct connection of the HF device ................................................................. 19
2.3.5. Correct use of the HF device ............................................................................. 19
2.3.6. Adjusting the settings of the HF device and use of the accessories ................. 20
2.4. Device-related safety instructions ..................................................................................... 21
2.5. Safe handling (general instructions) ................................................................................. 21
2.5.1. Surgical environment: prevention of explosions/combustion ............................ 22

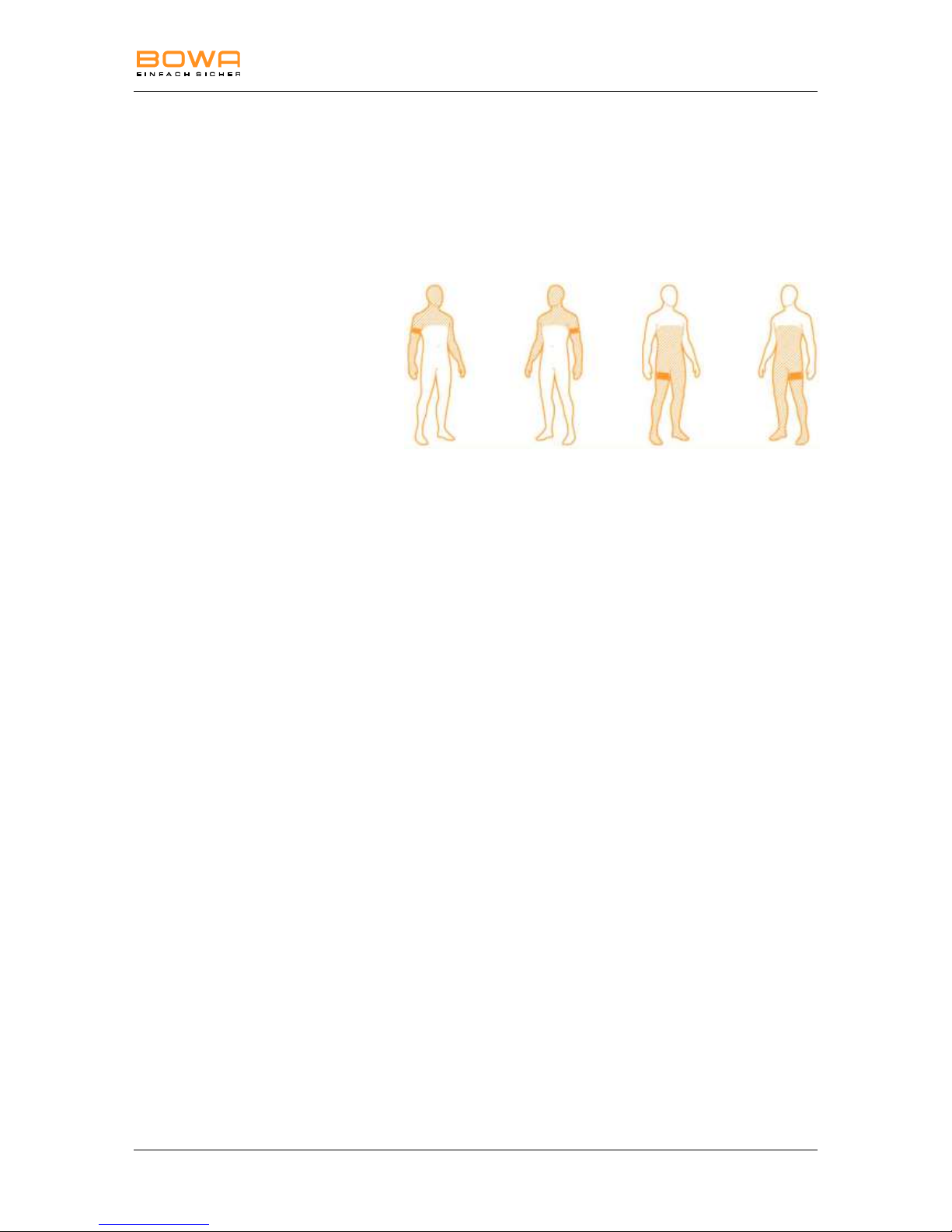

2.5.2. Application of the neutral electrode ................................................................... 22
3. Functionality ................................................................................................................................... 25
3.1. Monopolar modes ............................................................................................................. 25
3.1.1. "Cut" mode ......................................................................................................... 25
3.1.2. "Moderate Coag" mode ..................................................................................... 25
3.1.3. "Forced Coag" mode ......................................................................................... 26
3.1.4. "Spray Coagulation" mode ................................................................................ 26
3.1.5. "GastroCut" mode .............................................................................................. 27
3.2. Bipolar modes ................................................................................................................... 28
3.3. Activation and alarm signals in monopolar and bipolar mode .......................................... 29
Page 10
Contents
3.4. Emergency shutoff ............................................................................................................ 29
3.5. Monitoring functions .......................................................................................................... 29
3.5.1. Self-test.............................................................................................................. 29
3.5.2. Cyclical test during operation ............................................................................ 29
3.6. ARC Control technology ................................................................................................... 30
3.7. Neutral electrode monitoring ............................................................................................. 30
3.7.1. General information ........................................................................................... 30
3.7.2. EASY neutral electrode monitoring (EASY monitoring) .................................... 31
3.8. Foot switch ........................................................................................................................ 31
3.9. Memory functions .............................................................................................................. 31
4. Description ...................................................................................................................................... 32
4.1. Icons on the device ........................................................................................................... 32
4.1.1. Rating label ........................................................................................................ 32
4.2. Scope of delivery .............................................................................................................. 33
4.3. Components required for operation .................................................................................. 33
4.4. Operating conditions ......................................................................................................... 33
5. Preparation...................................................................................................................................... 34
5.1. Setting up the HF device................................................................................................... 34
5.2. Switching on the HF device .............................................................................................. 35
5.3. Connecting instruments .................................................................................................... 35
5.3.1. Instruments for monopolar applications ............................................................ 36
5.3.2. Instruments for bipolar applications ................................................................... 36
5.3.3. Connecting the foot switch ................................................................................ 36
5.3.4. Assigning a foot switch output ........................................................................... 37
5.4. Functional test ................................................................................................................... 37
5.4.1. Autotest function ................................................................................................ 37
5.4.2. Functional test execution ................................................................................... 37
5.4.3. Actions in case of problems............................................................................... 38
5.4.4. EASY neutral electrode electrode monitoring (EASY monitoring) ................... 38
6. Operation......................................................................................................................................... 39
6.1. Program overview ............................................................................................................. 39
6.2. Basic program settings ..................................................................................................... 40
6.2.1. Calling up a program ......................................................................................... 40
6.2.2. Changing the program ....................................................................................... 40
6.3. Program descriptions ........................................................................................................ 41
Page 11
Contents
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 11
6.3.1. Program 0 "Standard" ........................................................................................ 41
6.3.2. Program 1 "Macro" ............................................................................................ 41
6.3.3. Program 2 "Micro" ............................................................................................. 41
6.3.4. Program 3 "Resection" ...................................................................................... 41
6.3.5. Program 4 "Argon" (only with GastroCut option) ............................................... 42
6.3.6. Program 5 "Argon-Flex" (only with GastroCut option) ....................................... 42
6.3.7. Program 6 "Gastro LOOP" (only with GastroCut option) .................................. 43
6.3.8. Program 7 "Gastro KNIFE" (only with GastroCut option) .................................. 44
6.4. Menu programs ................................................................................................................. 45
6.4.1. Overview ............................................................................................................ 45
6.4.2. Menu program 1 "Set Language" ...................................................................... 46
6.4.3. Menu program 2 "Sound Level"......................................................................... 46
6.4.4. Menu program 3 "Forced Coag Mode" .............................................................. 46
6.4.5. Menu program 3A "GastroCut-Modes" .............................................................. 47
6.4.6. Menu program 4 "Show Prev Inf-No" ................................................................ 48
6.4.7. Menu program 5 "Hide Fix Prog" ....................................................................... 48
6.4.8. Menu program 6 "Autostart Delay" .................................................................... 49
6.4.9. Menu program 7 "Edit Prog Names" ................................................................. 49
6.4.10. Menu program 8 "Restore Programs" ............................................................... 50
6.4.11. Menu program 9 "Panel Check" ........................................................................ 50
7. Detecting and correcting faults .................................................................................................... 51
7.1. System errors .................................................................................................................... 51
7.1.1. Error list ............................................................................................................. 51
7.2. Error Display in EASY monitoring ..................................................................................... 55
8. Preparation...................................................................................................................................... 56
8.1. Disinfection and cleaning .................................................................................................. 56
9. Maintenance and repair ................................................................................................................. 57
9.1. Maintenance ..................................................................................................................... 57
9.1.1. Safety inspection ............................................................................................... 57
9.2. Repairs .............................................................................................................................. 58
9.3. Technical service .............................................................................................................. 59
10. Storage ............................................................................................................................................ 60
11. Technical specifications ................................................................................................................ 61

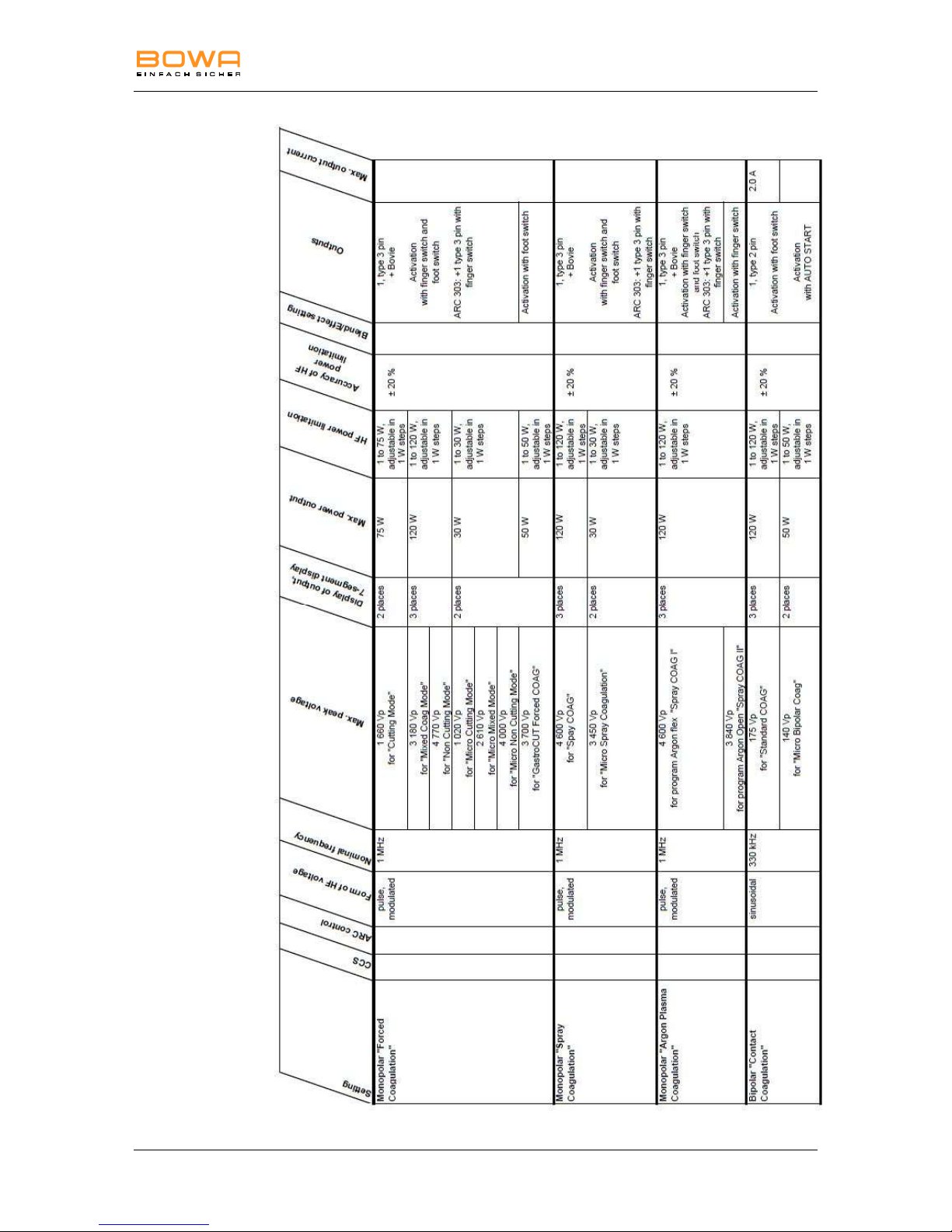

11.1. Technical specifications of ARC 250 and ARC 303 HF devices ...................................... 61

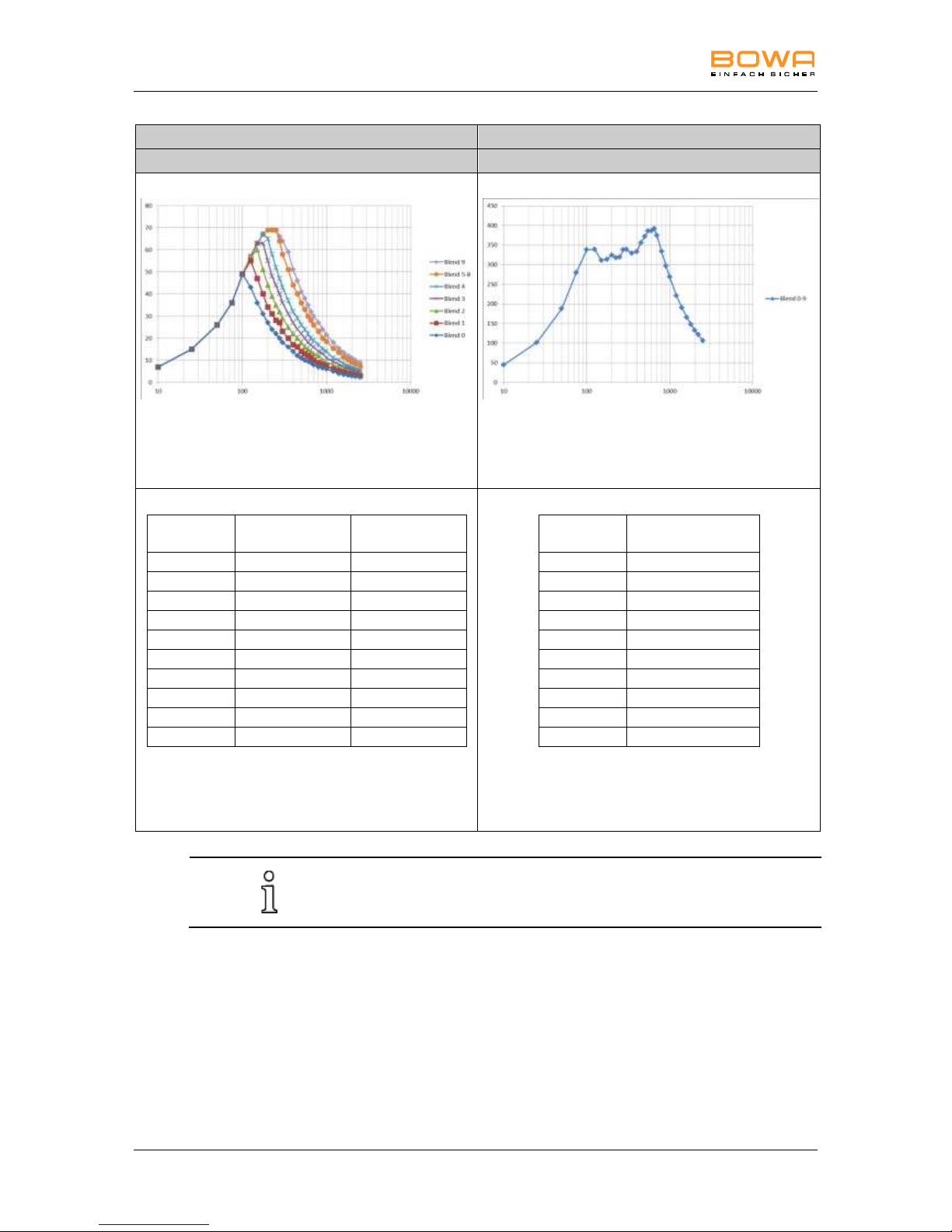

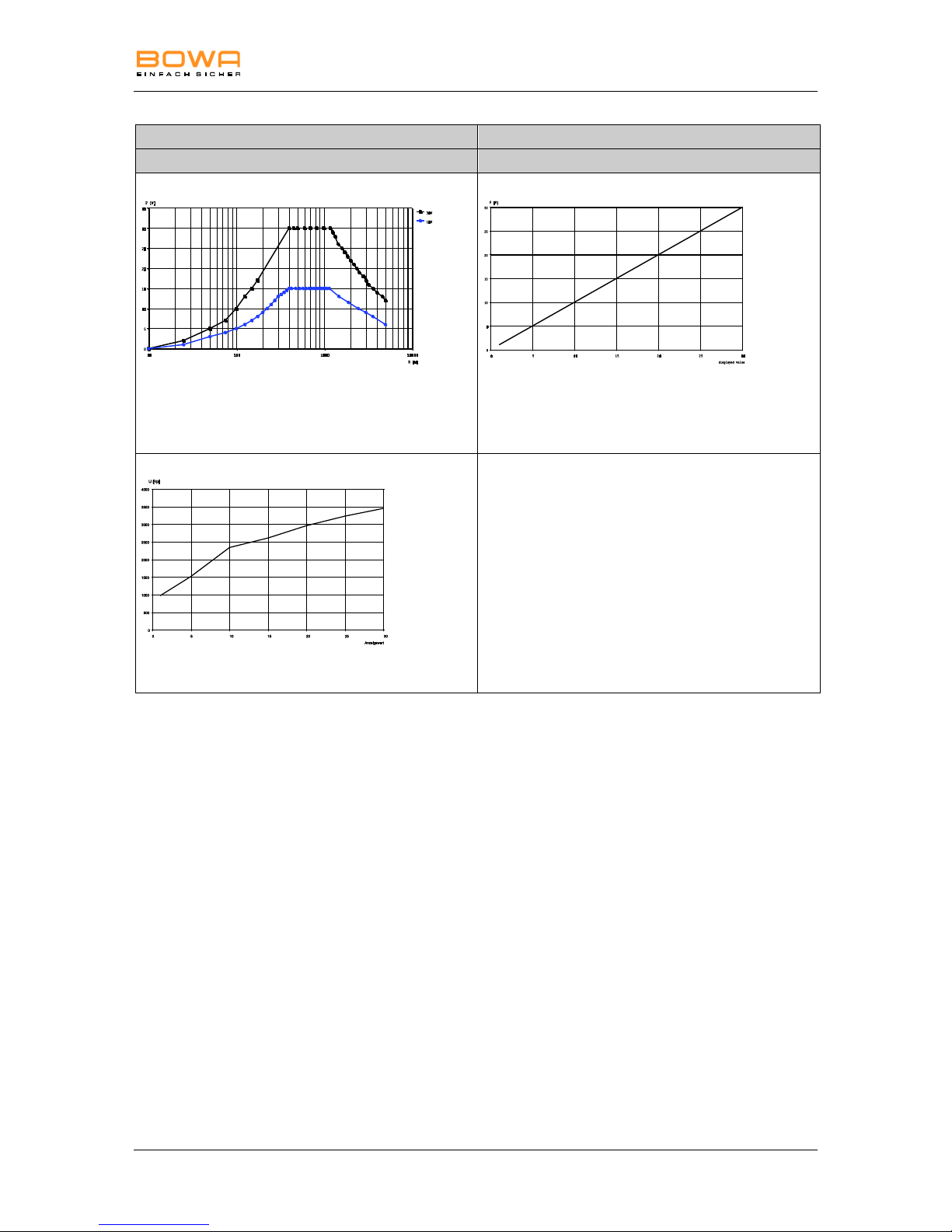

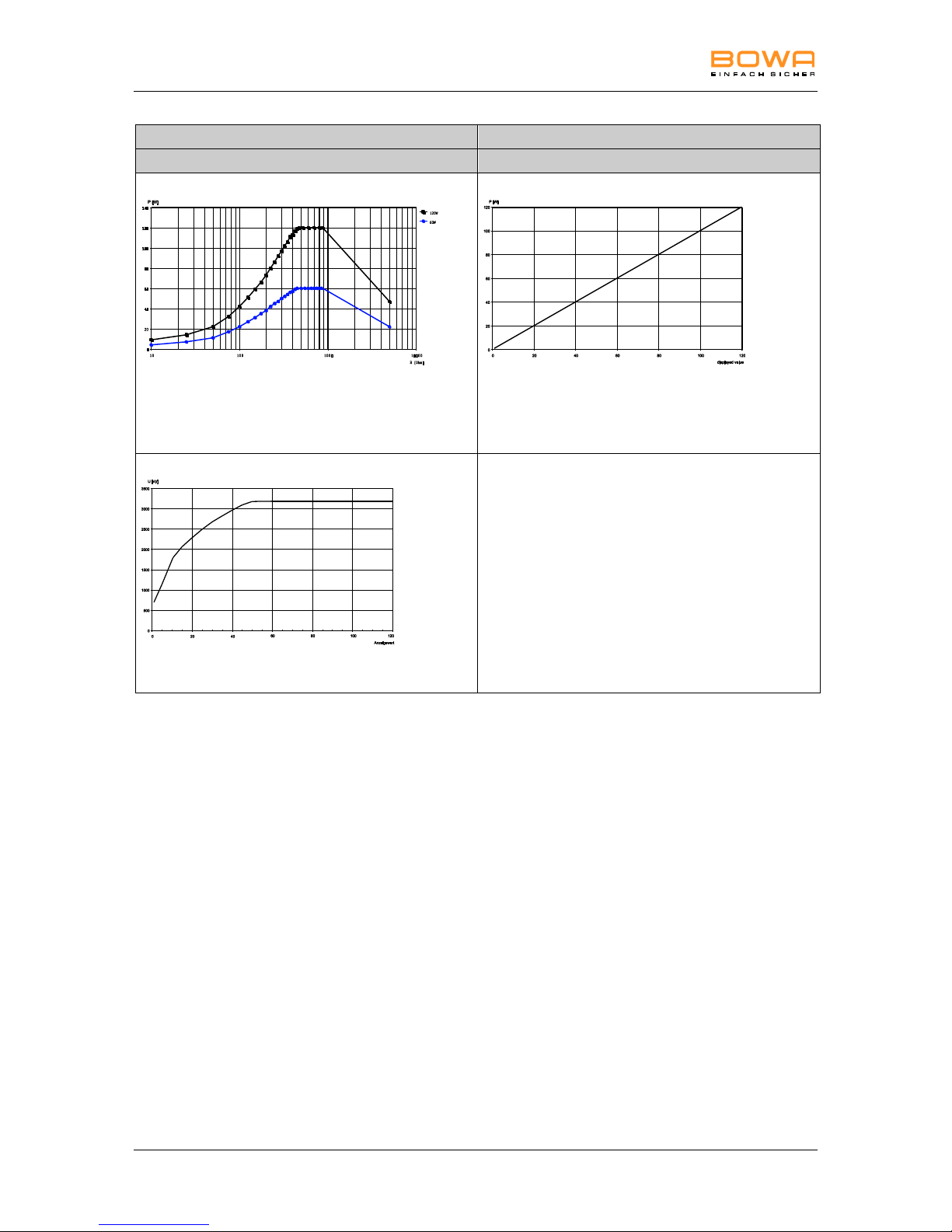

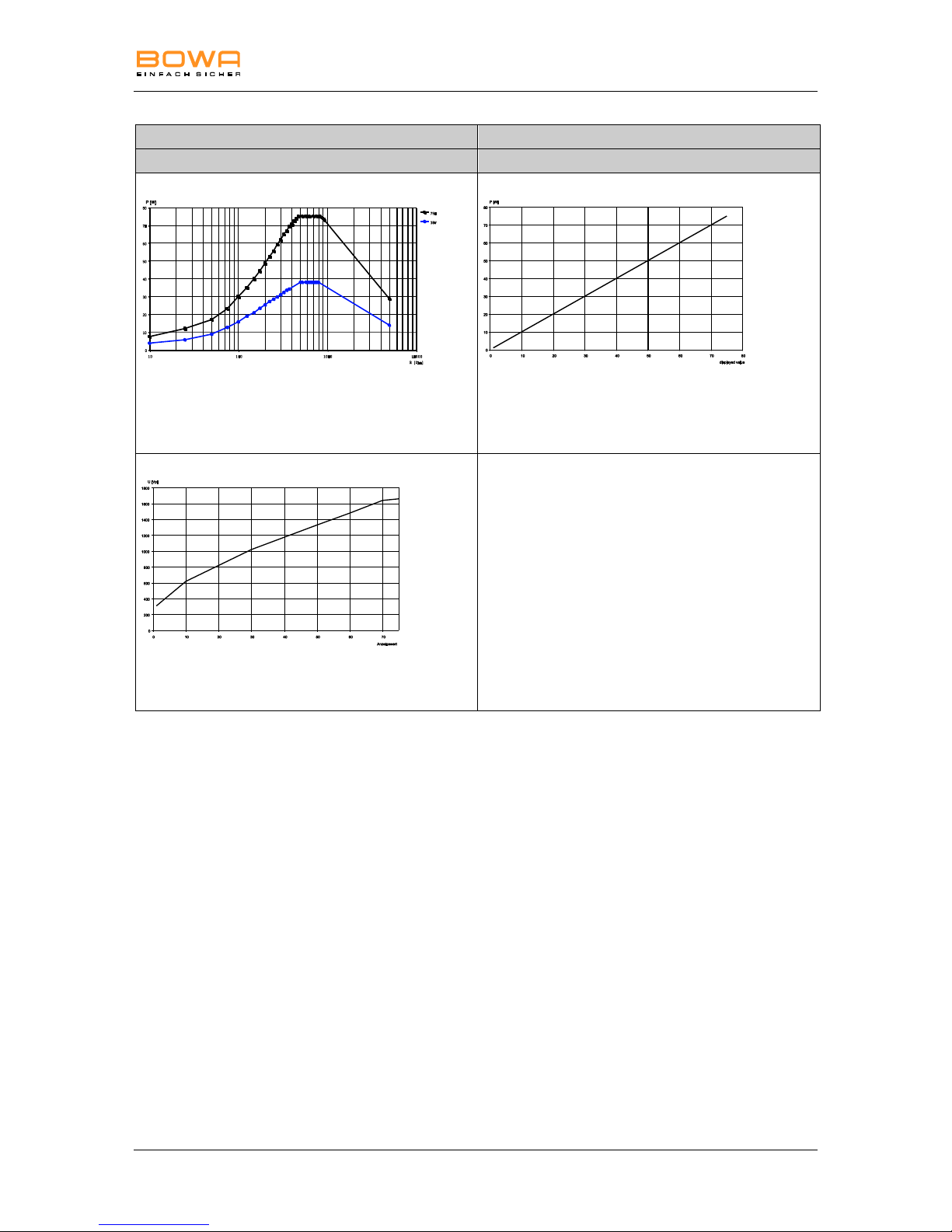

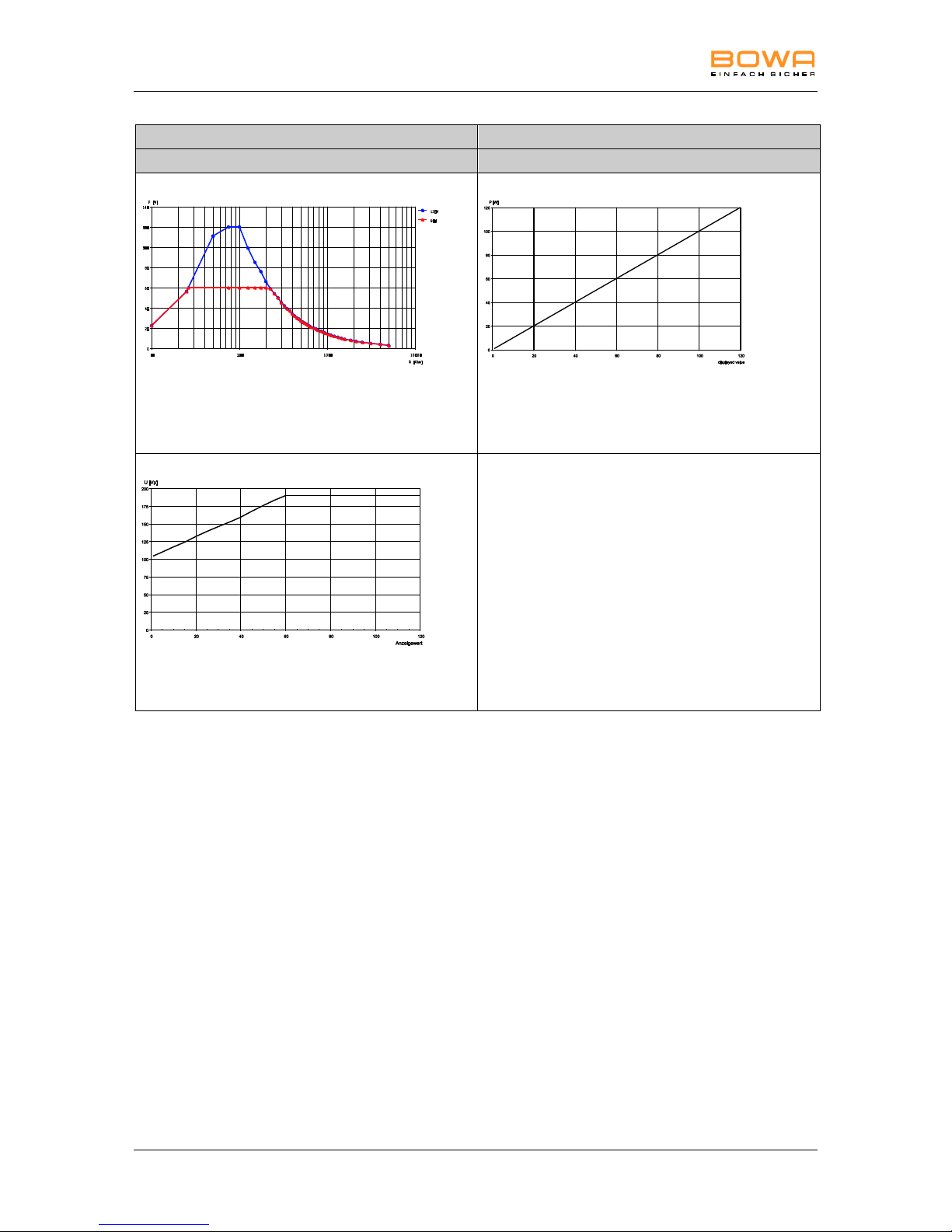

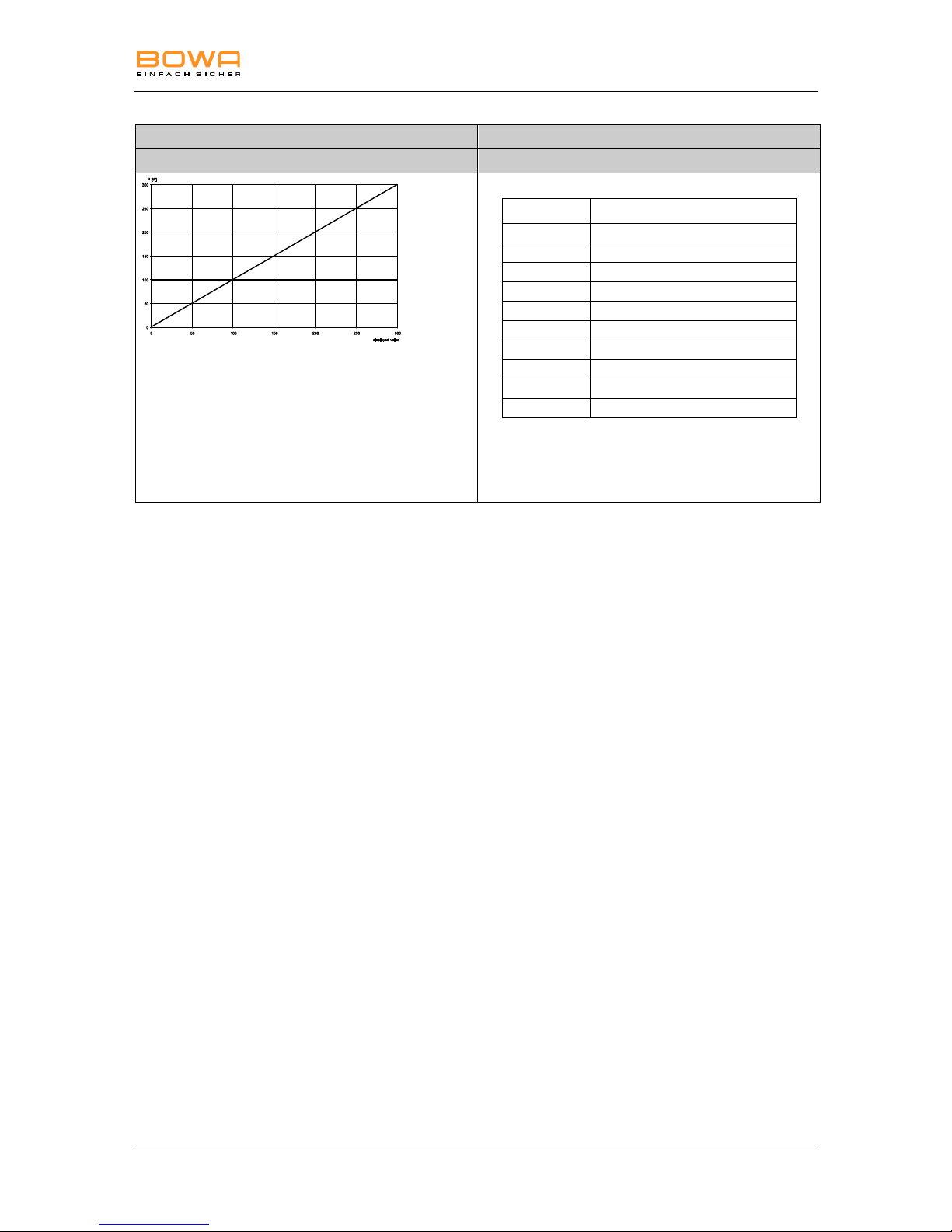

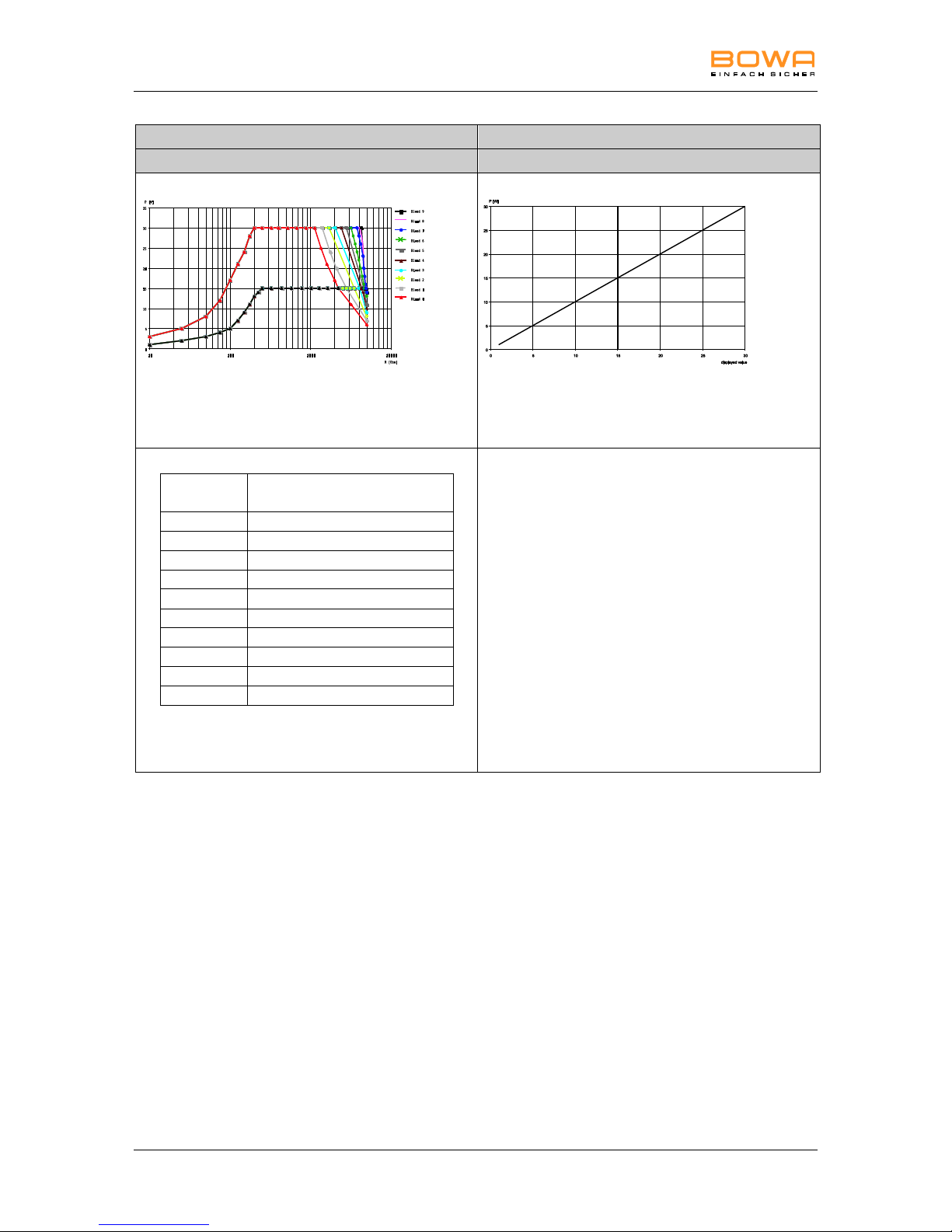

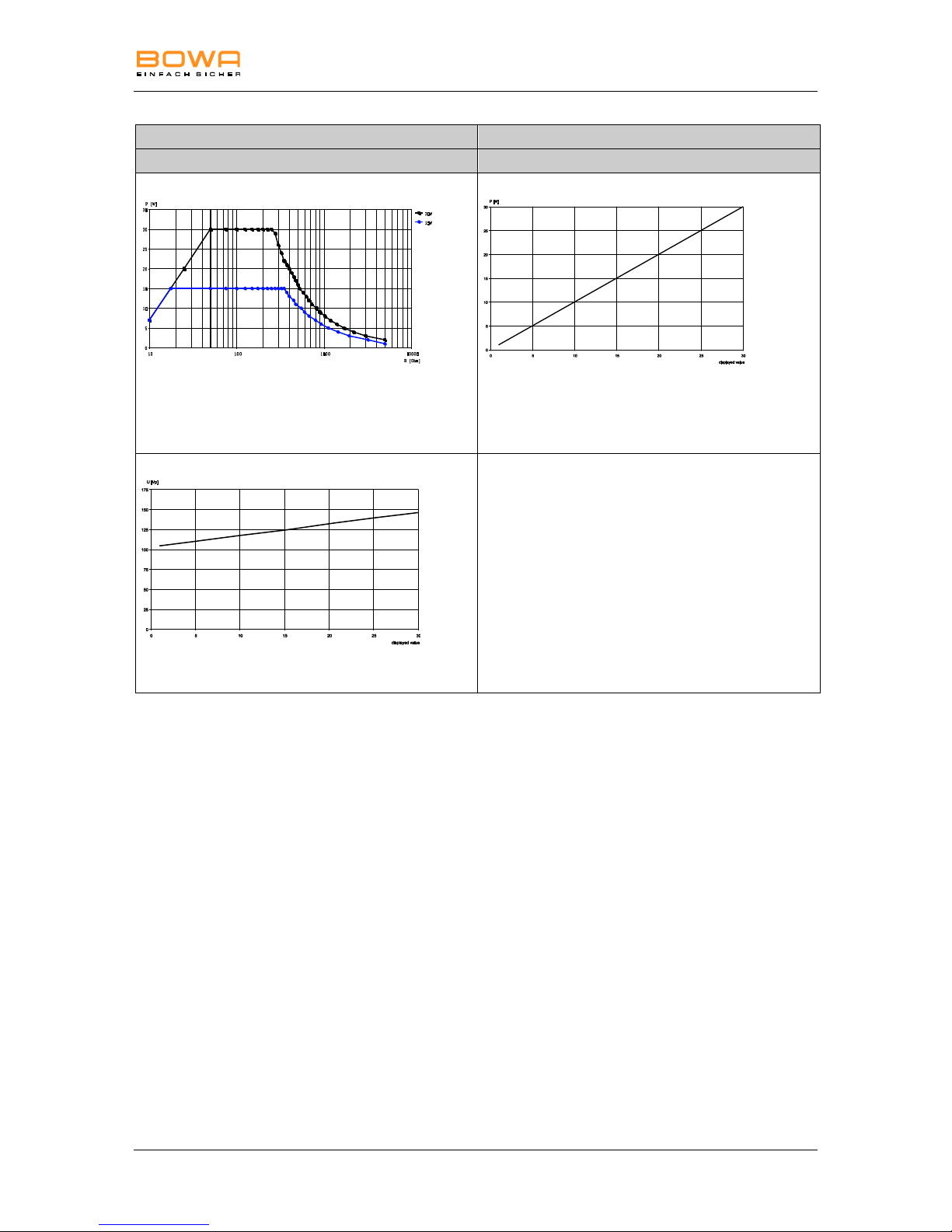

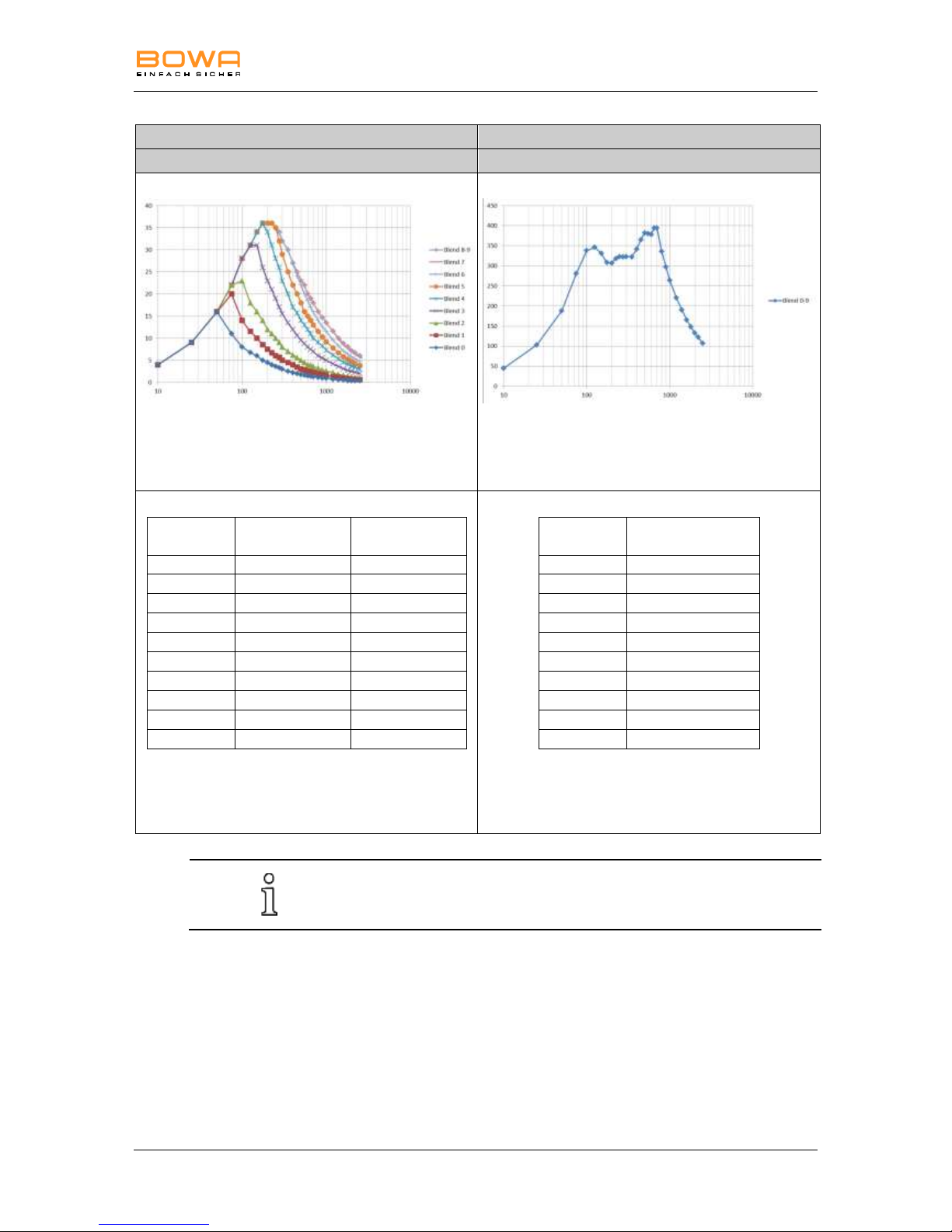

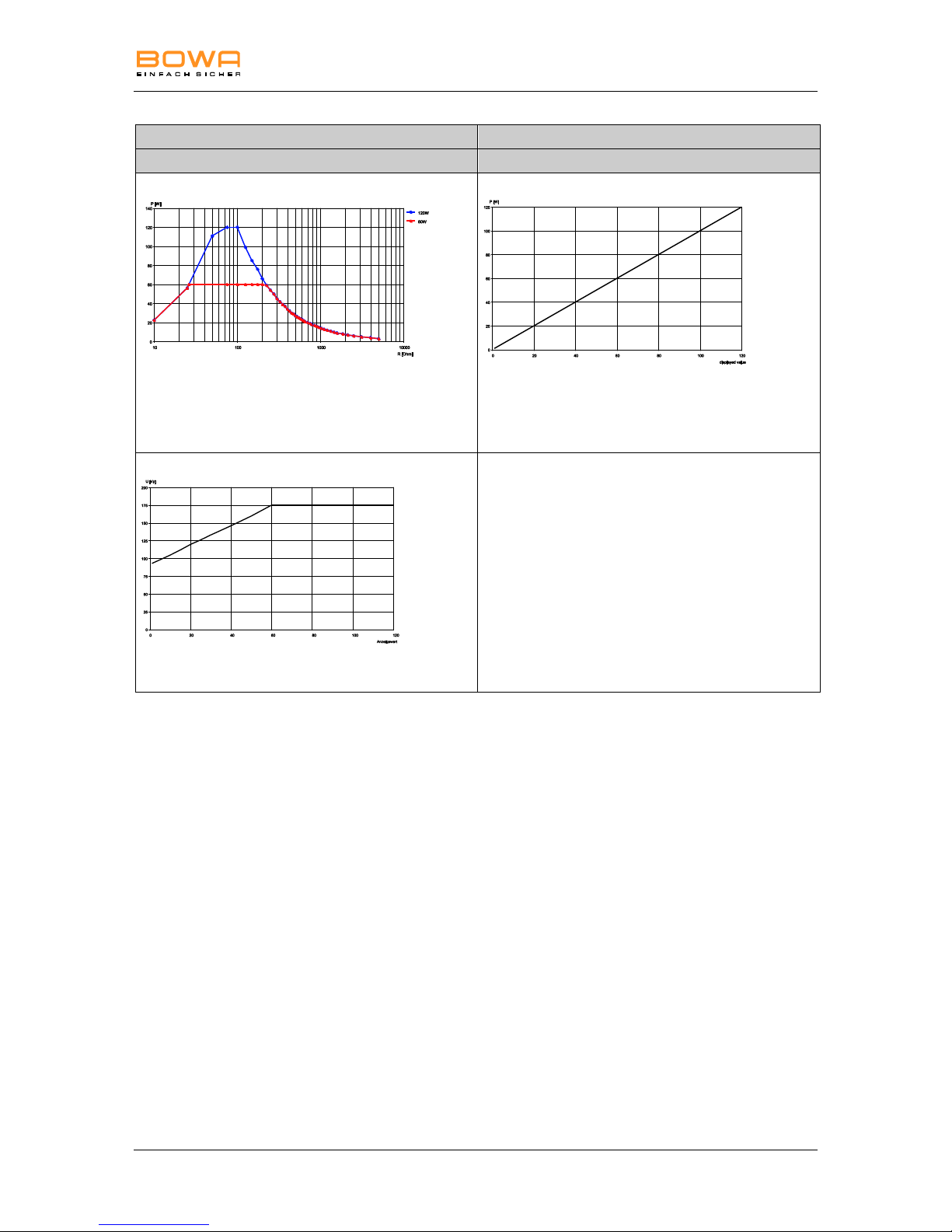

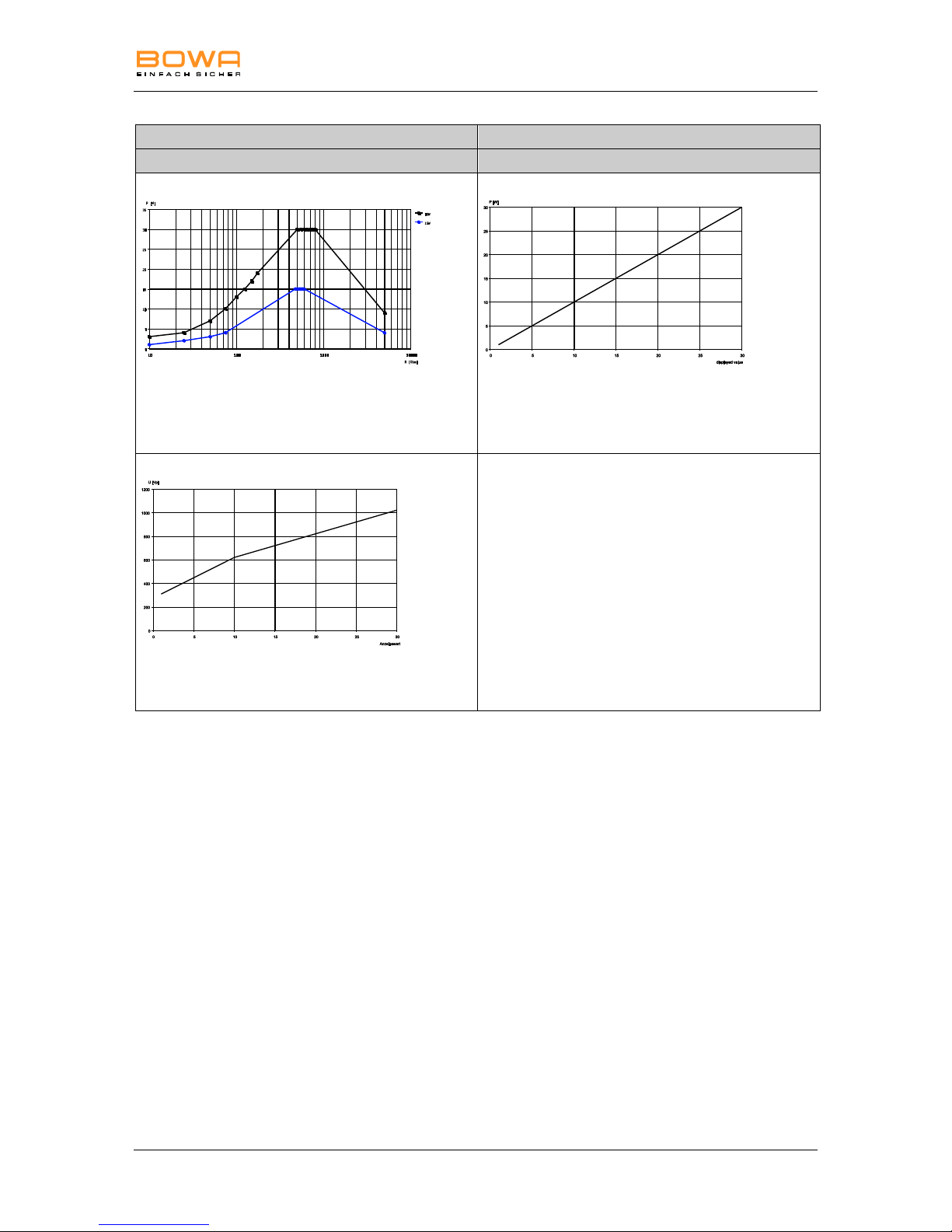

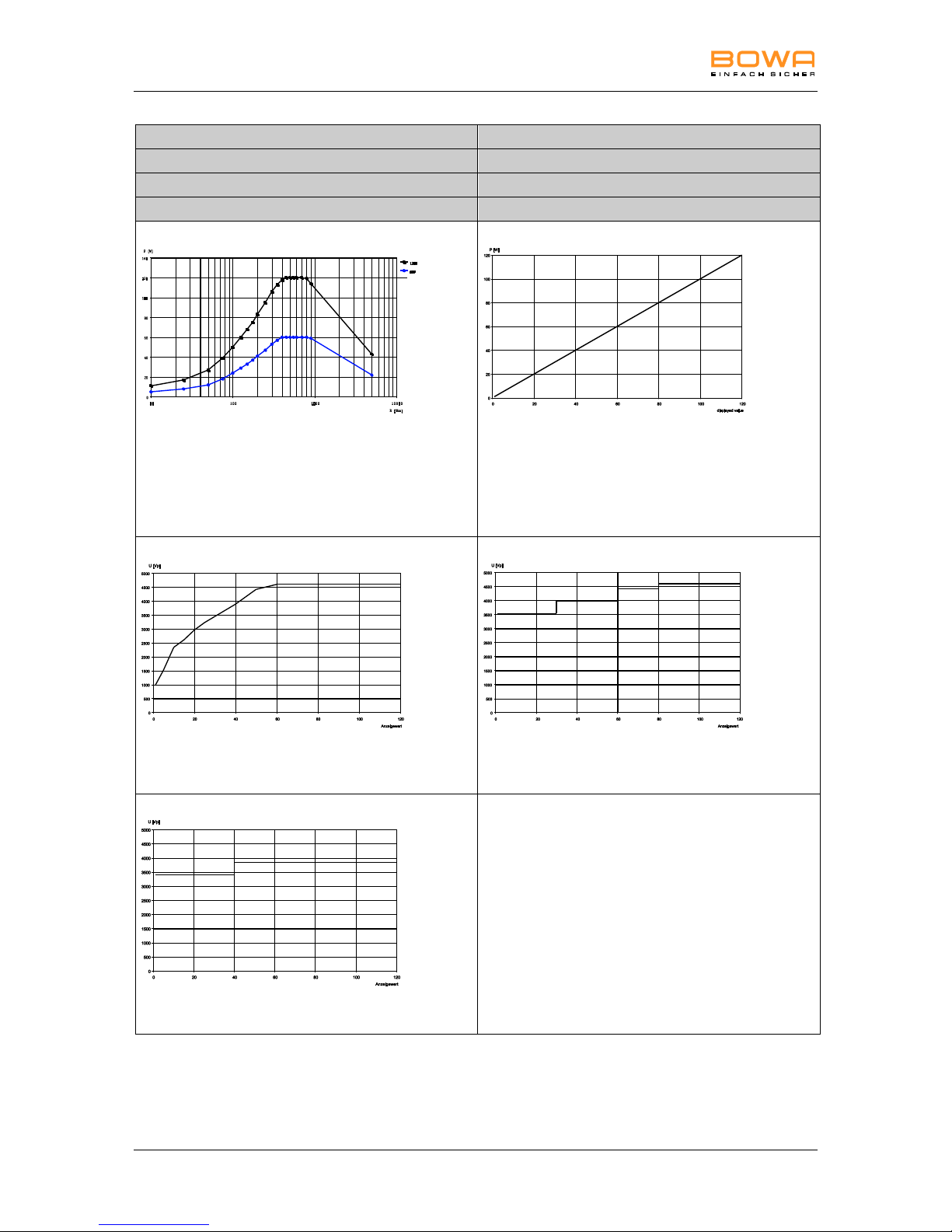

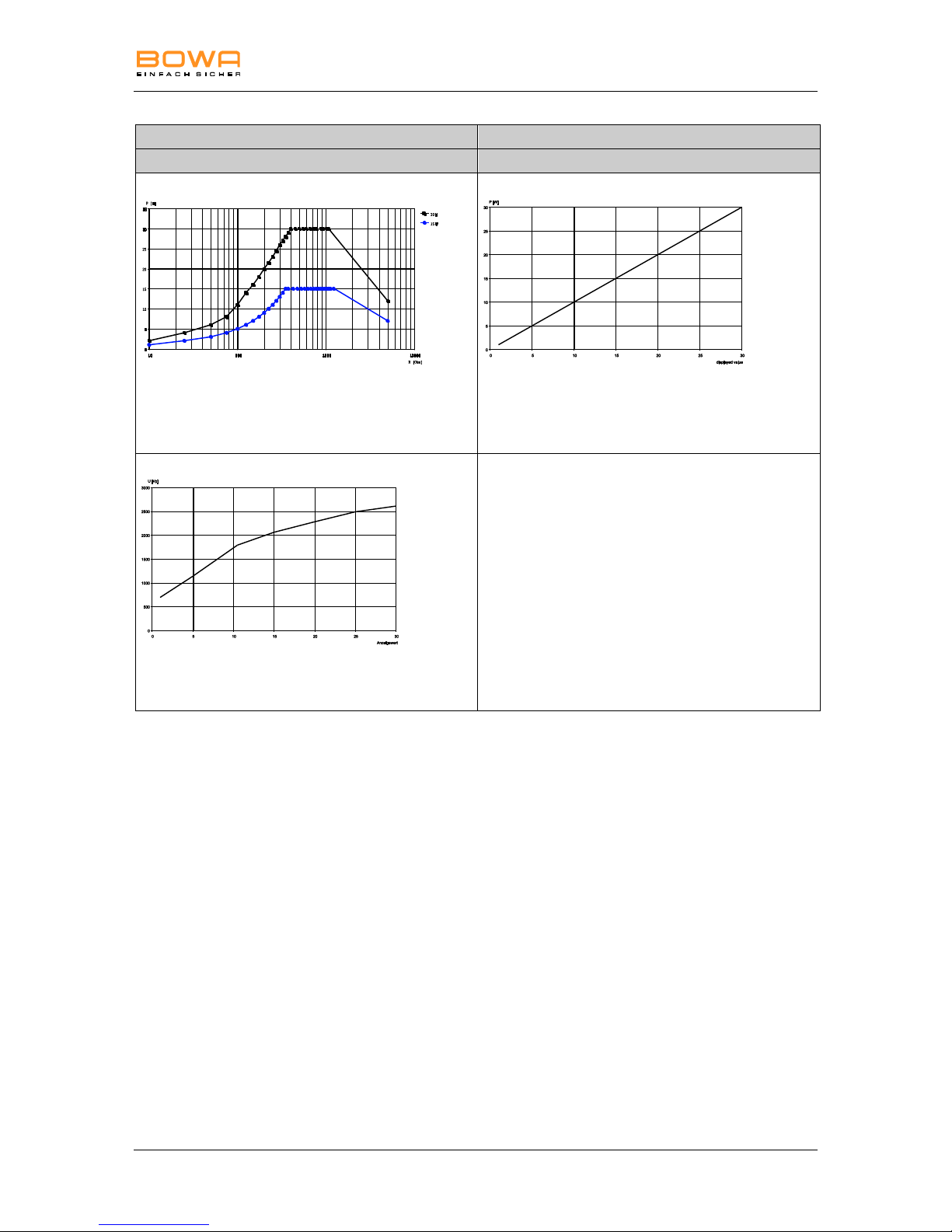

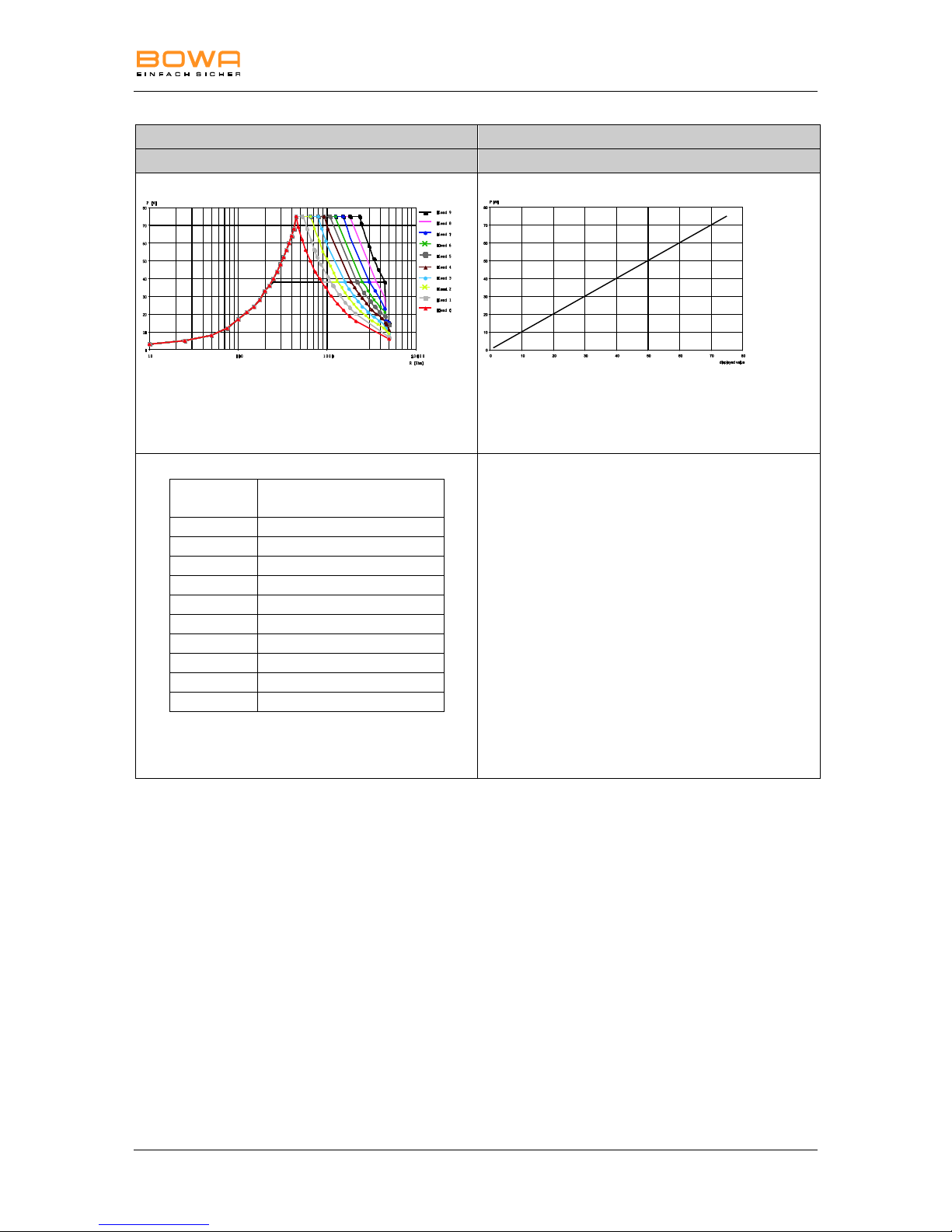

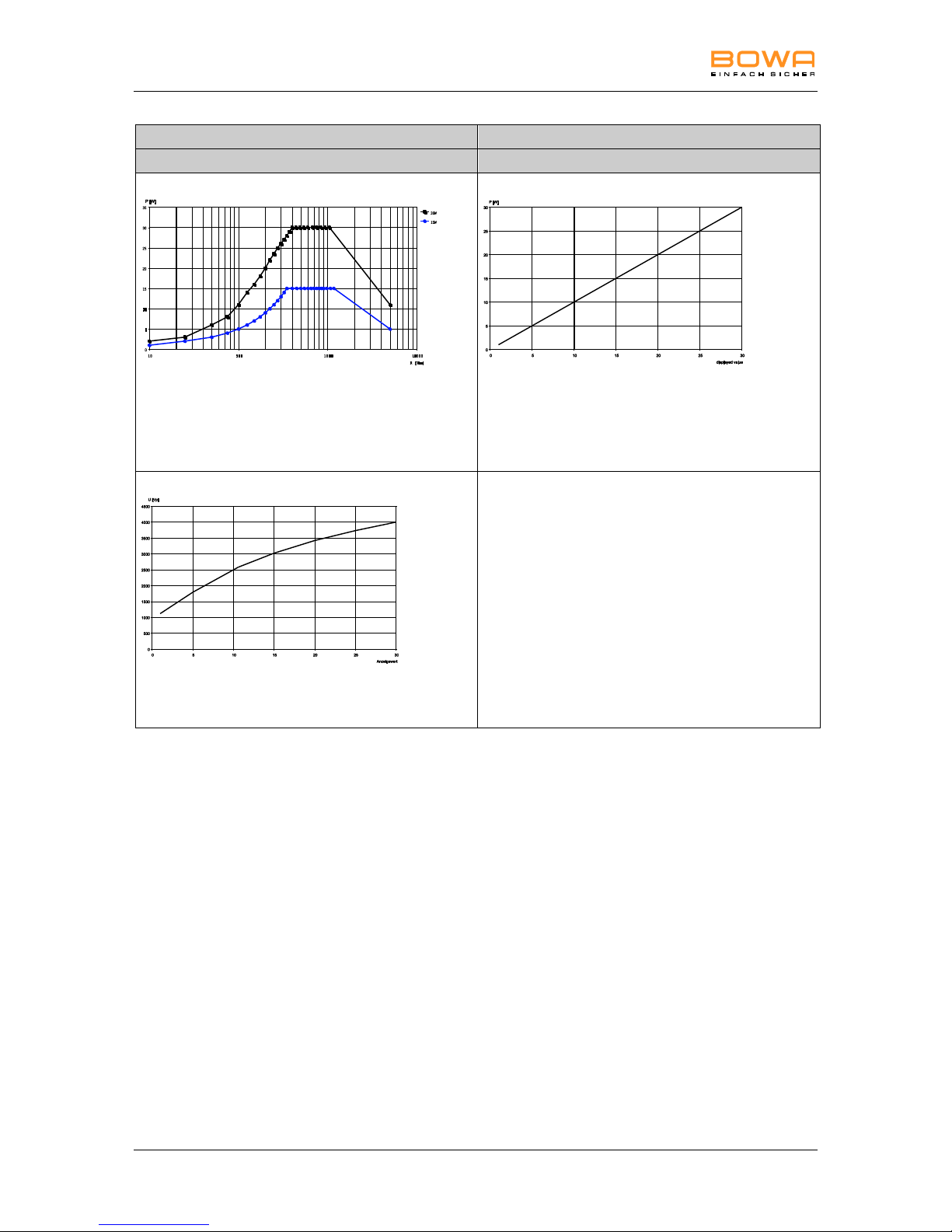

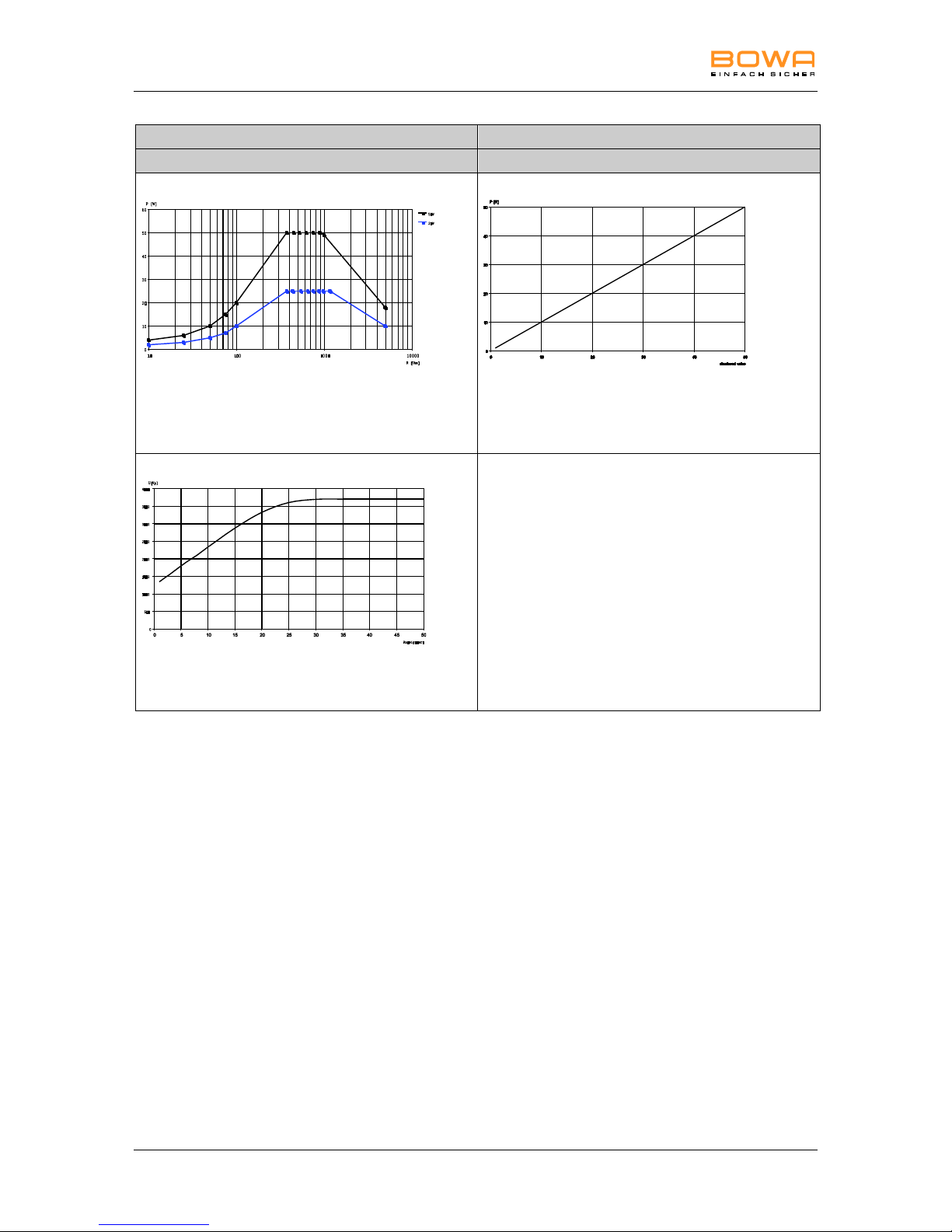

11.2. Power, voltage and current charts .................................................................................... 66
Page 12
Contents
12. Accessories and replacement parts ............................................................................................. 85
13. EMC .................................................................................................................................................. 86
13.1. Guidelines and manufacturer's declaration in accordance with IEC 60601-1-2,
Section 6.8.3.201 .............................................................................................................. 86
14. Disposal ........................................................................................................................................... 90
Page 13
1 Using this operating manual
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 13
Pos: 1 /679-BOWA/HF-Geräte/ARC 300/3 50/0 Legende/UE _Legende @ 4\mod_12610 40244069_6.doc @ 34330 @ Pos: 3 /679-BOWA/HF-Geräte/ARC 300/3 50/1 Umgang mi t/Umgang mit dieser Gebrauc hsanweisung @ 4\mod_1261 040269100_6.d oc @ 34349 @ 1
1. Using this operating manual
This operating manual is part of the device. BOWA-electronic GmbH & Co. KG, referred to in the following simply as
BOWA, assume no liability nor provide any warranty whatsoever for damage and consequential damages that arise due to non-compliance with the operating manual.
Read the operating manual carefully and thoroughly before using
this device.
Store the operating manual in a safe place throughout the service
life of the device.
Keep the operating manual accessible to operating room
personnel.
Give the operating manual to each successive owner and/or user
of this device.
Always update the operating manual whenever you receive
additional information from the manufacturer.
Pos: 4 /679-BOWA/HF-Geräte/ARC 200/2 50/300e/1 U mgang mit/Revisio ns-Index @ 7\ mod_13087303 84316_6.doc @ 52336 @ 2
1.1. Revision index
Software version
Last revised
2.2
2013/01
Pos: 5 /679-BOWA/HF-Geräte/ARC 300/3 50/1 Umgang mi t/Gültigkeit @ 4 \mod_126104 0280413_6.d oc @ 34387 @ 2
1.2. Validity
This operating manual applies only to the devices designated on the title page.
Pos: 6 /679-BOWA/HF-Geräte/ARC 300/3 50/1 Umgang mi t/Mitgeltende D okumente @ 4\mod_12610 40285210_6.doc @ 34406 @ 2
1.3. Other applicable documents
Comply with other applicable documents in the appendix or in the
other sections.
Pos: 7 /679-BOWA/HF-Geräte/ARC 200/2 50/300e/1 U mgang mit/Gefahre nstufen in Warn hinweisen_Ti pss_Sonstige S ymbole und Ken nzeichnungen @ 6\mod_12 97061041277 _6.doc @ 47780 @
Page 14
1 Using this operating manual
1.4. Icons and labeling
1.4.1. Structure of warning instructions
SIGNAL WORD
"Risk type, source and consequences there of" (Personal injury)! Measure for risk prevention.
NOTE
"Risk type, source and consequences there of" (Property damage)! Measure.
1.4.2. Risk levels in the warning instructions
Symbol
Risk level
Probability of occurrence
Consequences of non-compliance
DANGER
Immediate risk
Death, serious injuries
WARNING
Possible risk
Death, serious injuries
CAUTION
Possible risk
Minor injuries
NOTE
Possible risk
Property damage
1.4.3. Tips
Tips and additional information to facilitate tasks.
Page 15
1 Using this operating manual
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 15
1.4.4. Other icons and labeling
Icon/Labeling
Meaning
Prerequisite for an activity
Activity with one step
1.
2.
3.
Activity with several steps in a binding sequence
Result of preceding activity
List (first level)
List (second level)
Emphasis
Emphasis
..., see section xxx, page xxx
Cross reference
... "Monopolar output" 29/30
Bold numbers (e.g. 29/30) refer to the schematic depiction of the ARC 250 / 303 and the associated legend see pages 6– 7)
Pos: 8 /679-BOWA/HF-Geräte/ARC 300/3 50/2 Sicherheit/U E_Sicherheit @ 4\mod_1 261040342069_6. doc @ 34463 @ 1
Page 16
2 Safety
2. Safety
Pos: 9 /679-BOWA/HF-Geräte/ARC 200/2 50/300e/2 Sicher heit/Bestimmu ngsgemäße Ver wendung @ 6\ mod_1297061 182871_6.doc @ 47799 @ 2
2.1. Intended use
The HF device is intended exclusively for the generation of electrical power for monopolar cutting as well as monopolar and bipolar coagulation in surgical interventions involving tissue.
It is used in the following areas:
general surgery  endoscopy (only with the "GastroCut" option)  gynecology  hand surgery  ENT  cardiac surgery (including open-heart surgery)  neurosurgery  pediatric surgery  plastic surgery and dermatology  thoraxic surgery  orthopedics  urology, including transurethral resection (TUR)
Do not use the HF device if, in the opinion of an experienced physician or according to current professional literature, such use would cause endangerment of the patient due, for example, to the general condition of the patient, or if other contraindications are present.
BOWA requires that the HF device is operated under the supervision of qualified and authorized personnel. The surgeon and medical staff must be trained in the fundamental principles, rules for use and risks of HF surgery and must be familiar with these in order to safely and reliably prevent putting patients, personnel and devices at risk.
Any other use is neither intended nor proper and must be effectively prevented.
Pos: 10 /679-BOWA/HF-Geräte/ARC 300/ 350/2 Sicherheit/Allg emeine Sich erheitshin weise @ 5\mod_1 282715322650 _6.doc @ 441 41 @ 2
Page 17
2 Safety
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 17
2.2. General safety instructions
Ensure that no electronic devices that are subject to interference
from electromagnetic fields are set up in the vicinity of the HF device.
Observe the instructions on electromagnetic compatibility provided
in section EMC, page 86.
Always connect the HF device to a mains power system with a
protective earth lead in order to prevent electric shock.
Additional devices that are connected to electrical medical devices must satisfy relevant IEC or ISO standards (e.g. IEC 60950 for data processing devices). Furthermore, all configurations must comply with the standardised requirements for medical systems (see IEC 60601-1-1 or Section 16 of the 3rd edition of IEC 60601-1 as relevant). Anyone who connects additional devices to electrical medical devices is automatically a system configurator and thus responsible for meeting standardised system requirements. Please note that local laws prevail over the aforementioned standard requirements. In case of questions, please contact your local dealer or Techical Service, see section Technical service, page 59.
To protect personnel, BOWA recommends the use of a smoke evacuator to extract electrosurgical smoke, e.g. BOWA SHE SHA.
Pos: 11 /679-BOWA/HF-Geräte/ARC 300/ 350/2 Sicherheit/P ersonenbezog ene Sicherheit shinweise @ 6\mod_12988 72799815_6.doc @ 48929 @ 2 333333
Page 18
2 Safety
2.3. Personal safety instructions
2.3.1. Ambient conditions
Excessive leakage currents may create a risk of burns to the patient. Do not use the HF device in the immediate vicinity of the patient.

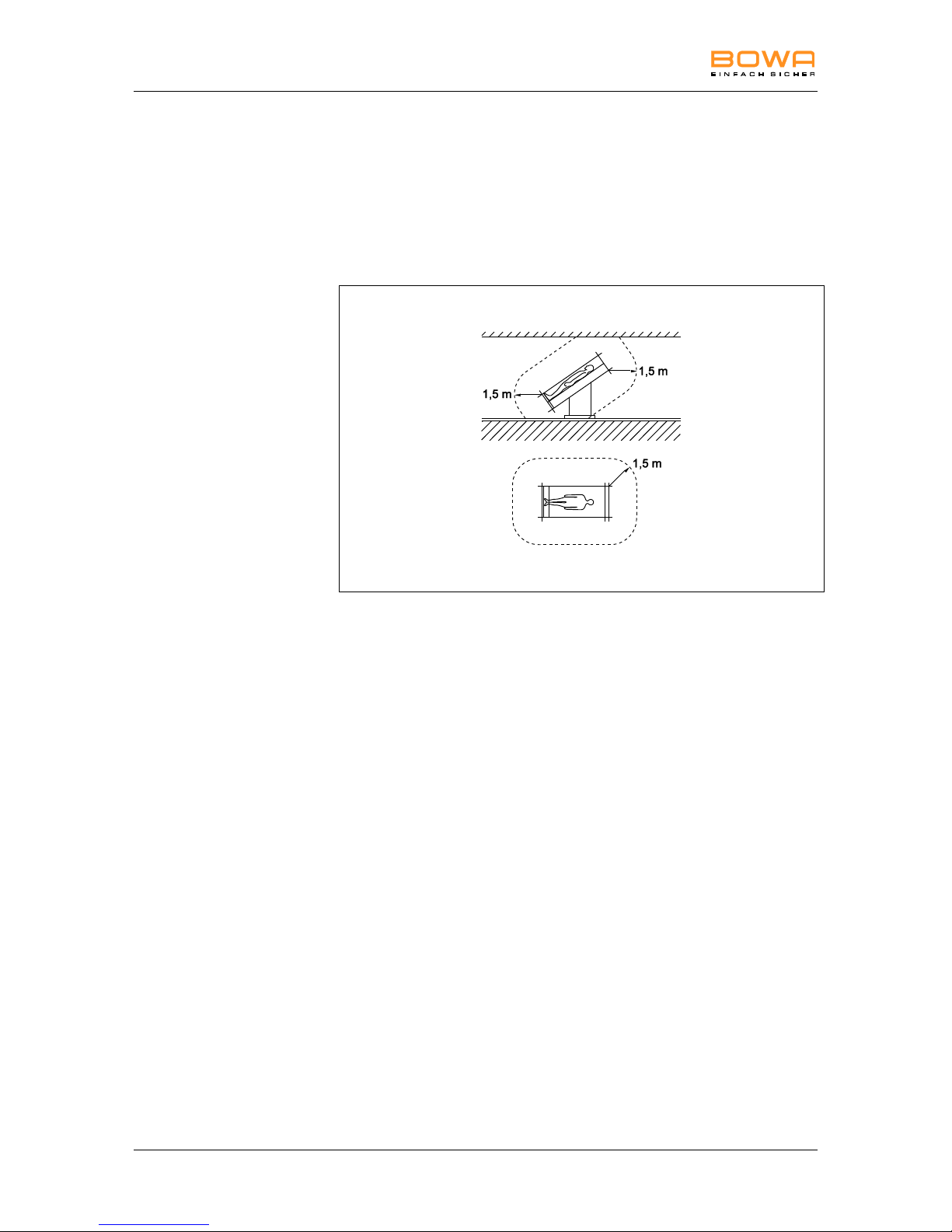

Observe the minimum distances recommended by BOWA, as shown in the following figure.
2.3.2. Patients with pacemakers
Malfunctions or destruction of the pacemaker can endanger the life of the patient or result in irreversible injuries to the patient.
In cases of patients with pacemakers, consult the cardiologist
before carrying out HF surgery.
Use bipolar HF methods. Move the HF neutral electrode close to the operating field. Set the demand pacemaker to a fixed frequency. Ensure that the pacemaker does not come into contact with the HF
electrode.
Keep a fully operational defibrillator handy. Carry out a postoperative pacemaker check.
Page 19
2 Safety
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 19
2.3.3. Safe positioning of the patient
Position the patient so that he is not touching any metal parts that
are grounded or have considerable capacitance relative to ground (e.g. operating table brackets). Lay anti-static towels between the patient and the bedding.
Ensure that the patient does not touch any wet towels or bedding. Place anti-static towels between areas of heavy sweating and skin-
to-skin contact on the patient's trunk.
Ensure that you are using a suitable support surface in order to
prevent pressure necrosis.
Drain urine via the catheter.
2.3.4. Correct connection of the HF device
Always ground the HF device via the equipotential bonding. Also
note the requirements of chapter 8.6.7 of ISO 60601-1 for medical electrical systems.
Do not use any needle electrodes for monitoring. Attach electrodes of physiological monitoring devices without
protective resistors or HF regulators as far as possible from the HF electrodes.
Attach lines from monitoring devices so that they do not lie on the
patient's skin.
Keep the leads to the HF electrodes as short as possible and
position them so that they do not touch the patient or other leads.
Do not place any objects on the HF device.
2.3.5. Correct use of the HF device
Inadvertent activation in the non-visible area of the HF device can injure the patient.
Activate the HF device only when the electrode is in your field of
vision and you can quickly deactivate the HF device at all times.
After inadvertent activation of the HF device, switch off the device
immediately using the on/off switch.
Pay particular attention whenever you use the foot switch or the
manual switch.
Page 20
2 Safety
Lack of preparation, errors in usage or faults in the HF device can cause damage to the HF device.
Use the automatic monitoring functions to ensure that the HF
device works properly without errors. For information on the automatic test functions, see section Monitoring functions, page 29.
Ensure that no conductive fluids (e.g. blood, amniotic fluid) have
penetrated the foot switch or the manual switch.
Ensure that the cables for the foot switch and manual switch are
free from short circuits and broken leads.
2.3.6. Adjusting the settings of the HF device and use of the accessories
Setting the output power too high can injure the patient. Therefore, before you increase the output power, ensure that:
the neutral electrode is correctly positioned,  the working electrodes are clean,  and the plug connections are all correct.
Setting the HF device correctly
To prevent inadvertent (thermal) tissue damage during operations
on body parts with small cross sections and in areas with high resistance (bones or joints), use the bipolar method in these areas.
Set the acoustic signal that sounds when the electrode is activated
so that it is always clearly audible. Nerve and muscle irritations due to low-frequency currents! In electrosurgical applications (particularly applications generating an
arc), a part of the HF current is converted to a low-frequency current. This can trigger muscle spasms in patients.
To minimize the risk of injury to the patient, set the power and
effect as low as possible.
Correct usage of the accessories
Use only insulated accessories. Check all electrodes for sharp edges and projecting parts before
use. Use only electrodes that are free of defects and in good working
order.
Never place active electrodes on or near the patient. Do not remove hot electrodes from the patient's body directly after
cutting or coagulation. Ensure that there is sufficient distance between the patient cables
and the cables of the HF device. Do not run the patient cable across the patient.
Page 21
2 Safety
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 21
2.4. Device-related safety instructions
Devices manufactured by BOWA are developed in accordance with the current state of technology and generally accepted safety rules. Despite this, risks to the life and health of the user or third parties and/or damage to the device and other objects can occur.
Use only accessories approved by BOWA, see section Accessories
and replacement parts, page 85). Use the device only when it is in free of technical defects and in
good working order and only for the intended purpose, always
remaining aware of safety requirements and risks while complying
with this operating manual. Have malfunctions that can adversely affect safety (e.g. deviations
from the permissible operating conditions) repaired without delay. Wipe down the HF device only with cleaning agents and
disinfectants that are nationally approved for surface cleaning, see
section Disinfection and cleaning, page 56.
Never immerse the device in water or cleaning agents. Never boil the device and never disinfect it mechanically. Immediately drain any fluid that might have penetrated the device.
A malfunction can result in an undesired increase of the output power if the device is damaged or defective.
Pos: 13 /679-BOWA/HF-Geräte/ARC 300/ 350/2 Sicherheit/Sic here Hand habung (allge mein) @ 6\ mod_129887288983 0_6.doc @ 48 948 @ 233
2.5. Safe handling (general instructions)
Before each use of the device, check to ensure that it is functioning
properly and is in good working order and connected properly. Observe the instructions for use with regard to standards, see
section Risk levels in the warning instructions, page 14. Always observe and obey the acoustic signals or error indications
during use, see section Error list, page 51. The device and accessories may be operated and used only by
people who have the necessary training, knowledge and
experience. Check the accessories regularly for damage to the isolation, for
proper function, and the expiration date, especially the electrode
cable, endoscopic accessories, and neutral electrodes.
Do not place any instruments on the patients or on the devices. Ensure that no instruments are being cleaned when AUTOSTART
is activated. Wear suitable gloves during operations.
Page 22
2 Safety
2.5.1. Surgical environment: prevention of explosions/combustion
Sparks fly during proper use of the HF device. Do not use the HF device in areas where there is a risk of
explosion.
Do not use any flammable or explosive liquids. If display components fail, do not use the HF device any longer. Avoid using ignitable anesthetics and gases which support
combustion (e.g. nitrous oxide, oxygen) during operations (e.g. in the head and thoracic regions).
Wear suitable gloves during operations. Use exclusively non-flammable cleaning agents, disinfectants and
solvents (for adhesives). If you use flammable cleaning agents, disinfectants or solvents, ensure that they have fully evaporated before using the HF surgical equipment.
Ensure that no flammable liquids collect beneath the patient or in
body cavities (e.g. the vagina). Suction and/or flush body cavities before activating the device.
Wipe off all liquids before using the HF device. Ensure that no endogenous gases are present that could ignite. Ensure that all materials saturated with oxygen (e.g. cotton, gauze)
are removed far enough from the HF environment that they cannot ignite.
2.5.2. Application of the neutral electrode
Please read and comply with the notes about using the neutral electrode listed in the user manual as well as the information on the packaging of the neutral electrode.
In the monopolar HF method, the neutral electrode feeds the current introduced into the patient's body at the surgical site back to the HF device.
To prevent a rise in temperature at the current emergence point,
the following conditions must be ensured: sufficiently large contact surface between the neutral
electrode and the patient's body
high electrical conductivity between the neutral electrode
and the patient's body
Page 23
2 Safety
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 23
To prevent the patient being burned by the neutral electrode, you
must comply with the following conditions: Select the application point for the neutral electrode so
that the current paths between the active and neutral electrodes are as short as possible and run longitudinally or diagonally to the patient's body (because muscles are more conductive in the direction of the fibrils).
Figure 2-1: Application point of neutral electrode
During surgery in the thoracic region, do not run the
current path transversely across the patient's body and ensure that the patient's heart is never in the path of the current.
Depending on the surgical site, apply the neutral
electrode to the nearest upper arm or thigh if possible, but never closer than 20 cm.
In the case of self-adhesive disposable electrodes,
comply with any further manufacturer specifications regarding the point of application.
Ensure that the application point is free of scar tissue,
bony protuberances, surface hair and ECG elecrodes.
Ensure that there are no implants (e.g. bone nails, bone
plates, endoprostheses) in the current path.
Ensure that no short circuits can occur at the neutral
electrode connection.
Avoid locations where fluids may collect.
Before applying the neutral electrode
Shave the area where the neutral electrode will be applied. Clean the application site, but do not use any alcohol, as it dries
out the skin and increases the transition resistance.
If the patient has poor circulation, massage or brush the application
site.
Apply the neutral electrode using the entire contact surface. Secure
reusable neutral electrodes with rubber bands or elastic ties so that they do not loosen or fall off when the patient moves. Ensure that the patient's circulation is not impaired (risk of necrosis).
Never use wet towels or electropastes.
Page 24
2 Safety
Ensure that no liquids (e.g. cleaning fluids, disinfectants, blood,
urine) get between the patient and the neutral electrode.
Do not place the neutral electrode under the patient's buttocks or
back.
Ensure that there are no ECG electrodes in the current path of the
HF device.
Example application using a disposable electrode
Remove the protective film and attach the self-adhesive disposable
electrode to the patient. Ensure that the long side of the disposable electrode faces the operation site and the electrode is fully in contact with the skin. This avoids excessive current concentration on the short side.
Using both hands, press the self-adhesive disposable electrode
firmly against the patient’s skin.
Clamp the electrode tab to the neutral electrode cable. After the operation, remove the disposable electrode carefully to
avoid skin damage.
Use of a one-piece neutral electrode
Check the one-piece neutral electrode during the surgery.
Use of a split neutral electrode
Apply the split neutral electrode correctly and without any additional
objects, as the HF device does not recognize the bridging of the section surfaces by other objects.
See chapter EASY neutral electrode monitoring (EASY monitoring), page 31, for additional information about monitoring the neutral electrode.
Pos: 14 /679-BOWA/HF-Geräte/ARC 300/ 350/3 Funktionsw eise/Funktions weise @ 4\ mod_126104042 4241_6.doc @ 3 4596 @ 1
Page 25
3 Functionality
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 25
3. Functionality
The HF device is controlled by a microprocessor and converts the mains voltage into a high-frequency alternating current for monopolar or bipolar applications.
The "ARC Control" regulator reduces the output power to the minimum level necessary, depending on the tissue and its resistance.
Pos: 15 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/M onopolare Modi @ 7\mod_130 9495624646_ 6.doc @ 52380 @ 233333
3.1. Monopolar modes
In monopolar operation, the HF device has the following operating modes:
"Cut" for cutting in low-resistance tissue  "Moderate Coag" for contact coagulation  "Forced Coag" for coagulation with light contact  "Spray Coagulation" for contactless surface coagulation
Instruments can be connected to monopolar output (socket connector 29/30).
3.1.1. "Cut" mode
In this mode a powerful HF current with a low crest factor is used for cutting in biological tissue. The maximum power is 250 W with the ARC 250, or 300 W with the ARC 303. The ARC CONTROL regulator quickly adjusts the output power to the minimum level necessary in response to variations in the tissue and changes in the cutting surface or cutting speed.
When setting the blend function between level 0 and 9, it is possible to set a variably adjustable degree of surface scabbing.
3.1.2. "Moderate Coag" mode
This mode is used in contact coagulation for stopping hemorrhagic oozing, hemostasis of larger tissue areas, and coagulation over smaller surfaces.
Page 26
3 Functionality
3.1.3. "Forced Coag" mode
If you wish to change the settings for "Forced Coag" mode, see section Menu program 3 "Forced Coag Mode", page 46.
This mode is used for contact coagulation extending over a short distance in the tissue, preferably using electrodes with fine tips or small surfaces.
Three sub-modes are available in "Forced Coag" mode:
Mode
Characteristics
Application
Non Cutting
High coagulation rate Minimal cutting tendency
Requirements for good coagulation without cutting tissue
Mixed Mode
High coagulation rate Moderate cutting effect
All standard applications (factory setting)
Cutting Mode
Good hemostasis Outstanding cutting effect
Preparatory cutting with the blue key
The simultaneous activation of two monopolar connection ports makes it possible to use two manually controlled instruments at the same time. Handles with finger switches can be connected to connection ports 29/30. The handles are activated with the "Coag" button on the handle. Both handles can be switched on or off independently of one another.
The set power applies to both connection ports. The distribution of the power depends on the tissue structure and may change during the application.
3.1.4. "Spray Coagulation" mode
This mode is used for contactless surface coagulation via arcing. This mode is used for hemostasis in parenchymal tissue or in poorly
accessible crevices and in conjunction with argon coagulation.
The simultaneous activation of two monopolar connection ports makes it possible to use two manually controlled instruments at the same time. Handles with finger switches can be connected to connection ports 29/30. The handles are activated with the "Coag" button on the handle. Both handles can be switched on or off independently of one another.
The set power applies to both connection ports. The distribution of the power depends on the tissue structure and may change during the application.
Page 27
3 Functionality
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 27
3.1.5. "GastroCut" mode
If you wish to change the settings for "GastroCut" mode, see section Menu program 3A "GastroCut-Modes", page 47.
This mode consists of a pulse sequence of cutting current and coagulation phase.
This mode is used for the removal of polyps or for making incisions in papillae. The following applies:
Blend 0 = low coagulation rate  Blend 9 = high coagulation rate
Three sub-modes are available in "GastroCut" mode:
Mode
Characteristics
Application
Slow
Cutting characteristics: Slower pulse sequence
Recommended for particularly intricate tasks
Medium
Cutting characteristics: Dynamic
Recommended for skilled users (default setting)
Fast
Cutting characteristics: Dynamic and fast pulse sequence
Recommended for experienced users in this specialist area
Pos: 16 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/Bip olare Modi @ 6\mod_12971 52751918_6.doc @ 48277 @ 2
Page 28
3 Functionality
3.2. Bipolar modes
Special instruments are necessary in order to achieve optimal results using the bipolar method (particularly with minimally invasive surgery).
Advantages of the bipolar method: The required high-frequency output is only one-fourth of the
output required for the monopolar method.
It is not necessary to apply a neutral electrode to the patient,
which eliminates the associated risks to the patient.
Instruments can be connected to the bipolar output (socket connector 31).
The AUTOSTART mode can be activated only for bipolar coagulation. In the AUTOSTART mode, the coagulation current is automatically
added after low-resistance tissue contact of the connected bipolar instruments. Thus activation using the foot switch is not necessary.
If an output operating in AUTOSTART mode is activated using the foot switch, AUTOSTART mode is deactivated and the foot switch signal is used.
This type of current can be used for bipolar cutting instruments. This type of current is suitable for the application of bipolar scissors, e.g.
BOWA BiZZER.
To prevent activation problems in AUTOSTART mode, we recommend limiting the bipolar cable length to 4.5 meters or less.
Forceps
Under moist conditions the forceps may be released accidentally, for example by contact with blood. This can cause an undesirable increase in the duration of the surgical therapy.
When the forceps are set aside with AUTOSTART enabled, inadvertent activation with associated risk of injury may occur when the forceps are wiped with a moist cloth or come in contact with metallic components, such as other instruments.
Pos: 17 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/A ktivierungs- und Alarmsignale i m monopolaren und bipolaren M odus @ 7\m od_13094959 31349_6.doc @ 5 2399 @ 2
Page 29
3 Functionality
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 29
3.3. Activation and alarm signals in monopolar and bipolar mode
The activation and alarm signals are output at volume level 1. The minimum volume is level 1. The volume of the activation signal should be increased as necessary for use in relativey noisy surrouondings. The maximum volume is level 10. The alarm tone is not adjustable.
Mode
Indicator in menu program
Frequency (Hz)
Signal type
Monopolar Cut
Sound Level 1
500
Continuous sound
Monopolar Coag
Sound Level 2
420
Continuous sound
Bipolar Coag
Sound Level 3
340
Continuous sound
Sim Coag
–
800
Continuous sound
GastroCut end
– – Pulsating alternating sound
Alarm
–
1000
Intermittent
Pos: 18 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/N ot-Aus @ 4\m od_12701071714 92_6.doc @ 3 8127 @ 2
3.4. Emergency shutoff
The HF device can be switched off at any time by using on/off switch 27 for emergency shutoff.
Pos: 19 /679-BOWA/HF-Geräte/ARC 300/ 350/3 Funktionsw eise/Überwac hungsfunktion en @ 5\mod_ 1286445166792 _6.doc @ 4448 9 @ 233
3.5. Monitoring functions
3.5.1. Self-test
When the HF device is switched on, it runs a self-test that checks the operating elements, acoustic signal, microprocessor and hardware for proper operation. If errors occur, see section Detecting and correcting faults, page 51.
3.5.2. Cyclical test during operation
During operation, safety-relevant functions and signals are tested cyclically. If errors are detected, the HF generator will shut itself off. An error message appears on the display. For further information, see section Detecting and correcting faults, page 51.
Pos: 20 /679-BOWA/HF-Geräte/ARC 300/ 350/3 Funktionsw eise/ARC C ontrol-Technologi e @ 4\mod_ 12610404799 28_6.doc @ 34729 @ 2
Page 30
3 Functionality
3.6. ARC Control technology
The "ARC Control" regulator takes varying cutting surfaces and cutting speeds into account, detects differences in tissue and the resulting changes in resistance, and adjusts the output power to the minimum level necessary under actual conditions.
Pos: 21 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/N eutralelektroden- Überwachung @ 6\mod_12 97065725527_6.d oc @ 47857 @ 233
3.7. Neutral electrode monitoring
Always use the largest possible electrode when attaching a neutral electrode.
3.7.1. General information
BOWA recommends using split neutral electrodes, since only this type of electrode allows the HF device to detect detachment of the neutral electrode if this occurs.
Monitoring of the neutral electrode minimizes the risk of burns at the site where the neutral electrode is attached.
Two types of neutral electrodes can be monitored:
One-piece neutral electrodes  Split neutral electrodes.
The split neutral electrodes are shown on display 20, and the one-piece neutral electrodes are shown on display 19, see chapter Error Display in EASY monitoring, page 55.
Page 31
3 Functionality
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 31
3.7.2. EASY neutral electrode monitoring (EASY monitoring)
Children's electrodes cannot be monitored by the EASY system, because their resistance is too high due to their small surfaces.
The EASY monitoring system measures changes in resistance between the patient and the high-frequency surgery device both before and during HF activation. If required, it requests personnel to intervene via an optical and acoustic alarm. For this purpose, a split neutral electrode with corresponding contact surfaces and suitable transition resistances which is attached to the patient according to the manufacturer's instructions is required. The EASY system does not monitor partial currents in the two contact pads of the split neutral electrode.
The min. pad area of the electrode must be set to 110 cm² for the "Resection" program and the "Moderate Coagulation" mode.
Pos: 22 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/F ußschalter @ 6\ mod_1297065 870996_6.doc @ 47876 @ 2
3.8. Foot switch
In addition to the manual switch, the foot switch can be used to activate various operating modes.
A foot switch can be connected to socket connector 32. The HF device automatically detects whether a foot switch is connected.
The following foot switch systems can be connected to the HF device:
Article No.
Designation
901-011
Single-pedal foot switch with pushbutton (SP+)
901-021
Double-pedal foot switch (DP)
901-031
Double-pedal foot switch with pushbutton (DP+)
901-032
Double-pedal foot switch with pushbutton and clip (DP+)
Pos: 23 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/3 Fu nktionsweise/Sp eicherfunktion en @ 4\mod_127 0107290180_ 6.doc @ 3816 5 @ 2
3.9. Memory functions
The generators in the ARC family allow the parameter settings of all programs to be stored.
To do this, set parameters such as output, blend factor, coagulation mode and foot switch assignment and then store them by pressing the AUTOSTART key 26 and keeping it pressed. This storage procedure only stores the current program.
The individual device settings and entered settings can be retrieved with the press of a button, see section Basic program settings, page 40.
The saved values will be stored even when the device is switched off.
Pos: 24 /679-BOWA/HF-Geräte/ARC 300/ 350/4 Beschreibu ng/UE_Beschrei bung @ 4\ mod_126104051 7772_6.doc @ 34805 @ 1
Page 32
4 Description
4. Description
Pos: 25 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/4 Beschr eibung/Sym bole am Produkt @ 6\mod_12 98873497580 _6.doc @ 489 86 @ 2

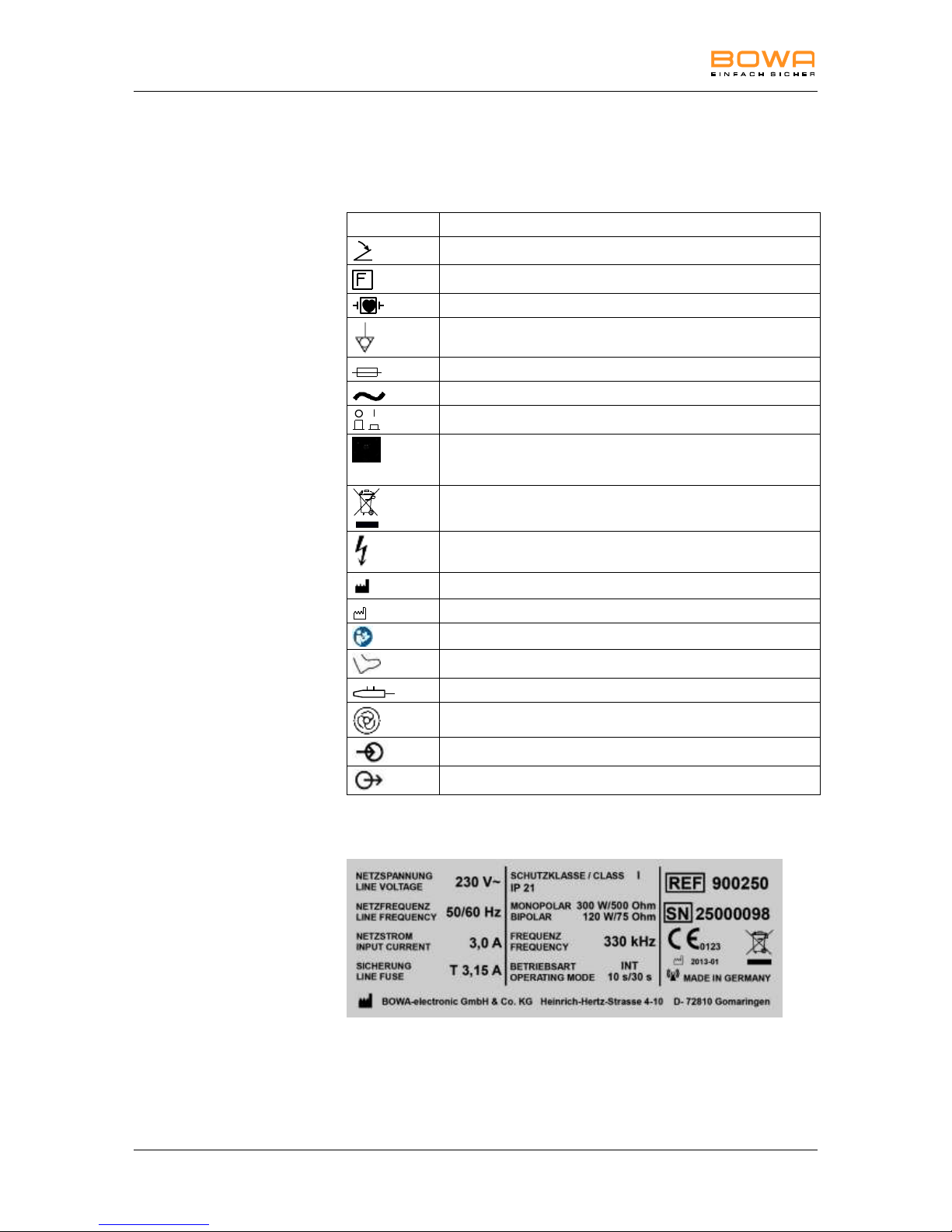

4.1. Icons on the device
Symbol
Designation
Foot switch connector
Neutral electrode isolated from ground for HF
CF-type device with defibrillation protection
Equipotential bonding Fuse
Alternating current
On/off switch
During activation (of the HF device) RF energy in the radio frequency range 9 kHz to 400 GHz is applied, which produces electromagnetic radiation.
Labeling of electrical and electronic devices in accordance with Directive 2002/96/EC (WEEE), see Disposal
Identification of (active) HF output; caution: dangerous electrical voltage!
Manufacturer
Date of manufacture
Comply with the user manual
Foot switch
Finger switch
AUTOSTART
Fiber-optic signal input
Fiber-optic signal output
Pos: 26 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/4 Beschr eibung/T ypenschild @ 6\ mod_12970659 78136_6.doc @ 47895 @ 3
4.1.1. Rating label
Figure 4-1: ARC 250 rating label
(An ARC 250 rating label is shown here. REF and SN are different for the ARC 303 (e.g. REF 900-303,SN 30300815)
Pos: 27 /679-BOWA/HF-Geräte/ARC 300/ 350/4 Beschreibu ng/Lieferumfa ng @ 4\mo d_1261040537944 _6.doc @ 3488 1 @ 2
Page 33
4 Description
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 33
4.2. Scope of delivery
You'll find detailed information on the scope of delivery in the current catalogs.
Pos: 28 /679-BOWA/HF-Geräte/ARC 300/ 350/4 Beschreibu ng/Zum Betrie b erforderlich e Komponenten @ 4\mod_12 61040541522_6 .doc @ 34900 @ 2
4.3. Components required for operation
Power cable  Foot switch  Neutral electrode  Electrode handle for monopolar applications with finger keys
or activation via foot switch
Working electrode  Connection cable
Pos: 29 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/11 T echnische Daten/ Betriebsbeding ungen @ 6\ mod_12985538 63128_6.doc @ 48690 @ 2
4.4. Operating conditions
Temperature: +10 °C to +40 °C Relative humidity: 30% to 75%, non-condensing Atmospheric pressure: 700 hPal to 1600 hPa Max. operating altitude: 3000 m a.s.l.
Pos: 30 /679-BOWA/HF-Geräte/ARC 300/ 350/5 Vorbereit ung/UE_Vorbereit ung @ 4\mo d_126104057 3116_6.doc @ 3 4919 @ 1
Page 34
5 Preparation
5. Preparation
Pos: 31 /679-BOWA/HF-Geräte/ARC 300/ 350/5 Vorbereit ung/HF-Gerät a ufstellen @ 6\ mod_12988737 53690_6.doc @ 49004 @ 2
5.1. Setting up the HF device
NOTE
When the HF device is used as intended, electromagnetic fields are generated. This can affect other devices.
Ensure that no electronic devices are set up in the vicinity of the
HF device.
WARNING
Shock hazard!
Always connect the HF device to a mains power system with a
protective earth lead in order to prevent electric shock.
DANGER
Risk of burns to patients due to excessive leakage current!
Do not place the HF device in the immediate vicinity of the patient,
see section Ambient conditions, page 18.
HF devices may be used only in rooms used for medical purposes that meet the requirements of DIN VDE 0100-710.
If the HF device was previously stored or transported at temperatures below +10 °C, it will take approximately three hours to adjust to room temperature.
1. Observe and comply with the operating conditions, see
chapter Operating conditions, page 33
2. Place the HF device on one of the following platforms:
a table, an equipment trolley, a console suspended from a ceiling support or wall-
mounted brackets.
if necessary, position the HF generator on the additional
device ARC PLUS
Except for the additional device ARC PLUS, do not place any other devices on the HF device
Page 35
5 Preparation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 35
3. Set up the HF device with sufficient clearance to other electronic
devices, see section EMC, page 86.
4. Position the HF device with the front of the device facing the
patient/surgeon.
5. Do not place any other objects on or above the HF device.
6. Do not set up the HF device on other devices.
7. Connect the power cable.
Pos: 32 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/5 Vor bereitung/HF- Gerät einschalt en @ 7\mod_1 30949609644 3_6.doc @ 52418 @ 2
5.2. Switching on the HF device
Do not use the HF device if the indicator elements are not working. For error correction, see section Detecting and correcting faults, page 51.
1. Switch the HF device on using the on/off switch 27.
The HF device carries out a self-test: all indicator elements light up and blink alternately with the display.
All modes that can be set in the menu programs are displayed alternately. For more information about the setting options, see section Menu programs, page 45.
2. Check whether all the indicators (2, 7, 9, 12, 13, 14, 15, 22, 25, 26)
and LEDs (1, 8, 18, 19, 20, 21) on the front panel light up and flash alternately with the display.
3. Press any key to end the self-test.
The HF device is ready for operation.
The parameters of the most recently selected program appear on the display. A self-test is carried out if the device is switched off for longer than 15 to 20 seconds after being used. The default parameters of the most recently selected program subsequently appear.
Pos: 33 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/5 Vor bereitung/Zube hör anschließe n @ 6\mod_1 297066132449_6. doc @ 47914 @ 233
5.3. Connecting instruments
Before connecting instruments, ensure that the following conditions
are met: Combinations of accessories not mentioned in the
operating manual may be used only if they are explicitly designed for the intended use. Performance features as well as safety requirements must always be taken into account.
The insulation of the accessories (e.g. HF cables,
instruments) must be sufficient for the maximum output peak voltage (see IEC 60601-2-2 and IEC 60601-2-18).
Do not use accessories with defective insulation.
Page 36
5 Preparation
In order to arrange and protect all cables connected to the HF device, use the pull-out cable guide on the left underside of the device.
5.3.1. Instruments for monopolar applications
1. Plug the neutral electrode cable into the socket for the neutral
electrode 28.
2. Check EASY monitoring for a one-piece neutral electrode 19 or
EASY monitoring for a split neutral electrode 20 to ensure that it corresponds to the type of neutral electrode connected.
3. Connect the electrode handpiece to the active socket
connector 29/30. – or – With accessories lacking finger buttons: connect a foot switch to socket connector 32, and connect the monopolar connection cable to the Bovie jack on connection port 30. – or – Connect the monopolar cable for endoscopy to the socket connector for monopolar instruments 30 (left).
5.3.2. Instruments for bipolar applications
1. Connect the bipolar cable with the instrument, e.g. the tweezers.
2. Connect the bipolar cable to the active socket connector 31.
3. For bipolar use without AUTOSTART, connect a foot switch to
socket connector 32. – or – For bipolar use with AUTOSTART, press the AUTOSTART key 26.
Once the contact is closed, the application starts after the configured response time.
Pos: 34 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/5 Vor bereitung/Fußsc halter anschließ en @ 6\mo d_129706794259 0_6.doc @ 47 933 @ 33
5.3.3. Connecting the foot switch
Connect the desired foot switch to the foot switch socket
connector 32.
Standard arrangement: Single-pedal foot switch monopolar coagulation (with ARC 303 connection port 30). Double-pedal foot switch cutting and monopolar coagulation.
Page 37
5 Preparation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 37
5.3.4. Assigning a foot switch output
1. Press the extra button on the dual foot pedal swiitch (e.g. for
"Bipolar Output" 31). – or – Key/indicator for "Foot Switch" 25.
The "Bipolar Foot Switch" indicator 25 will light up and an alternating acoustic signal will be emitted for acoustic confirmation of the switchover process. The blue foot switch pedal is now activated for bipolar coagulation.
2. Press the key/display for AUTOSTART 26 for longer than
5 seconds.
The configured HF parameters will be saved and the symbol -> appears on the display or main display 15.
Pos: 35 /679-BOWA/HF-Geräte/ARC 300/ 350/5 Vorbereit ung/Funktionspr üfung - Titel @ 6\mod_12977 68711604_6.doc @ 48568 @ 2
5.4. Functional test
Pos: 36 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/5 Vor bereitung/Fun ktionsprüfung @ 6 \mod_1297 336252619_6.d oc @ 48300 @ 3333
5.4.1. Autotest function
The HF device automatically carries out a self-test after being switched on and a cyclical test during operation. If errors occur, see section Detecting and correcting faults, page 51.
5.4.2. Functional test execution
Perform the following functional test before putting the device into service:
The accessories must be designed for the indicated maximum voltage.
1. Connect the neutral electrode and attach it to the patient’s arm.
The EASY neutral electrode indicator 19/20 changes to green.
2. Remove the neutral electrode.
The indicator 18 changes to red, acoustic signals sound, and the EASY neutral electrode monitoring indicator 19/20 goes dark.
3. Press the surfaces of the neutral electrode against each other.
The EASY neutral electrode monitoring indicator 19/20 changes back to green.
The neutral electrode used for this test may not later be used for an operation.
4. Connect a monopolar HF handpiece to a monopolar socket
connector 29/30 and use the hand and foot switches to individually activate "Cut" and "Coag".
Page 38
5 Preparation
5. Check the settings on the display.
6. Now change to the bipolar output and connect bipolar tweezers.
7. Press the key/display for AUTOSTART 26 again and use the foot
switch to activate the bipolar output. Check the settings and indicators in the bipolar section.
8. Press the key/display for AUTOSTART 26 again and use the foot
switch to activate the bipolar output. Check the settings and indicators in the bipolar section.
5.4.3. Actions in case of problems
Proceed as follows in case of functional problems:
1. Immediately disconnect the patient from the HF device.
2. Inspect the HF device and perform a functional test.
3. Report incidents and near-accidents to the German Federal
Institute for Medications and Medical Products in accordance with Section 3 of the German Ordinance on the Installation, Operation and Use of Medical Products (MPBetreibV). Observe the provisions of the in-house reporting system in this regard.
4. Contact the service center,see section Technical service, page 59.
5.4.4. EASY neutral electrode electrode monitoring (EASY monitoring)
NOTE
Risk of incorrect application of the neutral electrode!
Ensure compliance with the specifications for correct application of
the neutral electrode with regard to size, adhesive properties and full-surface contact of the complete electrode.
The following functions can be tested for split and one-piece neutral electrodes:
Actual status
Output
Measure
Cable for one-piece or split neutral electrode not connected
Indicators for EASY monitoring of split neutral electrode 20 or EASY monitoring of one-piece neutral electrode 19 do not light up
Plug in the cable for the
one-piece or split neutral electrode.
Only the cable for the one­piece or split neutral electrode is connected
Indicators for EASY monitoring of split neutral electrode 20 or EASY monitoring of one-piece neutral electrode 19 light up
Check the cable for a short
circuit.
Cable with split neutral electrode plugged in but not attached to patient.
Indicators for EASY monitoring of split neutral electrode 20 or EASY monitoring of one-piece neutral electrode 19 light up
Check whether the electrode
is correctly attached to the cable connection.
The cable for the split or one­piece neutral electrode is plugged in and attached to the patient.
The indicators for EASY monitoring of the split neutral electrode 20 or EASY monitoring of the one-piece neutral electrode 19 light up green, but the type of neutral electrode is not correctly detected.
Based on the assessment of
benefit and harm, decide whether you should activate the HF device.
Pos: 37 /679-BOWA/HF-Geräte/ARC 300/ 350/6 Bedienung /UE_Bedien ung @ 4\mod_1 261040616100 _6.doc @ 350 33 @ 1
Page 39
6 Operation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 39
6. Operation
Pos: 38 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m-Übersicht @ 6\mod_129 7068118699_6. doc @ 47952 @ 2
6.1. Program overview
An overview of the programs that can be executed with the HF device is displayed below.
Program number
Program name
ARC 250
ARC 303
0
Standard X X
1
Macro X X
2
Micro X X
3
Resection X X
4
Argon
GastroCut option
GastroCut option
5
Argon-Flex
GastroCut option
GastroCut option
6
Gastro LOOP
GastroCut option
GastroCut option
7
Gastro KNIFE
GastroCut option
GastroCut option
The data about settings, points of application, application duration, and the application of instruments are based on clinical practice. However, these are only basic guidelines which must be tested and approved for suitability by the operator. Depending on the individual conditions, it may be necessary to deviate from the specified data. Medicine is continuously evolving and growing due to R&D and clinical practice. These developments may also make deviations from the specified data necessary.
All programs have basic settings, e.g. operating language, sound or display and memory options, which can be changed for individual applications, see section Menu programs, page 45.
Pos: 39 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Grun deinstellungen der Programme @ 6\mod_1297 070689215_6.d oc @ 47971 @ 233
Page 40
6 Operation
6.2. Basic program settings
6.2.1. Calling up a program
Call up each of the selectable programs with the following procedure:
1. Press the program key 16/17 repeatedly until the corresponding
program is shown on the display.
2. Connect the instrruments, see section Connecting instruments,
page 35.
6.2.2. Changing the program
The preconfigured programs can be selected from 0 to 7. The parameters of the preconfigured programs can be changed, and the new parameters can be saved. Only the specific types of current cannot be changed. To change the parameters, make settings such as power level, blend factor, coagulation mode and foot switch assignment and then store them by pressing the AUTOSTART key 26 and keeping it pressed.
Programs 8 to 99 are fully user configurable. These programs output standard types of current.
You can change the following factory settings:
Select cutting settings
Press the power limitation key for monopolar cutting 3 or 4.
Set blend factor
1. Press key 5 or 6 for the monopolar scabbing level.
2. Set the blend factor from 1 to 9, or to 0 for coagulation-free cutting.
Select current type for coagulation current
1. Press key/display 12 for "Moderate Coagulation" current
– or – Press key/display 13 for "Forced Coagulation" current – or – Press key/display 14 for "Spray Coagulation" current
2. Set the power limit for the monopolar coagulation current using the
keys for power limitation for monopolar coagulation 10/11.
– or –
1. Set the power limit for the bipolar coagulation current using the
keys for power limitation for bipolar coagulation 23/24.
Pos: 40 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m-Beschreib ungen @ 5\mo d_127010833 6476_6.doc @ 3 8282 @ 2
Page 41
6 Operation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 41
6.3. Program descriptions
The following recommended settings for standard programs are based on empirical values and must be verified in each individual case by the surgeon.
Pos: 41 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 0 "Standard" @ 5\mod_127 0108364476_ 6.doc @ 3830 1 @ 3
6.3.1. Program 0 "Standard"
This program is used for monopolar/bipolar cutting and coagulation in standard applications.
Pos: 42 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 1 "Macro" @ 6\mod_1297 072010043_6.d oc @ 48028 @ 3
6.3.2. Program 1 "Macro"
This program is used in plastic surgery of the hand and maxillofacial region.
Pos: 43 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 2 "Micro" @ 6\mod_12970 71058574_6.d oc @ 47990 @ 3
6.3.3. Program 2 "Micro"
This program is used in the lower output range with fine electrodes for microscopic tissue structures.
Pos: 44 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 3 "Resektio n" @ 6\mod_1 29707120421 5_6.doc @ 4800 9 @ 3
6.3.4. Program 3 "Resection"
Both cutting and coagulation are possible with bipolar
operation.
Use the socket connector for monopolar instruments 29/30
for monopolar Resection/TUR.
Only the Standard coagulation current is available at the
"Bipolar Output" 31.
This program is used for underwater cutting during transurethral and transvaginal resection and vaporisation on prostata, bladder, and uterus.
In this program, the resection snare is used for cutting and coagulation. Arc control technology generates the cutting effect with simultaneously minimized output power.
ARC control facilitates immediate cutting and prevents adhesion of the electrodes.
The key/display for "Monopolar Output" 29/30 and "Bipolar Output" 31 are preconfigured.
Connect the monopolar resectoscope to the "Monopolar
Output" 29/30.
Pos: 45 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 4 "Argon" (ARC 200/250/300 e nur mit Opti on GastroCut) @ 6\mod_1 297072137808_ 6.doc @ 48047 @ 3
Page 42
6 Operation
6.3.5. Program 4 "Argon" (only with GastroCut option)
In this program, open surgical interventions are carried out with the additional device ARC PLUS for argon electrocoagulation. When suitable instruments are connected, argon coagulation can be carried out with rigid electrodes and argon cutting.
1. Connect the additional device ARC PLUS.
2. Connect the argon handpiece with the rigid probes to the
ARC PLUS.
3. Connect the surgical handpiece to the HF device.
Pos: 46 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 5 "Argon Fl ex" (nur mit Opti on GastroCut) @ 6\mod_129 7072401699_ 6.doc @ 48066 @ 3
6.3.6. Program 5 "Argon-Flex" (only with GastroCut option)
This program is used in argon electrosurgery with ARC PLUS. In this program, surgical interventions are carried out with endoscopic
use of flexible probes with the additional device ARC PLUS for argon electrocoagulation.
The connection port 29 has no function in the "Argon-Flex" program.
The key/display "Monopolar Output" 30 is preconfigured.
1. Connect the additional device ARC PLUS.
2. Connect the flexible probes to "Monopolar Output" 30 of the HF
device.
Pos: 47 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 6 "GastroCut Pol" (nur mit O ption Gastr oCut) @ 6\mo d_1297072451824 _6.doc @ 4808 5 @ 3
Page 43
6 Operation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 43
6.3.7. Program 6 "Gastro LOOP" (only with GastroCut option)
This program is used in gastroenterology. In this program, polypectomy snares are used for cutting and
coagulation. Arc control technology generates the cutting effect with simultaneously
minimized output power. ARC control facilitates immediate cutting and prevents adhesion of the
electrodes.
The degree of coagulation increases with an increasing blend factor.
The connection port 29 has no function with the programs "Gastro LOOP" and "Gastro KNIFE".
Three modes are available in this program: fast (approximately 3 cutting pulses per second), medium (approximately 1.6 cutting pulses per second) and slow (approximately 1 cutting pulse per second).
For more information on "GastroCut" mode, see section "GastroCut" mode, page 27.
The key/display "Monopolar Output" 30 is preconfigured.
1. Connect the polypectomy snares to the socket for "Monopolar
Output" 30 (use an adapter if necessary).
2. Connect the foot switch to the HF device.
3. Activate the HF current via the yellow key of the foot switch for
cutting. – or – Activate the HF current via the blue key of the foot switch for coagulation.
4. Set the coagulation level using the keys for scabbing level 5/6.
5. Press keys 3 and 4 to switch between:
slow (non-accelerated) GastroCut Pol; dynamic (medium speed; default) GastroCut Pol; fast dynamic (accelerated) GastroCut Pol.
6. In the case of hemorrhages:
Press the key/display for "Forced Coagulation" current 13 or use a clip.
7. If necessary, remove the polypectomy snares and connect the
argon probe and the ARC PLUS argon unit.
8. Press the key/display for "Spray Coagulation" current" 14.
9. Press the blue key of the foot switch for coagulation.
Page 44
6 Operation
Pos: 48 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Program m 7 "GastroCUT P ap" (nur mit Option GastroCU T) @ 6\mo d_129707256 3715_6.doc @ 4 8104 @ 3
6.3.8. Program 7 "Gastro KNIFE" (only with GastroCut option)
This program is used in gastroenterology. Papillotomes and endoscopic resection instruments are used for cutting and coagulation.
ARC control technology generates the cutting effect with simultaneously minimized output power.
ARC control facilitates immediate cutting and prevents adhesion of the electrodes.
The connection port 29 has no function with the programs "Gastro LOOP" and "Gastro KNIFE".
Three modes are available in this program: fast (approximately 2.5 cutting pulses per second), medium (approximately 1.8 cutting pulses per second) and slow (approximately 1.4 cutting pulses per second).
For more information on "GastroCut" mode, see section "GastroCut" mode, page 27.
The key/display "Monopolar Output" 30 is preconfigured.
1. Connect the papillotome to the socket for "Monopolar Output" 30
(use an adapter if necessary).
2. Connect the foot switch to the HF device.
3. Activate the HF current via the yellow key of the foot switch for
cutting. – or – Activate the HF current via the blue key of the foot switch for coagulation.
4. Set the coagulation level using the keys for scabbing level 5/6.
5. Press keys 3 and 4 to switch between:
slow "Gastro KNIFE" (non-accelerated), dynamic " Gastro KNIFE" (medium speed; default) and fast dynamic " Gastro KNIFE" (accelerated).
6. In the case of hemorrhages:
Press the key/display for "Forced Coagulation" current 13 or use a clip.
7. If necessary, remove the papillotome and connect the argon probe
and the ARC PLUS argon unit.
8. Press the key/display for "Spray Coagulation" current" 14.
9. Press the blue key of the foot switch for coagulation.
Pos: 49 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programme @ 5 \mod_127010 9501523_6.d oc @ 38535 @ 23
Page 45
6 Operation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 45
6.4. Menu programs
The menu programs are standard programs for specifying basic parameters, such as the operating language, sound, display and memory options of the main programs.
6.4.1. Overview
The following menus are available:
Menu program 1 "Set Language"  Menu program 2 "Sound Level"  Menu program 3 "Forced Coag Mode"  Menu program 3A "GastroCut-Modes"  Menu program 4 "Show Prev Inf-No"  Menu program 5 "Hide Fix Prog"  Menu program 6 "AutoStart Delay"  Menu program 7 "Edit Prog Names"  Menu program 8 "Restore Programs"  Menu program 9 "Panel Check"
Selecting a menu program
1. When switching on the device, simultaneously press the on/off
switch 27 and the program selection switch 17 to see the list of menu programs.
The current software version is displayed on the display/main display 15.
2. Press the menu selection switch 16 to select a menu program.
3. Press the power limitation key for monopolar cutting 4 to launch the
selected program.
Exiting a menu program
Press the power limitation key for monopolar cutting 3 to return to
the list of menu programs.
When the HF device is switched off, the new settings will be saved automatically.
Pos: 50 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 1 "Se t Language" @ 5\mod_12701 09660851_6.doc @ 38554 @ 3
Page 46
6 Operation
6.4.2. Menu program 1 "Set Language"
The language of the menu programs is English and cannot be changed.
Use menu program "Set Language" to set the language for the standard programs (language codes D = Deutsch; E = English; F = Français; I = Italiano; S = Español; T = Türk; P = Polski).
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for scabbing level 5/6 to select the appropriate
language.
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
After the front panel test has been run after the device is switched on, the selected language is shown by the language code letter on the "Bipolar Coag" display 22.
Pos: 51 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 2 "So und Level" @ 5\ mod_127010 9718492_6.doc @ 38572 @ 3
6.4.3. Menu program 2 "Sound Level"
Use "Sound Level" to set the volume of the individual activation signals.
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for scabbing level 5/6 to change the volume.
3. Press the power limitation key for monopolar cutting 11 to select
the next acoustic signal.
4. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 52 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 3 "F orced Coag Mo de" @ 6\mod_1 29708276044 9_6.doc @ 48 218 @ 3
6.4.4. Menu program 3 "Forced Coag Mode"
Use "Forced Coag Mode" to set the cutting and coagulation parameters of the "Forced Coag" current.
For more information on "Forced Coag" mode see section "Forced Coag" mode, page 26.
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for scabbing level 5/6 to change the forced
coagulation mode.
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 53 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 3a "G astroCut-Mo des" @ 5\mod_1 27010982696 1_6.doc @ 38 608 @ 3
Page 47
6 Operation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 47
6.4.5. Menu program 3A "GastroCut-Modes"
For more information on "GastroCut-Modes", see section "GastroCut" mode, page 27.
You can configure a control tone for each cutting pulse in the "GastroCut" program. This setting can only be made in the Service program, and it applies to both "Gastro LOOP" and "Gastro KNIFE".
Changing the cutting speed for "Gastro LOOP"
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for scabbing level 5/6 to swicth between
slow "Gastro LOOP" (non-accelerated), dynamic " Gastro LOOP" (medium speed; default), and fast dynamic " Gastro LOOP" (accelerated).
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Changing the cutting speed for "GastroCut Pap"
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for monopolar coagulation 10/11 to swicth between
slow "Gastro KNIFE" (non-accelerated), dynamic " Gastro KNIFE" (medium speed; default), and fast dynamic " Gastro KNIFE" (accelerated).
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Enabling or disabling the control tone for cutting pulses
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for power limitation bipolar coagulation 23/24 to
enable or disable the control tone for cutting pulses.
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 54 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 4 "Sh ow Prev Inf-No" @ 5\mod_1 27010990124 2_6.doc @ 38626 @ 3
Page 48
6 Operation
6.4.6. Menu program 4 "Show Prev Inf-No"
The errors saved in the HF device are called up in the "Show Prev Inf­No" menu program.
1. Press the power limitation key for monopolar cutting 4.
2. Press the key for scabbing level 5/6 to call up individual errors.
The error number will appear on the main display 15.
3. Press the key/display for AUTOSTART 26 to call up the last 10
errors.
The error number will appear on the main display 15.
4. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
See the service manual for additional information on menu program 6.
Pos: 55 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 5 "Hi de Fix Prog" @ 5\mod_1270 109958148_6.d oc @ 38644 @ 3
6.4.7. Menu program 5 "Hide Fix Prog"
The "Hide Fix Prog" menu program hides standard programs that are not required.
1. Press the power limitation key for monopolar cutting 4.
2. Press the power limitation key for bipolar coagulation 24 to display
all standard programs.
The message "All FixPgm active" appears on the display/main display 15.
3. Press the power limitation key for bipolar coagulation 23 to hide all
standard programs.
The message "No FixPgm active" appears on the display/main display 15. – or – Press the key/display for AUTOSTART 26 to show or hide individual standard programs.
4. Press program key 16/17 to browse the standard programs.
5. Press the power limitation key for monopolar coagulation 10 to hide
the standard program. – or – Press the power limitation key for monopolar coagulation 11 to show the standard program.
6. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 56 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 6 "Au toStart Delay" @ 5\mod_127 0110012180_6. doc @ 38662 @ 3
Page 49
6 Operation
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 49
6.4.8. Menu program 6 "Autostart Delay"
Use menu program "Autostart Delay" to change the delay time in AUTOSTART mode.
1. Press the power limitation key for monopolar cutting 4.
2. Press the power limitation key for monopolar coagulation 10/11 to
adjust the start-up delay in 50 ms increments (from 50 to 2500 ms).
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 57 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 7 "Edit Prog Names" @ 6\mod_12 98614569289_6.d oc @ 48730 @ 3
6.4.9. Menu program 7 "Edit Prog Names"
Use the menu program "Edit Prog Names" to edit the text shown on the display/main display for user-defined programs.
Press the power limitation key for monopolar cutting 4.
Editing text in the display/main display
1. Press the program key 16/17 to select the program to be edited.
2. Press the key/display 12 for moderate coagulation in order to
enable editing mode.
Both EASY indicators 19/20 will light up.
3. Press the key for scabbing level 5 or 6 to select a letter or number.
4. Press the power limitation key for monopolar coagulation 10/11 to
toggle between upper and lower case.
5. Press the power limitation key for monopolar cutting 4 to select the
next letter or character.
6. Press the power limitation key for monopolar cutting 3 to delete the
last letter or character.
7. Press the key/display for AUTOSTART 26 to save entered names.
8. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Page 50
6 Operation
Deleting the text in the display/main display
All HF parameters of the deleted programs will also be deleted.
1. Press the power limitation key for bipolar coagulation 23 and the
key/display for AUTOSTART 26 to delete the entire text entry for the selected program.
– or –
2. Press the power limitation key for bipolar coagulation 24 and the
key/display for AUTOSTART 26 to delete all entries in the freely selectable HF programs (8–99).
3. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 58 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 8 "R estore Progra ms" @ 6\mod_1 298614655305_6. doc @ 48749 @ 3
6.4.10. Menu program 8 "Restore Programs"
Menu program "Restore Programs" resets all modified parameters of standard programs in the HF device to the factory default settings.
1. Press the power limitation key for monopolar cutting 4 to reset the
standard programs (0-7).
2. Press the key/display for AUTOSTART 26 to confirm the reset.
After the restoration procedure has been completed, the program automatically returns to the menu programs.
Pos: 59 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/6 Bedi enung/Menü- Programm 9 "Pa nel Check" @ 5\ mod_127011 0192180_6.doc @ 38716 @ 3
6.4.11. Menu program 9 "Panel Check"
Menu program "Panel Check" activates all illuminated indicators and displays on the control panel.
1. Press the power limitation key for monopolar cutting 4 to activate all
lighting components.
2. Press the power limitation key for monopolar cutting 3 to return to
the menu programs.
Pos: 60 /679-BOWA/HF-Geräte/ARC 300/ 350/7 Fehler/Fe hler erkennen u nd beheben @ 5\mod_12827 23240509_6.doc @ 44179 @ 1
Page 51
7 Detecting and correcting faults
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 51
7. Detecting and correcting faults
Two types of faults can occur:
system faults  EASY monitoring faults
7.1. System errors
When a system error occurs, the error indicator 18 lights up red. "INF" appears on the "Monopolar Cut" display 2, and a one- to three-digit error code appears on the "Monopolar Coag" display 9.
Pos: 61 /679-BOWA/HF-Geräte/ARC 300/ 350/7 Fehler/UE_ Fehler-Liste - Tit el @ 6\ mod_1297678255 465_6.doc @ 48513 @ 3
7.1.1. Error list
Pos: 62 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/7 Fe hler/Fehler-Liste @ 6\mod_129 7147333340_ 6.doc @ 4825 8 @ 2
Errors not listed
Contact the service center in case of errors not shown in the error
list, see section Technical service, page 59.
If the expected change in the tissue does not occur and no error
message appears, check the parameters and the accessory connections.
Visual and acoustic signals indicating errors
The error messages are accompanied by visual and acoustic signals. Furthermore, the generator cancels activation if certain errors occur and the system is reset.
Optical and acoustic signals:
Signals
Designation
"Output error" indicator lights up red
Display and storage of the message number
Acoustic warning signal sounds
System events:
System events
Designation
System reset
Generator cancels activation
Contact the service center if the suggested corrective measure
does not eliminate the error, see section Technical service, page 59.
Page 52
7 Detecting and correcting faults
Error no. (INF)
Signals/ System events
Cause
Corrective measures 1
Defective cable or output set too low
Check/Replace the cable. Set the output higher.
2
Defective cable or output set too low
Check/Replace the cable. Set the output higher.
6
Internal error
Restart the device. If the error recurs,
contact the service center.
11
Constant power is output at a constant resistance over a longer period.
Check the connection and the
accessories.
22
Internal error
Restart the device. If the error recurs,
contact the service center.
40
Additional device ARC PLUS not connected / not switched on / offline
Switch the additional device
ARC PLUS on.
Check the connection to the interface.
43
Key on front panel pressed when switching on the unit
Switch on the device with the on/off
switch 27 while taking care not to press any other key at the same time.
44
Finger or foot switch activation is pending when the device is switched on
Switch on the device with the on/off
switch 27 while taking care not to press any other key at the same time.
45
Both keys of the handpiece have been actuated at the same time
Press only one key of the handpiece
at a time.
46
Both pedals of the double-pedal foot switch have been activated simultaneously
Activate only one pedal of the double-
pedal foot switch.
Page 53
7 Detecting and correcting faults
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 53
Error no. (INF)
Signals/ System events
Cause
Corrective measures
47
No power set for the activated output
Set the power for the activated output.
49
Connection socket activated via finger and foot switches At the end of activation a different activation signal is pending for the same socket
Activate the output via the finger or
foot switch one after the other.
61
Tissue contact is already pending upon activation of the AUTOSTART mode
Remove the instrument from the
tissue and re-activate AUTOSTART.
90
Papillotome or snare is not applied
Apply the papillotome or the snare.
91
Instrument for GastroCut application defective or short circuit
Replace the Gastro instrument. Select a new point of application.
92
Excessive low-resistance activation (e.g. in saline)
Ensure that the instrument has
sufficient contact with the tissue for coagulation or cutting before activating the device.
100-104
EASY neutral electrode error
Check the neutral electrode and the
neutral electrode cable, see section Neutral electrode
monitoring, page 30.
146
Internal error
Restart the device. If the error recurs,
contact the service center.
147
Internal error
Restart the device. If the error recurs,
contact the service center.
Page 54
7 Detecting and correcting faults
Error no. (INF)
Signals/ System events
Cause
Corrective measures
149
3-pin plug of the
handpiece has been inserted incorrectly
Handpiece possibly
defective
Monopolar 4-mm
connecting cable plugged into the right-hand monopolar output socket 29/30
Check the handpiece. Replace the handpiece. Plug the 4-mm connecting cable into
the left-hand 4-mm monopolar output socket 29/30.
150 – 255
Internal error
Restart the device. If the error recurs,
contact the service center.
Page 55
7 Detecting and correcting faults
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 55
7.2. Error Display in EASY monitoring
When working with a split neutral electrode, the following errors may occur:
EASY monitoring 20
Cause
Indicator
Corrective measures
Blinks yellow
Significant increase in resistance
Heat may develop under the neutral electrode depending on indication
–
Application need not be terminated.
Switches from green to continuous red
When the monopolar current is activated, a significant problem occurs
An acoustic signal sounds. A corresponding "INF - xxx" message appears on the "Monopolar Cut" 7-segment display 2 and the "Monopolar Coag" 7-segment display 9.
Check the neutral
electrode and the neutral electrode cable, see section Neutral
electrode monitoring, page 30
Check the neutral
electrode cable for proper contact and external damage.
Loosening electrode
An acoustic signal sounds. A corresponding "INF – xxx" message appears. The device disables the monopolar outputs to sockets 29/30 and 31.
Correct the position of
the neutral electrode. In the case of continuing error messages, replace the neutral electrode.
Pos: 63 /679-BOWA/HF-Geräte/ARC 300/ 350/8 Aufber eitung/UE_Aufbereit ung @ 4\mo d_126104069 1288_6.doc @ 3 5166 @ 1
Page 56
8 Preparation
8. Preparation
Pos: 64 /679-BOWA/HF-Geräte/ARC 300/ 350/8 Aufber eitung/UE_Desinfizier en und Reinig en - Titel @ 6\mod_12976 77678058_6.doc @ 48477 @ 2
8.1. Disinfection and cleaning
Pos: 65 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/8 Aufb ereitung/Desinfizi eren und Rei nigung @ 6\ mod_12970728 81168_6.doc @ 48123 @
NOTE
Incorrect handling of the HF device can cause damage to the unit!
Never sterilize the ARC 250 / 303 device. Instead, clean or
disinfect it.
WARNING
Risk of electric shock and fire!
Unplug the power connection before cleaning the device. For cleaning surfaces, use the approved cleaning
agents/disinfectants only as specified by the manufacturer.
Ensure that no liquid penetrates the device. Ensure that the AUTOSTART function is deactivated.
1. Apply the cleaning agent and disinfectant.
2. Wipe the agent off with a sponge moistened with clean water or
with a cloth.
3. Dry the device using a clean, lint-free cloth.
Pos: 66 /679-BOWA/HF-Geräte/ARC 300/ 350/9 Wartung/U E_Wartung/R eparatur @ 4\m od_12610406 98397_6.doc @ 3 5204 @ 1
Page 57
9 Maintenance and repair
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 57
9. Maintenance and repair
Pos: 67 /679-BOWA/HF-Geräte/ARC 300/ 350/9 Wartung/ Wartung/10.2 Re paratur @ 6\ mod_129741 7941696_6.doc @ 48415 @ 23 2
9.1. Maintenance
DANGER
Infection hazard!
Carry out a surface disinfection and wrap the device in addition to
the shipping packaging material before allowing the device to leave the hospital or office to avoid spreading germs and infections.
Check the device, the device trolley and the accessories (e.g. foot
switch, cable) after each use for damage or defects. In particular, make sure that the insulation is intact on all cables.
Do not use any damaged device, damaged device trolley or
damaged accessories.
Replace defective accessories immediately. Have the safety inspection for the device performed once a year.
Please consult and comply with the respective service instructions for additional technical information.
9.1.1. Safety inspection
Safety inspections must be performed once a year. The device and accessories may be inspected only by persons
who have the required training, knowledge or experience and who can perform the inspection independently.
With regard to the safety inspection, you must comply with the
country-specific rules and regulations.
The inspector documents the inspection results and measured values corresponding to the printed inspection protocol.
In the case of severe deviations from the values of the attached final acceptance report, or if the specified maximum values were exceeded:
Send the HF device to the service center, see section Technical
service, page 59.
Page 58
9 Maintenance and repair
9.2. Repairs
NOTE
You can damage the HF device by doing your own repairs and modifications of medical equipment!
If a repair is necessary, have it done only by the service center
specified below.
Never carry out any repairs yourself.
BOWA is liable for safety, reliability and performance of the HF device under the following conditions:
full compliance with all instructions regarding the installation
and proper use for the intended purpose contained in this operating manual was maintained.
changes, repairs, new settings and similar procedures were
carried out only by persons authorized to do this work by BOWA.
the electrical installations in the relevant room meet the local
requirements and statutory provisions.
Fast and satisfactory repairs can only be guaranteed when all required data have been supplied in full.
The following information is required for returning the device:
complete address  model number  serial number  software version
Describe the problem, the appropriate application and the
accessories used. – or – Describe the repairs to be made.
Pos: 68 /679-BOWA/HF-Geräte/ARC 300/ 350/9 Wartung/T echnischer Ser vice @ 7\ mod_1308724347 379_6.doc @ 52298 @ 2
Page 59
9 Maintenance and repair
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 59
9.3. Technical service
Contact the following service center for maintenance and repair work: BOWA-electronic GmbH & Co. KG Heinrich-Hertz-Strasse 4–10 72810 Gomaringen, Germany Phone +49 (0) 7072-6002-0 Fax +49 (0) 7072-6002-33 E-Mail [email protected] or visit our website: www.bowa-medical.com
Pos: 69 /679-BOWA/HF-Geräte/ARC 300/ 350/10 Lageru ng/UE_Lagerung @ 4\mod_12 61040711366 _6.doc @ 35261 @ 1
Page 60
10 Storage
10. Storage
Pos: 70 /679-BOWA/HF-Geräte/ARC 300/ 350/10 Lageru ng/Lagerung @ 4\mod_12610 40715569_6.doc @ 35280 @
If you store the HF device for longer that one year, pay specific
attention to the indicators during automatic functional testing, see
section Functional test, page 37.
Clean the HF device thoroughly before you put it into storage. Store the HF device in a clean, dry place in accordance with the
storage conditions.
Storage conditions:
Temperature: -20 °C to +50 °C  Relative humidity 0% to 75 %, non-condensing  Atmospheric pressure: 500 hPa to 1600 hPa
Pos: 71 /679-BOWA/HF-Geräte/ARC 300/ 350/11 Technisc he Daten/UE _Technische Date n @ 4\mod _1261040719522 _6.doc @ 352 99 @ 1
Page 61
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 61
11. Technical specifications
Pos: 72 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/11 T echnische Daten/T echnische M erkmale @ 7\ mod_130873045 7223_6.doc @ 52355 @ 2
11.1. Technical specifications of ARC 250 and ARC 303 HF devices
Insulation type / Classification
EMC
IEC 60601-1-2
Level of protection provided by the housing
IP 21
Protection class according to EN 60601-1
I
Type of application component as specified in EN 60601-1
CF
Compliance with standards
IEC 60601-1: 2005, IEC 60601-1-2: 2007, IEC 60601-2-2: 2009, ISO 14971: 2007, ISO 13485: 2003 + Cor.1_2009
Classification as per EC Directive 93/42/EEC
IIb
Power connection
Power consumption in standby mode
25 VA
Line frequency
50/60 Hz
Maximum power consumption with 300 W HF output power
500 VA Connection for potential equalization line
Yes
Voltage range: 230 V
Input voltage range
198 V to 260 V
Current consumption in standby mode
110 mA
Current consumption at maximum HF output
3.0 A
Mains fuses
2 x 3.15 A slow-blow
Voltage range: 100 V, 115 V
Input voltage range
90 V to 130 V
Current consumption in standby mode
220 mA
Current consumption at maximum HF output
6.0 A
Mains fuses
2 x 6.3 A slow-blow
Dimensions and weight
External dimensions: width x height x depth (mm)
430 x 150 x 400
Weight
Approx. 10 kg
Page 62
11 Technical specifications
Programs
Number of programs in the device
100
Standard programs, factory set
Individually programmable
Program number and information shown on the display
Monitoring of the neutral electrode
EASY: Electrode Application System
Indicator for one-piece or split electrode on the front panel
Transition resistance between the individual surfaces (CQM) of split neutral elecrodes shown on the display
Lead resistance shown on the display when using a one-piece neutral electrode (CM continuity monitor)
Maximum resistance between the sections of split electrodes (CQM)
999 Ω
Maximum allowable resistance between the sections of split electrodes
220 Ω
Warning signal in the case of risk under the neutral electrode
Visual, acoustic Warning indicator as a text on the display:
Safety features
ISSys: Integrated Safety System
Continuous monitoring of the HF leakage current with error messages
Monitoring of the dosage, error message on the display
Continuous self-test
Continuous status indication on the display
Display of operating errors on the display
Display of system errors on the display
Documentation
Recording and storage of data in the device
Error statuses
Operating errors
Retrieval of this data via the display
Page 63
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 63
Communication
External interface for communication with the ARC PLUS
External PC interface using BOWA software
––
Service support using BOWA software
––
Service support
Service support integrated in the device via service programs
Service support via ISSys
Cooling
Convection
Temperature-controlled fan
––
Duty factor
Intermittent
10 s / 30 s (on/off)

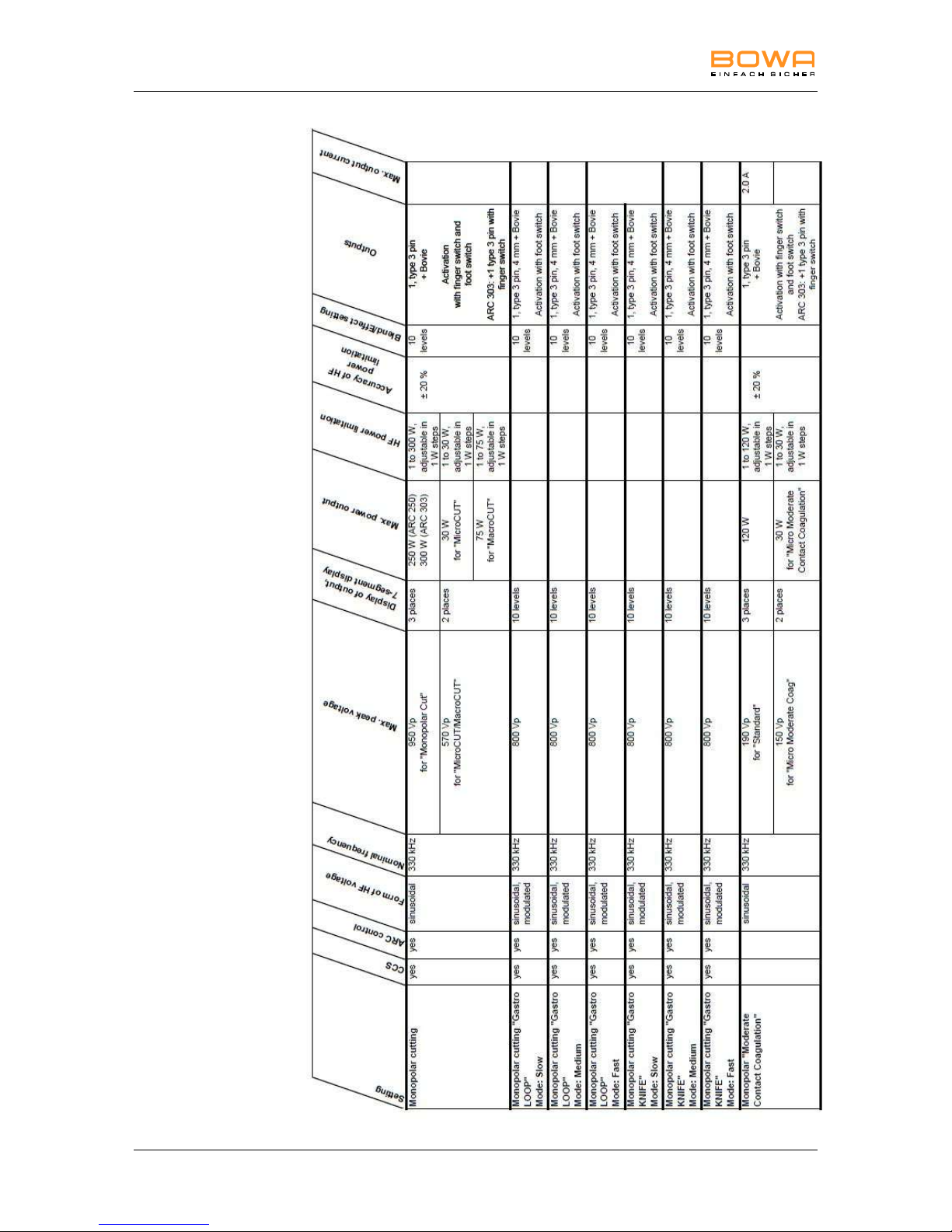

Page 64
11 Technical specifications
Page 65
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 65
Page 66
11 Technical specifications
11.2. Power, voltage and current charts
Setting
Program
Monopolar CUT
0, 3, 8-99

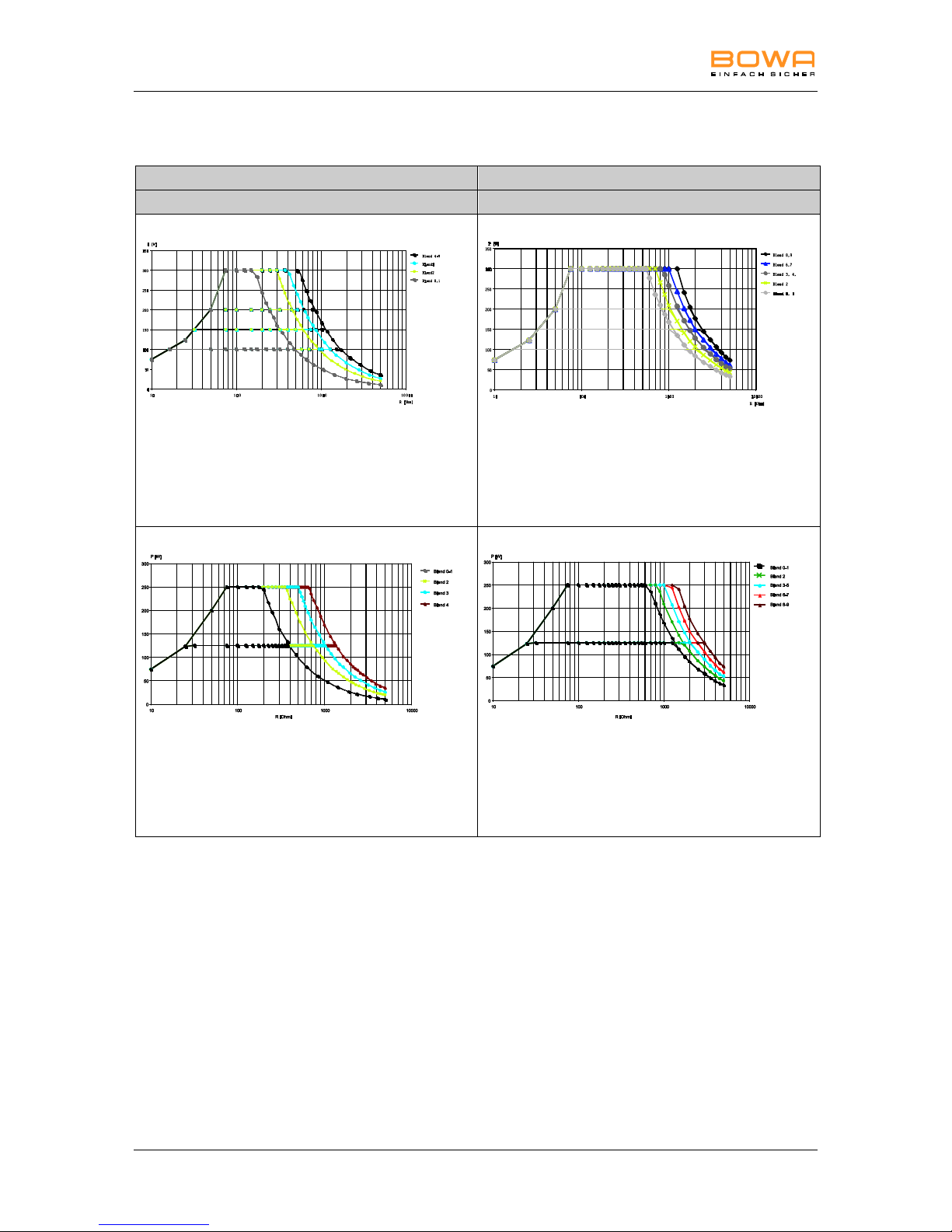

Values measured on ohmic resistances without arc formation for ARC 303
Output power P [W] versus load
resistance R [Ω] with "Monopolar Cut" settings 300 W, 200 W, 150 W and 100 W
Values measured on ohmic resistances with prior arc formation for ARC 303
Output power P [W] versus load
resistance R [Ω] with "Monopolar Cut" settings 300 W, 200 W, 150 W and 100 W
Values measured on ohmic resistances without arc formation for ARC 250
Output power P [W] versus load
resistance R [Ω] with "Monopolar Cut" settings "Monopolar Cut" = 250 W/125 W
Values measured on ohmic resistances with prior arc formation for ARC 250
Output power P [W] versus load
resistance R [Ω] with "Monopolar Cut" settings "Monopolar Cut" = 250 W/125 W
Page 67
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 67
Setting
Program
Monopolar CUT
0, 3, 8-99
Output power P [W] versus "Monopolar
Cut" setting. Rated load resistance = 500 Ω
Blend
HF voltage U [Vp]
0
590
1
590 2 680 3 760 4 760
5
760
6
880 7 880 8 950 9 950
Maximum HF output voltage U [Vp]
versus "Monopolar Cut" setting (no load)
Page 68
11 Technical specifications
Setting
Program
Monopolar MicroCUT
2
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "MicroCUT" settings 30 W and 15 W
Ouptut power P [W] versus "MicroCUT"
setting. Rated load resistance = 500 Ω.
Blend
HF voltage U [Vp]
0
20
1
280
2
310 3 340 4 370 400
6
430
7
470 8 510 9 570
Maximum HF output voltage U [Vp]
versus Blend setting (no load)
Page 69
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 69
Setting
Program
Monopolar MacroCUT
1
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "MacroCUT" settings 75 W and 38 W
Values measured on ohmic resistances
Output power P [W] versus
"MacroCUT" setting. Rated load resistance = 500 Ω
Blend
HF voltage [Vp]
0
260 1 280 2 310 3 340 4 370
5
400
6
430
7
470 8 510 9 570
Maximum HF output voltage U [Vp]
versus Blend setting (no load)
Page 70
11 Technical specifications
Setting
Program
Gastro LOOP
6
Values measured on ohmic resistances
Output power P [W] versus rated load
resistance R [Ω] with "Gastro LOOP", "Blend 0–9" settting, COAG phase
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Gastro LOOP", "Blend 0–9" setting, CUT phase
Blend
Coag share
in W
Cut share
in W
0
36
370 1 36
370 2 36
370
3
36
370
4
36
370 5 36
370 6 36
370 7 36
370 8 36
370 9 36
370
Output power P [W] versus Blend
setting for "Gastro LOOP". Rated load resistance: Coag 75 Ω, Cut 500 Ω
Blend
HF voltage [Vp]
0
800 1 800 2 800
3
800
4
800 5 800 6 800 7 800 8 800 9 800
HF output voltage U [Vp] versus
"Gastro LOOP" "Blend 0–9" (no load)
The short-term peak power exceeds 400 W, but this is permissible because the mean value over 1 second is below 400 W.
Page 71
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 71
Setting
Program
Gastro KNIFE
7
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Gastro KNIFE", "Blend 0–9" setting, COAG phase
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Gastro KNIFE" setting during Cut phase
Blend
Coag share
in W
Cut share
in W
0
11
390 1 20
390 2 22
390 3 22
390
4
22
390
5
22
390
6
22
390
7
22
390 8 22
390 9 22
390
Output power P [W] versus Blend
setting for "Gastro KNIFE". Rated load resistance: Coag 75 Ω, Cut 500 Ω
Blend
HF voltage [Vp]
0
800 1 800 2 800 3 800
4
800
5
800
6
800
7
800 8 800 9 800
HF output voltage U [Vp] versus
"Gastro KNIFE", "Blend 0–9" (no load)
The short-term peak power exceeds 400 W, but this is permissible because the mean value over 1 second is below 400 W.
Page 72
11 Technical specifications
Setting
Program
Moderate COAG Standard
0-1, 3-4, 6-99
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Moderate COAG" Standard settings 120 W and 60 W
Output power P [W] versus "Moderate
COAG" Standard setting. Rated load resistance = 75 Ω
HF output voltage U [Vp] versus
"Moderate COAG" Standard setting (no load)
Page 73
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 73
Setting
Program
Micro Moderate COAG
2
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Micro Moderate COAG" settings 30 W and 15 W
Output power P [W] versus "Micro
Moderate COAG" setting. Rated load resistance = 125
HF output voltage U [Vp] versus "Micro
Moderate COAG" setting (no load)
Page 74
11 Technical specifications
Setting
Program

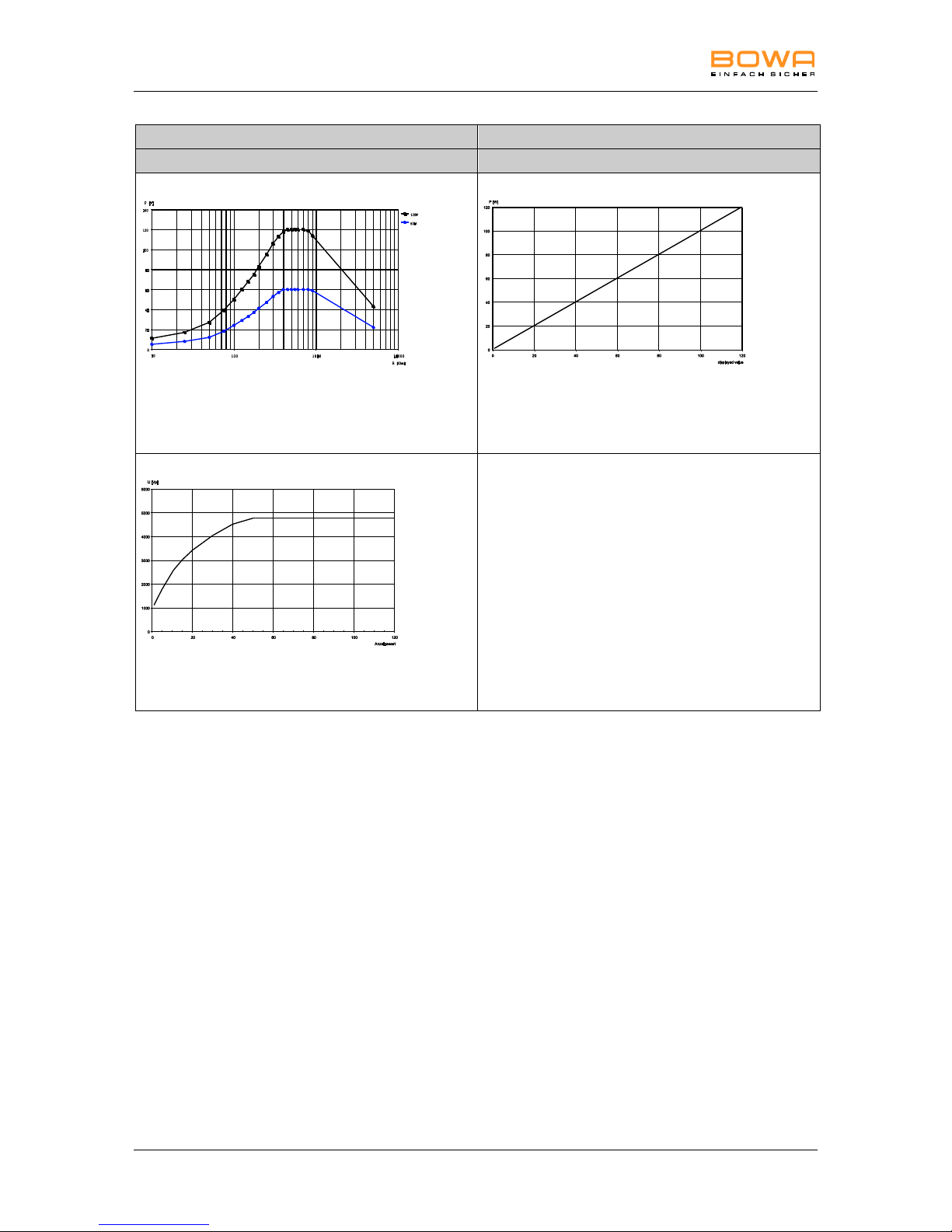

Forced COAG Non Cutting
0-1, 3-4, 8-99
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Forced COAG Non Cutting" settings 120 W and 60 W
Output power P [W] versus "Forced
COAG Non Cutting" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"Forced COAG Non Cutting" setting (no load)
Page 75
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 75
Setting
Program
Forced COAG Cutting
0-1, 3-4, 8-99
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Forced COAG Cutting" settings 75 W and 38 W
Output power P [W] versus "Forced
COAG Cutting" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"Forced COAG Cutting" setting (no load)
Page 76
11 Technical specifications
Setting
Program
Forced COAG Mixed
0-1, 3-4, 8-99
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Forced COAG Mixed" settings 120 W and 60 W
Output power P [W] versus "Forced
COAG Mixed" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"Forced COAG Mixed" setting (no load)
Page 77
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 77
Setting
Program
Forced COAG Micro Cutting
2
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Forced COAG Micro Cutting" settings 30 W and 15 W
Output power P [W] versus "Forced
COAG Micro Cutting" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"Forced COAG Micro Cutting" setting (no load)
Page 78
11 Technical specifications
Setting
Program
Forced COAG Micro Non Cutting
2
Values measured on ohmic resistances Output power P [W] versus load
resistance R [Ω] with "Forced COAG Micro Non Cutting" settings 30 W and 15 W
Output power P [W] versus "Forced
COAG Micro Non Cutting" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"Forced COAG Micro Non Cutting" setting (no load)
Page 79
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 79
Setting
Program
Forced COAG Micro Mixed
2
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Forced COAG Micro Mixed" settings 30 W and 15 W
Output power P [W] versus "Forced
COAG Micro Mixed" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"Forced COAG Micro Mixed" setting (no load)
Page 80
11 Technical specifications
Setting
Program
GastroCut ForcedCOAG
6, 7
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "GastroCut ForcedCOAG" settings 50 W and 25 W
Output power P [W] versus "GastroCut
ForcedCOAG" setting. Rated load resistance = 500
HF output voltage U [Vp] versus
"GastroCut ForcedCOAG" setting (no load)
Page 81
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 81
Setting
Program
Micro Spray COAG
2
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Micro Spray COAG" settings 30 W and 15 W
Output power P [W] versus "Micro
Spray COAG" setting. Rated load resistance = 500
HF output voltage U [Vp] versus "Micro
Spray COAG" setting (no load)
Page 82
11 Technical specifications
Setting
Program
Spray COAG
0, 1, 3, 8-99
Argon-Flex Spray COAG I
5-7
Argon Spray Open COAG II
4
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Spray COAG", "Argon-Flex Spray COAG I", "Argon Spray COAG II" settings 120 W and 60 W
Output power P [W] versus "Spray
COAG", "Argon-Flex Spray COAG I", "Argon Spray COAG II" setting. Rated load resistance = 500
HF output voltage U [Vp] versus "Spray
COAG" setting (no load)
HF output voltage U [Vp] versus
"Argon-Flex Spray COAG" setting (no load)
HF output voltage U [Vp] versus "Argon
Spray COAG II" setting
Page 83
11 Technical specifications
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 83
Setting
Program
Bipolar COAG
0, 1, 3-99
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Bipolar" settings 120 W and 60 W
Output power P [W] versus "Bipolar
COAG" setting. Rated load resistance = 75
HF output voltage U [Vp] versus
"Bipolar COAG" setting (no load)
Page 84
11 Technical specifications
Setting
Program
Bipolar Micro COAG
2
Values measured on ohmic resistances
Output power P [W] versus load
resistance R [Ω] with "Bipolar Micro COAG" settings 30 W and 15 W
Output power P [W] versus " Bipolar
Micro COAG" setting. Rated load resistance = 75
HF output voltage U [Vp] versus
"Bipolar Micro COAG" setting (no load)
Pos: 74 /679-BOWA/HF-Geräte/ARC 300/ 350/12 Zubehör/ Ersatzteile/UE _Zubehör/Ersatzt eile @ 4\m od_1261040777 053_6.doc @ 3 5356 @ 1
Page 85
12 Accessories and replacement parts
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 85
12. Accessories and replacement parts
Pos: 75 /679-BOWA/HF-Geräte/ARC 300/ 350/12 Zubehör/ Ersatzteile/Zub ehör/Ersatzteil e @ 6\mod_12 97077814480 _6.doc @ 481 80 @
Original BOWA accessories are suitable for use with the ARC Series and ARC PLUS devices. When using accessories made by other manufacturers, the user must ensure that they are designed for and compatible with the maximum HF peak voltage of the HF device.
For the use and correct preparation of the autoclavable devices, compliance with the relevant instruction manuals accompanying these devices is required.
Detailed information on accessories and replacement parts is available in the current accessories catalog.
Pos: 76 /679-BOWA/HF-Geräte/ARC 300/ 350/13 EMV/UE _EMV @ 4\ mod_12610408163 97_6.doc @ 35394 @ 1
Page 86
13 EMC
13. EMC
Pos: 77 /679-BOWA/HF-Geräte/ARC 200/ 250/300e/13 EM V/EMV @ 6\m od_1297077875 715_6.doc @ 48199 @ 2
13.1. Guidelines and manufacturer's declaration in accordance with IEC 60601-1-2, Section 6.8.3.201
Electromagnetic interference (IEC 60601-1-2, Table 201)
The ARC 250 and ARC 303 are intended to be used in an electromagnetic environment as described below. The customer or user of the ARC 250 and ARC 303 should ensure that these devices are operated in such an environment.
Interference measurements
Interference measurements
Interference measurements
HF emissions as per CISPR 11
Group 2
The ARC 250 and ARC 303 must emit electromagnetic energy in order to perform their intended functions. Nearby electronic devices may be affected.
HF emissions as per CISPR 11
Class B
The ARC 250 and ARC 303 devices are suitable for use in facilities other than those suitable for a residental environment or the like connected directly to the public power grid, which also supplies power to buildings used for residential purposes.
Emission of harmonics as per IEC 61000-3-2
Class A
Emission of voltage fluctuations/flicker as per IEC 61000-3-3
Conforms
Page 87
13 EMC
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 87
Electromagnetic resistance to interference (IEC 60601-1-2, Table 202)
The ARC 250 and ARC 303 are intended to be used in the electromagnetic environment described below. The customer or user of the ARC 250 and ARC 303 should ensure that these devices are operated in such an environment.
Tests for resistance to interference
Tests for resistance to interference
Tests for resistance to interference
Tests for resistance to interference
Electrostatic discharge (ESD) according to IEC 61000-4-2
± 6 KV contact discharge
± 6 KV contact discharge
Floors should be made of wood or cement or covered with ceramic tiles. If the floor is covered with synthetic material, the relative humidity must be at least 30 %.
± 8 KV air discharge
± 8 KV air discharge Fast transient electrical
interference (bursts as per IEC 61000-4-4
± 2 kV for power supply lines
± 2 kV for power supply lines
The quality of the mains power should correspond to that of a typical business or hospital environment.
± 1 kV for input and output lines
± 1 kV for input and output lines
Surges as per IEC 61000-4-5
± 1 kV voltage outer conductor-outer conductor
± 1 kV voltage outer conductor-outer conductor
The quality of the mains power should correspond to that of a typical business or hospital environment.
± 2 kV voltage outer conductor to ground
± 2 kV voltage outer conductor to ground
Voltage collapses, brief interruptions and fluctuations in the power supply as per IEC 61000-4-11
< 5 % UT for ½ period (> 95 % collapse) 40 % UT for 5 periods (60 % collapse) 70 % UT for 25 periods (30 % collapse) < 5 % UT for 5 s (> 95 % collapse)
< 5 % UT for ½ period (> 95 % collapse) 40 % UT for 5 periods (60 % collapse) 70 % UT for 25 periods (30 % collapse) < 5 % UT for 5 s (> 95 % collapse)
The quality of the mains power should correspond to that of a typical business or hospital environment. If the user of the ARC 200, ARC 250, ARC 300e and ARC 303 requires it to continue operating even in the event of mains power dropout, it is recommended to use an uninterruptable power source or battery to supply power the ARC 250 and ARC 303.
Note: UT is the AC supply voltage prior to the application of the test level.
Page 88
13 EMC
Electromagnetic resistance to interference (IEC 60601-1-2, Table 204)
The ARC 250 and ARC 303 are intended to be used in the electromagnetic environment described below. The customer or user of the ARC 250 and ARC 303 should ensure that these devices are operated in such an environment.
Tests for resistance to interference
Tests for resistance to interference
Tests for resistance to interference
Tests for resistance to interference
Conducted HF interference as per IEC 61000-4-6
3 Vrms value 150 kHz to 80 Hz
10 V
Portable and mobile wireless devices, as well as their cables, should not be used within the recommended protective distance from the ARC 250 and ARC 303 as calculated using the formula appropriate to the transmission frequency.
Recommended protective working distance:
d = 0.35 × √P d = 0.35 × √P for 80 MHz to 800 GHz d = 0.7 × √P for 800 MHz to 2.5 GHz where P is the nominal transmitter output in
watts (W) specified by the transmitter manufacturer and d is the recommended protective distance in meters (m).
The field strength of stationary transmitters as determined by on-site measurementsa should be lower than the compliance levelb at all frequencies.
Interference is possible in the vicinity of devices that bear the following symbol.
Radiated HF interference as per IEC 61000-4-3
3 V/m 80 MHz to 2.5 Hz
10 V/m
Note 1
The higher frequency range applies to 80 MHz and 800 MHz.
Note 2
These guidelines may not be applicable in all cases. The propagation of electromagnetic waves is influenced by their absorption and reflection by buildings, objects and people.
a
Field strengths from stationary transmitters such as base stations for wireless telephones and land mobile radios, amateur radio, AM and FM radio broadcasting and TV broadcasting cannot be predicted theoretically with accuracy. A study of the electromagnetic phenomena at the location should be done to determine the electromagnetic environment resulting from stationary transmitters. If the measured field strength at the location where the ARC 250 and ARC 303 is used exceeds the aforementioned compliance level, the ARC 250 and ARC 303 should be monitored to verify that it is operating as intended. If unusual performance characteristics are observed, additional measures may be necessary, such as repositioning or relocation of the ARC 250 and ARC 303.
b
The field strength should be lower than 10 V/m over the frequency range of 150 kHz to 80 MHz.
Page 89
13 EMC
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 89
Recommended protective distances between portable and mobile HF telecommunications devices and the ARC 250 and ARC 303 (IEC 60601-1-2, Table 206)
The ARC 250 and ARC 303 are designed to be used in an electromagnetic environment in which HF interference is controlled. The customer or user of the ARC 250 and ARC 303 can help avoid electromagnetic interference by complying with the minimum distance between portable and mobile HF telecommunication devices (transmitters) and the ARC 250 and ARC 303. This distance depends on the output power of the communication device concerned, as specified below.
Nominal transmitter output (W)
Protective distance (m) depending on transmission frequency
150 kHz to 80 MHz d = 0.35 × √P
80 MHz bis 800 MHz d = 0.35 × √P
800 MHz to 2.5 GHz d = 0.7 × √P
0.01
0.01
0.01
0.01
0.1
0.1
0.1
0.1
1 1 1
1
10
10
10
10
100
100
100
100
For transmitters whose maximum nominal output is not specified in the table above, the recommended protective distance d in meters (m) can be determined using the equation in the corresponding column, where P is the maximum nominal output power of the transmitter in watts (W) as specified by the transmitter manufacturer.
Note 1
The higher frequency range applies in case of 80 MHz and 800 MHz.
Note 2
These guidelines may not be applicable in all cases. The propagation of electromagnetic waves is influenced by their absorption and reflection by buildings, objects and people.
Pos: 78 /679-BOWA/HF-Geräte/ARC 300/ 350/14 Entsorgu ng/UE_Entsorgu ng @ 4\mod _1261040825 225_6.doc @ 35 432 @ 1
Page 90
14 Disposal
14. Disposal
Pos: 79 /679-BOWA/HF-Geräte/ARC 300/ 350/14 Entsorgu ng/Entsorgung @ 4\mod_1 261040829522_6. doc @ 35451 @
Always comply with the national regulations of the relevant country when disposing of or recycling the device or its components.
Symbol
Designation
A device marked with this symbol must be put into the separate waste collection for electrical and electronic devices. Disposal is carried out free of charge by the manufacturer within the European Union.
If you have any questions regarding product disposal, contact the
service center, see section Technical service, page 59.
=== Ende der Liste für Textmarke Inhalt ===
Page 91
Index
900-301_IFU-V2.2_11316-S0-20131023-EN Operating Manual ARC 250 / 303 91
Index
"Cut" mode ....................................................... 25
ARC Control ..................................................... 30
ARC Control technology .................................. 30
AUTOSTART ................................................... 28
Children's electrodes ....................................... 31
Connecting the foot switch .............................. 36
Disinfection and cleaning ................................. 56
EASY alarm error indicators ............................ 55
Electrode handle .............................................. 36
EMC ................................................................. 86
Error list ........................................................... 51
Foot switch ....................................................... 36
Foot switch operation ...................................... 31
General safety instructions .............................. 17
Key ................................................................... 46
Maintenance .................................................... 57
Menu programs................................................ 45
Monopolar modes ........................................... 25
National language ........................................... 46
Neutral electrode ............................................. 22
Neutral electrode cable ................................... 36
Neutral electrode monitoring ........................... 30
Personal safety instructions ............................ 18
Positioning ...................................................... 19
Power limitation ............................................... 49
Power, voltage and current charts .................. 66
Preparation of the accessories ....................... 56
Program overview ........................................... 39
Repairs ............................................................ 58
Safety inspection (STK) .................................. 57
System error indicators ................................... 51
Technical specifications of ARC 250 and
ARC 303 HF devices ................................ 61
Volume ............................................................ 46
Page 92
0123
900-301_IFU-V2.2_11316-S0-20131023-EN
Printed in Germany Subject to technical and design changes Copyright by BOWA-electronic, Gomaringen │ Germany
BOWA-electronic GmbH & Co. KG Heinrich-Hertz Strasse 4–10 D-72810 Gomaringen │ Germany
Phone: +49 (0) 7072-6002-0 Fax: +49 (0) 7072-6002-33 info@bowa-medical.com │ www.bowa-medical.com
CE marked according to Medical Device 93/42/EWG
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
