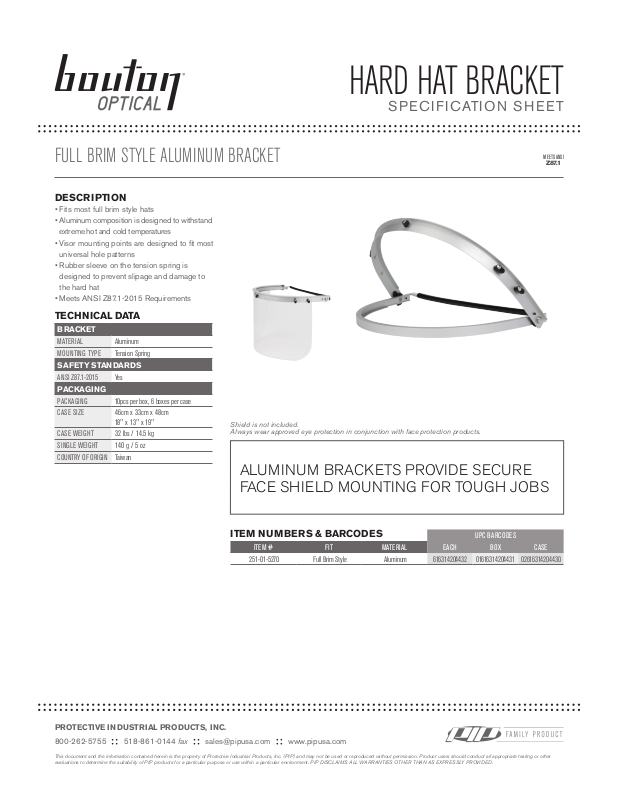

HARD HAT BRACKET
SPECIFICATION SHEET
FULL BRIM STYLE ALUMINUM BRACKET
DESCRIPTION
• Fits most full brim style hats
• Aluminum composition is designed to withstand
extreme hot and cold temperatures
• Visor mounting points are designed to fit most
universal hole patterns
• Rubber sleeve on the tension spring is
designed to prevent slipage and damage to
the hard hat
• Meets ANSI Z87.1-2015 Requirements
TECHNICAL DATA
BRACKET
MATERIAL Aluminum
MOUNTING TYPE Tension Spring
SAFETY STANDARDS
ANSI Z87.1-2015 Yes
PACKAGI NG
PACKAGING 10pcs per box, 6 boxes per case
CASE SIZE 46cm x 33cm x 48cm
CASE WEIGHT 32 lbs / 14.5 kg
SINGLE WEIGHT 140 g / 5 oz
COUNTRY OF ORIGIN Taiwan
18" x 13" x 19"
Shield is not included.
Always wear approved eye protection in conjunction with face protection products.
ALUMINUM BRACKETS PROVIDE SECURE
FACE SHIELD MOUNTING FOR TOUGH JOBS
MEETS A NSI
Z87.1
ITEM NUMBERS & BARCODES
ITEM # FIT MATERIAL EACH BOX CASE
251-01-5270 Full Brim Style Aluminum 616314204432 01616314204431 02616314204430
PROTECTIVE INDUSTRIAL PRODUCTS, INC.
This document and the information contained herein is the property of Protective Industrial Products, Inc. (PIP) and may not be used or reproduced without permission. Product users should conduct all appropriate testing or other
evaluations to determine the suitability of PIP products for a particular purpose or use within a particular environment. PIP DI SCLAIMS ALL WARRANTI ES OTHER THAN AS EXPRESSLY PROVIDED.
UPC BARCODES
