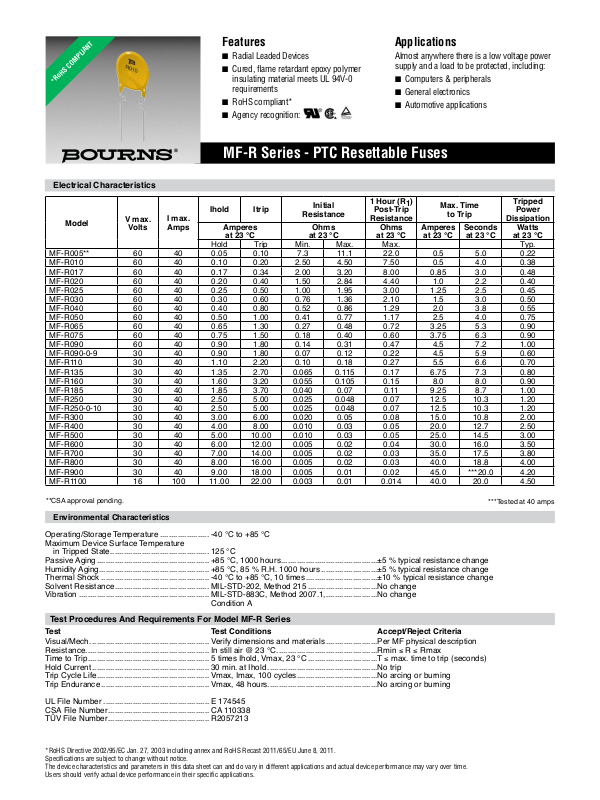

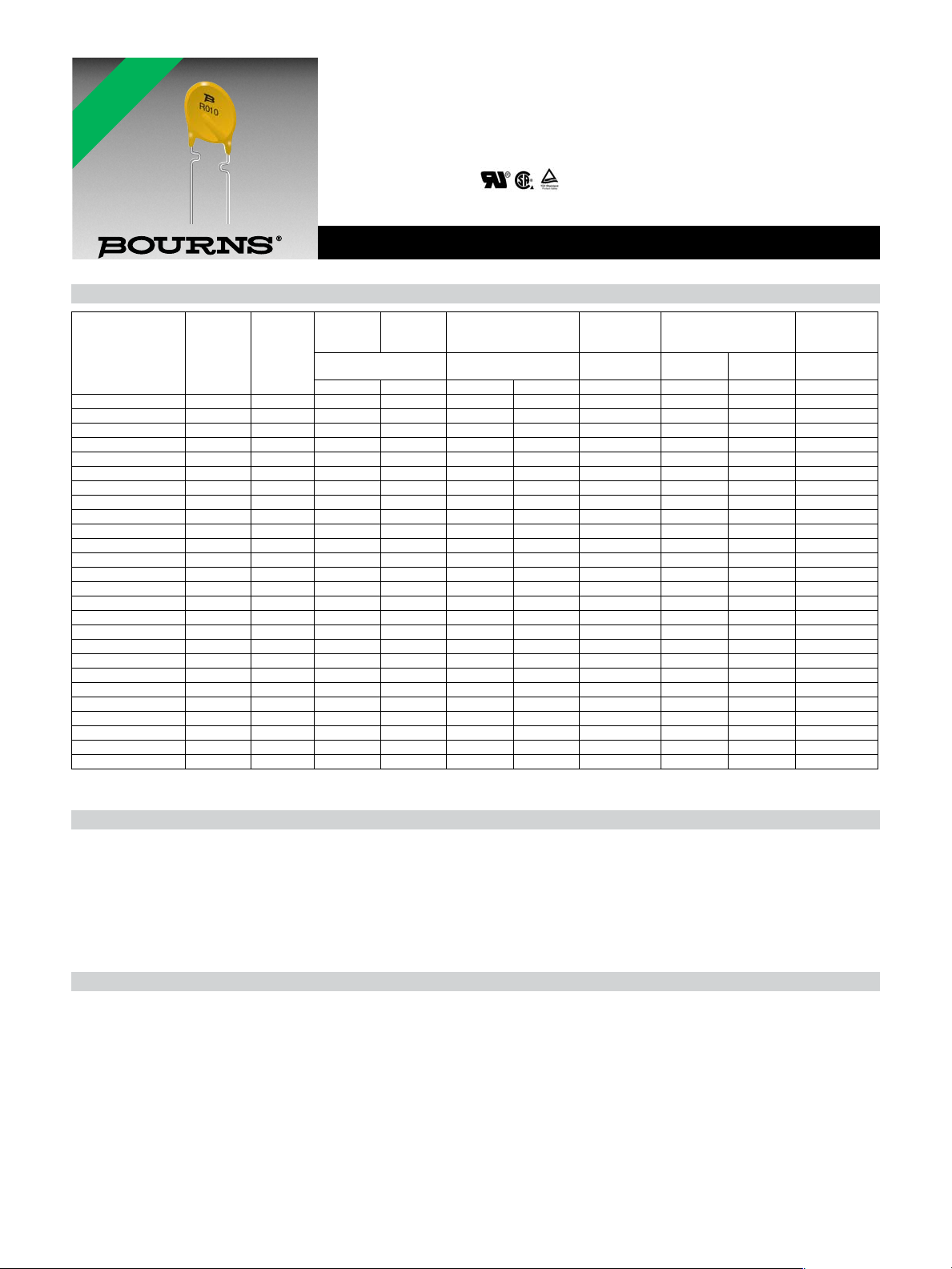

Page 1
*RoHS COMPLIANT
Features
■ Radial Leaded Devices
■ Cured, fl ame retardant epoxy polymer
insulating material meets UL 94V-0
requirements
■ RoHS compliant*
■ Agency recognition:
Applications
Almost anywhere there is a low voltage power
supply and a load to be protected, including:
■ Computers & peripherals
■ General electronics
■ Automotive applications
MF-R Series - PTC Resettable Fuses
Electrical Characteristics
Model
MF-R005** 60 40 0.05 0.10 7.3 11.1 22.0 0.5 5.0 0.22
MF-R010 60 40 0.10 0.20 2.50 4.50 7.50 0.5 4.0 0.38
MF-R017 60 40 0.17 0.34 2.00 3.20 8.00 0.85 3.0 0.48
MF-R020 60 40 0.20 0.40 1.50 2.84 4.40 1.0 2.2 0.40
MF-R025 60 40 0.25 0.50 1.00 1.95 3.00 1.25 2.5 0.45
MF-R030 60 40 0.30 0.60 0.76 1.36 2.10 1.5 3.0 0.50
MF-R040 60 40 0.40 0.80 0.52 0.86 1.29 2.0 3.8 0.55
MF-R050 60 40 0.50 1.00 0.41 0.77 1.17 2.5 4.0 0.75
MF-R065 60 40 0.65 1.30 0.27 0.48 0.72 3.25 5.3 0.90
MF-R075 60 40 0.75 1.50 0.18 0.40 0.60 3.75 6.3 0.90
MF-R090 60 40 0.90 1.80 0.14 0.31 0.47 4.5 7.2 1.00
MF-R090-0-9 30 40 0.90 1.80 0.07 0.12 0.22 4.5 5.9 0.60
MF-R110 30 40 1.10 2.20 0.10 0.18 0.27 5.5 6.6 0.70
MF-R135 30 40 1.35 2.70 0.065 0.115 0.17 6.75 7.3 0.80
MF-R160 30 40 1.60 3.20 0.055 0.105 0.15 8.0 8.0 0.90
MF-R185 30 40 1.85 3.70 0.040 0.07 0.11 9.25 8.7 1.00
MF-R250 30 40 2.50 5.00 0.025 0.048 0.07 12.5 10.3 1.20
MF-R250-0-10 30 40 2.50 5.00 0.025 0.048 0.07 12.5 10.3 1.20
MF-R300 30 40 3.00 6.00 0.020 0.05 0.08 15.0 10.8 2.00
MF-R400 30 40 4.00 8.00 0.010 0.03 0.05 20.0 12.7 2.50
MF-R500 30 40 5.00 10.00 0.010 0.03 0.05 25.0 14.5 3.00
MF-R600 30 40 6.00 12.00 0.005 0.02 0.04 30.0 16.0 3.50
MF-R700 30 40 7.00 14.00 0.005 0.02 0.03 35.0 17.5 3.80
MF-R800 30 40 8.00 16.00 0.005 0.02 0.03 40.0 18.8 4.00
MF-R900 30 40 9.00 18.00 0.005 0.01 0.02 45.0 ***20.0 4.20
MF-R1100 16 100 11.00 22.00 0.003 0.01 0.014 40.0 20.0 4.50
V max.
Volts
I max.
Amps
Ihold Itrip
Amperes
at 23 °C
Hold Trip Min. Max. Max. Typ.
Initial
Resistance
Ohms
at 23 °C
1 Hour (R1)
Post-Trip
Resistance
Ohms
at 23 °C
Max. Time
to Trip
Amperes
at 23 °C
Seconds
at 23 °C
Tripped
Power
Dissipation
Watts
at 23 °C
**CSA approval pending.
Environmental Characteristics
Operating/Storage Temperature ...................... -40 °C to +85 °C
Maximum Device Surface Temperature
in Tripped State ............................................ 125 °C
Passive Aging .................................................. +85 °C, 1000 hours ...........................................±5 % typical resistance change
Humidity Aging................................................. +85 °C, 85 % R.H. 1000 hours .........................±5 % typical resistance change
Thermal Shock ................................................ -40 °C to +85 °C, 10 times ................................±10 % typical resistance change
Solvent Resistance .......................................... MIL-STD-202, Method 215 ...............................No change
Vibration .......................................................... MIL-STD-883C, Method 2007.1,.......................No change
Condition A
Test Procedures And Requirements For Model MF-R Series
Test Test Conditions Accept/Reject Criteria
Visual/Mech. .................................................... Verify dimensions and materials .......................Per MF physical description
Resistance ....................................................... In still air @ 23 °C .............................................Rmin ≤ R ≤ Rmax
Time to Trip ...................................................... 5 times Ihold, Vmax, 23 °C ...............................T ≤ max. time to trip (seconds)
Hold Current .................................................... 30 min. at Ihold .................................................No trip
Trip Cycle Life .................................................. Vmax, Imax, 100 cycles ....................................No arcing or burning
Trip Endurance ................................................ Vmax, 48 hours .................................................No arcing or burning
UL File Number ............................................... E 174545
CSA File Number ............................................. CA 110338
TÜV File Number ............................................. R2057213
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifi cations are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specifi c applications.
***Tested at 40 amps
Page 2
Additional Features
■ Bulk packaging, tape and reel and Ammo-Pak available on most models
MF-R Series - PTC Resettable Fuses
Product Dimensions (see next page for outline drawing)
Model
MF-R005
(0.315) (0.327) (0.201) (0.028) (0.299) (0.122) (0.016)
MF-R010
(0.291) (0.5) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R017
(0.291) (0.5) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R020
(0.291) (0.5) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R025
(0.291) (0.5) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R030
(0.291) (0.528) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R040
(0.291) (0.539) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R050
(0.311) (0.539) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R065
(0.382) (0.598) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R075
(0.409) (0.630) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R090
(0.461) (0.657) (0.201) (0.028) (0.299) (0.122) (0.020)
MF-R090-0-9
(0.291) (0.480) (0.201) (0.028) (0.299) (0.118) (0.020)
MF-R110
(0.350) (0.551) (0.201) (0.028) (0.299) (0.118) (0.020)
MF-R135
(0.350) (0.744) (0.201) (0.028) (0.299) (0.118) (0.020)
MF-R160
(0.402) (0.661) (0.201) (0.028) (0.299) (0.118) (0.020)
MF-R185
(0.472) (0.724) (0.201) (0.028) (0.299) (0.118) (0.020)
MF-R250
(0.472) (0.720) (0.201) (0.028) (0.299) (0.118) (0.032)
MF-R250-0-10
(0.472) (0.720) (0.201) (0.028) (0.299) (0.118) (0.020)
MF-R300
(0.472) (0.720) (0.201) (0.028) (0.299) (0.118) (0.032)
MF-R400
(0.567) (0.976) (0.201) (0.028) (0.299) (0.118) (0.032)
MF-R500
(0.685) (0.980) (0.402) (0.028) (0.299) (0.118) (0.032)
MF-R600
(0.760) (1.256) (0.402) (0.028) (0.299) (0.118) (0.032)
MF-R700
(0.870) (1.173) (0.402) (0.028) (0.299) (0.118) (0.032)
MF-R800
(0.953) (1.295) (0.402) (0.028) (0.299) (0.118) (0.032)
MF-R900
(0.953) (1.295) (0.402) (0.028) (0.299) (0.118) (0.032)
MF-R1100
(0.953) (1.295) (0.402) (0.028) (0.299) (0.118) (0.032)
Packaging options: BULK: All models = 500 pcs. per bag.
TAPE & REEL: MF-R005-MF-R160 - 12.7 mm device pitch = 3000 pcs. per reel;
MF-R185-MF-R400 - 25.4mm device pitch = 1500 pcs. per reel; MF-R250-0-10 = 1500 pcs. per reel.
AMMO-PACK: MF-R005-MF-R160 - 12.7 mm device pitch = 2000 pcs. per reel;
MF-R185-MF-R400 - 25.4 mm device pitch = 1000 pcs. per reel; MF-R090-0-9 & MF-R250-0-10 =
2000 pcs. per reel.
8.0 8.3 5.1 0.7 7.6 3.1 4 0.405
7.4 12.7 5.1 0.7 7.6 3.1 1 0.51
7.4 12.7 5.1 0.7 7.6 3.1 1 0.51
7.4 12.7 5.1 0.7 7.6 3.1 1 0.51
7.4 12.7 5.1 0.7 7.6 3.1 1 0.51
7.4 13.4 5.1 0.7 7.6 3.1 1 0.51
7.4 13.7 5.1 0.7 7.6 3.1 1 0.51
7.9 13.7 5.1 0.7 7.6 3.1 1 0.51
9.7 15.2 5.1 0.7 7.6 3.1 1 0.51
10.4 16.0 5.1 0.7 7.6 3.1 1 0.51
11.7 16.7 5.1 0.7 7.6 3.1 1 0.51
7.4 12.2 5.1 0.7 7.6 3.0 3 0.51
8.9 14.0 5.1 0.7 7.6 3.0 1 0.51
8.9 18.9 5.1 0.7 7.6 3.0 1 0.51
10.2 16.8 5.1 0.7 7.6 3.0 1 0.51
12.0 18.4 5.1 0.7 7.6 3.0 1 0.51
12.0 18.3 5.1 0.7 7.6 3.0 2 0.81
12.0 18.3 5.1 0.7 7.6 3.0 3 0.51
12.0 18.3 5.1 0.7 7.6 3.0 2 0.81
14.4 24.8 5.1 0.7 7.6 3.0 2 0.81
17.4 24.9 10.2 0.7 7.6 3.0 2 0.81
19.3 31.9 10.2 0.7 7.6 3.0 2 0.81
22.1 29.8 10.2 0.7 7.6 3.0 2 0.81
24.2 32.9 10.2 0.7 7.6 3.0 2 0.81
24.2 32.9 10.2 0.7 7.6 3.0 2 0.81
24.2 32.9 10.2 0.7 7.6 3.0 2 0.81
A B
Max. Max. Nom. Tol. ± Min. Max. Style Lead Dia. Material
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
C
D E
Users should verify actual device performance in their specifi c applications.
Physical Characteristics
0.405 (26AWG)
0.51 (24AWG)
0.81 (20AWG)
Specifi cations are subject to change without notice.
DIMENSIONS:
(INCHES)
Sn/NiCu
Sn/NiCu
Sn/CuFe
Sn/CuFe
Sn/CuFe
Sn/CuFe
Sn/CuFe
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/CuFe
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/CuFe
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
Sn/Cu
MM

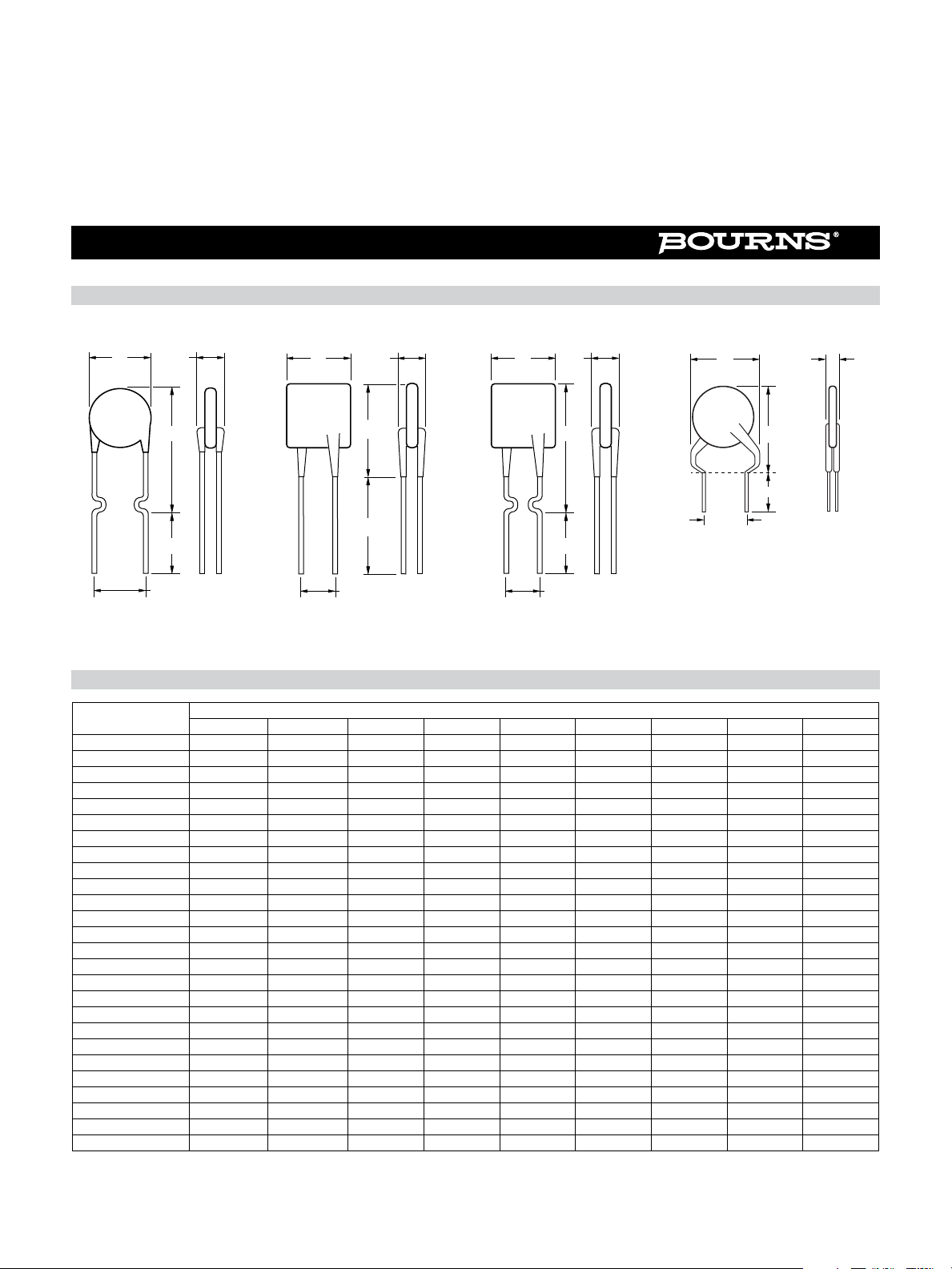

Page 3
MF-R Series - PTC Resettable Fuses
Product Dimensions (see previous page for dimensions)
Style 1
A
E
B
D
C
Thermal Derating Chart - I
Model
-40 ºC -20 ºC 0 ºC 23 ºC 40 ºC 50 ºC 60 ºC 70 ºC 85 ºC
Style 2
A
NOTE: Kinked lead option is
available for board standoff.
Contact factory for details.
/ I
trip
(Amps)
hold
Style 3 Style 4
E
B
D
C
A
NOTE: Also available with
straight leads. Contact
factory for details.
E
B
D
C
AE
B
D
C
Ambient Operating Temperature
MF-R005 0.08 / 0.16 0.07 / 0.14 0.06 / 0.12 0.05 / 0.10 0.04 / 0.08 0.04 / 0.08 0.03 / 0.07 0.03 / 0.07 0.02 / 0.05
MF-R010 0.16 / 0.32 0.14 / 0.28 0.12 / 0.24 0.10 / 0.20 0.08 / 0.16 0.07 / 0.14 0.06 / 0.12 0.05 / 0.10 0.04 / 0.08
MF-R017 0.26 / 0.52 0.23 / 0.46 0.20 / 0.40 0.17 / 0.34 0.14 / 0.28 0.12 / 0.24 0.11 / 0.22 0.09 / 0.18 0.07 / 0.14
MF-R020 0.31 / 0.62 0.27 / 0.54 0.24 / 0.48 0.20 / 0.40 0.16 / 0.32 0.14 / 0.28 0.13 / 0.26 0.11 / 0.22 0.08 / 0.16
MF-R025 0.39 / 0.78 0.34 / 0.68 0.30 / 0.60 0.25 / 0.50 0.20 / 0.40 0.18 / 0.36 0.16 / 0.32 0.14 / 0.28 0.10 / 0.20
MF-R030 0.47 / 0.94 0.41 / 0.82 0.36 / 0.72 0.30 / 0.60 0.24 / 0.48 0.22 / 0.44 0.19 / 0.38 0.16 / 0.32 0.12 / 0.24
MF-R040 0.62 / 1.24 0.54 / 1.08 0.48 / 0.96 0.40 / 0.80 0.32 / 0.64 0.29 / 0.58 0.25 / 0.50 0.22 / 0.44 0.16 / 0.32
MF-R050 0.78 / 1.56 0.68 / 1.36 0.60 / 1.20 0.50 / 1.00 0.41 / 0.82 0.36 / 0.72 0.32 / 0.64 0.27 / 0.54 0.20 / 0.40
MF-R065 1.01 / 2.02 0.88 / 1.76 0.77 / 1.54 0.65 / 1.30 0.53 / 1.06 0.47 / 0.94 0.41 / 0.82 0.35 / 0.70 0.26 / 0.52
MF-R075 1.16 / 2.32 1.02 / 2.04 0.89 / 1.78 0.75 / 1.50 0.61 / 1.22 0.54 / 1.08 0.47 / 0.94 0.41 / 0.82 0.30 / 0.60
MF-R090 1.40 / 2.80 1.22 / 2.44 1.07 / 2.14 0.90 / 1.80 0.73 / 1.46 0.65 / 1.30 0.57 / 1.14 0.49 / 0.98 0.36 / 0.72
MF-R090-0-9 1.40 / 2.80 1.22 / 2.44 1.07 / 2.14 0.90 / 1.80 0.73 / 1.46 0.65 / 1.30 0.57 / 1.14 0.49 / 0.98 0.36 / 0.72
MF-R110 1.60 / 3.20 1.43 / 2.86 1.27 / 2.54 1.10 / 2.20 0.91 / 1.82 0.85 / 1.70 0.75 / 1.50 0.67 / 1.34 0.57 / 1.14
MF-R135 1.96 / 3.92 1.76 / 3.52 1.55 / 3.10 1.35 / 2.70 1.12 / 2.24 1.04 / 2.08 0.92 / 1.84 0.82 / 1.64 0.70 / 1.40
MF-R160 2.32 / 4.64 2.08 / 4.16 1.84 / 3.68 1.60 / 3.20 1.33 / 2.66 1.23 / 2.46 1.09 / 2.18 0.98 / 1.96 0.83 / 1.66
MF-R185 2.68 / 5.36 2.41 / 4.82 2.13 / 4.26 1.85 / 3.70 1.54 / 3.08 1.42 / 2.84 1.26 / 2.52 1.13 / 2.26 0.96 / 1.92
MF-R250 3.63 / 7.26 3.25 / 6.50 2.88 / 5.76 2.50 / 5.00 2.08 / 4.16 1.93 / 3.86 1.70 / 3.40 1.53 / 3.06 1.30 / 2.60
MF-R250-0-10 3.63 / 7.26 3.25 / 6.50 2.88 / 5.76 2.50 / 5.00 2.08 / 4.16 1.93 / 3.86 1.70 / 3.40 1.53 / 3.06 1.30 / 2.60
MF-R300 4.35 / 8.70 3.90 / 7.80 3.45 / 6.90 3.00 / 6.00 2.49 / 4.98 2.31 / 4.62 2.04 / 4.08 1.83 / 3.66 1.56 / 3.12
MF-R400 5.80 / 11.6 5.20 / 10.4 4.60 / 9.20 4.00 / 8.00 3.32 / 6.64 3.08 / 6.16 2.72 / 5.44 2.44 / 4.88 2.08 / 4.16
MF-R500 7.25 / 14.5 6.50 / 13.0 5.75 / 11.5 5.00 / 10.0 4.15 / 8.30 3.85 / 7.70 3.40 / 6.80 3.05 / 6.10 2.60 / 5.20
MF-R600 8.70 / 17.4 7.80 / 15.6 6.90 / 13.8 6.00 / 12.0 4.98 / 9.96 4.62 / 9.24 4.08 / 8.16 3.66 / 7.32 3.12 / 6.24
MF-R700 10.1 / 20.3 9.10 / 18.2 8.05 / 16.1 7.00 / 14.0 5.81 / 11.6 5.39 / 10.7 4.76 / 9.52 4.27 / 9.44 3.64 / 7.28
MF-R800 11.6 / 23.2 10.4 / 20.8 9.20 / 18.4 8.00 / 16.0 6.64 / 13.2 6.16 / 12.3 5.44 / 10.8 4.88 / 9.76 4.16 / 8.32
MF-R900 13.0 / 26.1 11.7 / 23.4 10.3 / 20.7 9.00 / 18.0 7.47 / 14.9 6.93 / 12.7 6.12 / 12.2 5.49 / 10.9 4.68 / 9.36
MF-R1100 16.1 / 32.0 14.6 / 29.2 13.1 / 26.2 11.0 / 22.1 9.40 / 18.4 8.80 / 17.6 7.80 / 15.6 6.90 / 13.8 5.20 / 10.4
Specifi cations are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specifi c applications.

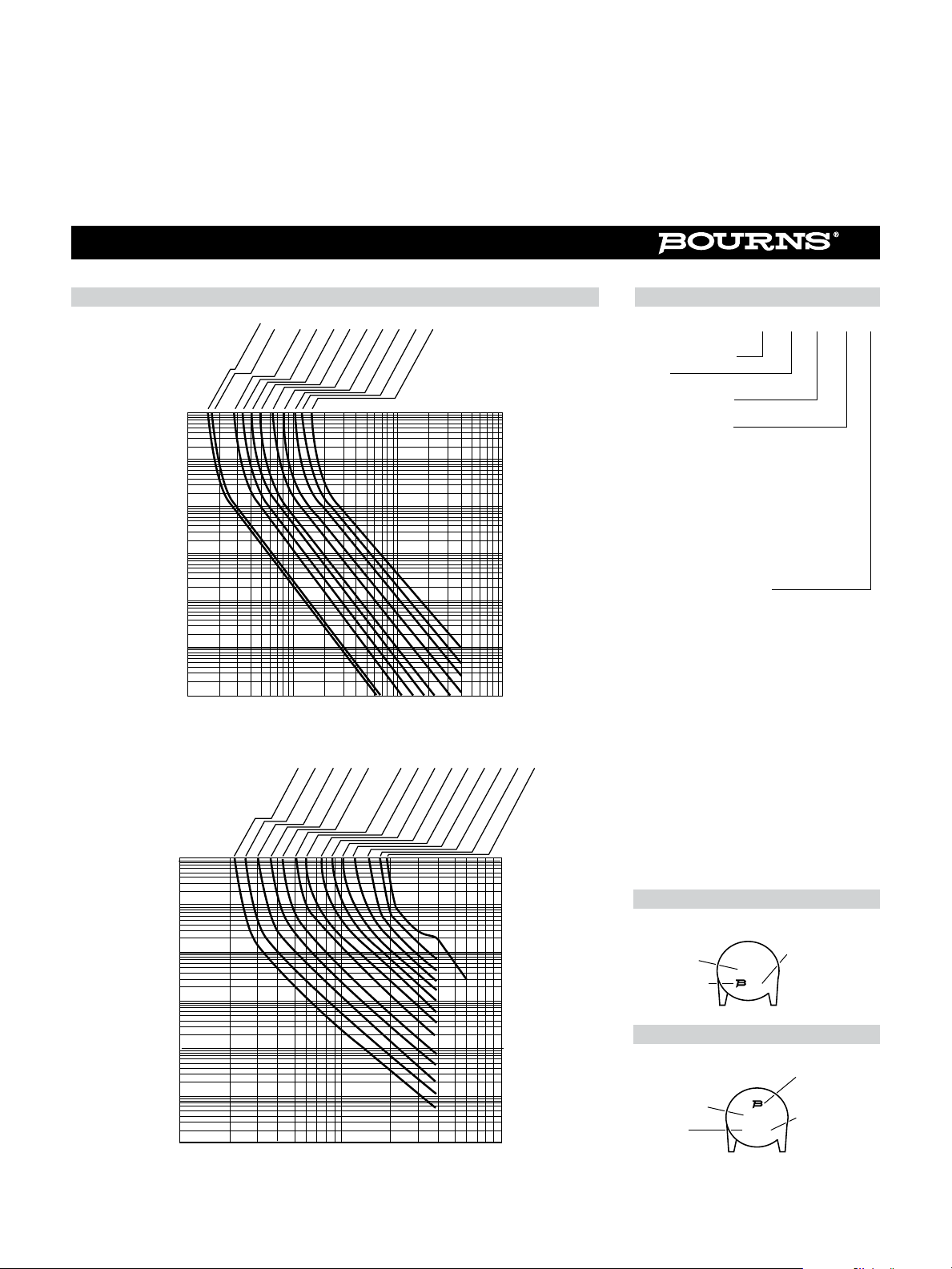

Page 4
MF-R Series - PTC Resettable Fuses
Typical Time to Trip at 23 ºC
MF-R005
MF-R010
100
10
1
0.1
Time to trip (Seconds)
0.01
0.001
0.1
100
10
1
MF-R017
MF-R020
MF-R025
MF-R030
MF-R040
MF-R050
MF-R075
MF-R065
MF-R090
1 10 100
Fault Current (Amps)
MF-R110
MF-R090
-0-9
MF-R135
MF-R160
MF-R185
MF-R250,
250-0-10
MF-R300
MF-R400
MF-R500
MF-R600
MF-R700
MF-R800
MF-R900
MF-R1100
How to Order
MF - R 110 - 0 - 99
Multifuse®
Product Designator
Series
R = Radial Leaded Component
Hold Current, I
005-1100 (0.05 Amps - 11.0 Amps)
Packaging Options
- __ = Bulk Packaging without part
number suffi x option
- 0-99 = Bulk Packaging with part
number suffi x option
- 2 = Tape and Reel without part
number suffi x option*
- 2-99 = Tape and Reel with part number
suffi x option
- AP = Ammo-Pak*
- 0-14 = Kinked leads where straight
leads are standard
- 0-17 = Straight leads where kinked
leads are standard
Part Number Suffi x Option
- 99 = As of date code April 1, 2005 all
MF-R models are RoHS
compliant. The suffi x “-99”
can be used if a new part
number is required to reference
the RoHS compliance.
Examples:
MF-R110 ..................Bulk packaging
MF-R110-0-99 .........Bulk packaging
with part number
suffi x option
MF-R110-2...............Tape and reel
packaging
MF-R110-2-99 .........Tape and reel
packaging with
part number
suffi x option
MF-R090-0-9-99 ...... Bulk packaging
with part number
suffi x option
MF-R250-0-10-99 .... Bulk packaging
with part number
suffi x option
*Packaged per EIA486-B
Typical Part Marking: MF-R005 - R025
Represents total content. Layout may vary.
PART
IDENTIFICATION
MANUFACTURER'S
TRADEMARK
hold
025
0A
DATE CODE:
WEEK 1 OF 2000 = 0A
(YEAR & WEEK)
WEEK 27 OF 2000 = A0
(WEEK & YEAR)
0.1
Time to trip (Seconds)
0.01
0.001
1
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
10 100
Fault Current (Amps)
Typical Part Marking: MF-R030 - R1100
Represents total content. Layout may vary.
MANUFACTURER'S
PART
IDENTIFICATION
DATE CODE
(FIRST DIGIT =
LAST DIGIT OF YEAR;
NEXT THREE DIGITS =
DAY OF YEAR)
R250
0180T
TRADEMARK
LOT NO.
(T = TAIWAN
S = CHINA)
MF-R SERIES, REV. AA, 04/14
Specifi cations are subject to change without notice.
Users should verify actual device performance in their specifi c applications.
Page 5

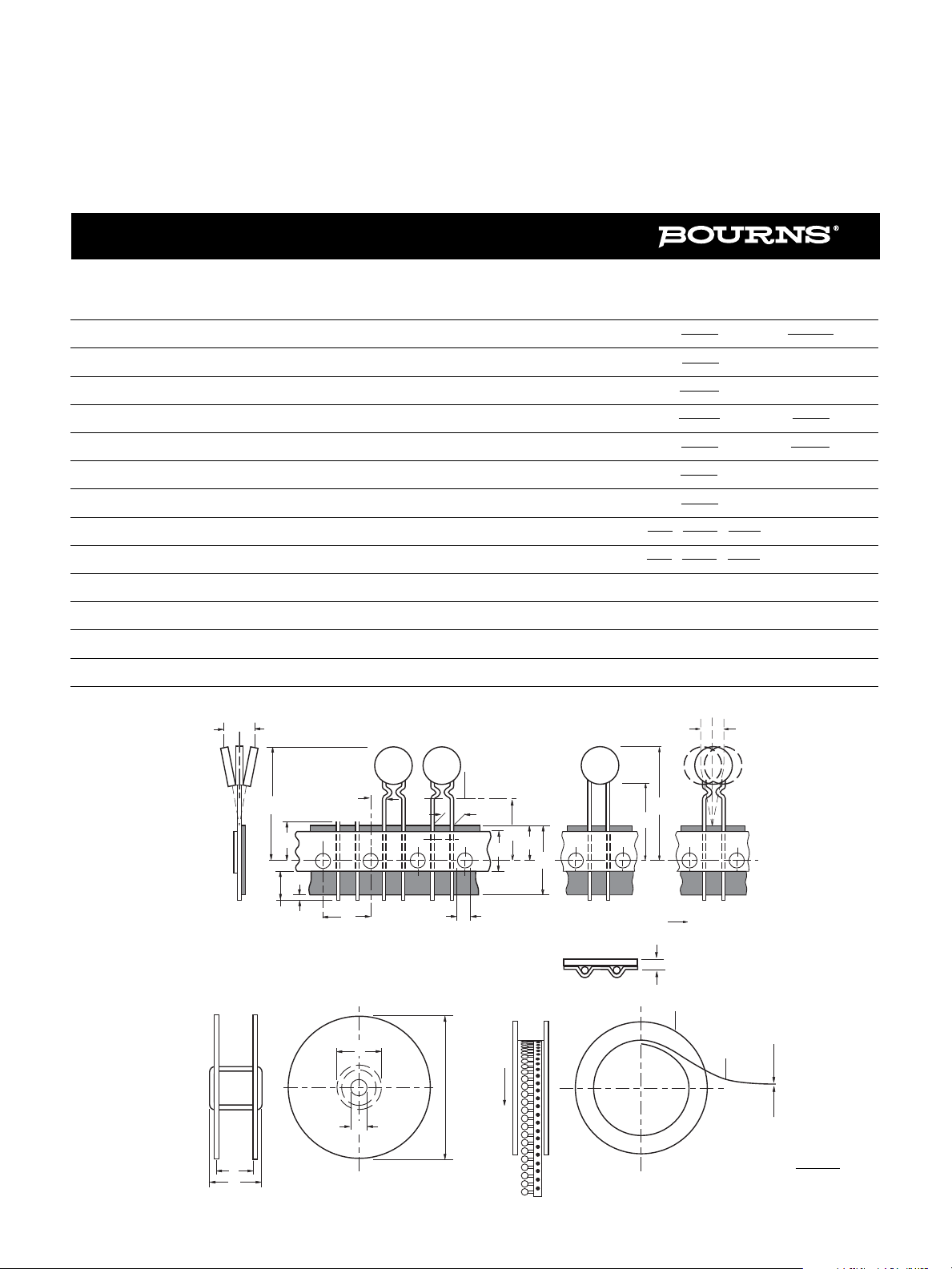

MF-R, MF-R/90, MF-R/600, MF-RX, & MF-RX/72 Series
Tape and Reel Specifi cations
Devices taped using EIA468–B/IEC286-2 standards. See table below and Figures 1 and 2 for details.
IEC EIA Dimensions
Dimension Description Mark Mark Dimensions Tolerance
Carrier tape width W W
(.709) (-0.02/+.039)
Hold down tape width W
Hold down tape No protrusion
Top distance between tape edges W2 W
(.118)
Sprocket hole position W1 W
(.354) (-0.02/+0.03)
Sprocket hole diameter D0 D
(.157) (±.0078)
Abscissa to plane (straight lead) H H
(.728) (±.118)
Abscissa to plane (kinked lead) H0 H
(.63) (±.02)
Abscissa to top (straight lead) H1 H
(1.496)
Abscissa to top (kinked lead) H1 H
(1.268)
Overall width w/lead protrusion (straight lead) C
(2.165)
Overall width w/lead protrusion (kinked lead) C
(1.7)
Overall width w/o lead protrusion (straight lead) C
(2.126)
Overall width w/o lead protrusion (kinked lead) C
(1.673)
Lead protrusion I1 L
(.039)
Protrusion of cutout L L
(.433)
Protrusion beyond hold-down tape I2 I
Sprocket hole pitch P0 P
(0.5) (±.012)
Pitch tolerance 20 consecutive
(±.039)
Device pitch: MF-R005–MF-R160, MF-R/90,
MF-RX110/72–MF-RX185/72
Device pitch: MF-R185–MF-R400, MF-RX110–MF-RX375
MF-R/600, MF-RX250/72–MF-RX375/72
Tape thickness t t
(.035)
Tape thickness with splice: MF-R010–MF-R160, t
MF-RX110/72–MF-RX185/72
Tape thickness with splice: MF-R250–MF-R1100, t
MF-RX110–MF-RX375, MF-R/90, MF-RX250/72-MF-RX375/72
Splice sprocket hole alignment
(±.012)
Body lateral deviation Δh Δh 0
(±.039)
Body tape plane deviation Δp Δ
(±.051)
Specifi cations are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specifi c applications.
W
0
(.433)
18 -0.5/+1.0
11
4
3
6
9 -0.5/+0.75
5
4 ±0.2
0
18.5 ±3.0
16 ±0.5
0
38.0
1
32.2
1
55.0
1
43.2
1
54.0
2
42.5
2
1.0
1
11
Not specifi ed
2
0
0.9
1
1
0
p
12.7 ±0.3
±1
12.7 ±0.3
(0.5) (±.012)
25.4 ±0.6
(1.0) (±.024)
1.5
(.059)
2.3
(.091)
±0.3
0
±1.0
±1.3
min.
max.
max.
max.
max.
max.
max.
max.
max.
max.
max.
max.
max.
DIMENSIONS:
(INCHES)
MM
Page 6
MF-R, MF-R/90, MF-R/600, MF-RX, & MF-RX/72 Series
Tape and Reel Specifi cations
IEC EIA Dimensions
Dimension Description Mark Mark Dimensions Tolerance
Lead spacing: MF-R, MF-R/90, MF-R/600, MF-RX, MF-RX/72 F F
(0.2) (±0.008)
Reel width w W
(2.205)
Reel diameter d a
(14.57)
Space between fl anges less device
Arbor hole diameter f c
(1.024) (±.472)
Core diameter: MF-R, MF-RX, MF-R/90 h n
(3.15)
Core diameter: MF-R/600 h n
(3.58)
Box: MF-R, MF-RX, MF-R/90
(2.44) (14.0) (13.6)
Box: MF-R/600
(2.52) (14.6) (14.25)
4.75 ±3.25
W
1
62 355 345
64 372 362
Consecutive missing places: MF-R, MF-RX, MF-R/90 3 max.
Consecutive missing places: MF-R/600 none
Empty places per reel: MF-R, MF-RX, MF-R/90 Not specifi ed
Empty places per reel: MF-R/600 0.1 %
5.08 ±0.2
56.0
2
370.0
h
(.187) (±.128)
max.
max.
26.0 ±12.0
80
91
max.
max.
nom.
max.
Taped Component Dimensions Figure 1
h
Reel Dimensions - Figure 2
h
w
h
P
H
1
L
I
2
I
1
1
A
P
0
h
f
Reference plane
B
direction
d
F
D
User
feed
H
0
W
1
W
0
W
0
of
User direction of feed
Cross section A - B
p
H
1
H
t
Reel
p
Upper side
Tape
Lower side
DIMENSIONS:
(INCHES)
MM
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specifi c applications.
Specifi cations are subject to change without notice.
Loading...
