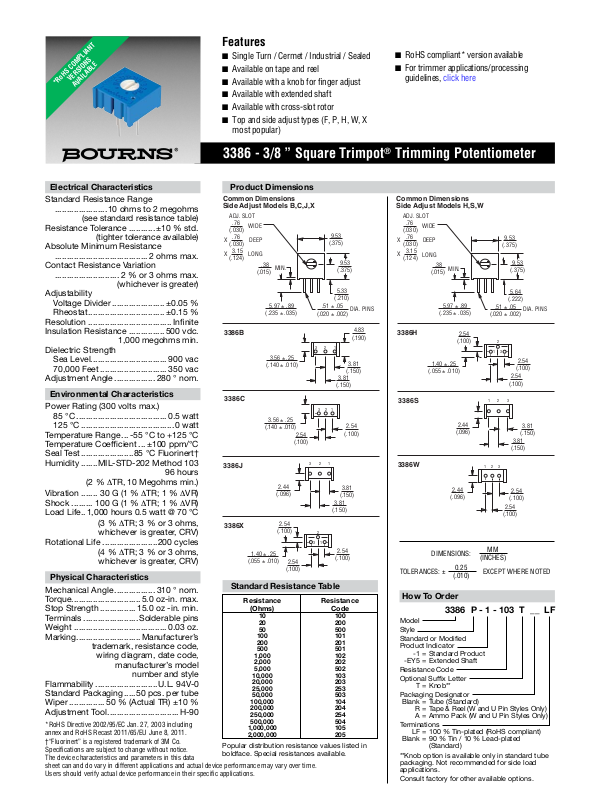

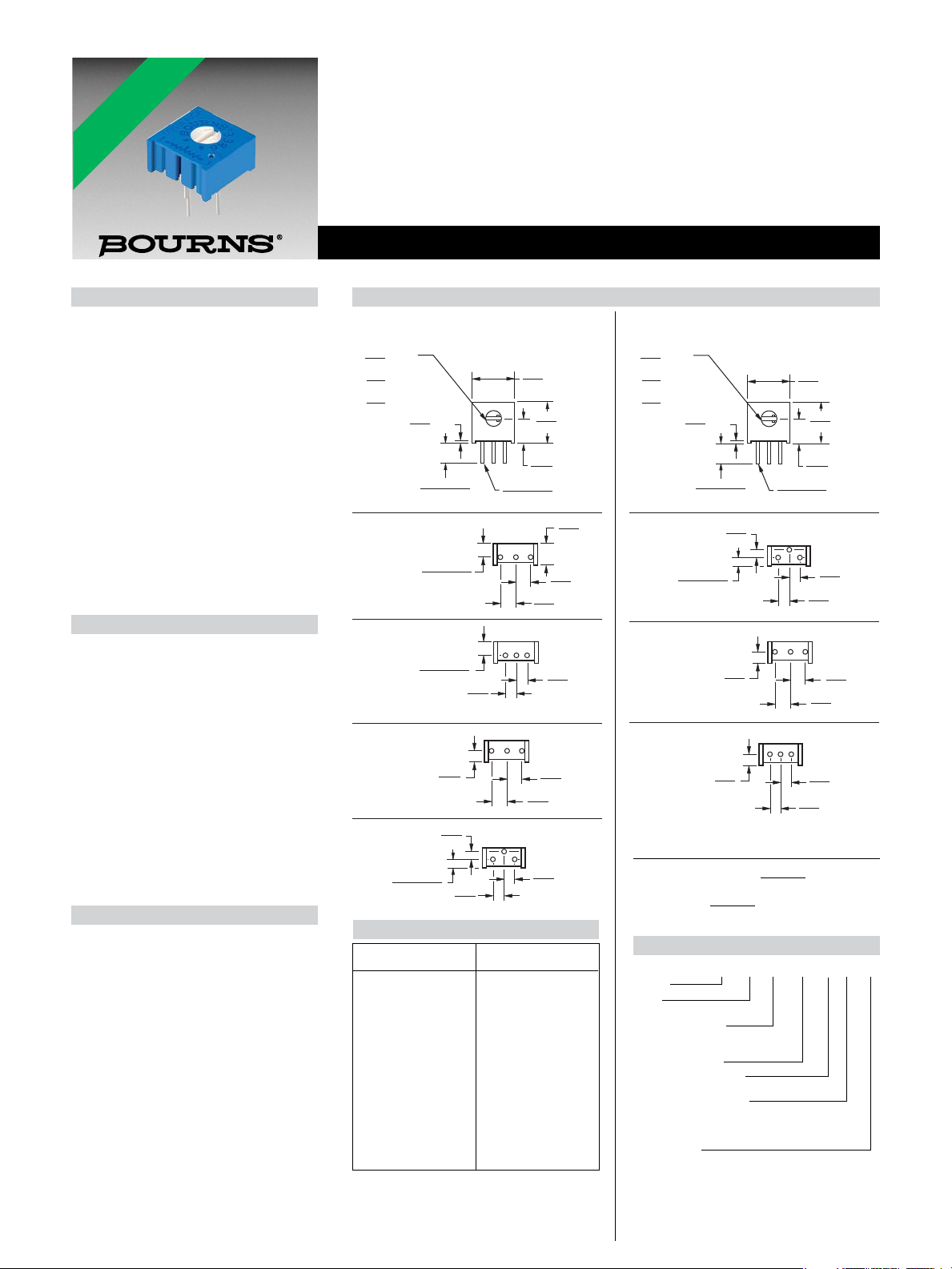

Page 1

VERSIONS

*RoHS COMPLIANT

AVAILABLE

Features

■ Single Turn / Cermet / Industrial / Sealed

■ Available on tape and reel

■ Available with a knob for ﬁ nger adjust

■ Available with extended shaft

■ Available with cross-slot rotor

■ Top and side adjust types (F, P, H, W, X

most popular)

■ RoHS compliant* version available

■ For trimmer applications/processing

guidelines,

click here

3386 - 3/8 ” Square Trimpot® Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

......................10 ohms to 2 megohms

(see standard resistance table)

Resistance Tolerance ...........±10 % std.

(tighter tolerance available) Absolute Minimum Resistance

....................................... 2 ohms max.

Contact Resistance Variation

........................... 2 % or 3 ohms max.

Product Dimensions

Common Dimensions Side Adjust Models B,C,J,X

ADJ. SLOT .76

WIDE

(.030) .76

DEEP

(.030)

3.15

LONG

(.124)

.38

(.015)

MIN.

(whichever is greater) Adjustability

Voltage Divider ...................... ±0.05 %

Rheostat ................................ ±0.15 %

5.97 ± .89

(.235 ± .035)

Resolution ................................... Inﬁ nite

Insulation Resistance ...............500 vdc.

3386B

1,000 megohms min. Dielectric Strength

Sea Level................................ 900 vac

70,000 Feet ............................ 350 vac

3.56 ± .25

(.140 ± .010)

Adjustment Angle ................. 280 ° nom.

Environmental Characteristics

Power Rating (300 volts max.)

85 °C ...................................... 0.5 watt

125 °C ....................................... 0 watt

Temperature Range ... -55 °C to +125 °C Temperature Coeﬃ cient ...±100 ppm/°C

3386C

3.56 ± .25

(.140 ± .010)

2.54

(.100)

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours (2 % ΔTR, 10 Megohms min.)

Vibration ....... 30 G (1 % ΔTR; 1 % ΔVR)

3386J

2.44

(.096)

Shock ......... 100 G (1 % ΔTR; 1 % ΔVR)

Load Life .. 1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)

3386X

2.54

(.100)

Rotational Life .......................200 cycles

(4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)

1.40 ± .25

(.055 ± .010)

2.54

(.100)

Physical Characteristics

Mechanical Angle ................. 310 ° nom.

Torque ............................. 5.0 oz-in. max.

Stop Strength ............... 15.0 oz -in. min.

Terminals .......................Solderable pins

Weight .......................................0.03 oz.

Marking ........................... Manufacturer’s

trademark, resistance code, wiring diagram, date code, manufacturer’s model number and style

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Wiper ............... 50 % (Actual TR) ±10 %

Adjustment Tool ..............................H-90

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. †“Fluorinert” is a registered trademark of 3M Co. Speciﬁ cations are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their speciﬁ c applications.

Standard Resistance Table

Resistance Resistance (Ohms) Code

10 100 20 200 50 500 100 101 200 201 500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104 200,000 204 250,000 254 500,000 504 1,000,000 105 2,000,000 205

Popular distribution resistance values listed in boldface. Special resistances available.

9.53

(.375)

.51 ± .05

(.020 ± .002)

132

(.150)

(.375)

5.33

(.210)

132

3.81

(.150)

3.81

2.54

(.100)

9.53

(.150)

2.54

(.100)

3.81

(.150)

DIA. PINS

4.83

(.190)

3.81

Common Dimensions Side Adjust Models H,S,W

ADJ. SLOT .76

WIDE

(.030) .76

DEEP

(.030)

3.15

LONG

(.124)

.38

(.015)

5.97 ± .89

(.235 ± .035)

MIN.

3386H

1.40 ± .25

(.055 ± .010)

3386S

3386W

2.44

(.096)

DIMENSIONS: (INCHES)

TOLERANCES: ± (.010)

0.25

2.54

(.100)

2.44

(.096)

9.53

(.375)

9.53

(.375)

5.64

(.222)

.51 ± .05

312

(.100)

312

2.54

(.100)

2.54

3.81

(.150)

2.54

(.100)

DIA. PINS

2.54

(.100)

3.81

(.150)

(.020 ± .002)

EXCEPT WHERE NOTED

How To Order

3386 P - 1 - 103 T __ LF

Model Style Standard or Modiﬁ ed

Product Indicator

-1 = Standard Product

-EY5 = Extended Shaft Resistance Code Optional Suﬃ x Letter

T = Knob** Packaging Designator

Blank = Tube (Standard) R = Tape & Reel (W and U Pin Styles Only) A = Ammo Pack (W and U Pin Styles Only)

Terminations LF = 100 % Tin-plated (RoHS compliant) Blank = 90 % Tin / 10 % Lead-plated (Standard)

**Knob option is available only in standard tube packaging. Not recommended for side load applications.

Consult factory for other available options.

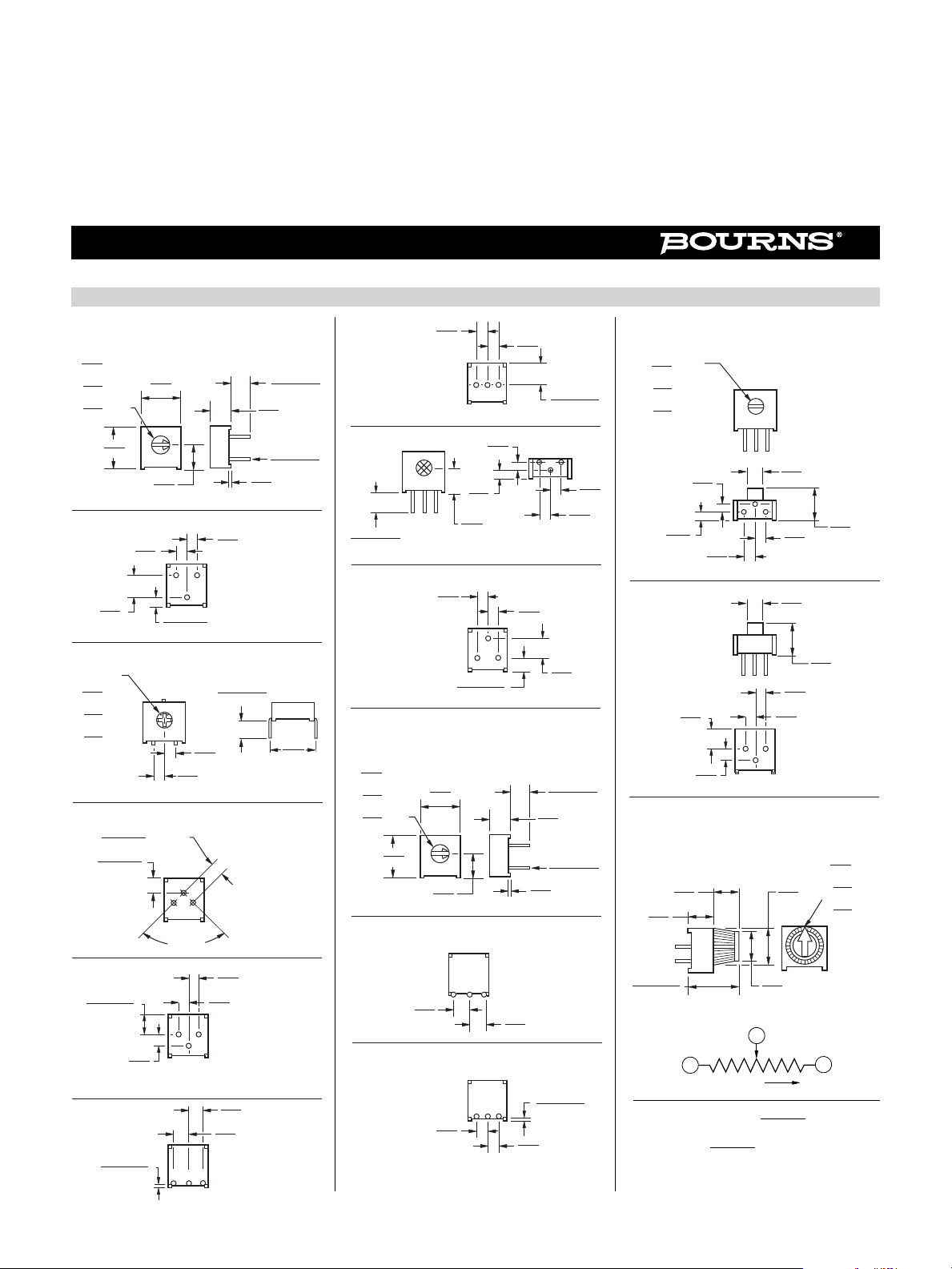

Page 2

3386 - 3/8 ” Square Trimpot® Trimming Potentiometer

Product Dimensions

Common Dimensions Top Adjust Models F,G,K,P,R,U,V,Y

ADJ. SLOT .76

WIDE

(.030) .76

XXDEEP

(.030)

3.15 (.124)

(.375)

3386F

5.08

(.200)

LONG

9.53

2.54

(.100)

9.53

(.375)

5.64

(.222)

2.34 ± .38

(.092 ± .015)

2.54

(.100)

3386G

ADJ. SLOT .76

WIDE

(.030) .97

XXDEEP

(.038)

3.05 LONG

(.120)

COMMON TO 3386V

2.54

(.100)

2.54

(.100)

3.56 ± 0.25

(.140 ± .010)

3386K

2.54 ± .25

2.54

(.100)

1.22 ± .25

2 PLCS.

90° ± 3°

231

(.100)

2.54

(.150)

2.54

3.81

(.150)

3.81

(.120 ± .015)

3386P

4.78 ± .38

(.188 ± .015)

3386R

(.100 ± .010)

3.05 ± .38

(.048 ± .010)

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

4.83

(.190)

.38

(.015)

5.97 ± .89

(.235 ± .035)

.51 ± .05

(.020 ± .002)

MIN.

10.16 (0.40)

3386U

3386V

3.56 ± .25

(.140 ± .010)

3386Y

Common Dimensions Top Adjust Models M,T

ADJ. SLOT .76

WIDE

(.030) .76

XXDEEP

(.030)

3.15 LONG

(.124)

9.53

(.375)

3386M

3386T

3.81

(.150)

2.54

(.100)

2.54

(.100)

9.53

(.375)

5.33

(.210)

2.54

(.100)

321

2.54

(.100)

1.40

(.055)

5.64

(.222)

3.05 ± .38

(.120 ± .015)

213

123

2.54

(.100)

4.78 ± .38

(.188 ± .015)

312

2.54

(.100)

2.54

(.100)

2.54

(.100)

5.08

(.200)

5.97 ± .89

(.235 ± .035)

4.83

(.190)

.51 ± .05

(.020 ± .002)

.38

MIN.

(.015)

3.81

(.150)

.76 ± .38

(.030 ± .015)

2.54

(.100)

Users should verify actual device performance in their speciﬁ c applications.

3386H-EY5 3386X-EY5 – SHOWN

ADJ. SLOT .81

WIDE

(.032)

2.54

DEEP

(.100)

3.56

LONG

(.140)

3.56

2.54

(.100)

1.40

(.055)

2.54

(.100)

3386P-EY5

4.78

(.188)

2.54

(.100)

The Model 3386 is available with a knob for finger adjustment. Add suffix letter "T" to order code for F, P and X terminal styles.

5.59

(.220)

4.83

(.190)

10.41 ± .51

(.410 ± .020)

CCW

CLOCKWISE

DIMENSIONS: (INCHES)

TOLERANCES: ± (.010)

0.25

(.140)

2.54

(.100)

3.56

(.140)

7.87

(.310)

2.54

(.100)

2.54

(.100)

8.38

(.330)

6.60

(.260)

WIPER

EXCEPT WHERE NOTED

7.87

(.310)

ADJ. SLOT

5.59 (.220)

1.02 (.040)

1.40 (.055)

LONG

WIDE

DEEP

Speciﬁ cations are subject to change without notice.

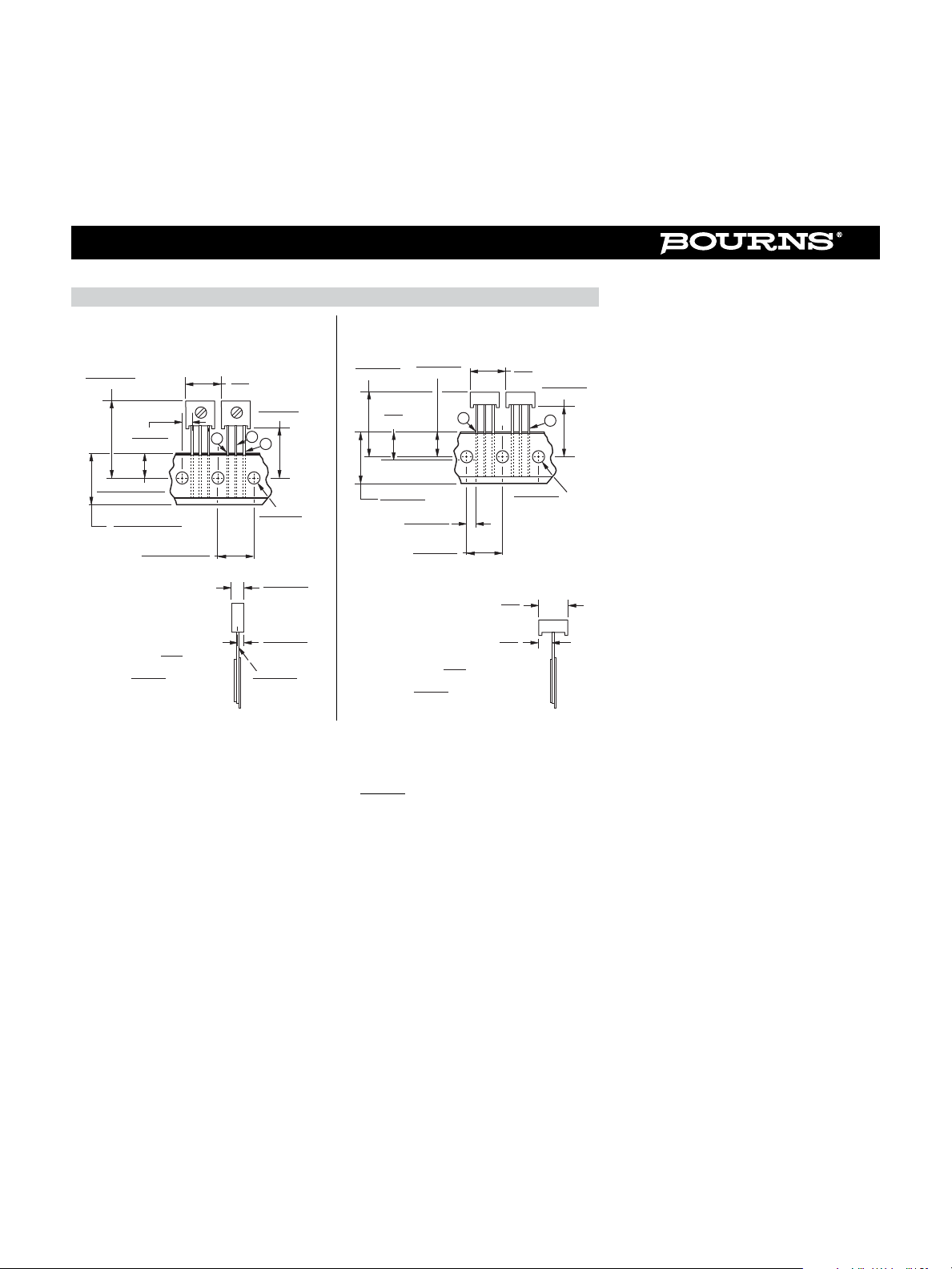

Page 3

3386 - 3/8 ” Square Trimpot® Trimming Potentiometer

Packaging Speciﬁ cations

SIDE ADJUST 3386W-1

TOP ADJUST 3386U-1

27.56 ± .76

(1.085 ± .030)

3.81 ± .71

(.15 ± .028)

8.89 + .76 /- .50

(.350 + .030/ - .020)

18 + 1.0/ - 0.5

(.709 + .040/ - .020)

12.70 + .30/ - 0.25

(.500 + .012/ - .010)

(INCHES)

2.54

(.100)

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

12.70

(.500)

REF.

18 ± .76

(.709 ± .030)

4.0 ± 0.3

(.157 ± .012)

DIA.

4.83 ± .25

(.190 ± .010)

2.44 ± .25

(.096 ± .010)

.51 ± .05

(.020 ± .002)

DIA. TYP.

Meets EIA Speciﬁ cation 468.

DIMENSIONS: (INCHES)

22.98 ± .076

(.905 ± .030)

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

(.350 ± .028)

10.16 MIN.

(.400)

18.03 ± 1.5

(.710 ± .060)

3.81 ± 0.3

(.150 ±.028)

(.500 ± .012)

(INCHES)

8.89 ± 0.7

12.7 ± 0.3

(.100)

2.54

12.70

(.500)

3.99 ± 0.3

(.157 ± .012)

9.53

(.375)

4.78

(.188)

REF.

18.03 ± 0.7

(.710 ± .030)

DIA.

REV. 04/14

“Trimpot” is a registered trademark of Bourns, Inc. Speciﬁ cations are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their speciﬁ c applications.
