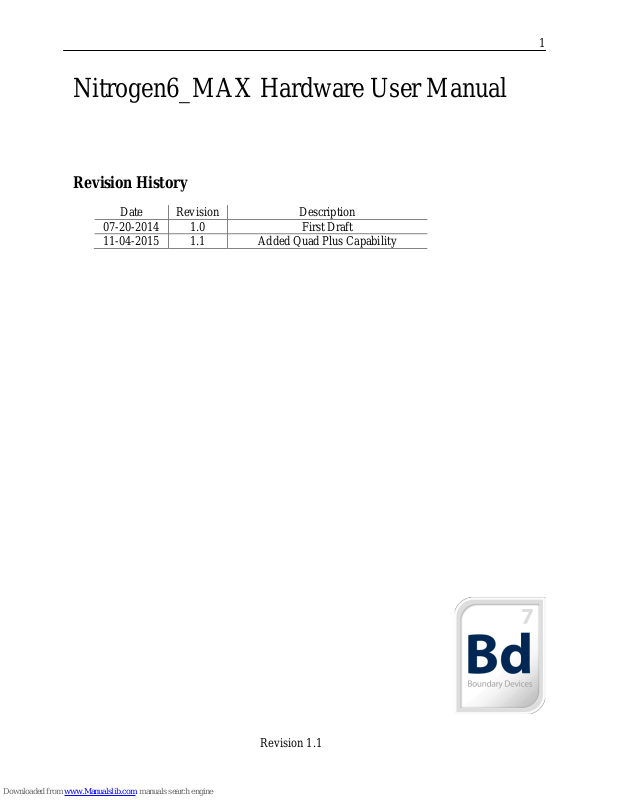

Nitrogen6_MAX Hardware User Manual
Date
Revision
Description
07-20-2014
1.0
First Draft
11-04-2015
1.1
Added Quad Plus Capability
Revision History
1
Revision 1.1
2
1 Contents
1 Contents ....................................................................................................................................... 2
2 Overview ...................................................................................................................................... 3
3 Electrical Characteristics ............................................................................................................. 3
4 Connector Details......................................................................................................................... 4
5 Mounting .................................................................................................................................... 12
Revision 1.1
2 Overview
Parameter
Min
Typ
Max
Unit
Main Input Voltage
4.75
5
5.25
V
Power Consumption*
-
1.5
TBD
W
CPU Clock
-
1.0
1.0
GHz
The Nitrogen6_MAX is a turbo-charged version of our popular Nitrogen6X platform. The
Nitrogen6_MAX features the same Quad-Core i.MX6 processor from Freescale, but has some
other notable upgrades to allow for high-end performance. The Nitrogen6_MAX Rev 3 boards,
support the i.MX6 Quad PLUS processor. The hardware specifications for the Nitrogen6_MAX
board are the following:
Quad-Core (or Quad PLUS) ARM® Cortex A9 processor at 1GHz per core
4GByte of 64-bit wide DDR3L @ 532MHz
2 LVDS Outputs for Dual-Display or Dual-Channel 1080p displays
RGB and HDMI 1.4a
4GB eMMC
Three camera ports (2xParallel, 1x MIPI CSI-2)
On-Board mPCIE connector with both PCIe and USB interfaces
2W Audio Amplifier to directly drive speakers
3 RS-232 serial ports, (1 software-selectable as RS-485)
802.11b/g/n WiFi/Bluetooth (LSR TiWI BLE) comes standard
Serial ATA 2.5 (SATA) at 3Gbps
1 microSD 3.0/SDXC card slot
Analog (headphone/mic) and Digital (HDMI) audio
10/100/Gb Ethernet
10-pin JTAG interface
3 High speed USB ports (2xHost, 1xOTG)
1xCAN port
I2C
Real-Time Clock with battery backup
SIM Card Holder
General Purpose I/O for Device Control
3
3 Electrical Characteristics
*The Power Consumption refers to a single board with no other peripherals plugged in.
Revision 1.1
4 Connector Details
J53
SIM
Card
Reader
J12
CSI1
Camera
J5
CSI0 Camera
J6
LVDS0
(Default)
J21
SATA
Connector
J54
RS-232/RS-485
Connector
SW5
RS-485
Switch
J19
SATA
Power
J22
Can
Connector
J17
2x RS-232
(Console/Spare)
J9
Microphone
J28
Speaker
(Left)
J15
RGB
Connector
J27
Speaker
(Right)
J8
Audio
Jack
J10
5V
DC
Power
Jack
J4
HDMI
J18
Micro
SD
Slot
J24
USB
Host
x2
J44
Ethernet
J3
Micro
USB
SW1
Boot
Switch
J1
USB
Host
SW4
Reset
Switch
J7
GPIO/I2C
J13
JTAG
J20
mPCIE
J11
LVDS1
(Secondary)
J16
MIPI
J14
GPIO/Android
Buttons
4
Revision 1.1
Ref Designator
Function
J3
USB OTG
J4
HDMI
J8
Headphone Jack
J10
DC Power Jack
J18
microSD Slot 1
J21
SATA
J24
2xUSB Host
J44
10/100/1G Ethernet
J53
SIM Card Holder
Pin#
Function
1
+5V
2
USBDN_DM3
3
USBDN_DP3
4
GND
Pin#
Function
1
GND
2
D19
3
D18
4
D17
5
D16
6
D15
7
D14
8
D13
9
D12
10
D11
11
D10
12
D9
13
D8
14
SCL
15
SDA
4.1 Standard Connectors
The list of industry standard connectors with known pin outs is the following:
4.2 Custom Connectors
The Nitrogen6_MAX board has a wide variety of peripheral interfaces available via custom
connectors.
J1: USB (Molex 53047-0410)
5
J5: Camera (AVX 086210033340800)
Revision 1.1
6
16
GND
17
GPIO_3_CLKO2
18
GND
19
2.5V
20
2.5V
21
2.5V
22
2.5V
23
GND
24
CSI0_DATA_EN
25
GND
26
CSI0_RST
27
CSI0_VSYNC
28
CSI0_HSYNC
29
GND
30
CSI0_PIXCLK
31
GPIO_6
32
GND
33
GPIO1_16
Pin#
Function
1
3.3V
2
3.3V
3
GND
4
GND
5
LVDS0_TX0_N
6
LVDS0_TX0_P
7
GND
8
LVDS0_TX1_N
9
LVDS0_TX1_P
10
GND
11
LVDS0_TX2_N
12
LVDS0_TX2_P
13
GND
14
LVDS0_CLK_N
15
LVDS0_CLK_P
16
GND
17
LVDS0_TX3_N
18
LVDS0_TX3_P
19
DISP0_CONTRAST
(NANDF_D0)
20
PWM4
Pin#
Function
J6: LVDS (Hirose DF14-20P-1.25H)
J7: I2C/GPIO (Molex 53047-0710)
Revision 1.1
1
+5V
2
+5V
3
+5V
4
GPIO9
5
I2C3_SDA
6
I2C3_SCL
7
GND
Pin#
Function
1
GND_Analog
2
MIC In
3
MIC Det
Pin#
Function
1
3.3V
2
3.3V
3
GND
4
GND
5
LVDS1_TX0_N
6
LVDS1_TX0_P
7
GND
8
LVDS1_TX1_N
9
LVDS1_TX1_P
10
GND
11
LVDS1_TX2_N
12
LVDS1_TX2_P
13
GND
14
LVDS1_CLK_N
15
LVDS1_CLK_P
16
GND
17
LVDS1_TX3_N
18
LVDS1_TX3_P
19
LVDS1_GPIO
(EIM_CS0)
20
PWM2
Pin#
Function
1
EIM_A23
2
EIM_DA0
3
EIM_A22
4
EIM_DA1
5
EIM_A21
J9: MIC In (Molex 53047-0310)
J11: LVDS (Hirose DF14-20P-1.25H)
7
J12: CSI1 (Molex 52991-0408)
Revision 1.1
8
6
EIM_DA2
7
EIM_A20
8
EIM_DA3
9
EIM_A19
10
EIM_DA4
11
EIM_A18
12
EIM_DA5
13
EIM_A17
14
EIM_DA6
15
EIM_A16
16
EIM_DA7
17
EIM_EB3
18
EIM_DA8
19
EIM_EB2
20
EIM_DA9
21
EIM_RW
22
EIM_DA10
23
EIM_EB1
24
EIM_DA11
25
EIM_EB0
26
GND
27
EIM_LBA
28
EIM_DA12
29
GND
30
DSI_D1M
31
EIM_WAIT
32
EIM_DA13
33
GND
34
GND
35
EIM_A24
36
EIM_DA14
37
+3.3V
38
GND
39
+3.3V
40
EIM_DA15
Pin#
Function
1
+3.3V
2
JTAG_TMS
3
GND
4
JTAG_TCK
5
GND
6
JTAG_TDO
7
JTAG_MOD
J13: JTAG (20021121-00010T4LF FCI)
Revision 1.1
8
JTAG_TDI
9
JTAG_nTRST
10
BRESET_N
Pin#
Function
IMX6 Pad Name
1
ON/OFF
2 KEY_VOL_UP
GPIO_18
3
HOME
NANDF_D4
4
SEARCH
NANDF_D3
5
BACK
NANDF_D2
6
MENU
NANDF_D1
7
KEY_VOL_DN
GPIO_19
8
GND
Pin#
Function
1
GND
2
GND
3
GND
4
DISP0_CNTRST
5
R0 6 R1 7 R2 8 R3 9 R4
10
R5
11
R6
12
R7
13
G0
14
G1
15
G2
16
G3
17
G4
18
G5
19
G6
20
G7
21
B0
22
B1
23
B2
24
B3
25
B4
26
B5
27
B6
28
B7
J14: Android Buttons (Molex 53047-0810)
J15: Parallel RGB (Omron XF2M-4015-1A)
9
Revision 1.1
29
GND
30
DISP0_CLK
31
GND
32
DISP0_HSYNC
33
DISP0_VSYNC
34
DISP0_DRDY
35
I2C3_SCL
36
I2C3_SDA
37
PWM1
38
+5V
39
+5V
40
+5V
Pin#
Function
1
CSI_D0M
2
+5V
3
CSI_D0P
4
+5V
5
GND
6
I2C2_SDA
7
CSI_D1M
8
I2C2_SCL
9
CSI_D1P
10
PWM3
11
GND
12
MIPI_BAKLGT_ON
13
CSI_D2M
14
NANDF_D5
15
CSI_D2P
16
DSI_D0P
17
GND
18
DSI_D0M
19
CSI_D3M
20
GND
21
CSI_D3P
22
DSI_CLK0P
23
GND
24
DSI_CLK0M
25
CSI_CLK0M
26
GND
27
CSI_CLK0P
28
DSI_D1P
29
GND
30
DSI_D1M
J16: MIPI (Molex 52991-0308)
10
Revision 1.1
Pin#
Function
1
UART1 TX
2
+5V
3
GND
4
UART2 TX
5
UART2 RX
6
UART1 RX
Pin#
Function
1
+3.3V
2
GND
3
+5V
Pin#
Function
2
+3.3V
4
GND
6
+1.5V
8
To SIM Card C1
9
GND
10
To SIM Card C7
11
CLK1_N
12
To SIM Card C3
13
CLK1_P
14
To SIM Card C2
15
GND
18
GND
21
GND
22
PCIE_Reset
(EIM_BCLK)
23
PCIE_RXM
24
+3.3V
25
PCIE_RXP
26
GND
27
GND
J17: COM1 & COM2 (Molex 53047-0610)
UART2 is used as the U-Boot and O/S console, so UART1 or UART5 on J54 should normally
be used for external connections.
UART1/2 are mapped to /dev/ttymxc0 and /dev/ttymxc1 under Linux and COM1/2 under
Windows Embedded.
J19: SATA Power (Tyco 640457-3)
11
J20: PCIe (Molex 679100002)
Revision 1.1
28
+1.5V
29
GND
30
I2C3_SCL
31
PCIE_TXM
32
I2C3_SDA
33
PCIE_TXP
34
GND
35
GND
36
USBDN_DM3
38
USBDN_DP3
40
GND
48
+1.5V
50
GND
52
+3.3V
Pin#
Function
1
CANH
2
GND
3
CANL
Pin#
Function
1
OUTRP
2
OUTRM
Pin#
Function
1
OUTLP
2
OUTLM
Pin#
Function
1
GND
2
UART5 TXD/RS-485+
3
UART5 RXD/RS-485-
J22: CAN Interface (Molex 53047-0310)
12
J27: 2W Amplified Audio – Right Channel (Molex 53047-0210)
J28: 2W Amplified Audio – Left Channel (Molex 53047-0210)
J54: Selectable RS232/RS485 (Molex 53047-0310)
UART5 is mapped to /dev/ttymxc4 under Linux. SW5 needs to be set to either RS232 or RS485.
Revision 1.1
5 Mounting
The overall dimensions of the Nitrogen6_MAX board are 5.4” x 3.43”
