Estimated Assembly time: 2 persons, 30 minutes
Customer Service Number: (1) 877-512-9188

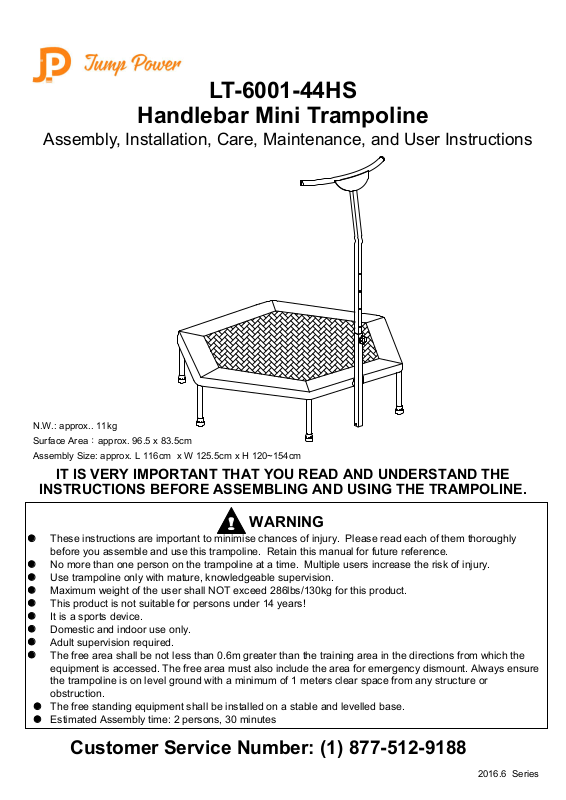

LT-6001-44HS
Handlebar Mini Trampoline
Assembly, Installation, Care, Maintenance, and User Instructions
N.W.: approx.. 11kg
Surface Area：approx. 96.5 x 83.5cm
Assembly Size: approx. L 116cm x W 125.5cm x H 120~154cm
IT IS VERY IMPORTANT THAT YOU READ AND UNDERSTAND THE
INSTRUCTIONS BEFORE ASSEMBLING AND USING THE TRAMPOLINE.
WARNING
These instructions are important to minimise chances of injury. Please read each of them thoroughly
before you assemble and use this trampoline. Retain this manual for future reference.
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with mature, knowledgeable supervision.
Maximum weight of the user shall NOT exceed 286lbs/130kg for this product.
This product is not suitable for persons under 14 years!
It is a sports device.
Domestic and indoor use only.
Adult supervision required.
The free area shall be not less than 0.6m greater than the training area in the directions from which the
equipment is accessed. The free area must also include the area for emergency dismount. Always ensure
the trampoline is on level ground with a minimum of 1 meters clear space from any structure or
obstruction.
The free standing equipment shall be installed on a stable and levelled base.
2016.6 Series
IImmppoorrttaanntt SSaaffeettyy IInnffoorrmmaattiioon
n
Please keep this manual in a safe place for reference.
1. It is important to read this entire manual before assembling and using the equipment.
Safe and efficient use can only be achieved if the equipment is assembled, maintained
and used properly. It is your responsibility to ensure that all users of the equipment are
informed of all warnings and precautions.
2. Use the equipment on a solid, flat level surface with a protective cover for your
floor or carpet.
3. The safety level of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear. Special attention to components most susceptible to
wear (e.g. mat, padding and its attachment, tension and its mounts, anti-slip or
connection points).
4. Always use the equipment as indicated. If you find any defective components
whilst assembling or checking the equipment, or if you hear any unusual noise
coming from the equipment during use, stop. Do not use the equipment until the
problem has been rectified. Defective parts are to be replaced in accordance with the
manufacturer’s instructions.
5. Wear suitable clothing whilst using the equipment. Avoid wearing loose clothing
which may get caught in the equipment or that may restrict or prevent movement.
6. The equipment is not suitable for therapeutic use.
7. Care must be taken when lifting or moving the equipment so as not to injure your back.
Always use proper lifting techniques and/or use assistance.
8. Warning. Only for domestic use and indoor use.
9. Warning. Not suitable for children under 3 years. Small parts. Choking hazard.
10. Warning. Maximum weight of user：286lbs/130kg.
11. Warning. Only one user. Collision hazard.
12. Warning. Practice with shoes.
13. Warning. Do not use the mat when it is wet.
14. Warning. Empty pockets and hands before practice.
15. Always jump in the middle of the mat.
16. Warning. Do not eat while jumping.
17. Warning. Do not exit by a jump.
18. Limit the time of continuous usage. Make regular stops. Do not jump when tired.
19. Trampolines shall neither be installed over concrete, asphalt or any other hard surface
nor at proximity of other conflicting installations (e.g. paddling pools, swings, slides,
climbing frames).
20. Adult supervision required.
21. No somersaults.
22. This product is not suitable for persons under 14 years!
23. When using the trampoline, always keep your body weight centered. Do NOT lean
your entire body weight on the handlebar in order to avoid flipping or tipping over.
IMPORTANT !
READ IT! Failure to follow these instructions to ensure proper operational
condition of your trampoline may lead to serious injury or death. Do not allow more
than one person on the trampoline at a time.
Maintenance instruction：
Shall carry out checks and maintenance of the main parts (frame, suspension system, mat,
padding and Anti-slip) at regular intervals. If these checks are not carried out, the
trampoline could become dangerous.
It is of particular importance that the following recommendations shall be followed at
the beginning of each season, as well as at regular intervals during the usage
season:
- Regular maintenance is required. Neglecting regular maintenance can lead to a risk for
users.
- All nuts and bolts must be checked for tightness and if necessary must be retightened.
- All elastic cords and joints must be checked to see that they are still intact and
cannot become dislodged during play.
- Check all coverings for bolts and sharp edges and replace them if necessary.
- Check that mat and padding are without defects and can withstand load. Environment
and extreme temperatures will make these parts lose strength.
Maintenance of Frame Pad
Frame pad is prone to wear and tear like tires on a car. Gradual deterioration of the material will
occur, the speed of which will depend on the level of exposure to UV rays, airborne pollution, and
outdoor weather conditions such as rain and wind.
The pad needs to be properly maintained and checked by following the Maintenance Schedule set
out in these instructions. When the material shows any signs of weakness, you must stop using the
trampoline immediately, properly store the trampoline and restrict access by users until a new
replacement pad is properly installed.
1 to 3 Months 3 to 6 Months 6 to 12 Months
Thorough inspection for UV
damage and prior to every
use for pad.
IT IS RECOMMENDED THAT THE PAD BE REPLACED ON A YEARLY BASIS OR EARLIER UNDER
NORMAL USE, EVEN IF IT DOES NOT SHOW ANY VISIBLE SIGNS OF DAMAGE.
Thorough inspection for UV
damage and prior to every
use for pad, net and straps.
Thorough inspection before
every use. Replace after 12
months or earlier
BASIC TRAMPOLINE BOUNCES
THE BASIC BOUNCE
1. Start from the standing position, with your feet having shoulder
width apart and with head up and eyes on mat
2. Swing arms forward and up in a circular motion
3. Bring feet together while in mid-air and point toes downwards.
4. Keep the feet shoulder width apart when landing on mat
1
PPaarrttss LLiisst
Part
Number
t
Diagram Description Quantity
1
2
3
4
5
6
7
Trampoline Mat 1
Frame Pad 1
Top Rail 5
Top Rail with Metal Plate 1
Leg with Leg Cap
6
T-Part with Handlebar 1
Upper Support Tube 1
8
9
10
11
12
13
14
15
Lower Support Tube 1
Elastic Cord 36
Screws 2
Nut
2
Spring Washer
2
Flat Washer 2
Screw Lock 1
Wrench 1
16
17
Allen Wrench 1
Elastic Cord Loading Tool 1
2
AASSSSEEMMBBLLYY IINNSSTTRRUUCCTTIIOONN
STEP 1
Two adults shall assemble the trampoline and check it before use.
X 5
X 1
X 5
X 1
3

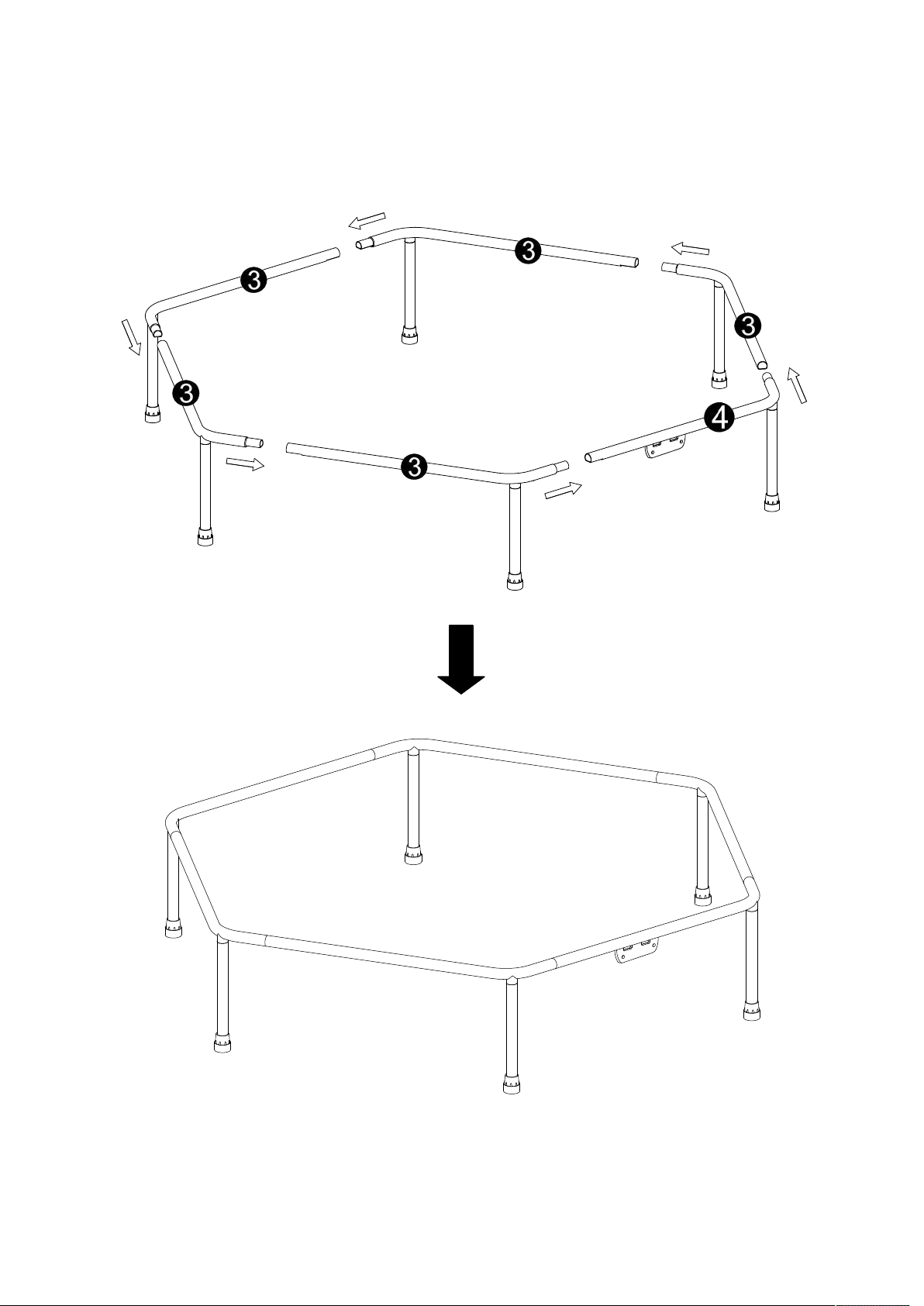

STEP 2
4
STEP 3
1 2 3
4
5
1
2
3
4
There is a total of 36pcs #9 Elastic cords. For even distribution of tension and
ease of assembly, the Elastic cords must always be installed on opposite sides
of the mat in an alternating manner.
NO. 1 & NO. 3：The elastic cords must
be loaded through the holes on the
Metal Plate
# 17
5
STEP 4
1
5
2
3
4
6
7
8
9
1
0
1
1
12
13
1
4
1 2 3
4
5
# 17
6
STEP 5
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
15
16
17
18
19
20
21
22 23
24
1 2 3
4
5
# 17
7
STEP 6
1 2 3
4
5
Continue to attach the remaining 12pcs of #9 Elastic cords in the same manner
as the previous step.
Hint: There is 6 pieces of Elastic cords on each side of the trampoline.
# 17
8
STEP 7
# 11
# 11
# 15
9
STEP 8
# 14
10

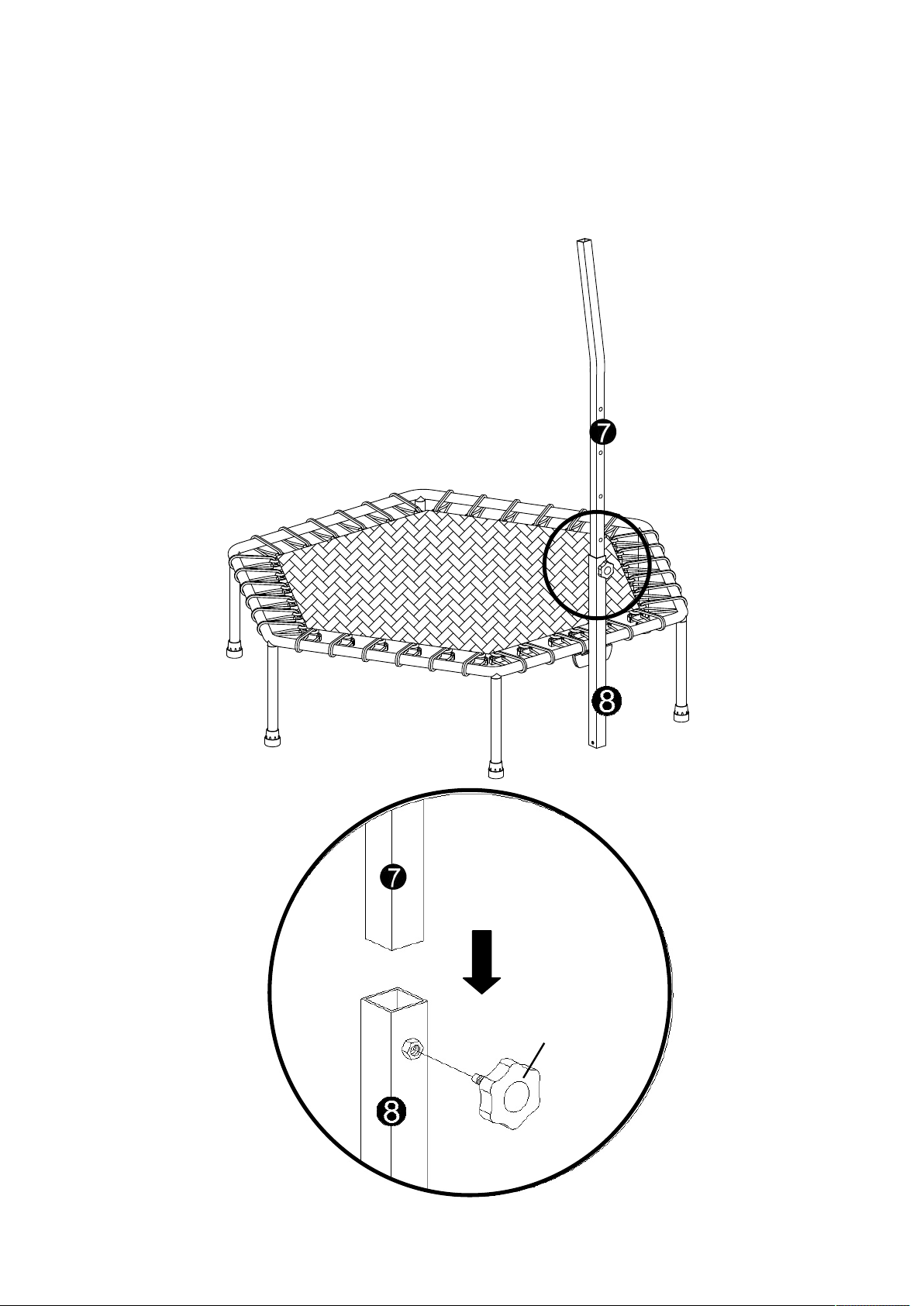

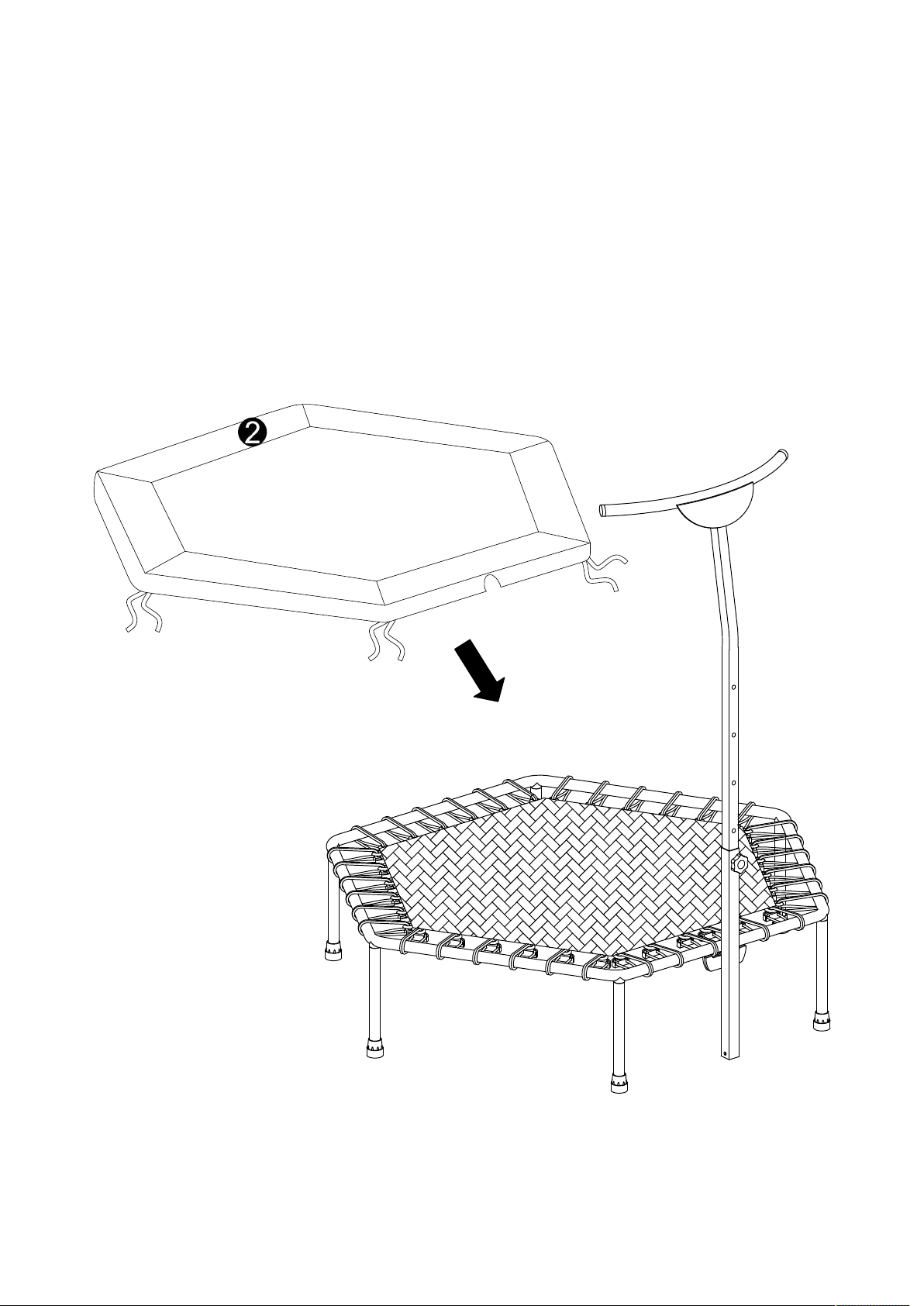

STEP 9
# 10
# 13
# 12
# 13
# 12
# 16
# 10
11

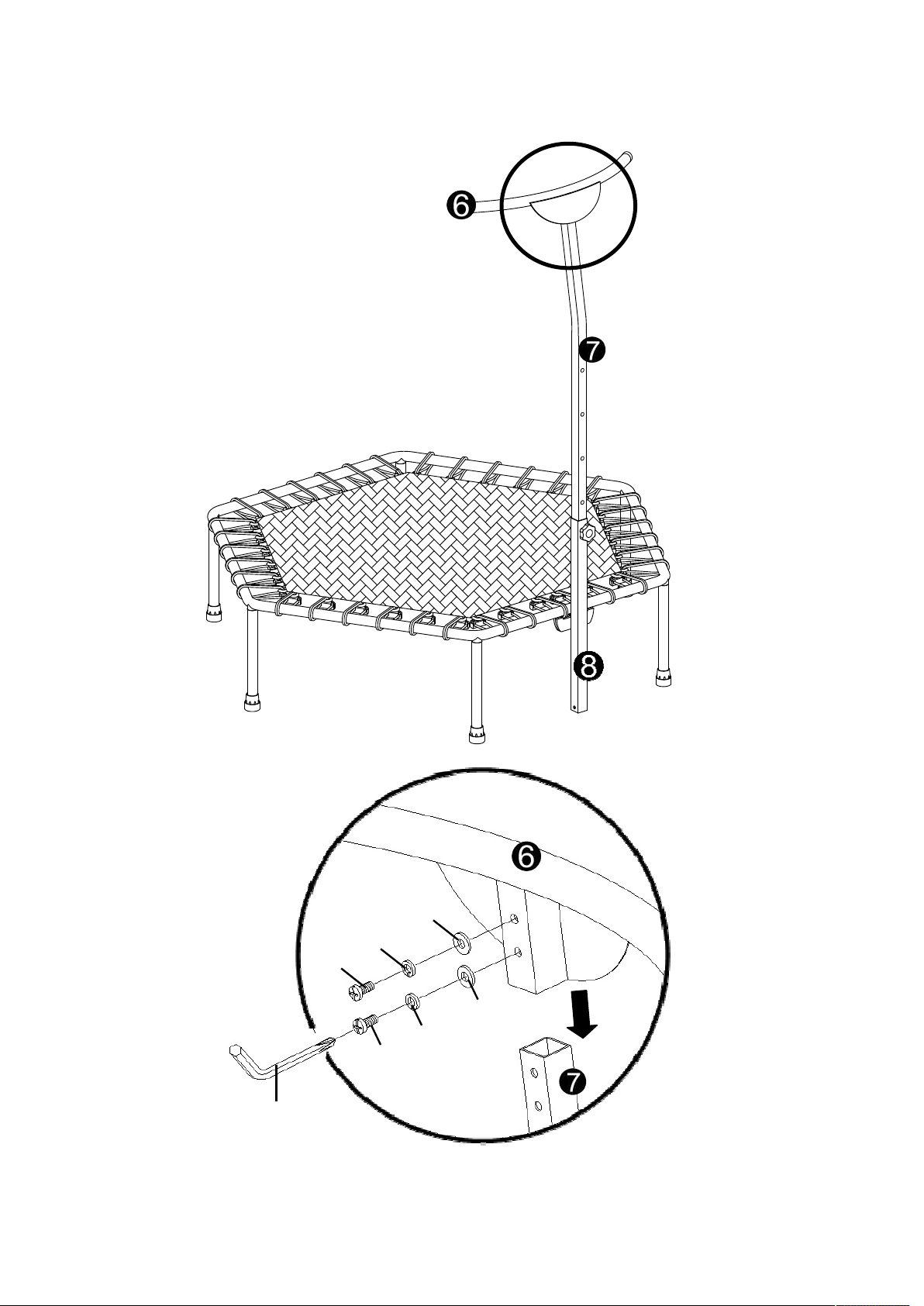

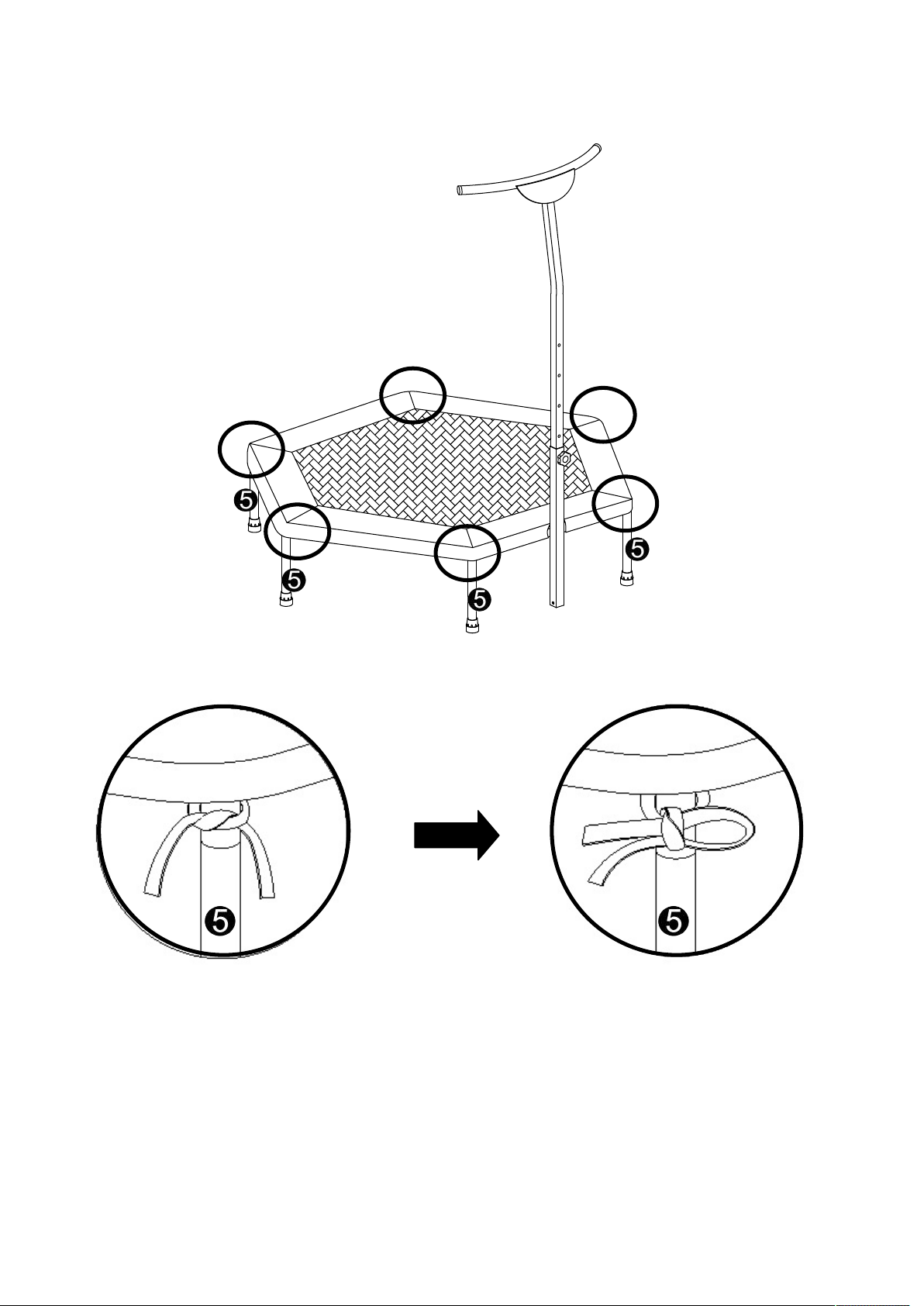

STEP 10
12
STEP 11
13
Adjustable Handlebar
The handlebar can be adjusted based on the user height. When adjusting the #7
Upper Support Tube, please ensure that the indented mark cannot be seen once fully
assembled.
Hint: When using the trampoline, always keep your body weight centered. Do NOT lean
your entire body weight on the handlebar in order to avoid flipping or tipping over.
OVER !!
Disassembly of the Trampoline
To disassemble the trampoline, follow assembly in reverse order.
MOVING THE TRAMPOLINE
When moving, lift the trampoline slightly off the ground and keep it horizontal to the ground.
For any type of other movement, you should disassemble the trampoline.
