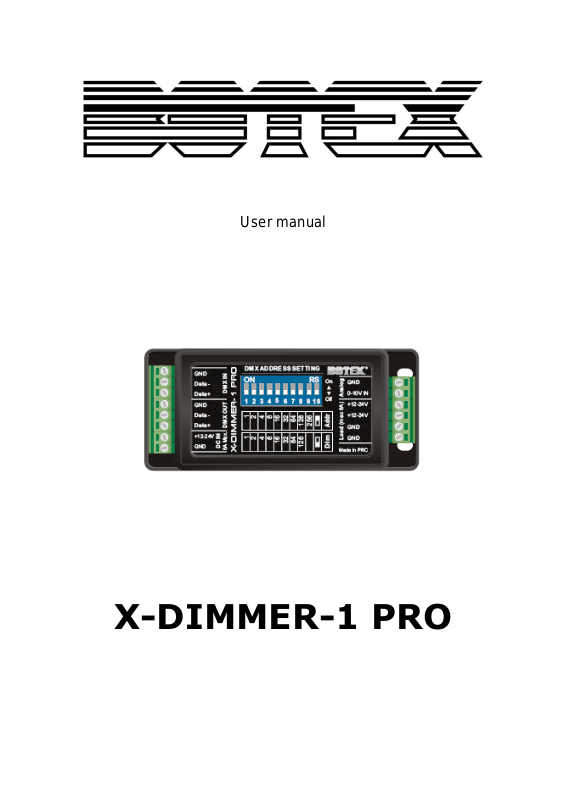

Page 1
User manual

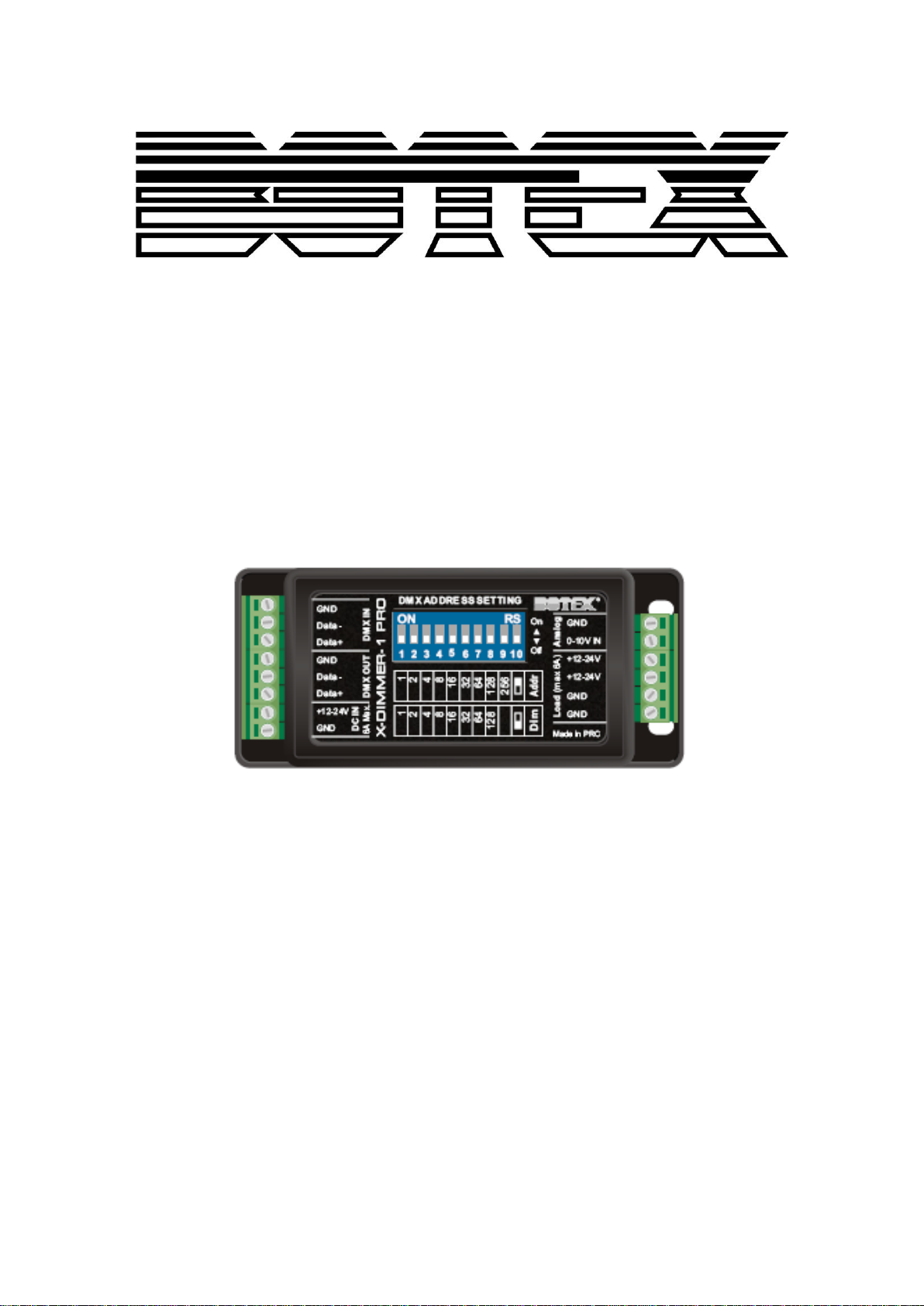

X-DIMMER-1 PRO
Page 2
Table of contents
1. Safety instructions ........................................................................................................................... 3
1.1. FOR SAFE AND EFFICIENT OPERATION ............................................................................ 3
2. Introduction ...................................................................................................................................... 4
3. Delivery package ............................................................................................................................. 4
4. Technical data ................................................................................................................................. 5
5. Operation ......................................................................................................................................... 5
5.1. DMX Control Mode (DMX Addressing) ................................................................................... 5
5.2. Manual Control Mode .............................................................................................................. 6
6. Technical Drawing ........................................................................................................................... 8
2 / 9
Page 3
This device is suitable for indoor use only.
All modifications to the device will void the warranty.
Repairs are to carry out by skilled personnel only.
Use only fuses of the same type and original parts as spare parts.
Protect the unit from rain and humidity to avoid fire and electric shocks.
Make sure to unplug the power supply before opening the housing.
1. Safety instructions
1.1. FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 32°F /0°C, or exceeding 104°F /40°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,
do not open the cabinet by yourself, it might result a danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure to hold the plug.
When not using the device for an extended period of time, be sure to disconnect the plug
from the receptacle.
3 / 9
Page 4
Important: Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems. Make sure the electrical connection is carried out by qualified
personnel. All electrical and mechanical connections have to be carried out
according to the European safety standards.
2. Introduction
Thanks for purchasing our product. Read the manual carefully before using our BOTEX X-DIMMER-1
PRO. This unit serves as a signal channel dimmer. A maximum of up to 6A loads are allowed on a
single output, DMX address are addressed by flipping the dip switch. The dimmer is available in DMX
Control Mode, Manual Dim Mode and features 0-10V analog input. The intensity of LED products can
be dimmed in the Manual Dim Mode.
3. Delivery package
Check for transport damage.
You should be in possession of the following items:
1 X-DIMMER-1 PRO
1 Manual
1 Screwdriver
1 Connecting part
Should you discover transport damage after unpacking the equipment, inform the hauler immediately.
Never connect a damaged device. You may also contact your supplier.
4 / 9
Page 5
Power requirement
12~24VDC 6.5A max.
Output (6A max.)
3-pin terminal connector for DMX out
4-pin terminal connector for LOAD
Input
2-pin terminal connector for Power In
2-pin terminal connector for Analog In
3-pin terminal connector for DMX In
Ingress Protection Rating
IP20
Housing
Black plastic
Control Protocol
DMX 512 (1990)
Connection
Terminal
Listing
CE certified
Operation temperature
0°C – 40°C
Dimensions (L x W x H)
90 x 40 x 20 (mm)
Weight
50g
Dip Switch
Address
1 1 2 2 3 4 4 8 5
16
6
32
7
64
8
128
9
256
4. Technical data
5. Operation
5.1. DMX Control Mode (DMX Addressing)
In this mode, the dip switch 10 is flipped to the “ON” position. DMX address can be addressed and the
intensity of LED products is dimmable.
DMX is short for Digital Multiplex. This is a universal binary language used as a form of
communication between intelligent fixtures. Each dip switch represents a binary value.
5 / 9
Page 6
Dip Switch
Address
1
1
2
2
3
4
4
8
5
16
6
32
7
64
8
128
A DMX value (address) is set by combining the different dip switches that will add up to the value you
wish to achieve, for example:
Setting DMX address for 21. Flip switches 1, 3 & 5 to the “ON” position.
1=1, 3=4, 5=16
1+4+16=21
Setting DMX address for 201. Flip switches 1, 4, 7 & 8 to the “ON” position.
1=1, 4=8, 7=64, 8=128
1+8+64+128=201
5.2. Manual Control Mode
In this mode, the dip switch 10 is flipped to the “OFF” position. Flip the dip switch 1~8 to set the
intensity of LED products. Each dip switch represents a binary value.
6 / 9
Page 7
The intensity is set by combining the different dip switches that will add up to the value you wish to
achieve for example:
Setting the Intensity for 21. Flip switches 1, 3 & 5 to the “ON” position.
1=1, 3=4, 5=16
1+4+16=21
Setting the Intensity for 201. Flip switches 1, 4, 7 & 8 to the “ON” position.
1=1, 4=8, 7=64, 8=128
1+8+64+128=201
7 / 9
Page 8
6. Technical Drawing
Connecting the X-CHIP-100 ND modules to the X-DIMMER-1 PRO
8 / 9
Page 9
Importer:
B & K Braun GmbH
Industriestraße 1
D-76307 Karlsbad
www.bkbraun.com
info@bkbraun.com
9 / 9
