Botex PSA-321 User Manual

PSA-321

User manual

power distributor

Musikhaus Thomann

Thomann GmbH

Hans-Thomann-Straße 1

96138 Burgebrach

Germany

Telephone: [phone]

E-mail: [e-mail]

Internet: www.thomann.de

18.09.2019, ID: 258280 (V2)

Table of contents

Table of contents

1 General information................................................................................................................................. 5

1.1 Further information........................................................................................................................... 6

1.2 Notational conventions.................................................................................................................... 7

1.3 Symbols and signal words............................................................................................................... 7

2 Safety instructions..................................................................................................................................... 9

3 Features....................................................................................................................................................... 15

4 Installation and starting up................................................................................................................ 16

5 Connections and controls................................................................................................................... 17

6 Technical specications....................................................................................................................... 21

7 Protecting the environment.............................................................................................................. 23

PSA-321
power distributor

3

PSA-321

4

power distributor

1 General information

This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.

Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.

General information

PSA-321
power distributor

5

General information

1.1 Further information

On our website (www.thomann.de) you will nd lots of further information and details on the
following points:

Download This manual is also available as PDF le for you to download.

PSA-321

6

power distributor

Keyword search

Online guides

Personal consultation For personal consultation please contact our technical hotline.

Service

Use the search function in the electronic version to nd the topics of
interest for you quickly.

Our online guides provide detailed information on technical basics
and terms.

If you have any problems with the device the customer service will
gladly assist you.

1.2 Notational conventions

This manual uses the following notational conventions:

General information

Letterings

The letterings for connectors and controls are marked by square brackets and italics.

Examples: [VOLUME] control, [Mono] button.

1.3 Symbols and signal words

In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.

PSA-321
power distributor

7

General information

Signal word Meaning

DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – danger zone.

PSA-321

8

power distributor

2 Safety instructions

Safety instructions

Intended use

This device is used to distribute electrical power to multiple connected loads. The device is
designed for professional use only and is not suitable for use in households. Use the device
only as described in this user manual. Any other use or use under other operating conditions is
considered to be improper and may result in personal injury or property damage. No liability
will be assumed for damages resulting from improper use.

This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

PSA-321
power distributor

9

Safety instructions

Safety

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

PSA-321

10

power distributor

Safety instructions

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.

Do not use the device if covers, protectors or optical components are missing or
damaged.

DANGER!
Electric shock caused by short circuit

Always use a properly insulated CEE cable to connect the unit to the 400 V mains
grid. Do not modify the CEE cable or the CEE plug. Failure to comply may result in
electric shock and risk of re and loss of life. If in doubt, seek advice from a regis‐
tered electrician.

PSA-321
power distributor

11

Safety instructions

NOTICE!
Risk of re

Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.

PSA-321

12

power distributor

Safety instructions

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).

Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.

PSA-321
power distributor

13

Safety instructions

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.

NOTICE!
Possible staining

The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC oor and after some
time cause permanent dark stains.

In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad
oor protectors or a carpet.

PSA-321

14

power distributor

3 Features

Features

n 3-phase power distributor to 6 × 16 A
n Digital voltage (‘V’) and current (‘A’) display for each output
n Input

– Cable with CEE plug for 3 × 32 A (400 V)

n Outputs

– 6 × EU safety sockets with hinged lid for each 16 A (250 V)
– 1 × 5-pin CEE chassis socket with hinged lid for 32 A (400 V)

n Circuit breaker with trigger switch for each output
n Four-pole residual current device (RCD, residual current circuit breaker) for the input
n Robust steel sheet housing with black epoxy powder coating
n Metal front panel
n 19" rack mountable

PSA-321
power distributor

15

Installation and starting up

4 Installation and starting up

Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.

Create all connections while the device is o. Use power supply cables with earthed earthing
pin plug or 5-pin CEE-plug only.

Rack mounting

PSA-321

16

power distributor

The unit has been designed for rack mounting in a standard 19-inch rack; it occupies three rack
units.

5 Connections and controls

Front panel

Connections and controls

PSA-321
power distributor

17

Connections and controls

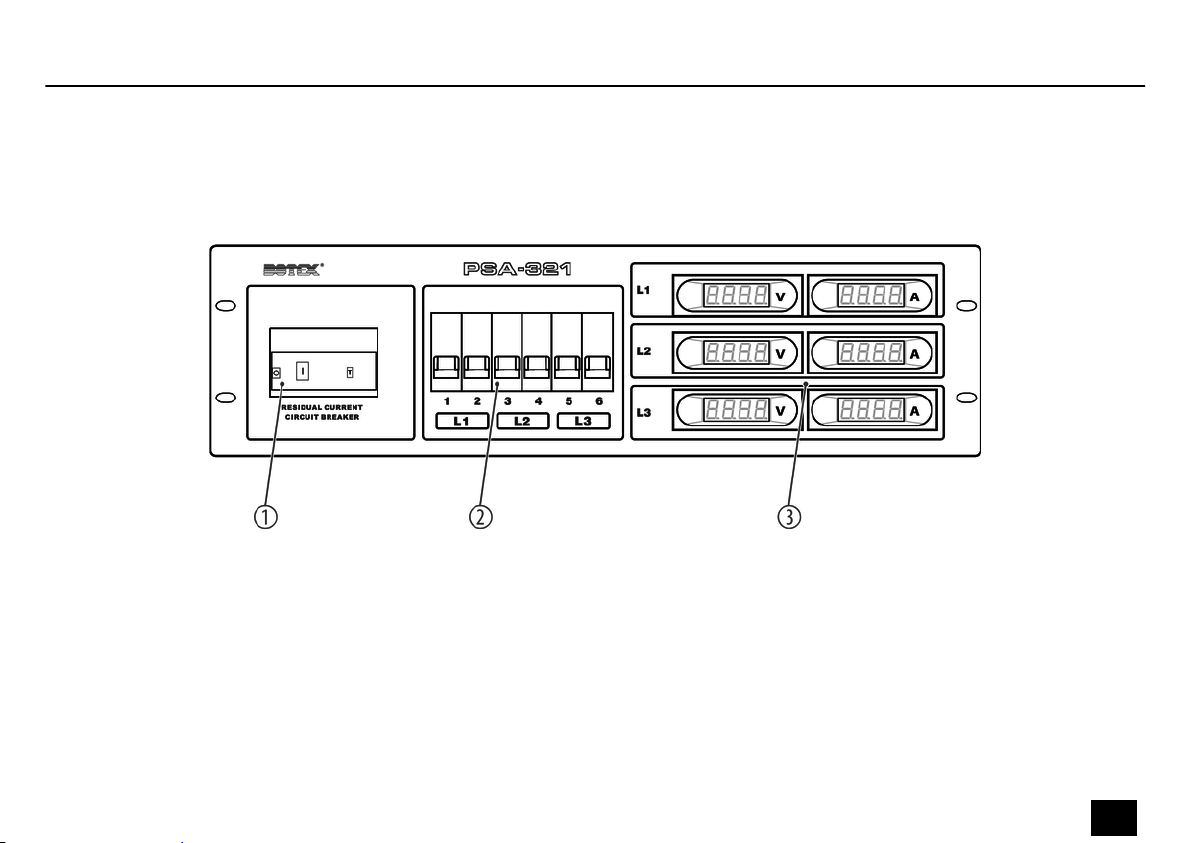

1 Residual current device (RCD). This protective device, also known as ‘Fehlerstrom-Schutzschalter’ or ‘FI-Schalter’ in

German-speaking countries, is used for personal protection. As soon as it detects dierential current / fault current, it
automatically disconnects the device from the mains.

[T]: Button for manual triggering the residual current device (RCD).

[0]: Momentary switch for turning o the power supply

[1]: Momentary switch for turning on the power supply

2 [1], … [6]

Line circuit breaker for the six outputs of the power distributor. In case of overload (> 16 A), the circuit breaker auto‐
matically disconnects the supply to the assigned CEE socket.

3 [L1 / L2 / L3]

Measuring instruments for voltage (‘V’) and current (‘A’) of the three phases.

PSA-321

18

power distributor

Rear panel

Connections and controls

PSA-321
power distributor

19

Connections and controls

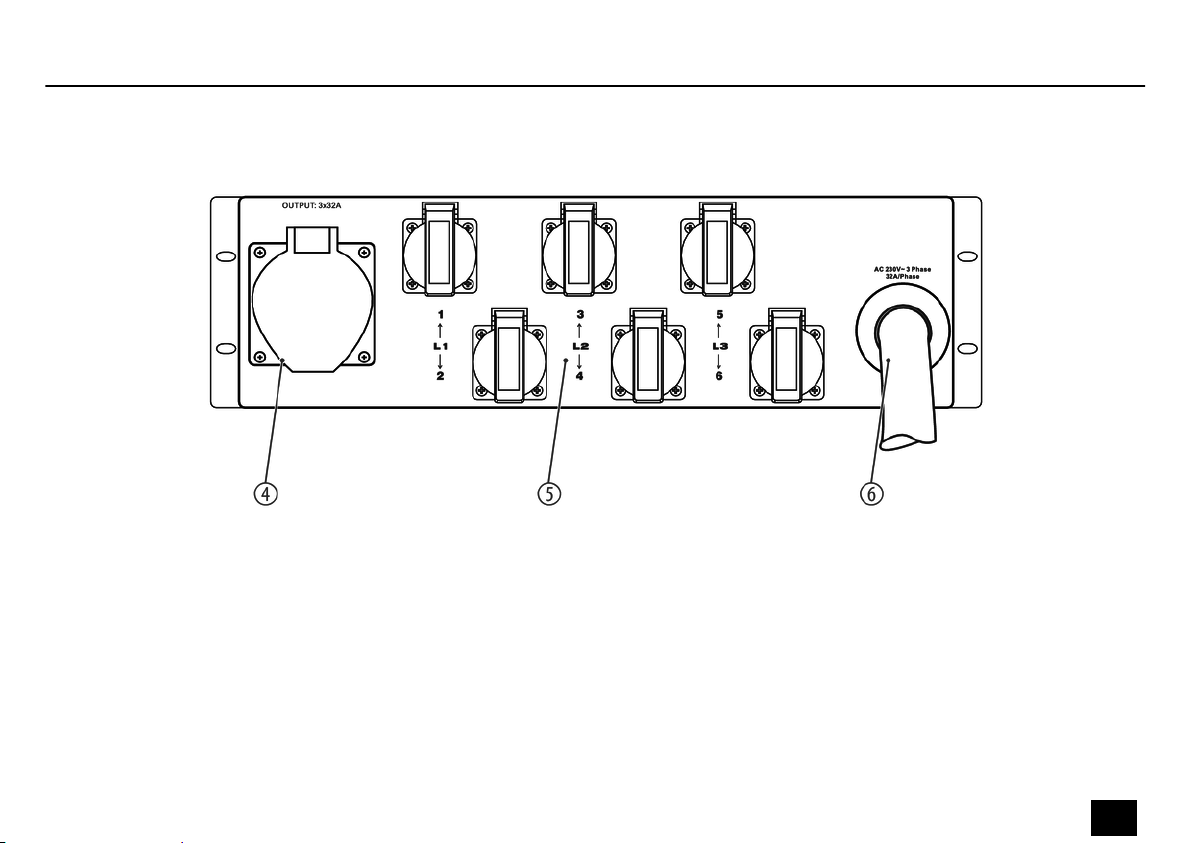

4 5-pin CEE chassis socket with hinged lid.

5 6 × EU safety socket with hinged lid for the six outputs.

6 Power cable with CEE plug.

PSA-321

20

power distributor

Technical specications

6 Technical specications

Input connections Power supply 3 × CEE plug, 3 × 32 A

Output connections 6 × EU safety socket 230 V, 16 A

1 × CEE chassis socket 32 A, three-phase

Safety Residual current device (RCD) / input 40 A, 4-pin, 0.03 A

Line circuit breaker / outputs: 6 × 16 A

Supply voltage

Degree of protection IP44

Mounting options Thread

Installation 19", 3 RU

Dimensions (W × H × D) 482 mm × 133 mm (3 RU) × 198 mm

Weight 7.9 kg

400 V 50 Hz

PSA-321
power distributor

21

Technical specications

Ambient conditions Temperature range 0 °C…40 °C

Relative humidity 50 %, non-condensing

Further information

Power handling 32 A

Residual current circuit breaker Yes

Fuses 6 × automatic fuse 16 A C

Switch No

Rack format Yes

PSA-321

22

power distributor

7 Protecting the environment

Disposal of the packaging mate‐
rial

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.

Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.

Disposal of your old device

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) in its currently valid version. Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal rm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Protecting the environment

PSA-321
power distributor

23

Notes

PSA-321

24

power distributor

Notes

PSA-321
power distributor

25

Notes

PSA-321

26

power distributor

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
