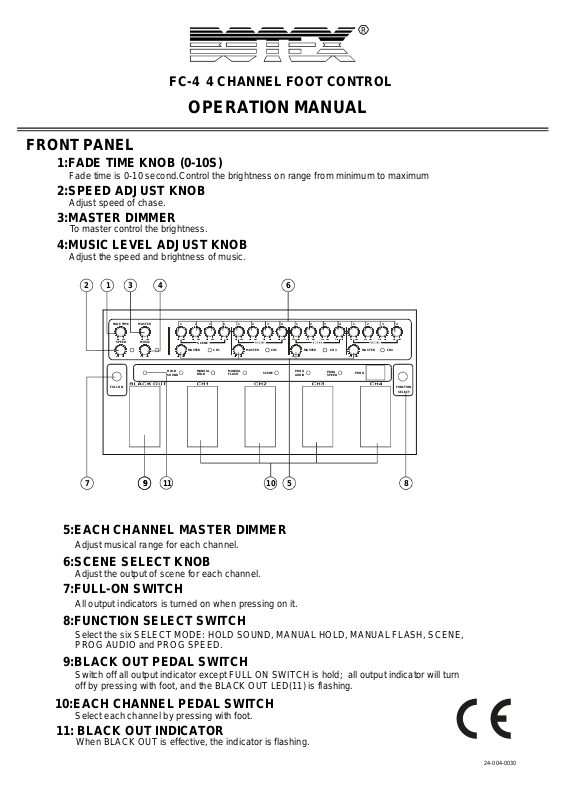

Page 1
FRONTPANEL
1:FADETIMEKNOB(0-10S)
Fadetimeis0-10second.Controlthebrightnessonrangefromminimumtomaximum
2:SPEEDADJUSTKNOB
Adjustspeedofchase.
3:MASTERDIMMER
Tomastercontrolthebrightness.
4:MUSICLEVELADJUSTKNOB
Adjustthespeedandbrightnessofmusic.
R
FC-44CHANNELFOOTCONTROL
OPERATIONMANUAL
2 1
3 6
FADETIME MASTER
SPEED MUSIC
MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
FULLON FUNCTION
7 899
4
MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MINMIN MAXMIN MAXMIN MAX
MAX MAX MAX MAX MAX MAX MAX MAX MAX MAX MAX MAX MAX MAX MAX
SCENE
CH1 CH2MASTERMASTER MASTER CH3 MASTER CH4
HOLD
SOUND
MANUAL
HOLD
11
MANUAL
FLASH
SCENE
10 5
5:EACHCHANNELMASTERDIMMER
Adjustmusicalrangeforeachchannel.
1 2 3 41 2 3 41 2 3 41 2 3 4
PROG
AUDIO
PROG
SPEED
PROG
SELECT
6:SCENESELECTKNOB
Adjusttheoutputofsceneforeachchannel.
7:FULL-ONSWITCH
Alloutputindicatorsisturnedonwhenpressingonit.
8:FUNCTIONSELECTSWITCH
SelectthesixSELECTMODE:HOLDSOUND,MANUALHOLD,MANUALFLASH,SCENE,
PROGAUDIOandPROGSPEED.
9:BLACKOUTPEDALSWITCH
SwitchoffalloutputindicatorexceptFULLONSWITCHishold;alloutputindicatorwillturn
offbypressingwithfoot,andtheBLACKOUTLED(11)isflashing.
10:EACHCHANNELPEDALSWITCH
Selecteachchannelbypressingwithfoot.
11:BLACKOUTINDICATOR
WhenBLACKOUTiseffective,theindicatorisflashing.
24-004-0030
Page 2
REARPANEL
1:EXTERNALAUDIOINPUT(RCAJACK)
Voltagerangefrom100mVto1Vp-p.TheinternalaudiosignaliscutbyRCAjack.
1 2 3 4 5 5
1
4Channel
FootControl
100mV-1Vp-p
EXT
AUDIOINPUT
WHOLE HALF
PROGRAM
SELECT
OFF ON
POWER
SWITCH
+15V-24VDC
300mA
DC
INPUT
1 2
CH3CH3
+
+15-24V+15-24V
GNDGND
CH2CH2
CH4CH4
CH1CH1
GNDGND
OUTPUT
2
2:HALF/WHOLEPROGRAMSELECTSWITCH.
Halforfullchosebytheswitch.
3:POWERSWITCH
Turnonoroffthemainpower.
4:DCINPUT(DCJackcenterpin 2.0mm)
DCinputvoltage,rangefromDC15Vto24Vatleast300mA,supplyfortheconsole.
PolarityofDCjackshownasbelowfigure.
+
OUTPUT:
VOLTAGE:0-10V
POWERSUPPLY
VOLTAGE:DC+15V~24V
CURRENT:300mA
CAUTION
RISKOFELECTRICSHOCK
DONOTOPEN
5:OUTPUTSOCKETS(8PINDINSOCKET)
Outputvoltageofeachchannelrangesfrom0Vto+10V.
1 2
CH3CH3
+15-24V+15-24V
CH4CH4
GNDGND
CH2CH2
CH1CH1
GNDGND
Page 3
OPERATINGINSTRUCTION:
PRELIMINARY
Therearesixfunctionalselectmodesontheconsole.SelectonemodebypressingtheFUNCTION
SELECTbuttonatonce.ThefirstpriorityisHOLDSOUNDmodeandindicatorisilluminatedwhen
thepoweristurnon.
OPERATION
1.HOLDSOUNDmode
Whenthepowerison,HOLDSOUNDmodeiseffectiveandLEDon.Perhapsyoumayselectbyusewith
FUNCTIONSELECTbutton.
SOUNDDIMMERiscontrolledbyEACHCHANNELMASTERDIMMERknobandMUSICLEVELADJUST
knobwithoutpressingbyfoot;meanwhile,FADETIMEknob;MASTERknobandSPEEDknobismalfunction.
Characterofchannelshownasbelow:
Ch1=bass,Ch2=lowermedium,Ch3=highmediumandCh4=treble.
FootpedalandholdatanyCHANNELPEDALSWITCH,andindicatorofthischannelwillbelighted.Itisrestored
unlessreleasefootswitch.IffootpedalatBLACKOUTSWITCH,allmaybeoffexceptf orindicatorofBLACK
OUTflashing.
2.MANUALHOLDmode
PressingtheFUNCTIONSELECTbuttonandreleaseuntiltheindicatorisilluminated.Thismodeiscontrolledby
MASTERknob,FADETIMEknob,andeachchannelMASTERknob.ButSPEEDknobandMUSICknobis
malfunction.
FootpedalandholdatanyoneofCH1-CH4PEDALSWITCH,youmayfindtheLEDofchannelison.Theswitch
affectstheoutputsignal.However,theLEDofBLACKOUTflashandoutputclosedwhentouchtheBLACKOUT
PEDALSWITCH.Iftouchagain,theLEDturnoffandgobackthepreviousstage,exceptyoupressanotherpedal
switch.
3.MANUALFLASHmode
ChoosethismodebypressingtheFUNCTIONSELECTbutton;releaseuntiltheLEDison.TheBLACKOUT
PEDALSWITCHisineffective.Ontheotherhand,theLEDofchannelswillbeturnonoroffwhenyoupressor
releaseCHANNELPEDALSWITCHbyfoot.
TheoutputsignalcontrolledbytheswitchesasMANUALHOLDmode.
4.SCENEmode
PressingtheFUNCTIONSELECT(8)buttonandreleaseuntiltheSCENELEDison.UsingtheCH1-CH4
PEDALswitchformonitoringtheoutputstate.SignalscontrolledbyMASTERknob,FADETIMEknobandSCENE
1-4knobofeachchannel.TheSCENErespondstochannel.SignalsoutcontrolledbytheCH1-CH4PEDAL
SWITCH.YoumaystopthesignaloutbypressingtheBLACKPEDALSWITCH.
5.PROGAUDIOmode
PressingtheFUNCTIONSELECTbuttonandreleaseuntiltheLEDison.Thereare16programstoredatthis
console.SelectbytheCH1-CH4PEDALSWITCHshownasfollows:CH1isresponsibleforfourprogramsas
1,2,3and4selectedbypressingtheCH1PEDALSWITCH.CH2isresponsibleforfourprogramsas5,6,7and8
selectedbypressingtheCH2PEDALSWITCH.CH3isresponsibleforfourprogramsas9,10,11and12selected
bypressingtheCH3PEDALSWITCH.CH4isresponsibleforfourprogramsas13,14,15and16selectedby
pressingtheCH4PEDALSWITCH.SpeedcontrolledbyMUSICknob,outputlevelcontr olledbyMASTERknob,
eachchannelMASTERknobandFADETIMEknob.However,theSPEEDknobisineffective.Ifclosingtheoutpu
tofsignal,pressingtheBLACKPEDALSWITCHbyfoot.
6.PROGSPEED
PressingtheFUNCTIONSELECTbuttonandreleaseuntiltheLEDison.Thismodefunctionisdifferentfrom
PROGAUDIOmode.ItcanmakethecontrolspeedbyuseSPEEDKNOBandMUSICALLEVELknobis
malfunction.
