Page 1
R
12 CHANNEL DIGITAL SWITCH PACK
DSP-12DSP-12
Operating Instructions
Please read before use
English
OUTPUT FUSES: F6.3A 250V 5x20mm
POWER
R
DSP -12DSP -12
12 CHANNEL DIGITAL SWITCH PACK
STORE
EDIT
MENU
8 8 8 8
DMX
10987654321 1211
1 2 3 4 5 6 7 8 9 10 11 12
Page 2
Improvement and changes to
and design, may be made at
any time without prior notice.
ALL RIGHTS RESERVED.
Page 3
Contents
Features 1
General Instructions 2
1. Overview 3
2. Operation Guide 5
Technical Specifications 11
1.1 Front Panel 3
1.2 Rear Panel 4
2.1 Analogue Mode 5
2.2 Self Test Mode 5
2.3 DMX Address Mode 7
2.4 DMX Channel Mode 8
2.5 Channel Output Mode 9
2.6 Initialization 10
R
The Pioneer of
Entertainment Lighting Industry
SWITCH PACKSWITCH PACK
12 CHANNEL DIGITAL 12 CHANNEL DIGITAL
DSP-12DSP-12
Improvement and changes to
this manual, specifications
and design, may be made at
any time without prior notice.
ALL RIGHTS RESERVED.
Page 4
Features
Thank you for purchasing this BOTEX product.
This features include:DSP-12 DSP-12
Every effort has been made to design dependability, reliability and comfort
into each unit. New products are being designed constantly to meet the
needs of both entertainment and the lighting industry. We welcome your
comments about our product and services.
It is both a privilege and a pleasure serving you.
Serves as a 1, 2, 3, 4, 6 or 12 channel switch pack depending
upon the DMX channel mode
Analogue signal overrides DMX signal
Power failure memory.
4 digits Segment Display shows current activity
and function state.
"Off" or "Full" output of 12 channels
Self test of the 12 lighting effects on 12 channels
1
General Instructions
Please read through this operating instructions before installing or using
your new product. After you have finished reading the instructions, put
them away in a safe place for future reference.
Page 5
General Instructions
Safe and Efficient Use
Product Care
To prevent fire or shock hazard, do not expose this product to
rain or moisture.
In the event of a malfunction(burning smell, etc.), immediately
stop operation, disconnect the power supply plug, and consult
authorized service personnel.
No user serviceable parts inside, always consult authorized
personnel for repairs.
Take care not to damage the power cord.
Do not make any inflammable liquids, water or metal objects
enter the unit.
This product must be earthed.
Do not dismantle or modify the unit.
Place this unit in a stable location.
Do not use the unit in places subject to excessive humidity,
vibration or bumps.
Unplug the power plug from the sockets when not using the
unit for extended period.
Provide occasional ventilation during use.
This product is intended for indoor use only.
Please read through this operating instructions before installing or using
your new product. After you have finished reading the instructions, put
them away in a safe place for future reference.
2
Page 6
1. Overview

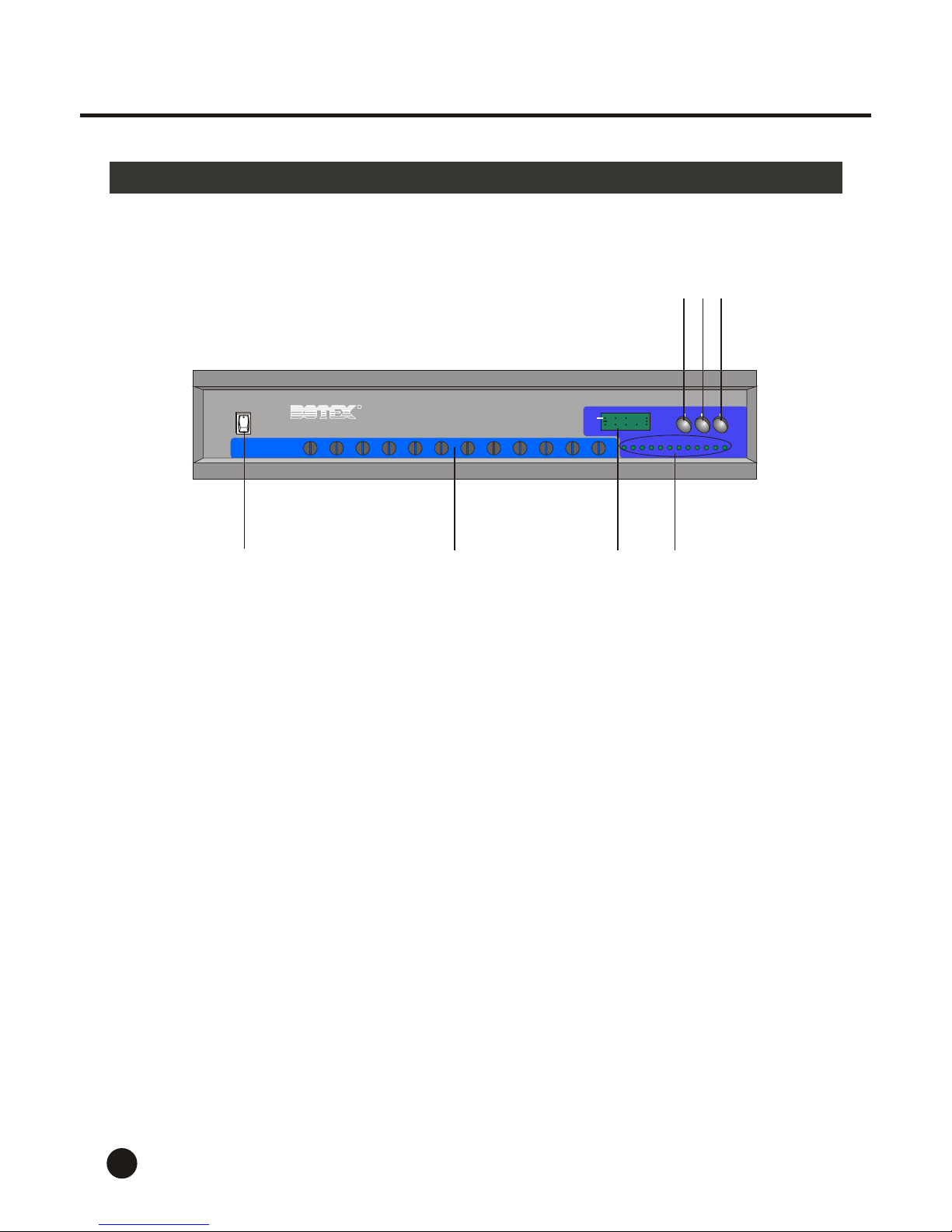

1.1 Front Panel
3
1. Overview
OUTPUT FUSES: F6.3A 250V 5x20mm
POWER
R
DSP -12DSP -12
12 CHANNEL DIGITAL SWITCH PACK
STORE
EDIT
MENU
8 8 8 8
DMX
10987654321 1211
1 2 3 4 5 6 7 8 9 10 11 12
1 3 42
5 6 7
1. Power Switch:
2. Channel Fuse:
3. Segment Display:
4. Channel LEDs:
5. Menu Button:
6. Edit Button:
7. Store Button: Stores your setting into memory.
Turn on or off the main power of the unit.
F6.3A 250V 5x20mm
Shows the current activity or function state.
Shows the intensity of relevant channel.
Press to activate setup of menu.
Edit the display value. Keep pressing
changes the value quickly.
Page 7
1. Overview

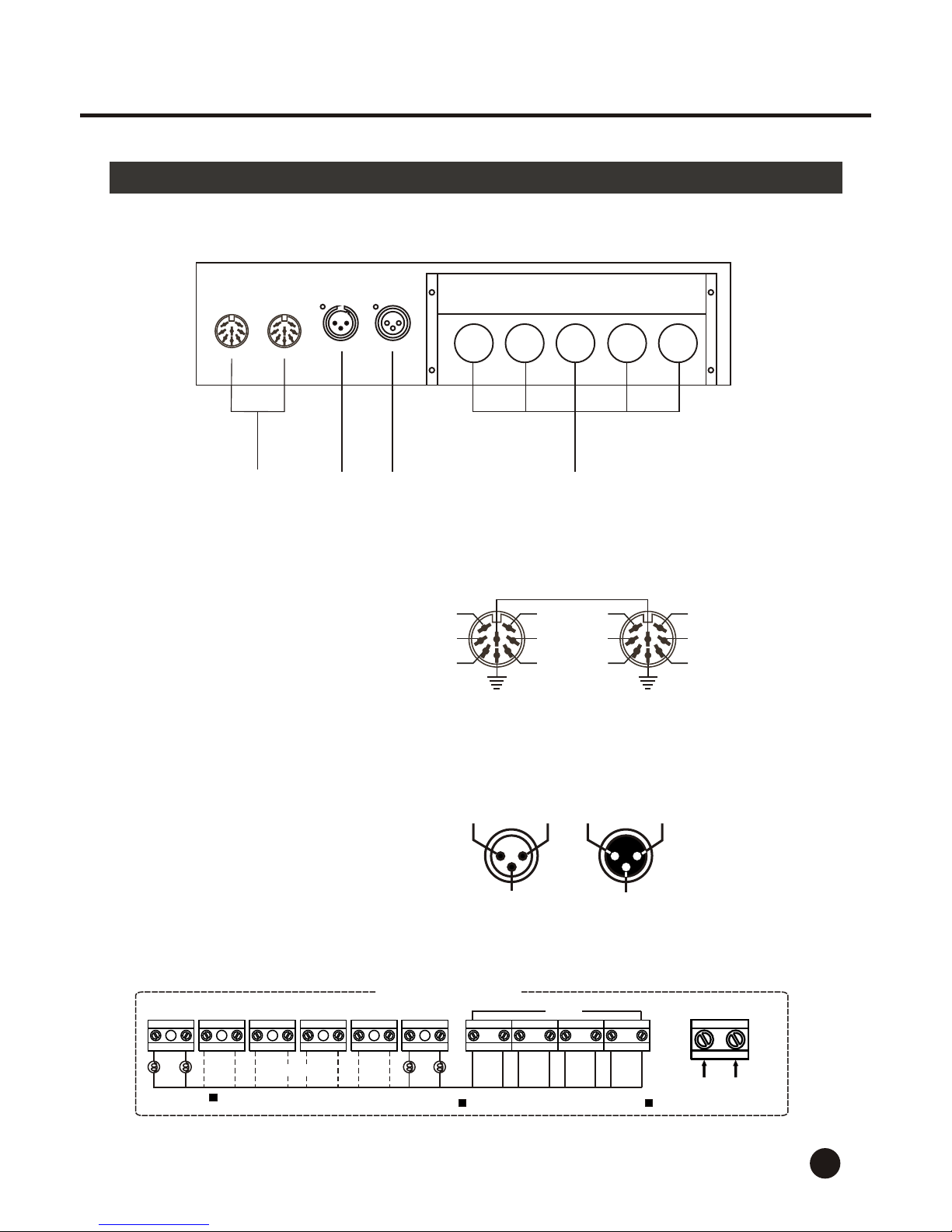

1.2 Rear Panel
4
1 2
3
4
ANALOG INPUT DC 0V to 10V
DC OUTPUT +20V, 140mA max.
CH11
CH6
CH5
CH12
CH8
CH7
+20V
GND
CH9
CH2
CH1
CH10
CH4
CH3
GND
1=Ground
2=Data3=Data+
DMX IN
DMX OUT
21
3
12
3
OUTPUT LOAD
AC INPUT
AC 220 - 240V~ 50Hz 40A max.
FUSES : F6.3A 250V 5x20mm
OUTPUT : 5A per channel Total 40A max.
Inductive loading.
12
11
10 9 8 7 6 5 4 3 2 1
Neutral
L
N
CONNECTION
1. Analogue Input
2. DMX Input
3. DMX Output
4. Terminal Block
(See the connecting
diagram.)
Page 8
2. Operation Guide

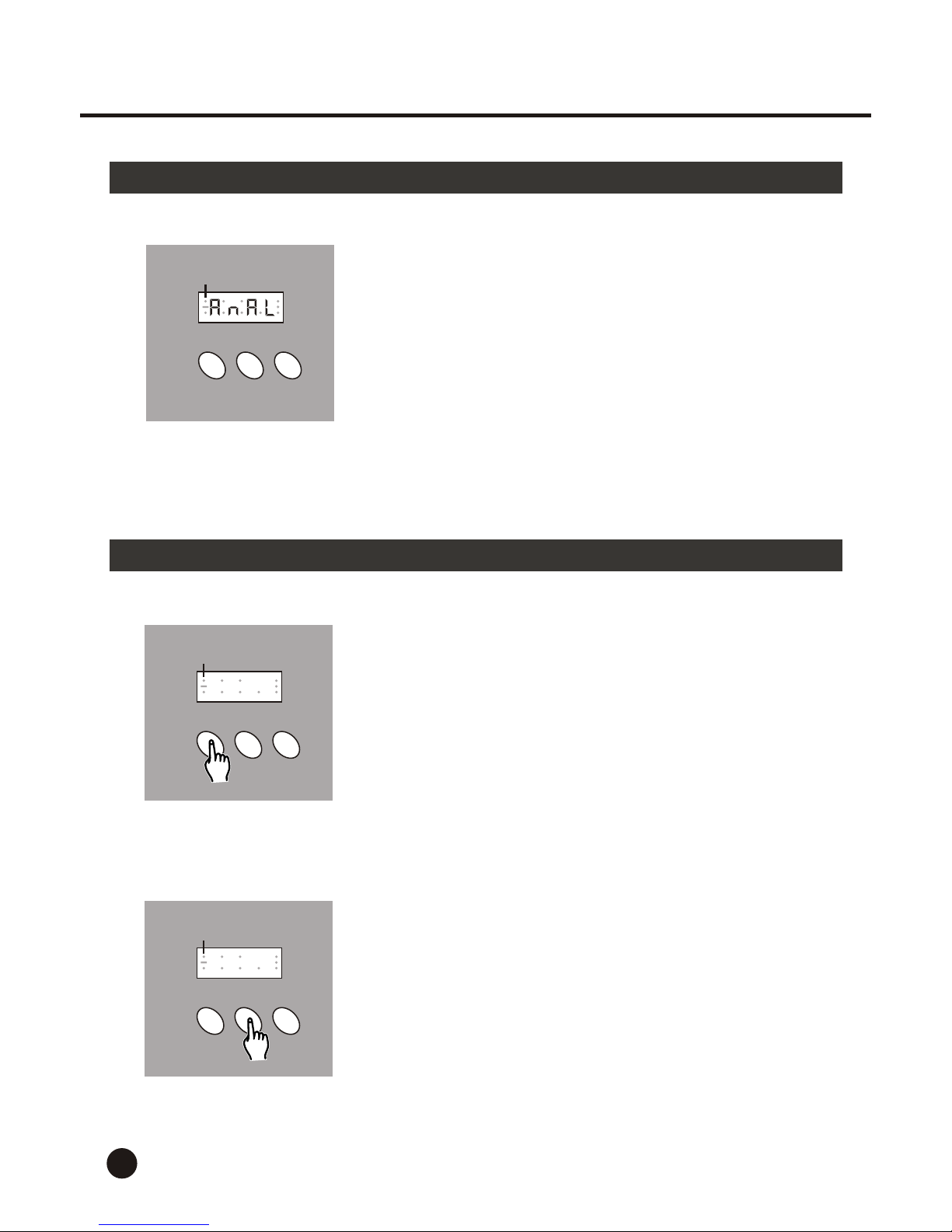

2.1 Analogue Mode
2.2 Self Test Mode
S P - 1
S P - 1
DMX
DMX
DMX
MENU
MENU
MENU
EDIT
EDIT
EDIT
STORE
STORE
STORE
This unit is initially activated by Analogue signal.
Turn main power on, the Segment Display shows
"AnAL", indicating only Analogue mode is active.
Now the output will be controlled by the analogue
signal, the Edit and Store buttons don't work.

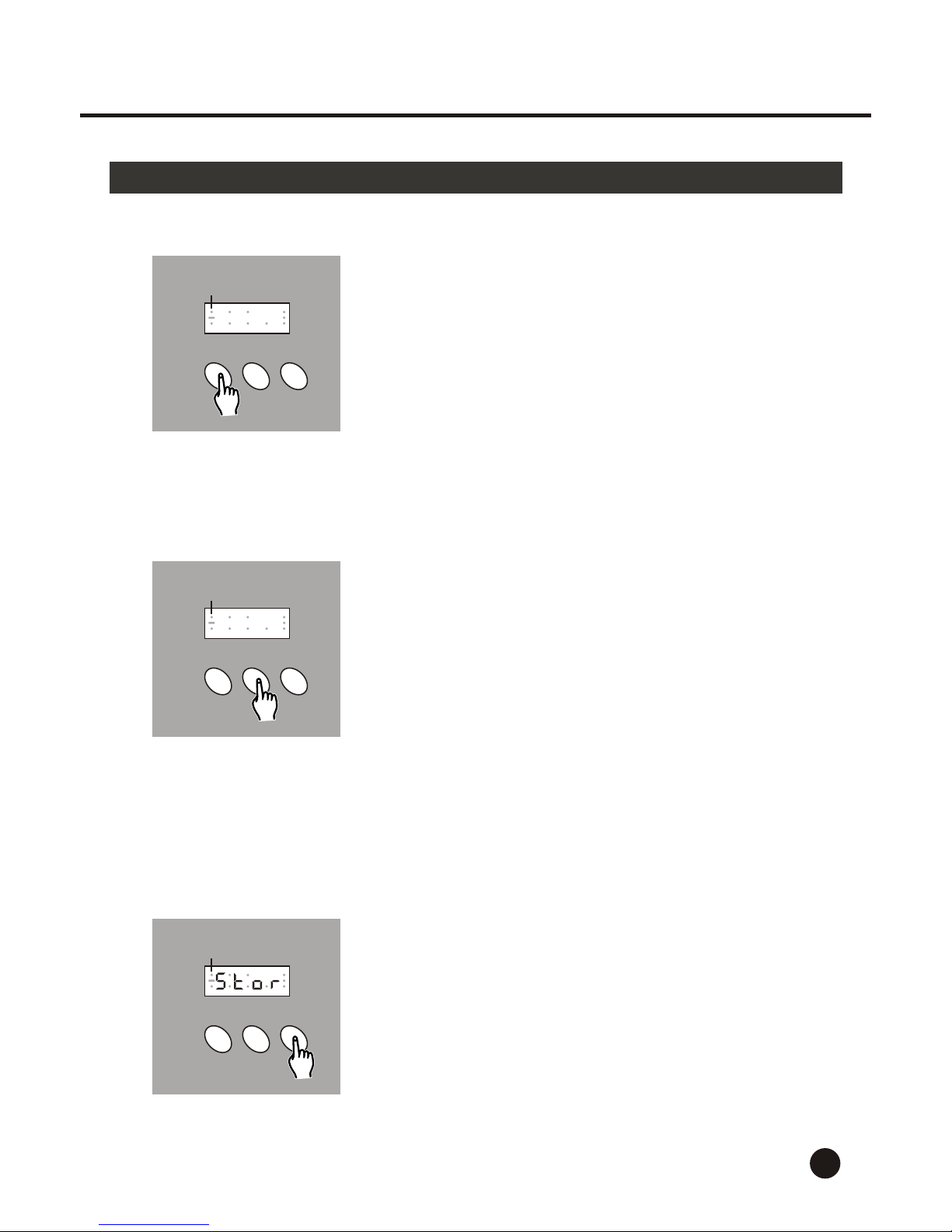

1. Tap the Menu button, the Segment Display
shows "SP" followed by one number 1-9, which
indicates Self Test mode is active. A value of 1
gives the slowest speed and the value of 9 gives
the fastest speed.
2. Tap the Edit button to increase the speed. Each
tap makes a change of the speed. Pressing and
holding down the Edit button will increase the
speed quickly.
5
2. Operation Guide
Page 9
2. Operation Guide
2.2 Self Test Mode

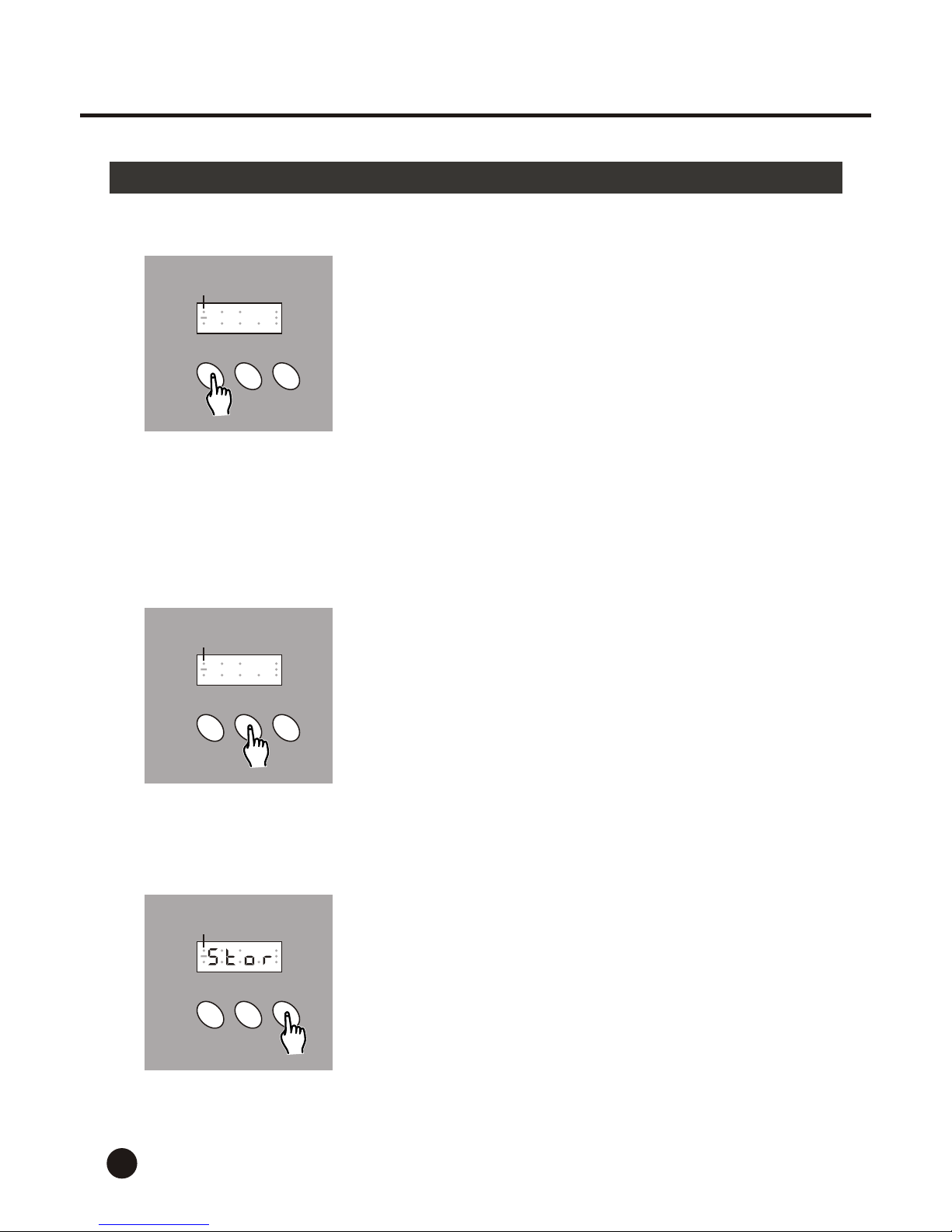

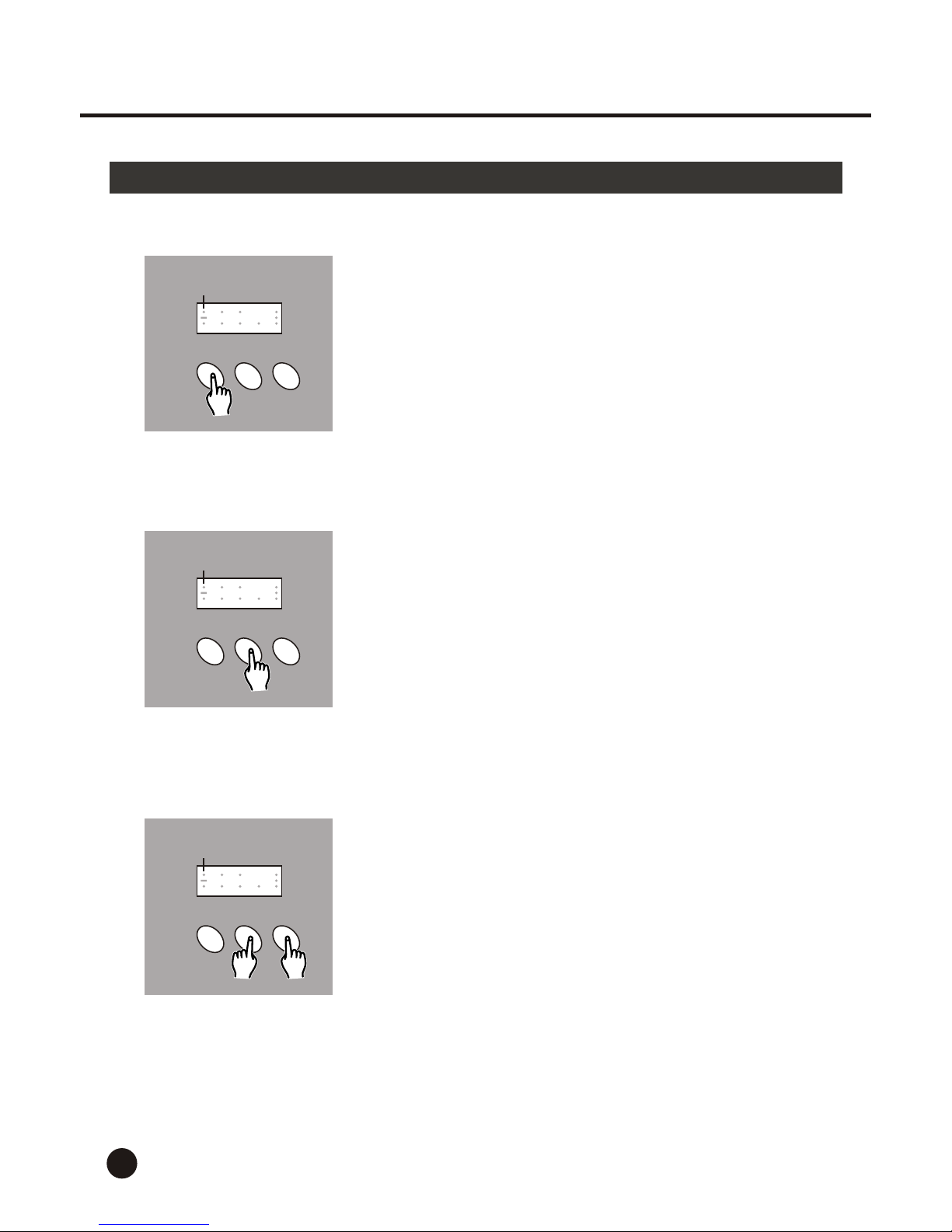

3. While pressing and holding down the Edit
button, tap the Store button. Now each tap
of the Edit button will decrease the speed
by one.
(If you want to increase the speed, tap the
Store button while pressing and holding down
the Edit button).
4. Tap the Edit button to select desired speed.
4. Tap the Store button to store the speed you've
set just before, the Segment Display shows
"Stor'" indicating this selection.
Then tap the Menu button to enter DMX Address
mode.
6
S P - 1
S P - 1
DMX
DMX
DMX
MENU
MENU
MENU
EDIT
EDIT
EDIT
STORE
STORE
STORE
Page 10
DMX
MENU EDIT STORE
2. Operation Guide
2.3 DMX Address Mode
1. Tap the Menu button, the Segment Display
shows the DMX address of last change, this
unit will serve as a DMX pack. This function
allows you to turn on and control the intensity
of non-DMX with the use of a DMX controller.
The DMX address is indicated by "A" followed
by three numbers 001-512.
When this unit is receiving a DMX signal, the
DMX LED will give a continuous blinking in the
Segment Display.
3. Tap the Store button to store your DMX address,
the Segment Display shows "Stor" for 2 seconds.
2. Repeat steps 2-4 in Self Test mode to select
desired DMX address.
7
a 0 0 1 c h - 1
a 0 0 2
DMX DMX
DMX
MENU MENU
MENU
EDIT EDIT
EDIT
STORE STORE
STORE
2. Operation Guide
Page 11
c h - 2
DMX
DMX
MENU
MENU
EDIT
EDIT
STORE
STORE
2. Operation Guide
2.4 DMX Channel Mode
1. Tap the Menu button several times until the
Segment Display shows "CH" followed by
two digits. This function allows you to use
your pack as a 1, 2, 3, 4, 6 or 12 channel
switch pack. The default setting is 12
channel switch pack.
3. Tap the Store button to store your setting,
the Segment Display shows "Stor".
Tap the Menu button to enter next level.
2. Tap the Edit button to select desired setting.
Each tap changes the selection within 1, 2,
3, 4, 6 and 12. You may also follow the
instructions of self test to change the setting.
For example:
When "CH-1" is selected, 12 channels will
be controlled by one DMX channel. "CH-2"
indicates channels 1-6 will be controlled by
one DMX channel and channels 7-12 by
another DMX channel. When "CH12" is
selected, each channel is controlled by
one DMX channel.
8
Page 12
2. Operation Guide
2.5 Channel Output Mode
2. Operation Guide
1. Tap the Menu button several times, the Segment
Display shows the current state(Off or Full) of
relevant channel.
2. Tap the Edit button to select channel you wish to
assign it's output(Off or Full), the Segment Display
indicates your selection with the change of "-1" to
"12".

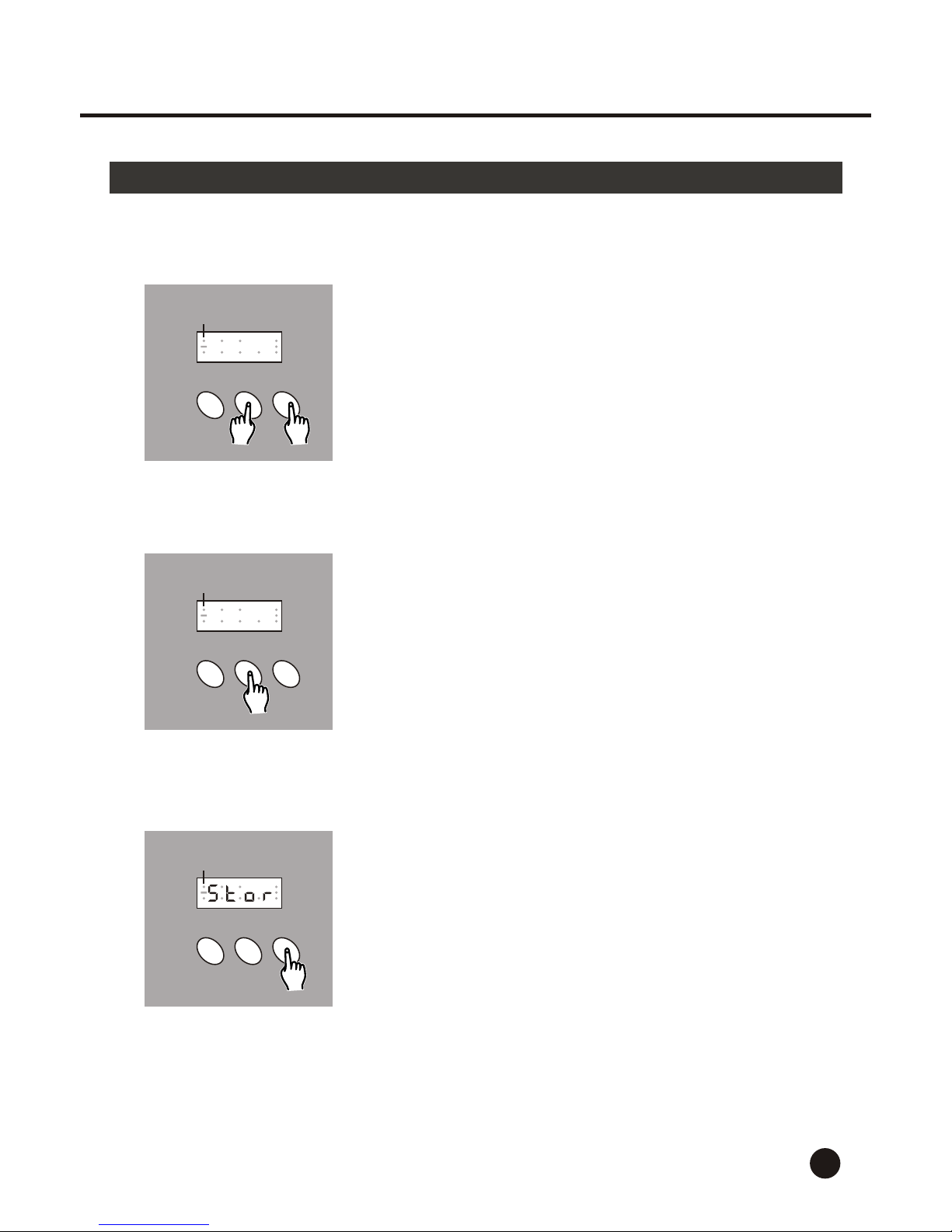

3. While pressing and holding down the Edit button,
tap the Store button to assign output of relevant
channel. Each tap changes the output between
Off and Full.
When the Segment Display shows "o" in the fourth
character, the channel output is "Off",the channel is
controlled by the DMX signal.
When the Segment Display shows "F" in the fourth
character, the channel output is "Full",the channel
is fully on regardless of DMX signal.
l - 2 f
l - 3 f
l - 3 f
DMX
DMX
DMX
MENU
MENU
MENU
EDIT
EDIT
EDIT
STORE
STORE
STORE
9
Page 13
2. Operation Guide
2.5 Channel Output Mode
2.6 Initialization
DMX
MENU EDIT STORE

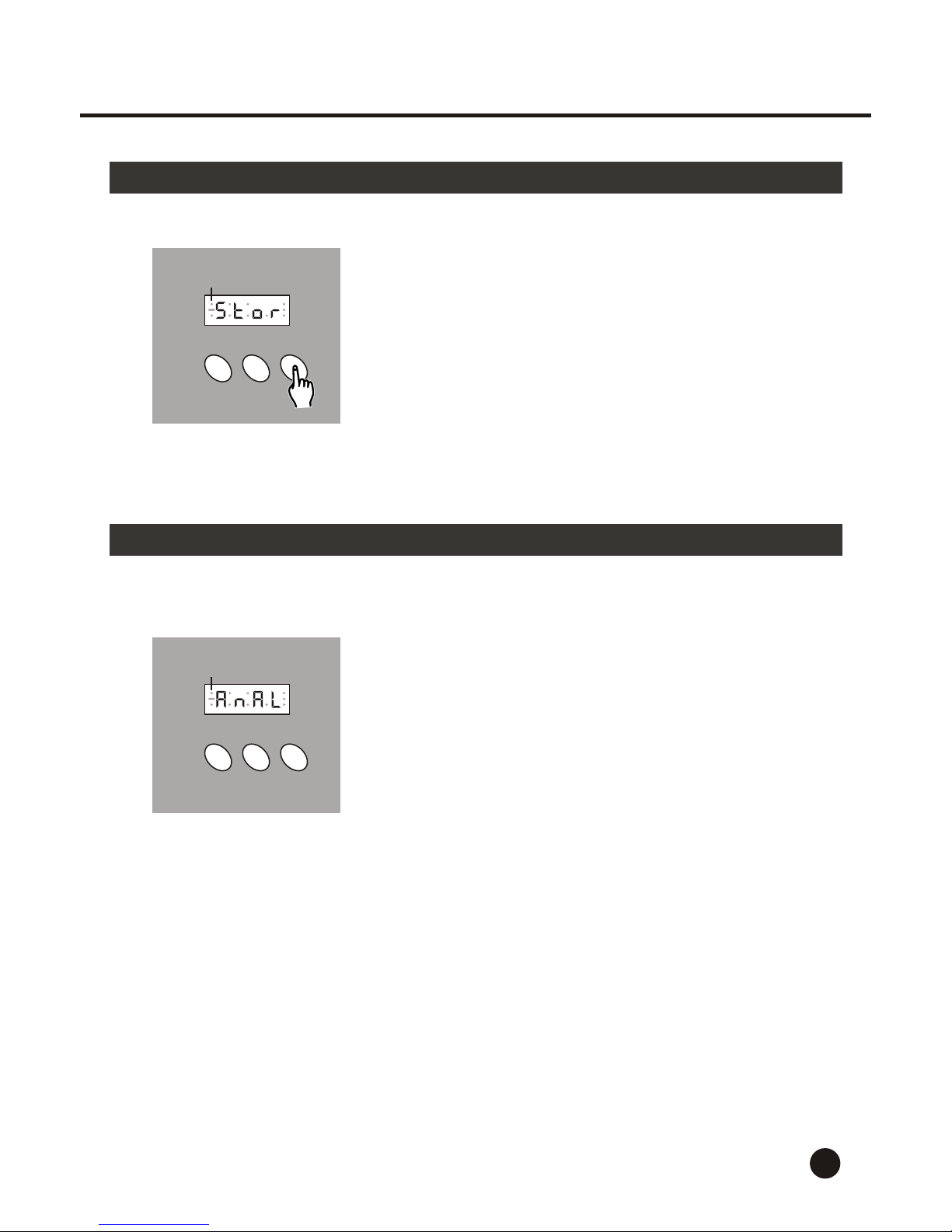

4. Tap the Store button to store your setting,
the Segment Display shows "Stor".
Tap the Menu button, this unit will return to
Analogue mode.
When the Segment Display shows "AnAL",
press and hold down all three buttons at
a time for 5 seconds, the Segment Display
shows "INIt" indicating it is initializing all
functions.
Several seconds latter, this unit will return
to normal mode, all functions are default
settings.
DMX
MENU EDIT STORE
10
Page 14
Technical Specifications
Power Input ..................................................... AC 220-240V~50Hz, 40 A max.
Channel Output ............................................. 5 A per channel, Total 40 A max.
DMX OUT ............................................................................ 3-pin XLR female
DMX IN .................................................................................. 3-pin XLR male
Channel Fuse ................................................................. F6.3A 250V 5x20mm
Dimensions .......................................................................... 482x238x88.5mm
Weight .................................................................................................... 4.4 Kg
11
Page 15
Page 16
Web site: www.botex.com
24-004-0347
R
Rev 1.0 Oct., 2000
