DMX DC-2448
DMX controller
User manual
Page 2
Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de
09.07.2018, ID: 216405
Page 3
Table of contents
1 General notes............................................................................................................................ 5
1.1 Further information........................................................................................................ 5
1.2 Notational conventions................................................................................................. 5
1.3 Symbols and signal words........................................................................................... 6
2 Safety instructions................................................................................................................. 7
3 Features....................................................................................................................................... 9
4 Installation.............................................................................................................................. 10
5 Starting up............................................................................................................................... 11
6 Connections and controls................................................................................................ 12
7 Operating................................................................................................................................. 17
7.1 Starting programming................................................................................................ 17
7.2 Editing............................................................................................................................... 19
7.3 Operation......................................................................................................................... 22
8 MIDI and DMX channel settings.................................................................................... 24
8.1 MIDI.................................................................................................................................... 24
8.2 DMX................................................................................................................................... 26
9 Quick Start Guide for the main functions................................................................. 28
9.1 Reversing scene direction.......................................................................................... 28
9.2 Setting Fade time.......................................................................................................... 28
9.3 Using TAP SYNC............................................................................................................. 28
9.4 Using MASTER fader..................................................................................................... 29
9.5 Selecting ‘Single’ mode.............................................................................................. 29
9.6 ‘Mix’ mode....................................................................................................................... 29
9.7 Dimmer Display............................................................................................................. 29
9.8 BLIND and HOME.......................................................................................................... 30
9.9 PARK................................................................................................................................... 30
9.10 ADD/KILL....................................................................................................................... 30
9.11 Double Preset.............................................................................................................. 30
10 Technical specifications.................................................................................................... 32
11 Plug and connection assignments............................................................................... 33
12 Protecting the environment........................................................................................... 34
Table of contents
DMX DC-2448
3
DMX controller
Page 4
4
DMX DC-2448 DMX controller
Page 5
1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to change.
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the following points:
Download This manual is also available as PDF file for you to download.
Keyword search
Use the search function in the electronic version to find the topics of interest for you quickly.
Online guides
Our online guides provide detailed information on technical basics and terms.
Personal consultation
For personal consultation please contact our technical hotline.
Service
If you have any problems with the device the customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
Letterings
Displays
General notes
DMX DC-2448
5
DMX controller
Page 6
The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ð
Automatic operation is started.
3. Switch off the device.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
Signal word Meaning DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in death or serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates
a possible dangerous situation that can result in death or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate­rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
Instructions
General notes
6
DMX DC-2448 DMX controller
Page 7
2 Safety instructions
This device is used to control spotlights, dimmers, lighting effects equipment, Moving Heads or other DMX-controlled devices. The device is designed for profes­sional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid­ered to be improper and may result in personal injury or property damage. No lia­bility will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intel­lectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER! Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
NOTICE! External power supply
The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is pro­tected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly the user.
Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire.
NOTICE! Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames.
NOTICE! Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations.
Intended use
Safety
Safety instructions
DMX DC-2448
7
DMX controller
Page 8
NOTICE! Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
Safety instructions
8
DMX DC-2448 DMX controller
Page 9
3 Features
Special features of the device:
n
48 control channels, freely assignable to 512 DMX channels
n
Connection for a fog machine
n
4600 scenes
n
4 banks with 96 freely programmable, directly accessible programmes
n
24 programmable chases
n
48 faders for manual control
n
Assigned or reversed DMX channel preview
n
Sound-to-Light
n
3 function layers
n
Blind home function
n
Speed and Fade control
n
Blackout master
n
Stand-alone mode
n
Manual overriding of scenes in chases
n
MIDI control for banks, chases and blackout
n
LED display
Features
DMX DC-2448
9
DMX controller
Page 10
4 Installation
If the unit is to be mounted in a 19" rack, remove the plastic panel Thereto loosen the screws that hold the panel.
Wiring diagram for fog machines
Rack mounting
Installation
10
DMX DC-2448 DMX controller
Page 11
5 Starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards.
NOTICE! Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or amplifiers.
Connect the DMX output of the device (C) to the DMX input of the first DMX device (1). Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W).
Connect the included 9V plug-in power supply to the power supply input on the unit and then put the power plug into the wall outlet.
When all cable connections are made, turn on the device with the main switch on the rear panel. The device is immediately operational.

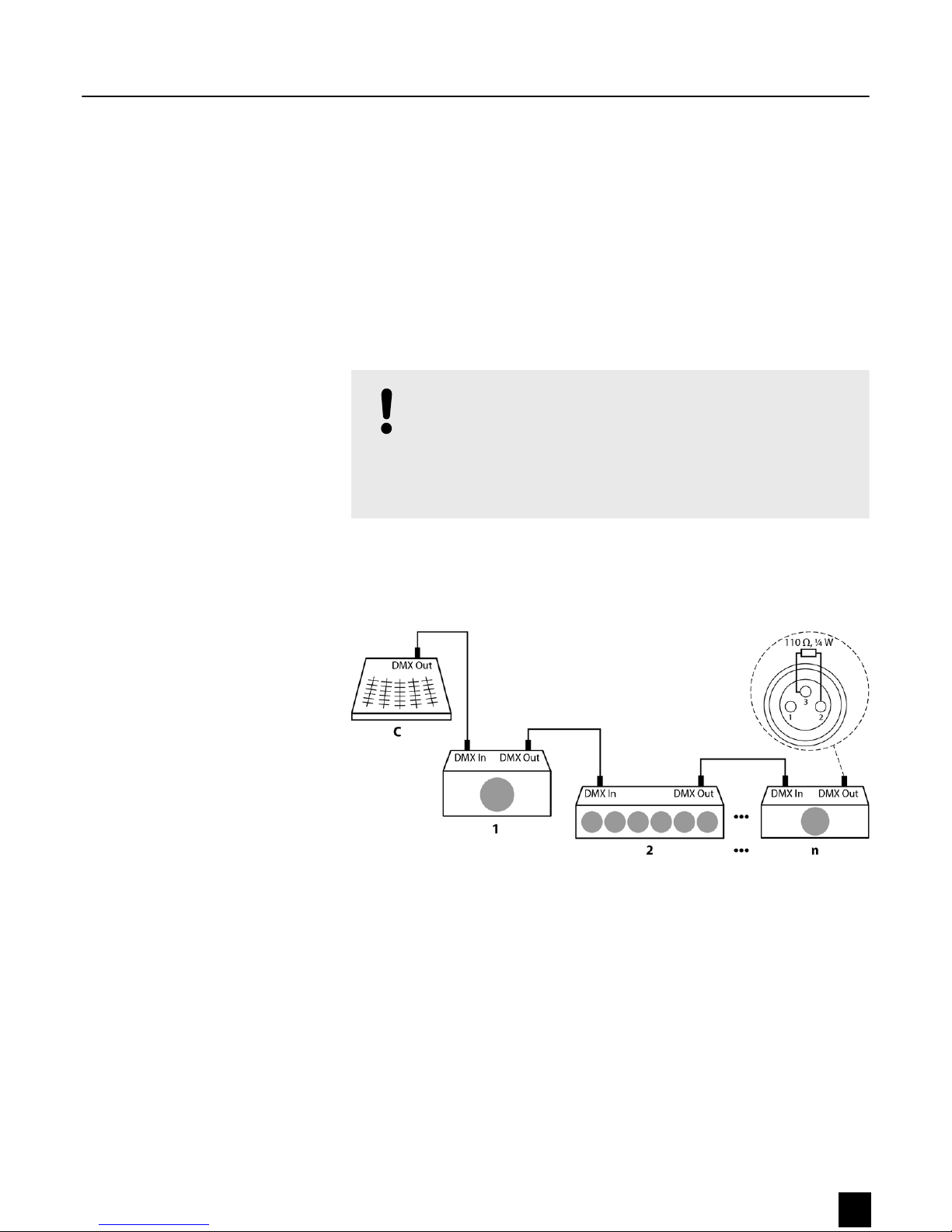

Connections in DMX mode
Connecting the power adapter
Turning the unit on
Starting up
DMX DC-2448
11
DMX controller
Page 12

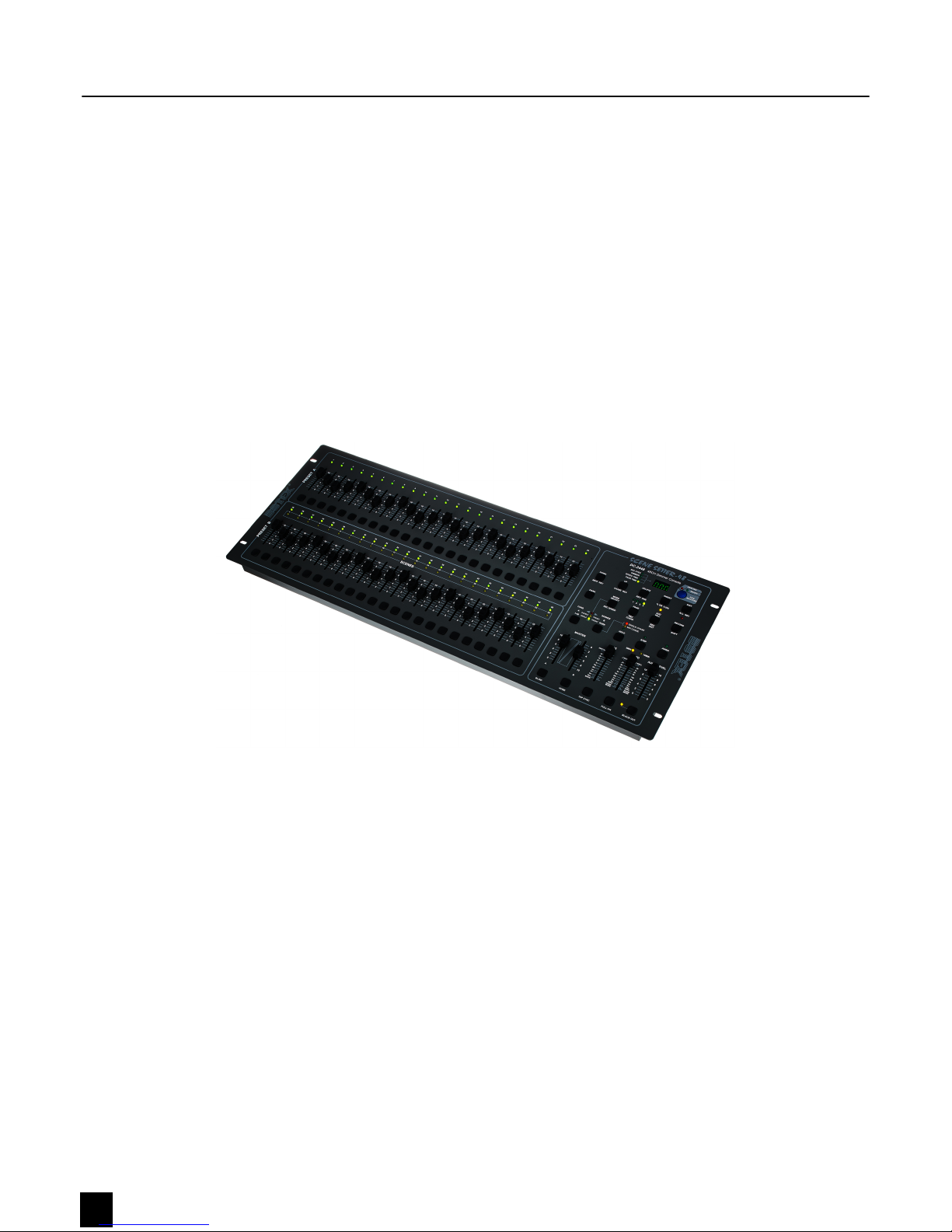

6 Connections and controls

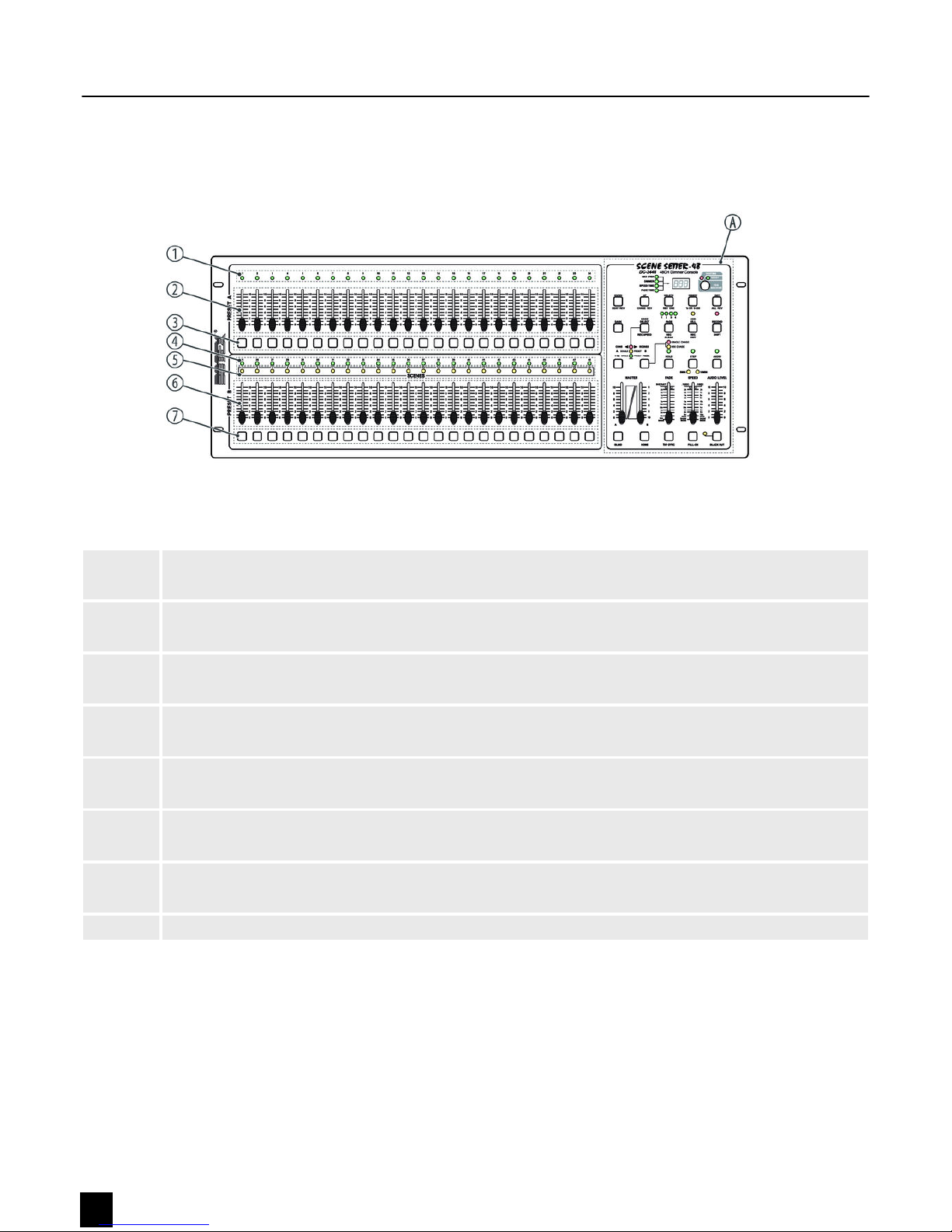

1 [PRESET A 1-24]
Indicates the current intensity of the corresponding channels.
2 [Channel faders 1-24]
These faders can be used to adjust / programme the intensity of channels 1-24.
3 [FLASH 1-24]
When this button is pressed, the intensity of the respective channel 1-24 is set to 100 %.
4 [PRESET B 25-48]
Indicates the current intensity of the corresponding channels.
5 [SCENES 1-24]
These LEDs light up when the corresponding scene is activated.
6 Channel faders [25-48] / Scene faders [1-24]
These faders can be used to adjust / programme the intensity of channels 25-48 .
7 [FLASH 25-48]
When this button is pressed, the intensity of the respective channel 25-48 is set to 100 %.
A Control area
Front panel - fader area
Connections and controls
12
DMX DC-2448 DMX controller
Page 13
9 [Display]
This display shows the current activity or programme status.
10 [DOWN/BEAT REV]
With [Down] can be used to change a scene in Edit mode. With [Beat Rev] can be used to change the direction of the chase during a programme with constant beat.
11 [UP/CHASE REV]
With [DOWN] can be used to change a scene in Edit mode. With [CHASE REV] you can change the direction of all chases.
12 [DELETE/REV ONE]
[DELETE] deletes every step of a scene. [REV ONE] changes the direction of a chase.
13 [FOG MACHINE]
Operating and display elements for a fog machine.
14 [INSERT/% OR 255]
With [INSERT] you can add steps to a scene. With [% OR 255] you can choose whether to see the value as a percentage value or as a value between 0-255.
15 [EDIT/ALL REV]
[EDIT] is used to start the Edit mode. With [ALL REV] to change the direction of all programmes.
16 [DARK]
As long as this button is held, all DMX values at the output are set to [000].
Front panel - control area
Connections and controls
DMX DC-2448
13
DMX controller
Page 14

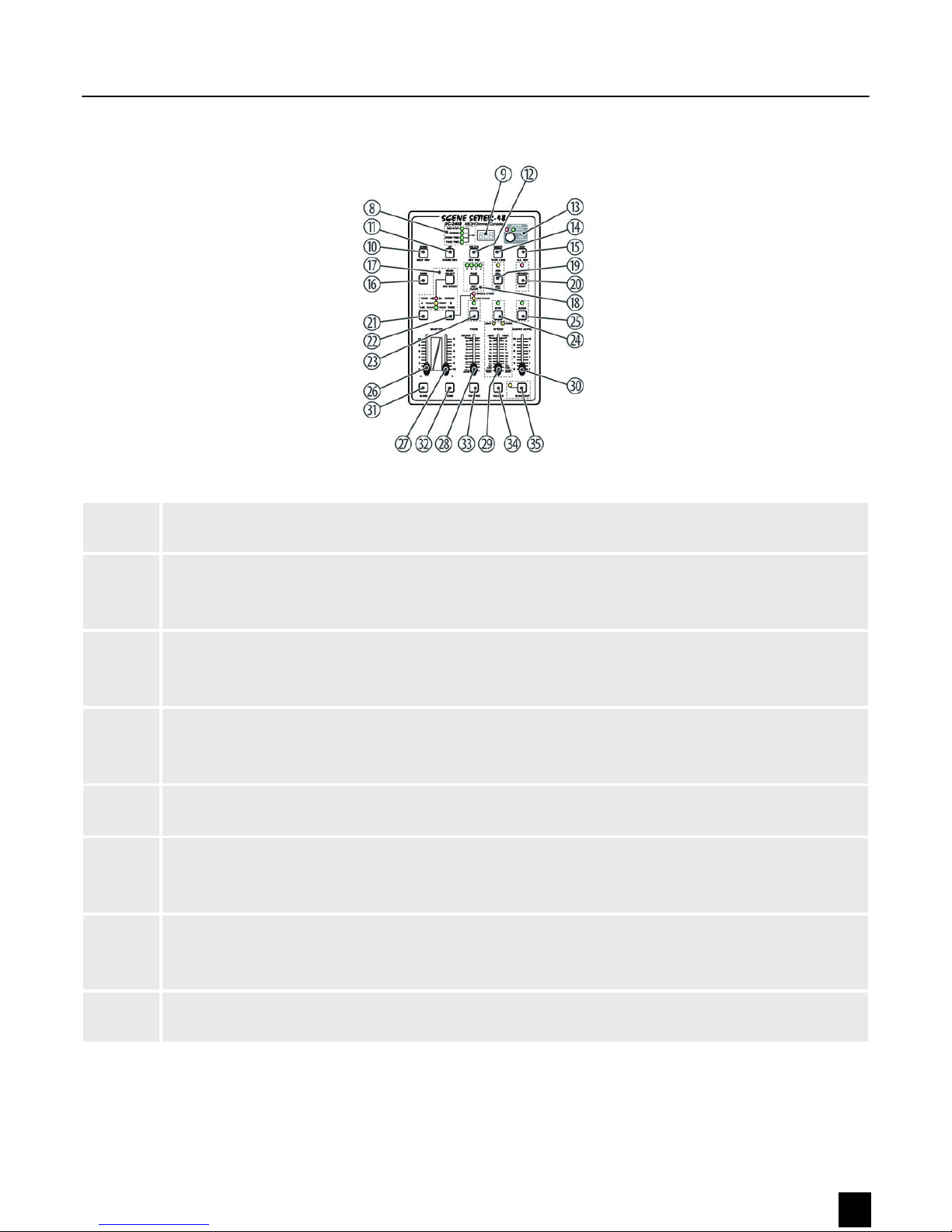

17 [MODE SELECT/REC SPEED]
With [Mode Select] you can select between these three modes:
n CHNS SCENES n
A DOUBLE PRESET B
n
1-12 SINGLE PRESET
With [Rec Speed] to adjust the speed of all programmes in ‘Mix’ mode.
18 [PAGE / REC CLEAR]
Switches between the four PAGES (banks).
19 [ADD KILL/REC EXIT]
In [ADD] , several scenes or flash buttons are active. In [KILL] , pressing a flash button disables any other scene or programme. With [REC EXIT] to quit the Edit mode.
20 [RECORD/SHIFT]
[RECORD] is used to start the Record mode or to programme a Stop. [SHIFT] is only used in conjunction with other buttons.
21 [MASTER A]
Sets the intensity of Master A to 100 % for as long as the button is pressed.
22 [PARK]
In CHNS〈 〉SCENES mode, you can switch between single-chase or mix-chase mode. In Single-chase mode, the activated programmes run one after the other. In Mix-chase mode, the activated pro-
grammes run simultaneously.
23 [HOLD]
Freezes all current DMX values at the output.
24 [STEP]
This button is used to move to the next step if [SPEED] is at the lowest setting or Edit mode is activated.
25 [AUDIO]
Enables the audio mode.
26 [MASTER A]
Master fader for channels 1-24.
27 [MASTER B]
Master fader for channels 25-48.
28 [FADE]
With [FADE] to set the fade time.
29 [SPEED]
With [SPEED] to set the Chase speed.
Connections and controls
14
DMX DC-2448 DMX controller
Page 15
30 [AUDIO LEVEL]
With [AUDIO LEVEL] to set the Audio sensitivity.
31 [BLIND]
This button is used to temporarily remove individual channels from a running programme.
32 [HOME]
This key is used to end the Blind mode.
33 [TAP SYNC]
If the device is in ‘Run’ mode, you can manually set the operating speed with [TAP SYNC] . Pressing this button twice sets the speed.
34 [FULL ON]
Sets all DMX values to [255].
35 [BLACK OUT]
Sets all DMX values at the output to [000].
Connections and controls
DMX DC-2448
15
DMX controller
Page 16
36 [POWER]
Turns the device on and off.
37 [DC IN]
Power supply port.
38 [MIDI THRU/OUT/IN]
‘MIDI’ ports to connect a sequencer or MIDI device.
39 [DMX OUT]
This terminal sends DMX signals to DMX capable devices. Use a cable with 3-pin XLR connector to connect the devices.
40 [AUDIO]
At this input, an audio signal with a level of 100 mV to 1 V can be connected.
41 [REMOTE]
‘Black out’ and ‘Full on’ can also be activated via a remote control. Please use a 1/4" jack plug (stereo) for connec­tion.
42 [FOG MACHINE]
A fog machine can be connected to this input.

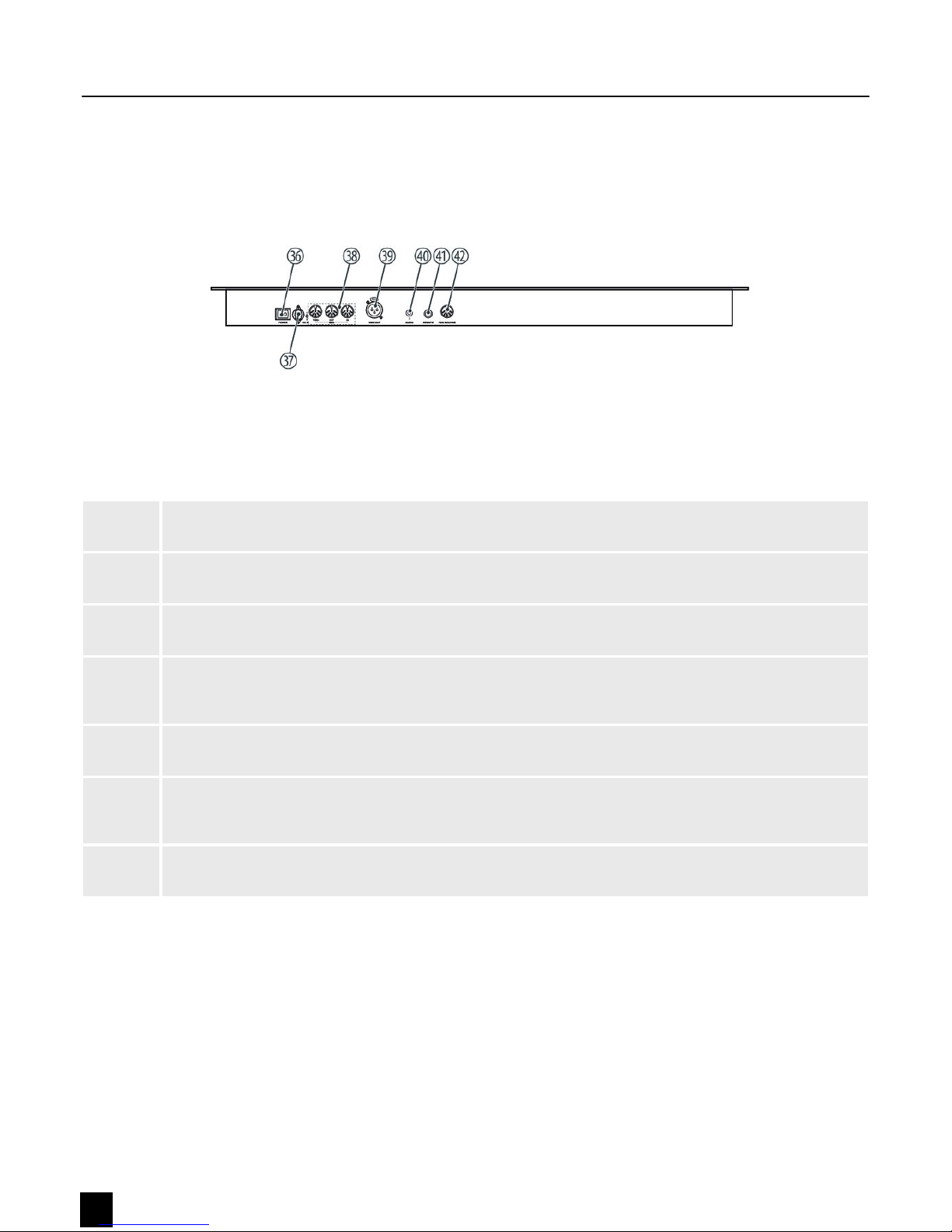

Rear panel
Connections and controls
16
DMX DC-2448 DMX controller
Page 17
7 Operating
7.1 Starting programming
7.1.1 Enabling programming
1. Keep [RECORD] pressed.
2. While keeping [RECORD] pressed, press the Flash buttons 1, 6, 6 and 8 in
sequence.
When you turn on the unit for the first time, the record code is 1, 6, 6 and 8. You can change the code to protect your programmes.
3. Release [RECORD] .
ð
The RECORD LED lights up. Now you can start programming.
7.1.2 Protecting programmes
To protect your programmes, you can change the Record code. To change the Record code, proceed as follows:
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] and [EDIT] pressed simultaneously.
3.
The record code consists of a combination of four Flash buttons, this number may not be exceeded or fallen below.
While keeping [RECORD] and [EDIT] pressed, enter the new code using the flash buttons.
4. Release [RECORD] and [EDIT] .
ð
The display shows ‘Cod’
5. Keep [RECORD] and [EDIT] pressed simultaneously.
Operating
DMX DC-2448
17
DMX controller
Page 18
6. Re-enter the new Record code.
ð
All Channel and Scene LEDs flash three times. The RECORD code is now changed.
If you re-enter something other than the first time, the LEDs will not light up. This means that changing the Record code has failed.
WARNING!
Always remember to exit the Record mode if you do not want to con­tinue programming. If you forget this, you lose control of the device.
7. To quit the Record mode, press [REC EXIT] while keeping [RECORD] pressed.
8. Release both buttons.
ð
The LED of the [RECORD] turns off. You have left the Record mode.
Press [RECORD] and [EXIT] simultaneously.
ð
The change process is cancelled.
7.1.3 Programming a scene
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
Make sure the faders [Master A&B] are both set to their maximum. ([MASTER A] is set to maximum when it is at the top. [MASTER B] is set to maximum when it is at the bottom).
2. To select the mode ‘1-48 Single’, press [MODE SELECT]. This gives you control
over all 48 channels.
3. Create the desired scene using the channel faders 1-48. At 0 % or DMX 0, the
faders should be in position 0, at 100 % or DMX 255, the faders should be in position 10.
4. To save the desired scene as a step, press [RECORD].
5. Repeat steps 3 and 4 until all desired steps have been stored.
You can store up to 1000 steps in memory.
6. Press [PAGE] to select a page (1-4) where you save your scenes.
To cancel the process of changing the record code:
Operating
18
DMX DC-2448 DMX controller
Page 19
7. Keep [RECORD] pressed and simultaneously press one of the [FLASH] buttons
between 25 and 48.
ð
All record LEDs flash once. The program is saved.
8. To exit programming mode, press [Exit] and [RECORD] simultaneously.
Programming a chase with 16 steps with channels 1-16 and storing a sequence to [Flash 15] on Page 1.
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
Make sure the faders [Master A&B] are both set to their maximum. [MASTER A] is set to maximum when it is at the top. [MASTER B] is set to maximum when it is at the bottom).
2. To select the mode ‘1-48 Single’, press [MODE SELECT]. This gives you control
over all 48 channels.
3. Slide channel fader 1 to position 10.
ð
The LED lights up fully.
4. To save the desired scene as a step, press [RECORD].
5. Repeat steps 4 and 5 until all channels 1-16 have been programmed.
6. Press [PAGE] until the LED at [PAGE 1] is lit.
7. Press [FLASH 15] while keeping [RECORD] pressed.
ð
All record LEDs flash once. The program is saved.
7.2 Editing
7.2.1 Programme editing
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Use [PAGE] to select the page where the programme to be edited is stored.
3.
Press [MODE SELECT] to select [CHNS〈 〉SCENES] .
4. Keep [EDIT] pressed.
5. Press the respective [FLASH] button.
6. Release [EDIT] .
ð
The LED of the corresponding scene lights up, indicating that the device is in ‘Edit’ mode.
Example programme
Operating
DMX DC-2448
19
DMX controller
Page 20
7.2.2 Deleting programme
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Use [PAGE] to select the page where the programme to be edited is stored.
3. Keep [RECORD] and [EDIT] pressed.
4. Press the respective [FLASH] button.
5. Release the buttons.
ð
All LEDs light up. The programme is deleted.
7.2.3 Deleting all programmes
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] pressed.
3. Press [FLASH 1], [FLASH 4], [FLASH 2] and [FLASH 3] successively.
ð
All LEDs light up. All programmes are deleted.
7.2.4 Deleting scenes
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Record one or multiple scenes.
3. If you are not satisfied with one or more scenes, press [REC CLEAR] while
keeping [RECORD] pressed.
ð
All LEDs light up. All scenes in the memory are deleted.
7.2.5 Deleting a single or multiple steps
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [EDIT] pressed and then simultaneously press the respective [FLASH]
button.
3. Press [STEP] until you have reached the step you want to delete.
Operating
20
DMX DC-2448 DMX controller
Page 21
4. Press [DELETE].
ð
All LEDs light up. The step is deleted.
5. Repeat steps 2 and 3 to delete all unwanted steps.
6. Exit the mode. To do so, press [REC EXIT] while keeping [RECORD] pressed.
ð
The LED of the scene turns off. You have left the Edit mode.
Deleting the third step in the programme on [FLASH] 15 on page 2.
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2.
To select [CHNS
〈 〉
SCENES] , press [MODE SELECT].
3. Press [FLASH] while keeping [EDIT] pressed.
ð
The LED of the corresponding scene lights up.
4. To get to the third step, press [STEP].
5. To delete this step, press [DELETE].
6. Exit the mode. To do so, press [REC EXIT] while keeping [RECORD] pressed.
ð
The LED of the scene turns off. You have left the Edit mode.
7.2.6 Adding one or multiple steps
1. Programme one or more steps you want to add.
2.
Make sure you are in [CHNS
〈 〉
SCENES] mode and activate the [EDIT] mode.
3. Press [STEP] press until you reach the step before which you want to insert a
step.
4. Press [INSERT] to add the step.
ð
All LEDs light up. The step is added.
5. Exit the Edit mode. To do so, press [REC EXIT] while keeping [RECORD] pressed.
7.2.7 Changing one or multiple steps
1. Activate the Edit mode.
2. To get to the step you want to change, press [STEP].
Example for deleting a step
Operating
DMX DC-2448
21
DMX controller
Page 22
3. Keep [UP] if you want to increase the intensity. Keep [DOWN] if you want to
decrease the intensity.
4. Press the [FLASH] button of the corresponding DMX channel of the scene to be
changed. While doing this, press and hold [UP] or [DOWN] pressed.
5. Press the respective [FLASH] until you are satisfied with your new scene.
6. Repeat steps 2, 3, 4 and 5 until all steps have been edited.
7. Exit the Edit mode. To do so, press [REC EXIT] while keeping [RECORD] pressed.
7.3 Operation
7.3.1 Starting a programme
1.
Press [MODE SELECT] to select [CHNS〈 〉SCENES] .
2. To call up the page where your desired programme is stored, press [PAGE].
3. Slide [MASTER B] to position 10.
4. To initiate the programme, slide the corresponding channel fader (13-24) to
position 10.
The ‘fade time’ of the programme depends on the setting on [FADE].
5. Use the channel fader to set the intensity of the corresponding programme.
7.3.2 Sound control
1. Use the built-in microphone or connect an external audio source via an RCA
plug.
2. Select the desired programme.
3. Press [AUDIO].
ð
The LED lights up. Audio mode is activated.
4. Use [AUDIO LEVEL] to adjust the sensitivity.
5. To exit Audio mode, press [AUDIO] again.
ð
The LED turns off. ‘Audio’ mode is disabled.
Operating
22
DMX DC-2448 DMX controller
Page 23
7.3.3 Setting the programme speed with fader
1. Make sure that the Audio mode is disabled.
2. Select the desired programme.
3. Use [FADE] to set the desired fade time.
4. Use [SPEED] to set the desired speed.
7.3.4 Setting a standard beat
‘Audio’ mode is disabled
1.
To select [CHNS
〈 〉
SCENES] , press [MODE SELECT].
2. Select the desired programme.
3. You can adjust the speed by pressing [TAP SYNC] twice.
7.3.5 Changing the speed mode between 5 and 10 minutes
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] pressed and press [FLASH 5] (5 minute mode) three times or
[FLASH 10] (10 minute mode).
3. [5MIN] or [10MIN] lights up, indicating which setting has been made.
4. Exit the mode. To do so, press [REC EXIT] while keeping [RECORD] pressed.
Operating
DMX DC-2448
23
DMX controller
Page 24
8 MIDI and DMX channel settings
8.1 MIDI
8.1.1 Setting MIDI IN
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] pressed.
3. Press [FLASH 1] in parallel three times.
ð
The display shows ‘CHI’. The MIDI IN channel setup is now available.
4. To select [MIDI OUT] to a channel 1 - 16, press [FLASH 1-16].
ð
The corresponding LED lights up.
8.1.2 Exiting MIDI settings
1. Keep [RECORD] pressed.
2. Press [REC EXIT].
8.1.3 Receiving MIDI file
1.
Activate the programming (
Ä
Chapter 7.1.1 ‘Enabling programming’
on page 17).
2. Keep [RECORD] pressed.
3. Press [FLASH 3] three times.
ð
The display shows ‘IN’. The controller can now receive MIDI files.
During the data exchange, no other functions are available. The functions are automatically available again as soon as the data exchange is complete.
The data exchange is interrupted as soon as errors occur or the device is switched off.
MIDI and DMX channel settings
24
DMX DC-2448 DMX controller
Page 25
8.1.4 Sending MIDI file
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] pressed.
3. Press [FLASH 4] three times.
ð
The display shows ‘OUT’. The controller can now send MIDI files.
During the data exchange, no other functions are available. The functions are automatically available again as soon as the data exchange is complete.
The data exchange is interrupted as soon as errors occur or the device is switched off.
8.1.5 Implementation
n During the reception and transmission of MIDI files, all automatically running
MIDI scenes and channels are stopped for 10 minutes .
n
While receiving and sending MIDI data, the device automatically searches for or sends an ID of 55H(85), a file named DC1224 with the addition BIN(SPACE).
n
Data can be transferred to another device or to a MIDI device.
n

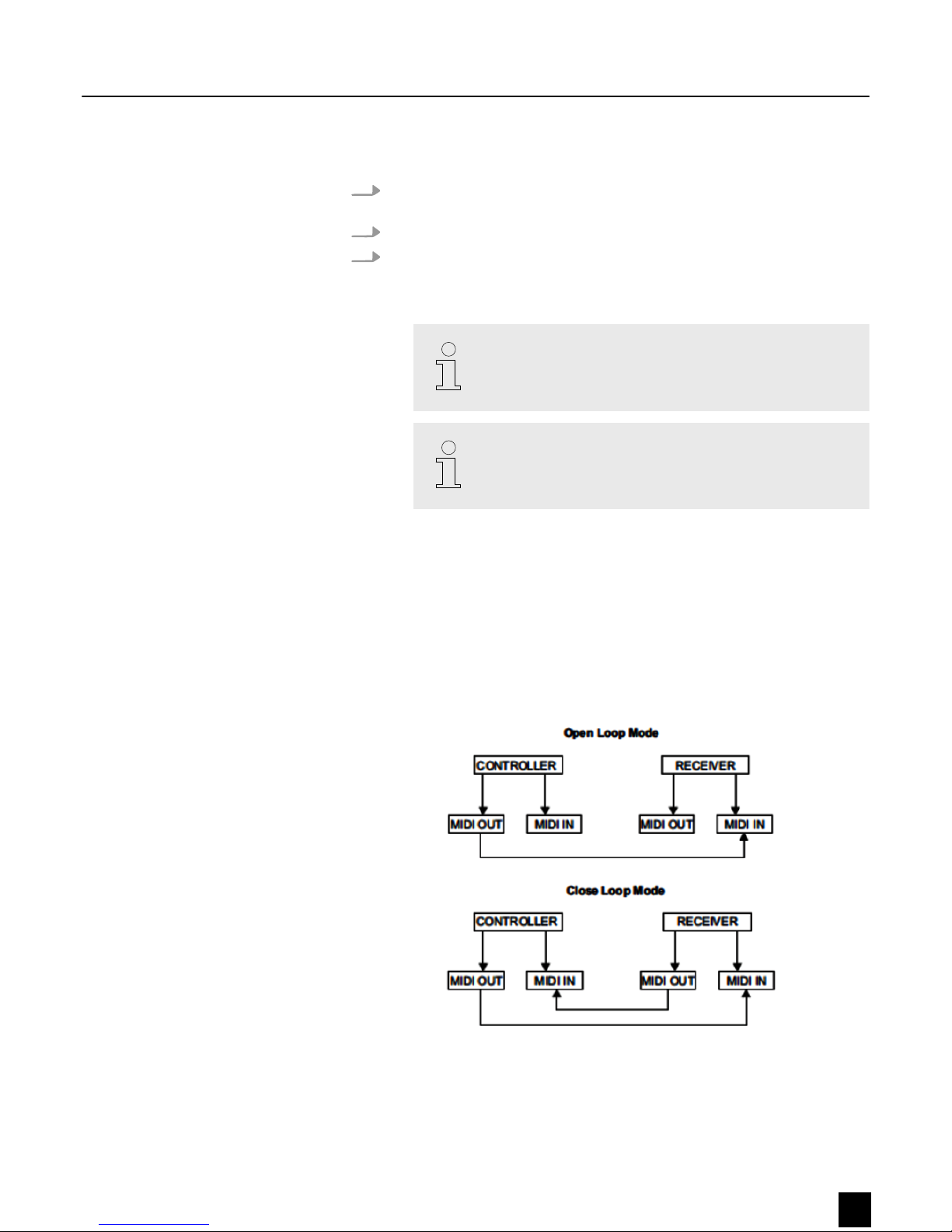

There are two different ways to transfer data.
MIDI and DMX channel settings
DMX DC-2448
25
DMX controller
Page 26
n The controller sends and receives Note On and Note Off data via the [Flash] but-
tons.
Note No. Touch velocity Functions
22-69 Programme master Turns programmes 1-48
on or off. 70-93 Channel intensity Activates channel 1-24. 94 Full on 95 Dark 96 Hold 97 Turns audio on or off. 98
CHNS SCENES 99 ‘Double Preset’ mode 100 ‘Single Preset’ mode 101 Step 102 Black out
8.2 DMX
8.2.1 DMX channel settings
1.
Activate the programming (
Ä
Chapter 7.1.1 ‘Enabling programming’
on page 17).
2. Keep [RECORD] pressed.
3. To do so, press [FLASH 8] three times.
ð
The display shows the current DMX channel.
4. Use [UP] and [DOWN] to select a DMX channel between 1-512.
5. Then press the desired [FLASH] button between 1-48.
ð
The selected DMX channel is assigned to the console
6. If you press [FULL ON] the highest value ‘255’ is output on the current DMX
channel.
ð
All [FLASH] LEDs light up.
7. If you press [BLACK OUT] the lowest value ‘000’ is output on the current DMX
channel.
ð
All [FLASH] LEDs turn off.
8. To quit the Setup mode, keep [RECORD] pressed and additionally press [EXIT].
MIDI and DMX channel settings
26
DMX DC-2448 DMX controller
Page 27
8.2.2 Deleting the DMX channel settings
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] pressed.
3. Press [FLASH 7] three times.
ð
All DMX channel settings will be deleted and reset to factory settings.
8.2.3 Calling up 12 preprogrammed programmes
1.
Activate the programming ( Ä Chapter 7.1.1 ‘Enabling programming’ on page 17).
2. Keep [RECORD] pressed.
3. Successively press [FLASH 6], [FLASH 6], [FLASH 8] and [FLASH 8].
ð
12 preprogrammed programmes are loaded to ‘PAGE 1’, all other pro­grams are deleted.
MIDI and DMX channel settings
DMX DC-2448
27
DMX controller
Page 28
9 Quick Start Guide for the main functions
9.1 Reversing scene direction
To reverse the direction of all scenes:
Press [ALL REV].
ð
All scenes change their direction.
To reverse the chase direction of all programmes using the speed control:
Press [CHASE REV].
To reverse the chase direction of all programmes with standard beat:
Press [BEAT REV].
To reverse the chase direction of a particular programme:
1. Keep [REC ONE] pressed.
2. Additionally press the [FLASH] button of the corresponding programme.
3. Release both buttons simultaneously.
9.2 Setting Fade time
The time setting determines how long the dimmer will take to get from minimum to maximum output.
‘Fade Time’ can be set via [FADE TIME] . Adjustable from ‘immediately’ up to 10 minutes.
9.3 Using TAP SYNC
[TAP SYNC] is used to set and synchronize the chase rate (the speed of the chases) by pressing it several times. Chase speed is set by the interval of the last two keystrokes. The LED flashes at the new speed. The chase rate can be set at any time, whether a programme is set or not.
[TAP SYNC] overwrites all previously made speed controller settings until it is moved again. This also applies to preset standard beat.
Quick Start Guide for the main functions
28
DMX DC-2448 DMX controller
Page 29
9.4 Using MASTER fader
[MASTER] allows proportional control over all channels and scenes except the [FLASH] buttons. For example:
If the master fader is in the zero position, the output will also be zero, unless [FLASH] or [FULL ON] is used. If the master fader is set to 50 % , also the channel output will be 50 % , unless [FLASH] or [FULL ON] is used.
When the master fader is in its highest position, all device settings can be used.
9.5 Selecting ‘Single’ mode.
All programmes run sequentially and start at the lowest number. The number of the currently running programme is shown in the display. All programmes are controlled with the same speed controller.
1.
To select [CHNS
〈 〉
SCENES] , press [Mode Select].
2. Press [PARK] and use [SINGLE] to select the ‘Single Chase’ mode.
ð
A red LED lights up.
9.6 ‘Mix’ mode
All programs run synchronously. All programmes are controlled with the same speed controller or the speed of each
programme can be controlled individually.
1.
Press [MODE SELECT] to select [CHNS
〈 〉
SCENES] .
2. Press [PARK] and use [MIX CHASE] to select the ‘Single Chase’ mode.
ð
A red LED lights up.
9.7 Dimmer Display
The display is used to display the percentage or absolute DMX value. To switch between the percentage and absolute display:
1. Keep [SHIFT] pressed.
2. To switch between the percentage and absolute display, press [% OR 0-255].
Quick Start Guide for the main functions
DMX DC-2448
29
DMX controller
Page 30
9.8 BLIND and HOME
[BLIND] temporarily removes a channel from a chase when it is playing, and allows you to manually control that chase.
To switch to Blind mode:
1. Keep [BLIND] pressed and press the [FLASH] button which is associated with
the channel that is temporarily removed from the Chase.
2. To return to normal chase, keep [BLIND] pressed and press the respective
[FLASH] button.
9.9 PARK
If you are in [CHNS〈 〉SCENES] mode, keep [PARK] pressed to switch between ‘Single’ and ‘Mix’ mode.
When the device is in ‘Double Preset’ mode, press [PARK] simultaneously together with [MASTER B].
In ‘Single Preset’ mode, the current output can be recorded. Settings are made with [MASTER B] .
9.10 ADD/KILL
[ADD/KILL] changes the mode of the ‘Flash’ buttons. Normally, the ‘Flash’ buttons are in ‘Add’ mode. Pressing [FLASH] does not deactivate a scene, different scenes can run at the same time.
‘Kill’ mode is activated by pressing [ADD/KILL] , the LED above it lights up. By pressing [FLASH], any other active scene or programme is disabled.
In ‘Kill’ mode, the disabled programme is not stopped, but it can not be output.
9.11 Double Preset
1. To enter the ‘A Double Preset’ mode, press [MODE SELECT].
2. In this mode, channels 1-24 are controlled with both channel faders 1-24 and
channel faders 25-48 .
3. With [MASTER A] , faders 1-24, with [MASTER B] faders 25-48 are controlled.
In this mode, no scene can be recorded.
Quick Start Guide for the main functions
30
DMX DC-2448 DMX controller
Page 31
1. Change to the ‘Double Preset’ mode.
2. Set faders 1-6 to the highest position, as well as 19-24.
3. Set [MASTER A] and [MASTER B] to the same value.
ð
You now have a scene.
Example
Quick Start Guide for the main functions
DMX DC-2448
31
DMX controller
Page 32
10 Technical specifications
Voltage supply
Plug-in power supply (12 – 20 V / 500 mA min., positive pole via inner con-
tact) DMX output 3-pin XLR chassis socket MIDI signal 5-pin standard connectors Audio input RCA socket, 100 mV, 1 Vpp Dimensions (W × H × D) 716 mm × 80 mm × 267 mm Weight 6.7 kg
Technical specifications
32
DMX DC-2448 DMX controller
Page 33
11 Plug and connection assignments
This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’ a not working light show!
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suit­able XLR plug.
Pin Configuration
1 Ground, shielding 2 Signal inverted (DMX–, ‘cold signal’) 3 Signal (DMX+, ‘hot signal’)
Introduction
DMX connections
Plug and connection assignments
DMX DC-2448
33
DMX controller
Page 34
12 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make
sure that they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging material
Disposal of your old device
Protecting the environment
34
DMX DC-2448 DMX controller
Page 35
Page 36
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
