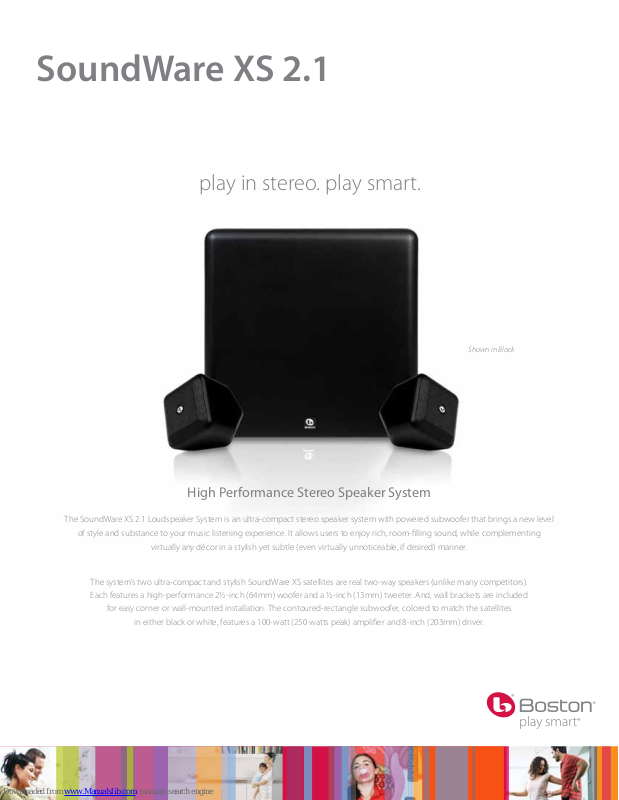

SoundWare XS 2.1
play in stereo. play smart.
Shown in Black
High Performance Stereo Speaker System
The SoundWare XS 2.1 Loudspeaker System is an ultra-compact stereo speaker system with powered subwoofer that brings a new level
of style and substance to your music listening experience. It allows users to enjoy rich, room-filling sound, while complementing
virtually any décor in a stylish yet subtle (even virtually unnoticeable, if desired) manner.
The system’s two ultra-compact and stylish SoundWare XS satellites are real two-way speakers (unlike many competitors).
Each features a high-performance 2½-inch (64mm) woofer and a ½-inch (13mm) tweeter. And, wall brackets are included
for easy corner or wall-mounted installation. The contoured-rectangle subwoofer, colored to match the satellites
in either black or white, features a 100-watt (250 watts peak) amplifier and 8-inch (203mm) driver.
Page 2
SoundWare XS 2.1
on counter on wall in corner
any angle
any surface
anywhere
2-way Satellite Speakers:
• SoundWare XS satellite speakers are incredibly small yet provide
big, high performance sound
• Speakers sit or mount at any angle for maximum placement flexibility
• The included articulating mounting brackets allow speakers to be
positioned at virtually any angle
What it means to be from Boston.
Many manufacturers design their products around third-party, off-the-shelf parts.
Boston Acoustics engineers every component of every system to meet the highest
performance standards (our own). Of course, performance is only one measure of
value. So we’re careful to build all our products with strict attention to everything
from the choice of materials to the details of fit and finish. It’s how we’ve been
exceeding the expectations of serious listeners for more than thirty years.
Specifications
Satellite Subwoofer
Frequency Response
Recommended Amp Power 10 – 100 watts
Nominal Impedance
Sensitivity 85dB [SPL/2.8v at 1m]
Woofer 2½” (64mm) 8” (203mm)
Tweeter ½” (13mm)
Crossover Frequency 5kHz 60Hz -180Hz 24dB/
octave lowpass
Net Weight 1 lb (.5kg) 20 lbs (9kg)
Dimensions (H x W x D) 4/ x 4½ x 3¾” 12¼ x 11/ x 15/”
(108 x 113 x 94mm) (310 x 284 x 395mm)
150Hz – 20kHz 40 - 150Hz
8 ohms
8” 100-watt Powered Subwoofer:
• Graphite injected polymer woofer utilizes Boston’s Deep Channel® Design
for more bass from less amplifier power
• Features both line-level and speaker-level inputs
• BassTrac® circuitry for tight, distortion-free bass at all output levels
• 100-watt (250 watts Peak) amplifier for powerful low frequency response
• Acoustically tuned port for improved bass output
Shown in White
system includes two satellite speakers
and one powered subwoofer
subwoofer features both
speaker level and line level inputs
300 Jubilee Drive, Peabody, MA 01960 bostonacoustics.com
© 2010. All rights reserved. Boston, Boston Acoustics, the B/A ellipse symbol, BassTrac, Deep Channel, and Play Smart are registered trademarks of Boston Acoustics, Inc.
