Boston Acoustics DX Pro User's Manual
DX Pro
Designer Series
In-Wall Diffuse-Field Surround Speaker
2
Specifications
Frequency Response (±3dB) 80–20,000Hz
Recommended Amplifier Power 10–150 watts
Nominal Impedance 8 ohms
Sensitivity [1 watt (2.83v) at 1m] 85dB
Bass Unit 51⁄4" (135mm) copolymer with butyl rubber surround
High-Frequency Driver (2) 21⁄2" (65mm) polymer-treated
Crossover Frequency 900Hz
Dimensions (HxW) 81⁄4 x151⁄8" (210 x 384mm)
Mounting Hole Cutout (HxW) 71⁄
2 x14
1
⁄8" (190 x 358mm)
Mounting Depth (from surface) 33⁄4" (95mm)
Description
The DX Pro is a high-performance, diffuse-field surround speaker with the frequency response and
power handling demanded by today’s finest home theater systems. Unlike conventional surround
speakers, however, the DX Pro mounts flush with the wall surface and virtually disappears in the
listening room.
The DX Pro duplicates the performance of the movie theater surround speaker array by aiming its
drivers away from the listening area. In contrast to direct radiating speakers, the DX Pro projects its
sound along the room’s walls, not at the listener. This creates a diffuse, lifelike ambient soundfield
for realistic surround effects.
Inside the DX Pro are two subenclosed 2
1
⁄2-inch (65mm) high-frequency drivers. One fires forward,
the other rearward. Frequencies below 900Hz are handled by our 5
1
⁄4-inch (135mm) driver with
butyl rubber surround. Gold-plated five-way binding posts allow quick connection to virtually any
speaker cable.

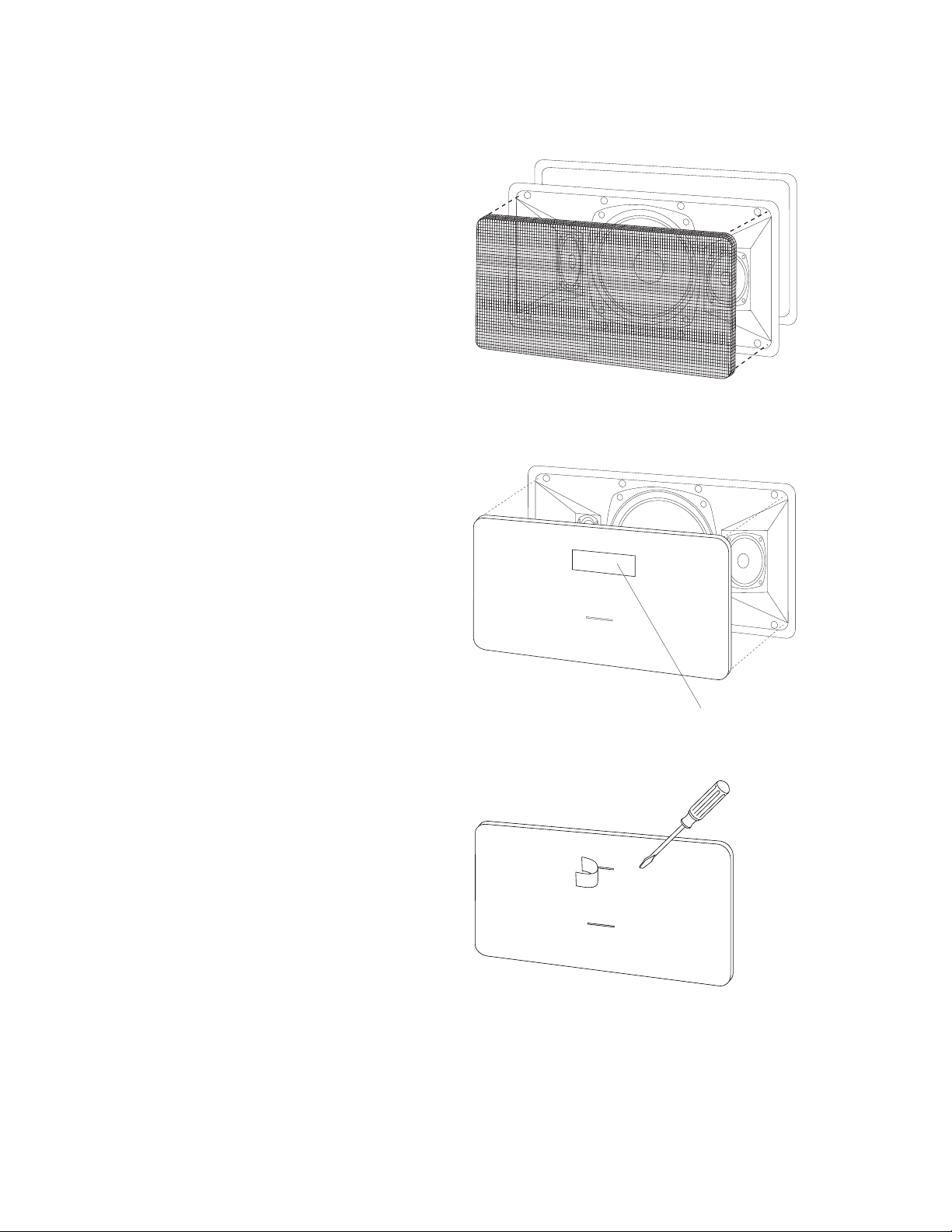

The front surface has a matte white finish, suitable for use in a variety of environments. For a
perfect custom finish, the speaker and grille may be painted using the supplied paint mask.
3

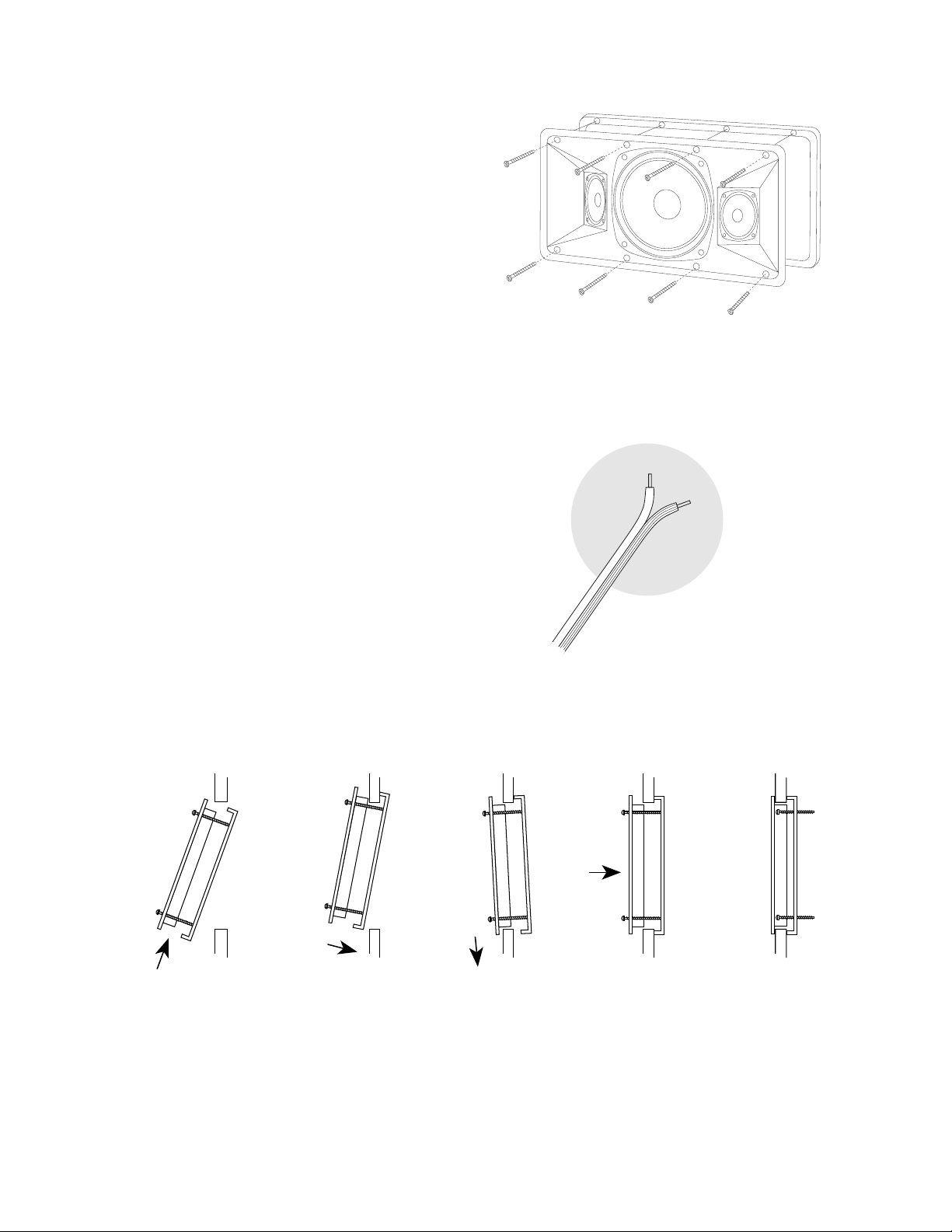

Installation Instructions
IMPORTANT: This manual assumes the installer possesses skill in the proper use of hand and
power tools, a knowledge of local building and fire codes, and a familiarity with the environment
behind the wall or ceiling in which the speakers will be installed.
Quantity Description
2 Designer Series Speakers
2 Mounting Bracket
2 Painting Mask
2 Metal Grille
1 Template
1 Owner’s Manual/Installation
Instructions
1 Hardware Package*
Examine the contents of the package and verify that it contains the following:
Hardware Package* Contents:
Quantity Description
16 8-32 x 2" Screw
* If the hardware package is missing any items, or is
not found, additional packages are available from
Boston Acoustics.
Loudspeaker
DX Pro
Side View
Mounting Hole
Mounting Bracket
81⁄4"
(210mm)
15
1
⁄
8"
(384mm)
81⁄4
"
(210mm)
15
1
⁄
8"
(384mm)
71⁄2"
(190mm)
14
1
⁄8"
(358mm)
3
3
⁄4"
(95mm)
