INTRODUCTION
The Bostitch N95RHN is a precision-built tool, designed for high speed, high volume
nailing. These tools will deliver efficient, dependable service when used correctly and with care.
As with any fine power tool, for best performance the manufacturer’s instructions must be
followed. Please study this manual before operating the tool and understand the safety warnings
and cautions. The instructions on installation, operation and maintenance should be read
carefully, and the manuals kept for reference. NOTE: Additional safety measures may be
required because of your particular application of the tool. Contact your Bostitch
representative or distributor with any questions concerning the tool and its use.
Bostitch, Inc., East Greenwich, Rhode Island 02818.
INDEX
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Air Supply: Fittings, Hoses, Filters, Air Consumption, Regulators,
Operating Pressure, Setting Correct Pressure . . . . . . . . . . . . . . . 5
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Loading the Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tool Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8 & 9
Maintaining the Pneumatic Tool . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Driver Maintenance/Directional Exhaust. . . . . . . . . . . . . . . . . . . 11
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
NOTE:
Bostitch tools have been engineered to provide excellent customer satisfaction and are
designed to achieve maximum performance when used with precision All-Specs fasteners
engineered to the same exacting standards.
Bostitch cannot assume responsibility for product performance if our tools are
used with fasteners or accessories not meeting the specific requirements established for
genuine Bostitch nails, staples and accessories.
LIMITED WARRANTY
Bostitch, Inc., warrants to the original retail purchaser that this product is free from
defects in material and workmanship, and agrees to repair or replace, at Bostitch's
option, any defective product within 1 year from the date of purchase. This warranty is not
transferable. It only covers damage resulting from defects in material or workmanship, and it
does not cover conditions or malfunctions resulting from normal wear, neglect, abuse, accident or
repairs attempted or made by other than our regional repair center or authorized warranty
service center. Driver blades, bumpers and o-rings are considered normally wearing parts.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE
DURATION OF THIS WARRANTY. BOSTITCH SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This warranty is limited to sales in the United States and Canada. Some states do not allow
limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
To obtain warranty service, return the product at your expense together with proof of purchase to
a Bostitch Regional or authorized warranty repair center. You may call us at
1-800-556-6696 for the location of authorized warranty service centers in your area.
-2-
-3-

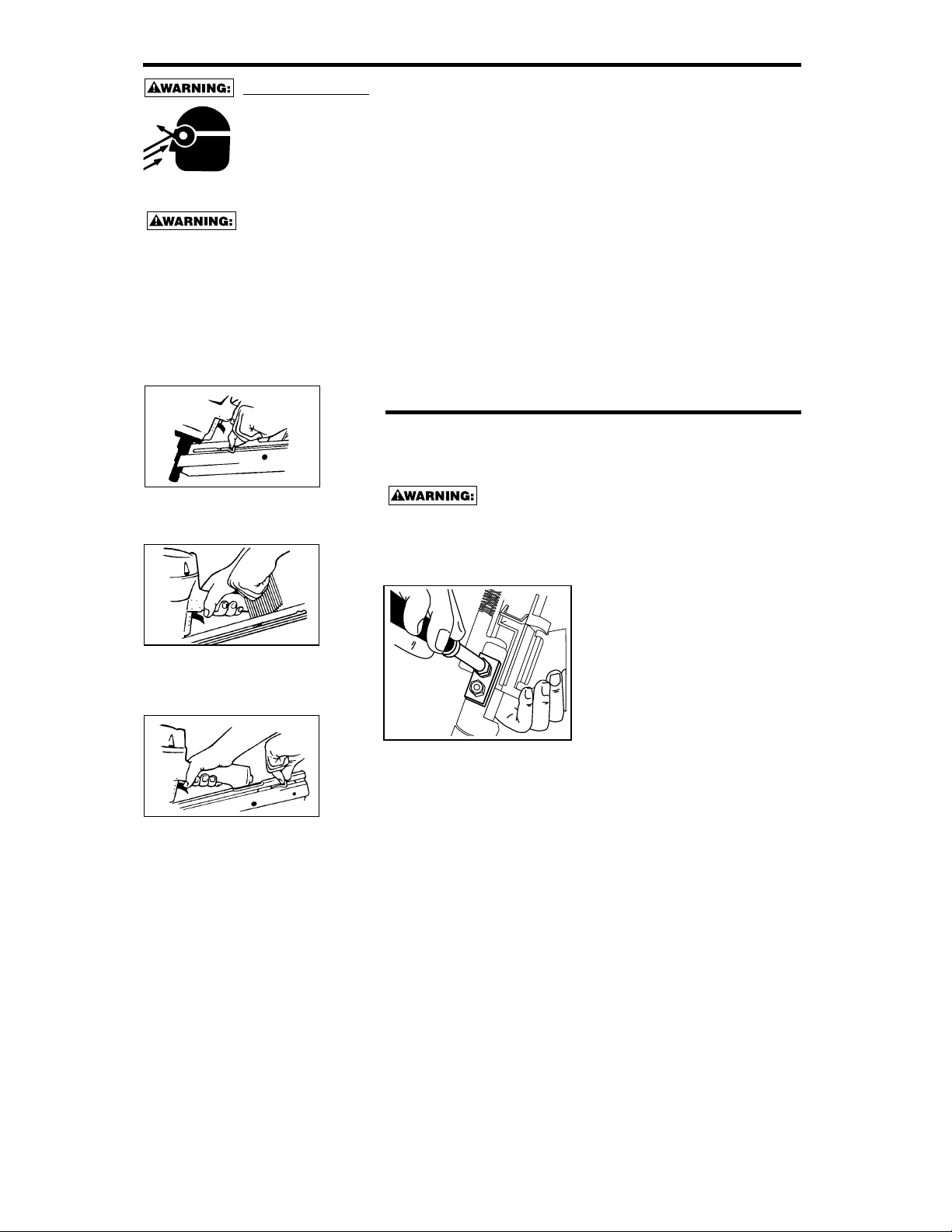

SAFETY INSTRUCTIONS
EYE PROTECTION
which conforms to ANSI specifications and provides protection
against flying particles both from the FRONT and SIDE should ALWAYS be worn
by the operator and others in the work area when loading, operating or servicing
this tool. Eye protection is required to guard against flying fasteners and debris,
which could cause severe eye injury.
The employer and/or user must ensure that proper eye protection is worn. Eye
protection equipment must conform to the requirements of the American National
Standards Institute, ANSI Z87.1-1989 and provide both frontal and side protection.
NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection.
CAUTION:
ADDITIONAL SAFETY PROTECTION will be required in some environments. For example, the working area may include exposure to noise level which
can lead to hearing damage. The employer and user must ensure that any necessary
hearing protection is provided and used by the operator and others in the work area.
Some environments will require the use of head protection equipment. When
required, the employer and user must ensure that head protection conforming to
ANSI Z89.1 1986 is used.
AIR SUPPLY AND CONNECTIONS
Do not use oxygen, combustible gases, or bottled gases as a power source for this
tool as tool may explode, possibly causing injury.
Do not use supply sources which can potentially exceed 200 P.S.I.G. as tool may
burst, possibly causing injury.
The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected possibly causing injury.
Do not pull trigger or depress contact arm while connected to the air supply as the
tool may cycle, possibly causing injury.
Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing
the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a
different work area, as accidental actuation may occur, possibly causing injury.
LOADING TOOL
When loading tool: 1.) Never place a hand or any part of body in fastener discharge area of tool; 2.) Never point tool at anyone; 3.) Do not pull the trigger or
depress the trip as accidental actuation may occur, possibly causing injury.
OPERATION
Always handle the tool with care: 1.) Never engage in horseplay; 2.) Never pull
the trigger unless nose is directed toward the work; 3.) Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur,
possibly causing injury.
The operator must not hold the trigger pulled on contact arm tools except during fastening operation as serious injury could result if the trip accidentally contacted someone or something, causing the tool to cycle.
Keep hands and body away from the discharge area of the tool. Acontact arm tool
may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven possibly causing injury.
Check operation of the contact arm mechanism frequently. Do not use the tool if
the arm is not working correctly as accidental driving of a fastener may result. Do
not interfere with the proper operation of the contact arm mechanism.
Do not drive fasteners on top of other fasteners or with the tool at an overly steep
angle as this may cause deflection of fasteners which could cause injury.
Do not drive fasteners close to the edge of the work piece as the wood may split,
allowing the fastener to be deflected possibly causing injury.
MAINTAINING THE TOOL
When working on air tools note the warnings in this manual and use extra care
when evaluating problem tools.
-4-
N95RHN TOOL SPECIFICATIONS
All screws and nuts are metric.
FASTENER SPECIFICATIONS:
This tool uses a wide range of nail sizes in lengths of 2” to 3-1/2” (50 - 90mm) and shank
diameters of .113” to .148” (2.8 - 3.3mm)
TOOL AIR FITTING:
This tool uses a 1/4” N.P.T. male plug. The inside diameter should be .275” (7mm) or
larger. The fitting must be capable of discharging tool air pressure when disconnected from
the air supply. The connector socket on the air hose should be .275” (7mm) inside diameter
or larger.
OPERATING PRESSURE:
70 to 100 p.s.i.g. (4.9 to 7.0 kg/cm2). Select the operating pressure within this range for
best fastener performance.
DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE.
AIR CONSUMPTION:
The N95RHN requires 7.8 cubic feet per minute of free air to operate at the rate of
100 nails per minute, at 80 p.s.i.g. (5.6 kg/cm
2
). Take the actual rate at which the tool will
be run to determine the amount of air required. For instance, if your nail usage averages 50
nails per minute, you need 50% of the 7.8 c.f.m. which is required to operate the tool at 100
nails per minute.
BOSTITCH OFFERS TWO TYPES OF OPERATION
CONTACT TRIP
The common operating procedure on “Contact Trip” tools is for the operator to contact the
work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener
each time the work is contacted. This will allow rapid fastener placement on many jobs,
such as sheathing, decking and pallet assembly.
All pneumatic tools are subject to recoil when driving fasteners. The tool may bounce,
releasing the trip, and if unintentionally allowed to recontact the work surface with the
trigger still actuated (finger still holding trigger pulled) an unwanted second fastener will be
driven.
SEQUENTIAL TRIP
The Sequential Trip requires the operator to hold the tool against the work before pulling
the trigger. This makes accurate fastener placement easier, for instance on framing, toe
nailing and crating applications.
The Sequential Trip allows exact fastener location without the possibility of driving a second
fastener on recoil, as described under “Contact Trip”.
The Sequential Trip Tool has a positive safety advantage because it will not accidentally
drive a fastener if the tool is contacted against the work – or anything else – while the
operator is holding the trigger pulled.
MODEL
IDENTIFICATION:
Refer to Operation Instructions on page 7 before proceeding to use this tool.
CONTACT TRIP SEQUENTIAL TRIP
Identified by: Identified by:
BLACK TRIGGER GRAY TRIGGER
OPERATION
MODEL
TOOL
LENGTH HEIGHT WIDTH WEIGHT
ACTUATION
N95RHN-1 Contact Trip 21-1/2” (546mm) 13-3/4” (350mm) 5-7/16” (138mm) 9lbs. (4Kg.)
N95RHN-2 Sequential Trip 21-1/2” (546mm) 13-3/4” (350mm) 5-7/16” (138mm) 9lbs. (4Kg.)
