WIRELESS POWERLINK
USER MANUAL
2
Contents
General .............................................................................................. 3
Wireless Powerlink ........................................................................ 3
Package Contents .......................................................................... 4
Disposal of Old electrical Devices .................................................. 6
Installation ......................................................................................... 7
”Pairing Function” ......................................................................... 7
Connecting the Devices ................................................................. 9
Assembly Instructions / Placement ............................................. 11
System description .......................................................................... 12
3
General
Dear Customer,
Thank you for choosing this wireless Bang & Olufsen® compatible
Powerlink radio transmission system. This installation guide will
help you to properly integrate the unit into your audio system. With
years of expertise, we want to bring the benefits of the latest
technology into your living room.
Wireless Powerlink
The WirelessPowerlink System was specifically developed for your
Bang & Olufsen® system and provides signal transmission from the
system to the speakers, wherever a wired connection is not
possible or simply too expensive.
The TV Station on your Bang & Olufsen® TV for example, and the
receivers of the rear speakers are constantly connected via radio this means you can enjoy wireless surround sound in absolute CDquality.
The automatic frequency change to the maximum transmission
reliability, results in an insignificant latency between the wired and
wireless connected speakers - which creates a slight hall effect. In
case there is no signal available at the transmitter - because the
system is turned off or the sound is muted - the speakers will also
go into standby mode - just like it would with a cable connection.
4

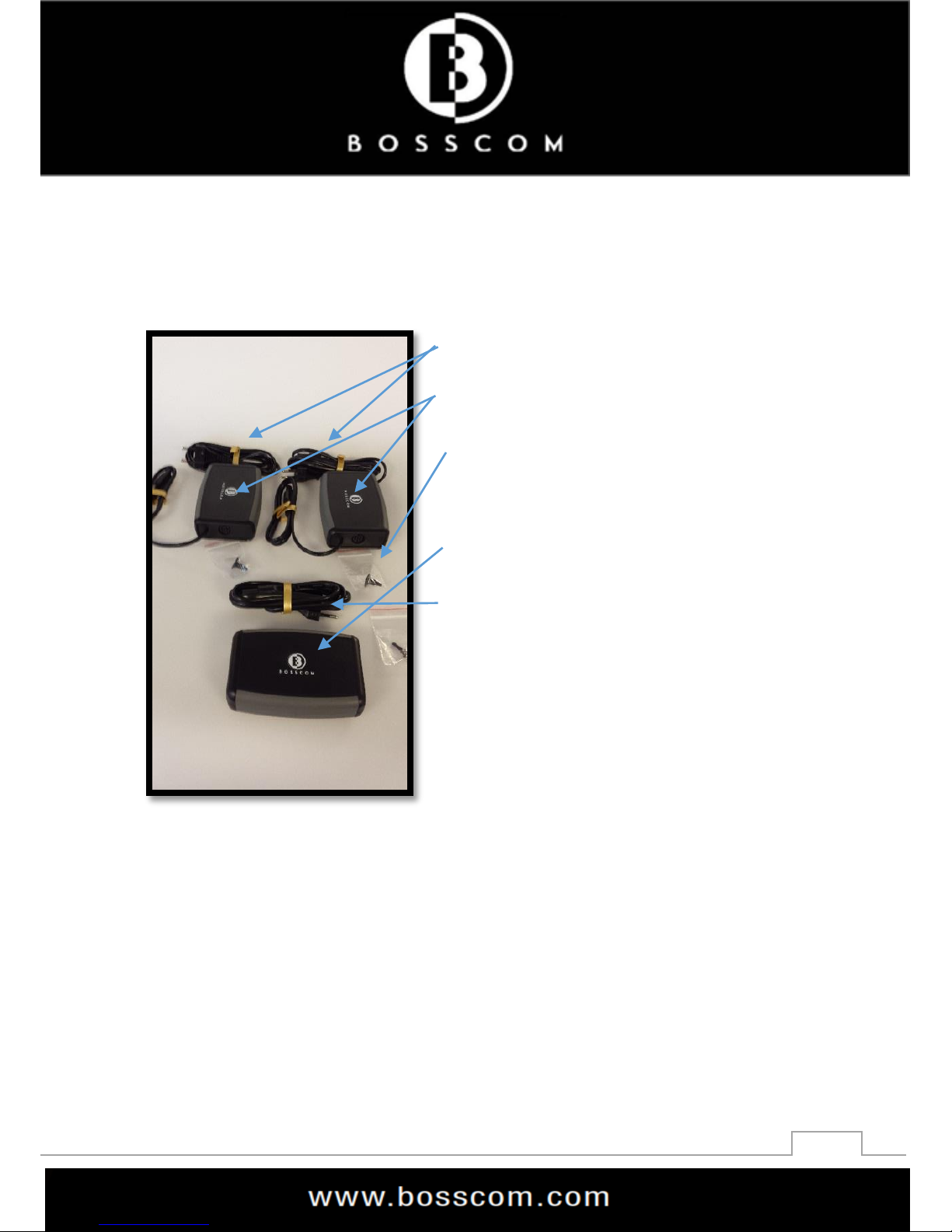

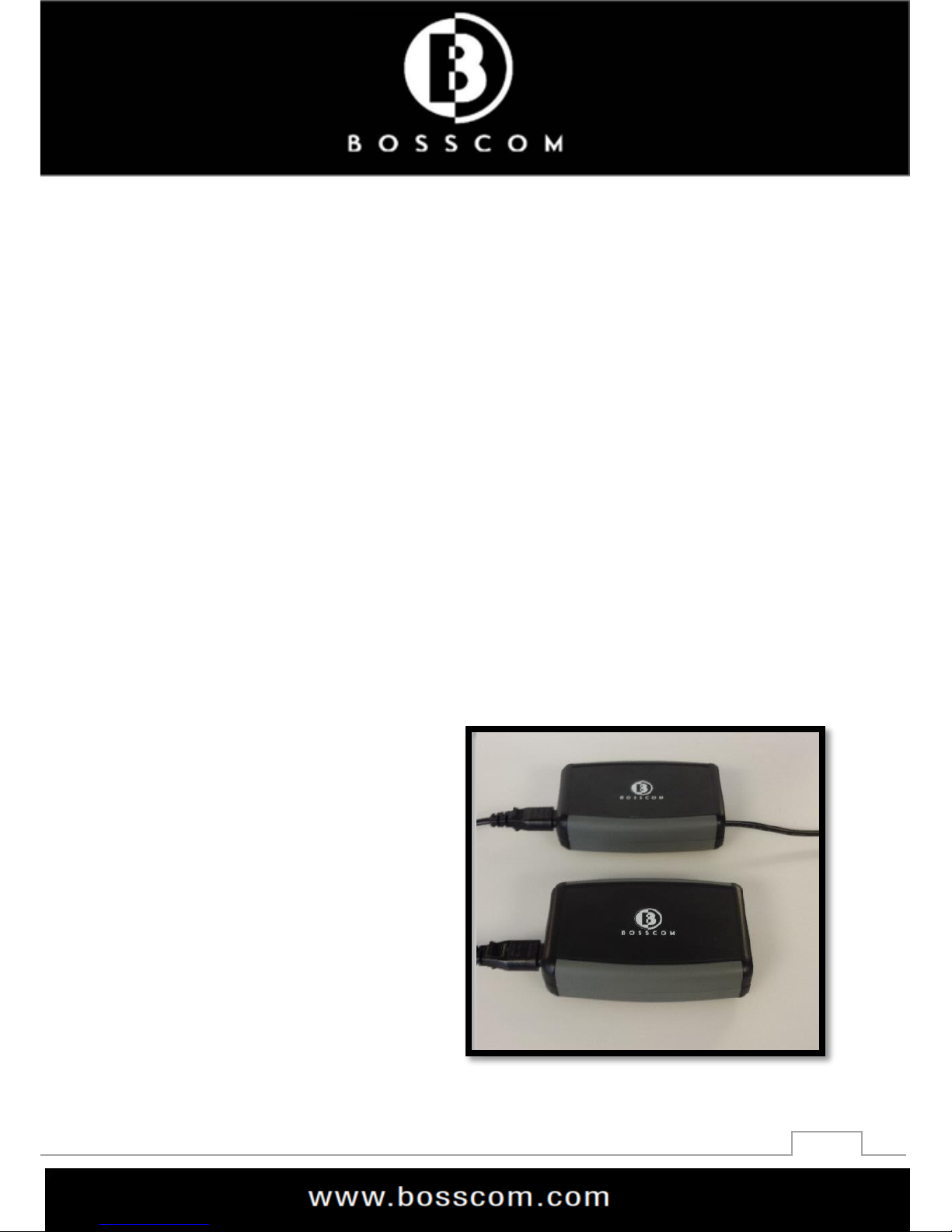

Package Contents
Powercord (for receivers)
Receiver (2pcs)
Paring kit
Transmitter
Powercord (for transmitter)
Safety Instructions
To ensure best performance, please read these instructions
carefully. Keep them in a safe place for future reference.
Install the equipment in a well-ventilated, cool, dry, clean
environment - away from direct sunlight, heat sources, vibration,
dust, moisture and/or cold.
Place the unit away from other electrical devices, motors, or
5
transformers to avoid humming sounds.
Do not expose the equipment to sudden temperature changes from
cold to hot, and do not place it in places with high humidity (e.g. in a
room with a humidifier) to prevent the formation of condensation
inside the devices, which could cause electric shock, fire, damage to
the devices and/or accidents with injuries.
Do not place the devices in locations where any solid objects
could fall into the device or liquid splashes may be spilled on/into
the device. Do NOT place the following items on the device:
- Other components, as they can cause damage and/or
discoloration to the surface of the devices.
- Burning objects (such as candles), as they may cause fire,
damage to the device and/or injuries.
- Containers with liquid, as they can tip over and liquid can enter
the devices, which can cause electrical shock or damage to the
device.
Do not cover the devices with newspaper, tablecloth, curtains, etc.,
in order to prevent heat accumulation. If the temperature inside the
devices rises rapidly, this may result in fires, damage to the
devices and/or injuries.
Do not operate the devices in a tilted position. This can lead to
overheating and damage the device.
Do not apply force in the operation of buttons and/or cables.
Always grasp the plug, if you disconnect the power cord and/or the
adapter from the wall outlet. Never pull the cord.
Do not try to clean this device with chemical solvents because
they may damage the housing. Clean only with a clean, dry cloth.
The devices may only be operated with the prescribed voltage.
Operating the device with a higher voltage than specified, is
dangerous and can cause fire, damage to the device and /or
6
injuries.
ip media systems GmbH is not responsible for any damage
resulting from the operation of the device with a voltage other
than specified.
Do not attempt to modify or repair these devices yourself. Please
contact your specialty retailer if service is required. The housing
may not be opened under any circumstances.
If the devices are not going to be used for long periods of time
(e.g. vacation), disconnect the power cord from the wall outlets.
In case of malfunction, carry out the pairing function again (see
page 5). Should the malfunction persist, contact your local
specialty retailer, or submit an email to support@bosscom.com.
Before moving this device, unplug the power cord from the
wall outlet.
Disposal of Old electrical Devices
If this symbol is found on the products, packaging and/or
accompanying documents, used electrical devices
should not be disposed of with normal household waste.
In accordance with your national legislation and the Directives
2002/96/EC, take your old electronic devices to the appropriate
collection sites, for disposal, re-treatment and reuse.
By properly disposing of electrical appliances you help to protect
valuable resources and prevent possible negative effects on
human health and the environment that might otherwise arise
from inappropriate waste disposal.
For more information about collection and recycling of old
7
electronic devices, please contact your local city or municipal
administration, your waste disposal service or the dealer of the
product.
[Information on disposal in countries outside the European
Union] This symbol is only valid within the European Union. If
you wish to discard such devices, please contact your local
authorities or dealer to inquire about the proper disposal
method.
Installation
”Pairing Function”
The receiver must be registered with the transmitter on location.
The following steps are necessary for the registration:
1. Both units must be
connected to a power source
- the yellow Status LED (left
hole) lights up and the green
LED (middle hole) blinks
every second.
CAUTION:
Do NOT connect the
devices with the
Power Link-Source
and the speakers yet!
8

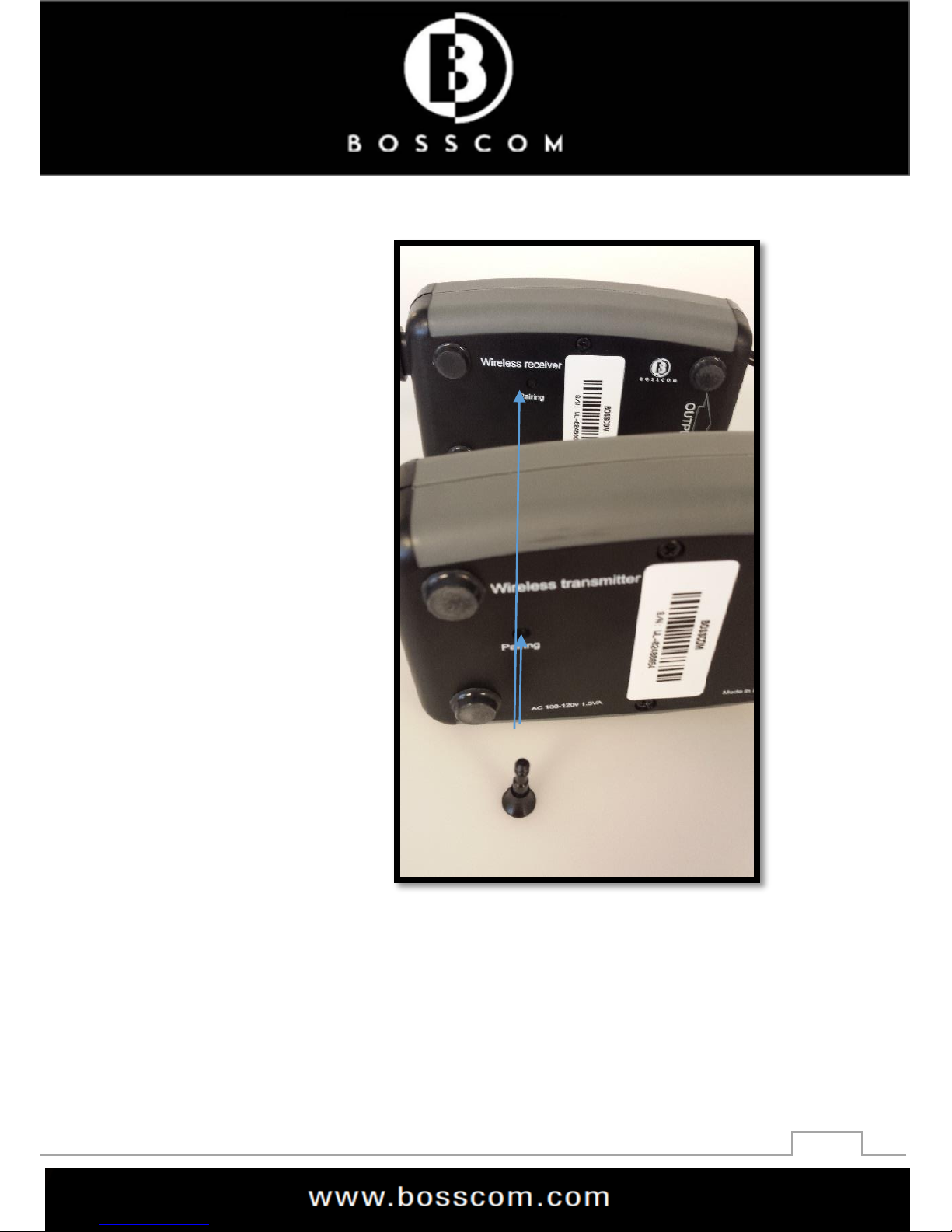

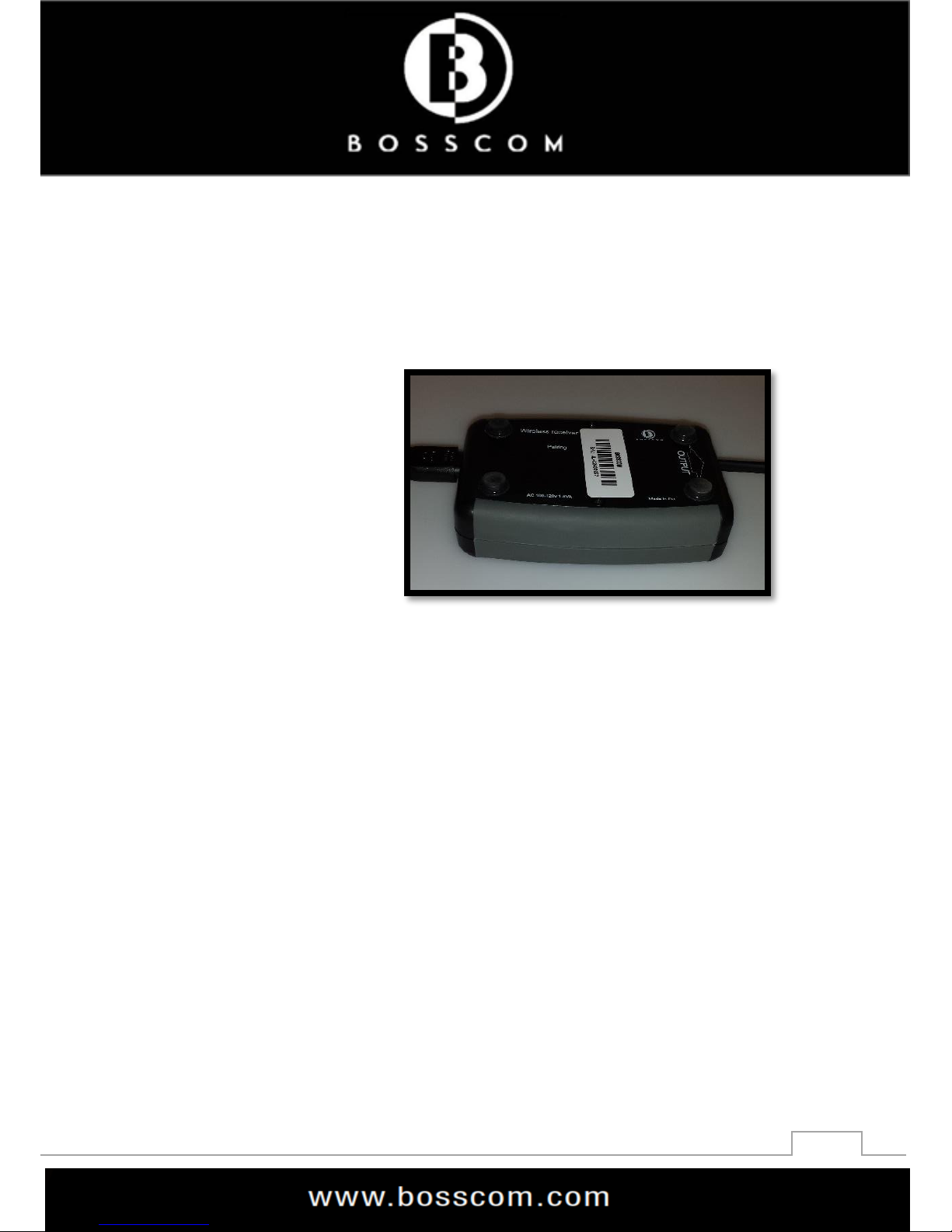

2. Using the provided
paring kit, press and
hold the key on the
bottom of the
transmitter and the first
receiver for about 5
seconds, until the
green signal LED (in
the middle hole) of the
transmitter begins to
flash quickly.
Releasing the buttons
starts the pairing
function
This process may take
up to 4 minutes
It is completed once
the signal LED begins
to blink every second
The same registration
procedure must be followed for the second receiver.
3. Afterward, all devices must be unplugged.
9

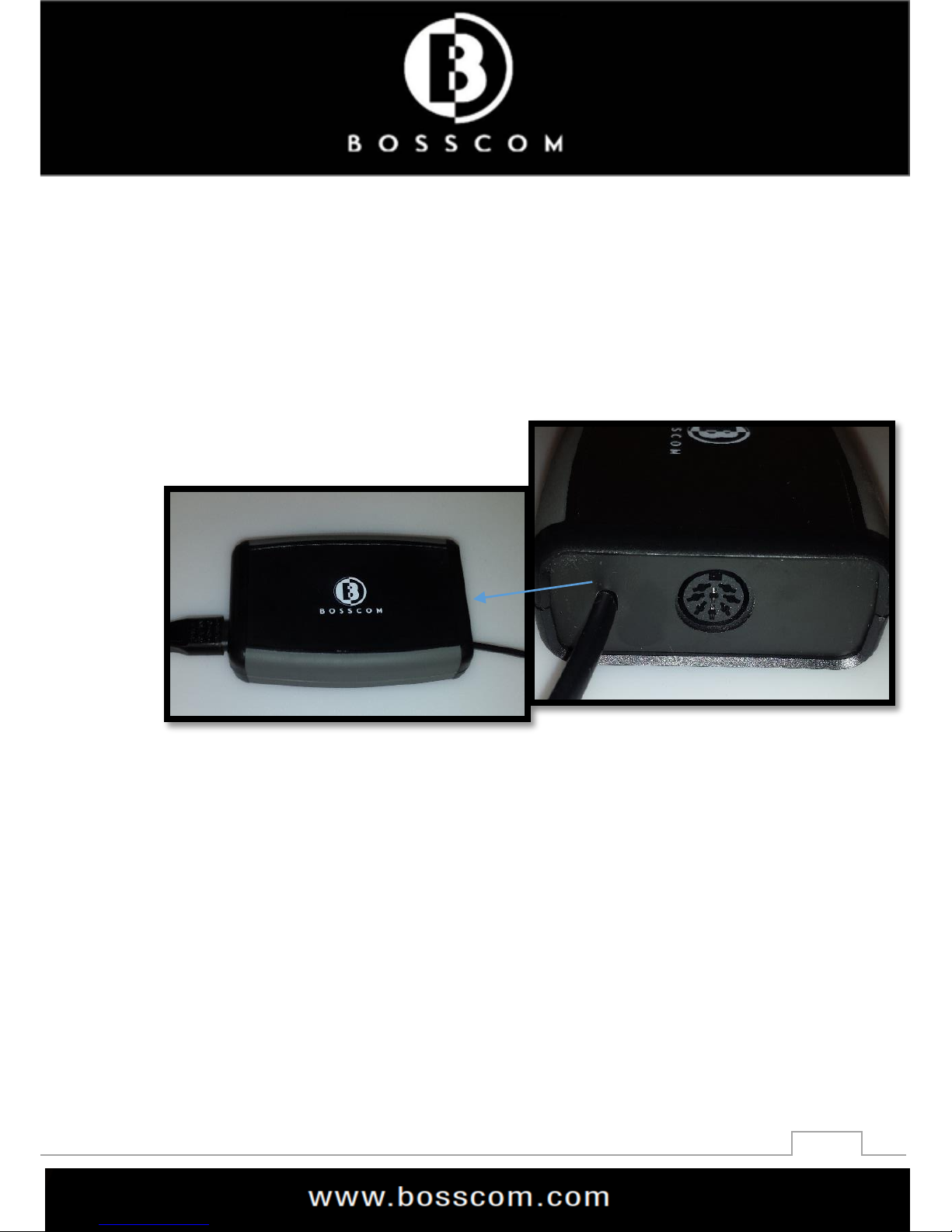

Connecting the Devices
4. Connect the transmitter on the PL IN socket to the Powerlink output of
your Bang & Olufsen® device, with the supplied Powerlink cable. Then
connect it to the power supply (power cord also included).
Transmitter
10
5. Use a Powerlink cable to connect the receiver to the PL OUT
socket and the permanently connected power cord to connect it
with your Bang & Olufsen® speakers (Powerlink cable included
with
your speakers).
Then connect the receiver to the power supply
(Power cord also included with your speakers).
The status LED on your speakers should now light up red.
6. The installation is now complete. You can activate the Powerlink
source on low volume - the status LED on your speakers will light
green and you will enjoy the sound of your Bang & Olufsen ® device
in CD-quality.
11

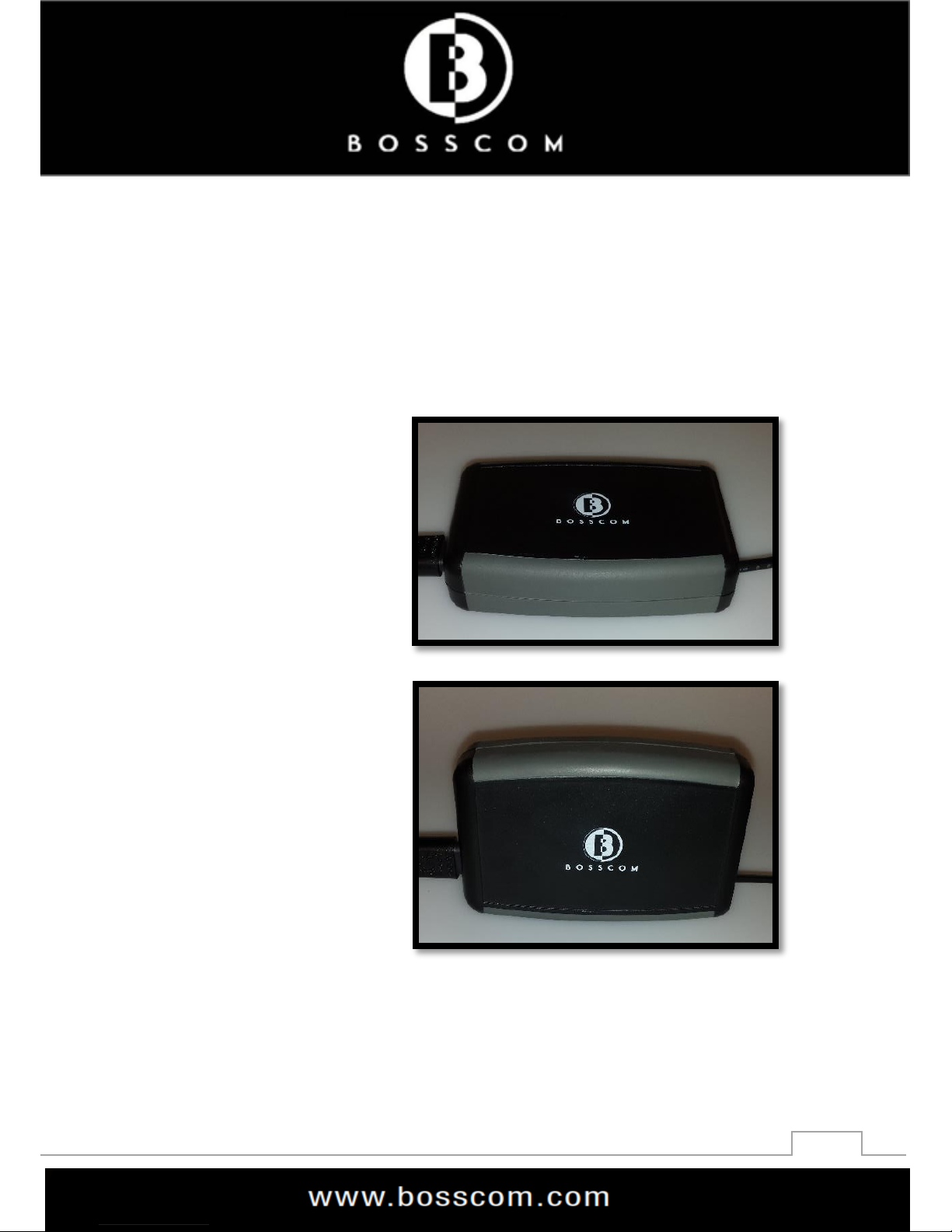

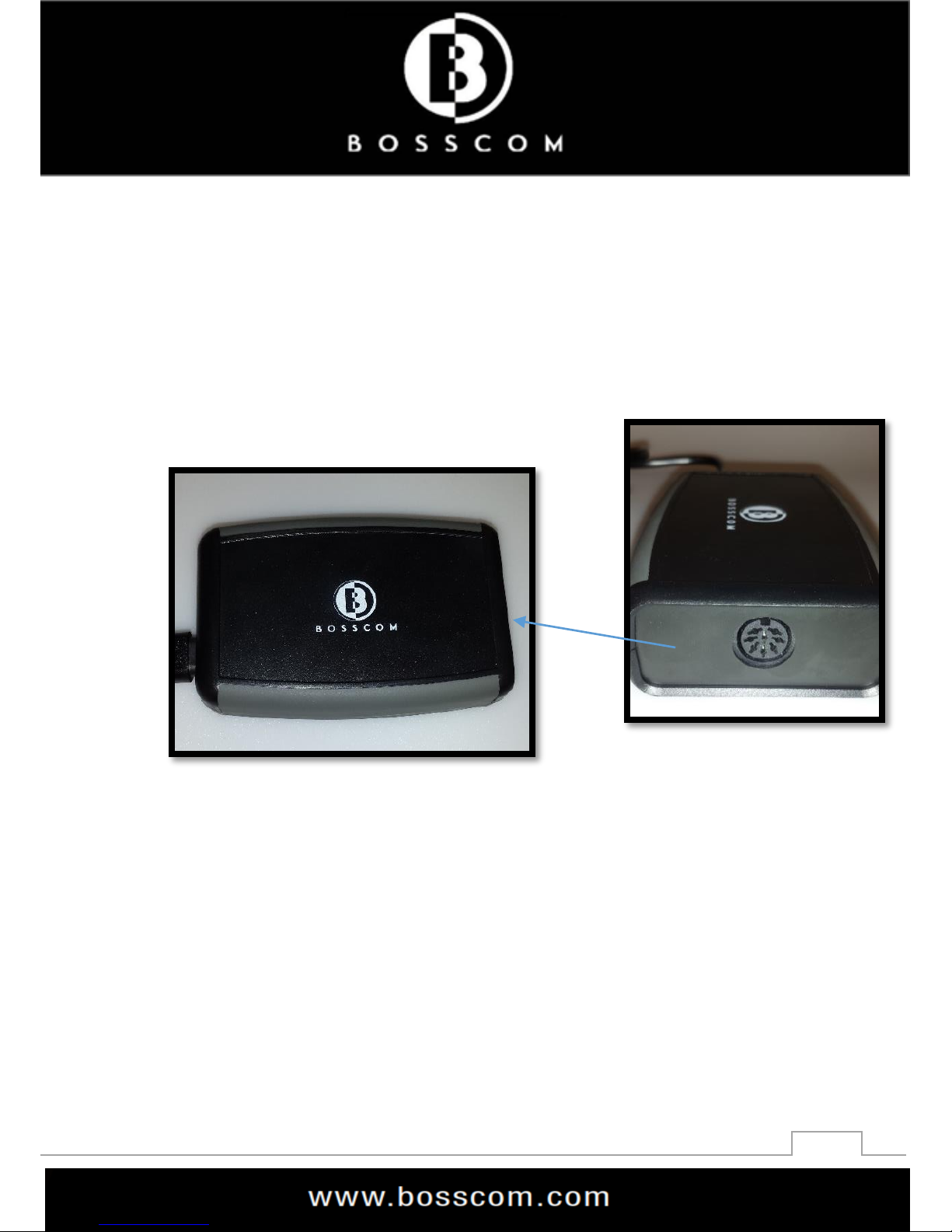

Assembly Instructions / Placement
The logo on the side of the receiver and the transmitter should
always be visible, to achieve the best possible transmission quality.
Also make sure that the devices are not placed in the immediate
vicinity of antenna cables - this can cause static noise.
CORRECT:
Lying flat on the side
with the type plate –
the side with the logo is
visible
CORRECT:
Lying on the narrow
side
12
If the device is going to be attached to the wall with tape (e.g.
Velcro), the side with the logo must also be visible.
In no case should the device be placed as illustrated below.
WRONG:
Lying flag on the side
with the logo facing
down
In this case the metal
blank faces upwards
and thus partially shields the antenna, which can lead to loss of
signal quality.
System description
Compatibility with Bang & Olufsen
Devices
The WirelessPowelink System is compatible
with ALL active Bang & Olufsen® speakers
other than BeoLab 5®.
13

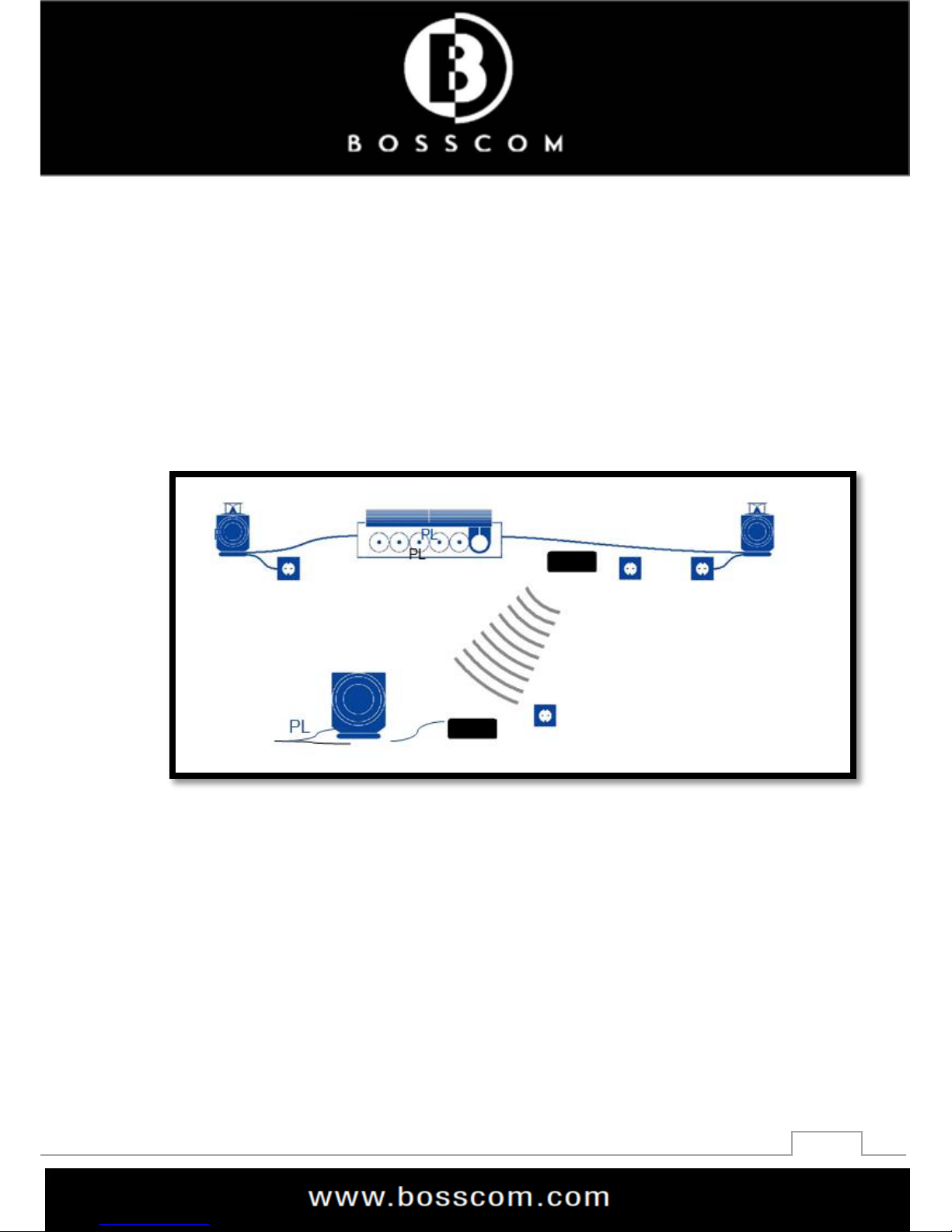

Wireless Powerlink For Surround
Systems
Here, the front speakers remain connected to your system via
wires. Wherever a wired connection to the rear speakers is
not possible or simply too expensive, you can expand your
wired stereo system to a full surround system with Wireless
Powerlink.
14
Note: The automatic frequency change to the maximum
transmission reliability results in an insignificant latency between the
wired and wireless connected speakers - which creates a slight hall
effect. You can easily adjust this in the configuration mode of the
Dolby Surround menu. To do this, increase the distance of the
wireless connected speakers for about 6 m.

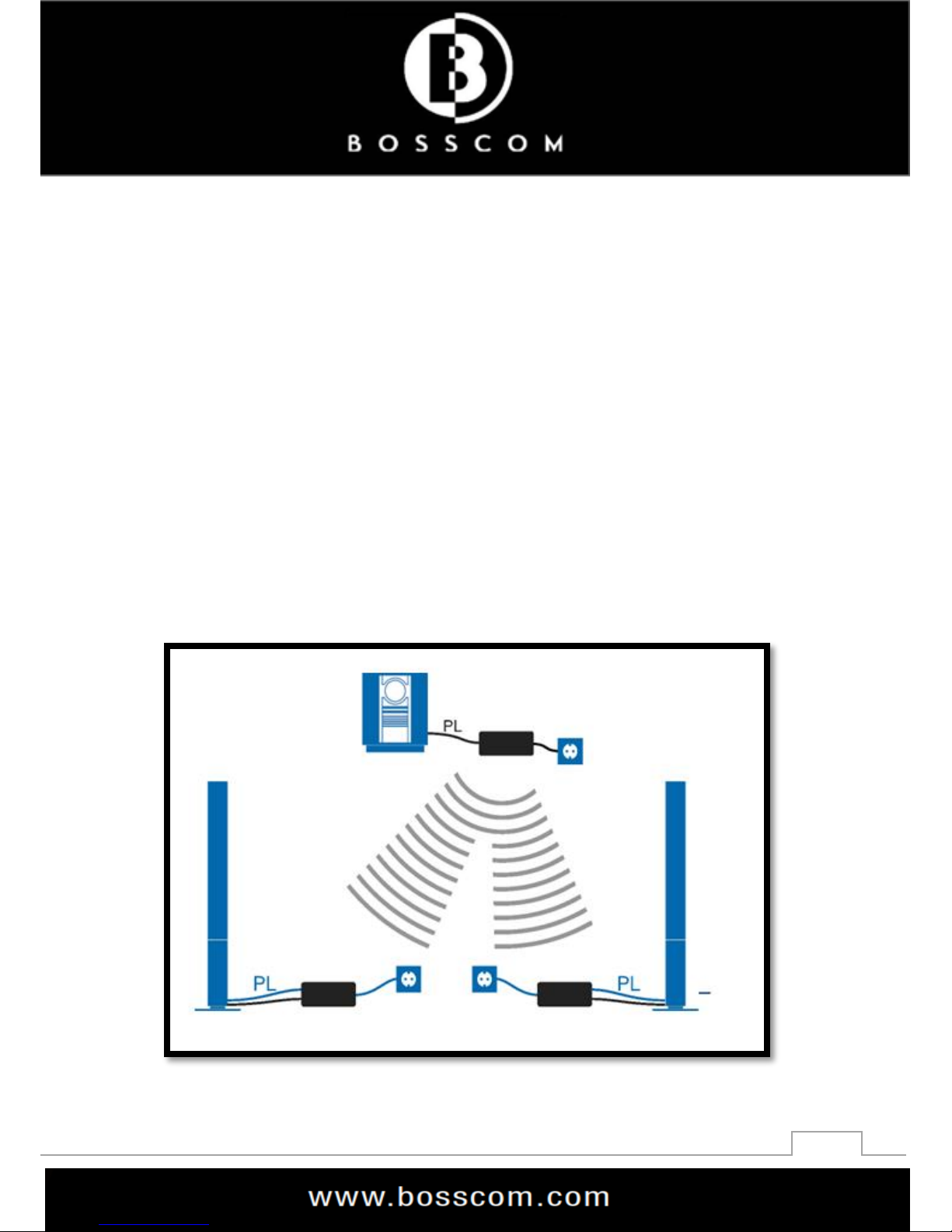

Wireless Powerlink in stereo Mode
Wherever a wired connection to the rear speakers is not possible
or simply too expensive, you can extend your wired stereo
system to a full surround system with WirelessPowerlink. And if
you have an outdoor party, you can simply place the speakers
on the patio and connect them to an outlet - the music will
accompany you outside.
15

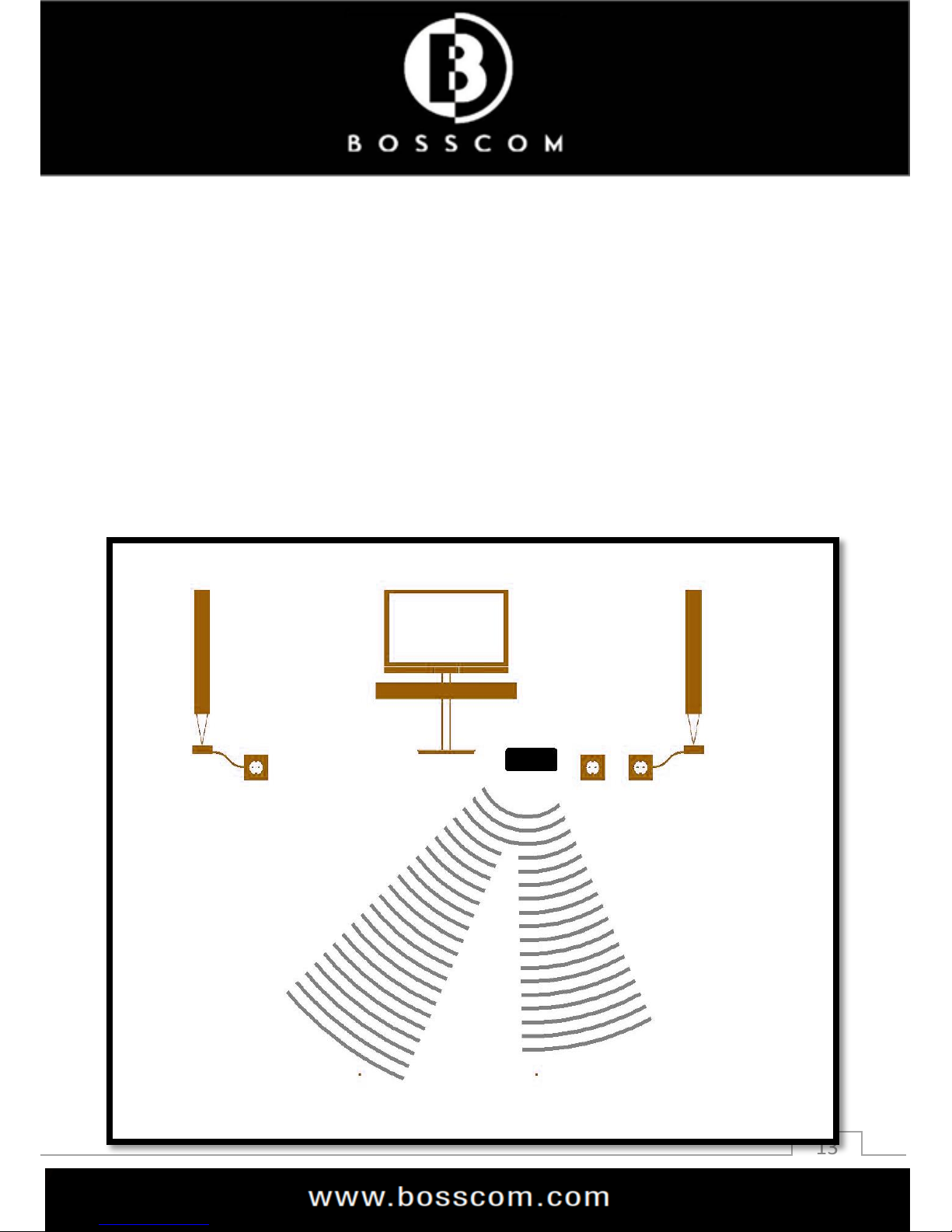

Wireless Powerlink for you subwoofer
With WirelessPowerlink as an extension you can also expand your
wired stereo system with a sub-woofer such as the BeoLab 2® very
easily and thus increase your listening enjoyment
16

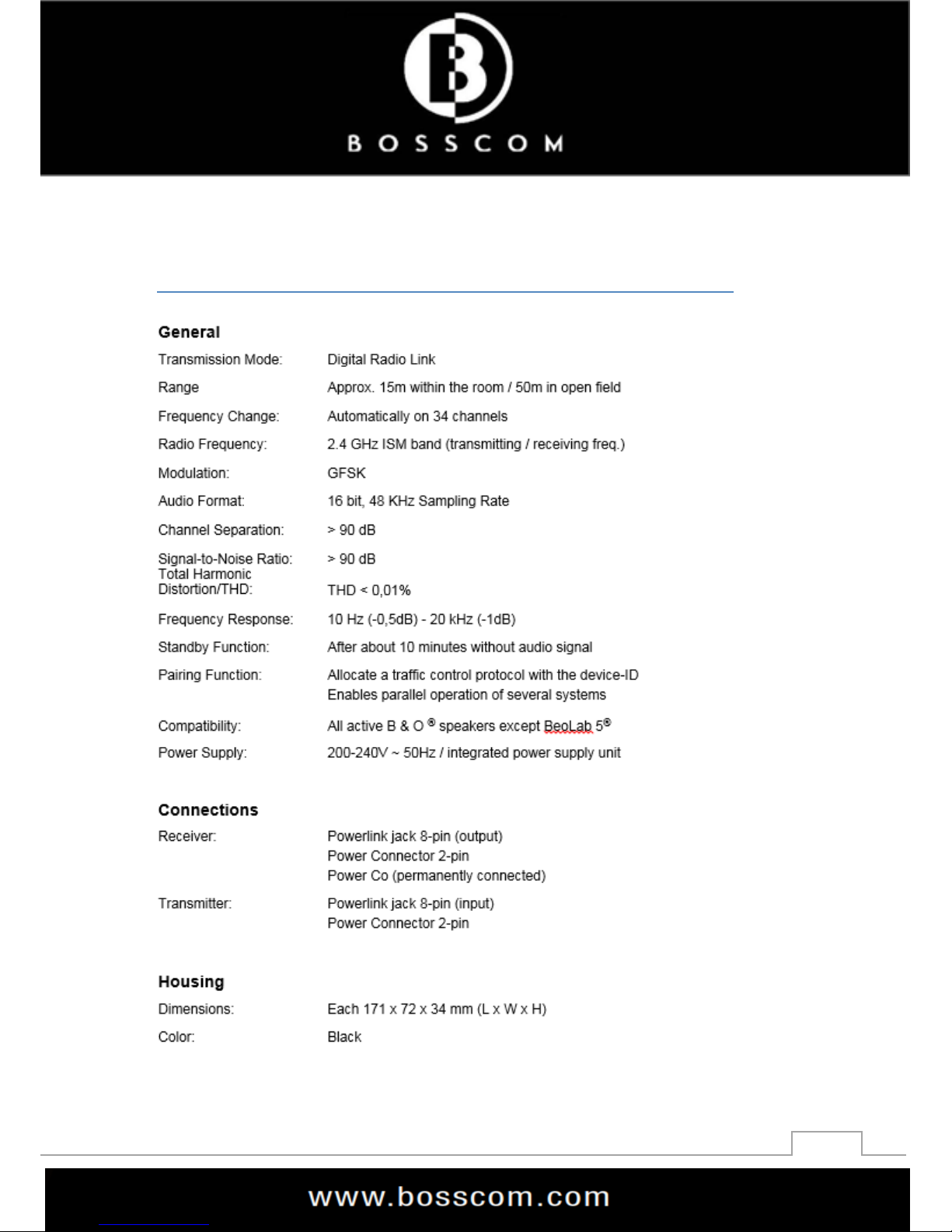

Technical Data
