Boss Audio Systems 726CA User Manual

Page 1

Page 2

CONTENTS LIST

PAGE CONTENTS

2 BUTTONS LOCATION AND FUNCTIONS 3 HANDLING COMPACT DISCS 4 ACCESSORY INCLUDED 5 INSTALLATION 7 DETACHABLE CONTROL PANEL 8 WIRING DIAGRAM 9 BASIC OPERATIONS 10 AUDIO OPERATIONS

11 RADIO OPERATIONS 12 CD OPERATIONS

13 MP3/WMA OPERATIONS 15 REMOTE CONTROL 16 SPECIFICATIONS 17 TROUBLE SHOOTING

Page 3

1. BUTTONS LOCATION AND FUNCTIONS

1. Panel Release Button

2. Mute Button

3. CD EjectButton

4. Audio Button

5. Display Button/ ID3Information Button

6. Local /Distant Button

7. Preset MemoryButtons

8. Mono /Stereo Button

9. Scan Button

10. Volume Knob

11. MP3Menu Button& AutomaticallyStore /Preset ScanButton

12.PowerButton

13. Band/LoudnessButton /MP3 EnterButton

14. TuningUp/Down &Track Up / Down Buttons

15. RemoteControl Receiver

16. SourceButton

17. PresetEqualizer Button

18. Folder Down/ UpButtons

19. AuxIn Jack

1. BoutonDe DéclenchementDu Panneau

2. BoutonD'assourdissement

3. BoutonÉjection D'unCd

4. BoutonDe SélectionAudio /Entrée DeMP3

5. BoutonD'écran /Affichage D'informationSur LesDisques MP3

6. BoutonLocal/distant

7. BoutonsDes StationsPréréglées (m1~m6)

8. BoutonDe LaStéréo DuMono

9. BoutonDu Scanner

10.Bouton De Volume

11.Bouton De Menu& BoutonDe StockageDes StationsDans LaMémoire

12.Bouton D'alimentation

13.Bouton De Bande / EntréeDe MP3

14.Bouton De RechercheDes Stations/pistes: EnAvant /En Arrière

15.Récepteur De LaCommande ÀDistance

16.Bouton De Régime

17.Bouton De PEQ

18.Dossier En LeBouton/ VersLe Haut LeBouton

19.Aux A Jack

1. Entriegel-Taste Bedienteil

2. Stumm-Taste

3. CD-Auswurftaste

4. Audio-Taste

5. Display-/ ID3-Taste

6. Local/ Distant-Taste

7. Senderspeichertasten

8. Mono/ Stereo-Taste

9. Scan-Taste

10. Lautstärkenregler

11. AMSTaste /MP3 SuchlaufTaste

12. Einschalt-Taste

13. Frequenzband-Taste / MP3 Eingabe-Taste

14. Titel AUF/ AB- Taste

15. Fernbedienungs-Taste

16. Source-Taste

17. PEQ-Taste

18. Folder Down/ Up- Taste

19. Front-Audio-Anschluss

1.Teclapararemoveropainel frontal

2.TeclaMute

3.Teclaparaejetarodisco

4.Tecladeajustedeaudio

5.TeclaDisplay/informaçãoMP3-iD3

6.TeclaLocal/Distante

7.Teclasdememóriadeestações

8.Teclaestéreo/mono

9.TeclaScan

10.Controledevolume

11.TeclaMenuememorizaçãoautomática (As) / Preset Scan (Ps)

12.TeclaLigar/desligar

13.TeclaBanda/Loudness/ MP3 Enter

14.Teclasdesintonizaçãodeestações /

mudançadefaixasdemúsica

15.Sensordocontroleremoto

16.TeclaSource

17.TeclaEqualizadorpré-programado

18.TeclaSeleçãodepastas

19.EntradaAuxiliar

1. Extraccióndel panelfrontal

2. Mute/ silenciamientode sonidoinstantaneo.

3. Aperturadel panelmotorizado yexpulsión deldisco

4. Tecla Audio

5. Seleccióninformación Display/ID3TAG muestra

6. BotónDistancia/Local

7. Botonesde estacionesmemorizadas

8. Botónselección mono/estéreo

9. BotónDe Búsqueda

10. BotónDe Volumen

11. Menúdel Sistemade MemorizaciónAutomática deemisoras / selecciónde memorias

12. Encendido/Apagado

13. SelectorBandas /Bajos/MP3

14. Botónde selecciónde emisoras& bandade música

15. Receptorde controlremoto

16. Selecciónmodos Radio/CD/Entradaauxiliar

17. Tecla de ecualización

18. Botónde selecciónde carpeta/folder

19. Entradade auxiliar

1. Tasto Rilascio Frontalino

2. Tasto Mute

3. Tasto Eject

4. AudioControlla

5. Tasto Display/ID3 (informazioni)

6. BottoneDistante Locale

7. Tasti Stazioni Memorie Preimpostate

8. Bottonedi Stereo/Mono

9. Tasto Scan

10. Tasto Volume

11. Tasto Menu & AS/PS

12. Tasto Power

13. Tasto Banda/Forte & Enter MP3

14. Tasto sintonizzazione su/gui & tracciasu/gui

15. Destinatariodi controlloremoto

16. Tasto Mode

17. Bottonedi equilizzatorepreprogrammato

18. Bottonedi Cartellasu/gui

19. EntradaAux

Page 4

2. HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1

P. 5

P. 6

P. 7

NOTES ON DISCS

There are paste residue. Ink is sticky (P.5).

Stickers that are beginning to peel away, leaving a sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture hasevaporated.

A dirty or defective disc may cause sound dropouts while playing. To enjoy optimum sound, handle thediscas follows. Handle the disc by its edge. To keep the disc clean, do nottouchthe surface(P.1).

If you use the discs explained below, the sticky residue can cause the CD to stop spinning and may cause malfunctionorruin yourdiscs.

Do not use second-handorrental CDsthat have a sticky residue on the surface (for example, from peeled-off stickers or from ink, or glue leaking from under thestickers).

Do not stickpaperor tapeon the disc (P.2).

Before playing, clean the discs with an optional cleaning cloth. Wipe each disc from the center out(P.4).

Do not use solvents such as benzine, thinner,commercially available cleaners, or antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or heat sources such as hot air-ducts, or leave them in a car parked in direct sunlight where there can be a considerable rise in temperature inside thecar(P.3).

Do not use CDs with old labelsthat arebeginning to peel off.

Do not use your CDs with labels or stickers attached.

**************

*******

****

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for this unit and do not use any special shape CDs. Use of special shape CDs may cause the unit to malfunction.(P.8).

Be sure to use CDs with disc mark

P. 8

CD-Rs and CD-RWs which have not undergone finalization processing cannot be played. (For more information on finalization processing, refer to the manual for your CD-R/CD-RW writing software or CD-R/CD-RW recorder.) Additionally, depending on the recording status, it may prove impossible to play certain CDs record on CD-R or CD-RW.

Page 5

3. ACCESSORY INCLUDED

When first unpacking your new head unit, please check first that the package contains all of the items below.If something is missing, contact thestore whereyou purchased the player.

Remote control

Lithium Battery

Half Sheeve

Insert Key

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4X12mm)

5. Screw

6. Support Strap

7. Plain washer

Oer

wn ’

umn

Owner’s Manual

ara

rnt

Warranty Card

Page 6

4. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and theunitand systemwork properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. Consult with your nearest dealerif installationrequires the drilling of holes or other modifications ofthe vehicle. Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, likeanemergency stop. If installation angleexceeds30° fromhorizontal, the unit might not giveitsoptimum performance.

Avoid installing theunit where it would be subject tohigh temperature, such as from direct sunlight, or from hot air,from heater, orwhere it would be subject to dustdirtor excessivevibration. Be sure toremovethe frontpanel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be propertyinstalled eitherfrom “Front” (conventional DIN Front-mount) or “Rear”(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the followingillustrated installationmethods Aand B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder After inserting the half sleeve into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place.

3. Screw

30°

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4x12mm)

5. Screw

6. Support Strap Be sure to use the support strap to secure the

back of the unit in place. The strap can be bent by hand to the desired angle.

7. Plain washer

182

Page 7

DIN REAR-MOUNT (METHOD B)

Installation using thescrewholes onthe sides of the unit. Fasteningtheunit tothe factory radio mounting bracket.

1. Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are fitted) and tighten the screws at 2 places on each side.

2. Screw

3. Factoryradiomounting bracket.

4. Dashboard or Console

5. Hook (Remove thispart)

Note: the mounting box, outer trim ring, and half-sleeve are not used for method B installation.

a. Frame b. Insert fingers into the groove in the front

of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.)

c. Insert the levers supplied with the unit

into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted. You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

Page 8

5. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P. (As shownonthe digram).

2. Then presstheleft sideof D.C.P. ontothe main

unit until a“click”sound isheard.

DO NOTinsert theD.C.Pfrom theleft side. Doing somay damage it. The D.C.Pcan easilybe damaged by shocks. Afterremoving it,place itin aprotective caseand be careful not todrop it orsubject itto strongshocks. When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent damage tothe D.C.P, alwaysstore itin aprotective caseafter detaching it. The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to damage itby pressingon itwith fingernails,pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the D.C.P.

Socket

Page 9

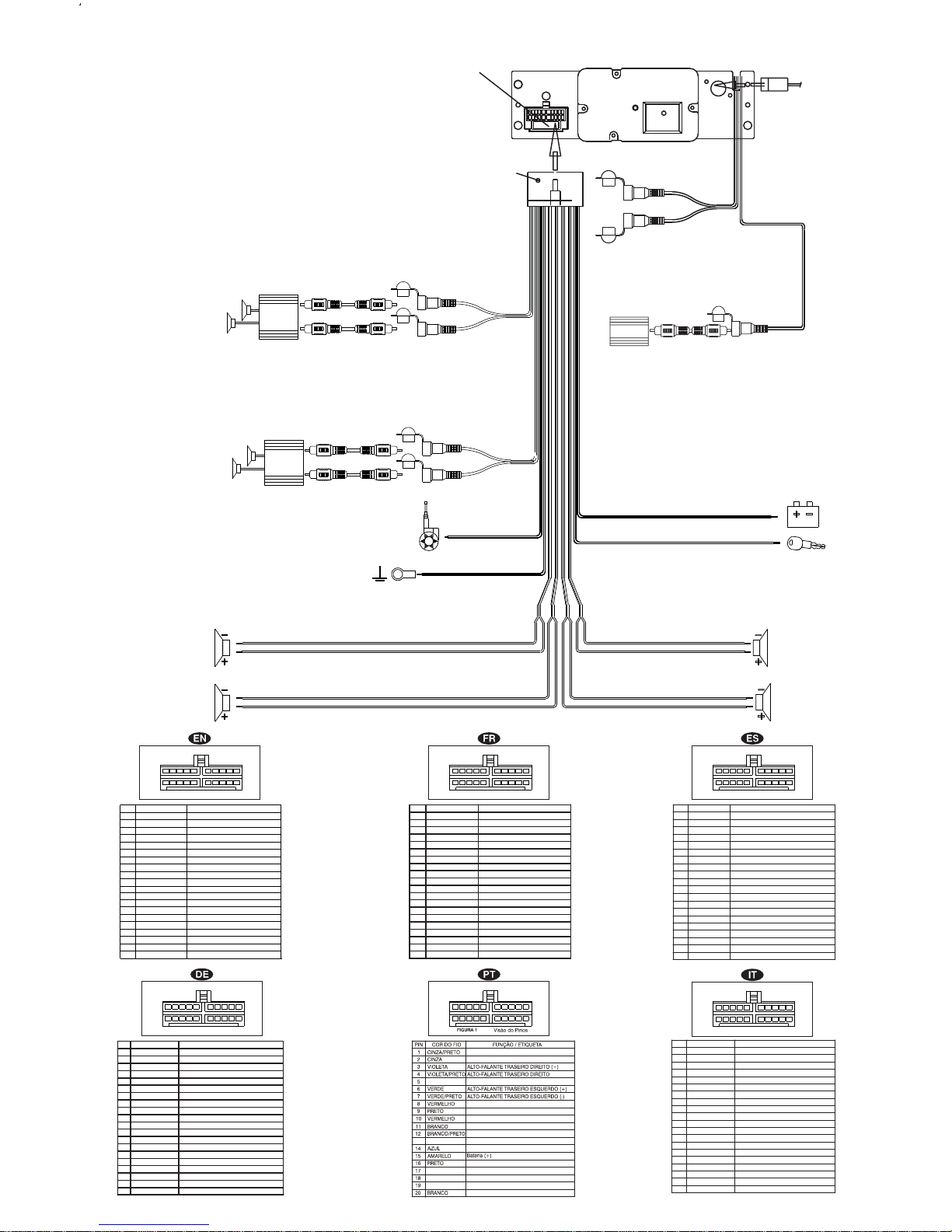

6. WIRING DIAGRAM (20 PIN HARNESS PLUG)

GREY/GRAU/GRIS/CINZA/GRIS/GRIGIO

GREY-BLACK/GRAU-SCHWARZ/GRIS-NOIR/CINZA-PRETO /GRIS-NEGRO/GRIGIO-NERO

VIOLET/VIOLETT/VIOLET/VIOLETA/VIOLETA/VIOLA

VIOLET-BLACK/

VIOLA-NERO

VIOLETT-SCHWARZ/VIOLET-NOIR/VIOLETA-PRETO

/VIOLETA-NEGRO/

GREEN-BLACK/ /VERT-NOIR/VERDE-PRETO/VERDE-NEGRO/VERDE-NEROGRÜN-SCHWARZ

WHITE-BLACK/WEISS-SCHWARZ/NOIR-BLANC/BRANCO-PRETO/BLANCO -NEGRO/BIANCO-NERO

GREEN/GRÜN/VERT/VERDE/VERDE/VERDE

WHITE/WEISS/BLAC/BRANCO/BLANCO/BLANCO

LEFTFRONT

LINKEVORDERSEITE

FACEAVANT GAUCHE

DIANTEIROESQUERDO

PARTEfrontal IZQUIERDA

PARTEanteriore SINISTRA

RIGHTREAR RICHTIGERÜCKSEITE ARRIEREDROIT TRASEIRODIREITO PARTEPOSTERIORADECUADA RETROGIUSTO

RIGHTFRONT RICHTIGEVORDERSEITE FACEAVANT DROITE DIANTEIRODIREITO PARTEFRONTALADECUADA PARTEANTERIORE GIUSTA

FUSE

FUSíVEL

FUSIBLE

FUSIBILE

20-PIN AUDIO/POWERHARNESS (See Figure1)

CONECTOR DEAUDIO / POTENCIADE 20 PIN

CONNETTORE ISO( vedi figura1)

R-CH

L-CH

REAR LINE OUT---GREY

SAIDA TRASEIRA- CINZA

LINE OUT POSTERIORE---GRIGIO

WHITE BLANC

BRANCO BLANCO

BIANCO

RED/ROT/ROUGE/VERMELHO/ROJO/ROSSO

AMP

RCA-TO-RCA CABLES

(not supplied)

CABOSRCAARCA

(não fornecidos)

CAVO RCA A RCA

( non fornito)

BLUE/BLUE/BLUE/AZUL/AZUL/BLU

Power antenna wire and remote turn on lead.

Treiben Sie Antennenleitung und entfernte Drehungsführung an.

Le fil de l'antenne de la puissance et l'éloignement mettent la conduite sous tension.

Fio ParaAntena Eletrica.

Impulse alambre de antena y turno remoto en liderazgo.

Il filodi potenza diantenna e ilremoto accendono comando.

RÜCKANSCHLUSS-AUS GRAU

SICHERUNG

20-PIN AUDIO/STROM- KABELGESCHIRR

WEISS

BLACK/BLACK/BLACK/PRETO/NEGRO/NERO

RCA-TO-RCA-KABEL (nicht geliefert)

FUSIBLE

PLAQUE 20 FICHES AUDIO/ALIMENTATION

CONECTOR DE 20 PINOS PARA AUDIO E ALIMENTACAO

SORTIE ARRIERE-GRIS

CABLES RCA-TO-RCA

(non fournis.)

YELLOW/YELLOW/YELLOW/AMARELO/AMARILLO/GIALLO

RED/RED/RED/VERMELHO/ROJO/ROSSO

SALIDA DE LINEA TRASERA -GRIS

CABLES RCA A RCA

(no incluidos)

Il Ground si collega a terminale terrestre di parte di metallo non verniciare pulita di telaio

Ground Connect to ground terminal or Clean unpainted metal part of chassis

Ground verbindet sich mit Bodenendstation oder reinigt nichtgestrichenen Metallteil von Chassis

Le Ground se Connecte au terminal de la terre ou Lave la partie non peinte du métal du chssis

Terra-Conecte Ao Terminal Negativo Ou A Uma Superficie Metalica (sem Pintura) Do Chassi.

El Ground Conecta a terminal de tierra o Completamente despintó parte metálica de chasis

Memory/Battery

Geds/Batterie

Mémoire/Pile

Memória/Bateria

Memoria/Batería

Connect to a constant 12 volt source. The radio will not work if this wire is not connected.

Verbinden Siesich mit einer Konstanten 12Voltquelle. Das Radio wirdnicht funktionieren, wenn diese Leitungnicht verbunden ist.

Connectez-vous àune source constantedu volt 12.La radio ne fonctionnerapas si cefil n'est pas connecté.

Conecte auma fonte constante de 12V. O radionao funcionara se este fionao estiver conectado.

Conectea unorigen constantede 12volt. Laradio nofuncionará sieste alambreno estáconectado. Memoria/ Batteria

Collegatevi auna 12 sorgentedi volt costante.La radio non lavoreràse questo filonon è collegato

Accessory/Ignition - Connect to a switched 12 volt source. Zubehr/ Zündung - verbindet sich mit einer umgeschalteten 12 Voltquelle. Accessoire/ Allumage - se Connecte à une source commutée du volt 12. Acessorio /Ignicao - Conectea uma fontede 12V chaveada. Accesorio/ Ignición - Conecta a un origen conmutado de 12 volt. L'accessorio/ L'accensione - si Collega a una 12 sorgente di volt commutata.

LEFT REAR LINKE RÜCKSEITE ARRIERE GAUCHE

TRASEIRO ESQUERDO

PARTE POSTERIOR IZQUIERDA

RETRO SINISTRO

FUNCTION/LABEL

RIGHT REAR SPEAKER (+) RIGHT REAR SPEAKER (-)

LEFT REAR SPEAKER (-)

LEFT REAR SPEAKER (+)

RIGHT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (-)

RIGHT REAR PRE-AMP LINE OUT

REAR PRE-AMP LINE OUT COMMON

IGNITION(ACC)

LEFT REAR PRE-AMP LINE OUT

CHASSIS GROUND

POWER ANTENNA

LEFT FRONT SPEAKER (-)

LEFT FRONT SPEAKER (+)

BATTERY(+)

GREY/BLACK

VIOLET/BLACK

GREEN/BLACK

GREEN

BLACK

VIOLET

RED

GREY

WIRE COLOR

WHITE/BLACK

BLACK

YELLOW

BLUE

WHITE

6 6

5 5

3 3

4 4

1 1

2 2

14 14

13 13

11 11

12 12

15 15

16 16

7 7

9 9

8 8

10 10

20 20

18 18

17 17

19 19

20-PIN AUDIO/POWERHARNES S

Pin View

Figure 1

653412

141311 12 15 16

79810

201817 19

Pin View

Figure 1

20-PIN AUDIO/STROM-KABELGESCHIRR

1 2 3 4 5 6 7 8 9

KABELFARBE

GRAU/SCHWARZ GRAU VIOLETT VIOLETT/SCHWARZ

GRÜN GRÜN/SCHWARZ ROT SCHWARZ ROT

FUNKTION / ETIKETT

RECHTER VORDERLAUTSPRECHER (-) RECHTER VORDERLAUTSPRECHER (+) RECHTER RÜCKLAUTSPRECHER (+) RECHTER RÜCKLAUTSPRECHER (-)

LINKER RÜCKLAUTSPRECHER (+) LINKER RÜCKLAUTSPRECHER (-) ZÜNDUNG (ACC) RÜCK-PRE-AMP-ANSCHLUSS-AUS

RECHTER RÜCK-PRE-AMP-ANSCHLUSS-AUS WEISS WEISS/SCHWARZ

BLAU GELB

SCHWARZ

WEISS

11 12 13 14 15 16 17 18 19 20

LINKER VORDERLAUTSPRECHER (+)

LINKER VORDERLAUTSPRECHER (-)

MOTORISIERTE ANTENNE

BATTERIE (+)

GEHÄUSEERDUNG

LINKER RÜCK-PRE-AMP-ANSCHLUSS

PLAQUE 20 FICHES AUDIO/ALIMENTATION

Vue des fiches

Schéma 1

1 2 3 4 5 6 7 8 9

FICHE

COULEUR DU CABLE

GRIS/NOIR GRIS VIOLET VIOLET / NOIR

VERT VERT/NOIR ROUGE NOIR ROUGE

FONCTION / MARQUE ENCEINTE AVANT DROIT (-) ENCEINTE AVANT DROIT (+) ENCEINTE ARRIERE DROIT (+) ENCEINTE ARRIERE DROIT (-)

ENCEINTE ARRIERE GAUCHE (+) ENCEINTE ARRIERE GAUCHE (-) ALLUMAGE (ACC) SORTIE COMMUNE ARRIERE PRE-AMP SORTIE PRE-AMP ARRIERE DROITE

BLANC NOIR/BLANC

BLEU JAUNE NOIR BLANC ROUGE NOIR BLANC

11 12 13 14 15 16 17 18 19 20

ENCEINTE AVANT GAUCHE (+) ENCEINTE AVANT GAUCHE (-)

PUISSANCE ANTENNE BATTERIE (+) CHASSIS TERRE SORTIE AVANT GAU CHE PRE-AMPLI SORTIE AVANT DROITE PRE-AMPLI SORTIE AVANT COMMUNE PRE-AMPLI SORTIE PRE-AMP ARRIERE GAUCHE

CONECTOR DE AUDIO / POTENCIA 20 PIN

IDENTIFICAZIONE PIN

Vista de los Pin

VISUALE PIN

Imagen 1

FIGURA 1

11 12 13 14 15 16 17 18 19 20

BLANCO BLANCO / NEGRO

AZUL AMARILLO

NEGRO

BLANCO

ALTAVOZFRONTAL IZQUIERDO (+) ALTAVOZFRONTAL IZQUIERDO (-)

ALIMENTACIÓN DE ANTENA BATERÍA(+)

CHASIS DE TIERRA

LINEA DE SALIDA PRE-AMP TRASERA IZQUIERDA

1 2 3 4 5 6 7 8 9

COLOR DE CABLE

GRIS/ NEGRO GRIS VIOLETA VIOLETA / NEGRO

VERDE VERDE / NEGRO ROJO NEGRO ROJO

FUNCI

ALTAVOZFRONTAL DERECHO (-) ALTAVOZFRONTAL DERECHO (+) ALTAVOZTRASERO DERECHO (+) ALTAVOZTRASERO DERECHO (-)

ALTAVOZTRASERO IZQUIERDO (+) ALTAVOZTRASERO IZQUIERDO (-)

IGNICIÓN (ACC)

LINEA DE SALIDA PRE-AMP TRASERA LINEA DE SALIDA PRE-AMP TRASERA DERECHA

1 2 3 4 5 6 7 8 9

COLORE CAVO

GRIGIO/NERO

GRIGIO

VIOLA

VIOLA/NERO

VERDE

VERDE/NERO

ROSSO

NERO

ROSSO

FUNZIONE

CASSAANTERIORE DESTRA (-) CASSAANTERIORE DESTRA(+) CASSA POSTER. DESTRA (+)

CASSA POSTER. DESTRA (-)

CASSA POSTER.SINISTRA (+)

CASSA POSTER.SINISTRA (-)

ACCENSIONE (TAKE OUT NIEZIONE)

MESSAA TERRA

AMPLIFICATORECASSA POST.

DESTRA

BIANCO

BIANCO/NERO

BLU

GIALLO NERO

BIANCO

ROSSO

BLACK

BIANCO

11 12 13 14 15 16 17 18 19 20

CASSAANTERIORE SINISTRA (+) CASSAANTERIORE SINISTRA (-)

ANTENNA

BATTERIA(+)

MESSAA TERRA

USCITAFRONTALE SINISTRO PRE-AMP

USCITAFRONTALE DESTRO PRE-AMP

USCITAFRONTALE COMUNE PRE-AMP

AMPLIFICATORECASSA POST. SX

Conector de 20 pinos para audio e alimentação

ALTO-FALANTEDIANTEIRO DIREITO (-) ALTO-FALANTEDIANTEIRO DIREITO (+)

IGNIÇÃO (ACC)

SAÍDA PRE-AMP TRASEIRA ESQUERDA

SAÍDAPRE-AMP TRASEIRA(FIO COMUM) SAÍDAPRE-AMP TRASEIRA DIREITA

ALTO-FALANTE DIANTEIRO ESQUERDO (+) ALTO-FALANTE DIANTEIRO ESQUERDO (-)

ANTENA ELÉTRICA

MASSA (FIO TERRA)

SAIDA PRE-AMP FRENTE ESQ

SAIDA PRE-AMP FRENTE DIR.

SAIDA PRE-AMP FRENTE (FIO COMUM)

(-)

R-CH

L-CH

FRONT LINE OUT---GREY

SAÍDA FRONTAL- CINZA

LINE OUT POSTERIORE---GRIGIO

WHITE BLANC

BRANCO BLANCO

BIANCO

RED/ROT/ROUGE/VERMELHO/ROJO/ROSSO

AMP

RCA-TO-RCA CABLES

(not supplied)

CABOSRCAARCA

(não fornecidos)

CAVO RCA A RCA

( non fornito)

VORDERER AUSGANG--SCHWARZ

WEISS

RCA-TO-RCA-KABEL (nicht geliefert)

SORTIE ARRIERE-GRIS

CABLES RCA-TO-RCA

(non fournis.)

SALIDA DE LINEA TRASERA -GRIS

CABLES RCA A RCA

(no incluidos)

WEISS

FRONT PRE-AMP LINE OUT COMMON

RIGHT FRONT PRE-AMP LINE OUT

LEFT FRONT PRE-AMP LINE OUT

RED

WHITE

BLACK

ROT SCHWARZ

HINTERER VORVERSTÄRKERAUSGANG

RECHTERVORDERERVORVERSTÄRKERAUSGANG VORDERERVORVERSTÄRKERAUSGANGNORMAL

BRANCO

VERMELHO PRETO

SALIDA L. PREAMP FRONTAL COMUN

SALIDA L. PREAMP FRONTAL DERECHA

SALIDA L. PREAMP FRONTAL IZQUIERD

ROJO

BLANCO

NEGRO

ANTENNA CABLE INPUT

CAVO ANTENNA ESTENDIBILE

ENTRADA PARACAB O DE ANTENA CABLE DE ANTENA

ANTENNENVERLÄNGERUNGSKABEL CÂBLE D'EXTENSION D' ANTENNE

R-CH L-CH

AUX IN

U-SBW

OO E

WHITE BLANC

BRANCO BLANCO

BIANCO

WEISS

YELLOW YELLOW YELLOW AMARELO AMARILLO GIALLO

WHITE BLANC

BRANCO BLANCO

BIANCO

WEISS

RCA-TO-RCA CABLES

(not supplied)

CABOS RCA A RCA

(não fornecidos)

CAVO RCA A RCA

( non fornito)

RCA-TO-RCA-KABEL (nicht geliefert)

CABLES RCA-TO-RCA

(non fournis.)

CABLES RCA A RCA

(no incluidos)

RED/ROT/ROUGE/VERMELHO/ROJO/ROSSO

BLUE BLEU

AZUL AZUL

BIANCO

BLAU

Page 10

16) SOURCE BUTTON (SOURCE)

Press this button to select Radio and CD modes. The available selections depends on version: Radio CD Player Radio > CD > AUX in

Sub-woofer On/Off

Press SOURCE button for more than 3 seconds to activate or turn off the Sub-woofer output.

Press this button to removethe controlpanel.

7. BASIC OPERATIONS

1) PANEL RELEASE BUTTON (REL)

12) POWER ON/OFF BUTTON

5) DISPLAY BUTTON (DISP)

Press this button to turnon or off the power.

Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous display mode.

Clock Adjustment

Under clock display mode, press DISP button until the LCD flashes, press Tuning Up Button to adjust hour andTuningDown Buttonto adjust minute.

The RESET button is located on the main unit (as shown on the diagram). To press it vertically with a ballpoint penor metalobject will activate it.The resetbutton is tobe activatedfor the following reasons:

Initial installation oftheunit whenall wiring is completed. All the functionbuttonsdo notoperate. Error symbol onthedisplay.

RESET BUTTON

Note: If the unit cannot function normally after reseting please use a cotton swab soaked in

isopropyl alcohol tocleanthe socketon the back of the controlpanel.

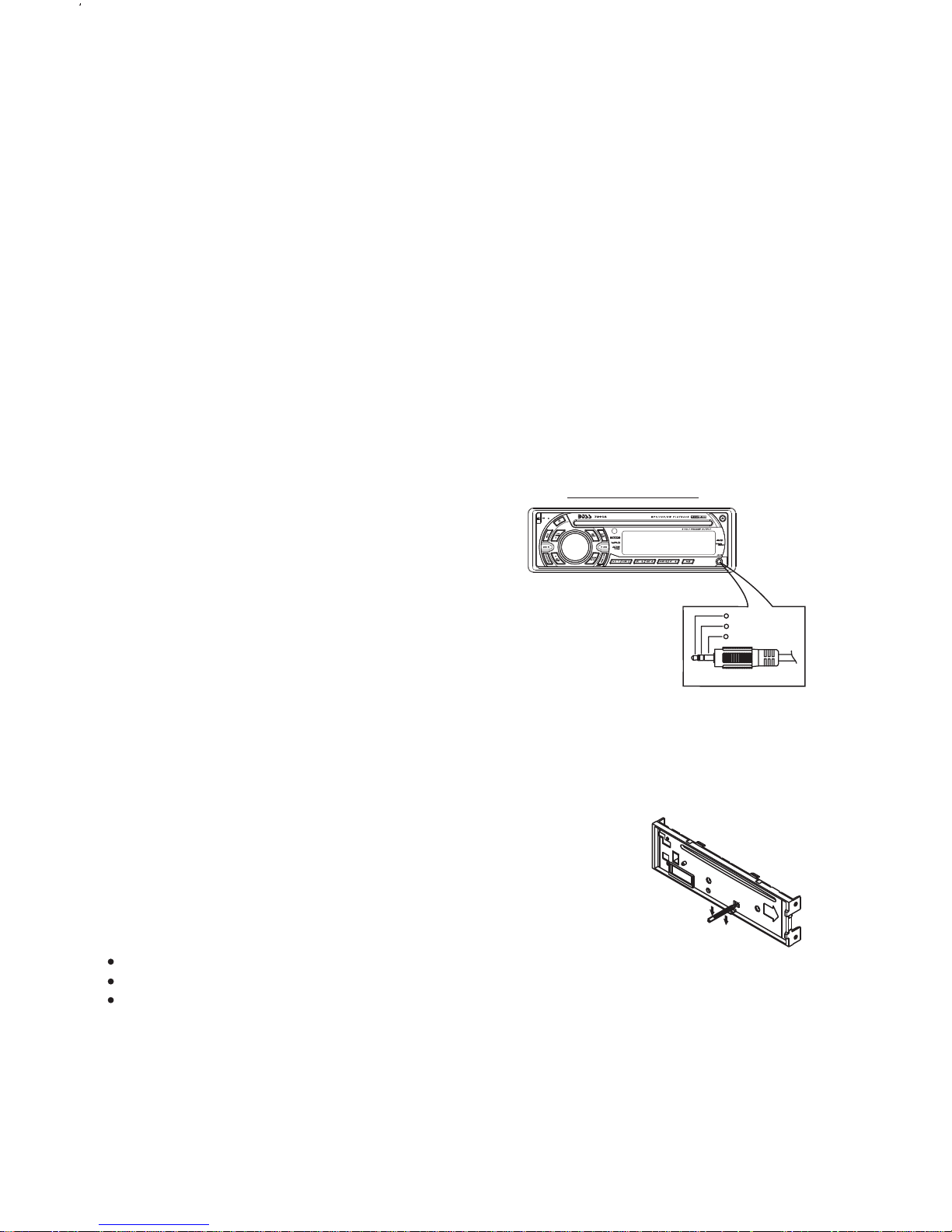

This unit features AUX IN line input jacks on both the front (headphone type) and rear (RCA type) panels.

PLEASE NOTE:

These two inputs cannot be used simultaneously. If you have a source unit plugged into the rear panel jack and wish to listen to a portable device (such as an MP3 player) by using the front panel jack, be sure to power off the unit plugged into the rear unit to avoid interference. Similarly, if you have a device plugged into the front panel jack and wish to listen to the unit plugged into the rear panel, be sure to turn off the front panel device.

To select either the front or rear AUX IN device as a listening source, press the SOURCE button to select AUX mode. To cancel AUX IN listening, press SOURCE again.

19) FRONT (AND REAR PANEL) AUXILIARY INPUT JACKS

3.5mm Audi o In Cabl e (not in cluded )

Righ t Audio

Lef t Audio

Grou nd

AUXINJACKINPANEL

Page 11

8. AUDIO OPERATIONS

4) AUDIO BUTTON

Press this buttontoselect desiredaudio function.

While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unitwillreturn tovolume adjustment mode.

2) MUTE BUTTON (MUTE)

Press this buttontomute thesound. Press it again to resumelistening.

17) PRESET EQUALIZER BUTTON (EQ)

Press this buttontotoggle thefollowing EQ settings:

At DSP OFFmode,EQ willbe controlled by Bass/Treble setting.

13) BAND/LOUDNESS BUTTON (BAND/LOUD)

Press the Band/Loudness Button for couple of seconds to switch the loudness on or off. When Loudness ison, displaywill show 'Loud On'for afew seconds.

ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD)

FLAT->CLASSICS->POP M->ROCK M->DSP OFF

10) VOLUME KNOB

Turn thisknobto adjustdesired volume level.

PressandholdSELECTbuttonto determine how the beep sound is generated when the keys are pressed,using V-UP/V-DN to select the desires settings: BEEP 2ND Beeps only when the second function of the dual function button is selected (long press). BEEP ALL Beeps when any buttons is pressed. BEEP OFF To disable the beep option.

BEEPS2ND,BEEP ALL ,BEEP OFF

Page 12

9. RADIO OPERATIONS

11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS)

1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds.

2. AUTO MEMORY STORE: Press AS/PS button for couple of seconds to enter Auto Store mode, this feature will automatically scan the current band and enter up to 6 strongest stations into the 6 preset memories. To stop Auto Store & Scan, press the AS/PS button again.

7) STATION PRESET BUTTONS (M1-M6)

14) TUNING / SEEK UP AND TUNING / SEEK DOWN BUTTONS

13) BAND/LOUDNESS BUTTON (BAND/LOUD)

1. Press these buttons briefly to recall the stored stations in the selected band.

2. Presetting stations manually, Press the BAND button to select the band for the stations to be preset. Use Tuning Up/Down to tune in the stations to be preset. Press the Preset button at which you want to store the station for at least 2 second. The preset number will appear on the display accompanied by a beep, this indicates that the station has been stored into memory.

1. Press these buttons briefly, and the unit will operate in AUTO SEARCH tuning mode, the radio will tune up or down to the next station and remain on that station.

2. Press these buttons for more than 2 seconds, operate as MANUAL SEARCH buttons, under this

mode the tuning frequency will advance up or down rapidly when the button is pressed. If the buttons are not pressed within 3 seconds, they will return to auto search mode.

This a dual function button. Press this button shortly to change between BAND FM1, FM2, FM3 or AM bands. Press this button for couple of seconds to turn Loudness function on or off.

8) MONO STEREO BUTTON (MO/ST)

When you receive a station,“ST” on the display will be on. Press this button to enter Mono mode.

9) SCAN BUTTON(SCAN)

Press this button, the radio will tune up to search stations, the available stations will blink on the display for a few seconds.

and stay

6) LOCAL/DISTANT BUTTON (LOC)

During station tuning, this button allows you prior to access strong local station only (Local mode), or to access a wider range of using distant mode (DX). When powered on, DX mode will be defaulted automatically; Press LOC button briefly to select Local mode and “LOCAL” symbol on the LCD will light up for a few seconds.

DUAL FREQUENCY SWITCH



Unit is defaulted in U.S.A frequency, if EURO frequency is required, a sharp pen is needed to switch the button on the left side of the chassis to EURO frequency.

Page 13

10. CD OPERATIONS

EJECT BUTTON

M1) PAUSE BUTTON (PAUSE)

Press this buttontopause CDplay,press againto release pause.

M2) SCAN BUTTON (SCAN)

Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again,thennormal playwill resume at the current track.

M3) REPEAT BUTTON (REPEAT)

Press this button,thecurrent trackwill be played repeatedly until thisbuttonis pressedagain.

M4) SHUFFLE BUTTON (SHUFFLE)

Press this buttontoplay alltracks on CD in random. Press againto deactivateit.

14) TRACK UP AND TRACK DOWN BUTTON

Press the Track Up Button to skip to the next track or previous track. Press the Track Down button during play will return to the beginning of thecurrent track,press itone moretime to skip to previous skip. Press and hold Track Up/Down Button to fast forward or fast reverse. CD player starts playingwhenyou releasethe button.

Press this button to eject the CD from the unit. The receiver will switch to radio mode automatically.

EJECT BUTTON

Page 14

Notes :

LOADING DISC

NAVIGATING THROUGH AND TRACKSDIRECTORIES

Insert the CD as usual, if it is an MP3 CD, the display will show “MP3 T01” then the message “READING” will appear, when disc scanning completed, the first track on the first directory will play.

- An MP3 directory is shown in this manual as “D ”, and an MP3 file is shown as “Track”.

- Maximum length of file name : 28 characters.

- Maximum length of directory : 16 characters.

- Supports Multi-Session recording.

- Supports CD, CDR and CDRW.

- Disc written by Packet Write (UDF) is not supported.

irectory

Number

Button

M3 M4

M6 MODE TUNE DN

DISP

TUNE UP

NOTE: 1) MP3 ICON turns on when a MP3 disc is playing.

2) MP3 ICON is blinking when under directory/Files search mode.

3) DIR ICON turns on when the playing file is a directory.

THERE ARE FOUR WAYS TO SELECT YOUR FAVORITE TRACK / DIRECTORY

A) SEARCHING TRACK DIRECTLY

Under MP3 play mode, press MP3 MENU BUTTON once, the display shows “MP3 T*”, enter the desired track number directly, then press MP3 ENTER BUTTON to confirm. The distribution of the number are listed as follow:

B) SEACRCHING BY OR TRACK NAMEDIRECTORY

(1) SEARCH / TRACK NAME BY USING TUNE UP / DOWN BUTTON Under MP3 Play Mode, press MP3 MENU BUTTON twice, the display shows “ * “ , enter the character directly. The unit searches files and directories which have the same character which is inputted by the user. The unit shows these sorted files and directories by TUNE UP / DOWN Button (TUNE DOWN First). If the selected name is directory, the user can go into the selected directory by

DIRECTORY

ID3 TAG

Press DISPLAY button repeatedly to Display ID3 TAG information. If the MP3 file is available with ID3 TAG, pressing the display button repeatedly will show information in the following sequence: SONG TITLE > ARTIST> ALBUM TITLE If any of the ID3-TAG information is not available, pressing the DISPLAY button repeatedly will show information in the following sequence: UNKNOWN SONGNAME> UNKNOWN ARTIST> NO ALBUM TITLE If the MP3 file is without ID3 TAG, pressing the DISPLAY button, & “NO ID3 TAG” will be displayed. The file name & track number of the MP3 file will scroll repeatedly through the display during the playing of the MP3 file.

Press directory up (M6) or directory down (M5) buttons to skip the current directory forward or backward by one position. In a multi-level directories disc, the movement will take place at the current level until the last directory is reached. At this point press directory down (M5) again , it will move to the next level of directory.

(D) NAVIGATING THROUGH DIRECTORY BY USING M5/M6 BUTTON

Press MP3 ENTER BUTTON and continue to search the directory or file name in the directory by TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button

Character

A,B,C

D,E,F

G,H,I

J,K,L

M,N,O

P, Q , R

S,T,U

V, W, X

Y,Z, Space

_,-,+

Move Cursor

Next/Previous Character

DISP

SEL

VOL UP/DN

MODE

TUNE DN

TUNE UP

Button

The distribution of alphabetical characters are listed as follow :

Page 16

12. REMOTE CONTROL

OPERATIONS:

2. Volume Up/Down

1. Power

9. Audio

Key

6. LOC

()

7. Scan

5. Tuning Up/Down

8. Mute

Radio Mode

Power On/Off

Select Vol,Bas, Tre,Fad, Bal

Adjust Vol,Bas, Tre,Fad,Bal

Station Scan

Tuning/SeekUp/Down

Local/Distant

Mute

MP3 Mode

Power On/Off

Adjust Vol,Bas, Tre,Fad,Bal

TrackUp/Down/ Numerickey 8*9*

No Function

Mute

CD Player Mode

Power On/Off

Select Vol,Bas, Tre,Fad, Bal

Adjust Vol,Bas, Tre,Fad,Bal

TrackUp/Down

No Function

Mute

No Function

14. Numeric Key(1) (2) (3) (4) (5) (6)

Preset station 1 Preset station 2 Preset station 3 Preset station 4 Preset station 5 Preset station 6

Auto Store/Preset Scan Preset EQ Preset EQ

Folder Down Folder Up

Pause

CD scan Repeat Shuffle

Pause

CD scan Repeat Shuffle No Function No Function

Preset EQ

5 6

3. ID3/DISP

Display Clock

ID3 tag information Display Clock, Numeric key 0*

Stereo/FM Mono

No Function No Function

4.Stereo/Mono

Select Vol,Bas, Tre,Fad, Bal,

10. Sub-woofer(SUB)/ Source

Sub-woofer/ Change to CD/MP3 or AUX IN

Sub-woofer/ Change to Radio or AUX IN

Sub-woofer/ Change to Radio or AUX IN/ Numeric key 7*

11. Band/Loud/

Enter

Band/Loudness

Loudness

Loudness/ MP3 Enter

12. AS/PS/Menu

Menu function

13. EQ

Display Clock

No function

Page 17

13. SPECIFICATIONS

Frequency Range

Intermediate Frequency Usable Sensitivity Stereo Separation S/N Ratio

87.5-107.9MHz U.S.

87.5-108MHz EURO

10.7 MHz Better than15dB atS/N 30dB 25 dBat 1KHz 50 dB

CD PLAYER

RADIO SECTION FM

System Usable disc Sampling frequency No ofquantization bits Frequency Number ofchannels S/N Ratio

Compact discaudio system Compact disc

44.1KHz 1bit 5-20,000Hz 2 stereo 70dB

GENERAL

Power Supply Polarity Speaker impedance Power Output

DC 11-14V Negative Ground 4 ohms 4x 50Watts

REMARK : Specifications subjectto changewithout notice.

AM/MW

Frequency Range

Intermediate Frequency Usable Sensitivity S/N Ratio

530-1710KHz U.S. 522-1620KHz EURO 450KHz Better than45dB 40 dB

87.5-107.9MHz U.S.

87.5-108MHz EURO

10.7 MHz

Besser als15 dBbei einem Signalrauschabstand von30 dB 25 dBbei 1kHz 50 dB

CD PLAYER

RADIOTEIL FM

AM/MW

530-1710KHz U.S. 522-1620KHz EURO 450KHz

Besser als45 dB 40 dB

87.5-107.9MHz U.S.

87.5-108MHz EURO

10.7 MHz Plus de 15dB àS/B 30dB 25 dBà 1KHz 50 dB

GENERAL

AM/MW

530-1710KHz U.S. 522-1620KHz EURO 450KHz Supérieure à45 dB 40 dB

87.5-107.9MHz U.S.

87.5-108MHz EURO

10.7 MHZ

melhor que15dB aS/N 30dB 25 dBat 1KHz 50 dB

AM/MW

530-1710KHz U.S. 522-1620KHz EURO 450KHz

Melhor doque 45dB 40dB

87.5-107.9MHz U.S.

87.5-108MHz EURO

10.7Mhz. Mejor que15dB aS/N 30dB. 25dB a1Khz. 50dB.

CD PLAYER

RADIO SECCIÓN FM

Sistema: Disco: Frecuencia Muestreo: Cuantificación: Frecuencia: Número decanales: Relación señal/RuidoS/N Ratio

Compact discaudio system. Compact Disc.

44.1KHz. 1bit. 5-20,000Hz. 2 estereo. 70dB

GENERAL

AM/MW

530-1710KHz U.S. 522-1620KHz EURO

450KHz. Mejor que45dB. 40dB.

LETTORE CD

Dc11 14V Terra negativo 4 ohms 4x 50Watts

AM/MW

530-1710KHz U.S. 522-1620KHz EURO

450Khz migliore di45dB 40dB

Sistema Tipo di disco Frequenza di campionatura N° quantizzazioniBit Frequenza Numero diCanali Rapporto S/N

Sistema di Audio CD CD

44.1KHz 1 bit 5-20,000 Hz 2 stereo 70db

Raggio diFrequenza

Frequenza intermedia Sensibilità Rapporto S/N

GENERALE

Alimentazione Polarità Impedenza altoparlanti Potenza d'uscita

Le specifichesono soggettea cambiamentisenza alcun preavviso.

87.5-107.9MHz U.S.

87.5-108MHz EURO

10.7 Mhz migliore di15dB aS/N 30dB 25dB a1KHz 50dB

Raggio diFrequenza

Frequenza intermedia Sensibilità Separazione Stereo Rapporto S/N

SEZIONE RADIO FM

Alimentación: Polaridad: Impedancia altavoces: Potencia de salida:

Rango Frecuencia:

Frecuencia Intermedia: Sensibilidad Útil: Separación estereo: S/N Ratio:

DC 11-14V. Negativo a masa. 4 Ohms. 4x50W.

Nota: Debido alrápido avancetecnológico, estasespecificaciones están sujetas acambios sinprevio aviso.

Rango Frecuencia:

Frecuencia Intermedia: Sensibilidad útil: S/N Ratio:

ALLGEMEINES

Stromversorgung Polarität Lautsprecherimpedanz Ausgangsleistung

DC 11-14 V Erde negativ 4 Ohm 50 Wx 4

ANMERKUNG: Technische Änderungen ohne Meldepflicht vorbehalten.

System Abspielbare Discs Sampling-Frequenz Anzahl Quantisierungsbits Frequenz Anzahl Kanäle Signalrauschabstand

Compact DiscAudio System Compact Disc 44,1 kHz 1 bit 5-20.000Hz 2 Stereo 70 dB

Frequenzbereich

Zwischenfrequenz Nutzbare Empfindlichkeit

Stereotrennung Signalrauschabstand

Frequenzbereich

Zwischenfrequenz Nutzbare Empfindlichkeit Signalrauschabstand

Geral:

Alimentação: Polaridade: Impedancia alto-falantes: Potência de saída:

CD Player

Nota: As especificações estão sujeitas a alterações sem prévio aviso.

Sistema: Tipo de disco: Frequência de Amostragem: Conversor D/A: Resposta de frequencia Número de canais: Relação sinal/ruído:

Faixa de Frequencia:

Frequência Intermediária: Sensibilidade útil: Separação estéreo Relação Sinal/Ruído

Faixa defrequencia:

Frequencia intermediária: Sensibilidade útil: Relação Sinal/Ruído:

Rádio FM

Sistema áudioCD

44.1KHz 1bit 5-20,000Hz 2 estéreo 70dB

DC 11-14V Terra negativo 4ohms 50w x 4

Alimentation Polarité Résistance desenceintes Puissance desortie

11 -14VDC Masse /négative 4 ohms 50W x4

LECTEUR CD

REMARQUE : Les spécifications sont susceptibles d'être modifiées sans préavis.

Système Disques utilisables Fréquence échantillonnage Nbre dequantisation bits Fréquence Nombre decanaux Ratio S/B

Compact discaudio system Compact disc

44.1KHz 1bit 5-20,000Hz 2 stéréo 70dB

Gamme defréquences

Fréquence intermédiaire Sensibilité utilisable Séparation stéréo Ratio S/B

SECTION RADIO FM

Plage defréquences

Fréquence intermédiaire Sensibilité utilisable Rapport Signal/Bruit

Page 18

10 R - 02 1397

Page 19

14. TROUBLE SHOOTING

Before going through the check list, check wiring connection. If any of the problems persist after check list has beenmade,consult yournearest service dealer.

Symptom

Cause

Solution

No power

The car ignition is not on.

If the power supply is properly connected to the car accessory terminal, switch the ignition key to “ACC”

Disc cannot be loaded or ejected

The fuse is blown.

Replace the fuse.

Presence of CD disc inside the player.

Remove the disc in the player, then put a new one.

Inserting the disc in reverse direction.

Insert the compact disc with the label facing upward.

Compact disc is extremely dirty or defective disc.

Clean the disc or try to play a new one.

Temperature inside the car is too high.

Cool off or until the ambient temperature returns to normal.

Condensation.

Leave the player off for an hour or so, then try again.

Volume is in minimum.

Adjust volume to a desired level.

Wiring is not properly connected.

Check wiring connection.

The operation keys do not work

No sound

The built-in microcomputer is not operating properly due to noise.

Press the RESET button. Front panel is not properly fixed into its place

Sound skips.

The installation angle is more than 30 degrees.

Adjust the installation angle to less than 30 degrees.

The disc is extremely dirty or a defective disc.

Clean the compact disc or try to play a new one.

The antenna cable is not connected.

Insert the antenna cable firmly.

The signals are too weak.

Select a station manually.

The radio does not work. The radio station automatic selection does not work.

ERROR 1

Mechanism Error

Press the reset button if the error code does not disappear, consult your nearest service dealer.

ERROR 2

Servo Error

Press the reset button if the error code does not disappear, consult your nearest service dealer.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.(Waste Electrical and Electronic Equipment Directive)
