Boss Audio Systems 630UASB User Manual

Page 1
Page 2
2
CONTENTS
Installation & Removal .................................. 3
Removing the unit ...................................... 4
Wiring Connections ...................................... 5
Operation ..................................................... 6
Switching to Radio Mode ........................... 7
Selecting AM/FM ....................................... 7
Selecting Station ........................................ 7
Auto Memory Storing & Scanning ............ 7
Reset Stations ............................................. 8
Station Storing ............................................ 8
Selecting Tracks .......................................... 8
Play/Pause .................................................. 8
Direct Track Access ..................................... 8
Remote Control ........................................ ...10
Specifications ................................................ 11
Troubleshooting ............................................ 12
Page 3
3
INSTALLATION
Choose the mounting location where the
unit will not interfere with the driver.
Before finally installing the unit, connect
the wiring temporarily and make sure it is all connected properly and the unit and the system work properly.
Use only the parts included with the unit to
ensure proper installation. The use of unauthorized parts can cause malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes or other modifications of the vehicle.
Install the unit where it does not get in the
driver’s way and cannot injure the
passenger if there is an emergency stop.
If installation angel exceeds 30° from
horizontal, the unit might not give its optimum performance and could compromise water resistance.
Avoid installing the unit where it would be
subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.
DIN MOUNT Installation Opening This unit can be installed in any dashboard having an opening as shown below:
Installing the unit
1. Make sure the ignition is turned off, and
then disconnect the cable from the vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screw driver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.
Tabs
Screwdriver
Sleeve
Dashboard
4. Reconnect the wire harness and the
antenna and be careful not to pinch any wires or cables.
5. Slide the unit into the sleeve until it locks
into place.
6. Reconnect the cable to the vehicle battery’s
negative (-) terminal. Then replace the outer trim ring.
30
53mm
182mm
Page 4
4
REMOVING THE UNIT
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle battery’s negative (-) terminal.
2. Remove the metal strap attached the back of
the unit (if attached).
3. Lift the top of the outer trim ring then pull it
out to remove it.
4. Insert both of the supplied keys into the slots
at the middle left and right sides of the unit, then pull the unit out of the dashboard.
Page 5
5
WIRING
Page 6
6
OPERATION

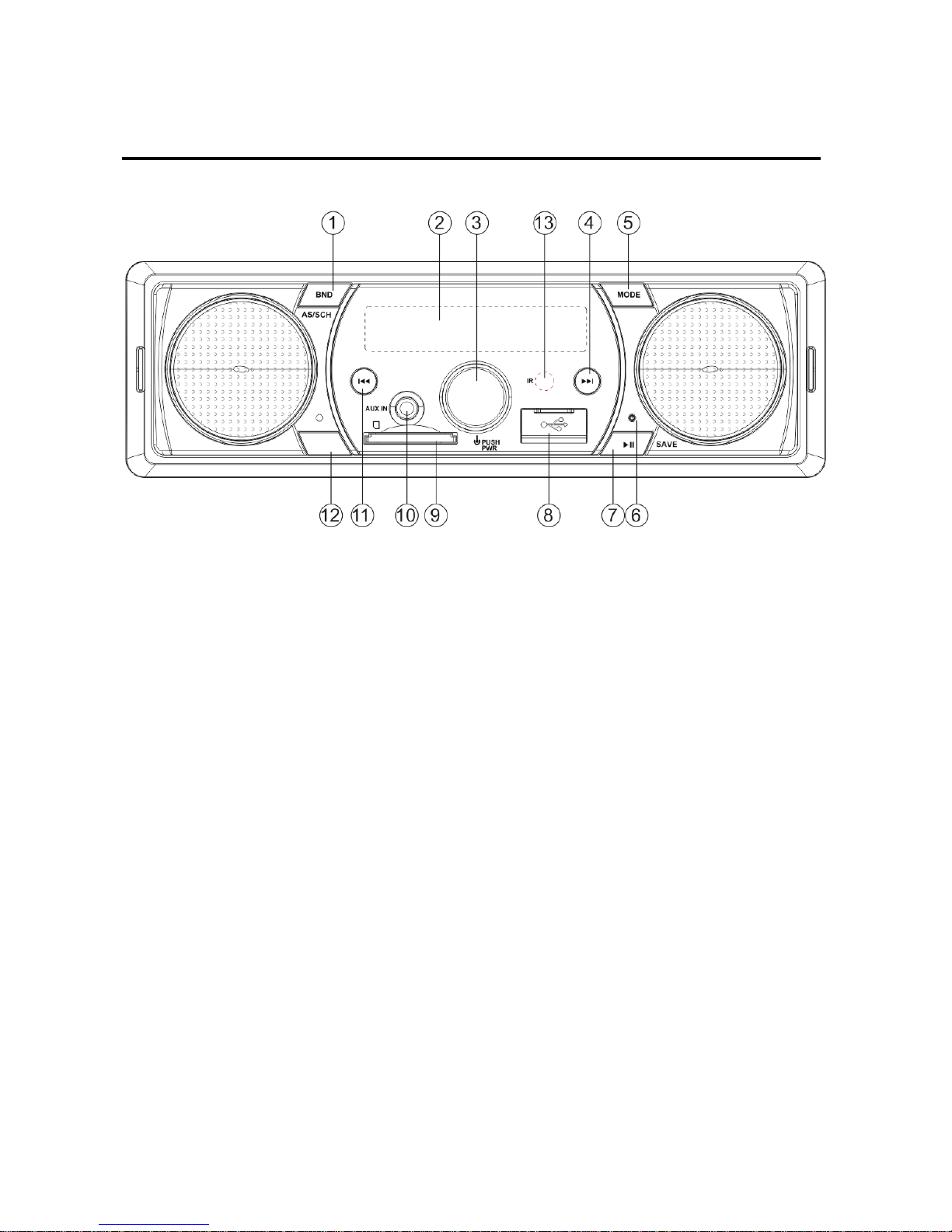

Button Description
1. Answer / BND / AS / SCH
2. Display
3. VOL / SEL / PWR
4. Next Track / Seek Up
5. (End Call) / MODE
6. RESET
7. Play / Pause, Store Preset
8. USB port
9. SD Port
10. AUX-In
11. Prev. Track / Seek Down
12. Display clock
13. IR Remote Sensor
DISP
Page 7
7
OPERATION
Powering ON/OFF Press PWR button (3) to turn on the unit. When the unit is on. Press and hold for 2 seconds to turn off the unit.
Audio Adjustment Press SEL button to cycle.
BAS-TRE-BAL -LOUD-EQ-ST-DX-VOL
BAS: Bass TRE: Treble BAL: Balance LOUD: Loudness
EQ: Preset EQ Curves DX: Distance
LOC: Local
VOL: Volume
Display Time Press CLK button to display the time.
Clock Adjustments
-Press DISP
-Press and Hold DISP for 2 seconds “HH” will flash, using the volume, change the hour.
-Press DISP button once more for minuets “MM” will flash using the volume, change the minutes.
-Press DISP once more to store the time settings
Loudness This feature has a gentle boost to enhance low
and high frequencies.
EQ Presets Preset audio EQ curves are selectable: FLAT POPROCKCLASSICEQ OFF
Aux-In A 3.5mm audio cable is required (not included) Track Functions, Play/Pause, will not be used for
this mode.
RESET FUNCTION The RESET button is to be activated for the
following reasons:
- Initial installation of the unit when all wiring
is completed.
- All the function buttons do not operate.
- Error symbol on the display.
Radio
SWITCHING TO RADIO MODE
Use the MODE button to select Radio
Radio Band
Press BAND to cycle through tuner:
→FM1→ FM2→ FM3→ AM1→ AM2
Station Selection
Press or to activate the automatic seek function. It will search up/down a station automatically. Press and hold for 2 seconds until MANUAL” appears on the display, the manual tuning mode is selected. In this mode, frequencies are manually tuned. 5 seconds after the last button has been pressed, “AUTO” will default again.
Auto Memory Store (AMS) & Scanning
- Automatic Memory Store
Press and Hold AS button for 2 seconds, and it will store 18 presets (FM 1-3)
Page 8
8
OPERATION
Selecting Presets
Press the . You can select the preset station (CH 1-6).
Manually Store Presets
Press and Hold the SAVE for 2 seconds. It will show “SAVE CH1”. If you want to store the station to CH2. Press it again it will show “SAVE CH2”. During this action, Press and Hold the SAVE for 2 seconds. The current station is stored into the CH2.
Local Function
Press SEL knob several times till appear “DX”. Using the Volume, to choose the LOC (local) mode.
In LOC mode the unit will reduce the receiving sensitivity when you search station.
It will ignore the stations with poor reception.
In DX mode it will increase the receiving sensitivity when you search the station.
STEREO/MONO Press SEL until “ST” appears. Using the Volume knob to select STEREO or
MONO mode. In STEREO mode you can receive FM stereo signal. In MONO mode the stereo signal will be
switched to monaural, this can reduce the noise by the signal reception.
USB / SD Playback
Memory up to 32Gb is supported
Note: MP3 files are only supported. Any other files
that are combined with music folder will cause errors and will not play
Selecting Tracks Press / buttons to skip tracks Press and hold button or button for 2 seconds to fast forward or fast reverse. The track will play when you release the button.
Play/Pause If a track is playing, Press to pause playing. Press it again to resume playing.
Direct Track Access (USB/SD Mode) Press SCH button to active the file search mode. It will show “TNO- - -”. Use the VOL knob to select the tracks number,
1’st number. 3 seconds later to select the 2’nd
number... Press SEL” to confirm.
Bluetooth
PAIRING
On the mobile phone, select the Bluetooth set up. (Please refer to the instruction manual of your mobile phone on how to operate Bluetooth.)
2) “BOSS AUDIO” should appear in the list on your mobile phone, please select “BOSS AUDIO
If a passcode is required enter: “0000”
3) When paired and connected successfully paired, the BT icon will illuminate.
Answering / Rejecting an incoming call
During an incoming call, Press to
answer the call.
Press to reject the call.
End a Call
Press key to end the call.
Page 9
9
OPERATION
Connect/Disconnect Bluetooth
Press and Hold for 3 seconds to disconnect.
Press and Hold it again to connect the device again.
Audio Streaming (A2DP) Press MODE to enter BT mode. Note: BT will only be active when there is a
device that has been paired and is connected.
Press to Play/Pause. Press button or button to select
next/previous song.
Page 10
10
REMOTE CONTROL (OPTIONAL)
KEY & CONTROL
1. Power ON/OFF
2. VOL+ Volume Up
3. BAND Band Select (FM1, FM2, etc…)
4. SEL Audio Adjustment/Enter
5. Radio: Seek/Scan MP3 mode: skip to the previous file or fast reverse.
6. EQ Press it to select desired audio equalization.
7. 1/ Radio mode: Preset 1 MP3 mode: Play/Pause
8. 4/RDM Radio mode: Preset 4 MP3 mode: Random On/Off
9. 6/+10/DIR+: Radio mode: Preset 6
MP3 mode: Press for to advance folder Long press for +10 track function
10. 5/-10/DIR-: Radio mode: Preset 5
MP3 mode: Press for previous folder
Long press for -10 track function
11. 3/RPT Radio mode: Preset 3 MP3 mode: Repeat one/all
12. 2/INT Radio mode: Preset 2 MP3 mode: Turn on/off the INTRO function
13. DISP Press DISP to show the time
14. VOL- Volume Down
15. Radio mode: Seek/Scan
MP3 mode: skip to the next file or fast forward
16. AMS Same as the AS/PS function. See page 10
MP3 mode: File search function
17. MUTE Mute
18. MODE Press to change the source
Page 11
11
SPECIFICATION
General Power Supply Requirements : 12 V DC, Negative Ground
Chassis Dimensions : 178 (W) x 64 (D) x 50 (H) Current Drain : 3 Amp (max.)
Audio
Tone Controls
- Bass (@ 100 Hz) : ±10 dB
- Treble (@ 10 kHz) : ±10 dB
Pre-Amp Output : Full-Range
Radio FM Frequency Coverage 87.5 to 107.9 MHz IF 10.7 MHz
AM Frequency Coverage 520 to 1710KHz IF 450 kHz
Page 12
12
TROUBLESHOOTING
Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, call our Tech Dept. (M-F, 8:30a-5p PST) 805-751-4853
Symptom
Cause
Solution
Does not power on
The car ignition switch is not on.
Turn the key to the “ACC” or “IGN”
position The fuse is blown.
Replace the fuse. Always replace with the same type and rating.
No sound
Volume is at minimum
Adjust volume to a desired level. Change the source
Press “MODE” to select radio
Unit is not responsive
Remove any external media. i.e. USB/SD
Press the reset button.
1) Poor Reception
2) The AMS does
not function.
The antenna cable is not connected.
Insert the antenna cable firmly.
The signals are too weak.
Select a station manually.
