Chapter 1

General Description

The HS-4610 is a VIA CX700(M) chipset-based board designed. The HS-4610 is an ideal all-in-one embedded engine board. Additional features include an enhanced I/O with CF, CRT/LVDS, TV-Out, dual GB LAN, audio, SATA, 4 COM, USB2.0, and PC/104 interfaces.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-4610 to support data transfers of 33 or 66MB/sec. to one IDE drive connection. Designed with the VIA CX700(M), the board supports VIA V4 Eden 1GHz CPU.

The VIA CX700(M) with 32/64/128MB shared main memory supporting CRT/Panel displays up to 1920 x 1440. It also supports 24-bit single channel/48-bit dual channel LVDS interface supporting up to 1600 x

1200.

System memory is also sufficient with the one DDRII socket that can support up to 1G.

Additional onboard connectors include an advanced USB2.0 port providing faster data transmission. And two internal 10-pin connectors for 10/100/1000 Based Ethernet uses.

To ensure the reliability in an unmanned or standalone system

, the

watchdog timer (WDT) onboard HS-4610 is designed with software that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard WDT will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-4610 comes with the following features:

 VIA V4 Eden processor 1GHz  One DDRII socket with a max. capacity of 1GB  VIA CX700(M) system chipset  Winbond W83697UF super I/O chipset  VIA CX700(M) graphics controller  24-bit/48-bit LVDS Panel display interface  Dual RealTek RTL8110SC Gigabit Ethernet controller  VIA VT1708A HD audio controller  VIA CX700(M) Serial ATA controller  Fast PCI ATA/33/66/100 IDE controller  CF card adapter, 4 COM, 6 USB2.0, PC/104  DOC socket supporting memory sizes of up to 288MB  TV-Out function  Hardware Monitor function

1.2 Specifications

 CPU: VIA V4 Eden processor 1.0GHz  Front Side Bus: Supports 400MHz FSB  Memory: One DDRII socket supporting up to 1GB  Chipset: VIA CX700(M)  I/O Chipset: Winbond W83697UF  CompactFlash: One, Type I/II IDE interface adapter  PCI Slot: One standard PCI slot  8-bit I/O: 8-bit input/output (parallel port)  VGA: VIA CX700(M) with 32/64/128MB shared main memory supporting

CRT/Panel displays up to 1920 x 1440

 LVDS Panel: Supports 24-bit single channel/48-bit dual channel LVDS

interface up to 1600 x 1200

 TV-Out: Supports PAL or NTSC TV systems  Ethernet: Dual RealTek RTL8110SC 10/100/1000 Based LAN  Audio: VIA VT1708A HD audio controller  Serial ATA: VIA CX700(M) controller and with two ports supporting a

transfer rate up to 150MB/sec.

 IDE: One 2.54-pitch 40-pin IDE connector  Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP (for PCB v0.3 or above)

 Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232

x 3 serial ports with 16-byte FIFO

 PC/104: PC/104 Bus connector for 16-bit ISA Bus  USB: 6 internal USB2.0 ports  Keyboard/Mouse: 8-pin connector  DiskOnChip: DiskOnChip socket supporting memory sizes of up to

288MB

 BIOS: AMI PnP Flash BIOS  Watchdog Timer: Software programmable time-out intervals from

1~256 sec.

 CMOS: Battery backup  Hardware Monitor: Winbond W83L784 (only for PCB v0.3 or above)  Board Size: 20.3(L) x 14.6(W) cm

1.3 Board Dimensions

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-4610 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-4610 delivery package contains the following items:

 HS-4610 Board x 1  Utility CD Disk x 1  Cables Package x 1  Jumper Bag x 1  User’s Manual

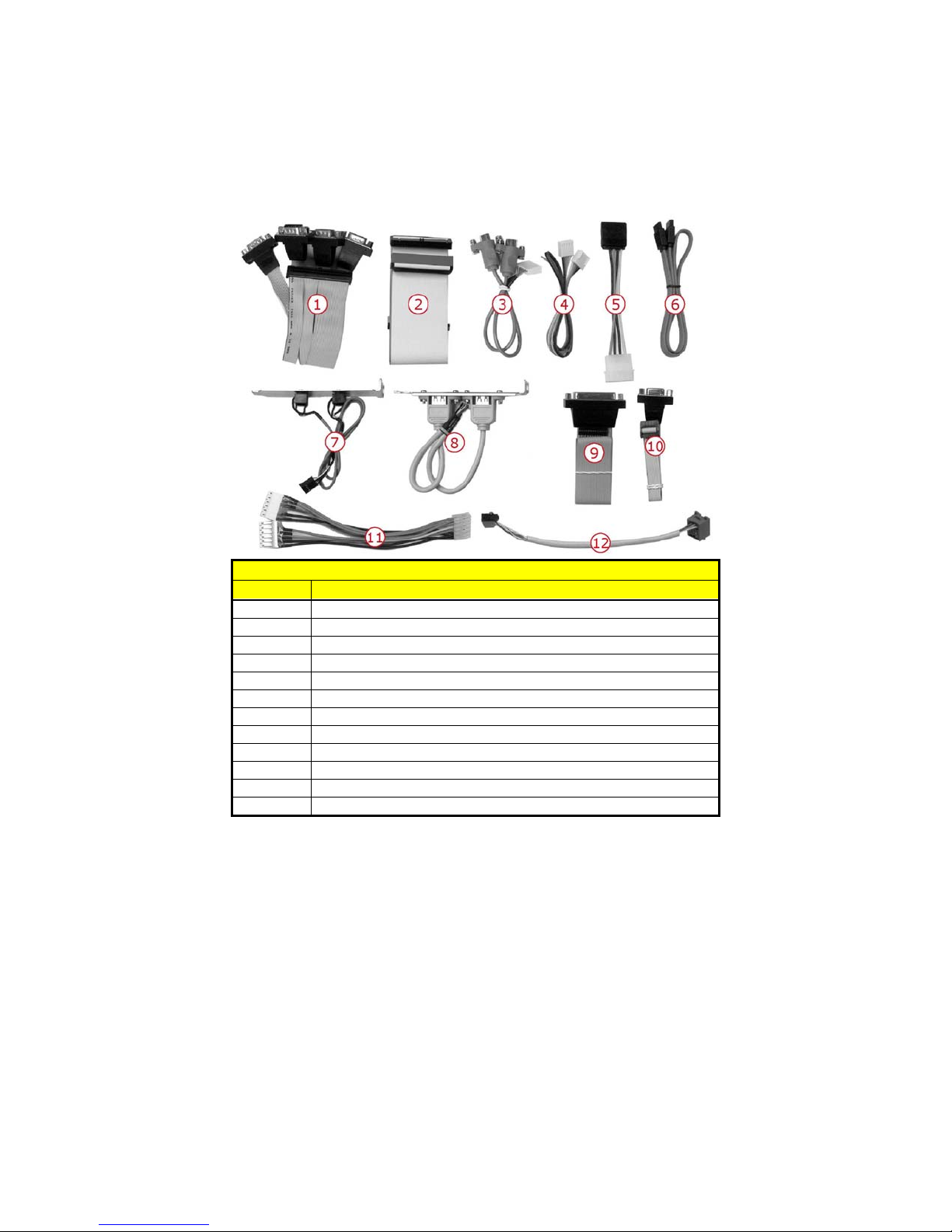

Cables Package

NO. Description

1 4 COM flat cable x 1 2 IDE flat cable (optional) 3 Keyboard/Mouse transfer cable x 1 4 5-pin power cable x 1 5 SATA power cable x 1 6 SATA cable x 1 7 Audio cable x 1 8 2 USB cable with bracket x 1

9 Parallel flat cable x 1 10 10-pin to 15-pin CRT cable x 1 11 6-pin to P8&P9 power cable x 1 12 10-pin to RJ-45 cable x 2

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-4610. This chapter also contains information related to jumper settings of switch, and watchdog timer selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (JP3 short 1-2)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

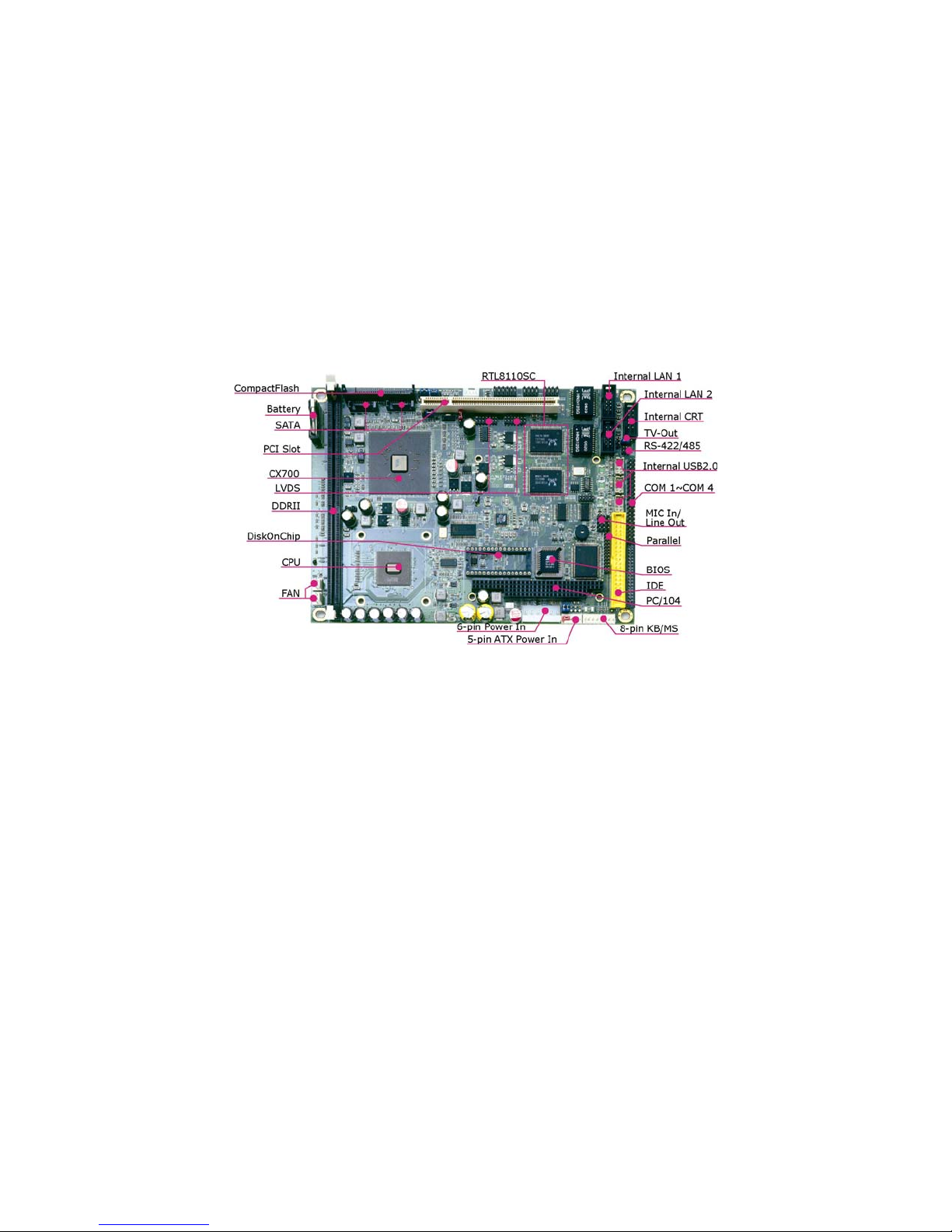

3.2 Board Layout

3.3 Jumper List

Jumper Default Setting Setting Page

JP1 Short 2-3 19 JP6 JP2 CF Use Master/Slave Select: Slave Short 2-3 22 JP3 Clear CMOS: Normal Operation Short 1-2 16 JP4 Panel Voltage Select: +3.3V Short 1-2 10

JP5

JP9 DOC Address Select: D000 Short 1-2 24

Display Out Function Select: CRT

COM4 Use RS-232 or RS-422/485 Select: RS-232

Short 1-2 19

Open 13

3.4 Connector List

Connector Definition Page

CN1 DDRII Socket 10

CN2/CN4 Serial ATA Connector 12

CN3 CompactFlash Connector 22 CN5 Inverter Power In Connector 10

CN6/CN9 LVDS Panel Connector 10

CN7 Standard PCI Slot ---

CN8 System Front Panel Control 17 CN10/CN14 External LAN LED Connector 15 CN11/CN13 PC/104 Bus 64-pin/40-pin Connector 20

CN15 8-pin KB/MS Connector 17 CN16 MIC In/Line Out Connector 22 CN17 Parallel Port 13

CN18/CN19 Internal LAN Connector (5x2 header) 15

CN20 IDE Connector 11

CN21/CN22/CN23 Internal USB2.0 Port 15

CN24 TV-Out Connector 19 CN25 Internal CRT Connector (5x2 header) 10

CN27~CN30 COM 1~COM 4 Connector (5x2 header) 13

CN31 5-pin ATX Power In Connector 16 CN32 6-pin Power In Connector 16

FN1~FN2 Fan Power In Connector 16

J1 4-pin Line In Connector 22

JP7 RS-422/485 Connector 13

3.5 Configuring the CPU

The HS-4610 embedded with VIA V4 Eden processor 1.0GHz. User don’t need to adjust the frequently and check speed of CPU.

3.6 System Memory

The HS-4610 provides one DDRII socket at locations CN1. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

The HS-4610 provides two connection methods of a VGA device. CN25 offers an internal 10-pin CRT connector and CN6/CN9 are the LVDS interface connectors onboard reserved for flat panel installation.

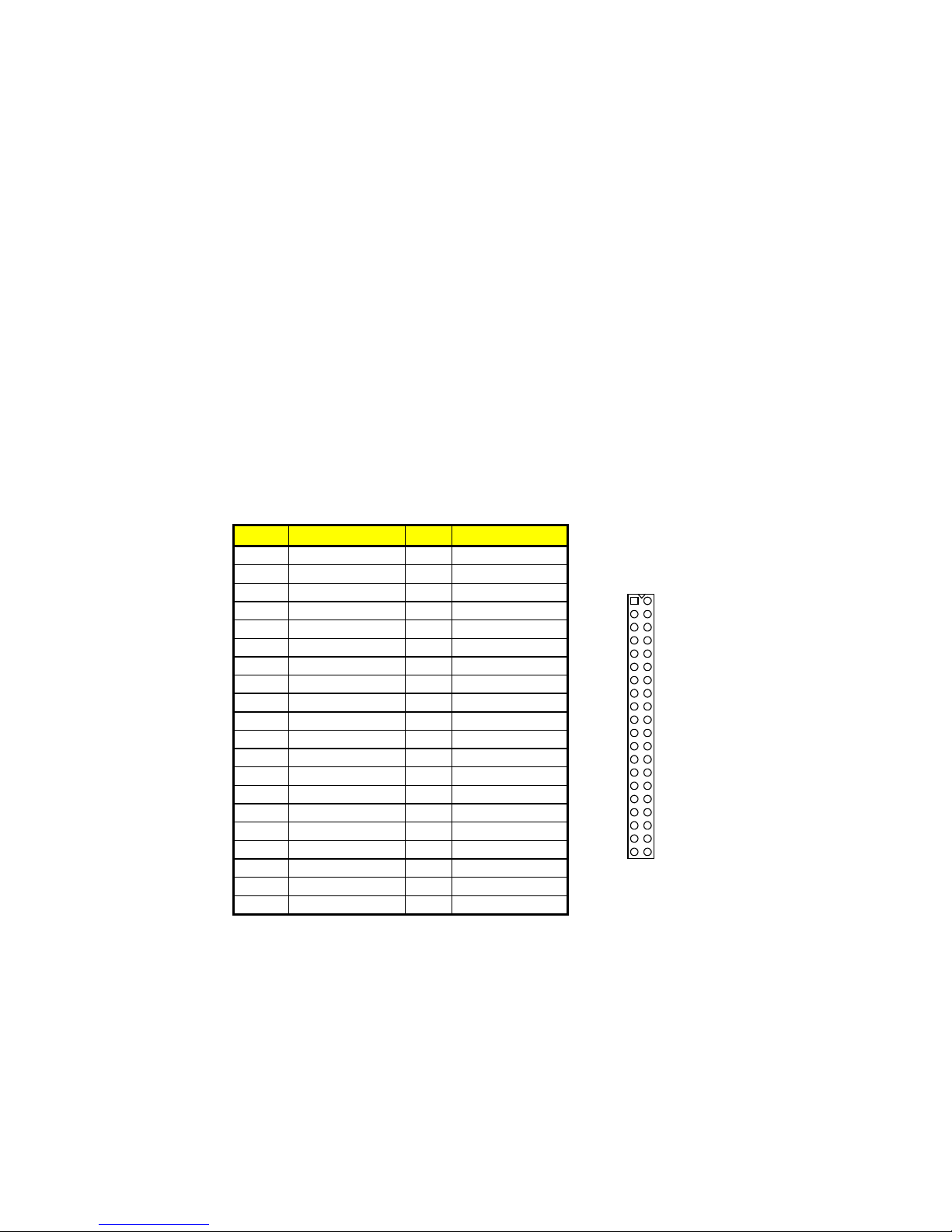

 CN25: Internal CRT Connector (5x2 header)

PIN Description PIN Description

1 RED 2 GND 3 GREEN 4 GND 5 BLUE 6 GND 7 HSYNC 8 SDA 9 VSYNC 10 SDC

 CN6/CN9: LVDS Interface Connector

PIN Description PIN Description

1 V 3 GND 4 GND 5 A0-/B0- 6 A0+/B0+ 7 A1-/B1- 8 A1+/B1+

9 A2-/B2- 10 A2+/B2+ 11 CLK1-/CLK2- 12 CLK1+/CLK2+ 13 A3-/B3- 14 A3+/B3+

2 V

LCD

13 14

NOTE: LVDS cable should be produced very carefully. A0- & A0+ have to

be fabricated in twister pair (A1- & A1+, A2- & A2+ and so on) otherwise the signal won’t be stable. Please set the proper voltage of your panel using JP4 before proceeding on installing it.

 CN5: Inverter Power In Connector

PIN Description

1 +12V 2 +12V 3 BK_EN 4 GND

NOTE: If use CN6 only, it just supports 24-bit single channel LVDS panel;

If you want to use 48-bit dual channel LVDS panel, please use CN6 and CN9 combined.

The HS-4610 has an onboard jumper that selects the working voltage of the flat panel connected to the system. Jumper JP4 offers two voltage settings for the user.

 JP4: Panel Voltage Select

Options Settings

+3.3V (default) Short 1-2

+5V Short 2-3

3.8 PCI E-IDE Drive Connector

CN20 is a standard 2.54-pitch 40-pin connector daisy-chain driver connector serves the PCI E-IDE drive provisions onboard the HS-4610. A maximum of two ATA/33/66 IDE drives can be connected to the HS-4610 via CN20.

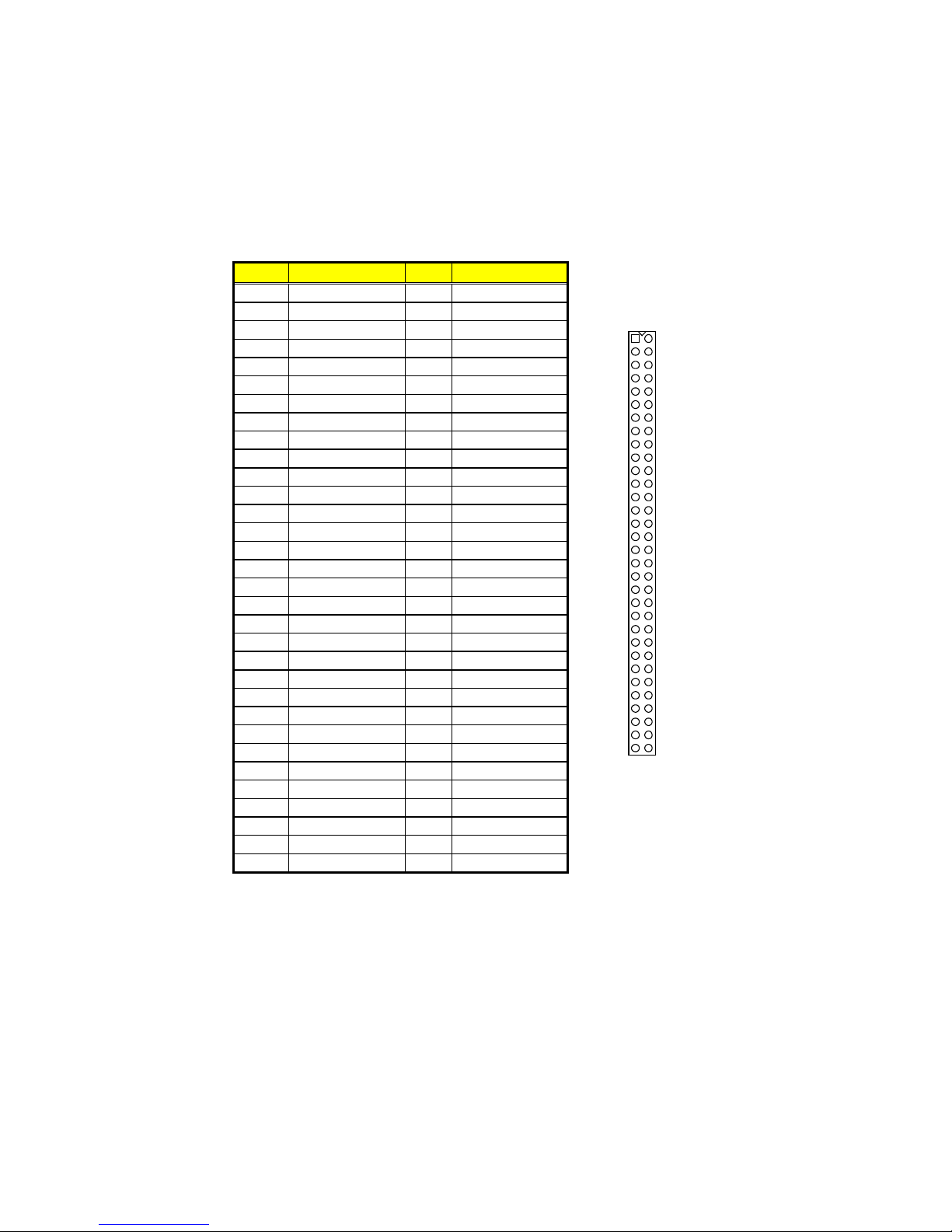

 CN20: IDE Connector

PIN Description PIN Description

1 Reset 2 GND 3 PDD7 4 PDD8 5 PDD6 6 PDD9 7 PDD5 8 PDD10

9 PDD4 10 PDD11 11 PDD3 12 PDD12 13 PDD2 14 PDD13 15 PDD1 16 PDD14 17 PDD0 18 PDD15 19 GND 20 N/C 21 PDREQ 22 GND 23 IOW# 24 GND

…MORE ON NEXT PAGE…

PIN Description PIN Description

25 IOR# 26 GND 27 PIORDY 28 PR1PD1- 29 RPDACK- 30 GND 31 Interrupt 32 N/C 33 RPDA1- 34 PATA66 35 RPDA0- 36 RPDA2- 37 RPCS1- 38 RPCS3- 39 HDD Active 40 GND

39 1

40 2

3.9 Serial ATA Connector

You can connect the Serial ATA device that provides you high speeds transfer rates (150MB/sec.). If you wish to use RAID function, please note that these two serial ATA connectors just support RAID0 and only compatible with WIN XP.

 CN2/CN4: Serial ATA Connector

PIN Description

1 GND 2 SATATXP 3 SATATXN 4 GND 5 SATARXN 6 SATARXP 7 GND

3.10 Parallel Connector

CN17 is a standard 26-pin flat cable connector designed to accommodate onboard parallel port connection.

 CN17: Parallel Connector

PIN Description PIN Description

1 Strobe 14 Auto From Feed 2 DATA0 15 ERROR# 3 DATA1 16 Initialize 4 DATA2 17 Printer Select LN# 5 DATA3 18 GND 6 DATA4 19 GND 7 DATA5 20 GND 8 DATA6 21 GND

9 DATA7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12 Paper Empty 25 GND 13 Printer Select 26 GND

26 14

3.11 Serial Port Connectors

The HS-4610 offers NS16C550 compatible UARTs with Read/ Receive 16-byte FIFO serial ports and four internal 10-pin headers and one RS-422/485 connector.

 CN27~CN30: COM 1~COM 4 Connector (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND 10 N/C

10 2

 JP7: RS-422/485 Connector (3x2 Header, COM4)

PIN Description PIN Description

1 TX- 2 TX+ 3 RX+ 4 RX- 5 GND 6 N/C

NOTE: The terminal resistance of RX & TX is set at 180Ω.

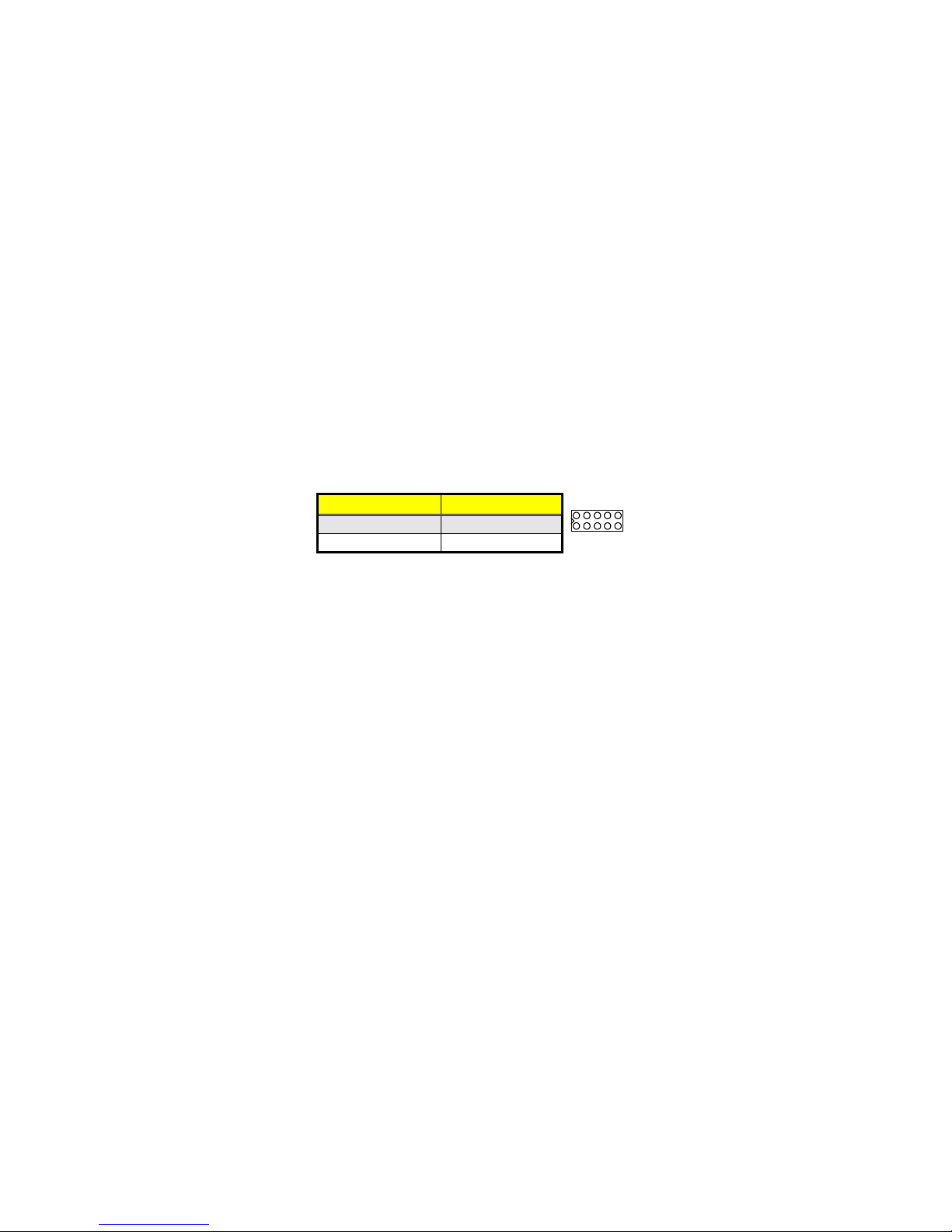

 JP5: COM 2 use RS-232 or RS-422/485 Select

Options Settings

RS-232 (default) Open

RS-485 by Auto (*1) Short 1-2, 3-4, 5-7, 8-10

RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10

RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8

NOTE: *1: 2-wires RS-485 function

*2: 4-wires point-to-point full duplex function

10 2

4-wires point-to-point full duplex RS-422/485

Typical RS-485 2-wires Mutildrop Network

3.12 Ethernet Connector

The HS-4610 provides two 5x2 connectors for 10/100/1000 Based LAN. Please refer to the following for its pin information.

When installs OS, this driver namely can automatically install. User does not need to renewal.

 CN18/CN19: Internal LAN Connector

1 N/C 2 N/C 3 TMDI0_1+/TMDI0_2+ 4 TMDI0_1-/TMDI0_2- 5 TMDI1_1+/TMDI1_2+ 5 TMDI1_1-/TMDI1_2- 7 TMDI2_1+/TMDI2_2+ 8 TMDI2_1-/TMDI2_2- 9 TMDI3_1+/TMDI3_2+ 10 TMDI3_1-/TMDI3_2-

Description PIN Description

 CN10/CN14: External LAN LED Connector

PIN Description PIN Description

1 LED0_1A/LED0_2A 2 +3.3V 3 LED1_1A/LED1_2A 4 +3.3V 5 LED2_1A/LED2_2A 5 +3.3V 7 LED3_1A/LED3_2A 8 +3.3V

3.13 USB Connector

The HS-4610 provides three 8-pin connectors, at location CN21~CN23, for six USB2.0 ports.

 CN21/CN22/CN23: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC

USBD0-

7 GND 8 GND

USBD2-

USBD4USBD0+ USBD2+ USBD4+

USBD1USBD3-

USBD5USBD1+ USBD3+ USBD5+

3.14 CMOS Data Clear

The HS-4610 has a Clear CMOS jumper on JP3.

 JP3: Clear CMOS

Options Settings

Normal Operation (default) Short 1-2

Clear CMOS Short 2-3

IMPORTANT: Before you turn on the power of your system, please

set JP3 to Short 1-2 for normal operation.

3.15 Power and Fan Connectors

HS-4610 provides one 5-pin ATX power in at CN31, one 6-pin power in at CN32. Connector FN1~FN2 onboard HS-4610 is a 3-pin fan power output connector. And HS-4610 supports +12V Fan only.

 CN31: 5-pin ATX Power In Connector

PIN Description

1 VCC 2 5VSB 3 +12V 4 PS_ON 5 GND

 CN32: 6-pin Power In Connector

PIN Description

1 GND 2 GND 3 -12V 4 +12V 5 VCC 6 VCC

 FN1/FN2: Fan Power In Connector

PIN Description

1 GND 2 +12V 3 N/C

3.16 Keyboard/Mouse Connectors

The CN15 is a 8-pin KB/MS connector for HS-4610.

 CN15: 8-pin Keyboard/Mouse Connector

PIN Description

1 GND 2 VCC 3 MS Data 4 MS CLK 5 GND 6 VCC 7 KB Data 8 KB CLK

3.17 System Front Panel Control

The HS-4610 has front panel control at location CN8 that indicates the power-on status.

 CN8: System Front Panel Control

PIN Description PIN Description

1 330Ω pull VCC 2 Speaker 3 HDD LED 4 N/C 5 PWR Button 6 GND 7 GND 8 330Ω pull VCC 9 Reset Switch 10 330Ω pull VCC

11 GND 12 GND

Connector CN8 Orientation

HDD LED

PWR

Button

Reset

Button

Speaker

PWR LED

3.18 Watchdog Timer

Once the Enable cycle is active a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A reset system signal will restart when such error happens.

The following sample programs show how to enable, disable and refresh the watchdog timer:

.286

.MODEL SMALL .DATA ;this is data area

x1 db '------------------------------------------------------',0ah,0dh,'$' copyright db '|Copyright by Boser technology write by Richard |',0ah,0dh,'$' x2 db '------------------------------------------------------',0ah,0dh,'$'

port equ 04Eh ;W83697H Chipset port datao equ 04Fh ;data port

.CODE

print macro buff

mov dx,offset buff; mov ah,09h int 21h endm

begin proc near

mov ax,@data mov ds,ax

STI

mov dx,port ; Unlock registor mov al,087H ; out dx,al jmp $+2 out dx,al mov dx,port ; mov al,07H ; out dx,al jmp $+2 mov dx,datao ; set device 8 mov al,08H ; out dx,al jmp $+2

mov dx,port ; Watchdog IO function mov al,030H ; registor out dx,al jmp $+2

mov dx,datao ; set 01h toactivate mov al,01H ; out dx,al

; W83697H

jmp $+2

mov dx,port ; set CRF3 mov al,0f3H ; out dx,al jmp $+2

mov dx,datao ; set CRF3 to secend mov al,00H ; out dx,al jmp $+2

mov dx,port ; set CRF4 time mov al,0f4H ; out dx,al jmp $+2

mov dx,datao ; set CRF4 time to 5 s' mov al,05H ; out dx,al

print x1 print copyright print x2 mov ah,4ch ;go back to dos int 21h .stack

begin endp

end begin

User can also use AL, 00H’s defined time for reset purposes, e.g.00H for Disable, 01H = 1sec, 02H=2sec….FFH=255sec.

3.19 TV-Out Function

The HS-4610 can support TV-out function whose input could be up to 800 x 600 graphics resolutions. World Wide Video standards are supported including NTSC-M (North America, Taiwan), NTSC-J (Japan), PAL-b, D, G, H, I (Europe, Asia), PAL-M (Brazil), PAL-N (Uruguay, Paraguay) and PAL-NC (Argentina).

 CN24: TV-Out Connector

PIN Description

1 CVBS 2 GND

 JP1/JP6: Display Out Function Select

Options

CRT (default) Short 2-3 Short 1-2

Settings

JP1 JP6

TV-Out Short 1-2 Short 2-3

3.20 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16-bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors CN11 and CN13 are listed on the following tables:

NOTE1: The PC/104 connector allows direct plugging or stack-through

piling of PC/104 modules without requiring the PC/104 mounting kit.

NOTE2: PC/104 Bus connector only for 16-bit ISA Bus, DO NOT support

DMA mode.

 CN13: PC/104 40-pin Connector

PIN Description PIN Description

1 GND 21 GND 2 MEMCS16# 22 SBHE# 3 IOSC16# 23 LA23 4 IRQ10 24 LA22 5 IRQ11 25 LA21 6 IRQ12 26 LA20 7 IRQ15 27 LA19 8 IRQ14 28 LA18

9 DACK0# 29 LA17 10 DRQ0# 30 MEMR# 11 DACK5# 31 MEMW# 12 DRQ5# 32 SD8 13 DACK6# 33 SD9 14 DRQ6# 34 SD10 15 DACK7# 35 SD11 16 DRQ7# 36 SD12 17 +5V 37 SD13 18 MASTER# 38 SD14 19 GND 39 SD15 20 GND 40 N/C

Connector diagram

rotated 90 degrees

clockwise from

original position

 CN11: PC/104 64-pin Connector

PIN Description PIN Description

1 IOCHECK# 33 GND

2 SD7 34 RESETDRV

3 SD6 35 +5V

4 SD5 36 IRQ9

5 SD4 37 N/C

6 SD3 38 DRQ2

7 SD2 39 -12V

8 SD1 40 0WS#

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW# 12 SA19 44 SMEMR# 13 SA18 45 IOW# 14 SA17 46 IOR# 15 SA16 47 DACK3# 16 SA15 48 DRQ3# 17 SA14 49 DACK1# 18 SA13 50 DRQ1# 19 SA12 51 REFRESH# 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 SLPBTN 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2# 27 SA4 59 TC 28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND

Connector diagram

rotated 90 degrees

clockwise from

original position

3.21 Audio Connectors

The HS-4610 has an onboard VIA VT1708A High Definition Audio CODEC. The following tables list the pin assignments of the Line In/Audio Out connector.



4 stereo DACs support 24-bit, 192KHz samples

 DAC with 100dB S/N Ratio  2 stereo ADCs support 24-bit, 192KHz samples  ADC with 95dB S/N ratio  8-channels of DAC support 16/20/24-bit PCM format for 7.1 audio

solution

 CN16: MIC In/Line Out Connector

PIN Description PIN Description

1 AOUTL 2 AOUTR 3 GND 4 GND 5 MIC IN L 6 MIC IN R 7 GND 8 GND

 J1: 4-pin Line In Connector

PIN Description

1 LINE_R 2 GND 3 GND 4 LINE_L

3.22 CompactFlash Connector

The HS-4610 also offers a Type I/II CompactFlash connector is IDE interface located at the solder side of the board (beneath the SO-DIMM connector). The designated CN3 connector, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CF card.

 CN3: CompactFlash Connector

PIN Description PIN Description

1 GND 2 DATA3 3 DATA4 4 DATA5 5 DATA6 6 DATA7 7 SDCS1# 8 GND

9 GND 10 GND 11 GND 12 GND 13 VCC 14 GND 15 GND 16 GND 17 GND 18 SDA2 19 SDA1 20 SDA0 21 DATA0 22 DATA1 23 DATA2 24 470Ω pull GND 25 N/C 26 N/C 27 DATA11 28 DATA12 29 DATA13 30 DATA14 31 DATA15 32 SDCS3# 33 N/C 34 UOR 35 IOW 36 EWE0 37 IRQ 38 VCC 39 CS 40 N/C 41 RESET 42 IORDY 43 DACK 44 REQ 45 IDE LED 46 PDIAG 47 DATA8 48 DATA9 49 DATA10 50 GND

Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram on the following page for the traditional way of inserting the card.

 JP2: CF Use Master/Slave Select

Options Setting

Master Short 1-2

Slave (default) Short 2-3

NOTE: When use CF card, IDE device function will be disabled.

3.23 DiskOnChipTM Address Setting

The DOC function allows the system to boot or operate without a FDD or a HDD. DOC modules may be formatted as drive C or A. With DOC, user may also execute DOS commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc.

The U11 location onboard the HS-4610 is the DOC module socket. Jumper JP9 assigns the address setting of the installed module. Setting the 4-pins of JP9 allows you to select the starting memory devices in the system, please set both at different memory address mapping to avoid the mapping area conflicts.

 JP9(1-4): DOC Address Select

Options Settings

D000 (default) Short 1-2

D800 Short 3-4

102

Chapter 4

AMI BIOS Setup

The HS-4610 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

↑ Move to previous item ↓ Move to next item ← Move to previous item → Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Decrease the numeric value or make changes PgDn key Increase the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes F1 key Reserved F2 key Change color from total 8 colors. F2 to select color forward F3 key F2 to select color backward F4 key Reserved F5 key Reserved F6 key Reserved F7 key Reserved F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

System Overview AMI BIOS

Version : 08.00.13 Build Date : 11/29/06 ID : HS461000

Processor Type : VIA Esther processor 1000MHz Speed : 1000MHz Count : 1

System Memory Size : 191MB

System Time [00:29:32] System Date [Tue 01/01/2002] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

←

Select Screen

↑↓

Select Item

+ -

Change Field

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.

4.4 Advanced Settings

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Settings WARNING: Setting wrong values in below sections

may cause system to malfunction.



CPU Configuration



IDE Configuration



SuperIO Configuration



ACPI Configuration



APM Configuration



Hardware Health Configuration ª - Change Field



USB Configuration Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure advanced CPU settings Module Version –13.00

Manufacturer : VIA

Brand String : VIA Esther processor 1000MHz

Frequency : 1.00GHz

FSB Speed : 400MHz

Cache L1 : 128 KB

Cache L2 : 128 KB

Ratio Status : Unlocked (Max:10, Min:08)

Ratio Actual Value : 10 ª - Change Field

Tab Select Field

CMPXCHG8B instruction support [Enabled] F1 General Help

F10 Save and Exit

ESC Exit



Select Screen



Select Item



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

IDE Configuration

Parallel ATA IDE device



Primary IDE Master : [Not Detected]



Primary IDE Slave : [Not Detected]



Secondary IDE Master : [Not Detected]



Secondary IDE Slave : [Not Detected]

Parallel ATA IDE Controller [Both] Hard Disk Write Protect [Disabled] IDE Detect Time Out (Sec) [35]



Select Screen



Select Item

ATA(PI) 80Pin Cable Detection [Host] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure WIN697UF Super IO Chipset

Serial Port1 Address [3F8/IRQ4] Serial Port2 Address [2F8/IRQ3] Serial Port3 Address [3E8] Serial Port3 IRQ Select [IRQ11] Serial Port4 Address [2E8] Serial Port4 IRQ Select [IRQ10] Parallel Port Address [378] Parallel Port Mode [Normal] ª - Change Field Parallel Port IRQ [IRQ7] Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

ACPI Settings

ACPI Aware O/S [No]

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Power Management/APM [Enabled]

Power Button Mode [On/Off] Suspend Power Saving Type [C3] Restore on AC/Power Loss [Last State] Manual Throttle Ratio [50%-56.25%] System Thermal [Disabled] Thermal Active Temperature [65°C/149°F] THRM throttle Ratio [50%-56.25%]

Standby Time Out [Disabled] Suspend Time Out [Disabled] Hard Disk Time Out (Minute) [Disabled]

Green PC Monitor Power State [Suspend] Video Power Down Mode [Suspend] Hard Disk Power Down Mode [Suspend]

Advanced Monitor Events Controls Display Activity [Ignore] Monitor IRQ3 [Monitor] Monitor IRQ4 [Ignore] Monitor IRQ5 [Ignore] Monitor IRQ7 [Ignore] Monitor IRQ9 [Ignore] Monitor IRQ10 [Ignore] Monitor IRQ11 [Ignore] Monitor IRQ13 [Ignore] Monitor IRQ14 [Monitor] Monitor IRQ15 [Ignore]

Advanced Resume Events Controls Resume On Ring [Disabled] Resume On PME# [Disabled] ª - Change Field Resume On KBC [Disabled] Tab Select Field Wake-Up Key [Any Key] F1 General Help Resume On PS/2 Mouse [Disabled] F10 Save and Exit Resume On RTC Alarm [Disabled] ESC Exit





Select Screen

Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

USB Configuration

Module Version – 2.24.0-11.4

USB Devices Enabled: None

USB 1.1 Ports Configuration [USB 6 Ports] USB 2.0 Ports Enable [Enabled] Legacy USB Support [Enabled] USB 2.0 Controller Mode [FullSpeed] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

H/W Health Function [Enabled]

CPU Temperature : System Temperature :

Fan 1 Reading : Fan 2 Reading :

Vcore(VIN1) : +3.3V(VIN2) : VBAT(VIN3) : VCC : ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item



Select Screen



Select Item

4.5 Advanced PCI/PnP Settings

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below

sections may cause system to malfunction.

Clean NVRAM [No] Plug & Play O/S [No] PCI Latency Timer [64] Allocate IRQ to PCI VGA [Yes] Palette Snooping [Disabled] PCI IDE BusMaster [Disabled] Offboard PCI/ISA IDE Card [Auto]

IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]

DMA Channel 0 [Available] DMA Channel 1 [Available] DMA Channel 3 [Available] DMA Channel 5 [Available] ª - Change Field DMA Channel 6 [Available] Tab Select Field DMA Channel 7 [Available] F1 General Help F10 Save and Exit Reserved Memory Size [Disabled] ESC Exit





Select Screen

Select Item

4.6 Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings



Boot Settings Configuration



Boot Device Priority



Removable Drives

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings Configuration

Quick Boot [Enabled] Quiet Boot [Disabled] AddOn ROM Display Mode [Force BIOS] Bootup Nom-Lock [On] PS/2 Mouse Support [Auto] Wait For ‘F1’ If Error [Enabled] Hit ‘DEL’ Message Display [Enabled] Interrupt 19 Capture [Disabled]

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Device Priority

1st Boot Device [1st FLOPPY DRIVE]

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Removable Drives

1st Drive [1st FLOPPY DRIVE]

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

4.7 Security Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Password Change User Password ª - Change Field Boot Sector Virus Protection [Disabled] Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

4.8 Advanced Chipset Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Chipset Settings WARNING: Setting wrong values in below

sections may cause system to malfunction.



NorthBridge VIA CX700 Configuration



SouthBridge VIA CX700 Configuration

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

NorthBridge VIA CX700 Configuration



DRAM Clock/Timing Configuration



AGP & P2P Bridge Configuration



V-Link & PCI Bus Configuration

Top Performance [Disabled] Software Reset E2 issue [Escape Patch] Change DCLK using RDCKM [Program]



OnChip VGA Configuration ª - Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

DRAM Frequency/Timing Configuration

DRAM Frequency [400MHz] DRAM Timing [Auto] DRAM Command Rate [2T Command] RDSAIT/RDSBIT mode [Auto] Memory Chip Driving [Normal] DDR2 Memory Chip ODT [Auto] DDR DQSBAR [Disabled] BA0 SEL [A13] BA1 SEL [A14] BA2 SEL [A15] BA Scramble [Disabled] DQSO scanning mode [Disabled]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

AGP & P2P Bridge Configuration

Primary Graphics Adapter [PCI]

AGP Aperture Size [128MB] AGP 3.0 Mode [8X] AGP Driving Control [Auto] AGP Fast Write [Enabled] AGP Master 1 WS Read [Disabled] AGP Master 1 WS Write [Disabled]

AGP 3.0 Calibration cycle [Disabled]

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

V-Link & PCI Bus Configuration

PCI Master 0 WS Write [Enabled] V-Link mode selection [Auto] V-Link 8X Supported [Enabled] V-Link Data 2X Support [Disabled] DRDY Timing [Default] RCONV [Enabled] Dynamic CKE select [Auto] Dynamic Clock Stop Control [00] ª - Change Field PCI Read Caching Select [EE] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

OnChip VGA Configuration

Main Advanced PCIPnP Boot Security Chipset Exit

VGA Frame Buffer Size [64MB] CPU Direct Access Frame Buffer [Enabled] Select Display Device [CRT] Panel Type [02:1024X768] TV H/W Layout [Default] TV Type [NTSC] ª - Change Field TV Output Connector [CVBS (Composite)] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

SouthBridge VIA CX700 Configuration

Main Advanced PCIPnP Boot Security Chipset Exit

* High Definition Audio [Auto]

PCI Delay Transaction [Disabled]

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item



Select Screen



Select Item



Select Screen



Select Item

4.9 Exit Options

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Exit Options

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit



Select Screen



Select Item

This page is the blank page.

Chapter 5

Software Utilities

This chapter contains the detailed information of VGA, LAN, audio and USB2.0 driver installation procedures. The utility disk that comes with the delivery package contains an auto-run program that invokes the installation programs for the VGA, LAN and Audio drivers. The following based recommended in this chapter.

sections describe the installation procedures of each driver

Win 95/98, Win 2000/XP operating systems. It is

that you install the drivers matching the sections listed

5.1 VGA Driver Installation

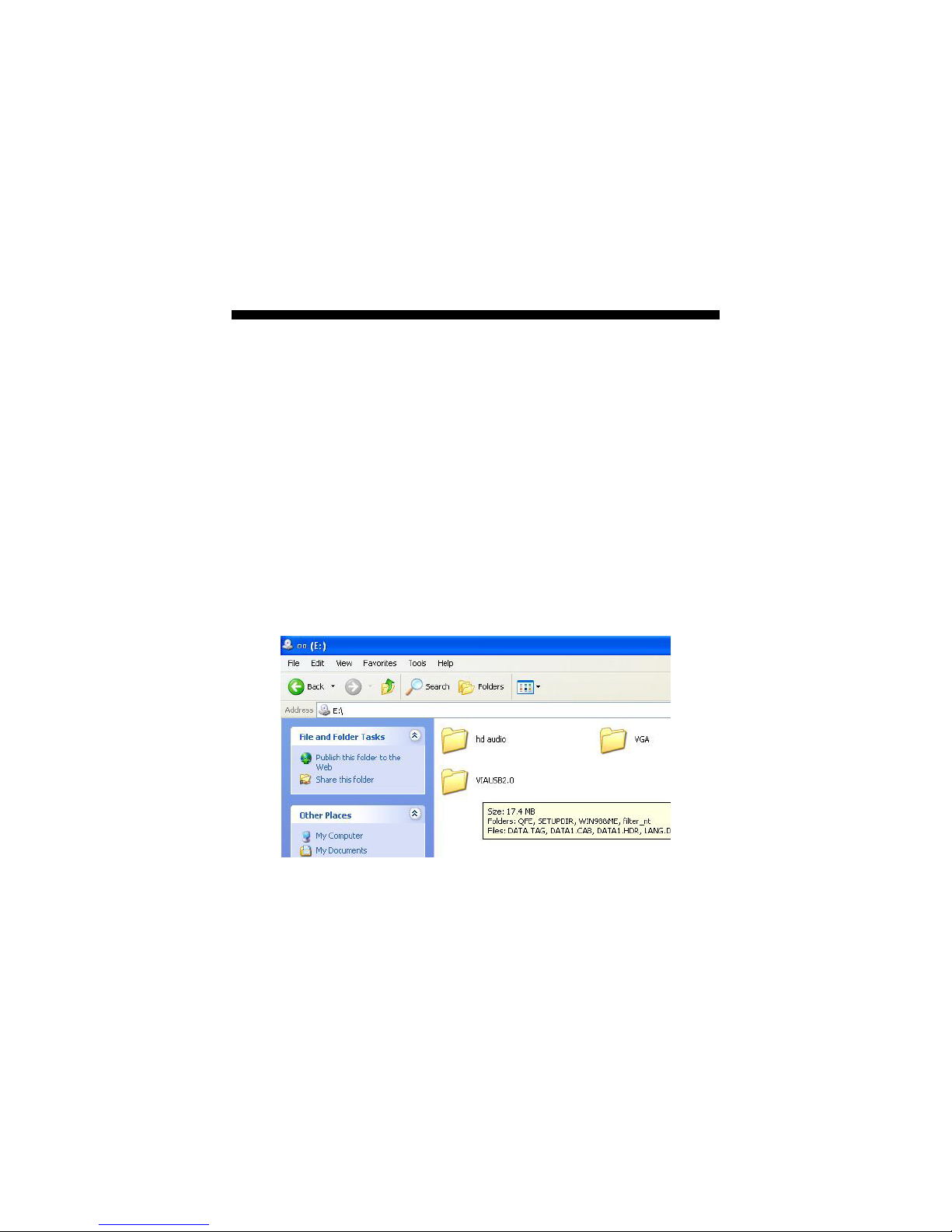

1. With the Utility CD Disk in your CD-ROM drive, open the File Manager and then select the CD-ROM drive. Open the VGA folder and click Setup.exe to start proceed.

2. When the display below appears on your screen, setup is ready to install and copy the related files onto your hard drive.

3. After the installation finishes, you will be prompted to restart your system. We recommend you to reboot your computer to allow the new settings to take effect. Click on the Finish button to reboot.

5.2 Audio Driver Installation

1. With the Utility CD Disk in you CD-ROM drive, open the File Manager and then select the CD-ROM drive. Open the HD Audio folder and click Setup.exe to start proceed.

2. Once the Setup Wizard appears on the screen, make sure to close applications that are running, and then tick Install/Update, and click on the Next> button.

3. Setup Wizard will display the install list. Select on VIA HD…… V1.80a, and then click on Next> to continue.

4. Make sure the Current Setting is ok, and then click on Next> button.

5. After the audio driver installation finishes, select the Finish button to complete the installation process.

6. When the display below appears on your screen, tick on Yes, this time only, and then click on Next> to continue.

7. After all installation finish, you will be prompted to start your system, click on the Finish button to reboot.

5.3 USB2.0 Driver Installation

1. With the Utility CD Disk in you CD-ROM drive, open the File Manager and then select the CD-ROM drive. Open the VIAUSB2.0 folder and click Setup.exe to start proceed.

2. Once the Welcome screen appears on the screen, make sure to close applications that are running and then click on Next> button.

3. The Select Components dialog box is now displayed. Select on Install and then click on Next>.

4. After all installation finish, you will be prompted to start your system, click on the Yes button to reboot.

BOSER Technology HS-4610 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
