BOSER Technology HS-2610, HS-2610M User Manual

HS-2610

HS-2610M

Intel® Pentium® M/Celeron®M/

ULV Intel® Celeron® M processor

Embedded Engine Board

•Mini PCI•CompactFlash•SO-DDR•

•CRT/LVDS•Dual LAN•Audio•

•RS-232/422/485•4 COM•USB2.0•WDT•

•Single +5V•H/W Monitor•

Copyright Disclaimers

The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The

not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,

of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the contents of

this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.

T

r

a

d

e

m

T

r

T

r

BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.

a

a

d

e

m

a

a

d

e

m

a

r

k

s

r

k

s

r

k

s

electronic, mechanical, photocopying, recording)

manufacturer will

© Copyright 2006 BOSER Technology Co., Ltd.

All Rights Reserved.
Edition 1.3, May 19, 2009

Table of Contents

Chapter 1 General Description ..................................1

1.1 Major Features....................................................................... 2

1.2 Specifications ........................................................................ 3

1.3 Board Dimensions................................................................. 4

Chapter 2 Unpacking .................................................. 5

2.1 Opening the Delivery Package............................................. 5

2.2 Inspection............................................................................... 5

Chapter 3 Hardware Installation ..............................7

3.1 Before Installation ................................................................. 7

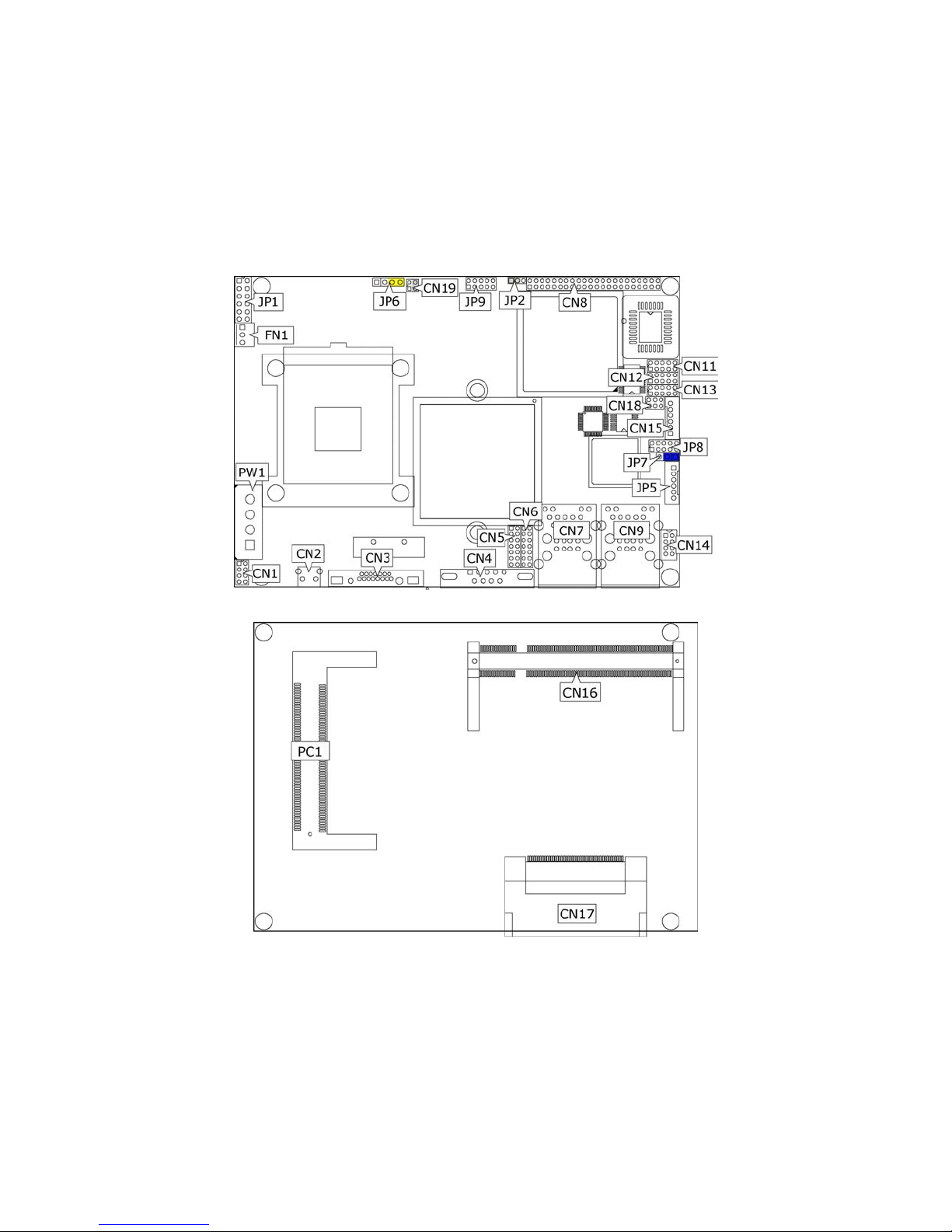

3.2 Board Layout ......................................................................... 8

3.3 Jumper List ............................................................................ 9

3.4 Connector List ....................................................................... 9

3.5 Configuring the CPU ........................................................... 10

3.6 System Memory................................................................... 10

3.7 VGA Controller .................................................................... 10

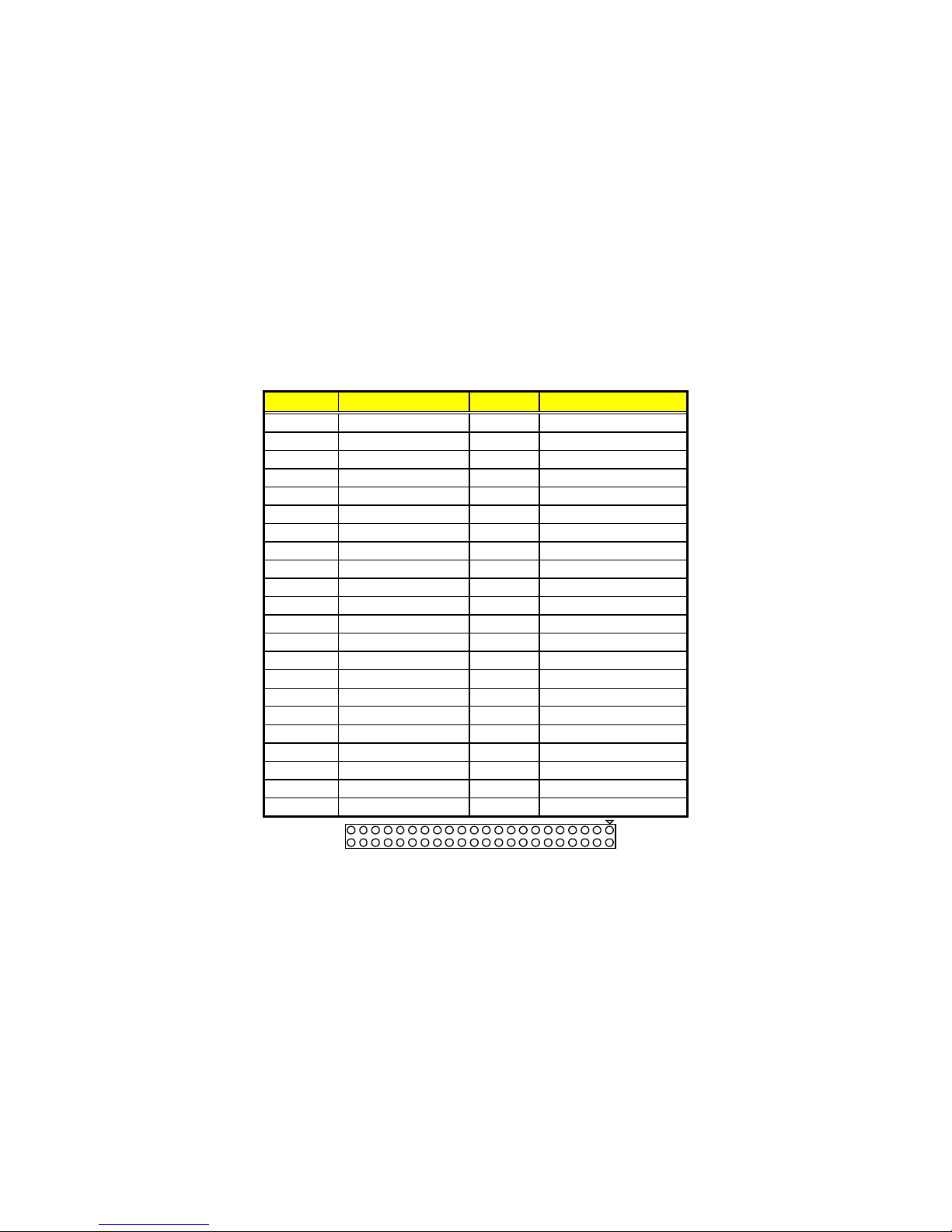

3.8 PCI E-IDE Drive Connector................................................. 12

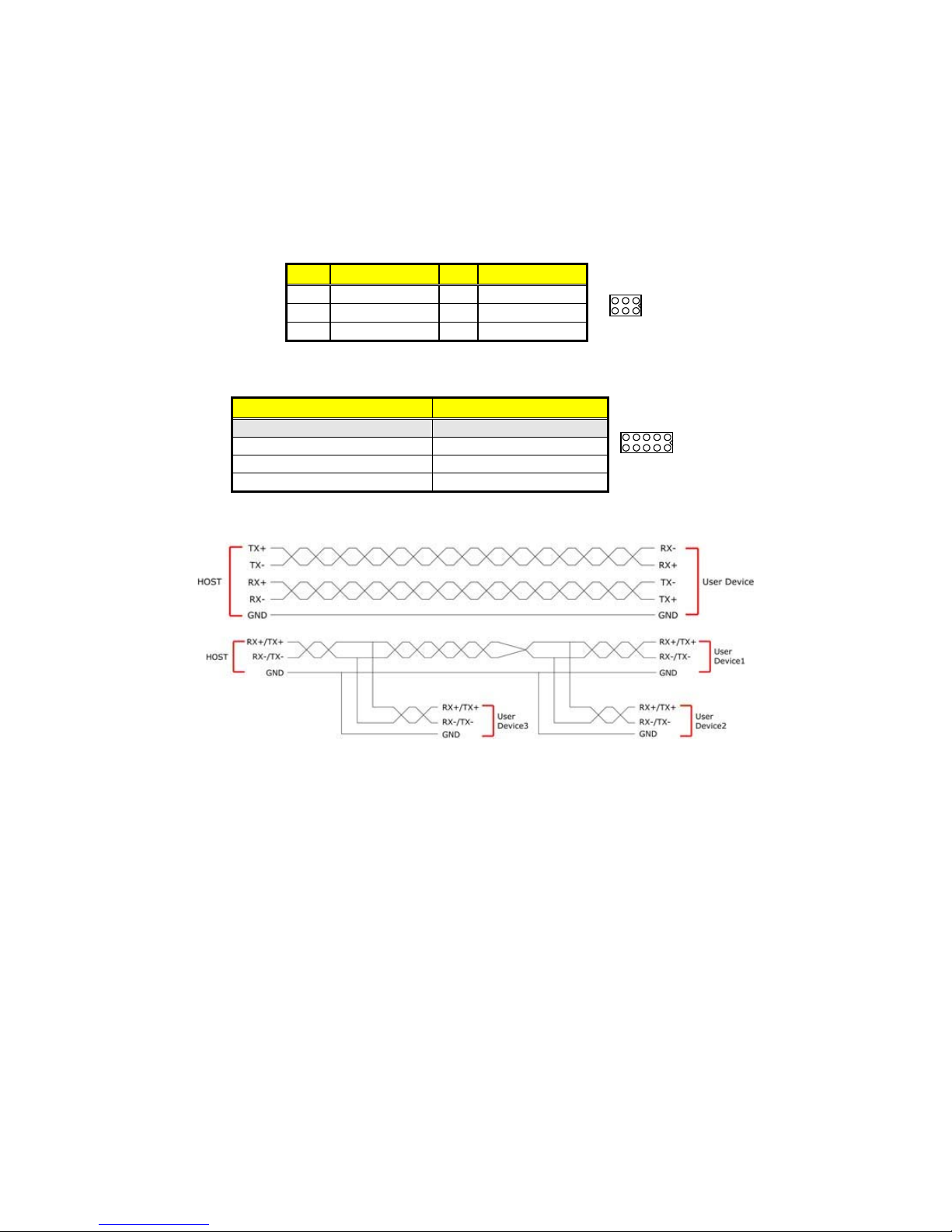

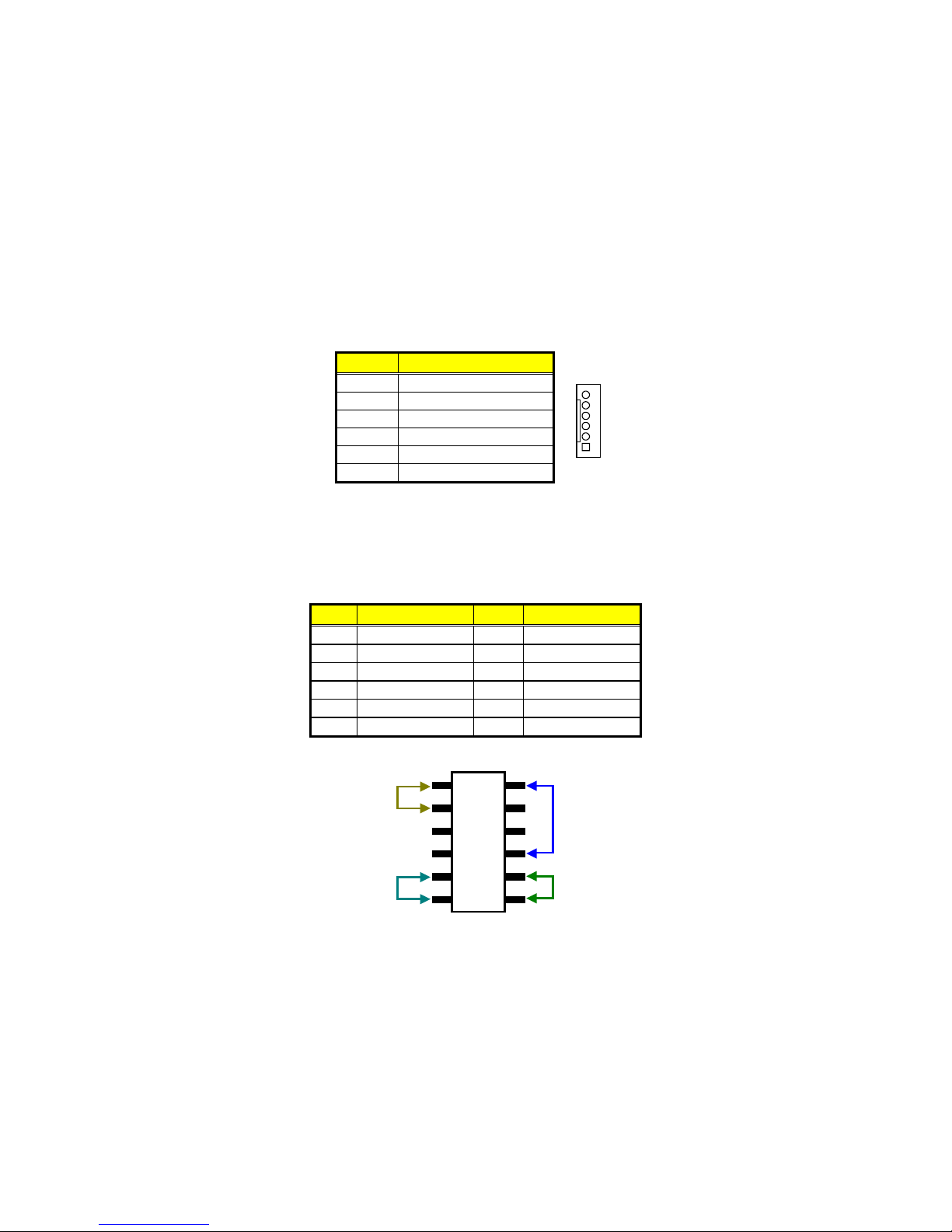

3.9 Serial Port Connectors ....................................................... 13

3.10 Ethernet Connector............................................................. 14

3.11 USB Connector.................................................................... 15

3.12 CMOS Data Clear................................................................. 16

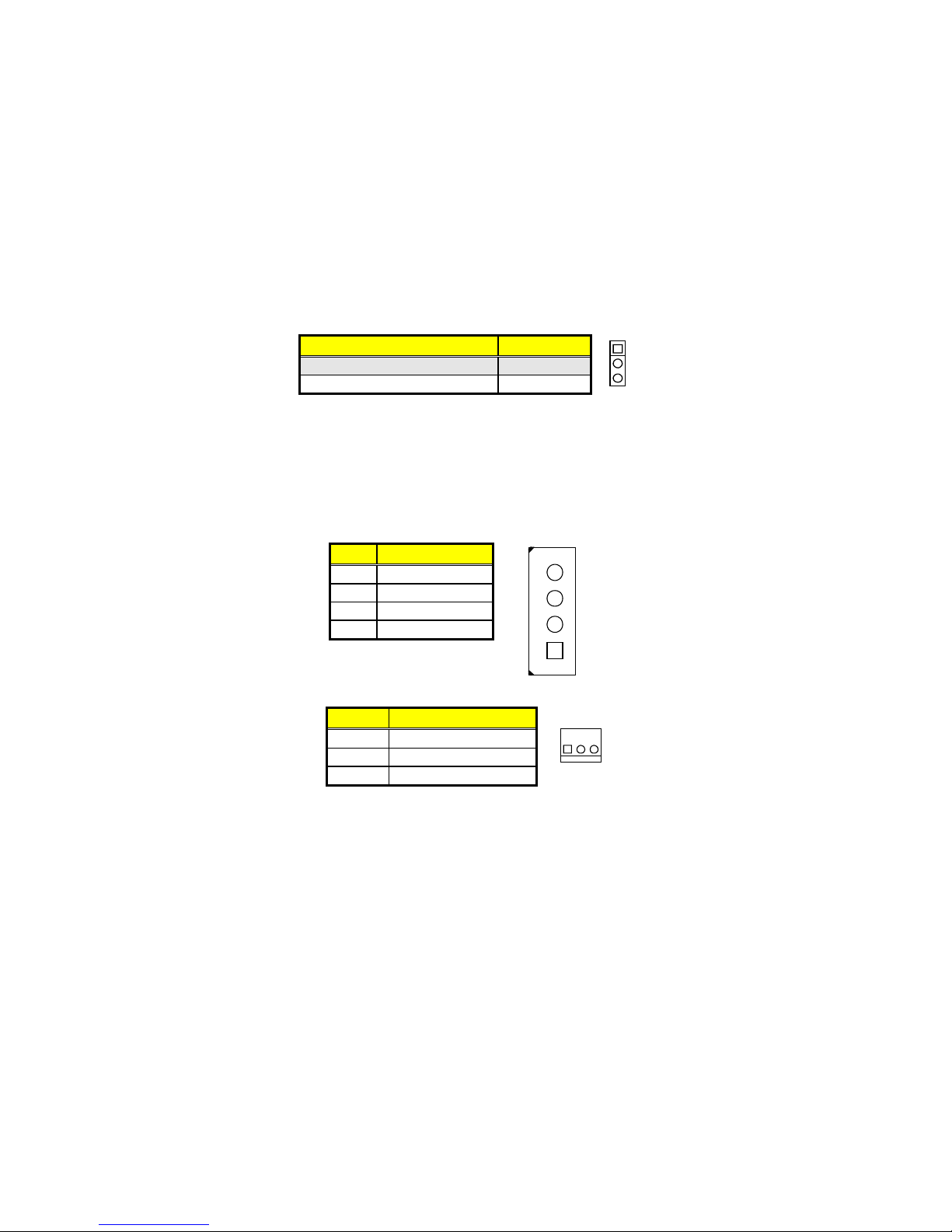

3.13 Power and Fan Connectors................................................ 16

3.14 Keyboard/Mouse Connectors ............................................ 17

3.15 System Front Panel Control ............................................... 17

3.16 Watchdog Timer .................................................................. 18

3.17 Audio Connectors ............................................................... 19

3.18 CompactFlash Connector................................................ 19

3.19 Mini PCI Slot......................................................................... 20

3.20 8-bit I/O Function ................................................................. 20

Chapter 4 AMI BIOS Setup..................................... 25

4.1 Starting Setup...................................................................... 25

4.2 Using Setup ......................................................................... 26

4.3 Main Menu............................................................................ 27

4.4 Advanced Settings.............................................................. 28

4.5 Advanced PCI/PnP Settings............................................... 31

4.6 Boot Settings ....................................................................... 32

4.7 Security Settings ................................................................. 33

4.8 Advanced Chipset Settings................................................ 34

4.9 Power Settings .................................................................... 35

4.9 Exit Options ......................................................................... 36

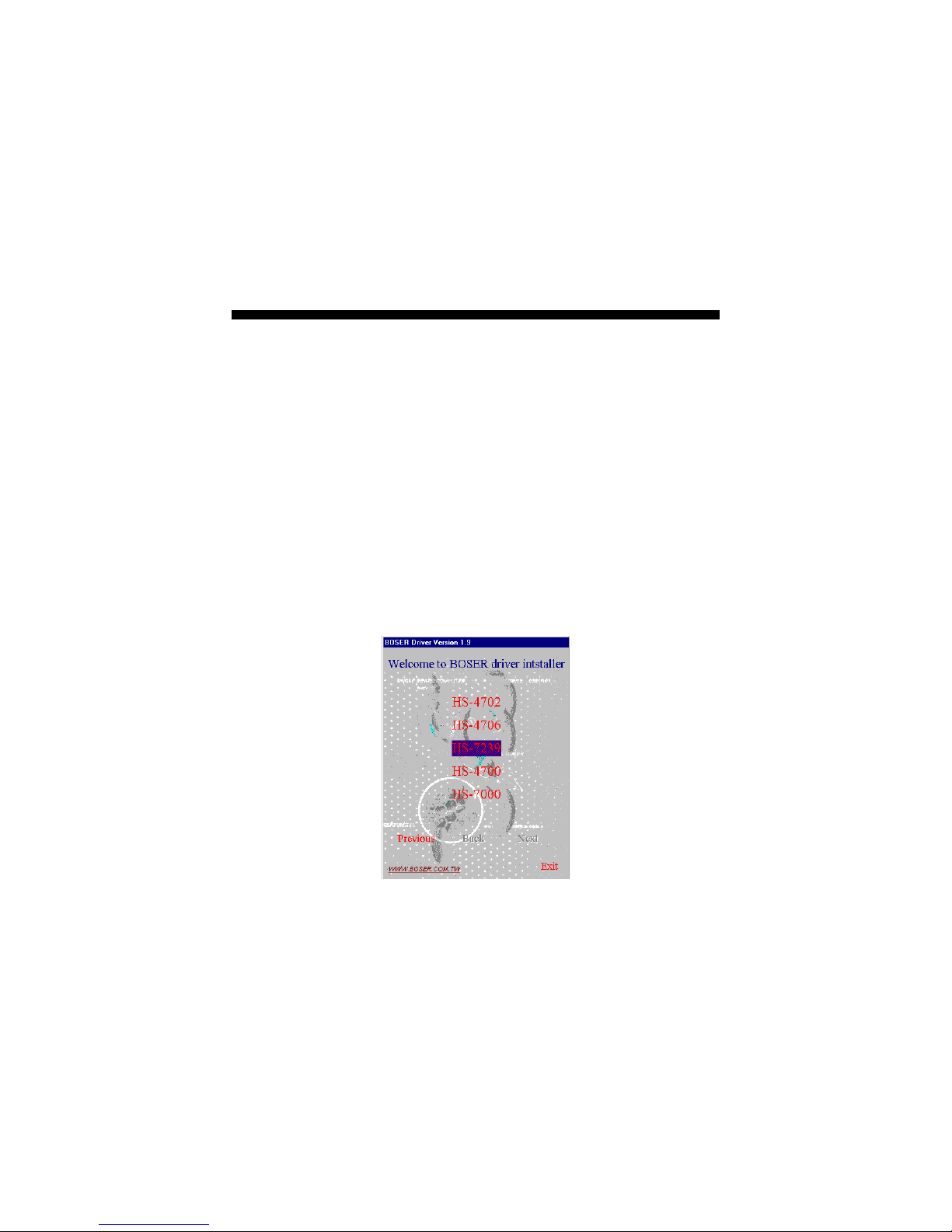

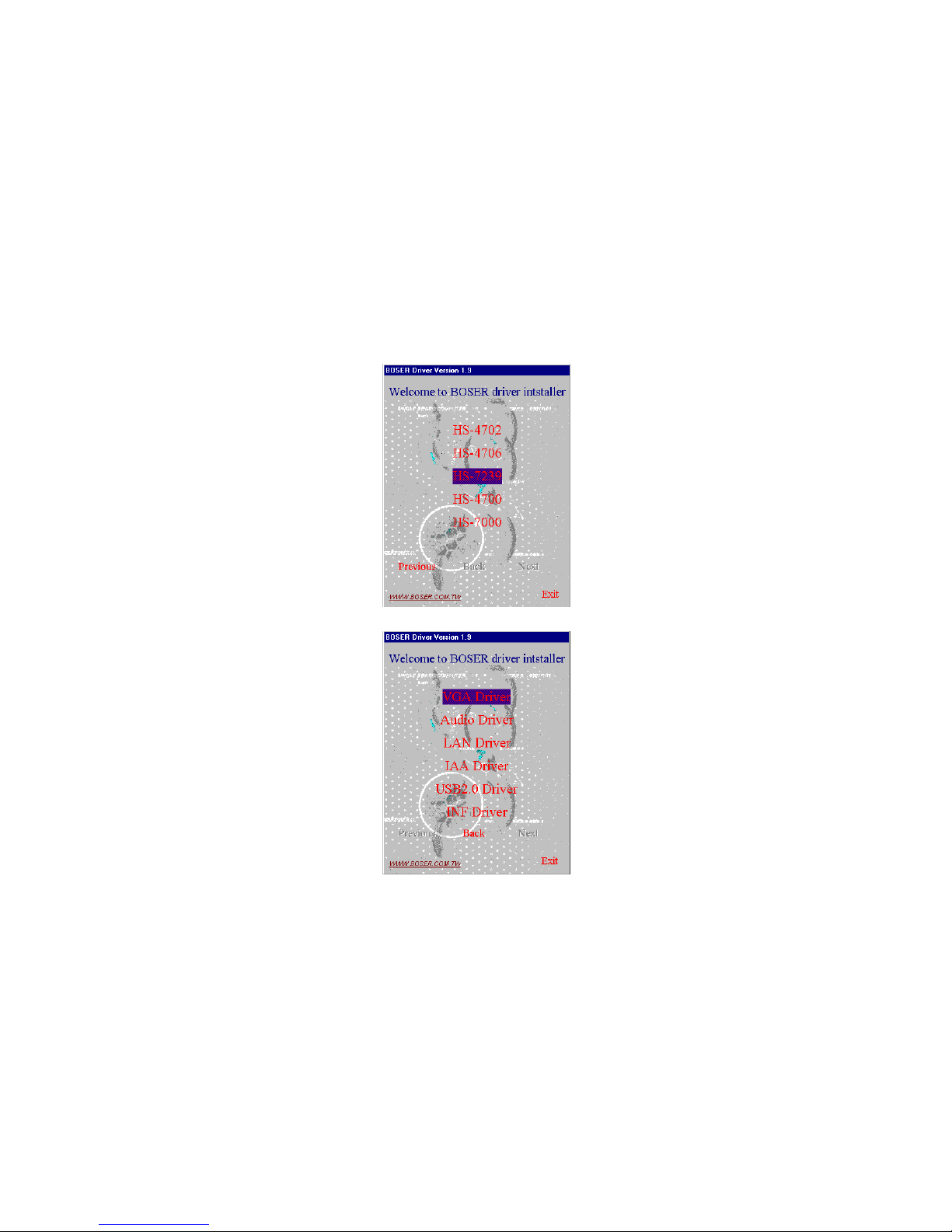

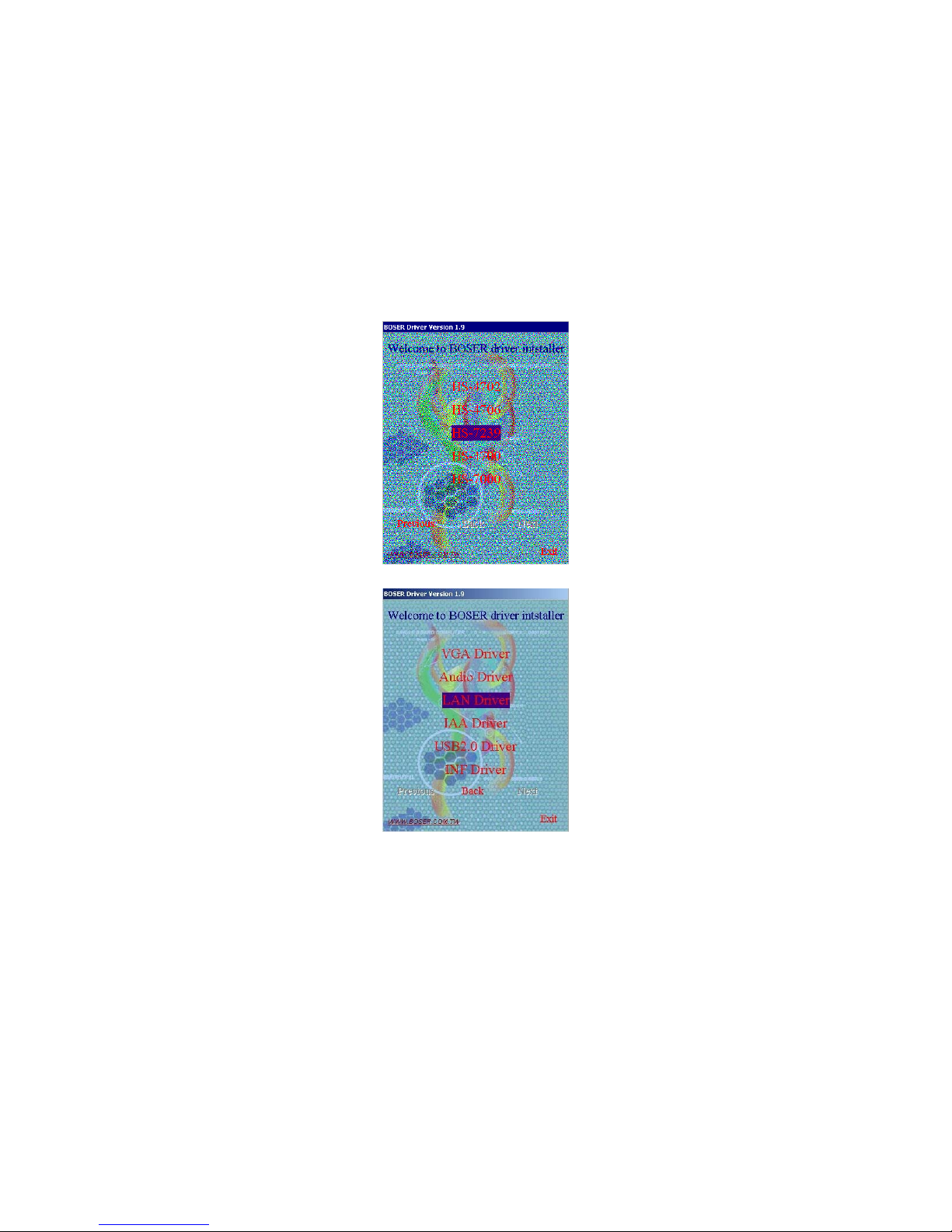

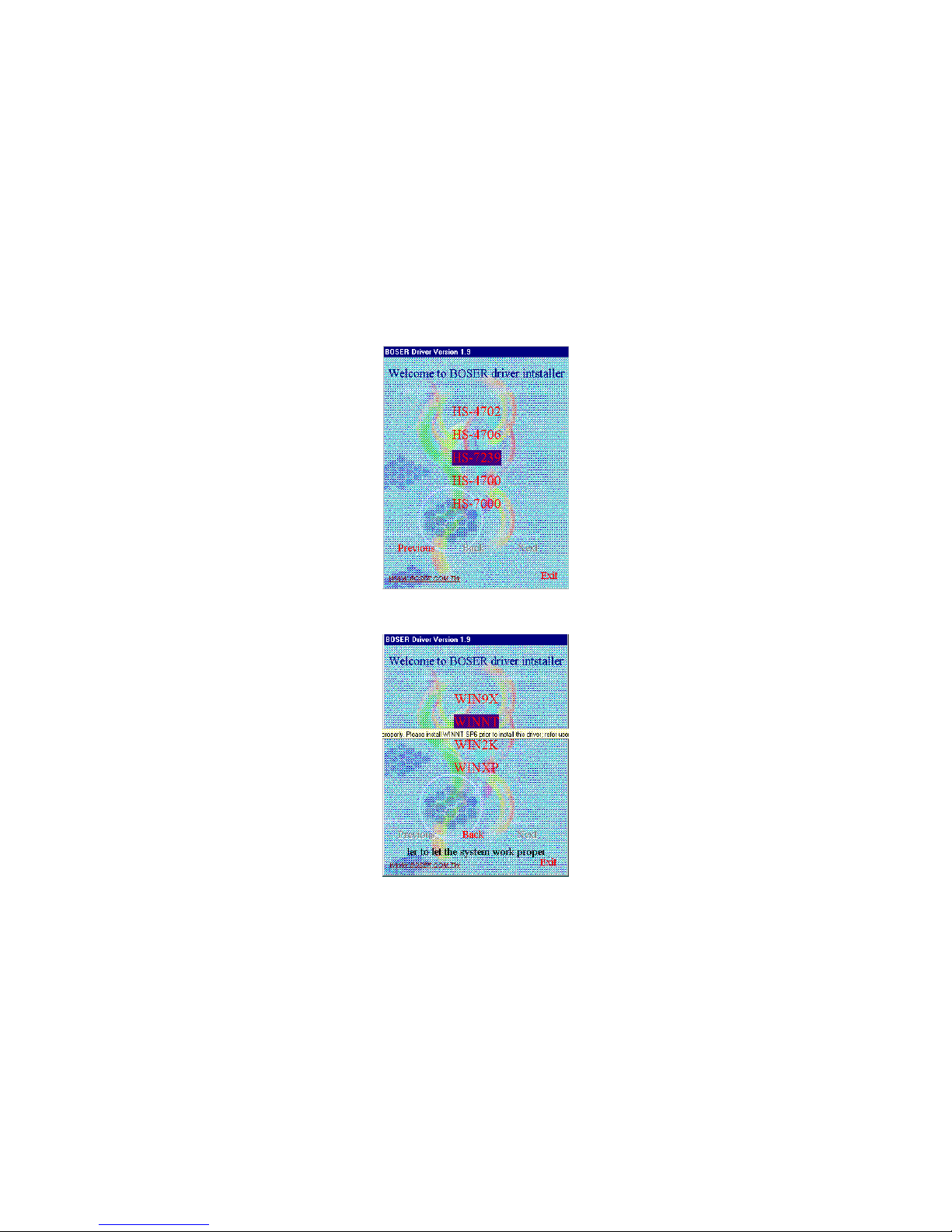

Chapter 5 Software Utilities.....................................37

5.1 IDE Driver Installation......................................................... 37

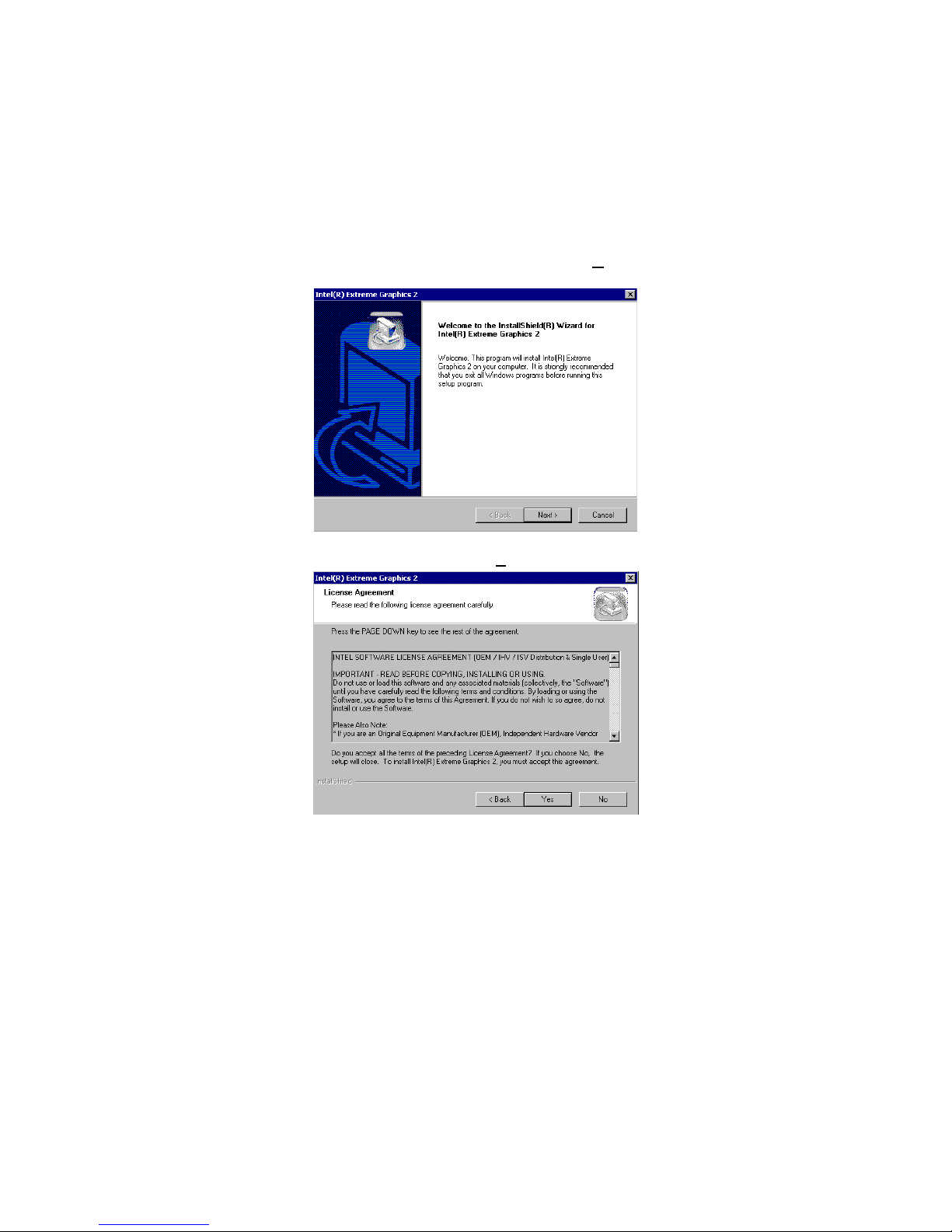

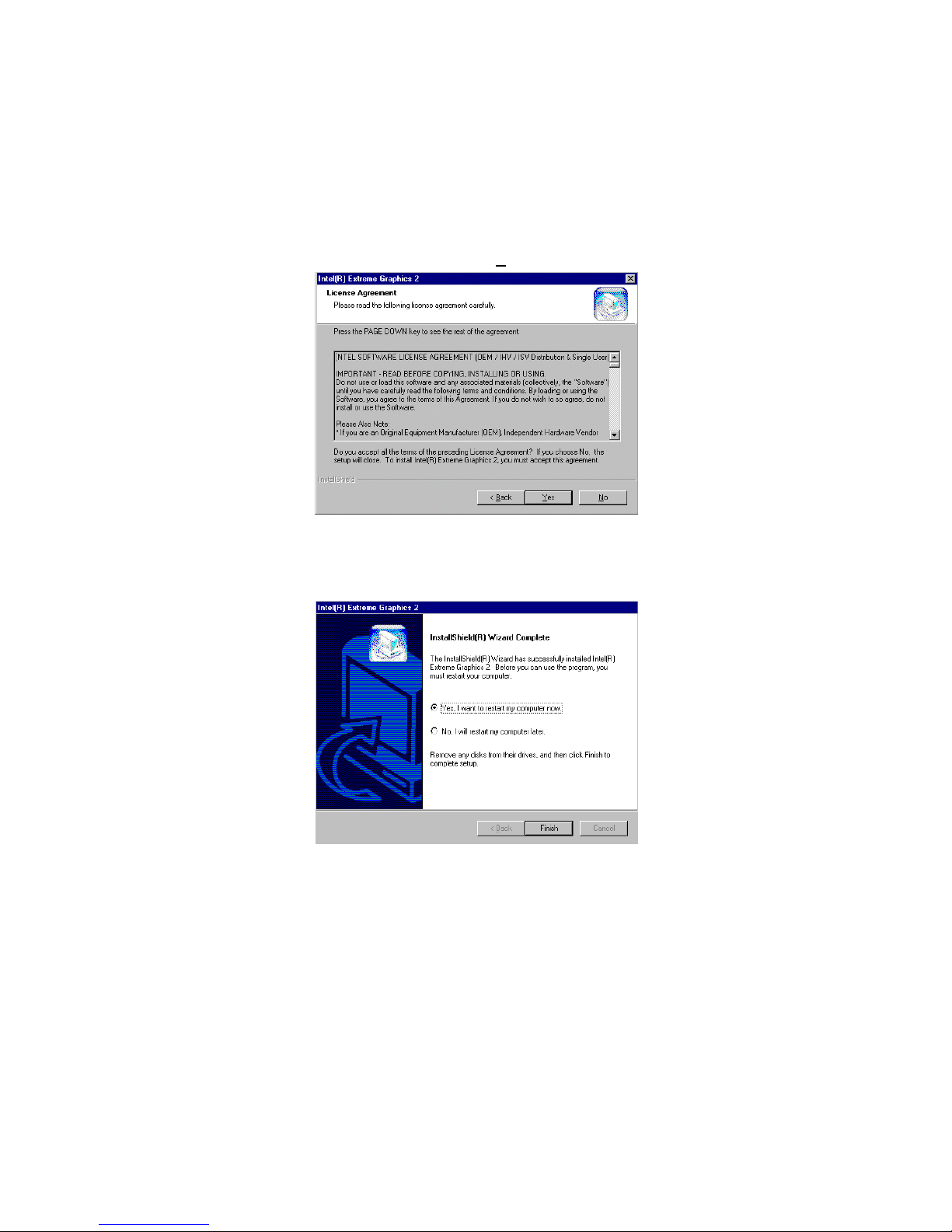

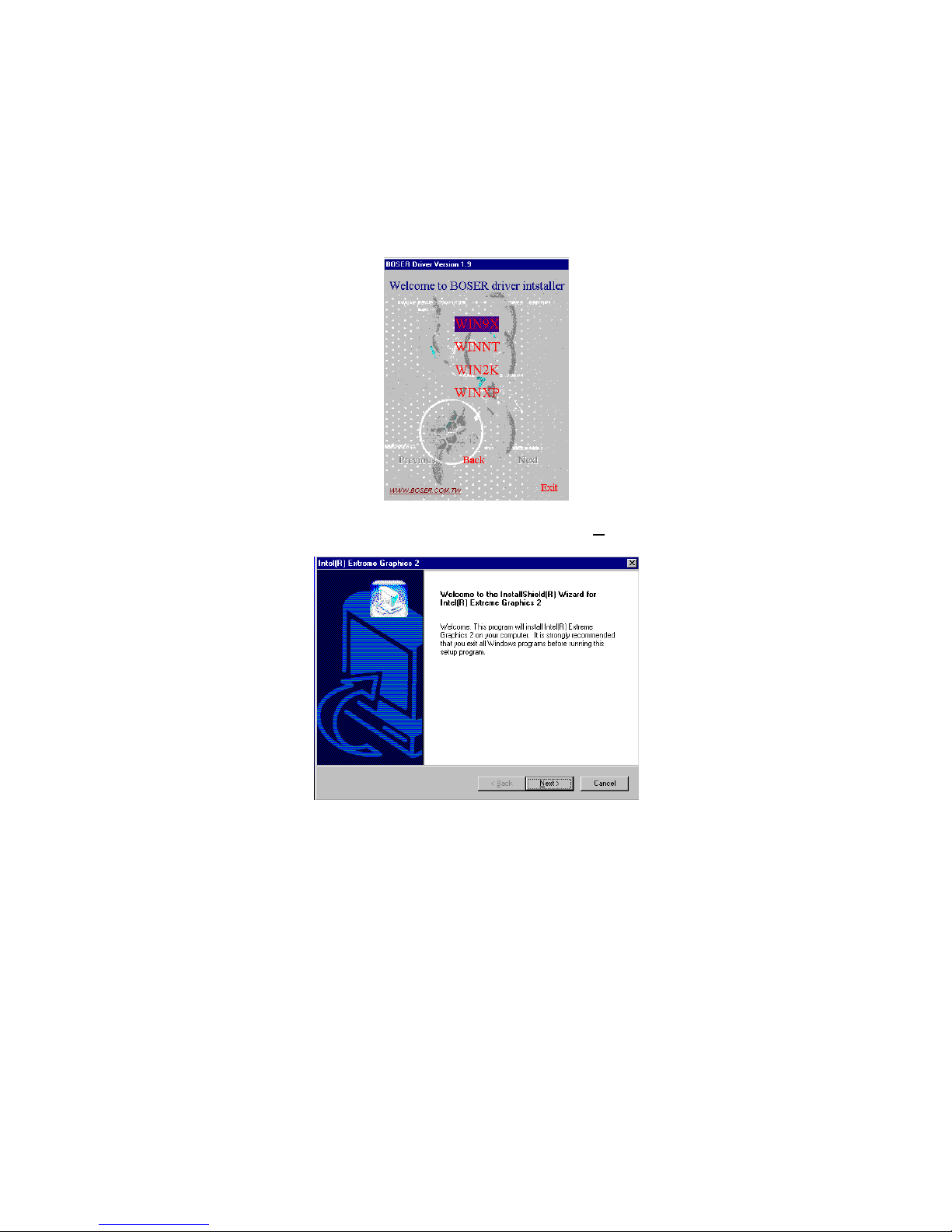

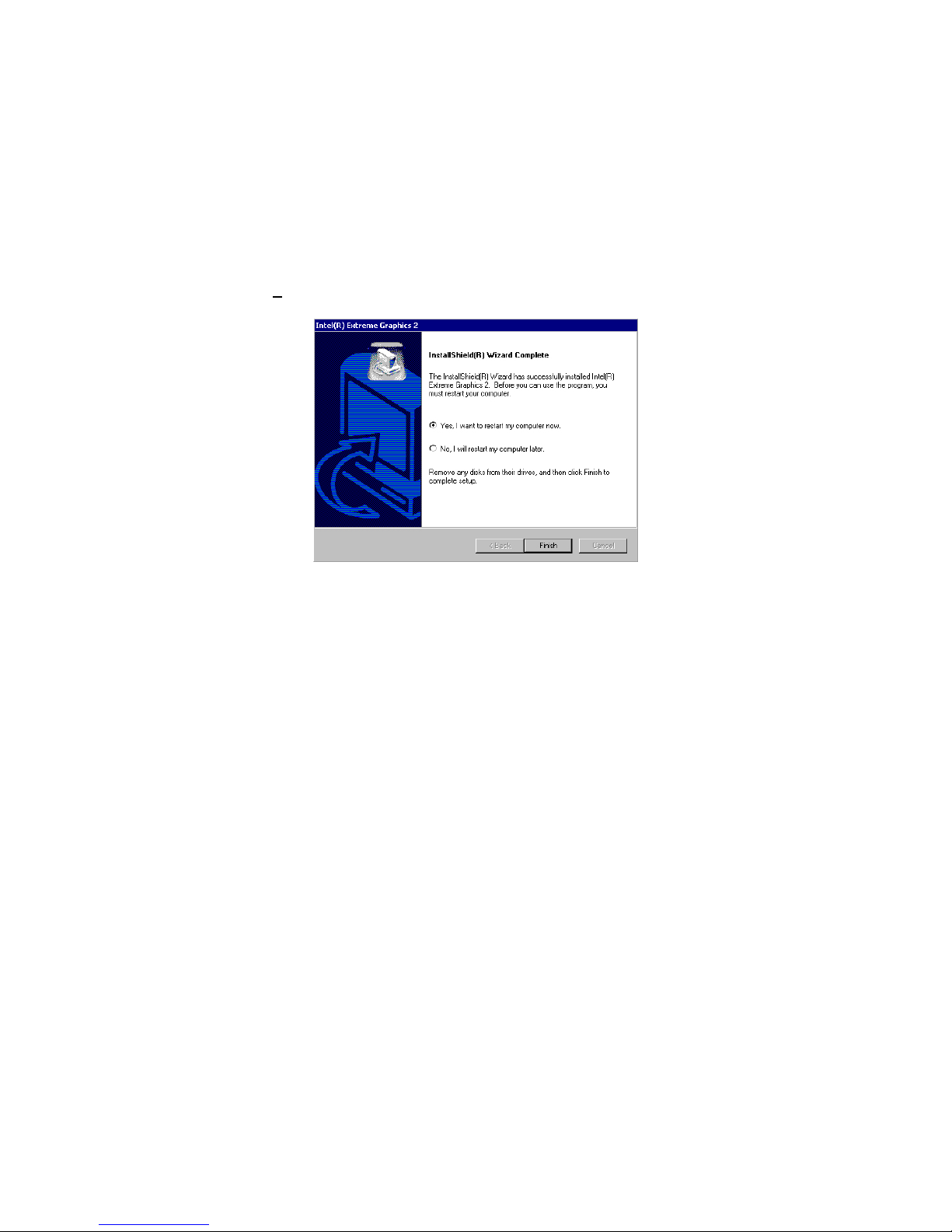

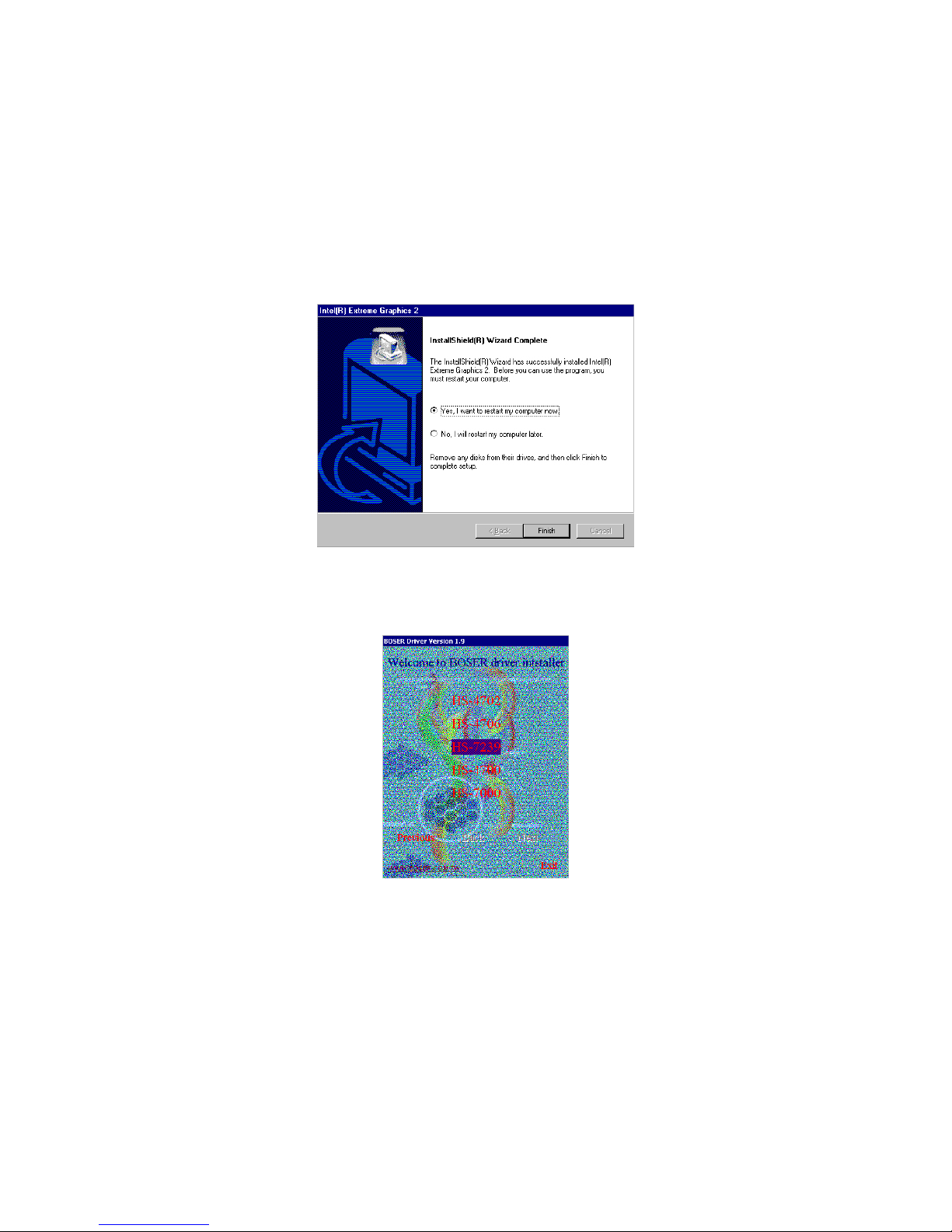

5.2 VGA Driver Installation ....................................................... 41

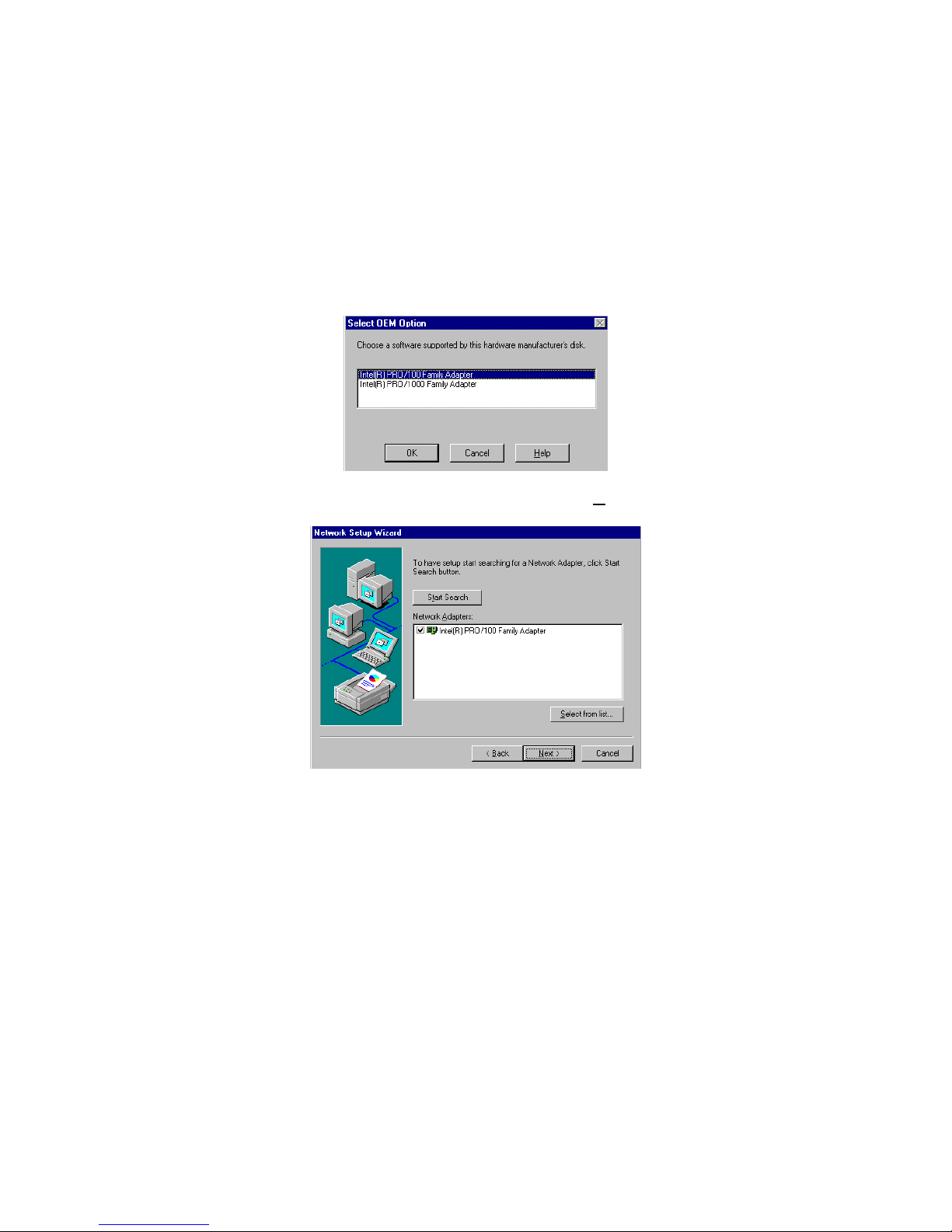

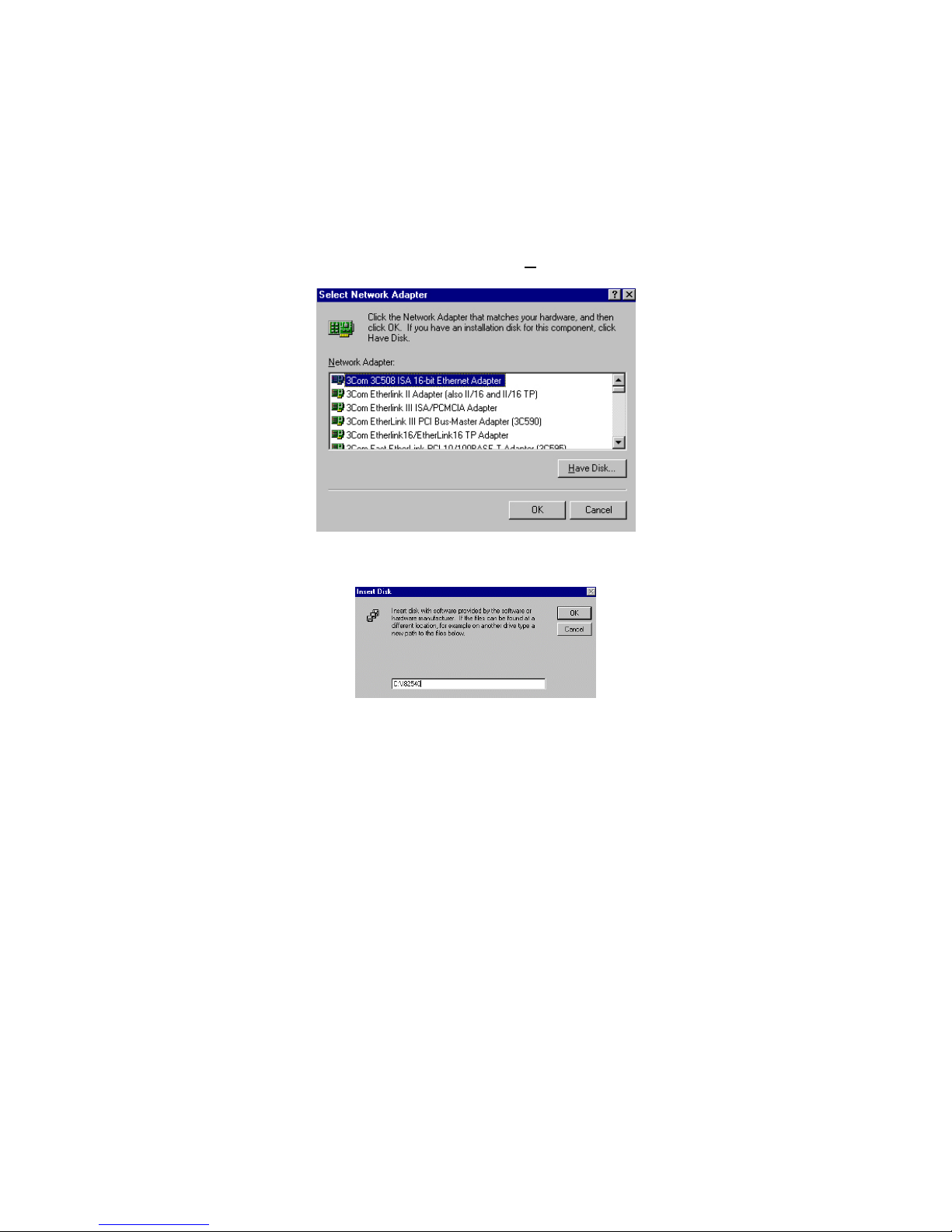

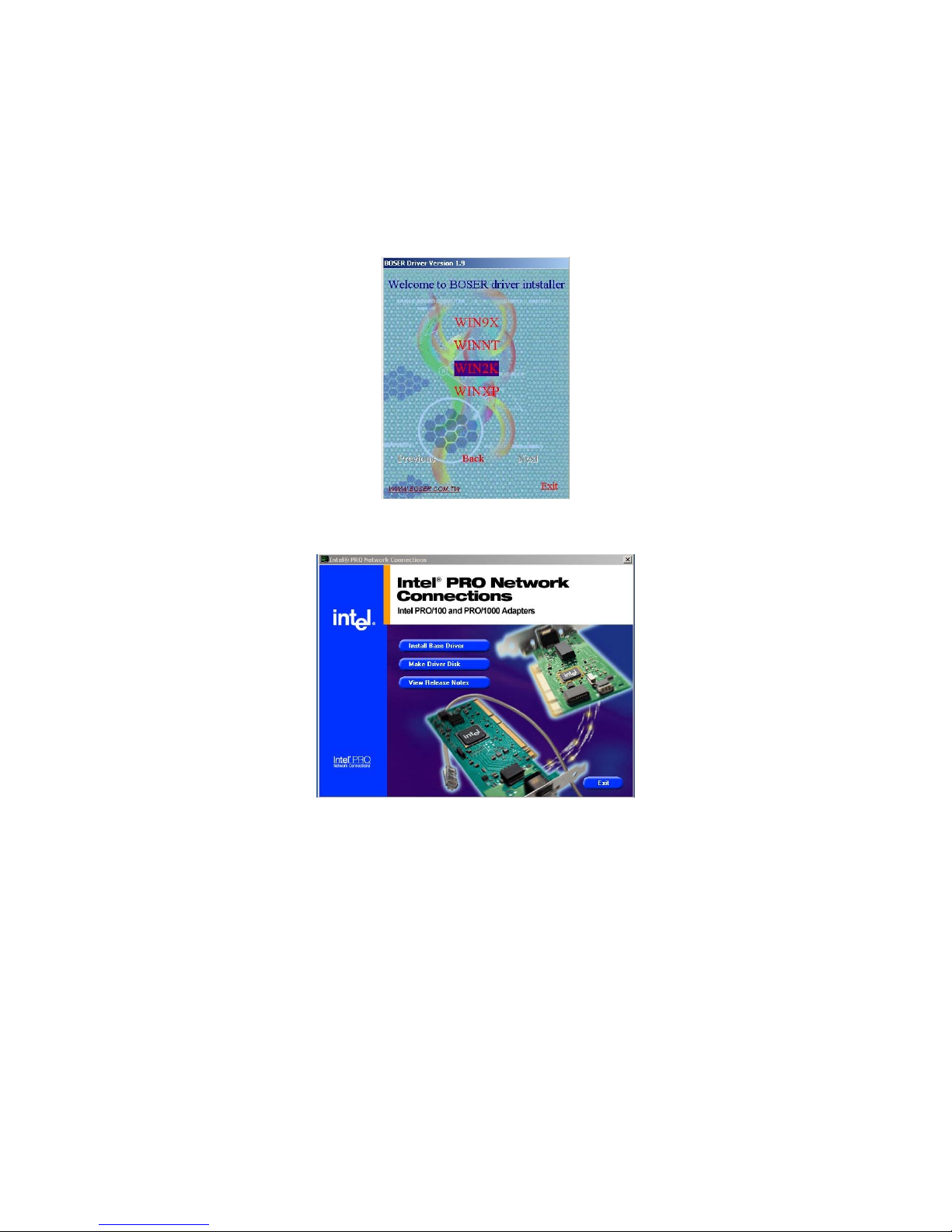

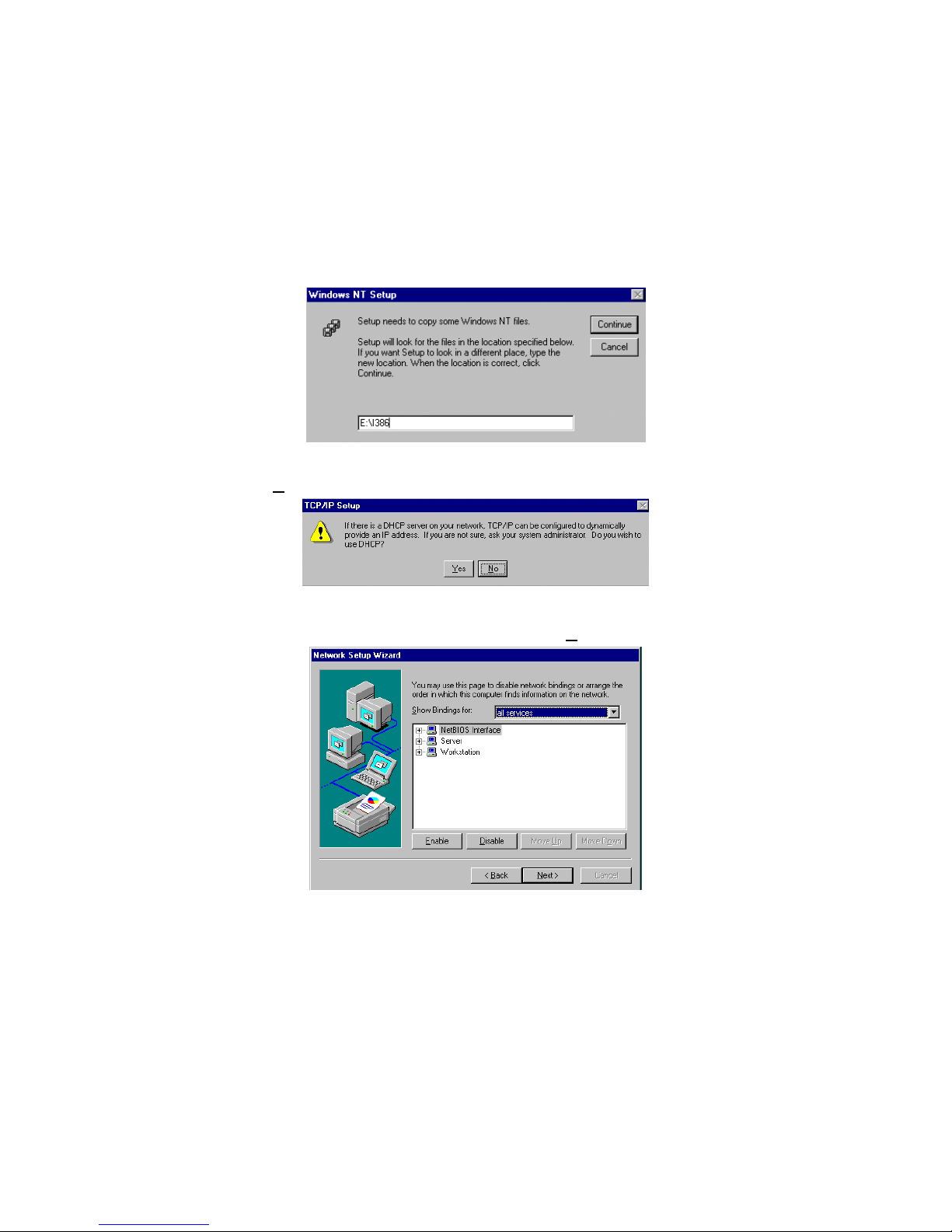

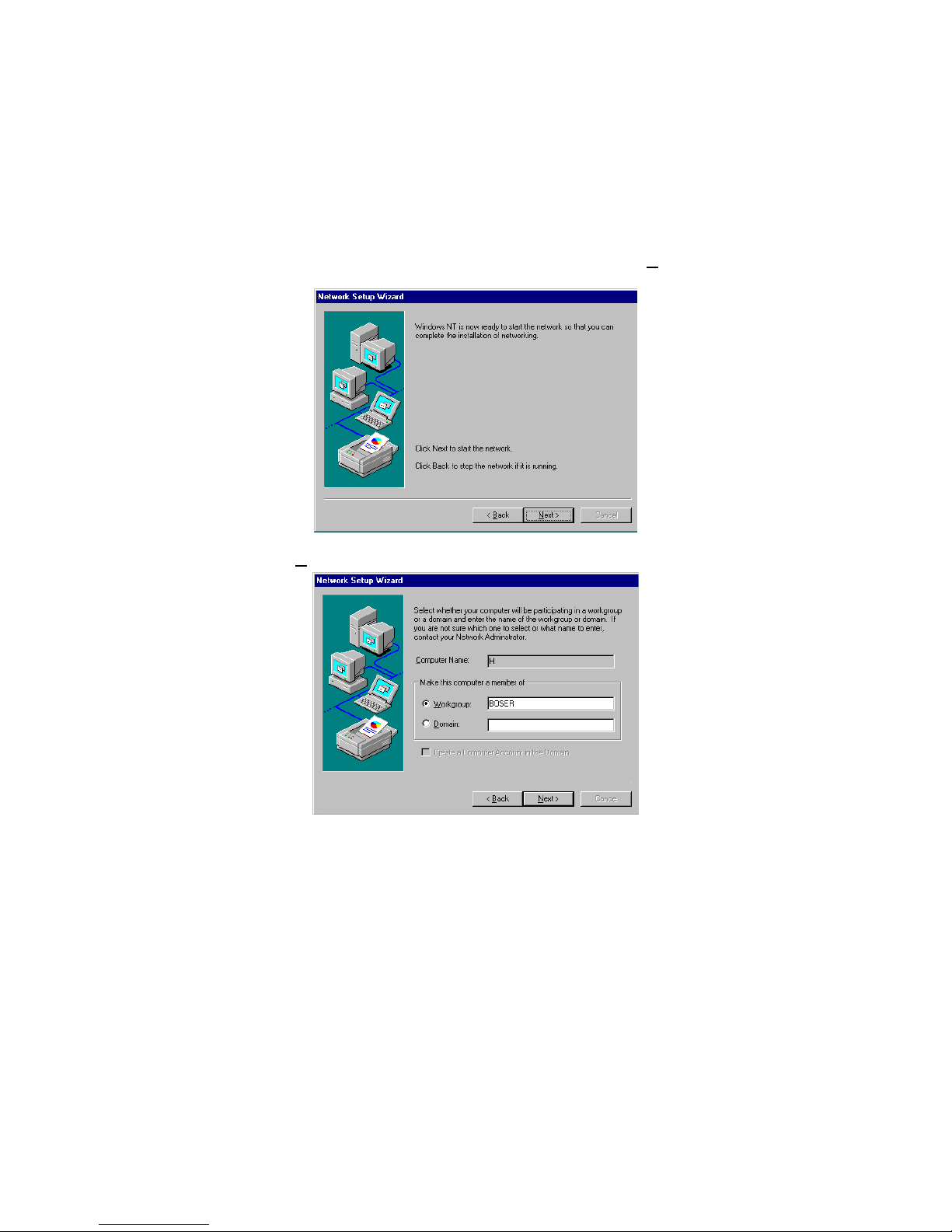

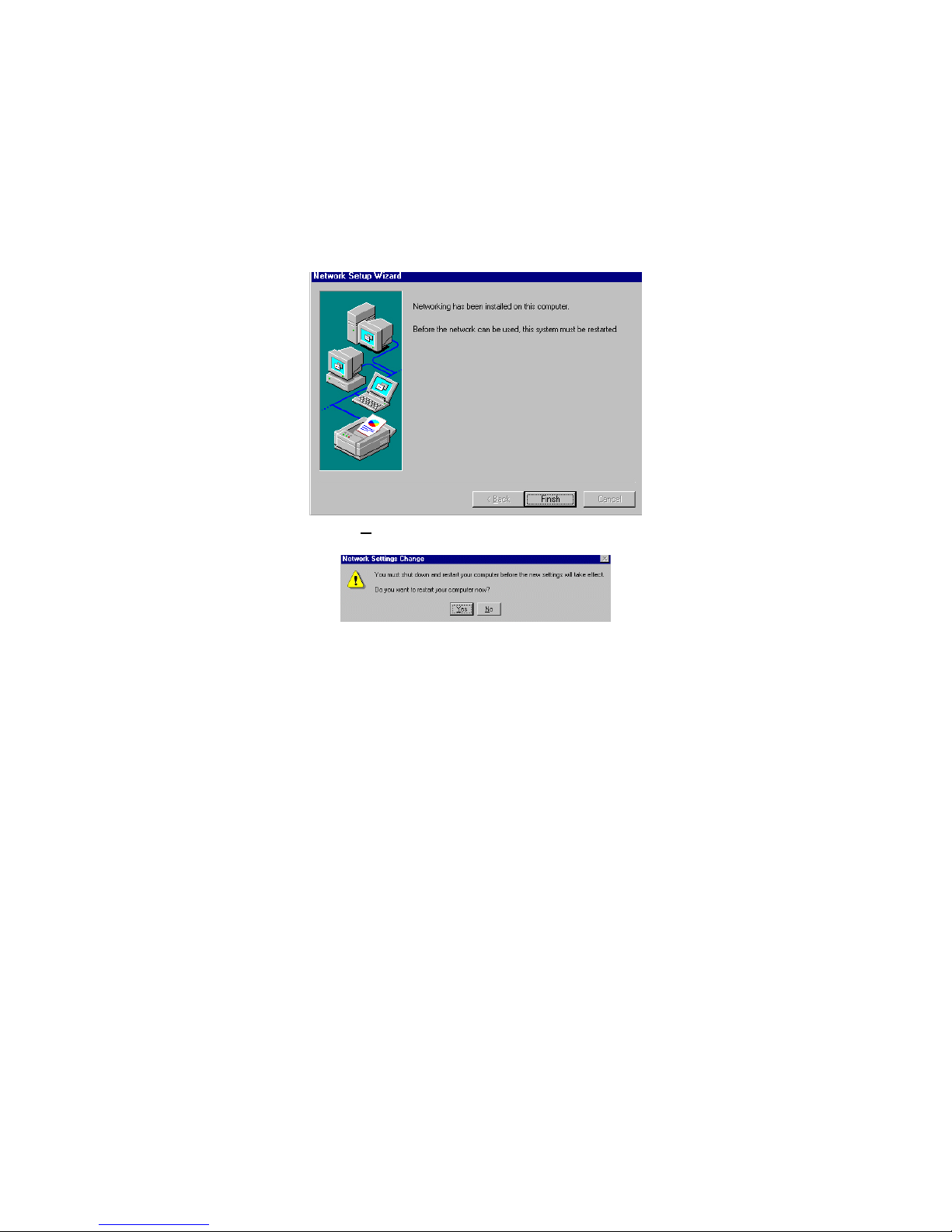

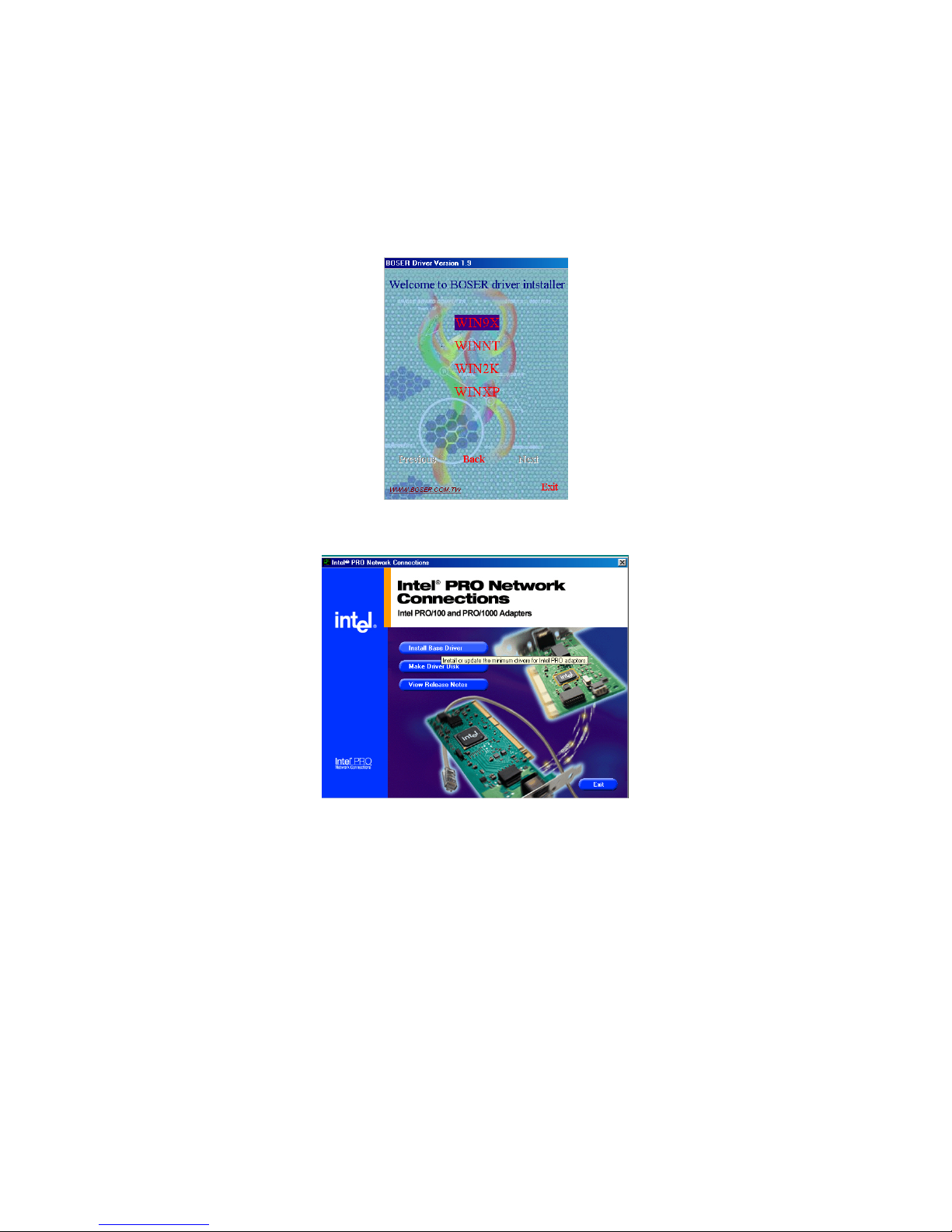

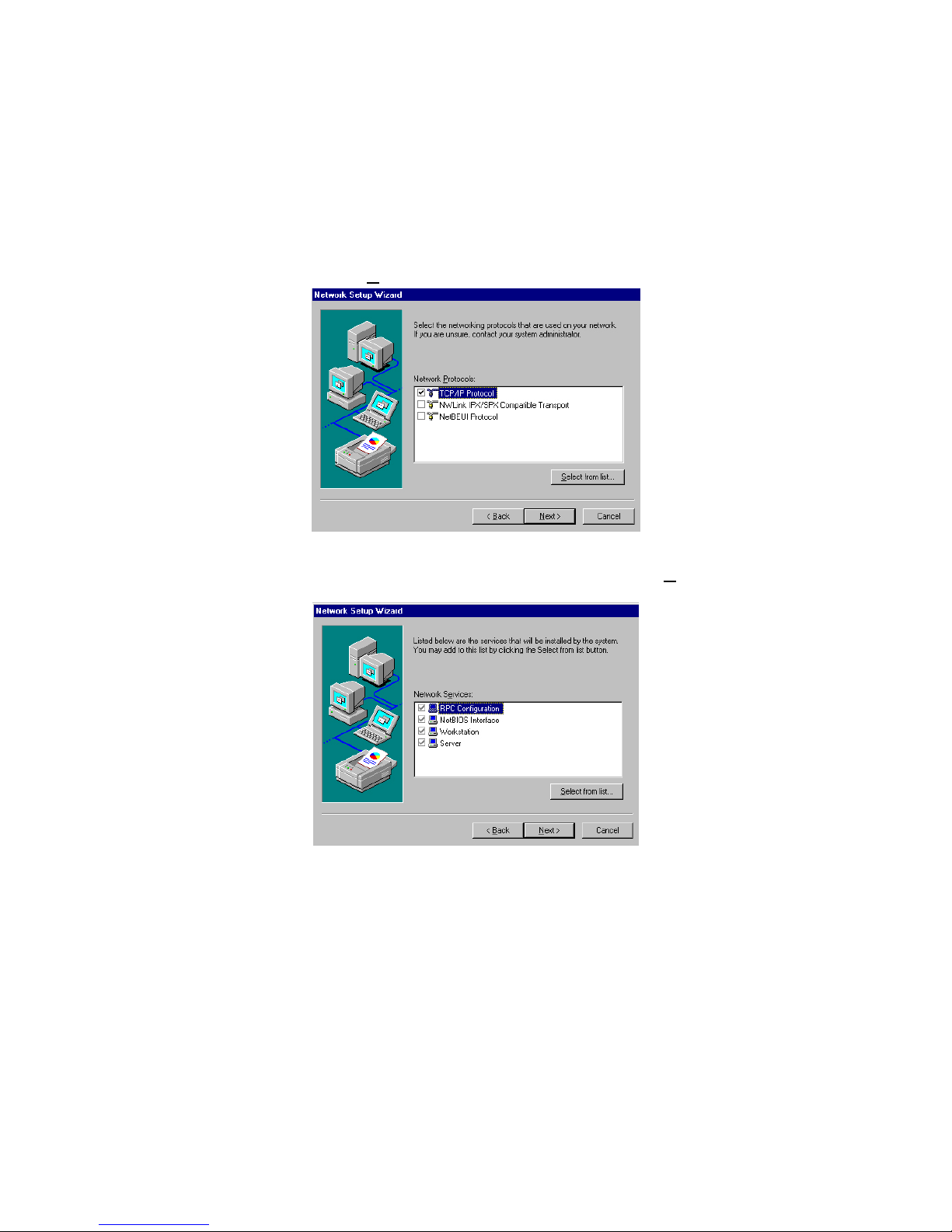

5.3 LAN Driver Installation........................................................ 50

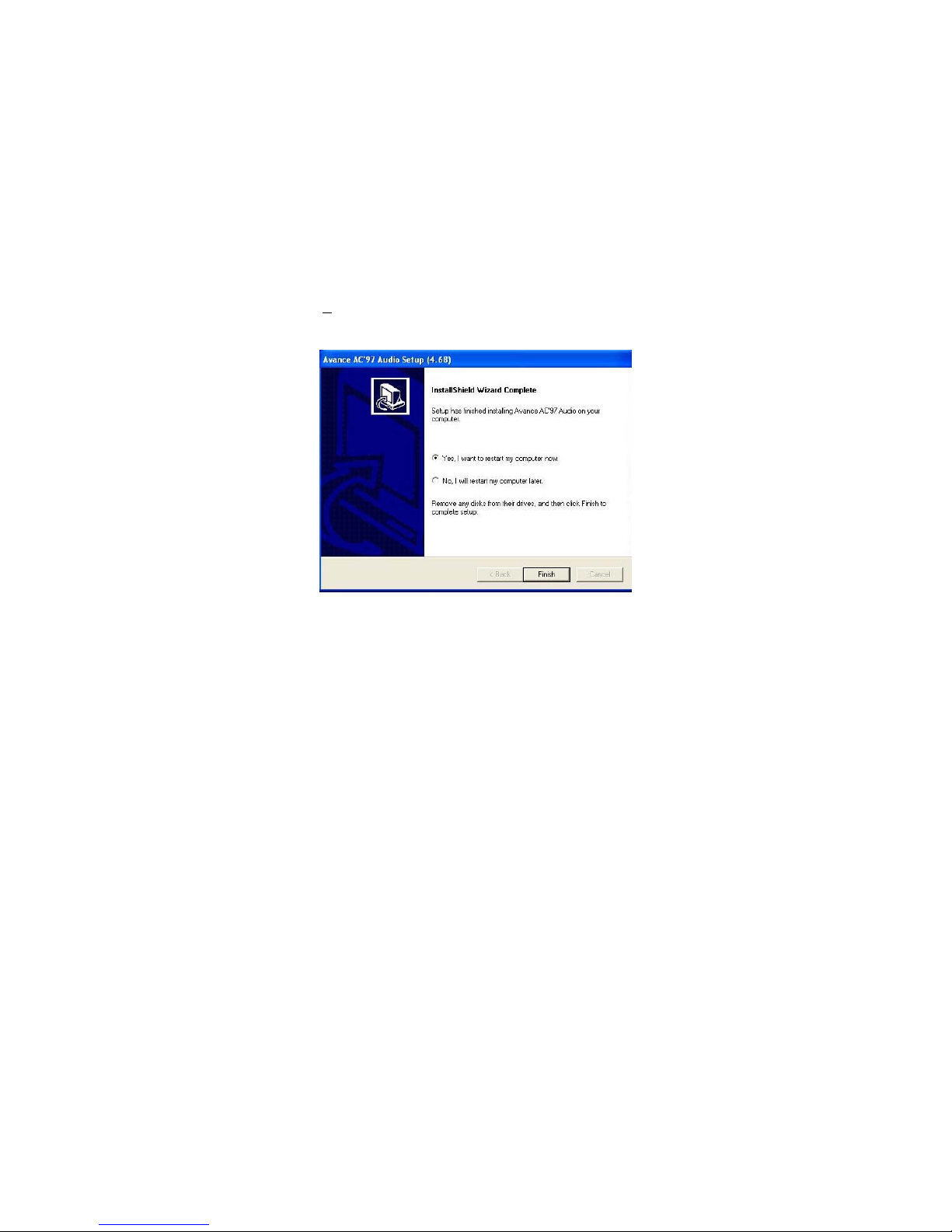

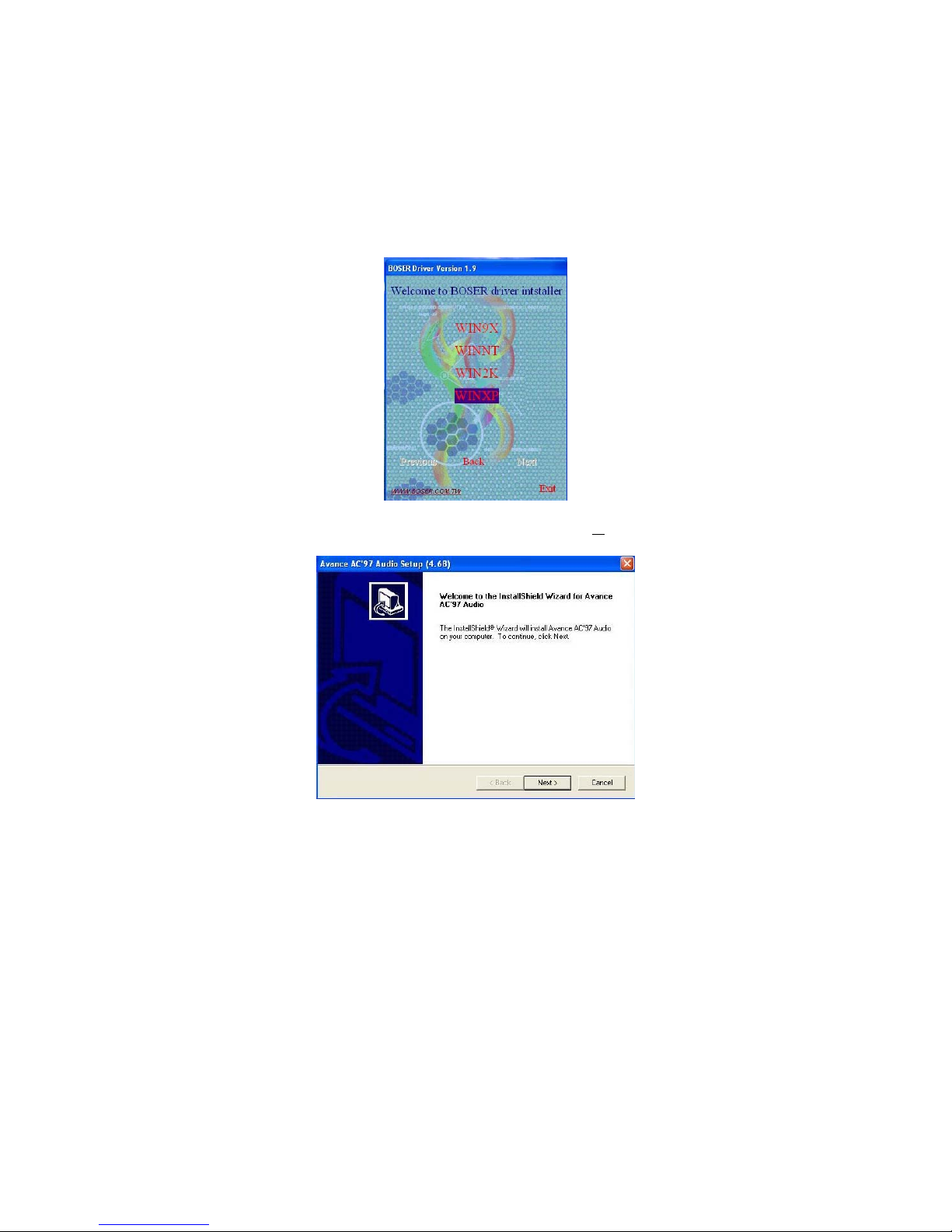

5.4 Audio Driver Installation..................................................... 63

5.5 USB2.0 Driver Installation .................................................. 66

Declaration of Conformity -- CE Mark

BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:

Equipment Class: Information Technology Equipment
Product Model Series: HS-2610, HS-2610M
This Product Complies With: EN55022: Class A for Radiated emissions

EN50082-2: Heavy Industrial EMC Immunity

We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.

Manufacturer:

BOSER TECHNOLOGY CO., LTD.

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:



Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of

the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.

 Wear a wrist-grounding strap, available from most electronic component

stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the product to ensure
harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or parts or

tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.

NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

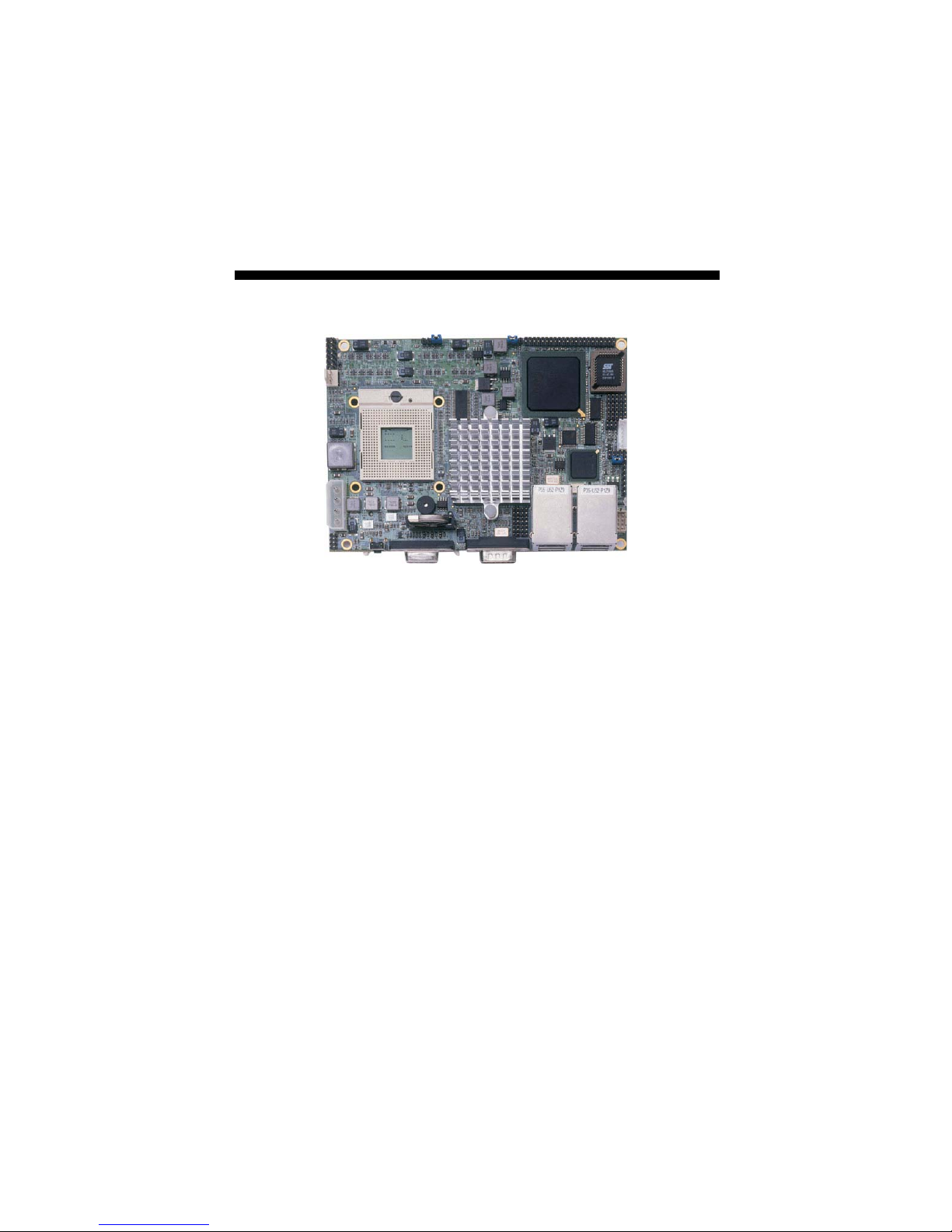

Chapter 1

General Description

The HS-2610 is an Intel® 852GME GMCH and HS-2610M is an Intel®
852GM GMCH chipset-based board designed. The HS-2610/
HS-2610M is ideal all-in-one embedded engine board. Additional
features include an enhanced I/O with CF, CRT/LVDS, dual LAN,
audio, 4 COM, and USB2.0 interfaces.

Its onboard ATA/33 to IDE drive interface architecture allows the
HS-2610/HS-2610M to support data transfers of 33, 66 or 100MB/sec.
to one IDE drive connection. The HS-2610 supports Intel® Pentium®
M/Celeron® M processor, and HS-2610M supports ULV Intel®
Celeron® M processor 600MHz/512K.

The Intel® 852GM with 8MB shared main memory supporting CRT
display up to 1600 x 1200. It also supports 18-bit single channel/36-bit
dual channel LVDS interface.

System memory is also sufficient with the one SO-DDR socket that can
support up to 1GB.

Additional onboard connectors include an advanced USB2.0 port
providing faster data transmission. And two external RJ-45 connectors
for 10/100 Based Ethernet use.

1

To ensure the reliability in an unmanned or standalone system

, the

watchdog timer (WDT) onboard HS-2610/HS-2610M is designed with
software that does not need the arithmetical functions of a real-time
clock chip. If any program causes unexpected halts to the system, the
onboard WDT will automatically reset the CPU or generate an interrupt
to resolve such condition.

1.1 Major Features

The HS-2610/HS-2610M comes with the following features:

 Intel® Pentium® M/Celeron® M processor 1.3~2.0GHz (HS-2610)

ULV Intel® Celeron® M processor 600MHz/512K (HS-2610M)

 Supports 533MHz FSB (only HS-2610)
 One SO-DDR socket with a max. capacity of 1GB
 Intel® 852GME GMCH/ICH4 system chipset (HS-2610)

Intel® 852GM GMCH/ICH4 system chipset (HS-2610M)

 Winbond W83627HF super I/O chipset
 Intel® 82852GME graphics controller (HS-2610)

Intel® 82852GM graphics controller (HS-2610M)

 18-bit/36-bit LVDS Panel display interface
 Intel® 82551QM and 82562ET fast Ethernet controller
 AC97 3D audio controller
 Fast PCI ATA/33/66/100 IDE controller
 CF card adapter, 4 COM, 6 USB2.0
 Single +5V power in
 Hardware Monitor function

2

1.2 Specifications

 CPU:

HS-2610 provides
Intel® Pentium® M processor 760 2.0GHz
Intel® Pentium® M processor 745 1.8GHz
Intel® Celeron® M processor 370 1.5GHz
Intel® Celeron® M processor 320 1.3GHz
HS-2610M provides ULV Intel® Celeron® M processor 600MHz/512K

 Front Side Bus:

HS-2610 supports 400/533MHz FSB
HS-2610M supports 400MHz FSB

 Memory: One SO-DDR socket supporting up to 1GB
 Chipset:

Intel® 852GME GMCH/ICH4 (HS-2610)
Intel® 852GM GMCH/ICH4 (HS-2610M)

 I/O Chipset: Winbond W83627HF
 CompactFlash: One, Type I/II IDE interface adapter
 PCI Slot: One, Type III mini PCI slot
 VGA: Intel® 82852GME (HS-2610)/Intel® 82852GM (HS-2610M) for

CRT display with 8MB shared main memory supporting up to 1600 x
1200

 LVDS Panel: Supports 18-bit single channel/36-bit dual channel LVDS

interface

 Ethernet: Intel® 82551QM and 82562ET 10/100 Based LAN
 Audio: AC97 3D audio controller
 IDE: One 2.0-pitch 44-pin IDE connector
 Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232

x 3 serial ports with 16-byte FIFO

 USB: 6 USB2.0 ports, internal x 2 and external x 4
 Keyboard/Mouse: 6-pin connector
 BIOS: AMI PnP Flash BIOS
 Watchdog Timer: Software programmable time-out intervals from

1~256 sec.

 CMOS: Battery backup
 Power In: Single +5V power in
 Hardware Monitor: Winbond W83627HF
 Board Size: 14.5(L) x 10.2(W) cm

3

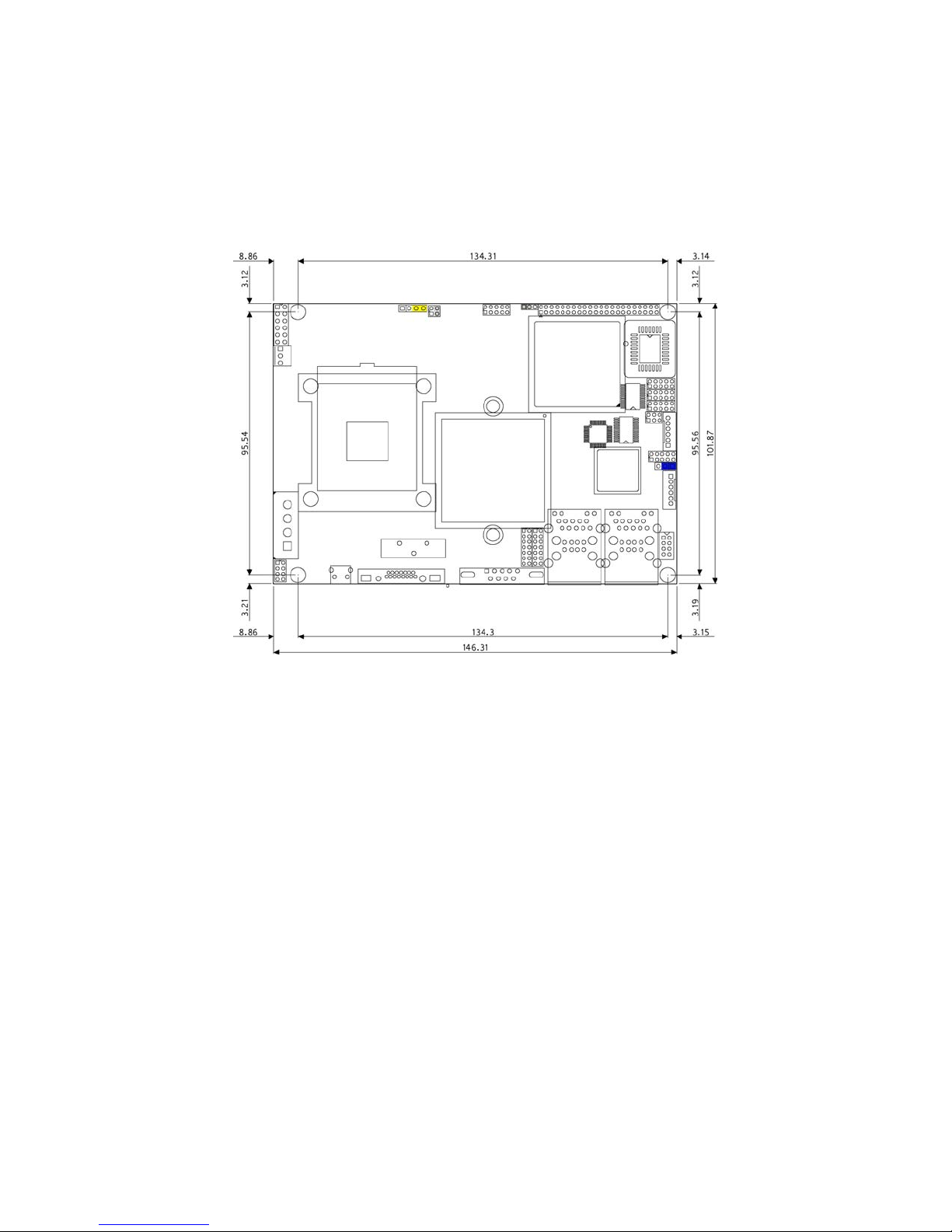

1.3 Board Dimensions

4

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-2610/HS-2610M is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-2610/HS-2610M delivery
package contains the following items:

 HS-2610 or HS-2610M Board x 1
 Utility CD Disk x 1
 Cables Package x 1
 Jumper Bag x 1
 User’s Manual

5

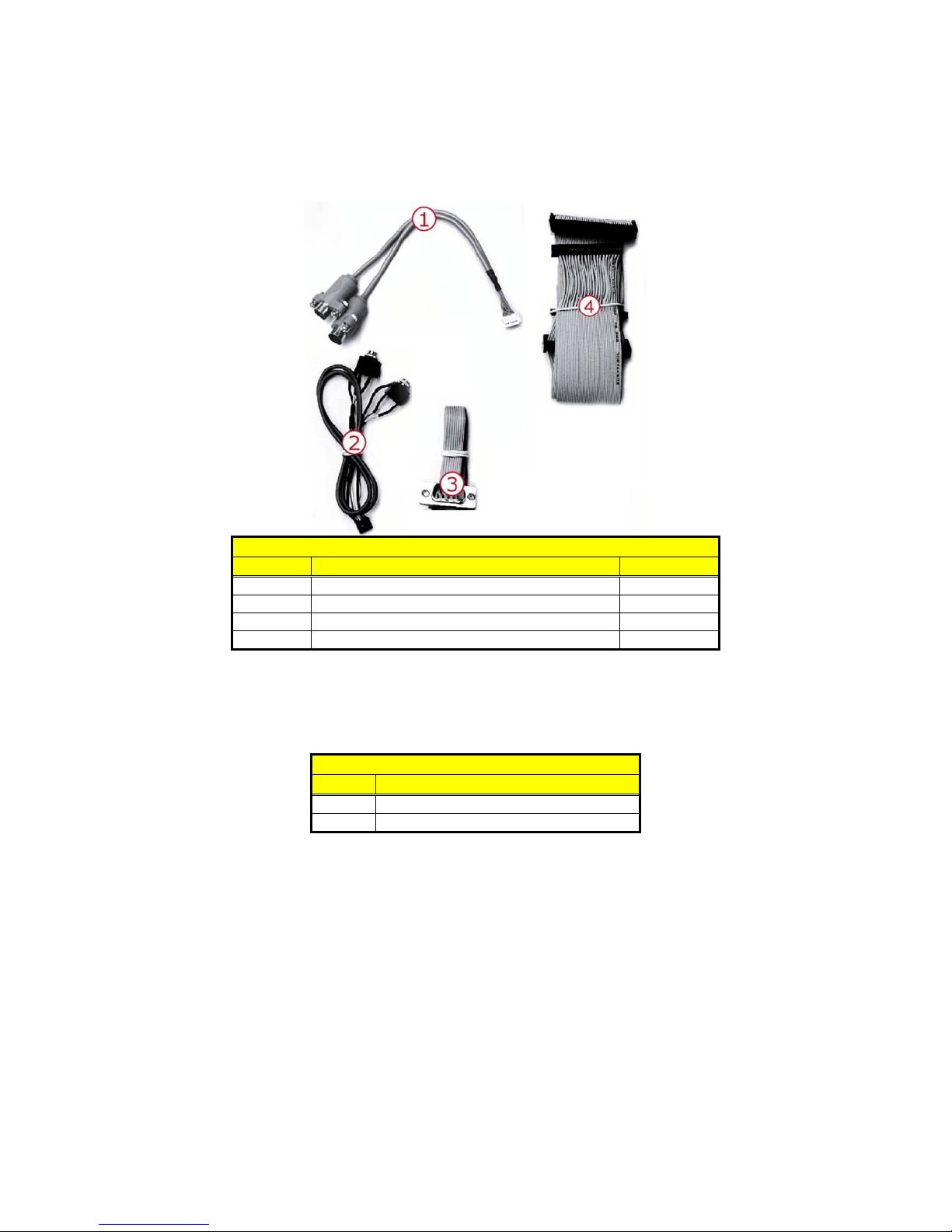

Cables Package

NO. Description QTY.

1 6P(JST2.0) Mini DIN * 2 1
2 SPK 8P(2.0)-Phone Jack * 2 1
3 COM DB9-10P (2.0-pitch) 1
4 40-pin to 44-pin IDE flat cable 1

It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

Option Accessories

NO. Description

1 1-to-2 USB cable with bracket
2 COM DB9-10P (2.0-pitch)

6

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware
using the HS-2610/HS-2610M. This chapter also contains information
related to jumper settings of switch, and watchdog timer selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (set JP2 1-2)

2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future
reference and use.

7

3.2 Board Layout

Top Side

Solder Side

8

3.3 Jumper List

Jumper

JP2 Clear CMOS: Normal Operation Short 1-2 16
JP6 Short 3-4

CN19

JP7

JP8

System Frequency Select: 400MHz

Onboard LAN 2 Enabled/Disabled Select:
Enabled
COM4 Use RS-232 or RS-422/485 Select:
RS-232

Default Setting Setting Page

Short 3-4

Short 1-2 14

Open 13

10

3.4 Connector List

Connector Definition Page

CN1 MIC In/Line Out Connector 19
CN2 External Reset Button ----
CN3 15-pin CRT Connector 10

CN4 COM 1 (DB9) 13
CN5/CN6 LVDS Panel Connector 10
CN7/CN9 RJ-45 & Dual USB2.0 Port 14/15

CN8 IDE Connector 12

CN11/CN12/CN13 COM 2~COM 4 Connector (5x2 header) 13

CN14 Internal USB2.0 Port 15
CN15 6-pin KB/MS Connector 17
CN16 SO-DDR Socket 10
CN17 CompactFlash Connector 19
CN18 RS-422/485 Connector 13

FN1 Fan Power In Connector 16

PW1 4-pin Power In Connector 16

JP1 System Front Panel Control 17
JP5 Inverter Power In Connector 10
JP9 8-bit I/O Connector 20

PC1 Mini PCI Slot 20

9

3.5 Configuring the CPU

The HS-2610 provides Intel® Pentium® M processor 760 2.0GHz,
Pentium® M processor 745 1.8GHz, Celeron® M processor 370

1.5GHz, and Celeron® M processor 1.3GHz. The HS-2610M
embedded with ULV Intel® Celeron® M processor 600MHz/512K. If
you want to use 533MHz FSB processor, please set JP6/CN19, and
JP6/CN19 is only for HS-2610.

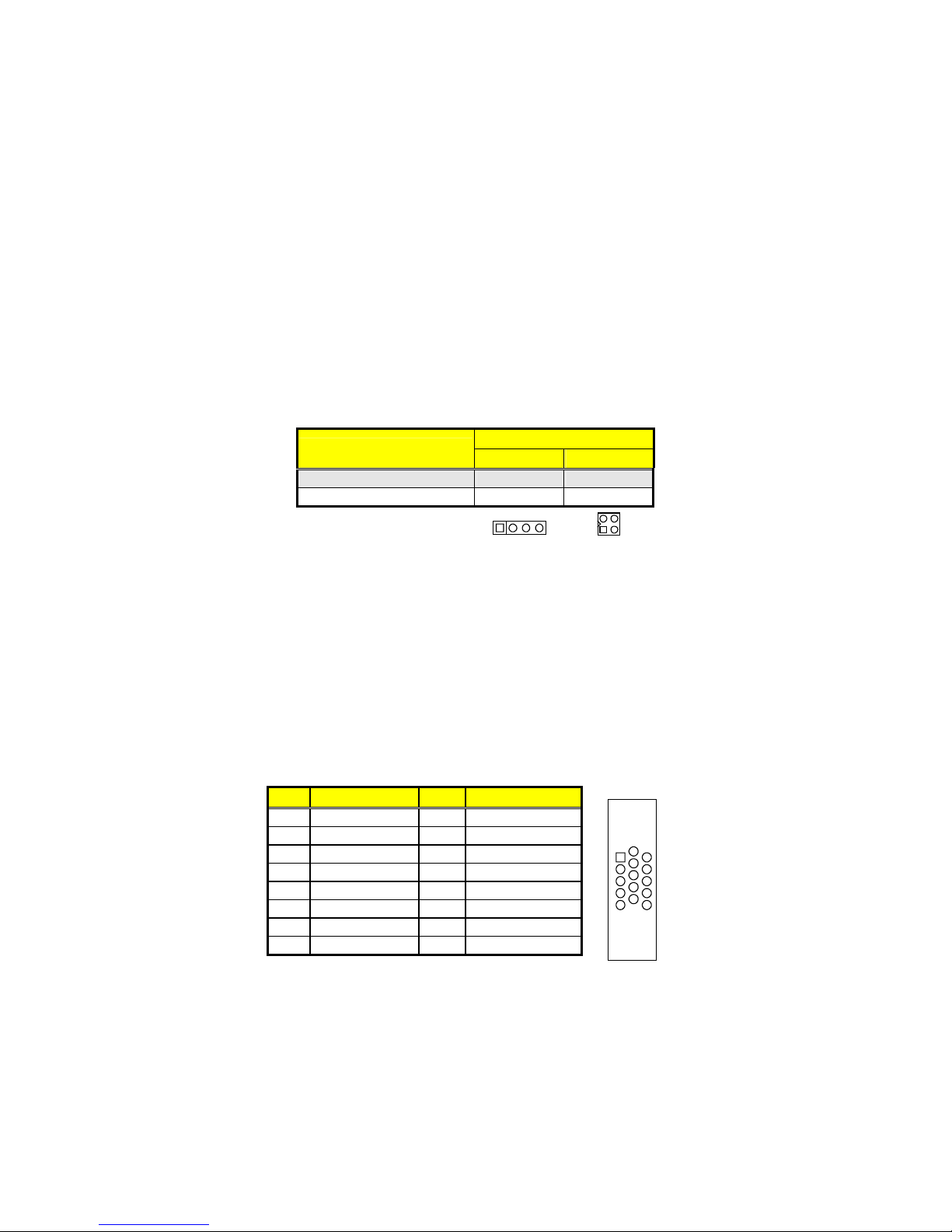

 JP6/CN19: System Frequency Select

Options

400MHz FSB (default) Short 3-4 Short 3-4

533MHz FSB Open Open

Settings

JP6 CN19

24

13

14

3.6 System Memory

The HS-2610/HS-2610M provides one SO-DDR socket at locations
CN16. The maximum capacity of the onboard memory is 1GB.

3.7 VGA Controller

The HS-2610/HS-2610M provides two connection methods of a VGA
device. CN3 offers a single standard CRT connector and CN5/CN6 are
the LVDS interface connectors onboard reserved for flat panel
installation.

 CN3: CRT Connector

PIN Description PIN Description

1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND

9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL

10

11

6

1

10

5

15

 CN5/CN6: LVDS Interface Connector

6

PIN Description PIN Description

1 V
3 GND 4 GND
5 A0-/A4- 6 A0+/A4+
7 A1-/A5- 8 A1+/A5+

9 A2-/A6- 10 A2+/A6+
11 CLK1-/CLK2- 12 CLK1+/CLK2+
13 N/C 14 N/C

2 V

LCD

LCD

12

13 14

NOTE: LVDS cable should be produced very carefully. A0- & A0+ have to

be fabricated in twister pair (A1- & A1+, A2- & A2+ and so on)
otherwise the signal won’t be stable.

NOTE: If use CN5 only, it just supports 18-bit single channel LVDS panel;

If you want to use 36-bit dual channel LVDS panel, please use CN5
and CN6 combined.

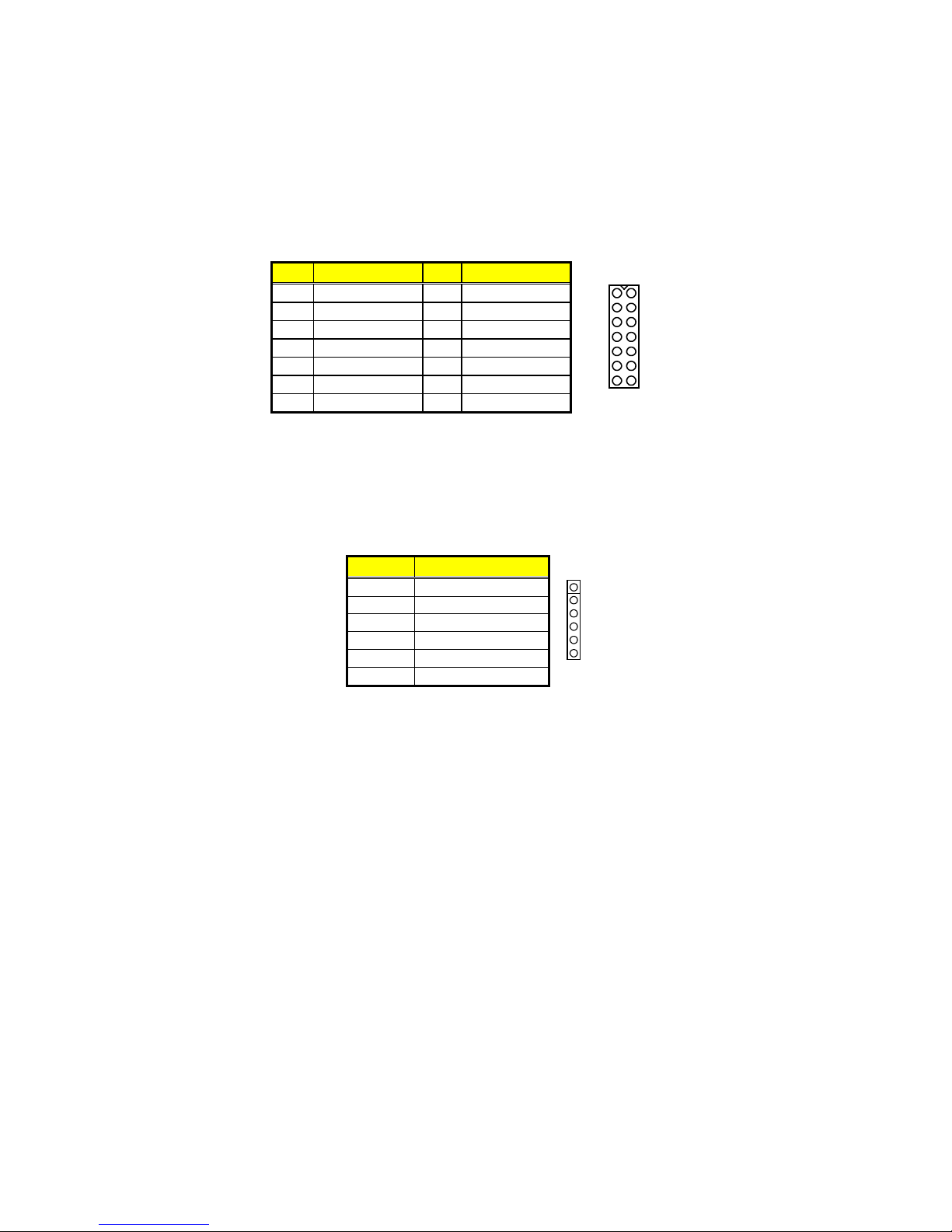

 JP5: Inverter Power In Connector

PIN Description

1 +12V
2 +12V
3 VCC5
4 BK_EN
5 LCD_EN
6 GND

1

11

3.8 PCI E-IDE Drive Connector

CN8 is a standard 44-pin 2.0-pitch connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the HS-2610/
HS-2610M. A maximum of two ATA/33 IDE drives can be connected to
the HS-2610/HS-2610M via CN8.

 CN8: IDE Connector

PIN Description PIN Description

1 Reset 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 PDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 Interrupt 32 N/C
33 RPDA1- 34 PATA66
35 RPDA0- 36 RPDA2-
37 RPCS1- 38 RPCS3-
39 HDD Active 40 GND
41 VCC 42 VCC
43 GND 44 N/C

43
44

1

2

12

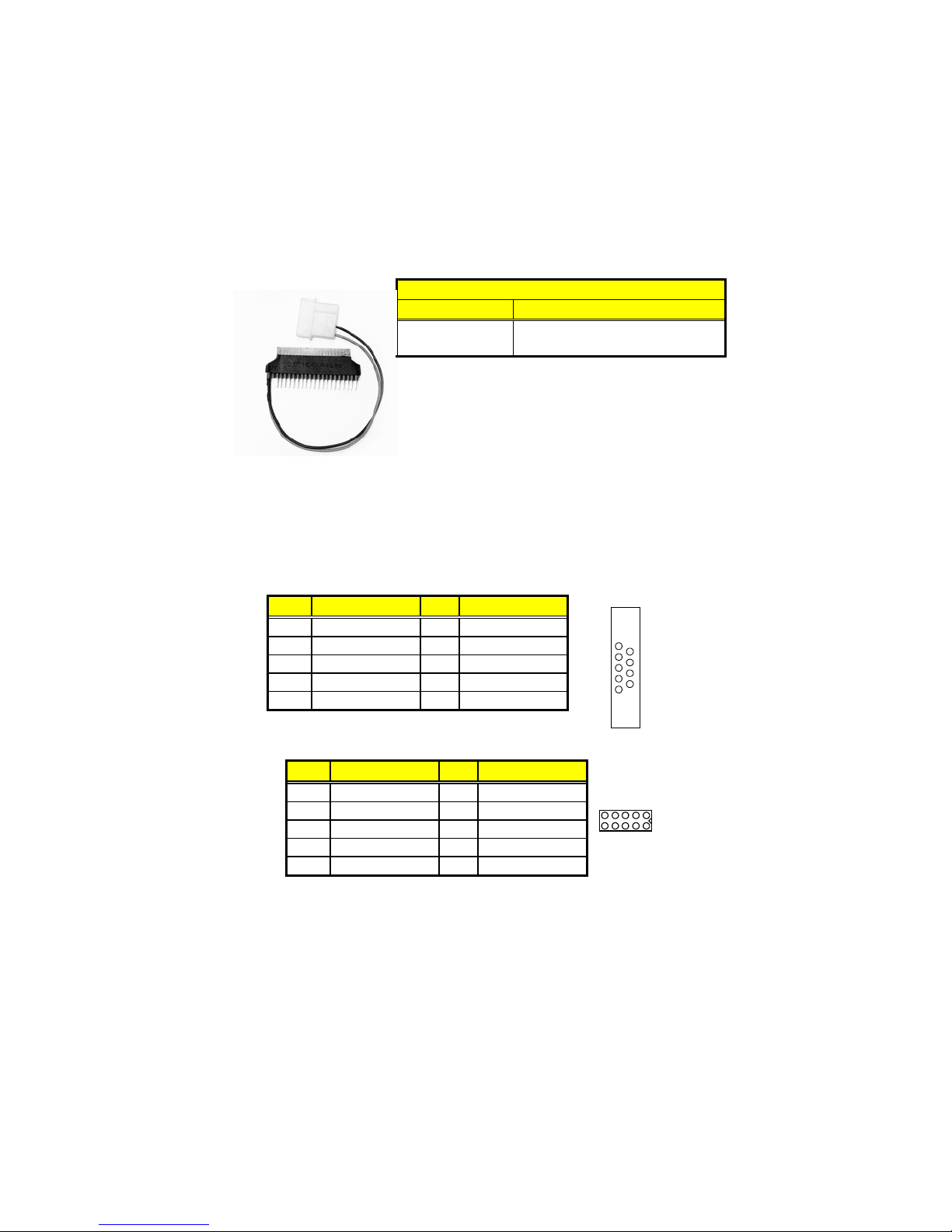

If you want to use ATA/66/100 IDE device, please purchase this cable
separately.

Optional Cable

Part No. Description

291-04010200G ATA/66/100 IDE cable for

2.0-pitch IDE connector

3.9 Serial Port Connectors

The HS-2610/HS-2610M offers NS16C550 compatible UARTs
with Read/ Receive 16-byte FIFO serial ports and internal 10-pin
headers and RS-422/485 connector.

 CN4: COM 1 Connector (DB9)

PIN Description PIN Description

1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND

 CN11/CN12/CN13: COM 2~COM 4 Connector (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 N/C

5

9

6

1

10 2

19

13

 CN18: RS-422/485 Connector (3x2 Header, COM4)

PIN Description PIN Description

1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 VCC

NOTE: The terminal resistance of RX & TX is set at 180Ω.

15

62

 JP8: COM 4 use RS-232 or RS-422/485 Select

Options Settings

RS-232 (default) Open

RS-485 by Auto (*1) Short 1-2, 3-4, 5-7, 8-10

RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10

RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8

NOTE: *1: 2-wires RS-485 function

*2: 4-wires point-to-point full duplex function

10 2

19

14

4-wires point-to-point full duplex RS-422/485

Typical RS-485 2-wires Mutildrop Network

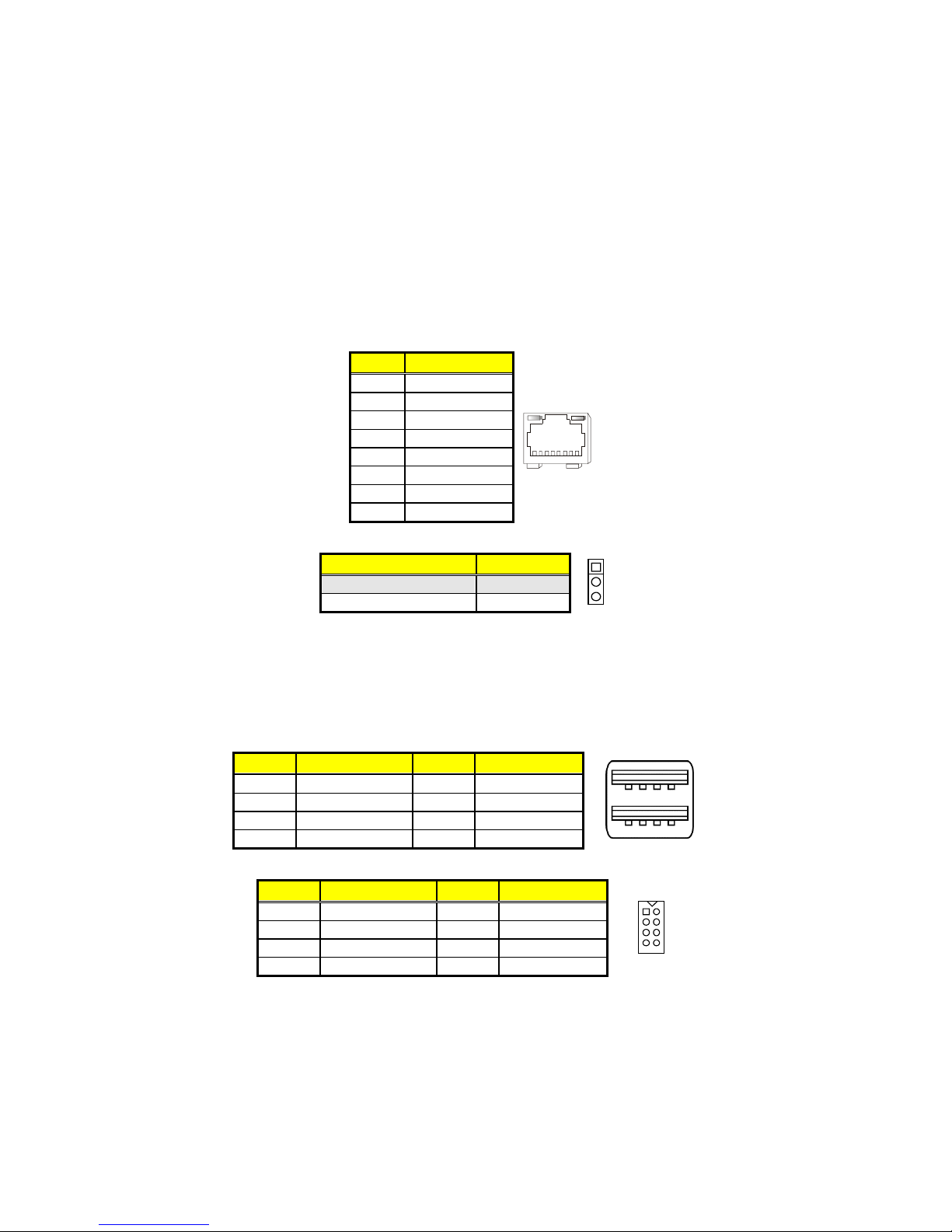

3.10 Ethernet Connector

2

The HS-2610/HS-2610M provides two external RJ-45 interface
connectors. Please refer to the following for its pin information.

 CN7A/CN9A: RJ-45 Connector

PIN Description

1 TX+
2 TX-
3 RX+
4 R/C GND
5 R/C GND
6 RX-
7 R/C GND
8 R/C GND

1

8

 JP7: Onboard LAN 2 Enabled/Disabled Select

Options Settings

Enabled (default) Short 1-2

Disabled Short 2-3

1

3

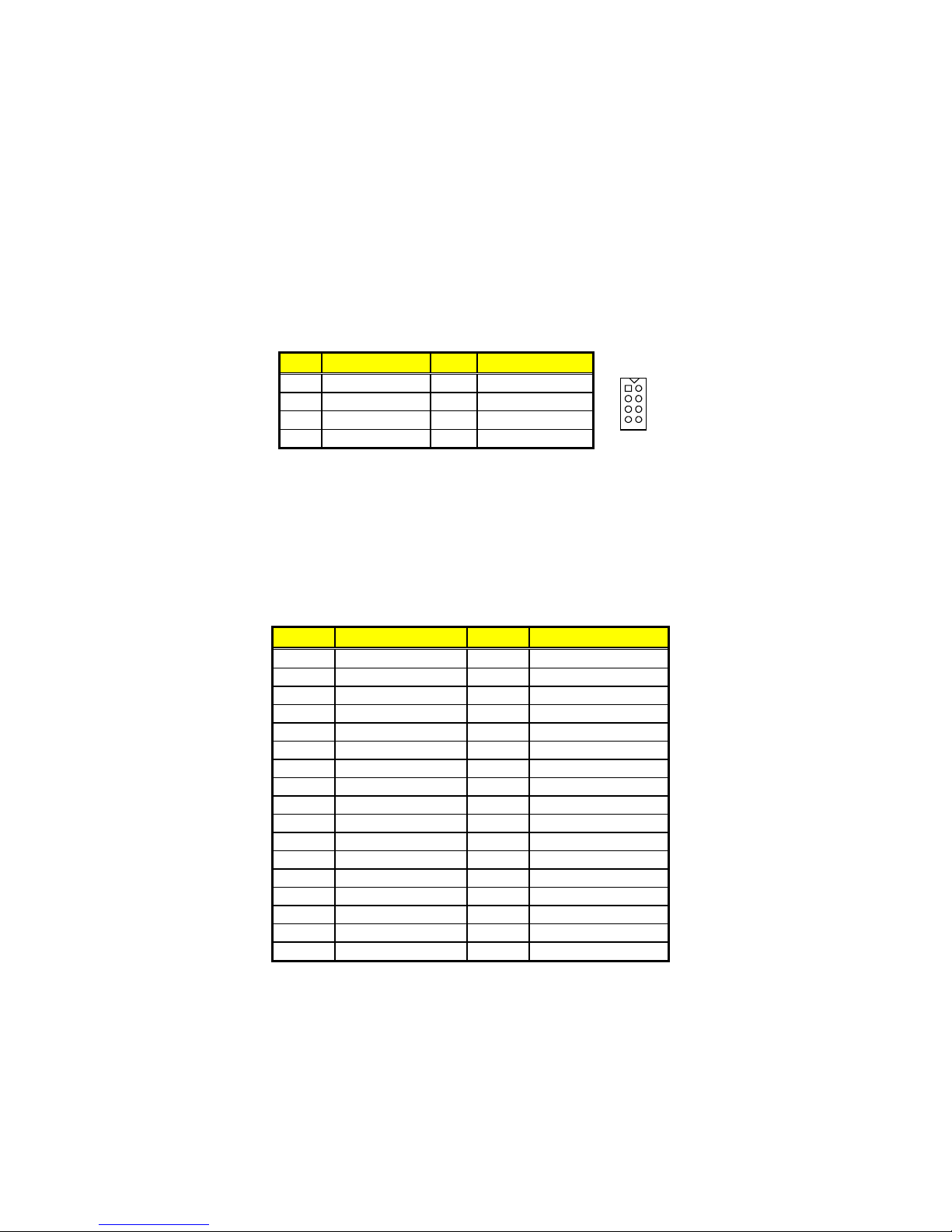

3.11 USB Connector

The HS-2610/HS-2610M provides one 8-pin connectors, at location

CN14, for two USB ports, and four external USB2.0 ports at
CN7B/CN9B.

 CN7B/CN9B: External USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC
3 USBD0-/USB2- 4 USBD1-/USB3-
5 USBD0+/USB2+ 6 USBD1+/USB3+
7 GND 8 GND

 CN14: Internal USB2.0 Connector

PIN Description PIN Description

1 VCC 2 VCC
3 USBD4- 4 USBD5-
5 USBD4+ 6 USBD5+
7 GND 8 GND

1

78

15

3.12 CMOS Data Clear

The HS-2610/HS-2610M has a Clear CMOS jumper on JP2.

 JP2: Clear CMOS

Options Settings

Normal Operation (default) Short 1-2

Clear CMOS Short 2-3

IMPORTANT: Before you turn on the power of your system, please

set JP2 to Short 1-2 for normal operation.

1

3

3.13 Power and Fan Connectors

HS-2610/HS-2610M provides one 4-pin power in at PW1.

 PW1: 4-pin Power In Connector

PIN Description

1 VCC
2 GND
3 GND
4 +12V

 FN1: Fan Power In Connector

PIN Description

1 GND
2 +5V
3 N/C

4

1

13

Connector FN1 onboard HS-2610/HS-2610M is a 3-pin fan power
output connector. And HS-2610/HS-2610M supports +5V Fan only.

16

3.14 Keyboard/Mouse Connectors

The HS-2610/HS-2610M offers CN15 for an internal 6-pin cable
converter to keyboard/mouse.

 CN15: 6-pin Keyboard/Mouse Connector

PIN Description

1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock

6

1

3.15 System Front Panel Control

The HS-2610/HS-2610M has system front panel control at location
JP1.

 JP1: System Front Panel Control

PIN Description PIN Description

1 220Ω pull VCC 2 Speaker
3 HDD LED 4 N/C
5 N/C 6 GND
7 N/C 8 220Ω pull VCC
9 Reset Switch 10 220Ω pull VCC

11 GND 12 GND

Connector JP1 Orientation

HDD LED

Reset

Button

1

3

5

7

9

11

10

12

2

4

6

8

Speaker

PWR LED

17

3.16 Watchdog Timer

Once the Enable cycle is active a Refresh cycle is requested before the
time-out period. This restarts counting of the WDT period. When the
time counting goes over the period preset of WDT, it will assume that
the program operation is abnormal. A system reset signal will restart
when such error happens.

The following sample programs show how to enable, disable and
refresh the watchdog timer:

User can also use AL, 00H’s defined time for reset purposes, e.g.00H
for Disable, 01H = 1sec, 02H=2sec….FFH=255sec.

;---------------------------------------------------------------­;Enter the WDT function mode, interruptible double-write
;---------------------------------------------------------------­ MOV DX, 2EH
MOV AL, 87H
OUT DX, AL
OUT DX, AL
MOV DX, 2EH
MOV AL, 07H
OUT DX, AL
MOV DX, 2FH
MOV AL, 08H
OUT DX, AL
MOV DX, 2EH
MOV AL, F5H
OUT DX, AL ;select CRF0
MOV DX, 2FH
MOV AL, 80H
OUT DX, AL
MOV DX, 2EH
MOV AL, F7H
OUT DX, AL
MOV DX, 2FH

MOV AL, 00H
OUT DX, AL
MOV DX, 2EH
MOV AL, F6H
OUT DX, AL
MOV DX, 2FH
MOV AL, 00H ; *00H=Disabled
OUT DX, AL
;---------------------------------------------------------------­;Exit extended function mode
;---------------------------------------------------------------­ MOV DX, 2EH
MOV AL, AAH
OUT DX, AL

18

3.17 Audio Connectors

2

The HS-2610 has an onboard AC97 3D audio controller. The following
tables list the pin assignments of the Line In/Audio Out connector.

 CN1: MIC In/Line Out Connector

PIN Description PIN Description

1 AOUTL 2 AOUTR
3 GND 4 GND
5 MIC IN 6 N/C
7 GND 8 GND

1

78

3.18 CompactFlash Connector

The HS-2610/HS-2610M also offers a Type I/II CompactFlash
connector which is IDE interface located at the solder side of the board
(beneath the SO-DIMM connector). The designated CN17 connector,
once soldered with an adapter, can hold CompactFlash cards of
various sizes. Please turn off the power before inserting the CF card.

 CN17: CompactFlash Connector

PIN Description PIN Description

1 GND 2 IDE_PDD3
3 IDE_PDD4 4 IDE_PDD5
5 IDE_PDD6 6 IDE_PDD7
7 IDE_PDCS1# 8 GND

9 GND 10 GND
11 GND 12 GND
13 +3.3V 14 GND
15 GND 16 GND
17 GND 18 IDE_PDA2
19 IDE_PDA1 20 IDE_PDA0
21 IDE_PDD0 22 IDE_PDD1
23 IDE_PDD2 24 GND
25 GND 26 GND
27 IDE_PDD11 28 IDE_PDD12
29 IDE_PDD13 30 IDE_PDD14
31 IDE_PDD15 32 IDE_PDCS3#
33 GND 34 IDE_PDIOR#

…MORE ON NEXT PAGE…

19

PIN Description PIN Description

35 IDE_PDIOW# 36 +3.3V
37 INT_IRQ15 38 +3.3V
39 +3.3V 40 N/C
41 RESET# 42 IDE_PDIORDY
43 CF_PDERQ 44 CF_REGB
45 IDE_ACTP# 46 DETECT
47 IDE_PDD8 48 IDE_PDD9
49 IDE_PDD10 50 GND

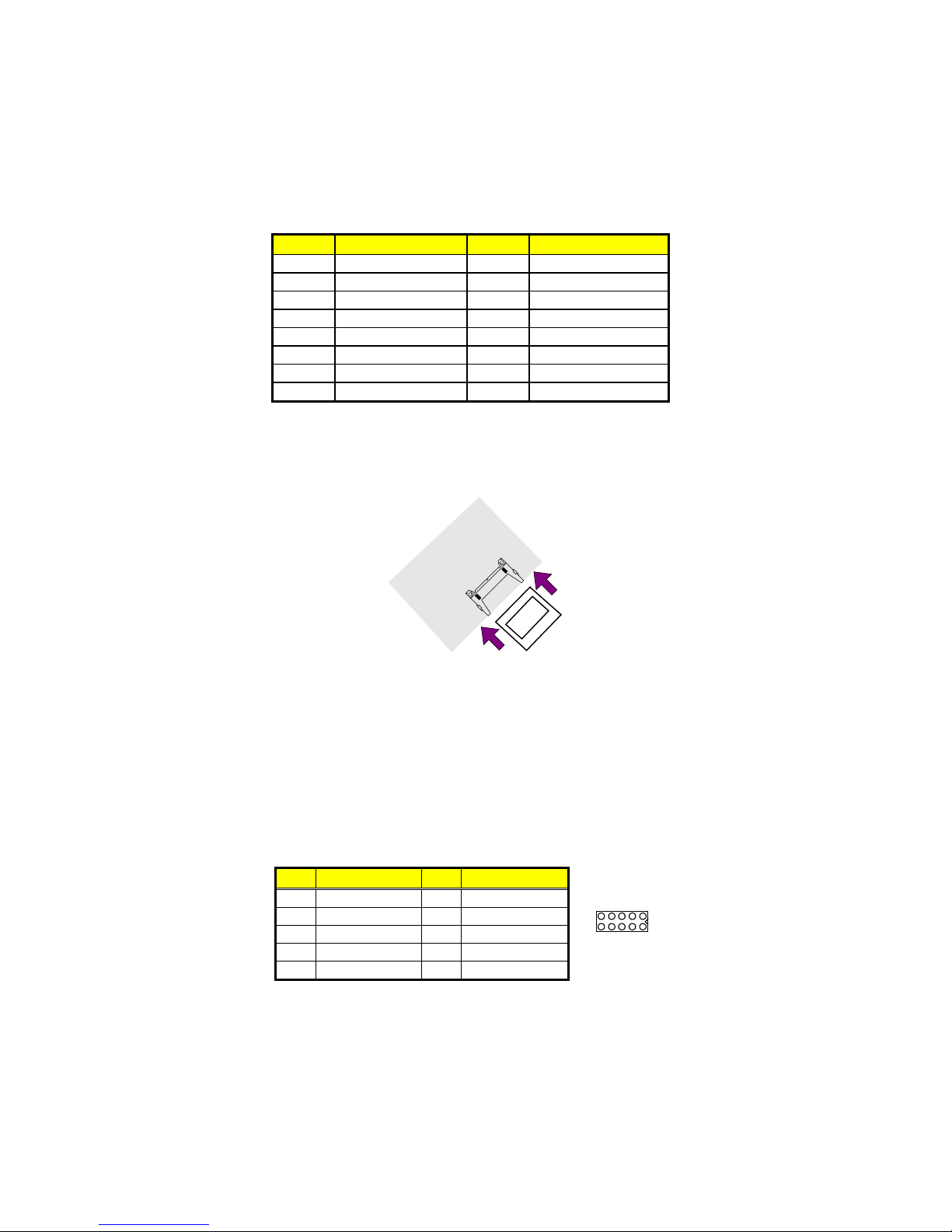

Inserting a CompactFlash card into the adapter is not a difficult task.
The socket and card are both keyed and there is only one direction for
the card to be completely inserted. Refer to the diagram on the
following page for the traditional way of inserting the card.

r

e

d

l

w

o

e

S

i

V

B

e

C

d

P

i

S

M

T

ash

Fl

e
d

i

act

/

S

p

n

n

r

o

a

a

p

p

a

a

e

J

J

Com

R

u

n

i

A

F

e

e

d

C

u

a

q

i

M

r

b

a
F

E

C

3.19 Mini PCI Slot

HS-2610/HS-2610M
component

with standard Type III Mini PCI

provides a

Mini PCI

card

slot.

The peripheral

can be used.

3.20 8-bit I/O Function

The HS-2610/HS-2610M offers one 8-bit input/output port by parallel
port.

 JP9: 8-bit Input/Output

PIN Description PIN Description

1 VCC 2 GND
3 GD0 4 GD4
5 GD1 6 GD5
7 GD2 8 GD6
9 GD3 10 GD7

20

10 2

19

.286

.MODEL SMALL
.DATA ;this is data area

port equ 0378h ;print port can be change to 278h

.CODE

print macro buff

mov dx, offset buff;
mov ah,09h
int 21h
endm

delay :

push cx
mov cx,0155h

@@:

jmp $+2
push cx
mov cx,0ffffh

wait1: loop wait1

pop cx
loop @b
pop cx
ret

begin proc near

mov ax,@data
mov ds,ax
STI

Mov dx, port
Mov al, 80h out dx, al

;;-------------------­;;ROR

mov cx, 08h

@@:

ror al, 1
call delay
out dx, al
loop @b
pop cx

;;ROL

push cx
mov cx, 08h

@@:

rol al, 1
out dx, al
call delay
loop @b

pop cx
;;-------------------­;;-------------------­;;ROR

21

mov cx, 08h
@@:

ror al, 1

call delay

out dx, al

loop @b

pop cx
;;ROL

push cx

mov cx, 08h
@@:

rol al, 1

out dx, al

call delay

loop @b

pop cx
;;-------------------­;;-------------------­;;ROR

mov cx, 08h
@@:

ror al, 1

call delay

out dx, al

loop @b

pop cx
;;ROL

push cx

mov cx, 08h
@@:

rol al, 1

out dx, al

call delay

loop @b

pop cx
;;-------------------­;;-------------------­;;ROR

mov cx, 08h
@@:

ror al, 1

call delay

out dx, al

loop @b

pop cx
;;ROL

push cx

mov cx, 08h
@@:

rol al, 1

out dx, al

call delay

loop @b

pop cx
;;-------------------­;;-------------------­;;ROR

mov cx, 08h

22

@@:

ror al, 1

call delay

out dx, al

loop @b

pop cx
;;ROL

push cx

mov cx, 08h
@@:

rol al, 1

out dx, al

call delay

loop @b

pop cx
;;-------------------­;;-------------------­;;ROR

mov cx, 08h
@@:

ror al, 1

call delay

out dx, al

loop @b

pop cx
;;ROL

push cx

mov cx, 08h
@@:

rol al, 1

out dx, al

call delay

loop @b

pop cx
;;-------------------­;;-------------------­;;ROR

mov cx, 08h
@@:

ror al, 1

call delay

out dx, al

loop @b

pop cx
;;ROL

push cx

mov cx, 08h
@@:

rol al, 1

out dx, al

call delay

loop @b

pop cx
;;--------------------

;flash LED 3 time

mov cx, 01h
@@:

23

mov al, 0ffh

out dx, al

call delay

mov al,0h

out dx, al

call delay

loop @b
ee:

mov ah, 4ch ;go back to dos

int 21h

.stack

begin endp

end begin

24

Chapter 4

AMI BIOS Setup

The HS-2610 uses AMI BIOS for the system configuration. The AMI
BIOS setup program is designed to provide the maximum flexibility in
configuring the system by offering various options that could be
selected for end-user requirements. This chapter is written to assist
you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.

While the BIOS is in control, the Setup program can be activated in one
of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

25

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
and press <Esc> to quit. The following table provides more detail about
how to navigate in the Setup program using the keyboard.

↑ Move to previous item
↓ Move to next item
← Move to previous item
→ Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -­Exit current page and return to Main Menu

PgUp key Decrease the numeric value or make changes
PgDn key Increase the numeric value or make changes

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
F1 key Reserved
F2 key Change color from total 8 colors. F2 to select color forward
F3 key F2 to select color backward
F4 key Reserved
F5 key Reserved
F6 key Reserved
F7 key Reserved
F8 key Reserved
F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

26

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from several
setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to enter the sub-menu.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

System Overview
AMI BIOS

Version : 08.00.13
Build Date : 11/01/06
ID : HS261000

Processor
Type : Intel® Pentium® M processor 2.00GHz
Speed : 1995MHz
Count : 1

System Memory
Size : 112MB

System Time [00:29:32] ª - Change Field
System Date [Tue 01/01/2002] Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.

27

4.4 Advanced Settings

This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Advanced Settings
WARNING: Setting wrong values in below sections

may cause system to malfunction.



CPU Configuration



IDE Configuration



SuperIO Configuration



USB Configuration



Hardware Health Configuration

ª - Change Field

Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Configure advanced CPU settings
Module Version –13.04

Manufacturer : Intel
Brand String : Intel® Pentium® M processor

2.00GH
Frequency : 1.99GHz
FSB Speed : 532MHz

Cache L1 : 32 KB
Cache L2 : 2048 KB

Execute Disable Bit [Enabled]
CPU TM function [Enabled] ª - Change Field
Tab Select Field
Hyper Threading Technology [Enabled] F1 General Help
Intel® SpeedStep™ Tech [Automatic] F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

28

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

IDE Configuration

OnBoard PCI IDE Controller [Both]
OnBoard PCI IDE Operate Mode [Legacy Mode]



Primary IDE Master : [Not Detected]



Primary IDE Slave : [Not Detected]



Secondary IDE Master : [Not Detected]



Secondary IDE Slave : [Not Detected]

Hard Disk Write Protect [Disabled]
IDE Detect Time Out (Sec) [35]



Select Screen



Select Item

ATA(PI) 80Pin Cable Detection [Host & Device] ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Configure WIN627 Super IO Chipset

Serial Port1 Address [3F8/IRQ4]
Serial Port2 Address [2F8/IRQ3]
OnBoard MIDI Port [330]
MIDI IRQ Select [IRQ5]
Serial Port3 Address [3E8]
Serial Port3 IRQ [10]
Serial Port4 Address [2E8]
Serial Port4 IRQ [11]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

29

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

USB Configuration

Module Version – 2.24.0-11.4

USB Devices Enabled :
None

USB Function [6 USB Ports]
Legacy USB Support [Enabled]
USB 2.0 Controller [Enabled]
USB 2.0 Controller Mode [FullSpeed]
BIOS EHCO Hand-Off [Enabled] ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Hardware Monitor Configuration

H/W Health Function [Enabled]
Chassis Intrusion [Disabled]

Hardware Health Event Monitoring

CPU Temperature

System Fan

VcoreA
+3.3Vin ª - Change Field
+5Vin Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

30

4.5 Advanced PCI/PnP Settings

This section describes configuring the PCI bus system. PCI, or
Personal Computer Interconnect, is a system that allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below

sections may cause system to
malfunction.

Clean NVRAM [No]
Plug & Play O/S [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [No]
Palette Snooping [Disabled]
PCI IDE BusMaster [Disabled]
OffBoard PCI/ISA IDE Card [Auto]
IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]
IRQ15 [Available]

DMA Channel 0 [Available]
DMA Channel 1 [Available]
DMA Channel 3 [Available]
DMA Channel 5 [Available] ª - Change Field
DMA Channel 6 [Available] Tab Select Field
DMA Channel 7 [Available] F1 General Help
F10 Save and Exit
Reserved Memory Size [Disabled] ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.





Select Screen

Select Item

31

4.6 Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Boot Settings



Boot Settings Configuration



Boot Device Priority



Removable Drives

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Boot Settings Configuration

Quick Boot [Enabled]
Quiet Boot [Disabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Nom-Lock [On]
PS/2 Mouse Support [Auto]
Wait For ‘F1’ If Error [Disabled]
Hit ‘DEL’ Message Display [Enabled]
Interrupt 19 Capture [Disabled]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

32

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Boot Device Priority

1st Boot Device [1st FLOPPY DRIVE]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Removable Drives

1st Drive [1st FLOPPY DRIVE]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

4.7 Security Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Security Settings

Supervisor Password : Not Installed
User Password : Not Installed

Change Supervisor Password
Change User Password ª - Change Field
Boot Sector Virus Protection [Disabled] Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

33

4.8 Advanced Chipset Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

NorthBridge Chipset Configuration

DRAM Frequency [200 Mhz]
Configure DRAM Timing by SPD [Enabled]

Memory Hole [Disabled]
Init. Graphic Adapter Priority [Internal VGA]
Internal Graphics Mode Select [Enabled, 16MB]
Graphics Aperture Size [128MB]
I.G.D. 2nd Instance Control [Enabled]

Video Function Configuration
DVMT Mode Select [Combo Mode]
Boot Display Device [CRT + LFP]
Flat Panel Type [800x600LVDS] ª - Change Field
Local Flat Panel Scaling [Auto] Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

SorthBridge Chipset Configuration

OnBoard AC’97 Audio [Auto]
OnBoard LAN [Enabled]

Restore on AC Power Loss [Last State]

ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item



Select Screen



Select Item

34

4.9 Power Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

APM Configuration

Power Management/APM [Enabled]
Video Power Down Mode [Disabled]
Hard Disk Power Down Mode [Disabled]
Standby Time Out [Disabled]
Suspend Time Out [Disabled]
Throttle Slow Clock Ratio [50%]
Keyboard & PS/2 Mouse [Monitor]
FDC/LPT/COM Ports [Monitor]
Primary master IDE [Monitor]
Primary slave IDE [Monitor]
Secondary master IDE [Monitor]
Secondary slave IDE [Monitor]

System Thermal [Disabled]
ª - Change Field
Tab Select Field
Resume On RTC Alarm [Disabled] F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

35

4.9 Exit Options

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Exit Options

Save Changes and Exit
Discard Changes and Exit
Discard Changes

Load Optimal Defaults
Load Failsafe Defaults ª - Change Field
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit

v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.



Select Screen



Select Item

36

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN,
audio and USB2.0 driver installation procedures. The utility disk that
comes with the delivery package contains an auto-run program that
invokes the installation programs for the IDE, VGA, LAN and Audio
drivers. The following sections describe the installation procedures of
each driver based on Win 95/98, Win 2000 and Win NT operating
systems. It is recommended that you install the drivers matching the
sections listed in this chapter.

5.1 IDE Driver Installation

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

37

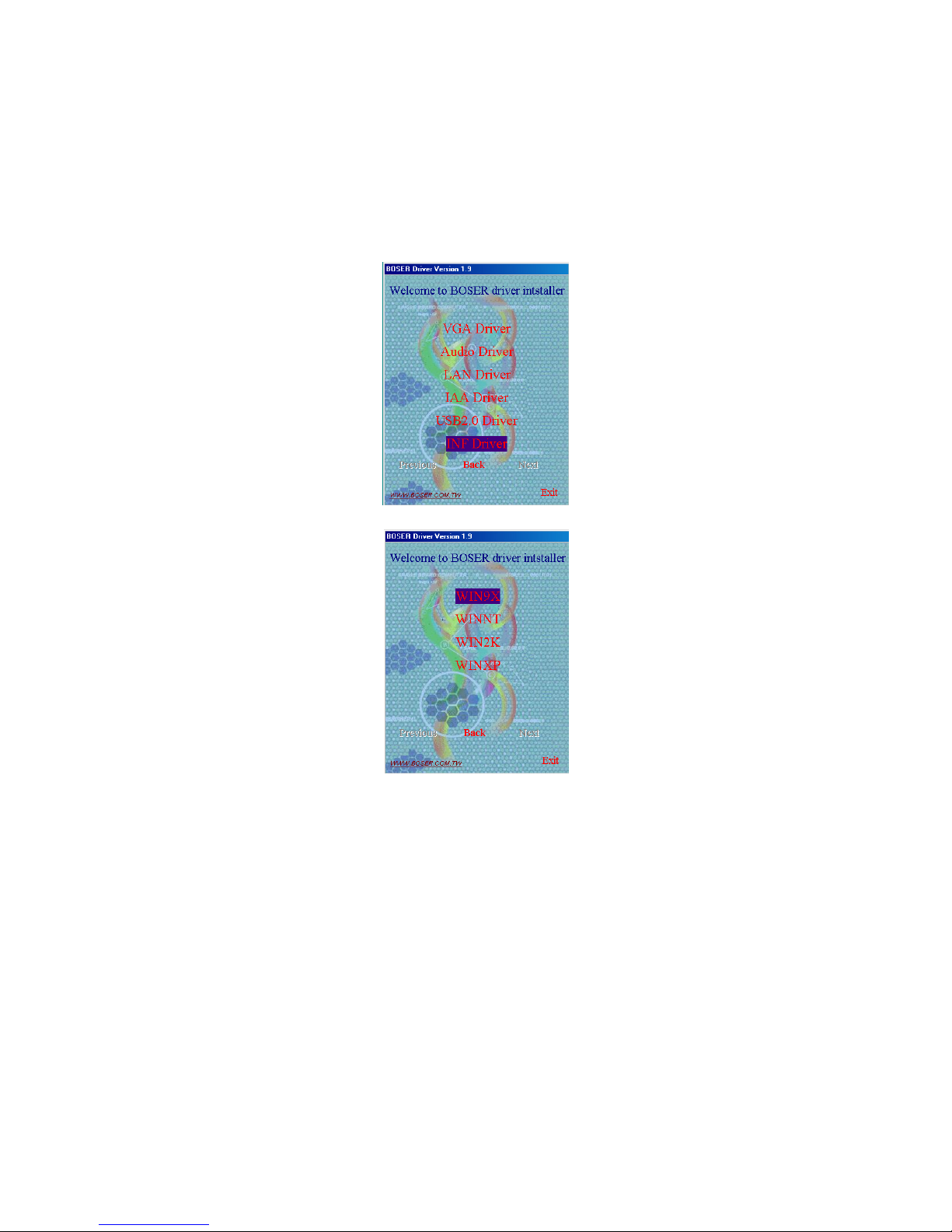

2. Click on the INF Driver button to continue.

3. Click on the appropriate OS button to continue.

38

4. Immediately after clicking the IDE button in Step 1, the program
launches the Setup that will assist you in the installation
process. Click on the N

5. The License Agreement dialog box then appears on the screen.
Choose Yes to proceed.

ext > button to proceed.

39

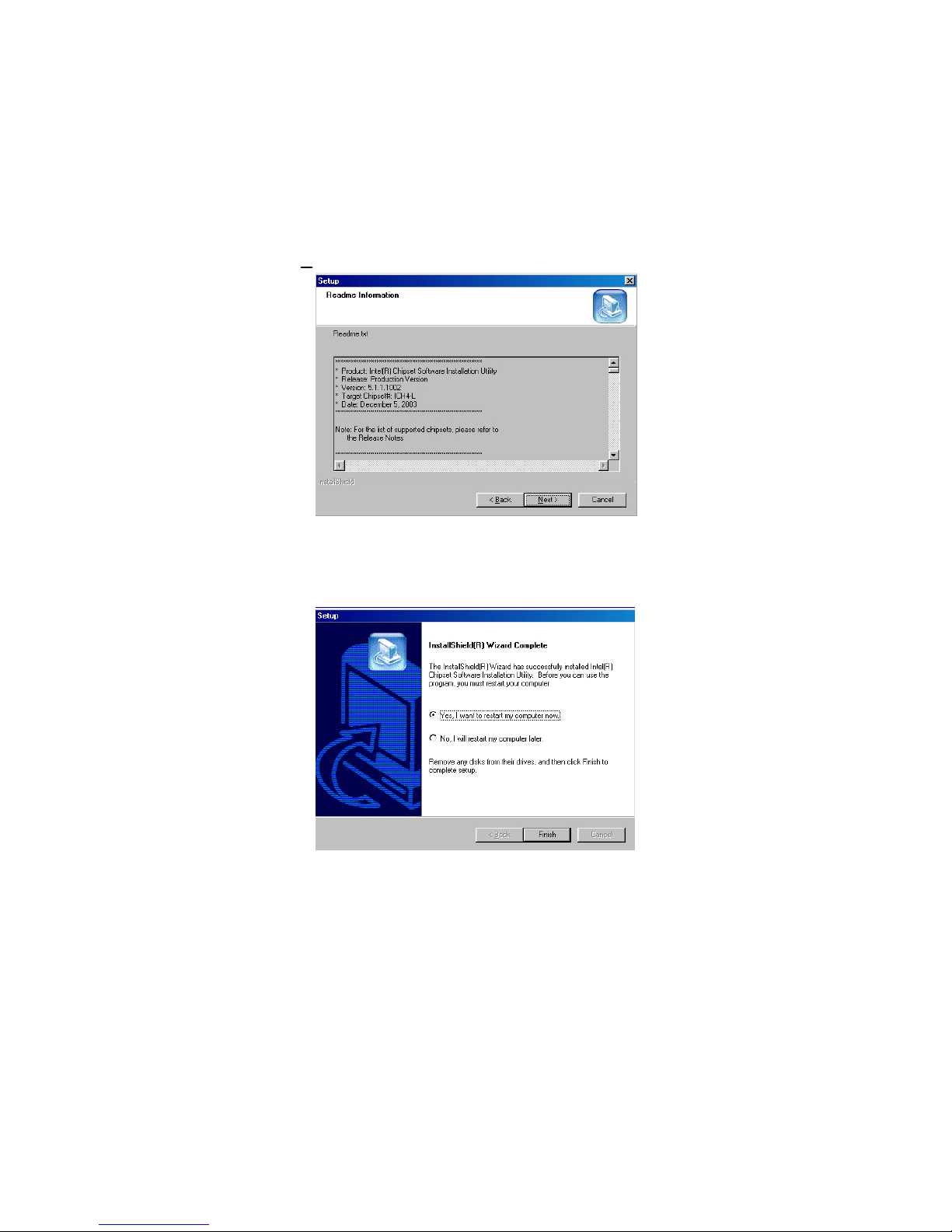

6. When the Readme Information dialog box pops up , just click on
the N

ext > button to proceed.

7. Once the Install Shield Wizard finishes updating your system, it
will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the
Finish button to reboot. Only after your computer boots will the

new settings take effect.

NOTE: WIN98/2K/XP IDE driver installations are the same.

40

5.2 VGA Driver Installation

5.2.1 WIN98

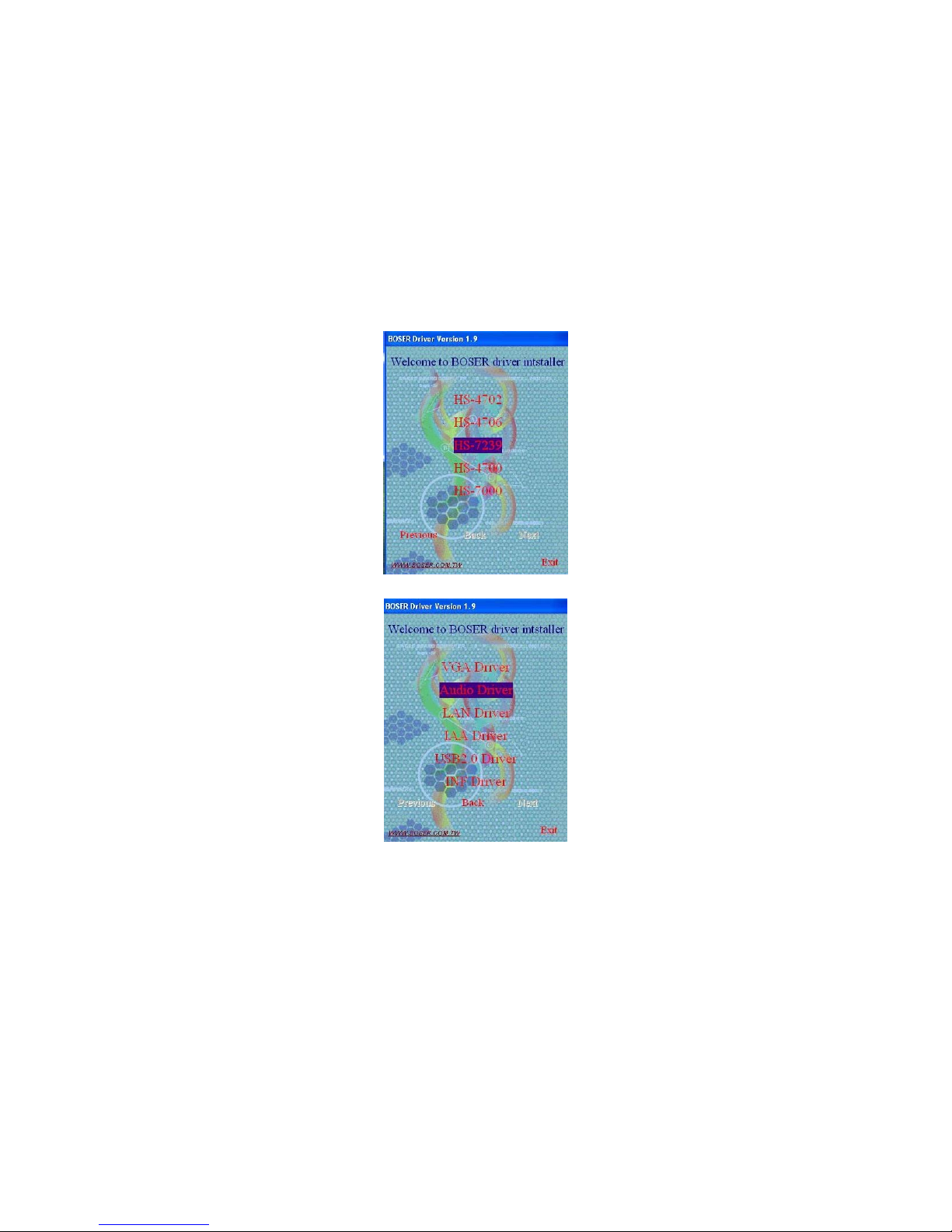

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

2. Click on the VGA Driver button to continue.

41

3. Click on the WIN9X button to continue.

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the Next > button to
proceed.

42

5. The Intel® OEM Software License Agreement dialog box the n
appears on the screen. Choose Y

6. Once the setup program finishes copying files into your system,
it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the
Finish button to reboot. Only after your computer boots will the

new settings take effect.

es to proceed.

43

5.2.2 WIN NT

NOTE: Please make sure you have already installed Service Pack 6.0.

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

2. Click on the VGA Driver button to continue.

3. Click on the WINNT button to continue.

44

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.

5. The Intel® OEM Software License Agreement dialog box then
appears on the screen. Choose Yes to proceed.

ext > button to

45

6. Once the setup program finishes copying files into your system,
it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the
Finish button to reboot.

5.2.3 WIN2000/WINXP

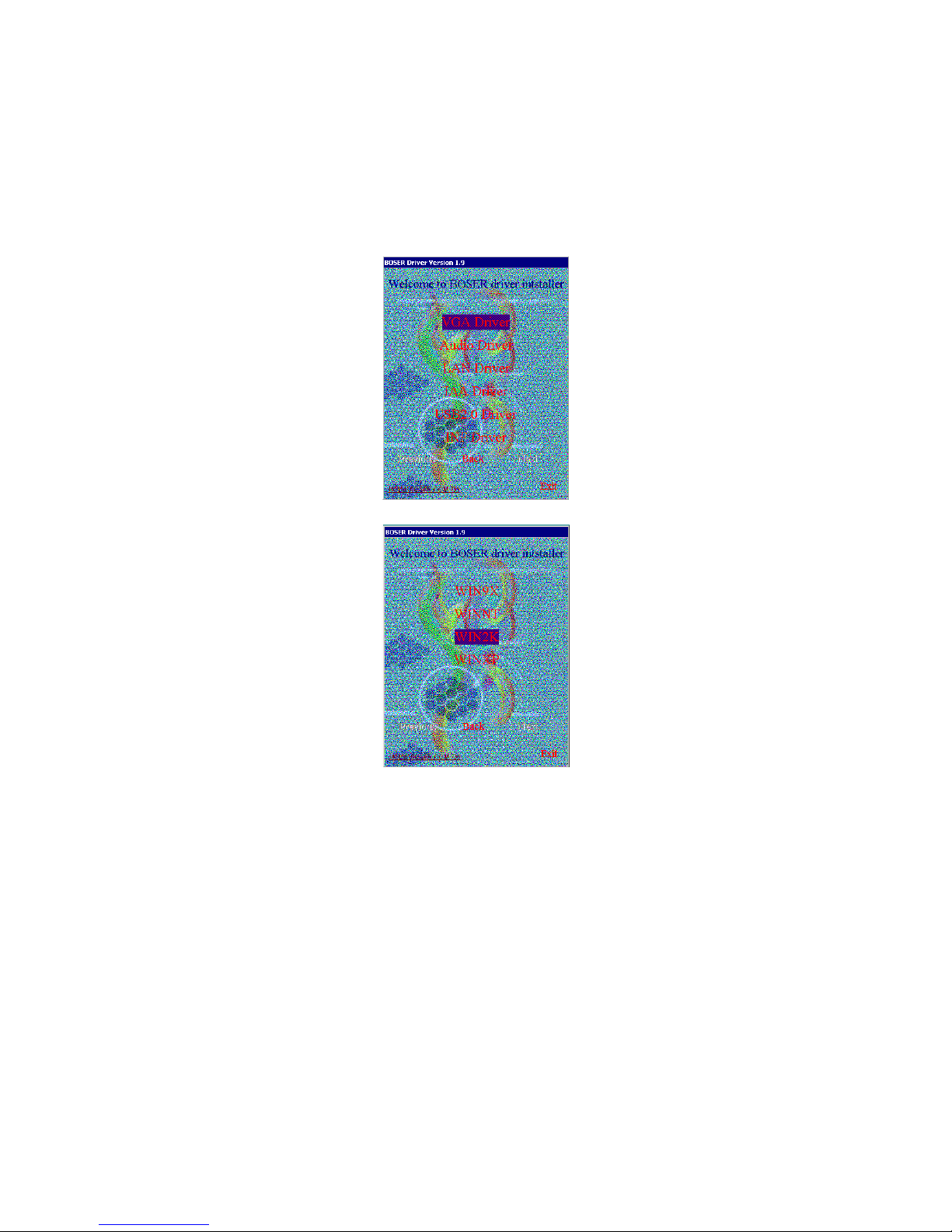

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

46

2. Click on the VGA Driver button to continue.

3. Click on the WIN2K button to continue.

47

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.

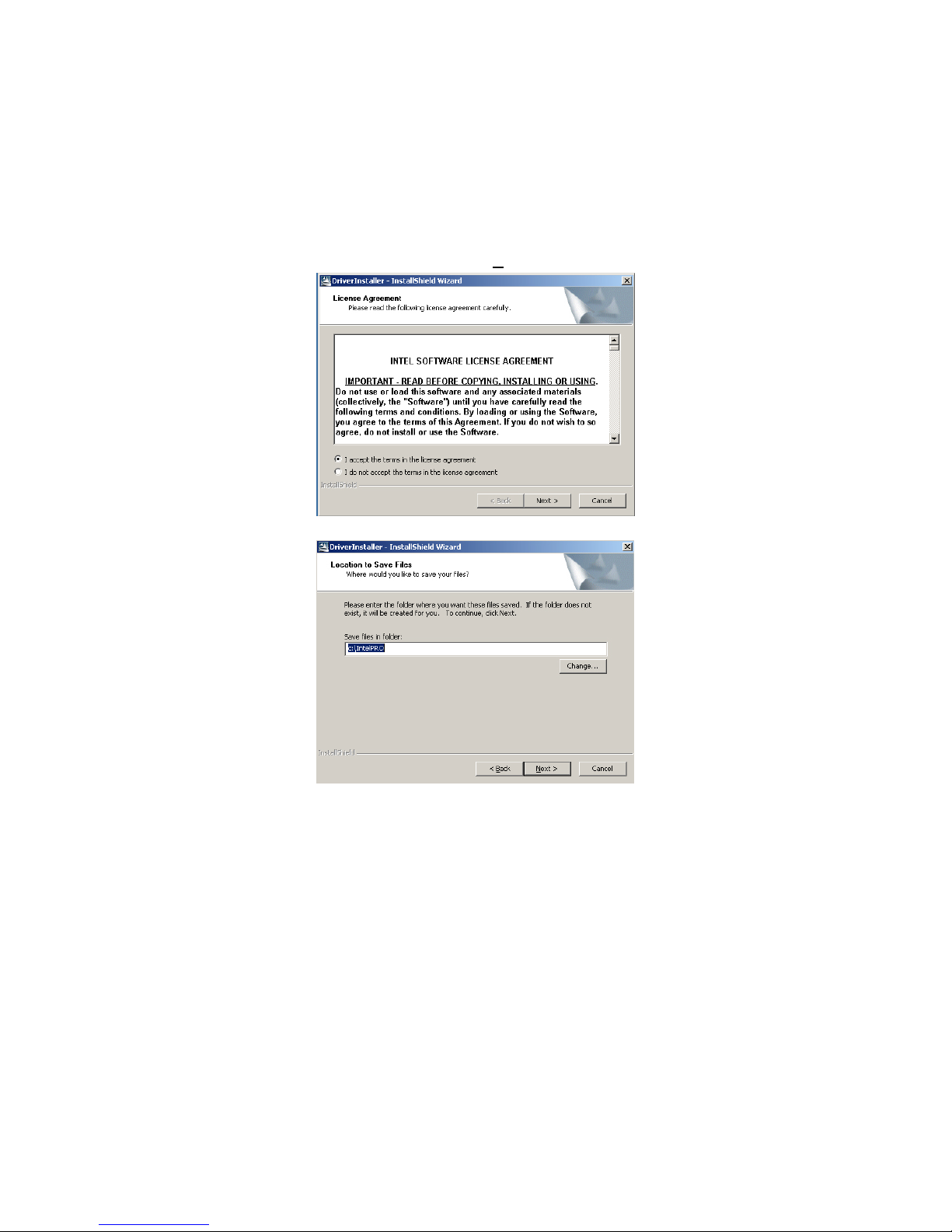

5. The Intel® OEM Software License Agreement dialog box
appears on the screen. Choose Yes to proceed.

ext > button to

48

6. Once the setup program finishes copying files into your system,
it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the
F

inish button to reboot. Only after your computer boots will the

new settings take effect.

49

5.3 LAN Driver Installation

5.3.1 WIN98

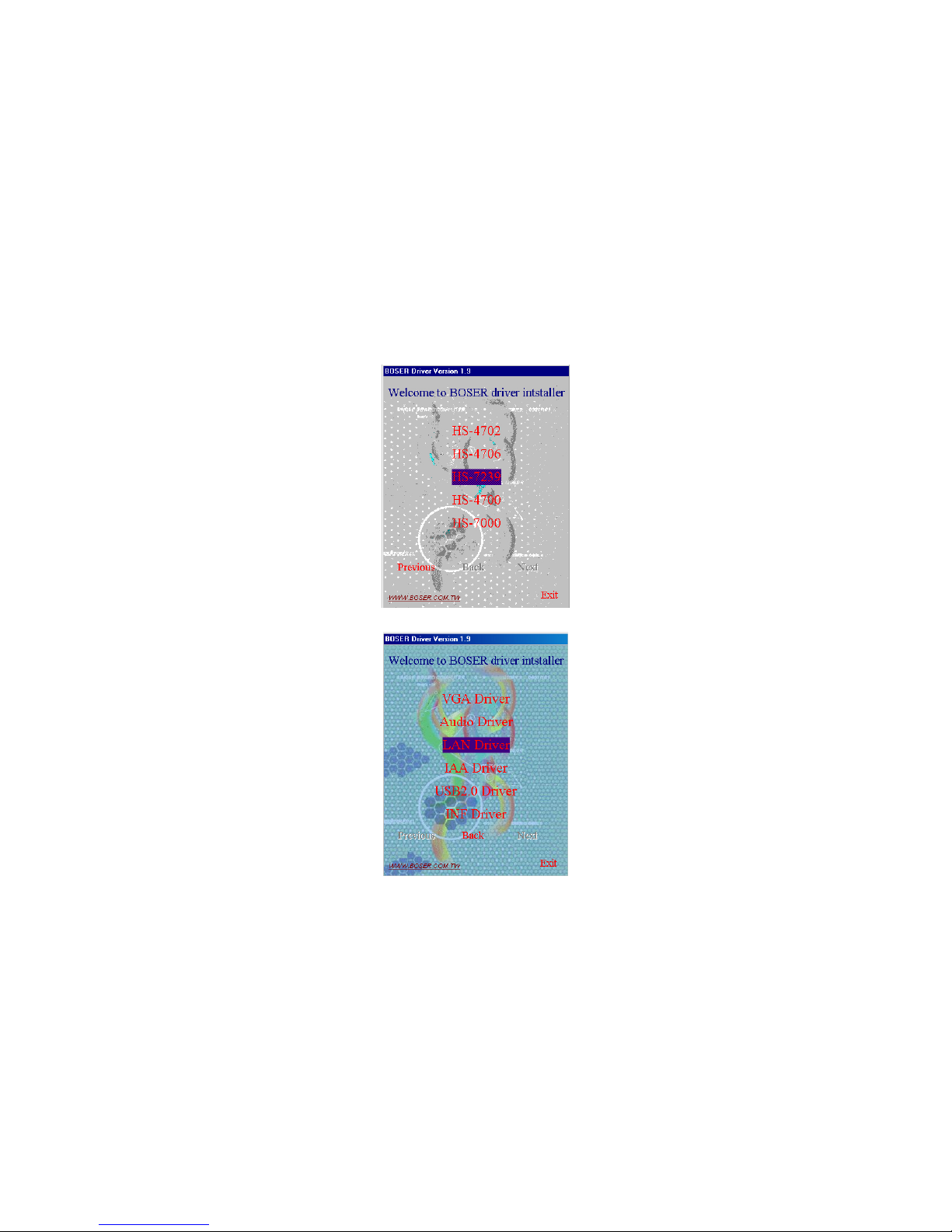

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

2. Click on the LAN Driver button to continue.

50

3. Click on the WIN9X button to continue.

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the Install Base
Driver button to proceed.

51

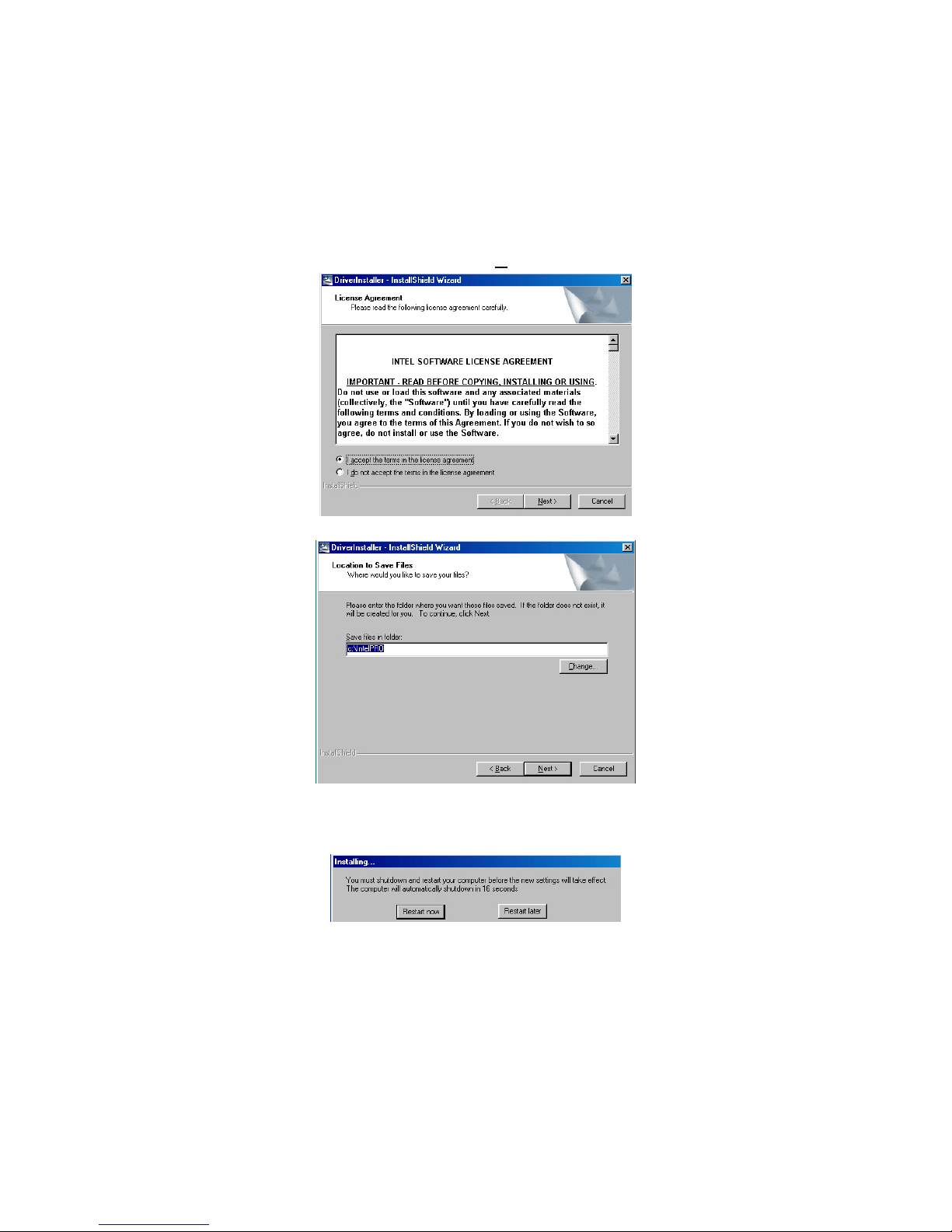

5. The Intel® OEM Software License Agreement dialog box then
appears on the screen. Choose N

6. Choose the drivers install location. (ex: c:\IntelPRO)

ext > to proceed.

7. Once the setup program finishes copying files into your system,
it will prompt you to restart the computer. Tick on the Restart
now to reboot. Only after your computer boots will the new
settings take effect.

52

5.3.2 WINNT

NOTE: Please make sure you have already installed Service Pack 6.0.

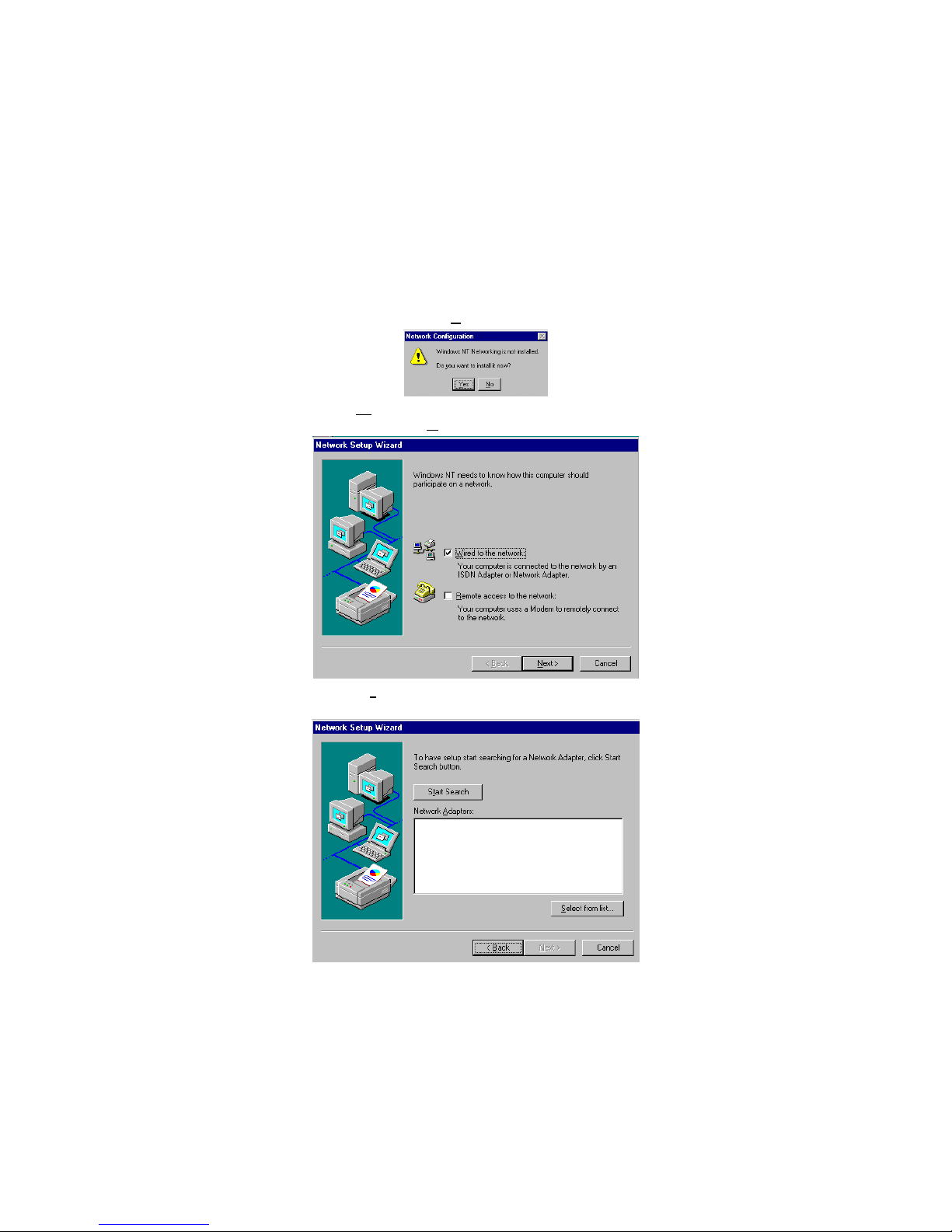

1. The system automatically detects the absence of Windows NT
Networking. Click on the Y

2. Tick on the W
appears. Click on the N

3. Click on the St
Network Adapter.

ired to the network once the following screen

art Search button for the program to locate the

es button to start installation.

ext > to proceed.

53

4. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the H
the driver path location.

5. Setup now asks you for the location of the driver. When you
have entered the new driver path, press on the OK button to
continue.

ave Disk button to assign

54

6. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Please
choose “Intel® PRO/100 Family Adapter”. Press on the OK
button to accept and proceed.

7. Setup then returns to Network Setup Wizard screen and
displays your new Network Adapter. Click on Next > to
continue.

55

8. The Network Setup Wizard then allows you to set the Network
Protocols on your network. Select the appropriate protocol and

then click on N

9. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go
back for changes from the following screen. Click on the N
button once you are sure of your devices.

ext > to continue.

ext >

56

10. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path then press
Continue.

11. When Setup asks if you wish to change the TCP/IP settings of
your system, select them appropriately. The default choice is

N

o.

12. Setup then starts the Networking installation and copies the
files.

13. When the screen below appears, click on N

ext > to continue.

57

14. Setup then prompts you that it is ready to start the network.
You may complete the installation thereafter. Click on N
continue.

15. Assign the workgroup or domain setting of your computer. Click
on Next > to continue.

ext > to

58

16. When the dialog box below appears, it means your driver is
install completed. Click Finish button to proceed.

17. Click on the Y
driver installation for WINNT is now complete.

es button to restart your computer. The LAN

59

5.3.3 WIN2K/XP

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

2. Click on the LAN Driver button to continue.

60

3. Click on the WIN2K button to continue.

4. When the dialog box below appears, make sure you close all
other Windows applications the click on the Install Base
Driver button to proceed.

61

5. The Intel® OEM Software License Agreement dialog box then
appears on the screen, choose Y

6. Choose driver install location. (ex: c:\IntelPRO)

es to proceed.

7. When setup is finished, please reboot your computer to
complete.

62

5.4 Audio Driver Installation

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

2. Click on the Audio Driver button to continue.

63

3. Click on the OS button to continue.

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the Next > button to
proceed.

64

5. Once the Install Shield Wizard completes the operation and
update of your AC97 driver, it will ask you to remove disks form
their drives, and prompt you to restart your system. Tick on the
Yes, I want to restart my computer now. Afterwards, click
on the F
system changes you made will take effect after the system
restarts.

inish button to complete the installation process. The

65

5.5 USB2.0 Driver Installation

5.5.1 WIN98

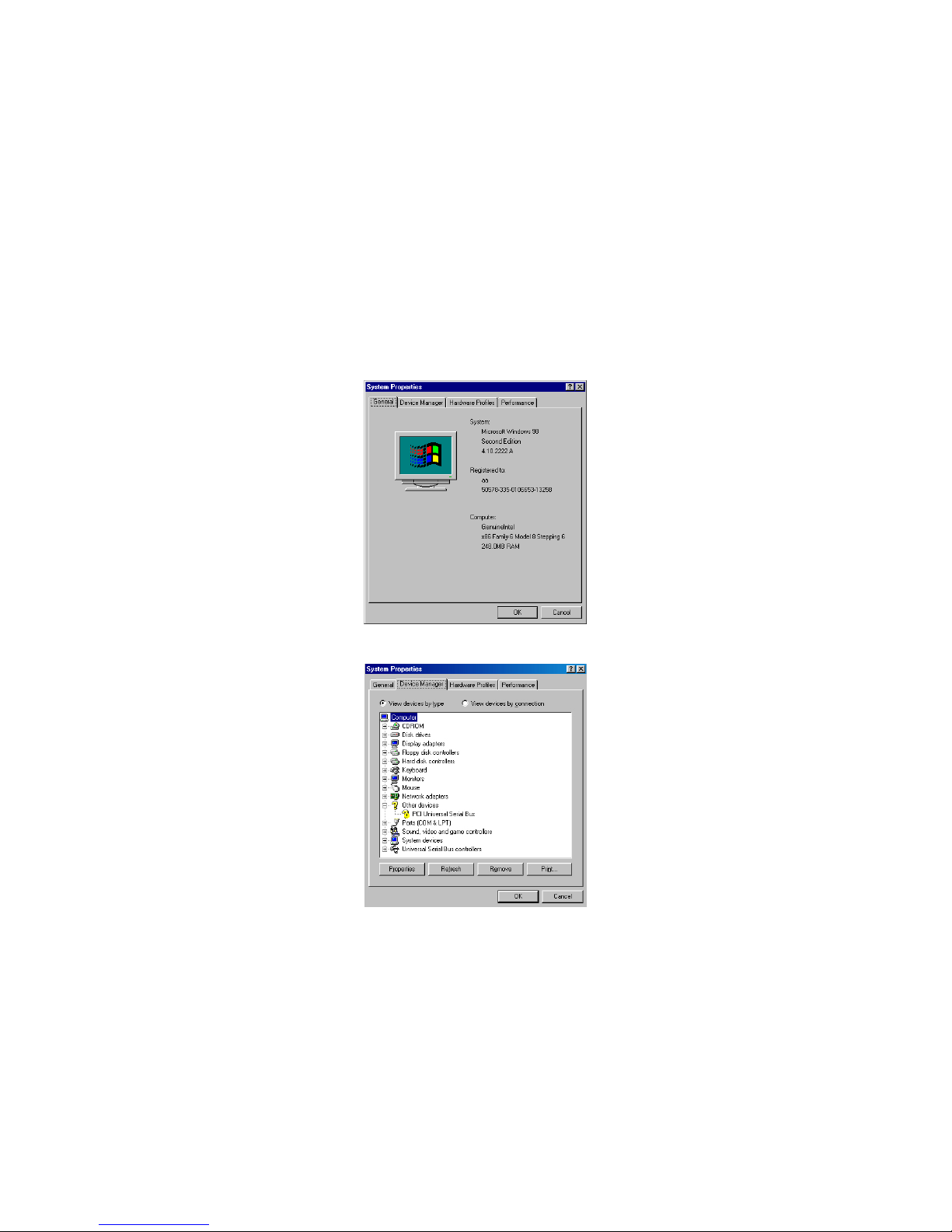

1. With the Utility CD Disk still in your CD-ROM drive, right click on

“My Computer” icon from the Windows menu. Select on
System Properties and then proceed to the Device Manager

from the main menu.

2. Select on Other Devices from the list of devices then
double-click on PCI Universal Serial Bus.

66

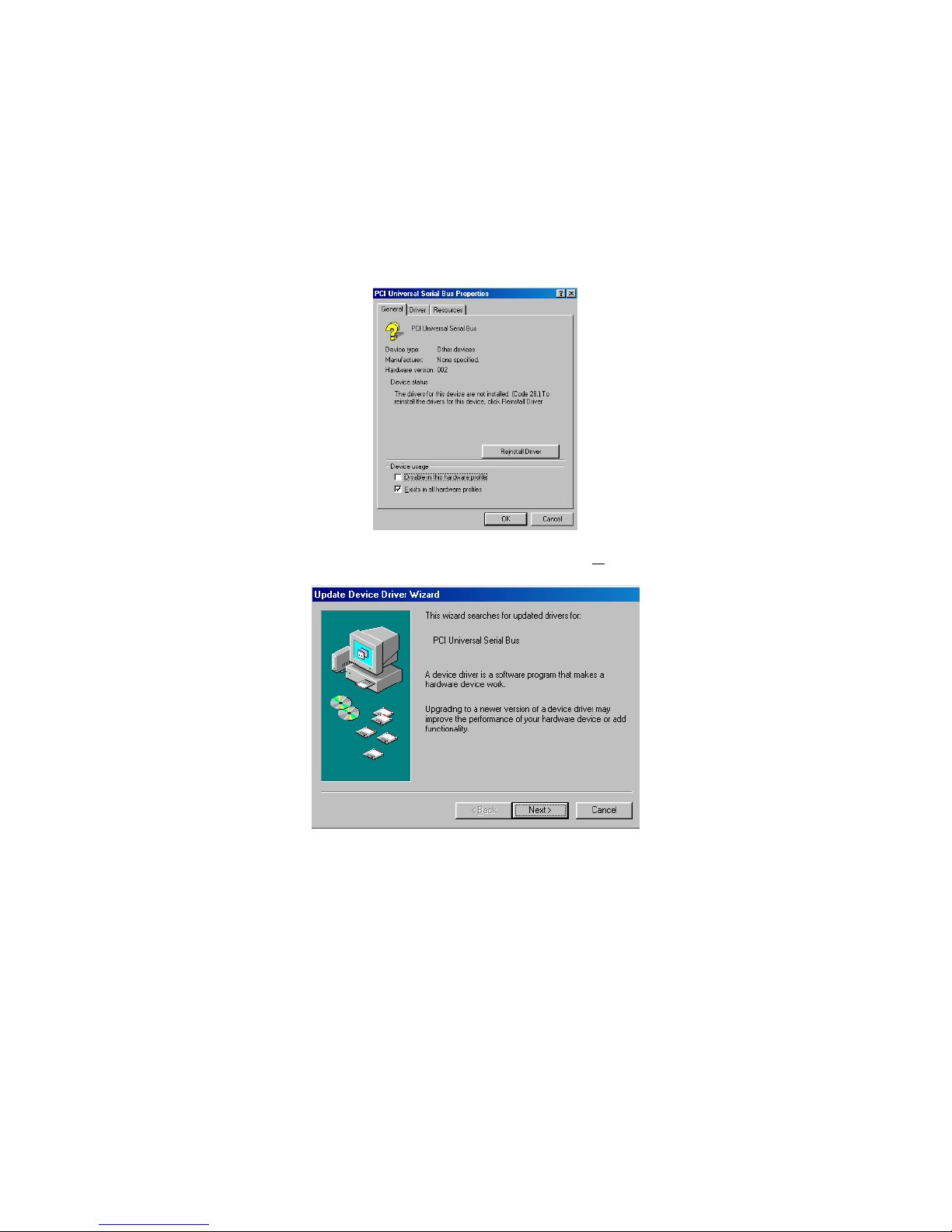

3. The PCI Universal Serial Bus Properties screen then
appears, allowing you to reinstall the driver. Select Driver from
the main menu to proceed.

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the Next > button to
proceed.

67

5. Tick on the “Search for a better driver” once the following
screen appears, Click on the N

6. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the Next >
button to continue.

ext > to proceed.

68

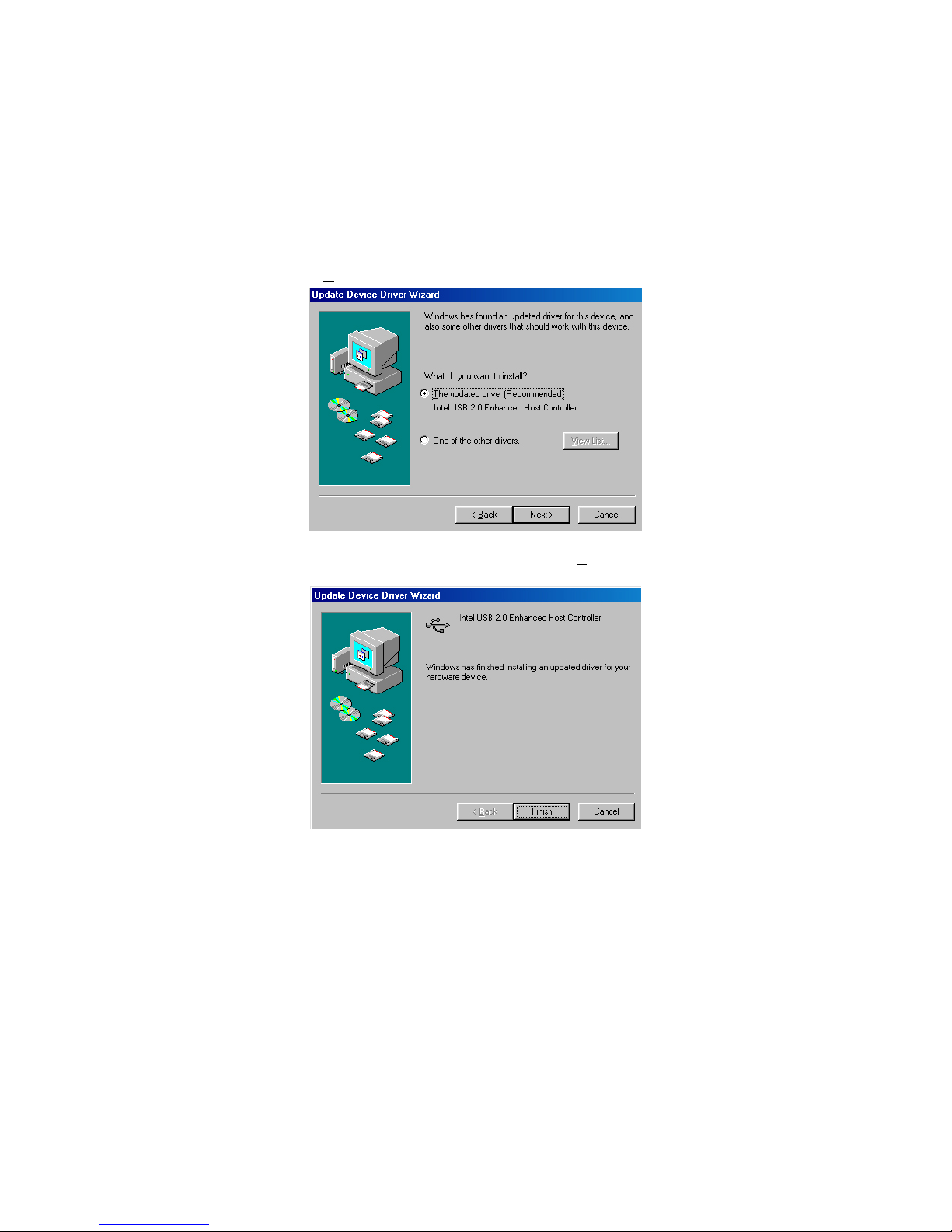

7. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Press
on the N

ext > button to accept and proceed.

8. Once the Install Shield Wizard completes the operation and
update of your USB2.0 driver. Click on the Finish button to
complete the installation process.

69

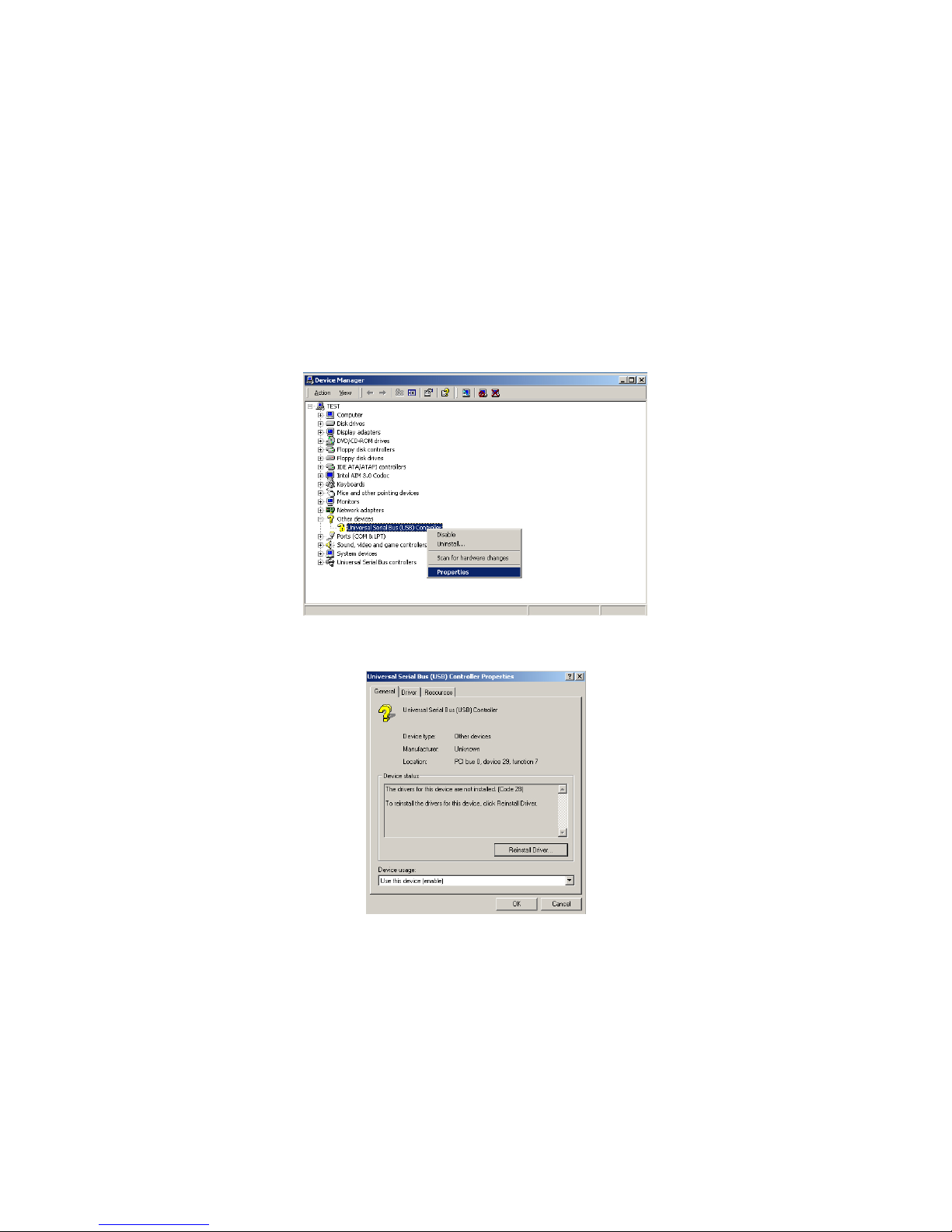

5.5.2 WIN2K

1. With the Utility CD Disk still in your CD-ROM drive, right click on

“My Computer” icon from the Windows menu. Select on
System Properties and then proceed to the Device Manager

from the main menu.

2. Select on Other Devices from the list of devices then
double-click on PCI Universal Serial Bus.

3. The PCI Universal Serial Bus Properties screen then
appears, allowing you to reinstall the driver. Select Driver from
the main menu to proceed.

70

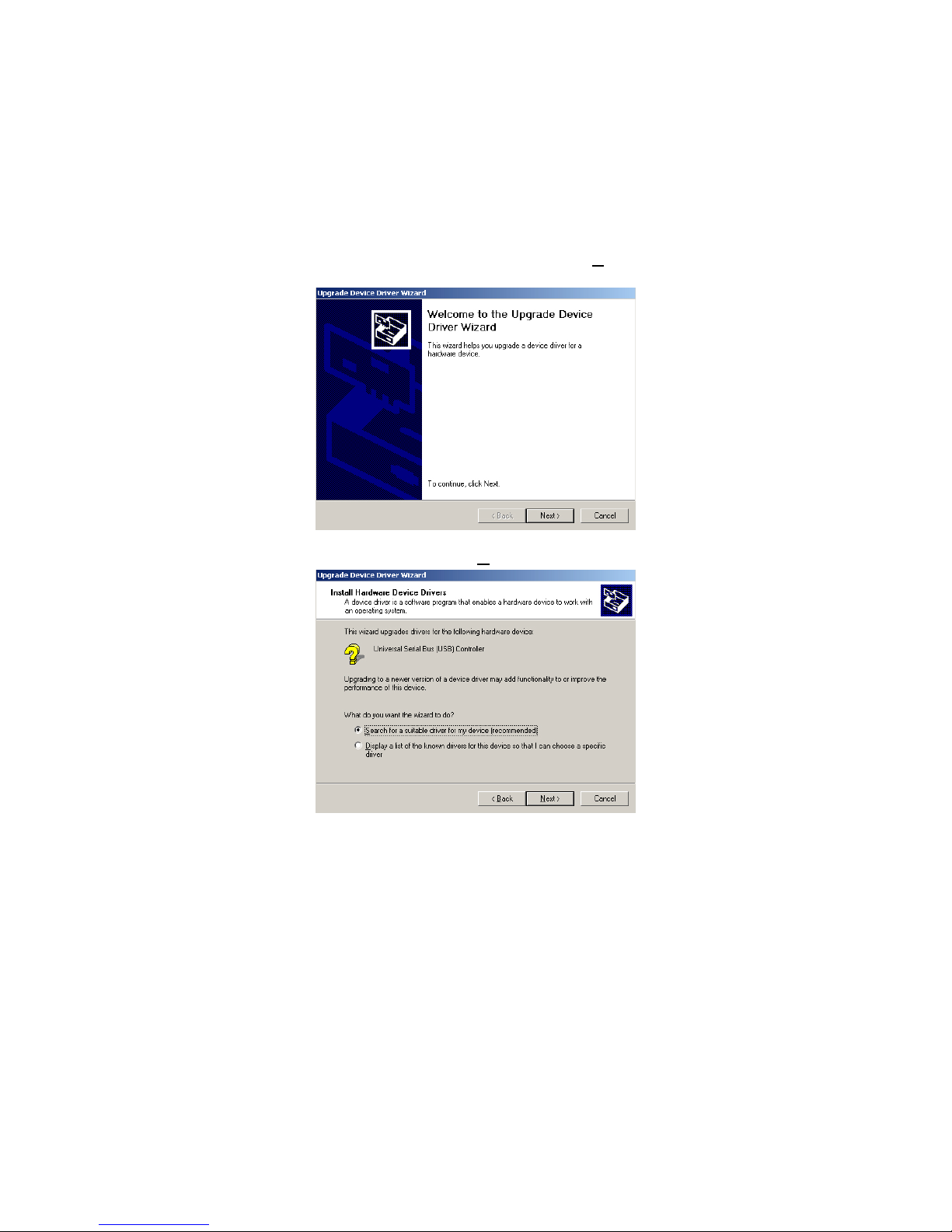

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.

5. Tick on the “Search for a better driver” once the following
screen appears, Click on the Next > to proceed.

ext > button to

71

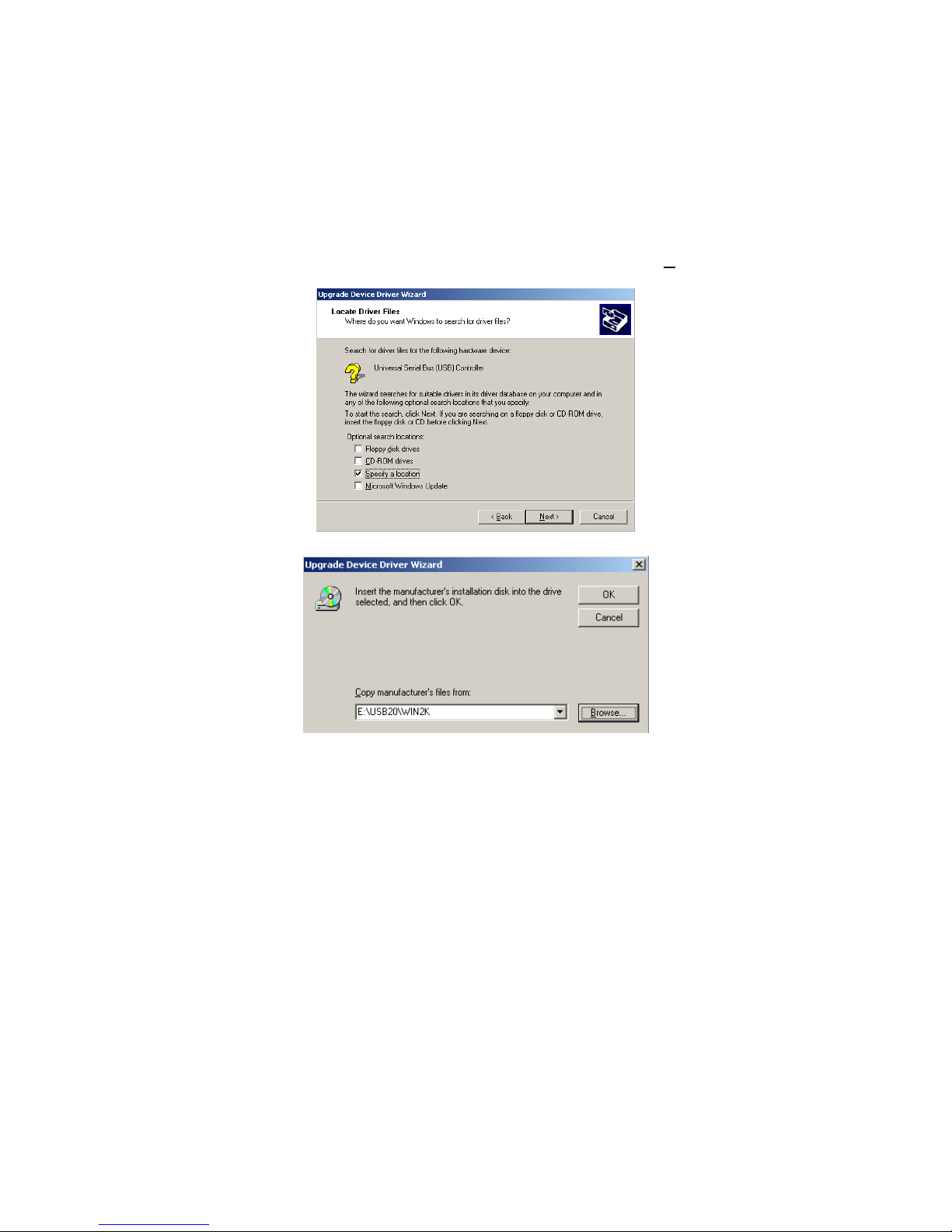

6. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the N
button to continue.

7. Choose the driver disk location.

ext >

72

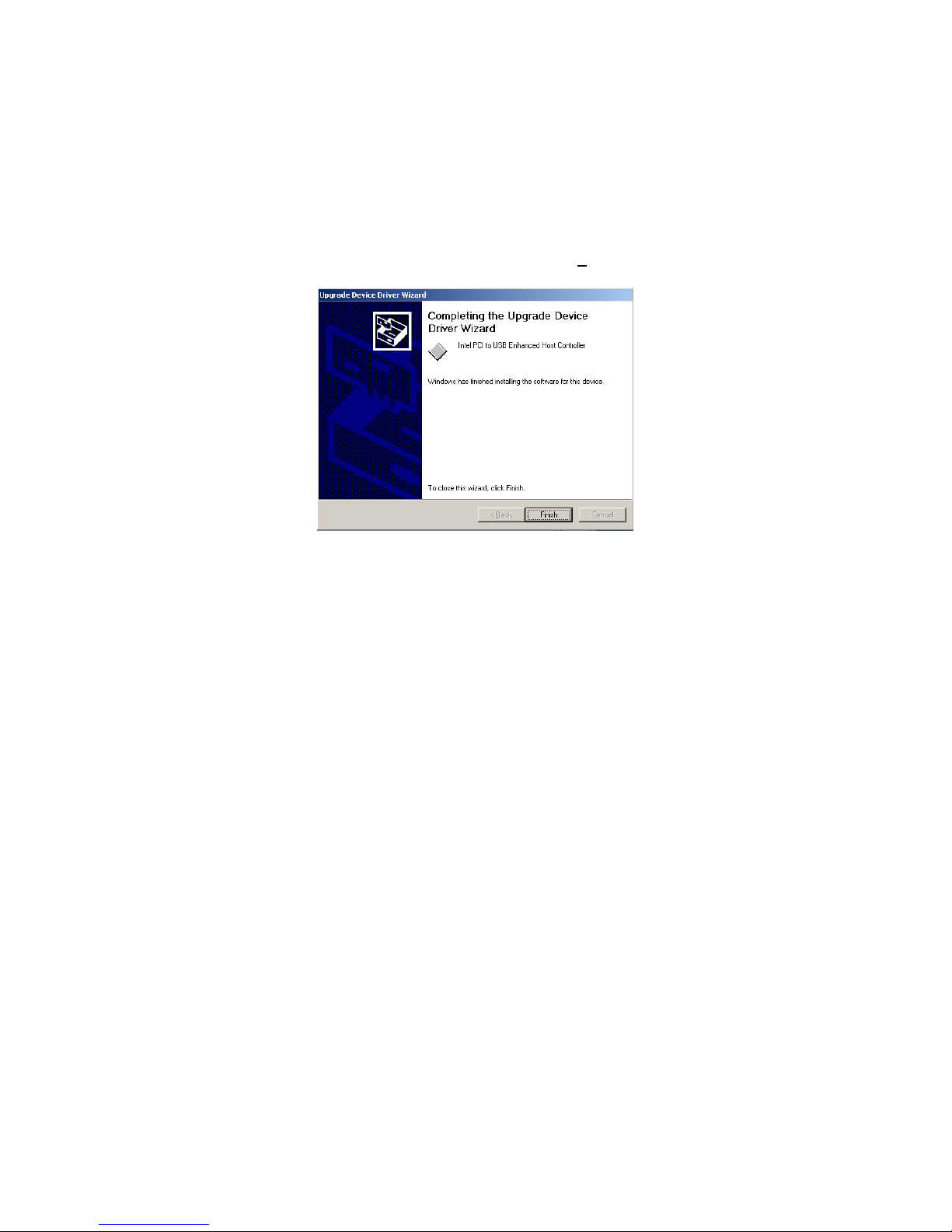

8. Once the Install Shield Wizard completes the operation and
update of your USB2.0 driver. Click on the F
complete the installation process.

inish button to

73

5.5.3 WINXP

1. Insert Utility CD Disk into your CD-ROM drive. The main menu
will pop up as shown below. Select on the HS-2610 (or
HS-7239) button to launch the installation program.

2. Click on the USB2.0 Driver button to continue.

74

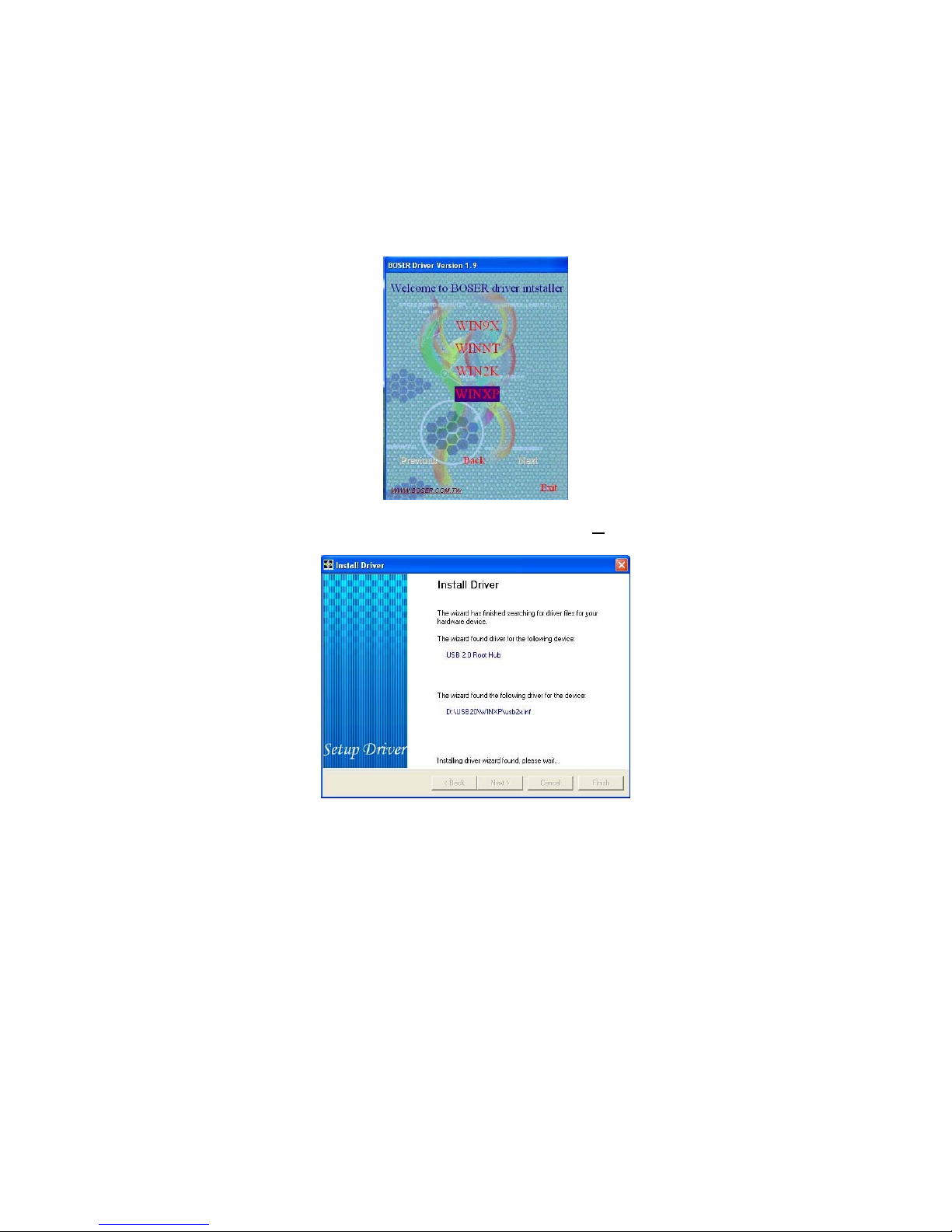

3. Click on the WINXP button to continue.

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the Next > button to
proceed.

75

5. Once the Install Shield Wizard completes the operation and
update of your USB2.0 driver. Click on the F
complete the installation process.

inish button to

76
