Page 1

HS-1760

Intel® Core™ 2 Duo/Mobile Celeron® processor

Mini ITX Board

•1066/800MHz FSB•DDR3•CompactFlash•

•PCIe x1•PCIe x16•Mini PCI•PCI•

•GPIO•DVI-I/CRT/LVDS•Dual GB LAN•

•HD Audio• 4 SATA•RS-232/422/485•4 COM•

•6 USB2.0•WDT•H/W Monitor•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

electronic, mechanical, photocopying, recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the contents of

this document without due notice.

BOSER Technology Co., Ltd. assumes no

responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. Award is a registered trademark of Award Software, Inc. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

Page 3

Table of Contents

Chapter 1 General Description .................................. 1

1.1 Major Features ....................................................................... 2

1.2 Specifications ........................................................................ 2

1.3 Board Dimensions ................................................................. 4

Chapter 2 Unpacking ................................................. 5

2.1 Opening the Delivery Package ............................................. 5

2.2 Inspection ............................................................................... 5

Chapter 3 Hardware Installation .............................. 7

3.1 Before Installation ................................................................. 7

3.2 Board Layout ......................................................................... 8

3.3 Jumper List ............................................................................ 9

3.4 Connector List ..................................................................... 10

3.5 Configuring the CPU ........................................................... 11

3.6 System Memory ................................................................... 11

3.7 VGA Controller ..................................................................... 11

3.8 Serial ATA Connector ......................................................... 13

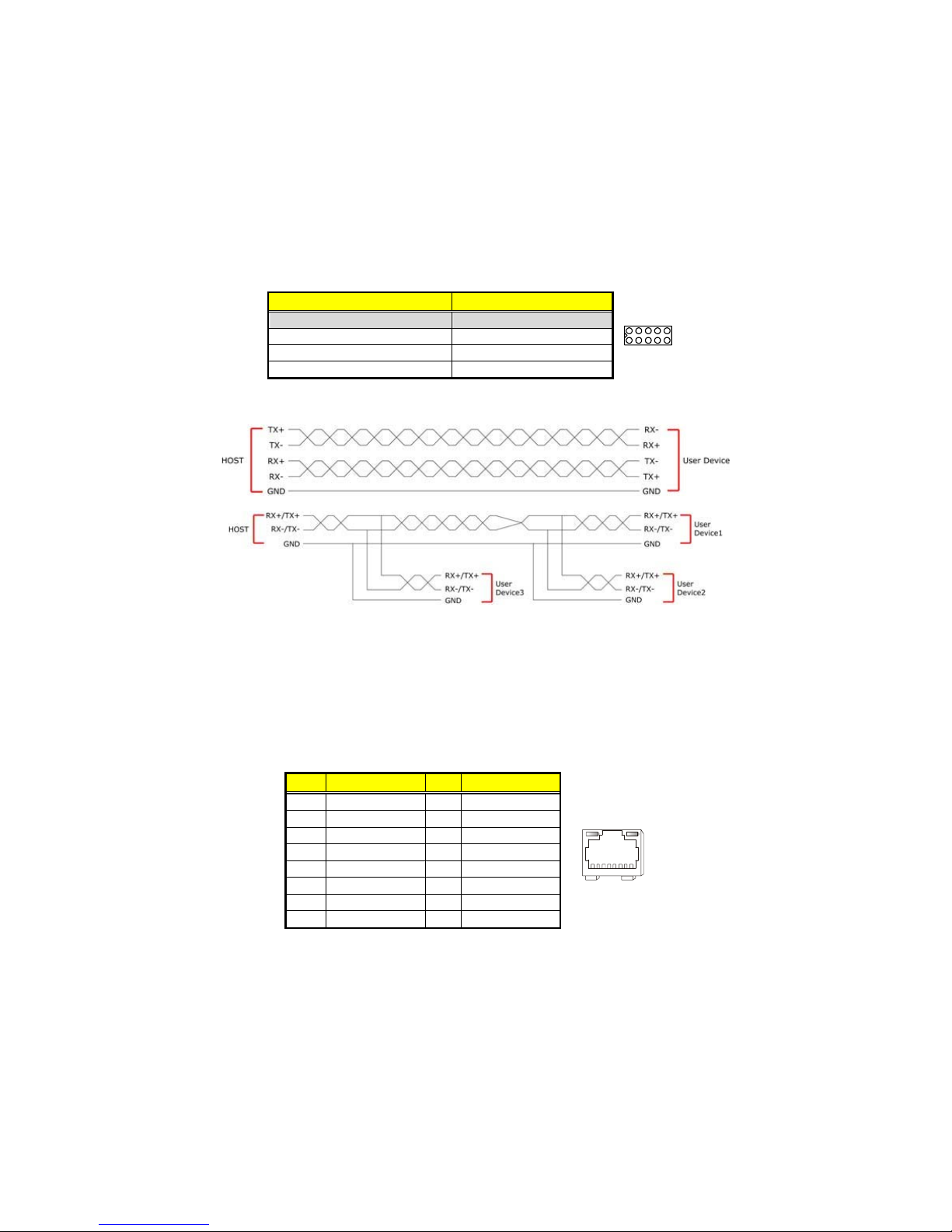

3.9 Serial Port Connectors ....................................................... 14

3.10 Ethernet Connector ............................................................. 15

3.11 USB Port ............................................................................... 16

3.12 CMOS Data Clear ................................................................. 16

3.13 Parallel Port .......................................................................... 17

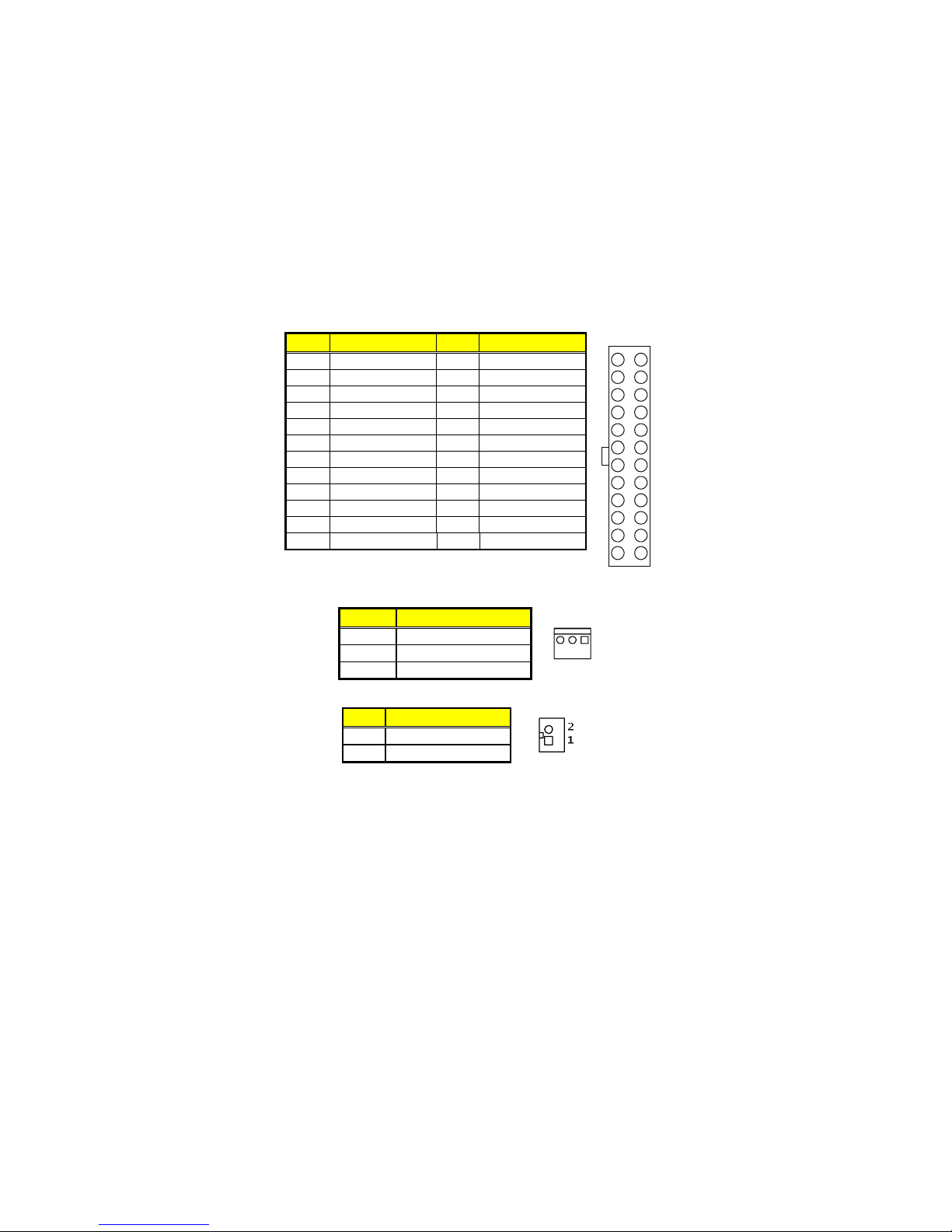

3.14 Power and Fan Connectors ................................................ 18

3.15 Keyboard/Mouse Connectors ............................................ 19

3.16 System Front Panel Control ............................................... 19

3.17 Watchdog Timer .................................................................. 20

3.18 Audio Connectors ............................................................... 22

3.19 CompactFlash Connector ................................................ 22

3.20 8-bit GPIO Function ............................................................. 24

Page 4

Chapter 4 AMI BIOS Setup .................................... 25

4.1 Starting Setup ...................................................................... 25

4.2 Using Setup ......................................................................... 26

4.3 Main Menu ............................................................................ 27

4.4 Advanced Settings .............................................................. 28

4.5 Advanced PCI/PnP Settings ............................................... 32

4.6 Boot Settings ....................................................................... 33

4.7 Security Settings ................................................................. 34

4.8 Advanced Chipset Settings ................................................ 35

4.9 Exit Options ......................................................................... 36

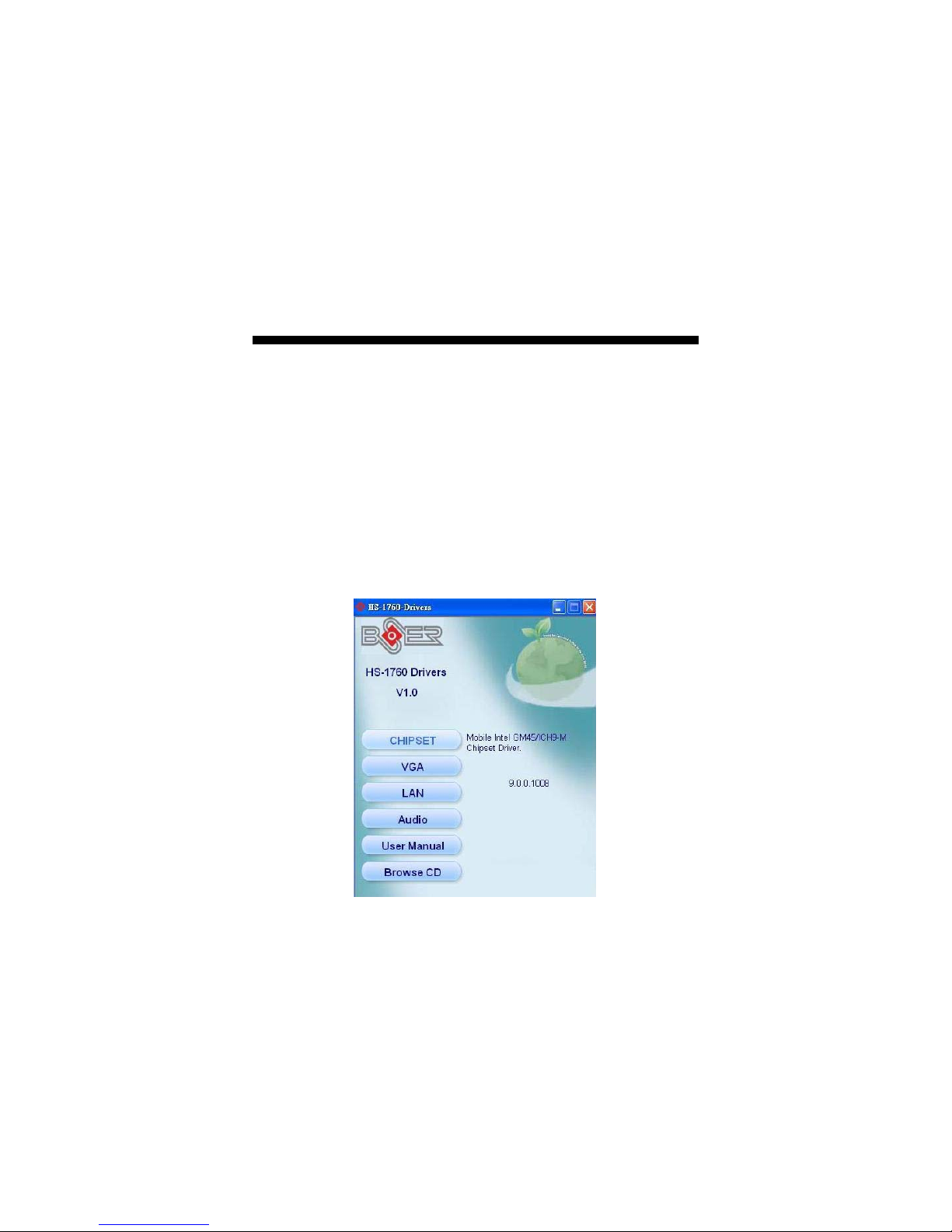

Chapter 5 Software Utilities .................................... 37

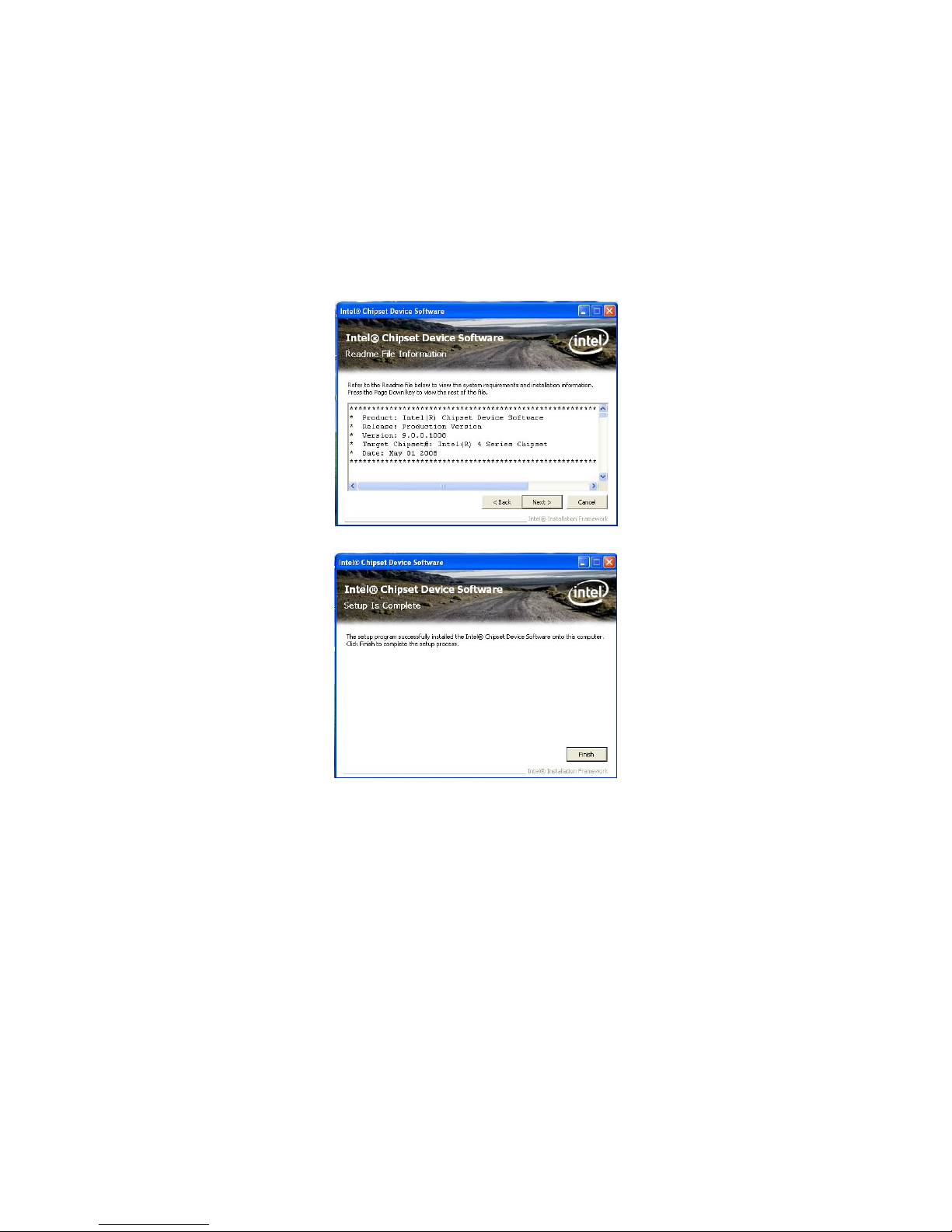

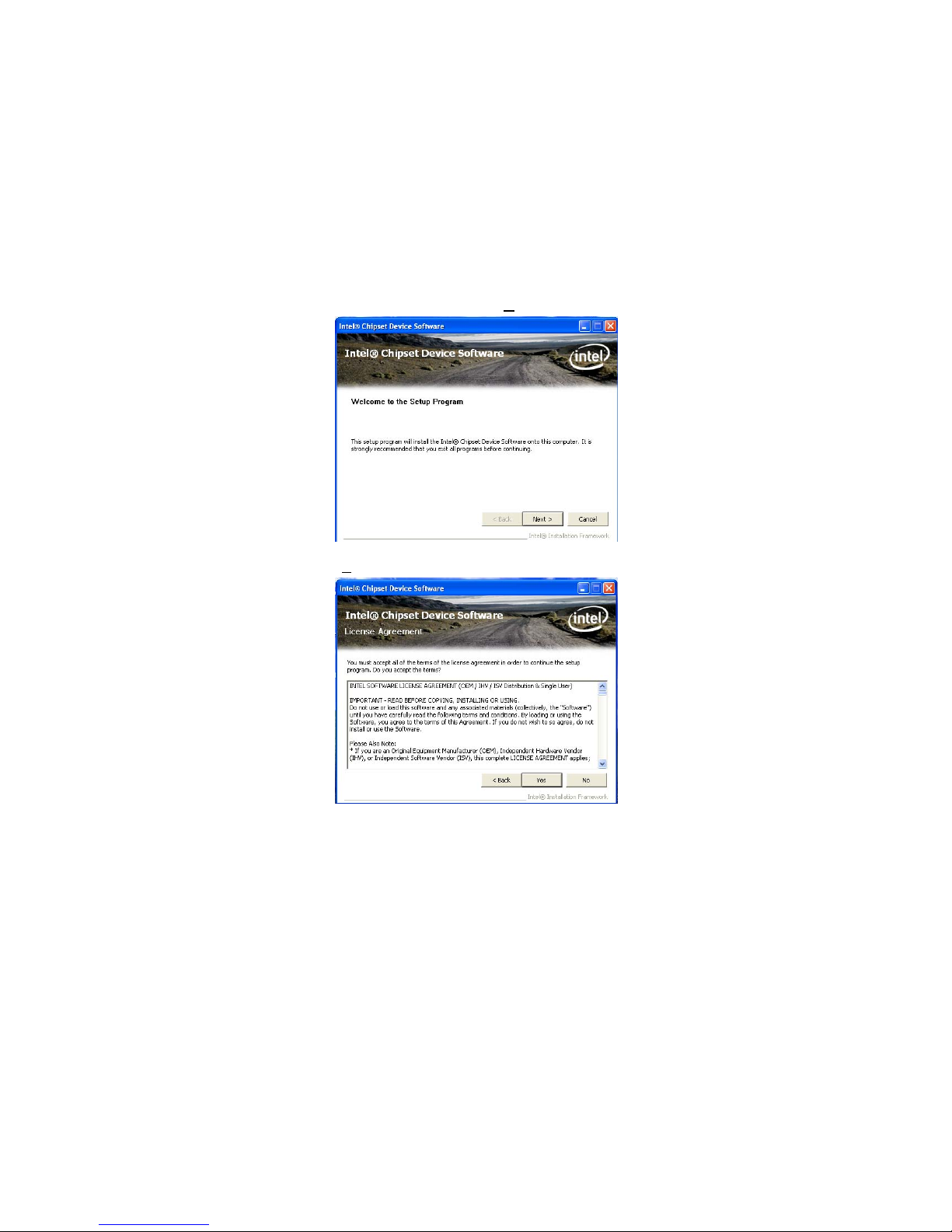

5.1 Chipset Driver Installation .................................................. 37

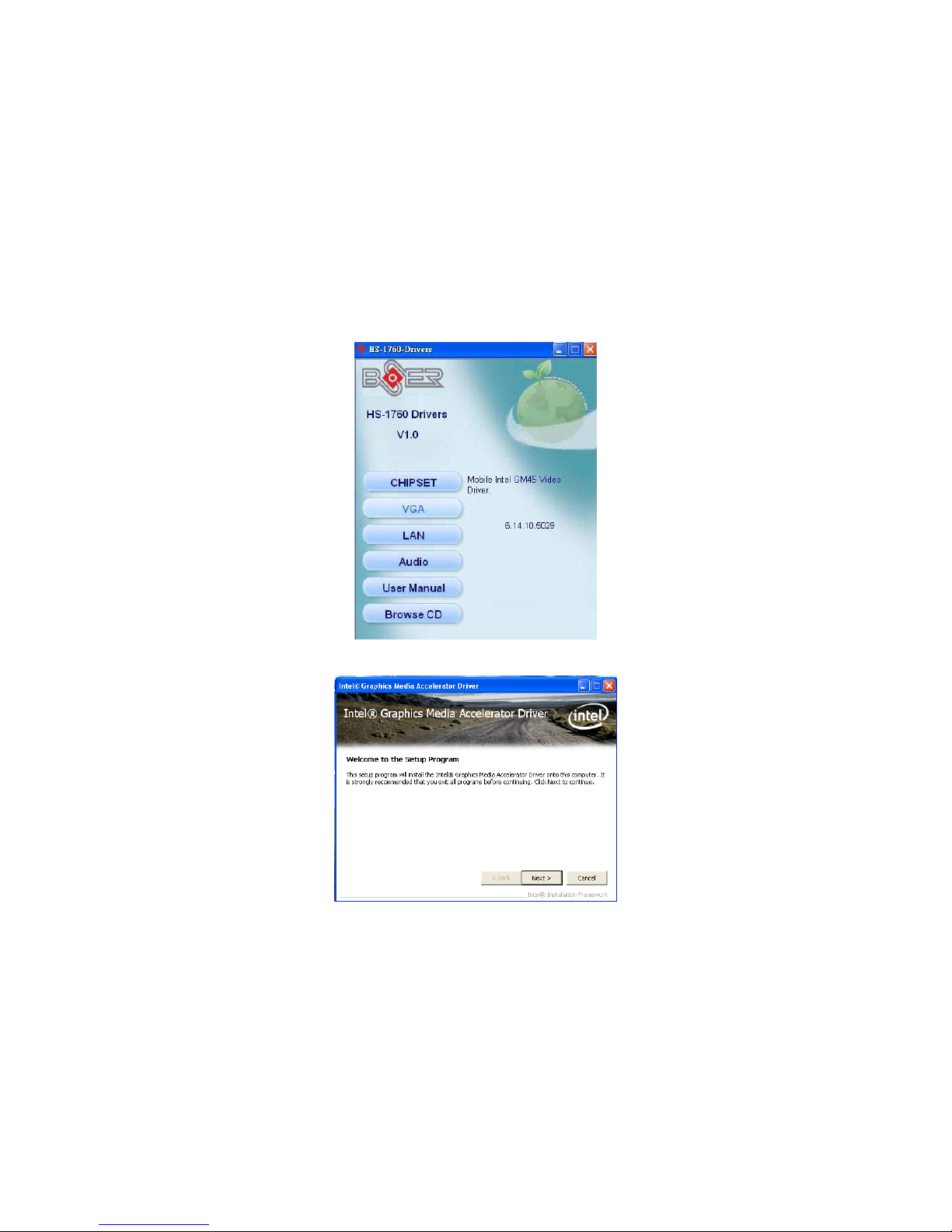

5.2 VGA Driver Installation ....................................................... 40

5.3 LAN Driver Installation ........................................................ 43

5.4 Audio Driver Installation ..................................................... 45

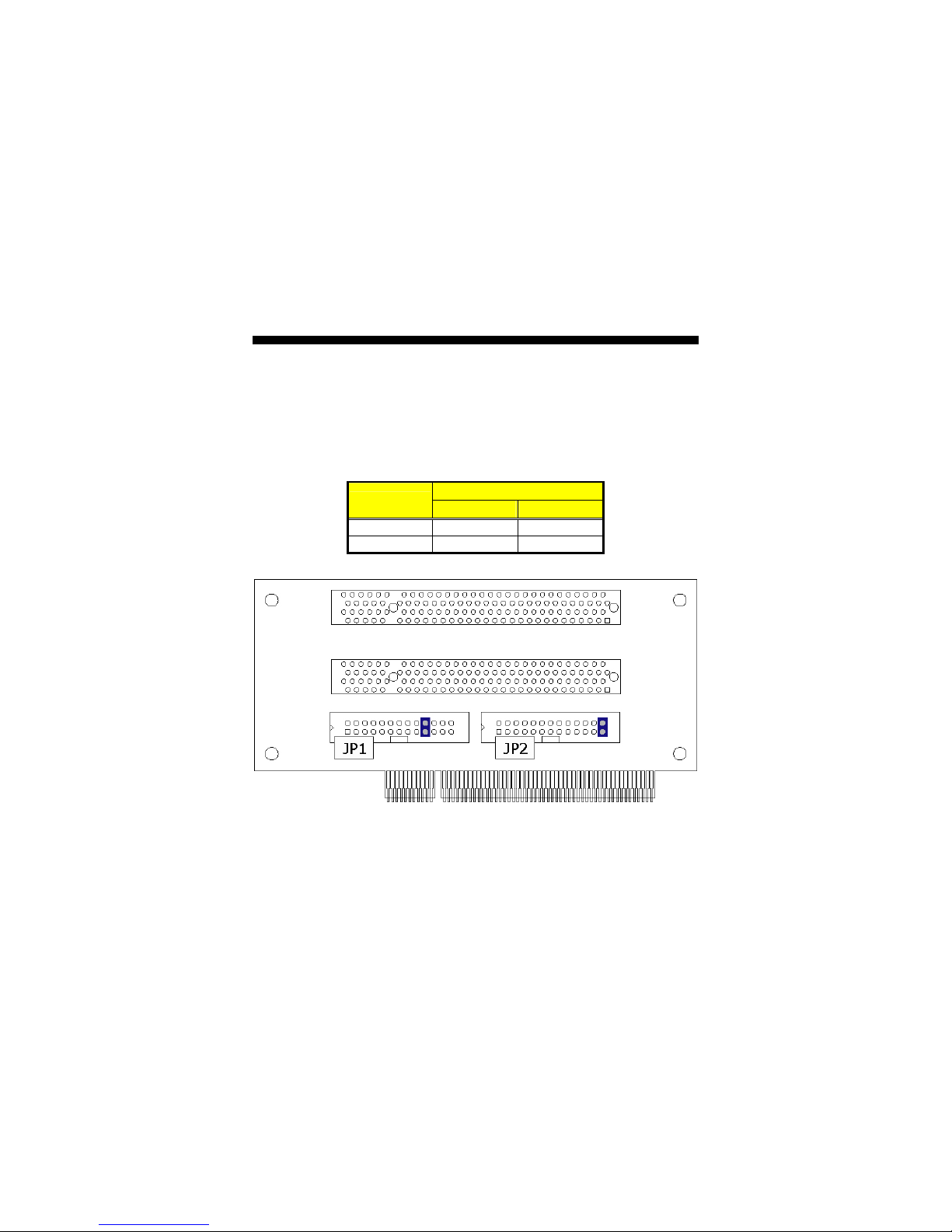

Appendix A Riser Card Application .......................... 47

Page 5

Declaration of Conformity -- CE Mark

BOSER Technology hereby acknowledges that compliance testing in accordance with applicable standards of the EU’s EMC Directive, 89/336/EEC, was successfully completed on a sample of the equipment identified below:

Equipment Class: Information Technology Equipment Product Model Series: HS-1760 This Product Complies With: EN55022: Class A for Radiated emissions

EN50082-2: Heavy Industrial EMC Immunity

We, the undersigned, hereby declare that the equipment specified above conforms to the above directives and standards.

Manufacturer:

BOSER TECHNOLOGY CO., LTD.

Page 6

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion of

the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.

 Wear a wrist-grounding strap, available from most electronic component

stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-1760 to ensure harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or parts or

tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE

COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTIONS.

Page 7

Chapter 1

General Description

The HS-1760 is an Intel® GM45/ICH9-M chipset-based board designed, the board supports Intel® Mobile Dual-Core processor. The HS-1760 is an ideal all-in-one mini ITX board. Additional features include an enhanced I/O with CF, DVI-I/CRT/LVDS, dual GB LAN, HD audio, 4 SATA, 4 COM, and 6 USB2.0 interfaces.

The Intel® GM45 integrated Intel® Gen5.0 GMA 4500MHD Graphics shared system memory up to 352MB with DVMT5.0 supports CRT/Panel displays up to 2048 x 1536. It also supports 24-bit single/dual channel LVDS interface.

System memory is also sufficient with the two 204-pin SO-DIMM sockets DDR3 800/1066MHz up to 4GB.

Page 8

Additional onboard connectors include six advanced USB2.0 ports providing faster data transmission. And two RJ-45 connectors for 10/100/1000 Based Ethernet uses. To ensure the reliability in an unmanned or standalone system

, the watchdog timer (WDT) onboard

HS-1760 is designed with software that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard WDT will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-1760 comes with the following features:



Socket P for Intel® Core™ 2 Duo/Mobile Celeron® processor, supports 1066/800/667MHz FSB

 2 x SO-DIMMs up to 4GB DDR3 SDRAM  Intel® GM45/ICH9-M system chipset  Intel® GM45 integrated VGA for DVI-I, CRT & LVDS  2 x 10/100/1000 Mbps Ethernet  High Definition audio codec  Supports CF, 4 x SATA, 4 x COM, 6 x USB2.0, mini PCI slot, PCIe x1

slot, PCIe x16 slot, standard PCI slot

 Supports 24-bit LVDS, 8-bit GPIO, H/W Monitor function

1.2 Specifications

System



CPU:

Intel® Core™ 2 Duo and Mobile Celeron® processor

 FSB:

1066/800/667MHz FSB

 BIOS:

AMI PnP Flash BIOS

 System Chipset:

Intel® GM45/ICH9-M

 I/O Chipset:

Winbond W83627UHG

 System Memory:

2 x 204-pin SO-DIMM sockets DDR3 800/1066MHz up to 4GB

 Storage:

1 x Type II CF socket

Page 9



Watchdog Timer:

Software programmable time-out intervals from 1~255 sec. or 1~255 min.

 H/W Status Monitor:

Monitoring temperatures, voltages, and cooling fan status

 Expansion Interface:

1 x PCIe x1 slot 1 x PCIe x16 slot 1 x Type III mini PCI slot 1 x Standard PCI slot

 Power Function:

ATX power

 Operating Temperature:

0~60 degrees C

 Operating Humidity:

0~95%, non-condensing

 Size (L x W):

170 x 170 mm

I/O Interface



MIO:

3 x RS-232 (2 x external) 1 x RS-232/422/485 6 x USB2.0 (2 x internal, 4 x external) 1 x Parallel 4 x SATA 1 x PS/2 for KB/MS

 GPIO:

8-bit general purpose input/output port

Display



Chipset:

Intel® GM45 integrated Intel® GMA 4500 MHD

 Display Memory:

352MB video memory

 LVDS:

24-bit single/dual-channel

 Resolution:

2048 x 1536

 DVI chipset:

Intel® GM45 integrated Intel® GMA 4500 MHD

Audio



Chipset:

RealTek ALC262 High Definition audio codec

 Audio Interface:

MIC In, Line Out

Page 10

Ethernet



Chipset:

Dual RealTek RTL8111C 10/100/1000 Mbps LAN

 Ethernet Interface:

2 x RJ-45

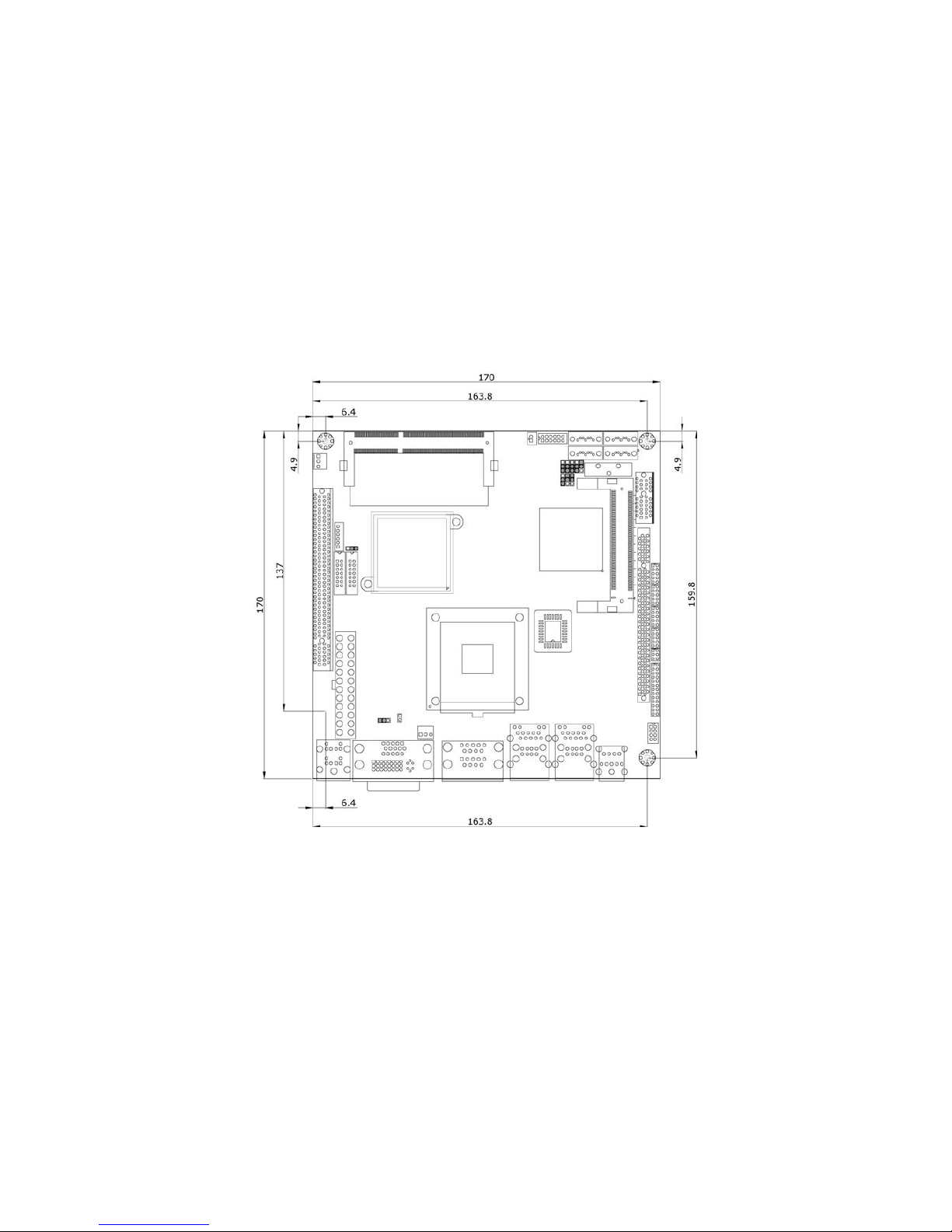

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-1760 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-1760 delivery package contains the following items:

 HS-1760 Board x 1  Utility CD Disk x 1, including User’s Manual  Cables (as following table)  Jumper Bag x 1

Page 12

Cables Package

NO. Description QTY.

1 SATA cable 50cm (w/Lock) 1 2 Print DB25-26P(2.0) cable 1 3 SATA power cable 15cm 1

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Option Accessories

NO. Description

1 USB 1-to-2 cable 2 SATA cable 50cm (w/Lock) 3 COM DB9*2-10P(2.0) cable 4 H=23mm CPU Cooler

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-1760. This chapter also contains information related to jumper settings of switch, and watchdog timer selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (JP8 short 1-2)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the driver CD in good condition for future reference and use.

Page 14

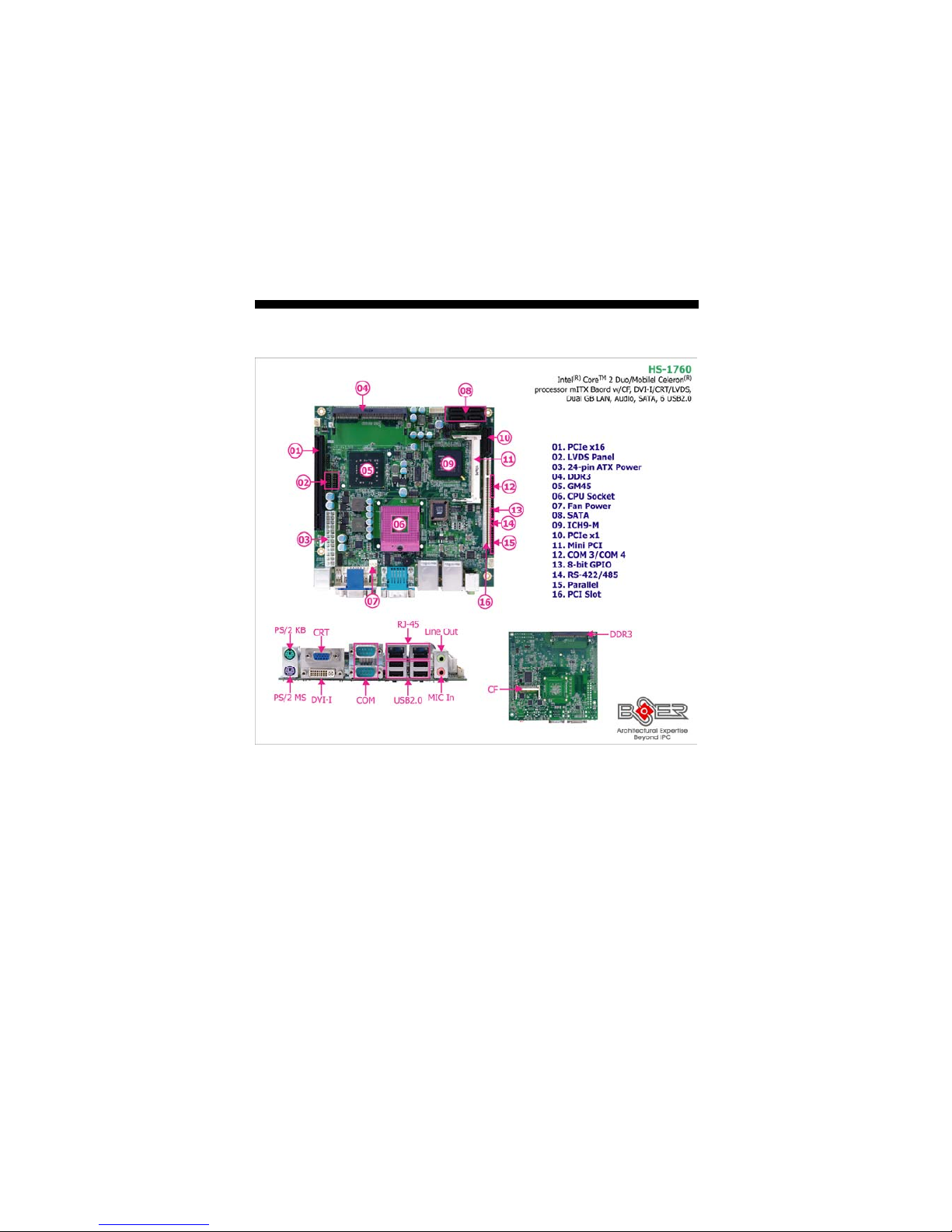

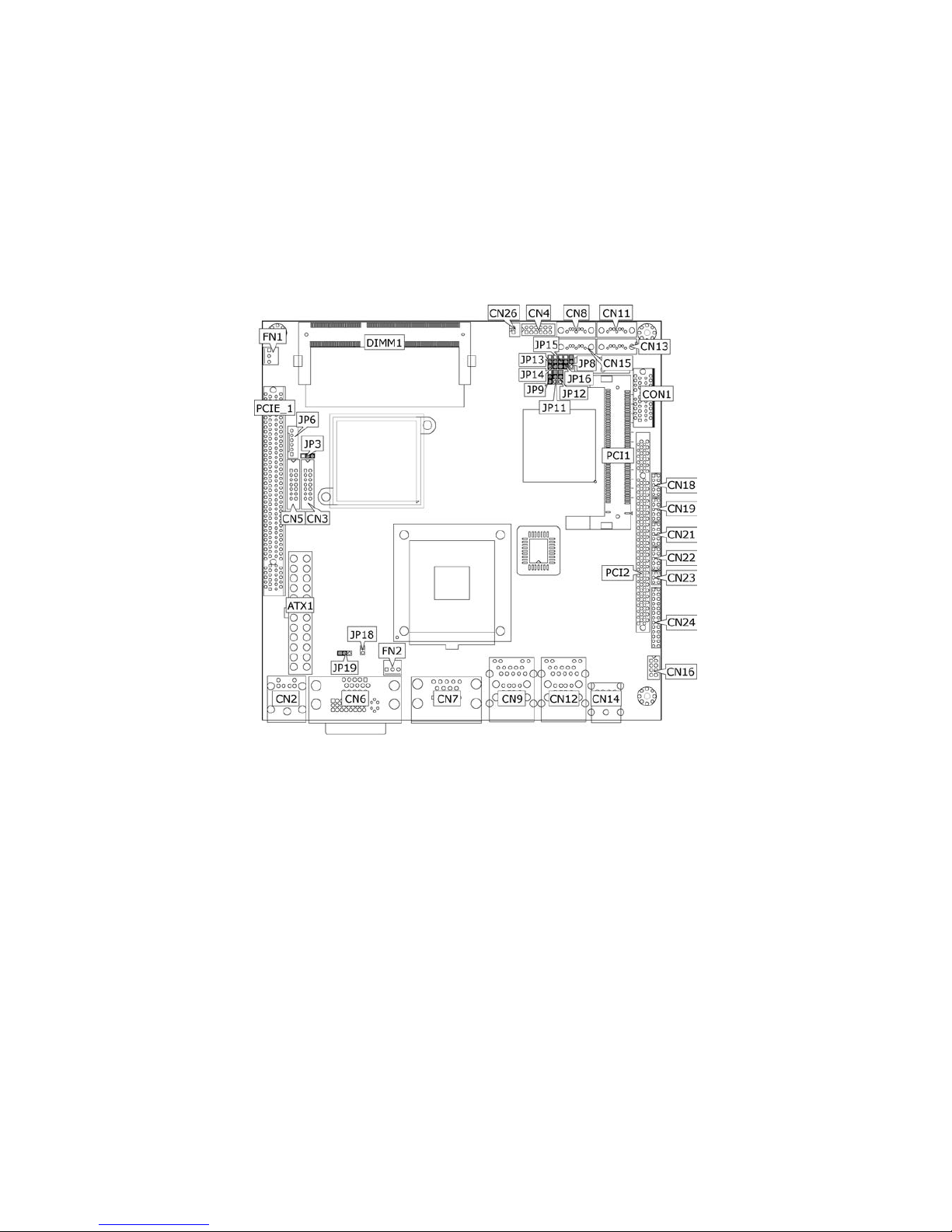

3.2 Board Layout

TOP Side

Page 15

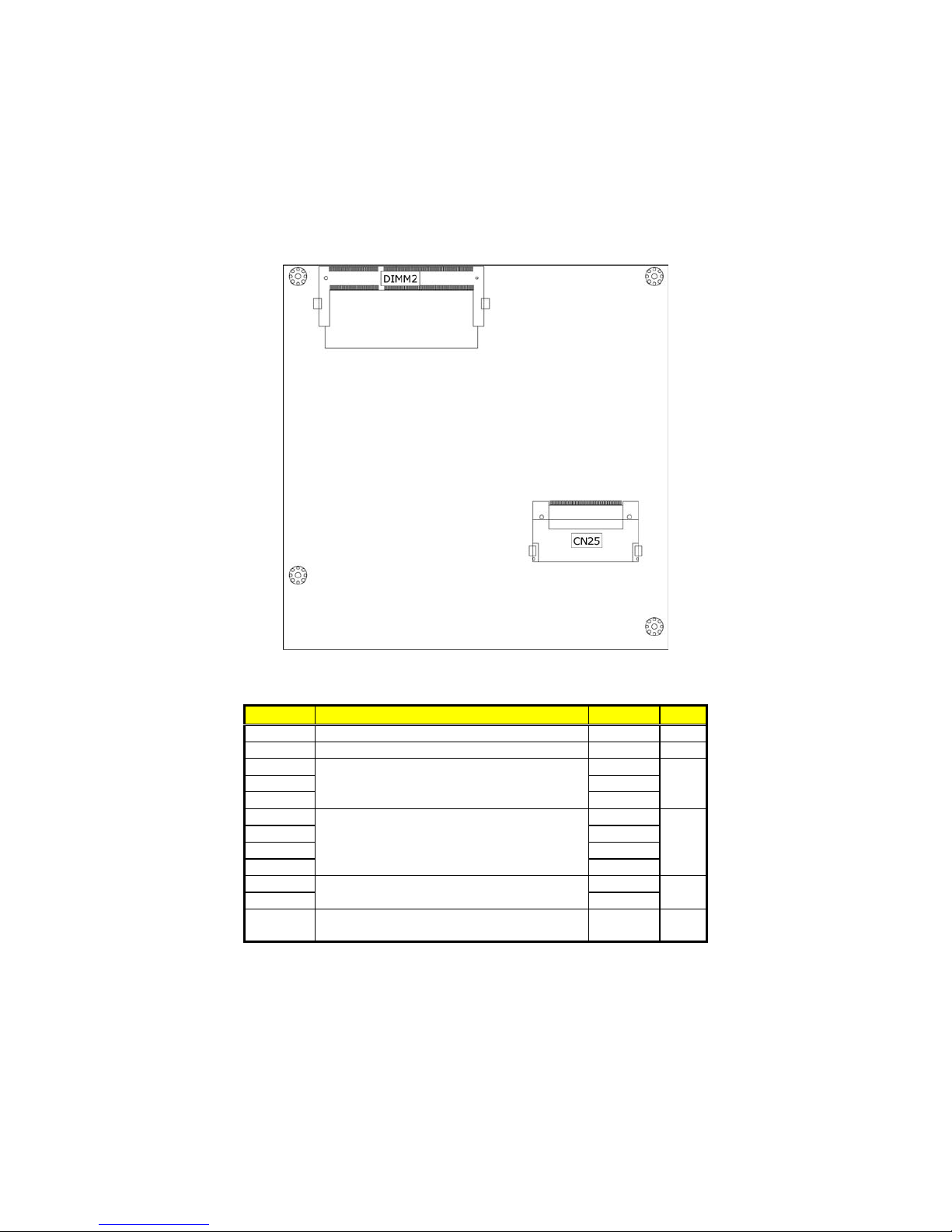

Solder Side

3.3 Jumper List

Jumper Default Setting Setting Page

JP3 Panel Voltage Select: +3.3V Short 2-3 11 JP8 Clear CMOS: Normal Operation Short 1-2 16 JP9

FSB Frequency Select: CPU Driven

Short 2-3

JP11 Short 1-2 JP12 Short 1-2 JP13

CF or SATA 3 Connector Select: SATA

Short 2-3

13/22

JP14 Short 2-3 JP15 Short 2-3 JP16 Short 2-3 JP18

Onboard Display or External PCIe x16 Bus Select: CRT Function

Open

JP19 Short 1-2

CN21

COM 2 Use RS-232 or RS-422/485 Select: RS-232

Open 14

Page 16

3.4 Connector List

Connector Definition Page

ATX1 24-pin ATX Power Connector 18

CN2 PS/2 6-pin Mini DIN KB & MS

Connector

CN3/CN5 LVDS Panel Connector 11

CN4 System Front Panel Connector 19 CN6 15-pin CRT/DVI-I Connector 11 CN7 COM 1/COM 2 Connector (DB9) 14

CN8/CN11/CN13/CN15 SATA 0~SATA 3 Connector 13

CN9/CN12 RJ-45 + External USB2.0 Ports 15/16

CN14 MIC In/Line Out Connector 22 CN16 Internal USB2.0 Ports 16

CN18/CN19 COM 3/COM 4 Connector (5x2 header) 14

CN22 8-bit GPIO 24 CN23 RS-422/485 Connector (3x2 header) 14 CN24 Parallel Port 17 CN25 CompactFlash Connector 22 CN26 External Reset Button 18

CON1 PCIe x1 Expansion Slot ----

DIMM1/DIMM2 DDR3 Socket 11

FN1/FN2 Fan Power Connector 18

JP6 Inverter Power Connector 11 PCI1 Mini PCI Expansion Slot ---- PCI2 PCI Expansion Slot ----

PCIE_1 PCIe x16 Expansion Slot ----

Page 17

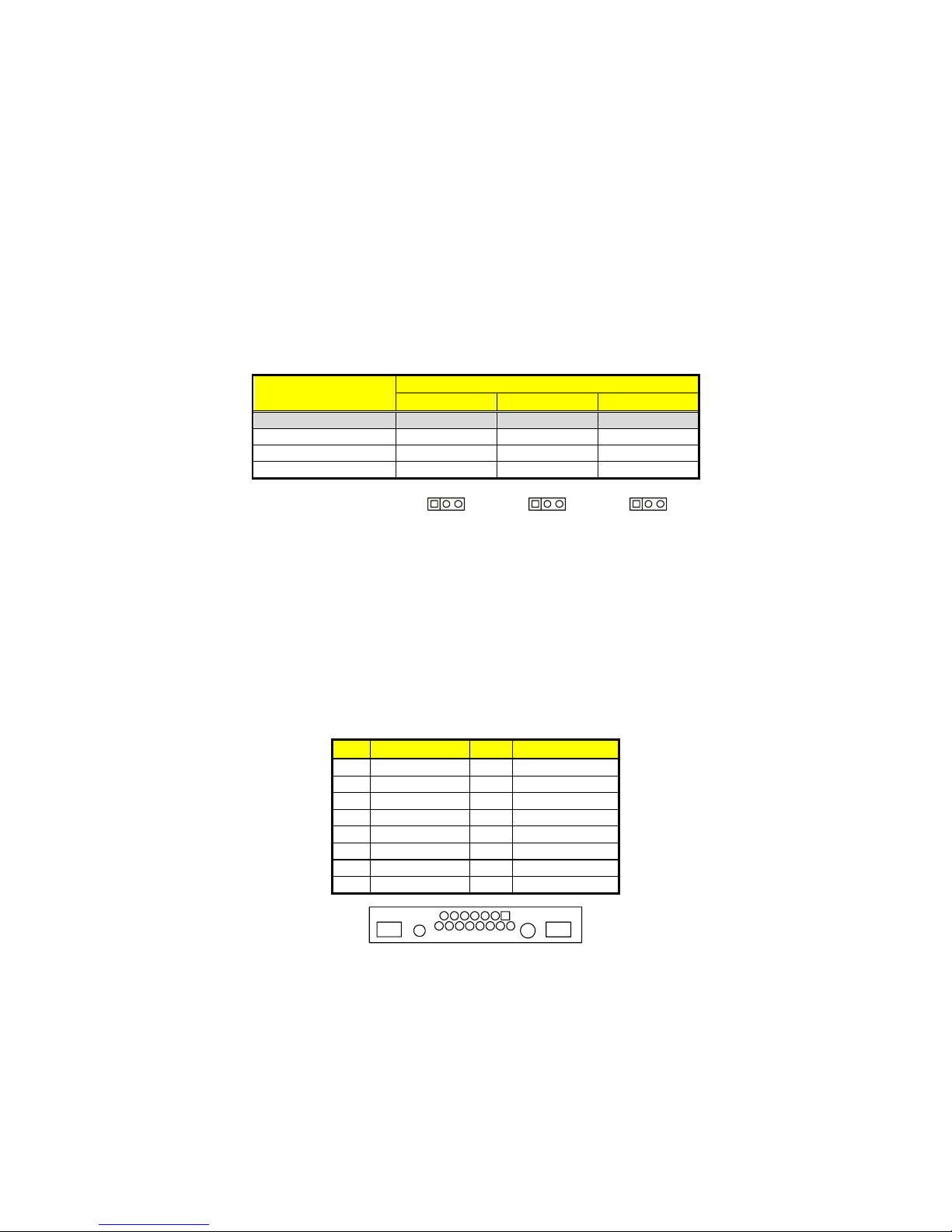

3.5 Configuring the CPU

The HS-1760 use Socket P for Intel® Core™ 2 Duo (Penryn 45nm) and Mobile Celeron® processor.

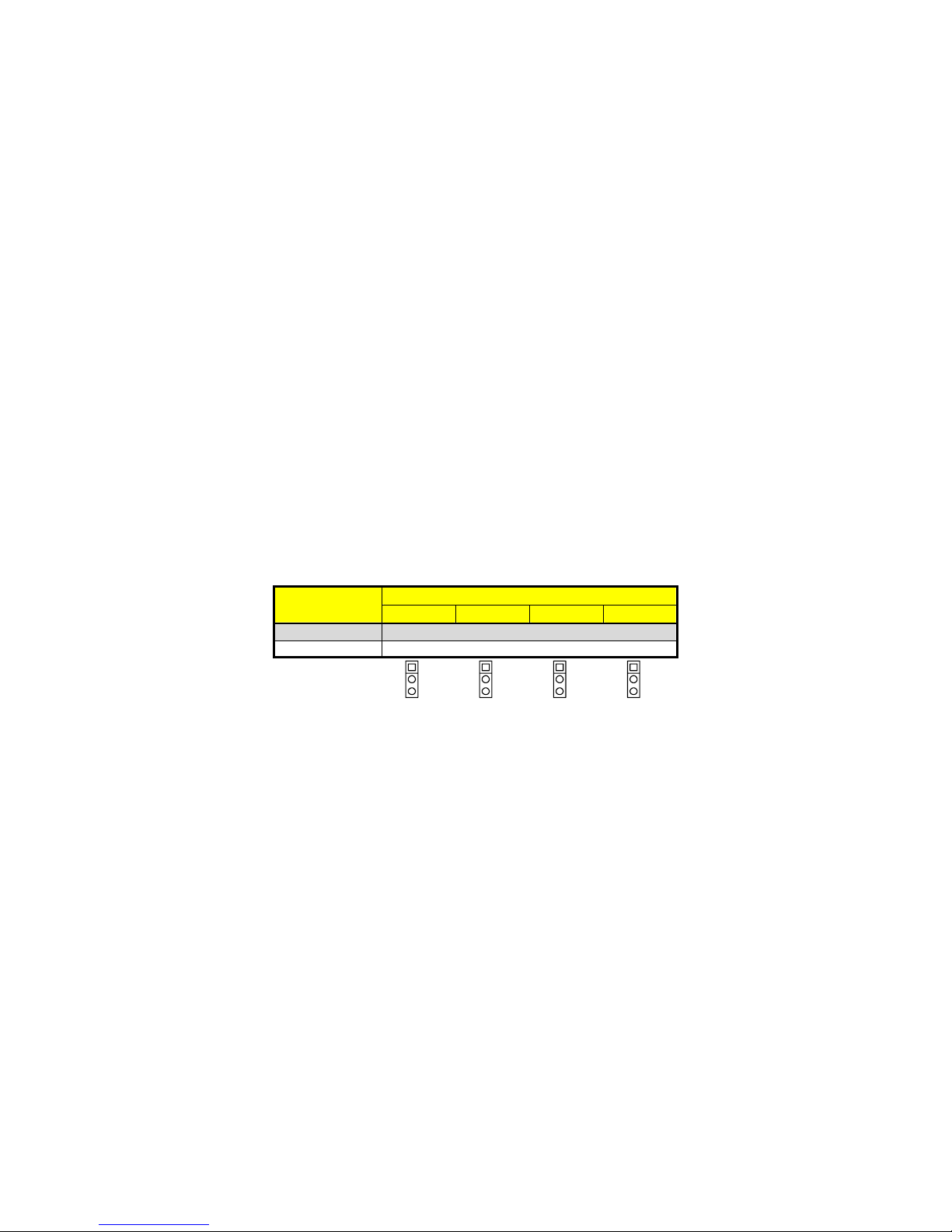

z JP9/JP11/JP12: FSB Frequency Select

Options

Settings

JP9 JP11 JP12

CPU Driven (default) Short 2-3 Short 1-2 Short 1-2

1066MHz FSB Short 2-3 Short 2-3 Open

800MHz FSB Short 2-3 Open Open 667MHz FSB Short 2-3 Open Short 2-3

13 13 13

3.6 System Memory

The HS-1760 provides two 204-pin SO-DIMM sockets at locations DIMM1/DIMM2. It supports DDR3 800/1066MHz up to 4GB.

3.7 VGA Controller

The HS-1760 provides three types of connection for display device. CN6A is a 15-pin CRT connector. CN3/CN5 are the LVDS interface connectors onboard reserved for flat panel installation. HS-1760 also provides DVI-I connector at location CN6B.

z CN6A: 15-pin CRT Connector

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND

9 VCC 10 GND 11 N/C 12 DDCDA 13 HSYNC 14 VSYNC 15 DDCCL

7123914

611281341015

Page 18

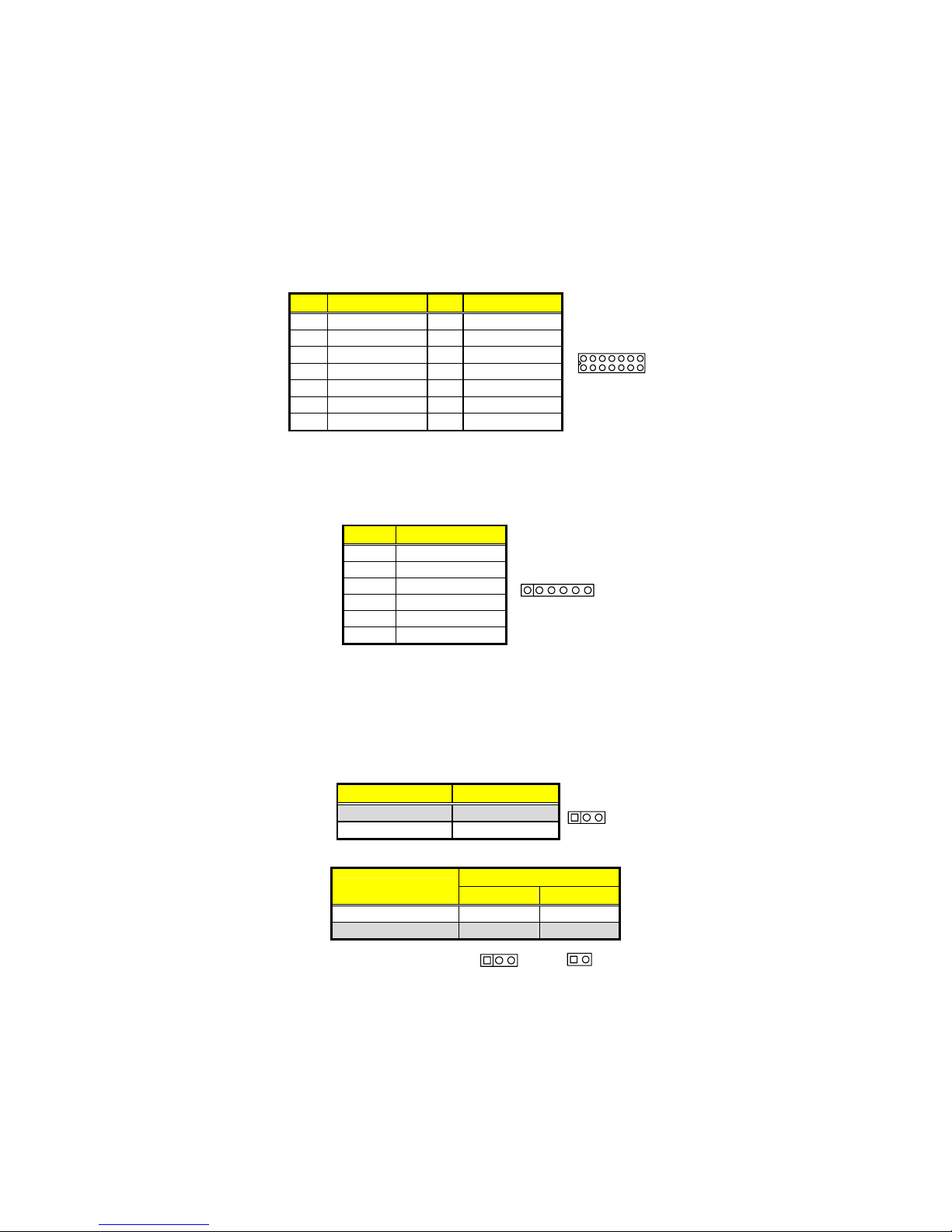

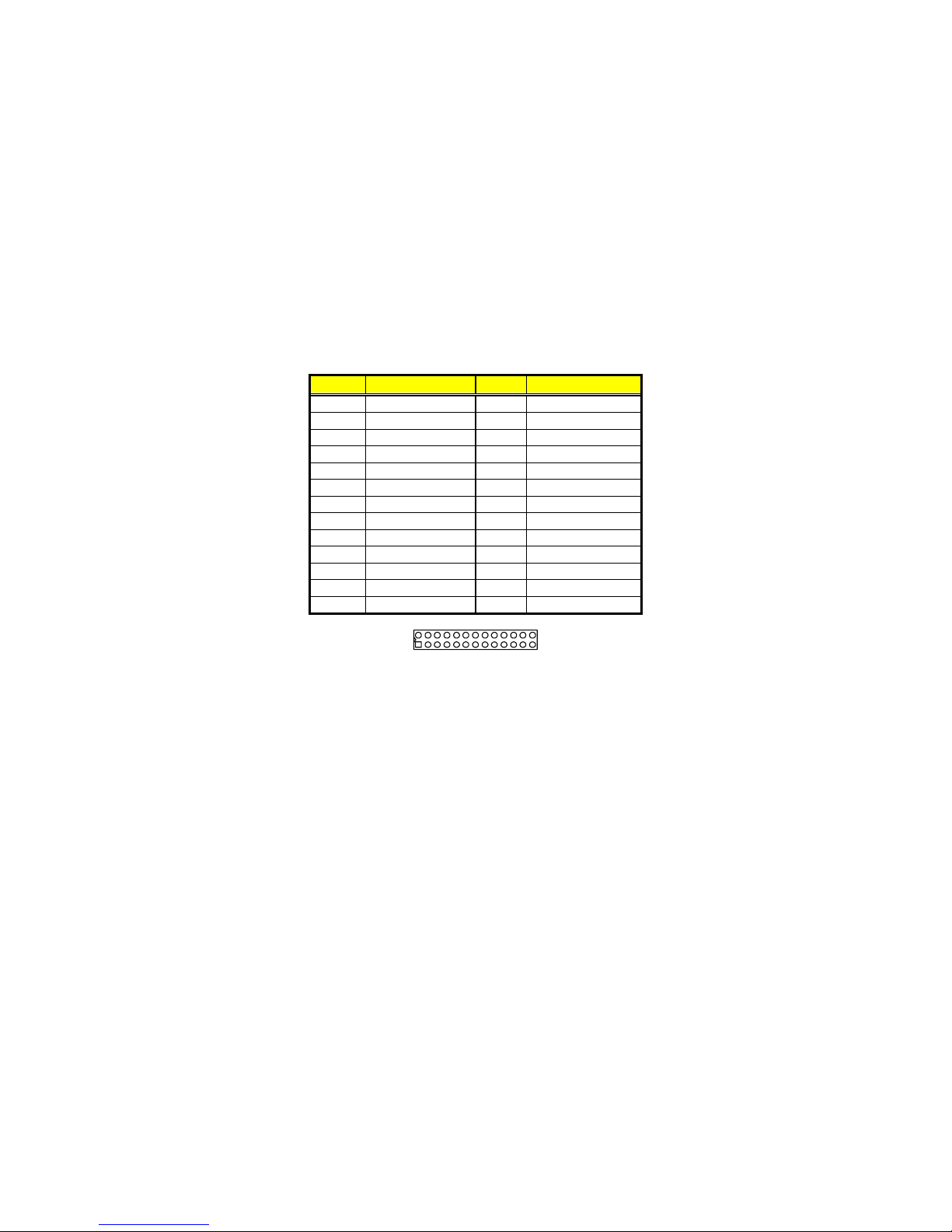

z CN3/CN5: LVDS Interface Connector

PIN Description PIN Description

1 V

LCD

2 V

LCD

3 GND 4 GND 5 A0-/B0- 6 A0+/B0+ 7 A1-/B1- 8 A1+/B1+

9 A2-/B2- 10 A2+/B2+ 11 CLK1-/CLK2- 12 CLK1+/CLK2+ 13 A3-/B3- 14 A3+/B3+

NOTE: LVDS cable should be produced very carefully. A0- & A0+ have to

be fabricated in twister pair (A1- & A1+, A2- & A2+ and so on) otherwise the signal won’t be stable. Please set the proper voltage of your panel using JP6 before proceeding on installing it.

z JP6: Inverter Power Connector

PIN Description

1 +12V 2 +12V 3 VCC 4 BK_EN 5 LCD_EN 6 GND

NOTE: If use CN3 only, it just supports 24-bit single channel LVDS panel;

If you want to use 48-bit dual channel LVDS panel, please use CN3 and CN5 combined.

The HS-1760 has an onboard jumper that selects the working voltage of the flat panel connected to the system. Jumper JP3 offers two voltage settings for the user.

z JP3: Panel Voltage Select

Options Settings

+3.3V (default) Short 2-3

+5V Short 1-2

z JP18/JP19: External PCIe x16 Slot Enabled/Disabled Select

Options

Settings

JP18 JP19

Enabled Short Short 2-3

Disabled (default) Open Short 1-2

Page 19

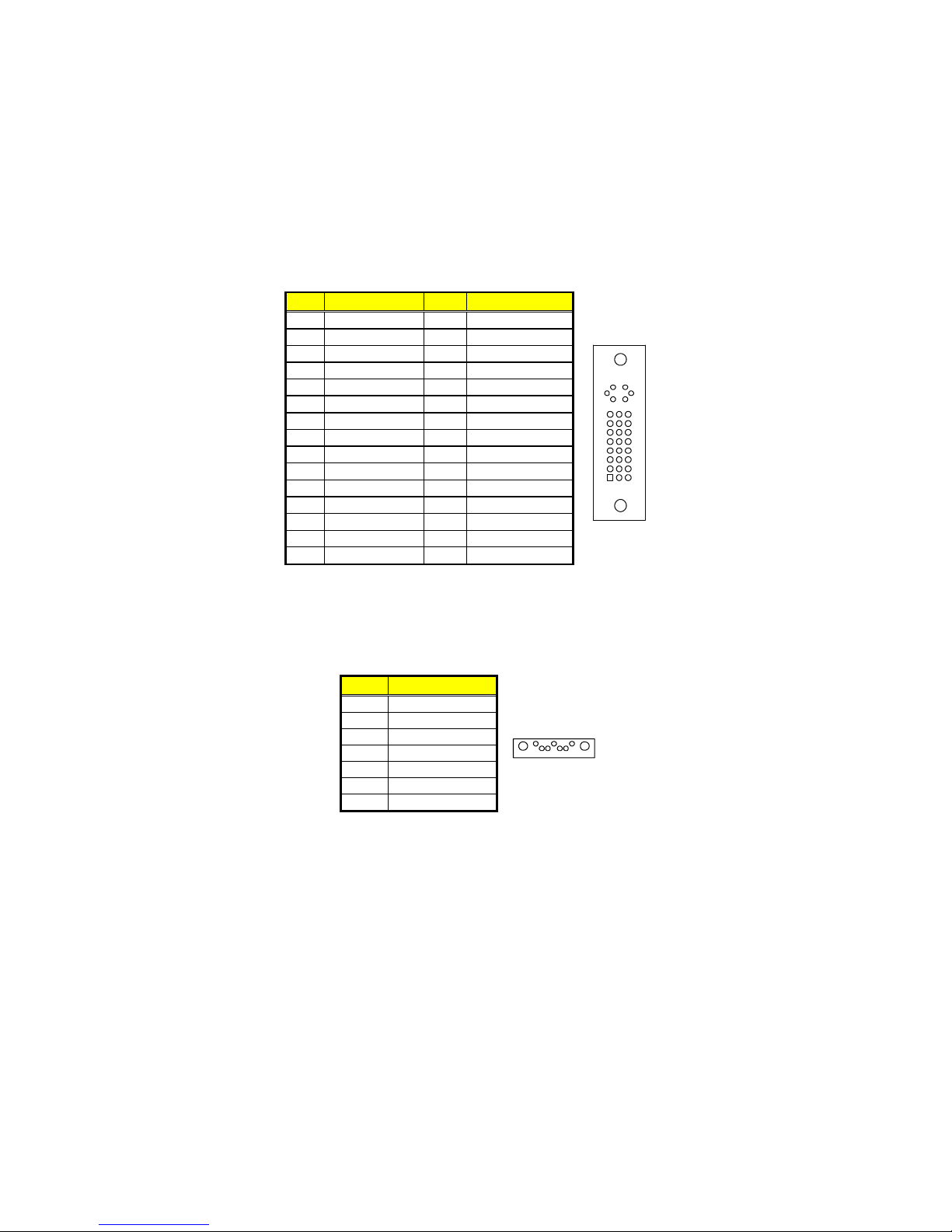

z CN6B: DVI-I Connector

PIN Description PIN Description

1 - DATA2 2 DATA2 3 GND 4 -DATA4 5 DATA4 6 DDCCLK 7 DDCDATA 8 VSYNC 9 -DATA1 10 DATA1

11 GND 12 -DATA3 13 DATA3 14 VCC5 15 GND 16 HPDET 17 -DATA0 18 DATA0 19 GND 20 -DATA5 21 DATA5 22 GND 23 CLK 24 -CLK 25 RED 26 GREEN 27 BLUE 28 HSYNC 29 GND 30 GND

3.8 Serial ATA Connector

You can connect the Serial ATA device that provides you high speeds transfer rates (300MB/sec.).

z CN8/CN11/CN13/CN15: SATA 0~SATA 3 Connector

PIN Description

1 GND 2 SATATXP 3 SATATXN 4 GND 5 SATARXN 6 SATARXP 7 GND

Page 20

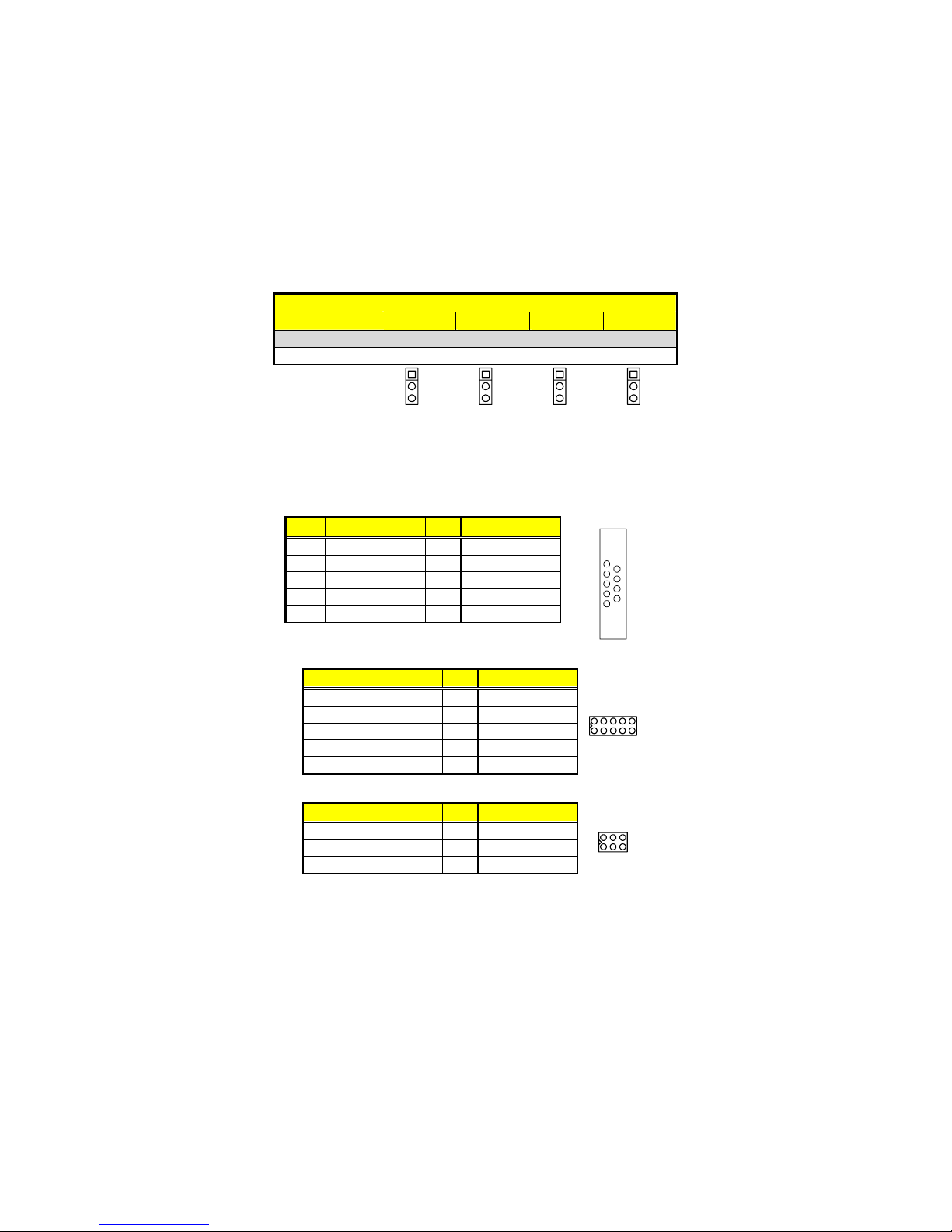

z JP13/JP14/JP15/JP16: CF or SATA 3 Connector Select

Options

Settings

JP13 JP14 JP15 JP16

SATA 3 (default) Short 2-3

CF Short 1-2

3.9 Serial Port Connectors

The HS-1760 offers 16C550 compatible UARTs with Send/ Receive 16-byte FIFO serial ports.

z CN7: COM 1/COM 2 Connector (DB9)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND

z CN18/CN19: COM 3/COM 4 Connector (5x2 Header)

PIN Description PIN Description

102

1 DCD 2 DSR 3 RXD 4 RTS 5 TXD 6 CTS 7 DTR 8 RI 9 GND 10 Don’t Use

z CN23: RS-422/485 Connector (3x2 Header, COM 2)

PIN Description PIN Description

1 TX- 2 TX+ 3 RX+ 4 RX- 5 GND 6 N/C

NOTE: The terminal resistance of RX & TX is set at 180Ω.

Page 21

z CN21: COM 2 use RS-232 or RS-422/485 Select

Options Settings

102

RS-232 (default) Open

RS-485 Transmit Only (*1) Short 1-2, 3-4, 5-7, 8-10

RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10

RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8

NOTE: *1: 2-wires RS-485 function

*2: 4-wires point-to-point full duplex function

4-wires point-to-point full duplex RS-422/485

Typical RS-485 2-wires Mutildrop Network

3.10 Ethernet Connector

The HS-1760 provides two RJ-45 connectors for 10/100/1000 Based LAN. Please refer to the following for its pin information.

When installs OS, this driver namely can automatically install. User does not need to renewal.

z CN9/CN12: RJ-45 Connector

PIN Description PIN Description

110

1 N/C 2 MDIP0 3 MDIN0 4 MDIP1 5 MDIN1 6 MDIP2 7 MDIN2 8 MDIP3 9 MDIN3 10 N/C

11 LINK UP 12 220Ω pull 3.3V 13 LINK 100 14 LINK 1000 15 GND 16 GND

Page 22

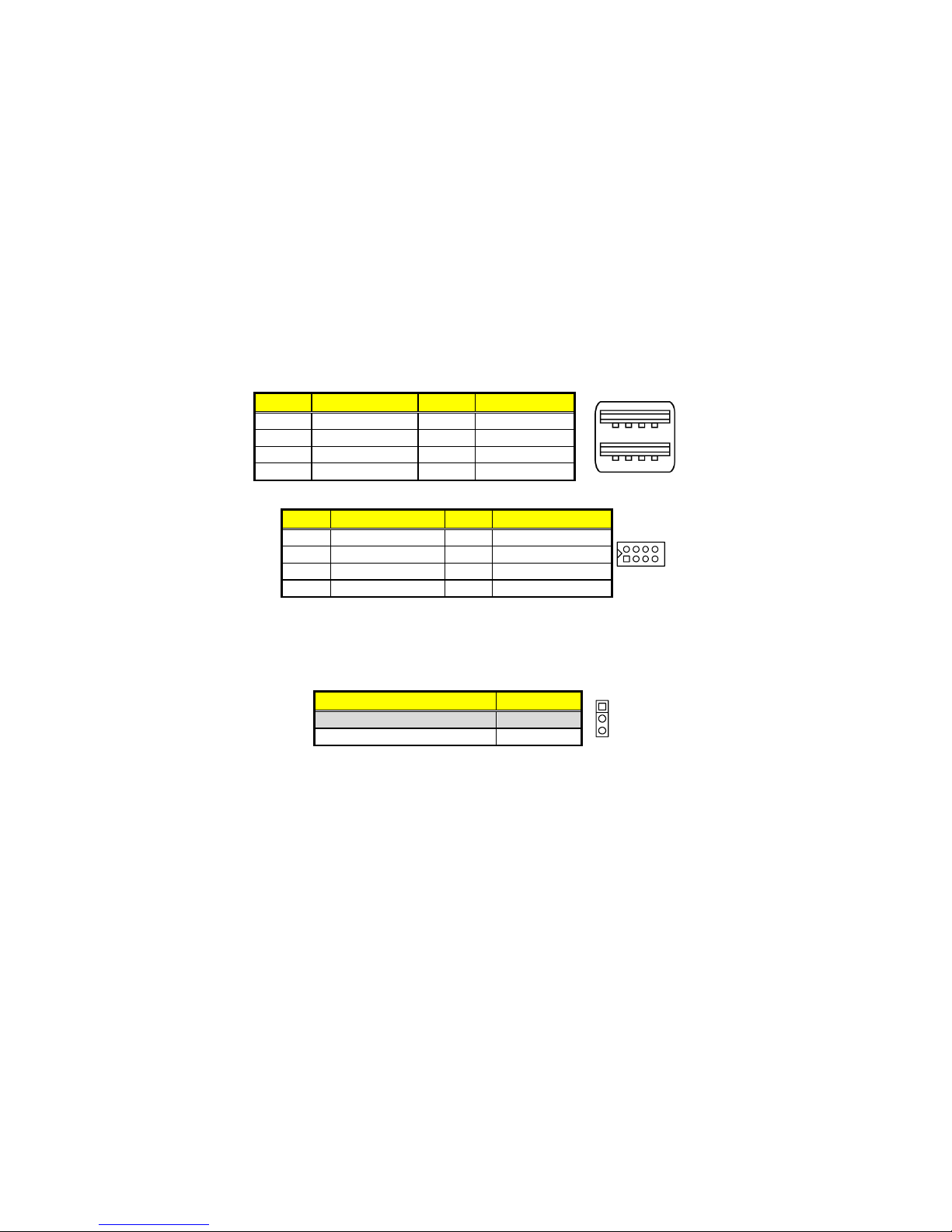

3.11 USB Port

The HS-1760 provides one 8-pin connectors, at location CN16, for two USB2.0 ports, and CN9/CN12 are external USB2.0 ports, there are total six USB2.0 ports in HS-1760.

z CN9/CN12: External USB2.0 Port

PIN Description PIN Description

1 VCC 2 VCC 3 USBD0-/USB2- 4 USBD1-/USB3- 5 USBD0+/USB2+ 6 USBD1+/USB3+ 7 GND 8 GND

z CN16: Internal USB2.0 Ports

PIN Description PIN Description

1 VCC 2 VCC 3 USBD4- 4 USBD5- 5 USBD4+ 6 USBD5+ 7 GND 8 GND

3.12 CMOS Data Clear

The HS-1760 has a Clear CMOS jumper on JP8.

z JP8: Clear CMOS

Options Settings

Normal Operation (default) Short 1-2

Clear CMOS Short 2-3

IMPORTANT: Before turn on the power of system, please set JP8 to

open for normal operation.

Page 23

3.13 Parallel Port

CN24 is a standard 26-pin flat cable connector designed to accommodate parallel port connection onboard the HS-1760.

z CN24: Parallel Port

PIN Description PIN Description

1 Strobe 14 Auto From Feed 2 DATA 0 15 ERROR# 3 DATA 1 16 Initialize 4 DATA 2 17 Printer Select LN# 5 DATA 3 18 GND 6 DATA 4 19 GND 7 DATA 5 20 GND 8 DATA 6 21 GND

9 DATA 7 22 GND 10 Acknowledge 23 GND 11 Busy 24 GND 12 Paper Empty 25 GND 13 Printer Select 26 GND

2614

Page 24

3.14 Power and Fan Connectors

z ATX1: 24-pin ATX Power Connector

PIN Description PIN Description

113

24 12

1 N/C 13 N/C 2 N/C 14 N/C 3 GND 15 GND 4 +5V 16 PS_ON 5 GND 17 GND 6 +5V 18 GND 7 GND 19 GND 8 Power OK 20 -5V

9 5VSB 21 +5V 10 +12V 22 +5V 11 +12V 23 +5V 12 N/C 24 GND

z FN1/FN2: Fan Power Connector

PIN Description

1 GND 2 +12V 3 Fan In

z CN26: External ATX Power Connector

PIN Description

1 ATX Power Button 2 GND

Page 25

3.15 Keyboard/Mouse Connectors

The CN2 is a PS/2 6-pin Mini DIN connector for HS-1760.

z CN2: PS/2 6-pin Mini DIN Keyboard & Mouse Connector

PIN Description PIN Description

1 Keyboard Data 2 N/C 3 GND 4 +5V 5 Keyboard Clock 6 N/C 7 Mouse Data 8 N/C

9 GND 10 +5V 11 Mouse Clock 12 N/C 13 GND 14 GND 15 GND 16 GND

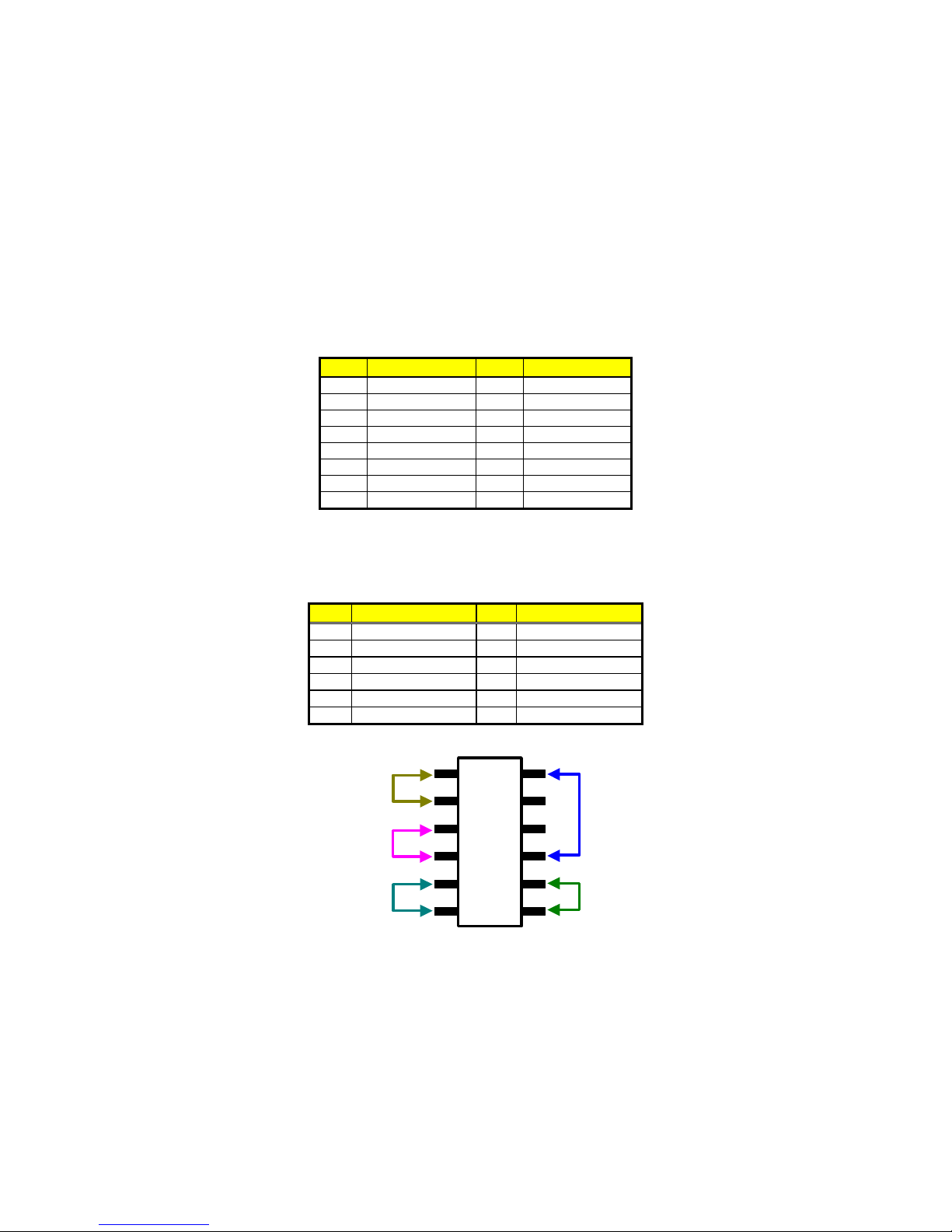

3.16 System Front Panel Control

The HS-1760 has front panel control at location CN4.

z CN4: System Front Panel Control

PIN Description PIN Description

1 470Ω pull VCC 2 Speaker 3 HDD LED 4 N/C 5 ATX Power Button 6 GND 7 GND 8 33Ω pull VCC 9 Reset Switch 10 470Ω pull 5V

11 GND 12 GND

Connector CN4 Orientation

Speaker

ATX Power LED

Reset

Button

HDD LED

ATX Power

Button

Page 26

3.17 Watchdog Timer

Once the Enable cycle is active a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A reset system signal will restart when such error happens.

The HS-1760 custom WDT circuit is implemented using the internal IO of the Winbond Super I/O W83627UHG which is at 2Eh of LPC.

The following sample programs show how to enable, disable and refresh the watchdog timer:

Sample Code

C Language for Watchdog Timer under DOS.

#include<stdio.h>

#include<dos.h>

static unsigned int 83627UHG_Port = 0x2e;

{

Outportb(83627UHG_Port,0x87);

}

void W83627UHG_WDT(unsigned int count_setup)

{

unsigned int Counting, Register_Setup;

outportb(83627UHG_Port, 0x07);

outportb(83627UHG_Port+1, 8); // set as Logical

Device 8

if(count_value >= 60)

{

outportb(83627UHG_Port, 0xf5);

Register_Setup = inportb(83627UHG_Port+1);

Register_Setup |= 0x08;

outportb(83627UHG_Port+1, Register_Setup); /

/ set as minute mode

counting = count_setup / 60;

if((count_value%60) > 30)

Page 27

counting++;

if(counting > 255)

counting = 255;

printf("WDT timeout in %d minutes.\n",

counting);

}

else

{

outportb(83627UHG_Port, 0xf5);

Register_Setup = inportb(83627UHG_Port+1);

Register_Setup &= 0xf7;

outportb(83627UHG_Port+1, Register_Setup); /

/ set as second mode

Counting = count_setup;

printf("WDT timeout in %d seconds.\n",

counting);

}

If(counting)

{

outportb(83627UHG_Port, 0x30);

Register_Setup = inportb(83627UHG_Port+1);

Register_Setup |= 0x01;

outportb(83627UHG_Port+1, Register_Setup);// set WDTO# active

outportb(83627UHG_Port, 0x07);

outportb(83627UHG_Port+1, 8); // set as Logical

Device 8

outportb(83627UHG_Port, 0xf6);

outportb(83627UHG_Port+1, counting); // set WDT

count value

};

Page 28

3.18 Audio Connectors

The HS-1760 has an onboard RealTek ALC262 HD audio controller. CN14(Green) is Line Out, CN14(PINK) is MIC In.

3.19 CompactFlash Connector

The HS-1760 also offers a Type I/II CompactFlash connector is IDE interface located at the solder side of the board. The designated CN25 connector, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CF card.

Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram on the following page for the traditional way of inserting the card.

z JP13/JP14/JP15/JP16: CF or SATA 3 Connector Select

Options

Settings

JP13 JP14 JP15 JP16

SATA 3 (default) Short 2-3

CF Short 1-2

Page 29

z CN25: CompactFlash Connector

PIN Description PIN Description

1 GND 2 DATA3 3 DATA4 4 DATA5 5 DATA6 6 DATA7 7 SDCS1# 8 GND

9 GND 10 GND 11 GND 12 GND 13 VCC 14 GND 15 GND 16 GND 17 GND 18 SDA2 19 SDA1 20 SDA0 21 DATA0 22 DATA1 23 DATA2 24 470Ω pull GND 25 N/C 26 N/C 27 DATA11 28 DATA12 29 DATA13 30 DATA14 31 DATA15 32 SDCS3# 33 N/C 34 UOR 35 IOW 36 EWE0 37 IRQ 38 VCC 39 CS 40 N/C 41 RESET 42 IORDY 43 DACK 44 REQ 45 IDE LED 46 PDIAG 47 DATA8 48 DATA9 49 DATA10 50 GND

NOTE: When use CF card, SATA3 device function will be disabled.

Page 30

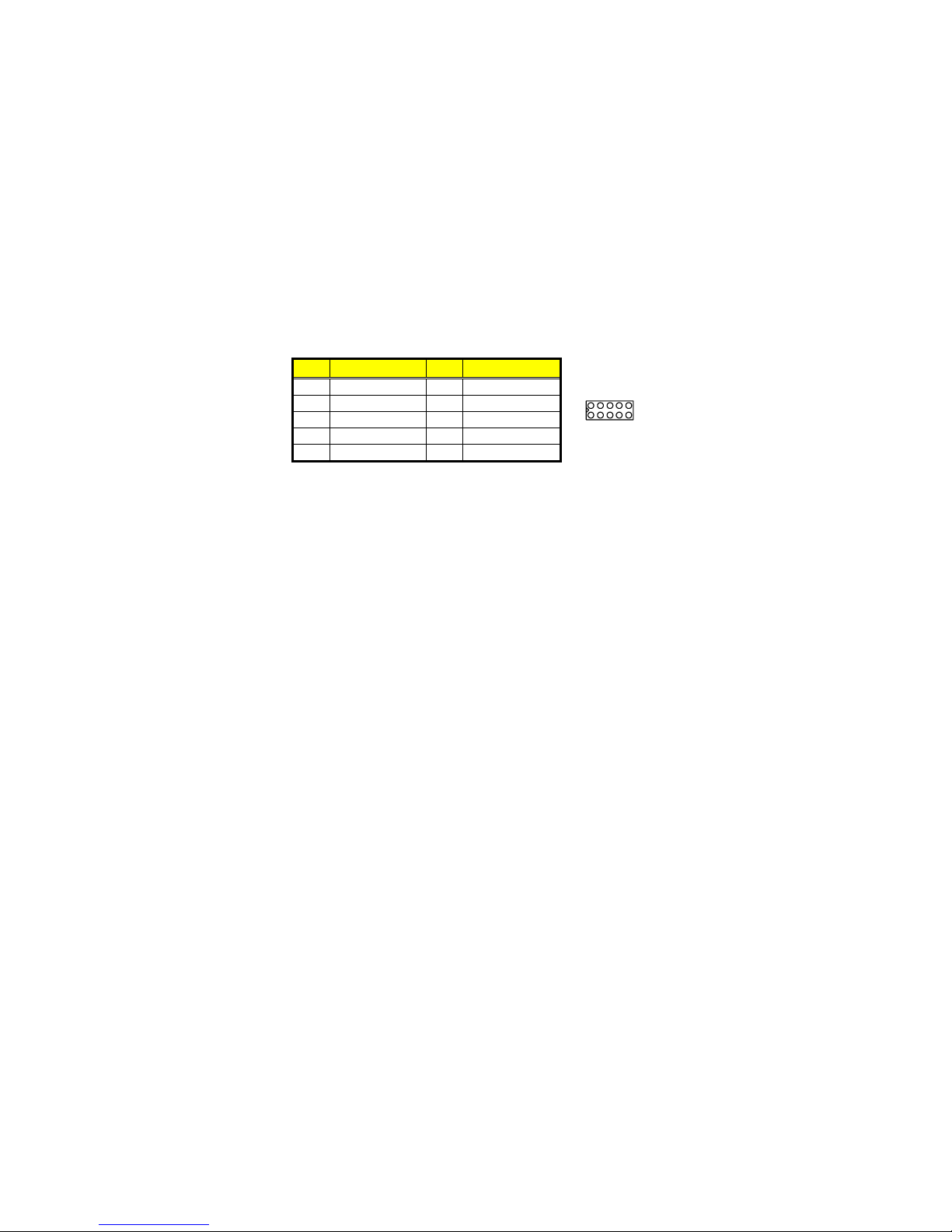

3.20 8-bit GPIO Function

The HS-1760 offers one 8-bit input/output port.

z CN22: 8-bit GPIO

PIN Description PIN Description

102

1 VCC 2 GND 3 GD0 4 GD4 5 GD1 6 GD5 7 GD2 8 GD6 9 GD3 10 GD7

EX. Sample Code Using GPIO 5

#include <conio.h>

#include <stdio.h>

#include <io.h>

void main(void)

{

unsigned char byte_cr29;

outportb(0x2e, 0x87); // enter Super I/O configuration mode

outportb(0x2e, 0x87);

outportb(0x2e,0x29); // set CR29 bit 5

byte_cr29 = (inportb(0x2f) | 0x20); // to switch UARTA to GPIO5

outportb(0x2f, byte_cr29);

outportb(0x2e, 0x07); // locate logical device 8

outportb(0x2e, 0x08);

outportb(0x2e, 0x30); // set CR30 bit 1 (enable GPIO5)

outportb(0x2f, 0x02);

outportb(0x2e, 0xe0); // set GP54 ~ GP57

outportb(0x2f, 0x0F); // GP54 ~ GP57 as output pins

}

Page 31

Chapter 4

AMI BIOS Setup

The HS-1760 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <F1> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press F1 to Run SETUP.

Page 32

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

↑ Move to previous item ↓ Move to next item ← Move to previous item → Move to previous item

Esc key Main Menu -- Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

PgUp key Move to top item PgDn key Move to bottom item

+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes F1 key General Help F2 key Change background color forward F3 key Change background color backward F4 key Reserved F5 key Reserved F6 key Reserved F7 key Reserved F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes

Page 33

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit System Overview AMIBIOS

Version : 08.00.15 Build Date : 06/09/10 ID : A1760001

Processor Intel(R) Core(TM) 2 Duo CPU P8400 @ 2.2GHz Speed : 2266MHz Count : 1

System Memory Size : 893MB



Select Screen



Select Item

System Time [00:29:32] ª -

Change Field

System Date [Mon 07/12/2010] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

NOTE: A brief description of the highlighted choice appears at the bottom

of the screen.

Page 34

4.4 Advanced Settings

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Settings WARNING: Setting wrong values in below sections

may cause system to malfunction.



CPU Configuration



IDE Configuration



SuperIO Configuration



Select Screen



Hardware Health Configuration



Select Item



ACPI Configuration ª - Change Field



APM Configuration Tab Select Field



USB Configuration F1 General Help



AHCI Configuration F10 Save and Exit

ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure advanced CPU settings

Manufacturer : Intel Intel(R) Core(TM) 2 Duo CPU P8400 @ 2.26GHz Frequency : 2.26GHz FSB Speed : 1066MHz Cache L1 : 64 KB Cache L2 : 3072 KB Ratio Actual Value : 8.5



Select Screen



Select Item

Max CPUID Value Limit [Disabled] ª - Change Field Intel(R) Virtualization Tech [Enabled] Tab Select Field Execute-Disabled Bit Capability [Enabled] F1 General Help F10 Save and Exit ESC Exit

Page 35

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

IDE Configuration

Configure SATA#1 as [IDE]



SATA PORT0 : [Not Detected]



SATA PORT1 : [Not Detected]



SATA PORT2 : [Not Detected]



Select Screen



SATA PORT3 : [Not Detected]



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Configure WIN627UHG Super IO Chipset

Serial Port1 Address [3F8] Serial Port2 Address [2F8] Serial Port2 Mode [Normal] Serial Port3 Address [3E8] Serial Port4 Address [2E8] Parallel Port Address [378]



Select Item

Parallel Port Mode [Normal] ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Hardware Health Configuration

CPU Temperature : System Temperature :

SYSFAN Speed : CPUFAN Speed :



Select Screen



Select Item

Vcore : ª - Change Field 12V : Tab Select Field

3.3V : F1 General Help

1.8V : F10 Save and Exit ESC Exit

Page 36

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

ACPI Settings

Suspend mode [Auto]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

APM Configuration

Power Management/APM [Enabled] Power Button Mode [On/Off] Restore on AC Power Loss [Last State]

Video Power Down Mode [Disabled] Hard Disk Power Down Mode [Disabled] Standby Time Out [Disabled] Suspend Time Out [Disabled] Throttle Slow clock Ratio [50%]



Select Screen

System Thermal [Disabled]



Select Item

ª - Change Field Resume On PME# [Disabled] Tab Select Field Resume On RTC Alarm [Disabled] F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

USB Configuration

Legacy USB Support [Enabled]



Select Screen

USB 2.0 Controller Mode [HiSpeed]



Select Item

ª - Change Field Tab Select Field

F1 General Help F10 Save and Exit ESC Exit

Page 37

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

AHCI Settings

AHCI BIOS Support [Enabled]



Select Screen



AHCI Port0 [Not Detected]



Select Item



AHCI Port1 [Not Detected] ª - Change Field



AHCI Port2 [Not Detected] Tab Select Field



AHCI Port3 [Not Detected] F1 General Help F10 Save and Exit ESC Exit

Page 38

4.5 Advanced PCI/PnP Settings

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below

sections may cause system to malfunction.

Clean NVRAM [No] Plug & Play O/S [Yes] HDA Controller [Enabled] Onboard Lan1 Controller [Enabled] Onboard Lan2 Controller [Enabled] Onboard Lan Boot ROM [Disabled] Watch Dog Timer Select [Disabled] Restore on AC Power Loss [Last State]



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Page 39

4.6 Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings



Boot Settings Configuration



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings Configuration

Quick Boot [Enabled] Quiet Boot [Disabled]



Select Screen

AddOn ROM Display Mode [Force BIOS]



Select Item

Bootup Num-Lock [On] ª - Change Field PS/2 Mouse Support [Auto] Tab Select Field Wait For ‘F1’ If Error [Enabled] F1 General Help Hit ‘DEL’ Message Display [Enabled] F10 Save and Exit Interrupt 19 Capture [Disabled] ESC Exit

Page 40

4.7 Security Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Security Settings

Supervisor Password : Not Installed User Password : Not Installed



Select Screen

Change Supervisor Password



Select Item

Change User Password ª - Change Field Boot Sector Virus Protection [Disabled] Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Page 41

4.8 Advanced Chipset Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Chipset Settings WARNING: Setting wrong values in below

sections may cause system to malfunction.



North Bridge Configuration



Select Screen



South Bridge Configuration



Select Item

ª - Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

North Bridge Chipset Configuration

Boots Graphic Adapter Priority [PEG/PCI] Internal Graphics Mode Select [Enabled, 128MB] PAVP Mode [Lite] PEG Port Configuration



Select Screen

PEG Port [Auto]



Select Item

ª - Change Field DVMT Mode Select [DVMT Mode] Tab Select Field DVMT/FIXED Memory [256MB] F1 General Help Boot Display Device [VBIOS-Default] F10 Save and Exit Flat Panel Type [800 x 600 18-bit] ESC Exit

Flat Panel Type

Type 1 640 x 480 18-bit Single Channel Type 2 800 x 600 18-bit Single Channel Type 3 1024 x 768 24-bit Single Channel Type 4 1280 x 1024 24-bit Dual Channel Type 5 1400 x 1050 24-bit Dual Channel Type 6 1600 x 1200 24-bit Dual Channel

Page 42

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Sorth Bridge Chipset Configuration

PCIE Ports Configuration PCIE Port 0 [Auto] PCIE Port 1 [Auto]



Select Screen

PCIE Port 2 [Auto]



Select Item

PCIE Port 3 [Auto] ª - Change Field PCIE Port 4 [Auto] Tab Select Field PCIE Port 5 [Auto] F1 General Help F10 Save and Exit ESC Exit

4.9 Exit Options

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Exit Options

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults



Select Screen



Select Item

ª - Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Page 43

Chapter 5

Software Utilities

This chapter contains the detailed information about installation procedures of chipset, VGA, LAN, audio and other drivers. The utility CD disk that comes with the package contains an auto-run program that invokes the installation programs for the chipset, VGA, LAN and audio drivers. The following sections describe the installation procedures of each driver based on WinXP operating systems. Other operation system may be slightly different.

5.1 Chipset Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click CHIPSET to install chipset driver.

Page 44

2. Immediately after clicking the CHIPSET button in Step 1, the program launches the Setup that will assist you in the installation process. Click on the N

ext > button to proceed.

3. The License Agreement dialog box then appears on the screen. Choose Y

es to proceed.

Page 45

4. When the Readme File Information dialog box pops up, just clock on the Next> button to proceed.

5. Click on the Finish to completed the installation.

Page 46

5.2 VGA Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click VGA to install Intel® GM45 video driver.

2. The Welcome to the Setup program dialog box appears on the screen. Choose Next> to proceed.

Page 47

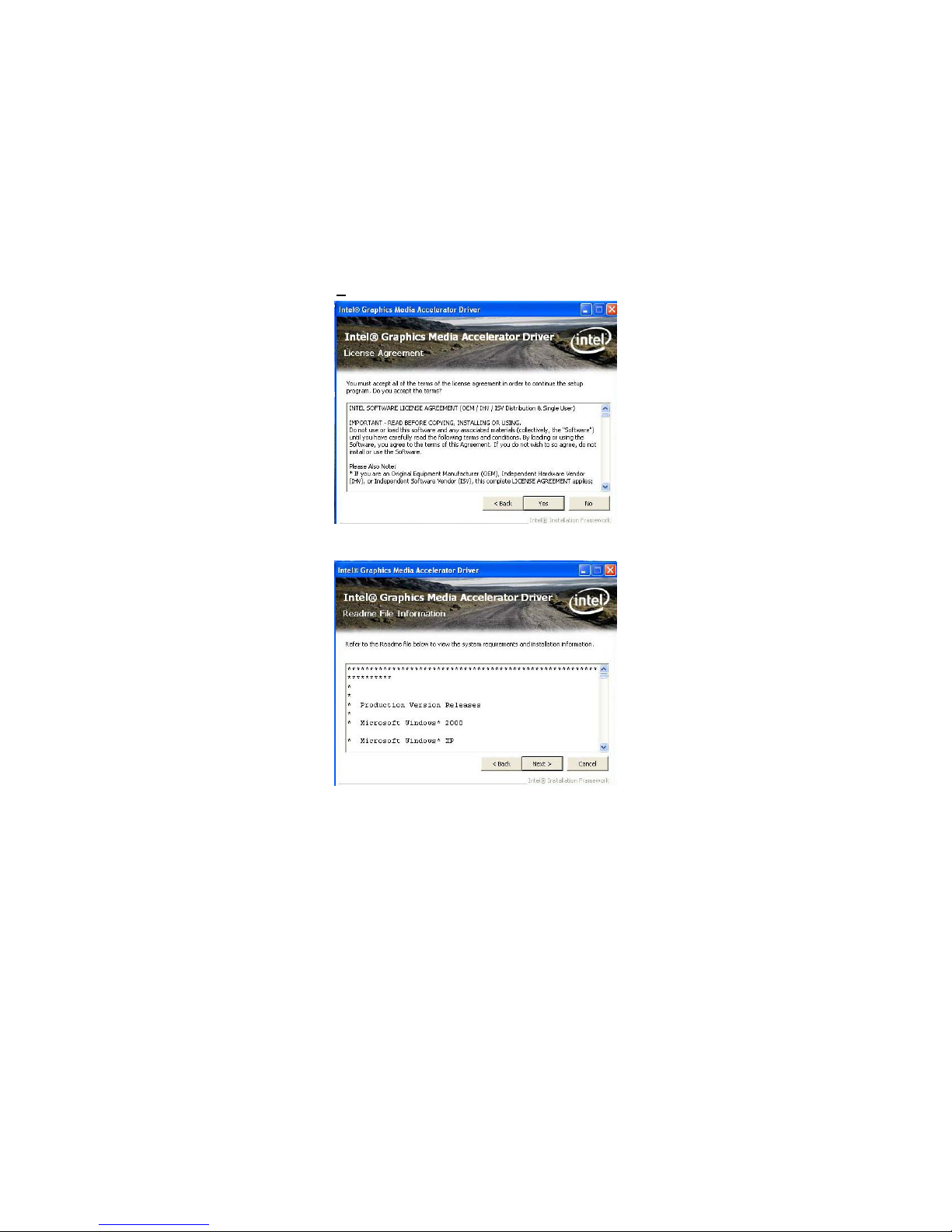

3. The Intel® License Agreement dialog box appears on the screen. Choose Y

es to proceed.

4. When the Readme File Information dialog box pops up, just click on the Next> button to proceed.

Page 48

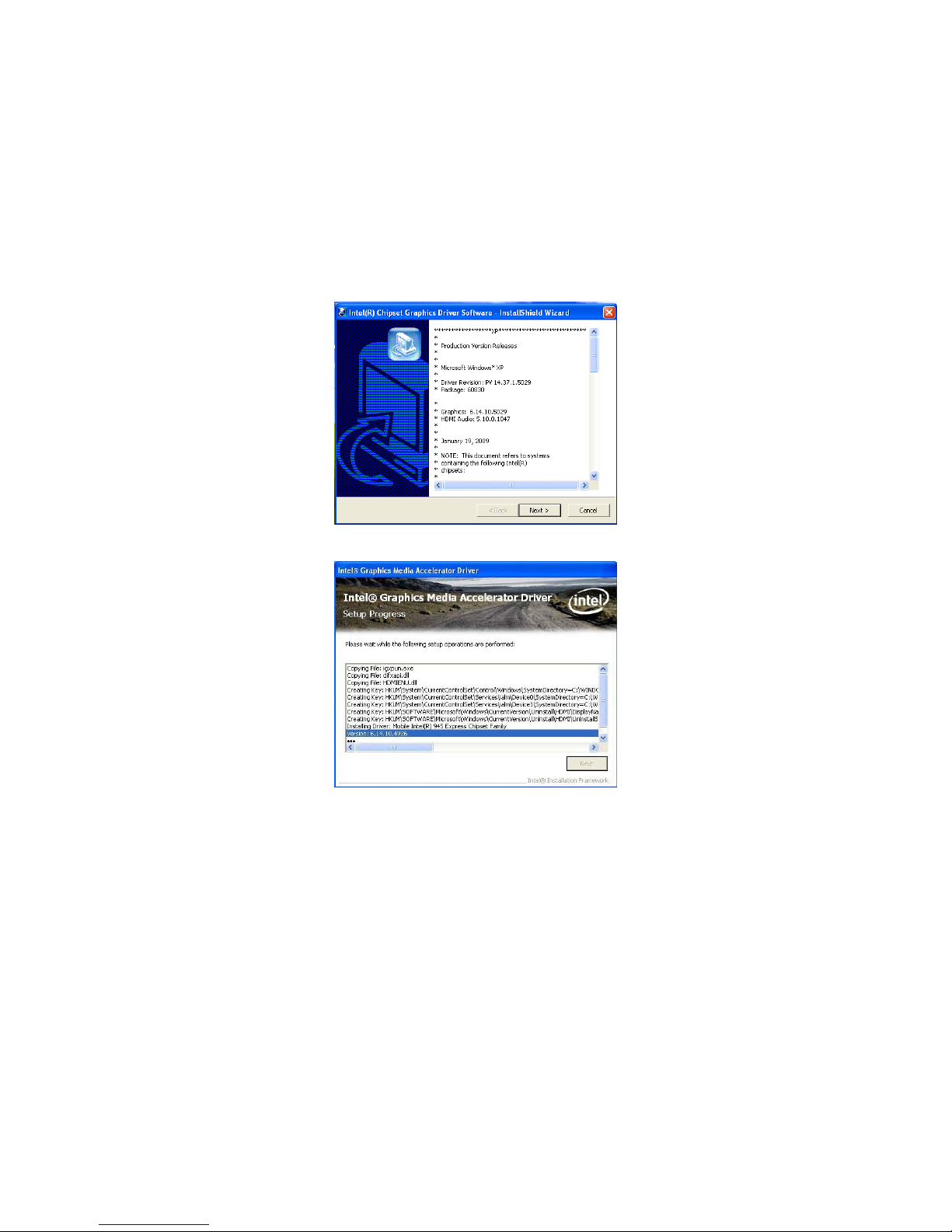

5. The Installshield Wizard dialog box appears on the screen. Click on Next> to proceed.

6. When Setup Progress finished, just click on Next button to proceed.

Page 49

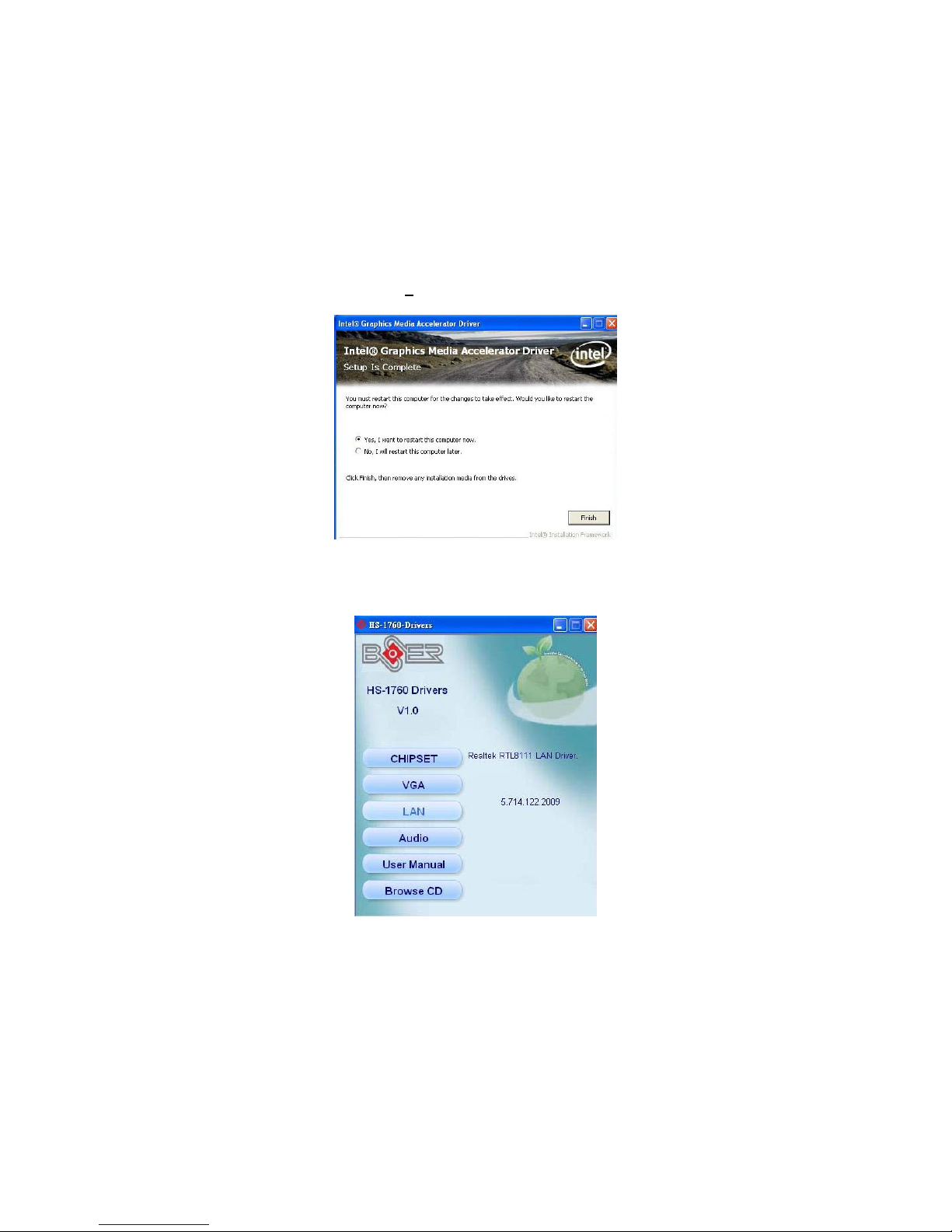

7. Please select “Yes, I want to restart my computer now” button then click “F

inish” to reboot your system to take the

effect once the installation is completed.

5.3 LAN Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click LAN to install RTL8111 LAN driver.

Page 50

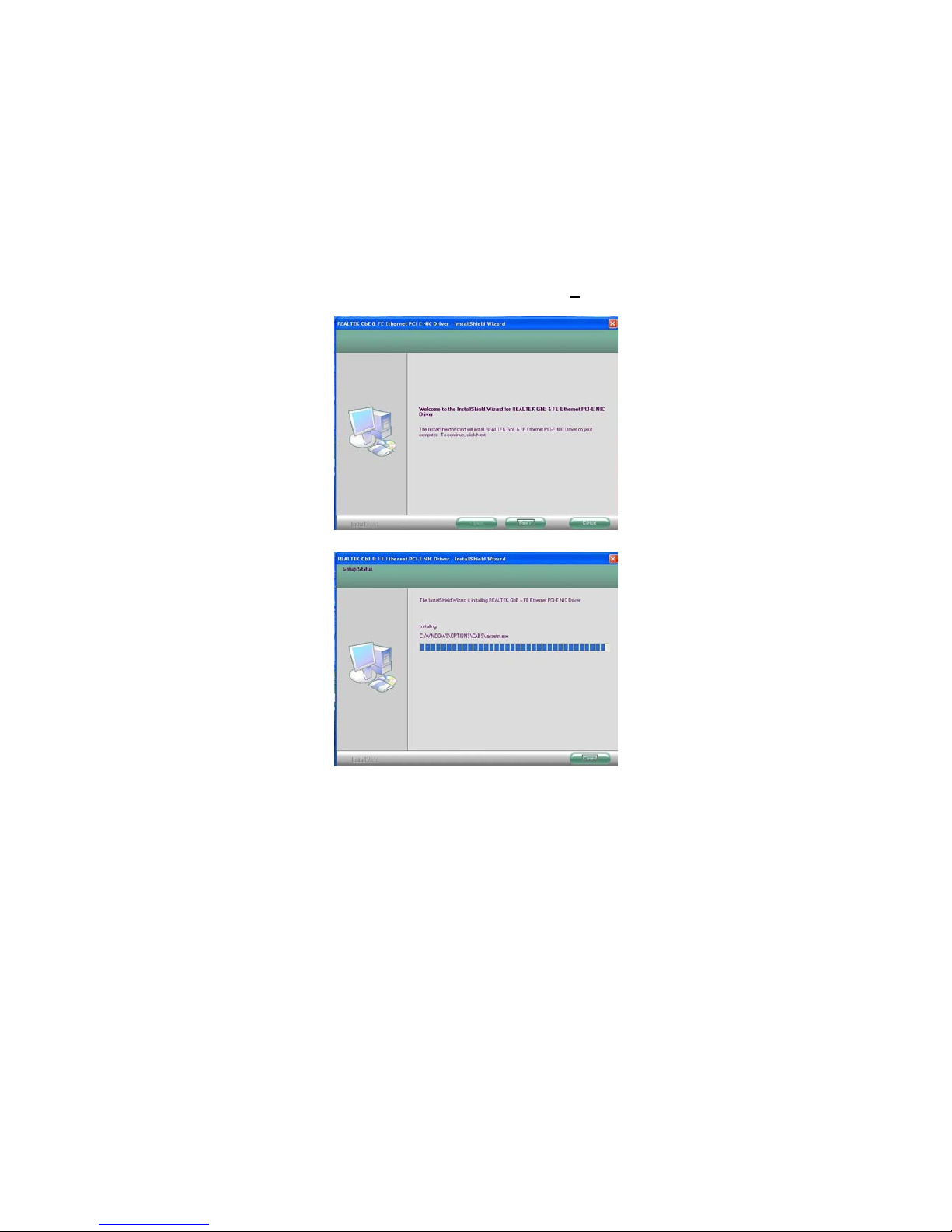

2. When the dialog box below appears, make sure you close all other Windows applications the click on the N

ext> button to

proceed.

3. The Setup Status dialog box then appears on the screen.

Page 51

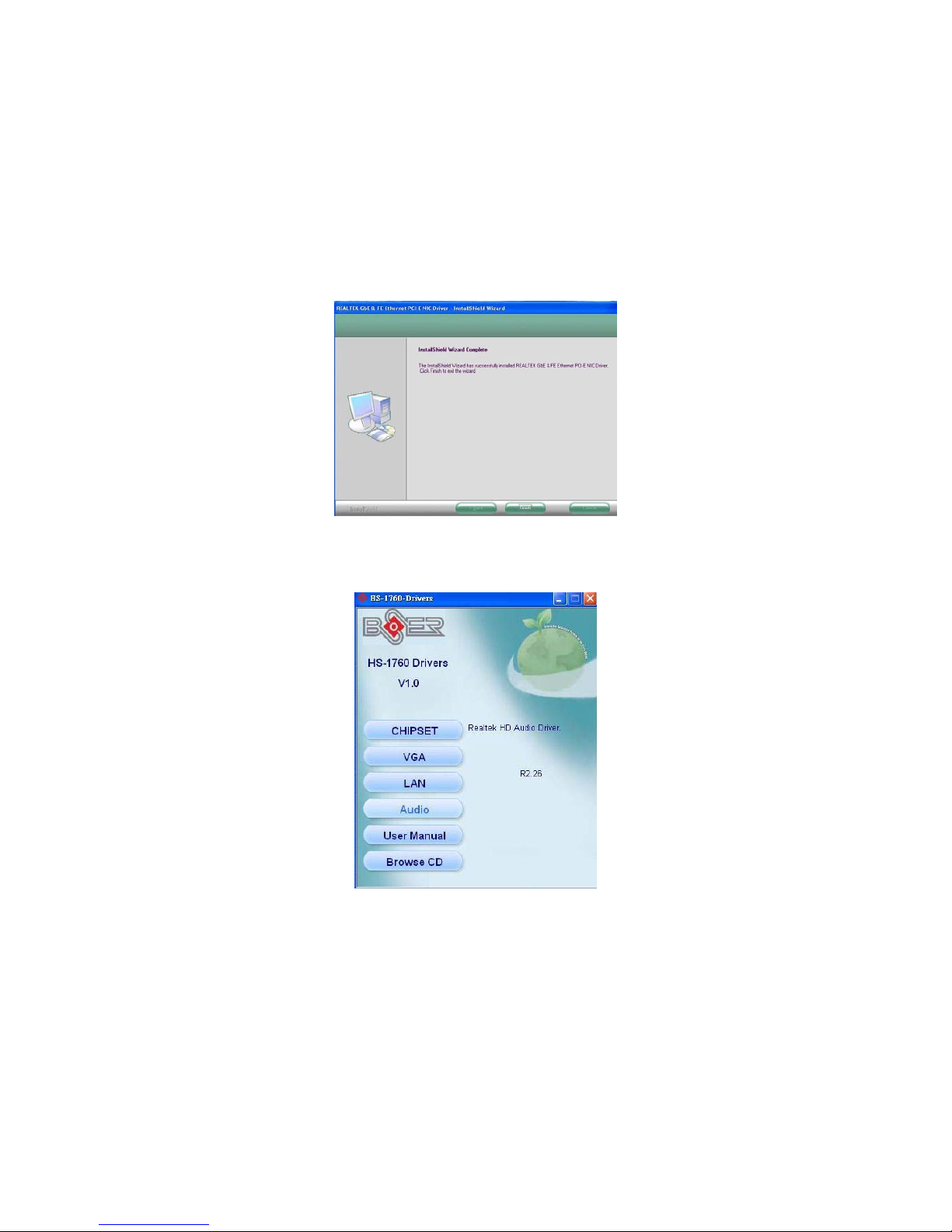

4. When setup is finished, please reboot your computer to take the effect.

5.4 Audio Driver Installation

1. Insert the CD that comes with the board into the CD-ROM drive. Click Audio to install audio driver.

Page 52

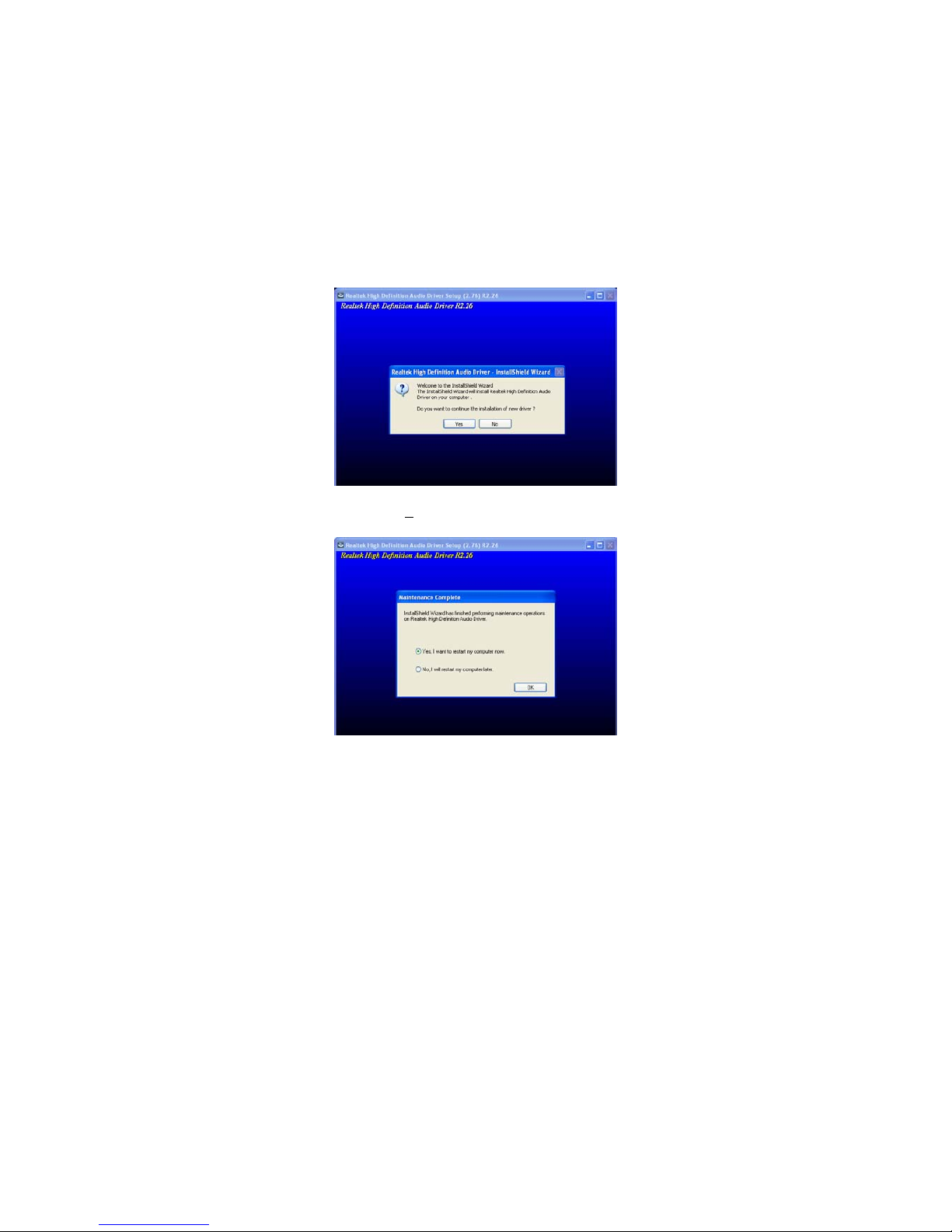

2. When the dialog box below appears, Click on Yes to proceed.

3. Please select “Yes, I want to restart my computer now” button then click “F

inish” to reboot your system to take the

effect once the installation is completed.

Page 53

Appendix A

Riser Card Application

BOSER released PCI Riser Card A-1103 (option) to expend PCI interface card for HS-1760. A-1103 has two PCI slots and individual AD for user to select.

z JP1/JP2: PCI1/PCI2 AD Select

Options

Settings

JP1 JP2

AD28 Short 19-20 ---- AD31 ---- Short 25-26

Page 54

This page is the blank page.
