BBS-4020
Compact PC with mITX Board
Page 2
Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e.,
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
r
a
d
e
m
T
r
T
r
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
a
d
e
m
a
a
d
e
m
a
r
k
s
r
k
s
r
k
s
electronic, mechanical, photocopying, recording)
manufacturer will
© Copyright 2008 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.1, May 15, 2009
Page 3
Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 2
1.3 Dimensions ............................................................................ 4
Chapter 2 Unpacking .................................................. 5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 HDD Installation..................................................................... 7
3.2 CD-ROM Installation.............................................................. 8
3.3 RISER Card Installation ........................................................ 9
Page 4
Declaration of Conformity -- CE Mark
BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:
Equipment Class: Information Technology Equipment
Product Model Series: BBS-4020
This Product Complies With: EN55022: Class A for Radiated emissions
EN50082-2: Heavy Industrial EMC Immunity
We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.
Manufacturer:
BOSER TECHNOLOGY CO., LTD.
Page 5
Safety Instructions
The safety recommendations outlined in this section are to be read,
understood and followed before operating the product. Keep this
information in a safe place for future reference. Failure to comply with any
of the following safety procedures could result in serious hazard.
Do not operate product for any purposes other than its intended use
This product is intended for indoor use only
Do not operate product if power cord is damaged in anyway
Do not insert objects into openings
Do not immerse product in water or permit liquids to spill inside
Turn off power when unattended or not in use. Unplug product before
moving it or when it is not in use for an extended period of time. The
socket-outlet shall be installed near the equipment and shall be easily
accessible
Do not alter or extend electric plug. Plug is configured for appropriate
electrical supply
Do not overload electrical outlets beyond their capacity as this can result in a
fire
NOTE: DO NOT TOUCH THE PRODUCT OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.
Page 6
This page intentionally left blank.
Page 7
Chapter 1
General Description
The BBS-4020 series is an industrial Compact PC. The rear design of
BBS-4020 series enhanced the disassembly process when required. It
also supports various mounting solution for different application.
This model can accommodate BOSER’s mini ITX board. The
BBS-4020 series provides CF, DVI/CRT, RJ-45, LAN, audio, COM,
USB and KB/MS ports, and there is one PCI expansion slot on back
panel.
The BBS-4020 series is IBM PC/AT compatible and can draw from a
large body of hardware and software resources worldwide.
The user can select the operating system he wants to use just like an
ordinary personal computer. An operating system such an MS-DOS,
Windows can be selected to suit the application.
You can select from a broad range of variations to arrive at the
optimum configuration for your application and budget.
1
Page 8
1.1 Major Features
The BBS-4020 series comes with the following features:
Compact PC design
Built-in mainboard, 180W ATX power supply
Provides Intel® Core
processor (by M/B)
Onboard graphics, ethernet, audio controller (by M/B)
Parallel, COM, USB2.0 (by M/B)
PCI expansion slot x 1
2.5” HDD space x 1, slim CD-ROM space x 1
4cm ball bearing cooling fan x 2
TM
2 Duo/ CoreTM Duo/ CoreTM Solo/Celeron® M 215
1.2 Specifications
BBS-4020-Q
CPU:
Intel® Core
(Merom/Socket M)
Intel® Core
sequences (Yonah)
Intel® Celeron® M processor – 400 sequences
Memory: Two SO-DDRII sockets supports up to 4GB
Chipset: Intel® 945GME/ICH7-M
PCI Slot: PCI expansion slot x 1
Display: Onboard graphics controller, provides CRT and DVI
display interface
Ethernet: Onboard dual 10/100/1000 Based controller
Wireless LAN: Provides wireless LAN module (optional)
Audio: Onboard 5.1CH audio codec
Storage:
2.5” HDD space x 1
Slim CD-ROM space x 1
Serial Port: 4 ports
USB: USB2.0 port x 8
Keyboard: PS/2 6-pin Mini DIN
Mouse: PS/2 6-pin Mini DIN
BIOS: Award PnP Flash BIOS
Watchdog Timer: Software programmable time-out intervals
from 1~255 sec.
TM
2 Duo processor T7000/T5000 sequences
TM
Duo/CoreTM Solo processor T2000/T1000
2
Page 9
Thermal Solution: 4cm ball bearing cooling fan x 2
Power In: 180W ATX power supply
Temperature: 0~45°C (operating); -20~+70°C (storage)
Dimensions: 30.0(L) x 7.0(H) x 27.3(W) cm
BBS-4020-U
CPU: Intel® Celeron® processor 215 (Yonah 1.33GHz/512KB/
533/standard voltage/BGA)
Memory: One DDRII socket supports up to 1GB
Chipset: SiS 662/964L
PCI Slot: PCI expansion slot x 1
Display: Onboard graphics controller
Ethernet: Onboard 10/100 Based controller
Audio: Onboard 3D audio controller
Storage:
2.5” HDD space x 1
Slim CD-ROM space x 1
Parallel: Standard parallel port x 1
Serial Port: 1 port
USB: USB2.0 port x 6
Keyboard: PS/2 6-pin Mini DIN
Mouse: PS/2 6-pin Mini DIN
BIOS: Award PnP Flash BIOS
Watchdog Timer: Software programmable time-out intervals
from 1~255 sec.
Thermal Solution: 4cm ball bearing cooling fan x 2
Power In: 180W ATX power supply
Temperature: 0~45°C (operating); -20~+70°C (storage)
Dimensions: 30.0(L) x 7.0(H) x 27.3(W) cm
3
Page 10

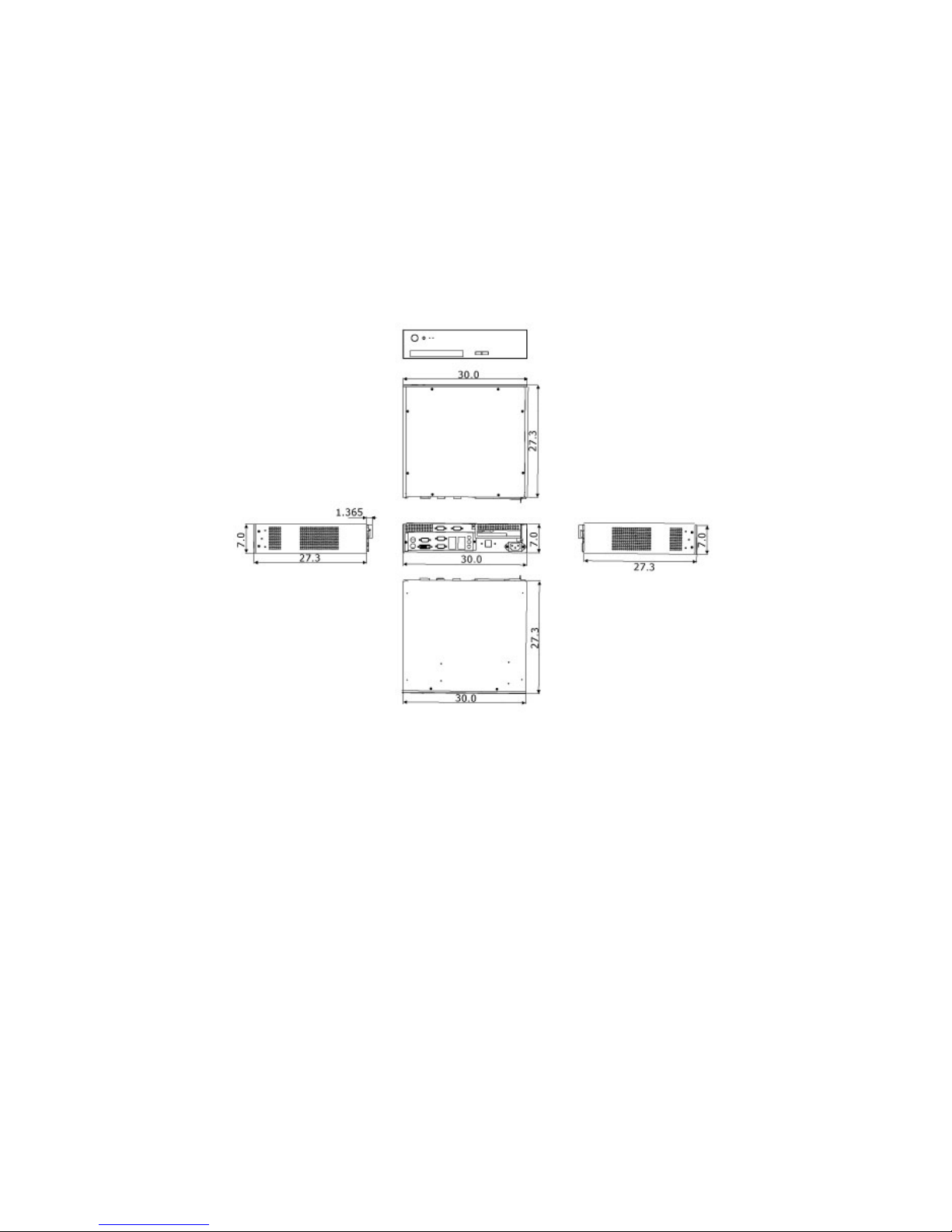

1.3 Dimensions
4
Page 11
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The BBS-4020 series is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the Panel PC, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The BBS-4020 series delivery
package contains the following items:
BBS-4020 x 1
Power Cable x 1
Drive CD Disk x 1
System Board User’s Manual x 1
BBS-4020 User’s Manual x 1
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
5
Page 12
This page intentionally left blank.
6
Page 13
Chapter 3
Hardware Installation
This chapter tells how to install components into the compact PC
system. External interface please refers to system board’s manual.

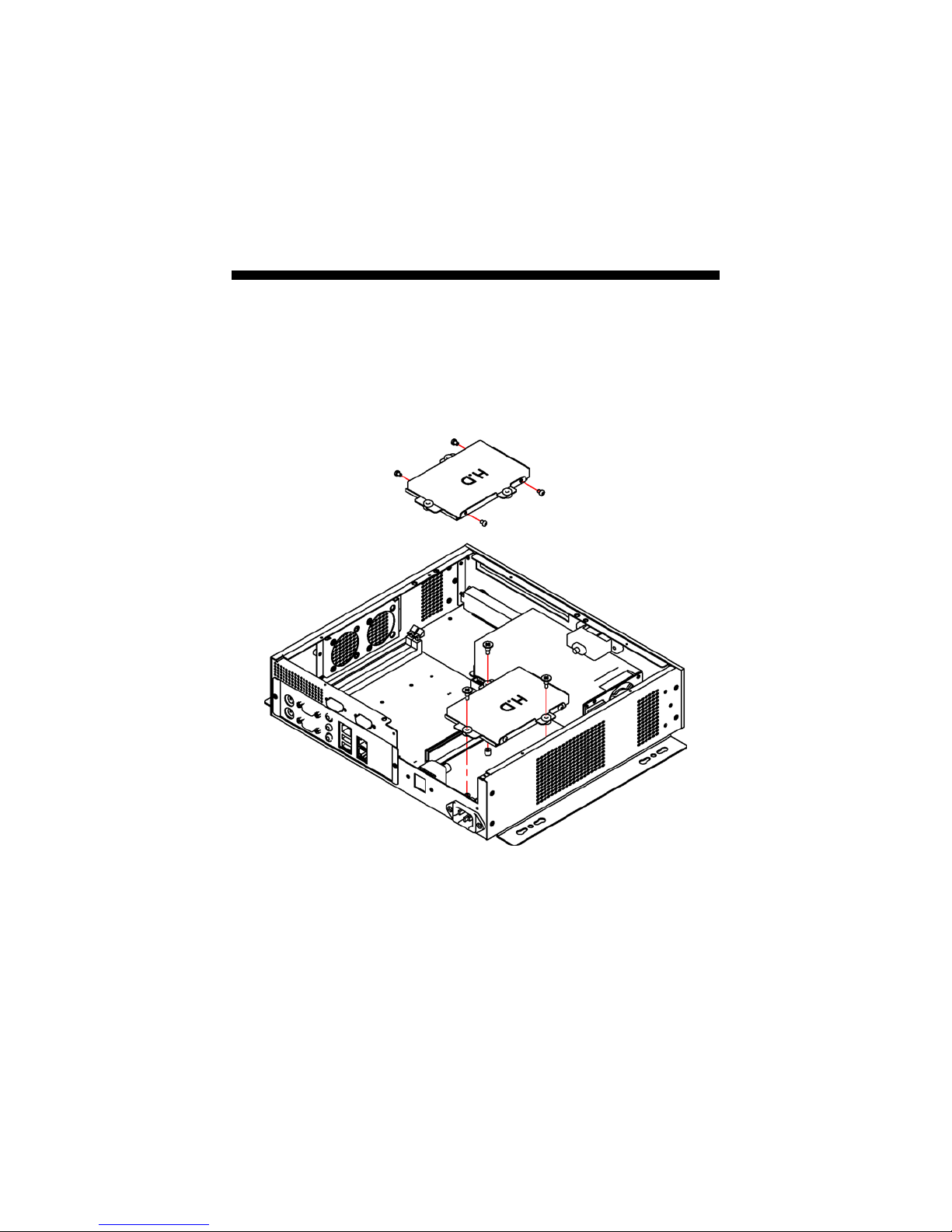

3.1 HDD Installation
7
Page 14

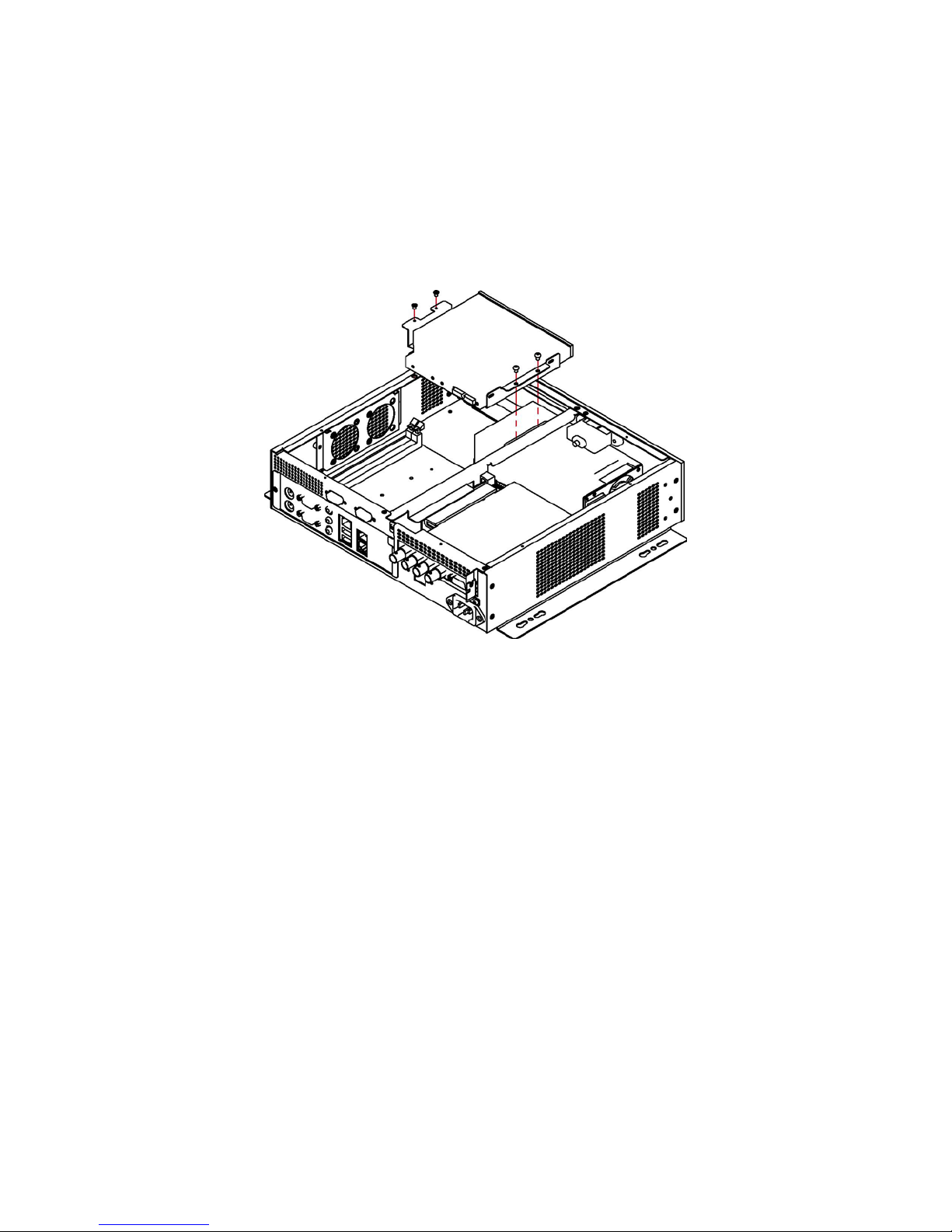

3.2 CD-ROM Installation
8
Page 15

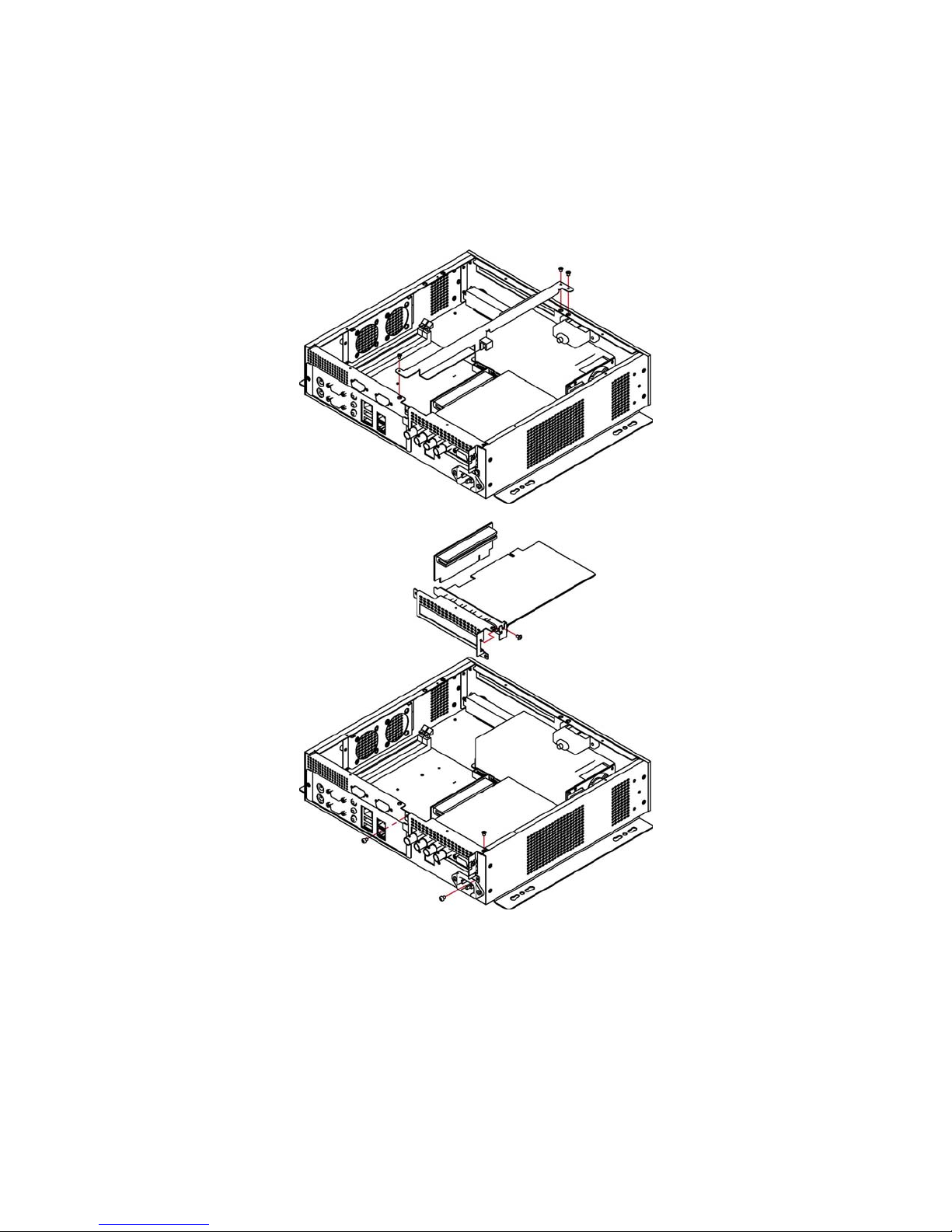

3.3 RISER Card Installation
9
Page 16
This page intentionally left blank.
10
