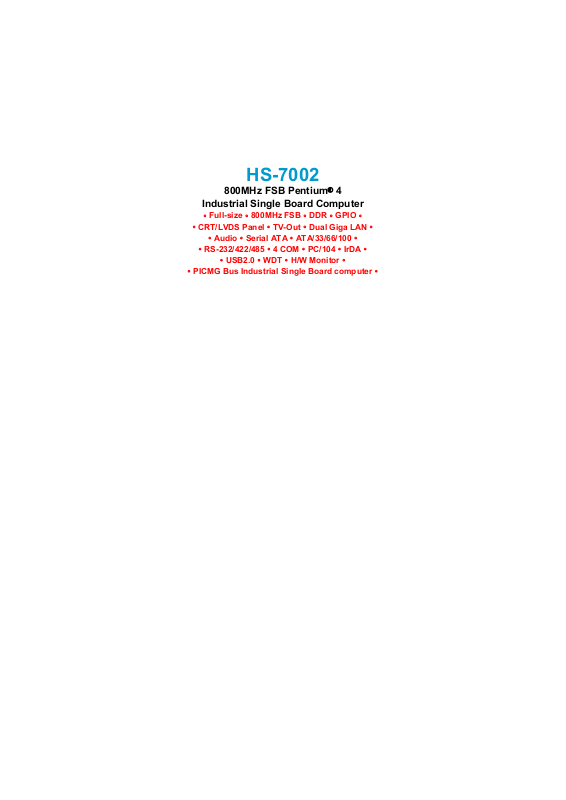

HS-7002
800MHz FSB Pentium® 4
Industrial Single Board Computer
Full-size•800MHz FSB•DDR•GPIO•
•
•CRT/LVDS Panel•TV-Out•Dual Giga LAN•
Audio•Serial ATA•ATA/33/66/100•
•
•RS-232/422/485•4 COM•PC/104•IrDA•
USB2.0•WDT•H/W Monitor•
•
•PICMG Bus Industrial Single Board computer•
Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review
before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is
not liable for any infringements of patents or other rights resulting from its use. The
manufacturer will not be responsible for any direct, indirect, special,
incidental or consequential damages arising from the use of this product or
documentation, even if advised of the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation,
and storage of any form and means (i.e.,
recording) of this document, in whole or partly, is prohibited, unless granted
permission by BOSER Technology Co., Ltd.
BOSER Technology Co., Ltd.
contents of this document without due notice.
assumes no responsibility for any errors or omissions that may appear in this
manual, nor does it make any commitment to update the information contained
herein.
T
r
a
d
e
m
a
r
k
s
T
r
a
d
e
m
T
r
a
d
e
m
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
a
r
k
s
a
r
k
s
reserves the right to change or improve the
electronic, mechanical, photocopying,
BOSER Technology Co., Ltd.
© Copyright 2004 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.1, April 14, 2004
Table of Contents
Chapter 1 General Description……………………..1
1.1
1.2
1.3
Major Features ..............................................................2
Specifications ...............................................................3
Board Dimensions........................................................4
Chapter 2 Unpacking………………………………..5
2.1
2.2
Opening the Delivery Package....................................5
Inspection......................................................................5
Chapter 3 Hardware Installation…………………...7
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
3.11
3.12
3.13
3.14
3.15
3.16
3.17
3.18
3.19
3.20
3.21
3.22
3.23
3.24
Before Installation ........................................................7
Board Layout ................................................................8
Jumper List ...................................................................9
Connector List ..............................................................9
Configuring the CPU ..................................................10
System Memory ..........................................................10
VGA Controller............................................................10
Serial ATA Function ....................................................12
PCI E-IDE Drive Connector........................................13
Floppy Disk Drive Connector ....................................15
Serial Port Connectors...............................................16
IrDA Connector ...........................................................17
Parallel Connector......................................................18
Ethernet Connector ....................................................19
USB Connector ...........................................................19
CMOS Data Clear ........................................................20
Power and Fan Connectors.......................................20
Keyboard/Mouse Connector .....................................22
System Front Panel Connectors...............................22
Watchdog Timer..........................................................23
Audio Connectors ......................................................24
TV-Out Function..........................................................24
GPIO Connector..........................................................24
PC/104 Connectors.....................................................25
Chapter 4 Award BIOS Setup……………………..27
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.10
4.11
4.12
4.13
4.14
4.15
4.16
Starting Setup .............................................................27
Using Setup.................................................................28
Main Menu ...................................................................29
Standard CMOS Features ..........................................30
Advanced BIOS Features ..........................................31
Advanced Chipset Features ......................................32
Integrated Peripherals................................................33
Power Management Setup.........................................35
PnP/PCI Configurations .............................................36
PC Health Status.........................................................36
Frequency/Voltage Control........................................37
Load Fail-Safe Defaults..............................................37
Load Optimized Defaults ...........................................38
Set Supervisor/User Password .................................39
Save & Exit Setup .......................................................40
Exit Without Saving....................................................41
Chapter 5 Software Utilities……………………….43
5.1
5.2
5.3
5.4
5.5
IDE Driver Installation ................................................43
VGA Driver Installation...............................................47
LAN Driver Installation...............................................50
Audio Driver Installation ............................................61
USB2.0 Driver Installation..........................................64
Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity.
To avoid damaging chips from electrostatic discharge, observe the
following precautions:
Do not remove boards or integrated circuits from their anti-static
packaging until you are ready to install them.
Before handling a board or integrated circuit, touch an unpainted portion
of the system unit chassis for a few seconds. This helps to discharge any
static electricity on your body.
Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR
clip of the strap to the end of the shielded wire lead from a grounded
object. Please wear and connect the strap before handling the HS-7002
to protect yourself from the discharge of any static electricity through the
strap.
Please use an anti-static pad when putting down any components or
parts or tools outside the computer. You may also use an anti-static bag
instead of the pad. Please inquire from your local supplier for additional
assistance in finding the necessary anti-static gadgets.
NOTE:
DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENT WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.
Chapter 1
General Description
The HS-7002 is an Intel® 82865GV/82801EB chipset-based board
designed for PICMG Bus PGA 478 Intel
of up to 3.2GHz CPU. The combination of these features makes the
HS-7002 an ideal all-in-one industrial single board computer.
Additional features include an enhanced I/O with CRT/LVDS Panel,
TV-Out, dual Giga LAN, audio, serial ATA, 4 COM port interface, and
more.
Its onboard ATA/33/66/100 connected to IDE drive interface
architecture allows the HS-7002 to support data transfers of 33, 66 or
100MB/sec. for each IDE drive connection. Designed with the Intel
82865GV/82801EB core logic chipset, the board supports all PGA 478
Pentium® 4 CPU series with Intel
clocking up to 3.2GHz. The display controller is Intel 82865GV with
1MB/8MB/16MB memory supporting CRT display up to 1600 x 1200 x
32-bit at 60Hz.
®
Pentium® 4 CPU with speed
®
Hyper-Threading Technology
®
Serial ATA is the revolutionary ATA interface that provides scalable
performance for IDE device. With up to 150MB/sec. data transfer rate,
serial ATA is faster than the current parallel ATA and delivers superior
input/output performance. In addition, the serial ATA interface is
furnished with RAID 0/1 function for extra performance enhancement
and data protection.
1
System memory is also sufficient with the two DDR sockets that can
support DDR-266/333/400 up to 2GB. 800MHz FSB CPU can support
DDR-400, 533MHz FSB CPU, can support DDR-333, and 400MHz
FSB CPU can support DDR-266.
Additional onboard connectors include an advanced USB2.0 and IrDA
port providing faster data transmission, and two external RJ-45
connectors for use of one 100/1000 and one 10/100 OR two 10/100
Base-TX Ethernet interfaces.
1.1 Major Features
The HS-7002 comes with the following features:
PGA 478 for Intel® Pentium® 4 CPU with Hyper-Threading Technology
clocking up to 3.2GHz
Supports 400MHz/533MHz/800MHz FSB
Two DDR sockets with a max. capacity of 2GB
Intel 82865GV/82801EB system chipset
Winbond W83627 super I/O chipset x 2
Intel
Intel
AC97 3D audio controller (optional)
Supports Serial ATA controller
Fast PCI ATA/33/66/100 IDE controller
Four COM, seven USB2.0 connectors
Supports Hardware Monitor
Supports 8-bit General Purpose Input/Output
Supports LVDS Panel interface (optional)
Supports TV-Out function (optional)
®
82865GV CRT display controller
®
82562EZ 10/100 Based (or Intel® 82547EI 100/1000 Based) and
®
Intel
82540 100/1000 Based LAN
PC/104 Bus connector
2
1.2 Specifications
CPU: PGA 478 for Intel® Pentium® 4 CPU with Hyper-Threading
Technology clocking up to 3.2GHz
Bus Interface: PICMG Bus
Front Side Bus: Supports 400MHz/533MHz/800MHz FSB
Memory: Two DDR sockets supporting DDR-266/333/400 up to 2GB
Chipset: Intel
®
82865GV/82801EB
I/O Chipset: Winbond W83627 x 2
ISA Bridge:
GPIO:
VGA: Intel
CRT display up to 1600 x 1200 x 32-bit at 60Hz
LVDS Panel:
TV-Out:
LAN: One Intel® 82562EZ 10/100 Based (or one Intel® 82547EI
100/1000 Based) and one Intel
ITE IT8888 (16-bit)
Supports 8-bit general purpose input/output port
®
82865GV with 1MB/8MB/16MB (default) memory supporting
Supports LVDS Panel interface (optional)
Supports PAL or NTSC TV systems (optional)
Audio: AC97 3D audio controller (optional)
Serial ATA:
rate up to 150MB/sec.
IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer
rates of up to 33/66/100MB/sec.
Intel ICH5 controller and with two ports supporting transfer
FDD: Supports up to two floppy disk drives
Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO
PC/104: PC/104 connector for 16-bit ISA Bus
IrDA: One IrDA TX/RX header
USB: Seven USB2.0 connectors, six internal and one external
Keyboard/Mouse: PS/2 6-pin Mini DIN
BIOS: Award PnP Flash BIOS
Watchdog Timer:
1~256sec.
CMOS: Battery backup
Power Connector: One 4-pin and one 20-pin ATX power connector
Operating Temperature: 0~60°C
Hardware Monitor: Winbond W83627
Board Size: 33.8 x 12.1 cm
Software programmable time-out intervals from
®
82540 100/1000 Based LAN
3
1.3 Board Dimensions
4
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-7002 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Make sure all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
are firmly seated. The HS-7002 delivery package contains the following
items:
HS-7002 Board x 1
Utility CD Disk x 1
Serial ATA flat cable x 1
ATA/100 IDE flat cable x 2
FDD flat cable x 1
Printer cable with bracket x 1
Two RS-232 COM Port cable with bracket x 2
8-pin USB split type cable with bracket x 1
PS/2 KB/MS transfer cable x 1
5-pin ATX power cable x 1
MIC/Audio 8-pin cable + 2 phone jacks x 1
Jumper Bag x 1
User’s Manual
5
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the returned shipment of the product. In case you discover
any missing and/or damaged items from the list of items, please
contact your dealer immediately.
6
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-7002. This chapter also contains information related to
jumper settings of switch, watchdog timer selection, etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (Set JP3 1-2)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections in this chapter for
the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.
4. Make sure your power supply is you use is for P4 only. One of
4-pin connectors is for +12V lead which should be connected
to CN1 connector of the HS-7002.
7
3.2 Board Layout
8
3.3 Jumper List
Jumper Default Setting Setting Page
JP1 / JP2 / JP4 / JP5
JP3 Clear CMOS: Normal Operation 1-2 Short 20
Use RS-232 or RS-422/485 Select:
RS-232
2-3 Short 16
3.4 Connector List
Connector Definition Page
CN1 / CN5 4-pin/20-pin ATX Power Connectors 20
CN3 (1-3-5-7) Speaker Connector 22
CN3 (9-11) Reset Button Connector 22
CN3 (13-15) HDD LED Switch 22
CN3 (2-4-6-8) Power LED Connector 22
CN3 (10-12) 2-pin ATX Power ON/OFF Connector 22
CN3 (14-16)
CN4 IrDA Connector 17
CN7 / CN6 Primary/Secondary IDE Connectors 13
CN21 / CN8 / CN12 / CN14 COM1~COM4 Connectors (5x2 header) 16
CN9 Parallel Connector 18
CN10
CN11 RS-422/485 Connector (5x2 header) 16
CN13 / CN16 / CN17 USB2.0 Connectors 19
CN15 MIC In/Audio Out Connector 24
CN18 Dual RJ-45 Connector 19
CN19 External USB Connector 19
CN20 15-pin CRT Connector 10
CN22 PS/2 6-pin Mini DIN KB/MS Connector 22
CN23 5-pin ATX Power Connector 20
DM1 / DM2 DDR Sockets 10
J1 Inverter Power Connector 10
J2 LVDS Connector 10
J3 LVDS Connector 10
J5
J6 / J7 Serial ATA Connector 12
J9 GPIO Connector 24
FN1 / FN2 / FN3 Fan Power Connector 20
PC2 / PC3 PC/104 64-pin/40-pin Connector 25
Green LED Connector 22
FDD Connector 15
TV-Out Connector 24
9
3.5 Configuring the CPU
The HS-7002 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
HS-7002 automatically identifies the frequency and clock speed of the
installed microprocessor chip, thereby eliminating the need for user to
do additional CPU configuration or hardware settings related to it.
The HS-7002 provides 400MHz/533MHz/800MHz FSB, and the
all-in-one solution for the latest Intel
800MHz FSB and Hyper-Threading Technology.
NOTE:
CPU Vcore should be located in the range of 0.8375V to
1.6V, otherwise system won’t boot.
®
Pentium 4 processor with
3.6 System Memory
The HS-7002 provides two DDR sockets at locations DM1 and DM2.
The maximum capacity of the onboard memory is 2GB. 800MHz FSB
CPU can support DDR-266/333/400, 533MHz FSB CPU can support
DDR-266/333, and 400MHz FSB CPU can support DDR-266.
FSB \ Memory CLK DDR-266 DDR-333 DDR-400
800MHz FSB Yes Yes Yes
533MHz FSB
400MHz FSB Yes No No
Yes Yes No
3.7 VGA Controller
The onboard Intel® 82865GV with 1MB/8MB/16MB (default) memory
supports CRT displays up to 1600 x 1200 x 32-bit. The HS-7002
provides two methods of connecting VGA device. CN20 offers a single
standard CRT connector (DB15). And J2, J3 offers LVDS Panel
connectors.
10
CN20: 15-pin CRT Connector (DB15)
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
J1: Inverter Power Connector
PIN Description
1 VCC12
2 VCC12
3 VCC5
4 ENABKL
5 ENAVDD
6
J3: LVDS Panel Connector
GND
123 45
VCC5
VCC12
VCC12
PIN Description PIN Description
1 VCC3 2 VCC3
3 GND 4 GND
5 A0M 6 A0P
7 A1M 8 A1P
9
A2M
10
A2P
11 CLK1M 12 CLK1P
13 A3M 14 A3P
J2: LVDS Panel Connector
PIN Description PIN Description
1 VCC3 2 VCC3
3 GND 4 GND
5
A4M
6
7 A5M 8 A5P
9 A6M 10 A6P
11 CLK2M 12 CLK2P
13 A7M 14 A7P
A4P
6
1
5
11
10
15
6
ENAVDD
A3M
A3P
A7M
A7P
GND
A2M
CLK1M
A2P
CLK1P
A6M
CLK2M
A6P
CLK2P
A1M
A1P
A5M
A5P
A0M
A0P
A4M
A4P
GND
GND
GND
GND
VCC3
VCC3
VCC3
VCC3
1
2
1
214
ENABKL
13
14
13
11
3.8 Serial ATA Function
You can connect the Serial ATA device to this connector which
provides you high speed transfer rates (150MB/sec.). If you wish to use
RAID function, please note that these two Serial ATA connectors just
support RAID0 and only compatible with WIN XP.
J7: Serial ATA Connector
PIN Description
1
2 SATA0TXP
3 SATA0TXN
4 GND
5 SATA0RXN
6
7 GND
J6: Serial ATA Connector
PIN Description
1 GND
2 SATA1TXP
3
4 GND
5 SATA1RXN
6 SATA1RXP
7 GND
GND
SATA0RXP
SATA1TXN
17
GND
17
GND
GND
SATA0TXP
SATA0TXN
GND
SATA1TXP
SATA1TXN
GND
SATA0RXP
SATA0RXN
GND
SATA1RXP
SATA1RXN
IDE and Serial ATA Device Configurations
Following are the IDE and Serial ATA device configurations supported
by Intel ICH5 specifications.
Native operating systems (OS) are Windows 2000/XP. ICH5 supports
a maximum of six devices using these OS.
Legacy OS are MS-DOS, Windows 95/98/Me/NT4.0. ICH5 supports a
maximum of four devices using these OS.
Operating System
WIN 2000/XP Primary/Secondary Port0/Port1
WIN 95/98/Me/NT4.0
12
IDE Serial ATA
Primary Port0/Port1
Secondary Port0/Port1
Primary/Secondary ----
3.9 PCI E-IDE Drive Connector
CN7 and CN6 are standard 40-pin daisy-chain driver connectors that
serve the PCI E-IDE drive provisions onboard the HS-7002. A
maximum of four ATA/33/66/100 IDE drives can be connected to the
HS-7002 via CN7 and CN6.
CN7: Primary IDE Connector
PIN Description PIN Description
1 RESET 2 GND
3
PDATA 7
4
5 PDATA 6 6 PDATA 9
7 PDATA 5 8 PDATA 10
9 PDATA 4 10 PDATA 11
11 PDATA 3 12 PDATA 12
13 PDATA 2 14 PDATA 13
15 PDATA 1 16 PDATA 14
17 PDATA 0 18 PDATA 15
19 GND 20 N/C
21 PDREQ 22 GND
23 PIOW# 24 GND
25 PIOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 Interrupt 32 N/C
33 PDA1- 34 PATA66
35 PDA0- 36 PDA2-
37 PDCS1- 38 RPCS3-
39
HDD Active P
40
PDATA 8
GND
46810
2
1
3 5 7 9 17 19 21 23 25 27 29 31
12 14
11 13 15 35 37
202224 262830
16 36
18
32 34
38
40
39
33
13
CN6: Secondary IDE Connector
PIN Description PIN Description
1 RESET 2 GND
3 SDATA 7 4 SDATA 8
5 SDATA 6 6 SDATA 9
7 SDATA 5 8 SDATA 10
9 SDATA 4 10 SDATA 11
11 SDATA 3 12 SDATA 12
13 SDATA 2 14 SDATA 13
15 SDATA 1 16 SDATA 14
17 SDATA 0 18 SDATA 15
19 GND 20 N/C
21 SDREQ 22 GND
23 SIOW# 24 GND
25
27 SIORDY 28 PR1SD1-
29 SDDACK- 30 GND
31 Interrupt 32 N/C
33 SDA1- 34 SATA66
35
37 SDCS1- 38 SDCS3-
39 HDD Active S 40 GND
SIOR#
SDA0-
26
36
GND
SDA2-
14
46810
2
1
3 5 7 9 17 19 21 23 25 27 29 31
12 14
11 13 15 35 37
202224 262830
16 36
18
32 34
38
40
39
33
3.10 Floppy Disk Drive Connector
The HS-7002 uses a standard 34-pin header connector, CN10, for
floppy disk drive connection. A total of two FDD drives may be
connected to CN10 at any given time.
CN10: FDD Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11
GND
12
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21
GND
22
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29 GND 30 RDATA#
31
GND
32
33 GND 34 DSKCHG#
DS1#
WDATA#
HDSEL#
DRVDEN0
N/C
DRVDEN1
INDEX#
MTR0#
DS1#
DS0#
MTR1#
DIR#
STEP#
WDATA#’WGATE#
TRAK00#
WRTPRT#
PDATA#
HDSEL#
DSKCHG#
GND
GND
34
33
15
2
1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
3.11 Serial Port Connectors
The HS-7002's CN21, CN8, CN12 and CN14 provide four high
speed NS16C550 compatible UART with Read/Receive 16 byte
FIFO serial ports.
CN21: COM1 Connector (5x2 Header)
PIN Description PIN Description
1 DCD0 2 DSR0
3 RXDD0 4 RTS0
5 TXDD0 6 CTS0
7 DTR0 8 RI0
9 GND 10 N/C
CN8: COM2 Connector (5x2 Header)
PIN Description PIN Description
1 DCD1 2 DSR1
3 RXDD1 4 RTS1
5 TXDD1 6 CTS1
7 DTR1 8 RI1
9 GND 10 N/C
DCD0
RXDD0
TXDD0
DTR0
GND
DCD1
RXDD1
TXDD1
DTR1
GND
2
1
3
5
7
9
1
3
5
7
9
DSR0
4
RTS0
6
CTS0
8
RI0
10
N/C
2
DSR1
4
RTS1
6
CTS1
8
RI1
10
N/C
CN12: COM3 Connector (5x2 Header)
PIN Description PIN Description
1
DCD2
2
3 RXDD2 4 RTS2
5 TXDD2 6 CTS2
7 DTR2 8 RI2
9 GND 10 N/C
16
DSR2
DCD2
RXDD2
TXDD2
DTR2
GND
2
1
3
5
7
9
DSR2
4
RTS2
6
CTS2
8
RI2
10
N/C
CN14: COM4 Connector (5x2 Header)
PIN Description PIN Description
1 DCD3 2 DSR3
3 RXDD3 4 RTS3
5 TXDD3 6 CTS3
7 DTR3 8 RI3
9 GND 10 N/C
DCD3
RXDD3
TXDD3
DTR3
GND
1
3
5
7
9
DSR3
2
RTS3
4
CTS3
6
RI3
8
N/C
10
The onboard COM2 may be configured as RS-232, RS-422, or
RS-485.
CN11: RS-422/485 Connector (5x2 Header)
PIN Description PIN Description
1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 RTS-
7 RTS+ 8 CTS+
9 CTS- 10 N/C
JP1/JP2/JP4/JP5: COM2 Use RS-232 or RS-422/485 Select
Options Settings
RS-232 (default) Short 2-3
RS-422/485 Short 1-2
GND
RTS+
CTS-
TX-
RX+
TX+
2
1
RX-
4
3
RTS-
6
5
CTS+
8
7
N/C
10
9
3.12 IrDA Connector
CN4 is a 5-pin internal FIR communication connector for connection of
an IrDA device.
CN4: IrDA Connector
PIN Description
1 VCC
2 N/C
3
IRRX
4 GND
5 IRTX
VCC
N/C
IRRX
GND
IRTX
1
2
3
4
5
17
3.13 Parallel Connector
CN9 is a standard 26-pin flat cable connector designed to
accommodate parallel port connection onboard the HS-7002.
CN9: Parallel Connector
PIN Description PIN Description
1 Strobe 14 Auto Form Feed
2
DATA 0
15
3 DATA 1 16 Initialize
4 DATA 2 17 Printer Select LN#
5 DATA 3 18 GND
6 DATA 4 19 GND
7
DATA 5
20
8 DATA 6 21 GND
9 DATA 7 22 GND
10 Acknowledge 23 GND
11 Busy 24 GND
12 Paper Empty 25 GND
13 Printer Select 26 GND
ERROR#
GND
18
Auto Form Feed
ERROR
2
1
PDD0
Strobe
Initialize
Printer Select LN#
N/C
N/C
N/C
N/C
GND
GND
GND
GND
GND
26
25
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
Busy
PDD7
Paper Empty
Acknowledge
Printer Select
3.14 Ethernet Connector
The HS-7002 provides one 10/100 and one 100/1000 OR two 10/100
Base-TX LAN interface connectors. Please refer to the following for its
pin information.
CN18: Dual RJ-45 Connector
PIN Description PIN Description
1 TX+ 2 TX-
3 RX+ 4 R/C GND
5
R/C GND
6
7 R/C GND 8 R/C GND
9 TTX+B 10 TTX-B
11 RRX+B 12 RRX-B
13 TTX+C 14 TTX-C
15 RRX+C 16 RRX-C
RX-
R/C GND
R/C GND
TTX-B
RRX-B
TTX-C
RRX-C
TX-
RX-
2
8
10
16
Giga LAN
15
1
7
9
TX+
RX+
R/C GND
R/C GND
TTX+B
RRX+B
TTX+C
RRX+C
3.15 USB Connector
The HS-7002 provides three internal 8-pin USB2.0 and one 4-pin
external USB2.0 connectors, at locations CN13, CN16, CN17 and
CN19 for seven USB2.0 connections to the HS-7002.
CN16: USB0/USB1 Connector
PIN Description PIN Description
1 VCC 2 VCC
3 BD0- 4 BD1-
5 BD0+ 6 BD1+
7
GND
8
GND
CN17: USB2/USB3 Connector
PIN Description PIN Description
1 VCC 2 VCC
3 BD3- 4 BD2-
5 BD3+ 6 BD2+
7 GND 8 GND
VCC
BD1-
BD1+
GND
2
1
VCC
BD0-
VCC
BD2-
2
1
VCC
BD3-
BD0+
BD2+
BD3+
GND
GND
GND
8
7
8
7
19
CN13: USB4/USB5 Connector
PIN Description PIN Description
1
3 BD5- 4 BD4-
5 BD5+ 6 BD4+
7 GND 8 GND
VCC
2
VCC
CN19: External USB Connector
PIN Description
1 VCC
3 BD6-
5 BD6+
7 GND
14
3.16 CMOS Data Clear
VCC
BD4-
BD4+
GND
2
1
VCC
BD5-
VCC
BD6-
GND
BD6+
8
7
GND
BD5+
The HS-7002 has a Clear CMOS jumper on JP3.
JP3: Clear CMOS
Optional Settings
Normal Operation (default) Short 1-2
IMPORTANT:
Clear CMOS Short 2-3
Before you turn on the power of your system, please
set JP3 to short 1-2 for normal operation.
13
3.17 Power and Fan Connectors
The HS-7002 provides one 4-pin and one 20-pin ATX power
connectors at CN1 and CN5.
The HS-7002 must use P4 power supply. One of 4-pin connectors is for
+12V lead which should be connected to CN1.
A 20-pin ATX Power Connector can be connected to Backplane or to
CN5. If a 20-pin ATX Power Connector connects to Backplane, please
make sure CN23 and Backplane’s 5-pin ATX controller is connected
together!
20
CN1: 4-pin ATX Power Connector
PIN Description PIN Description
1 GND 2 GND
3 +12V 4 +12V
CN5: 20-pin ATX Power Connector
PIN Description PIN Description
1
2 +3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 PWORK 18 -5V
9 +5Vsb 19 +5V
10 +12V 20 +5V
CN23: 5-pin ATX Power Connector
+3.3V
+3.3V
+3.3V
GND
111
-12V
GND
+3.3V
11
+5V
GND
+5V
GND
GND
PS_ON
PIN Description PIN Description
1 GND 2 PS_ON
3 +12V 4 5Vsb
5
VCC
12
34
GND
+12V
GND
+12V
+3.3V
GND
PWORK
+5Vsb
+12V
1020
-5V
+5V
GND
+5V
15
Connector FN1, FN2 and FN3 onboard HS-7002 are 3-pin fan power
connectors.
FN1~FAN3: Fan Power Connectors
PIN Description
1
2 +12V
3 Fan In 1
GND
3
1
FAN In 1
+12V
GND
21
3.18 Keyboard/Mouse Connector
The HS-7002 offers one possibility for keyboard/mouse connection.
The connections are done via CN22 for an external PS/2 type
keyboard/mouse.
CN22: PS/2 6-pin Mini DIN Keyboard Connector
PIN Description
1 Keyboard Data
2 Mouse Data
3
GND
4 +5V
5 Keyboard Clock
6 Mouse Clock
Keyboard
Clock
Mouse
Clock
5
6
Keyboard
1
Data
Mouse
2
Data
+5V
4
GND
3
3.19 System Front Panel Connectors
The HS-7002 has one system front panel connectors at location CN3
that indicates the power-on status. This visual feature of the IDE LED
may also be connected to an external IDE LED via connector
CN3(13-15).
Connector CN3 Orientation
1
2
3
SPEAKER
RST_SW
HDD_LED
CN3: System Front Panel Connector
PIN Description PIN Description
1 VCC 2 VCC
3 GND 4 N/C
5
7 CDR 8 GND
9 GND 10 PS_ON
11 Reset 12 5VDU
13
15 HDD_LED 16 HDD_LED
N/C
VCC
4
5
6
7
8
9
10
11
12
13
14
15
16
6
14
PWR LED
PWR Button
Green LED
N/C
VCC
22
3.20 Watchdog Timer
Once the Enable cycle is active, a Refresh cycle is requested before
the time-out period. This restarts counting of the WDT period. When
the time counting goes over the period preset of WDT, it will assume
that the program operation is abnormal. A System Reset signal will
re-start when such error happens.
The following sample programs show how to Enable, Disable and
Refresh the Watchdog Timer:
;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write
;--------------------------------------------------------------------------------- MOV DX, 2EH
MOV AL, 87H
OUT DX, AL
OUT DX, AL
MOV DX, 2EH
MOV AL, 07H
OUT DX, AL
MOV DX, 2FH
MOV AL, 08H
OUT DX, AL
MOV DX, 2EH
MOV AL, F5H
OUT DX, AL ; select CRF0
MOV DX, 2FH
MOV AL, 80H
OUT DX, AL
MOV DX, 2EH
MOV AL, F7H
OUT DX, AL
MOV DX, 2FH
MOV AL, 00H
OUT DX, AL
MOV DX, 2EH
MOV AL, F6H
OUT DX, AL
MOV DX, 2FH
MOV AL, 00H ; * 00H=Disabled
OUT DX, AL
;--------------------------------------------------------------------------------; Exit extended function mode
;------------- ------------------------------------------------------------------ MOV DX, 2EH
MOV AL, AAH
OUT DX, AL
23
* User can also use AL, 00H’s defined time for reset purposes, e.g.00H
for Disable, 01H = 1sec, 02H = 2sec…..FFH = 255sec.
3.21 Audio Connectors
The HS-7002 has an onboard AC97 3D audio interface. The following
table list the pin assignments of the MIC In/Audio Out connector.
CN15: MIC In/Audio Out Connector
PIN Description PIN Description
1 AOUT_L 2 AOUT_R
3
GND
4
GND
5 MIC IN 6 N/C
7 GND 8 GND
2
1
8
7
3.22 TV-Out Function
The HS-7002 can support TV-Out function whose input could be up to
800 x 600 graphics resolutions. World Wide Video standards are
supported including NTSC-M (North America, Taiwan), NTSC-J
(Japan), PAL-B, D, G, H, I (Europe, Asia), PAL-M (Brazil), PAL-N
(Uruguay, Paraguay) and PAL-NC (Argentina).
J5: TV-Out Connector
PIN Description PIN Description
1 GND 2 TVCVB
3.23 GPIO Connector
The HS-7002 provides a J9 connector for GPIO function.
J9: GPIO Connector
PIN Description PIN Description
1 BIT7 2 GND
3 BIT6 4 GND
5
BIT5
6
7 BIT4 8 GND
9 BIT3 10 GND
11 BIT2 12 GND
13 BIT1 14 GND
15
BIT0
16
24
GND
GND
BIT1
BIT0
15
16
GND
GND
GND
BIT2
GND
GND
GND
GND
GND
1
2
BIT7
BIT6
BIT5
BIT4
BIT3
3.24 PC/104 Connectors
The PC/104 expansion bus offers provisions to connect all types of
PC/104 modules. With the PC/104 bus being known as the new
generation of industrial embedded 16-bit PC standard bus, thousands
of PC/104 modules from multiple vendors can be easily installed
onboard. The detailed pin assignment of the PC/104 expansion bus
connectors PC2 and PC3 are listed on the following tables:
NOTE：
PIN Description PIN Description
10 DRQ0 30 MEMR*
11
12 DRQ5 32 SD8
13 DACK6* 33 SD9
14 DRQ6 34 SD10
15 DACK7* 35 SD11
16 DRQ7 36 SD12
17 +5V 37 SD13
18 MASTER* 38 SD14
19 GND 39 SD15
20 GND 40 GND
The PC/104 connector allows direct plugging or stack-through
piling of PC/104 modules without requiring the PC/104 mounting
kit.
PC3: PC/104 40-pin Connector
Connector diagram
1 GND 21 GND
2 MEMCS16* 22 SBHE*
3 IOSC16* 23 LA23
4
5 IRQ11 25 LA21
6 IRQ12 26 LA20
7 IRQ15 27 LA19
8 IRQ14 28 LA18
9 DACK0* 29 LA17
IRQ10
DACK5*
24
31
LA22
MEMW*
rotated 90 degrees
clockwise from
original position
121
20
40
25
PC2: 64-pin PC/104 Expansion Slot
PIN Description PIN Description
1
2 SD7 34 RESETDRV
3 SD6 35 +5V
4 SD5 36 IRQ9
5 SD4 37 -5V
6 SD3 38 DRQ2
7 SD2 39 -12V
8
9 SD0 41 +12V
10 IOCHRDY 42 GND
11 AEN 43 SMEMW*
12 SA19 44 SMEMR*
13
14 SA17 46 IOR*
15 SA16 47 DACK3*
16 SA15 48 DRQ3
17 SA14 49 DACK1*
18 SA13 50 DRQ1
19 SA12 51 REFRESH*
20
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 N/C
32
IOCHECK*
SD1
SA18
SA11
SA6
GND
33
40
45
52
57
64
GND
0WS*
IOW*
SYSCLK
IRQ3
GND
Connector diagram
rotated 90 degrees
clockwise from
original position
133
6432
26
Chapter 4
Award BIOS Setup
The HS-7002 uses Award BIOS for the system configuration. The
Award BIOS setup program is designed to provide the maximum
flexibility in configuring the system by offering various options that
could be selected for end-user requirements. This chapter is written to
assist you in the proper usage of these features.
4.1 Starting Setup
The Award BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.
While the BIOS is in control, the Setup program can be activated in one
of two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to
enter Setup, restart the system by turning it OFF and then ON, or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
27
4.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
press <F1> for help and press <Esc> to quit. The following table
provides more details about how to navigate in the Setup program
using the keyboard.
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
(Shift)F2 key Change color from total 16 colors. F2 to select color
forward, (Shift) F2 to select color backward
F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for
Option Page Setup Menu
F6 key
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
Load the default CMOS value from BIOS default table, only
for Option Page Setup Menu
4.2.1 Getting Help
Press F1 to pop up a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit
the Help Window press <Esc> or the F1 key again.
28
4.3 Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to enter the sub-menu.
Phoenix – AwardBIOS CMOS Setup Utility
` Standard CMOS Features
Advanced BIOS Features
`
` Advanced Chipset Features
` Integrated Peripherals
` Power Management Setup
` PnP/PCI Configurations
` PC Health Status
Esc：Quit F9：Menu in BIOS ：Select Item
F10：Save & Exit Setup
Time, Date, Hard Disk Type…
` Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
NOTE:
A brief description of the highlighted choice appears at the bottom
of the screen.
29
4.4 Standard CMOS Features
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the IDE hard disk drive you are using is larger than 528MB, you must
set the HDD mode to
BIOS SETUP to install the HDD correctly.
Phoenix – AwardBIOS CMOS Setup Utility
Date (mm:dd:yy) Mon, Mar 8 2004 Item Help
Time (hh:mm:ss) 13 : 48 : 22 Menu Level X
X
IDE Primary Master [None]
X
IDE Primary Slave [None] Change the day, month,
X
IDE Secondary Master [None] year and century
X
IDE Secondary Slave [None]
Drive A [1.44M, 3.5in.]
Drive B [None]
Video [EGA/VGA]
Halt On [All, Errors]
Base Memory 640K
Extended Memory 252928K
Total Memory 253952K
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
mode. Please use the IDE Setup Utility in
LBA
Standard CMOS Features
30
4.5 Advanced BIOS Features
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
Phoenix – AwardBIOS CMOS Setup Utility
Virus Warning Disabled Item Help
CPU L1 & L2 Cache Enabled Menu Level X
CPU L3 Cache Enabled
Hyper-Threading Technology Enabled
Quick Power On Self Test Enabled
First Boot Device Floppy
Second Boot Device HDD-0 Change the day, month,
Third Boot Device CDROM year and century
Boot Other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Enabled
Boot Up Num Lock Status On
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
APIC Mode Enabled
MPS Version Control For OS 1.4
OS Select For DRAM > 64MB Non-OS2
Report NO FDD for WIN 95 NO
Full Screen LOGO Show Disabled
Small Logo (EPA) Show Disabled
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Advanced BIOS Features
31
4.6 Advanced Chipset Features
This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that the
data has been lost while using your system.
Phoenix – AwardBIOS CMOS Setup Utility
Advanced Chipset Features
DRAM Timing Selectable By SPD Item Help
CAS Latency Time 2 Menu Level X
Active to Precharge Delay 8
DRAM RAS# to CAS# Delay 4
DRAM RAS# Precharge 4 Change the day, month,
Memory Frequency For Auto year and century
System BIOS Cacheable Enabled
Video BIOS Cacheable Enabled
Memory Hole At 15M-16M Disabled
Delay Prior to Thermal 16 Min
AGP Aperture Size (MB) 128
Init Display First PCI Slot
On-chip VGA Enabled
On-chip Frame Buffer size 16MB
Boot Display Auto
Panel Scaling Auto
Panel Number 1
TV Standard Off
Video Connector Automatic
TV Format Auto
** ON-chip VGA Setting **
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
32
4.7 Integrated Peripherals
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary
and a secondary--so you can install up to four separate hard disks.
PIO means Programmed Input/Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it
wants and then let the controller and the CPU perform the
complete task by them. This is much simpler and more efficient
(also faster).
Phoenix – AwardBIOS CMOS Setup Utility
OnChip IDE Device [Press Enter] Item Help
Onboard Device [Press Enter] Menu Level X
SuperIO Device [Press Enter]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
IDE HDD Block Mode [Enabled] Item Help
On-Chip Primary PCI IDE [Enabled] Menu Level X
IDE Primary Master PIO [Auto]
IDE Primary Slave PIO [Auto]
IDE Primary Master UDMA [Auto]
IDE Primary Slave UDMA [Auto]
On-Chip Secondary PCI IDE [Auto]
IDE Secondary Master PIO [Auto]
IDE Secondary Slave PIO [Auto]
IDE Secondary Master UDMA [Auto]
IDE Secondary Slave UDMA [Auto]
*** On-Chip Serial ATA Setting ***
On-Chip Serial ATA [Auto]
Serial ATA Port0 Mode [Primary Master]
Serial ATA Port1 Mode [Primary Master]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Integrated Peripherals
OnChip IDE Device
33
Phoenix – AwardBIOS CMOS Setup Utility
USB Controller [Enabled] Item Help
USB 2.0 Controller [Enabled] Menu Level X
USB Keyboard Support [Enabled]
USB Mouse Support [Disabled]
AC97 Audio [Auto]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
POWER ON Function [BUTTON ONLY] Item Help
KB Power ON Password [Enter] Menu Level X
Hot Key Power ON [Ctrl-F1]
Onboard FDC Controller [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
UART Mode Select [Normal]
RXD , TXD Active [Hi, Lo]
IT Transmission Delay [Enabled]
UR2 Duplex Mode [Half]
Use IR Pins [IR-RX2TX2]
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
ECP Mode Select [EPP1.7]
ECP Mode Use DMA [3]
PWRON After PWR-Fail [Off]
Mini Port Address [Disabled]
Mini Port IRQ 5
Onboard Serial Port 3 [3E8]
Serial Port 3 Use IRQ [IRQ10]
Onboard Serial Port 4 [2E8]
Serial Port 4 Use IRQ [IRQ11]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Onboard Device
SuperIO Device
34
4.8 Power Management Setup
The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
Phoenix – AwardBIOS CMOS Setup Utility
ACPI function [Enabled] Item Help
ACPI Suspend Type [S1(POS)] Menu Level X
Run VGABIOS if S3 Resume Auto
Power Management [User Define]
Video off Method [DPMS] Change the day, month,
Video off In Suspend [Yes] year and century
Suspend Type [Stop Grant]
MODEM Use IRQ [3]
Suspend Mode [Disabled]
HDD Power Down [Disabled]
Soft-off by PWR-BTTN [Instant-Off]
CPU THRM-throttling [50.0%]
Wake-up by PCI card [Enabled]
Power On by Ring [Enabled]
Wake Up On LAN [Enabled]
USB KB Wake-up From S3 Disabled
Resume by Alarm [Disabled]
Date(of Month) Alarm 0
Time(hh:mm:ss) Alarm 0:0:0
** Reload Global Timer Events **
Primary IDE 0 [Disabled]
Primary IDE 1 [Disabled]
Secondary IDE 0 [Disabled]
Secondary IDE 1 [Disabled]
FDD, COM, LPT Port [Disabled]
PCI PIRQ[A-D]# [Disabled]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Power Management Setup
35
4.9 PnP/PCI Configurations
This section describes configuring the PCI bus system. PCI, or
eripheral Components Interconnect, is a system that allows I/O
P
devices to operate at speeds nearing the speed the CPU itself uses
when communicating with its own special components. This section
covers some very technical items and it is strongly recommended that
only experienced users should make any changes to the default
settings.
Phoenix – AwardBIOS CMOS Setup Utility
PNP OS Installed [No] Item Help
Reset Configuration Data [Disabled] Menu Level X
Resources Controlled By [Auto(ESCD)]
IRQ Resources Press Enter
DMA Resources Press Enter
PCI/VGA Palette Snoop [Disabled]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
PnP/PCI Configurations
4.10 PC Health Status
Phoenix – AwardBIOS CMOS Setup Utility
CPU Warning Temperature [Disabled] Item Help
Current System Temp. Menu Level X
Current CPU1 Temperature
Current System FAN Speed:
Current CPU FAN Speed
Current Chassis FAN Speed
Vcore
+3.3V
+5V
+12V
-12V
-5V
VBAT(V)
5VSB(V)
Shutdown Temperature [Disabled]
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
36
PC Health Status
4.11 Frequency/Voltage Control
Phoenix – AwardBIOS CMOS Setup Utility
CPU Clock Ratio [8X] Item Help
Auto Detect DIMM/PCI Clk [Enabled] Menu Level X
Spread Spectrum [Disabled]
Change the day, month,
year and century
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Frequency/Voltage Control
4.12 Load Fail-Safe Defaults
When you press <Enter> on this item you will get a confirmation dialog
box with a message shown below. This option allows you to
load/restore the BIOS default values permanently stored in the BIOS
ROM. Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.
Phoenix – AwardBIOS CMOS Setup Utility
STANDARD CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
Load Fail-Safe Defaults (Y/N)? N
Saving
Esc : Quit
F10 : Save & Exit Setup
Frequency/Voltage Control
X
etup
: Select Item
Load Fail-Safe Defaults
37
4.13 Load Optimized Defaults
When you press <Enter> on this item you get a confirmation dialog box
with a message similar to the figure below. This option allows you to
load/restore the default values to your system configuration, optimizing
and enabling all high performance features. Pressing ‘Y’ loads the
default values that are factory settings for optimal performance system
operations.
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
Load Optimized Defaults (Y/N)? N
Saving
Esc : Quit
F10 : Save & Exit Setup
Frequency/Voltage Control
X
etup
: Select Item
38
Load Optimized Defaults
4.14 Set Supervisor/User Password
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management Setup Set User Password
X
PnP/PCI Configurati
X
PC Health Status
X
Enter Password :
Esc : Quit
F10 : Save & Exit Setup
Frequency/Voltage Control
X
: Select Item
t Setup
ut Saving
Change / Set / Disable Password
You can set either supervisor or user password, or both of them. The
differences between are:
supervisor password: can enter and change the options of the setup
menus.
user password: just can only enter but do not have the right to change the
options of the setup menus.
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press
<Enter>. The password typed now will clear any previously entered
password from CMOS memory. You will be asked to confirm the
password. Type the password again and press <Enter>. You may also
press <Esc> to abort the selection and not enter a password.
PASSWORD DISABLED.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password and then will
be disabled. Once the password is disabled, the system will boot and
you can enter Setup freely.
39
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized
person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the
BIOS to request a password every time your system is rebooted. This
would prevent unauthorized use of your computer.
You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the
Security option is set to “System”, the password will be required both at
boot and at entry to Setup. If set to “Setup”, prompting only occurs
when trying to enter Setup.
4.15 Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:
Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted.
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
X
Frequency/Voltage Control
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
SAVE to CMOS and EXIT (Y/N)? N
etup
Saving
Esc : Quit
F10 : Save & Exit Setup
Save Data to CMOS
40
: Select Item
4.16 Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
Quit Without Saving (Y/N)? N:
Saving
Esc : Quit
F10 : Save & Exit Setup
Abandon all Data
Frequency/Voltage Control
X
etup
: Select Item
41
This Page is intentionally left blank.
42
Chapter 5
Software Utilities
This chapter contains the detailed information of IDE, VGA, LAN and
Audio driver installation procedures. The utility disk that came with the
delivery package contains an auto-run program that invokes the
installation programs for the IDE, VGA, LAN and Audio drivers. The
following sections describe the installation procedures of each driver
based on Win 95/98, Win 2000 and Win NT operating systems. It is
recommended that you install the drivers matching the sections listed
in this chapter.
5.1 IDE Driver Installation
5.1.1 Installing Intel Chipset Software Utility
1. Insert Utility CD Disk into your CD ROM drive. The main menu
will pop up as shown below. Select on the HS-7002 button to
launch the installation program.
43
2. Click on the ICH5 Driver button to continue.
3. Click on the Windows 9X button to continue.
44
4. Immediately after clicking the IDE b u t t o n i n S t e p 1 , t h e p r o g r a m
launches the InstallShield Wizard that will assist you in the
installation process. Click on the N
5. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
ext > button to proceed.
es to proceed.
45
6. When the Readme Information dialog box pops up, just click on
7. Once the Install Shield Wizard finishes updating your system, it
ext button to proceed.
the N
will prompt you to restart the computer. Tick on the “Yes, I
want to restart my computer now” followed by a click on
the F
inish button to reboot. Only after your computer boots will
the new settings take effect.
46
5.2 VGA Driver Installation
1. Insert Utility CD Disk into your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7002 button to launch
the installation program.
2. Click on the VGA Driver button to continue.
47
3. Click on the OS button to continue.
4. When the dialog box below appears, make sure you close all
other Windows applications and then click on the N
to proceed.
ext > button
48
5. Immediately after clicking the IDE button in Step 1, the program
launches the InstallShield Wizard that will assist you in the
installation process. Click on the N
6. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
ext > button to proceed.
es to proceed.
49
7. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the “Yes, I
want to restart my computer now” followed by a click on the
inish button to reboot. Only after your computer boots will the
F
new settings take effect.
5.3 LAN Driver Installation
5.3.1 Win 95/98/2K/XP
1. Insert Utility CD Disk into your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7002 button to launch
the installation program.
50
2. Click on the LAN Driver button to continue.
3. Click on the WIN9X/WIN2K/WINXP button to continue.
51
4. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Accept to proceed.
5. When the dialog box below appears, make sure the folder you’ll
save file in, then Click on the N
ext >
52
6. When the dialog box below appears, make sure you close all
other Windows applications and then click on the Install Base
Driver button to proceed.
7. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the Restart
now to reboot. Only after your computer boots will the new
settings take effect.
5.3.2 Win NT
NOTE:
1. The system automatically detects the absence of Windows NT
Please make sure you have already installed Service Pack 6.0.
Networking. Click on the Y
es button to start installation.
53
2. Tick on the Wired to Network once the following screen
appears. Click on N
3. Click on the St
Network Adapter.
ext > to proceed.
art Search button for the program to locate the
54
4. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the H
the driver path location.
5. Setup now asks you for the location of the driver. When you have
entered the new driver path, press on the OK button to continue.
ave Disk button to assign
55
6. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. If using
82562EZ, please choose “Intel(R) PRO/100 Family
Adapter”. If using 82540EM or 82547EI, please choose
“Intel(R) PRO/1000 Family Adapter”. Press on the OK
button to accept and proceed.
7. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on N
ext to continue.
56
8. The Network Setup Wizard then allows you to set the Network
Protocols on your network. Select the appropriate protocol and
then click on Next to continue.
9. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go
back for changes from the following screen. Click on the N
button once you are sure of your devices.
ext
57
10. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path and then press
Continue.
11. When Setup asks if you wish to change the TCP/IP settings of
your system, select them appropriately. The default choice is N
12. Setup then starts the Networking installation and copies the files.
13. When the screen below appears, click on N
ext to continue.
o.
58
14. Setup then prompts you that it is ready to start the network. You
may complete the installation thereafter. Click on N
continue.
15. Assign the workgroup or domain setting of your computer. Click
on Next to continue.
ext to
59
16. Click on the Yes button to restart your computer. The LAN1
driver installation for WIN NT4.0 is now complete.
17. With the Utility CD Disk still in your CD ROM drive, we can install
LAN2. Right click on “Network Neighborhood” icon from the
desktop. Select on Properties and then proceed to the Network
from the main menu. Click on A
dd to continue.
18. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on OK to continue.
60
19. Click on the Close button. The LAN2 driver installation for WIN
NT4.0 is now complete.
5.4 Audio Driver Installation
1. Insert Utility CD Disk into your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7002 button to launch
the installation program.
61
2. Click on the AUDIO Driver button to continue.
3. Click on the OS button which you use.
62
4. When the dialog box below appears, make sure you close all
other Windows applications and then click on the N
to proceed.
4. Once the InstallShield Wizard completes the operation and
update of your AC’97 driver, it will ask you to remove disks from
their drives, and prompt you to restart your system. Tick on the
“Yes, I want to restart my computer now”. Afterwards, click
on the F
system changes you made will take effect after the system
restarts.
inish button to complete the installation process. The
ext > button
63
5.5 USB2.0 Driver Installation
5.5.1 Win 95/98
1. Insert Utility CD Disk into your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7002 button to launch
the installation program.
2. Click on the USB2.0 Driver button to continue.
64
3. Click on the WIN9x button to continue.
4. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
es to proceed.
65
5. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the “Yes, I
want to restart my computer now” followed by a click on the
Close button to reboot. Only after your computer boots will the
new settings take effect.
5.5.2 Win 2000
1. With the Utility CD Disk still in your CD ROM drive, right click on
“My Computer” icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the
main menu.
2. Select on Other Devices from the list of devices and then
double-click on Universal Serial Bus (USB) Controller.
66
3. The Universal Serial Bus (USB) Controller Properties screen then
appears, allowing you to re-install the driver. Select Update
Driver from the main menu to proceed.
4. When the dialog box below appears, make sure you close all
other Windows applications and then click on the N
to proceed.
ext > button
67
5. Tick on the “Search for a suitable driver for my device
(recommended)” once the following screen appears. Click on
the N
ext to proceed.
6. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the N
button to continue
ext
68
7. Choose sisusb2.inf and press on the Open button to accept and
proceed.
8. Once the InstallShield Wizard completes the operation and
update of your USB2.0 driver, click on the F
complete the installation process.
inish button to
69
5.5.3 Win XP
NOTE:
1. With the Utility CD Disk still in your CD ROM drive, right click on
2. Tick on the “Install the software automatically
Please make sure you have already installed Service
Pack1.
“My Computer” icon from the Windows menu. Select on
System Properties and then proceed to the Device Manager from
the main menu.
(Recommended)” once the following screen appears. Click on
the N
ext > to proceed.
70
3. Once the InstallShield Wizard completes the operation and
update of your USB2.0 driver, click on the F
complete the installation process.
inish button to
71
This page is intentionally left blank.
72
Loading...
