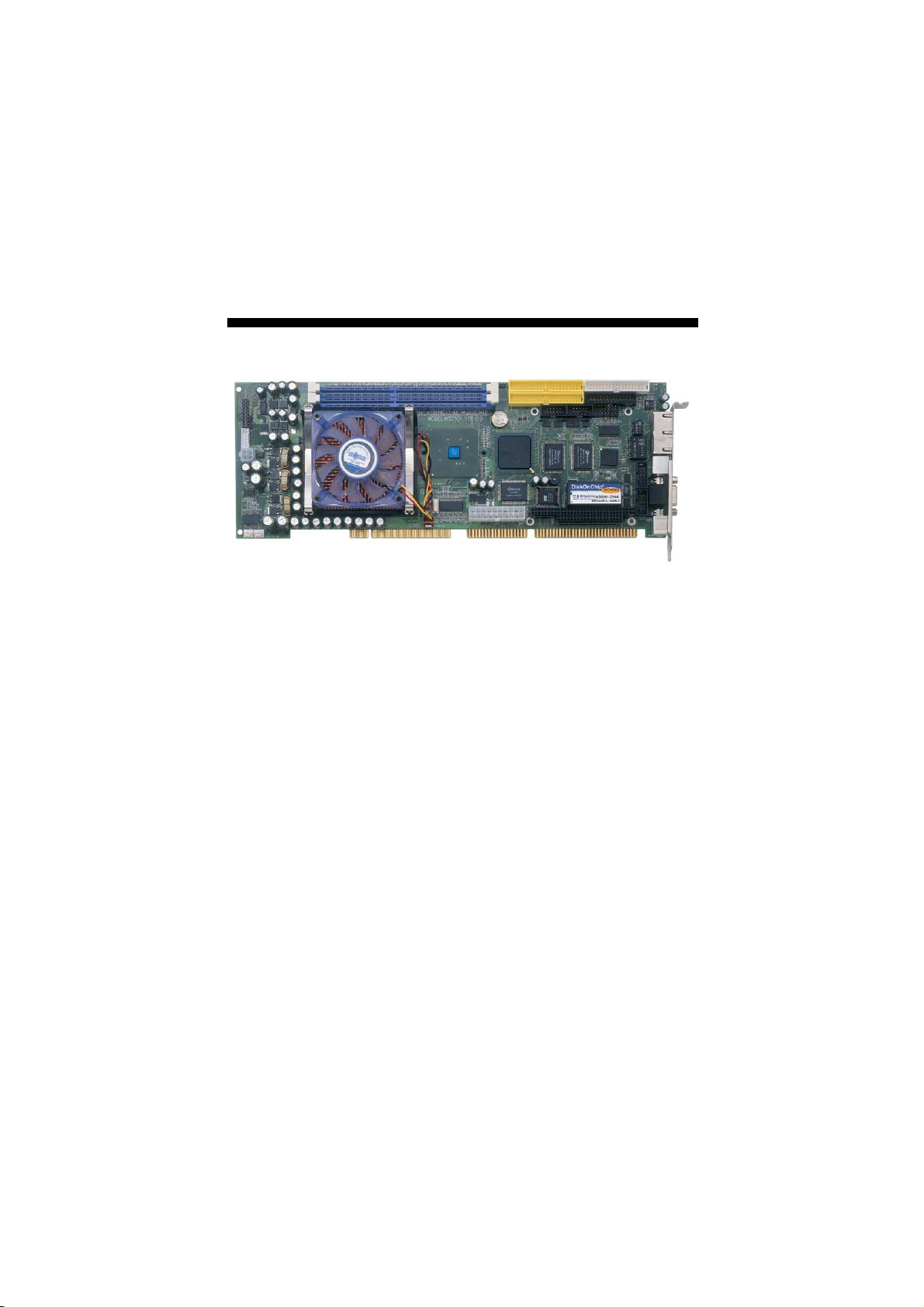

Chapter 1
General Description
The HS-7001 is an Intel® 82845G/82801DB chipset-based board
designed for PICMG Bus PGA 478 Intel
CPU compatibility. These features combine and make the HS-7001 an
ideal all-in-one industrial single board computer. Additional features
include an enhanced I/O with CRT, Dual LAN, audio and 4 COM ports
interface.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-7001 to support data transfers of 33, 66 or 100MB/sec. to each
IDE drive connection. Designed with the Intel
logic chipset, the board supports all PGA 478 Pentium® 4 CPU series
operating up to 2.8GHz. The CRT display controller is Intel 82845G
with 1MB or 8MB memory supporting CRT display up to 1920 x 1200 x
32-bit at 60Hz.
®
Pentium® 4 up to 2.8GHz
®
82845G/82801DB core
System memory is also sufficient with the two DDR sockets that can
support up to 2GB(DDR-333). While using 533MHz FSB CPU, it could
support DDR-333, but using 400MHz FSB CPU, it only could support
DDR-266.
Additional onboard connectors include an advanced USB and IrDA
ports providing faster data transmission, a DOS-compatible
DiskOnChip socket with a maximum capacity of 288MB, and two
external RJ-45 or two internal 5x2 connectors for one 100/1000 and
one 10/100 OR two 10/100 Base-TX Ethernet use.
1
Page 8
1.1 Major Features
The HS-7001 comes with the following features:
PGA 478 for Intel® Pentium® 4 up to 2.8GHz CPU
Intel 82845G/82801DB system chipset
Two DDR sockets with a max. capacity of 2GB
Winbond W83627 super I/O chipset x 2
Fast PCI ATA/33/66/100 IDE controller
Four RS-232 serial ports
PC/104 Bus connector
Intel
Intel
AC97 3D audio controller
DiskOnChip
Supports USB2.0, two USB connectors
Supports Hardware Monitor function
®
82845G CRT display controller
®
82540EM 10/100 Based (or Intel® 82551 10/100 Based) and Intel®
82562 10/100 Based LAN
TM
socket supporting memory sizes of up to 288MB
1.2 Specifications
CPU: PGA 478 for Intel® Pentium® 4 up to 2.8GHz CPU (400MHz FSB
up to 2.4GHz, 533MHz FSB up to 2.8GHz)
Bus Interface: PICMG Bus
Memory: Two DDR sockets supporting up to 2GB(DDR-333)
Chipset: Intel® 82845G/82801DB
I/O Chipset: Winbond W83627 x 2
VGA: Intel
x 1200 x 32-bit at 60Hz
IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer
rates of up to 33/66/100MB/sec.
FDD: Supports up to two floppy disk drives
Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
LAN: One Intel® 82540EM 100/1000 Based(or one Intel® 82551 10/100
Based) and one Intel
Audio: AC97 3D audio controller
®
82845G with 1MB or 8MB supporting CRT display up to 1920
®
82562 10/100 Based LAN
2
Page 9
Serial Port: 16C550 UART-compatible RS-232 x 4 serial ports with
16-byte FIFO
PC/104: PC/104 connector for 8-bit x 2clock ISA Bus
One IrDA TX/RX header
IrDA:
Supports USB2.0, two USB connectors
USB:
Keyboard:
Mouse:
DiskOnChip: DiskOnChip socket supporting memory sizes of up to
288MB
BIOS: Award PnP Flash BIOS
CMOS: Battery backup
Power Connector: One 4-pin and one 20-pin ATX power connector
Operating Temperature: 0~60°C
Hardware Monitor: Winbond W83627
Board Size: 33.6 x 12.2 cm
PS/2 6-pin Mini DIN or 5-pin connector
PS/2 6-pin Mini DIN
3
Page 10

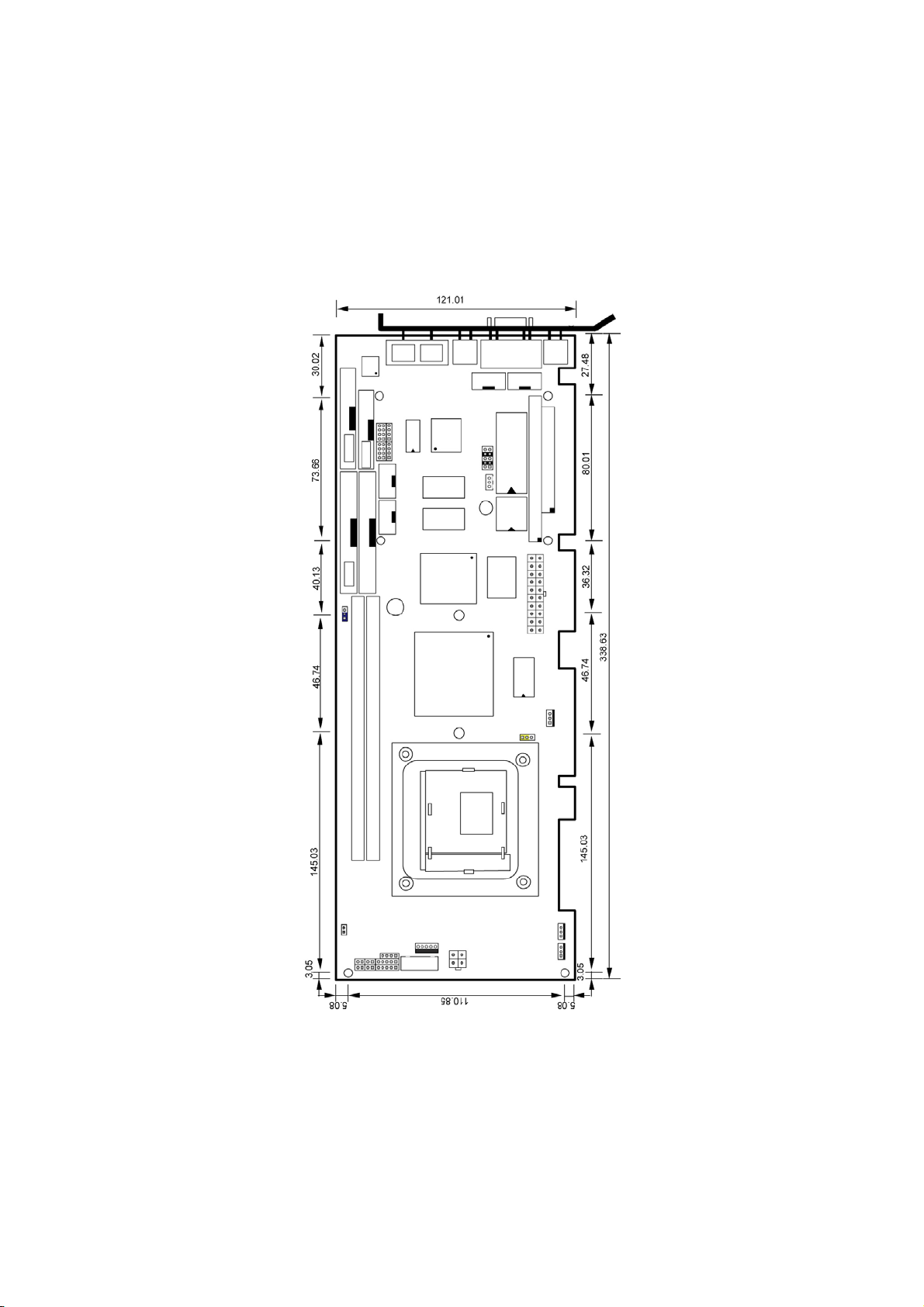

1.3 Board Dimensions
4
Page 11
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-7001 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. ExAwardne all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-7001 delivery package
contains the following items:
HS-7001 Board x 1
Utility CD Disk x 1
ATA/100 IDE flat cable x 2
FDD flat cable x 1
Printer cable with bracket x 1
Two RS-232 COM Port cable with bracket x 2
8-pin USB split type cable with bracket x 1
5-pin ATX power cable x 1
MIC/Audio 8-pin cable + 2 phone jacks x 1
Jumper Bag x 1
User’s Manual
5
Page 12
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
6
Page 13
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-7001. This chapter also contains information related to
jumper settings of switch, watchdog timer, and the DiskOnChip
address selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (Set JP2 1-2)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.
4. Ma ke sure your p ower supply i s using for P4 only. One of 4-pin
connector is for +12V lead which should connect to PW1
connector of HS-7001.
7
Page 14

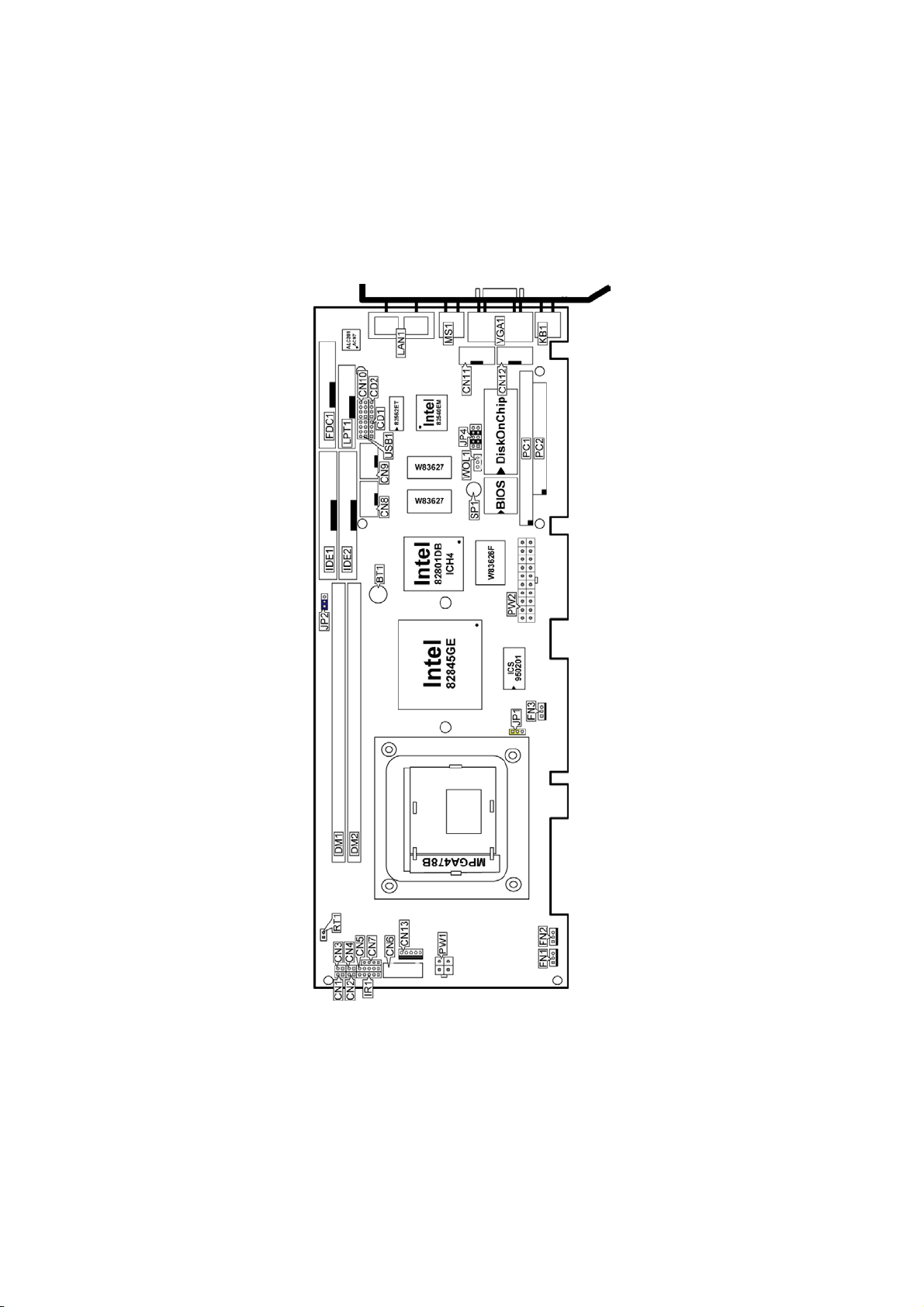

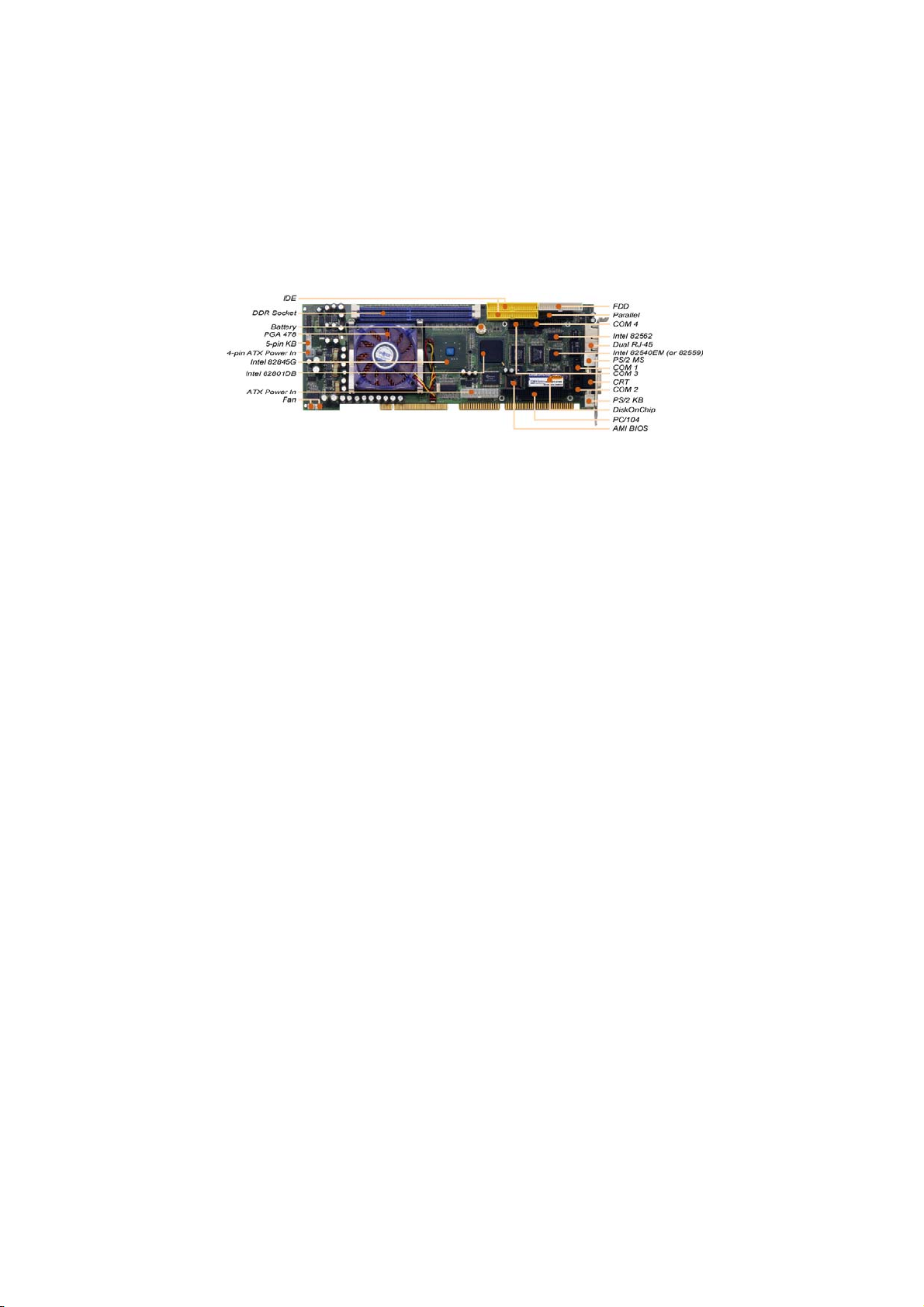

3.2 Board Layout
8
Page 15

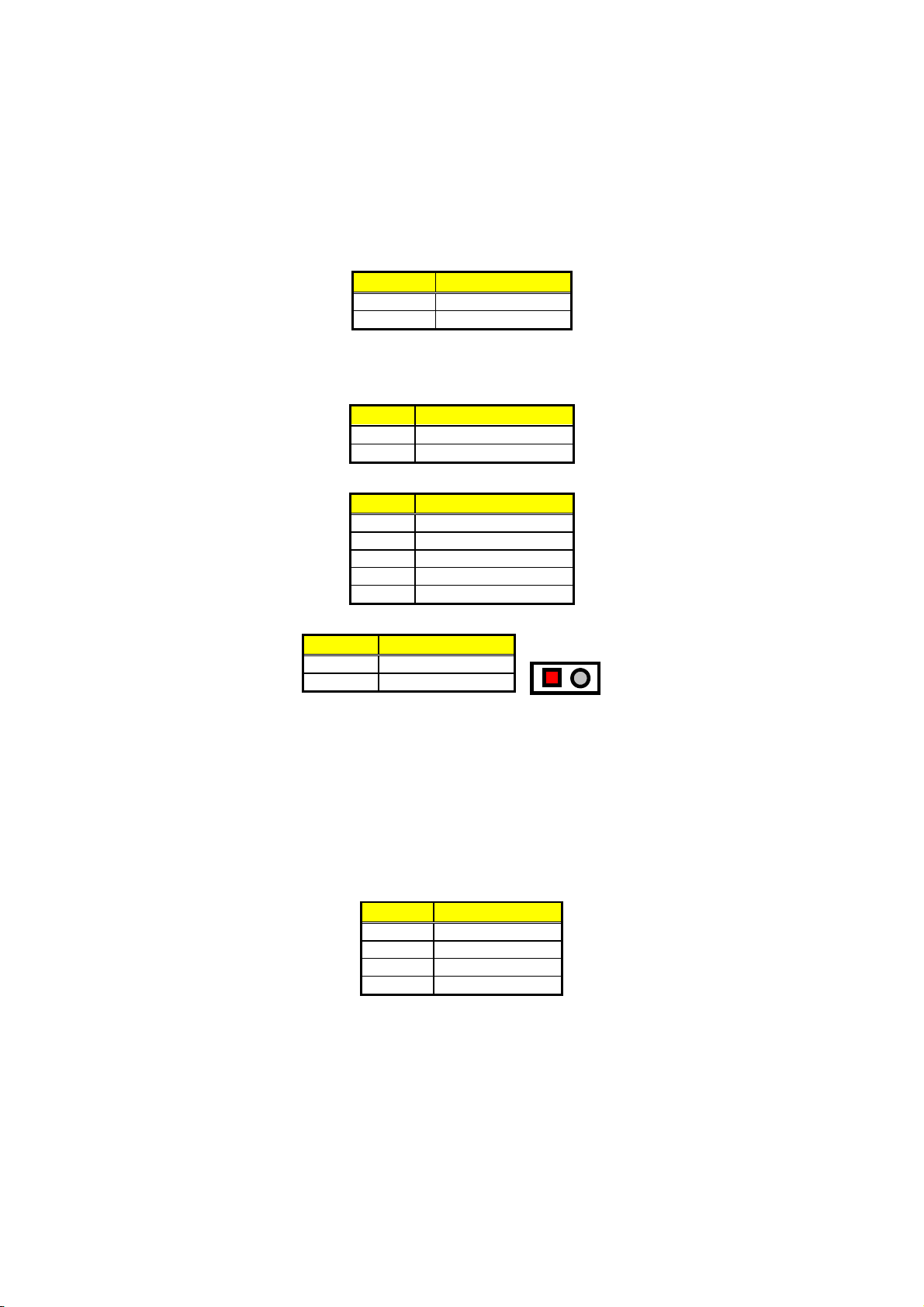

3.3 Jumper List
Jumper
JP1 Clock Speed Select: CPU Select 1-2 Short 10
JP2 Clear CMOS: Normal Operation 1-2 Short 19
JP4
DiskOnChip Address Select:
D000H~D1FFH
Default Setting Setting Page
3-4, 7-8 Short 10
3.4 Connector List
Connector Definition Page
CD1 CD Analog Input Connector 25
CD2 Line In Analog Input Connector 25
COM1 COM1 Connector (DB9) 16
CN1 Green LED Connector 22
CN2 Reset Connector 22
CN3 HDD LED Connector 22
CN4 2-pin ATX Power ON/OFF Switch 20
CN5 Keylock Connector 22
CN6 5-pin Keyboard Connector 22
CN7
CN8 COM3 Connector (5x2 header) 16
CN9 COM4 Connector (5x2 header) 16
CN10 MIC In/Line Out Connector 25
CN11 COM1 Connector (5x2 header) 16
CN12
CN13 5-pin ATX Power Connector 20
DM1 & DM2 DDR Socket 10
FDC1 Floppy Connector 15
FN1 & FN2 & FN3 Chassis/CPU/System Fan 20
IDE1 & IDE2 IDE Connectors 13
IR1 IrDA Connector 17
KB1 PS/2 6-pin Mini DIN Keyboard Connector 22
LN1A & LN1B Dual RJ-45 Connector 19
LPT1 Parallel Connector 18
MS1 PS/2 6-pin Mini DIN Mouse Connector 22
PC1 PC/104 64-pin Connector 26
PC2 PC104 40-pin Connector 26
PW1 4-pin ATX Power Connector 20
PW2 20-pin ATX Power Connector 20
USB1 USB 2.0 Connector 19
VGA1 CRT Connector 12
Speaker Connector 23
COM2 Connector (5x2 header) 16
9
Page 16
3.5 Configuring the CPU
The HS-7001 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
HS-7001 automatically identifies the frequency and clock speed of the
installed microprocessor chip, thereby eliminating the need for user to
do additional CPU configuration or hardware settings related to it.
JP1: Clock Speed Select
Setting Description
1-2 Short CPU Select
2-3 Short
Empty 133MHz
100MHz
3.6 System Memory
The HS-7001 provides two DDR sockets at locations DM1 and DM2.
The maximum capacity of the onboard memory is 2GB. While using
533MHz FSB CPU, it could support DDR-333, but using 400MHz FSB
CPU, it only could support DDR-266.
3.7 DiskOnChip Address Setting
The DiskOnChip function allows the system to boot or operate
without a FDD or a HDD. DiskOnChip modules may be formatted as
drive C or A. With DiskOnChip, user may also execute DOS
commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc.
The DiskOnChip module socket is location on U15 on the HS-7001.
Jumper JP4 assigns the starting memory address of the installed
module. If you have another memory device that has a similar memory
capacity with that of the DOC in your system, please set both at
different memory address mapping to avoid the mapping area conflicts.
Failing to do so will not make the HS-7001 and the additional memory
device function properly.
10
Page 17
JP4: DiskOnChip Address Select
Address JP4
C800H-C9FFH 1-2, 7-8 Short
CC00H-CDFFH 1-2, 9-10 Short
D000H-D1FFH 3-4, 7-8 Short
D400H-D5FFH 3-4, 9-10 Short
D800H-D9FFH 5-6, 7-8 Short
DC00H-DDFFH 5-6, 9-10 Short
3.7.1 Installing DiskOnChip Modules
When installing a DiskOnChip module onto your board, please take
note of the following:
1. Orient yourself properly with the location of the DiskOnChip
socket. Try to locate the pin 1 location on your socket. Pin
numbers are usually printed on either the component side or the
solder side of your board.

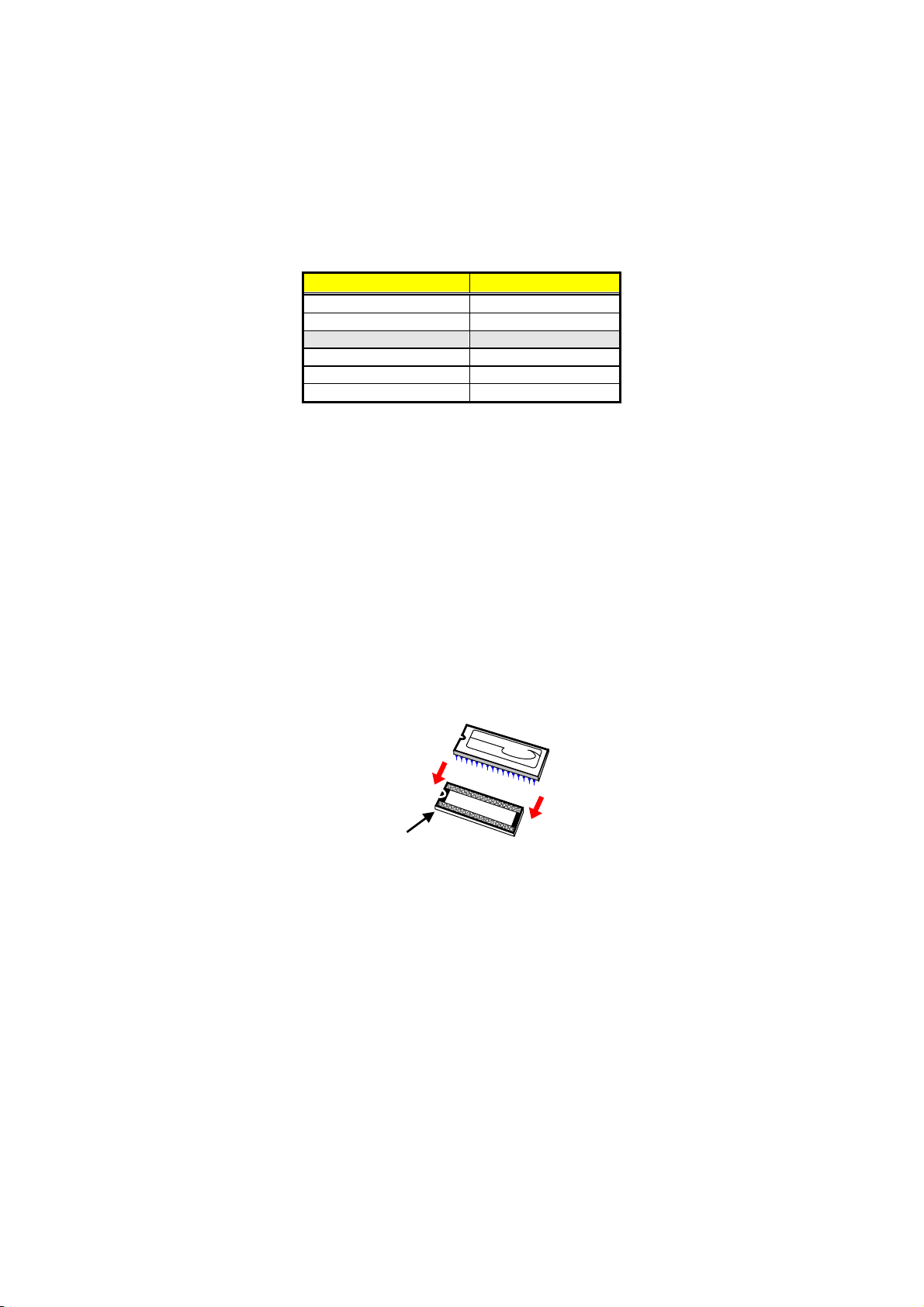

2. Locate the Pin 1 location on your DiskOnChip module. More
often than not, Pin 1 can be found on the lower right corner of
the chip. Please refer to the diagram for the exact location.
3. Once you have figured out where the pin 1 locations are on both
chip and socket, align the module’s pins on an upright angle
against the socket. Using both thumbs, gently press the module
into the socket until all the pins are secured to their
designations.
D
i
s
k
O
n
Ch
i
p
Pin 1
Location
4. The installation is now complete and your module is now ready
for use.
NOTE:
If you encounter difficulty installing your DiskOnChip
module,
please consult a qualified technician or engineer to perform the
installation.
11
Page 18
3.7.2 Removing DiskOnChip Modules
When removing a DiskOnChip module from its socket, please take
note of the following:
1. Loosen the contact of the module from its socket using a
screwdriver.
2. Insert the screwdriver’s flat head into a gap on either end of the
socket. Do not insert the screwdriver head on either side where
the pins are located. Doing so might damage the pins in the
process.
3. Slowly lift the screwdriver handle upwards. This will disengage
the module from its socket.
NOTE:
If you encounter difficulty removing your DiskOnChip
module,
please consult a qualified technician or engineer to remove it for
you.
3.8 VGA Controller
The onboard Intel 82845G with 1MB or 8MB memory supporting CRT
display up to 1280 x 1024 x 32-bit. The HS-7001 provides one
connection method of a VGA device. VGA1 offers a single standard
CRT connector (DB15).

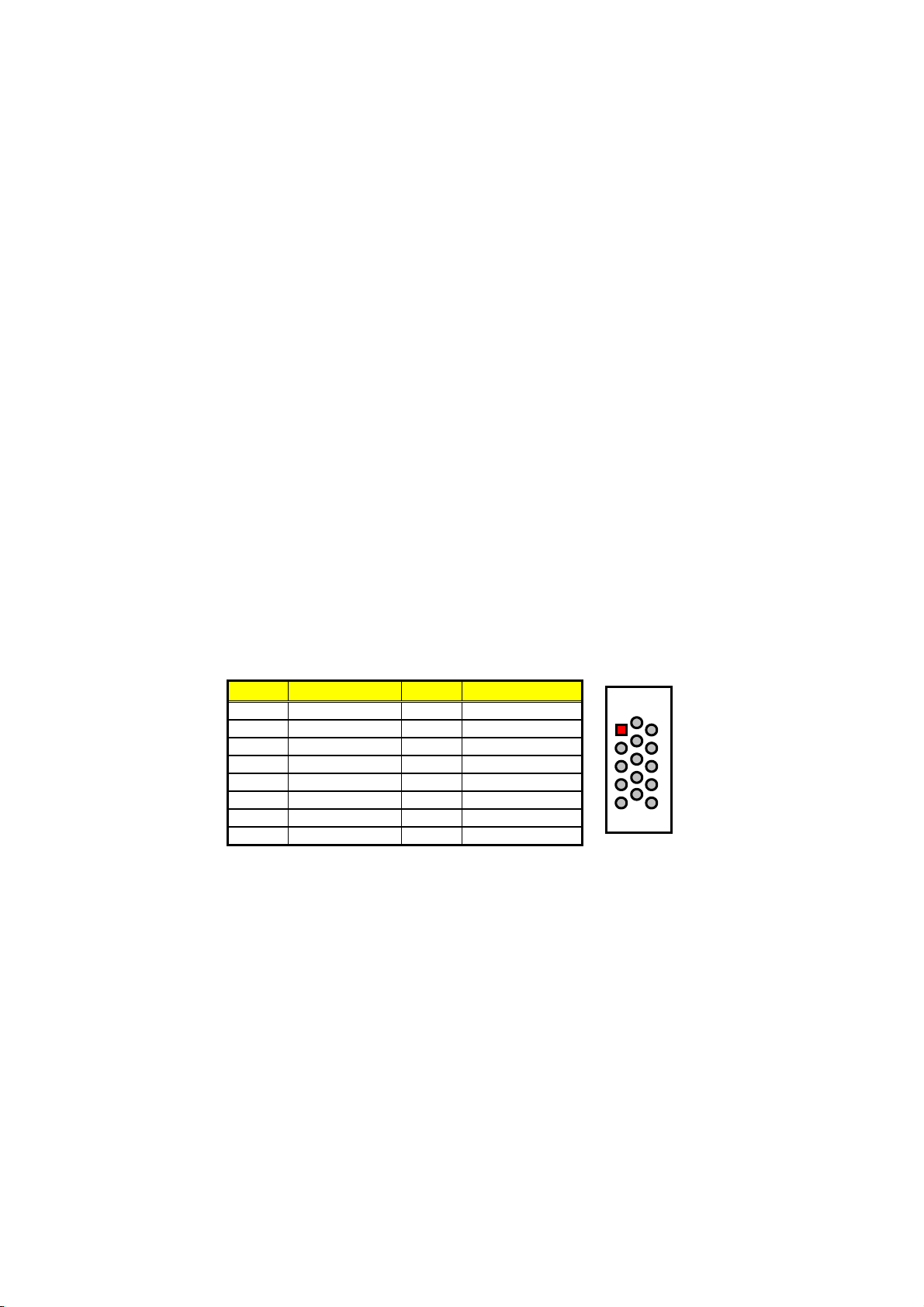

VGA1: 15-pin CRT Connector (DB15)
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
N/C
10
GND
6
1
5
11
10
15
12
Page 19

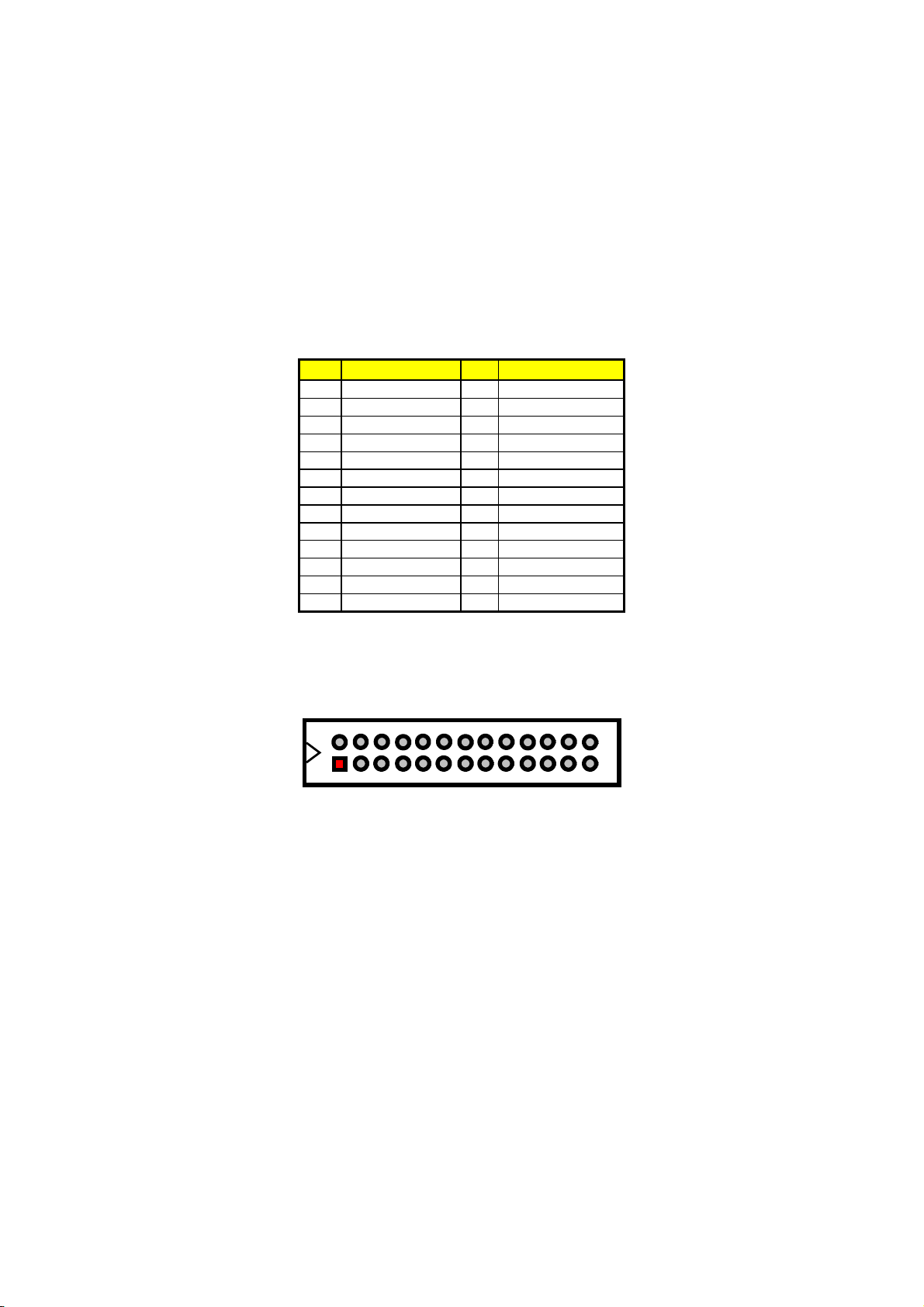

3.9 PCI E-IDE Drive Connector
IDE1 and IDE2 are standard 40-pin connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the HS-7001.
A maximum of four ATA/33/66/100 IDE drives can connect to the
HS-7001 via IDE1 and IDE2.
IDE1: Primary IDE Connector
PIN Description PIN Description
1
RESET
2
3 PDATA 7 4 PDATA 8
5 PDATA 6 6 PDATA 9
7 PDATA 5 8 PDATA 10
9 PDATA 4 10 PDATA 11
11
PDATA 3
12
13 PDATA 2 14 PDATA 13
15 PDATA 1 16 PDATA 14
17 PDATA 0 18 PDATA 15
19 GND 20 N/C
21
PDREQ
22
23 PIOW# 24 GND
25 PIOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 Interrupt 32 N/C
33 PDA1- 34 PATA66
35 PDA0- 36 PDA2-
37 PDCS1- 38 RPCS3-
39 HDD Active P 40 GND
GND
PDATA 12
GND
46810
2
1
3 5 7 9 17 19 21 23 25 27 29 31
12 14
11 13 15 35 37
202224 262830
16 36
18
32 34
38
40
39
33
13
Page 20

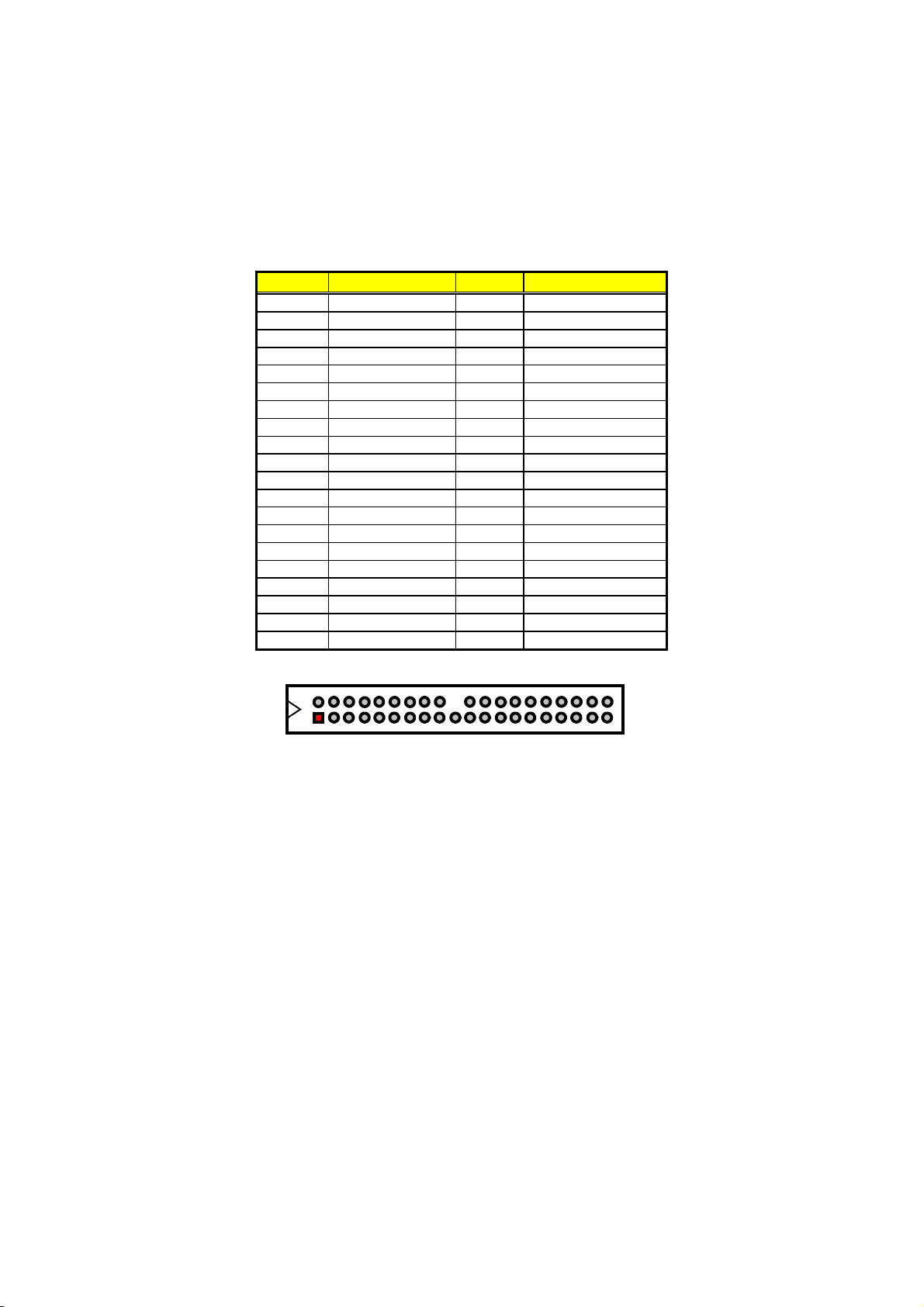

IDE2: Secondary IDE Connector
PIN Description PIN Description
1 RESET 2 GND
3 SDATA 7 4 SDATA 8
5 SDATA 6 6 SDATA 9
7 SDATA 5 8 SDATA 10
9
11 SDATA 3 12 SDATA 12
13 SDATA 2 14 SDATA 13
15 SDATA 1 16 SDATA 14
17 SDATA 0 18 SDATA 15
19
21 SDREQ 22 GND
23 SIOW# 24 GND
25 SIOR# 26 GND
27 SIORDY 28 PR1SD1-
29 SDDACK- 30 GND
31 Interrupt 32 N/C
33 SDA1- 34 SATA66
35 SDA0- 36 SDA2-
37 SDCS1- 38 SDCS3-
39 HDD Active S 40 GND
SDATA 4
GND
10
20
SDATA 11
N/C
14
46810
2
1
3 5 7 9 17 19 21 23 25 27 29 31
12 14
11 13 15 35 37
202224 262830
16 36
18
32 34
38
40
39
33
Page 21

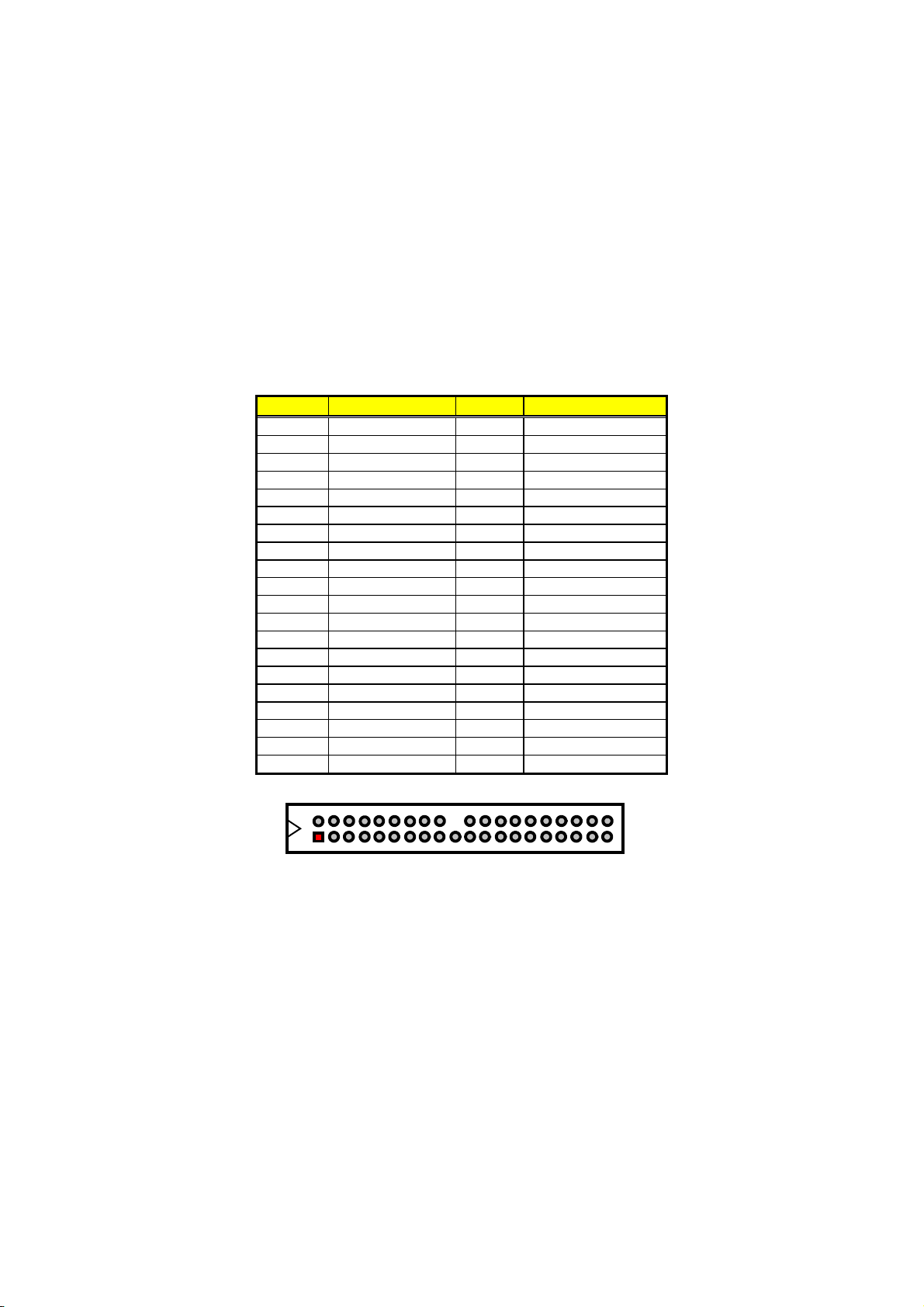

3.10 Floppy Disk Drive Connector

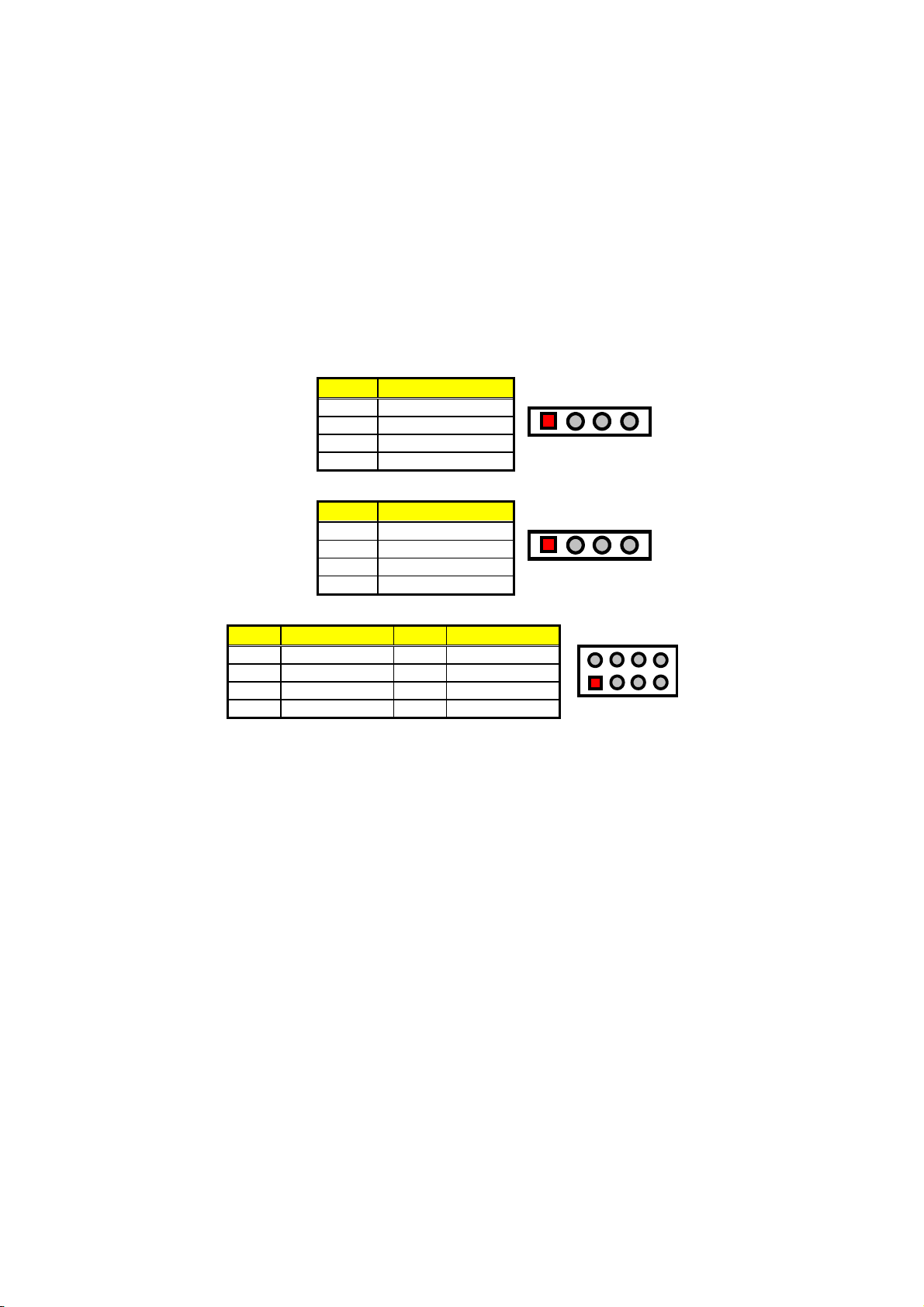

The HS-7001 uses a standard 34-pin header connector, FDC1, for
floppy disk drive connection. A total of two FDD drives may be
connected to FDC1 at any given time.

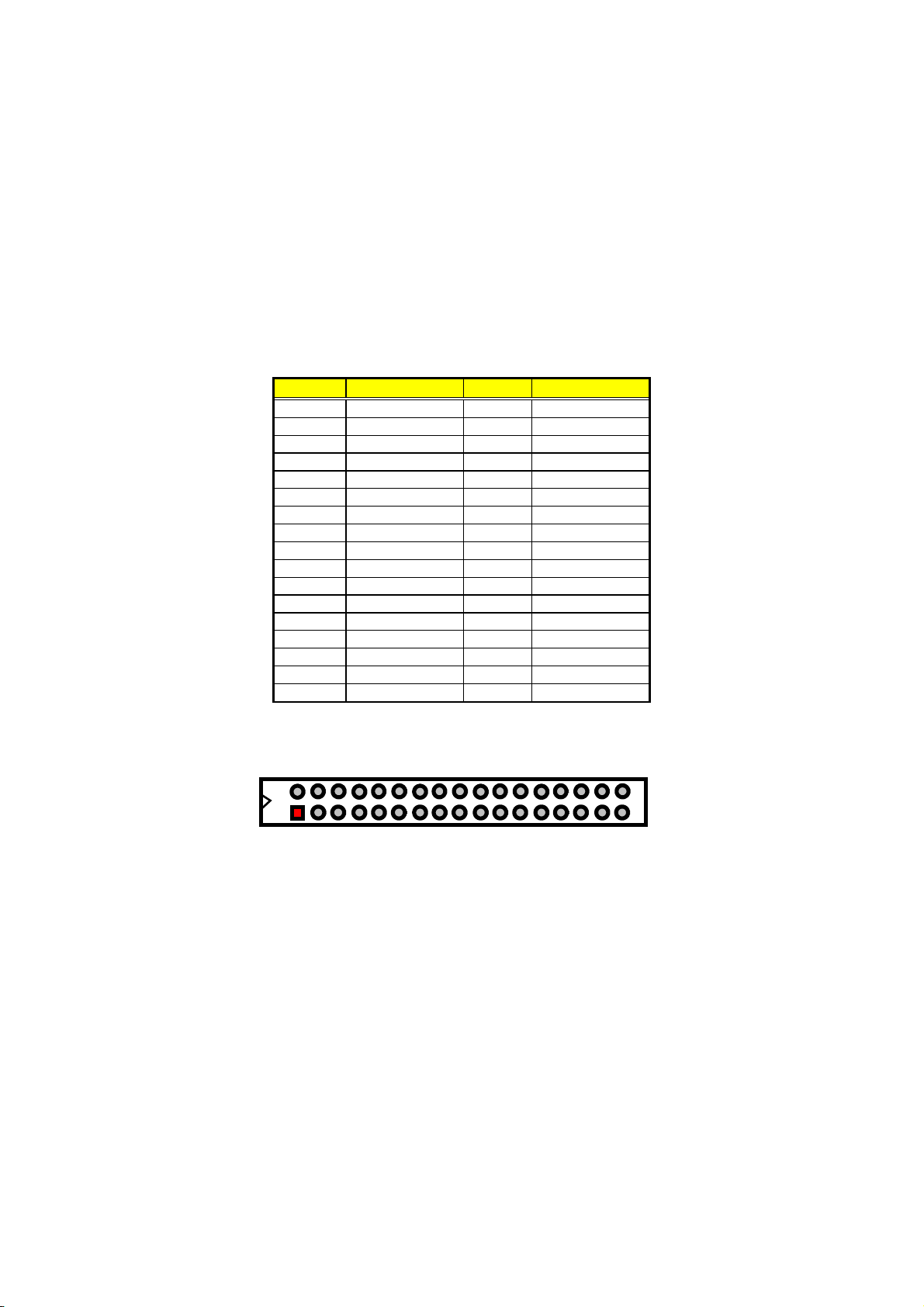

FDC1: FDD Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11 GND 12 DS1#
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WDATA#
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29
N/C
30
31 GND 32 HDSEL#
33 N/C 34 DSKCHG#
RDATA#
DRVDEN0
N/C
DRVDEN1
INDEX#
MTR0#
DS1#
DS0#
MTR1#
DIR#
STEP#
WDATA#¡¦WGATE#
TRAK00#
WRTPRT#
RDATA#
HDSEL#
DSKCHG#
2
u
1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
N/C
GND
GND
34
33
N/C
GND
15
Page 22

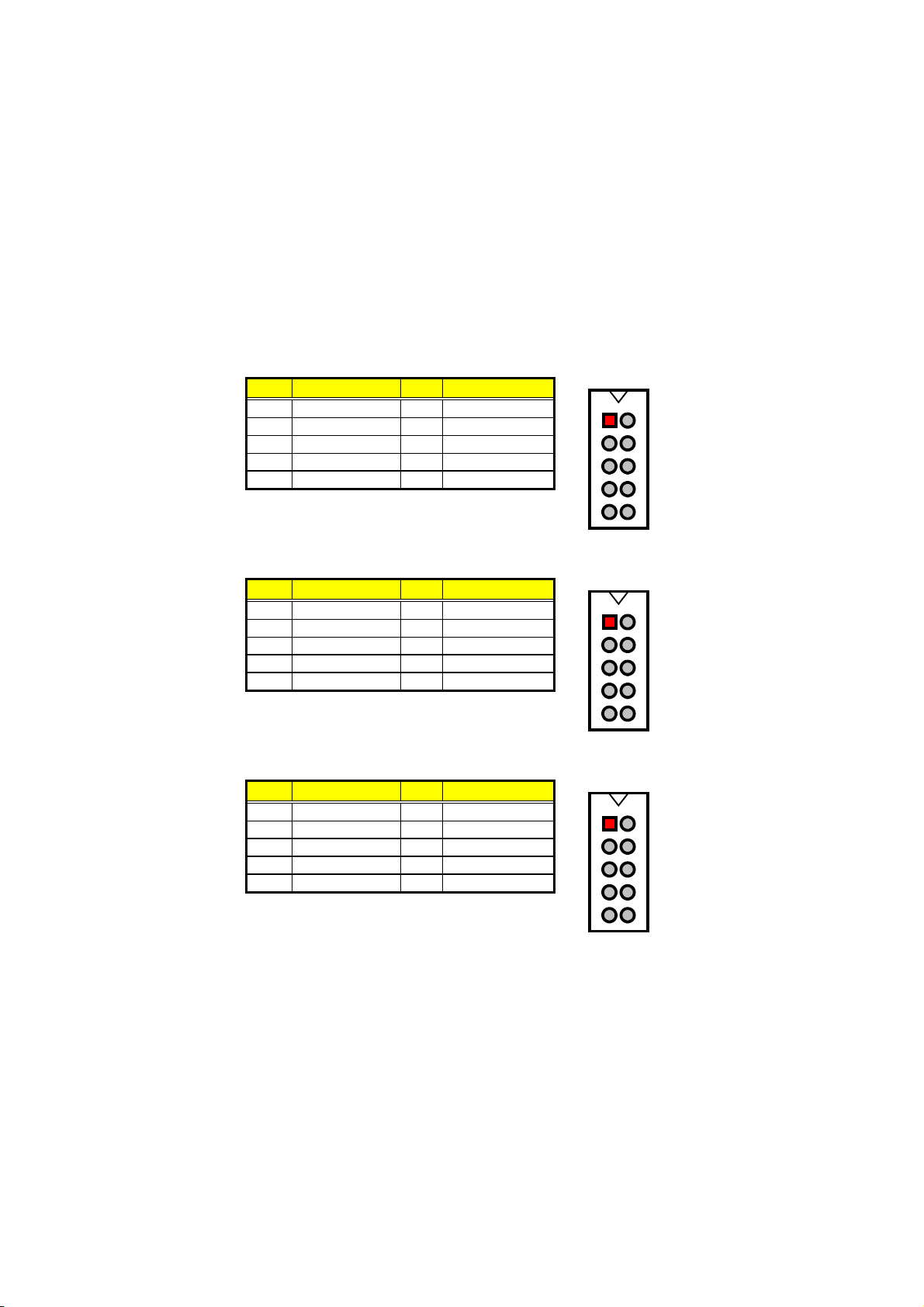

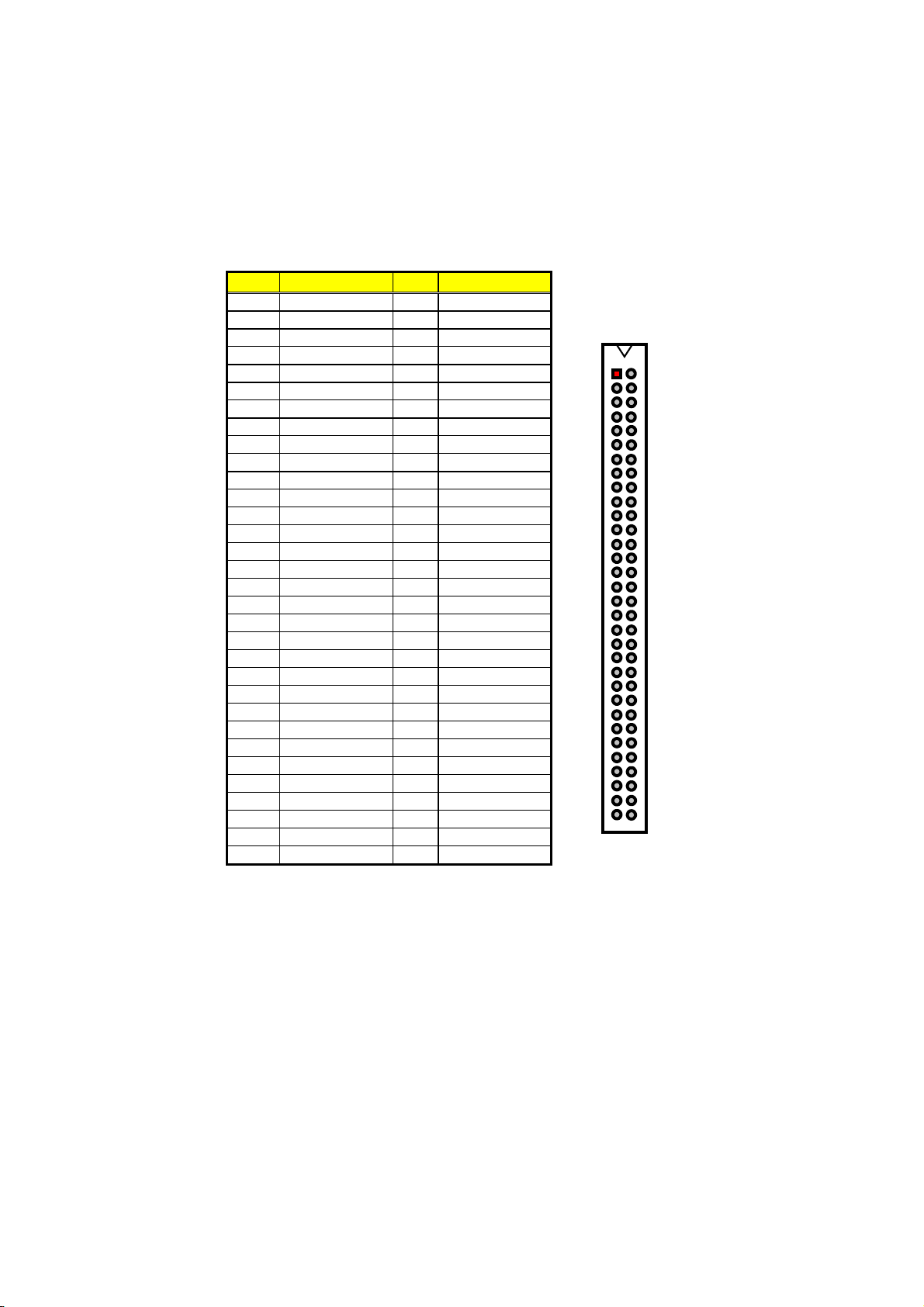

3.11 Serial Port Connectors
The HS-7001 offers two NS16C550 compatible UARTs with
Read/Receive 16-byte FIFO serial ports and four internal 10-pin
headers.

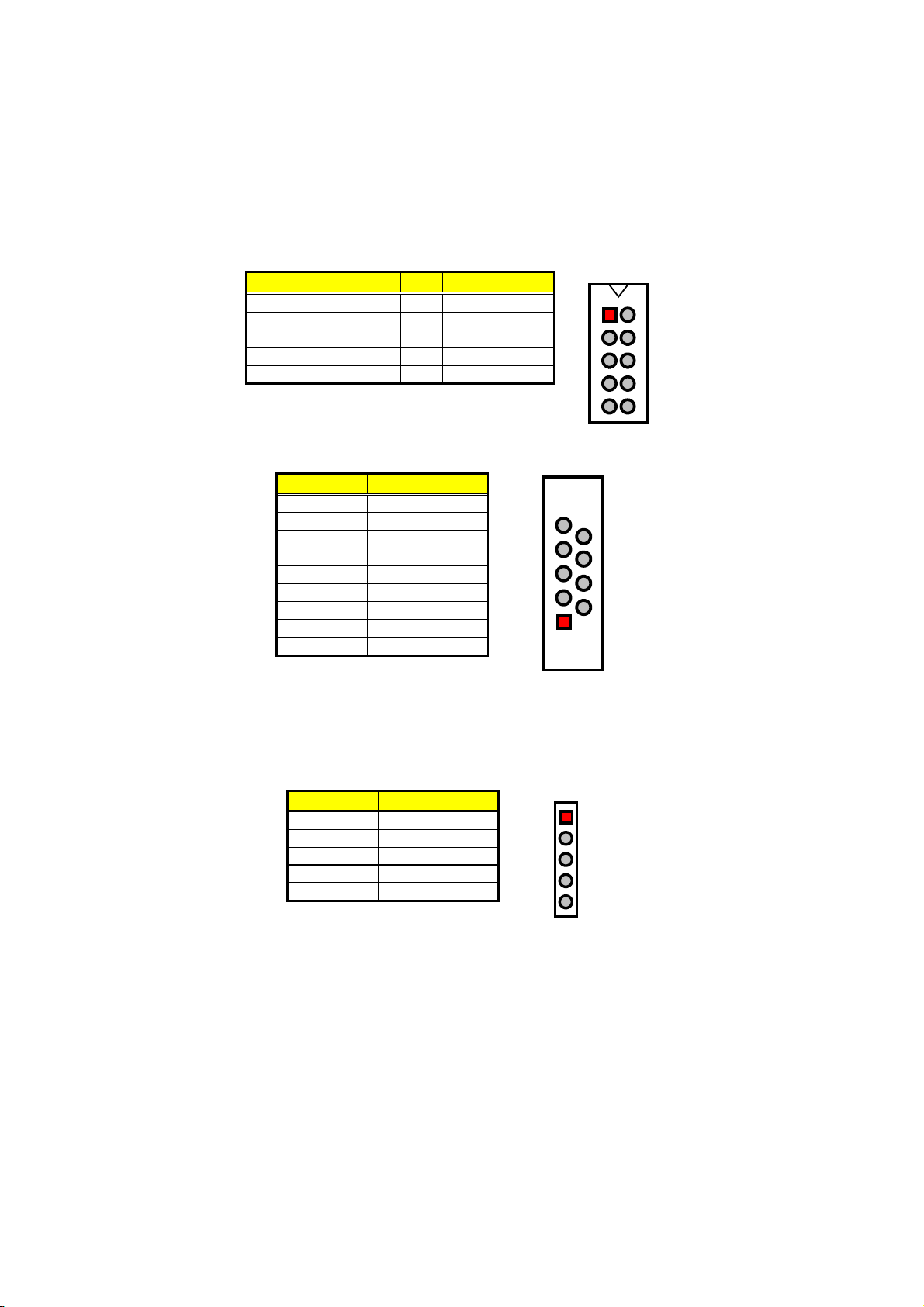

CN11: COM1 Connector (5x2 Header)
PIN Description PIN Description
1 DCD0 2 DSR0
3
RXDD0
4
RTS0
5 TXDD0 6 CTS0
7 DTR0 8 RI0
9 GND 10 N/C
CN12: COM2 Connector (5x2 Header)
PIN Description PIN Description
1 DCD1 2 DSR1
3 RXDD1 4 RTS1
5 TXDD1 6 CTS1
7
DTR1
8
9 GND 10 N/C
RI1
DCD0
RXDD0
TXDD0
DTR0
GND
DCD1
RXDD1
TXDD1
DTR1
GND
2
1
3
5
7
9
1
3
5
7
9
DSR0
4
RTS0
6
CTS0
8
RI0
10
N/C
2
DSR1
4
RTS1
6
CTS1
8
RI1
10
N/C
CN8: COM3 Connector (5x2 Header)
PIN Description PIN Description
1 DCD2 2 DSR2
3 RXDD2 4 RTS2
5 TXDD2 6 CTS2
7 DTR2 8 RI2
9 GND 10 N/C
16
DCD2
RXDD2
TXDD2
DTR2
GND
2
1
3
5
7
9
DSR2
4
RTS2
6
CTS2
8
RI2
10
N/C
Page 23
CN9: COM4 Connector (5x2 Header)
PIN Description PIN Description
1 DCD3 2 DSR3
3 RXDD3 4 RTS3
5 TXDD3 6 CTS3
7 DTR3 8 RI3
9 GND 10 N/C
COM1: COM1 Connector (DB9)
PIN Description
1 DCD0
2 RXDD0
3 TXDD0
4 DTR0
5
GND
6 DSR0
7 RTS0
8 CTS0
9 RI0
GND
DTR0
TXDD0
RXDD0
DCD0
3.12 IrDA Connector
DCD3
1
RXDD3
3
TXDD3
5
DTR3
7
GND
9
9
5
16
RI0
CTS0
RTS0
DSR0
DSR3
2
RTS3
4
CTS3
6
RI3
8
N/C
10
IR1 is a 5-pin internal FIR communication connector for connection of
an IrDA device.
IR1: IrDA Connector
PIN Description
1 VCC
2 N/C
3 IRRX
4 GND
5 IRTX
VCC
N/C
IRRX
GND
IRTX
1
2
3
4
5
17
Page 24
3.13 Parallel Connector
LPT1 is a standard 26-pin flat cable connector deigned to
accommodate parallel port connection onboard the HS-7001.
LPT1: Parallel Connector
PIN Description PIN Description
1 Strobe 14 Auto Form Feed
2 DATA 0 15 ERROR#
3 DATA 1 16 Initialize
4 DATA 2 17 Printer Select LN#
5 DATA 3 18 GND
6 DATA 4 19 GND
7 DATA 5 20 GND
8 DATA 6 21 GND
9 DATA 7 22 GND
10 Acknowledge 23 GND
11 Busy 24 GND
12
Paper Empty
25
13 Printer Select 26 N/C
GND
18
14
Auto Form Feed
ERROR#
Initialize
Printer Select LN#
GND
GND
GND
GND
GND
GND
1
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
Strobe
PDD7
Acknowledge
GND
Busy
GND
Paper Empty
N/C
26
13
Printer Select
Page 25
3.14 Ethernet Connector
The HS-7001 provides one 10/100 and one 100/1000 OR two 10/100
Base-TX LAN interface connector. Please refer to the following for its
pin information.
LN1A and LN1B: Dual RJ-45 Connector
PIN Description PIN Description
1 TX+ 2 TX-
3
RX+
4
5 R/C GND 6 RX-
7 R/C GND 8 R/C GND
9 TTX+B 10 TTX-B
11 RRX+B 12 RRX-B
13 TTX+C 14 TTX-C
15 RRX+C 16 RRX-C
R/C GND
R/C GND
R/C GND
TTX-B
RRX-B
TTX-C
RRX-C
TX-
RX-
2
8
10
16
Giga LAN
15
1
7
9
TX+
RX+
R/C GND
R/C GND
TTX+B
RRX+B
TTX+C
RRX+C
3.15 USB Connector
The HS-7001 provides one 8-pin USB2.0 connectors, at locations
USB1, for two USB connections to the HS-7001.
USB1: USB2.0 Connector
PIN Description PIN Description
1 VCC 2 VCC
3 USBP0N 4 USBP1N
5 USBP0P 6 USBP1P
7
GND
8
GND
USBP0N
USBP0P
VCC
GND
12
78
VCC
USBP1N
USBP1P
GND
3.16 CMOS Data Clear

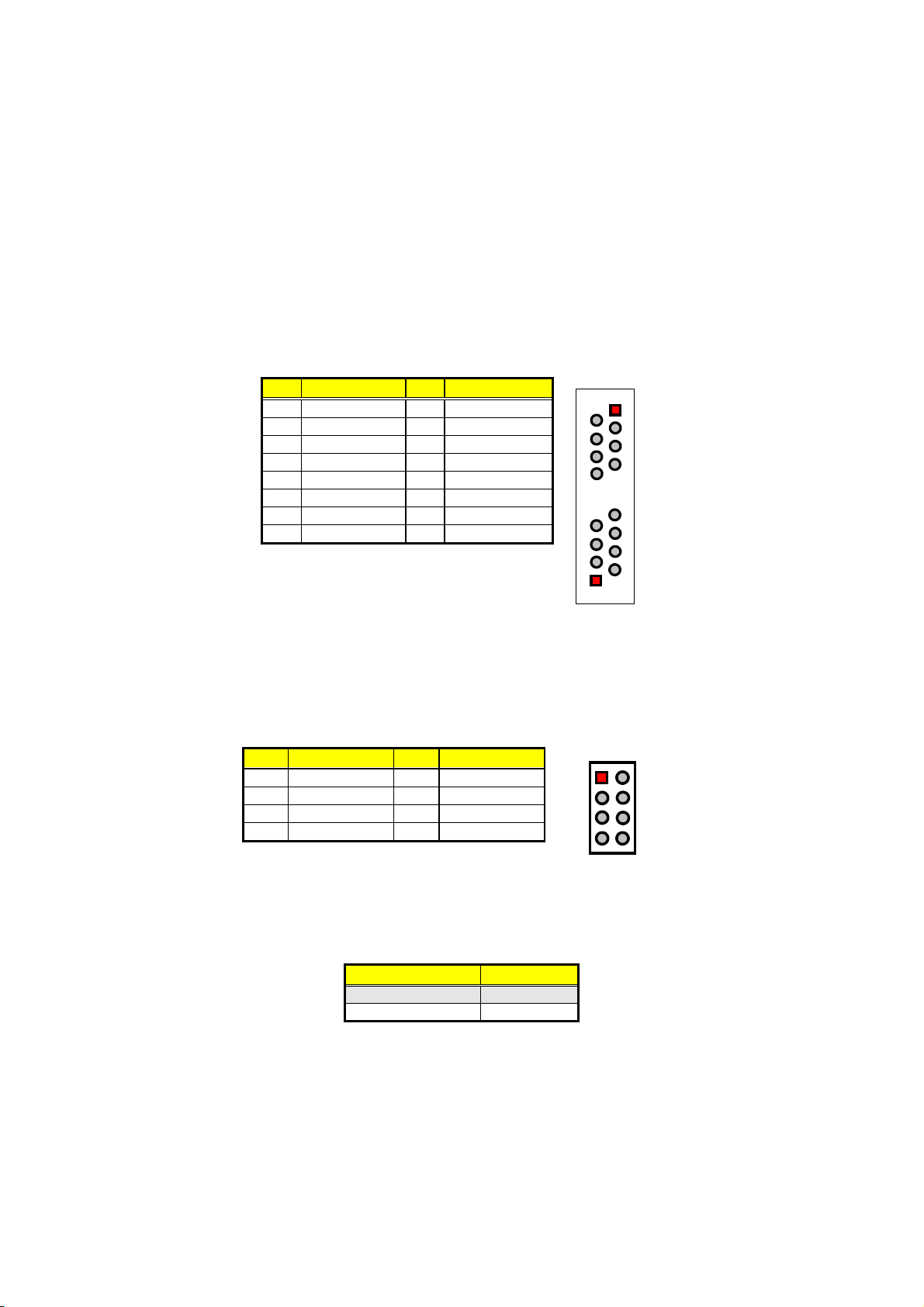

The HS-7001 has a Clear CMOS jumper on JP2.
JP2: Clear CMOS
Options Settings
Normal Operation Short 1-2
Clear CMOS Short 2-3
19
Page 26
IMPORTANT:
Before you turn on the power of your system, please
set JP2 to short 1-2 for normal operation.
3.17 Power and Fan Connectors
HS-7001 provides one 4-pin and one 20-pin ATX power connectors at
PW1 and PW2.
HS-7001 must using P4 power supply. One of 4-pin connector is for
+12V lead which should connect to PW1.
20-pin ATX Power Connector can connect to Backplane or to PW2. If
20-pin ATX Power Connector connects to Backplane, please make
sure CN13 and Backplane’s 5-pin ATX controller is connected
together!

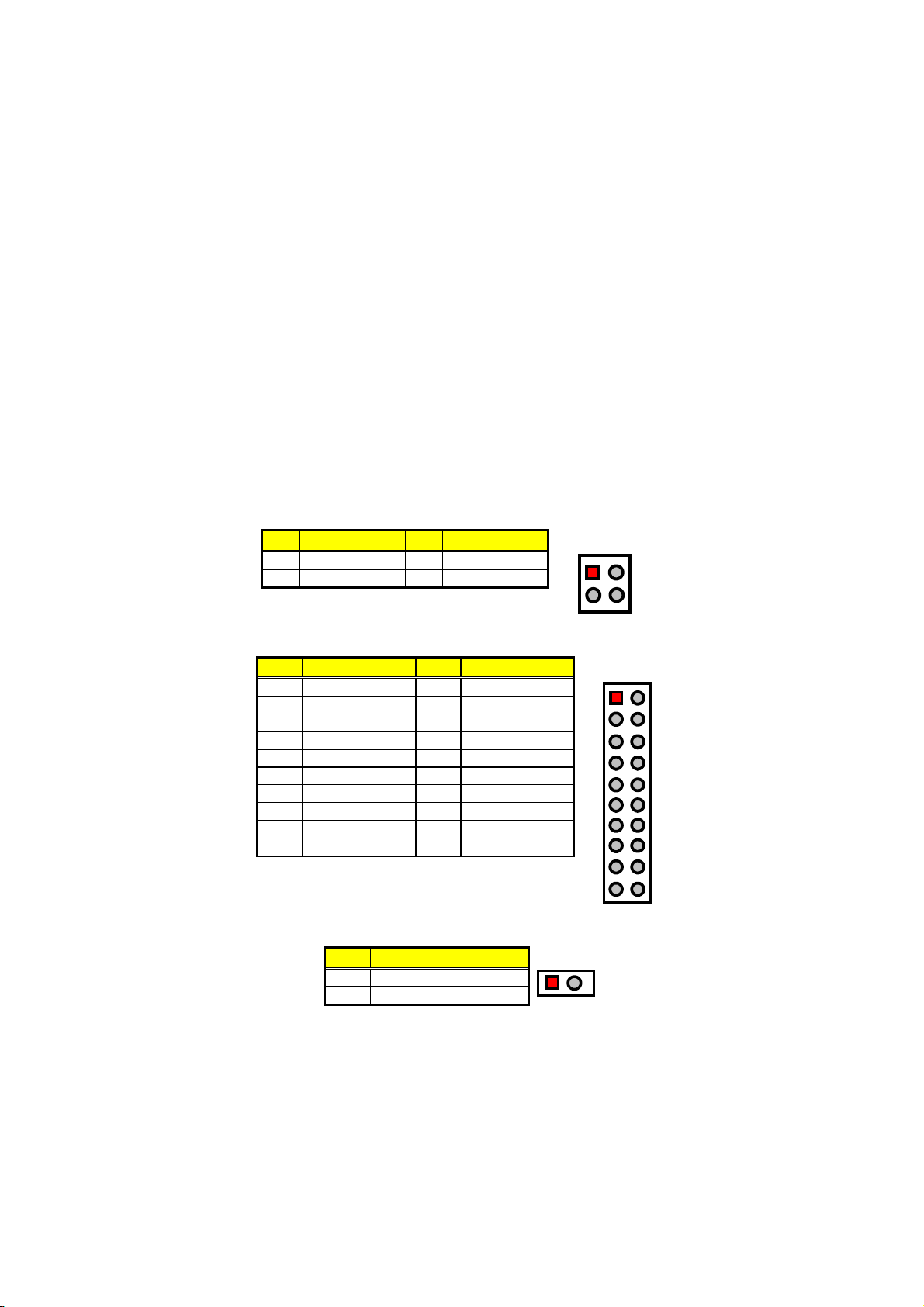

PW1: 4-pin ATX Power Connector
PIN Description PIN Description
1 GND 2 GND
3
12V
4
12V
PW2: 20-pin ATX Power Connector
PIN Description PIN Description
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 N/C 18 -5V
9 5Vsb 19 +5V
10 +12V 20 +5V
CN4: 2-pin ATX Power On/Off Switch
PIN Description
1 Pull 220Ω to VCC5SBY
2 ATX On/Off
GND
+12V
3.3V
3.3V
GND
GND
GND
5VSB
+12V
12
12
34
111
+5V
+5V
N/C
10 20
GND
+12V
3.3V
-12V
GND
PS_ON
GND
GND
GND
-5V
+5V
+5V
20
Page 27
CN13: 5-pin ATX Power Control (Connector to BOSER’s
HPCI or HPP serial backplane)
PIN Description PIN Description
1 GND 2 PS_ON
3 N/C 4 VCC5SBY
5 +5V
Connector FN1, FN2 and FN3 onboard HS-7001 are 3-pin chassis,
CPU, System fan connector.

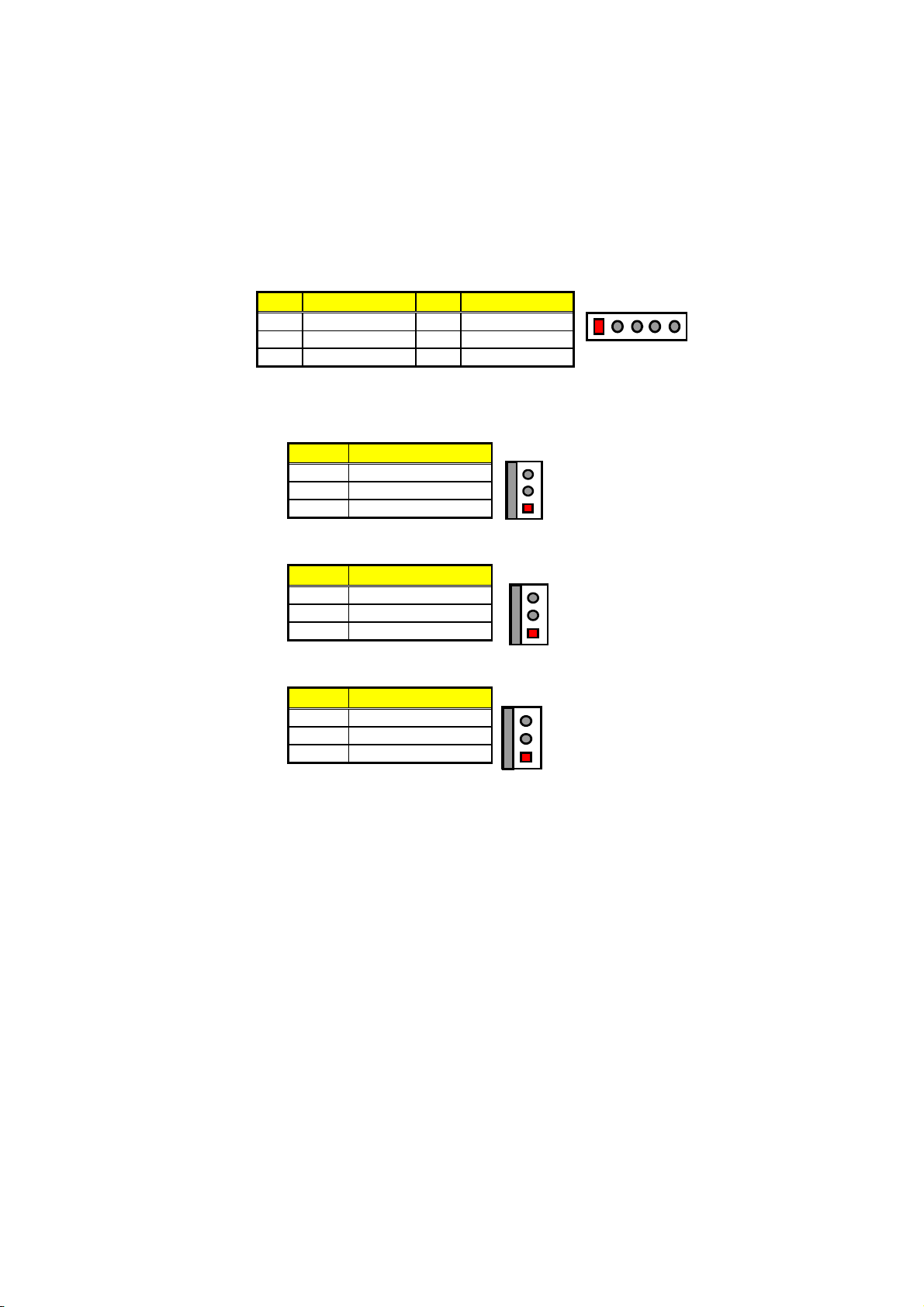

FN1: Chassis Fan Connector
PIN Description
1
GND
3
2 +12V
3 Chassis Fan Speed
FN2: CPU Fan Connector
1
PIN Description
1 GND
2 +12V
3 CPU Fan Speed
FN3: System Fan Connector
PIN Description
1 GND
2 +12V
3 System Fan Speed
3
1
15
Chassis Fan Speed
+5V
GND
3
CPU Fan Speed
+5V
GND
1
System Fan Speed
+5V
GND
21
Page 28

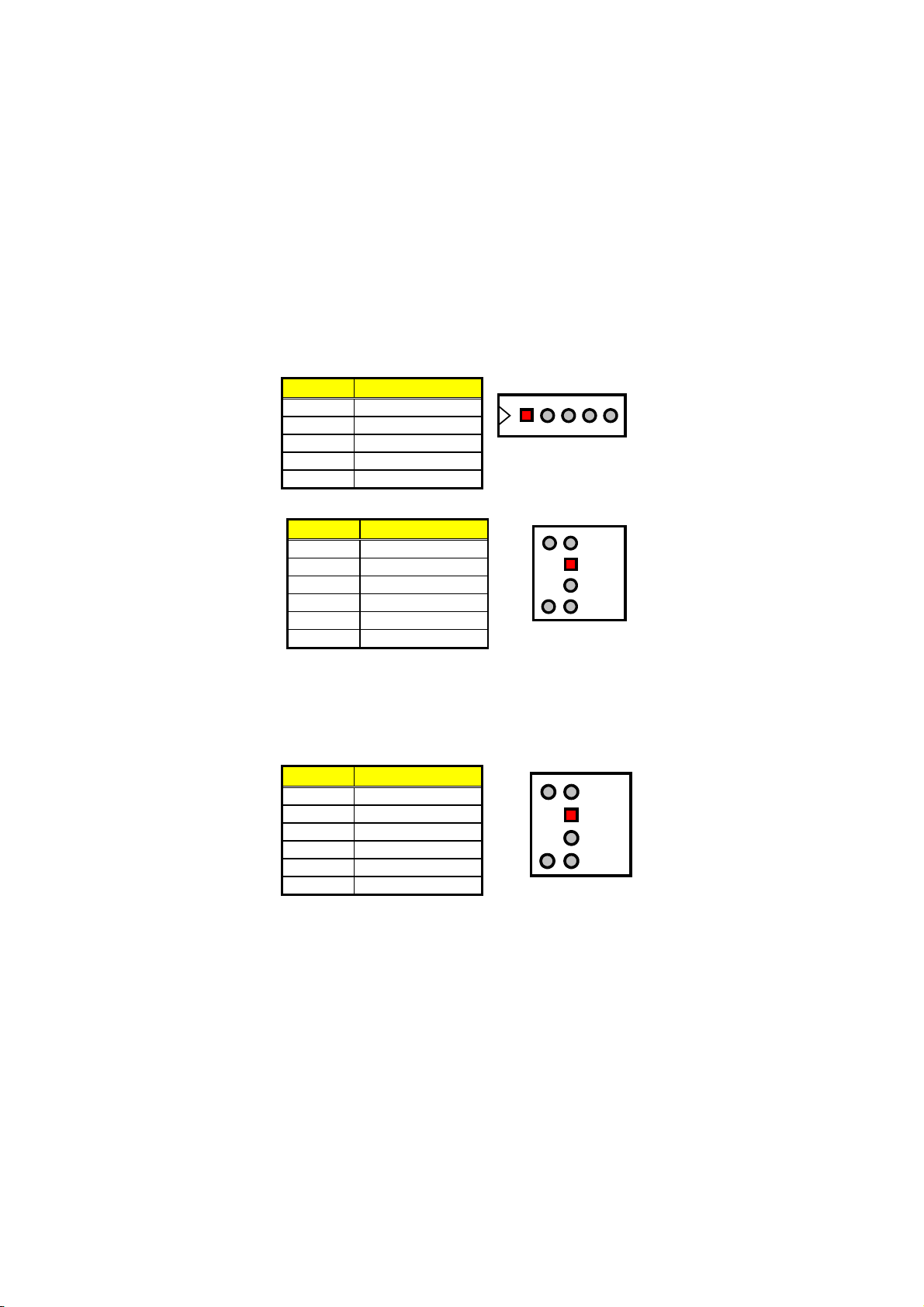

3.18 Keyboard Connectors
The HS-7001 offers two possibilities for keyboard connections. The
connections are via KB1 for an external PS/2 type keyboard or via CN6
for an internal 5-pin cable converter to an AT keyboard.
CN6: 5-pin Keyboard Connector
PIN Description
1 Keyboard Clock
2 Keyboard Data
3
N/C
4 GND
5 +5V
KB1: PS/2 6-pin Mini DIN Keyboard Connector
PIN Description
1 Keyboard Data
2 N/C
3 GND
4 +5V
5 Keyboard Clock
6 N/C
12345
Data
Clock
Keyboard
Keyboard
Keyboard
Clock
5
6
N/C
N/C
GND
GND
3
Keyboard
1
Data
2
N/C
+5V
4
+5V
3.19 PS/2 Mouse Connector
MS1 is a 6-pin Mini DIN connector for connections to an external PS/2
mouse connector.
MS1: PS/2 6-pin Mini DIN Mouse Connector
PIN Description
1 Mouse Data
2 N/C
3 GND
4 +5V
5 Mouse Clock
6 N/C
MS Clock
N/C
GND
5
6
3
MS Data
1
2
N/C
+5V
4
3.20 System Front Panel Connectors
The HS-7001 has one LED at location CN3 that indicates the power-on
status. This visual feature of the IDE LED may also be connected to an
external IDE LED via connector CN3.
22
Page 29
CN3: IDE LED Connector
PIN Description
1 150Ω Pull +5V
2 HDD Active #
CN5 and CN2 are the Keylock and Reset Button connectors onboard.
The CN1 is Green function LED indicates.
CN1: Green LED Connector
PIN Description
1 150Ω Pull +5V
Suspend LED
CN5: Keylock Connector
2
PIN Description
1 +5V
2 N/C
3 GND
4 Keylock
5 GND
CN2: Reset Button Connector
PIN Description
1 GND
2 Reset
12
GND
Reset
3.21 External Speaker
Aside from the buzzer at location BZ1 onboard, the HS-7001 also
offers a connector (CN7) for an external speaker connection. The table
below lists the pin assignments of CN7.
CN7: Speaker Connector
PIN Description
1 +5V
2 GND
3 GND
4 Speaker
23
Page 30
3.22 Watchdog Timer
Once the Enable cycle is active, a Refresh cycle is requested before
the time-out period. This restarts counting of the WDT period. When
the time counting goes over the period preset of WDT, it will assume
that the program operation is abnormal. A System Reset signal to
re-start when such error happens.
The following sample programs show how to Enable, Disable and
Refresh the Watchdog Timer:
;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write
;--------------------------------------------------------------------------------- MOV DX, 2EH
MOV AL, 87H
OUT DX, AL
OUT DX, AL
MOV DX, 2EH
MOV AL, 07H
OUT DX, AL
MOV DX, 2FH
MOV AL, 08H
OUT DX, AL
MOV DX, 2EH
MOV AL, F5H
OUT DX, AL ; select CRF0
MOV DX, 2FH
MOV AL, 80H
OUT DX, AL
MOV DX, 2EH
MOV AL, F7H
OUT DX, AL
MOV DX, 2FH
MOV AL, 00H
OUT DX, AL
MOV DX, 2EH
MOV AL, F6H
OUT DX, AL
MOV DX, 2FH
MOV AL, 00H ; * 00H=Disabled
OUT DX, AL
;--------------------------------------------------------------------------------; Exit extended function mode
;------------- ------------------------------------------------------------------ MOV DX, 2EH
MOV AL, AAH
OUT DX, AL
* User can also use AL, 00H’s defined time for reset purposes, e.g.00H
for Disable, 01H = 1sec, 02H = 2sec…..FFH = 255sec.
24
Page 31
3.23 Audio Connectors
The HS-7001 has an onboard AC97 3D audio interface. The following
tables list the pin assignments of the CD-ROM Analog Input, the Line_
In analog Input and the MIC In/Line Out connectors.
CD1: CD-ROM Analog Input Connector
PIN Description
1 CD_R
2 CD_REF
3
4 CD_L
CD2: Line In Analog Input Connector
CD_REF
PIN Description
1 LINE_IN_R
2 GND
3 GND
4 LINE_IN_L
CN10: Mic In/Line Out Connector
PIN Description PIN Description
1 AOUT_L 2 AOUT_R
3 GND 4 GND
5 MIC 6 N/C
7 GND 8 GND
1234
1234
2
1
8
7
25
Page 32

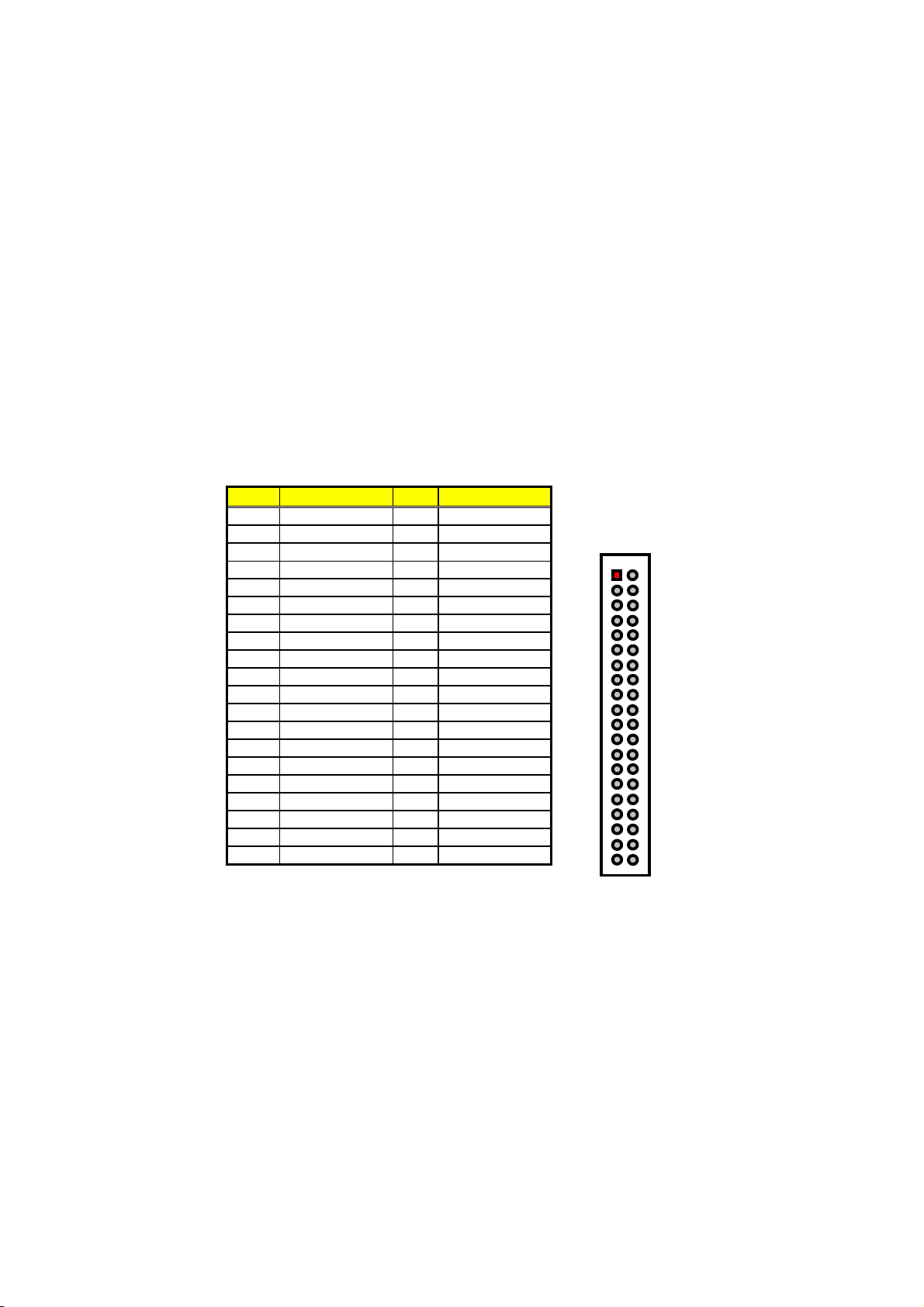

3.24 PC/104 Connectors
The PC/104 expansion bus offers provisions to connect all types of
PC/104 modules. With the PC/104 bus being known as the new
generation of industrial embedded 16-bit PC standard bus, thousands
of PC/104 modules from multiple venders can be easily installed
onboard. The detailed pin assignment of the PC/104 expansion bus
connectors PC1 and PC2 are listed on the following tables:
NOTE：
PIN Description PIN Description
10
11 DACK5* 31 MEMW*
12 DRQ5 32 SD8
13 DACK6* 33 SD9
14 DRQ6 34 SD10
15 DACK7* 35 SD11
16 DRQ7 36 SD12
17 +5V 37 SD13
18 MASTER* 38 SD14
19 GND 39 SD15
20 GND 40 GND
The PC/104 connector allows direct plugging or stack-through
piling of PC/104 modules without requiring the PC/104 mounting
kit.
PC2: PC/104 40-pin Connector
Connector diagram
1 GND 21 GND
2 MEMCS16* 22 SBHE*
3 IOSC16* 23 LA23
4 IRQ10 24 LA22
5 IRQ11 25 LA21
6 IRQ12 26 LA20
7 IRQ15 27 LA19
8 IRQ14 28 LA18
9 DACK0* 29 LA17
DRQ0
30
MEMR*
rotated 90 degrees
clockwise from
original position
121
20
40
26
Page 33
PC1: 64-pin PC/104 Expansion Slot
PIN Description PIN Description
1 IOCHECK* 33 GND
2 SD7 34 RESETDRV
3
4 SD5 36 IRQ9
5 SD4 37 -5V
6 SD3 38 DRQ2
7 SD2 39 -12V
8
9 SD0 41 +12V
10 IOCHRDY 42 GND
11 AEN 43 SMEMW*
12 SA19 44 SMEMR*
13 SA18 45 IOW*
14 SA17 46 IOR*
15
16 SA15 48 DRQ3
17 SA14 49 DACK1*
18 SA13 50 DRQ1
19 SA12 51 REFRESH*
20 SA11 52 SYSCLK
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
31 SA0 63 N/C
32 GND 64 GND
SD6
SD1
SA16
SA4
35
40
47
59
+5V
0WS*
DACK3*
TC
Connector diagram
rotated 90 degrees
clockwise from
original position
133
6432
27
Page 34
This page is intentionally left blank.
28
Page 35
Chapter 4
Award BIOS Setup
The HS-7001 uses Award BIOS for the system configuration. The
Award BIOS setup program is designed to provide the maximum
flexibility in configuring the system by offering various options that
could be selected for end-user requirements. This chapter is written to
assist you in the proper usage of these features.
4.1 Starting Setup
The Award BIOS is immediately activated when you first power on the
computer. The BIOS reads the system information contained in the
CMOS and begins the process of checking out the system and
configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the
operating system.
While the BIOS is in control, the Setup program can be activated in one
of two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self
Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
29
Page 36
4.2 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to
select, use the <PageUp> and <PageDown> keys to change entries,
press <F1> for help and press <Esc> to quit. The following table
provides more detail about how to navigate in the Setup program using
the keyboard.
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and Option
Page Setup Menu
(Shift)F2 key Change color from total 16 colors. F2 to select color
forward, (Shift) F2 to select color backward
F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only for
Option Page Setup Menu
F6 key
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu
Load the default CMOS value from BIOS default table, only
for Option Page Setup Menu
4.2.1 Getting Help
Press F1 to pop up a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit
the Help Window press <Esc> or the F1 key again.
30
Page 37
4.3 Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to enter the sub-menu.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
`
Standard CMOS Features
`
Advanced BIOS Features
`
Advanced Chipset Features
`
Integrated Peripherals
`
Power Management Setup
`
PnP/PCI Configurations
`
PC Health Status
Esc：Quit F9：Menu in BIOS
F10：Save & Exit Setup
NOTE:
A brief description of the highlighted choice appears at the bottom
of the screen.
`
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
：
Select Item
31
Page 38
4.4 Standard CMOS Features
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard Disk
Drive settings. Please refer to the following screen for the setup. When
the IDE hard disk drive you are using is larger than 528MB, you must
set the HDD mode to
BIOS SETUP to install the HDD correctly.
CMOS Setup Utility – Copyright © 1984-2001 Award Software
Date (mm:dd:yy) Wed, Jul 11 2001 Item Help
Time (hh:mm:ss) 10 : 32 :57 Menu Level X
X
IDE Primary Master [None]
X
IDE Primary Slave [None] Change the day, month,
X
IDE Secondary Master [None] year and century
X
IDE Secondary Slave [None]
Drive A [1.44M, 3.5in.]
Drive B [None]
Video [EGA/VGA]
Halt On [All, But Keyboard]
Base Memory 640K
Extended Memory 252928K
Total Memory 253952K
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
mode. Please use the IDE Setup Utility in
LBA
Standard CMOS Features
32
Page 39
4.5 Advanced BIOS Features
This section allows you to configure your system for the basic
operation. You have the opportunity to select the system’s default
speed, boot-up sequence, keyboard operation, shadowing and
security.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Virus Warning Disabled Item Help
CPU L1 & L2 Cache Enabled Menu Level X
Quick Power On Self Test Enabled
First Boot Device Floppy
Second Boot Device HDD-0 Change the day, month,
Third Boot Device LS120 year and century
Boot Other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Enabled
Boot Up Num Lock Status On
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
APIC Mode Enabled
MPS Version Control For OS 1.4
OS Select For DRAM > 64MB Non-OS2
Report on FDD for WIN95 NO
Small Logo (EPA) Show Enabled
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Advanced BIOS Features
33
Page 40
4.6 Advanced Chipset Features
This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
the access to the system memory resources, such as DRAM and the
external cache. It also coordinates the communications between the
conventional ISA and PCI buses. It must be stated that these items
should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that the
data has been lost while using your system.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
DRAM Timing Selectable By SPD Item Help
CAS Latency Time 2.5 Menu Level X
Active to Precharge Delay 7
DRAM RAS# to CAS# Delay 3
DRAM RAS# Precharge 3 Change the day, month,
Memory Frequency For Auto year and century
System BIOS Cacheable Enabled
Video BIOS Cacheable Enabled
Memory Hole At 15M-16M Disabled
Delayed Transaction Enabled
Delay Prior to Thermal 16Min
AGP Aperture Size (MB) 64
On-chip VGA Enabled
On-chip Frame Buffer size 8MB
Boot Display Auto
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
Advanced Chipset Features
** ON-chip VGA Setting **
34
Page 41
4.7 Integrated Peripherals
The IDE hard drive controllers can support up to two separate hard
drives. These drives have a master/slave relationship that is
determined by the cabling configuration used to attach them to the
controller. Your system supports two IDE controllers--a primary
and a secondary--so you can install up to four separate hard disks.
PIO means Programmed Input/Output. Rather than having the
BIOS issue a series of commands to affect the transfer to or from
the disk drive, PIO allows the BIOS to tell the controller what it
wants and then let the controller and the CPU perform the
complete task by them. This is much simpler and more efficient
(also faster).
CMOS Setup Utility－Copyright ©1984-2001 Award Software
On-chip Primary PCI IDE Enabled Item Help
IDE Primary Master PIO Auto Menu Level X
IDE Primary Slave PIO Auto
IDE Primary Master UDMA Auto
IDE Primary Slave UDMA Auto Change the day, month,
On-chip Secondary PCI IDE Enabled year and century
IDE Secondary Master PIO Auto
IDE Secondary Slave PIO Auto
IDE Secondary Master UDMA Auto
IDE Secondary Slave UDMA Auto
USB Controller 1 USB Port
USB2.0 Controller Enabled
USB Keyboard Support Disabled
USB Mouse Support Disabled
AC97 Audio Auto
Init Display First Onboard/AGP
IDE HDD Block Mode Enabled
POWER ON Function BUTTON ONLY
KB Power ON Password Enter
Hot Key Power ON Ctrl-F1
Onboard FDC Controller Enabled
Onboard Serial Port1 3F8/IRQ4
Onboard Serial Port2 2F8/IRQ3
UART Mode Select Normal
RxD, TxD Active Hi, Lo
IR Transmission delay Enabled
UR2 Duplex Mode Half
Use IR Pins IR-Rx2Tx2
Onboard Parallel Port 378/IRQ7
Parallel Port Mode SPP
EPP Mode Select EPP1.7
ECP Mode Use DMA 3
POWER After PWR-Rail Off
Onboard Serial Port 3 3E8
Serial Port 3 Use IRQ IRQ10
Onboard Serial Port 4 2E8
Serial Port 4 Use IRQ IRQ11
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Op timized Defaults
Integrated Peripherals
35
Page 42
4.8 Power Management Setup
The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
ACPI function Enabled Item Help
ACPI Suspend Type S1(POS) Menu Level X
Run VGABIOS if S3 Resume Auto
Power Management User Define
Video off Method DPMS Change the day, month,
Video off In Suspend Yes year and century
Suspend Type Stop Grant
MODEM Use IRQ N/A
Suspend Mode Disabled
HDD Power Down Disabled
Soft-off by PWR-BTTN Instant-Off
CPU THRM-throttling 50.00%
Wake-up by PCI card Enabled
Power On by Ring Disabled
USB KB Wake-up From S3 Disabled
Resume by Alarm Disabled
Date(of Month) Alarm 0
Time(hh:mm:ss) Alarm 0:0:0
Primary IDE 0 Disabled
Primary IDE 1 Disabled
Secondary IDE 0 Disabled
Secondary IDE 1 Disabled
FDD, COM, LPT Port Disabled
PCI PIRQ[A-D]# Disabled
** Reload Global Timer Events **
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Power Management Setup
36
Page 43
4.9 PnP/PCI Configurations
This section describes configuring the PCI bus system. PCI, or
ersonal Computer Interconnect, is a system that allows I/O devices to
P
operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users should make any changes to the default settings.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Reset Configuration Date Disabled Item Help
Resources controlled By Auto (ESCD) Menu Level X
IRQ Resources Press Enter
IRQ-3 Assigned to PCI Device Change the day, month,
IRQ4 PCI Device year and century
IRQ5 PCI Device
IRQ7 PCI Device
IRQ9 PCI Device
IRQ10 PCI Device
IRQ11 PCI Device
IRQ12 PCI Device
IRQ13 PCI Device
IRQ14 PCI Device
IRQ15 PCI Device
PCI/VGA Palette Snoop Disabled
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
PnP/PCI Configurations
37
Page 44
4.10 PC Health Status
CMOS Setup Utility－Copyright ©1984-2001 Award Software
CPU Warning Temperature Disabled Item Help
Current System Temp Menu Level X
Current CPU Temperature
Current CPU FAN Speed XXXX RPM
Current System FAN Speed XXXX RPM
Current Chassis FAN Speed XXXX RPM Change the day, month,
year and century
Vcore
+3.3V 3.37V
+5V 5.08V
+12V 12.09V
-12V -12.19V
-5V -5.04
VBAT(V) 3.2V
5VSB(V) 5.00V
Shutdown Temperature Disabled
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
PC Health Status
4.11 Frequency/Voltage Control
CMOS Setup Utility－Copyright ©1984-2001 Award Software
CPU Clock Ratio Item Help
Auto Detect PCI Clk Enabled Menu Level X
Spread Specturm Disabled
Change the day, month,
year and century
: Select Item + / - /PU/PD: Value F10: Save ESC: Quit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Frequency/Voltage Control
38
Page 45
4.12 Load Fail-Safe Defaults
When you press <Enter> on this item you will get a confirmation dialog
box with a message shown below. This option allows you to
load/restore the BIOS default values permanently stored in the BIOS
ROM. Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
STANDARD CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
Load Fail-Safe Defaults (Y/N)? N
Saving
Esc : Quit
F10 : Save & Exit Setup
Load Fail-Safe Defaults
Frequency/Voltage Control
X
etup
: Select Item
39
Page 46
4.13 Load Optimized Defaults
When you press <Enter> on this item you get a confirmation dialog box
with a message similar to the figure below. This option allows you to
load/restore the default values to your system configuration, optimizing
and enabling all high performance features. Pressing ‘Y’ loads the
default values that are factory settings for optimal performance system
operations.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
Load Optimized Defaults (Y/N)? N
Saving
Esc : Quit
F10 : Save & Exit Setup
Frequency/Voltage Control
X
etup
: Select Item
40
Load Optimized Defaults
Page 47
4.14 Set Supervisor/User Password
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management Setup Set User Password
X
PnP/PCI Configurati
X
PC Health Status
X
Enter Password :
Esc : Quit
F10 : Save & Exit Setup
Frequency/Voltage Control
X
: Select Item
t Setup
ut Saving
Change / Set / Disable Password
You can set either supervisor or user password, or both of then. The
differences between are:
supervisor password: can enter and change the options of the setup
menus.
user password: just can only enter but do not have the right to change the
options of the setup menus.
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press
<Enter>. The password typed now will clear any previously entered
password from CMOS memory. You will be asked to confirm the
password. Type the password again and press <Enter>. You may also
press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
41
Page 48
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized
person from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the
BIOS to request a password every time your system is rebooted. This
would prevent unauthorized use of your computer.
You determine when the password is required within the BIOS
Features Setup Menu and its Security option (see Section 3). If the
Security option is set to “System”, the password will be required both at
boot and at entry to Setup. If set to “Setup”, prompting only occurs
when trying to enter Setup.
4.15 Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:
Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
SAVE to CMOS and EXIT (Y/N)? N
Saving
Frequency/Voltage Control
X
etup
Esc : Quit
F10 : Save & Exit Setup
Save Data to CMOS
42
: Select Item
Page 49
4.16 Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.
CMOS Setup Utility－Copyright ©1984-2001 Award Software
Standard CMOS Features
X
Advanced BIOS Features Load Fail-Safe Defaults
X
Advanced Chipset Features Load Optimized Defaults
X
Integrated Peripherals Set Supervisor Password
X
Power Management
X
PnP/PCI Configura
X
PC Health Status
X
word
Quit Without Saving (Y/N)? N:
Saving
Esc : Quit
F10 : Save & Exit Setup
Abandon all Data
Frequency/Voltage Control
X
etup
: Select Item
43
Page 50
This Page is intentionally left blank.
44
Page 51
Chapter 5
Software Utilities
This chapter contains the detailed information of IDE, VGA, LAN and
Audio driver installation procedures. The utility disk that came with the
delivery package contains an auto-run program that invokes the
installation programs for the IDE, VGA, LAN and Audio drivers. The
following sections describe the installation procedures of each driver
based on Win 95/98, Win 2000 and Win NT operating systems. It is
recommended that you install the drivers matching the sections listed
in this chapter.
5.1 IDE Driver Installation
5.1.1 Installing Intel Chipset Software Utility

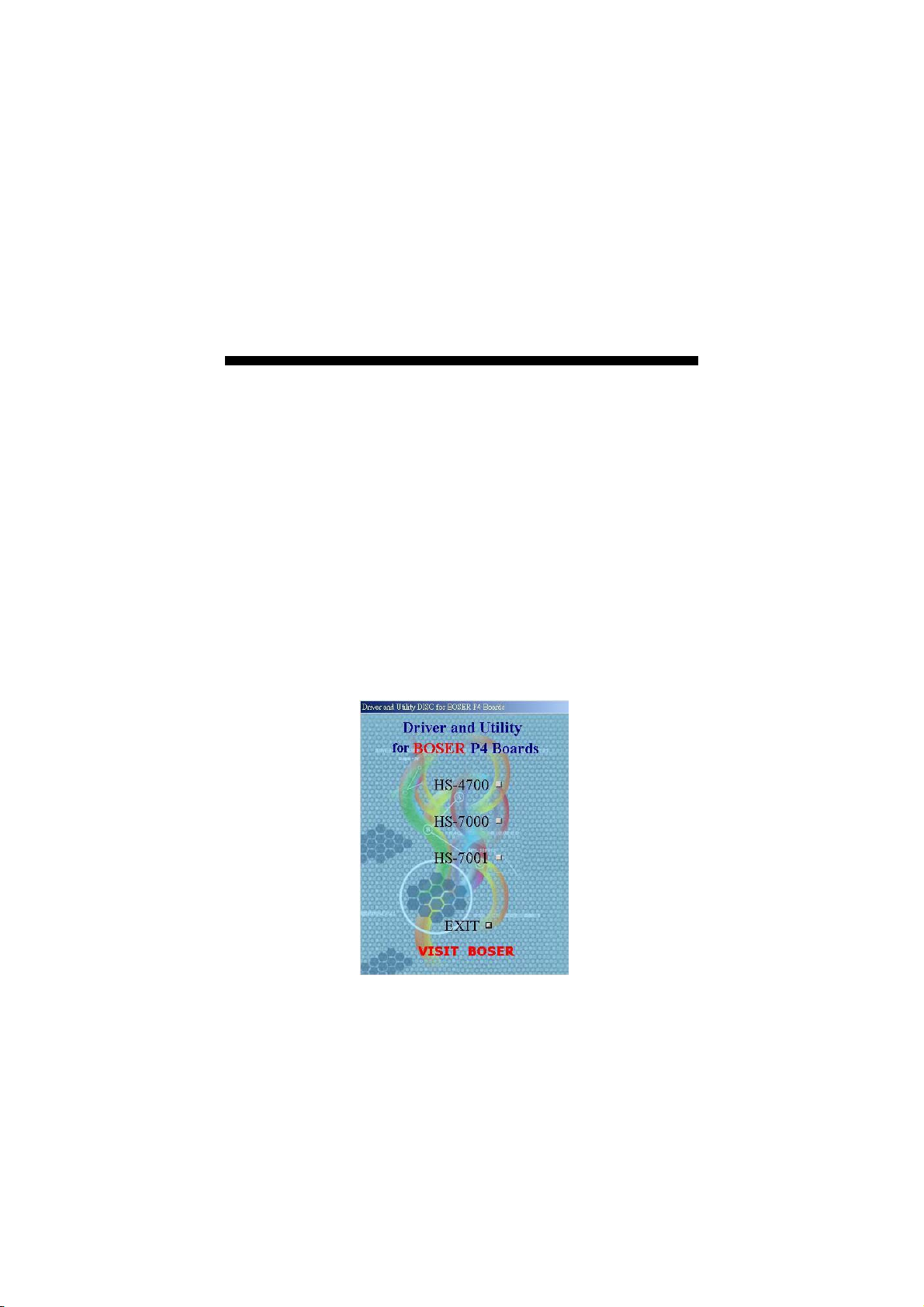

1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to
launch the installation program.
45
Page 52

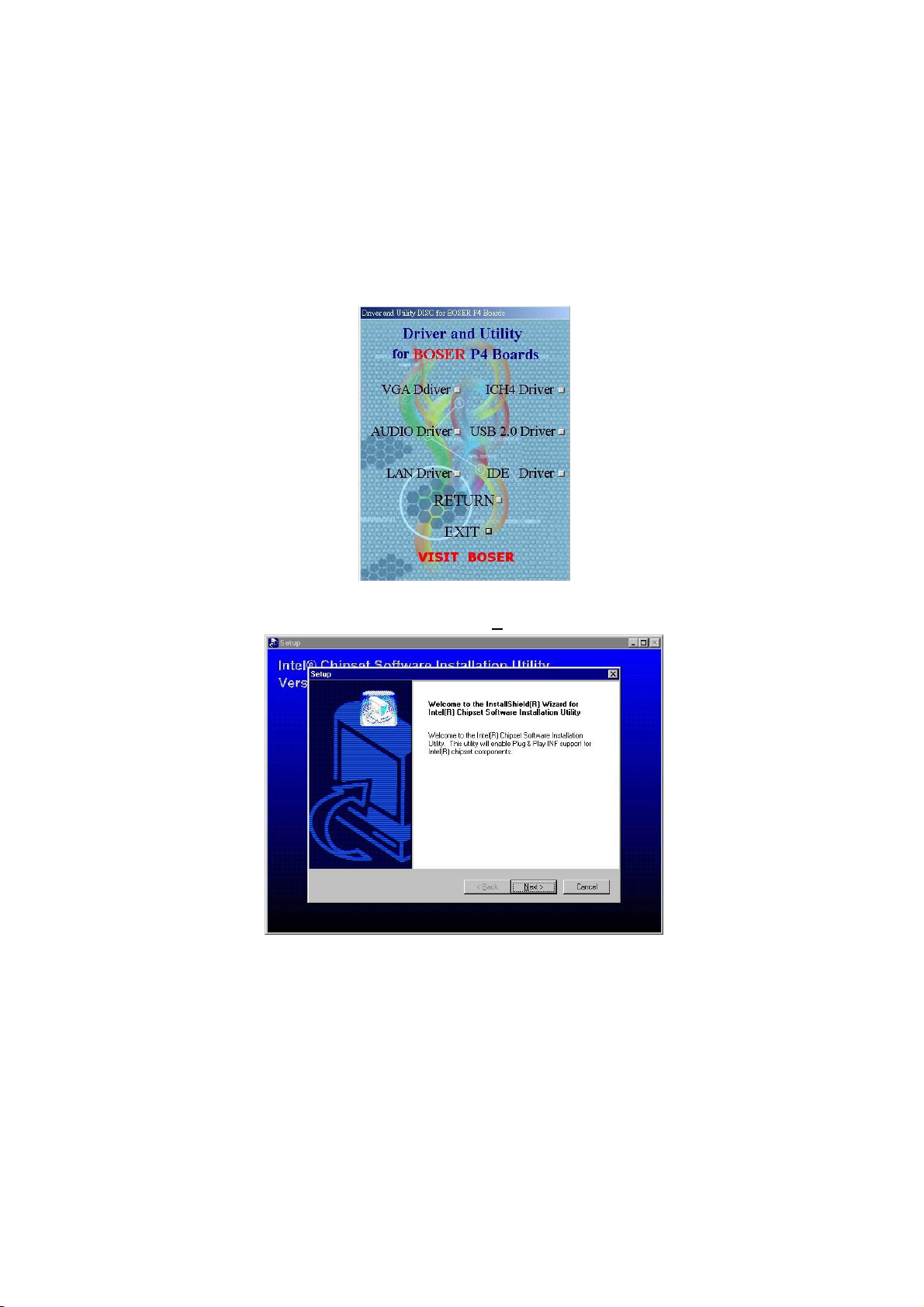

2. Click on the ICH4 Driver button to continue.
3. Immediately after clicking the IDE button i n S t e p 1 , t h e program
launches the InstallShield Wizard that will assist you in the
installation process. Click on the N
ext > button to proceed.
46
Page 53

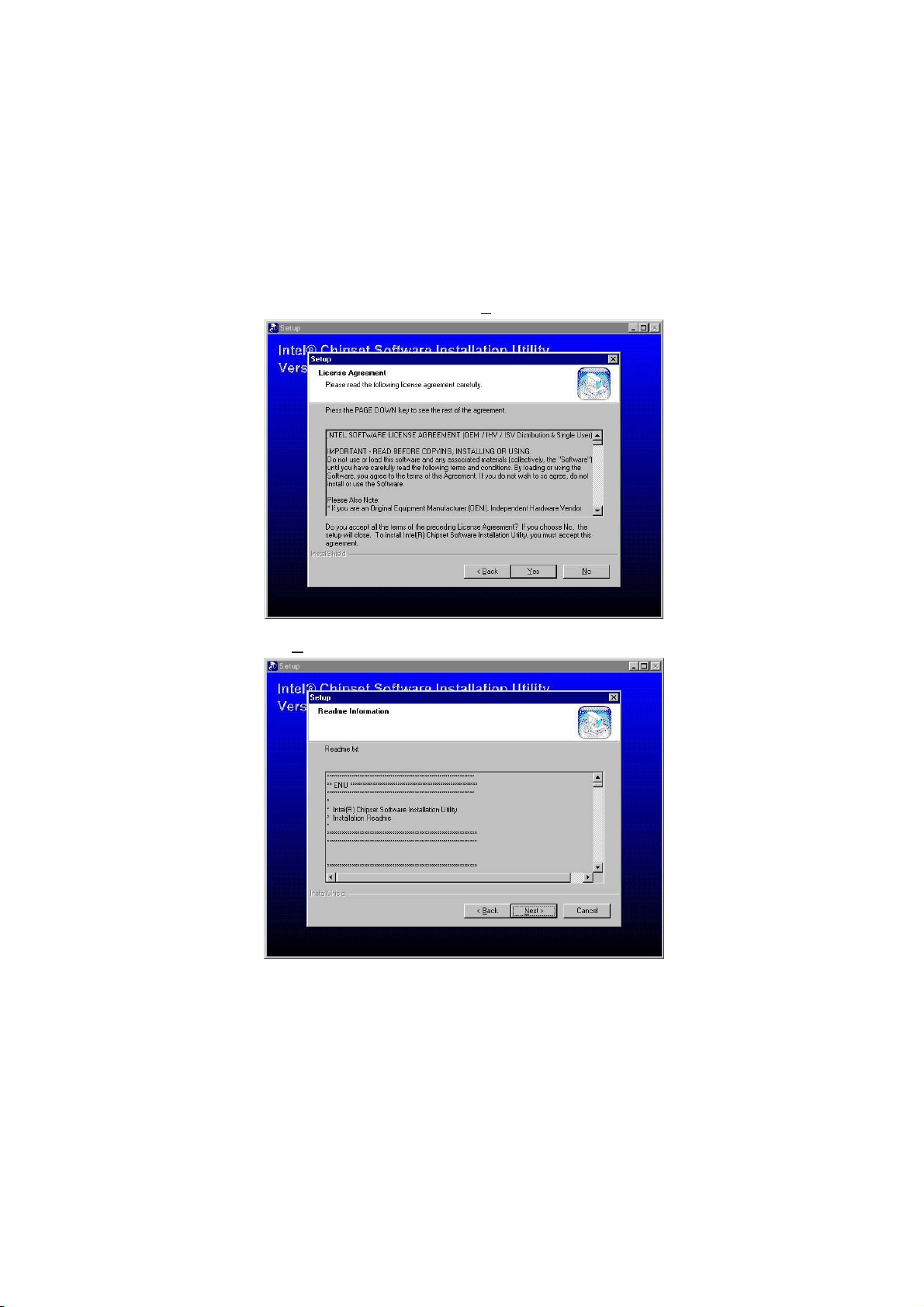

4. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
5. When the Readme Information dialog box pops up, just click on
the N
ext button to proceed.
es to proceed.
47
Page 54

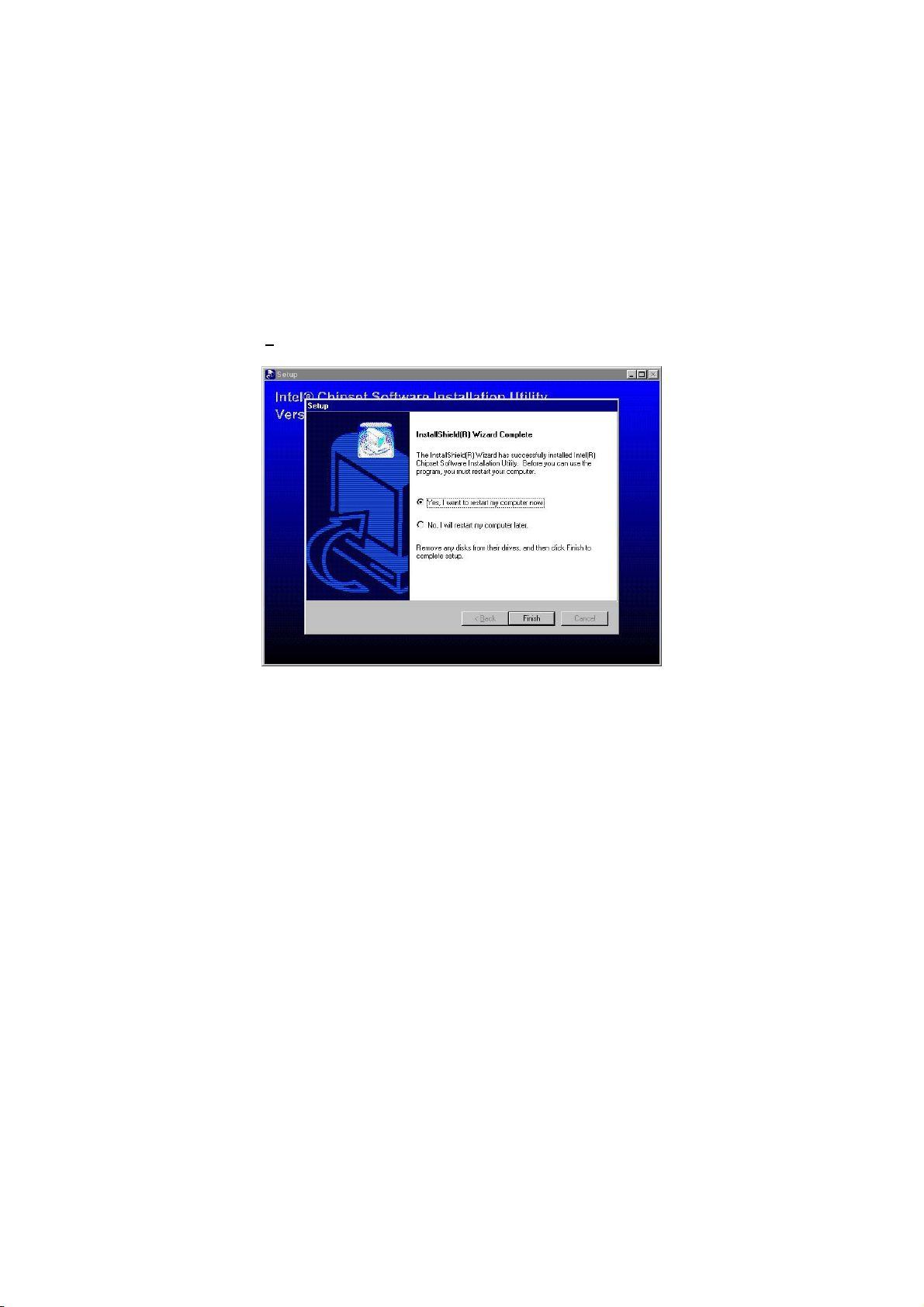

6. Once the Install Shield Wizard finishes updating your system, it
will prompt you to restart the computer. Tick on the Yes, I
want to restart my computer now followed by a click on the
F
inish but ton to r ebo ot. Onl y after y our com put er b oot s wi ll th e
new settings take effect.
48
Page 55
5.1.2 Installing Intel Application Accelerator

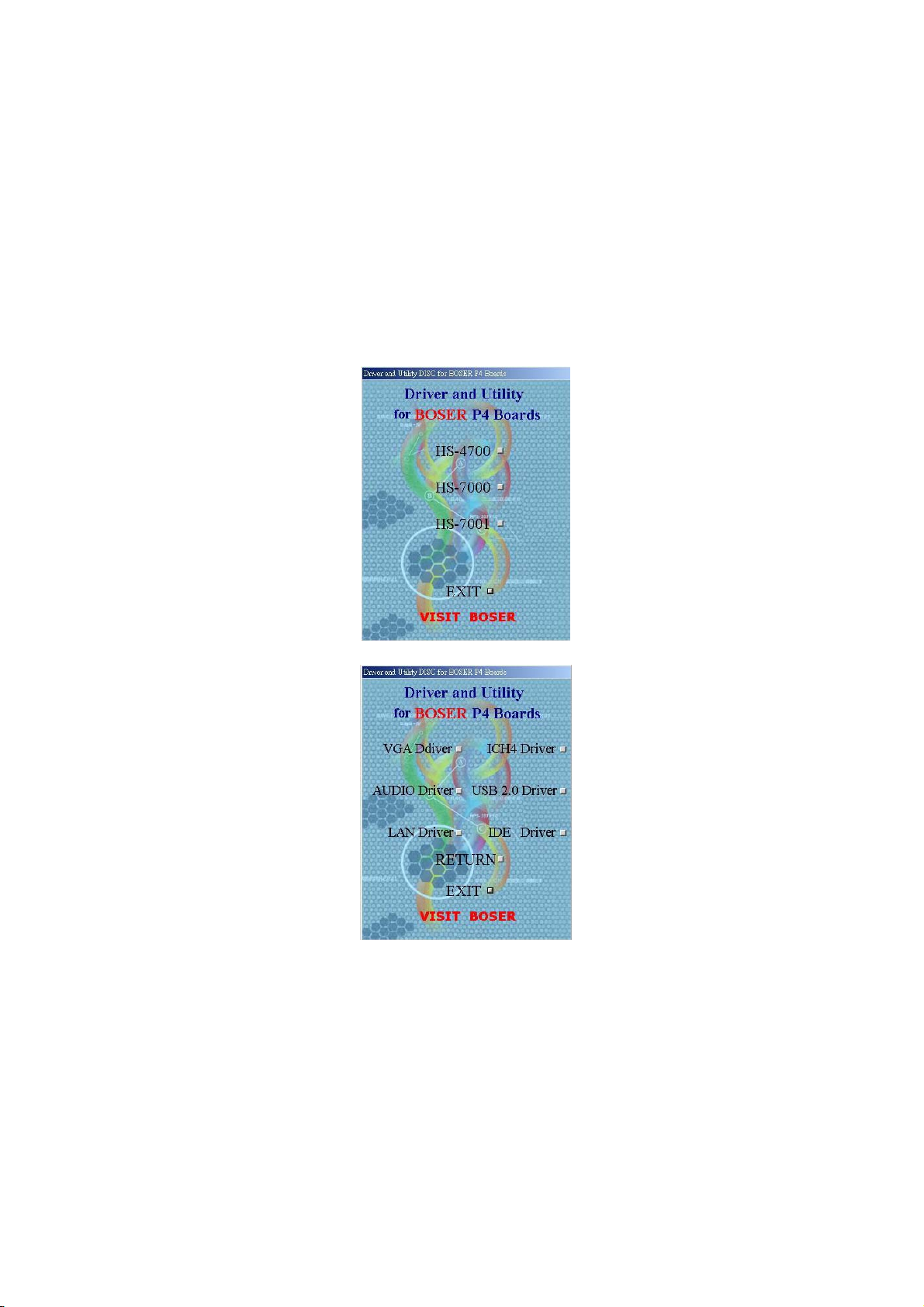

1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
2. Click on the IDE Driver button to continue.
49
Page 56

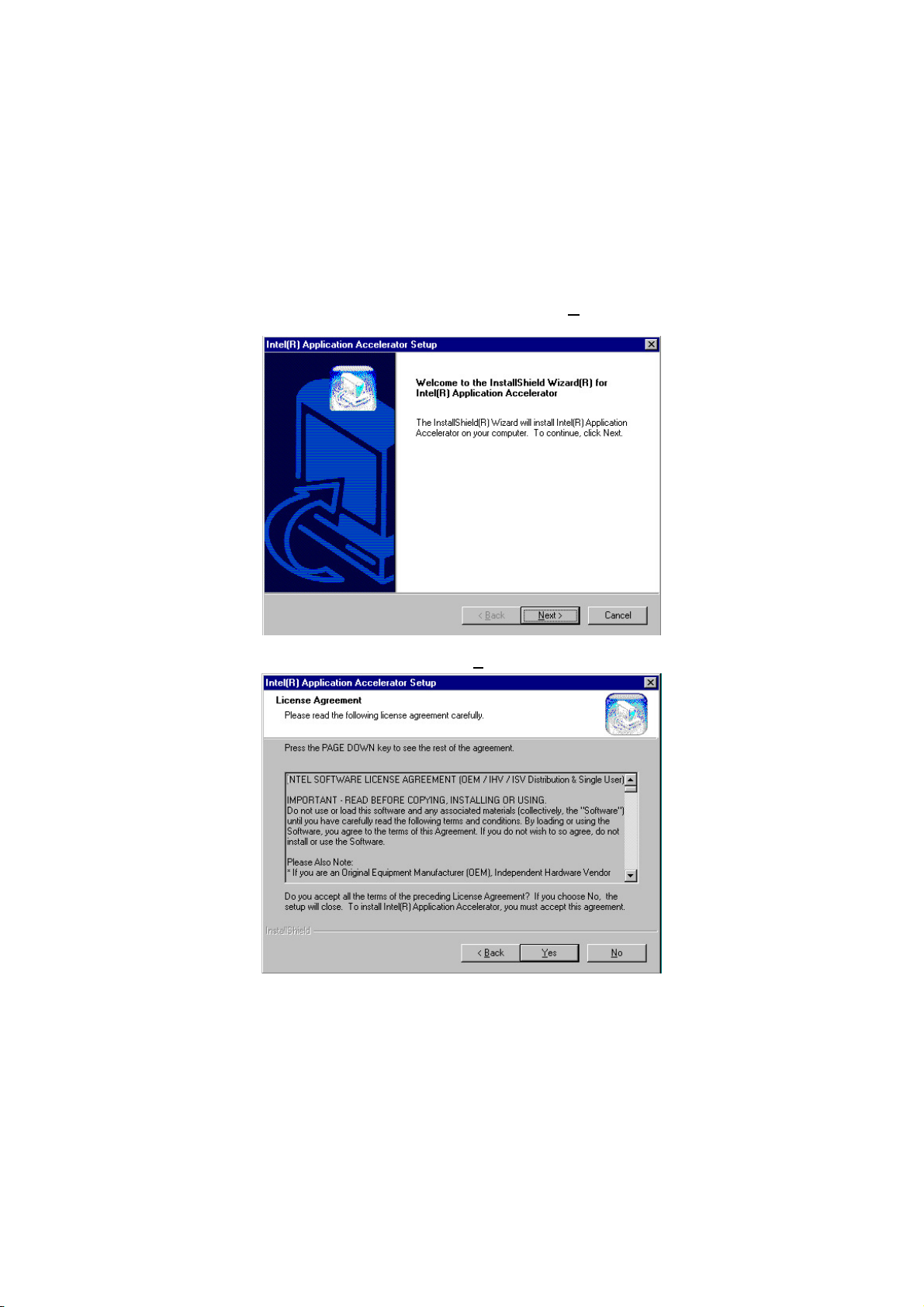

3. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
4. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
es to proceed.
ext > button to
50
Page 57

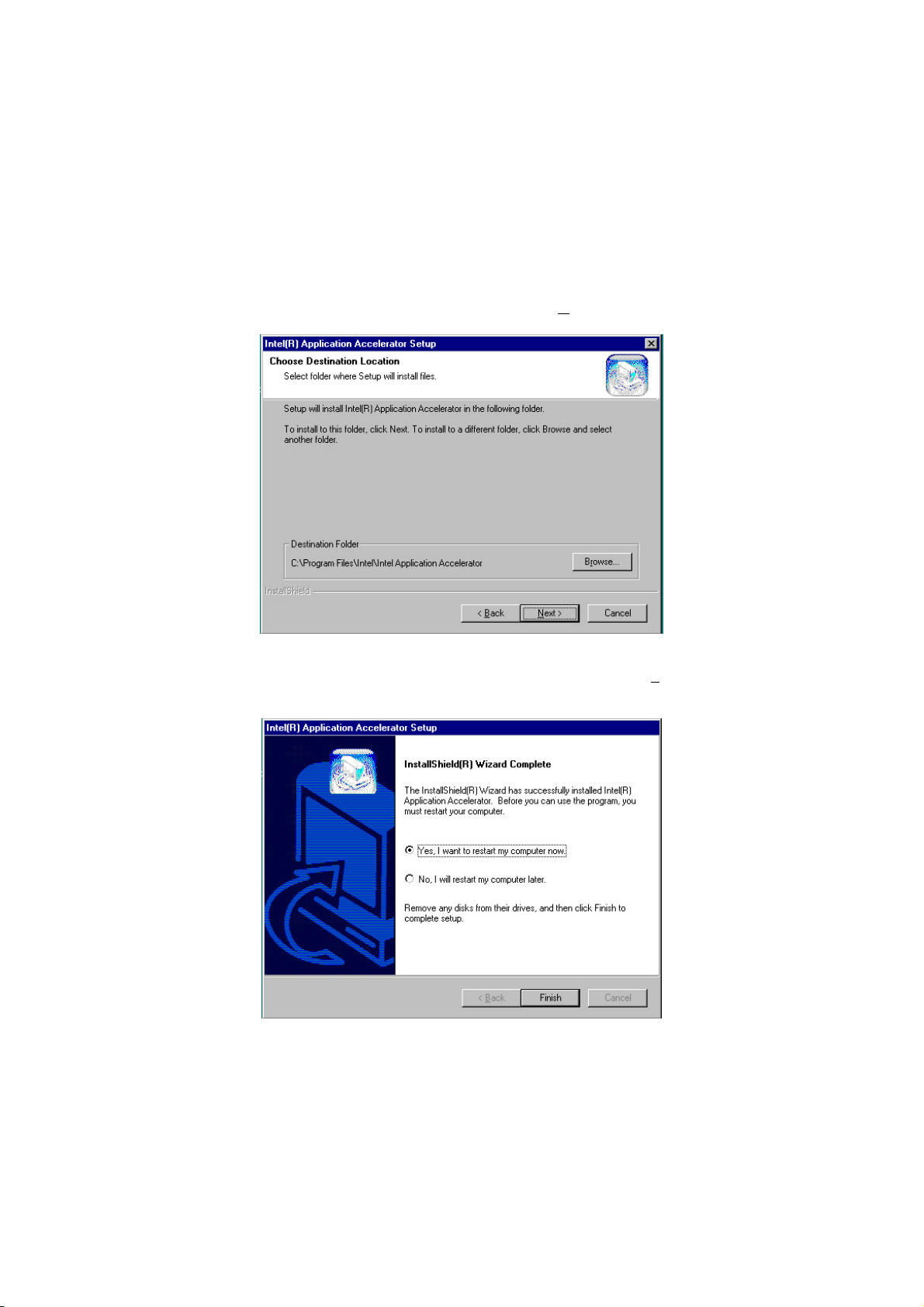

5. Setup will then prompt you to specify the path where you would
like the Security driver installed. Select the N
you have made your path/installation choice.
6. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the Yes, I want
to restart my computer now followed by a click on the F
button to reboot. Only after your computer boots will the new
settings take effect.
ext > button after
inish
51
Page 58

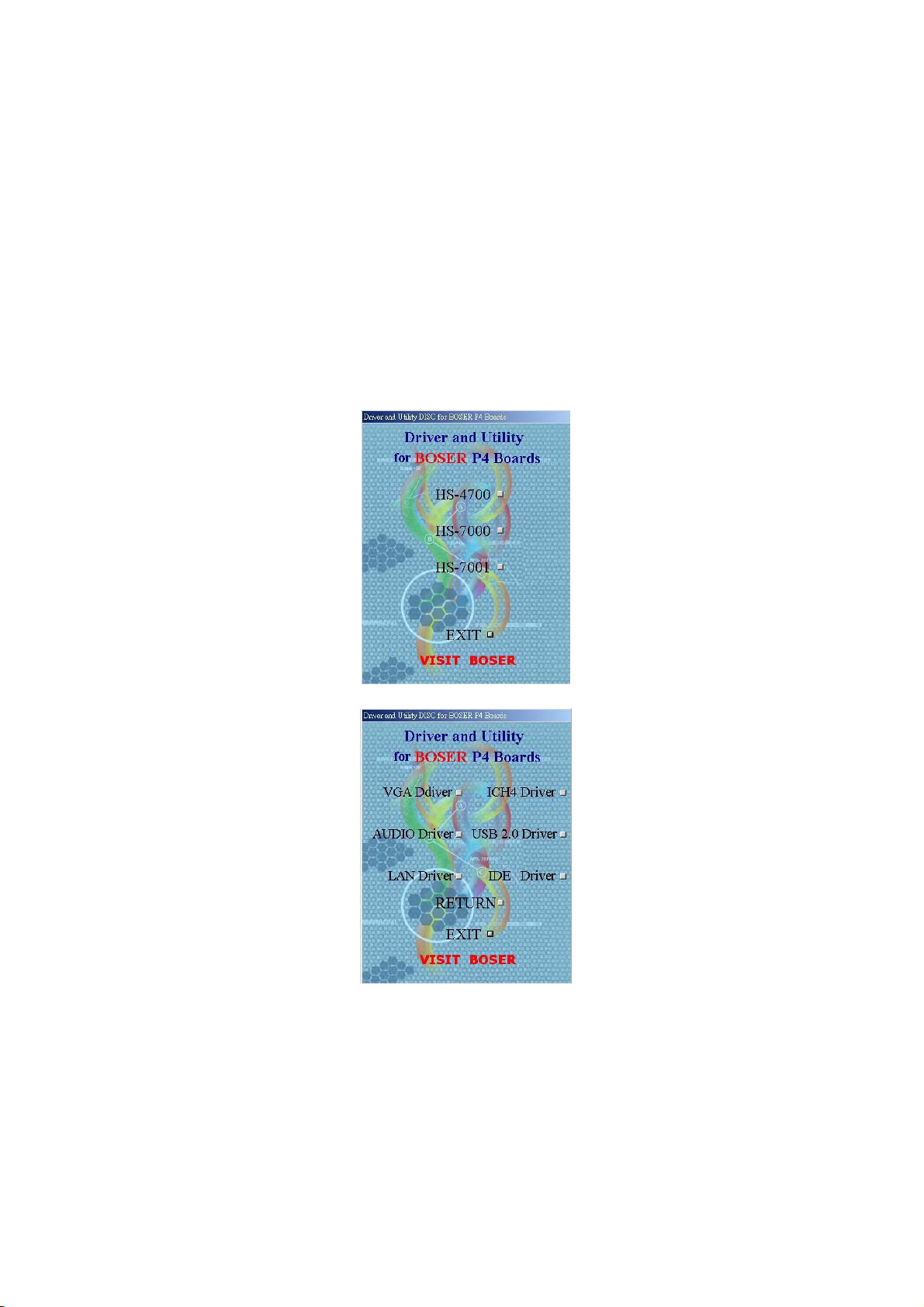

5.2 VGA Driver Installation
5.2.1 Win 95/98
1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
2. Click on the VGA Driver button to continue.
52
Page 59

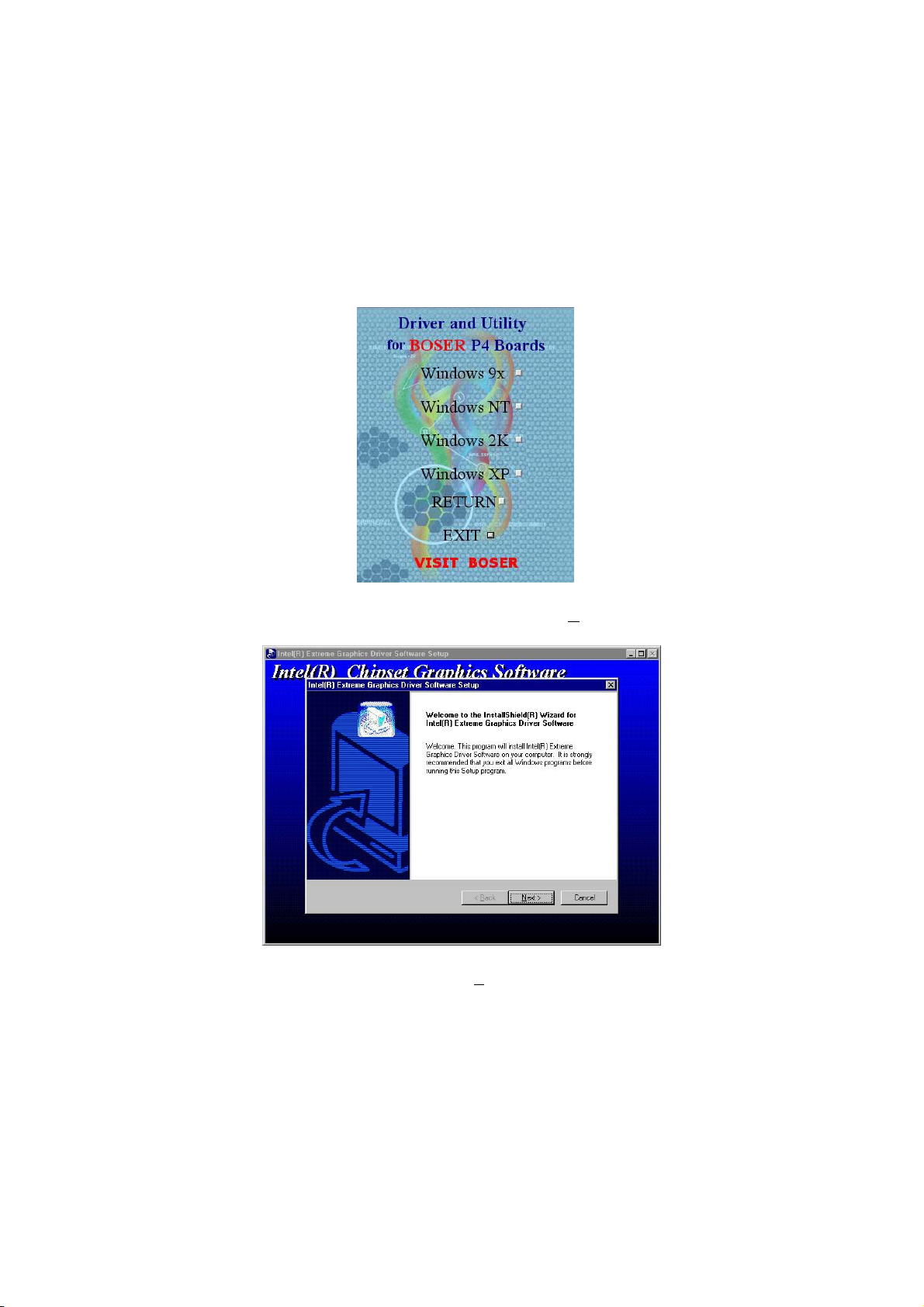

3. Click on the Windows 9x button to continue.
4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to
5. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
es to proceed.
53
Page 60

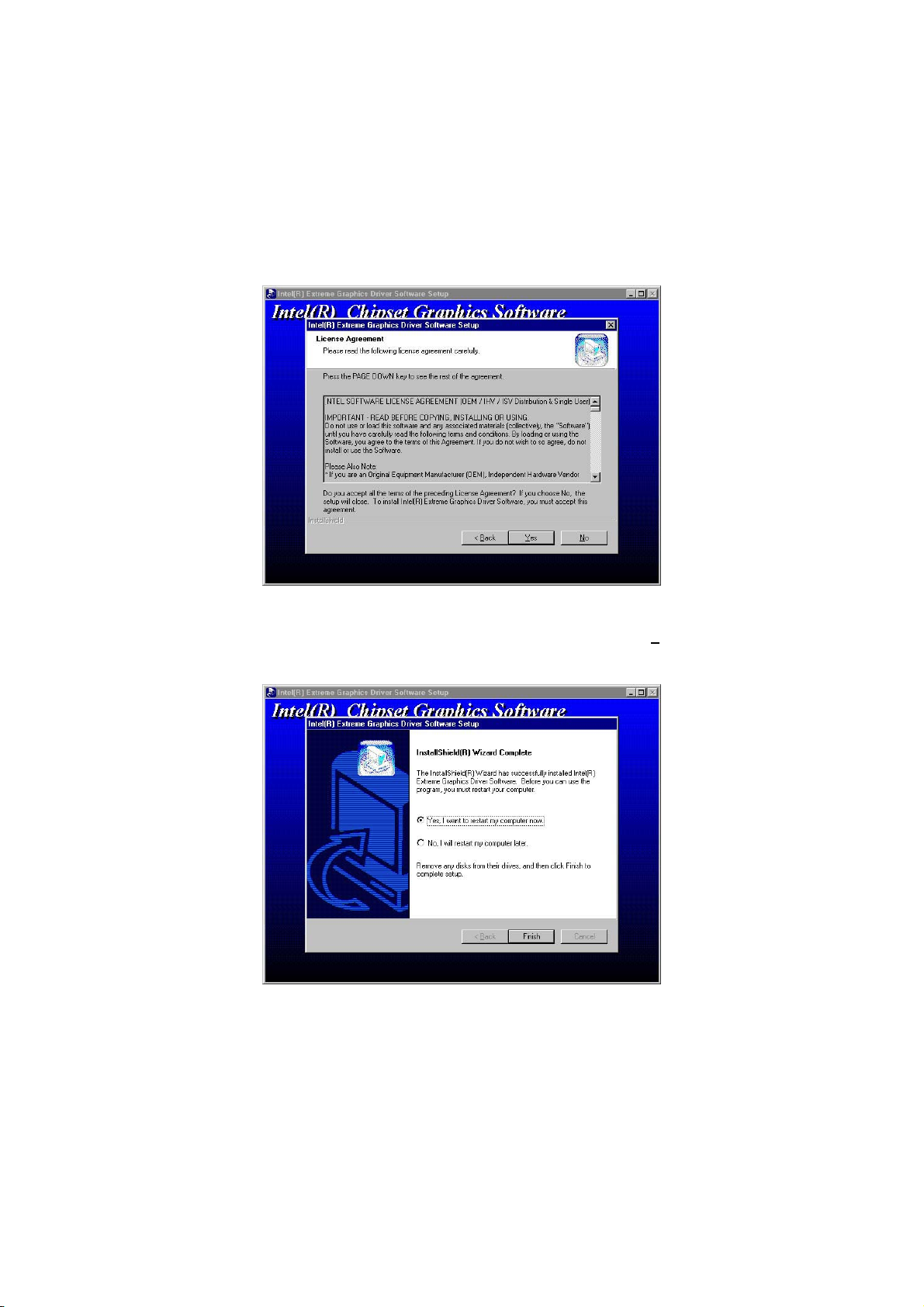

6. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the Yes, I want
to restart my computer now followed by a click on the F
button to reboot. Only after your computer boots will the new
settings take effect.
inish
NOTE:
54
Installation procedure for Windows 98 is similar to Windows95.
Page 61
5.2.2 Win NT
NOTE:

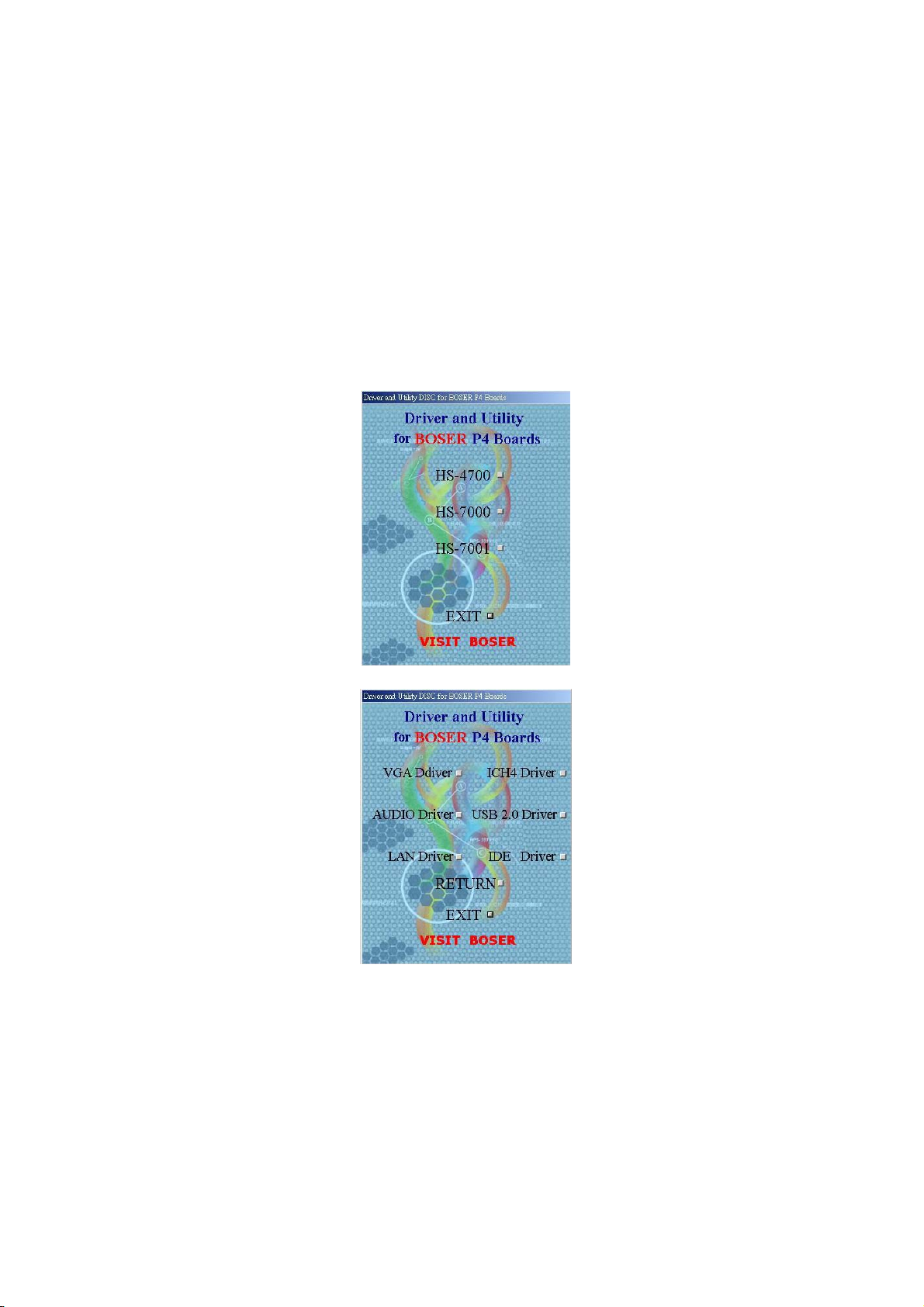

1. Insert Utility CD Disk to your CD ROM drive. The main menu will
2. Click on the VGA Driver button to continue.
Please make sure you have already install Service Pack 6.0.
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
55
Page 62
3. Click on the Windows NT button to continue.
4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to
56
Page 63

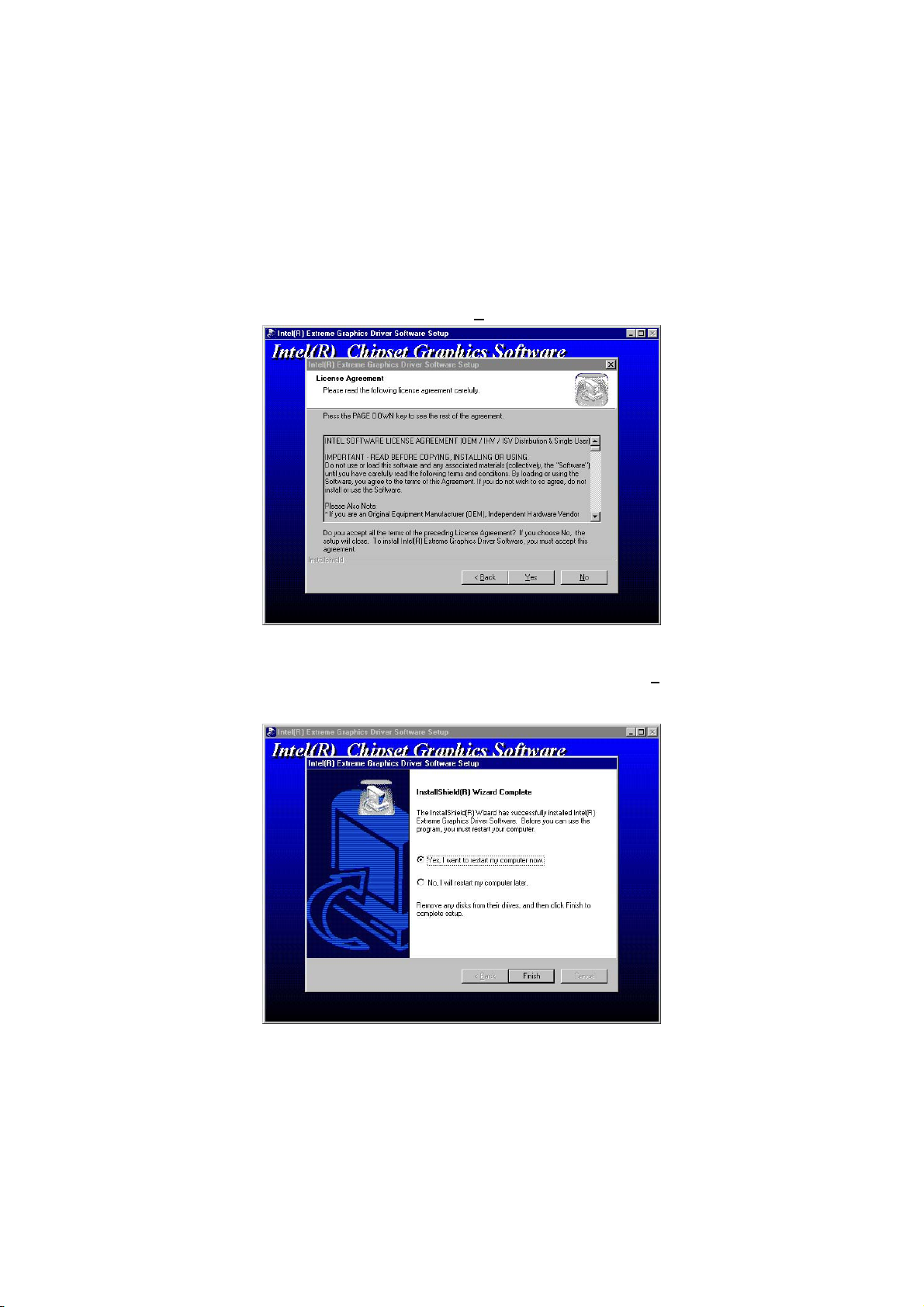

5. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
6. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the Yes, I want
to restart my computer now followed by a click on the F
button to reboot. Only after your computer boots will the new
settings take effect.
es to proceed.
inish
57
Page 64
5.2.3 Win 2000

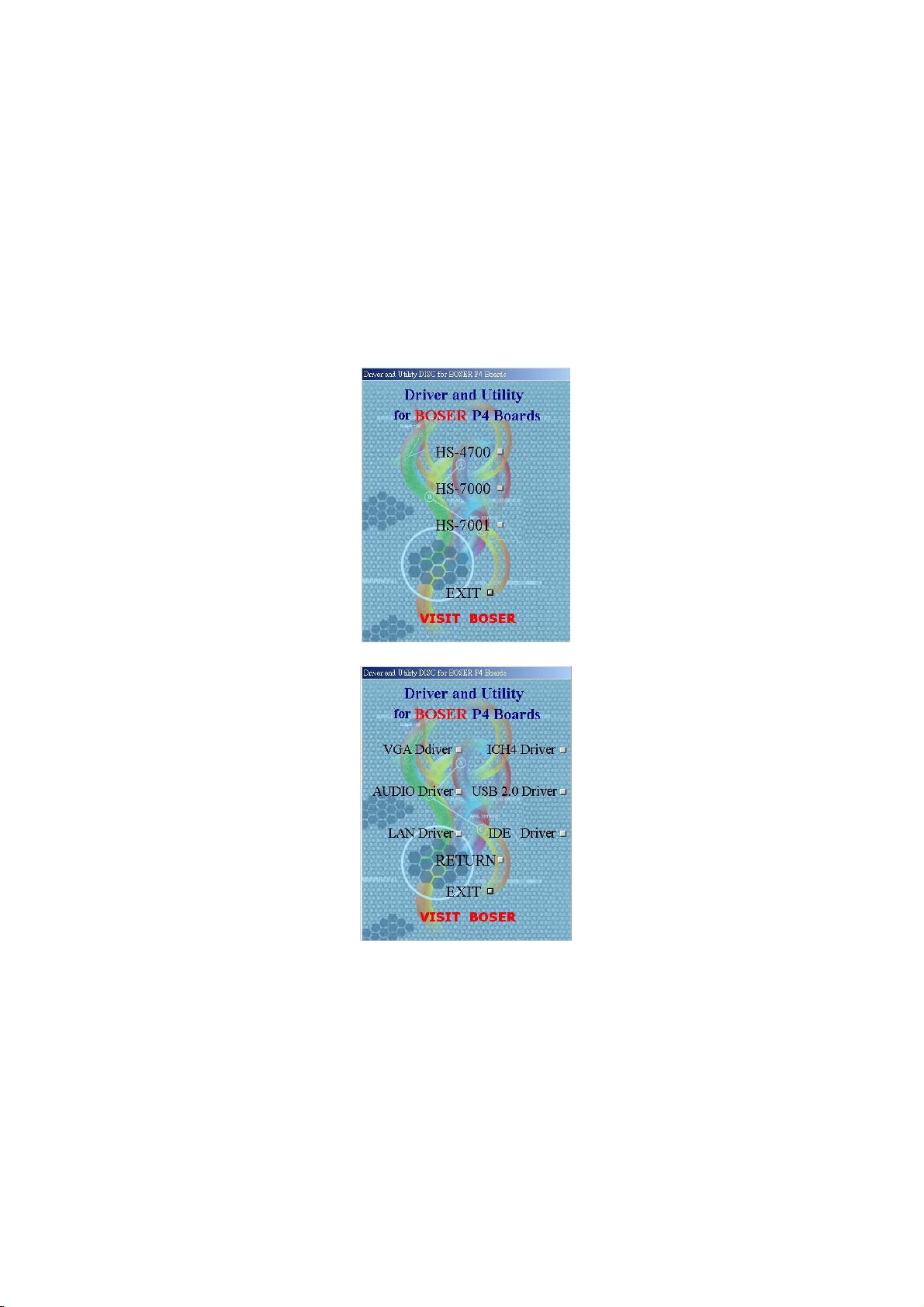

1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
2. Click on the VGA Driver button to continue.
58
Page 65

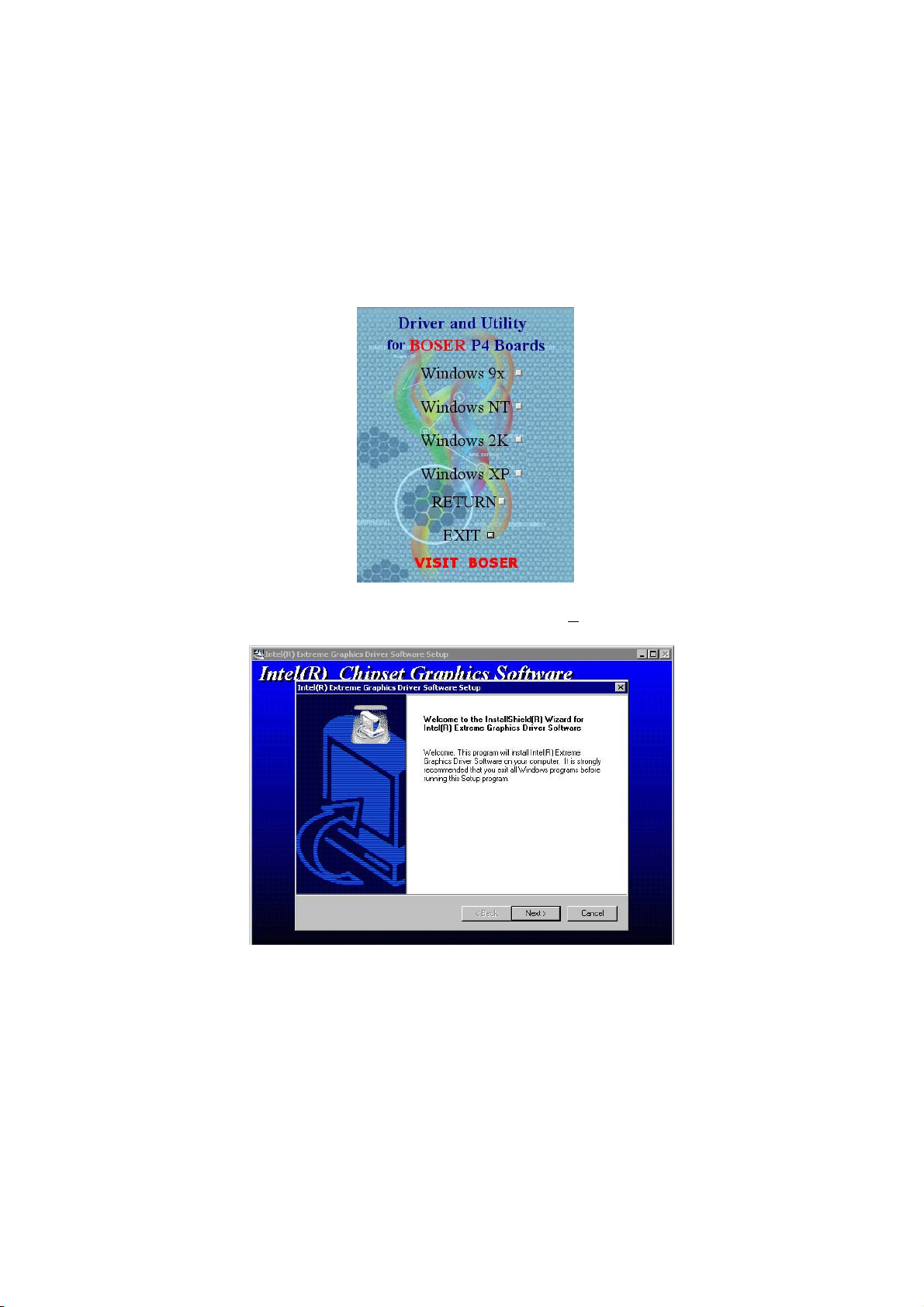

3. Click on the Windows 2K button to continue.
4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to
59
Page 66

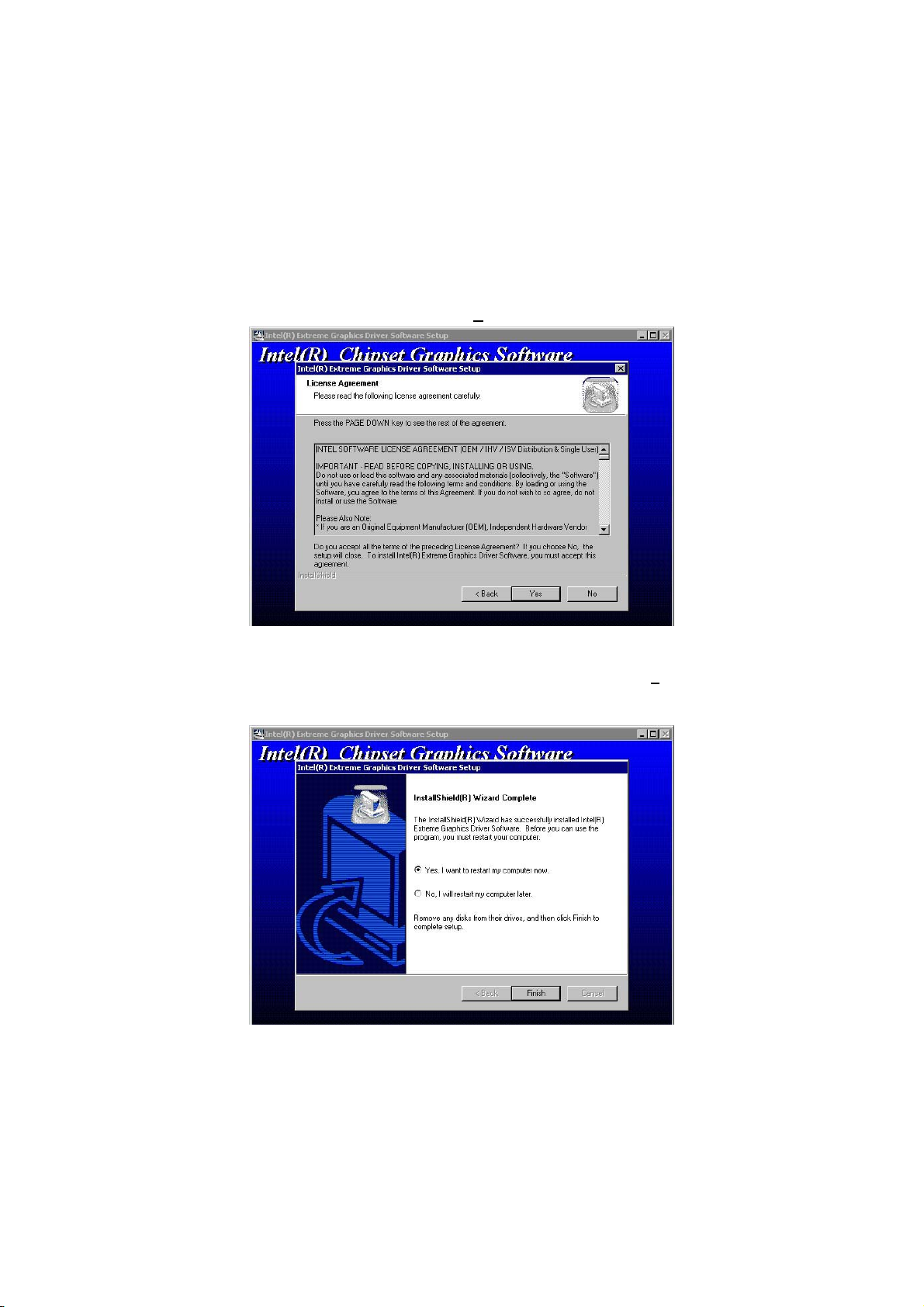

5. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Y
6. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the Yes, I want
to restart my computer now followed by a click on the F
button to reboot. Only after your computer boots will the new
settings take effect.
es to proceed.
inish
60
Page 67
5.3 LAN Driver Installation
5.3.1 Win 95/98

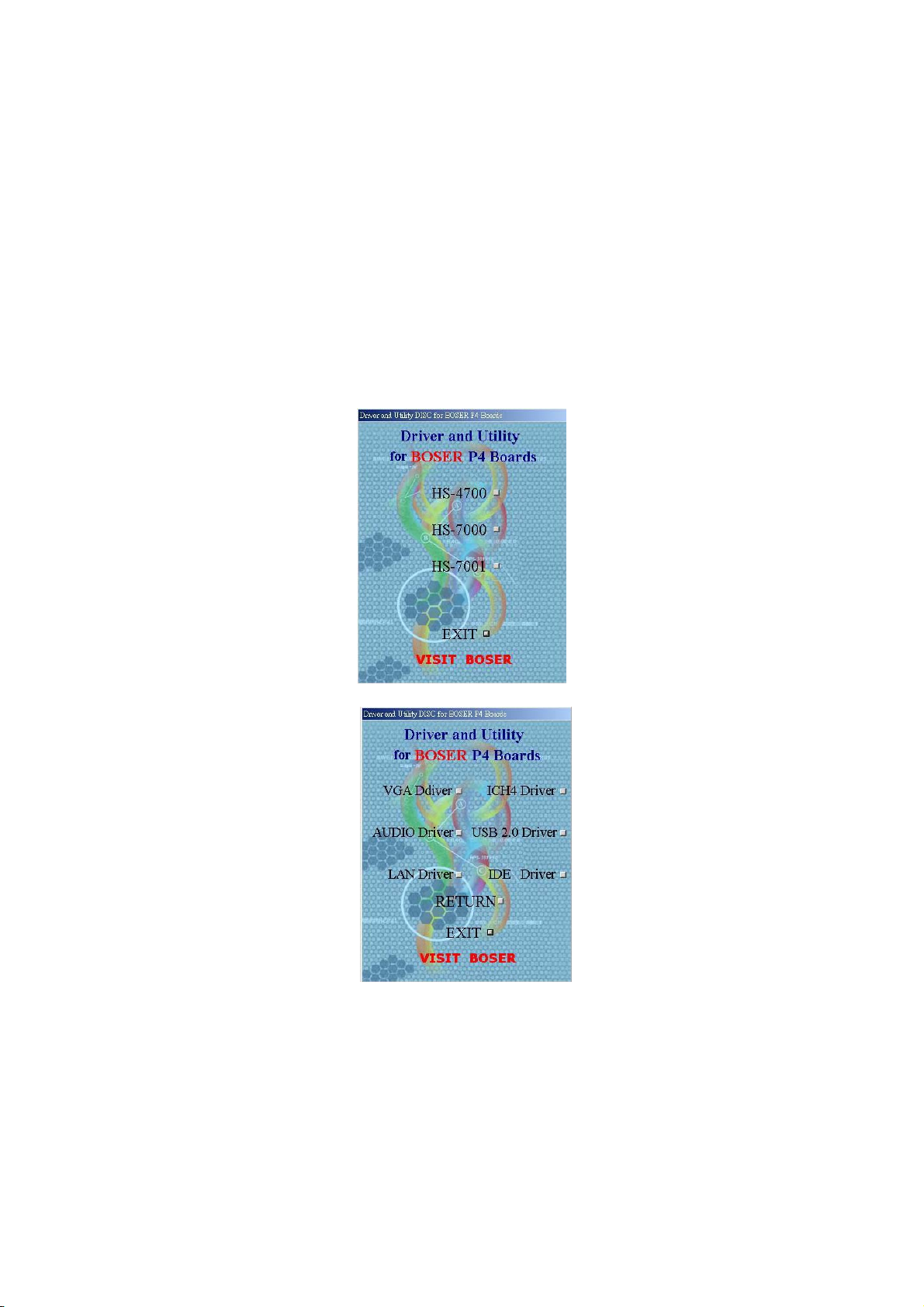

1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
2. Click on the LAN Driver button to continue.
61
Page 68

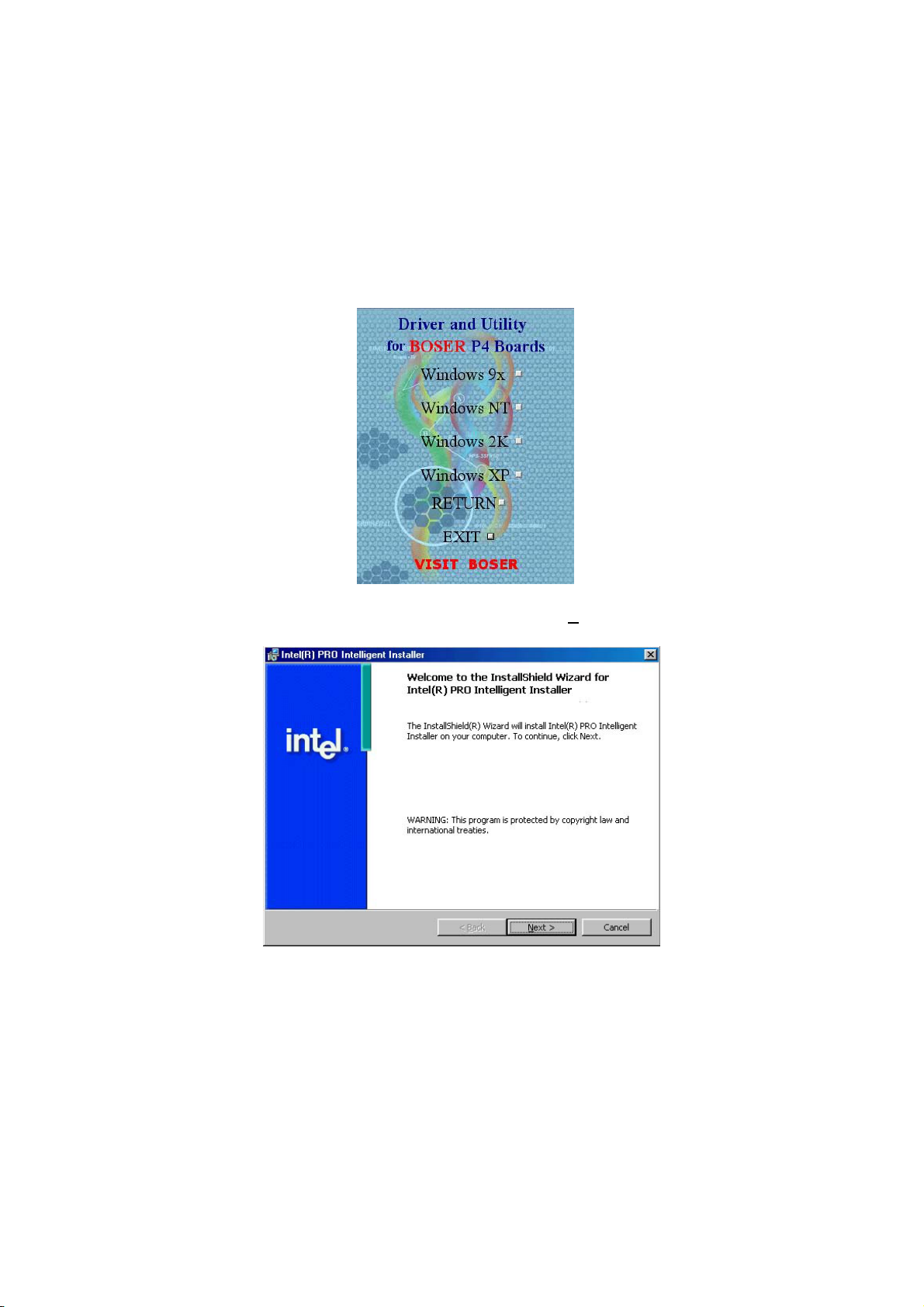

3. Click on the Windows 9x button to continue.
4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to
62
Page 69

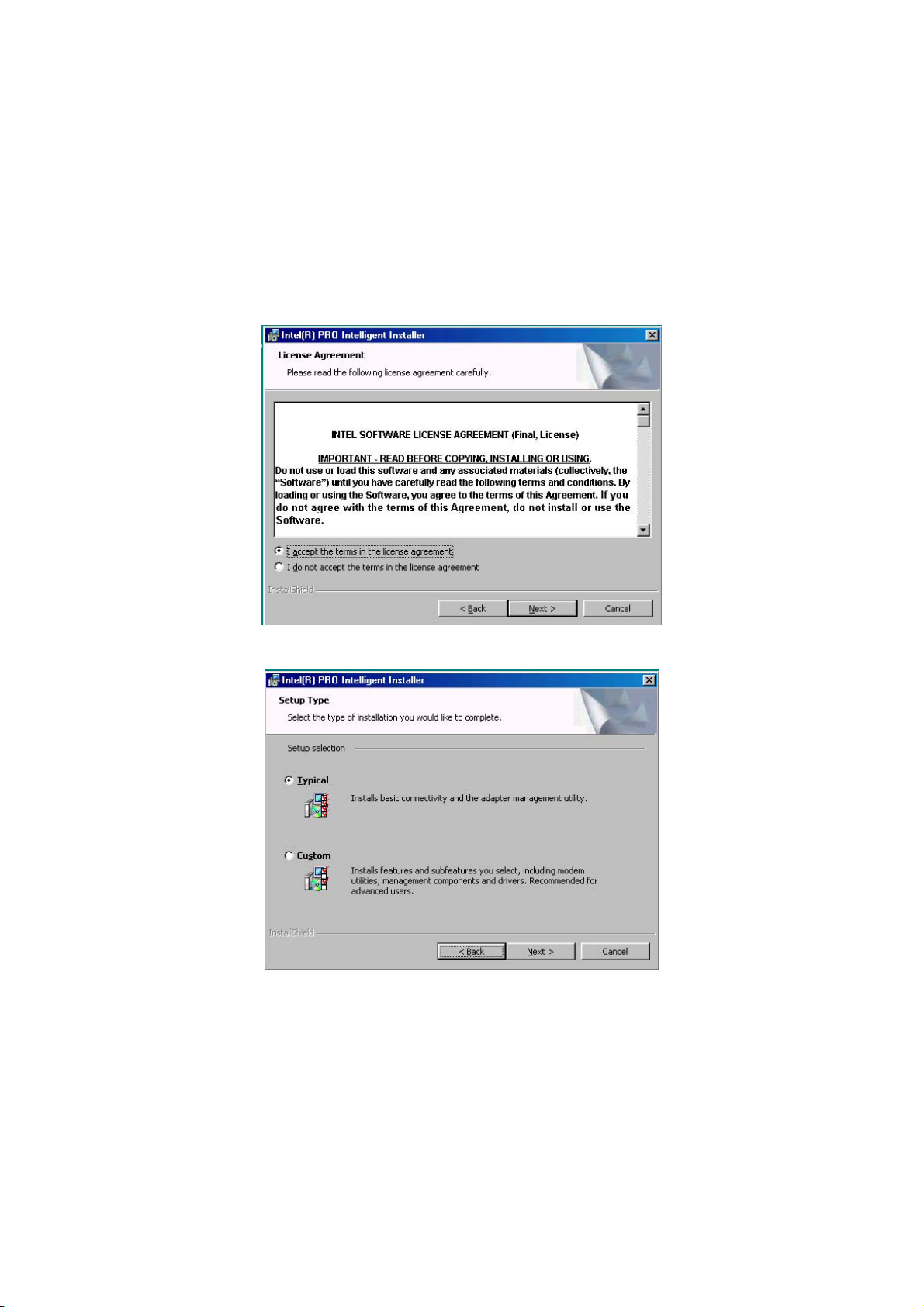

5. The Intel OEM Software License Agreement dialog box then
appears on the screen. Choose Accept to proceed.
6. The Setup Type dialog box then appears on the screen. Choose
Typical to proceed.
63
Page 70

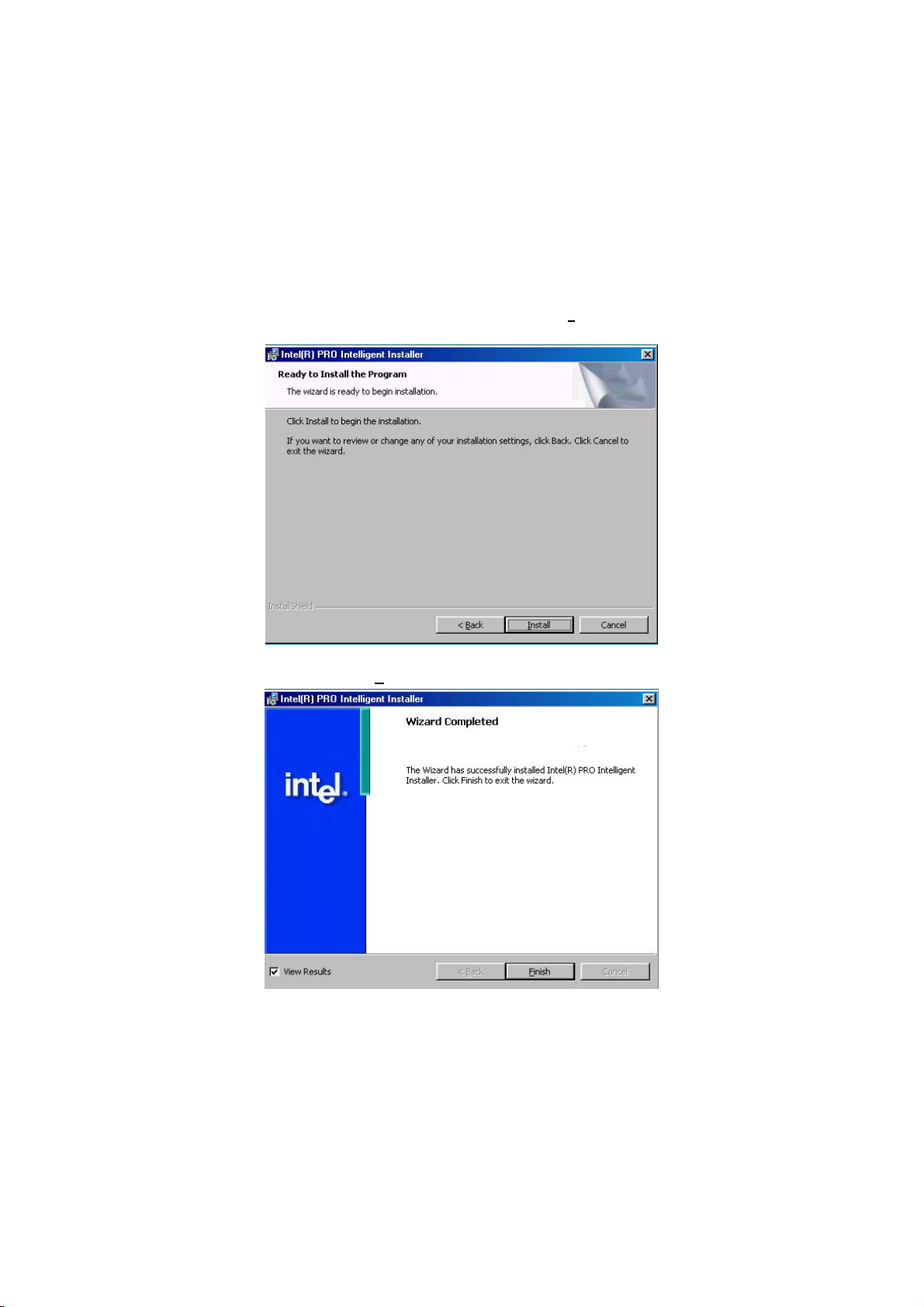

7. When the dialog box below appears, make sure you close all
other Windows applications then click on the I
proceed.
8. When the dialog box below appears, it means your driver is install
completed. Click F
inish button to proceed.
nstall button to
64
Page 71

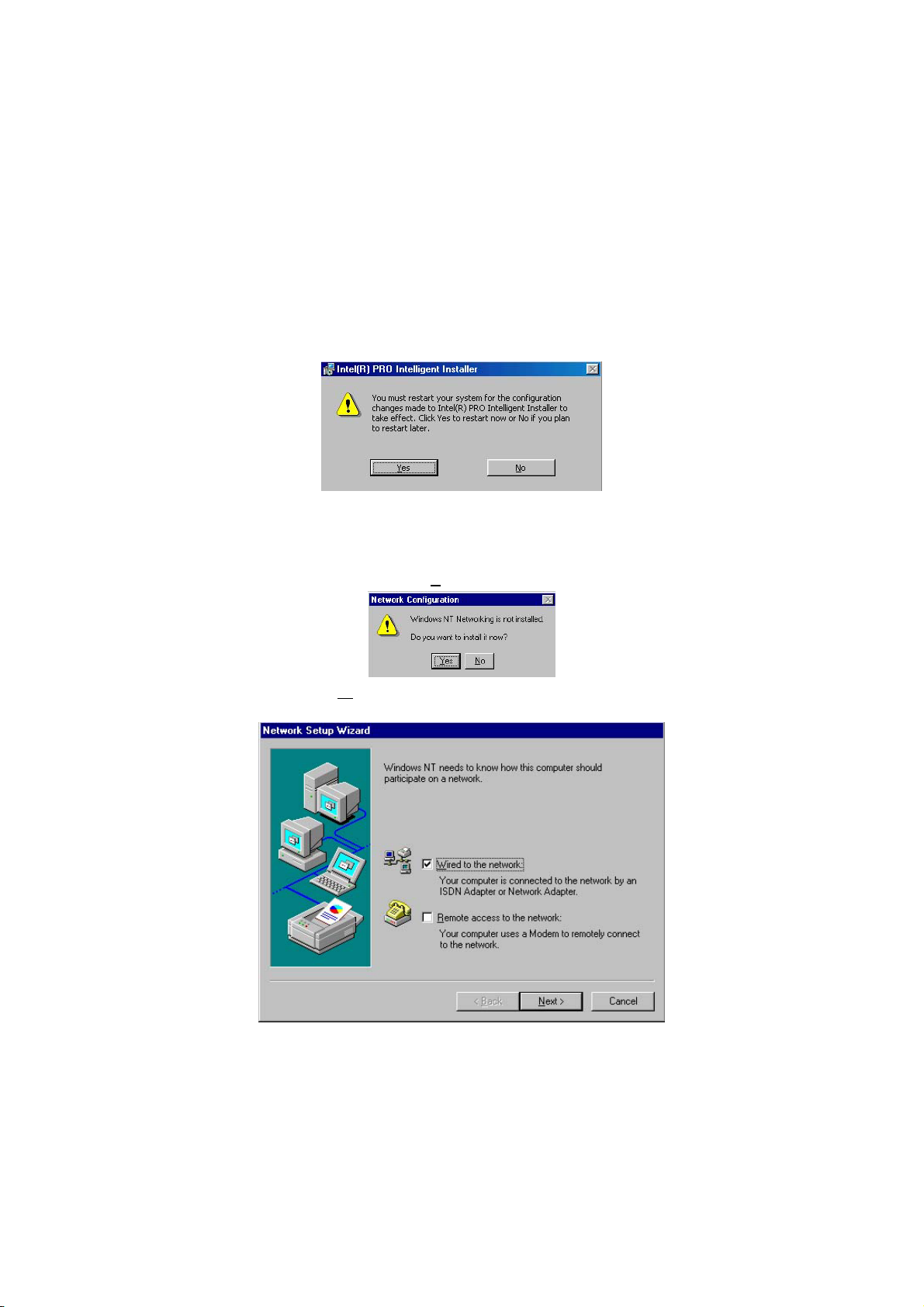

9. Once the setup program finishes copying files into your system, it
will prompt you to restart the computer. Tick on the Yes to
reboot. Only after your computer boots will the new settings take
effect.
5.3.2 Win NT
NOTE:
1. The system automatically detects the absence of Windows NT
2. Tick on the W
Please make sure you have already install Service Pack 6.0.
Networking. Click on the Y
ired to Network once the following screen
appears. Click on the Next to proceed.
es button to start installation.
65
Page 72

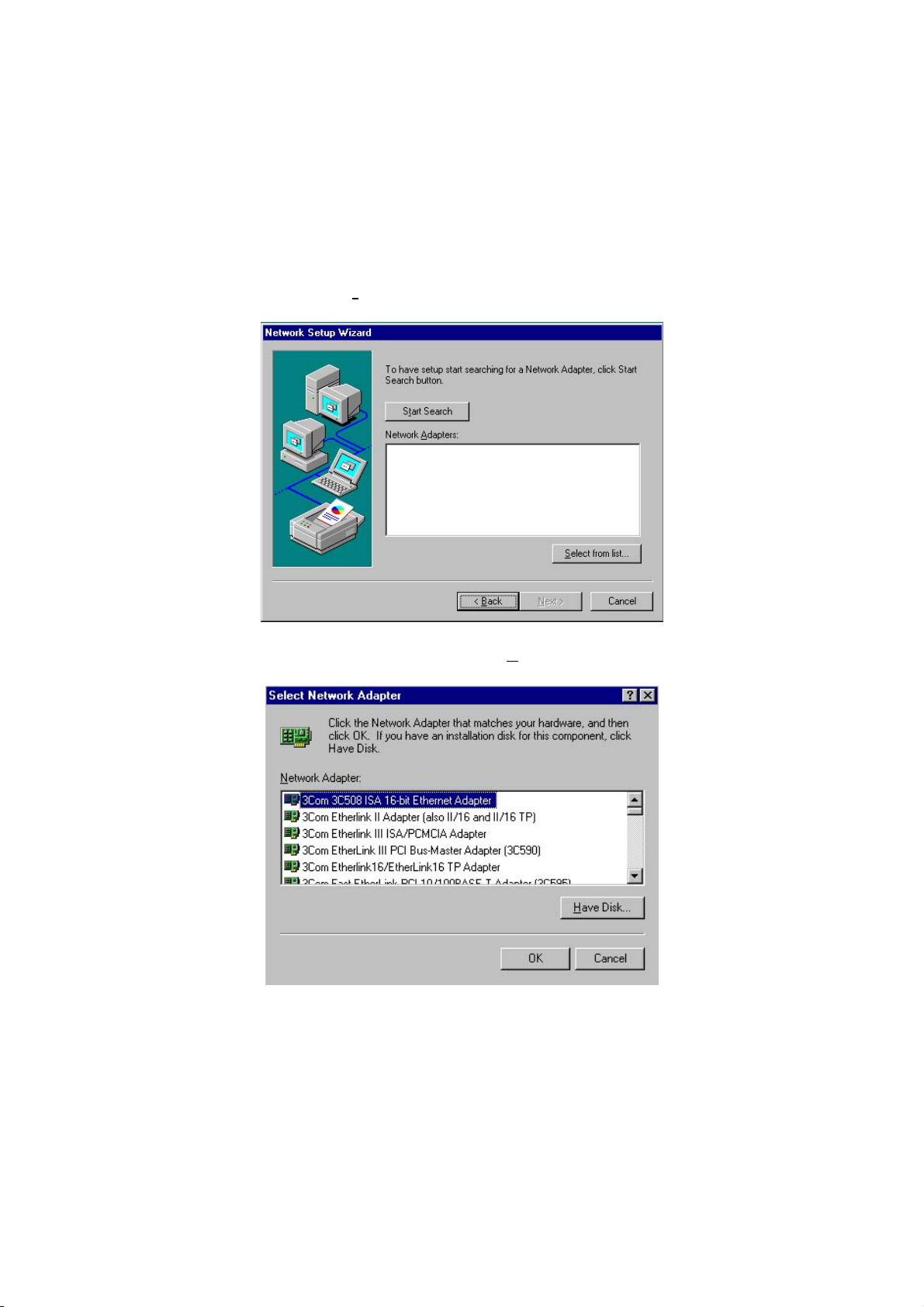

3. Click on the Start Search button for the program to locate the
Network Adapter.
4. Once setup finishes the search, it will list a number of adapters
for you to choose from. Press on the H
the driver path location.
ave Disk button to assign
66
Page 73

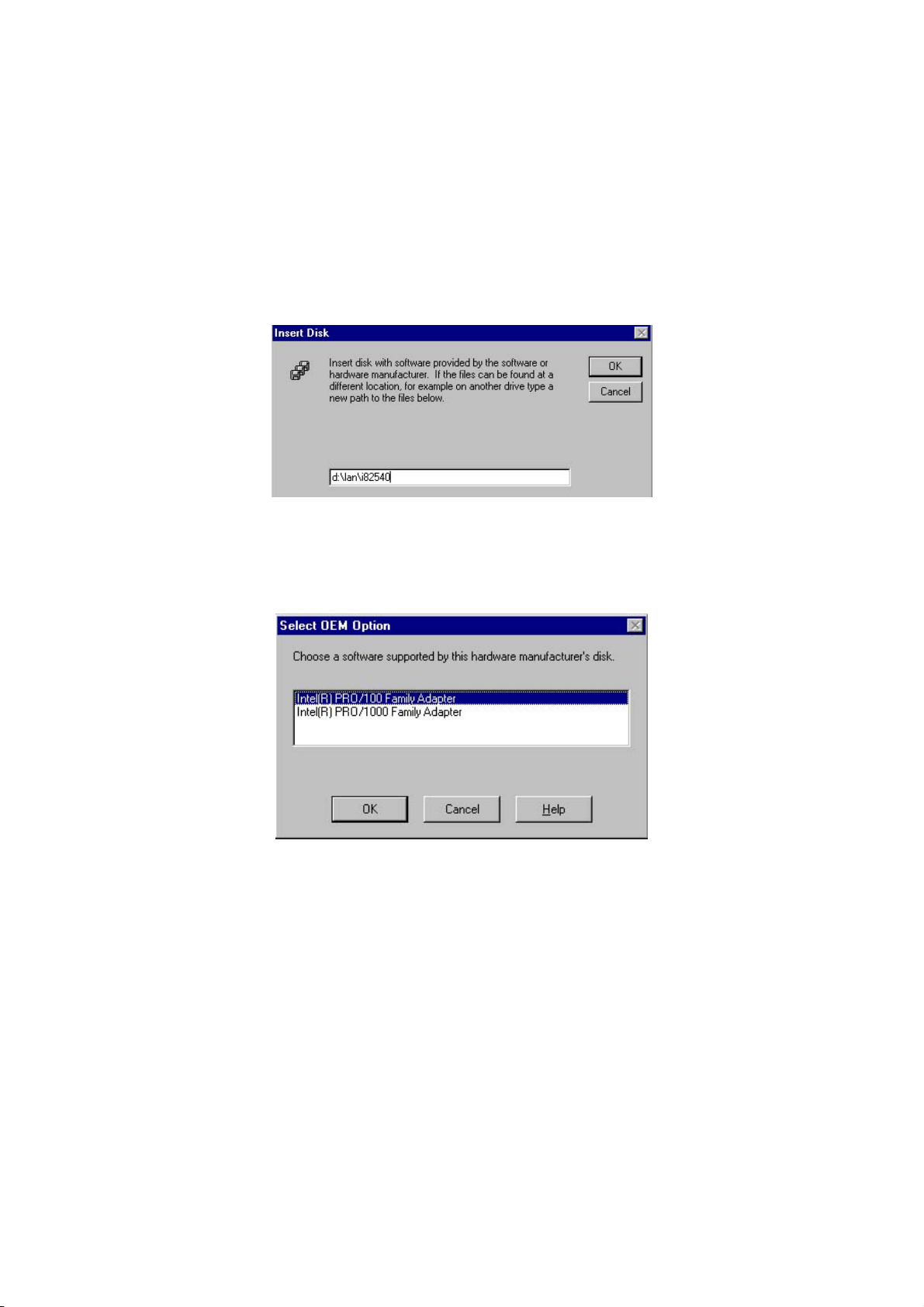

5. Setup now asks you for the location of the driver. When you have
entered the new driver path, press on the OK button to continue.
6. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. If using
82551 or 82562, please choose “Intel(R) PRO/100 Family
Adapter”. If using 82540EM, please choose “Intel(R)
PRO/1000 Family Adapter”. Press on the OK button to accept
and proceed.
67
Page 74

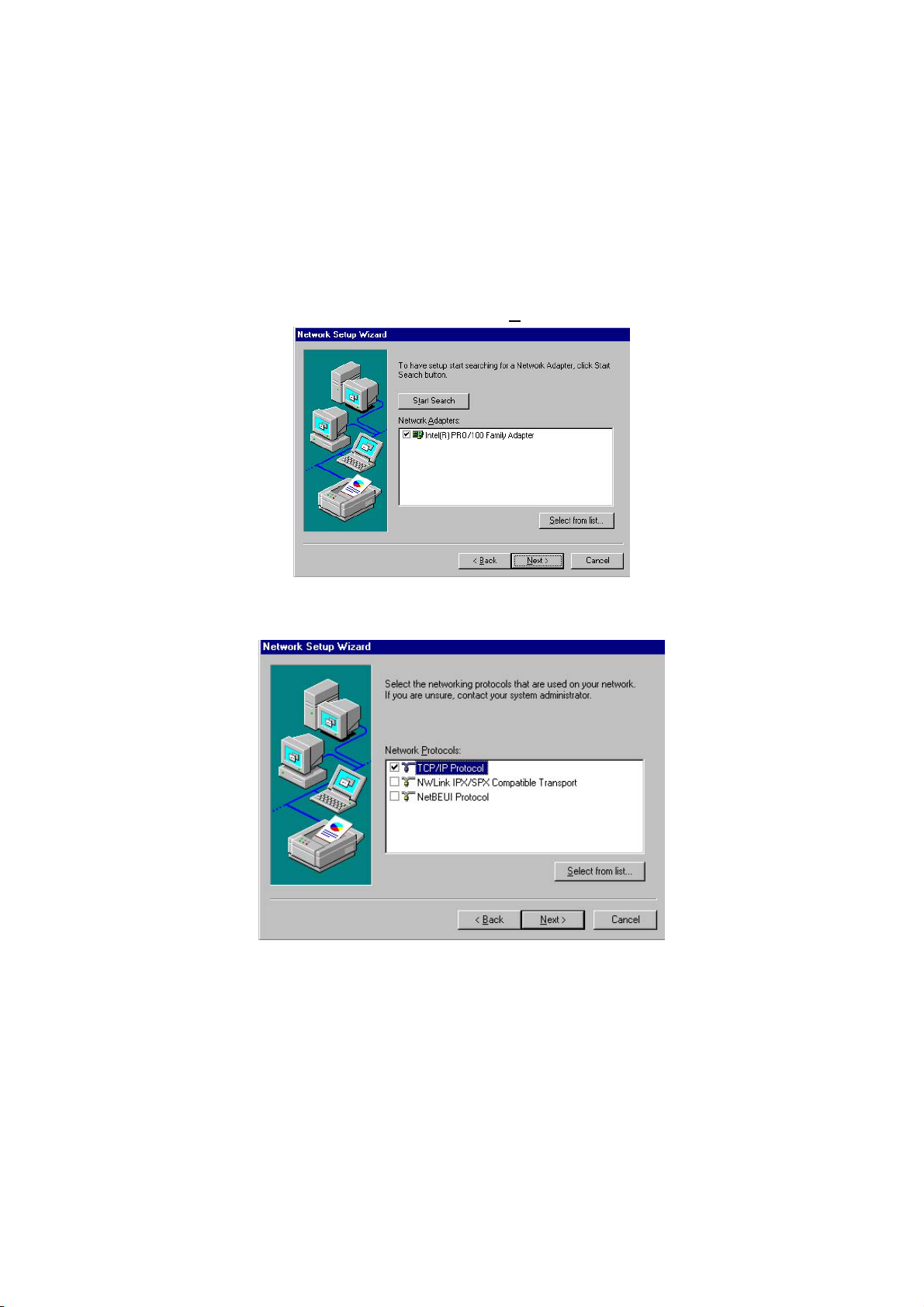

7. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on N
8. The Network Setup Wizard then allows you to set the Network
Protocols on your network. Select the appropriate protocol and
then click on Next to continue.
ext to continue.
68
Page 75

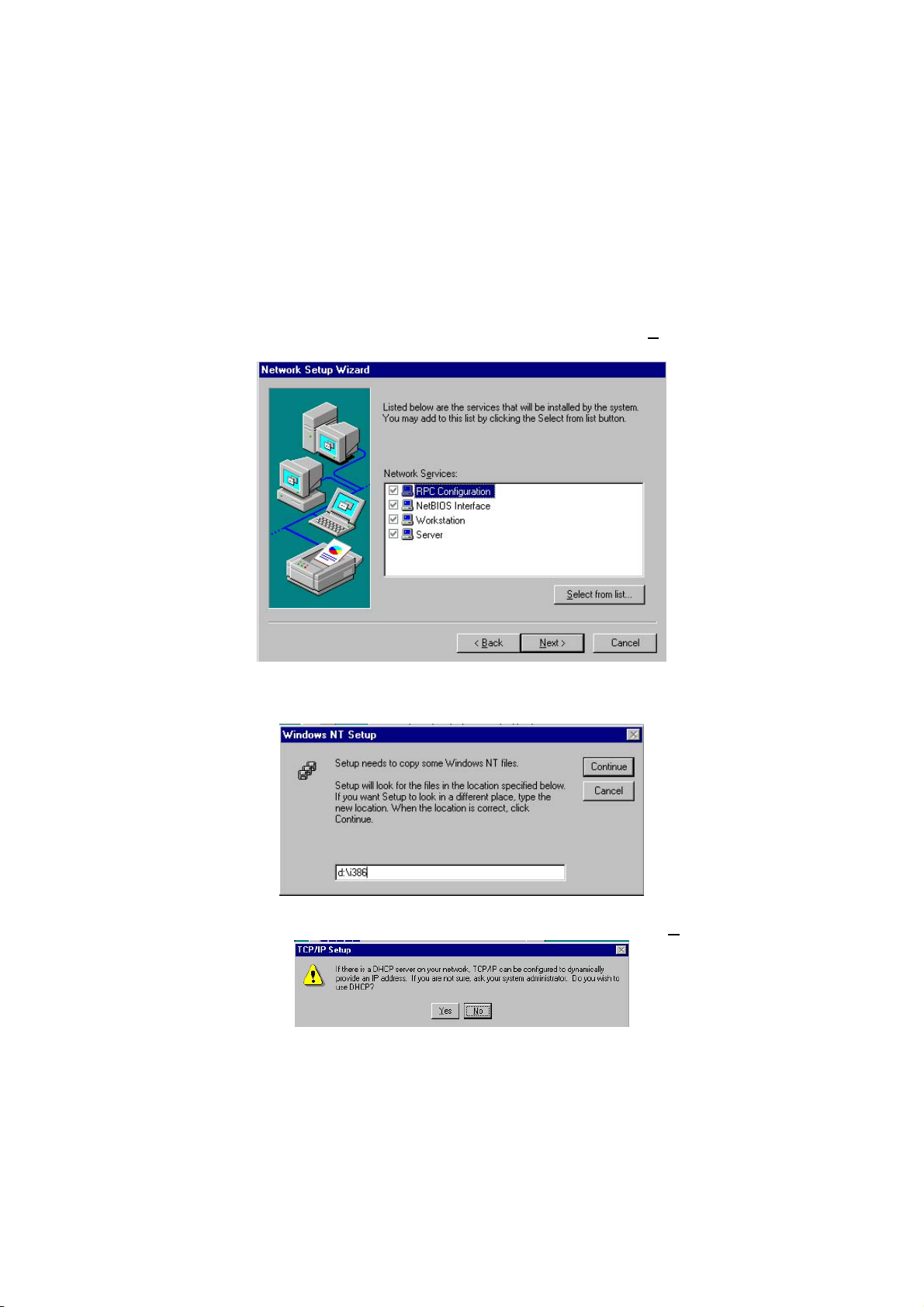

9. Before Setup starts installing the components found and the
settings you made, it will give you the option to proceed or go
back for changes from the following screen. Click on the N
button once you are sure of your devices.
10. Windows NT Setup will then need to copy files necessary to
update the system information. Specify the path then press
Continue.
ext
11. When Setup asks if you wish to change the TCP/IP settings of
your system, select the appropriately. The default choice is N
o.
69
Page 76

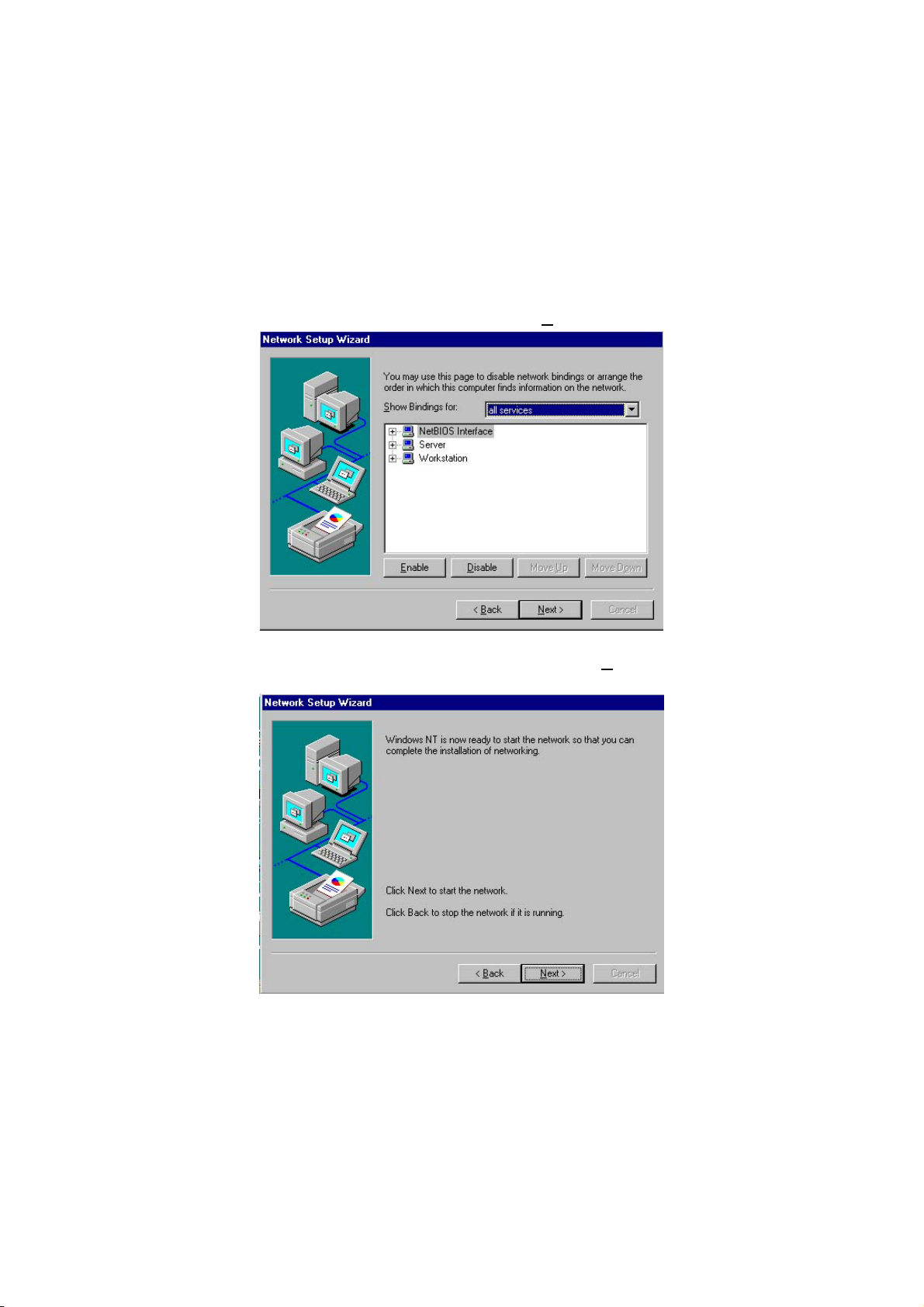

12. Setup then starts the Networking installation and copies the files.
13. When the screen below appears, click on N
14. Setup then prompts you that it is ready to start the network. You
may complete the installation thereafter. Click on N
continue.
ext to continue.
ext to
70
Page 77

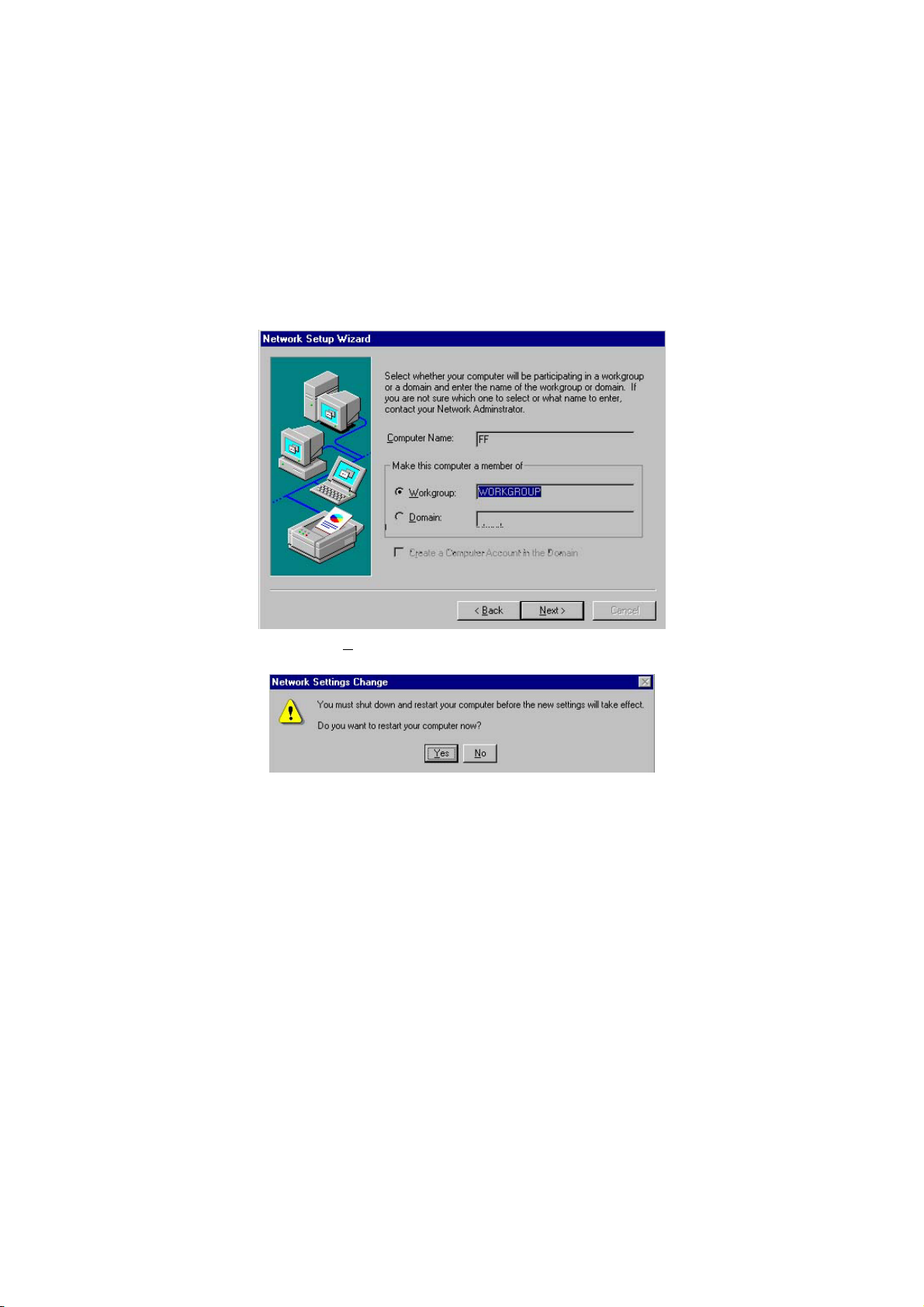

15. Assign the workgroup or domain setting of your computer. Click
on Next to continue.
16. Click on the Yes button to restart your computer. The LAN1
driver installation for WIN NT4.0 is now complete.
71
Page 78

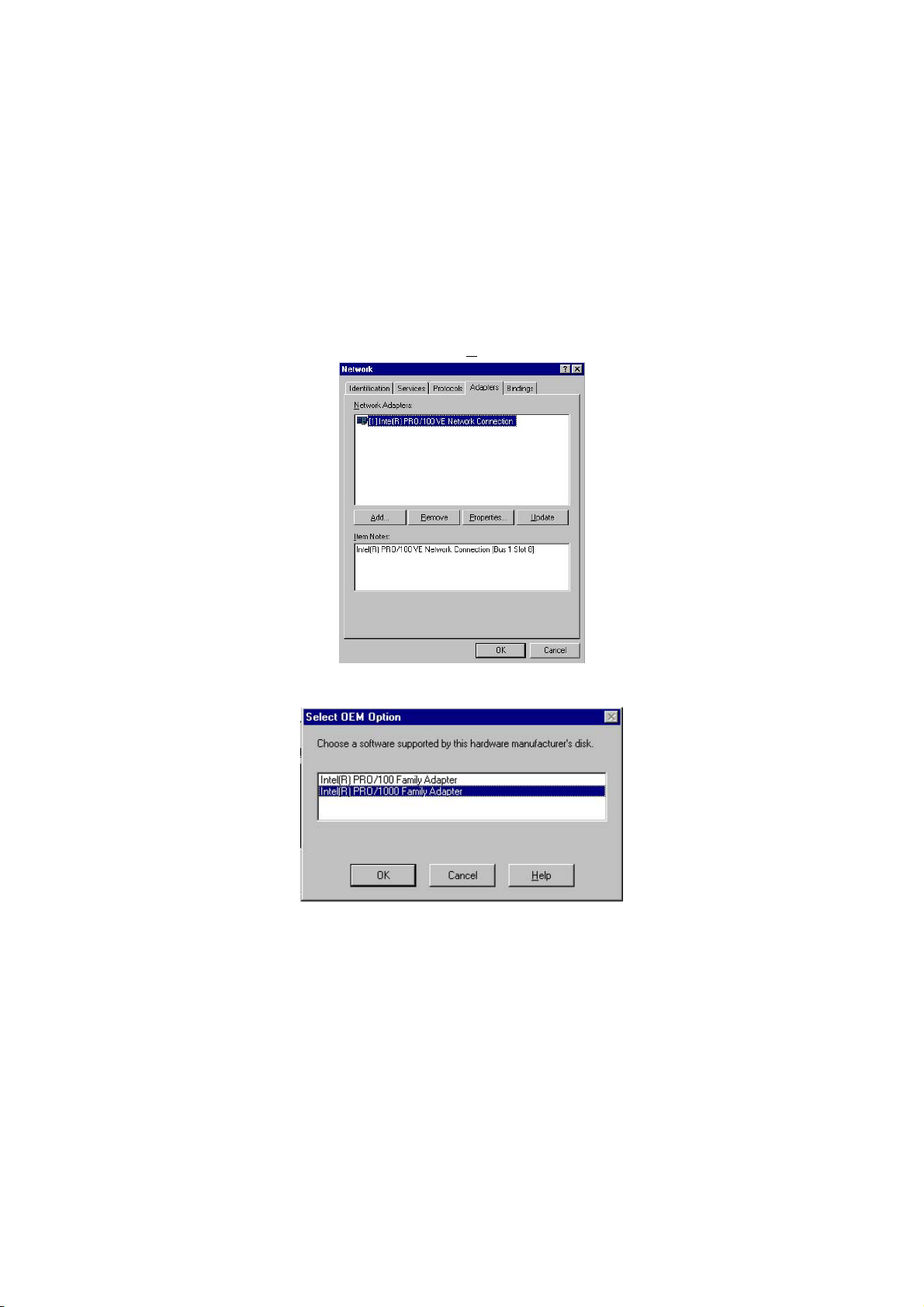

17. With the Utility CD Disk still in your CD ROM drive, we can install
LAN2. Right click on “Network Neighborhood” icon from the
desktop. Select on Properties and then proceed to the Network
from the main menu. Click on A
18. Setup then returns to Network Setup Wizard screen and displays
your new Network Adapter. Click on OK to continue.
dd to continue.
72
Page 79

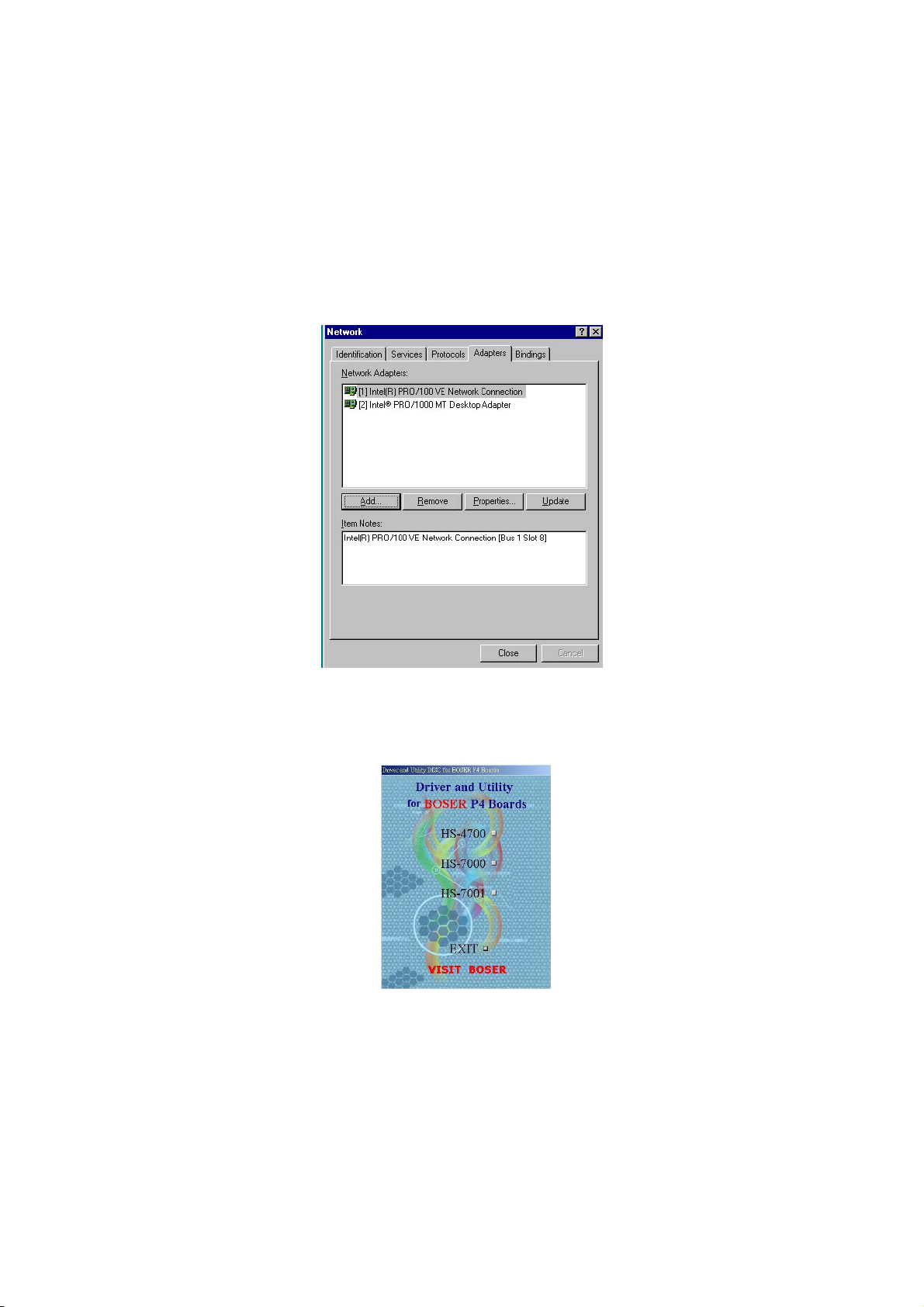

19. Click on the Close button. The LAN2 driver installation for WIN
NT4.0 is now complete.
5.4 Audio Driver Installation
1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
73
Page 80

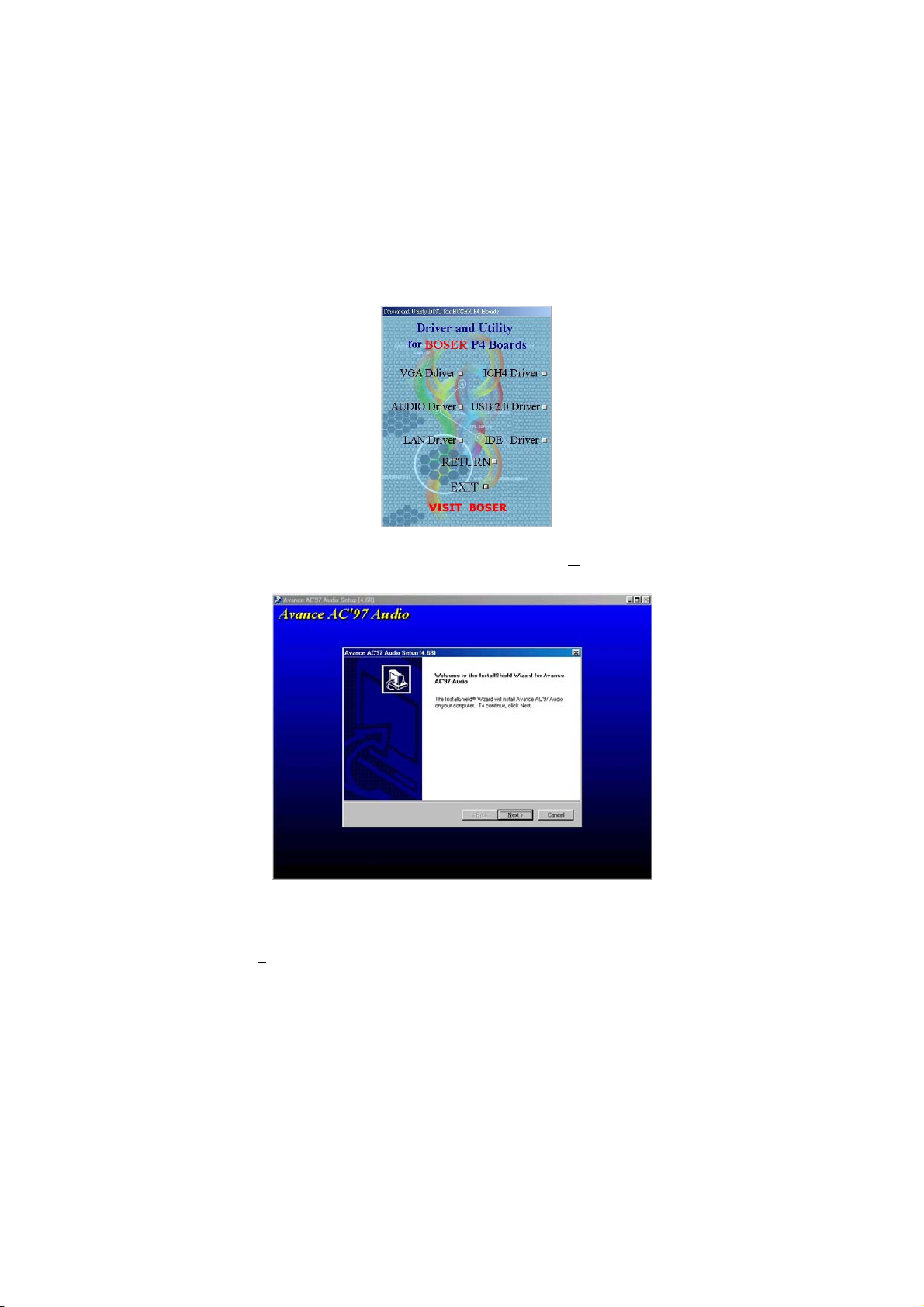

2. Click on the AUDIO Driver button to continue.
3. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to

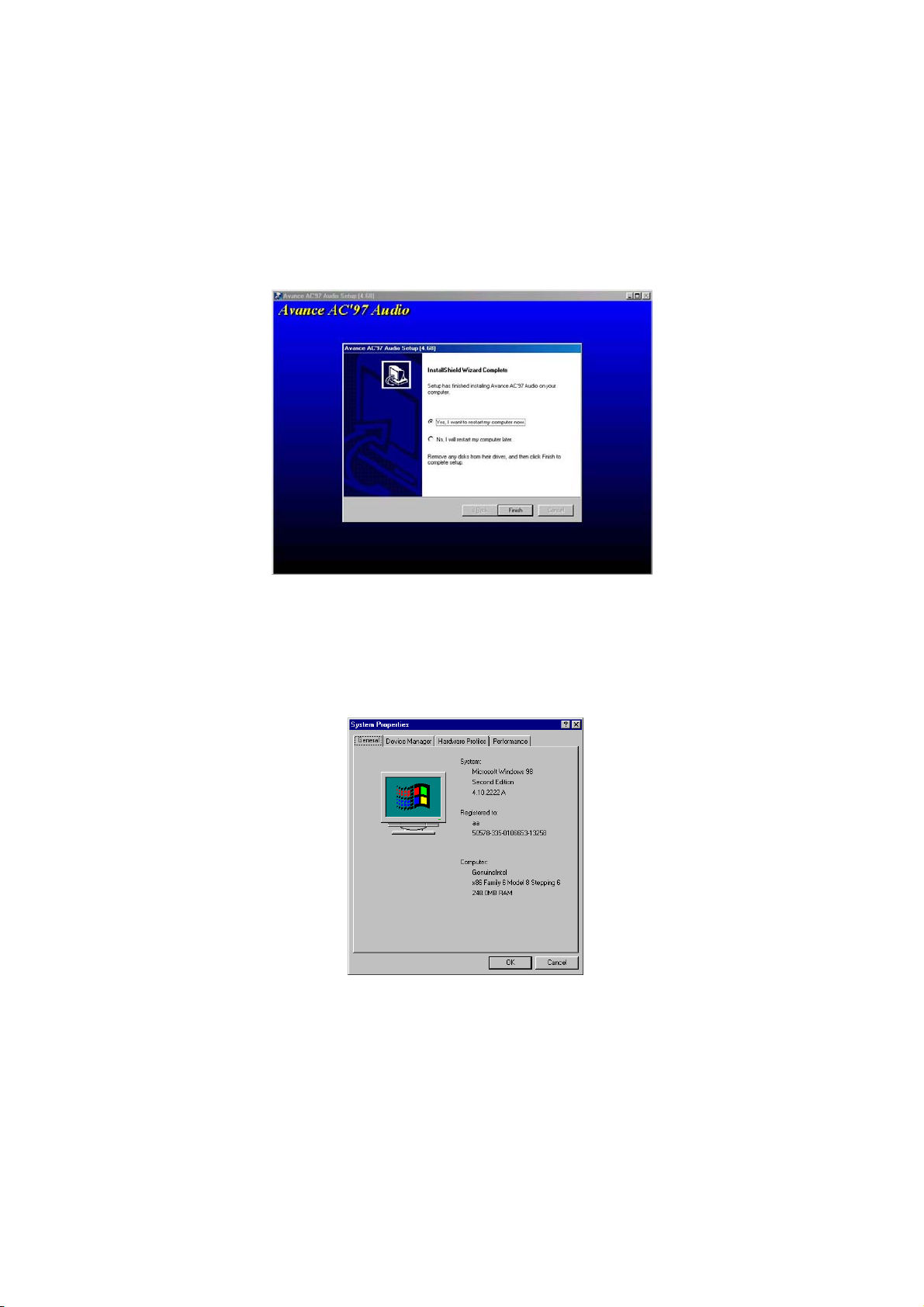

4. Once the InstallShield Wizard completes the operation and
update of your AC’97 driver, it will ask you to remove disks from
their drives, and prompt you to restart your system. Tick on the
Yes, I want to restart my computer now. Afterwards, click on the
F
inish button to complete the installation process. The system
changes you made will take effect after the system restarts.
74
Page 81
5.5 USB2.0 Driver Installation
5.5.1 Win 95/98
1. With the Utility CD Disk still in your CD ROM drive, right click on
“My Computer” icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the
main menu.
75
Page 82

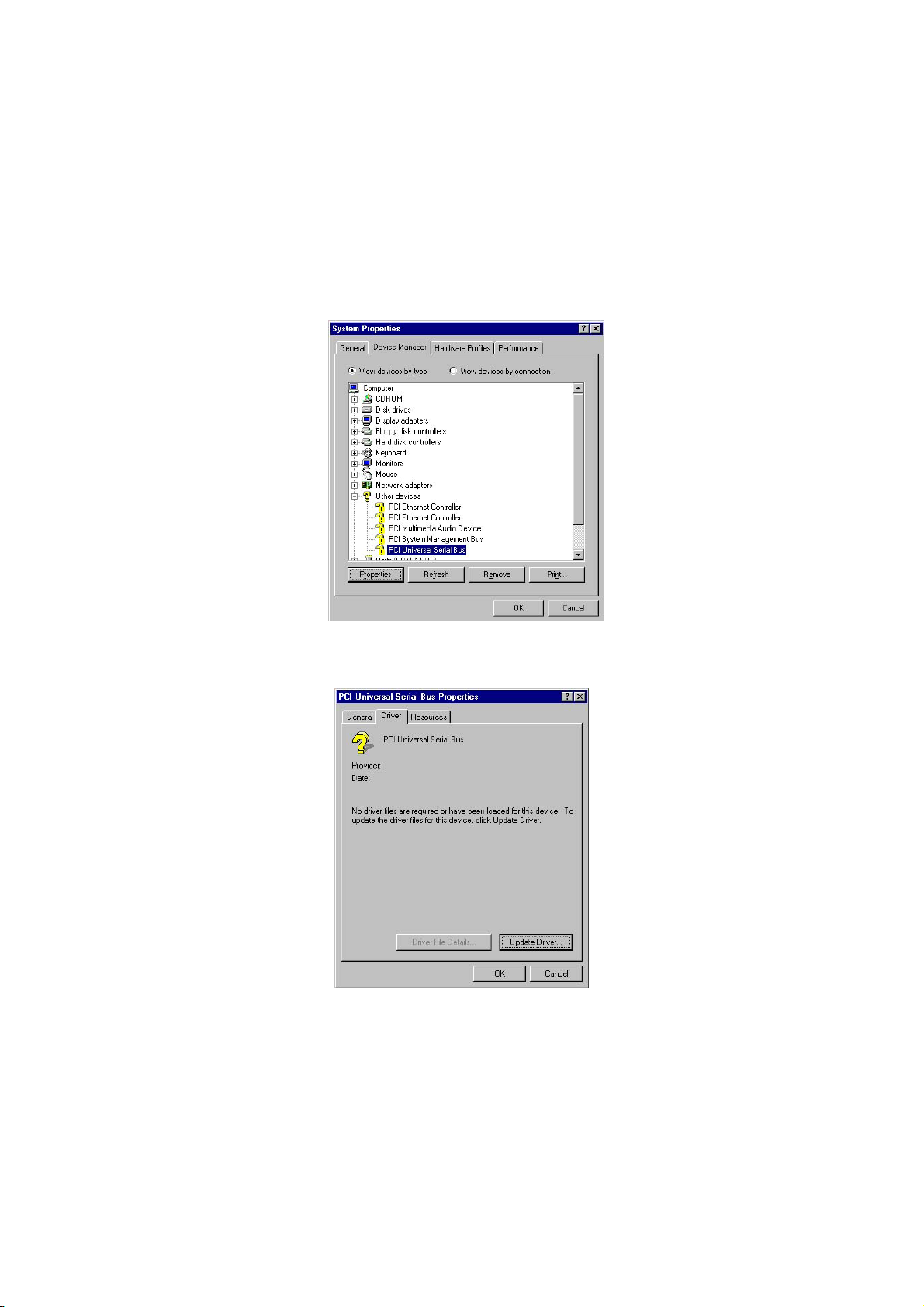

2. Select on Other Devices from the list of devices then double-click
on PCI Universal Serial Bus.
3. The PCI Universal Serial Bus Properties screen then appears,
allowing you to re-install the driver. Select Driver from the main
menu to proceed.
76
Page 83

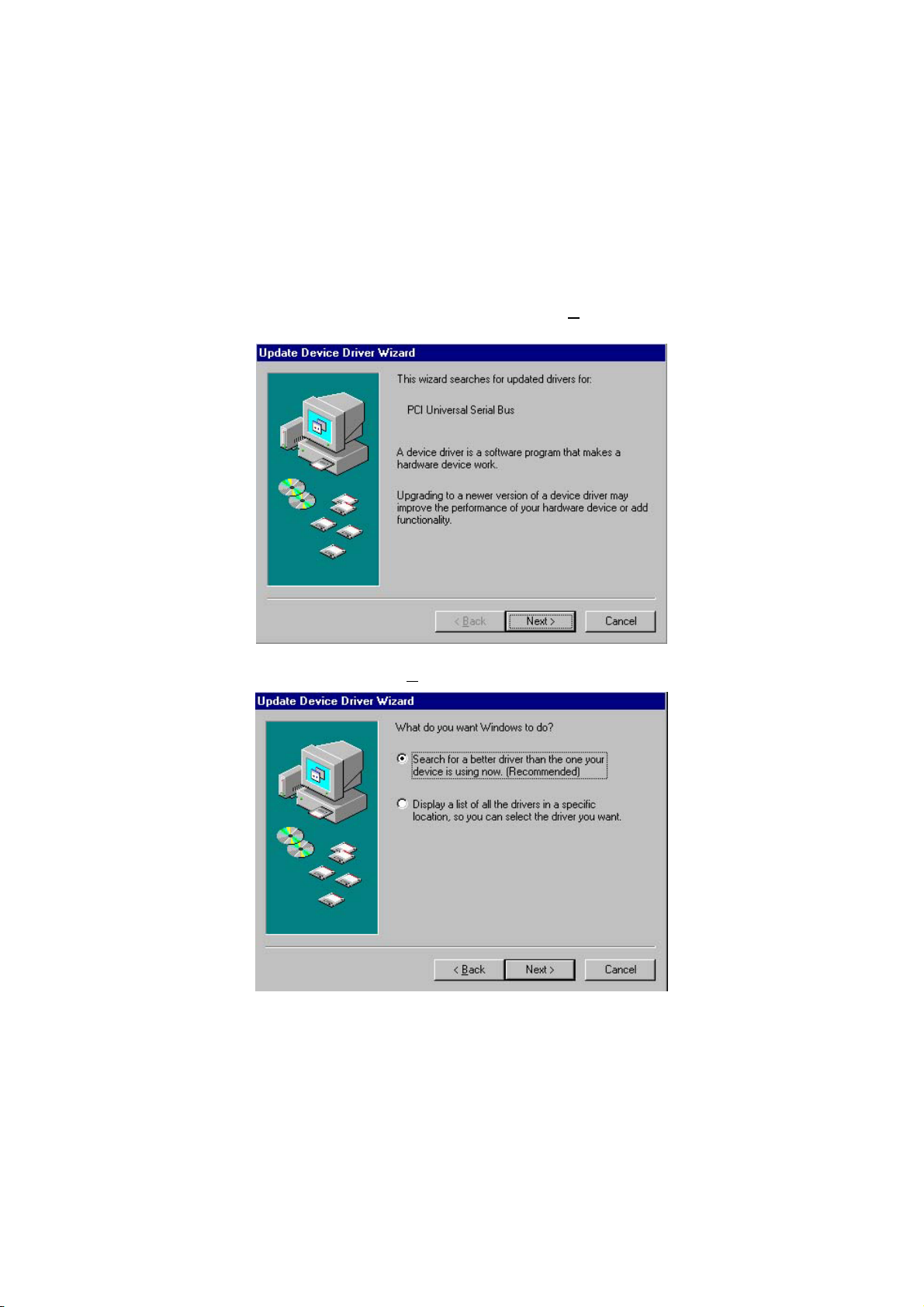

4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
5. Tick on the “Search for a better driver” once the following screen
appears. Click on the N
ext to proceed.
ext > button to
77
Page 84

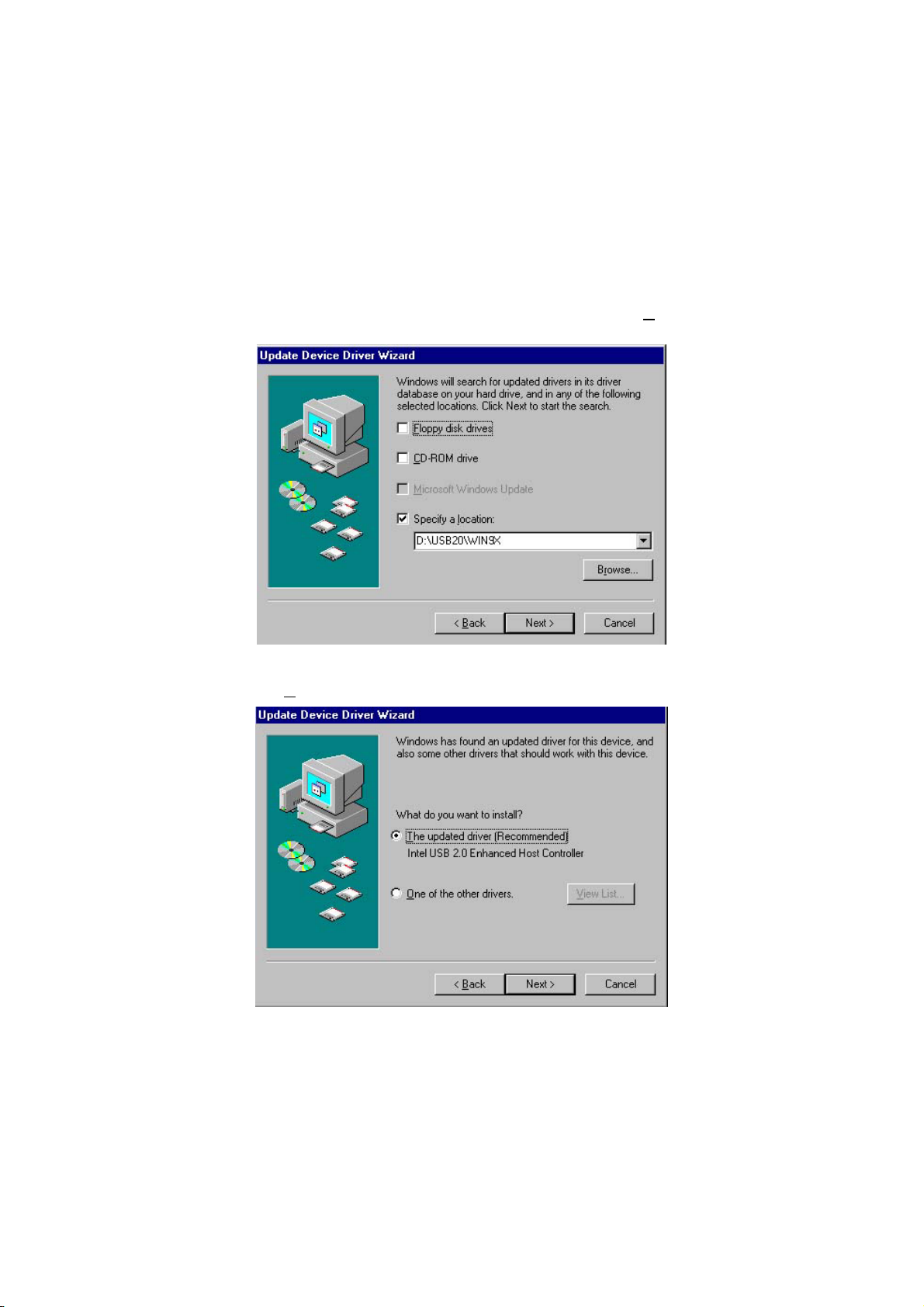

6. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the N
button to continue
7. When Setup finds the information it needs about the new driver,
it will display the device it found on the following screen. Press on
the N
ext button to accept and proceed.
ext
78
Page 85

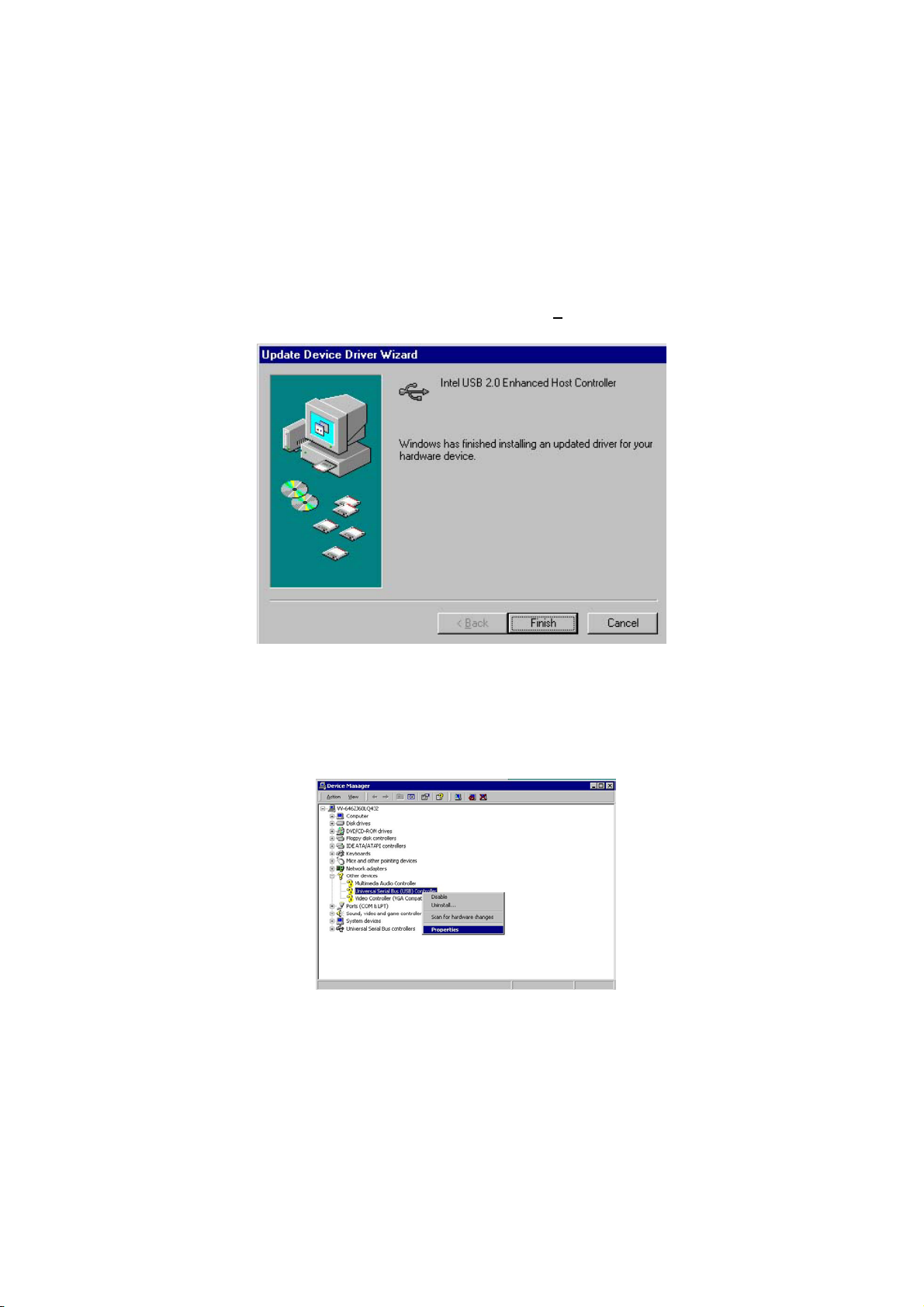

8. Once the InstallShield Wizard completes the operation and
update of your USB2.0 driver. Click on the F
complete the installation process.
inish button to
5.4.2 Win 2000
1. With the Utility CD Disk still in your CD ROM drive, right click on
“My Computer” icon from the Windows menu. Select on System
Properties and then proceed to the Device Manager from the
main menu.
2. Select on Other Devices from the list of devices then double-click
on PCI Universal Serial Bus.
79
Page 86

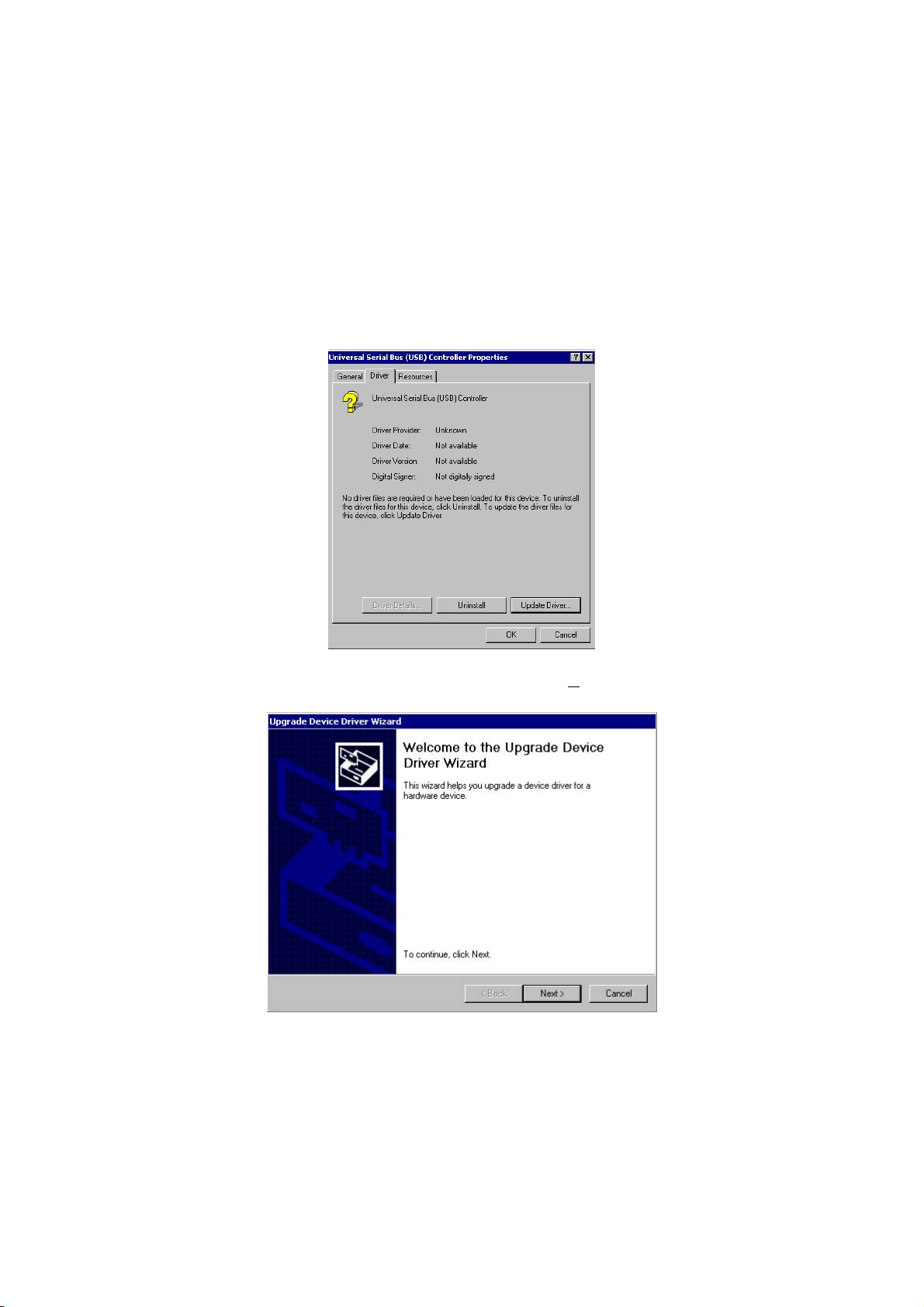

3. The PCI Universal Serial Bus Properties screen then appears,
allowing you to re-install the driver. Select Driver from the main
menu to proceed.
4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to
80
Page 87

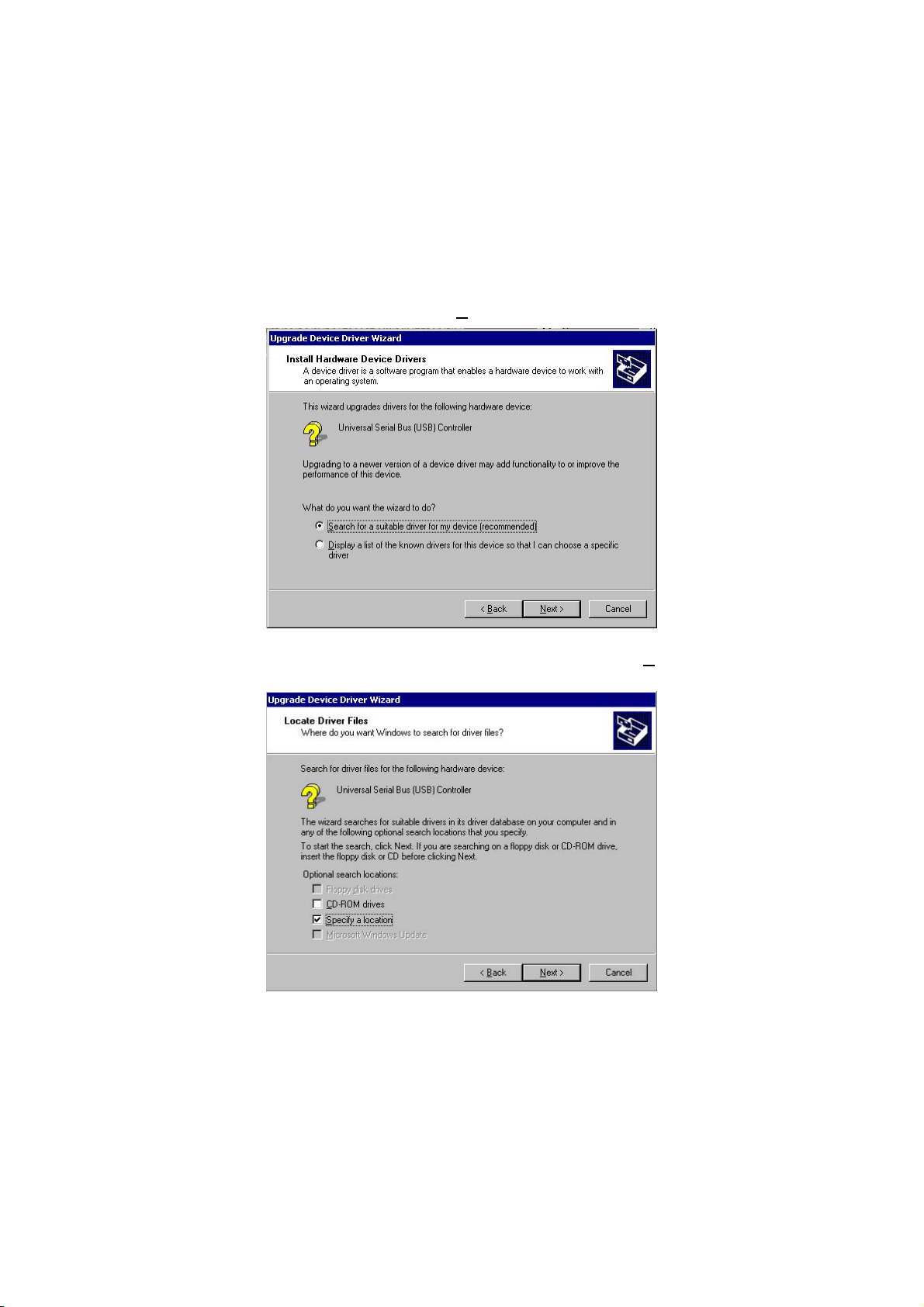

5. Tick on the “Search for a suitable driver” once the following
screen appears. Click on the N
6. Once the program returns to the Add New Hardware Wizard
screen, your specified location will appear. Press on the N
button to continue
ext to proceed.
ext
81
Page 88

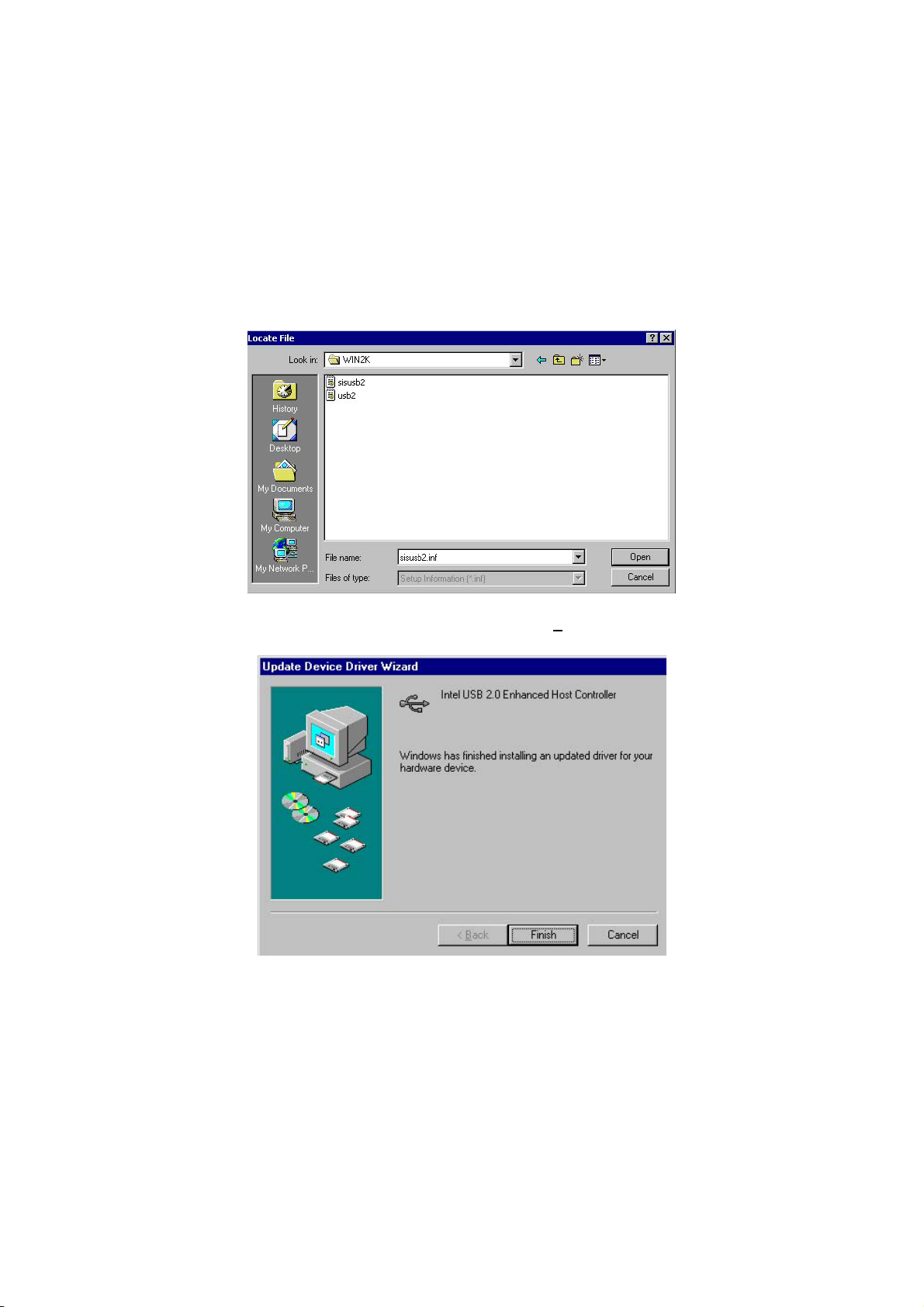

7. Choose sisusb2.inf and press on the Open button to accept and
proceed.
8. Once the InstallShield Wizard completes the operation and
update of your USB2.0 driver. Click on the F
complete the installation process.
inish button to
82
Page 89
5.4.3 Win XP
1. Insert Utility CD Disk to your CD ROM drive. The main menu will
pop up as shown below. Select on the HS-7001 button to launch
the installation program.
2. Click on the USB2.0 Driver button to continue.
83
Page 90

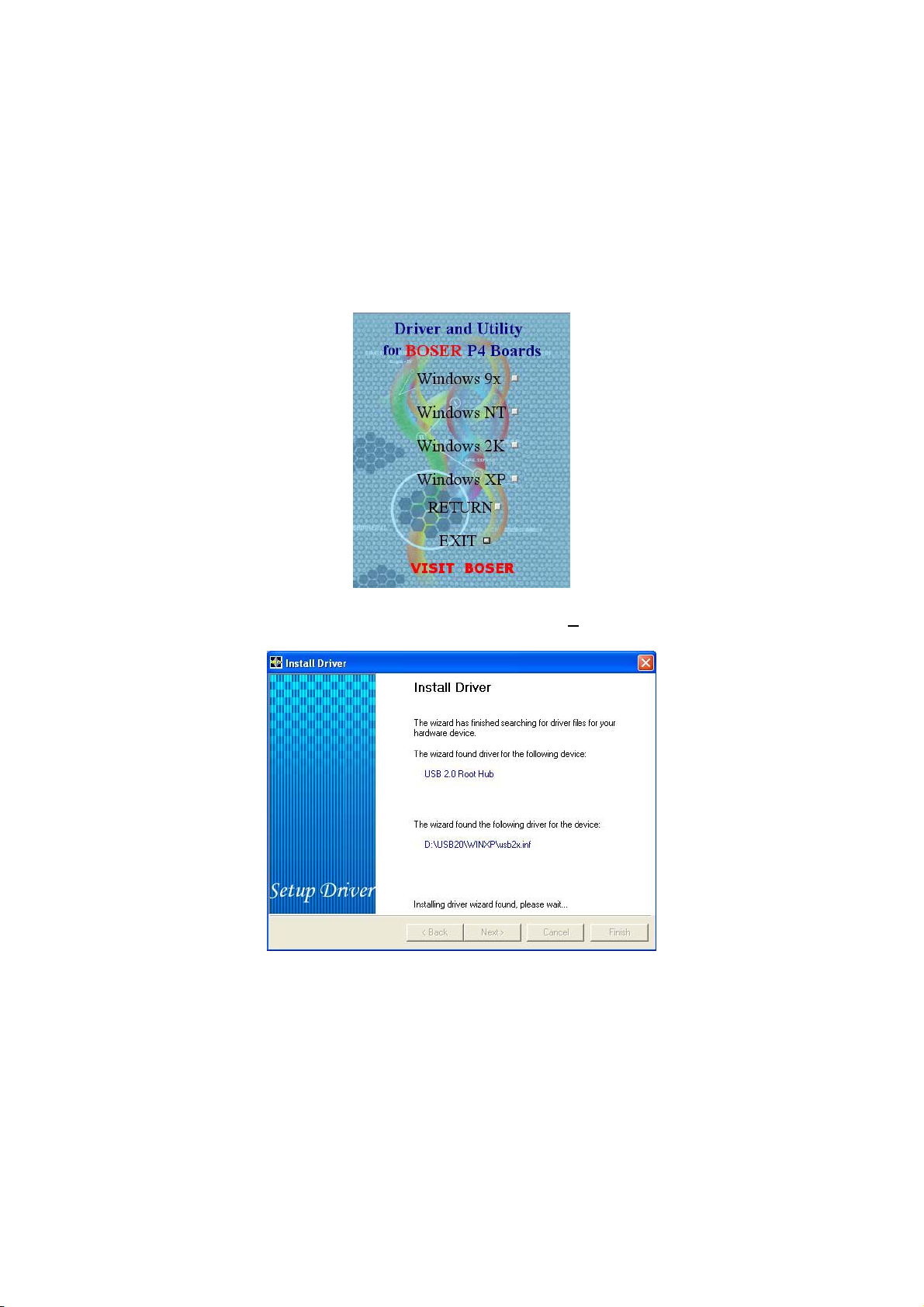

3. Click on the Windows XP button to continue.
4. When the dialog box below appears, make sure you close all
other Windows applications then click on the N
proceed.
ext > button to
84
Page 91

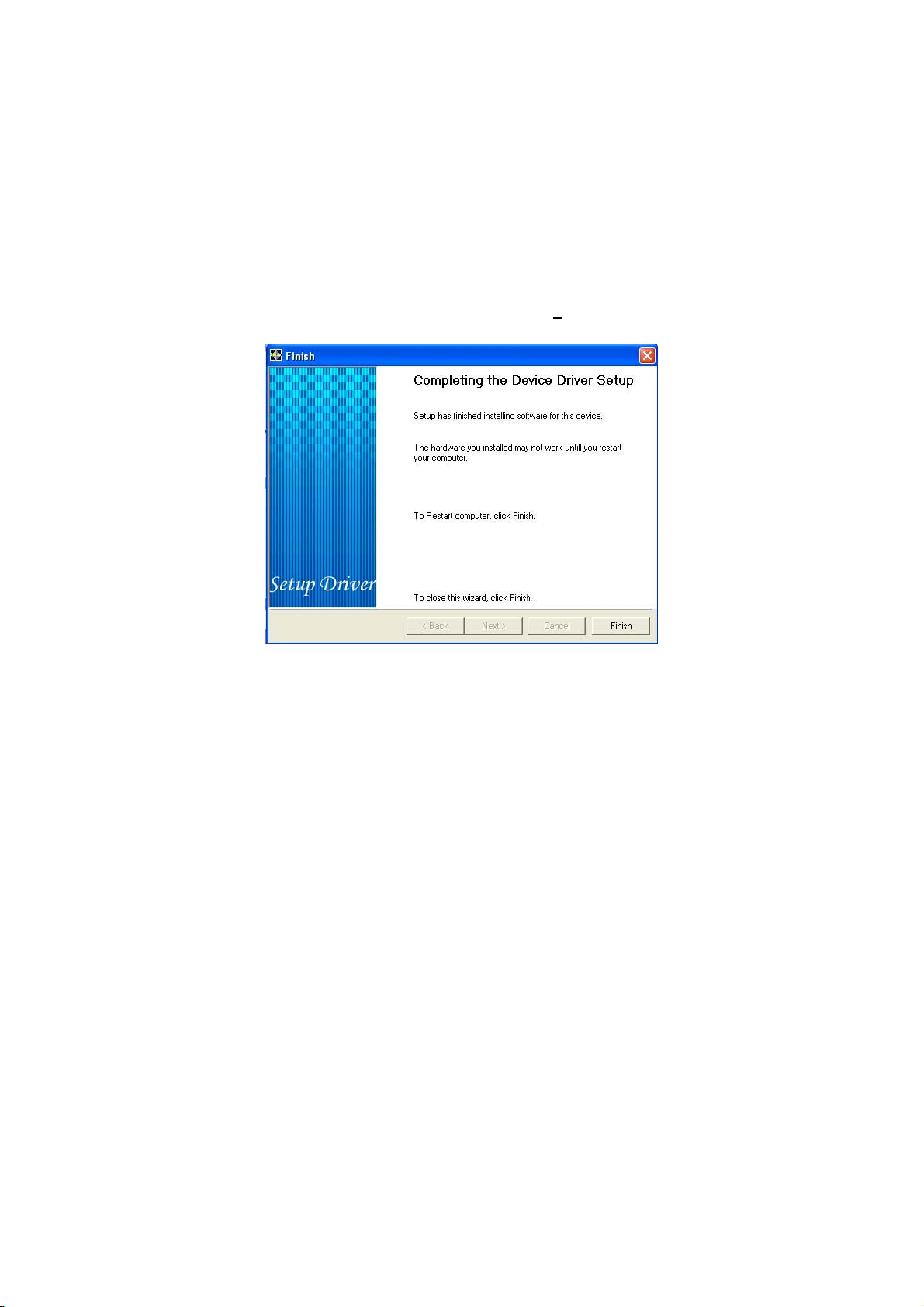

5. Once the InstallShield Wizard completes the operation and
update of your USB2.0 driver. Click on the F
complete the installation process.
inish button to
85
Page 92
This page is intentionally left blank.
86
Loading...
