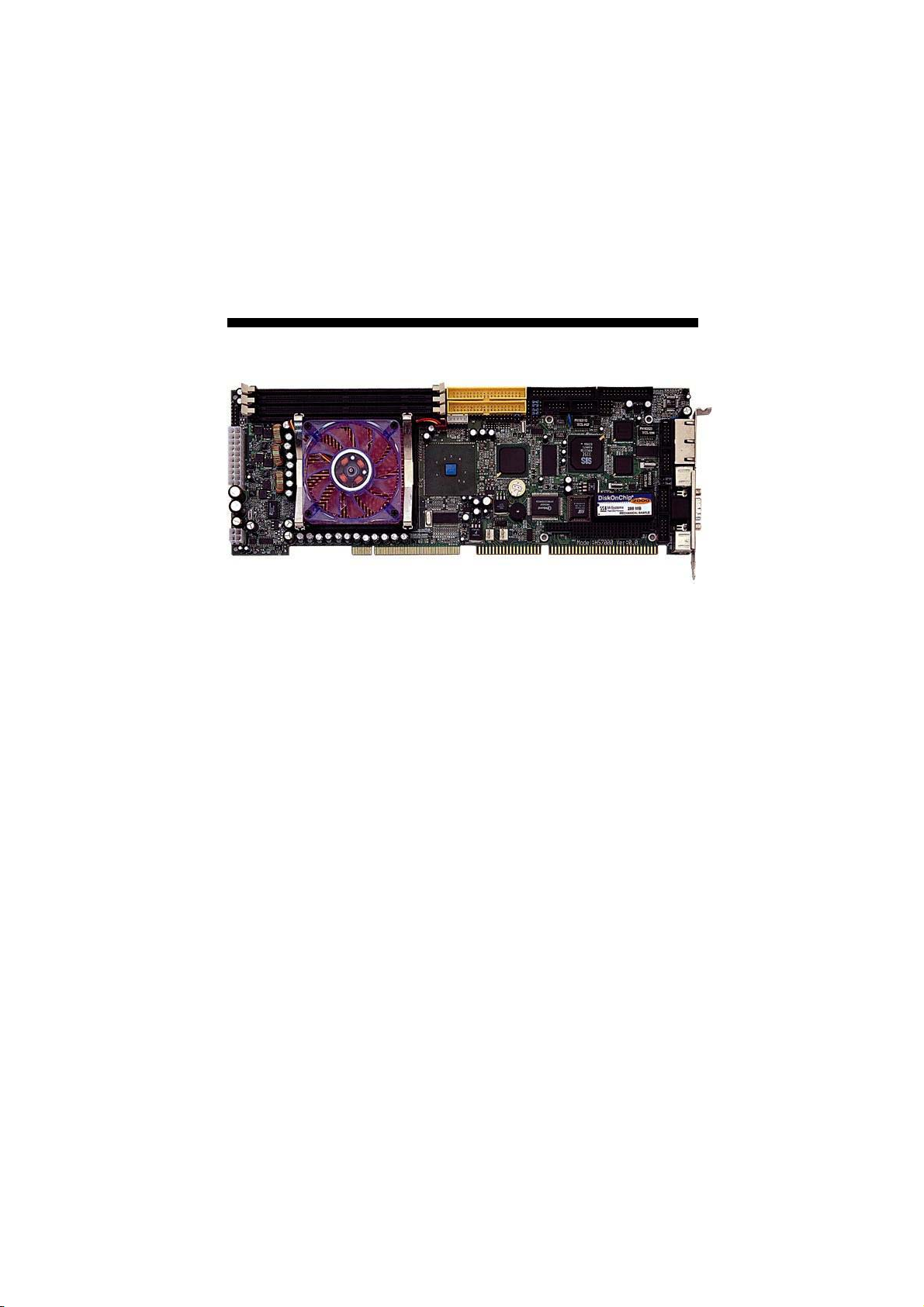

HS-7000

PGA 478 Pentium® 4

Industrial Single Board Computer

Full-size•All-in-One•CRT•ATA/33/66/100•

•

•Three LAN•Audio•PC/104•IrDA•USB•

DOC•WDT•H/W Monitor•

•

•PICMG Bus Industrial Single Board computer•

Page 2

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd.

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. AMI is a registered trademark of AMI Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

reserves the right to change or improve the

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Page 3

Table of Contents

Chapter 1 General Description .........................................1

1.1 Major Features ................................................................ 2

1.2 Specifications .................................................................. 3

1.3 Board Dimensions........................................................... 4

Chapter 2 Unpacking .........................................................5

2.1 Opening the Delivery Package........................................ 5

2.2 Inspection ........................................................................ 5

Chapter 3 Hardware Installation ....................................... 7

3.1 Before Installation............................................................ 7

3.2 Board Layout................................................................... 8

3.3 Jumper List...................................................................... 9

3.4 Connector List ................................................................. 9

3.5 Configuring the CPU ..................................................... 10

3.6 System Memory ............................................................ 10

3.7 DiskOnChip Address Setting......................................... 11

3.8 VGA Controller .............................................................. 13

3.9 SMI Signal Input Switch ................................................ 13

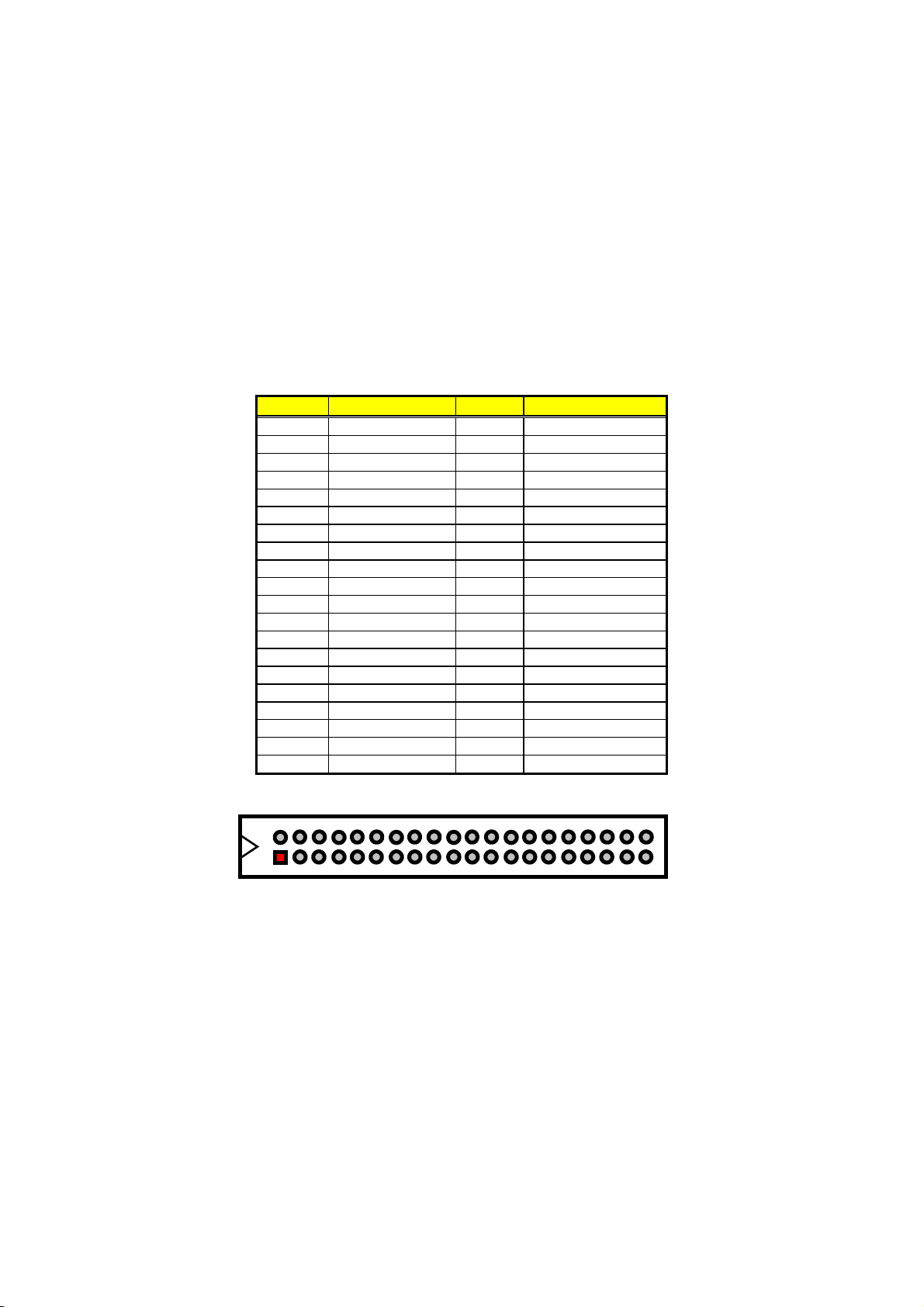

3.10 PCI E-IDE Drive Connector......................................... 14

3.11 Floppy Disk Drive Connector ...................................... 15

3.12 Serial Port Connectors ................................................ 16

3.13 Parallel Connector....................................................... 18

3.14 Ethernet Connector ..................................................... 18

3.15 USB Connector ........................................................... 19

3.16 CMOS Data Clear ....................................................... 20

3.17 Power and Fan connectors ......................................... 20

3.18 Keyboard Connector ................................................... 22

3.19 Mouse Connector........................................................ 22

3.20 System Front Panel Connectors ................................. 23

3.21 External Speaker......................................................... 24

3.22 watchdog Timer........................................................... 24

3.23 Audio Connectors........................................................ 26

3.24 PC/104 Connectors..................................................... 27

Page 4

Chapter 4 AMI BIOS Setup ..............................................29

4.1 Starting Setup................................................................ 29

4.2 Using Setup................................................................... 30

4.3 Main Menu..................................................................... 31

4.4 Standard CMOS Setup ................................................. 33

4.5 Advanced CMOS Setup ................................................ 36

4.6 Advanced Chipset Setup............................................... 39

4.7 Power Management Setup............................................ 40

4.8 PCI/Plug and Play Setup............................................... 42

4.9 Peripheral Setup............................................................ 43

4.10 Hardware Monitor Setup ............................................. 45

4.11 Auto-Detect Hard Disks............................................... 46

4.12 Change Supervisor/User Password............................ 47

4.13 Auto configuration with Optimal Settings .................... 48

4.14 Optimal Configuration with Fail Safe Settings............. 49

4.15 Save Settings and Exit ................................................ 50

4.16 Exit Without Saving ..................................................... 51

Chapter 5 Software Utilities ............................................52

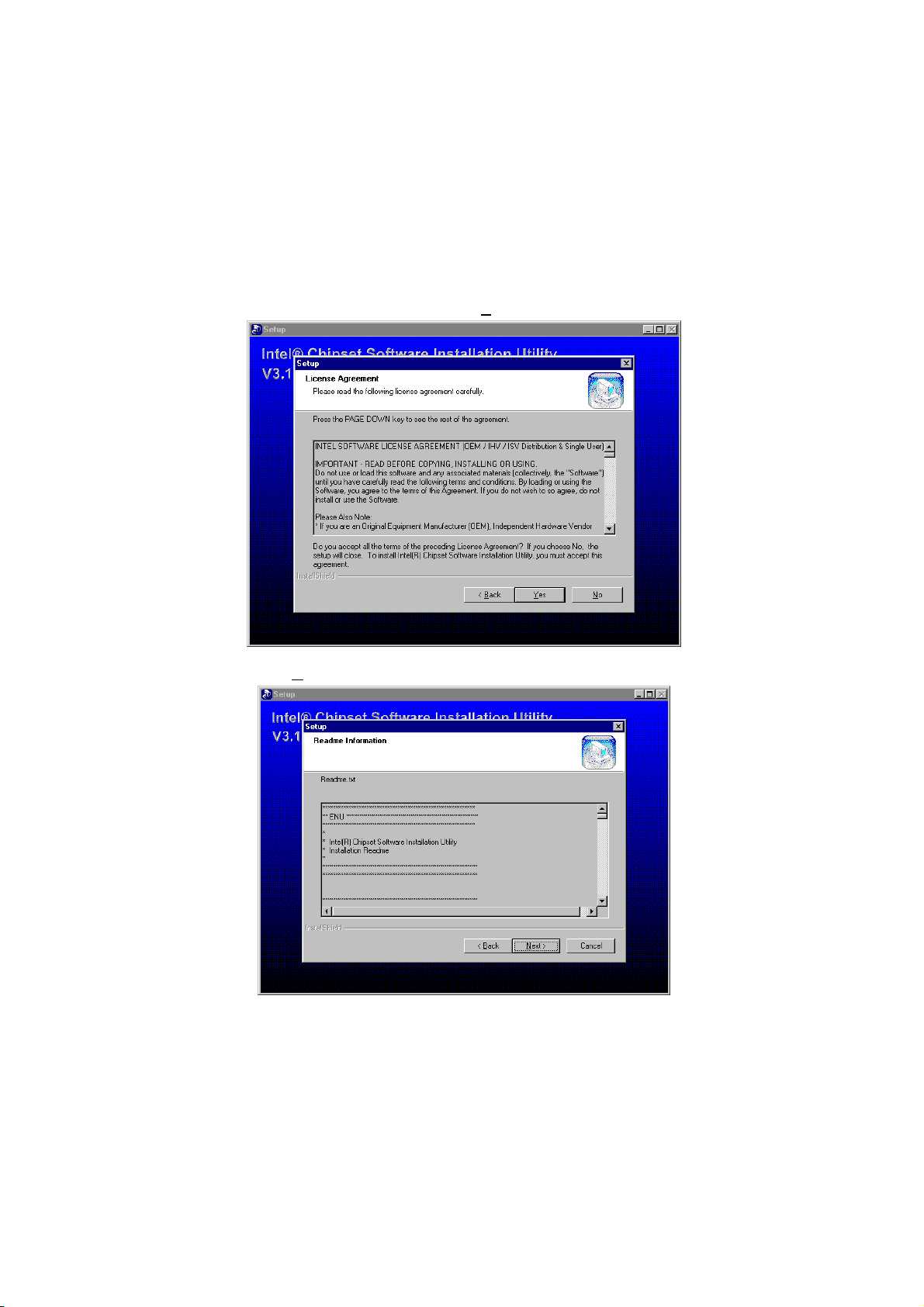

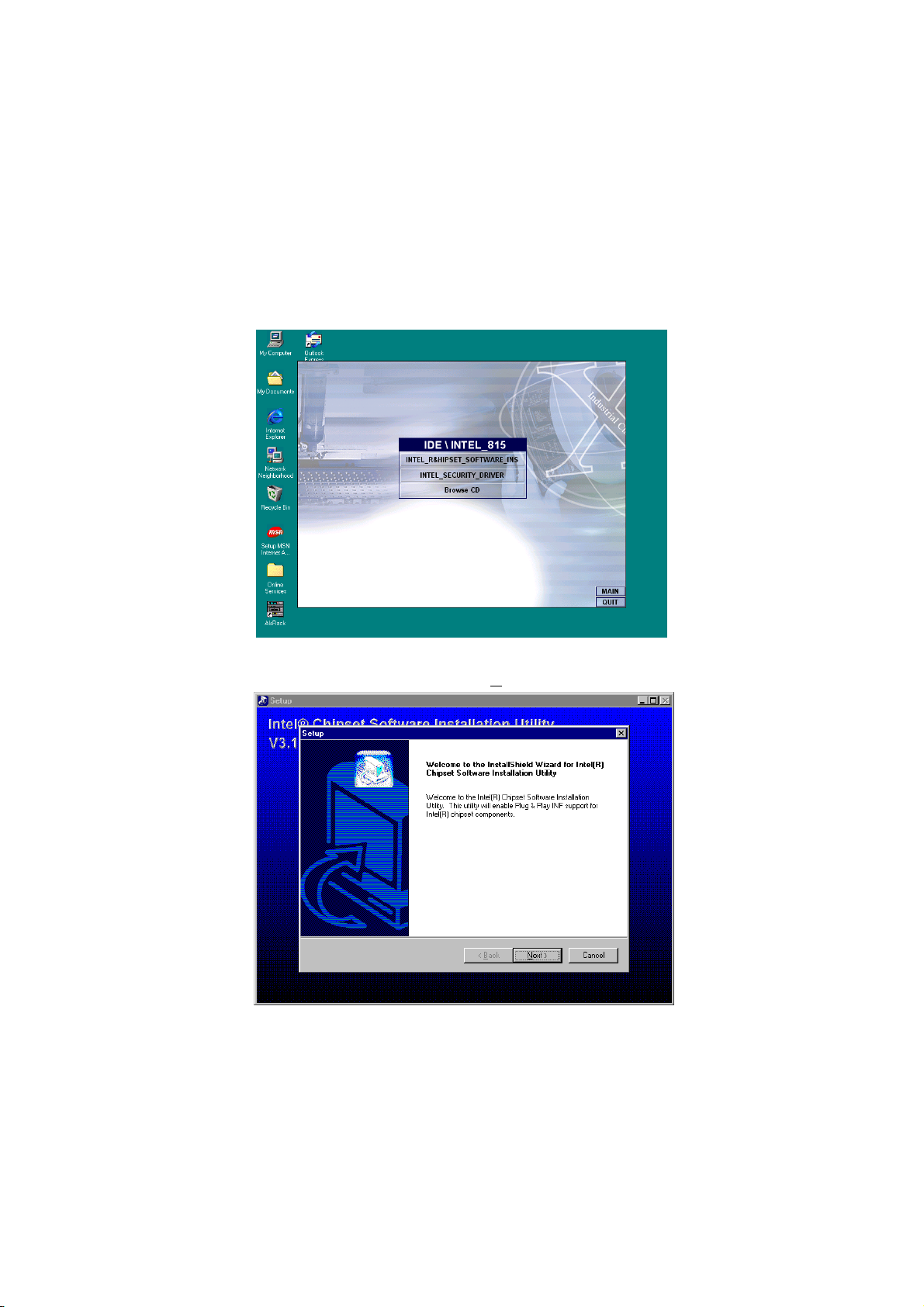

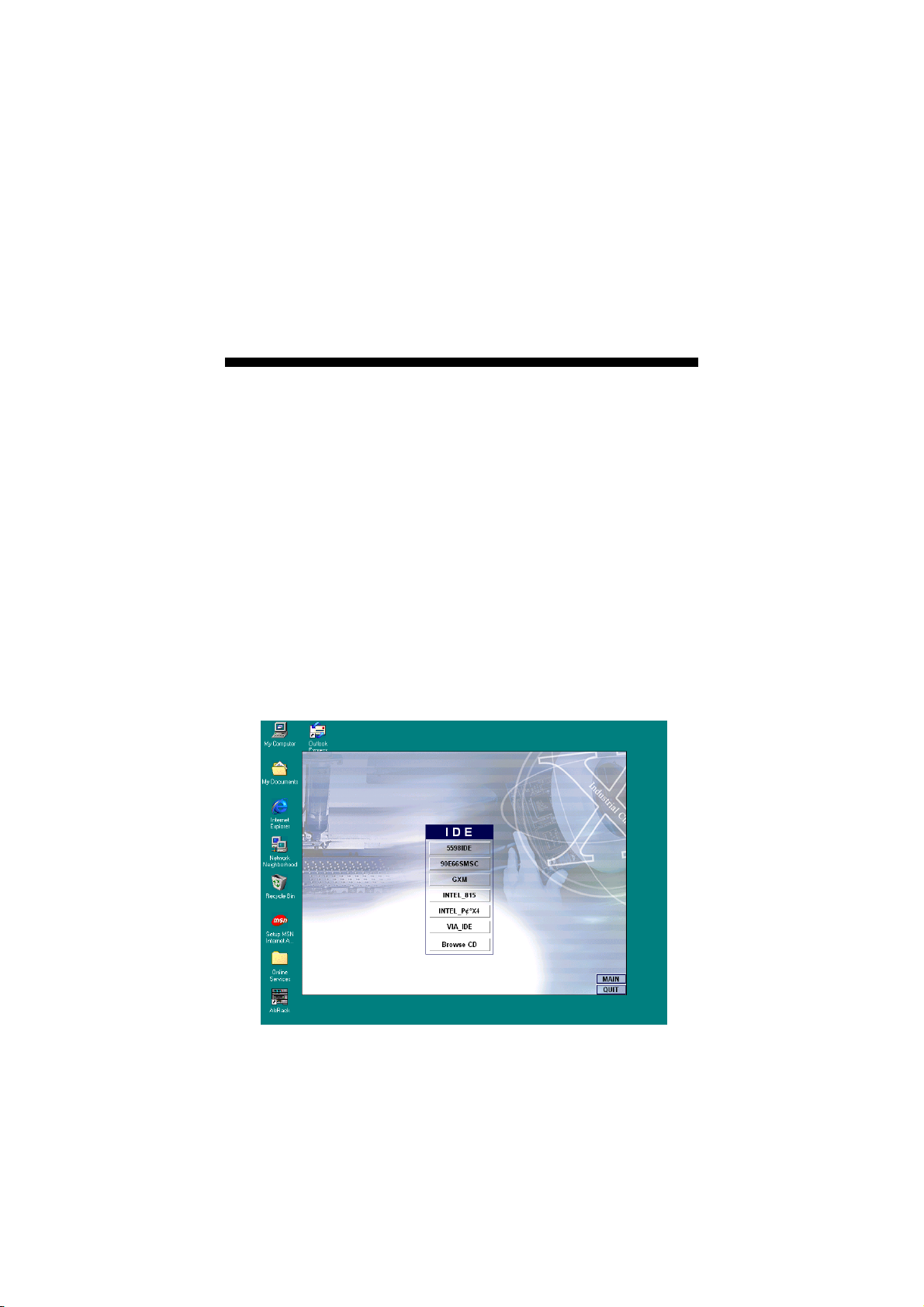

5.1 IDE Driver Installation ................................................... 52

5.2 VGA Driver Installation for Win 95/98 ........................... 58

5.3 LAN Driver Installation .................................................. 60

5.4 Audio Driver Installation ................................................ 80

Page 5

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:



Do not remove boards or integrated circuits from their anti-static packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.



Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-6252 to ensure harmlessly discharge any static electricity through the strap.



Please use an anti-static pad when putting down any components or parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Page 6

Page 7

Chapter 1

General Description

The HS-7000 is an Intel® 82845 chipset-based board designed for PICMG Bus PGA 478 Intel compatibility. These features combine and make the HS-7000 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CRT, three LAN and 2 COM ports interface.

Its onboard ATA/33/66/100 to IDE drive interface architecture allows the HS-7000 to support data transfers of 33, 66 or 100MB/sec. to each IDE drive connection. Designed with the Intel chipset, the board supports all PGA 478 Pentium® 4 CPU series operating at 1.2GHz to 2.2GHz. The CRT display controller is SiS 315E with 16MB or 32MB memory supporting 3D display.

Pentium® 4 1.2~2.2GHz CPU

82845 core logic

System memory is also sufficient with the three DIMM sockets that can support up to 1.5GB.

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, a DOS-compatible DiskOnChip socket with a maximum capacity of 288MB, and two external RJ-45 or three internal 5x2 connectors for 10/100 Base-TX Ethernet use.

Page 8

To ensure the reliability in an unmanned or standalone system

, the

Watchdog Timer (WDT) onboard HS-7000. If any program causes unexpected halts to the system, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt to resolve such condition.

1.1 Major Features

The HS-7000 comes with the following features:

 PGA 478 for Intel® Pentium® 4 1.2~2.2GHz CPU  Three DIMM sockets providing up to 1.5GB  Fast PCI ATA/33/66/100 IDE controller supporting four IDE disk drives 

One RS-232 and one RS-232/422/485 serial ports with 16-byte FIFO

 One enhanced bi-directional parallel port supporting SPP/ECP/EPP

modes

 Onboard PS/2 Keyboard and PS/2 Mouse connectors  Onboard Winbond 83627 super I/O chipset  SiS 315E with 16MB or 32MB memory supporting 3D display  Two Intel  DiskOnChip memory size up to 288MB  PC/104 Bus connector



82559 and Intel 82562 10/100 Based three LAN

Page 9

1.2 Specifications



CPU: PGA 478 for Intel® Pentium® 4 1.2~2.2GHz CPU



Bus Interface: PICMG Bus



Memory: Three DIMM sockets providing up to 1.5GB



Chipset: Intel® 82845/82801BA



I/O Chipset: Winbond 83627



VGA: SiS 315E with 16MB or 32MB memory supporting 3D display



IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer rates of up to 33/66/100MB/sec.

 FDD: Supports up to two floppy disk drives  Parallel: One enhanced bi-directional parallel port supporting

SPP/ECP/EPP



LAN: Two Intel® 82559 and one Intel® 82562 10/100 Based LAN



Audio: AC97 3D audio controller



Serial Port: 16C550 UART-compatible RS-232 x 1 and RS-232/422/485 x 1 serial ports with 16-byte FIFO

 PC/104: PC/104 connector for 16-bit ISA Bus  IrDA: One IrDA TX/RX header  USB: Four USB connectors 

Keyboard:



Mouse:



DiskOnChip:

288MB



BIOS: AMI PnP Flash BIOS



Watchdog Timer: Jumper selectable for system Reset and NMI; software programmable time-out intervals from 1~256 sec.



CMOS:



Fuse:



DMA Channels: 7



Interrupt Levels:



Power Connector: One 4-pin and one 20-pin ATX power connector



Operating Temperature: 0~60°C



Hardware Monitor: Winbond W83627



Board Size: 33.6 x 12.1 cm

PS/2 6-pin Mini DIN or 5-pin connector

PS/2 6-pin Mini DIN

Battery backup

Automatically resumes poly switch resettable fuse

DiskOnChip socket supporting memory sizes of up to

Page 10

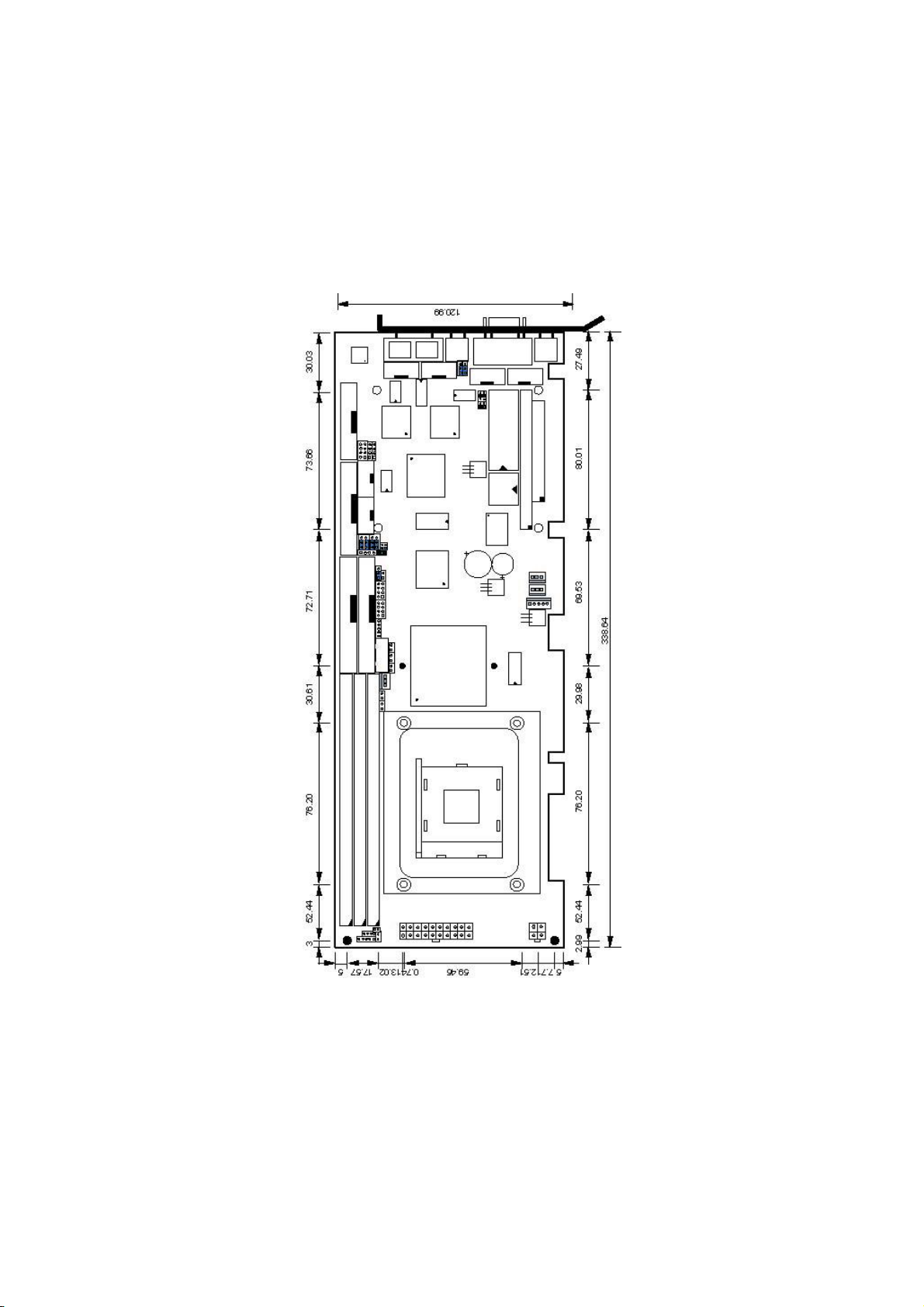

1.3 Board Dimensions

Page 11

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-7000 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-7000 delivery package contains the following items:



HS-7000 Board x 1

 Utility CD Disk x 1 

ATA/100 IDE flat cable x 2

 FDD flat cable x 1 

Printer cable with bracket x 1

 Two RS-232 COM Port cable with bracket x 1 

8-pin USB split type cable with bracket x 1

 MIC/Audio IN 8-pin cable x 1 

10-pin LAN flat cable x 1

 ATX 5-pin power cable x 1 

Jumper Bag x 1

 User’s Manual

Page 12

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Page 13

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-7000. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper. (Set JP1 1-2)

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections on this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

4. Make sure your power supply is using for P4 only. One of 4-pin connector is for +12V lead which should connect to J2 connector of HS-7000.

Page 14

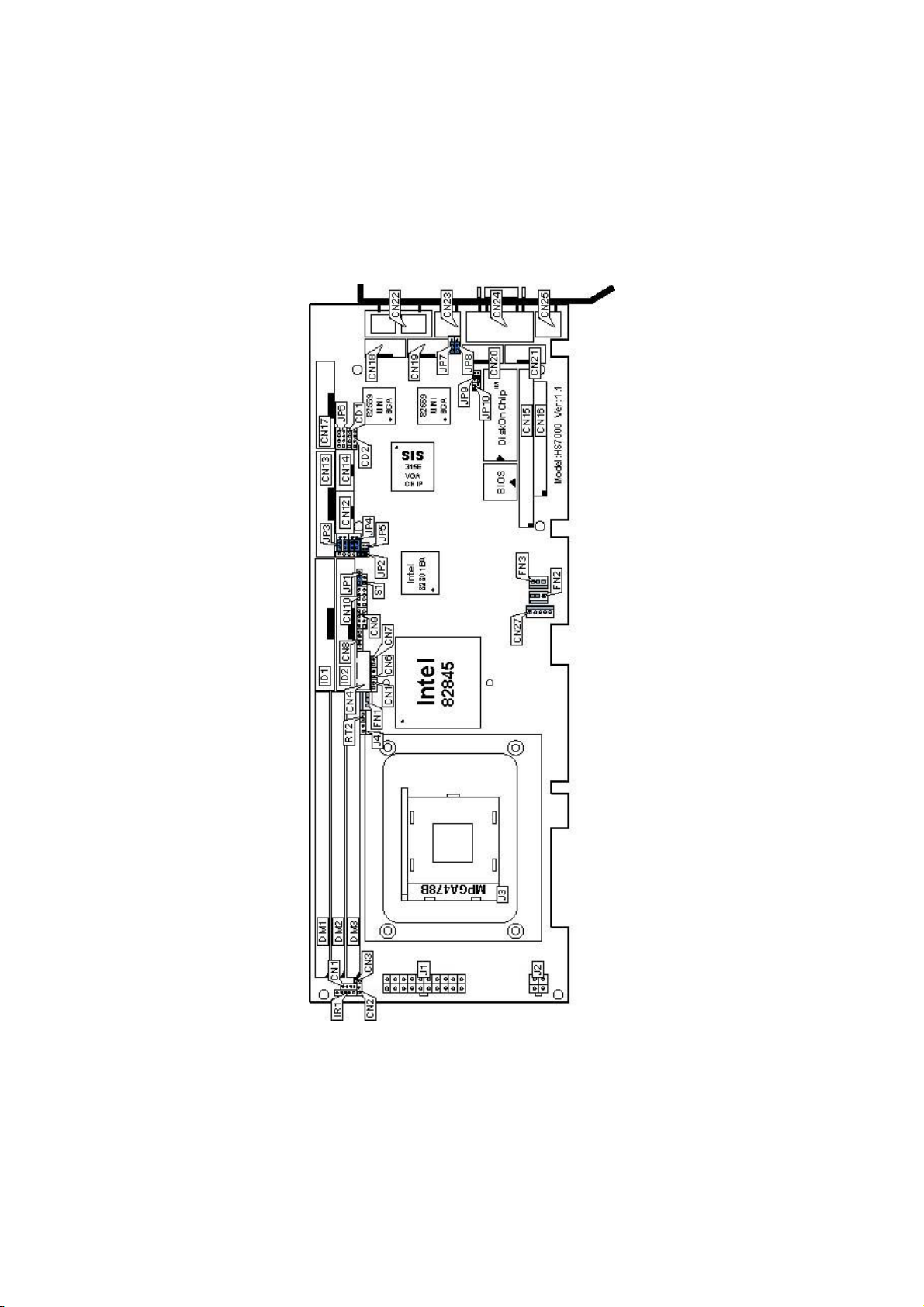

3.2 Board Layout

Page 15

3.3 Jumper List

Jumper

JP1 Clear CMOS: 2-3 1-2 JP2 RS-422/485 Enable/Disable: Enable Short JP3 RS-232/422/485 Function: RS-232 1-3, 2-4 Short JP4 RS-232/422/485 Function: RS-232 1-3, 2-4 Short JP5 RS-422/485 Transceiver Enable/Disable: Enable 3-4 Short JP7 JP8 LAN3 Enable/Disable: Enable 1-2 Short JP9 DiskOnChip Address Select: D000 3-4 Short

JP10 DiskOnChip Address Select: D000 1-2 Short

LAN2 Enable/Disable: Enable 1-2 Short

Default Setting Setting

3.4 Connector List

Connector Definition Page

CD1 Line In Analog Input Connector 26 CD2 CD Analog Input Connector 26 CN1 Speaker Connector 24 CN2 Reset Connector 23 CN3 Green LED Connector 23 CN4 5-pin Keyboard Connector 22 CN5 2-pin ATX Power ON/OFF Switch 20 CN6 SMI Switch Connector 13 CN7 HDD LED Connector 23 CN8 Keylock Connector 23 CN9 USB3, USB4 Connector 19

CN10 CN12 RS-422/485 Connector (5x2 header) 16 CN13 Floppy Connector 15 CN14 LAN3 Connector 18 CN15 PC/104 64-pin Connector 27 CN16 PC104 40-pin Connector 27 CN17 Parallel Connector 18 CN18 LAN1 Connector 18 CN19 LAN2 Connector 18 CN20 COM1 Connector 16 CN21 COM2 Connector 16 CN22 Dual RJ-45 Connector 18

USB1, USB2 Connector 19

. . . More on next page . . .

Page 16

Connector Definition Page

CN23 PS/2 6-pin Mini DIN Mouse Connector 22 CN24 CRT Connector 13 CN25 PS/2 6-pin Mini DIN Keyboard Connector 22 CN26 COM1 Connector (DB9) 16 CN27 5-pin ATX Power Control 20

FN1 Chassis Fan 20 FN2 CPU Fan 20 FN3

ID1 IDE1 Connector 14 ID2 IDE2 Connector 14 IR1 IrDA Connector 16

J1 20-pin ATX Power Connector 20 J2 4-pin ATX Power Connector 20

JP6 MIC In/Audio Out 26

S1 Case Open Connector 20

PWR Fan 20

3.5 Configuring the CPU

The HS-7000 offers the convenience in CPU installation with its auto-detect feature. After installing a new microprocessor onboard, the HS-7000 automatically identifies the frequency and clock speed of the installed microprocessor chip, thereby eliminating the need for user to do additional CPU configuration or hardware settings related to it.

3.6 System Memory

The HS-7000 provides three DIMM sockets at locations

. The maximum capacity of the onboard memory is 1.5GB. Please

DM3

DM1, DM2

and

note that only memory modules complying with PC100 or PC133 standard are compatible with the HS-7000.

Page 17

3.7 DiskOnChip Address Setting

The DiskOnChip function allows the system to boot or operate without a FDD or a HDD. DiskOnChip modules may be formatted as drive C or A. With DiskOnChip, user may also execute DOS commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and DISKCOMP etc.

The U24 location onboard the HS-7000 is the DiskOnChip module socket. Jumper

JP9 & JP10

the installed module. If you have another memory device that has a similar memory capacity with that of the DOC in your system, please set both at different memory address mapping to avoid the mapping area conflicts. Failing to do so will not make the HS-7000 and the additional memory device function properly.

 JP9, JP10: DiskOnChip Address Select

Address JP9 JP10

D000 (default)

D800 5-6 Short 1-2 Short

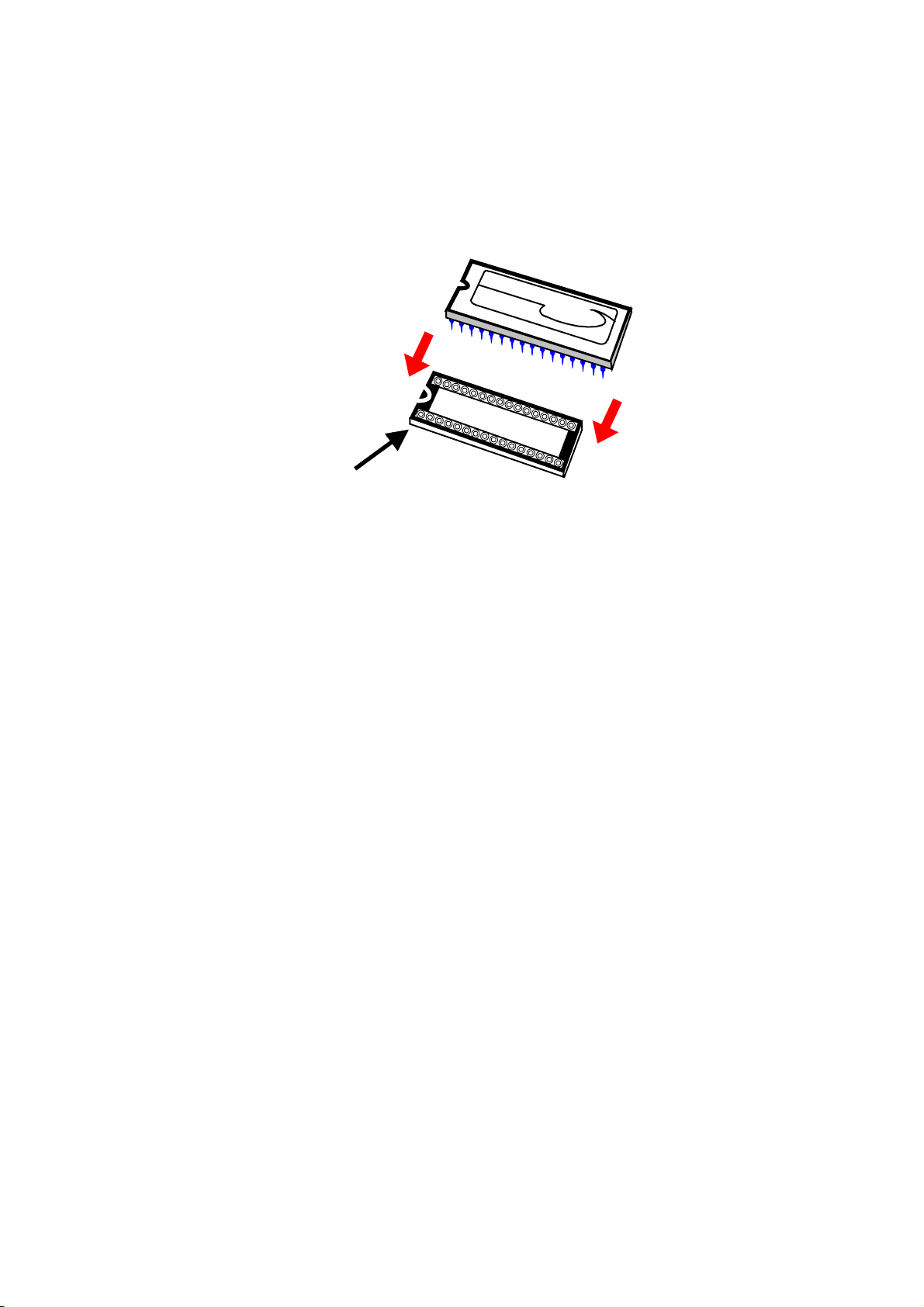

3.7.1 Installing DiskOnChip Modules

When installing a DiskOnChip module onto your board, please take note of the following:

1. Orient yourself properly with the location of the DiskOnChip socket. Try to locate the pin 1 location on your socket. Pin numbers are usually printed on either the component side or the solder side of your board.

2. Locate the Pin 1 location on your DiskOnChip module. More often than not, Pin 1 can be found on the lower right corner of the chip. Please refer to the diagram for the exact location.

3. Once you have figured out where the pin 1 locations are on both chip and socket, align the module’s pins on an upright angle against the socket. Using both thumbs, gently press the module into the socket until all the pins are secured to their designations.

assigns the starting memory address of

3-4 Short 1-2 Short

Page 18

Pin 1

Location

4. The installation is now complete and your module is now ready for use.

NOTE:

If you encounter difficulty installing your DiskOnChip

module,



please consult a qualified technician or engineer to perform the installation.

3.7.2 Removing DiskOnChip Modules

When removing a DiskOnChip module from its socket, please take note of the following:

1. Loosen the contact of the module from its socket using a screwdriver.

2. Insert the screwdriver’s flat head into a gap on either end of the socket. Do not insert the screwdriver head on either side where the pins are located. Doing so might damage the pins in the process.

3. Slowly lift the screwdriver handle upwards. This will disengage the module from its socket.

NOTE:

If you encounter difficulty removing your DiskOnChip please consult a qualified technician or engineer to remove it for you.

module,



Page 19

3.8 VGA Controller

The onboard SiS 315E with 16MB or 32MB memory supporting 3D display and CRT displays. The HS-7000 provides one connection method of a VGA device.

offers a single standard CRT connector

CN24

(DB15).

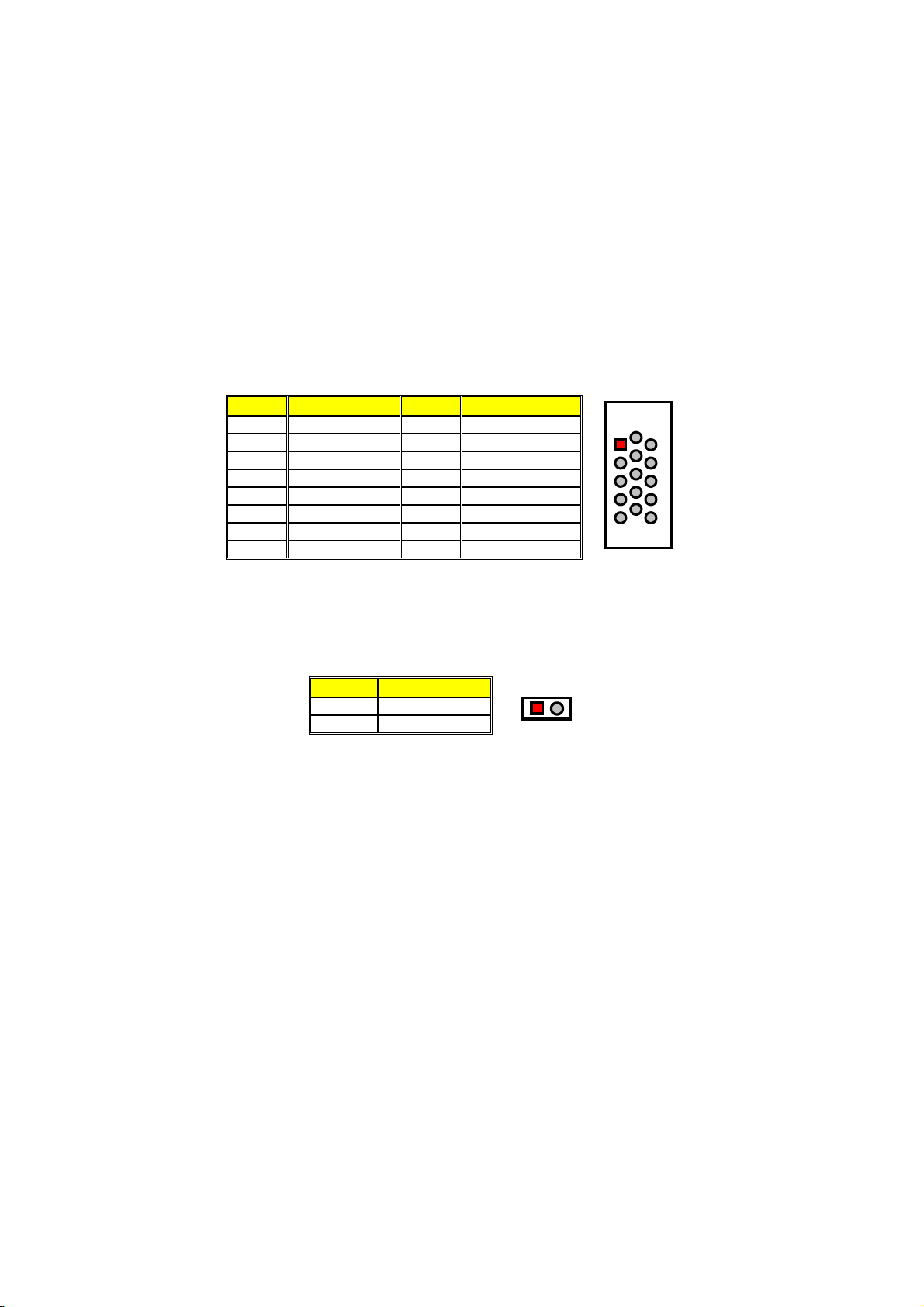

 CN24: 15-pin CRT Connector (DB15)

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 N/C 5 GND 6 GND 7 GND 8 GND

9 N/C 10 GND 11 N/C 12 DDCDATA 13 HSYNC 14 VSYNC 15 DDCK

3.9 SMI Signal Input Switch

HS-7000 has an SMI connector at location

. If there is an external

CN6

SMI Signal Input Switch, this input switch will be able to receive signals.



CN6: SMI Signal Input Switch

PIN Description

1 EXT_SMI 2 GND

Page 20

3.10 PCI E-IDE Drive Connector

IDE1

and

are standard 40-pin connector daisy-chain driver

IDE2

connector serves the PCI E-IDE drive provisions onboard the HS-7000. A maximum of four ATA/33/66/100 IDE drives can connect to the HS-7000 via

IDE1

and

IDE2

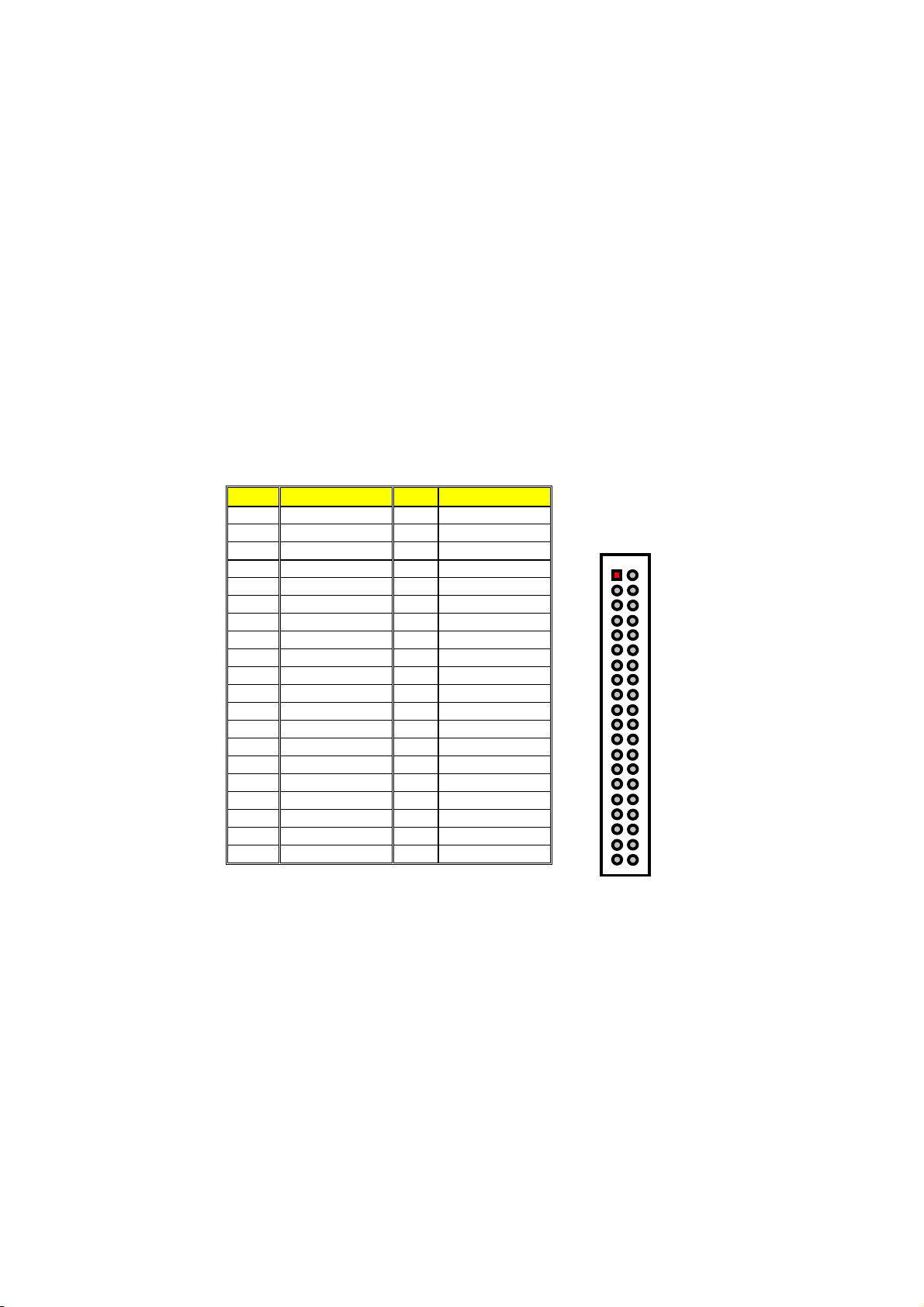

 IDE1 and IDE2: IDE Connector

PIN Description PIN Description

1 3 DATA 7 4 DATA 8 5 DATA 6 6 DATA 9 7 DATA 5 8 DATA 10 9 DATA 4 10 DATA 11

11 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GND 20 N/C 21 23 IOW# 24 GND 25 IOR# 26 GND 27 PIORDY 28 PR1PD1- 29 RPDACK- 30 GND 31 IRQ 32 N/C 33 RPDA1- 34 PATA66 35 RPDA0- 36 RPDA2- 37 RPCS1- 38 RPCS3- 39 IDE LED 40 GND

RESET

DATA 3

PDREQ

GND

DATA 12

GND

46810

3 5 7 9 17 19 21 23 25 27 29 31

12 14

11 13 15 35 37

202224 262830

16 36

32 34

Page 21

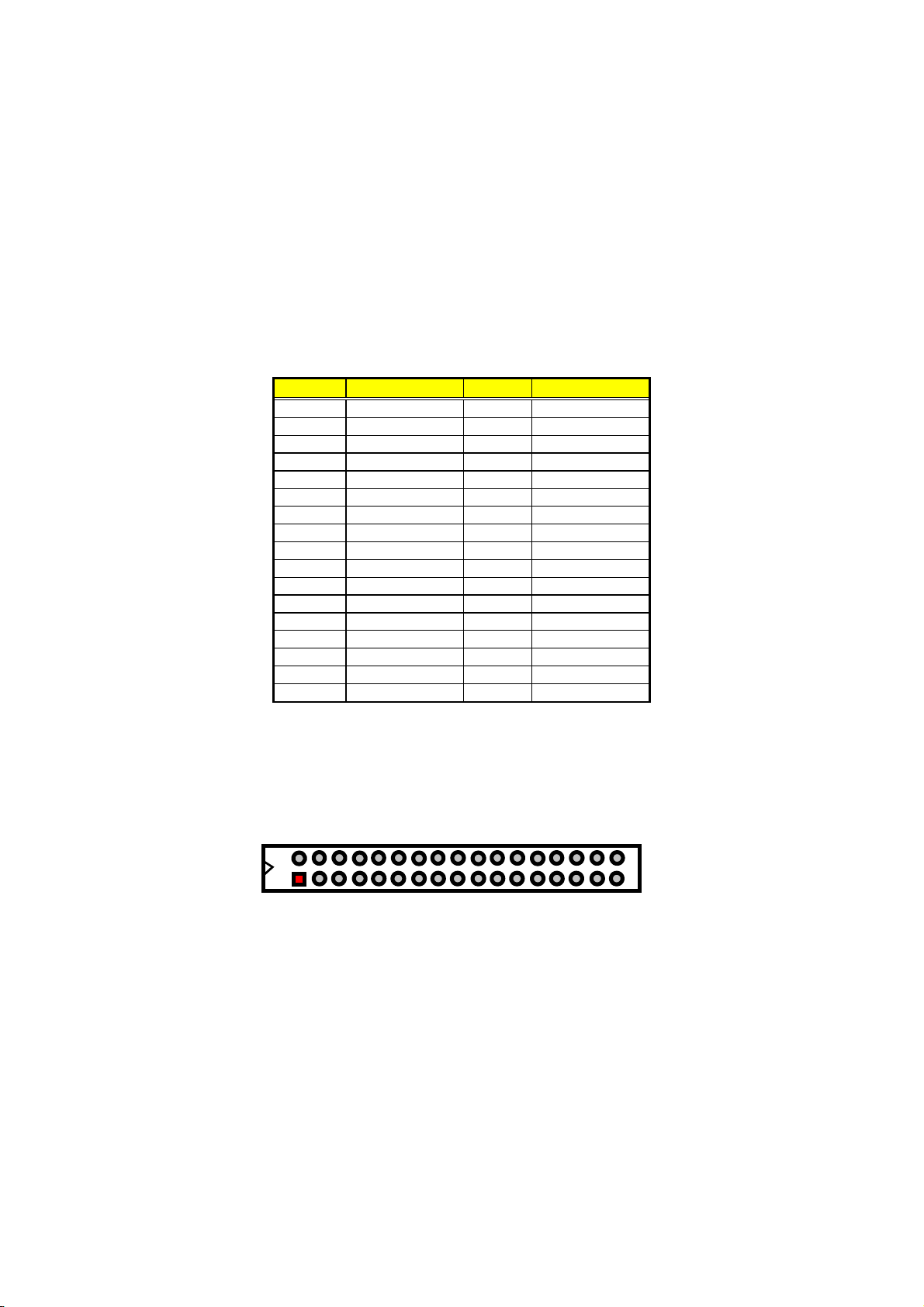

3.11 Floppy Disk Drive Connector

The HS-7000 uses a standard 34-pin header connector,

CN13

, for floppy disk drive connection. A total of two FDD drives may be connected to



CN13: FDD Connector

at any given time.

CN13

PIN Description PIN Description

1 GND 2 RWC- 3 GND 4 N/C 5 GND 6 DS1- 7 GND 8 Index#

9 GND 10 Motor Enable A# 11 GND 12 Drive Select B# 13 GND 14 Drive Select A# 15 GND 16 Motor Enable B# 17 GND 18 Direction# 19 GND 20 Step# 21 GND 22 WD- 23 GND 24 WE- 25 GND 26 Track 0# 27 GND 28 WP- 29

N/C

31 GND 32 HEAD- 33 N/C 34 DSKCHG-

RDATA-

RWC-

N/C

DS1-

INDEX#

MOTOR ENABLE A#

DRIVE SELECT B#

DRIVE SELECT A#

MOTOR ENABLE B#

DIRECTION#

STEP#

WD-’WE-

TRACK 0#

WP-

RDATA-

HEAD-

DSKCHG-

GND

N/C

GND

N/C

Page 22

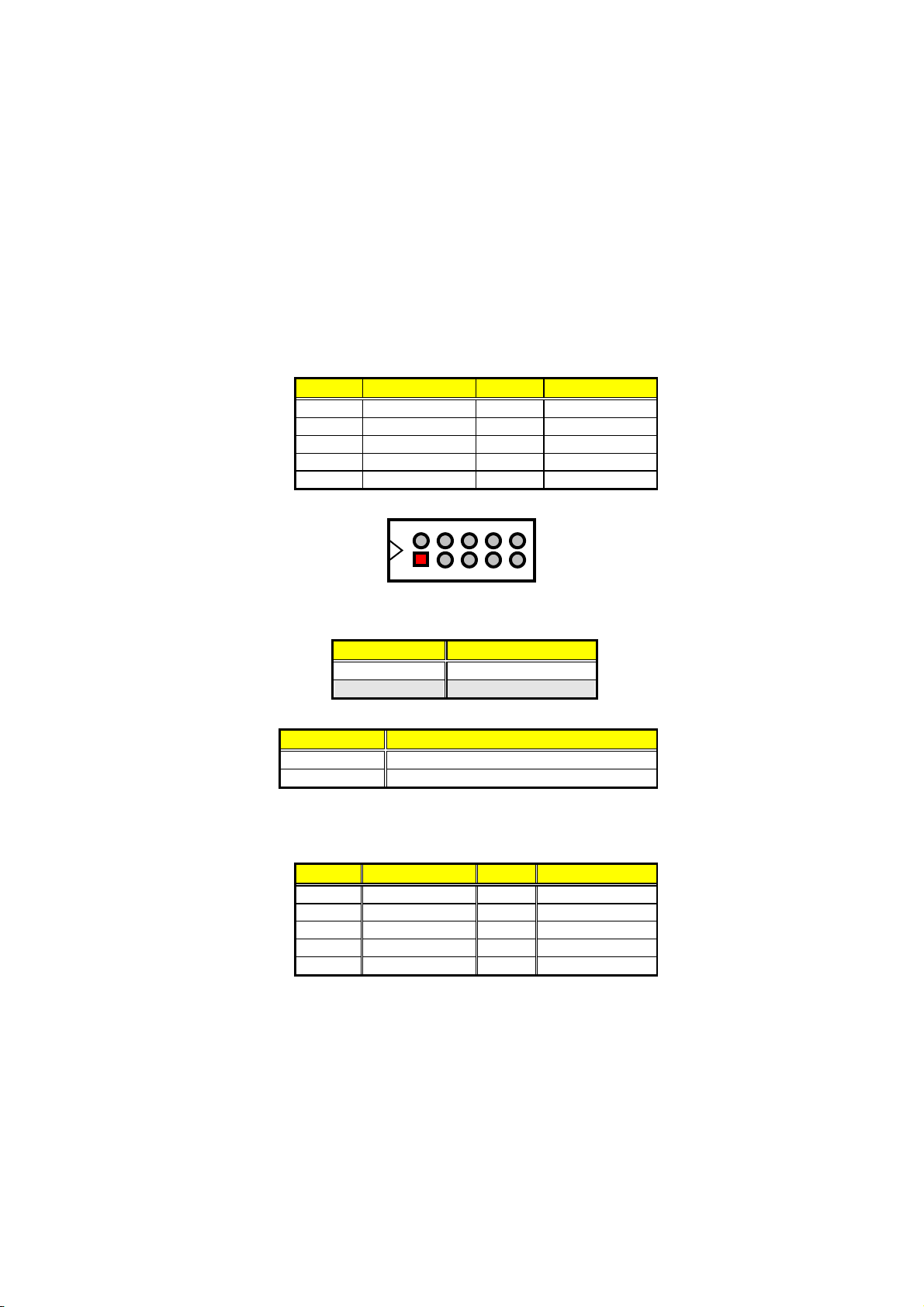

3.12 Serial Port Connectors

The HS-7000 offers ONE NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports and two internal 10-pin headers.



CN20 and CN21: COM1/COM2 Connectors (5x2 Header)

PIN Description PIN Description

1 DCD 2 DSR 3

RXD

5 TXD 6 CTX 7 DTR 8 RI 9 GND 10 N/C

DSR

RTX

246810

13579

DCD

CTX

TXD

RXD

N/C

DTR

GND

 JP2: RS-422/485 Enabled/Disabled Select

JP2 Description

Open Disabled Short Enabled (default)

 JP5: RS-422/485 Transceiver Enabled/Disabled Select

JP5 Description

Short 1-2 Always Enable Short 3-4 Enable by ”-RTS” signal

RTX

The onboard COM2 may be configured as RS-232, RS-422/485. If we RS-422/485, please connect device to CN12.

 CN12: RS-422/485 Connector

PIN Description PIN Description

1 TX- 2 TX+ 3 RX+ 4 RX-

GND

7 RTS+ 8 CTS+ 9 CTS- 10 N/C

RTS-

Page 23

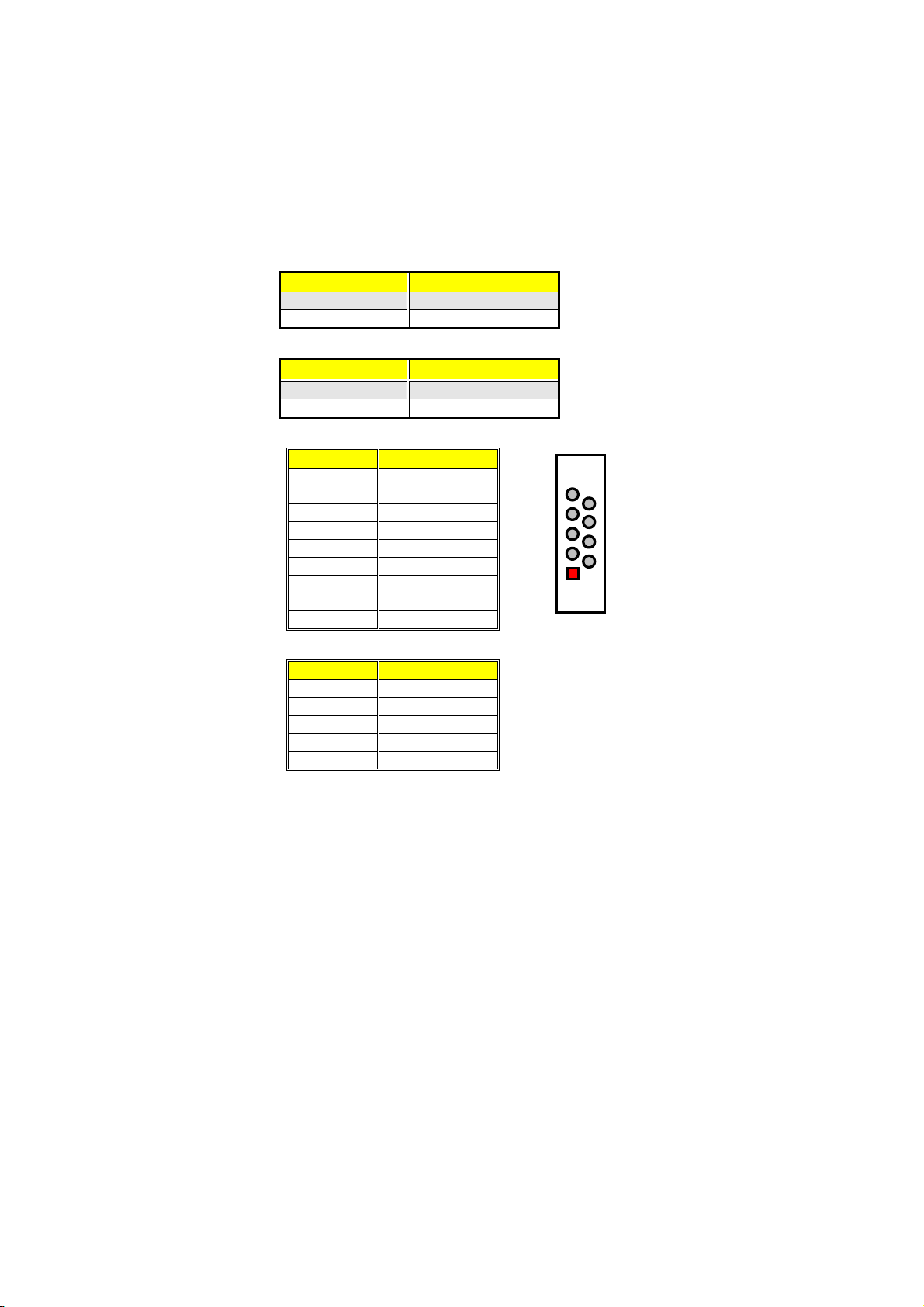

 JP3: RS-232/422/485 Function Select

JP3 Description

Short 1-3, 2-4 RS-232 (default) Short 3-5, 4-6 RS-422/485

 JP4: RS-232/422/485 Function Select

JP4 Description

Short 1-3, 2-4 RS-232 (default) Short 3-5, 4-6 RS-422/485

 CN26: COM1 Connector (DB9)

PIN Description

1 DCD 2 RXD 3 TXD 4 DTR 5

GND

6 DSR 7 RTS 8 CTS 9 RI

GND

TXD

RXD

DCD

 IR1: IrDA Connector

PIN Description

1 VCC 2 N/C 3 IRRX 4 GND 5 IRTX

DTR

CTS

RTS

DSR

Page 24

3.13 Parallel Connector

CN17

is a standard 26-pin flat cable connector deigned to

accommodate parallel port connection onboard the HS-7000.

 CN17: Parallel Connector

PIN Description PIN Description

1 Strobe 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4 7 DATA 5 8 DATA 6

9 DATA 7 10 Acknowledge 11 Busy 12 Paper Empty 13 Printer Select 14 Auto Form Feed 15 ERROR# 16 Initialize 17 SLIN# 18 GND 19 GND 20 GND 21 GND 22 GND 23 25 GND 26 N/C

GND

3.14 Ethernet Connector

The HS-7000 provides three 10/100 Base-TX LAN interface connector. Please refer to the following for its pin information.

 CN22: Dual RJ-45 Connectors (The third LAN use 5x2

Connector)

PIN Description PIN Description

1 3 1_RX+ 4 75Ω Pull GND 5 75Ω Pull GND 6 1_RX- 7 75Ω Pull GND 8 75Ω Pull GND 9 2_TX+ 10 2_TX-

11 13 75Ω Pull GND 14 2_RX15 75Ω Pull GND 16 75Ω Pull GND 17 1_LILED- 18 1_LILED+ 19 1_ACTLED- 20 1_ACTLED+ 21 2_SPLED- 22 2_SPLED+ 23 2_ACTLED- 24 2_ACTLED+

1_TX+

2_RX+

1_TX-

75Ω Pull GND

Page 25

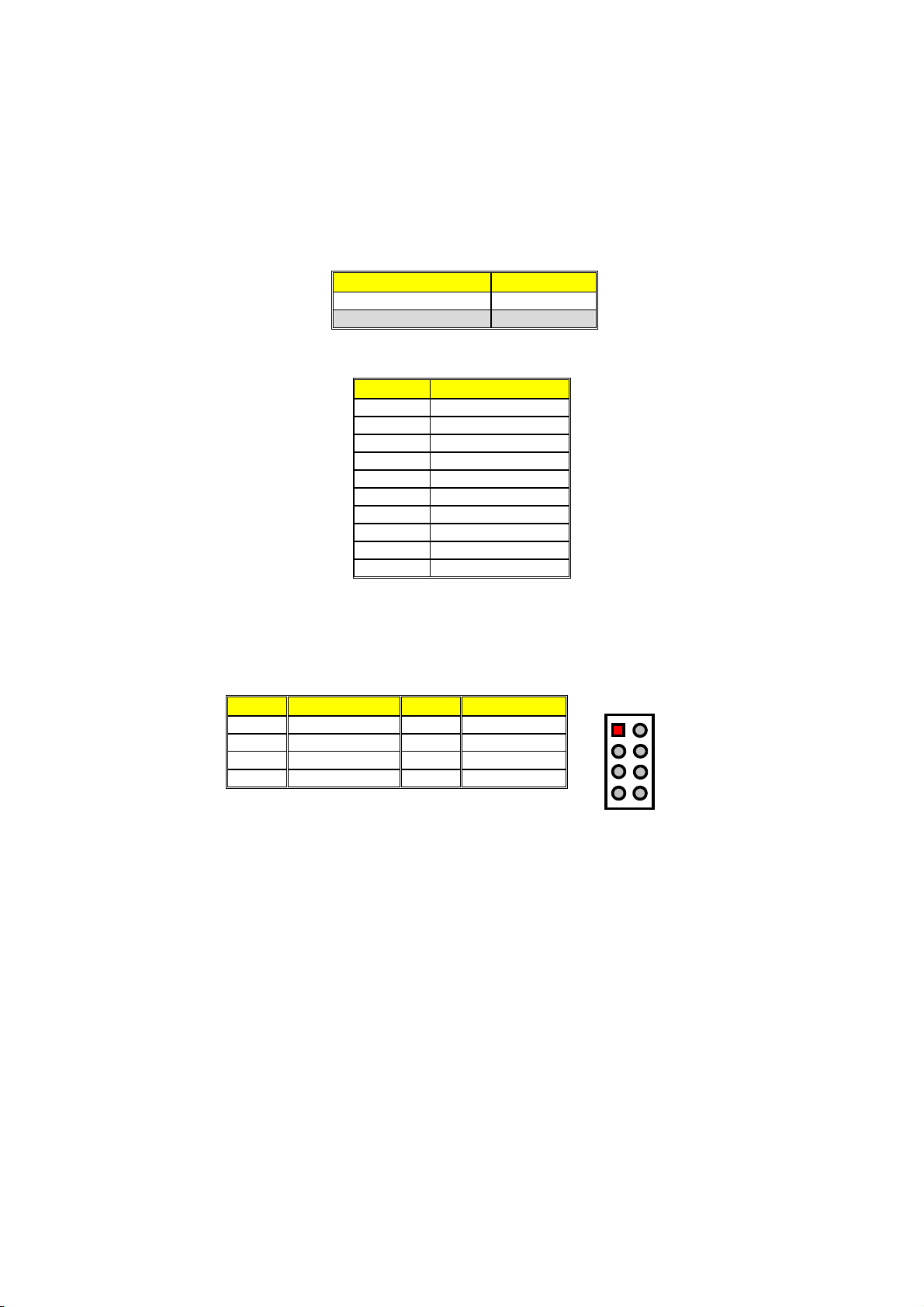

 JP7 and JP8: LAN2/LAN3 Enable/Disable Select

Options Settings

Disable 2-3

Enable 1-2

 CN18, CN19 and CN14: LAN1/LAN2/LAN3 Connectors (5x2

Header)

PIN Description

1 3V_SB 2 LINK_LED 3 4 RX- 5 ACTIVE_LED 6 75Ω Pull GND 7 SPEED_LED 8 75Ω Pull GND 9 TX+

RX+

TX-

3.15 USB Connector

The HS-7000 provides two 8-pin connectors, at locations CN9 and CN10, for four USB connections to the HS-7000.

 CN9 and CN10: USB Connector

VCC

BD0-

BD0+

GND

VCC

BD1-

BD1+

GND

PIN Description PIN Description

1 VCC 2 VCC 3

BD0-

BD1-

5 BD0+ 6 BD1+ 7 GND 8 GND

Page 26

3.16 CMOS Data Clear

The HS-7000 has a Clear CMOS jumper on



JP1: Clear CMOS

Options Settings

Normal Operation Short 1-2

Clear CMOS Short 2-3

IMPORTANT:

The default setting of JP1 is short 2-3. Before you turn on the power of your system, please set JP1 to short 1-2 for normal operation.

JP1.

3.17 Power and Fan Connectors

HS-7000 provides one 4-pin and one 20-pin ATX power connectors at

and

J1.

HS-7000 must using P4 power supply. One of 4-pin connector is for +12V lead which should connect to J2.

20-pin ATX Power Connector can connect to Backplane or to J1. If 20-pin ATX Power Connector connect to Backplane, please make sure CN27 and Backplane’s 5-pin ATX controller is connected together!

 J1: ATX Power Connector

PIN Description PIN Description

1 3.3V 2 3.3V 3 5 GND 6 +5V 7 GND 8 PG

9 5Vsb 10 +12V 11 3.3V 12 -12V 13 GND 14 PS_ON 15 GND 16 GND 17 19 +5V 20 +5V

GND

 J2: 4-pin ATX Power Connector

PIN Description PIN Description

1 GND 2 GND

3 12V 4 12V

+5V

-5V

Page 27

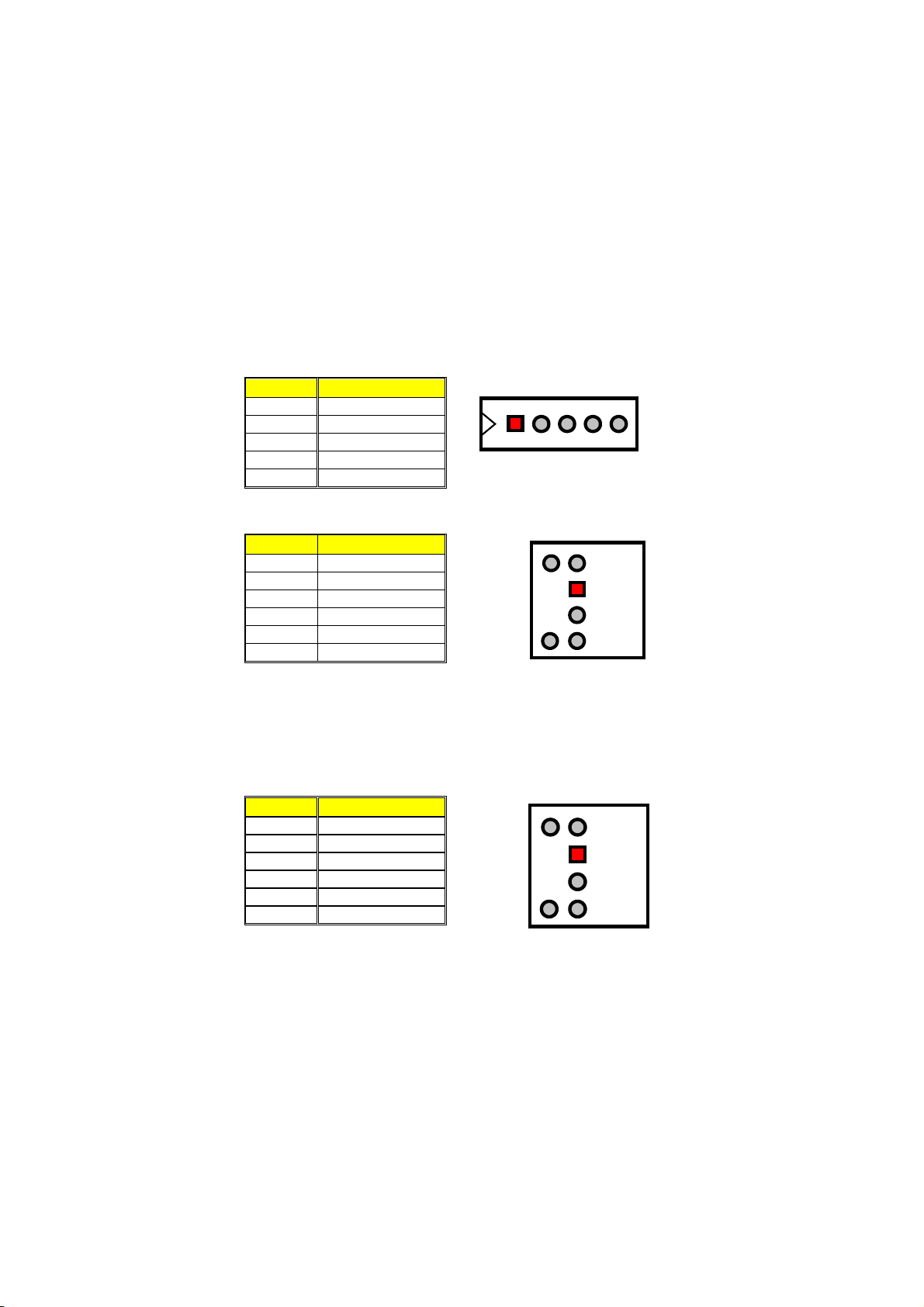

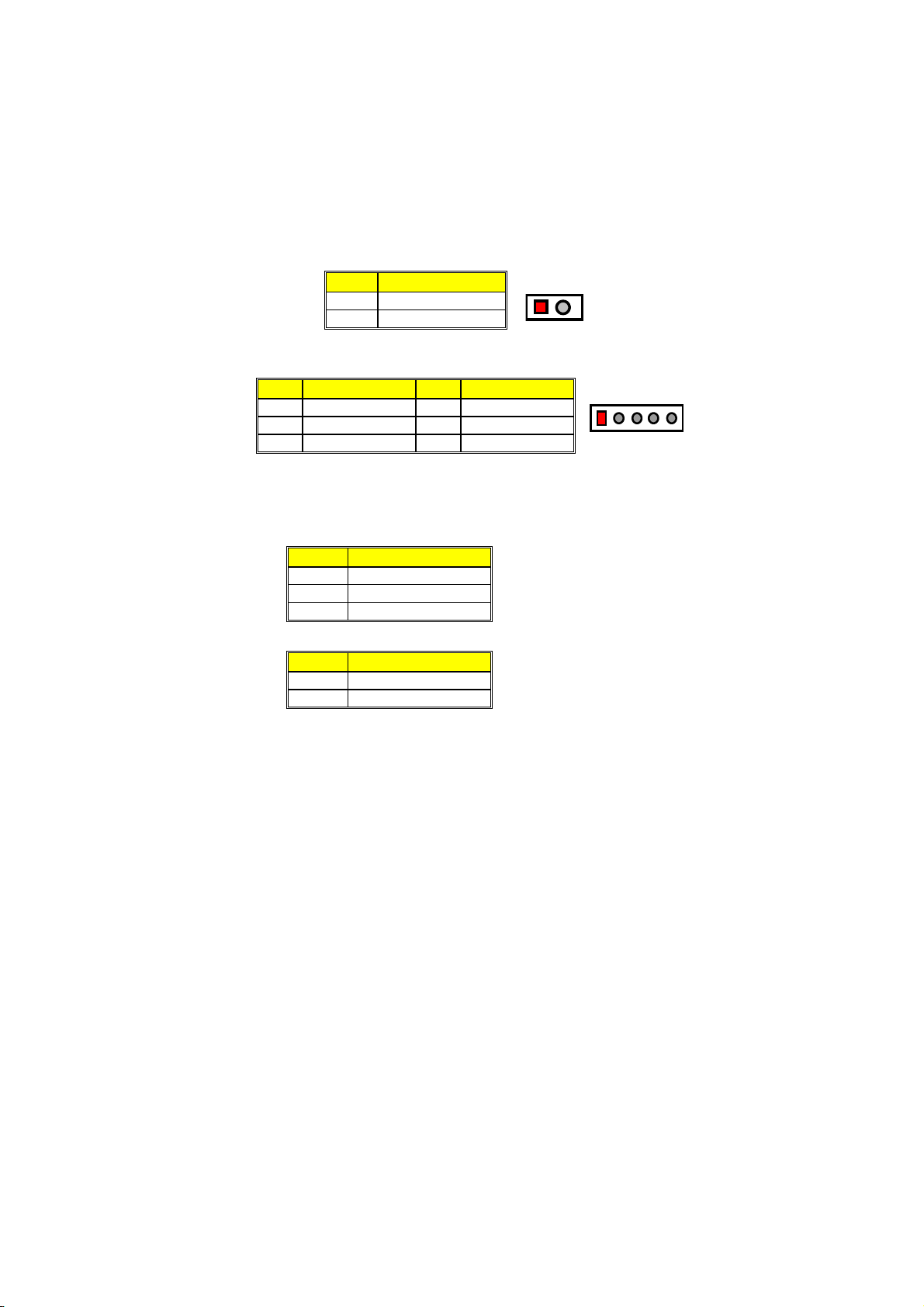

 CN5: 2-pin ATX Power On/Off Switch

PIN Description

1 5VSTBY 2 GND

 CN27: 5-pin ATX Power Control (Connector to BOSER’s

HPCI or HPP serial backplane)

PIN Description PIN Description

1 VCC 2 V5_STBY

3 +12V 4 PS_ON

GND

Connector

FN1, FN2

and

onboard HS-7000 are 3-pin chassis,

FN3

CPU, PWR fan connector. If chassis is open, S1 switch should be closed.

 FN1, FN2 and FN3: Chassis/CPU/PWR Fan Connector

PIN Description

1 FAN Speed 2 +12V 3 GND

 S1: Chassis Open Switch Connector

PIN Description

1 Open Single# 2 GND

Page 28

3.18 Keyboard Connectors

The HS-7000 offers two possibilities for keyboard connections. The connections are via

for an internal 5-pin cable converter to an AT keyboard.

CN4



CN4: 5-pin Keyboard Connector

PIN Description

1 Keyboard Clock 2 Keyboard Data 3 N/C 4 GND 5 +5V

for an external PS/2 type keyboard or via

CN25

12345

N/C

Data

Clock

Keyboard

GND

+5V

 CN25: PS/2 6-pin Mini DIN Keyboard Connector

PIN Description

1 Keyboard Data 2 N/C 3 GND 4 +5V 5 Keyboard Clock 6 N/C

Keyboard

Clock

N/C

GND

Keyboard

Data

N/C

+5V

3.19 PS/2 Mouse Connector

is a 6-pin mini DIN connector for connections to an external PS/2

CN23

mouse connector.

 CN23: PS/2 6-pin Mini Din Mouse Connector

PIN Description

1 MS Data 2 N/C 3 GND 4 +5V 5 MS CLK 6 N/C

MS Clock

N/C

GND

MS Data

N/C

+5V

Page 29

3.20 System Front Panel Connectors

The HS-7000 has one LED at location

that indicates the power-on

CN7

status. This visual feature of the IDE LED may also be connected to an external IDE LED via connector



CN7: IDE LED Connector

CN7

PIN Description

1 150Ω Pull +5V 2 HDD ACTIVE#

CN8

The

and

CN3

are the Keylock and Reset Button connectors onboard.

CN2

is Green function LED indicates.

 CN3: Green LED Connector

PIN Description

1 150Ω Pull +5V 2 ACTIVE#

 CN8: Keylock Connector

PIN Description

1 220Ω Pull +5V 2 N/C 3 GND 4 Keylock# 5 GND

 CN2: Reset Button Connector

PIN Description

1 GND 2 External Reset

GND

Ext. Reset

Page 30

3.21 External Speaker

Aside from the buzzer at location offers a connector ( below lists the pin assignments of



CN1: External Speaker Connector

PIN Description

1 VCC 2 GND 3 GND 4 Speaker Signal

) for an external speaker connection. The table

CN1

onboard, the HS-7000 also

BZ1

3.22 Watchdog Timer

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal to re-start when such error happens.

Page 31

The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:

;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write ;--------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL MOV DX, 2EH MOV AL, 07H OUT DX, AL MOV DX, 2FH MOV AL, 08H OUT DX, AL MOV DX, 2EH MOV AL, F5H OUT DX, AL ; select CRF0 MOV DX, 2FH MOV AL, 80H OUT DX, AL MOV DX, 2EH MOV AL, F7H OUT DX, AL MOV DX, 2FH

MOV AL, 00H OUT DX, AL MOV DX, 2EH MOV AL, F6H

OUT DX, AL

MOV DX, 2FH MOV AL, 00H ; * 00H=Disabled OUT DX, AL ;--------------------------------------------------------------------------------; Exit extended function mode ;------------- ------------------------------------------------------------------ MOV DX, 2EH MOV AL, AAH OUT DX, AL

* User can also use AL, 00H’s defined time for reset purposes,

e.g.00H for Disable, 01H = 1sec, 02H = 2sec…..FFH = 255sec

Page 32

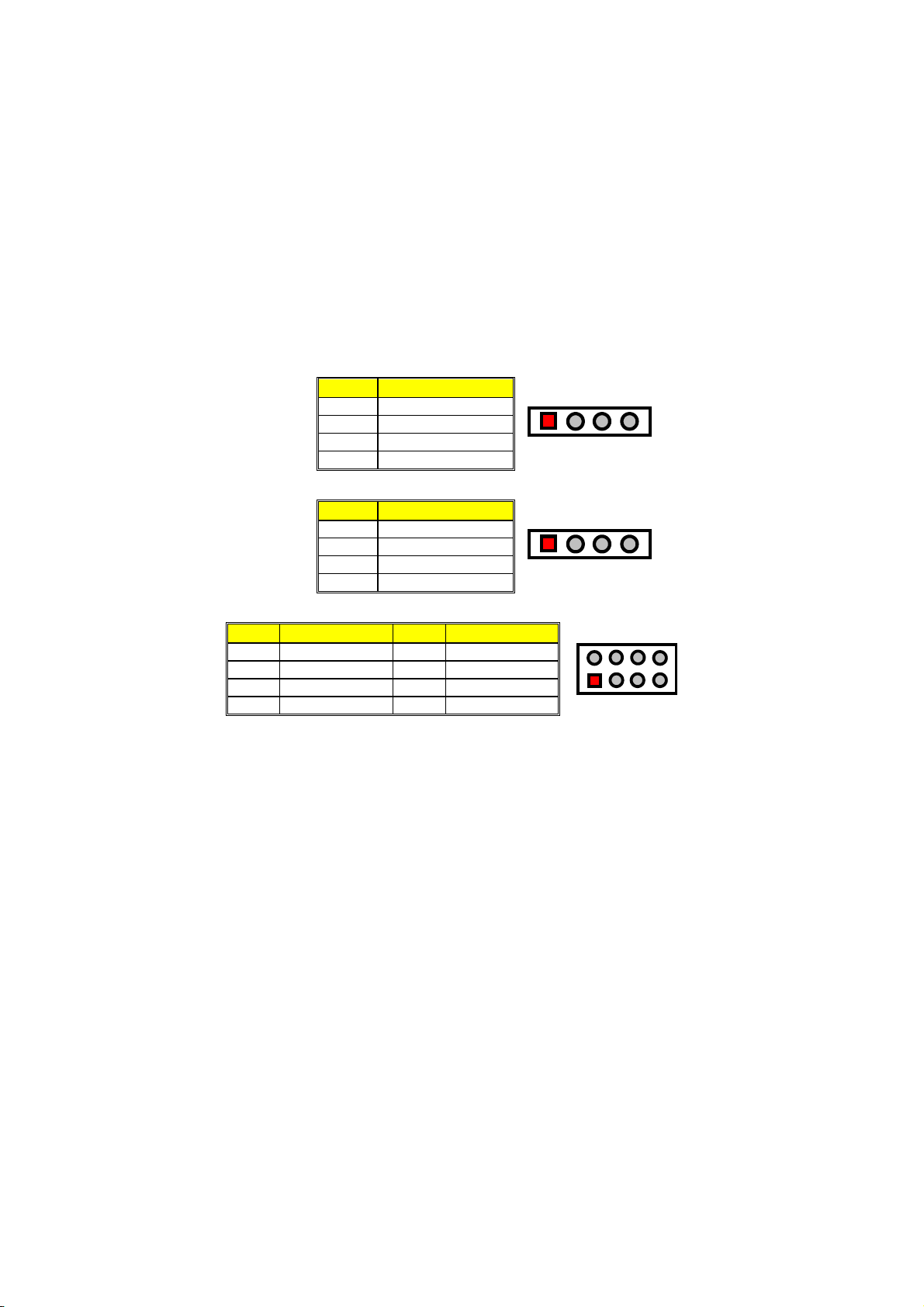

3.23 Audio Connectors

The HS-7000 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the CD-ROM Analog Input, the Line_ In analog Input and the MIC In / Audio Out connectors.



CD1: Line_In Analog Input Connector

PIN Description

1 LINE_IN_R 2 GND 3 GND 4 LINE_IN_L

 CD2: CD-ROM Analog Input Connector

PIN Description

1 CD_INR 2 CD_REF 3 4 CD_INL

CD_REF

 JP6: Mic In / Audio Out Connector

PIN Description PIN Description

1 AOUT_L 2 AOUT_R 3 GND 4 GND 5 MIC_IN 6 N/C 7 GND 8 GND

1234

Page 33

3.24 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors

NOTE：

The PC/104 connector allows direct plugging or stack-through piling of PC/104 modules without requiring the PC/104 mounting kit.



CN16: 40-pin PC/104 Expansion Slot

PIN Description PIN Description

1 GND 21 GND 2 MEMCS16* 22 SBHE* 3 IOSC16* 23 LA23 4 IRQ10 24 LA22 5 IRQ11 25 LA21 6 7 IRQ15 27 LA19 8 IRQ14 28 LA18

9 DACK0* 29 LA17 10 DRQ0 30 MEMR* 11 DACK5* 31 MEMW* 12 DRQ5 32 SD8 13 DACK6* 33 SD9 14 DRQ6 34 SD10 15 DACK7* 35 SD11 16 DRQ7 36 SD12 17 +5V 37 SD13 18 19 GND 39 SD15 20 GND 40 GND

and

CN15

IRQ12

MASTER*

are listed on the following tables:

CN16

LA20

SD14

Connector diagram

rotated 90 degrees

clockwise from

original position

121

Page 34

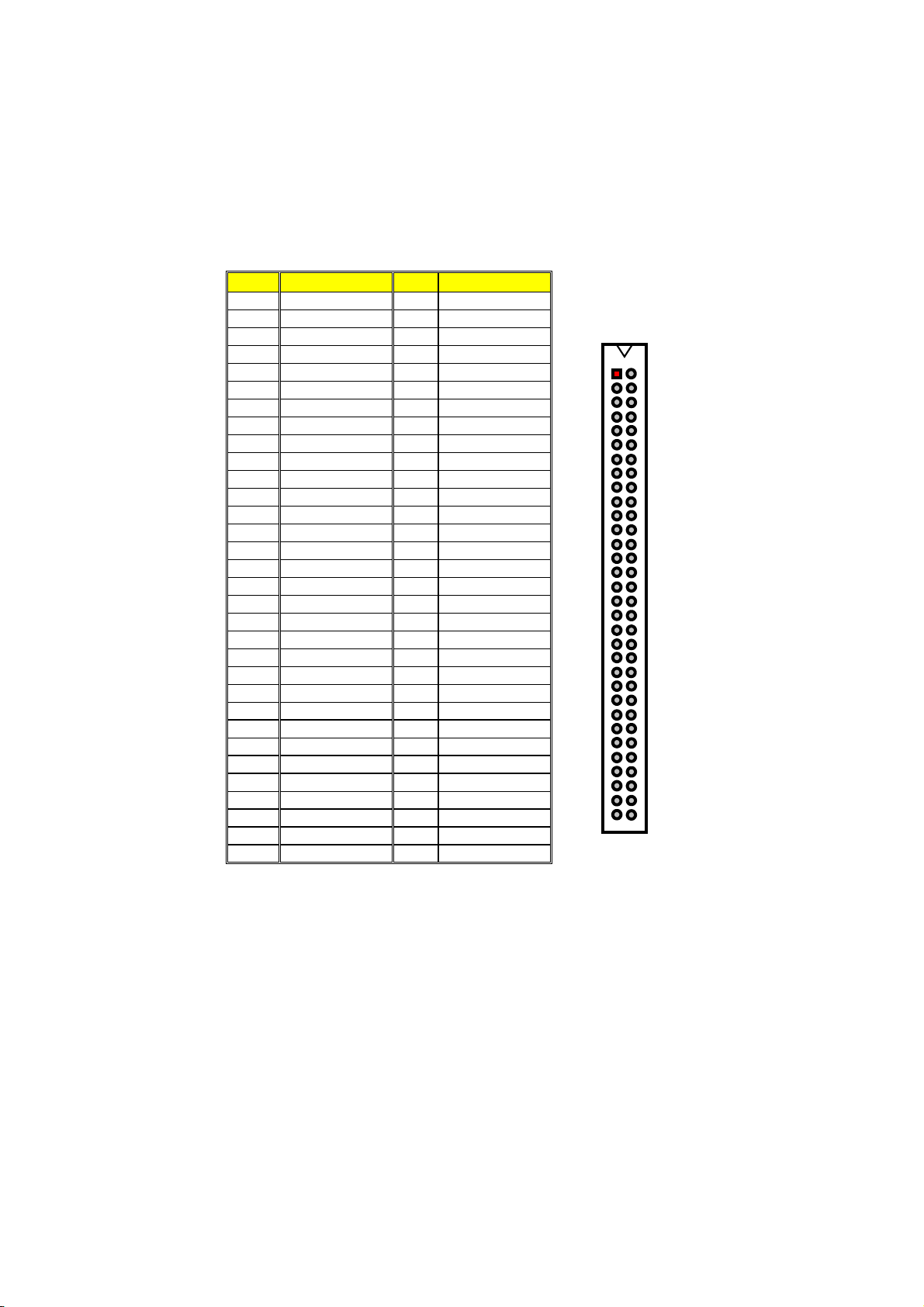

 CN15: 64-pin PC/104 Expansion Slot

PIN Description PIN Description

1 IOCHECK* 33 GND

2 SD7 34 RESETDRV

3 SD6 35 +5V

5 SD4 37 -5V

6 SD3 38 DRQ2

7 SD2 39 -12V

8 SD1 40 0WS*

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 12 SA19 44 SMEMR* 13 SA18 45 IOW* 14 SA17 46 IOR* 15 SA16 47 DACK3* 16 SA15 48 DRQ3 17 SA14 49 DACK1* 18 SA13 50 DRQ1 19 SA12 51 REFRESH* 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2* 27 SA4 59 TC 28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND

SD5

AEN

SA8

IRQ9

SMEMW*

IRQ5

Connector diagram

rotated 90 degrees

clockwise from

original position

133

6432

Page 35

Chapter 4

AMI BIOS Setup

The HS-7000 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Page 36

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

Page 37

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Save Settings and Exit

Exit Without Saving

 Standard CMOS Setup

This setup page includes all the items in a standard, AT-compatible BIOS.

 Advanced CMOS Setup

This setup page includes all the items of AMI special enhanced features.

 Advanced Chipset Setup

This setup page includes all the items of chipset special features.

 Power Management Setup

This entry only appears if your system supports Power Management, “Green PC”, standards.

 PCI/Plug and Play Setup

This entry appears if your system supports PNP/PCI.

 Peripheral Setup

This section page includes all the items of IDE hard drive and Programmed Input / Output features.

Page 38

 Hardware Monitor Setup

This menu contains the system’s auto-detect functions for CPU Vcore, CPU voltage, and CPU temperature.

 Auto-Detect Hard Disks

Automatically detect and configure hard disk parameters. The AMI BIOS includes this ability in the event you are uncertain of your hard disk’s parameters.

 Change User/Supervisor Password

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.

 Auto Configuration with Optimal Settings

The BIOS defaults have been set by the manufacturer and represent settings that provide the minimum requirements for your system to operate.

 Auto Configuration with Fail Safe Settings

The chipset defaults are settings that provide for maximum system performance. While AMI has designed the custom BIOS to maximize performance, the manufacturer has the right to change these defaults to meet their needs.

 Save Settings and Exit

Save CMOS value changes to CMOS and exit setup.

 Exit Without Saving

Abandon all CMOS value changes and exit setup.

Page 39

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Thu Jan 03, 2002 Base Memory : 0 KB Time (hh/mm/ss) : 19:04:12 Extd Memory : 0 MB

Floppy Drive A: Not Installed Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Not Installed Pri Slave : Not Installed Sec Master : Not Installed Sec Slave : Not Installed

Boot Sector Virus Protection : Disabled Month: Jan - Dec ESC:Exit :Sel

Day: 01 - 30 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA

 Date:

The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar.

day The day, from Sun to Sat, determined by the BIOS and is

display-only

date The date, from 1 to 31 (or the maximum allowed in the month)

month The month, Jan through Dec.

year The year, from 1900 through 2099

 Time:

The time format is <hour> <minute> <second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Page 40

 Floppy A / B:

The category identifies the types of floppy disk drive A or drive B that have been installed in the computer.

None No floppy drive installed

360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte

capacity

720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

 Pri Master/Slave & Sec Master/Slave:

The categories identify the types of 4 channels that have been installed in the computer. There are 45 predefined types with 4 user-definable types for Enhanced IDE BIOS. Type 1 to Type 45 are predefined. Type user is user-definable.

Press PgUp or PgDn to select a numbered hard disk type or type the number and press <Enter>. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Type “User” to define your own drive type manually.

If you select Type “User”, you will need to know the information listed below. Enter the information directly from the keyboard and press <Enter>. This information should be included in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is ESDI, the selection shall be “Type 1”.

If the controller of HDD interface is SCSI, the selection shall be “None”.

If you select Type ”Auto”, BIOS will Auto-Detect the HDD & CD-ROM Drive at the POST stage and showing the IDE for HDD & CD-ROM Drive.

If a hard disk has not been installed select NONE and press <Enter>.

TYPE

CYLS. number of cylinders

HEADS number of heads

PRECOMP write precompensation

SECTORS number of sectors

MODE mode type

drive type

Page 41

 Boot Sector Virus Protection:

Disabled

If set to Enabled, this category will flash on the screen when there is any attempt to write to the boot sector or partition table of the hard disk drive. The system will halt and an error message will appear. You may run anti-virus program to locate the problem.

Enabled Activates automatically when the system boots up causing a

warning message to appear when anything attempts to access the boot sector or hard disk partition table. No warning message will appear when anything attempts to

(default)

access the boot sector or hard disk partition table.

Page 42

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

AMIBIOS SETUP – STANDARD CMOS SETUP

Quick Boot Disabled S Available Options: 1st Boot Device Disabled ` Disabled 2nd Boot Device Disabled Enabled 3rd Boot Device Disabled Try Other Boot Devices Yes S.M.A.R.T. for hard Disks Disabled BootUp Num-Lock Off Floppy Drive Seek Disabled PS/2 Mouse Support Disabled Primary Display Absent Password Check Setup Boot To OS/2 No L1 Cache Disabled L2 Cache Disabled System BIOS Cacheable Disabled C000,16k Shadow Disabled C400,16k Shadow Disabled C800,16k Shadow Disabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled ESC:Exit :Sel D800,16k Shadow Disabled PgUp/PgDn: Modify DC00,16k Shadow Disabled T F1:Help F2/F3:Color

 Quick Boot:

When set as enabled, the program disables the DRAM testing function. The available options are Enabled, and Disabled.



1st Boot Device:

This option sets the type of device from where the BIOS will FIRST seek to boot from after AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

 2nd Boot Device:

This option sets the type of SECOND device from where the BIOS will seek to boot from, if and when the 1st AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

Boot Device fails after

Page 43

 3rd Boot Device:

This option sets the type of THIRD device from where the BIOS will seek to boot from, if and when the 1st fail after AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

and 2nd Boot Devices

 4th Boot Device:

This option sets the type of FOURTH device from where the BIOS will seek to boot from, if and when the 1st, 2nd and 3rd Boot Devices fail after AMIBIOS POST completes. The available settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, and SCSI.

 Try Other Boot Devices:

Set this option to Yes to instruct AMIBIOS to attempt to boot from any other drive in the system. This is useful if the BIOS cannot find a boot drive among the drives specified in the 1st /2nd/3rd/4th Boot Devices. The available settings are Yes, and No.

 Initial Display Mode:

This feature can control the display on/off settings of your OEM full logo screen.

 S.M.A.R.T. for Hard Disks:

Self-Monitoring, Analysis and Reporting Technology. This option can help the BIOS in warning the user of possible device failure, giving user a chance to back up the device before actual failure happens. The available options are Enabled, and Disabled.

 BootUp Num-Lock:

When set as On, this option turns off numeric lock when the system is powered, allowing the end user to use the arrow keys on both the numeric keypad and the keyboard.



Floppy Drive Seek:

Set this option to Enabled to specify that floppy drive A: will perform a Seek operation at system boot. The available options are Enabled, and Disabled.

 PS/2 Mouse Support:

When this option is enabled, BIOS allows the system to support a PS/2 type mouse. The available options are Enabled, and Disabled.

Page 44

 Primary Display:



Select this option to configure the type of monitor attached to the computer. The available settings are Monochrome, Color 40x25, Color 80x25, VGA/PGA/EGA, and Absent.

Password Check:

This option enables the password check option every time the system boots or the end user runs Setup. If set as Always, a user password prompt appears every time the computer is tuned on. If setup is chosen, the password prompt appears if BIOS is executed.

Boot To OS/2:

Set this option to Enabled if running OS/2 operating system and using more than 64MB of system memory on the system board. The available options are Yes, and No.

 L1 Cache:



 System BIOS Cacheable:

 C000,16k/C400,16k/C800,16k/ CC00,16k/D000,16k/D400,16k/D800,16k/

This option enables or disables the internal cache memory of the installed processor.

L2 Cache:

This option enables/disables the secondary cache memory of your board. The available options are Enabled, and Disabled.

When this option is enabled, the System ROM area from C000-DC00 is copied (shadowed) to RAM for faster execution.

DC00,16k Shadow:

These options enable shadowing of the contents of the ROM area named in the option title. The available settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.

Enabled Video ROM area from C0000-C7FFF is copied

(shadowed) from ROM to RAM for faster execution.

Disabled The contents of the video ROM are not copied to RAM

Cached The contents of the video ROM area from

C0000h-C7FFFh are copied from ROM to RAM and can be written to or read from cache memory.

Page 45

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

SDRAM Frequency 100Mhz Available Options: Configure SDRAM Timing by SPD Disabled ` 100Mhz

SDRAM CAS# Latency 3 Clocks 133Mhz SDRAM RAS# Precharge 3 Clocks Auto SDRAM RAS# to CAS# Delay 3 Clocks SDRAM Precharge Delay 7 Clocks

SDRAM Idle Timer Infinite SDRAM Read Thermal Management Disabled DRAM Integrity Mode Disabled Memory Hole Disabled APIC Interrupt Mode Disabled MPS Revision 1.1 AGP Aperture Size Disabled USB Controller Disabled USB Device Legacy Support Disabled ESC:Exit :Sel Port 64/60 Emulation Disabled PgUp/PgDn: Modify F1:Help F2/F3:Color

Page 46

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Aware O/S No S Available Options: ACPI Standby State S1/POS ` No USB Device Wakeup From S3 Disabled Yes Re-Call VGA BIOS at S3 Resuming Disabled Power Management / APM Disabled Video Power Down Mode Disabled Hard Disk Power Down Mode Disabled Standby Time Out (Minute) Disabled Suspend Time Out (Minute) Disabled Throttle Slow Clock Ratio Reserved FDC / LPT / COM Ports Ignore MIDI Ports Ignore Primary Master IDE Ignore Primary Slave IDE Ignore Secondary Master IDE Ignore Secondary Slave IDE Ignore System Thermal Disabled Thermal Active Temperature 40°C / 104°C Thermal slow Clock Ratio Reserved Power Button Function On / Off Restore on AC / Power Loss Power Off Resume On Ring Disabled Resume On LAN Disabled Resume On PME# Disabled Resume On RTC Alarm Disabled RTC Alarm Date Every Day RTC Alarm Hour 00 ESC:Exit :Sel RTC Alarm Minute 00 PgUp/PgDn: Modify RTC Alarm Second 00 T F1:Help F2/F3:Color

 ACPI Aware O/S:

This item is the Advanced Configuration and Power Interface (ACPI) function switch. The available options are Yes, and No.

 ACPI Standby State:

This item serves as the switch setting of STR (S3) or POS (S1) function. Configuration options are S3/STR, and S1/POS.

Page 47

 Power Management/APM:

Set this option to Enabled to switch on the APM (Advanced Power Management). The available options are Enabled, and Disabled.

 Standby Time Out:

 Keyboard & PS/2 Mouse, FDC/LPT/COM Ports,

 Restore on AC/Power Loss:

 Wake Up On Ring:

 Wake Up On Lan

This option specifies the length of system inactivity period while in the Standby state. When this length of time expires, the computer enters Suspend power state.

SB & MSS Audio Ports, MIDI Ports, ADLIB Ports, Primary Master IDE, Primary Slave IDE, Secondary Master IDE, Secondary Slave IDE:

Enabling these options monitors the IRQ input of inactive and active devices. This allows the system to determine whether to enter Auto_mode/SMI_mode when it detects an inactive device, or Normal_mode once an active device is detected.

This field registers the last power supply unit attached to your system. If an ATX power was last used before changing to AT power supply, setting this field to Last State (default) will NOT make the AT power supply function properly on your next boot up process. Setting this field to Power On auto-detects the power supply installed each time you boot up.

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state. The available choices are Enabled, Disabled.

An input signal on the local area network (LAN) awakens the system from a soft off state.

 Wake Up On PME



 Alarm Date/Hour/Minute/Second

A PME# detected resumes or wakes the system from a Soft Off state.

Resume By Alarm

When this option is set enabled, system will according to you set time then wakeup from soft off mode.

You can set these fields to specify the alarm settings of your system.

Page 48

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM No ` No PCT Latency Timer (PCI Clocks) 32 Yes Primary Graphics Adapter AGP Allocate IRQ to PCI VGA Yes PCI IDE BusMaster Disabled OffBoard PCI IDE Card Auto OffBoard PCI IDE Primary IRQ Disabled OffBoard PCI IDE Secondary IRQ Disabled

ESC:Exit :Sel PgUp/PgDn: Modify F1:Help F2/F3:Color

 Plug and Play Aware O/S:

If enabled, BIOS will configure only PnP ISA boot devices (i.e., all PnP ISA cards with boot flag set) then configure all other devices. If disabled, the BIOS will configure all devices without following any sequence.

 Clear NVRAM on Every Boot:

When this option is set to Yes, the system can auto clear NVRAM.

 PCI Latency Timer (PCI Clocks):

This option specifies the latency timings (in PCI clocks) of PCI devices installed in the PCI expansion slots. The available settings are 32, 64, 96, 128, 160, 192, 224, and 248.

 Allocate IRQ to PCI VGA:

Set this option to Yes when allocating an IRQ to the VGA device on the PCI bus. The available settings are Yes, and No.

Page 49

4.9 Peripheral Setup

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard IDE Both Available Options: OnBoard LAN Disabled ` Disabled OnBoard AC’97 Audio Auto Primary OnBoard FDC Auto Secondary OnBoard Serial Port A 3F8/IRQ4 Both OnBoard Serial Port B 2F8/IRQ3

Serial Port B Mode Normal

IR Duplex Mode Full Duplex IR Pin Select SINB / SOUTB

OnBoard Prarllel Port 378/IRQ7

Parallel Port Mode Normal EPP Version N / A Parallel Port IRQ Auto Parallel Port DMA Channel N / A

OnBoard Midi Port Disabled

Mide IRQ Select 3

OnBoard Game Port Disabled Keyboard PowerOn Function Disabled ESC:Exit :Sel Specific Key for Power On N / A PgUp/PgDn: Modify Mouse PowerOn Function Disabled F1:Help F2/F3:Color

 OnBoard IDE/FDD:

Set this option to Enabled to activate the floppy drive controller on the system board. The available settings are Auto (AMIBIOS automatically determines if the floppy controller should be enabled), Enabled, and Disabled.

Page 50

 OnBoard Parallel Port:

 Parallel Port Mode:

 Parallel Port IRQ:



This option specifies the base I/O port address of parallel port on the system board. The available settings are Disabled, 378h, 278h, and 3BCh.

This option specifies the parallel port mode. The available settings are Normal, Bi-Dir, EPP, and ECP.

Normal: The normal parallel port mode is used. Bi-Dir: Use this setting to support bi-directional transfers on

the parallel port. EPP: The parallel port can be used with devices that adhere to the Enhanced Parallel Port (EPP) specification. EPP uses the existing parallel port signals to provide asymmetric bi-directional data transfer driven by the host device. ECP: The parallel port can be used with devices that adhere to the Extended Capabilities Port (ECP) specification. ECP uses the DMA protocol to achieve data transfer rates up to

2.5 Megabits per second. ECP provides symmetric bi-directional communication.

This option specifies the IRQ used by the parallel port. The available settings are Auto, (IRQ)5, and (IRQ)7.

Parallel Port DMA Channel:

This option is only available if the setting for the Parallel Port Mode option is ECP. This option sets the DMA channel used by the parallel port. The available settings are DMA Channel 0, 1, and 3.

Page 51

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

CPU Ratio Selection 8.0x

*** System Hardware Monitor ***

Chassis Intrusion Disabled Current CPU Temperature Current System Temperature Current CPU Fan Speed Current Chassis Fan Speed Current Power Fan speed Vcore Vtt Vio + 5.000V +12.000V

-12.000V

- 5.000V Battery +5V SB

ESC:Exit :Sel PgUp/PgDn: Modify F1:Help F2/F3:Color

 System Hardware Monitor:

This field determines which component will detect the CPU temperature. If your board comes with a provision for a thermal connector, you may set this field as Thermistor. Otherwise, please configure it as CPU (also default setting).

 Current CPU Temperature:

This read-only field displays the current CPU temperature as part of the hardware monitoring feature of your board.

 Current System Temperature:

This field displays the current system and power supply temperatures, if your computer contains a monitoring system. The available choices are Both and Supervisor.

 Current CPU/Chassis/Power FAN Speeds:

These fields display the current speed of up to CPU, chassis (system) and Power supply fans, if your computer contains a monitoring system.

 Vcore/Vtt/Vio/-5V/-12V/+5V/+12V/Battery/+5V SB:

Once the hardware monitoring IC detects the current voltages of voltage regulators and power supply unit, it shows the values on these fields for read-only purposes.

Page 52

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 53

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

Page 54

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Auto Configuration with Optimal Settings

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 55

4.14 Optimal Configuration with Fail Safe Settings

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Page 56

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Page 57

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Abandon all Data & Exit Setup

Page 58

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN and Audio driver installation procedures. The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA, LAN and Audio drivers. The following sections describe the installation procedures of each driver based on Win 95/98, Win 2000 and Win NT operating systems. It is recommended that you install the drivers matching the sections listed in this chapter.

5.1 IDE Driver Installation

5.1.1 Installing Intel 815 Chipset Software

1. Insert Utility CD Disk to your CD ROM drive. The main menu will pop up as shown below. Select on the IDE button to launch the installation program.

2. Click on the INTEL_815 button to continue.

Page 59

3. When the IDE \ INTEL_815 box appears on your screen, click on the INTEL_R&HIPSET_SOFTWARE_INS to install the IDE plug and play information files into your system.

4. Immediately after clicking the IDE button in Step 1, the program launches the InstallShield Wizard that will assist you in the installation process. Click on the N

ext > button to proceed.

Page 60

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

6. When the Readme Information dialog box pops up, just click on the N

ext button to proceed.

es to proceed.

Page 61

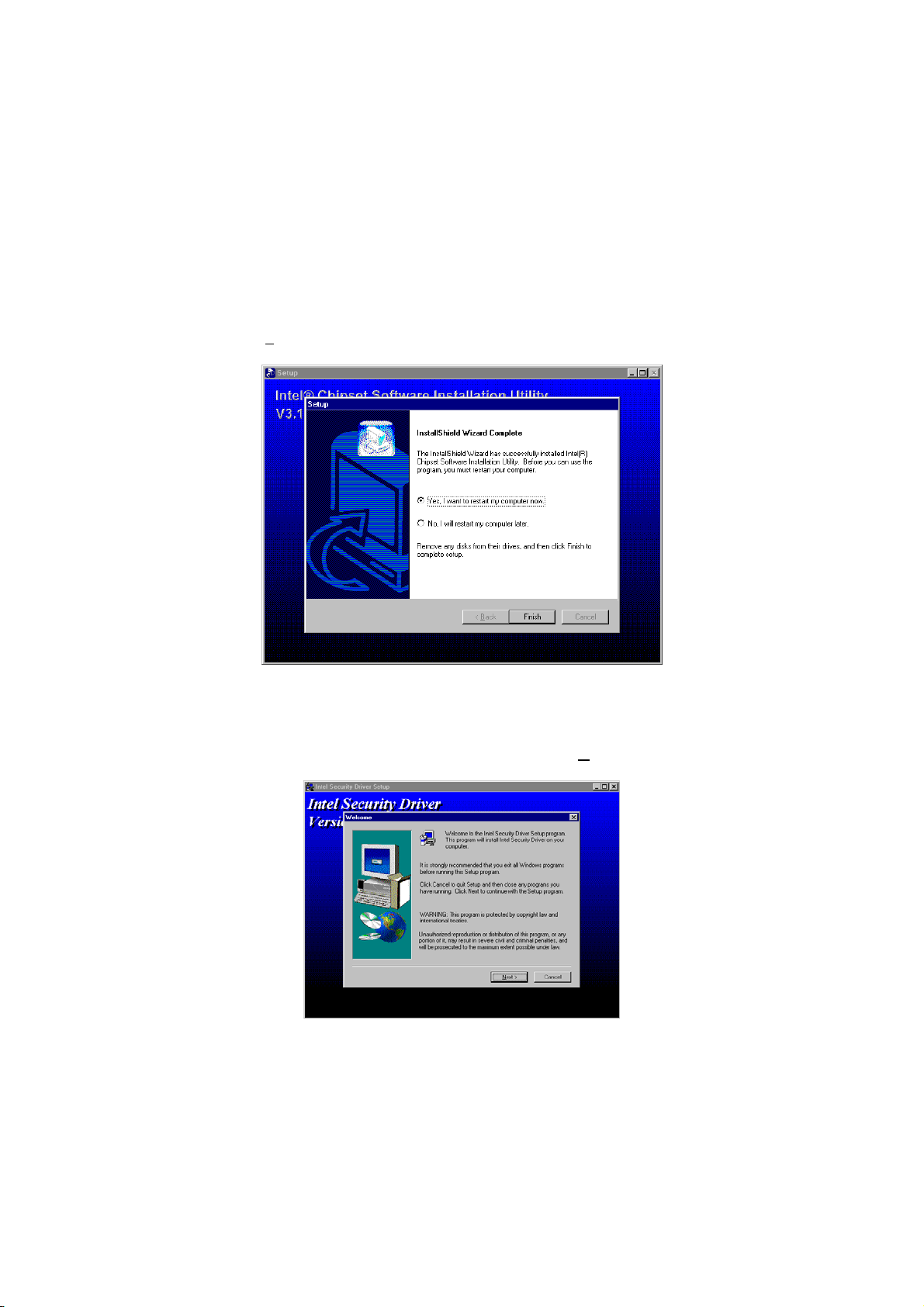

7. Once the Install Shield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the Yes, I

want to restart my computer now followed by a click on the F

inish button to reboot. Only after your computer boots will the

new settings take effect.

5.1.2 Installing Intel Security Driver

1. Following Steps 1 ~ 3 of the Intel 815 chipset software (from the preceding section), click on the INTEL_SECURITY_ DRIVER button. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

ext > button to

Page 62

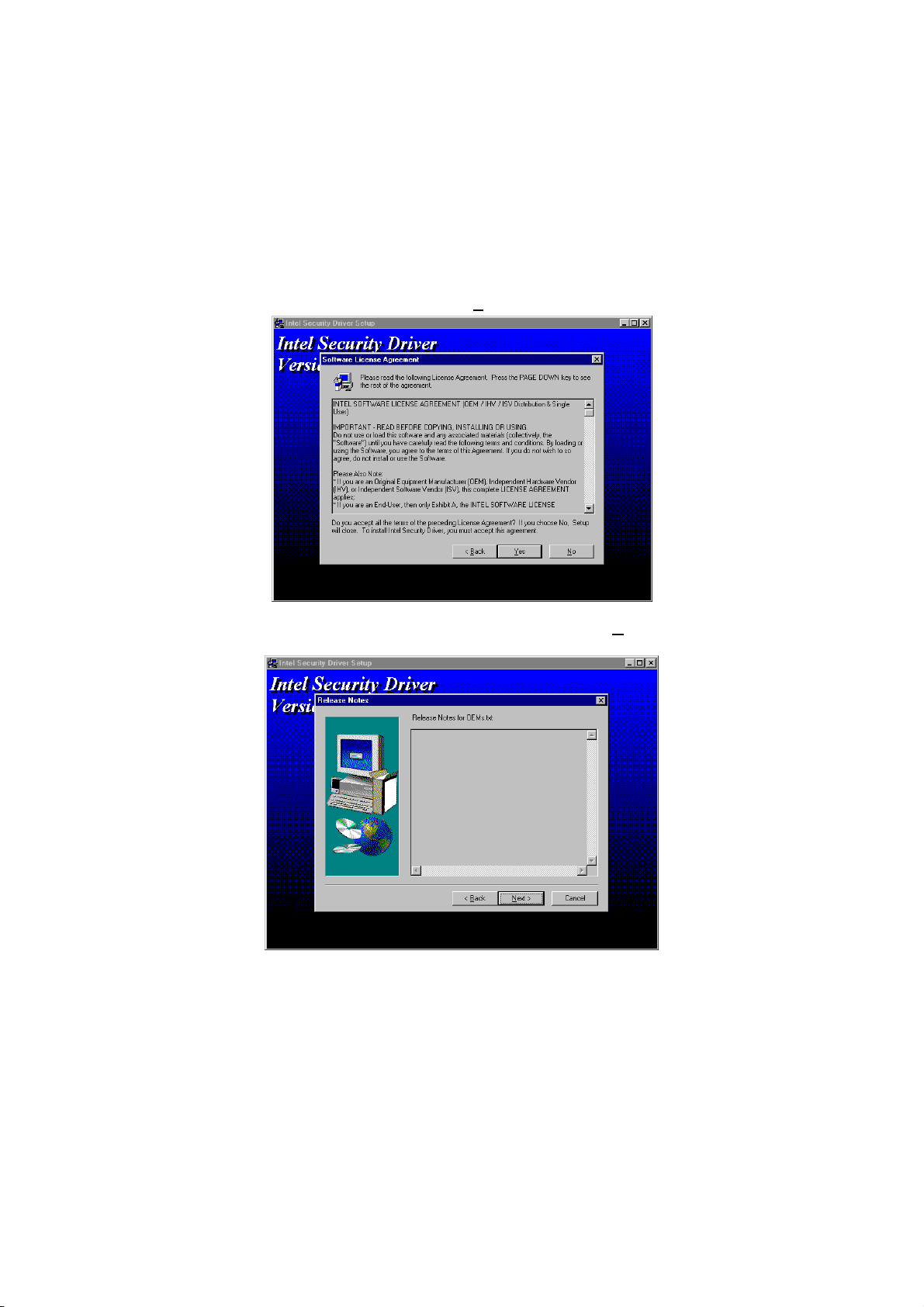

2. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

3. When the Release Notes box pops on the screen, read through any important information listed before clicking the N button.

es to proceed.

ext >

Page 63

4. Setup will then prompt you to specify the path where you would like the Security driver installed. Select the N you have made your path/installation choice.

5. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

ext > button after

inish

Page 64

5.2 VGA Driver Installation for Win

95/98

1. Click Start, then Setting, then Control Panel.

2. Start the Display applet program.

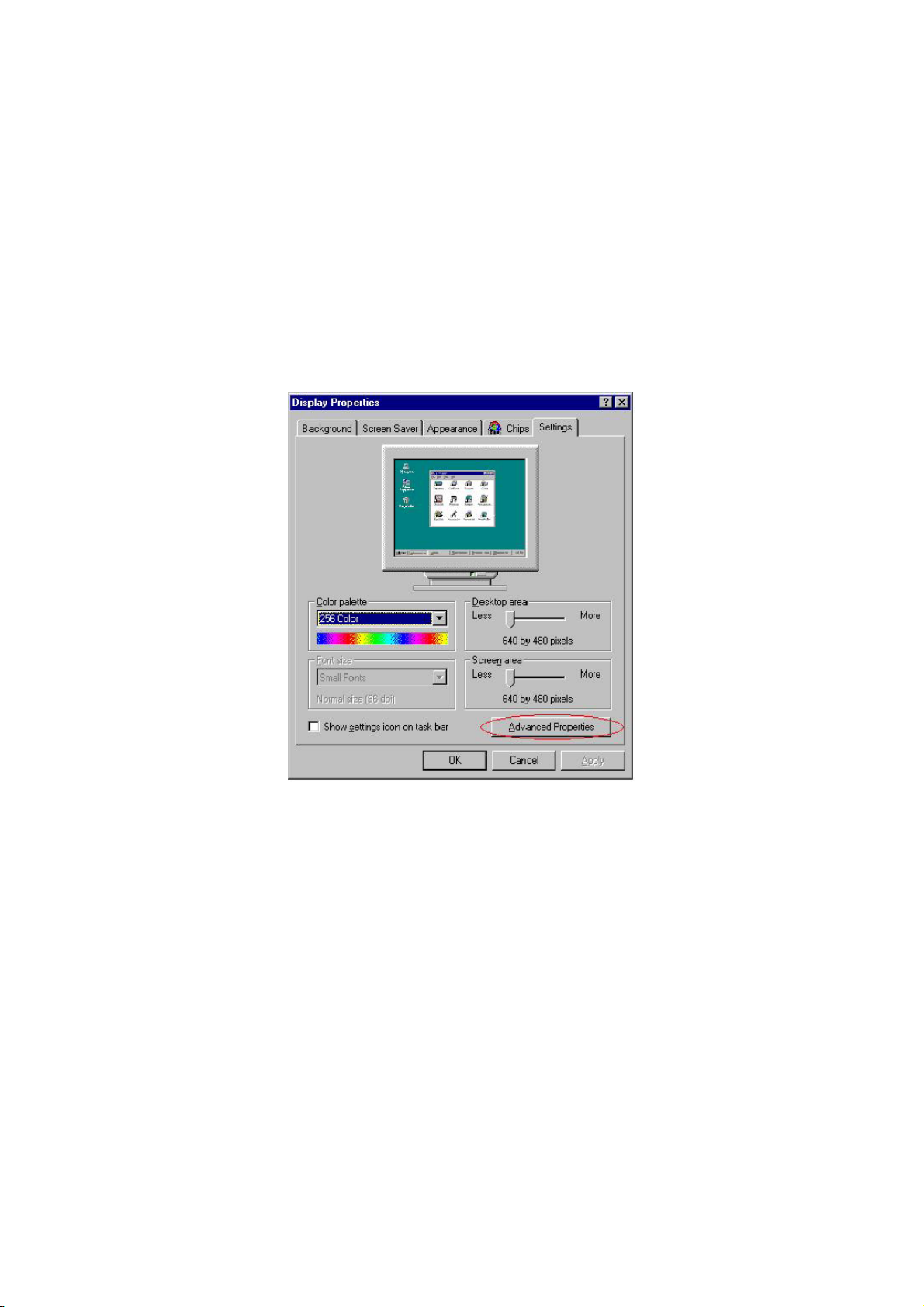

3. Select the setting page, click on the Advanced properties button.

Page 65

4. Press the Change button in the adapter area.

5. Click on Next to continue and then select

Display a list of all drivers in a specific location,

so you can select the drivers you want.

6. Click on Next.

7. Select the Specify a location checkbox then Browse.

8. Specify the path to the new driver and then press the <ENTER> key (if in driver A: select a:\win95).

9. Once completed, the Select device dialog box will appear. Choose on:

SiS 315 V2.04

10. Continue choosing until asked to restart machine.

11. After the system has restarted, you can go back into the display applet and select alternate screen resolutions and color depths.

NOTE:

Installation procedure for Windows 98 is similar to Windows95.

Page 66

5.3 LAN Driver Installation

5.3.1 Win 95/98

1. Right click on My Computer icon then scroll to the Properties item from the pop-up menu.

2. Select Device Manager from the top menu bar. A list of all devices installed appears, scroll down to the Other devices and then select on PCI Ethernet Controller. Select the Properties button to access the details of this unknown device. Refer to the following screen shot for an clearer explanation of this step.

Page 67

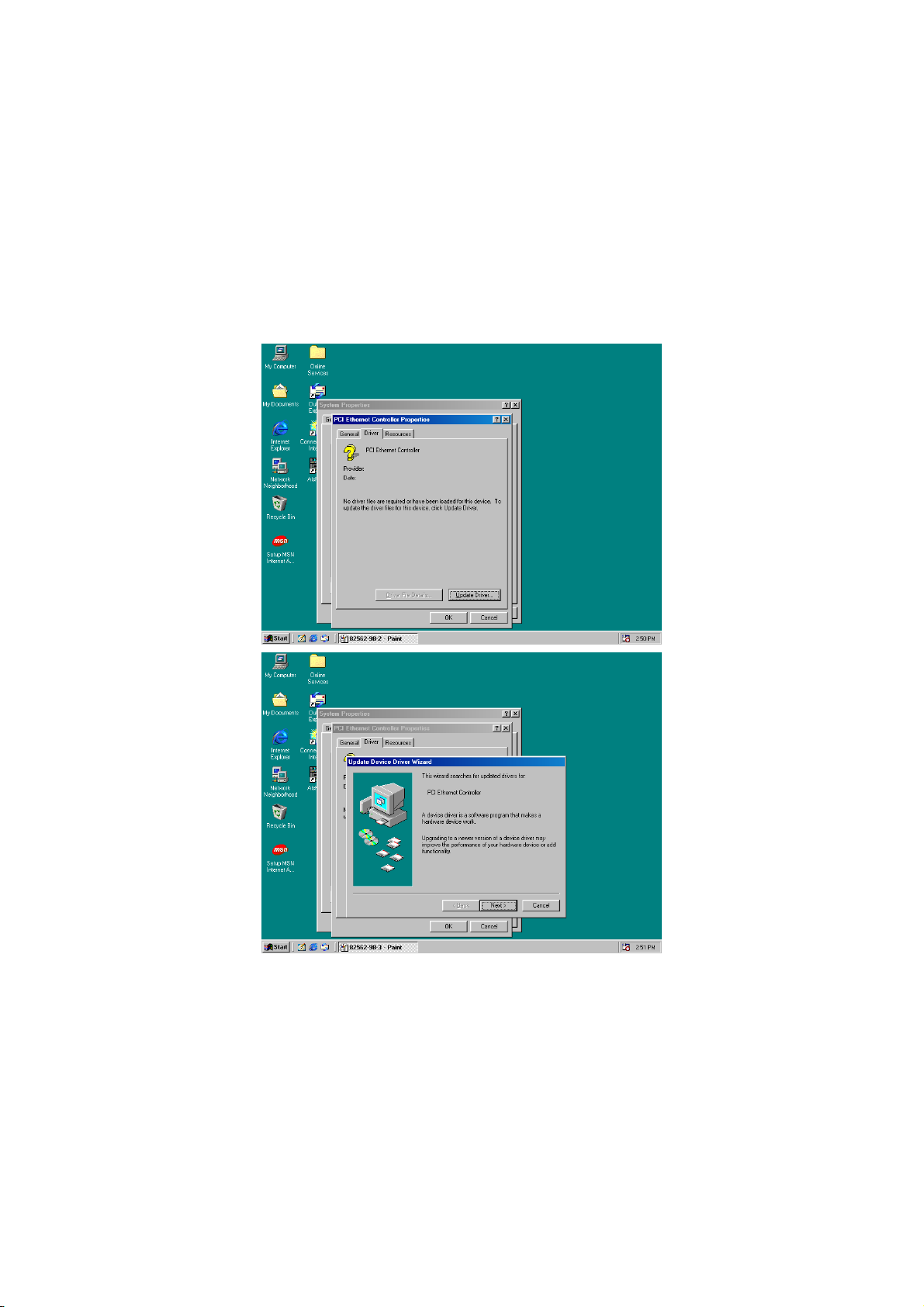

3. Once the PCI Ethernet Controller Properties screen pops on the screen, click on the Update Driver … button to launch the Update Device Driver Wizard screen.

Page 68

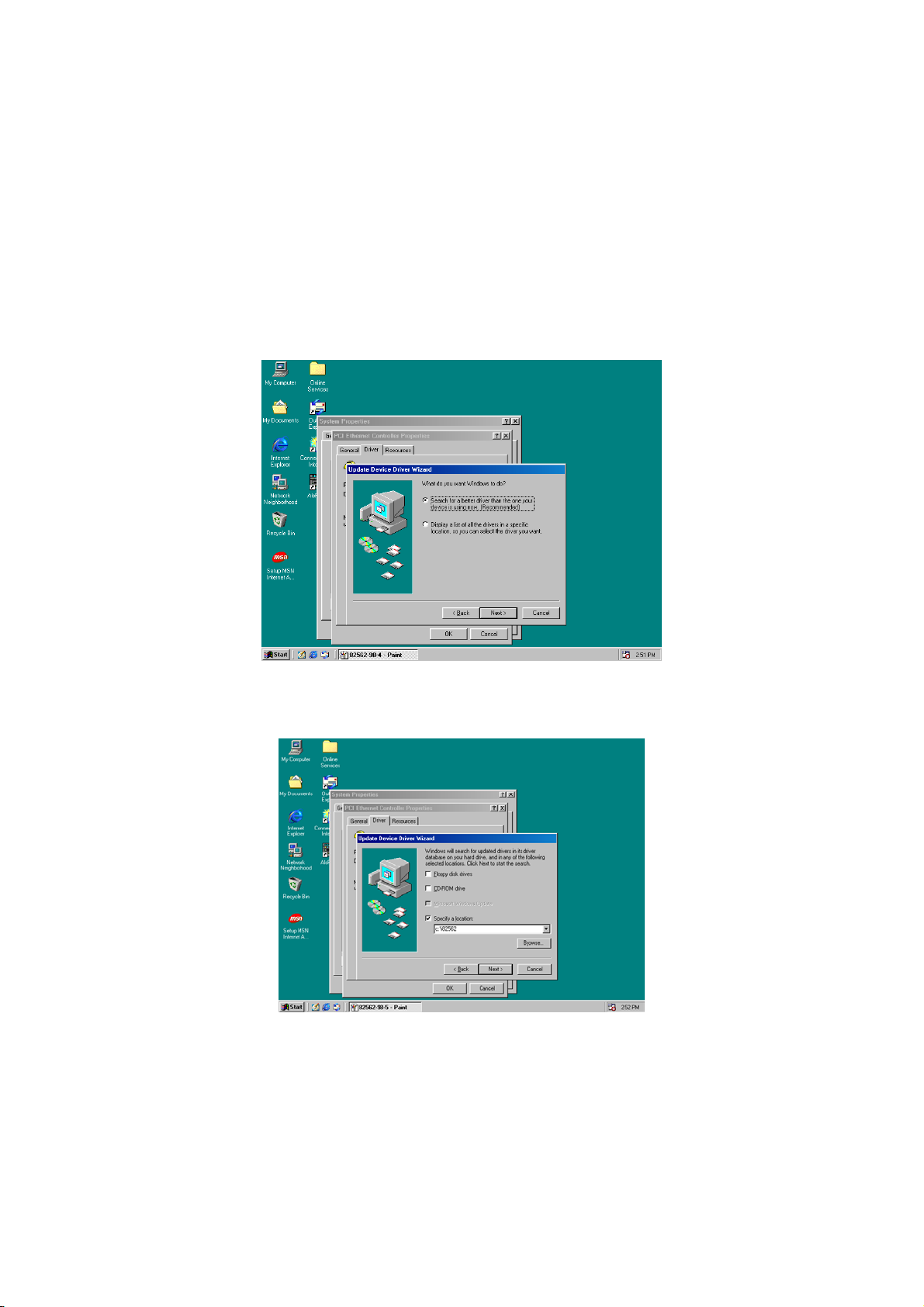

4. The succeeding screen then lets you choose whether to search for a better driver for the LAN or display the available list of drivers. Select Search for a better driver than the one your device is using now followed by a click on the Next > button.

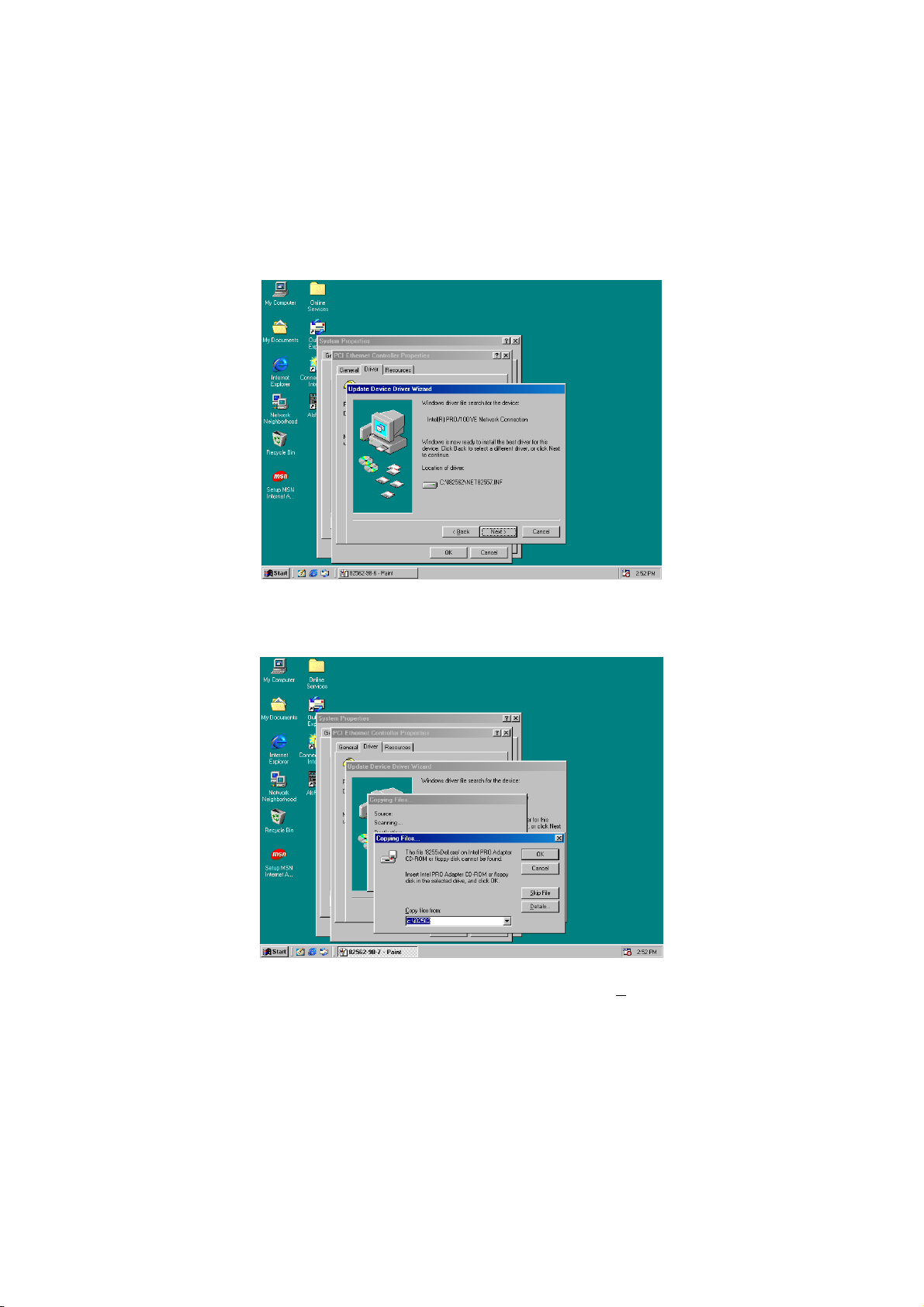

5. The wizard program will then require you to specify the location of the driver file. Tick on the Specify a location: and type or select the path where the driver files exist (c:\i82562). Click on the Next > button to proceed.

Page 69

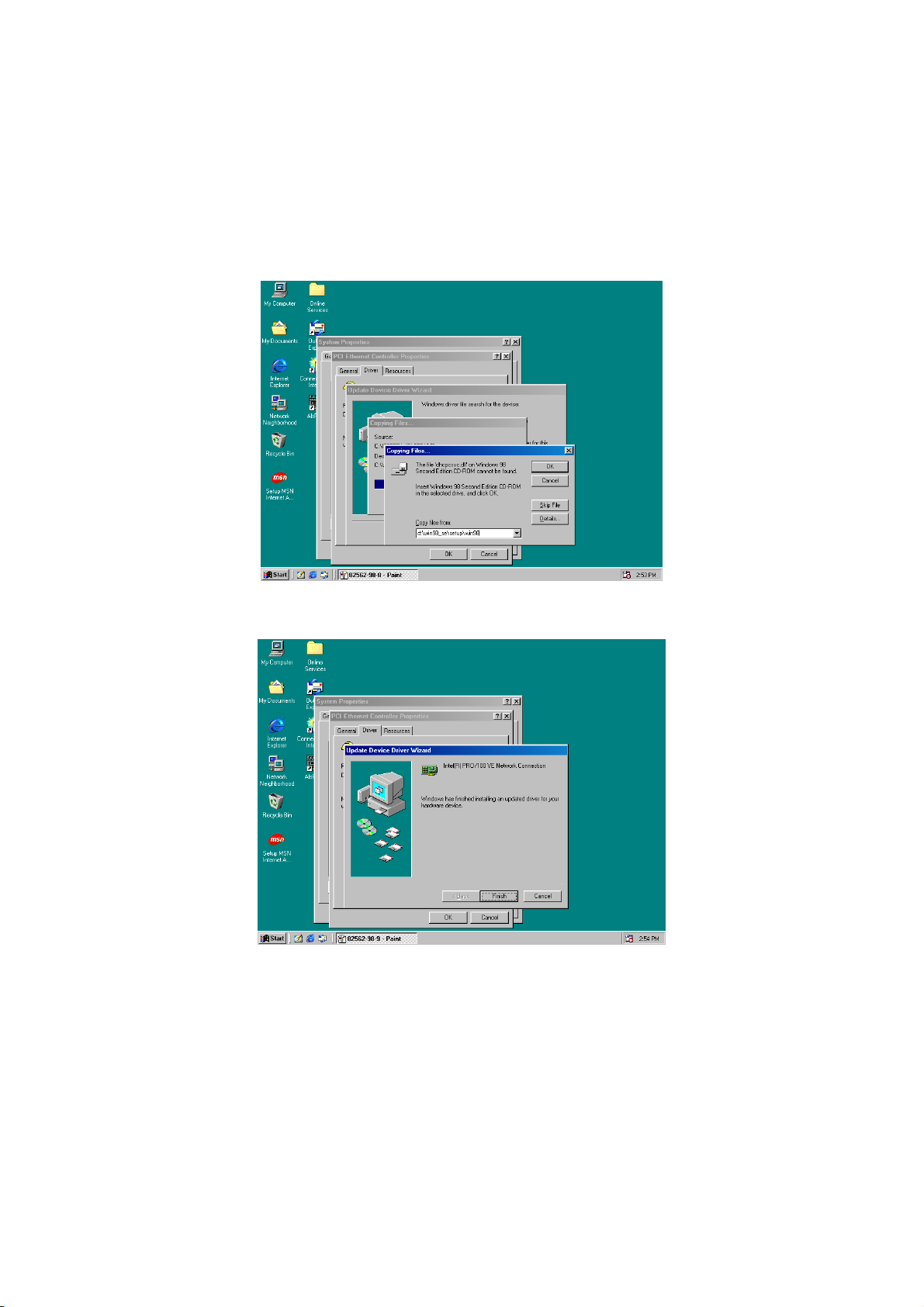

6. The program now starts copying the file(s) needed by your Win98. When the program fails to seek for 8255xDel.exe file from your specified location, it will prompt you to specify the path where the Intel Pro Adapter exists.

7. With the Utility CD Disk on your CD drive, key in

d:\win98_se\setup\win98 on the blank space below C from: then press the OK button.

opy files

Page 70

8. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click on the Finish button to proceed.

Page 71

9. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change window below pops up. Click on the Y

es button to complete the installation.

5.3.2 Win 2000

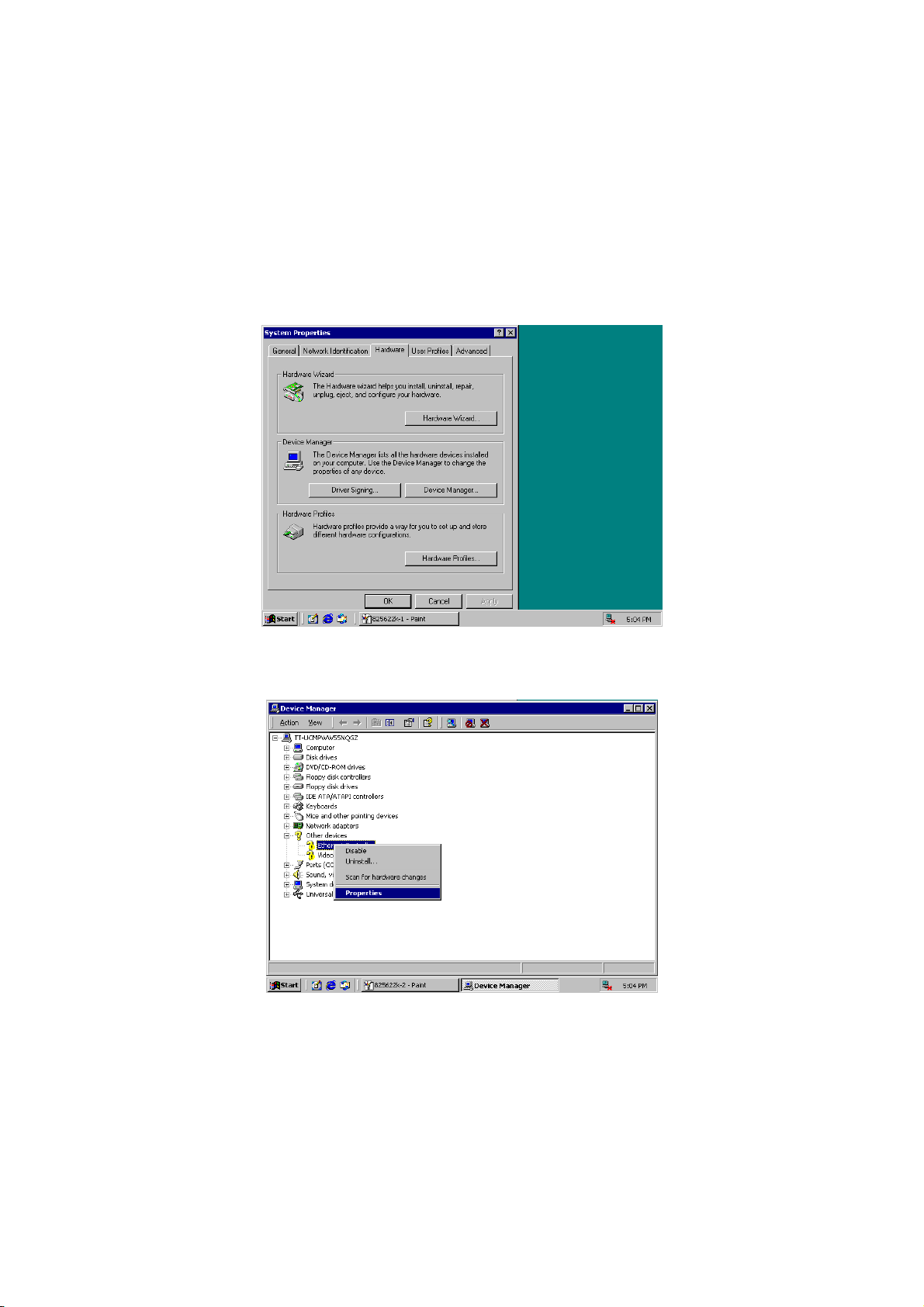

1. Right click on My Computer icon then scroll to the Properties item from the pop-up menu.

Page 72

2. When the System Properties window pops up on the screen, click on the Device Manager button.

3. A list of all devices installed appears, scroll down to the Other devices and then right click on Ethernet Controller to select the Properties button Refer to the following screen shot for an clearer explanation of this step.

Page 73

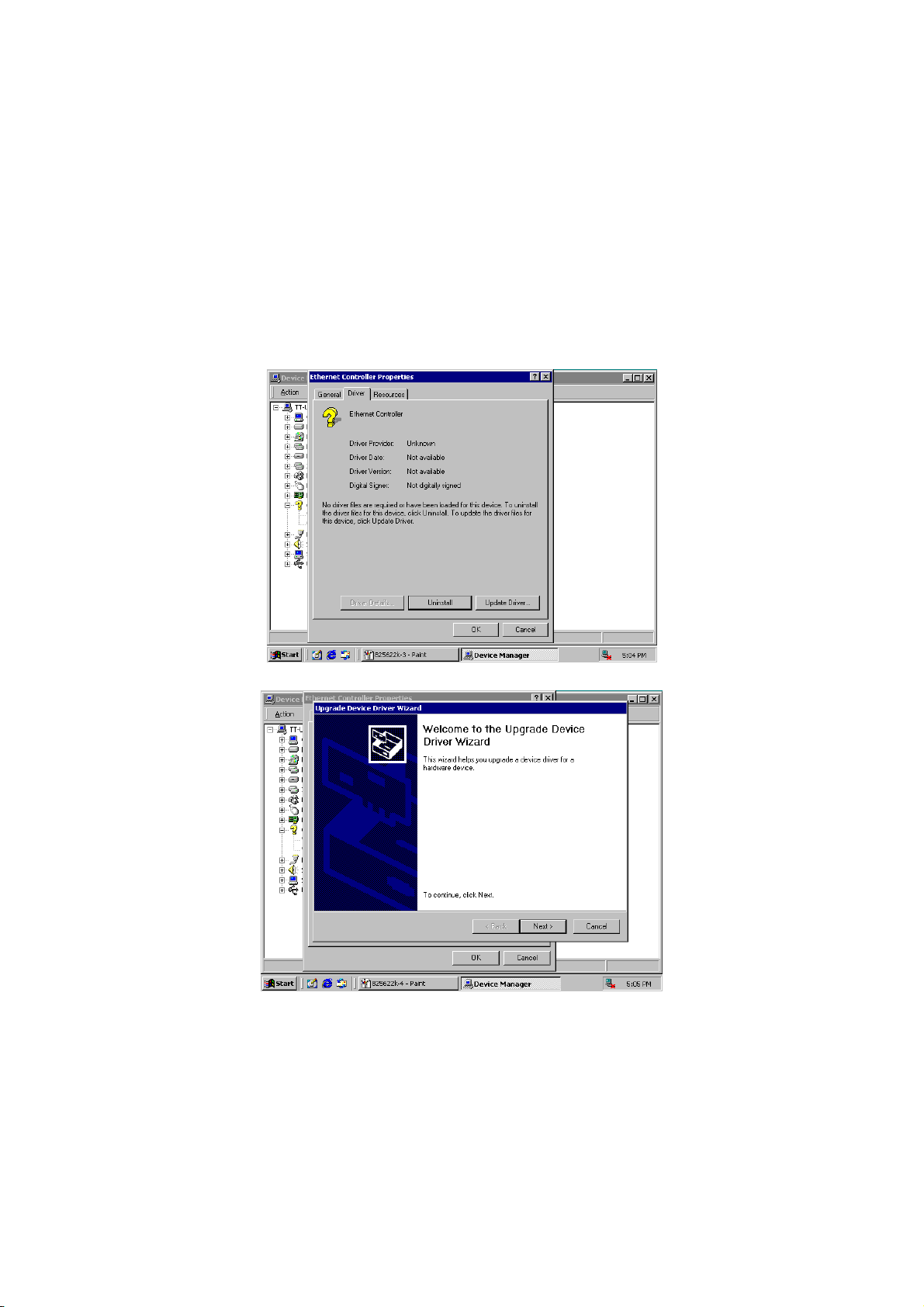

4. Once the Ethernet Controller Properties screen pops on the screen, click on the Update Driver … button to launch the

Update Device Driver Wizard screen. Once the Upgrade Device Driver Wizard screen pops on the screen, click Update Driver … to launch the Win 2000 driver installation program.

5. Click on Next > button to proceed with the installation.

Page 74

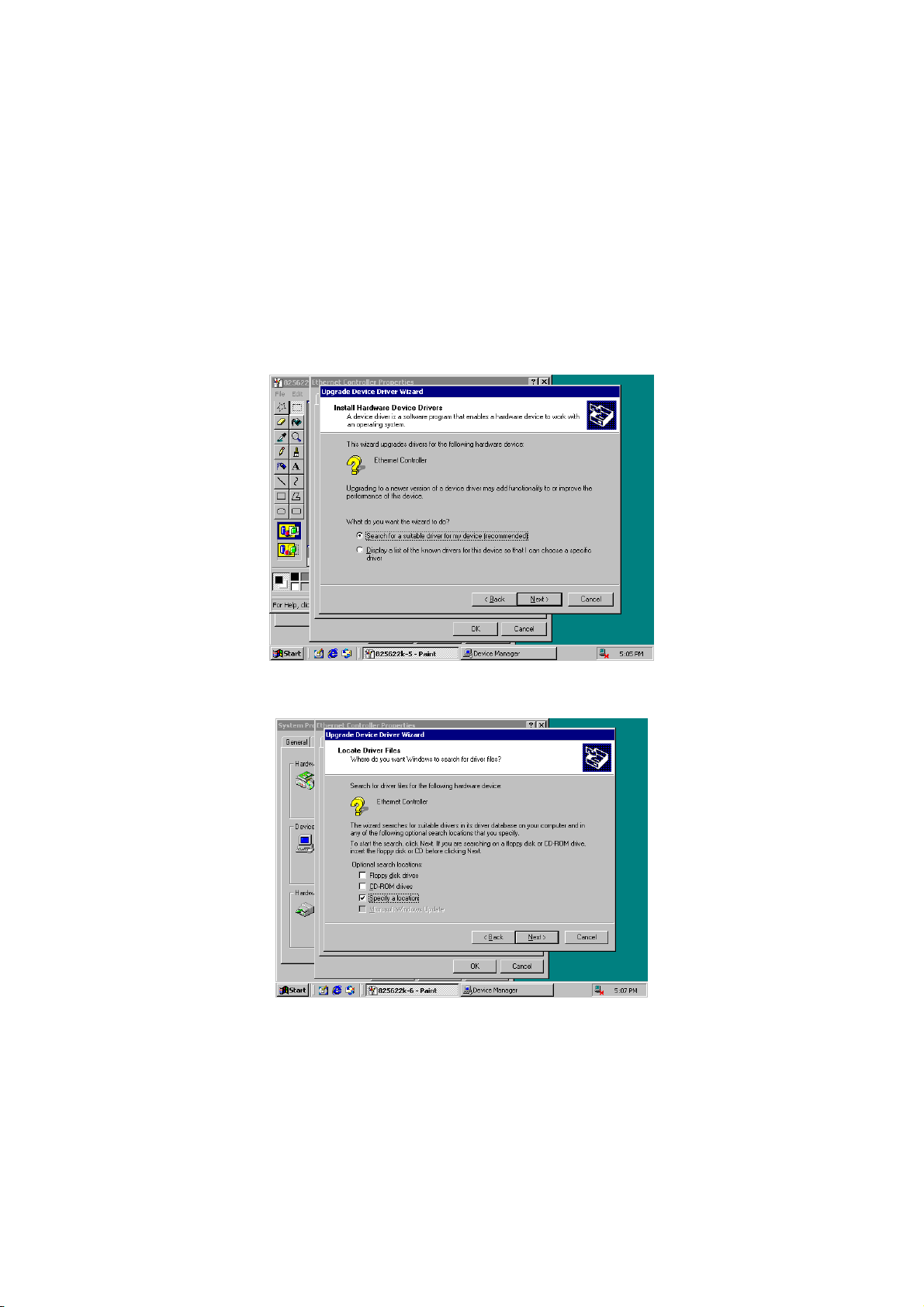

6. The wizard will then inform you the unknown device it detected

from the system. Since the Win200 drivers list do not include Intel chip driver onboard HS-6238, tick Search for a better driver than the one your device is using now followed by a click on the Next > button to continue.

7. The wizard program will then prompt you to specify the location

where it will start searching for the driver. Tick on the Specify a location: and then click on the Next > button to proceed.

Page 75

8. The wizard program will then require you to insert the

manufacturer disk at your specified location (entered at the Copy manufacturer’s files from: space) of the driver file. With your Utility CD disk inserted in the drive, type d:lan\i82562 then click on the OK button to proceed.

9. The wizard program will start to scan and search for the driver(s) located at your specified location. After which, the wizard program will show the result of its search. When it finds a more suitable driver fitting your device, it will list the driver name and path. Just click on the Next > button to continue installing.

Page 76

10. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click Finish to proceed.

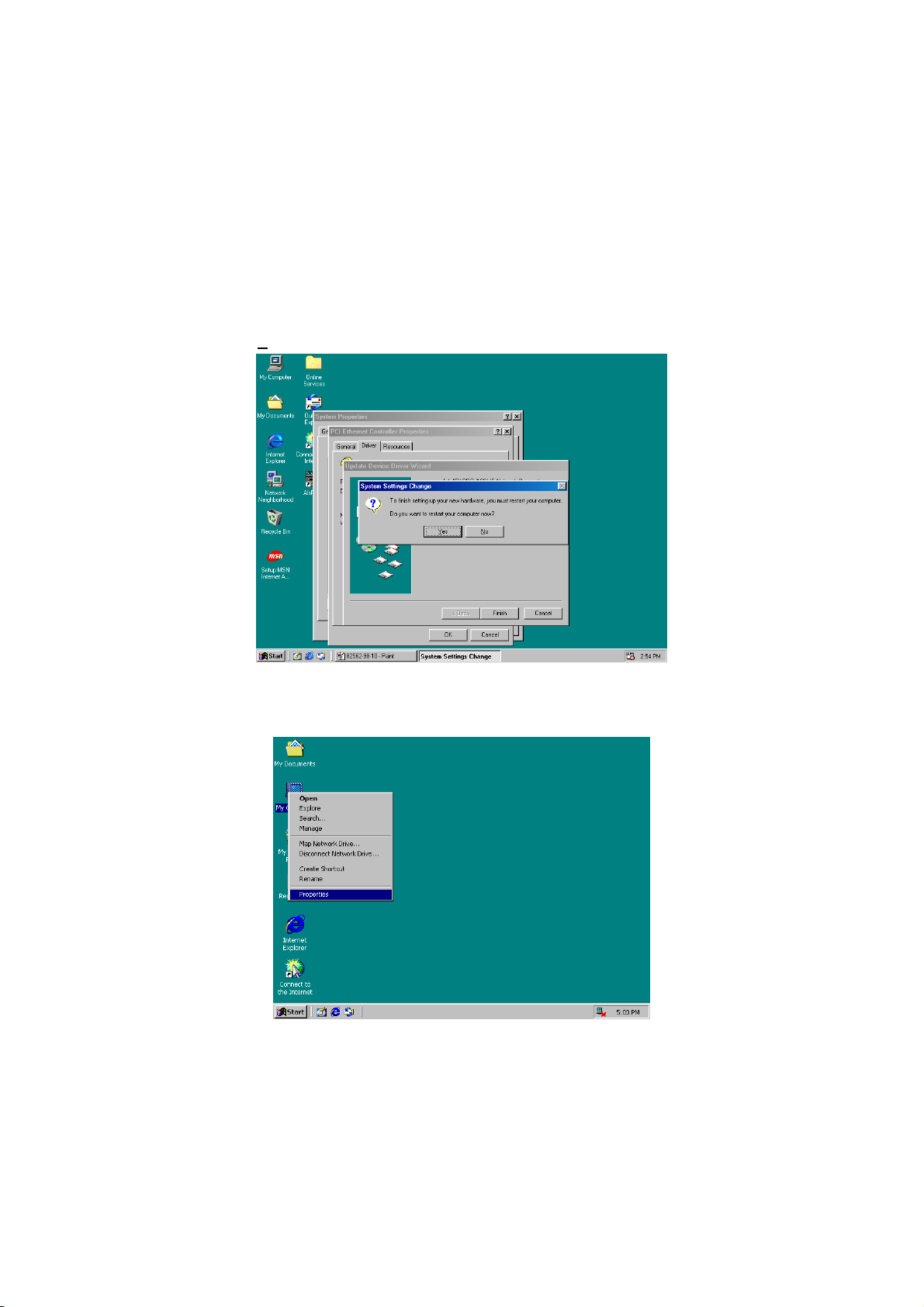

11. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change window below pops up. Click on the Y

es button to complete the installation.

Page 77

5.3.3 Win NT

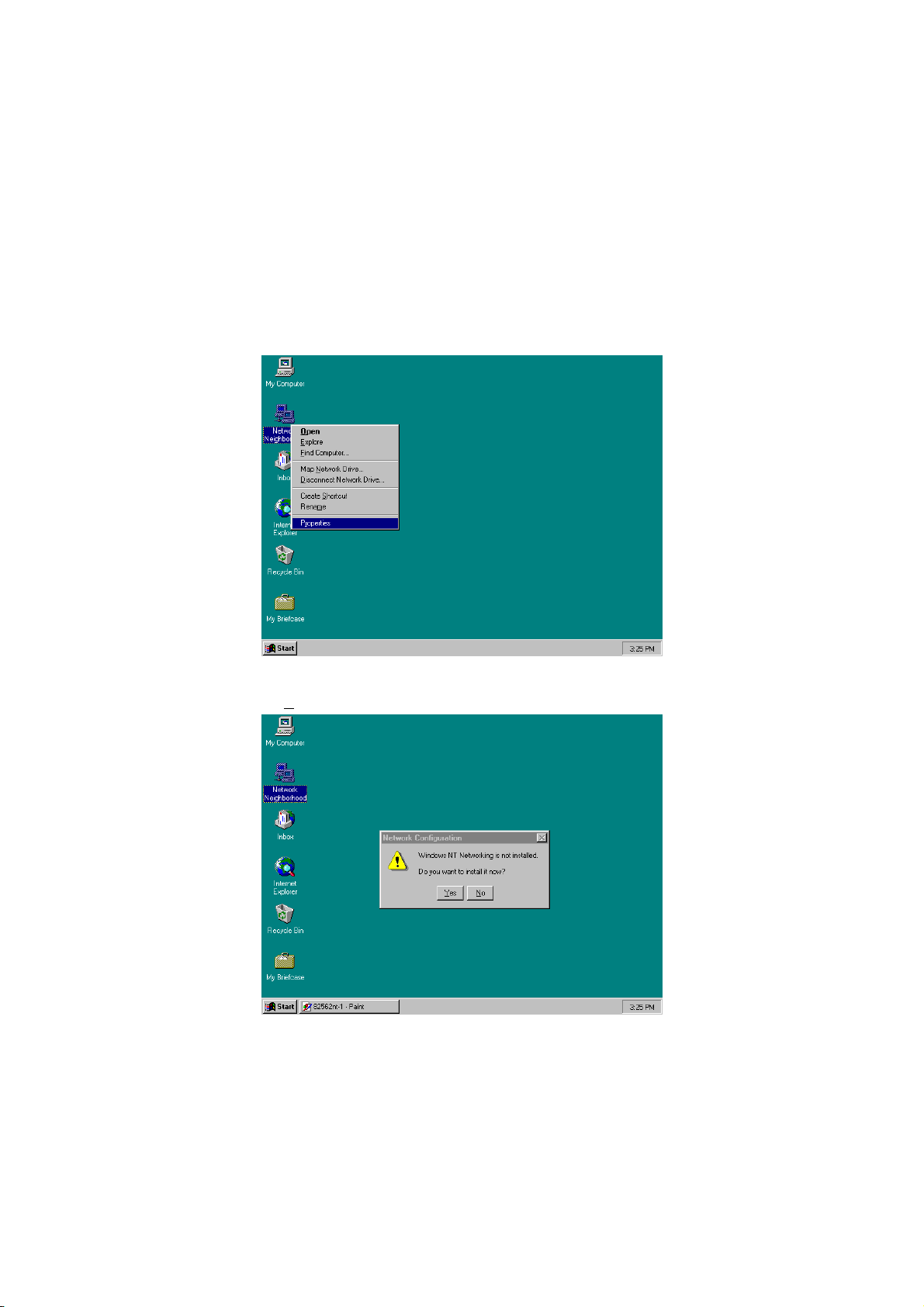

1. Right click on Network Neighborhood icon then scroll to the Properties item from the pop-up menu.

2. The Network Configuration dialog box then appears, notifying the user that there is no Windows NT Networking available. Click on the Y

es button to start the installation process.

Page 78

3. The Network Setup Wizard will then ask you to identify the network connection of your computer. Select W

network and click on the Next > to continue.

ired to the

4. The succeeding screen then indicated that the wizard will initially search for Network Adapter from the available list of drivers. Select on St

art Search.

Page 79

5. When it is done searching for available network drivers, the wizard will show a list and allow you to locate and choose the appropriate Network Adapter. Since the LAN device driver is in the Utility CD Disk, select on Have Disk … to proceed.

6. The wizard program will then require you to insert the manufacturer disk and specify the location of the driver file (i.e., c:\i82562). Click on the OK button to proceed.

Page 80

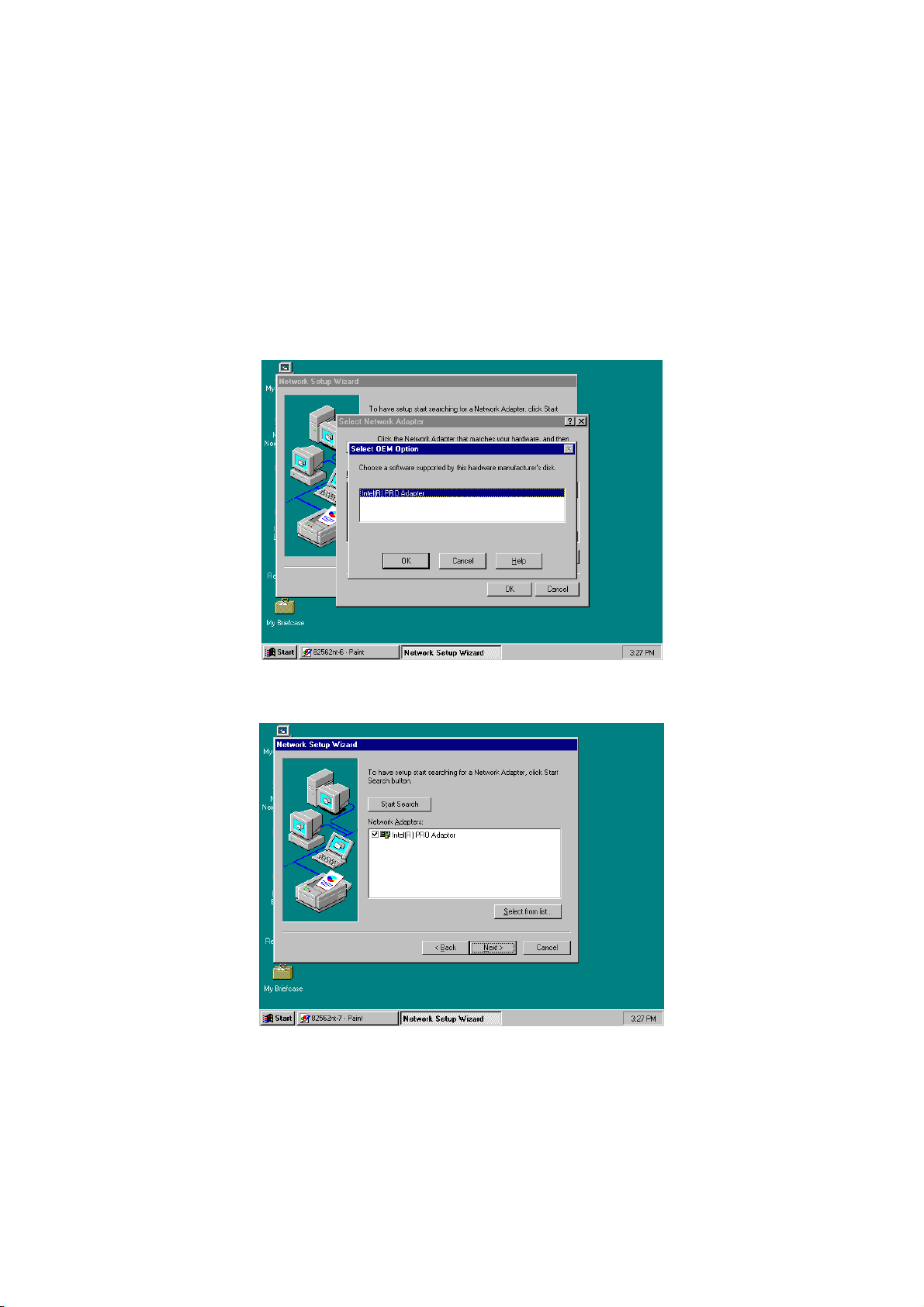

7. The Select OEM Option then appears, prompting you to select the software supported by the network hardware device you will install. Select Intel(R) PRO Adapter and click on the OK button to continue installing.

8. The wizard program now displays on the screen that it has detected the Intel() PRO Adapter. Click on the Next > button to continue installing.

Page 81

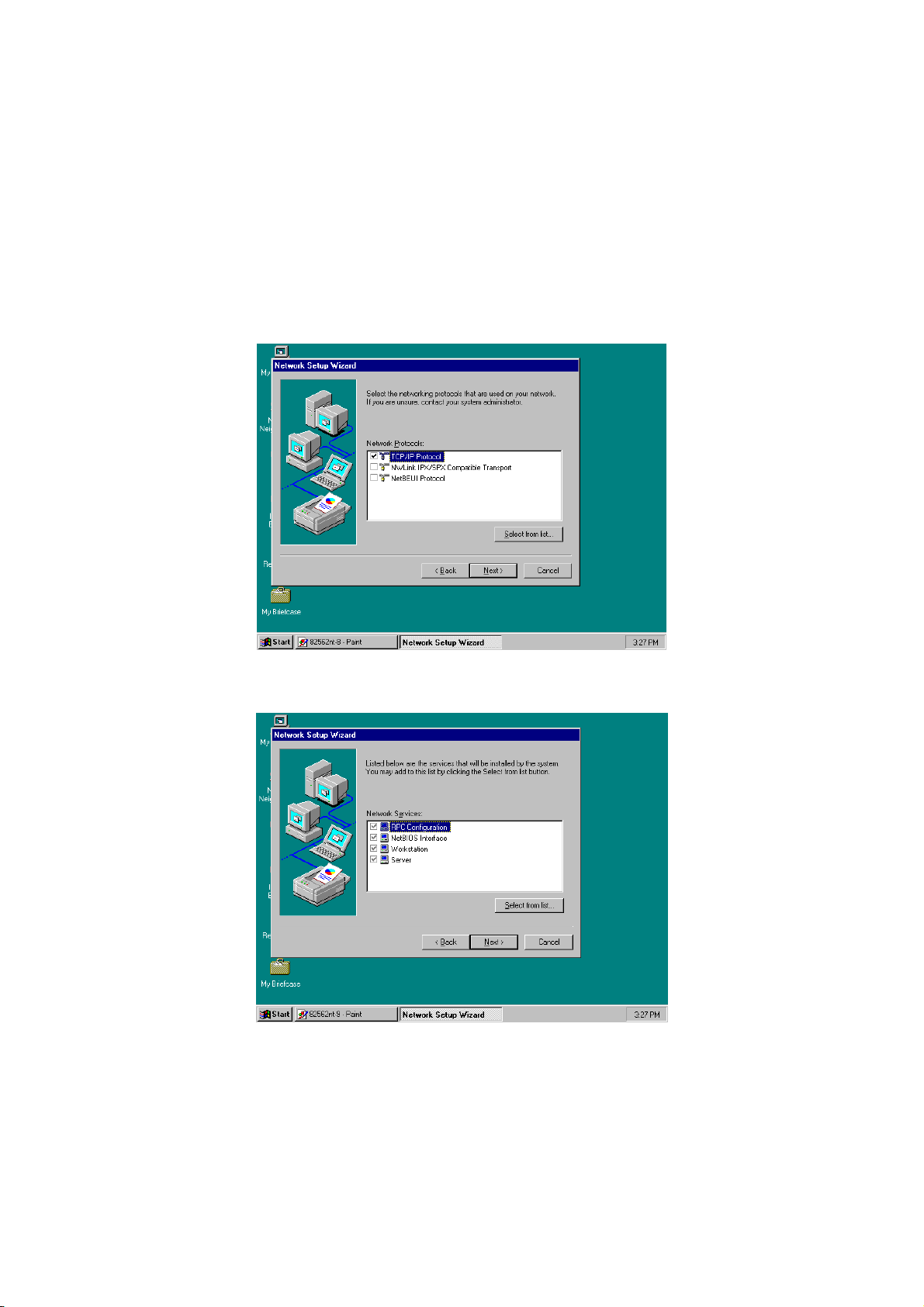

9. The wizard program now prompts you to specify the networking protocols used on your network structure. Tick on the TCP/IP Protocol and click on the Next > button to proceed.

10. The next screen will allow you to customize the Network Services the wizard program intends to install. Tick services as needed and then click on the Next > button to continue.

Page 82

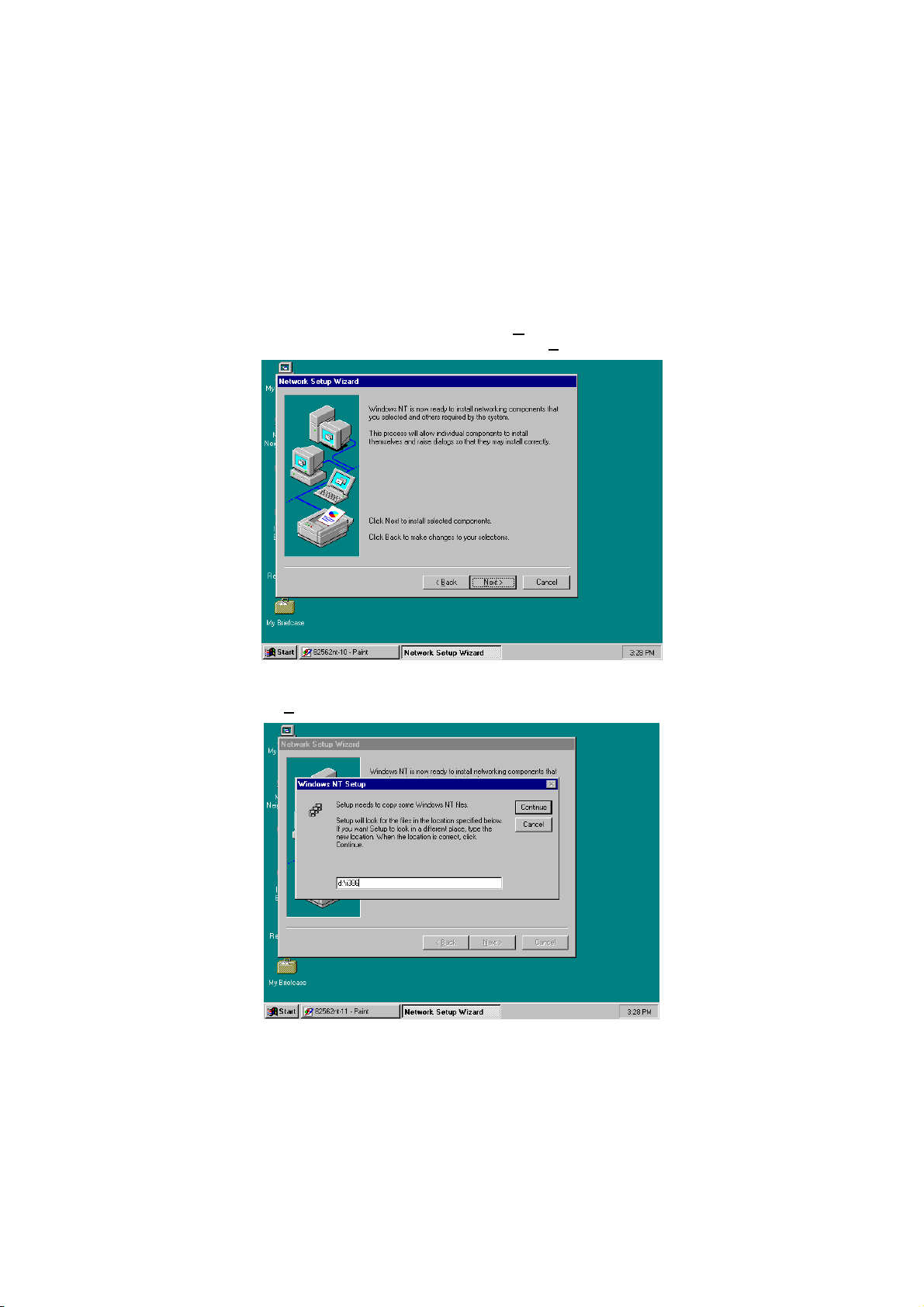

11. The Network Setup Wizard then prompts you that it is ready to install the network components based on your selection. You may start installing by clicking on he N modifications on your choices using the < B

ext > button or make

ack button.

12. The Network Setup Wizard will then need to copy the drive file(s). Specify the path of your device driver(s) (i.e., d:\i386) and click the C

ontinue button.

Page 83

13. Choose the default entry, No, when the following screen pops on the screen.

14. If you need to disable network bindings on the network services installed, select the service and then click on the D Otherwise, proceed by clicking on the N

ext > button.

isable button.

Page 84

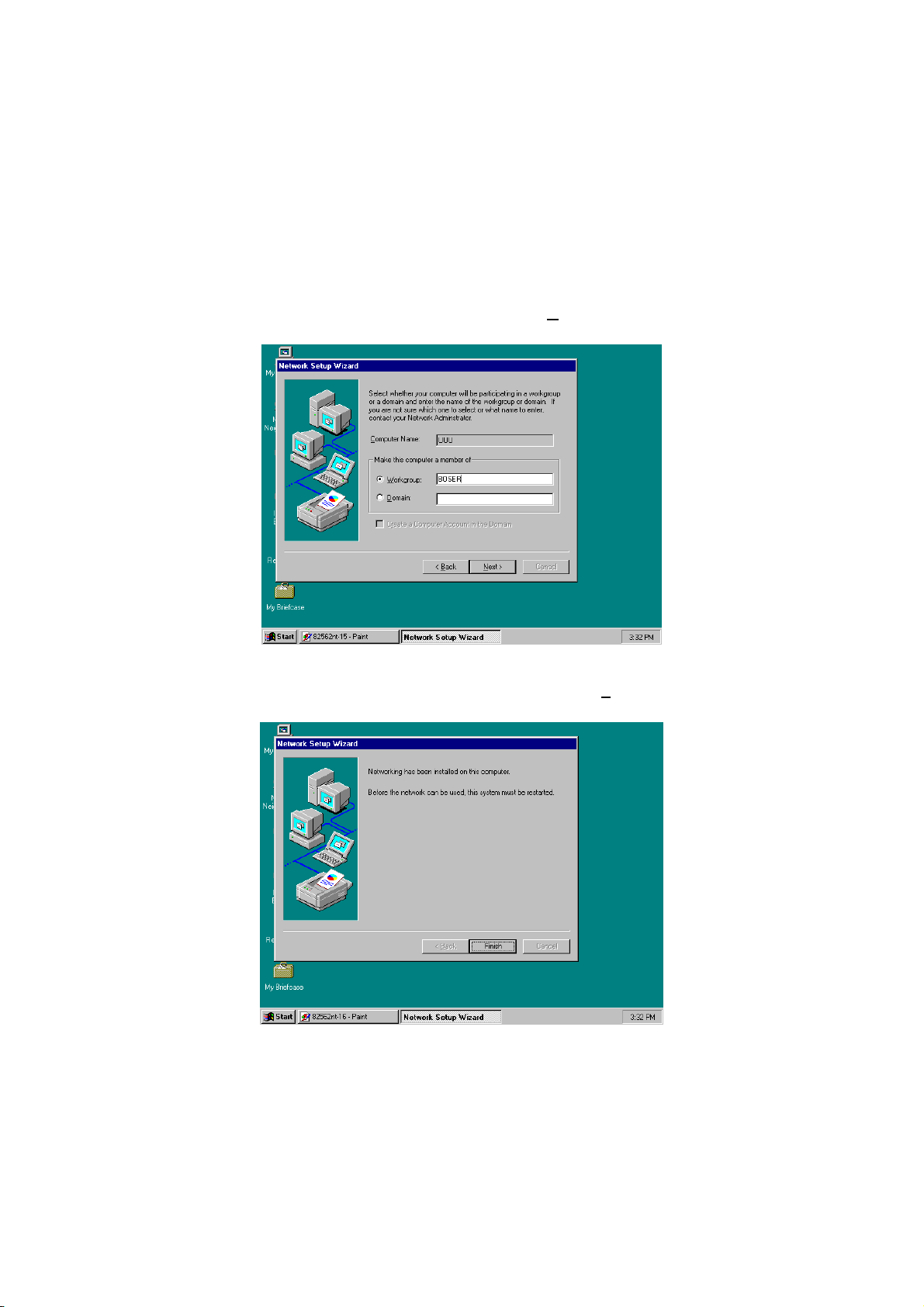

15. Specify the network participation type of your computer, either to a Workgroup or a Domain. Click on the N identifying the network group installed on your computer.

ext > button after

16. The wizard program then informs you that Networking is now installed on your system. You must restart your computer to make the setting changes take effect. Click on the F to close the wizard program.

inish button

Page 85

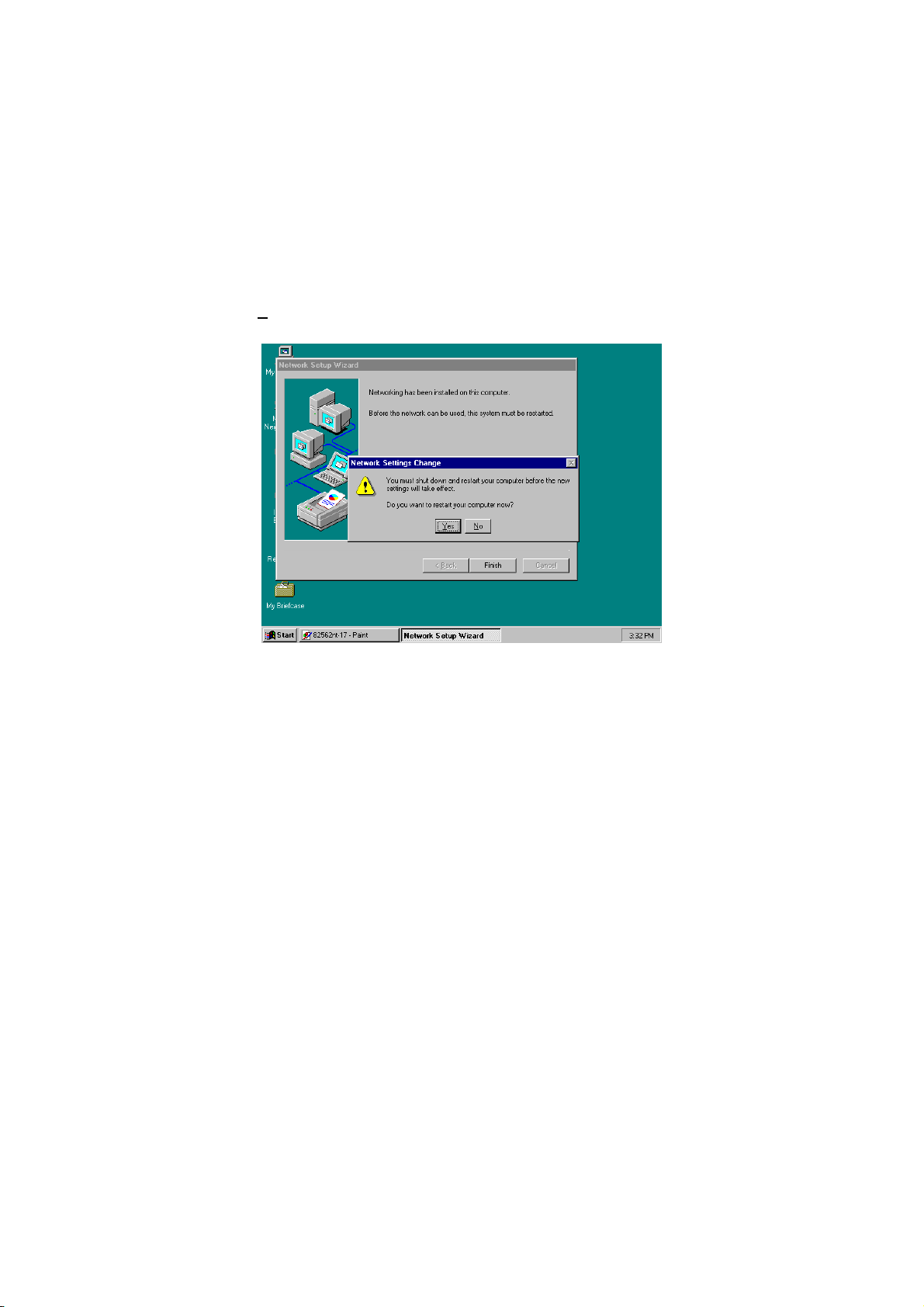

17. When the following dialog box pops on your screen, click on the

es button to restart your computer and make the setting

changes take effect.

Page 86

5.4 Audio Driver Installation

5.4.1 Win 95/98

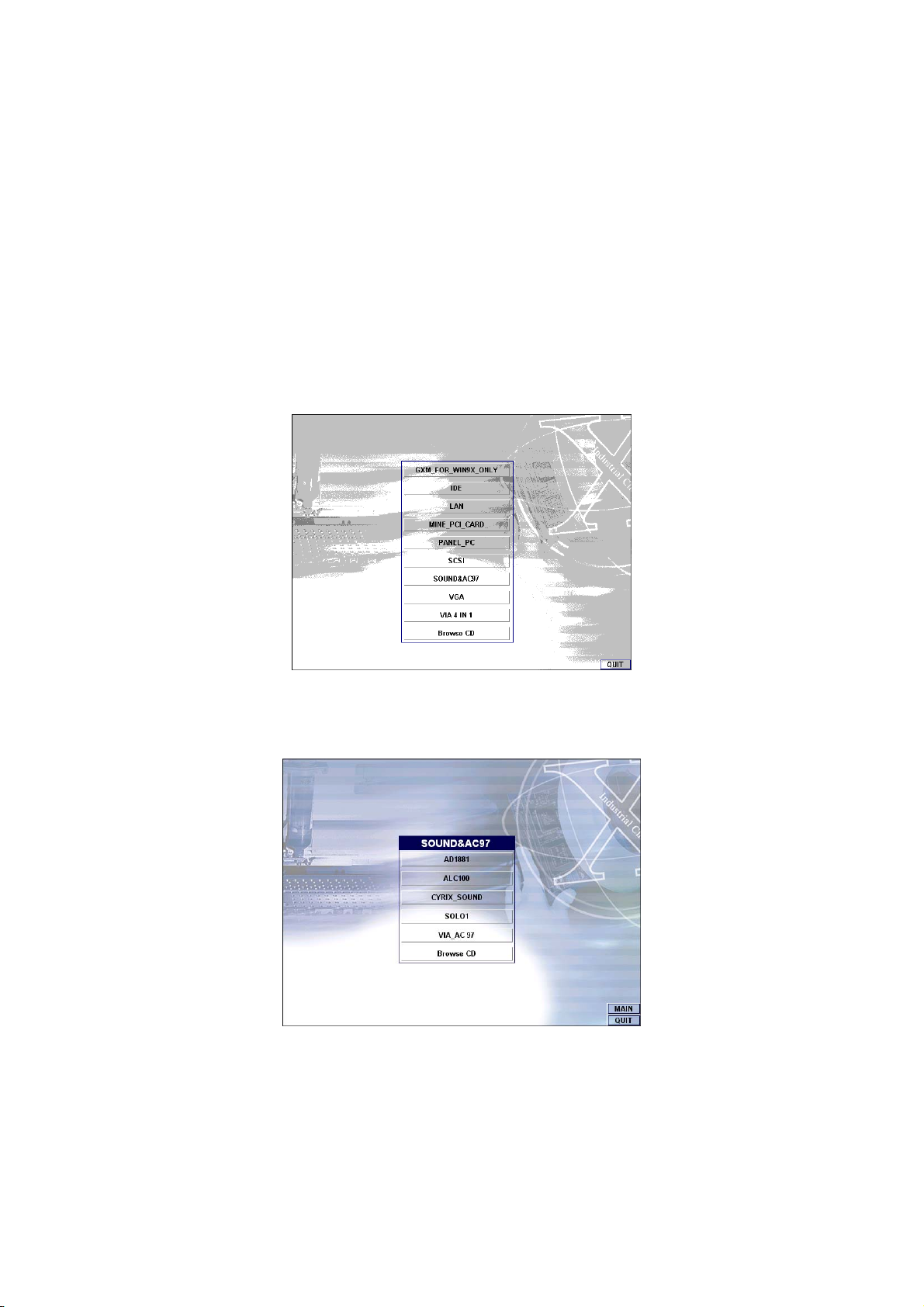

1. After loading the Utility CD-ROM, the program automatically runs the utility. Press Enter to proceed installing. When the main utilities window pops on the screen, select SOUND&AC7.

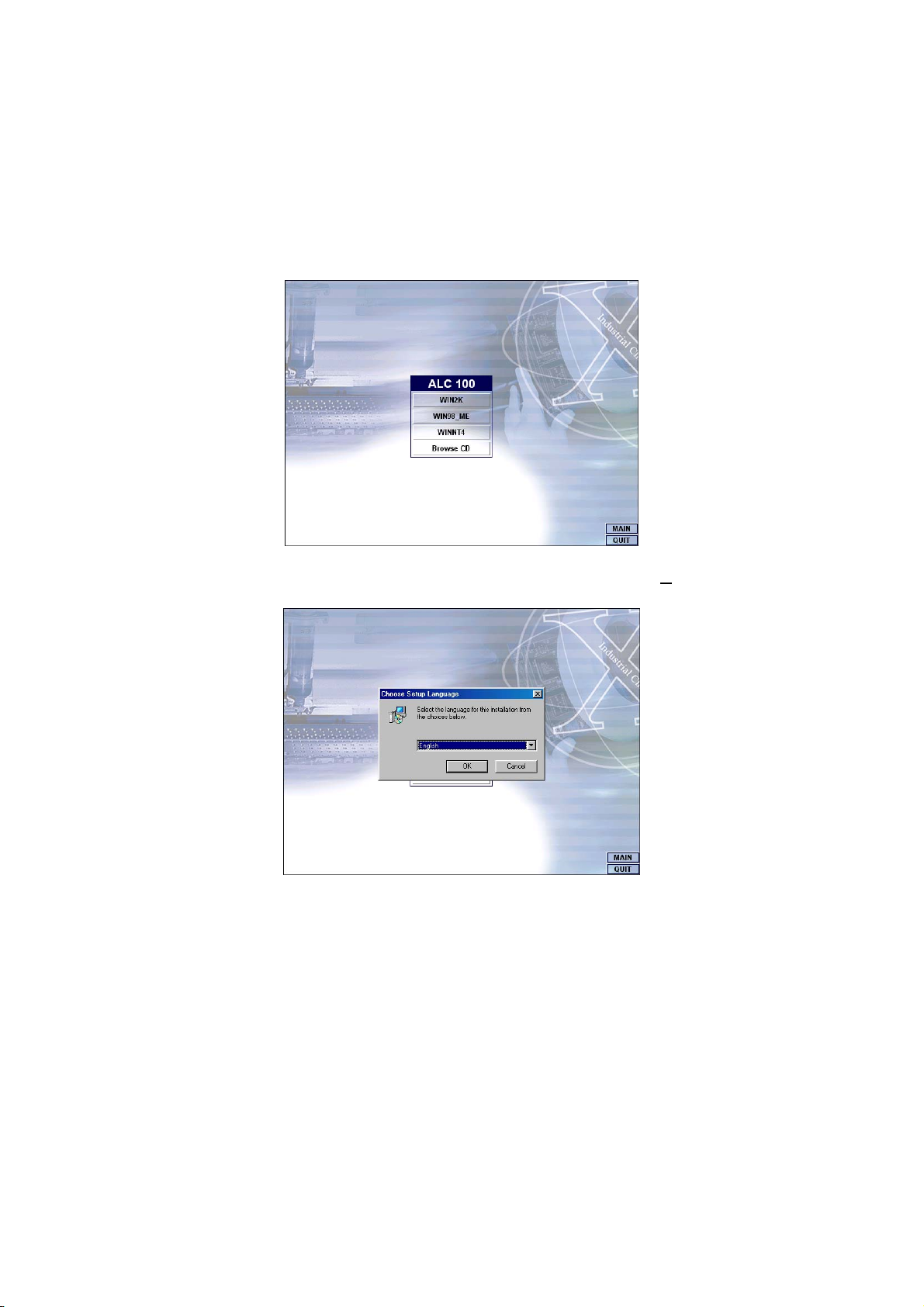

2. The succeeding screen will then show you the SOUND&AC97 main menu. Select on ALC 100 to continue installation. When the ALC100 dialog box appears, pick on WIN98_ME and it will take you to the ALC 100 menu. Refer to the following screen shots for a graphical description of this step.

Page 87

3. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

Page 88

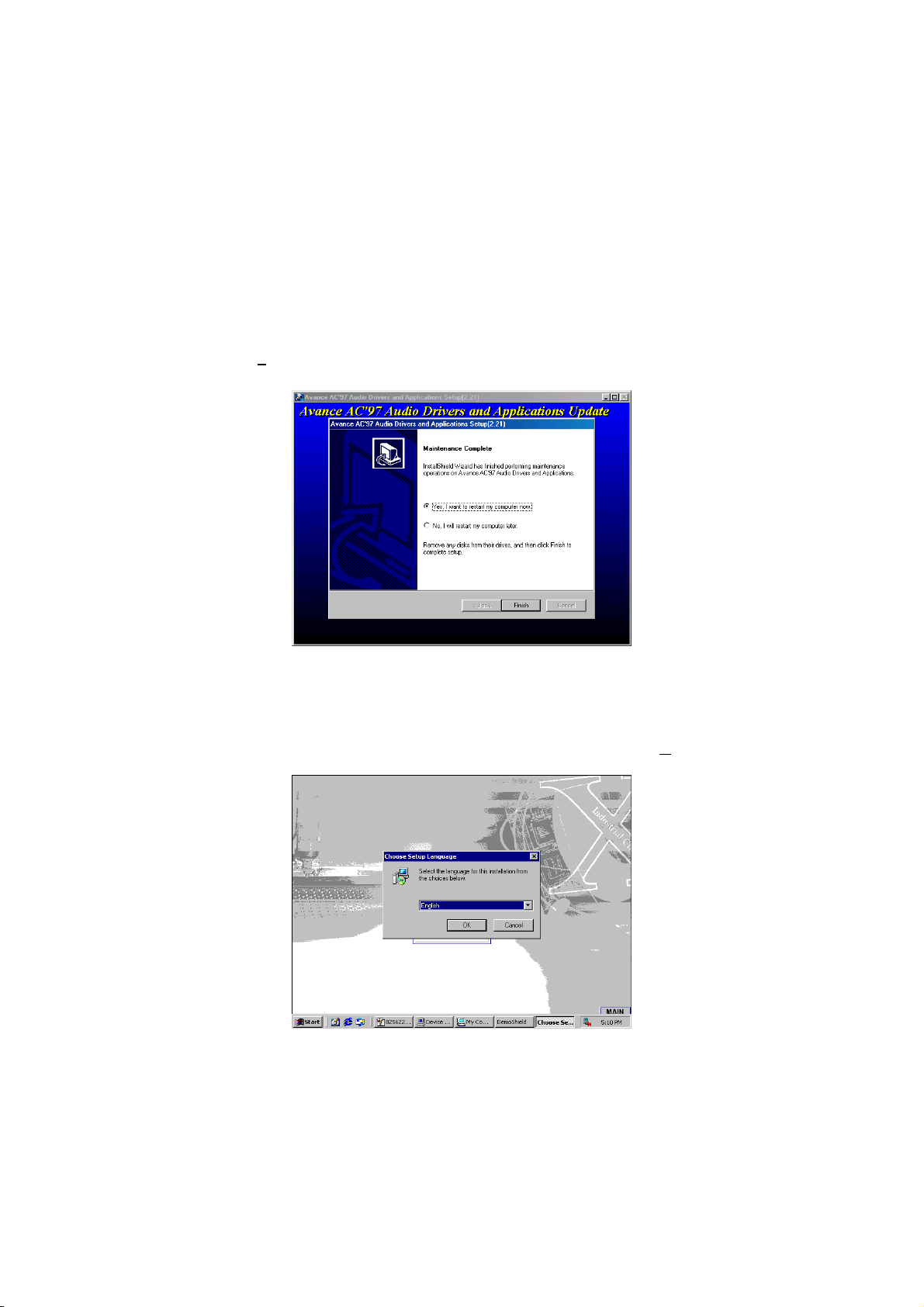

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system. Tick on the Yes, I want to restart my computer now. Afterwards, click on the

inish button to complete the installation process. The system

changes you made will take effect after the system restarts.

5.4.2 Win 2000

1. Following steps 1 and 2 of the Win95/98 AC97 installation, select WIN2K button when the ALC100 dialog box appears screen.

2. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

Page 89

3. Immediately after clicking on the OK button from the preceding step, the Avance AC’97 Audio Drivers and Applications Setup dialog box will appear on screen. Just click on the N button to continue.

ext >

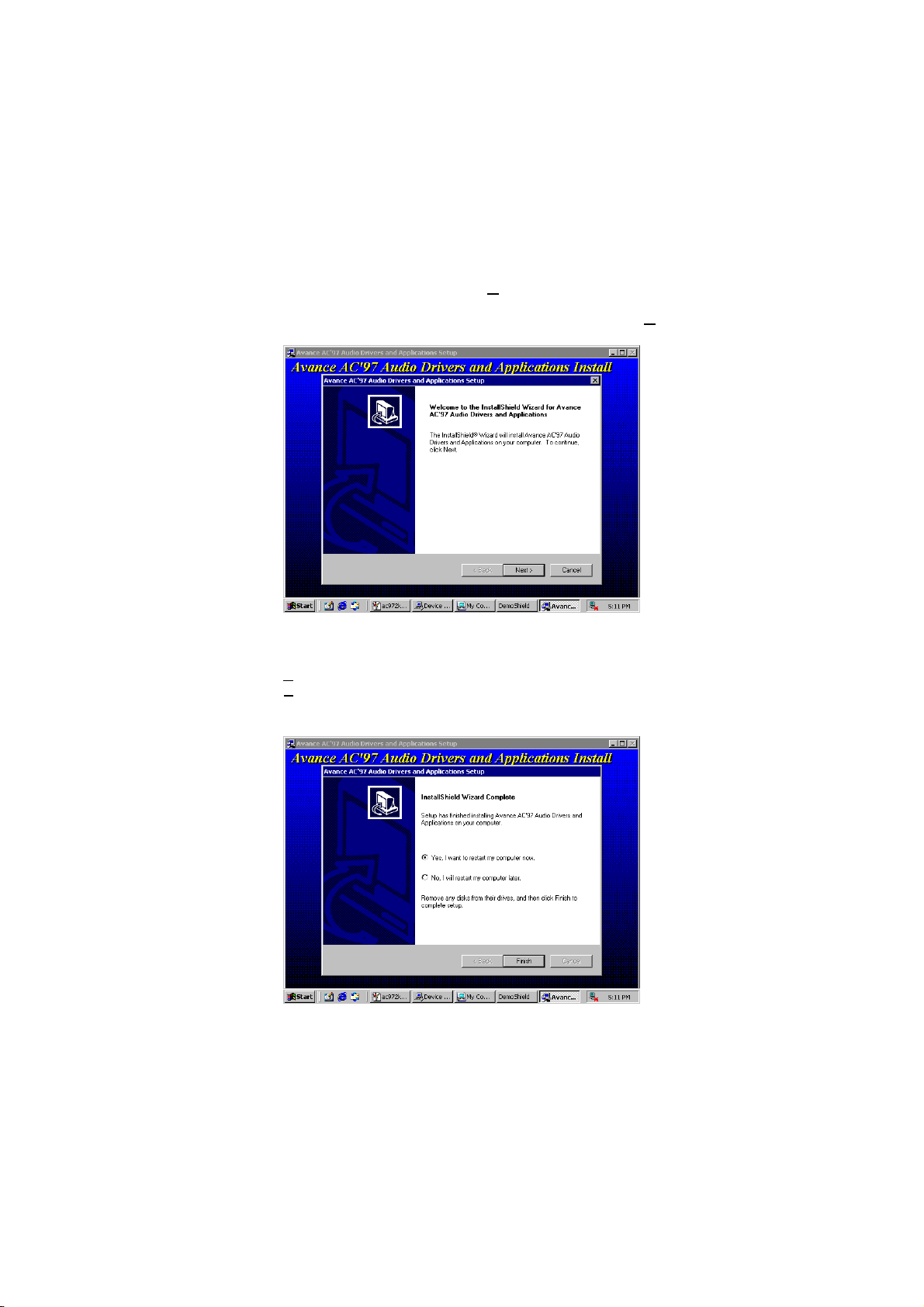

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on the Y

es, I want to restart my computer now. Afterwards, click on

the F

inish button to complete the installation process. The system changes you made will take effect after the system restarts.

Page 90

5.4.3 Win NT

1. Following steps 1 and 2 of the Win95/98 OR step 1 of Win 2000 AC97 installation, select WINNT button when the ALC100 dialog box appears screen.

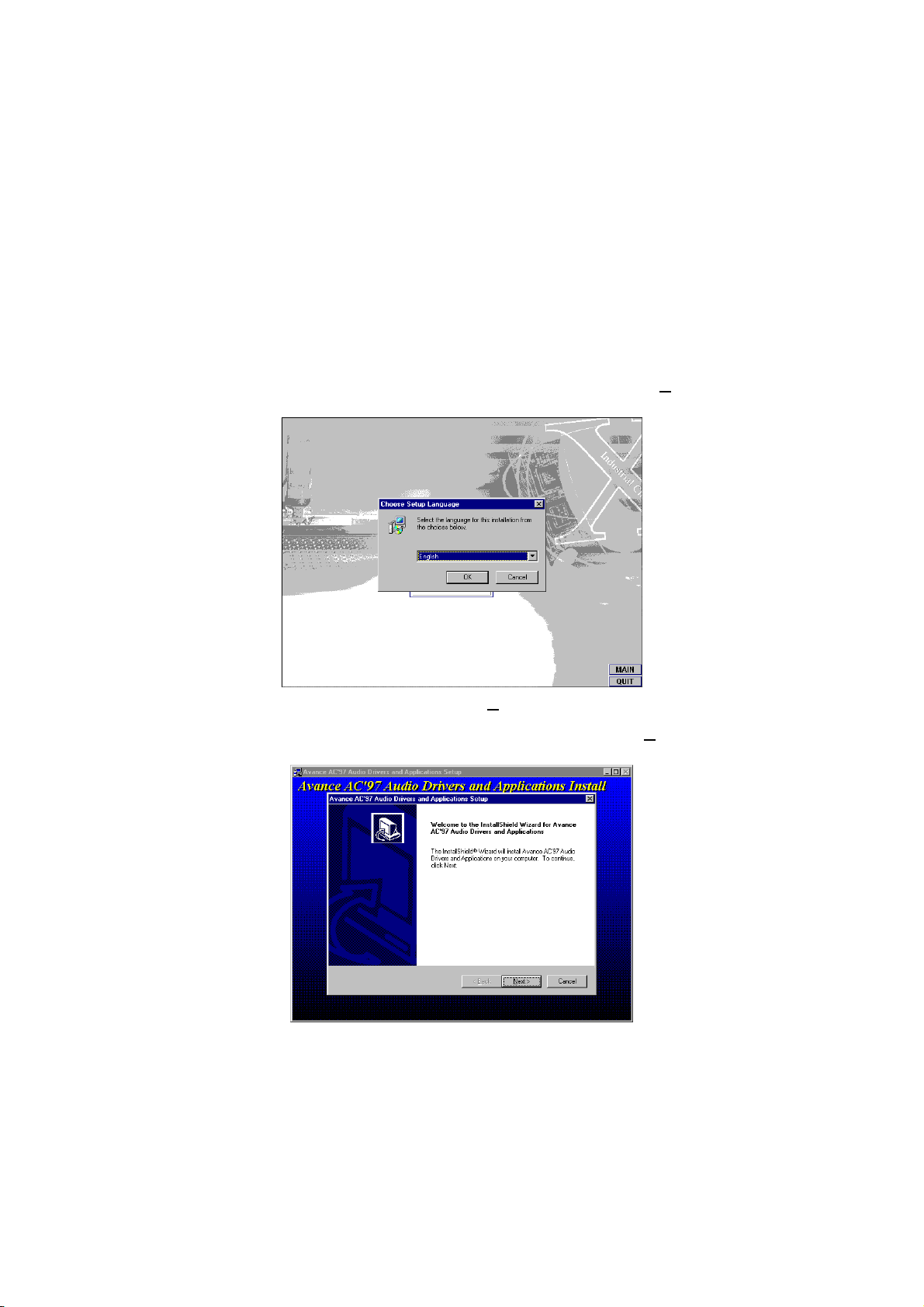

2. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

ext >

Page 91

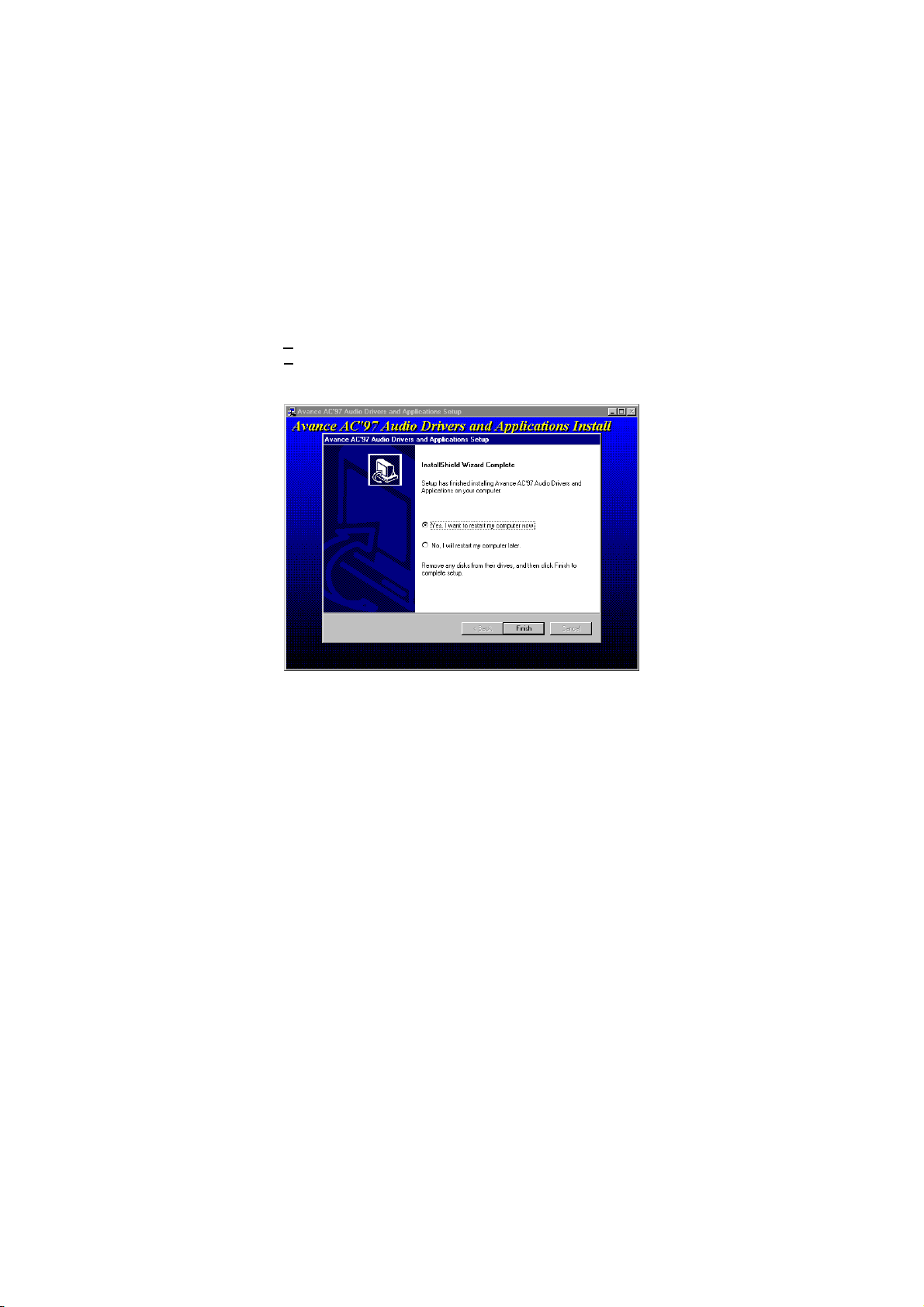

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on the Y

es, I want to restart my computer now. Afterwards, click on

the F

inish button to complete the installation process. The system changes you made will take effect after the system restarts.
