HS-6301
Dual PIII / Dual LAN / VGA / SCSI
• Dual CPU•Dual LAN•CRT/Panel•133MHz FSB•
• SCSI •DMA33•WDT•PC/104•USB•
• DOC•IrDA•Hardware Monitor•
• PICMG Bus Industrial Single Board Computer•
HS-6301LLV
Dual PIII / Dual LAN / VGA
• Dual CPU•Dual LAN•CRT/Panel•133MHz FSB•
• DMA33•WDT•PC/104•USB•
• DOC•IrDA•Hardware Monitor•
• PICMG Bus Industrial Single Board Computer•
Copyrights
This manual is copyrighted and all rights are reserved. Unauthorized translation
or reproduction to any electronic or readable form in whole or in part without prior
written consent from the manufacturer is prohibited.
In general, the manufacturer will not be liable for any direct, indirect, special,
incidental or consequential damages arising from the use of the product or
documentation, even if advised of the possibility of such damages.
The manufacturer reserves the right to change the contents of this manual
without prior notice. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to
update the information contained herein.
Trademarks
BOSER is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
ISB is a registered trademark of BOSER Technology Co., Ltd.
All other trademarks, products and or product's name mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2001
All Rights Reserved.
User Manual edition 1. 2, Aug.24 2001
Contents
HS-6301.......................................................................................I
HS-6301LLV ................................................................................II
GENERAL INFORMATION.................................................................. 5
1.1 MAJOR FEATURES ....................................................................... 6
1.2 SPECIFICATIONS........................................................................... 7
1.3 DELIVERY PACKAGE.................................................................... 9
HARDWARE INSTALLATION.............................................................10
2.1 CAUTION OF STATIC ELECTRICITY...................................................10
2.2 CAUTION ON UNPACKING AND BEFORE INSTALLATION .........................11
2.3 HS -6301'S LAYOUT....................................................................12
2.4 QUICK LISTING OF JUMPERS...........................................................13
2.5 QUICK LISTING OF CONNECTORS.....................................................14

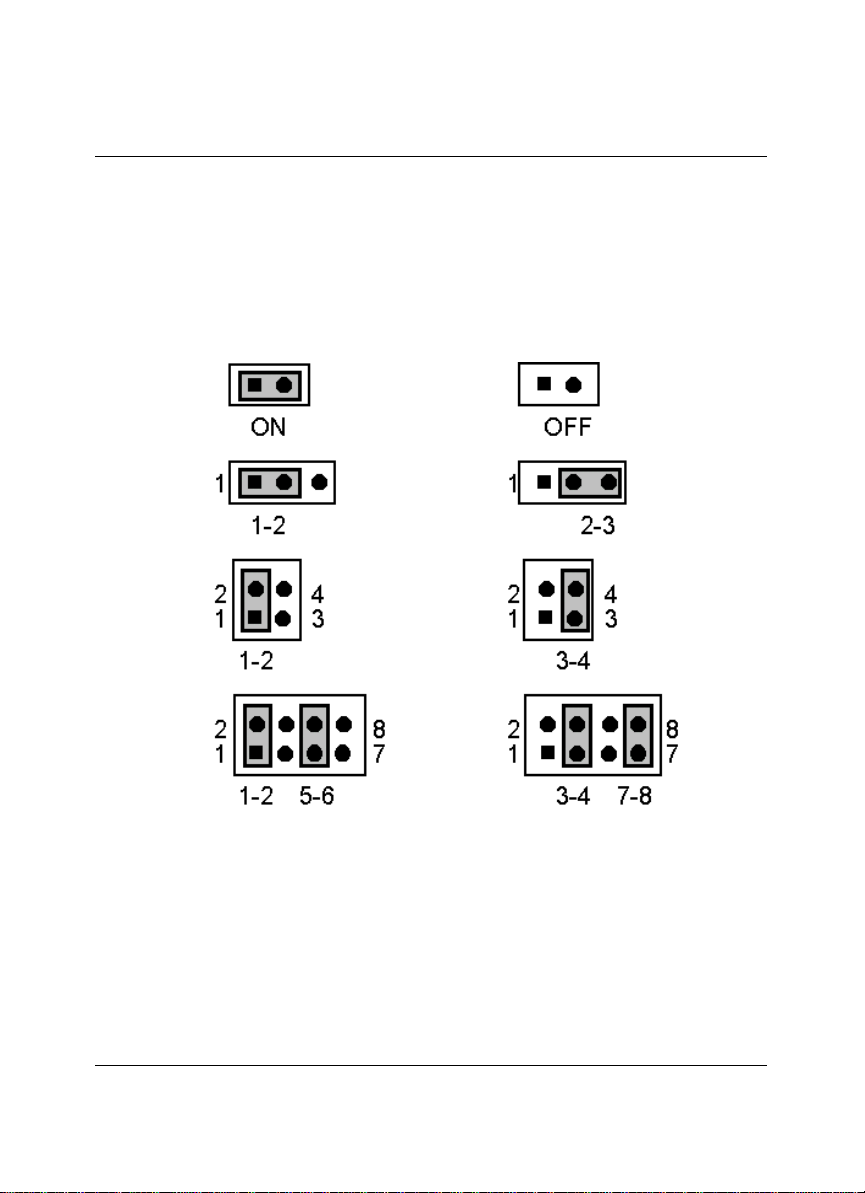

2.6 JUMPER SETTING DESCRIPTION.......................................................15
2.7 SETTING CPU'S HOST CLOCK .......................................................16
2.8 DISKONCHIP
2.9 WATCH-DOG TIMER.....................................................................17
2.10 USB PORTS CONNECTOR............................................................19
2.11 SETTING THE RTC CONFIGURATION................................................19
2.12 SYSTEM MEMORY DRAM............................................................19
TM
ADDRESS SETTING..................................................16
CONNECTION...................................................................................20
3.1 POWER CONNECTOR ...................................................................20
3.2 IDE'S LED, KEYLOCK AND RESET BUTTON......................................21
3.3 PCI E-IDE DRIVE CONNECTOR......................................................22
3.4 PARALLEL PORT CONNECTOR.......................................................23
3.5 THE FLOPPY DISK DRIVE CONNECTOR .............................................24
3.6 SERIAL PORTS...........................................................................25
3.7 KEYBOARD & MOUSE CONNECTOR.................................................26
3.8 VGA CONNECTORS ....................................................................27
3.9 IR CONNECTOR..........................................................................30
3.10 FAST ETHERNET CONNECTOR......................................................30
3.11 ULTRA III SCS I INTERFACE CONNECTOR ........................................32
3.12 HARDWARE MONITOR................................................................33
3
3.13 PC/104 BUS CONNECTION..........................................................33
AWARD BIOS SETUP .......................................................................35
4.1 MAIN MENU...............................................................................36
4.2 STANDARD CMOS SETUP............................................................37
4.3 BIOS FEATURES SETUP...............................................................38
4.4 CHIPSET FEATURES SETUP............................................................39
4.5 INTEGRATED PERIPHERALS............................................................40
4.6 POWER MANAGEMENT SETUP........................................................41
SOFTWARE UTILITIES .....................................................................42

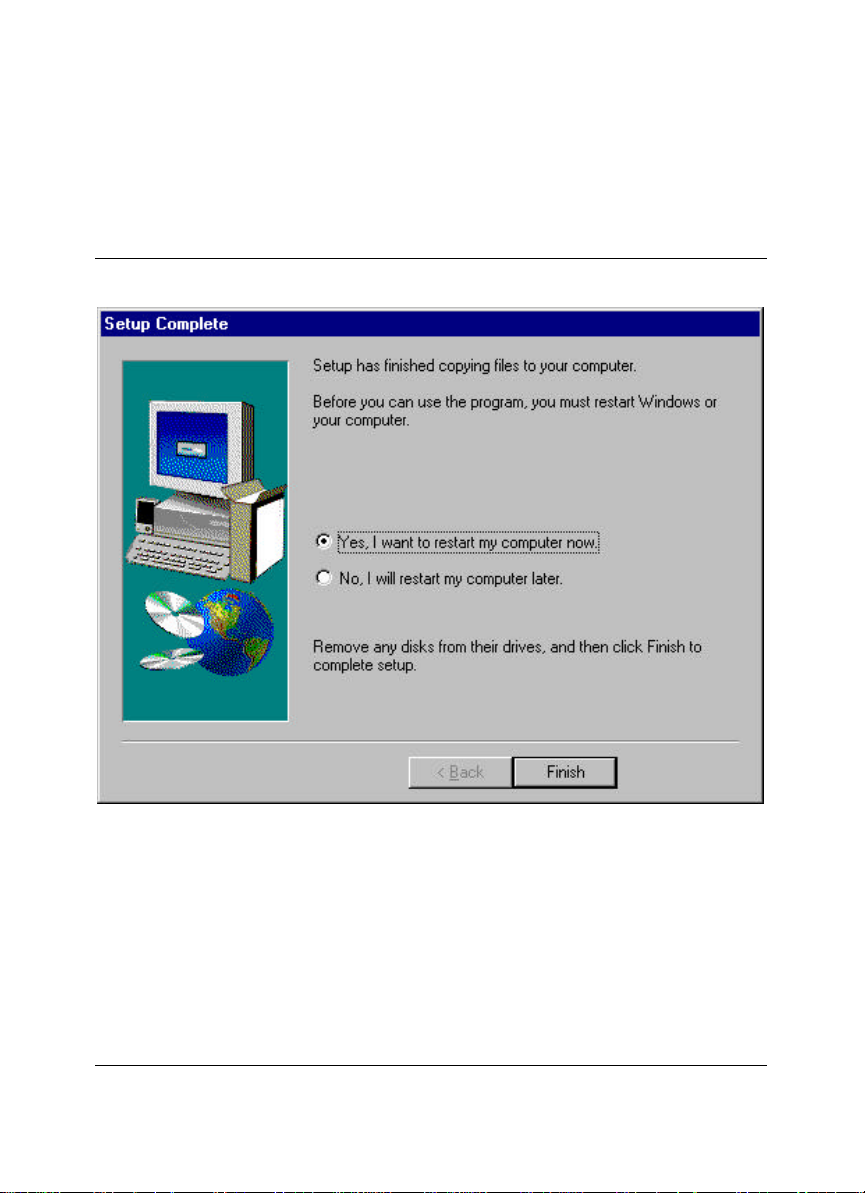

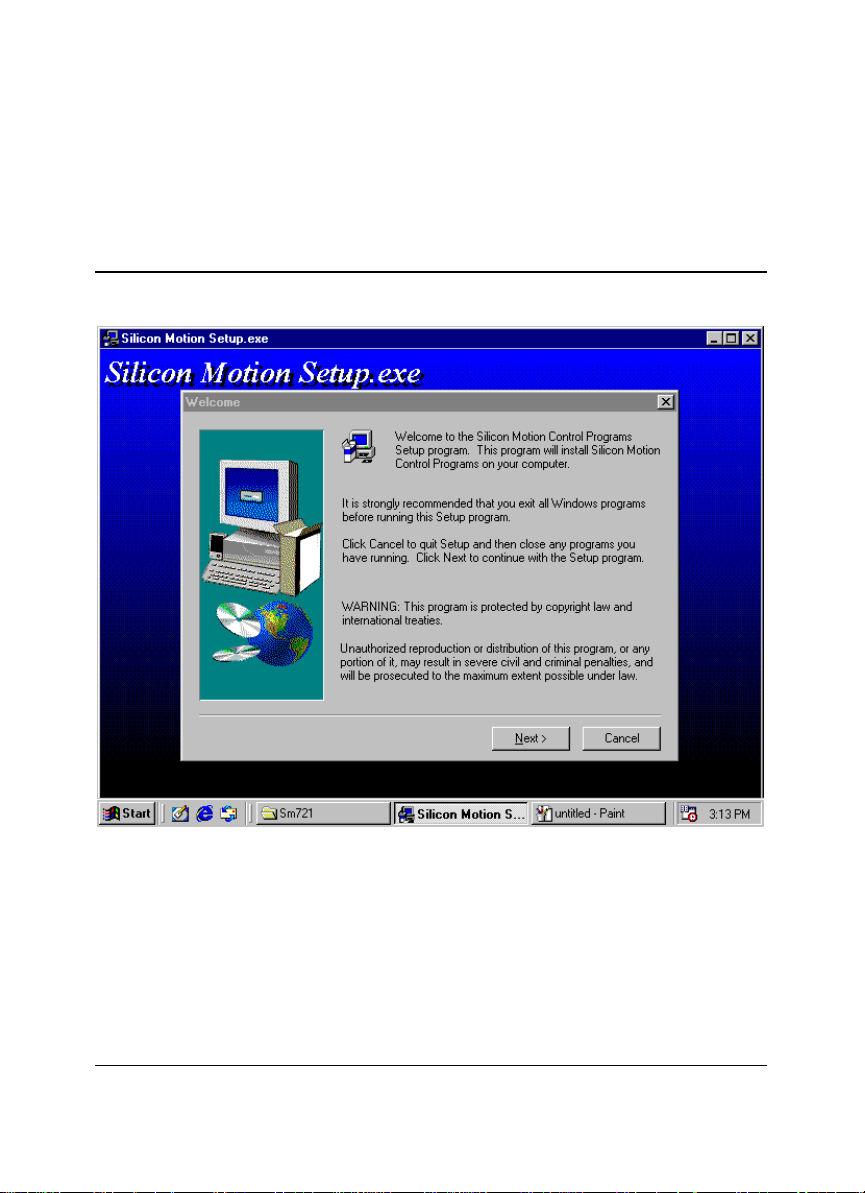

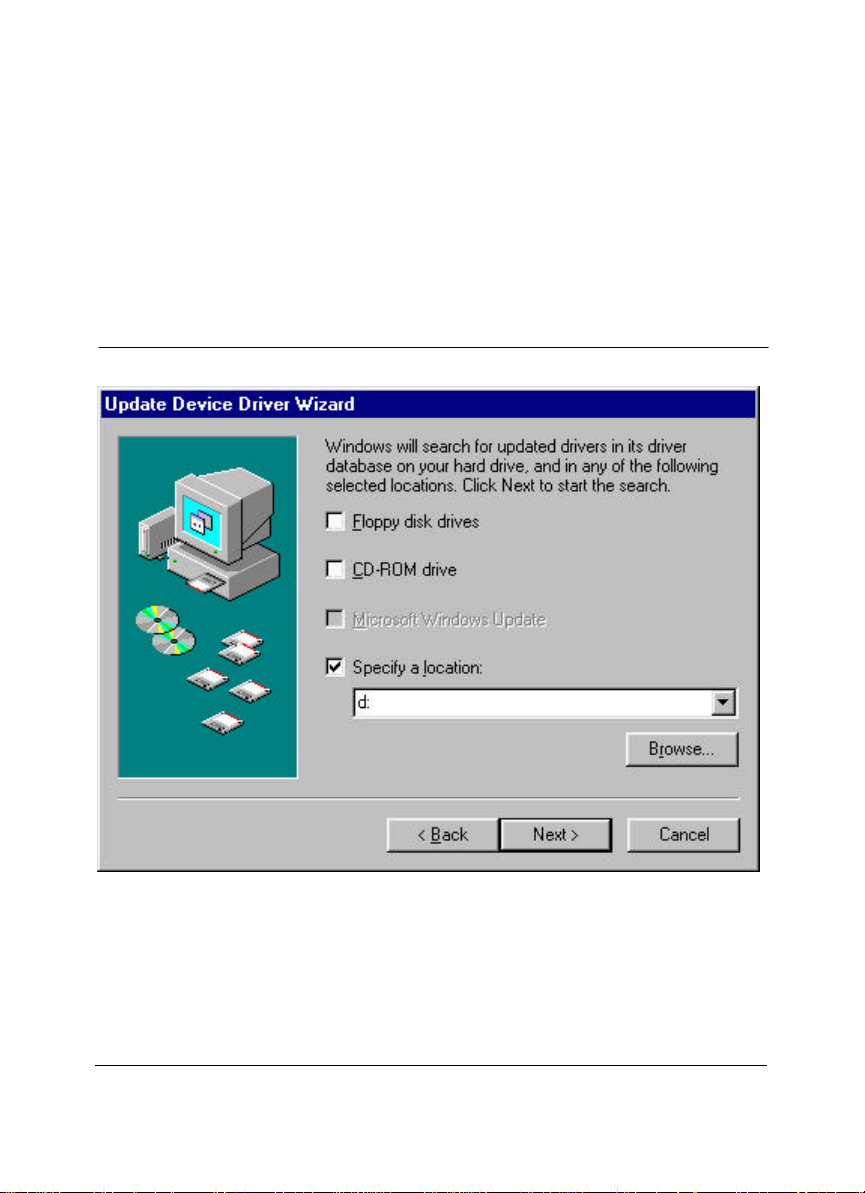

5.1 VGA INSTALL FOR WIN98 & NT4.0.................................................43

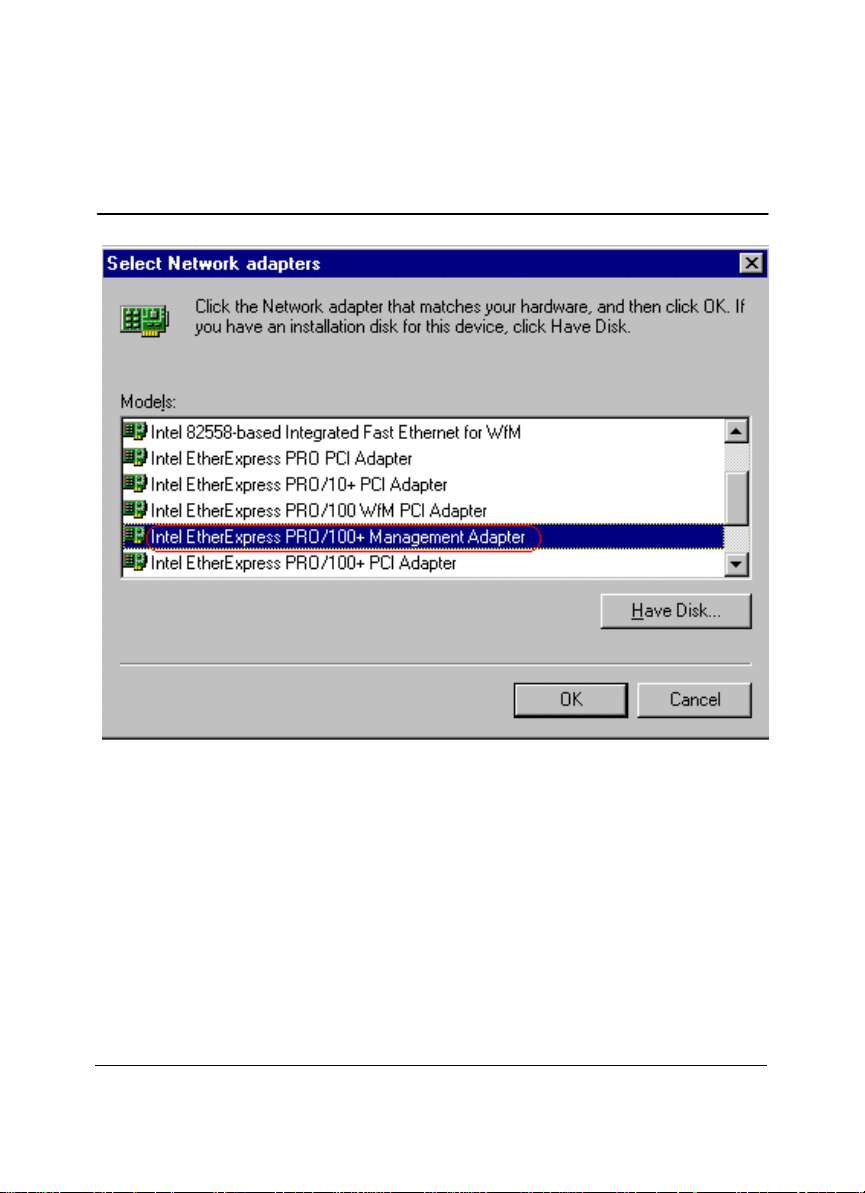

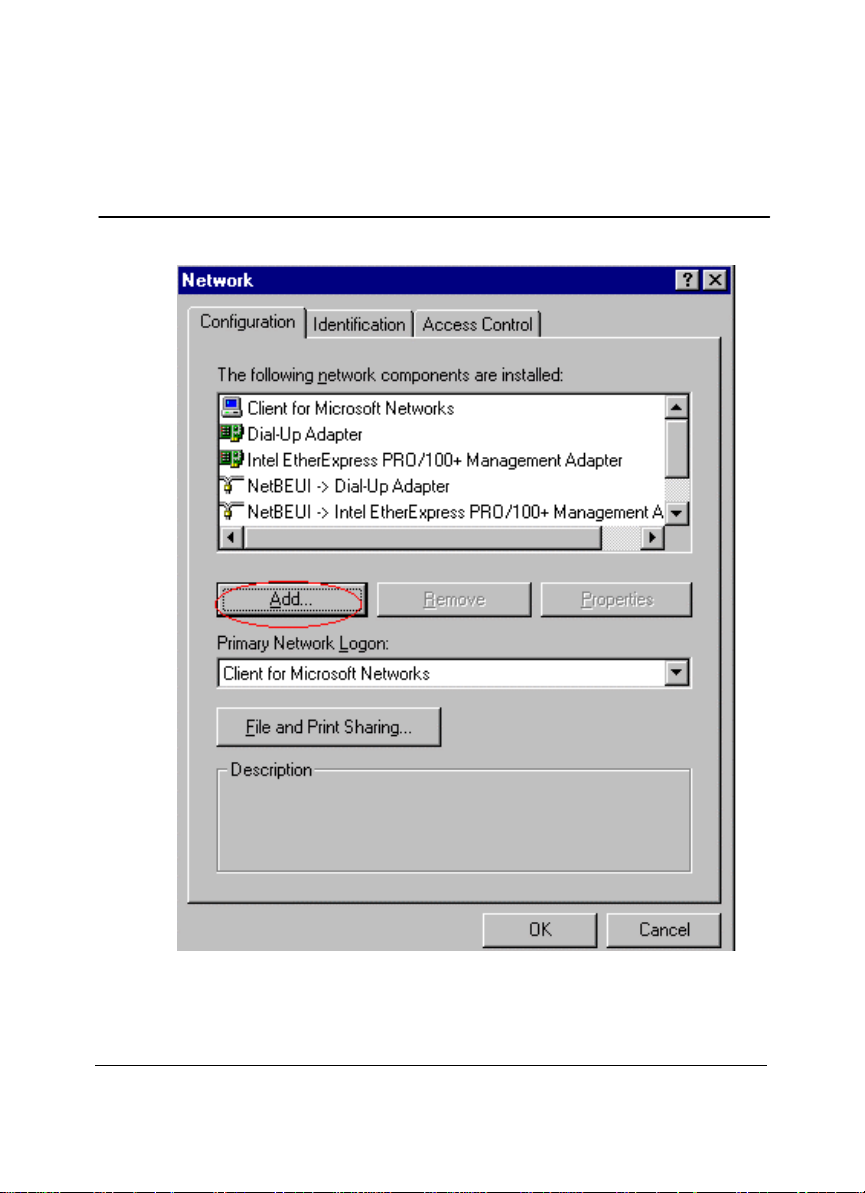

5.2 LAN INSTALL FOR WIN 98 & NT4.0................................................46

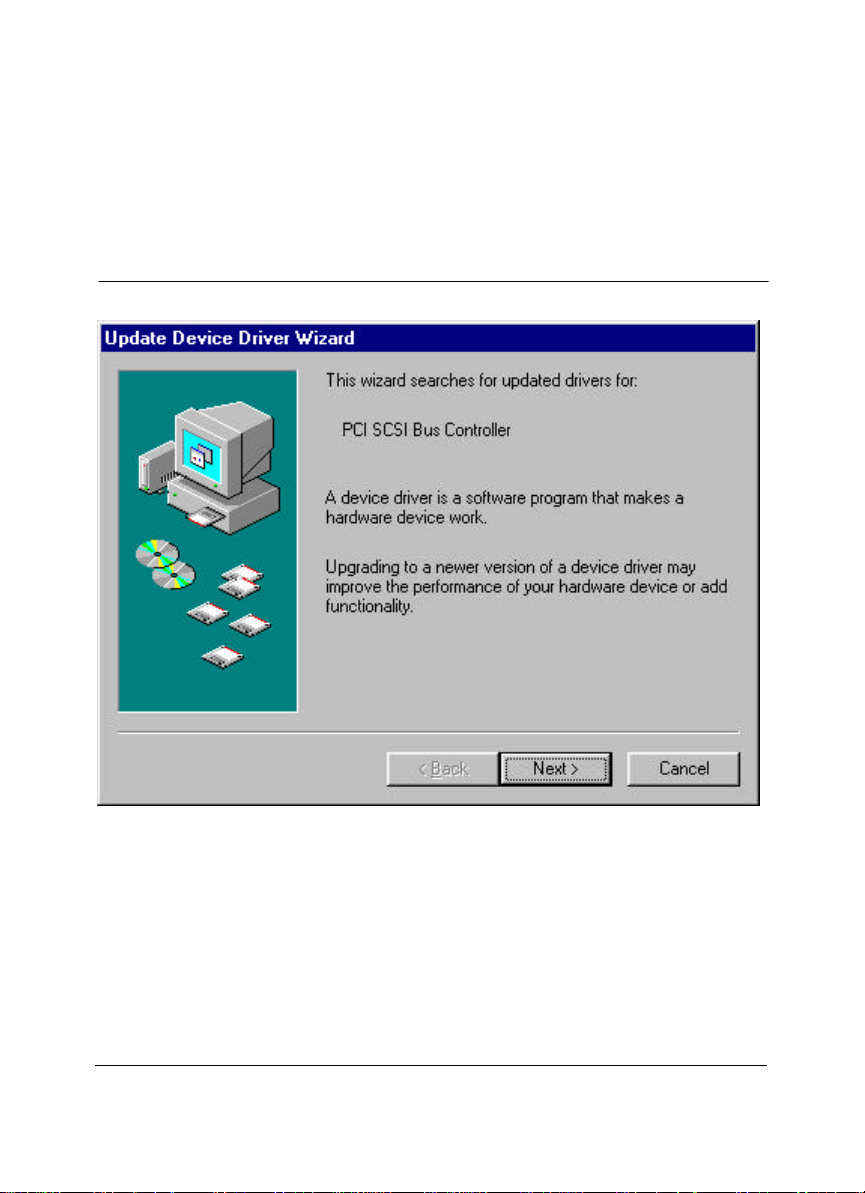

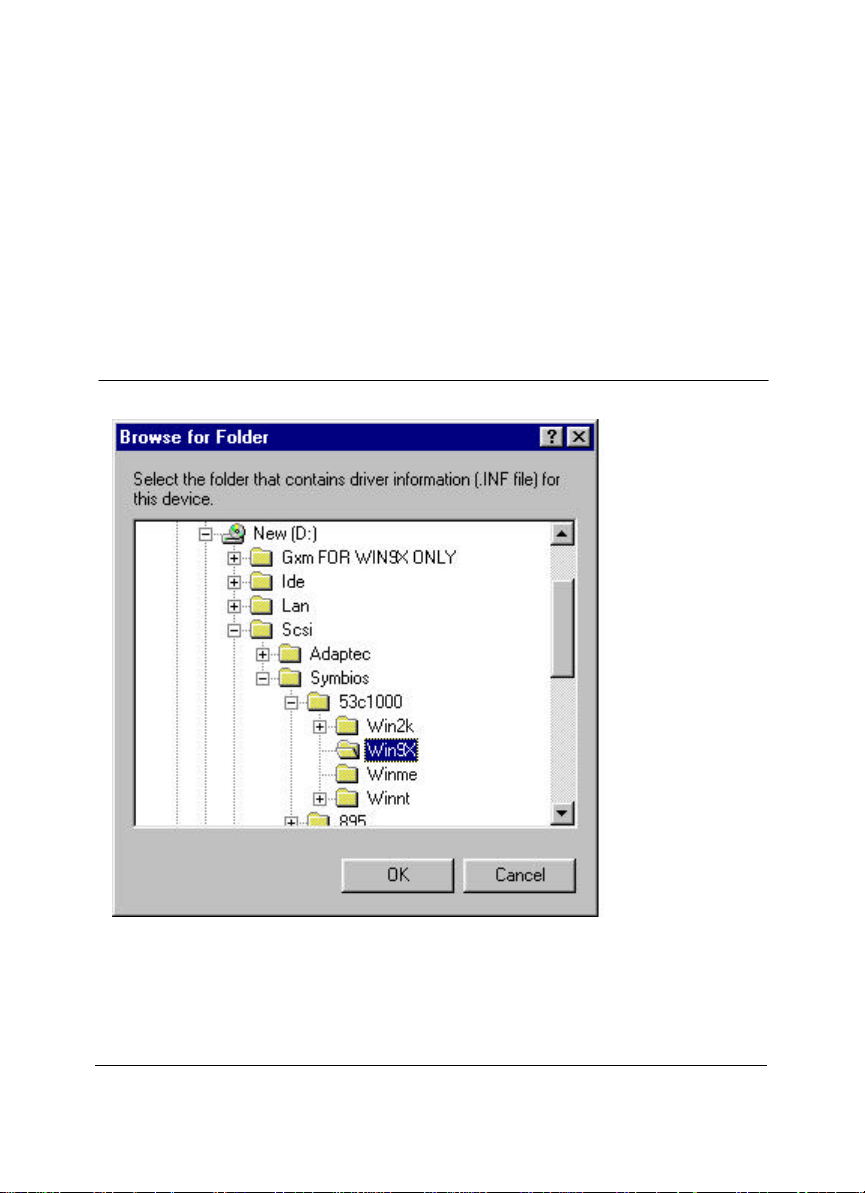

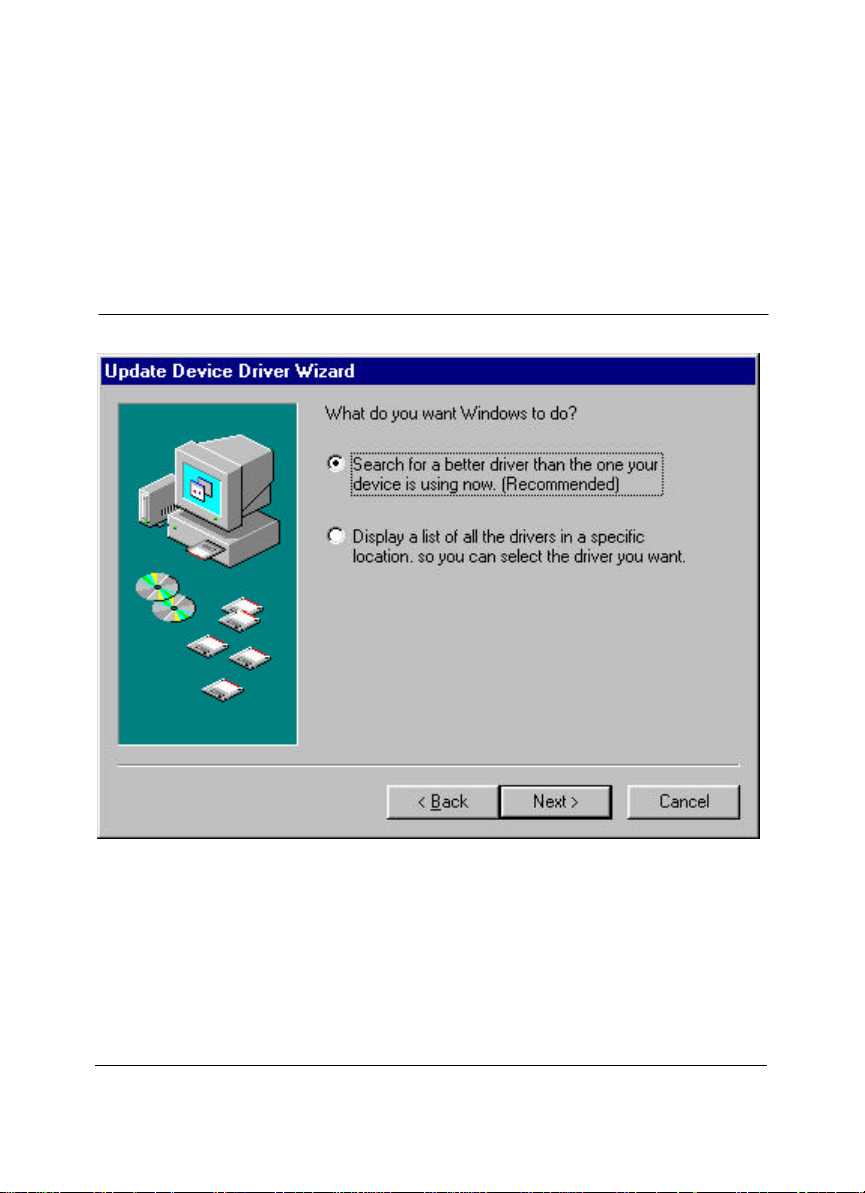

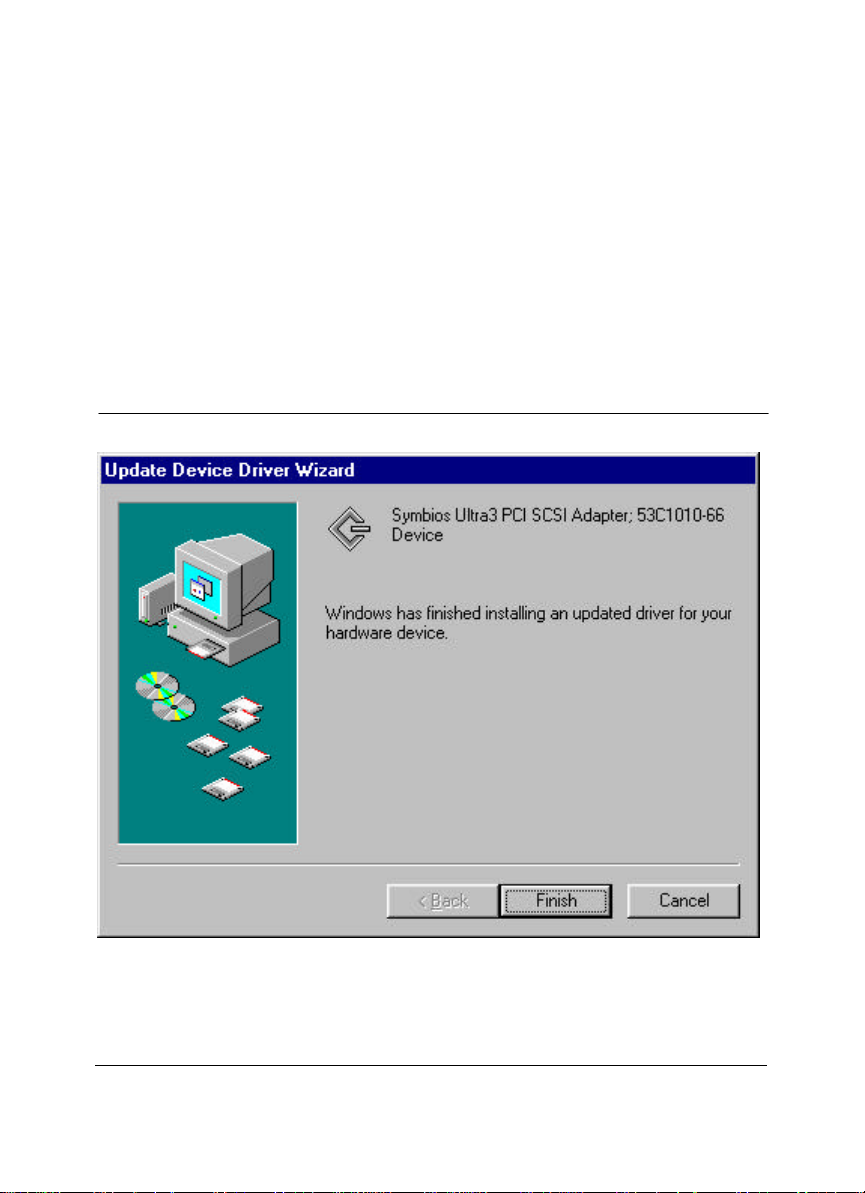

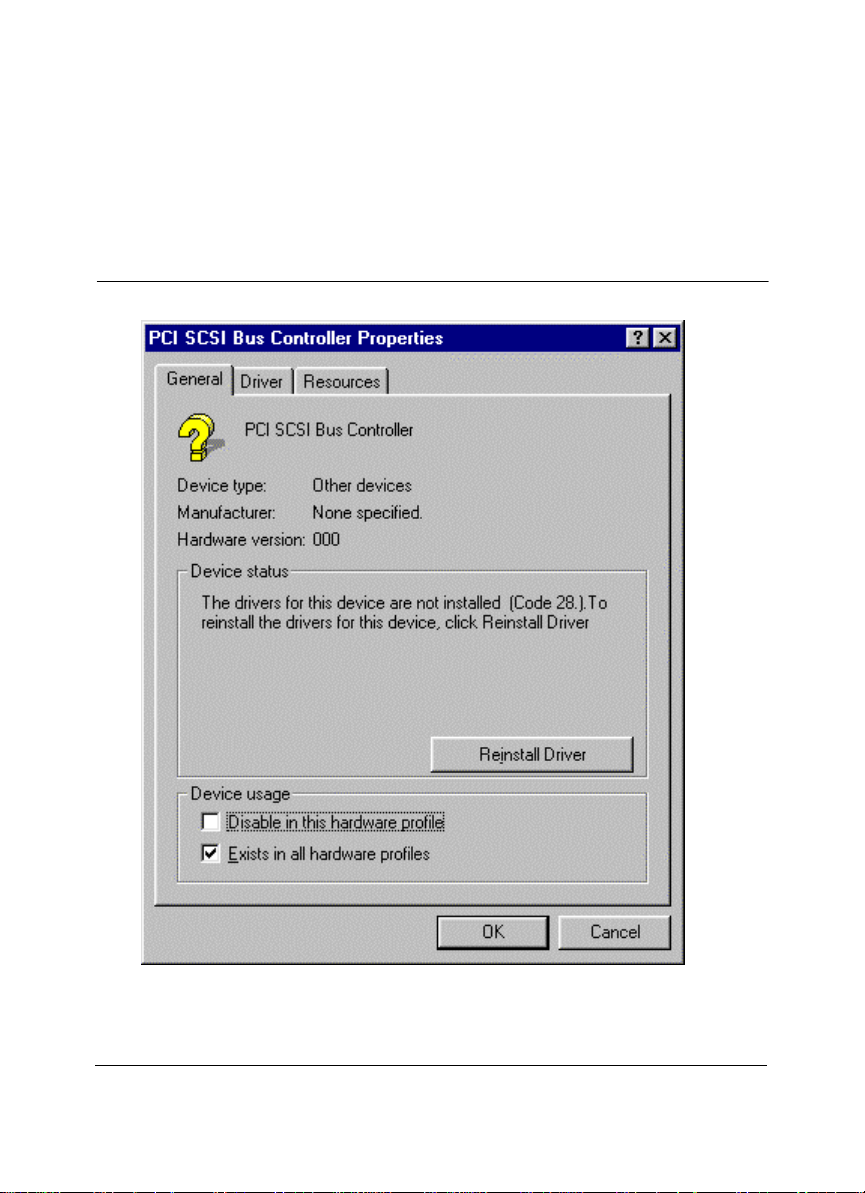

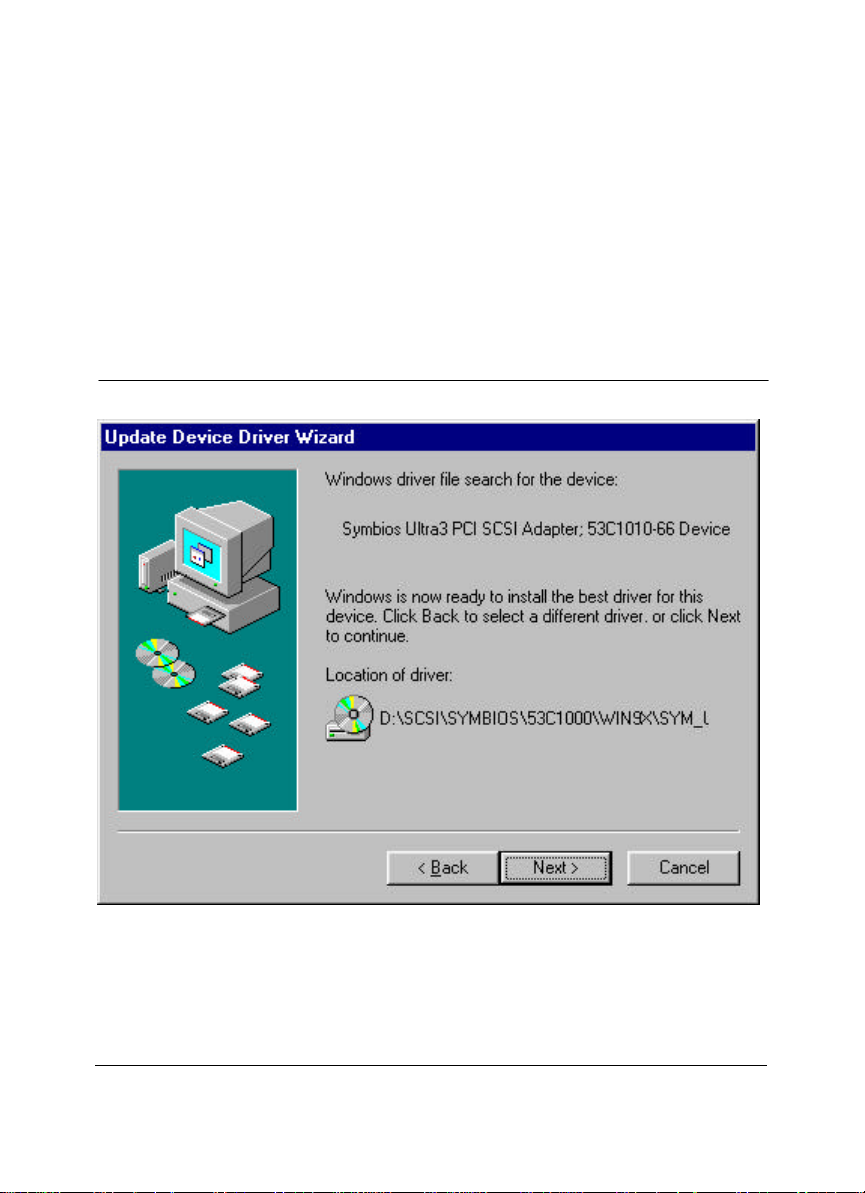

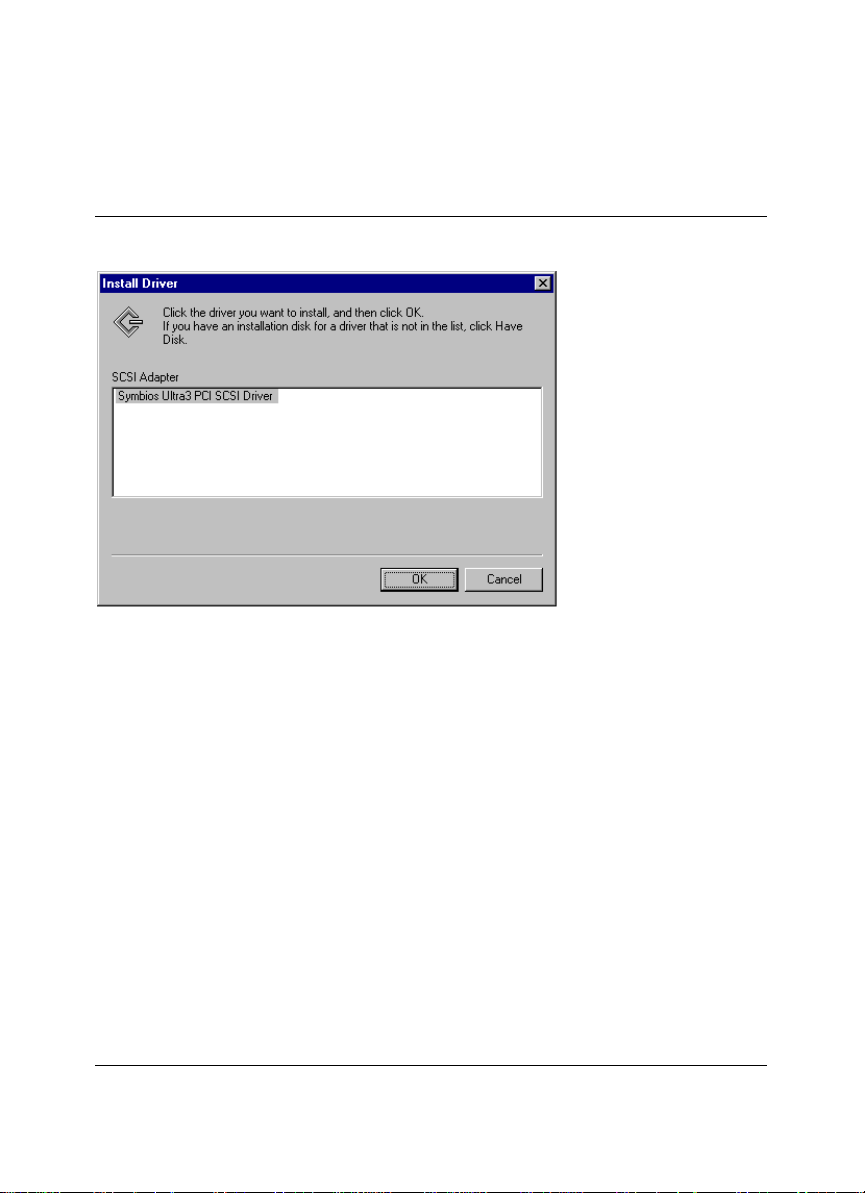

5.3 SCSI INSTALL FOR WIN98 & WIN2000.............................................49

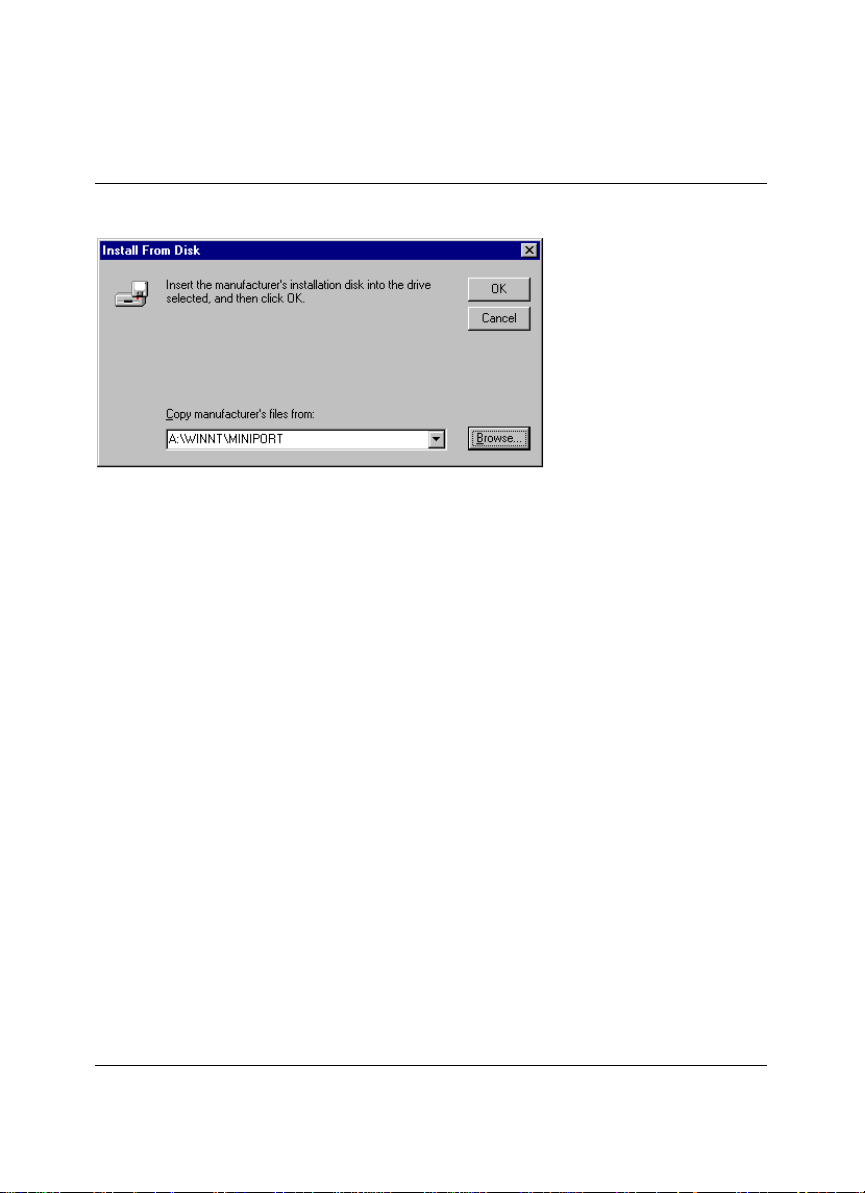

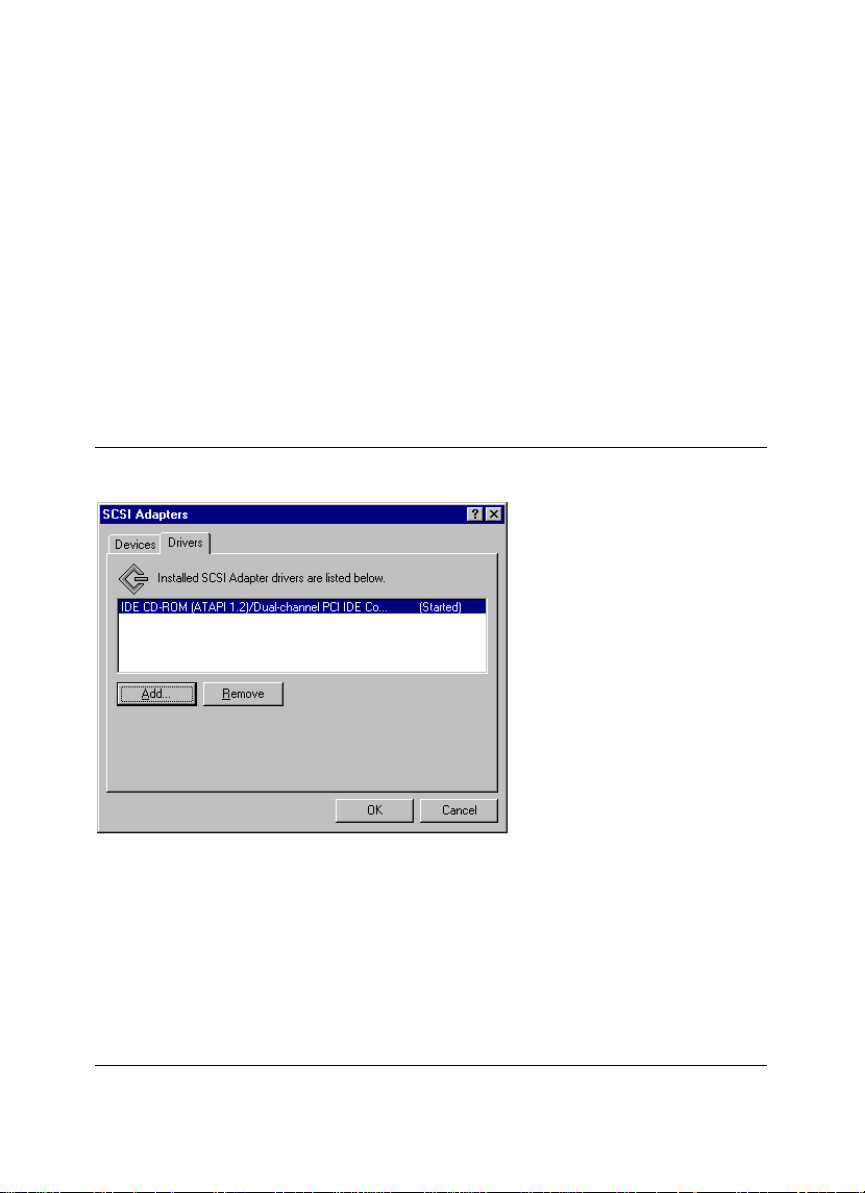

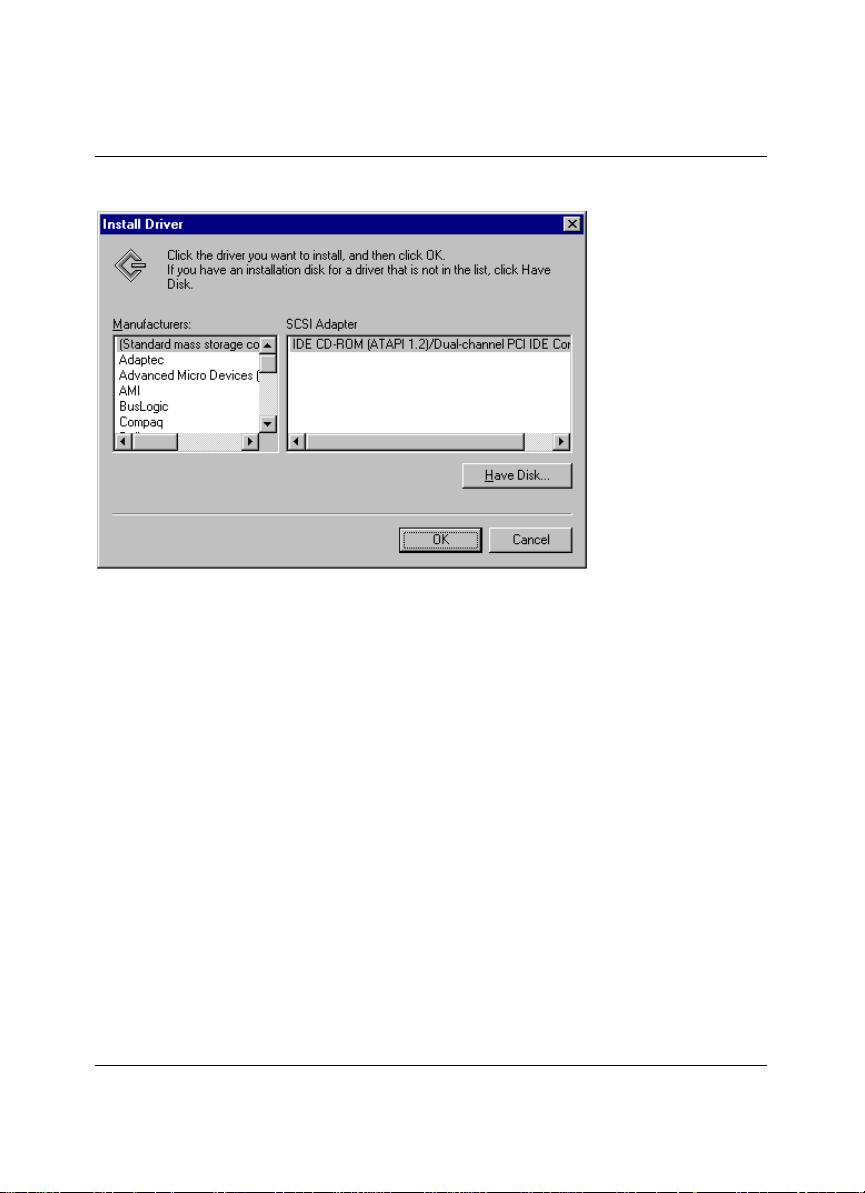

5.4 SCSI INSTALL FOR NT4.0..............................................................57
4
Chapter-1
General Information
The HS-6301 is a Dual FC-PGA PICMG Bus Industrial Single Board Computer
with combined features to make it an ideal all-in-one Industrial Single Board
Computer, equipped with enhanced I/O effects, CRT/Panel interface and Dual
Intel® 82559 100 Based LAN.
With on board DMA33 of mode 4 to IDE drive interface architecture, the HS-6301
supports 33MB/sec data transfer rates and up to four IDE disk drive connections.
The advanced PICMG Bus add-on connection of the HS-6301 allows users to
easily use both ISA’s 16bit and PCI’s 32bit full set si gnals. The HS-6301 provides
four DIMM sockets that support up to 1GB of main system memory.
A single Flash chip holds the system BIOS, and you can change the Flash BIOS
using Utility Update. Advanced USB and IR ports also provide faster data
transmissions. The DOS version of the DiskOnChipTM socket can also be used
by issuing commands from the DOS prompt without the necessity of other
software. DiskOnChip supports up to 144MB.
In case a program stops unexpectedly, the on board Watch-Dog Timer will
automatically reset the CPU or generate an interrupt. The Watch-Dog Timer is
designed with hardware and doesn’t need any arithmetical functions of a
real-time clock chip. This ensures the reliability in an unmanned or standalone
system.
5
1.1 Major Features
?? Dual So cket 370 for Intel
?? 100MHz system clock provides up to 133MHz
?? Four DIMM sockets provides up to 1GB
?? Fast PCI DMA33 controller supports four IDE disk drives
?? Two RS -232 serial ports include 16C550 UART with 16byte FIFO
?? One enhanced bi-directional parallel port supports SPP/EPP/ECP
?? On board PS/2 Keyboard and PS/2 Mouse connector
?? On board Winbond W83977 super I/O chipset
?? On board 8MB SMI 721 CRT/Panel display controller
?? On board Dual Intel
?? On board Symbios 53C1000 Ultra III SCSI
?? On board PCI Bridge
?? PC/104 Bus connector
?? DiskOnChip
?? TV Out Function support
?? ATX Power Function support
?? Hardware Monitor support
TM
memory size up to 144MB
®
CeleronTM / CoppermineTM 266~933MHz CPU
®
82559 100 Based LAN
6
1.2 Specifications
?? CPU：Dual Socket 370 for Intel® CeleronTM/CoppermineTM
266~933MHz CPU
?? Bus Interface ： PICMG Bus
?? Bus Clock Rate ： 100MHz system clock provides up to 133MHz
?? Memory：Four DIMM sockets provides up to 1GB
?? Chipset：Intel® 82443 BX
?? I/O Chipset：Winbond® W83977
?? PCI Bridge ： HINT® or equivalent device
?? VGA：SMI 721 with 8MB memory support CRT/Panel display up to
1280x1024, 64Kcolors
?? IDE：Four IDE disk drives support DMA33 transfer rate up to 33MB/sec
?? Floppy：Support to two floppy disk drives
?? Parallel Port：Supports SPP/ECP/EPP
?? Dual LAN：Dual Intel® 82559 100 Based LAN
?? SCSI：Symbios 53C1000 Ultra III SCSI single channel SCSI control
speed up to 160MB/sec
?? Serial Port：Two RS -232 serial ports include 16C550 UART with
16byte FIFO
?? PC/104：PC/104 connector for 16bit ISA Bus
?? IR：One IrDA TX/RX header
?? USB：Support two USB ports
?? TV Out：Support PAL or NTSC system
?? Keyboard：PS/2 6pin Mini Din or 5pin connector
?? Mouse：PS/2 6pin Mini Din or 4pin header
?? DiskOnChipTM：Socket for DiskOnChipTM and memory size up to
144MB
?? BIOS：Award Y2K PnP Flash BIOS
?? Watch-Dog Timer：Set 1, 2, 10, 20, 110, 220 seconds activity trigger
with Reset or NMI
?? CMOS：DS12C887 or equivalent device
?? DMA Channels：7
7
?? Interrupt Levels：15
?? Fuse：Automatically resumes poly switch resetable fuse
?? Extra Power：One ATX Power input connector
?? Power Voltage ： +5V, +12V, -12V
?? Maximum Power Consumption：+5V@14A(850MHz x 2),
+12V@220mA, -12V@20mA
?? Operating Temperature ： 0~60℃
?? Hardware Monitor：Winbond W83783S
?? Board Size：13.26”(L) x 4.8”(W)
8
1.3 Delivery Package
The Delivery package of HS -6301/HS-6301LLV includes all following
items：
?? HS-6301/HS-6301LLV Industrial Single Board
?? One Printer Flat Cable
?? One COM Port Flat Cable
?? Two IDE Flat Cable
?? FDD Flat Cable
?? Utility CD-ROM
?? User’s Manual
?? SCSI Flat Cable (HS -6301 only)
Please contact your dealer if any of the items is missing or damaged upon
purchase. Keep all parts of the delivery package with packing materials in
case of shipping or storing the product.
9
Chapter-2
Hardware Installation
This chapter provides information on how to install the hardware of
HS-6301. Read sections 1.3, 2.1 and 2.2 about the delivery package and
unpacking information. Afterwards, pay attention to the jumpers set ting of
switch, Watch-Dog Timer and the DiskOnChipTM address selection etc.
2.1 Caution of Static Electricity
The HS -6301 has been well packaged with an anti-static bag to protect
sensitive components and circuitry from damage caused by static electric
discharge.
Note：DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT THE NECESSARY ANTI-STATIC
PROTECTION.
You should follow the steps below to protect the board against static
electric discharge whenever you handle the board：
1. Please use a grounding wrist strap on whoever needs to handle the
HS-6301. Clip the ALLIGATOR clip of the strap to the end of shielded
wire lead from a grounded object. Put on and connect the strap before
handling the HS -6301 to harmlessly discharge any static electricity
through the strap.
2. Please use an anti-static pad to put any components or parts or tools
on the pad whenever you work on them outside the system. You may
also use an anti-static bag instead of the pad. Please ask your local
supplier for assistance regarding anti-static requirements.
10
2.2 Caution on Unpacking and Before Installation
Follow the steps in section 2.1 to protect the HS -6301 from electricity
discharge. With reference to section 1.3, please check the delivery
package again with the following steps ：
1. Unpack the HS -6301; Store away all packing materials, manual and
diskette, etc.
2. Is there any component missing？ DO NOT INSTALL IF THIS
HAPPENS.
3. Is there any visual damaged of the board？ DO NOT INSTALL IF THIS
HAPPENS.
4. Check the optional parts (i.e. CPU, SRAM, DRAM, ROM-Disk etc.) to
complete settings of jumpers, jumper pin-set and CMOS setup,
please refer to all information on jumper settings in this manual.
5. Check the external devices (i.e. Add-On-Card, Driver Type etc.). To
complete add-in or connections and CMOS setup correctly, please
refer to all information of connector connections in this manual.
6. Keep the manual and diskettes for re-installation purposes or if you
would like to change the Operating System.
11

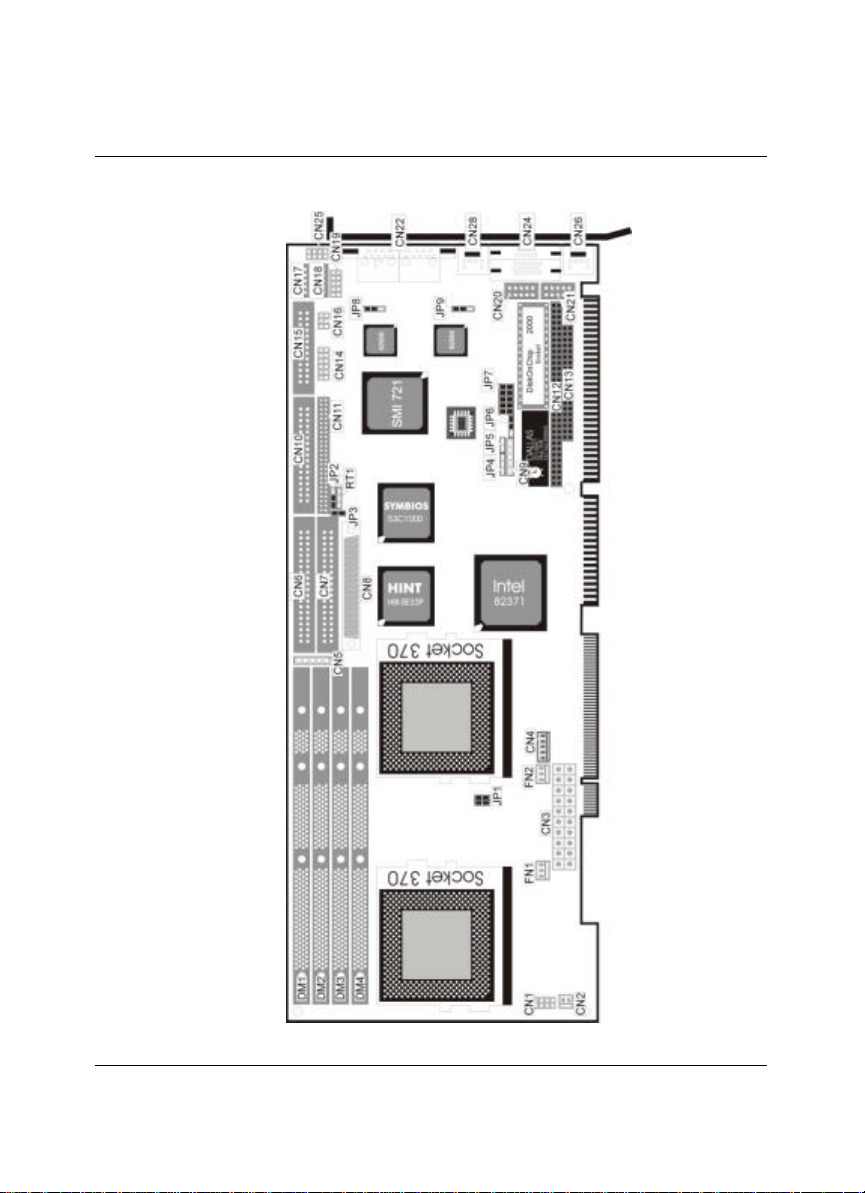

2.3 HS-6301’s Layout
12
2.4 Quick Listing of Jumper s
JP1 CPU HOST CLOCK SELECT............................................. P.16
JP2 LCD PANEL VCORE SELECT............................................ P.27
JP3 LCD INVERTER VOLTAGE SUPPORT 12V ............................ P.27
JP4 SCSI ENABLE /DISABLE SELECT....................................... P.32
JP5 CLEAN CMOS (DS12C887 ONLY)................................... P.19
JP6 WATCH-DOG TIMER ACTIVE SELECT.................................. P.17
JP7(1-4) DISKONCHIP
JP7(5-10) WATCH-DOG TIMER SELECT............................................. P.17
JP8 LAN1 ENABLE /DISABLE SELECT ..................................... P.30
JP9 LAN2 ENABLE /DISABLE SELECT ..................................... P.30
FAN1 CPU COOLER FAN CONNECTOR
FAN2 CPU COOLER FAN CONNECTOR
TM
ADDRESS SELECT...................................... P.16
13
2.5 Quick Listing of Connectors
CN1 RESET(1-2).................................................................. P.21
CN1 KEYLOCK(3-4).............................................................. P.21
CN1 SPEAKER(5-6).............................................................. P.21
CN1 IDE LED(7-8).............................................................. P.21
CN2 ATX POWER ON CONNECTOR.......................................... P.20
CN3 ATX POWER CONNECTOR
CN4 5PIN ATX POWER CONNECTOR......................................... P.20
CN5 5PIN KEYBOARD CONNECTOR........................................... P.26
CN6 PRIMARY IDE CONNECTOR ............................................. P.22
CN7 SECONDARY IDE CONNECTOR......................................... P.22
CN8 SCSI CONNECTOR........................................................ P.32
CN9 IRDA CONNECTOR......................................................... P.30
CN10 FLOPPY DISK CONNECTOR.............................................. P.24
CN11 LCD PANEL CONNECTOR ............................................... P.27
CN12 PC/104 64PIN CONNECTOR............................................. P.33
CN13 PC/104 40PIN CONNECTOR............................................. P.33
CN14 48BIT TFT LCD CONNECTOR........................................... P.27
CN15 PARALLEL CONNECTOR.................................................. P.33
CN16 COMPOSITE & S-VIDEO OUTPUT ...................................... P.27
CN17 SERIAL PORT 1 CONNECTOR (5X2 HEATER)........................ P.25
CN18 SERIAL PORT 2 CONNECTOR (5X2 HEATER)........................ P.25
CN19 INTERNAL LAN1 CONNECTOR (5X2 HEADER) ...................... P.30
CN20 INTERNAL LAN2 CONNECTOR (5X2 HEADER)....................... P.30
CN21 INTERNAL CRT CONNECTOR (5X2 HEADER)......................... P.27
CN22 LAN1/LAN2 RJ45 CONNECTOR...................................... P.30
CN23 4PIN MOUSE CONNECTOR................................................ P.26
CN24 CRT CONNECTOR (DB15) .............................................. P.27
CN25 USB CONNECTOR......................................................... P.19
CN26 PS/2 6PIN MINI DIN MOUSE CONNECTOR............................ P.26
CN28 PS/2 6PIN MINI DIN KEYBOARD CONNECTOR....................... P.26
14
2.6 Jumper Setting Description
A jumper pin-set is ON as a shorted circuit with a plastic cap inserted over
two pins. A jumper pin-set is OFF as an open circuit with a plastic cap
inserted over one or no pin between pins. The below figure 2.2 shows the
examples of different jumper pin-set setting as ON or OFF in this manual.
Figure 2.2
All jumper pin-set already has its default setting with the plastic cap
inserted as ON, or without the plastic cap inserted as OFF. The default
setting is referred to in this manual with a “*” symbol in front of the selected
item.
15
2.7 Setting CPU Host Clock
The HS -6301’s JP1 is used for internal Host Bus Clock Ratio.
?? JP1：CPU Host Clock：
JP1 1-2 3-4
*Auto by CPU ON ON
66.8/33M or BIOS Setting
OFF OFF
2.8 DiskOnChipTM Address Setting
The HS -6301 has a U22 socket for a DiskOnChipTM module.
JP7 (pin 1-2, 3-4) is used to select the starting memory address of the
DiskOnChipTM to avoid the same mapping area with any other memory
devices. If you have another extra memory device in the system with the
same memory, neither the HS -6011 nor the extra memory device will
function properly. Please set both with different memory address mapping.
?? JP7：DiskOnChip
Memory Address JP7 3-4 JP7 1-2
（*）：default setting
The D.O.C. function allows the system to run even without FDD or HDD.
The D.O.C. may be formatted just like drive C: or drive A:. Users may also
use the DOS’s commands such as FORMAT, SYS, COPY, XCOPY,
DISCOPY and DISKCOMP. This is means that the D.O.C. may be used
as drive A if the system comes without FDD-A for ambient application.
Please contact your supplier for different sizes of D.O.C. module.
TM
Address
*D000 ON ON
D800 ON OFF
16
2.9 Watch-Dog Timer
There are three access cycles of Watch-Dog Timer: Enable, Refresh and
Disable. The Enable cycle should proceed by READ PORT 443H. The
Disable cycle after a first Enable cycle means Refresh.
Once the Enable cycle is active, a Refresh cycle is requested before the
time-out period to restart counting the WDT’s period. Otherwise, it will
assume that the program operation is abnormal when the time counting is
over and the period preset of WDT Timer. A system reset signal to start
again or a NMI cycle to the CPU comes if over.
JP6 is used to select the active function of Watch -Dog Timer in disable the
Watch-Dog Timer, or presetting the Watch-Dog Timer activity at the reset
trigger, or at the NMI trigger.
?? JP7(5-10)：Time of Watch-Dog
Period 5-6 7-8 9-10
*1 sec ON ON ON
2 sec OFF ON ON
10 sec ON OFF ON
20 sec OFF OFF ON
110 sec ON ON OFF
220 sec OFF ON OFF
?? JP6：Watch-Dog Active Setting
JP6 Description
1-2 Active NMI
*2-3 System Reset
OFF Disable
The Watch-Dog Timer is disabled after the system Power On. The
Watch-Dog Timer can be enabled by a Enable cycle with reading the
control port (443H), a Refresh cycle with reading the control port (443H)
and a Disable cycle by reading the Watch-Dog Timer disable cont rol
17
port (045H). After an Enable cycle of WDT, user must constantly proceed
a refresh cycle to WDT before its period setting comes ending of every 1,
2, 10, 20, 110 or 220 seconds. If the Refresh cycle does not active before
WDT period cycle, the on board WDT architecture will issue a Reset or
NMI cycle to the system.
The Watch-Dog Timer is controlled by two I/O ports.
443H I/O Read The Enable Cycle
443H I/O Read The Refresh Cycle
045H I/O Read The Disable Cycle
The following sample programs showing how to Enable, Disable and
Refresh the Watch-Dog Timer：
WDT_EN_RF EQU 0443H
WDT_DIS EQU 0045H
WT_Enable PUSH AX ; keep AX DX
PUSH DX
MOV DX,WDT_EN_RF ; enable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_Refresh PUSH AX ; keep AX, DX
PUSH DX
MOV DX,WDT_ET_RF ; refresh the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
POP AX
RET
WT_DISABLE PUSH AX
PUSH DX
MOV DX,WDT_DIS ; disable the watch-dog timer
IN AL,DX
POP DX ; get back AX, DX
18
POP AX
RET
19
2.10 USB Ports Connector
The HS-6301 has two internal 8pin USB ports connectors. Please refer to
the following for detailed pin information.
?? CN25：8pin USB Port
PIN No. CN25 PIN No. CN25
1 VCC 2 VCC
3 USBV05 USBDO+
7 GND 8 GND
4 USBD16 USBD1+
2.11 Setting the RTC Configuration
The HS-6301 provides a setting for the selection of the RTC Clear Jumper
of JP5 setting as following：
?? JP5：Clear CM OS(DS12B887 only)
JP5 CMOS Clear Jumper
*OFF
ON Clear CMOS
Normal
2.12 System Memory DRAM
The HS-6301 features four DIMM sockets for memory modules with
access time of 70 n-second or faster. The maximum memory capacity is
1GB.
See the figure on section 2.3 for identifying the banks.
20
Chapter-3
Connection
This chapter provides all the necessary information for peripheral
connections, switches and indicators.
3.1 Power Connector
The HS -6301 has one 20pin ATX power connector, CN3, and a 5pin ATX
Power connector, CN4.
The HS -6301 reserves CN2 for Power On Connector.
The HS -6301 also supports CPU cooler fans with FAN1 and FAN2.
?? CN2 : Power On Connector
CN2 Description
Low High 1
Switch Power OFF Switch Power ON
2 GND
?? CN4 : 5pin EXT ATX Power Connector
PIN No.
1 VCC 2 5VSB
3 +12V 4 PSON
5 GND
CN4 PIN No.
CN4
21
3.2 IDE’s LED, Keylock and Reset Button
The following provides the pin information for IDE’s LED indicator, Keylock
and Reset Button connections from CN1(7-8), CN1(3-4) and CN1(1-2).
?? CN1 : Reset, Keylock, IDE’s LED
PIN NO.
1 JP-RST 2 GND
3 Keylock 4 GND
5 SPK3 6 VCC
7 IDE LED 8 VCC
Description PIN NO.
Description
22
3.3 PCI E-IDE Drive Connector
Two standard 40-pin header daisy-chain drive connectors, CN6 & CN7,
have the following pin assignments. A total of four IDE drives may be
connected.
CN6(IDE 1)：Primary IDE Connector
CN7(IDE 2)：Secondary IDE Connector
?? CN6/CN7 : IDE Interface Connector
PIN NO. DESCRIPTION PIN NO.
1 RESET 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 REQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 RDY 28 PD1
29 ACK 30 GND
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0 38 HDC CS1#
39 HDD ACTIVE 40 GND
DESCRIPTION
23
3.4 Parallel Port Connector
A standard 26-pin flat cable drive connector, CN15, has the following pin
assignments for connection to a parallel port -based printer.
?? CN15 : Parallel Port Connector
PIN NO.
1 STBJ 2 PD0
3 PD1 4 PD2
5 PD3 6 PD4
7 PD5 8 PD6
9 PD7 10 ACKJ
11 BUSY 12 PE
13 SLCT 14 AFDJ
15 ERRJ 16 INTJ
17 SLINJ 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND 26 GND
DESCRIPTION PIN NO.
DESCRIPTION
24
3.5 The Floppy Disk Drive Connector
A standard 34-pin header daisy-chain drive connector, CN10, has the
following pin assignments. Two FDD drives may be connected.
?? CN10 : FDD Connector
PIN NO.
1 GND 2 P WCJ
3 GND 4 N/C
5 GND 6 DS1J
7 GND 8 INDEX#
9 GND 10 MOTOR ENABLE A#
11 GND 12 DRIVE SELECT B#
13 GND 14 DRIVE SELECT A#
15 GND 16 MOTOR ENABLE B#
17 GND 18 DIRECTION#
19 GND 20 STEP#
21 GND 22 WRITE DATA#
23 GND 24 WRITE DATA#
25 GND 26 TRACK 0#
27 GND 28 WRITE PROTECT #
29 GPI 21 30 READ DATA#
31 GND 32 Head J
33 N/C 34 DISK CHANGE#
DESCRIPTION PIN NO. DESCRIPTION
25
3.6 Serial Ports
The HS-6301 offers two NS16C550 compatible UARTs with Read/Receive
16byte FIFO serial ports.
?? CN17/CN18 : Serial Port 10pin Header
PIN NO. Description PIN No. Description
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 NC
26
3.7 Keyboard & Mouse Connector
The HS -6301 offers two possibilities for keyboard connections to external
PS/2 type keyboard with CN28, or an internal 5pin header with CN5.
?? CN5 : 5pin Keyboard Connector
PIN NO. Description
1 Keyboard Clock
2 Keyboard Data
3 N/C
4 GND
5 +5V
?? CN28 : 6pin Mini Din Keyboard Connector
PIN NO. Description
1 Keyboard Data
2 N/C
3 GND
4 +5V
5 Keyboard Clock
6 N/C
The HS -6301 provides an external PS/2 mouse connector, CN26 with
following pin information and 4pin header for CN23.
?? CN26 : PS/2 6pin Mini Din Mouse Connector
PIN NO.
Description
1 MS Data
2 N/C
3 GND
4 +5V
5 MS Clock
6 N/C
27
?? CN23 : 4pin Mouse Connector
PIN NO.
Description
1 MS Clock
2 MS Data
3 VCC
4 GND
3.8 VGA Connector
The HS -6301 offers two methods for VGA connections. One standard
DB15 external VGA connector, CN24 and a 10pin internal CRT connector,
CN21
?? CN24 : 15pin Female VGA Connector
PIN NO.
1 Red 2 Green
3 Blue 4 N/C
5 Ground 6 Ground
7 Ground 8 Ground
9 N/C 10 Ground
11 N/C 12 N/C
13 HSYNC 14 VSYNC
15 N/C
?? CN21: 10pin Internal CRT Connector
Description PIN NO.
Description
PIN NO.
Description PIN NO.
Description
1 Red 2 GND
3 Green 4 GND
5 Blue 6 GND
7 HSYNC 8 GND
9 VSYNC 10 GND
28
The HS-6301 has a built-in SMI 721 VGA controller with 8MB memory, and
supports resolutions of up to 1280x1024 65535 colors.
The HS -6301 provides a 50-pin 2.0mm pitch header connector, CN11 for
3.3V Flat Panel connection.
+12V 1 2 +12V
GND 3 4 GND
+3V PVcc 5 6 ENAVdd
FPVee 7 8 GND
P0 9 10 P1
P2 11 12 P3
P4 13 14 P5
P6 15 16 P7
P8 17 18 P9
P
P
P
P16 25 26 P17
P
P
P22 31 32 P23
P24 33 34 P25
SHFCLK 35 36 FLM
DE 37 38 LP
GND 39 40 ENABKL
P26 41 42 P27
P28 43 44 P29
P30 45 46 P31
P32 47 48 P33
P34 49 50 P35
19 20 P11
10
21 22 P13
12
23 24 P15
14
27 28 P19
18
29 30 P21
20
29
JP2：LCD Panel Vcore Select
PIN NO.
*1-2 3.3V
2-3 5V
JP3：LCD Inverter Voltage Support 12V
PIN NO.
1-2 +12V
CN14：Support 48bit TFT LCD
PIN NO.
1 FDATA36 2 FDATA37
3 FDATA38 4 FDATA39
5 FDATA40 6 FDATA41
7 FDATA42 8 FDATA43
9 FDATA44 10 FDATA45
11 FDATA46 12 FDATA47
CN16：Composite & S-Video Output
PIN NO.
1 CHROMA 2 GND
3 GND 4 LUMA
5 CVBS 6 GND
Description
Description
Description PIN NO.
Description PIN NO.
Description
Description
30
3.9 IR Connector
The HS -6301 has a 5-pin internal IR communication connector, CN9. The
CN9 features IrDA 1.0 compliance.
?? CN9 : 5-pin IR Connector
PIN NO.
Description
1 VCC
2 FIRRX
3 IRRX
4 GND
5 IRTX
3.10 Fast Ethernet Connector
The Fast Ethernet controller features 32bit performance, PCI Bus master
capability, and full compliance with IEEE 802.3 10/100 Based-T
specifications.
For 10/100 Base -T operation, connect the network connection by plugging
one end of the cable into the 9pin RJ45 CN22 connector.
?? CN22 : RJ45 Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TX+ 2 TX 3 RX+ 4 LAN C1
5 LAN C1 6 RX 7 LAN C2 8 LAN C2
?? JP9/JP8 : LAN1/LAN2 Enable/Disable Select
PIN NO. DESCRIPTION
*1-2 Enable
2-3 Disable
31
?? CN19/CN20 : LAN1/LAN2 10pin header
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 5VSB 2 LILED
3 RRX+ 4 RRX 5 ACTLED 6 LANC1
7 SPEDLED 8 LANC2
9 TTX+ 10 TTX -
32
3.11 Ultra III SCSI Interface Connector
The HS -6301 comes one 68-pin female D-Sub connector for 16 bits
Ultra III SCSI port.
Pin CN8 pin assignment Pin CN8 pin assignment
1 +SD12 35 -SD12
2 +SD13 36 -SD13
3 +SD14 37 -SD14
4 +SD15 38 -SD15
5 +SDP1 39 -SDP1
6 +SD0 40 -SD0
7 +SD1 41 -SD1
8 +SD2 42 -SD2
9 +SD3 43 -SD3
10 +SD4 44 -SD4
11 +SD5 45 -SD5
12 +SD6 46 -SD6
13 +SD7 47 -SD7
14 +SDP0 48 -SDP0
15 GROUND 49 GROUND
16 DIFFSEN 50 NC
17 TPW-EX 51 TPW-EX
18 TPW-EX 52 TPW-EX
19 NC. 53 NC.
20 GROUND 54 GROUND
21 +SATN 55 -SATN
22 GROUND 56 GROUND
23 +SBSY 57 -SBSY
24 +SACK 58 -SACK
25 +SRST 59 -SRST
26 +SMSG 60 -SMSG
27 +SSEL 61 -SSEL
28 +SCD 62 -SCD
29 +SREQ 63 -SREQ
30 +SIO 64 -SIO
31 +SD8 65 -SD8
32 +SD9 66 -SD9
33 +SD10 67 -SD10
33
34 +SD11 68 -SD11
??
??
??
?? JP4 : SCSI Enable/Disable Select
PIN NO. DESCRIPTION
*1-2 Enable
2-3 Disable
3.12 Hardware Monitor
The HS -6301 comes with the Hardware Monitor function. Users can view
information of voltages, fan speeds and temperatures through the BIOS.
3.13 PC/104 Bus Connection
The HS -6301’s PC/104 expansion supports all kinds of PC/104
modules. The PC/104 bus is now an industrial embedded 16bit PC
standard bus and supports thousands of PC/104 modules from
hundreds of vendors around the world. The detailed pin assignment of
the PC/104 expansion bus connectors CN12 and CN13 are specified
in the following table.
Note : The PC/104 connector allows direct plug-in Stack -thru
PC/104 modules without the PC/104 mounting kit.
34
Pin
Pin
Pin
?? CN12&CN13 : PC/104 Expansion Bus
(CN12 = 64-pin female connector; CN13 = 40-pin female connector.)
Pin
No.
CN12
Row A
No.
CN12
Row B
No.
CN13
Row D
No.
CN13
Row C
1 IOCHECK* 33 GND 1 0V 21 GND
2 SD7 34 RESETDRV 2 MEMCS16* 22 SBHE*
3 SD6 35 +5V 3 IOSC16* 23 LA23
4 SD5 36 IRQ9 4 IRQ10 24 LA22
5 SD4 37 -5V 5 IRQ11 25 LA21
6 SD3 38 DRQ2 6 IRQ12 26 LA20
7 SD2 39 -12V 7 IRQ15 27 LA19
8 SD1 40 ROW* 8 IRQ14 28 LA18
9 SD0 41 +12V 9 DACK0* 29 LA17
10 IOCHRDY 42 GND 10 DRQ0 30 MEMR*
11 AEN 43 SMEMW* 11 DACK5* 31 MEMW*
12 SA19 44 SMEMR* 12 DRQ5 32 SD8
13 SA18 45 IOW* 13 DACK6* 33 SD9
14 SA17 46 IOR* 14 DRQ6 34 SD10
15 SA16 47 DACK3* 15 DACK7* 35 SD11
16 SA15 48 DRQ3 16 DRQ7 36 SD12
17 SA14 49 DACK1* 17 +5V 37 SD13
18 SA13 50 DRQ1 18 MASTER* 38 SD14
19 SA12 51 REFRESH* 19 GND 39 SD15
20 SA11 52 SYSCLK 20 GND 40 N/C
21 SA10 53 IRQ7
22 SA9 54 IRQ6
23 SA8 55 IRQ5
24 SA7 56 IRQ4
25 SA6 57 IRQ3
26 SA5 58 DACK2*
27 SA4 59 TC
28 SA3 60 BALE
29 SA2 61 +5V
30 SA1 62 OSC
35
31 SA0 63 GND
32 GND 64 GND
36
Chapter-4
AWARD BIOS Setup
The HS -6301 uses the Award PCI/ISA BIOS for the system
configuration. The Award BIOS setup program is designed to provide
the maximum flexibility in configuring the system by offering various
options that could be selected for end-user requirements. This chapter
is written to assist you in the proper usage of these features.
To access the Award PCI/ISA BIOS setup program, press the <Del>
key at the startup and the main menu will be displayed.
37
4.1 Main Menu
F10 : Save & Exit
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press ＜Enter＞ to enter the sub-menu.
ROM PCI/ISA BIOS (2A69KD2A)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS
Esc : Quit
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
??? ? : Select Item
(Shift)F2 : Change Color
38
4.2 Standard CMOS Setup
The Standard Setup is used for the basic hardware system
configuration. The main function is for Data/Time and Floppy/Hard
Disk Drive settings. Please refer to the following screen for the setup.
When the IDE hard disk drive you are using is larger than 528MB,
please set the HDD mode to LBA mode. Please use the IDE Setup
Utility in BIOS Setup to install the HDD correctly.
ROM PCI/ISA BIOS (2A69KD2A)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Data (mm:dd:yy) : Web, Jan 3 2001
Time (hh:mm:ss) : 00:00:00
Primary Master ? AUTO 0M 0 0 0 0 0 AUTO
Primary Slave ? AUTO 0M 0 0 0 0 0 AUTO
Secondary Master ? AUTO 0M 0 0 0 0 0 AUTO
Secondary Slave ? AUTO 0M 0 0 0 0 0 AUTO
Drive A : 1.44M, 3.5in
Drive B : None
Video : EGA/VGA Extende
Halt On : All, But Keyboard
ESC : Quit
F1 : Help
TYPE Size CYLS HEAD PRECOMP LANDZ SECTOR MODE
Base Memory :
Memory : 1047552K
d
Other Memory :
Total Memory : 1048576K
??? ? : Select Item
(Shift) F2: Change Color
PU/PD/ + / - : Modify
640K
384K
39
4.3 BIOS Features Setup
This section allows you to configure your system for basic operations.
Items that can configured include the system’s default speed, boot up
sequence, keyboard operation, shadowing and security.
ROM PCI/ISA BIOS (2A69KD2A)
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning : Disabled Video BIOS Shadow : Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled
External Cache : Enabled CC000-CFFFF Shadow : Disabled
CPU L2 Cache ECC Checking : Enabled D0000-D3FFF Shadow : Disabled
Processor Number Feature : Enabled D4000-D7FFF Shadow : Disabled
Quick Power On Self Test : Disabled D8000-DBFFF Shadow : Disabled
DC000-DFFFF Shadow : Disabled
Boot Sequence : A, C, SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
MPS Version Control For OS : 1.1 ESC : Quit ??? ? : Select Item
OS Select For DRAM > 64MB : Non-OS2 F1 : Help PU/PD/+/-: Modify
Report No FDD For WIN95
Yes F5 : Old Values (Shift) F2 : Color
G6 : Load BIOS Defaults
G7 : Load Setup Defaults
40
4.4 Chipset Features Setup
This section allows you to configure the system based on specific
features of the installed chipset. This chipset manages bus speeds
and the access to the system memory resources, such as DRAM and
the external cache. It also coordinates the communications between
the conventional ISA and PCI buses. It must be stated that these
items should never be altered. The default settings have been chosen
because they provide the best operating conditions for your system.
You might consider and make any changes only if you discover that
the data has been lost while using your system.
ROM PCI/ISA BIOS (2A69KD2A)
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
Auto Configuration : Enabled Power-Supply Type : Auto
EDO DRAM Speed Selection : 60ns Auto Detect DIMM/PCI Clk : Enabled
EDO CASx# MA Wait State : 2 CPU Clock/Spread Spectrum : Default
EDO RASx# Wait State : 2 CPU Warning Temperature : Disabled
SDRAM RAS-to-CAS Delay : 3 Current CPU2 Temperature : °C / °F
SDRAM RAS Precharge Time : 3 Current CPU1 Temperature : °C / °F
SDRAM CAS latency Time : 3 Current CPUFAN2 Speed : RPM
SDRAM Precharge Control : Enabled Current CPUFAN1 Speed : RPM
DRAM Date Integrity Mode : Non-ECC Vcore1 : 1.74V Vcore2 : 1.61V
System BIOS Cacheable : Enabled +5V : 4.56V +12V : 11.85V
Video BIOS Cacheable : Enabled -12V : -12.44V
Video RAM Cacheable : Enabled Shutdown Temperature : Disabled
8 Bit I/O Recovery Time : 3
16 Bit I/O Recovery Time : 2
Memory Hole At 15M -16M : Disabled
Passive Release : Enabled ESC : Quit ??? ? : Select Item
Delayed Transation : Disabled F1 : Help PU/PD/+/-: Modify
AGP Aperture Size (MB) : 64 F5 : Old Values (Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
41
4.5 Integrated Peripherals
The IDE hard drive controllers support up to two separate hard drives.
These drives have a master/slave relationship determined by the
cabling configuration. Your system supports two IDE controllers --a
primary and a secondary— so you can install up to four separate hard
disks.
PIO means Programmed Input /Output. Rather than having the BIOS
issue a series of commands to affect the transfer to or from the disk
drive, PIO allows the BIOS to tell the controller what it wants and then
let the controller and the CPU perform the complete task by them.
This is much simpler and more efficient (also faster).
ROM PCI/ISA BIOS (2A69KD2A)
INTEGRATED PERIPHERALS
AWARD SOFTWARE, INC.
IDE HDD Block Mode : Enabled Onboard Serial Port 2 : 2F8/IRQ3
IDE Primary Master PIO : Auto UART Mode Select : Normal
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto Onboard Parallel Port : 378/IRQ7
IDE Secondary Slave PIO : Auto Parallel Port Mode : SPP
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto
IDE Secondary Master UDMA : Auto
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled
On-Chip Secondary PCI IDE : Enabled
USB Keyboard Support : Enabled
Init Display First : PCI Slot
Power On Function : BUTTOM Only
KBC input clock : 8 MHz F5 : Old Values (Shift) F2 : Color
On board FDC Controller : Enabled F6 : Load BIOS Defaults
Onboard Serial Port1 : 3F8/IRQ4 F7 : Load Setup Defaults
ESC : Quit ??? ? : Select Item
F1 : Help PU/PD/+/-: Modify
42
4.6 Power Management Setup
The Power Management Setup allows user to configure the system for
saving energy in a most effective way while operating in a manner
consistent with his own style of computer use.
ROM PCI/ISA BIOS (2A69KD2A)
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
ACPI function : Enabled ** Reload Global Timer Events **
Power Management : User Define IRQ3 [3-7, 9-15], NMI : Disabled
PM Control by APM : Yes Primary IDE0 : Disabled
Video Off Method : V/H Sync + Blank Primary IDE1 : Disabled
Video Off After : Standby Secondary IDE0 : Disabled
Modem Use IRQ : 3 Secondary IDE1 : Disabled
Doze Mode : Disabled Floppy Disk : Disabled
Standby Mode : Disabled Serial Port : Enabled
Suspend Mode : Disabled Parallel Port : Disabled
HDD Power Down : Disabled
Throttle Duty Cycle : 62.5%
PCI/VGA Act -Monitor : Disabled
Soft-Off by PWR-BTTN : Instant-Off
CPUFAN Off In Suspend : Disabled
Power On by Ring : Enabled ESC : Quit ??? ? : Select Item
Resume by Alarm
IRQ 8 Break Suspend : Enabled F5 : Old Values (Shift) F2 : Color
Disabled F1 : Help PU/PD/+/-: Modify
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
43
Chapter-5
Software Utilities
This chapter provides the detailed information of VGA and LAN function.
How to install the configuration is also included.
Section include:
? VGA DRIVER INSTALLATION
? LAN DRIVER INSTALLATION
? SCSI DRIVER INSTALLATION
44
5.1 VGA INSTALL FOR WIN98 & NT4.0
1. Please insert Driver CD to CD-ROM device.
2. Execute My computer.
3. Enter CD-ROM directory and select the OS under CD-ROM Driver,
like VGA\SMI\NT.
4. Run Set up.
5. Reboot.
45
46
47
5.2 LAN INSTALL FOR WIN98 & NT4.0
1. Click Start, then Setting, in the “Setting” select Control panel.
2. Start the network applet program.
3. In the Network window, click “Add”.
4. In the Select Network Component Type, select Adapter then click
“Add”.
5. When the Select Network Component Type, Select Adapter, then
click “Add”.
6. Specify the path the new driver and press <ENTER> key.(If in driver
a:, type a: \)
(If you’re not sure exactly where the drivers are, choose the “Browse”
button and find it)
Select Intel EtherExpress PRO/100+ Management Adapter
7. Click OK.
8. Windows 98 will copy the network drivers to the proper directories
on your system.
9. Continue choosing “OK”, util asked to restart your system.
10. After restart, checking on the network driver , the Properties of the
driver should look similar to the following figure.
48
49
50
5.3 SCSI INSTALL FOR WIN98 & WIN2000
1. Click Start, then Setting, in the “Setting” select Control panel.
2. Start the System applet program.
3. Select Device Manager page.
4. In the “Other Device“ double click left button, select PCI SCSI Bus
Controller, then click Properties.
5. In the PCI SCSI Bus Controller Window, select Driver page.
6. Click Update Driver.
7. In Update Driver Wizard select YES, then click NEXT.
8. Specify the path to the new driver and press <ENTER>
(If in driver a: , click Finish.)
(If you want to search for a different driver manually, click “Other
Location” and click “Browse”.)
9. Windows 98 will copy the SCSI drivers to the proper directories on
your system.
10.Continue choosing “OK”, util asked to restart your system.
11.After restart, checking on the SCSI driver, the properties of the
driver should look similar to the following figure.
51
52
53
54
55
56
57
58
5.4 SCSI INSTALL FOR NT4.0
1. Click Start, then Setting, in the “Setting” select Control panel.
2. Start the System applet program.
3. Select Device Manager page.
4. In the “Other Device“ double click left button, select PCI SCSI Bus
Controller, then click Properties.
5. In the PCI SCSI Bus Controller Window, select Driver page.
6. Click Update Driver.
7. In Update Driver Wizard select YES, then click NEXT.
8. Specify the path to the new driver and press <ENTER>
(If in driver a: , click Finish.)
(If you want to search for a different driver manually, click “Other
Location” and click “Browse”.)
9. Win NT4.0 will copy the SCSI drivers to the proper directories on
your system.
10.Continue choosing “OK”, util asked to restart your system.
11.After restart, checking on the SCSI driver, the properties of the
driver should look similar to the following figure.
59
60
61
62
63
64
Loading...
